Whole body vibration exercise training for fibromyalgia

Abstract

Background

Exercise training is commonly recommended for adults with fibromyalgia. We defined whole body vibration (WBV) exercise as use of a vertical or rotary oscillating platform as an exercise stimulus while the individual engages in sustained static positioning or dynamic movements. The individual stands on the platform, and oscillations result in vibrations transmitted to the subject through the legs. This review is one of a series of reviews that replaces the first review published in 2002.

Objectives

To evaluate benefits and harms of WBV exercise training in adults with fibromyalgia.

Search methods

We searched the Cochrane Library, MEDLINE, Embase, CINAHL, PEDro, Thesis and Dissertation Abstracts, AMED, WHO ICTRP, and ClinicalTrials.gov up to December 2016, unrestricted by language, to identify potentially relevant trials.

Selection criteria

We included randomized controlled trials (RCTs) in adults with the diagnosis of fibromyalgia based on published criteria including a WBV intervention versus control or another intervention. Major outcomes were health‐related quality of life (HRQL), pain intensity, stiffness, fatigue, physical function, withdrawals, and adverse events.

Data collection and analysis

Two review authors independently selected trials for inclusion, extracted data, performed risk of bias assessments, and assessed the quality of evidence for major outcomes using the GRADE approach. We used a 15% threshold for calculation of clinically relevant differences.

Main results

We included four studies involving 150 middle‐aged female participants from one country. Two studies had two treatment arms (71 participants) that compared WBV plus mixed exercise plus relaxation versus mixed exercise plus relaxation and placebo WBV versus control, and WBV plus mixed exercise versus mixed exercise and control; two studies had three treatment arms (79 participants) that compared WBV plus mixed exercise versus control and mixed relaxation placebo WBV. We judged the overall risk of bias as low for selection (random sequence generation), detection (objectively measured outcomes), attrition, and other biases; as unclear for selection bias (allocation concealment); and as high for performance, detection (self‐report outcomes), and selective reporting biases.

The WBV versus control comparison reported on three major outcomes assessed at 12 weeks post intervention based on the Fibromyalgia Impact Questionnaire (FIQ) (0 to 100 scale, lower score is better). Results for HRQL in the control group at end of treatment (59.13) showed a mean difference (MD) of ‐3.73 (95% confidence interval [CI] ‐10.81 to 3.35) for absolute HRQL, or improvement of 4% (11% better to 3% worse) and relative improvement of 6.7% (19.6% better to 6.1% worse). Results for withdrawals indicate that 14 per 100 and 10 per 100 in the intervention and control groups, respectively, withdrew from the intervention (RR 1.43, 95% CI 0.27 to 7.67; absolute change 4%, 95% CI 16% fewer to 24% more; relative change 43% more, 95% CI 73% fewer to 667% more). The only adverse event reported was acute pain in the legs, for which one participant dropped out of the program. We judged the quality of evidence for all outcomes as very low. This study did not measure pain intensity, fatigue, stiffness, or physical function. No outcomes in this comparison met the 15% threshold for clinical relevance.

The WBV plus mixed exercise (aerobic, strength, flexibility, and relaxation) versus control study (N = 21) evaluated symptoms at six weeks post intervention using the FIQ. Results for HRQL at end of treatment (59.64) showed an MD of ‐16.02 (95% CI ‐31.57 to ‐0.47) for absolute HRQL, with improvement of 16% (0.5% to 32%) and relative change in HRQL of 24% (0.7% to 47%). Data showed a pain intensity MD of ‐28.22 (95% CI ‐43.26 to ‐13.18) for an absolute difference of 28% (13% to 43%) and a relative change of 39% improvement (18% to 60%); as well as a fatigue MD of ‐33 (95% CI ‐49 to ‐16) for an absolute difference of 33% (16% to 49%) and relative difference of 47% (95% CI 23% to 60%); and a stiffness MD of ‐26.27 (95% CI ‐42.96 to ‐9.58) for an absolute difference of 26% (10% to 43%) and a relative difference of 36.5% (23% to 60%). All‐cause withdrawals occurred in 8 per 100 and 33 per 100 withdrawals in the intervention and control groups, respectively (two studies, N = 46; RR 0.25, 95% CI 0.06 to 1.12) for an absolute risk difference of 24% (3% to 51%). One participant exhibited a mild anxiety attack at the first session of WBV. No studies in this comparison reported on physical function. Several outcomes (based on the findings of one study) in this comparison met the 15% threshold for clinical relevance: HRQL, pain intensity, fatigue, and stiffness, which improved by 16%, 39%, 46%, and 36%, respectively. We found evidence of very low quality for all outcomes.

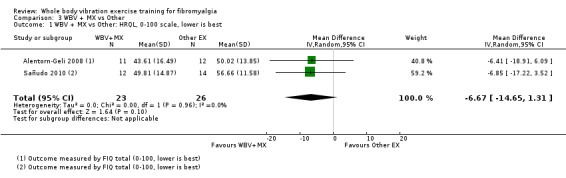

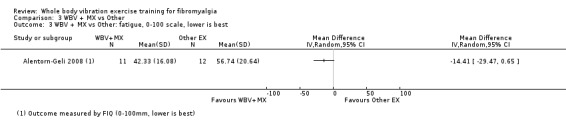

The WBV plus mixed exercise versus other exercise provided very low quality evidence for all outcomes. Investigators evaluated outcomes on a 0 to 100 scale (lower score is better) for pain intensity (one study, N = 23; MD ‐16.36, 95% CI ‐29.49 to ‐3.23), HRQL (two studies, N = 49; MD ‐6.67, 95% CI ‐14.65 to 1.31), fatigue (one study, N = 23; MD ‐14.41, 95% CI ‐29.47 to 0.65), stiffness (one study, N = 23; MD ‐12.72, 95% CI ‐26.90 to 1.46), and all‐cause withdrawal (three studies, N = 77; RR 0.72, 95% CI ‐0.17 to 3.11). Adverse events reported for the three studies included one anxiety attack at the first session of WBV and one dropout from the comparison group ("other exercise group") due to an injury that was not related to the program. No studies reported on physical function.

Authors' conclusions

Whether WBV or WBV in addition to mixed exercise is superior to control or another intervention for women with fibromyalgia remains uncertain. The quality of evidence is very low owing to imprecision (few study participants and wide confidence intervals) and issues related to risk of bias. These trials did not measure major outcomes such as pain intensity, stiffness, fatigue, and physical function. Overall, studies were few and were very small, which prevented meaningful estimates of harms and definitive conclusions about WBV safety.

Plain language summary

Whole body vibration training for adults with fibromyalgia

Review question

What are the effects of whole body vibration (WBV) training on health‐related quality of life (HRQL), pain intensity, fatigue (feeling tired), stiffness, physical function, study participant dropout, and adverse events among adults (18 years of age and older) with fibromyalgia?

Background

People with fibromyalgia have chronic widespread body pain, often with increased fatigue, stiffness, depression, and problems sleeping. Vibration training is a new type of exercise that might reduce fibromyalgia symptoms. Vibration training usually consists of a person standing on a vibrating platform with the ability to change body position on the platform to squatting or standing on one leg. The vibration tricks the body into thinking it is falling, forcing the muscles to contract and relax dozens of times each second. These contractions are responsible for most of the benefits attributed to vibration training, including improvements in circulation, muscle strength, balance, and flexibility.

Study characteristics

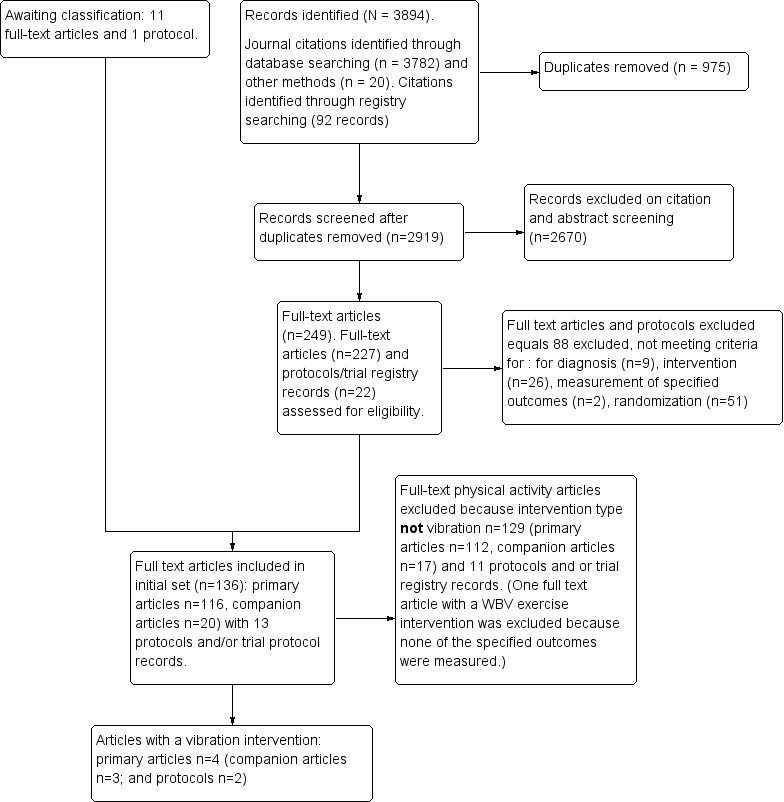

We searched until December 2016 and found four studies with a total of 150 middle‐aged female participants from the same country (Spain). One study (41 participants) compared WBV against control (standard care); two studies (79 participants) compared WBV plus other exercises (strengthening, flexibility, etc.) against other exercises alone or against control (WBV + MX vs MX); and another study (30 participants) compared WBV plus mixed exercise against mixed exercise alone.

Results

HRQL (0 to 100 Fibromyalgia Impact Questionnaire (FIQ) scale, 0 is best)

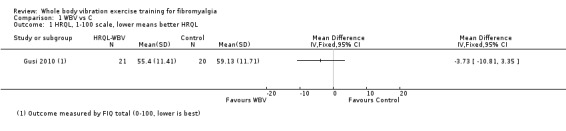

WBV vs control

Vibration training was 4% better than control (or 4 points, ranging from 11 improved to 3 worse).

• People who had training rated their quality of life at 55 points.

• People who had no training rated their quality of life at 59 points.

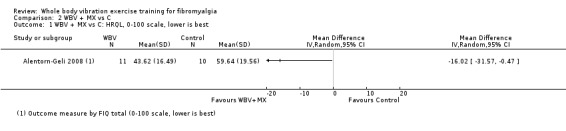

WBV + MX vs MX

Vibration training plus exercise was 16% better than control (or 16 points, ranging from 32 to 0.5).

• People who had training rated their quality of life at 43 points.

• People who had no training rated their quality of life at 59 points.

Pain intensity, fatigue, stiffness, and physical function were not measured for WBV vs control; physical function was not measured for WBV + MX vs MX.

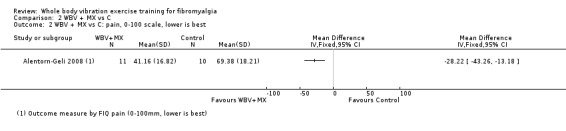

Pain

Vibration training plus exercise was 28% better than control (or 28 points, ranging from 13 to 43).

• People who had training rated their pain at 41 points.

• People who had no training rated their pain at 69 points.

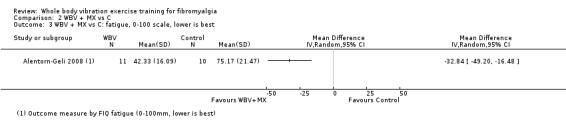

Fatigue

Vibration training plus exercise was 33% better than control (or 33 points, ranging from 16 to 49).

• People who had training rated their fatigue at 42 points.

• People who had no training rated their fatigue at 75 points.

Stiffness

Vibration training plus exercise was 26% better than control (or 26 points, ranging from 10 to 43).

• People who had training rated their fatigue at 42 points.

• People who had no training rated their fatigue at 69 points.

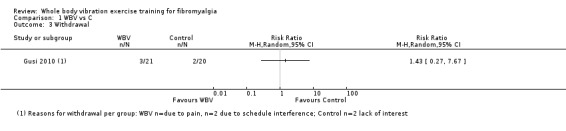

Dropouts from treatment (number)

Four more people dropped out of vibration training (4% more, 16% fewer to 24% more) for any reason than dropped out of the control group.

• 14 out of 100 people dropped out of vibration training.

• 10 out of 100 people dropped out of the control group.

A total of 8 per 100 people dropped out of the vibration plus exercise group for any reason compared with 33 per 100 from the control group (24% risk difference).

Adverse events (narrative)

WBV vs control

One person dropped out because of acute pain in the legs. We are uncertain whether vibration training combined with other exercise provides additional benefits over control or vibration training alone, as evidence was of very low quality because of study design flaws and small numbers of participants.

WBV + MX vs MX

Study authors stated that this program did not make symptoms worse and did not result in injury; one patient exhibited a mild anxiety attack at the first session.

Quality of the evidence

One study that reported on this comparison provided very low‐quality evidence because of study design flaws and small numbers of participants.

Summary of findings

Summary of findings for the main comparison. Whole body vibration versus control.

Whole body vibration versus control
Patient or population: individuals with fibromyalgia Setting: community Intervention: whole body vibration (WBV) Comparison: control
Outcomes	Anticipated absolute effects* (95% CI)		Relative effect (95% CI)	No. of participants (studies)	Quality of the evidence (GRADE)	Comments
	Risk with control	Risk with WBV
Health‐related quality of life assessed by FIQ total scale, 0 to 100, 0 is best Follow‐up: 12 weeks	Mean health‐related quality of life was 59 points	Mean health‐related quality of life in intervention group was 3.73 points lower (10.81 lower to 3.35 higher) at post‐test than in control group	‐	41 (1 RCT)	♁◯◯◯ VERY LOWa,b	Absolute improvement: 4% (95% CI 11% better to 3% worse) Relative change: 6.7% improvement (95% CI 19.6% improvement to 6.1% worse) NNTB: n/ac
Pain intensity	Not measured	Not measured	‐	Not measured	Not measured	Not measured
Fatigue	Not measured	Not measured	‐	Not measured	Not measured	Not measured
Stiffness	Not measured	Not measured	‐	Not measured	Not measured	Not measured
Physical function	Not measured	Not measured	‐	Not measured	Not measured	Not measured
Adverse events (narrative)	Gusi 2010: "The program was reasonably safe: only 5% of the participants (n = 1) dropped out of the program because of acute pain in the legs. The program was completed by 85% of the participants, without secondary adverse effects" (page 1076; 1 study)
All‐cause withdrawal assessed by number of people who dropped out	Study population		RR 1.43 (0.27 to 7.67)	41 (1 RCT)	♁◯◯◯ VERY LOWa,b	Absolute risk difference: 4% more events (95% CI 16% fewer to 24% more) Relative change: 43% more (73% fewer to 667% more) NNTH: n/ac
	10 per 100 (2 of 20)	14 per 100 (3 of 21)
*Risk in the intervention group (and its 95% confidence interval) is based on assumed risk in the comparison group and relative effect of the intervention (and its 95% CI) CI: confidence interval; NNTB: number needed to treat for an additional beneficial outcome; NNTH: number needed to treat for an additional harmful outcome; OR: odds ratio; RR: risk ratio
GRADE Working Group grades of evidence High quality: We are very confident that the true effect lies close to that of the estimate of the effect Moderate quality: We are moderately confident in the effect estimate: The true effect is likely to be close to the estimate of the effect, but there is a possibility that it is substantially different Low quality: Our confidence in the effect estimate is limited: The true effect may be substantially different from the estimate of the effect Very low quality: We have very little confidence in the effect estimate: The true effect is likely to be substantially different from the estimate of effect

^aImpresicion: number of participants lower than 400 rule of thumb; wide confidence interval (downgraded twice)

^bHigh risk of biases including detection, performance, and reporting biases

^cNumber needed to treat for an additional beneficial outcome (NNTB) or number needed to treat for an additional harmful outcome (NNTH) not applicable (n/a) when result is not statistically significant. NNT for dichotomous outcomes calculated with Cates NNT calculator (http://www.nntonline.net/visualrx/). NNT for continuous outcomes calculated with Wells calculator (CMSG Editorial Office)

Summary of findings 2. Whole body vibration plus mixed exercise versus control.

Whole body vibration plus mixed exercise versus control
Patient or population: individuals with fibromyalgia Setting: unspecified Intervention: WBV + MX Comparison: control
Outcomes	Anticipated absolute effects* (95% CI)		Relative effect (95% CI)	No. of participants (studies)	Quality of the evidence (GRADE)	Comments
	Risk with control	Risk with WBV + MX
Health‐related quality of life assessed by FIQ total scale, 0‐100, 0 is best	Mean health‐related quality of life was 59.64 points at the end of the study	Mean health‐related quality of life in the intervention group was 16.02 points lower (31.57 lower to 0.47 lower) at post‐test than in the control group	‐	21 (1 RCT)	♁◯◯◯ VERY LOWa,b	Absolute difference: 16% improvement (95% CI 32% to 0.5% improvement). Relative change: 24% (47% to 0.7%)c NNTBd: 3 (2 to 237)
Pain Intensity assessed by FIQ scale, 0 to 100 mm, 0 is no pain	Mean pain intensity was 69.38 mm in the control group at the end of the study	Mean pain Intensity in the intervention group was 28.22 mm lower (43.26 lower to 13.18 lower) at post‐test than in the control group	‐	21 (1 RCT)	♁◯◯◯ VERY LOWa,b	Absolute difference: 28% (95% CI 43% to 13%). Relative difference: 39% (95% CI 18% to 60%) NNTBd: 2 (1 to 4)
Fatigue assessed by FIQ scale, 0 to 100 mm, 0 is best	Mean fatigue was 75.17 mm at the end of the study	Mean fatigue in the intervention group was 32.84 mm lower (49.2 lower to 16.48 lower) at post‐test than in the control group	‐	21 (1 RCT)	♁◯◯◯ VERY LOWa,b	Absolute difference: 33% (95% CI 49% to 16%). Relative difference: 47% (95% CI 23% to 70%) NNTBd: 2 (1 to 4)
Stiffness assessed by FIQ scale, 0 to 100 mm scale, 0 is best	Mean stiffness was 68.71 mm at the end of the study	Mean stiffness in the intervention group was 26.27 mm lower (42.96 lower to 9.58 lower) at post‐test than in the control group	‐	21 (1 RCT)	♁◯◯◯ VERY LOWa,b	Absolute difference 26% (95% CI 43% to 10%). Relative difference: 36.5% (95% CI 60% to 23%) NNTBd: 2 (1 to 6)
Physical function	Not measured	Not measured	‐	Not measured	Not measured	Not measured
Adverse events (narrative)	Alentorn‐Geli 2008: "This program neither exacerbated FM‐related symptoms nor resulted in musculoskeletal injuries; however, 1 patient exhibited a mild anxiety attack on the first session of WBV" (page 978) Sañudo 2013: "This study, however, demonstrated that WBV training is safe (no adverse events)..." (page 683)
All‐cause withdrawal assessed by number of people who dropped out	33 per 100 (7 of 21)	8 per 100 (2 of 25)	RR 0.25, 95% CI 0.06 to 1.12	46 (2 RCTs)	♁◯◯◯ VERY LOWa,b	Absolute risk difference: 24% (95% CI 3 to 51) NNTHd: n/a
*Risk in the intervention group (and its 95% confidence interval) is based on assumed risk in the comparison group and relative effect of the intervention (and its 95% CI) CI: confidence interval; NNTB: number needed to treat for an additional beneficial outcome; NNTH: number needed to treat for an additional harmful outcome; OR: odds ratio; RR: risk ratio
GRADE Working Group grades of evidence High quality: We are very confident that the true effect lies close to that of the estimate of the effect Moderate quality: We are moderately confident in the effect estimate: The true effect is likely to be close to the estimate of the effect, but there is a possibility that it is substantially different Low quality: Our confidence in the effect estimate is limited: The true effect may be substantially different from the estimate of the effect Very low quality: We have very little confidence in the effect estimate: The true effect is likely to be substantially different from the estimate of effect

^aImprecision: Number of participants lower than 400 rule of thumb; wide confidence interval. Need for more studies with more participants to reach optimal information size (downgraded twice)

^bHigh risk of biases including reporting and selection biases. Need for methodologically better designed and executed studies

^cBaseline control group mean (SD) = 67 (15.81), n = 10

^dNumber needed to treat for an additional beneficial outcome (NNTB) or number needed to treat for an additional harmful outcome (NNTH) not applicable (n/a) when result is not statistically significant. NNT for dichotomous outcomes calculated with Cates NNT calculator (http://www.nntonline.net/visualrx/). NNT for continuous outcomes calculated with Wells calculator (CMSG Editorial Office)

Background

Description of the condition

Fibromyalgia is a chronic syndrome marked by widespread pain, fatigue, waking unrefreshed, and cognitive symptoms (Wolfe 2010; Wolfe 2011). Most people with fibromyalgia experience concurrent gastrointestinal (eg, abdominal pain, irritable bowel syndrome) and somatosensory symptoms (eg, muscle tenderness, hyperalgesia, allodynia, paraesthesias ‐ see Glossary ‐ Table 3), in addition to disturbances in sleep, mood, and cognition (Mease 2005). The myriad of symptoms significantly affects quality of life and results in both physical and psychosocial disabilities, with far reaching implications for family, employment, and independence (Mease 2005). Moreover, people with fibromyalgia are often intolerant of physical activity and tend to have a sedentary lifestyle, which increases risk of additional morbidity (Park 2007; Raftery 2009). As the result of extensive somatic complaints and disability, people with fibromyalgia typically make a greater number of physician visits each year and enlist more specialists in their care (Park 2007).

1. Glossary of terms.

Term	Definition
Allodynia	Pain resulting from a stimulus that would not normally provoke pain
Amplitude	Absolute value of maximum displacement from a zero value during 1 period of an oscillation
Damping	Energy dissipation properties of a material or system under cyclic stress
Endurance	Two forms of endurance that refer to health‐related physical fitness include cardiorespiratory endurance (also known as cardiovascular endurance, aerobic fitness, aerobic endurance, exercise tolerance), which "relates to the ability of the circulatory and respiratory systems to supply fuel during sustained physical activity and to eliminate waste products after supplying fuel," and muscle endurance, which "relates to the ability of muscle groups to exert external force for many repetitions" (Caspersen 1985)
Frequency	Number of cycles or completed alternations per unit time of a wave or oscillation
Hertz	One hertz is 1 cycle per second; therefore, when an individual is exposed to a vibration of 30 Hz, targeted muscles receive 30 cycles of vibration per second, which makes muscles contract and relax 30 times in the same period
Hyperalgesia	Increased pain from a stimulus that normally provokes pain
Natural frequency	Frequency at which a system oscillates when not subjected to continuous or repeated external forces
Paresthesia	Abnormal sensation that is spontaneous or is evoked by a stimulus (eg, numbness)
Phase angle	Particular stage or point of advancement in a cycle; fractional part of the period through which time has advanced, measured from some arbitrary origin often expressed as an angle (phase angle); the entire period being taken is 360°

Prevalence of fibromyalgia in the USA has been estimated at 2% of the population, with greater representation among females than males (3.4% female to 0.5% male; Wolfe 1995). Canadian statistics are similar to those of the USA; self‐reported prevalence of fibromyalgia in Canada has been estimated at 1.1% across all ages, again with female diagnoses outnumbering male diagnoses (1.8% female to 0.3% male; McNalley 2006). Prevalence rates among some European countries (France, Italy, Portugal, Spain) are estimated to range between 1.4% (France) and 3.7% (Italy), with fibromyalgia diagnoses twice as common among females (Branco 2010). The American College of Rheumatology (ACR) recently prepared new diagnostic criteria for fibromyalgia. Some of the published prevalence rates may change as study authors adopt the newer criteria. In Olmsted County, in Minnesota, age‐ and sex‐adjusted criteria led to estimation of 6.4% (Vincent 2013). In Germany, use of the new criteria resulted in a prevalence rate of 2.1%, with a higher rate among females (2.4%) than males (1.8%; Wolfe 2013). In Asia, Nakamura and colleagues found the prevalence rate in Japan to be 2.1% when using the new diagnostic criteria (Nakamura 2014); this is much higher than the prevalence rate of 0.05% in China, which is based on 1990 (older) criteria (Zeng 2008).

To date, no definitive cause or pathophysiology for fibromyalgia has been discerned. However, current evidence supports the model of central amplification of pain perception, which may be developed and maintained by a variety of factors that influence neurotransmitter and neurohormone dysregulation (Bennett 1999; Clauw 2011; Clauw 2014; Desmeules 2003).

Several recent Cochrane systematic reviews and a Cochrane overview on use of medications for treatment of fibromyalgia have produced tier‐2 evidence of moderate pain relief for pregabalin (an antiepileptic; Wiffen 2013; Appendix 1), amitriptyline (a tricyclic antidepressant; Moore 2012), milnacipran (a serotonin–norepinephrine reuptake inhibitor; Derry 2012), and monoamine oxidase inhibitors (one of the first antidepressants developed; Tort 2012). These reviews have helped to inform recent clinical practice guidelines. Systematic reviews of non‐pharmacological methods, including exercise (Bidonde 2014; Busch 2008; Busch 2013), cognitive‐behavioral therapy (Bernardy 2013), and acupuncture (Deare 2013), have presented low‐quality evidence showing positive effects for management of fibromyalgia. Ablin 2013 noted that "recent evidence‐based interdisciplinary guidelines concur on the importance of treatments tailored to the individual patient and further emphasize the necessity of self management strategies which include exercise and psychological techniques."

Description of the intervention

Vibration is a forced mechanical oscillation (ie, periodic alteration of force, acceleration, and displacement over time) whereby energy is transferred from an actuator (ie, the vibration device) to a resonator (ie, the human body, or parts of it; Rittweger 2010). Most vibration exercise devices generate oscillations that have a sinusoidal shape (ie, smooth repetitive oscillation) and are described by amplitude (A), frequency (f), and phase angle (Rittweger 2010). During vibration exercise, the body is accelerated through contact with the device platform, thus causing a reactive force by, and within, the body (Rittweger 2010). The main variables that determine the magnitude of response to whole body vibration (WBV) include:

• vibration direction (ie, vertical vs oscillatory);

• vibration amplitude (millimeters, or mm);

• vibration frequency (Hertz, or Hz);

• vibration acceleration (gravitational units, 1.0 g = 9.81 m/s²); and

• body position on the platform (also see List of Abbreviations, Table 4).

2. List of Abbreviations.

Abbreviation	Description
A	amplitude
ACR	American College of Rheumatology
ACSM	American College of Sports Medicine
AE	aerobic exercise
EMG	electromyography
f	frequency
FIQ	Fibromyalgia Impact Questionnaire
FX	flexibility
g	gravitational load (G‐force) = 1 cm/s2
HR	heart rate
HRQL	health‐related quality of life
hz	Hertz
ITT	intention‐to‐treat
kg	kilogram
m/s2	unit of acceleration: 1 Gal = 0.01 m/s2
MCID	minimal clinically important difference
MD	mean difference
MX	mixed intervention (includes more than 1 mode of physical activity)
n	number of studies
N	number of individuals
RD	risk difference
Relax	relaxation
RT	resistance training
s	seconds
SD	standard deviation
SE	standard error
SMD	standardized mean difference
sTNFR1 and sTNFR2	soluble tumor necrosis factor receptor 1 and 2
VAS	visual analogue scale
WBV	whole body vibration
wk	week(s)
WU	warm‐up

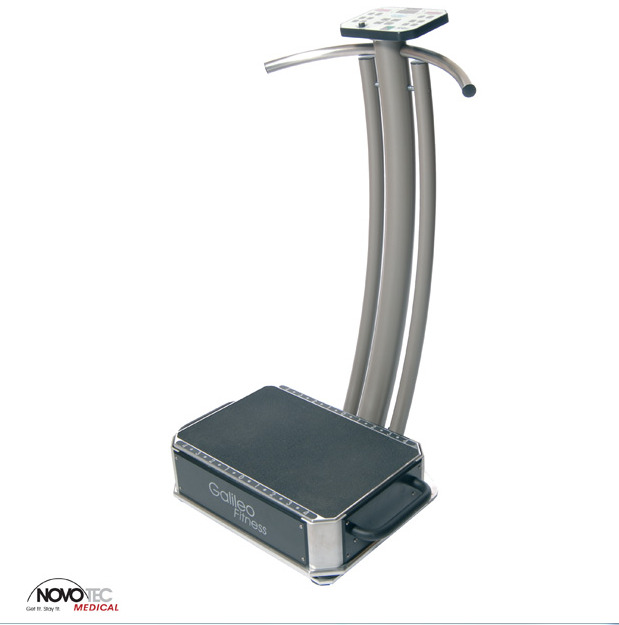

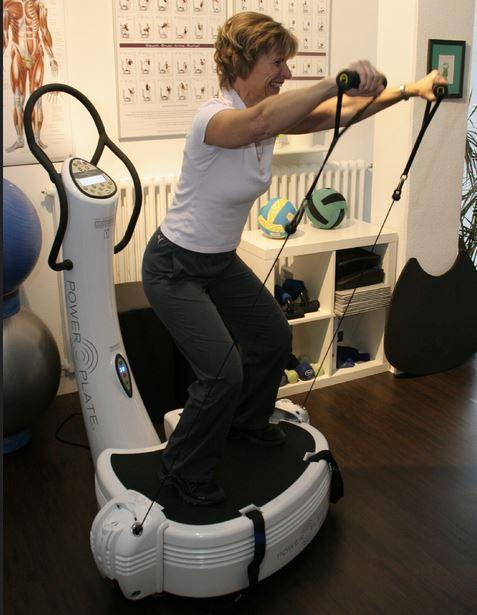

Vibration exercise is most often practiced as WBV; vibration is applied to a person while he/she stands, generally in a static position, on an oscillating platform or platforms. Among the various platforms, two different types of energy transfer can be distinguished. The first type ‐ synchronous WBV ‐ transfers vibration to both feet synchronously, and the second type operates in a side‐alternating way, so that the right foot is lower when the left foot is higher (and vice versa). It has been argued that side‐alternating vibration evokes rotational movements around the hip and lumbosacral joints (Rittweger 2002). This movement introduces an additional degree of freedom; therefore, whole body mechanical impedance is less in side‐alternating than in synchronous WBV (Abercromby 2007).

WBV platforms have no firm stationary attachment, and when they are used, the only downward force acting on the body is gravity (Yue 2002). Because the structure of the human body is not rigid, muscles and tendons act as spring‐like elements that store and release mechanical energy. In this spring‐mass system, compression occurs during the vibration upstroke, and expansion during the downstroke. As a consequence, less displacement occurs at the body’s center of mass than at the platform level (Cardinale 2005).

When the frequency of the vibration platform matches the frequency of the human body, mechanical energy can accumulate within the body, including its mass and elastic components. This accumulation of energy can result in a situation wherein the vibration amplitude is greater in the resonator (eg, human body) than in the actuator (eg, vibration platform). This amplitude augmentation causes increased internal forces within the resonator (Cheung 2007; Furness 2009).

During WBV, vibrations are transmitted in rapid succession from one segment of the human body to the next (eg, from the foot to the calf, from the calf to the thigh). The quantity of vibration energy transmitted depends on musculoskeletal stiffness and damping of the vibration. Effective axial body stiffness is increased by straightened limbs (Greene 1979; Lafortune 1996) and leads to an increase in resonance frequency. Appropriate posture can help to minimize resonance. Standing on the forefoot will involve ankle joint actuators (ie, the calf muscles) in the damping process, which is not the case when stance is on the mid‐foot. Putting weight on the forefoot can help to avoid resonance and increase damping by the musculature, thus reducing vibration transmission to the trunk.

How the intervention might work

This section briefly reviews the physiological and mechanical effects of vibration exercise on healthy individuals. It is anticipated that individuals with fibromyalgia will experience similar effects, and that these effects may mediate benefits or harms.

Physiological and mechanical effects of vibration exercise on the human body in healthy individuals

Muscle activity and power

During WBV, muscles and tendons will be exposed to a period of elongation (stretch phase), followed by a period of shortening (shortening phase; Abercromby 2007). WBV is characterized by cyclic transitions between eccentric and concentric muscle contractions. A few studies have demonstrated the immediate effects of WBV upon electromyography (EMG) activity. Seated vibration, with frequencies between 0.3 Hz and 5 Hz (peak acceleration levels between 1.2 g and 2.0 g [12 m/s² and 20 m/s²]), has been shown to produce vibration‐synchronous EMG activity in the erector spinae muscle (Abercromby 2007; Cardinale 2003; Cochrane 2009; Seidel 1988). For vibration frequencies usually applied for exercise purposes, effects on vastus lateralis EMG amplitude are larger at 30 Hz than at 40 Hz or 50 Hz (Cardinale 2003). EMG responses generally seem to be more pronounced in side‐alternating than in synchronous WBV.

It can be expected that the vibration‐related increase in muscle activity (and thus muscular energy metabolism) results in the generation of additional heat. Cochrane 2008 reported intramuscular temperature increases during WBV. During WBV, skin blood flow, as measured by laser‐Doppler flowmetry, is increased (Lohman 2007; Maloney‐Hinds 2008; Rittweger 2000). A 100% increase in popliteal blood flow, along with an increase in gastrocnemius and vastus lateralis muscle blood flow, has been found after termination of WBV (f = 26 Hz, A = 3 mm, side‐alternating; Kerschan‐Schindl 2001). Reduced pulse wave velocity and thus reduced arterial stiffness, suggestive of arterial vasodilation in the vibrated musculature, have been reported (Otsuki 2008).

Bosco and colleagues were the first to study acute effects of WBV as an exercise modality on muscular power (Bosco 1999). After ten 60‐second sessions of WBV (frequency = 26 Hz, amplitude = 5 mm, single leg stance), trial authors found an increase in leg press power of 6% to 8% in young elite volleyball players. Similar effects have been reported for jump height in elite hockey players (Cochrane 2005). The literature states that muscular power output can be acutely increased by WBV, but force generation capacity seems to be depressed. The observed power enhancement is probably due to the warming‐up effect (Cochrane 2008), as it is well known that muscle temperature has a strong effect on muscular power but only a very small effect on force generation (de Ruiter 2000).

Posture and stance

The effect of vibration on posture is closely related to the anatomic location of the application (Kavounoudias 1998). Vibratory foot stimulation causes a shift in posture toward the front when applied under the heel, and to the rear when applied under the forefoot (Kavounoudias 1999). The latter effect increases linearly with the frequency of vibration, and vibratory effects from the forefoot and from the heel seem to antagonize each other (Kavounoudias 1999). In a similar way, vibratory stimulation of the tibialis anterior and gastrocnemius muscles seems to have antagonistic effects upon posture (Polonyova 2001). Unilateral application of muscle vibration can also cause sway in the frontal plane (Polonyova 2001). When foot sole vibration and tendon stimulation are compared, an integrated postural response seems to occur (Kavounoudias 2001), the outcome of which is determined by site of application and vibration frequency.

Joint stability

Effects of WBV on joint stability remain unclear. It is presumed, however, that WBV improves the effectiveness of the stretch reflex. Two studies on healthy individuals reported contrasting results. Those from Melnyk 2008 verified that the change in reflex levels caused by vibration helped to improve joint stability and enhanced short latency responses to anterior cruciate ligament stretch. This effect may be due to enhanced efficacy of the monosynaptic pathway, which may result in improved knee stability and reduced anterior tibial displacement upon shock provocation. Hopkins 2008 found no effect of WBV on ankle stability.

Effects of vibration exercise on individuals with chronic pain

Low‐quality evidence emanating from several small randomized controlled trials (RCTs) suggests that WBV exercise reduces pain in various clinical populations. Conditions that have been studied include osteoarthritis (Simao 2012), low back pain in the elderly with osteoporosis (Iwamoto 2005), chronic idiopathic low back pain (del Pozo‐Cruz 2011; Rittweger 2002), and painful diabetic peripheral neuropathy (Kessler 2013).

Several mechanisms of effect have been proposed. The gate control theory suggests that activation of mechanoreceptors and A‐β fibers competes with peripheral and central nociceptive activity at the dorsal horn of the spinal cord, resulting in reduction of second‐order nociceptive activity, with subsequent decreased pain perception (Melzack 1965). WBV exercise could lead to reduced pain through presynaptic inhibition of both nociceptive and motor neurons (Kessler 2013). WBV is also known to diminish excitation of central motor neurons while reducing the Hoffman reflex in healthy adults (Kipp 2011). Other possible explanations include decreased inflammation with repeated WBV, suggested by reduction in biomarkers of inflammation such as cortisol (Cardinale 2010; Elmantaser 2012) and lower levels of soluble tumor necrosis factor receptors sTNFR1 and sTNFR2 (Simao 2012). Gay 2007 proposed that sustained pain relief from vibration therapy may be the result of central mechanisms such as enhanced endogenous inhibition of nociception or cortical reorganization that occurs during rehabilitation.

Does vibration differ from effects of aerobic and strength exercise?

Aerobic exercise (AE) training primarily affects the circulatory system and the respiratory system. After AE training, the heart pumps out more blood per beat, and more capillaries are available to transfer this blood to the working muscles and to the lungs. In addition, the lungs become more efficient in moving air in and out, and in transferring oxygen into the blood and removing carbon dioxide. As a result of these improvements in heart and lung function, people have an increased total work capacity and can perform more work at a given submaximal level (ACSM 2013 9th Guidelines). Currently, little is known about effects of vibration exercise on the cardiovascular system, but it is unlikely that vibration exercise produces the same improvements in heart rate or lung function that are achieved by AE training.

Resistance training (RT) can take several forms, producing more strength, more power, or more endurance in the muscles. Effects of strength training are evident in the muscles and in their neuromuscular effectors (ACSM 2013 9th Guidelines). We know that WBV produces a series of isometric contractions in the thigh muscles. These have been linked to an increase in muscle power produced after WBV, perhaps similar to what we see in strength training. However, studies on the overall effects of WBV are novel in exercise research. Some studies have used WBV in people with fibromyalgia (Chulvi‐Medrano 2013), but results show inconsistencies between study types and outcome measures.

Why it is important to do this review

WBV is a novel exercise intervention that has been reported to improve bone density and balance while exerting a greater strengthening effect among healthy adults and elderly individuals than is seen with traditional modes of exercise (Fort 2012; Iwamoto 2004; Sitja‐Rabert 2012; Torvinen 2002). WBV has been reported to reduce pain and disability among adults with chronic low back pain (del Pozo‐Cruz 2011; Iwamoto 2005). Although benefits have been documented, small sample sizes and other limitations in study design have led to difficulty in interpreting research findings. Researchers have observed a variety of adverse effects including inner ear problems, dizziness, headache, and fracture among those with severe osteoporosis (Kosar 2012). To date, a few RCTs (Alentorn‐Geli 2008; del Pozo‐Cruz 2011; Olivares 2011; Sañudo 2012) and one relevant topical review of vibration exercise (Chulvi‐Medrano 2013) have focused on WBV as an exercise intervention for people with fibromyalgia, but no Cochrane systematic reviews have assessed this research. A systematic review is needed to evaluate research on effects of WBV alone or WBV combined with traditional aerobic and resistance exercises versus traditional exercise or control for symptom management, balance, and health‐related quality of life (HRQL) in people with fibromyalgia.

Objectives

To evaluate benefits and harms of WBV exercise training in adults with fibromyalgia.

Methods

Criteria for considering studies for this review

Types of studies

We included trials described as randomized, even if methods used to generate the random sequence were unclear or unreported, or if the method of allocating participants was likely to be quasi‐random (ie, by alternation, date of birth, or similar pseudo‐randomized method).

Types of participants

We included in the review studies that examined adults with fibromyalgia. We selected studies that used published criteria for diagnosis (or classification) of fibromyalgia. Until recently, the American College of Rheumatology (ACR) 1990 criteria served as the standard for classifying individuals as having fibromyalgia (Wolfe 1990) when they have experienced widespread pain lasting longer than three months, and when pain can be elicited at 11 of 18 specific tender points on the body with 4 kg tactile pressure.

A newer preliminary diagnostic tool ‐ ACR 2010 (Wolfe 2010) ‐ does not rely upon a physical tender point examination and is available as both a clinician‐administered tool and a survey questionnaire (Wolfe 2011). This measure includes a Widespread Pain Index (19 areas representing anterior and posterior axes and limbs) in addition to a Symptom Severity Scale containing items related to secondary symptoms such as fatigue, sleep disturbance, cognition, and somatic complaints. Scores on both measures are used to determine whether a person qualifies as meeting a "case definition" of fibromyalgia. This tool has been used to classify 88.1% of cases that meet ACR 1990 criteria, and it allows ongoing monitoring of symptom change in people with a current or previous diagnosis of fibromyalgia (Wolfe 2010). Although measures focusing on tender point counts have been widely applied in clinic and research settings, methods described by Wolfe 2010 and Wolfe 2011 promise to classify people with fibromyalgia more efficiently while allowing improved monitoring of disease status over time.

Although differences among published fibromyalgia diagnostic/classification criteria are known, for the purposes of this review, we considered all published criteria to be acceptable and comparable.

Types of interventions

We examined trials that studied WBV exercise interventions (ie, moving or holding a standing position while on an oscillating platform) regardless of the frequency, duration, or intensity of exercise sessions. We have provided an example of a WBV exercise intervention in Appendix 2. We categorized interventions by duration of the program (ie, "short" < seven weeks; "intermediate" seven to 12 weeks, "long" > 12 weeks) and by frequency of training per week (ie, once per week, twice per week, and three or more times per week).

Comparator interventions included control (eg, placebo or sham intervention, usual care, wait list control) and other active interventions including physical therapies or non‐exercise interventions (eg, education, self‐management interventions, relaxation, medication).

Types of outcome measures

We designated seven outcomes as major outcomes: HRQL, physical function, pain intensity, fatigue, stiffness, number of participants who withdrew or dropped out, and number of adverse events; and three as minor outcomes: muscle strength, balance, and number of participants with greater than 30% improvement in pain. In selecting these outcome measures, we considered the consensus statement of Choy and associates (Choy 2009) regarding a core set of outcome measures for clinical trials in fibromyalgia and anticipated effects of WBV exercise on physical fitness.

We extracted data for selected outcomes (HRQL, physical function, pain intensity, fatigue, stiffness, muscle strength, and balance) at baseline (pretest), immediately at cessation of treatment (post‐treatment), and at any follow‐up assessment. We required that each included study report measurements for one or more outcomes in such a way that we could evaluate post‐test differences between groups (post‐test or pretest scores with change scores at post‐test). We extracted the number of participants who experienced adverse events, the number with greater than 30% improvement in pain, and the number who withdrew from the study during the intervention phase.

Major outcomes

When an included study used more than one instrument to measure a particular outcome, we applied the following preferred hierarchy in choosing outcomes for analysis.

• HRQL ‐ This outcome consists of multidimensional indices used to measure general health status or HRQL, or both (Choy 2009). When included studies used more than one instrument to measure HRQL, we preferentially extracted data from the Fibromyalgia Impact Questionnaire (FIQ total), followed by the 36‐Item Short Form Health Survey (SF‐36), the 12‐Item Short Form Health Survey (SF‐12), and the EuroQol Quality of Life Questionnaire (EQ‐5D).

• Pain ‐ The International Association for the Study of Pain defines pain as "an unpleasant sensory and emotional experience associated with actual or potential tissue damage, or described in terms of such damage" (Merskey 1994). For the purposes of this review, we focused on one aspect of the pain experience – pain intensity. When a single study reported more than one measure of pain, we preferentially extracted measures of average pain intensity (as opposed to worst, least, or current pain) assessed by a pain intensity visual analogue scale (VAS) score, the FIQ Pain Scale (English or translated), and the McGill Pain VAS, followed by the Numerical Pain Rating Scale. For studies that did not report unidimensional measures of pain intensity, we extracted composite measures that included pain intensity and interference (SF‐36 Bodily Pain Scale), or pain intensity and suffering from pain (Mulitdimensional Pain Inventory ‐ Pain Severity Scale).

• Fatigue ‐ Individuals with fibromyalgia and clinicians alike recognize fatigue as an important symptom in fibromyalgia. Fatigue can be measured in a global manner, as when an individual rates fatigue on a single item scale, or by using a multidimensional tool that breaks the experience of fatigue down into two or more dimensions, such as general fatigue, physical fatigue, mental fatigue, reduced motivation, reduced activity, and degree of interference with activities of daily living (Boomershine 2012). We accepted both unidimensional and multidimensional measures for this outcome. When included studies used more than one instrument to measure fatigue, we preferentially extracted the fatigue VAS (FIQ ‐ English or translated, or single‐item fatigue VAS) score, followed by scores on the SF‐36 Vitality Subscale, the Chalder Fatigue Scale (total), the Fatigue Severity Scale, and the Multidimensional Fatigue Inventory.

• Stiffness ‐ In focus groups conducted by Arnold 2008, individuals with fibromyalgia "... remarked that their muscles were constantly tense. Participants alternately described feeling as if their muscles were 'lead jelly' or 'lead Jell‐O,' and this resulted in a general inability to move with ease and a feeling of stiffness." A commonly used measure of stiffness encountered in this literature is the FIQ Stiffness subscale.

• Physical function ‐ This outcome focuses on the basic actions and complex activities considered "essential for maintaining independence, and those considered discretionary that are not required for independent living, but may have an impact on quality of life" (Painter 1999). Given that cardiorespiratory fitness; neuromuscular attributes such as muscular strength, endurance, and power; and muscle and joint flexibility are important determinants of physical function, this outcome is highly relevant as an outcome of exercise interventions. When more than one measure of physical function was available within a study, we preferentially extracted data from the FIQ (English or translated) Physical Impairment Subscale, followed by the Health Assessment Questionnaire Disability Scale (HAQ), the SF‐36 Physical Function Scale, the Sickness Impact Profile – Physical Disability, and the Multidimensional Pain Inventory Household Chores Scale.

• Adverse events ‐ This outcome refers to the proportion of participants who experienced an adverse event (injury, exacerbation of pain, and/or other fibromyalgia symptoms). We described the nature of the adverse events in a narrative report.

• All‐cause withdrawals ‐ This outcome refers to the proportion of participants who withdrew from or dropped out of the study.

Minor outcomes

Among the three outcomes designated as minor outcomes, we included two fitness variables that have the potential to improve with WBV. The following preference listing guided our extraction and reporting when studies provided more than one measure for minor outcomes.

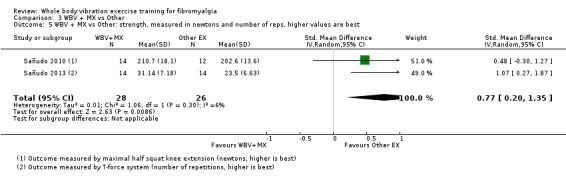

• Muscle strength ‐ Muscle strength is the measure of a muscle's ability to generate force. It is commonly expressed as maximal voluntary contraction (MVC) during isometric testing; one‐repetition maximum (1RM) during dynamic isotonic testing (Howley 2001); and/or peak torque muscle contraction during isokinetic testing. When more than one measure of strength was reported, we preferentially extracted dynamic test results over isometric test results, lower limb over upper limb tests, and extensor muscle strength over flexor muscle strength.

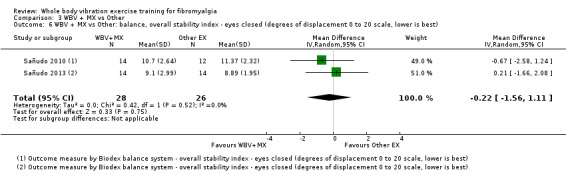

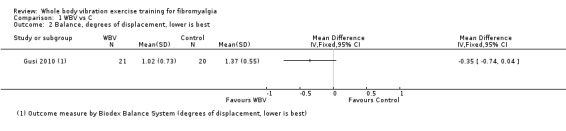

• Balance ‐ Balance is "the ability to align body against gravity to maintain or move the body (center of mass) within the available base of support without falling; the ability to move the body in equilibrium with gravity via interaction of the sensory and motor system" (Kisner 2007). Balance is "complex, with contributions from sensory, central nervous, and neuromuscular systems" (Arnold 2011). Balance can be measured by clinical examination through measures such as the Berg Balance Scale (Berg 1992), which consists of a series of daily tasks that progressively challenge balance, or by more objective measures such as stabilimetry (Nordahl 2000; Demir‐Gocmen 2013). Postural sway is measured through a device that records movement of the center of pressure as registered by a force plate while the individual attempts to stand still on two legs (Thomas 2001). Patients' eyes can remain open, for a lower level of challenge, or closed, for a higher level of challenge. Sway is reported in degrees of displacement, with higher degrees indicating greater sway and worse postural control. Preferentially, we extracted data on postural sway.

• Improvement in pain greater than 30% ‐ A 30% reduction in pain is considered a benchmark for a moderately important change in pain intensity and is promoted as a method for assessing and interpreting change in pain in clinical trials (IMMPACT ‐ Initiative on Methods, Measurement, and Pain Assessment in Clinical Trials) (Dworkin 2008). When available, we extracted data on proportions of participants who met this criterion for intervention efficacy.

Search methods for identification of studies

In this review, a comprehensive search included nine databases to find trials that addressed physical activity interventions in adults and fibromyalgia, and three to find trials that addressed health technology assessments. We screened citations found during electronic and manual searches and classified them by type of exercise training. We included in this review the subset of studies that included a WBV intervention.

Electronic searches

We searched the following databases from database inception using current methods as outlined in Chapter 6 of the Cochrane Handbook for Systematic Reviews of Interventions (Lefebvre 2011). We applied no language restrictions. We have provided in the appendices full search strategies for each database as indicated in the list.

• MEDLINE (OVID) 1946 to December 2016 (Appendix 3).

• Embase (OVID), Embase Classic+Embase 1947 to December 2016 (Appendix 4).

• Cochrane Library (Wiley) to December 2016 (http://www.thecochranelibrary.com/view/0/index.html) (Appendix 5).

  • Cochrane Database of Systematic Reviews (Cochrane Reviews).

  • Database of Abstracts of Reviews of Effects (DARE).

  • Cochrane Central Register of Controlled Trials (CENTRAL).

  • Health Technology Assessment Database (HTA).

  • NHS Economic Evaluation Database (EED).

• Cumulative Index to Nursing and Allied Health Literature (CINAHL) (EBSCO) 1982 to December 2016 (Appendix 6).

• Physiotherapy Evidence Database (PEDro) (www.pedro.org.au/) to December 2016 (Appendix 7).

• Dissertation Abstracts (ProQuest) to December 2016 (Appendix 8).

• Current Controlled Trials, accessed to December , 2013 (Appendix 9).

• Clinicaltrials.gov, accessed from June 2014 to December 2016 (Appendix 9).

• World Health Organization (WHO) International Clinical Trials Registry Platform (www.who.int/ictrp/) to December 2016 (Appendix 10).

• Allied and Complementary Medicine (AMED) (OVID) 1985 to December 2016 (Appendix 11).

Additionally, we searched three sources of health technology assessments from inception to December 2016 to capture technology assessments of vibration trainers for fibromyalgia.

• Centre for Reviews and Dissemination (http://www.crd.york.ac.uk/CRDWeb/) to December 2016 (Appendix 12).

• Agency for Healthcare Research and Quality, Technology Assessments (http://www.ahrq.gov/research/findings/evidence‐based‐reports/index.html), to December 2016 (Appendix 13).

• Canadian Agency for Drugs and Technologies in Health (CADTH) Canadian Search Interface HTA database (https://www.cadth.ca/) to December 2016 (Appendix 14).

Searching other resources

Two review authors independently reviewed reference lists from key journals, identified articles, and reviews of all types of treatment for fibromyalgia; we scrutinized all promising or potential references and added appropriate titles to the search output.

Data collection and analysis

Review authors

Review authors are members of the Cochrane Exercise for Fibromyalgia Team (see Acknowledgments). Authors of this review included a kinesiologist, physical therapists, and an information specialist. Review authors were trained in data extraction via a standardized orientation program, and worked independently and in pairs to extract data. The review team met monthly to discuss progress, to clarify procedures, to make decisions regarding inclusion or exclusion and classification of outcome variables, and to work collaboratively in production of this review.

Selection of studies

Two review authors independently examined the titles and abstracts of studies generated by searches based on a set of criteria (see Appendix 15). We retrieved full‐text publications for all potentially relevant abstracts and translated all non‐English reports. Two review authors independently examined full‐text reports and translations to determine whether studies met the selection criteria (see Appendix 15). Review authors resolved disagreements and questions regarding interpretation of inclusion criteria in discussion with partners, unless the pair agreed to take the issue to the team.

For searches conducted before 2015, we used electronic forms developed and refined for our previous reviews to facilitate independent screening and consensus (Busch 2008). For the final update to the literature search conducted in June 2015, we conducted screening by using Covidence online software, which was recently developed for creating and maintaining systematic reviews (https://www.covidence.org/).

Data extraction and management

Pairs of review authors independently extracted data. We used electronic data extraction forms developed and refined during our previous reviews to facilitate independent data extraction and consensus (Busch 2008). We resolved disagreements by reaching consensus or by involving a third person (AJB). One review author (JB) transferred data into the Review Manager file (RevMan 2014). We double‐checked that data were entered correctly by comparing data presented in the systematic review versus those provided in study reports. We noted in the Characteristics of included studies table if outcome data were not reported in a usable way, instances when data were obtained directly from study authors, and times when data were transformed or estimated from a graph.

If both unadjusted and adjusted values were reported for the same outcome, we extracted the adjusted values. If data were analyzed on an intention‐to‐treat (ITT) sample and another sample (eg, per‐protocol, as‐treated), we extracted ITT data.

We extracted the following data from the included studies.

• Methods: study design, total duration of study, details of any "run‐in" period, number of study centers and locations, study setting, withdrawals, dates of study.

• Participants: number of participants, mean age, age range, gender, disease duration, diagnostic criteria, inclusion criteria, exclusion criteria.

• Interventions, comparisons, concomitant treatments:

  • for interventions with a non‐vibration exercise component: mode of exercise or physical activity, frequency, time, duration, intensity, progression model;

  • for interventions with a vibration exercise component: name of the vibration device, characteristics of the vibration, stance or position of the participant, whether any stabilizing support was used during the exercise; and

  • for other interventions: mode, frequency, duration.

• Major outcomes: means and standard deviations for tests at baseline, post‐test intervention, and follow‐up for continuous outcomes (HRQL, physical function, pain, fatigue, and stiffness). If post‐test data were not available, we extracted means and standard deviations of change scores. We extracted the number of participants per group reporting adverse events and the number of participants who withdrew.

• Minor outcomes: means and standard deviations for tests at baseline, post‐test intervention, and follow‐up for muscle strength and balance, as well as the number of participants who experienced at least 30% improvement in pain intensity.

• Characteristics of trial design as outlined below in the Assessment of risk of bias in included studies section.

• Congruence of exercise protocol with American College of Sports Medicine (ACSM) guidelines (Garber 2011 ‐ Appendix 16).

• Notes: country, language, trial author contact or not, protocol identifier, funding for trial, notable declarations of interest for trial authors.

Assessment of risk of bias in included studies

To assess bias, we followed procedures recommended in the Cochrane Handbook for Systematic Reviews of Interventions. Two review authors independently evaluated risk of bias for each included study by using a customized form based on the Cochrane "Risk of bias" tool (Higgins 2011a). This tool addresses six specific domains: sequence generation, allocation concealment, blinding, incomplete outcome data, selective outcome reporting, and other sources of bias. For other sources of bias, we considered items such as baseline inequities despite randomization, or within‐study inequities involving duration of interventions. We rated each criterion as having low, high, or unclear risk of bias. We assigned the criterion "unclear risk" when absence or ambiguity of information blocked assessors' ability to determine the potential for bias. In such cases, we revised assessments if trial authors responded to our requests for more information. We resolved disagreements between review author pairs on classifying risk of bias through discussion at consensus meetings. If we could not reach agreement, we referred the issue to the review team for a decision.

Measures of treatment effect

For continuous data, we used group post‐test means and standard deviations (SDs) and RevMan 2014 software to calculate effect sizes. We expressed effect sizes preferentially in the form of mean differences (MDs) and 95% confidence intervals (CIs), but when different scales were used to measure the same outcome, we calculated standardized mean differences (SMDs) instead, with corresponding 95% CIs. We analyzed dichotomous data as risk differences and 95% CIs. We used RevMan 2014 software to generate forest plots to display measurement results.

In the comments column of the "Summary of findings" table, we provided the absolute percentage difference, the relative percentage change from baseline, and the number needed to treat for an additional beneficial outcome (NNTB). We provided the NNTB only when the outcome showed a statistically significant difference.

For dichotomous outcomes, such as withdrawals, we calculated the NNTB from the control group event rate, and relative risk using the Visual Rx NNT calculator (Cates 2008). We calculated the NNTB for continuous measures using the Wells calculator (available at the CMSG Editorial Office).

For dichotomous outcomes, we calculated the absolute risk difference (RD) using the RD statistic in RevMan 2014 and expressed the result as a percentage. For continuous outcomes, we calculated absolute benefit as improvement in the intervention group minus improvement in the control group, expressed in original units.

We calculated the relative percentage change for dichotomous data as the risk ratio (RR) and expressed this as a percentage. For continuous outcomes, we calculated the relative difference in change from baseline as the MD divided by the pooled baseline mean.

In accordance with Philadelphia Panel guidelines (Philadelphia Panel 2001), we assumed a minimal clinically important difference (MCID) of 15 points on a 100‐point continuous pain scale, and a relative difference of 15% on all functional scales, as clinically relevant.

Unit of analysis issues

Although many randomized trials include only two parallel arms (ie, groups), some have three or four parallel arms; thus, a single randomized trial can yield several relevant comparisons. This review examined any relevant comparison that allowed evaluation of effects of WBV exercise interventions for people with fibromyalgia. For example, a three‐arm trial comparing WBV versus drug treatment versus sham could appear in two separate analyses: WBV versus sham; WBV versus drug treatment. As another example, a trial with one WBV protocol versus a second WBV protocol versus a placebo or sham would yield three analyses: protocol one versus protocol two; protocol one versus sham; protocol two versus sham. When a control group was used as a comparator twice in the same analysis, we halved the sample size of the control group. We identified no cross‐over trials and no cluster‐RCTs (Higgins 2011b).

Dealing with missing data

When numerical data were missing, we contacted the authors of studies using open‐ended questions to request information needed to assess risk of bias or treatment effects, or both. When numerical data were available only in graphic form, we used Engauge version 5.1 to extrapolate means and SDs by digitalizing data points on graphs (Mitchell 2012).

For dichotomous outcomes (eg, number of withdrawals due to adverse events), we calculated the withdrawal rate using the number of participants randomized within the group as the denominator.

For continuous outcomes (eg, mean change in pain score), we calculated the MD or the SMD based on the number of participants analyzed at that time point. If the number of participants analyzed was not presented for each time point, we used the number of randomized participants in each group at baseline.

When post‐test SDs were unavailable, we used SDs of pretest scores as estimates. When variance was expressed via statistics other than SD (eg, standard error, confidence interval, P value), we computed SD according to the methods recommended in Chapter 7 of the Cochrane Handbook for Systematic Reviews of Interventions (Higgins 2011c). When missing SDs could not be derived by the above methods, we imputed them (eg, from other studies in the meta‐analysis).

Assessment of heterogeneity

We assessed clinical and methodological diversity of included studies in terms of participants, interventions, outcomes, and study characteristics, to determine whether a meta‐analysis was appropriate. We did this by reviewing data recorded in data extraction tables. We assessed statistical heterogeneity by visually inspecting forest plots to assess for obvious differences in study results, and by using I² and Chi² statistical tests.

As recommended in the Cochrane Handbook for Systematic Reviews of Interventions (Deeks 2011), we applied interpretation of an I² value of 0% to 40% as might "not be important"; 30% to 60% as may represent "moderate" heterogeneity; 50% to 90% as may represent "substantial" heterogeneity; and 75% to 100% as represents "considerable" heterogeneity.

We interpreted a P value from the Chi² test that was less than or equal to 0.10 as evidence of statistical heterogeneity.

Assessment of reporting biases

We found an insufficient number of studies (ie, < 10) to produce funnel plots that would have allowed us to investigate publication reporting bias (Sterne 2011).

We screened the Clinical Trial Register at the International Clinical Trials Registry Platform of the World Health Organization (apps.who.int/trialssearch) for a priori trial protocols, and when these were available, we used them to evaluate whether selective reporting of outcomes was present (outcome reporting bias).

Data synthesis

When only one study was available, we used RevMan 2014 to calculate the mean difference in post‐test values (and 95% CIs) of a WBV intervention versus the comparator. When two or more studies reported the same outcome, we used RevMan 2014 to pool data (meta‐analysis). Before pooling data, we ensured that the directionality of data permitted pooling; we reversed selected scales arithmetically as required so that higher values consistently had the same meaning. We ensured that scaling factors were consistent to permit calculation of mean difference, when possible (eg, 10‐cm scales were expressed in mm to match other 100‐mm scales). We presented results grouped by common comparator, for example, WBV versus sham, WBV versus no treatment, or WBV versus active intervention.

We restricted the primary analysis for subjective self‐reported outcomes (HRQL, pain intensity, physical function, fatigue, and stiffness) to studies with low risk of selection and detection biases and low risk of attrition. We included all studies for adverse events and withdrawals.

"Summary of findings" table

We used GradePro (version GDT) to prepare "Summary of findings" table(s) for major outcomes for WBV versus control, and for WBV plus mixed exercise versus control (Schünemann 2011). In the "Summary of findings" table(s), we integrated analysis of quality of evidence and magnitude of effect of the interventions. We used the five GRADE considerations (study limitations, consistency of effect, imprecision, indirectness, and publication bias) to assess the quality of the body of evidence and assign quality to one of four levels.

• High quality: Further research is very unlikely to change our confidence in the estimate of effect.

• Moderate quality: Further research is likely to have an important impact on our confidence in the estimate of effect and may change the estimate.

• Low quality: Further research is very likely to have an important impact on our confidence in the estimate of effect and is likely to change the estimate.

• Very low quality: We are very uncertain about the estimate.

We assigned GRADE quality ratings separately for each of the seven major outcomes. We gave HRQL primacy over all other variables in the "Summary of findings" table and in the "Plain language summary" because of the comprehensive nature of the outcome variable.

Subgroup analysis and investigation of heterogeneity

We planned to explore relative effects of age and exercise volume on the impact of WBV exercise for pain intensity and HRQL.

Sensitivity analysis

We planned to perform sensitivity analyses to investigate the impact of statistical heterogeneity and methodological weaknesses (ie, high or unclear risk of selection bias and detection bias, or attrition rates > 20%).

Results

Description of studies

See Characteristics of included studies,Characteristics of excluded studies, and Characteristics of studies awaiting classification.

Results of the search

Our search yielded a total of 3894 records, which include 3802 journal records and 92 trial registry records. After we removed 975 duplicates, 2919 records remained. We excluded 2670 records on citation and abstract screening. We assessed 213 full‐text articles and 20 protocols/trial registry records for eligibility, and we excluded 88 full‐text articles and protocols/trial registry records. A further 11 articles and 1 protocol are awaiting classification. We excluded an additional 127 full‐text articles (primary articles n = 111, companion articles n = 16) and 18 protocols that compared physical activity interventions that did not meet the criteria for WBV training interventions. We included 4 publications (primary and companion full‐text journal articles (n=7) and 2 RCT protocols) describing effects of WBV (see Figure 1).

1.

Study flow diagram for vibration training interventions.

Included studies

We included in our analysis four studies (Alentorn‐Geli 2008; Gusi 2010; Sañudo 2010; Sañudo 2013) that met our selection criteria. Although we included only four studies, these were reported in seven separate journal articles; we also found two RCT protocols. Olivares 2011 and Adsuar 2012 reported additional variables from the Gusi 2010 primary study; therefore, we included the three reports and counted them as one study for analysis (hereafter identified as Gusi 2010). Likewise, Sañudo 2012 reported on additional variables from Sañudo 2010; we included this pair but also counted them as one study (hereafter both reports are identified as Sañudo 2010).

RCTs included a total of 150 female participants with an average age of 57 years (range of mean ages 52 to 62). One trial author reported disease duration (range 9.8 to 10.5 years; Alentorn‐Geli 2008), and another reported symptom duration (range 12.7 to 13.7 years; Gusi 2010). Inclusion requirements of these studies were that participants were female and postmenopausal and had received a diagnosis of fibromyalgia according to ACR criteria (Wolfe 1990) or rheumatologist assessment, were diagnosed with fibromyalgia for at least three years, or were part of a community association. Exclusion criteria in the four studies included no previous experience with vibratory training; psychological or physical therapy provided or participation in a physical activity program; respiratory or cardiovascular conditions that prevented physical exertion; receipt of medications that could interfere with balance control; medical contraindications (ie, acute hernia, thrombosis, diabetes, epilepsy, metabolic or neuromuscular disease, osteoporosis, osteoarthritis, orthopedic injury, prosthesis); history of severe trauma; frequent migraines; peripheral nerve entrapment; severe psychiatric illness; rheumatic disorders; and pregnancy.

Average sample size was 37 (range 30 to 46; Sañudo 2010 ; Sañudo 2013). A total of 62 individuals were assigned to WBV: 21 in the vibration versus control group, 26 in the vibration and mixed versus control group, and 15 in the vibration and mixed versus other group. Median duration of the intervention was 7 weeks (range 6 to 12 weeks). Two studies provided a short intervention (< 7 weeks; Alentorn‐Geli 2008; Sañudo 2010), and two an intermediate intervention (Gusi 2010; Sañudo 2013) (8 to 12 weeks). All studies were conducted in Spain.

We contacted trial authors using open‐ended questions to request information needed to assess risk of bias and/or treatment effects. We received responses from Sañudo (for his 2010 and 2013 articles).

Three studies (Alentorn‐Geli 2008; Sañudo 2010; Sañudo 2013) that included aerobic exercise in the protocols did not meet ACSM criteria based on frequency. Of the two studies that included resistance in the protocol (Sañudo 2010; Sañudo 2013), only one met ACSM criteria. The other study (Sañudo 2013) did not provide enough information to confirm whether criteria were met. The flexibility provided in two studies (Alentorn‐Geli 2008; Sañudo 2013) adequately met ACSM criteria. Table 5 provides details of the exercise protocols included in these trials.

3. Mixed exercise FITT (frequency, intensity, time, and type) parameters.

Vibration + Mixed vs Mixed + Placebo vs Control
Author, year	Intervention	Frequency (times per week | length in weeks)		Total duration	Supervised or home program	Aerobic component	Resistance component	Flexibility Component	Other
						I (intensity): ACSM classification and physiological measure; M (mode): mode of exercise; T (time): duration of aerobic component in minutes	M (muscle groups, joints or areas of body); I (intensity resistance, repetitions, sets); T (type), T (time)	M (muscle groups, joints or areas of body); T (type of stretch, repetition, set), T (time)
Alentorn‐Geli 2008	AE + FX + Relax	2 times/wk	6 weeks	90’	Not specified	I: moderate to vigorous (65%‐85% HR max), T: primarily level ground walking with games and dance, T: 30'	Not applicable	M: 5 whole body stretches involving lower and upper limbs, neck, back; T: dynamic, 5 reps held for 30 s with 30 s rests, T: 25'	Relaxation
Vibration + Mixed vs Mixed
Sañudo 2010	AE + RT + FX	2 times/wk	6 weeks	60’	Supervised	I: light to moderate (50%‐69% HR max), M: not specified, T: 4‐6 intervals of 2‐3’, 1‐2’ rest between intervals	M: major muscle groups, I: 8 exercises, 1 × 8‐10 reps with 1‐3 kg, T: not specified	M: not specified, I: 1x 3 reps holding for 30s, T: not specified
Sañudo 2013	AE + RT + FX	2 times/wk	8 weeks	45‐60’	Supervised	I: moderate (65%‐70% HR max), M: not specified, T: 10‐15’	M: deltoids, biceps, neck, hips, back, and chest, I: 1 set of 8‐10 reps for 8 different muscle groups against 1‐3 kg, T: 15‐20’	M: deltoids, biceps, neck, hips, back, and chest I: 1 set of 3 reps for 8‐9 different ex, maintained for 30 s, T: 10’

Included studies reported use of two vibration devices: Galileo Fitness Platform (Novotec Medical, Pforzheim, Germany) (see Figure 2) was used by Gusi 2010 and Sañudo 2010, and PowerPlate (PowerPlate International B.V., Badhoevendorp, The Netherlands) (see Figure 3) was used by Alentorn‐Geli 2008 and Sañudo 2013. Three studies used a fixed vertical amplitude (Alentorn‐Geli 2008; Gusi 2010; Sañudo 2013), and one used a variable amplitude (Sañudo 2010) with a range from 2 mm to 4 mm; frequency varied from 12.5 Hz (Gusi 2010) to 30 Hz (Alentorn‐Geli 2008; Sañudo 2013). We have provided in Table 6 additional details about the position and exercise of participants, use of stabilizing support, footwear provided, and types of exercise performed (ie, static/dynamic or unilateral/bilateral).

2.

Galileo Fitness Platform (Copyright © 2008‐2015 Novotec Medical GmbH; reproduced with permission)

3.

Copyright © 2012 Wellsports GmbH Krefeld ‐ PowerPlate International B.V., The Netherlands ‐ awaiting response.Sept15

4. Vibration specifications.

Study name/year	Name of device	Vibration frequency and amplitude	Position of participant	Stabilizing support	Footwear	Static/Dynamic; unilateral/bilateral
Alentorn‐Geli 2008	PowerPlate (PowerPlate International B.V., Badhoevendorp, The Netherlands)	30 Hz; 2 mm vertical amplitude	The following 6 exercises were performed for 30 s each during whole body vibration (WBV) and were repeated 6 times with recovery of 3 minutes between repetitions (a) static squat at 100° of knee flexion (b) dynamic squat between 90° and 130° of knee flexion (c) maintained ankle plantar‐flexion with legs in extension (d) flexion‐extension of right leg between 100° and 130° of knee flexion (e) flexion‐extension of left leg between 100° and 130° of knee flexion (f) squat at 100° of knee flexion shifting body weight from 1 leg to the other For adaptation purposes, only tasks (a), (b), and (c) (repeated 3 times) were performed during first 2 sessions	Yes ‐ for all tasks, individuals held onto the supporting bar	Does not state	Static bilateral
Gusi 2010	Galileo Fitness Platform (Novotec Medical, Pforzheim, Germany)	12.5 Hz; 3 mm vertical amplitude	Participants alternated between 2 stances for each repetition Stance A: feet perpendicular to midline axis of the platform with right foot placed slightly ahead of left foot. Toes of right foot and heel of left foot lifted 4 mm above surface of the platform. Knees bent to 45° angle. Back and head kept straight Stance B: as per Stance A, except with left foot placed slightly ahead of right foot	Not reported and not pictured in Figure 2	Balance testing was performed barefoot. Does not specify that exercise was done barefoot, but Figure 2 indicates this	Static and dynamic both unilateral and bilateral
Sañudo 2010	Galileo Fitness Platform (Novotec Medical, Pforzheim, Germany)	20 Hz; variable amplitude of 2‐3 mm	Three sets of 45 s of bilateral static squat with 120 s recovery between sets (amplitude = 3 mm) followed by 4 sets of 15 s of unilateral static squat on each leg (amplitude = 2 mm). During WBV, participants stood with both knees in 120° isometric knee flexion (half‐squatting position) as measured by a goniometer	Does not state	Does not state	Static unilateral and bilateral
Sañudo 2013	PowerPlate, North America Inc., Northbrook, IL, United States	30 Hz; vertical displacement of 4 mm (71.1 m/s‐2 ≈ 7.2 g)	Standing on the platform, with knees in 120º isometric knee flexion (measured by a goniometer) and trunk upright Bilateral static squat: 6 sets of 30 s, with 45‐s recovery between sets Unilateral static squat: 4 sets of 30 s each leg	Does not state	All participants wore sport shoes for vibration exercises	Static unilateral and bilateral

Excluded studies

See Characteristics of excluded studies.

After screening citations and abstracts, we excluded 77 full‐text articles when studies did not meet the inclusion criteria on the basis of diagnosis of fibromyalgia (n = 8); physical activity intervention (n = 144); study design (n = 50); or specified outcomes not measured (n = 2) (see Figure 1). We excluded 126 full‐text articles among 134 describing physical activity interventions (primary articles n = 110, companion articles n = 16) and 18 RCT protocols because they did not provide a WBV exercise intervention. We excluded one study that provided a WBV intervention (Alentorn‐Geli 2009) because researchers measured none of the specified outcomes.

Risk of bias in included studies

We have provided in Figure 4 and Figure 5 results of our risk of bias assessment for the four included studies. We based risk of bias assessments on primary article data supplemented by responses from trial authors. We have provided additional information in the Characteristics of included studies table.

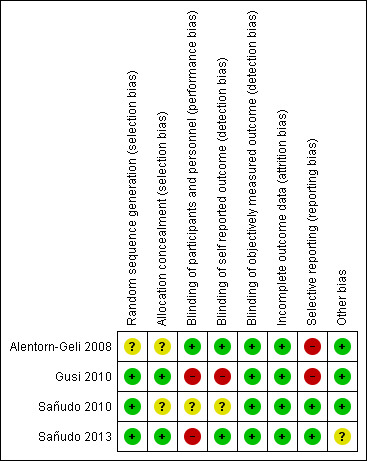

4.

Risk of bias summary: review authors' judgements about each risk of bias item for each included study.

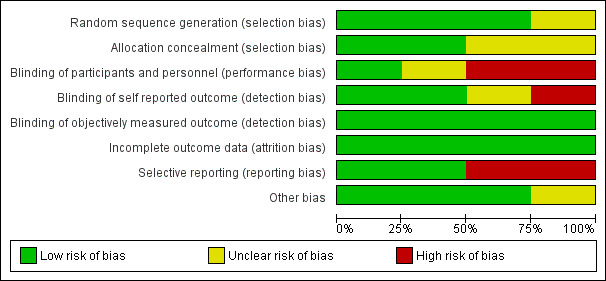

5.

Risk of bias graph: review authors' judgements about each risk of bias item presented as percentages across all included studies.

Allocation

Three studies (75% of the sample; Gusi 2010; Sañudo 2010; Sañudo 2013) used an acceptable method of random sequence generation (eg, random table, computer‐generated random number table or sequence), so we rated risk of bias as low. One study (Alentorn‐Geli 2008) did not specify details of how randomization was conducted, and we deemed risk for selection bias as unclear.

Two studies (50% of the sample) utilized acceptable allocation concealment methods and presented low risk of bias (Gusi 2010;Sañudo 2013); the remaining two studies did not provide enough information to allow a definitive judgement, and we deemed that risk was unclear (Alentorn‐Geli 2008; Sañudo 2010).

Blinding

Performance bias

In exercise studies, investigators found blinding of participants and care providers to be very rare and difficult to achieve. Among the included studies, we rated blinding of participants and personnel (performance bias) as low risk in one study (Alentorn‐Geli 2008), unclear risk in one study (Sañudo 2010), and high risk in two studies (Gusi 2010;Sañudo 2013).

Detection biases (objective and subjective outcome assessments)

Three studies (Gusi 2010; Sañudo 2013; Sañudo 2010) provided information on blinding of outcome assessors; one had no objective outcomes (Alentorn‐Geli 2008), and we rated it as having low risk. In this regard, it is important to note that the current Cochrane "Risk of bias" tool does not allow review authors to choose "not applicable" or to leave the section blank; therefore, we chose to rate Alentorn‐Geli 2008 as low risk despite the lack of outcome measures.

 We rated one study as having high risk (Gusi 2010) for self‐reported outcomes, and two studies as having low risk (one included no self‐reported outcomes, and another included a placebo control by which participants were unaware of the intervention) (Alentorn‐Geli 2008; Sañudo 2013). We deemed one study with a head‐to‐head intervention as having unclear risk owing to lack of information on participant awareness of the intervention (Sañudo 2010).

Incomplete outcome data

Four studies (Alentorn‐Geli 2008; Gusi 2010; Sañudo 2010; Sañudo 2013) reported complete outcome data, and we rated risk for attrition bias as low.

Selective reporting

A priori research protocols were available for two studies (Alentorn‐Geli 2008;Gusi 2010). We rated risk of reporting bias for these two studies as high. We rated selective reporting risk of bias as low for the other two studies (Sañudo 2010;Sañudo 2013).

Other potential sources of bias

Two studies (Alentorn‐Geli 2008; Gusi 2010) appear to be free of any other bias, and in two studies (Sañudo 2010; Sañudo 2013), risk for other potential sources of bias is unclear.

Effects of interventions

See: Table 1; Table 2

See Table 1 and Table 2 for the main comparisons "WBV vs control" and "WBV plus mixed exercise versus control." We have grouped results related to effects of the interventions below to correspond to comparison groups of the review.

WBV versus control

Although the study included in this category is detailed under Characteristics of included studies, briefly the interventions compared were:

• WBV versus control (Gusi 2010).

HRQL (self‐reported, FIQ total, 0 to 100 scale, lower is better health)

One study (Gusi 2010) (41 participants) provided data for the major outcome HRQL: HRQOL was 3.73 points at 12‐week follow‐up in the control group (MD ‐3.73, 95% CI ‐10.8 to 3.3; Analysis 1.1). Absolute difference was 4% (95% CI ‐11% to 3%), and relative change was ‐6.7% (95% CI ‐19.6% to 6.1%).

1.1. Analysis.

Comparison 1 WBV vs C, Outcome 1 HRQL, 1‐100 scale, lower means better HRQL.

Balance (degree of displacement, lower scores indicate better balance)

One study (Gusi 2010) (41 participants) provided data for this minor outcome; at post‐test, participants in the intervention group were measured as having 0.35° less sway than those in the control group, as measured by the Biodex Balance System in degrees of displacement (MD 0.35°, 95% CI ‐0.74 to 0.04; Analysis 1.2). Relative change was ‐25% (95% CI ‐52.9% to 2.9%).

1.2. Analysis.

Comparison 1 WBV vs C, Outcome 2 Balance, degrees of displacement, lower is best.

All‐cause withdrawal

Rates for WBV (n1/N1) versus control (n2/N2) were 3/21 versus 2/20 (Gusi 2010). Data show no significant differences in all‐cause withdrawal between groups (RR 1.43, 95% CI 0.27 to 7.67). Footnotes in the meta‐analysis show reasons participants withdrew from these studies (Analysis 1.3). Reasons for withdrawal per group: WBV n = 1 due to pain, n = 2 due to schedule interference; control n = 2 for lack of interest.

1.3. Analysis.

Comparison 1 WBV vs C, Outcome 3 Withdrawal.

Adverse events

Gusi 2010 reported adverse events in narrative form (this was not one of the outcomes of the trial): "The program was reasonably safe: only 5% of the participants (n = 1) dropped out of the program because of acute pain in the legs. The program was completed by 85% of the participants, without secondary adverse effects" (page 1076).

Pain intensity, fatigue, stiffness, physical function, strength, and improvement in pain greater than 30%

The trial protocol did not include these outcomes, and they were not measured.

None of the outcomes in the WBV versus control comparison reached a clinically relevant difference of 15%.

WBV plus mixed exercise versus control

Although the two studies included in this category are detailed in the Characteristics of included studies, briefly the interventions compared were:

• WBV + Mixed exercise (AE + FX + Relax) versus control (Alentorn‐Geli 2008); and

• WBV + Mixed exercise (AE + RT + FX) versus control (Sañudo 2013).

HRQL (self‐reported, FIQ total, 0 to 100 scale, lower is better health)

One study (Alentorn‐Geli 2008) (21 participants) provided data for the major outcome HRQL: The mean difference between groups was statistically significant. WBV plus mixed exercise intervention showed improvement of 16 FIQ units compared with control (MD ‐16.02, 95% CI ‐31.57 to ‐0.47; Analysis 2.1). Absolute difference was ‐16% (95% CI ‐32% to ‐0.5%), and relative change was ‐23.9% (95% CI ‐47% to ‐1%; NNTB 3 [2 to 237]).

2.1. Analysis.

Comparison 2 WBV + MX vs C, Outcome 1 WBV + MX vs C: HRQL, 0‐100 scale, lower is best.

Pain intensity (self‐reported, FIQ pain scale, 0 to 100, lower is less pain)

One study (Alentorn‐Geli 2008) (21 participants) provided data for the major outcome pain intensity: The mean effect was statistically significant. WBV plus mixed exercise intervention showed improvement of 28 mm compared with control (MD ‐28.22, 95% CI ‐43.26 to ‐13.18; Analysis 2.2). Absolute difference was 28% (95% CI 43% to 13%), and relative change was ‐39.2% (95% CI ‐60.1% to ‐18.3%; NNTB 2 [1 to 4]).

2.2. Analysis.

Comparison 2 WBV + MX vs C, Outcome 2 WBV + MX vs C: pain, 0‐100 scale, lower is best.

Fatigue (self‐reported, FIQ fatigue scale, 0 to 100, lower is less fatigue)

One study (Alentorn‐Geli 2008) (21 participants) provided data for the major outcome fatigue: The mean effect was statistically significant. WBV plus mixed exercise intervention showed improvement of 33 mm compared with control (MD ‐32.84, 95% CI ‐49.20 to ‐16.48; Analysis 2.3). Absolute difference was 33% (95% CI 49% to 16%), and relative change was ‐46.9% (95% CI ‐70.3 to ‐23.5%; NNTB 2 [1 to 4]).

2.3. Analysis.

Comparison 2 WBV + MX vs C, Outcome 3 WBV + MX vs C: fatigue, 0‐100 scale, lower is best.

Stiffness (self‐reported, FIQ stiffness scale, 0 to 100, lower is better)

One study (Alentorn‐Geli 2008) (21 participants) provided data for the major outcome stiffness: The mean effect was statistically significant. WBV plus mixed exercise intervention showed improvement of 25 mm compared with control (MD ‐26.27, 95% CI ‐42.96 to ‐9.58; Analysis 2.4). Absolute difference was 26% (95% CI 43% to 10%), and relative change was ‐36.5% (95% CI ‐59.7 to ‐22.9%; NNTB 2 [1 to 6]).

2.4. Analysis.

Comparison 2 WBV + MX vs C, Outcome 4 WBV + MX vs C: stiffness, 0‐100 scale, lower is best.

Balance (degree of tilt, lower scores indicate better balance)

One study (Sañudo 2013) (24 participants) provided data for the minor outcome balance: This outcome showed evidence of no effect. Absolute difference at post‐test between intervention and control groups was 0.48° less sway when standing on the balance platform (MD ‐0.48°, 95% CI ‐3.1 to 2.2; Analysis 2.5). Relative change was ‐5.67% (95% CI ‐37.5% to 26.2%).

2.5. Analysis.

Comparison 2 WBV + MX vs C, Outcome 5 WBV + MX vs C: balance, overall stability index ‐ eyes closed (degrees of displacement 0 to 20 scale, lower is best).

All‐cause withdrawal

Withdrawal rates for WBV plus mixed exercise (n1/N1) versus control (n2/N2) were 1/11 versus 2/10 (Alentorn‐Geli 2008) and 1/14 versus 5/11 (Sañudo 2013). Data show no differences in all‐cause withdrawal between groups (RR ‐0.24, 95% CI ‐0.5 to 0.03). We footnoted in the meta‐analysis reasons participants withdrew from studies (Analysis 2.6): WBV + MX n = 1 no show for testing; control n = 2 no show for testing (Alentorn‐Geli 2008); WBV + MX n = 1 for illness; control n = 5 for personal reasons (Sañudo 2013).

2.6. Analysis.

Comparison 2 WBV + MX vs C, Outcome 6 Withdrawal.

Adverse events

Trial authors reported adverse events in narrative form and did not consider them an outcome. Overall reported events are minor and are described below as direct quotations from trial authors.

Alentorn‐Geli 2008: "This program neither exacerbated FM‐related symptoms nor resulted in musculoskeletal injuries; however, one patient exhibited a mild anxiety attack on the first session of WBV" (page 978).

Sañudo 2013: "This study, however, demonstrated that WBV training is a safe (no adverse effects), suitable (no dropouts due to the intervention) and effective (increased lower limb muscle strength) way to exercise the musculoskeletal system, and potentially a feasible intervention for those patients who cannot participate in conventional strength training" (page 683).

Physical function, strength, and improvement in pain greater than 30%

No studies performing this comparison reported on these outcomes.

Several outcomes in this comparison met the 15% threshold for clinical relevance: HRQL (improved by 16%), pain intensity (improved by 28%), fatigue (improved by 34%), and stiffness (improved by 26%).

WBV plus mixed exercise versus other exercise

We have detailed the studies under Characteristics of included studies and briefly described bellow:

• WBV + Mixed exercise (AE + FX + Relax) versus mixed exercise (AE + FX + Relax) + placebo WBV (Alentorn‐Geli 2008);

• WBV + Mixed exercise (AE + RT + FX) versus mixed exercise (AE + RT + FX) (Sañudo 2010); and

• WBV + Mixed exercise (AE + RT + FX) versus mixed exercise (AE + RT + FX) (Sañudo 2013).

HRQL (self‐reported, FIQ total, 0 to 100, lower is better health)

Two studies (Alentorn‐Geli 2008; Sañudo 2010) (49 participants) provided data for this major outcome: The mean HRQL showed evidence of no effect (MD ‐6.67, 95% CI ‐14.65 to 1.31; Analysis 3.1). Absolute difference was ‐7% (95% CI ‐15 to 1), and relative change was ‐11.75% (95% CI ‐29.32% to 2.31%).

3.1. Analysis.

Comparison 3 WBV + MX vs Other, Outcome 1 WBV + MX vs Other: HRQL, 0‐100 scale, lower is best.

Pain intensity (self‐reported, FIQ pain scale, 0 to 100, lower is less pain)

One study (Alentorn‐Geli 2008) (23 participants) provided data for this outcome. Pain intensity showed a statistically significant effect favoring WBV by 16 mm (MD ‐16.36, 95% CI ‐29.49 to ‐3.23; Analysis 3.2). Absolute difference was 16% (95% CI ‐29% to ‐3%), and relative change was ‐24% (95% CI ‐45% to ‐5%).

3.2. Analysis.

Comparison 3 WBV + MX vs Other, Outcome 2 WBV + MX vs Other: pain, 0‐100 scale, lower is best.

Fatigue (self‐reported, FIQ fatigue scale, 0 to 100, lower is less fatigue)

One study (Alentorn‐Geli 2008) (23 participants) provided data for this outcome. Fatigue showed a statistically significant effect favoring WBV by 14 mm (MD ‐14.41, 95% CI ‐29.47 to 0.65; Analysis 3.3). Absolute difference was 14% (95% CI ‐29% to 1%), and relative change was ‐22.52% (95% CI ‐46% to ‐1%).

3.3. Analysis.

Comparison 3 WBV + MX vs Other, Outcome 3 WBV + MX vs Other: fatigue, 0‐100 scale, lower is best.

Stiffness (self‐reported, FIQ stiffness scale, 0 to 100, lower is less stiffness)

One study (Alentorn‐Geli 2008) (23 participants) provided data for this outcome. Evidence showed no effect for stiffness (MD ‐12, 95% CI ‐26.90% to 1.46%; Analysis 3.4 ). Absolute difference was 11% (95% CI ‐27% to 1%), and relative change was ‐17.67% (95% CI ‐37.36% to ‐2.03%).

3.4. Analysis.

Comparison 3 WBV + MX vs Other, Outcome 4 WBV + MX vs Other: stiffness, 0‐100 scale, lower is best.

Strength (newtons and repetitions, higher is better strength)

Two studies (Sañudo 2010; Sañudo 2013) (54 participants) provided data for this outcome showing a statistically significant effect for strength (SMD 0.77, 95% CI 0.20% to 1.35%), representing a moderate effect (Cohen 1988). Absolute difference was 0.77 SDs higher in the WBV plus mixed exercise group, and relative change was 0.71% (95% CI 0.18% to 1.24%).

Balance (degree of displacement/tilt, lower scores indicate better balance)

Two studies (Sañudo 2010; Sañudo 2013) (54 participants) provided data for this outcome showing no effect for balance. Absolute difference at post‐test between intervention and control groups was 0.22° less sway when standing on the balance platform with eyes closed (MD ‐0.22°, 95% CI ‐1.56° to 1.11), and relative change was ‐2.12% (95% CI ‐15% to 11%).

All‐cause withdrawal

Rates for WBV plus mixed exercise (n1/N1) versus other exercise (n2/N2) were 1/11 versus 0/12 (Alentorn‐Geli 2008), 1/14 versus 3/12 (Sañudo 2010), and 1/14 versus 1/14 (Sañudo 2013). Data show no difference in all‐cause withdrawal between groups (RD ‐0.01, 95% CI ‐0.15 to 0.13). We have footnoted in the meta‐analysis reasons participants withdrew from studies (Analysis 3.7).

3.7. Analysis.

Comparison 3 WBV + MX vs Other, Outcome 7 Withdrawal.

Adverse events

The authors of these trials did not specify adverse events as an outcome but reported them in narrative form. Overall trial authors described minor events as below.

Alentorn‐Geli 2008: "This program neither exacerbated FM‐related symptoms nor resulted in musculoskeletal injuries; however, one patient exhibited a mild anxiety attack on the first session of WBV" (page 978).

Sañudo 2010: Study authors clarified that one person in the comparison group ("other exercise group") dropped out owing to an injury that was not related to the program (participant fell down on the street).

Sañudo 2013: "This study, however, demonstrated that WBV training is a safe (no adverse effects), suitable (no dropouts due to the intervention), and effective (increased lower limb muscle strength) way to exercise the musculoskeletal system, and potentially a feasible intervention for those patients who cannot participate in conventional strength training" (page 683).

Physical function and improvement in pain greater than 30%

No studies in this comparison reported on these outcomes.

One outcome in this comparison met the 15% threshold for clinical relevance; pain intensity improved by 16% (Alentorn‐Geli 2008).

Subgroup and sensitivity analyses

Given the small number of studies performing the three comparisons and evaluating outcomes, data were insufficient for review authors to perform planned subgroup (ACSM guidelines and outcomes stratified by age) and sensitivity analyses (selection, detection, and attrition).

Discussion

Summary of main results

This review evaluated benefits and harms of whole body vibration (WBV) in adults with fibromyalgia. Results of this review show that WBV exercise training used as an intervention for individuals with fibromyalgia is in its infancy. Our extensive literature search yielded four randomized controlled trials (RCTs) conducted in the same country, which included only middle‐age female participants. The only study comparing WBV only versus control concentrated on two of our outcomes and found no significant effects for either (health‐related quality of life [HRQL] and balance). Two studies compared WBV combined with mixed exercise versus control and found evidence of positive effects on HRQL, pain intensity, fatigue, stiffness, and strength, but not on balance, and showed no overlap in outcomes measured; therefore, results were not replicated across studies. The final comparison examined WBV plus exercise versus exercise alone. When adding WBV to an exercise protocol, this group of studies found no evidence of enhanced effect in terms of HRQL, fatigue, stiffness, or balance, but noted positive effects on pain intensity. No comparisons revealed significant differences in terms of withdrawal, and investigators documented only a few minor adverse events.

Although some results reported on major outcomes were statistically significant, the overall quality of the evidence was very low. In light of uncertainties surrounding currently available evidence, we wonder whether costs of accessing or purchasing WBV machines to carry out this type of exercise warrant their general use by people with fibromyalgia.

Given the small number of trials, small sample sizes, and narrow inclusion criteria reported in the published research, along with the very low quality of evidence, it is difficult to comment on benefits and harms of WBV exercise training. Future research will likely change our understanding of this intervention. We have provided more detailed information on main results in Table 1 and Table 2.

Overall completeness and applicability of evidence

This review includes four studies. Samples recruited by the included studies consisted of women from Spain ranging from 52 to 62 years old. Sample sizes were small, and pooled samples included fewer than 100 individuals for the few outcomes that could be meta‐analyzed. Therefore, we recommend caution in generalizing results of this review to the wider population of individuals with fibromyalgia.

Studies included in this review address only a few of the WBV regimens (see Table 6 and Table 5) that are possible to provide and make a small start in amassing the evidence required to adequately assess benefits and harms of WBV for individuals with fibromyalgia. Those who wish to use this form of exercise must consider a myriad of options. In addition to variable frequency and duration of exercise sessions, one needs to consider vibration platform characteristics (manufacturer, model), waveform (vertical or rotary oscillations, frequency and amplitude of vibration, g‐force, pulse features), and exercise features (double or single limb support, static joint position or dynamic exercise). Therefore, review authors have concluded that readers should carefully inspect the details regarding WBV interventions provided in included studies with awareness that other WBV interventions may produce different effects.

We are confident that the outcomes selected for this review are valued by people with fibromyalgia and clinicians (Choy 2009). However, the small sample of studies precludes adequate investigation of these outcomes. At present, estimates of treatment effects are imprecise, and it is likely that these estimates will change as additional studies are carried out. Adverse events appear to be minimal, but at this point we cannot be completely sure of the safety of WBV, especially as the interventions examined were restricted and included trials were too small and reported events too few to provide a robust estimate of the risk of adverse events.

Quality of the evidence

Review authors obtained the evidence presented in this review from trials published in academic journals, as well as from registered RCT protocols and trial author responses to requests for information. The overall quality of the evidence was very low after downgrading due to imprecision and study design flaws. Available evidence is limited by the number and quality of included trials, and this does not allow us to reach robust conclusions regarding benefits and harms of WBV. Studies showed methodological flaws resulting in a mix of low (eg, attrition), unclear (eg, selection), and high risks of bias (eg, performance). The sample size of included trials was often small; even after pooling of data in the meta‐analysis, participant numbers were smaller than desired, leading to issues of imprecision. Studies did not consider adverse events as a major outcome but did report them in narrative form.

It is uncertain whether WBV, when compared with control, improves quality of life (mean difference [MD] 10.81 lower to 3.35 higher) or decreases participant withdrawal (risk ratio [RR] 0.27 higher to 7.67 higher). The quality of evidence is very low owing to the paucity of research (single study evidence), imprecision (small sample size and wide confidence intervals), and issues related to risk of bias.

When compared with control, WBV + MX seemed to improve HRQL (MD 31.57 lower to 0.47 lower), pain (MD 43.26 lower to 13.18 lower), fatigue (49.20 lower to 16.48 lower), and stiffness (MD 42.96 lower to 9.58 lower), or made a difference in relation to participant withdrawal (RR 0.06 higher to 1.12 higher). However, the quality of evidence is very low owing to imprecision (small sample size and wide confidence intervals) and issues related to risk of bias. Thus we are uncertain about the effect of WBV + MX on adults with fibromyalgia.

It remains uncertain whether WBV + MX, when compared with other interventions, improves HRQL (MD 14.65 lower to 1.31 higher), fatigue (MD 29.47 lower to 0.65 higher), or stiffness (MD 26.90 lower to 1.46 higher), or decreases participant withdrawal (RR 0.17 higher to 3.11 higher). Data show that the intervention improved pain (24.49 lower to 3.23 lower). However, the quality of evidence is very low owing to the paucity of research (single study evidence), imprecision (small sample size and wide confidence intervals), and issues related to risk of bias (see Table 7).

5. Quality of evidence. GRADE assessment for WBV + MX vs Other.

Quality assessment							No. of participants		Quality	Importance
No. of studies	Study design	Risk of bias	Inconsistency	Indirectness	Imprecision	Other considerations	Aerobic exercise (AE) intervention	AE control
Health‐related quality of life (HRQL), 0‐100, lower is best
2	Randomized trial	Very serious1	Not serious	Not serious	Serious2		23	26	⊕⊝⊝⊝ very low	CRITICAL
Pain intensity, 0‐100, lower is best
1	Randomized trial	Serious3	Not serious	Not serious	Serious2	One very small study	11	12	⊕⊝⊝⊝ very low	CRITICAL
Fatigue, 0‐100, lower is best
1	Randomized trial	Serious1	Not serious	Not serious	Serious2	One very small study	11	12	⊕⊝⊝⊝ very low	IMPORTANT
Stiffness, 0‐100, lower is best
1	Randomized trial	Serious1	Not serious	Not serious	Serious2	One very small study	11	12	⊕⊝⊝⊝ very low	IMPORTANT
Physical function, not reported
Withdrawals
3	Randomized trial	Very serious4	Not serious	Not serious	Serious2		3/39 (7.69%)	4/38 (10.52%)	⊕⊝⊝⊝ very low	IMPORTANT
Adverse events:Alentorn‐Geli 2008: "This program neither exacerbated FM‐related symptoms nor resulted in musculoskeletal injuries; however, one patient exhibited a mild anxiety attack on the first session of WBV" (page 978); Sañudo 2010: Trial authors clarified that one person in the comparison group ("other exercise group") dropped out owing to an injury that was not an injury related to the program (participant fell down on the street); Sañudo 2013: "This study, however, demonstrated that WBV training is a safe (no adverse effects), suitable (no dropouts due to the intervention), and effective (increased lower limb muscle strength) way to exercise the musculoskeletal system, and potentially a feasible intervention for those patients who cannot participate in conventional strength training" (page 683)

Potential biases in the review process

We aimed to minimize systematic error and bias in locating, selecting, including and excluding, appraising, and aggregating/synthesizing studies for this review. Strengths related to preventing bias include the following.

• Source bias/databases bias: Our search included a comprehensive list of medical, health‐related, and health technology databases supplemented by handsearching or use of other sources; we updated searches periodically.

• Selective reporting bias: By searching clinical trial registries (eg, clincialtrials.gov), we were able to identify original RCT protocols and to appraise whether reported elements were present in the protocols and publications for two RCTs (Alentorn‐Geli 2008; Gusi 2010). We judged this item as high risk after finding discrepancies between registered protocols and publications. We provided details under Characteristics of included studies.

• Scope bias: Our inclusion and/or exclusion criteria were not constrained by geography (ie, particular region), time (ie, time limits), or language (ie, English).

• Publication bias: We applied no language restrictions.

• We contacted primary authors for clarification and additional information when indicated, although we did not always obtain responses. We asked open‐ended questions to avoid leading answers.

• We collected information on funding for individual studies, as funding may be seen as a potential source of bias (this information can be seen under Characteristics of included studies). We did not find information on funding for three studies; one study author stated, "no grant supported the investigation" (Alentorn‐Geli 2008).

Limitations of this review include the following.

• Despite efforts to reduce the impact of publication bias in this review, the possibility remains that some studies may have not been identified by the search.

• Generalization of review findings is restricted to middle‐aged women of Spanish origin and the characteristics (frequency, amplitude, etc.) of machines utilized.

Agreements and disagreements with other studies or reviews

We found one previous review on whole body vibration and fibromyalgia (Chulvi‐Medrano 2013). This review lacked some important features of a systematic review, that is, it relied on one electronic database (PubMed) instead of performing a broad search, it did not evaluate risk of bias of included studies, and it did not provide numerical data regarding outcomes of the literature search and treatment effects. In addition to the five included studies, review authors drew upon results from a variety of studies excluded from our review to support their conclusions. On the basis of poorly documented evidence, Chulvi‐Medrano 2013 was optimistic about effects of WBV for individuals with fibromyalgia, stating, “research suggests that patients with FMS can achieve significant improvements in functional capacity, lower limb strength, balance, and quality of life (reductions in pain and fatigue) if they take part in a personalized program.” The reader who is not careful could be convinced that evidence showing positive effects of WBV for fibromyalgia is more meaningful than it is.

Other systematic reviews on this topic in the Cochrane Library have examined different populations (ie, neurodegenerative disease, multiple sclerosis) (Amatya 2013; Sitja Rabert 2012). Despite differences among study populations, reviews are similar in providing findings of insufficient evidence of low quality regarding beneficial effects on HRQL, symptoms, and muscle strength. In keeping with the findings of the present review, review authors concluded that further research is needed before robust recommendations regarding the safety of WBV can be provided.

To date, three sets of evidence‐based interdisciplinary guidelines for treatment of fibromyalgia have been published (Ablin 2013; Fitzcharles 2012; Hauser 2010). None of these guidelines have referenced WBV exercise training or recommended such training. As this novel technique is further studied via larger trials in this population, future treatment guidelines may begin to discuss possible benefits.

Authors' conclusions

Implications for practice.

Four currently available trials have provided evidence of very low quality to support or refute the overall efficacy of WBV alone or in combination with exercise over usual treatment or mixed exercise for HRQL, pain intensity, fatigue, stiffness, strength, or balance for middle‐aged Spanish women with fibromyalgia. Compared with control, we are uncertain whether WBV alone improved HRQL or balance because available evidence is of very low quality. A single trial indicated that, in combination with mixed exercise, WBV appeared superior in controlling HRQL, pain intensity, fatigue, stiffness, and strength, but seemed no better or worse for balance. Evidence from a single study appears to show that WBV combined with mixed exercise may be superior to exercise alone for pain intensity, fatigue, and strength, but no better or worse for stiffness, HRQL, or balance (we are uncertain of these effects, as the evidence was of very low quality). We found no evidence to show whether WBV was superior to control or other interventions for men, non‐Spanish individuals, or older or younger individuals.

We are uncertain about the safety of WBV. The four included trials reported no adverse events other than increased acute pain in one individual and an anxiety attack in another. However, owing to the small numbers of events reported in these small trials, we cannot be certain whether WBV is associated with increased risk of adverse events. Application of WBV in these trials was limited to frequencies ranging from 12.5 to 30 Hz, 2 to 4 mm of vertical amplitude, and maximum exposure of three times per week for 30 minutes. Exposure to high‐frequency vibration under occupational conditions is known to be causally linked to low back disorders (Cvetanovic 2013) and to be deleterious to overall health and well‐being (Tuchsen 2010a).

These trials examined WBV applied via static and combined static/dynamic poses in both unilateral and bilateral stances for durations of 6 to 12 weeks. We cannot provide recommendations as to the optimum WBV paradigm, and we found no evidence to confirm whether WBV has long‐term benefits or harms.

The cost of WBV platforms utilized in these studies ranges from $2,500 to $10,000 US dollars. Given the limitations of available research, adults with fibromyalgia are urged to carefully consider whether the cost of the intervention is worth the possible benefits.

Although published results are generally positive, a larger body of knowledge is needed to guide practice.

Implications for research.

Evidence

To date, we have very little confidence in the effect estimate and believe that the true effect is likely to be substantially different from the estimate of effect if and when future evidence becomes available. Studies included in this review had limitations of design and showed imprecision ‐ issues that should be addressed in future research. Research is needed to investigate diverse vibration protocols (ie, WBV in isolation or combined with exercise protocols including static and dynamic and unilateral and bilateral), as well as protocols including a variety of frequencies and amplitudes. RCT protocols available on trial registries facilitated accurate completion of risk of bias assessments. It is advisable that future researchers should register and/or publish their trial protocols.

Population

This review included a defined population (ie, middle‐aged Spanish woman), and this approach has left a void in our knowledge of the effects of the intervention among other groups. Future research should include individuals at different stages of the disease who have known comorbidities, a wide variety of age groups, and other ethnicities, genders, and settings. One study (Gusi 2010) mentioned that participants were "deconditioned women with fibromyalgia"; whether future research includes individuals at different levels of physical conditioning remains to be seen.

Intervention

Exercise interventions provided to an individual while on the machine and exercises complementing WBV on a separate day were limited. Researchers should focus on including other types of WBV exercise interventions including those performed off the platform (ie, in addition to and/or different from aerobics, resistance, and flexibility). Protocols should include different doses, durations, and follow‐up periods. This review included only two types of vibration platforms. Research utilizing different types of platforms will improve our knowledge of their performance.

An interesting question remains: Does addition of this health technology enhance the effect of exercise? In other words, research should explore whether the addition of WBV had an additive or amplifying effect. It is unclear whether WBV exercise training alone has any effect on women with fibromyalgia. Only one study protocol described use of WBV alone; remaining studies looked into the combination of WBV plus an exercise component.

With the exception of one trial (Gusi 2010), data on whether WBV was unsupervised/supervised, individual/group, or self‐administered remain unclear. Future research should clearly indicate the characteristics of the WBV intervention examined.

Comparator

Researchers should explore outcomes with comparators such as placebo, control, and other mixed exercise interventions.

Outcomes

At minimum, new trials should use the agreed upon core set of outcome measures established by OMERACT (Outcome Measures in Rheumatology; Choy 2009), supplemented by specific measures relevant to the individual experience. Future studies should include follow‐up activities and should be of sufficient length to permit assessment of long‐term effects.

Time

This review presents data identified up to June 2015; updates will be required as new evidence emerges. This review should be updated in three to five years.

Appendices

Appendix 1. Levels of evidence in overviews of antiepileptic drugs (Wiffen 2013)

First tier ‐ at least 50% pain intensity reduction over baseline (or its equivalent), without the use of last observation carried forward (LOCF) for dropouts, an intention‐to‐treat (ITT) analysis, in parallel‐group studies with at least 200 participants lasting eight weeks or longer.

Second tier ‐ evidence related to data from at least 200 participants when one or more of the above conditions were not met.

Third tier ‐ evidence related to data from fewer than 200 participants, or with several important methodological problems that limited interpretation.

Appendix 2. Example of a vibration exercise regimen

• Equipment: vibrating platform (PowerPlate, North America Inc., Northbrook, IL)

• Characteristics of the vibration: triplanar vibration, frequency of 30 Hz, peak to peak displacement of 4 mm (71.1 ms‐2 ≈ 7.2 g)

• Starting position: participants stood on the platform with weight through both feet with trunk upright and both knees in 60° of knee flexion

• Exercise instructions: attempt to hold starting position (isometric contraction)

• Progression of the exercise regimen:

Weeks 1‐2
 1. 6 × 30 s/45 s rest (bilateral squat)
 2. 4 × 30 s/45 s (unilateral squat)
 Weeks 3‐4
 1. 7 × 30 s/45 s rest (bilateral squat)
 2. 5 × 30 s/45 s (unilateral squat)
 Weeks 5‐6
 1. 8 × 30 s/45 s rest (bilateral squat)
 2. 6 × 30 s/45 s (unilateral squat)
 Weeks 7‐8
 1. 9 × 30 s/45 s rest (bilateral squat)
 2. 7 × 30 s/45 s (unilateral squat)

From Sañudo 2013.

Appendix 3. Medline (OVID) search strategy

1. Fibromyalgia/
 2. Fibromyalgi$.tw.
 3.  fibrositis.tw.
 4.  or/1‐3
 5.         exp Exercise/
 6.         Physical Exertion/
 7.         Physical Fitness/
 8.         exp Physical Endurance/
 9.         exp Sports/
 10.       Pliability/
 11.       exertion$.tw.
 12.       exercis$.tw.
 13.       sport$.tw.
 14.       ((physical or motion) adj5 (fitness or therapy or therapies)).tw.
 15.       (physical$ adj2 endur$).tw.
 16.       manipulat$.tw.
 17.       (skate$ or skating).tw.
 18.       jog$.tw.
 19.       swim$.tw.
 20.       bicycl$.tw.
 21.       (cycle$ or cycling).tw.
 22.       walk$.tw.
 23.       (row or rows or rowing).tw.
 24.       weight train$.tw.
 25.       muscle strength$.tw.
 26.       exp Yoga/
 27.       yoga.tw.
 28.       exp Tai Ji/
 29.       tai chi.tw.
 30.       Ai Chi.tw.
 31.       exp Vibration/
 32.       vibration.tw.
 33.       pilates.tw.
 34.       or/5‐33
 35.       4 and 34

Appendix 4. Embase (OVID) search strategy

1 FIBROMYALGIA/

2 fibromyalgi$.tw.

3 fibrositis.tw.

4 or/1‐3

5 exp exercise/

6 fitness/

7 exercise tolerance/

8 exp sport/

9 pliability/

10 exertion$.tw.

11 exercis$.tw.

12 sport$.tw.

13 ((physical or motion) adj5 (fitness or therapy or therapies)).tw.

14 (physical$ adj2 endur$).tw.

15 manipulat$.tw.

16 (skate$ or skating).tw.

17 jog$.tw.

18 swim$.tw.

19 bicycl$.tw.

20 (cycle$ or cycling).tw.

21 walk$.tw.

22 (row or rows or rowing).tw.

23 weight train$.tw.

24 muscle strength$.tw.

25 or/5‐24

26 4 and 25

Appendix 5. Cochrane Library (Wiley) search strategy

#1      MeSH descriptor Fibromyalgia explode all trees
 #2      fibromyalgia
 #3      fibrositis
 #4      (#1 OR #2 OR #3)
 #5      MeSH descriptor Exercise explode all trees
 #6      MeSH descriptor Physical Exertion explode all trees
 #7      MeSH descriptor Physical Fitness explode all trees
 #8      MeSH descriptor Exercise Tolerance explode all trees
 #9      MeSH descriptor Sports explode all trees
 #10    MeSH descriptor Pliability explode all trees
 #11    exertion*
 #12    exercis*
 #13    sport*
 #14    (physical or motion) near/5 (fitness or therapy or therapies)
 #15    physical* near/2 endur*
 #16    manipulat*
 #17    skate* or skating
 #18    jog*
 #19    swim*
 #20    bicycl*
 #21    cycle*
 #22    walk*
 #23    row or rows or rowing
 #24    weight next train*
 #25    muscle next strength*
 #26    MeSH descriptor Yoga explode all trees
 #27    yoga
 #28    tai chi
 #29    MeSH descriptor Tai Ji explode all trees
 #30    MeSH descriptor Vibration explode all trees
 #31    vibration
 #32    pilates
 #33    (#5 OR #6 OR #7 OR #8 OR #9 OR #10 OR #11 OR #12 OR #13 OR #14 OR #15 OR #16 OR #17 OR #18 OR #19 OR #20 OR #21 OR #22 OR #23 OR #24 OR #25 OR #26 OR ( # AND 27 ) OR #28 OR #29 OR #30 OR #31 OR #32)
 #34    (#33 AND #4)

A second search was conducted in the Cochrane Library of the HTA database, specifically, using the vibration terms alone to supplement the search above with a more sensitive search for health technology assessments of vibration platforms.

#1 MeSH descriptor Vibration explode all trees
 #2 vibration

#3 (#1 OR #2)

Appendix 6. CINAHL (EBSCOhost) search strategy

S01      (MH "Fibromyalgia")

S02      TI fibromyalgia or AB fibromyalgia

S03      TI fibrositis or AB fibrositis

S04      (MH "Exercise+")

S05      (MH "Exertion+")

S06      (MH "Physical Fitness")

S07      (MH "Exercise Test+")

S08      (MH "Sports+")

S09      (MH "Pliability")

S10     (MH "Physical Endurance+")

S11     TI exertion* or AB exertion*

S12     TI exercis* or AB exercis*

S13     TI sport* or AB sport*

S14     TI physical N5 fitness or TI physical N5 therapy or TI physical N5 therapies or AB physical N5 fitness or AB physical N5 therapy or AB physical N5 therapies

S15     TI motion N5 fitness or TI motion N5 therapy or TI motion N5 therapies or AB motion N5 fitness or AB motion N5 therapy or AB motion N5 therapies

S16     TI physical* N2 endur* or AB physical* N2 endur*

S17     ( skate* or skating ) or AB ( skate* or skating )

S18     jog* or AB jog*

S19     TI swim* or AB swim*

S20     TI bicycl* or AB bicycl*

 S21    TI ( (cycle* or cycling) ) or AB ( (cycle* or cycling) )

S22     TI walk* or AB walk*

S23     TI ( row or rows or rowing ) or AB ( row or rows or rowing )

S24     TI weight train* or AB weight train*

S25     TI muscle strength* or AB muscle strength*

S26     TI manipulat* or AB manipulat*

S27     S1 or S2 or S3

S28     S4 or S5 or S6 or S7 or S8 or S9 or S10 or S11 or S12 or S13 or S14 or S15 or S16 or S17 or S18 or S19 or S20 or S21 or S22 or S23 or S24 or S25 or S26

S29     S27 and S28

S30     S27 and S28

S31     (MH "Yoga Pose") OR (MH "Yoga")

S32     TX yoga

S33     TX tai chi

S34     (MM "Tai Chi")

S35     TX tai ji

S36     TX pilates

 S37    (MH "Pilates") OR "pilates"

S38     (MH "Vibration")

S39     TX vibration

S40     S31 or S32 or S33 or S34 or S35 or S36 or S37 or S38 or S39

S41     (S27 and (S28 or S40)



Appendix 7. PEDro Physiotherapy Evidence Database (http://www.pedro.org.au/) search strategy

Terms searched:

1. fibromyalg* AND fitness training

2. fibromyalg* AND strength training

3. fibrositis

Appendix 8. Dissertation Abstracts (ProQuest) search strategy

Terms searched fibromyalg* or fibrositis (in citation or abstract)

Appendix 9. Current Controlled Trials (http://www.controlled‐trials.com/) and ClinicalTrials.gov search strategy

Terms searched fibromyalg* or fibrositis

Appendix 10. WHO International Clinical Trials Registry Platform (http://www.who.int/ictrp/en/) search strategy

Terms searched fibromyalg* or fibrositis in Condition

Appendix 11. AMED (OVID) Allied and Complementary Medicine search strategy

OVID AMED (Allied and Complementary Medicine)

 1     Fibromyalgia/ (1453)
 2     Fibromyalgi$.tw. (1626)
 3     fibrositis.tw. (20)
 4     or/1‐3 (1631)
 5     exp Exercise/ (7293)
 6     Physical Fitness/ (1655)
 7     exp Physical Endurance/ (747)
 8     exp Sports/ (3576)
 9     Pliability/ (32)
 10     exertion$.tw. (1129)
 11     exercis$.tw. (18675)
 12     sport$.tw. (4952)
 13     ((physical or motion) adj5 (fitness or therapy or therapies)).tw. (8773)
 14     (physical$ adj2 endur$).tw. (629)
 15     manipulat$.tw. (4038)
 16     (skate$ or skating).tw. (81)
 17     jog$.tw. (158)
 18     swim$.tw. (552)
 19     bicycl$.tw. (972)
 20     (cycle$ or cycling).tw. (3530)
 21     walk$.tw. (7139)
 22     (row or rows or rowing).tw. (174)
 23     weight train$.tw. (149)
 24     muscle strength$.tw. (5651)
 25     exp pilates/ (22)
 26     exp Yoga/ (345)
 27     exp Tai chi/ (204)
 28     Tai ji.tw. (6)
 29     yoga.tw. (448)
 30     (hatha or kundalini or ashtunga or bikram).tw. (26)
 31     pilates.tw. (62)
 32     exp Exercise therapy/ (4945)
 33     or/5‐32 (43624)
 34     4 and 33 (328)

Appendix 12. Centre for Reviews and Dissemination search strategy

Terms searched in the CRD HTA databas: e(fibromyalg* ) AND (vibrat*).

Appendix 13. Agency for Healthcare Research and Quality – Technology Assessments search strategy

Browsed Musculoskeletal Disorders in Research Summaries, Reviews and Reports.

Appendix 14. CADTH Canadian Search Interface HTA Database search strategy

Term searched: “vibration”.

Appendix 15. Selection strategy

Level one screen

Based solely on the title of the report.

•   Does the study deal exclusively with fibromyalgia? No – exclude, Yes or uncertain ‐ go to step two.

•   Does it include exercise? No – exclude, Yes or uncertain – go to step three.

•   Does the study deal exclusively with adults? No – exclude, Yes or uncertain – go to step four.

•   Is it an RCT? No – exclude, Yes or uncertain – include.

 Level two screen

Based solely on the abstract of the report.

• Does the study deal exclusively with fibromyalgia? No – exclude, Yes or uncertain ‐ go to step two.

• Does it include exercise? No – exclude, Yes or uncertain – go to step three.

• Does the study deal exclusively with adults? No – exclude, Yes or uncertain – go to step four.

• Is it an RCT? No – exclude, Yes or uncertain – include.

 Level three screen

Based on the full text of the report.

• Does the study deal exclusively with fibromyalgia? No ‐ exclude, Yes ‐ go to step two, Uncertain ‐ add to list of questions for trial author and proceed to step two.

• Is the diagnosis of fibromyalgia based on published criteria? No ‐ exclude, Yes ‐ go to step three, Uncertain ‐ add to list of questions for trial author and proceed to step three.

• Does the study deal exclusively with adults? No ‐ exclude, Yes ‐ go onto step four, Uncertain ‐ add to list of questions for trial author and proceed to step four.

• Is it an RCT? (study uses terms such as "random," "randomized," "RCT," or "randomization" to describe study design or assignment of participants to groups): No ‐ exclude, Yes ‐ go on to step five, Uncertain ‐ add to list of questions for trial author and proceed to step five.

• Does the study include exercise (study involves at least one intervention that includes exercise)? No ‐ exclude, Yes ‐ go on to step six, Uncertain ‐ add to list of questions for trial author and proceed to step six.

• Are between‐group data provided for outcomes? No (study contains only fibromyalgia or results are reported in such a way that effects on fibromyalgia cannot be isolated) ‐ exclude, Yes ‐ include the study, Yes but uncertain about one or more of steps 1 to 5 to reserve judgement until trial authors are contacted.

Level four screen (classification of study using team's intervention listing)

• Classification of design

  • Number of interventions

  • Type of comparisons:

    • Head‐to‐head comparison?

    • Exercise to control?

    • Composite to control

• Control group

• • Classify type of control

• Exercise

• • Enter types of exercise interventions used in the study

  • Complete the naming of intervention groups

Appendix 16. 2011 ACSM position stand: guidance for prescribing exercise

The following recommendations were derived from Garber 2011.

Recommendations for cardiorespiratory fitness

• Moderate‐intensity cardiorespiratory exercise training for ≥ 30 minutes/d on ≥ 5 days per week for a total of ≥ 150 minutes per week, vigorous‐intensity cardiorespiratory exercise training for ≥ 20 minutes/d on ≥ 3 days per week (≥ 75 minutes/wk), or a combination of moderate‐ and vigorous‐intensity exercise to achieve total energy expenditure ≥ 500 to 1000 MET min/wk

Recommendations for muscular fitness

• On 2 to 3 days per week, adults should also perform resistance exercises for each of the major muscle groups, as well as neuromotor exercise involving balance, agility, and coordination

• Two to four sets of resistance exercise per muscle group is recommended, but even a single set of exercise may significantly improve muscle strength and size

• Rest interval between sets if more than one set is performed: 2 to 3 minutes

• Resistance equivalent of 60% to 80% of one repetition max (1RM) effort. For novices, 60% to 70% of 1RM is recommended; for experienced, exercises ≥ 80% may be appropriate

• Selected resistance should permit completion of 8 to 12 repetitions per set or number needed to induce muscle fatigue but not exhaustion

• For people who wish to focus on improving muscular endurance, lower intensity (< 50% of 1RM) can be used with 15 to 25 repetitions in no more than 2 sets

Recommendations for flexibility

• Series of flexibility exercises for each of the major muscle–tendon groups with a total of 60 seconds per exercise on ≥ 2 days per week is recommended. Series of exercises targeting major muscle‐tendon units of the shoulder girdle, chest, neck, trunk, lower back, hops, posterior and anterior legs, and ankles is recommended. For most individuals, this routine can be completed within 10 minutes

• Stretches should be held for 1 to 30 seconds at the point of tightness or slight discomfort. Older persons may realize greater improvements in range of motion with longer durations (30 to 60 seconds) os stretching. A 20% to 75% maximum contraction held for 3 to 6 seconds followed by a 10 to 30 second assisted stretch is recommended for PNF (proprioceptive neuromuscular facilitation) techniques

• Repeating each flexibility exercise 2 to 4 times is effective

Data and analyses

Comparison 1. WBV vs C.

Outcome or subgroup title	No. of studies	No. of participants	Statistical method	Effect size
1 HRQL, 1‐100 scale, lower means better HRQL	1		Mean Difference (IV, Fixed, 95% CI)	Totals not selected
2 Balance, degrees of displacement, lower is best	1		Mean Difference (IV, Fixed, 95% CI)	Totals not selected
3 Withdrawal	1		Risk Ratio (M‐H, Random, 95% CI)	Totals not selected

Comparison 2. WBV + MX vs C.

Outcome or subgroup title	No. of studies	No. of participants	Statistical method	Effect size
1 WBV + MX vs C: HRQL, 0‐100 scale, lower is best	1		Mean Difference (IV, Random, 95% CI)	Totals not selected
2 WBV + MX vs C: pain, 0‐100 scale, lower is best	1		Mean Difference (IV, Fixed, 95% CI)	Totals not selected
3 WBV + MX vs C: fatigue, 0‐100 scale, lower is best	1		Mean Difference (IV, Random, 95% CI)	Totals not selected
4 WBV + MX vs C: stiffness, 0‐100 scale, lower is best	1		Mean Difference (IV, Random, 95% CI)	Totals not selected
5 WBV + MX vs C: balance, overall stability index ‐ eyes closed (degrees of displacement 0 to 20 scale, lower is best)	1		Mean Difference (IV, Fixed, 95% CI)	Totals not selected
6 Withdrawal	2	46	Risk Ratio (M‐H, Random, 95% CI)	0.25 [0.06, 1.12]

Comparison 3. WBV + MX vs Other.

Outcome or subgroup title	No. of studies	No. of participants	Statistical method	Effect size
1 WBV + MX vs Other: HRQL, 0‐100 scale, lower is best	2	49	Mean Difference (IV, Random, 95% CI)	‐6.67 [‐14.65, 1.31]
2 WBV + MX vs Other: pain, 0‐100 scale, lower is best	1		Mean Difference (IV, Random, 95% CI)	Totals not selected
3 WBV + MX vs Other: fatigue, 0‐100 scale, lower is best	1		Mean Difference (IV, Random, 95% CI)	Totals not selected
4 WBV + MX vs Other: stiffness, 0‐100 scale, lower is best	1		Mean Difference (IV, Fixed, 95% CI)	Totals not selected
5 WBV + MX vs Other: strength, measured in newtons and number of reps, higher values are best	2	54	Std. Mean Difference (IV, Random, 95% CI)	0.77 [0.20, 1.35]
6 WBV + MX vs Other: balance, overall stability index ‐ eyes closed (degrees of displacement 0 to 20 scale, lower is best)	2	54	Mean Difference (IV, Random, 95% CI)	‐0.22 [‐1.56, 1.11]
7 Withdrawal	3	77	Risk Ratio (M‐H, Random, 95% CI)	0.72 [0.17, 3.11]

3.5. Analysis.

Comparison 3 WBV + MX vs Other, Outcome 5 WBV + MX vs Other: strength, measured in newtons and number of reps, higher values are best.

3.6. Analysis.

Comparison 3 WBV + MX vs Other, Outcome 6 WBV + MX vs Other: balance, overall stability index ‐ eyes closed (degrees of displacement 0 to 20 scale, lower is best).

Characteristics of studies

Characteristics of included studies [ordered by study ID]

Alentorn‐Geli 2008.

Methods	3 groups: mixed exercise (AE + FX + Relax) + WBV; mixed exercise (AE + FX + Relax) + placebo WBV; control (medication as usual) Setting: not specified Length: 6 weeks Follow‐up: none Study design: randomized clinical trial with parallel groups
Participants	Female:Male: 33:0 Age: 55.2 (SE 3.4); 53.7 (SE 2.7); 59.3 (SE 2.3) years, respectively Duration of diagnosis (years): 9.8 (SE 0.8) to 10.5 (SE 0.8) Inclusion: women with diagnosis of FM (ACR 1990) ≥ 3 years Exclusion: any orthopedic limitation, or cardiovascular, pulmonary, or metabolic disease that would preclude exercise
Interventions	Mixed exercise, relaxation, vibration (n = 11): "The total duration (over 12 sessions) of aerobic exercise, stretching, and relaxation was 9 hours, 6 hours, and 4 hours, respectively" (page 977) • exercise protocol ‐ total frequency: 2/wk: duration: 90' (warm‐up 15', AE 30', FX 25', Relax 20') ‐ AE intensity: moderate to vigorous (65%‐85% HR max); mode: AE primarily level ground walking with games dance ‐ FX to stop point: mode: FX 5 × 5 whole body stretches, 30 s hold, 30 s relax, involving hamstrings, calves, Achilles tendons, shoulders, arms, gluteals, cervical spine, low back, upper back, chest, hip adductors • relaxation exercise ‐ mode: diaphragmatic respiration, progressive muscular relaxation, contraction – relaxation and imagery techniques, pharmacologic care as usual • vibration protocol ‐ frequency: 2/wk; duration: 4‐5' sessions 1' and 2', 18' sessions 3‐12; intensity: body weight resistance; mode: six 30 s lower extremity exercises (static and dynamic), vibratory stimulus: vibration frequency 30 Hz with 2 mm amplitude Mixed exercise, relaxation, placebo vibration (n = 12) • exercise protocol ‐ as per mixed exercise, relaxation, vibration group • relaxation exercise ‐ as per mixed exercise, relaxation, vibration group • placebo vibration ‐ as per mixed exercise, relaxation, vibration group, but apparatus did not produce vibrations Control (n = 10): pharmacologic care as usual
Outcomes	Health‐related quality of life (FIQ total), Pain intensity (FIQ VAS), Fatigue (FIQ VAS), Stiffness (FIQ VAS) Other: depression (FIQ VAS). Measurements at baseline and at 6 weeks post treatment
Adherence (monitoring, adherence criteria, adherence)	Monitoring methods: none stated; adherence criteria: "100% adherence = all sessions attended"; adherence in mixed exercise, relaxation, vibration group: attendance 93%; adherence in mixed exercise, relaxation, placebo vibration group: 92% (0% dropout)
Congruence of exercise protocol with ACSM criteria for aerobic, resistance or flexibility	Both intervention groups AE ‐ exercise did not meet ACSM criteria based on frequency (only 2×/wk) FX ‐ met criteria
Notes	Country: Spain Language: English Trial author contact: yes (no response to our email) Data extraction: point estimates and variability estimates extrapolated from graphs Funding sources: "no grant supported the investigation. ... There was no conflict of interest" (page 980)
Risk of bias
Bias	Authors' judgement	Support for judgement
Random sequence generation (selection bias)	Unclear risk	Insufficient information to permit judgement: "Women were randomized into three treatment groups" (page 976)
Allocation concealment (selection bias)	Unclear risk	Insufficient information to permit judgement
Blinding of participants and personnel (performance bias) All outcomes	Low risk	In addition to implementing a "sham" intervention (vibratory apparatus was turned on yet did not produce vibration (page 977), steps were taken to reduce contact between intervention groups
Blinding of self reported outcome (detection bias)	Low risk	All outcomes (HRQL, pain intensity, fatigue, stiffness) were self‐reported "The administration and analysis of the questionnaires were performed by an investigator who was blind to the treatment group" (page 977) Individuals not aware of placebo effect: "We informed both EVG and EG that they would receive a perceptible and imperceptible vibratory stimulus, respectively, thus maintaining the potential of a placebo effect consistent in both groups" (page 977)
Blinding of objectively measured outcome (detection bias)	Low risk	Not measured
Incomplete outcome data (attrition bias) All outcomes	Low risk	Study has no dropouts. Attrition was attributed to "a no‐show on testing day" (page 978). Intention‐to‐treat not used; however, it is unlikely that attrition affected results
Selective reporting (reporting bias)	High risk	Trial authors used the FIQ but did not report all subscales. Assuming FIQ was used, outcomes physical function, anxiety, and sleep were not reported. Furthermore, we searched the protocol available on ClinicalTrials.gov (NCT00650715), but it does not provide further insight into selective reporting related to outcomes examined in this review. Trial authors specified their primary outcome only (serum IGT‐1); no other planned outcomes are available in the trial protocol
Other bias	Low risk	Study appears to be free of other sources of bias

Gusi 2010.

Methods	2 groups: whole body vibration; control (standard care) Setting: program implemented at the local fibromyalgia association (unclear whether group or individual) Length of Intervention: 12 weeks Follow‐up: none Study design: randomized clinical trial, parallel groups
Participants	Female:Male: 41:0 Age: mean 52.4 (SD 10.8); mean 53 (SD 12) years, respectively Duration of symptoms: 12.7 (6.7); 13.7 (6.2) years, respectively Inclusion: participants in a local fibromyalgia association; condition diagnosed by a rheumatologist (ACR 1990 diagnostic criteria) Exclusion: history of severe trauma, frequent migraines, peripheral nerve entrapment, inflammatory rheumatic disease, severe psychiatric illness, other diseases that prevent physical loading, pregnancy, participation in another psychological or physical therapy program, participation in regular physical exercise more often than 1×/wk for ≥ 30 minutes during any 2‐week period in past 5 years
Interventions	Whole body vibration (n = 21): frequency: 3×/wk; duration: 18‐21' per session. 10' warm‐up of slow walking and slight movement; total 6 reps of WBV at 12.5 Hz with 60 s rest interval; wk 1‐4 each rep was 30 s; wk 5‐8 each rep was 45 s; wk 9‐12 each rep was 60 s; at each repetition, the stance of the participant on the platform was alternated between stance 'A' (feet planted perpendicular to midline axis of the platform; right foot ahead of left; lift the toes of the platform; bend the knees and maintain a 45‐degree knee angle; keep back ahead straight) and 'B' (same as stance 'A' but left foot ahead). Intensity: not given. Mode: sustained squat on vibration platform Control (n = 20): Participants received standard care that included medical attention and social support through the local fibromyalgia association: "Participants continue their daily activities which did not include any form of physical exercise that resembled the exercises performed by participants in the vibration group, and they not receive a weekly phone call" (page 1074)
Outcomes	Health‐related quality of life (FIQ total), Balance (Biodex Balance System dynamic and static balance ‐ degrees of tilt) Other: HRQL (15D questionnaire), Number of falls in the past year (baseline only), Tender points (baseline only) Measurements taken at baseline and at 12 weeks post treatment
Adherence (monitoring, adherence criteria, adherence)	Monitoring methods: logbooks and research assistance, 3‐minute weekly phone call; adherence criteria: none stated; adherence: program was completed by 85.7% of participants
Congruence of exercise protocol with ACSM criteria for aerobic, resistance or flexibility	Not applicable
Notes	Country: Spain, Language: English Trial author contact: no Funding sources: not specified
Risk of bias
Bias	Authors' judgement	Support for judgement
Random sequence generation (selection bias)	Low risk	Participants were "randomly and sequentially assigned to either the vibration group (n = 21) or the control group (n = 20) by a research assistant, according to a random number table" (page 1073)
Allocation concealment (selection bias)	Low risk	Participants were "allocated by research assistant, participants were blinded to allocation until after assignment, research team members were blinded to assignment" (page 1073)
Blinding of participants and personnel (performance bias) All outcomes	High risk	"Participants were blinded to group assignment before baseline measurements, after which all participants were informed of their assignment" (page 1073)
Blinding of self reported outcome (detection bias)	High risk	Self‐reported outcome measures
Blinding of objectively measured outcome (detection bias)	Low risk	"Research team members (JAP and PRO) who were also blinded to the group assignments of the participants conducted the measurements of dynamic balance at baseline and 12 weeks. Different members of the research team (NG and JCA) administered the intervention and performed the statistical analysis" (page 1073)
Incomplete outcome data (attrition bias) All outcomes	Low risk	ITT analysis and ITT data reported in Gusi 2010, but in Adsuar, analysis was based on "as treated" data (n = 18 per group)
Selective reporting (reporting bias)	High risk	Study protocol (www.controlled‐trials.com/ISRCTN16950947) states that FIQ was used at baseline and at 3 months, yet HRQL, physical function, and pain intensity were not reported
Other bias	Low risk	Study appears to be free of other sources of bias

Sañudo 2010.

Methods	2 groups: mixed exercise (AE + RT + FX) + WBV; mixed exercise (AE + RT + FX) Setting: group ‐ supervised Length: 6 weeks Follow‐up: none Study design: randomized clinical trial with parallel groups
Participants	Female:Male: 30:0 Age: 57.89 (6.23); 60.13 (9.42) years, respectively Duration of illness: not stated Inclusion: postmenopausal women with diagnosis of fibromyalgia (ACR 1990) Exclusion: inflammatory rheumatic disorders or degenerative joint disease, psychiatric disorders, respiratory or cardiovascular diseases that would preclude exercise. Individuals under psychiatrist care or performing structured physical activity ≥ 2 days a week or had psychological therapy during the 6 months before the study
Interventions	Mixed exercise (AE + RT + FX) + WBV (n = 15) • exercise protocol: frequency 2×/wk ‐ AE intensity: 50%‐69% max HR, major muscle groups; mode: short intervals (4‐6 intervals of 2‐3', 1‐2' rest in between) ‐ RT intensity: 8 exercises: 1×1‐8 reps with 1‐3 kg; mode: not stated ‐ FX intensity: 8‐9 exercises: 1×3 reps, keeping the stretch position for 30 s; mode: not stated • vibration protocol: frequency 3×/wk; duration 3 sets of 45 s with 120 s recovery (amplitude = 3 mm) and 4 sets of 15 s; intensity: frequency of 20 Hz and variable amplitude of 2‐3 mm; mode: using a platform (Novotec, Pforzheim, Germany), the first 3 sets were performed bilaterally for 45 s at a frequency of 20 Hz (amplitude 3 mm) after 120 s recovery between sets. Participants completed 4 sets of unilateral static squats at a frequency of 20 Hz (A = 2 mm) for 6 wk. Participants completed 15 s of exercise with right leg, then immediately completed 15 s on the left leg ‐ this was considered 1 set. During vibration session, participants stood with both knees in 120 isometric knee flexion (half‐squatting position) as measured by a goniometer Mixed exercise (AE + ST + FX) (n = 15) performed as in Mixed exercise (AE + RT + FX) + WBV group, no vibration training. Frequency 2×/wk; duration 60 minutes
Outcomes	Health‐related quality of life (FIQ total), Muscle strength (newtons), Balance (Biodex Bal System – overall stability index, eyes closed, degree displacement 0‐20 scale) Other: muscle endurance (number of squat reps in 60 s and fatigue index), power (maximum power; squats), HRQL (SF‐36) Measurements at baseline and at 6 weeks post treatment
Adherence (monitoring, adherence criteria, adherence)	Monitoring methods: none stated; adherence criteria: none stated; adherence: none stated
Congruence of exercise protocol with ACSM criteria for aerobic, resistance or flexibility	Both intervention groups AE ‐ did not meet ACSM criteria based on frequency (only 2×/wk for about 15') RT ‐ met criteria FX ‐ not enough info to judge; unclear which muscles were stretched
Notes	Country: Spain Language: primary and companion articles in English Funding sources: none stated Trial author contact: yes, responses received (March 18, 2012) with regard to reasons for dropout, fatigue ratio calculation, sessions of vibration training, allocation concealment, and combined exercise sessions
Risk of bias
Bias	Authors' judgement	Support for judgement
Random sequence generation (selection bias)	Low risk	"participants were randomized into one of two groups (by a computer generated random number table). Randomization was carried out by LC, who was not directly involved in the day‐to‐day running of the study…" (page S‐41)
Allocation concealment (selection bias)	Unclear risk	Insufficient information to permit judgment of "yes" or "no"
Blinding of participants and personnel (performance bias) All outcomes	Unclear risk	No information provided to indicate measurements to blind study participants or personnel
Blinding of self reported outcome (detection bias)	Unclear risk	Self‐reported outcomes: head‐to‐head intervention; it is possible that both groups may have overestimated reporting of the outcome. No information about participant awareness of the intervention
Blinding of objectively measured outcome (detection bias)	Low risk	"Data were collected….by an outcome assessor who was blind to group allocation" (page S‐41)
Incomplete outcome data (attrition bias) All outcomes	Low risk	No missing outcome data
Selective reporting (reporting bias)	Low risk	Study protocol is not available, but it is clear that published reports include all expected outcomes
Other bias	Low risk	Study appears to be free of other sources of bias

Sañudo 2013.

Methods	3 groups: mixed exercise (AE + RT + FX) + WBV; mixed exercise (AE + RT + FX); control (usual care) Setting: community based ‐ supervised Length: 8 weeks Follow‐up: none Study design: randomized controlled trial, 3 parallel groups
Participants	Female:Male: 46:0 Age: 57.15 (SD 6.8); 62.3 (SD 9.8); 55.6 (SD 7.9) years, respectively Duration of illness: not specified Inclusion: participants in a local fibromyalgia support group (Seville, Spain) and physician practices; met ACR 1990 diagnosis criteria Exclusion: no previous experience with vibratory training; ≥ 1 possible contraindications (acute hernia; thrombosis; diabetes; epilepsy; metabolic or neuromuscular disease; osteoporosis; osteoarthritis; orthopedic injuries and prosthesis); respiratory or cardiovascular disease that prevents physical exertion; taking drugs that could interfere with balance control; receiving psychological or physical therapy (to avoid possible interaction)
Interventions	Mixed exercise (AE + RT + FX) + WBV (n = 15) • exercise protocol: duration: 45‐60 min (WU 10 min, AE 10‐15 min, RT 15‐20 min, FX 10 min) ‐ AE: frequency: 2×/wk; mode: AE ‐ walking mode not specified; intensity: moderate (65%‐70% HR max) ‐ RT: 1 set of 8‐10 reps for 8 different muscle groups; load 1‐3 kg ‐ FX: mode: 1 set of 3 reps for 8‐9 different exercises, maintained for 30 s; mode: focused on main areas of pain (deltoids, biceps, neck, hips, back, and chest) • vibration protocol: frequency: 3×/wk progressive training (2‐leg stance with knees @120° of knee flexion), 30 Hz, peak to displacement 4 mm (71.1 m/s‐2˜7.2 g); duration: weeks 1‐2: 6 sets of 30 s, 45 s recovery between sets with participants standing with both feet on platform, and 4 sets of 30 s single leg (right and left immediately following each other); weeks 3‐4: 7 sets 30 s/45 s rest (bilateral squat), and 5 sets of 30 s/45 s rest (unilateral squat). Weeks 5‐6: 8 sets of 30 s/45 s rest (bilateral squat), and 6 sets of 30 s/45 s rest (unilateral squat), weeks 7‐8: 9 sets of 30 s/45 s rest (bilateral squat), and 7 sets of 30 s/45 s rest (unilateral squat) Mixed exercise (AE + RT + FX) (n = 15) Frequency: 2×/wk; duration: 45‐60 min (WU 10 min, AE 10‐15 min, RT 15‐20 min, FX 10 min) • exercise protocol: performed as in Mixed exercise (AE + RT + FX) + WBV group Usual care (n = 16): usual care, no additional information provided
Outcomes	Balance (Biodex F1C Stability System: overall stability index open eyes, overall stability index closed eyes) Other: power (number of reps of half squats in 1') Measurements taken at baseline and at 8 weeks post treatment
Adherence (monitoring, adherence criteria, adherence)	Monitoring methods: not stated; adherence criteria: not stated; adherence: women in mixed plus whole body vibration group attended 77%, and in mixed exercise 79% of sessions
Congruence of exercise protocol with ACSM criteria for aerobic, resistance or flexibility	Both intervention groups AE ‐ did not meet ACSM criteria for frequency and duration RT ‐ not enough information to determine FX ‐ met ACSM criteria
Notes	Country: Spain Language: English Funding sources: none stated Trial author contact: email received March 17, 2014, provided clarification regard sample size (only 5 participants in CG dropped out, 11 participants were assessed at post‐test and assessor blinding)
Risk of bias
Bias	Authors' judgement	Support for judgement
Random sequence generation (selection bias)	Low risk	"Participants were randomly assigned by using a computer generated random number sequence" (page 679)
Allocation concealment (selection bias)	Low risk	"Randomization was undertaken by a member of the research team not directly involved in the recruitment or assessment of patients" (page 679)
Blinding of participants and personnel (performance bias) All outcomes	High risk	Unspecified blinding of participants or personnel
Blinding of self reported outcome (detection bias)	Low risk	Not measured
Blinding of objectively measured outcome (detection bias)	Low risk	Research team members (JAP and PRO) who were also blinded to group assignments of participants conducted measurements of dynamic balance at baseline and at 12 weeks. Different members of research team (NG and JCA) administered the intervention and performed statistical analysis (trial author communication)
Incomplete outcome data (attrition bias) All outcomes	Low risk	ITT analysis, and ITT data reported
Selective reporting (reporting bias)	Low risk	Study protocol is not available, but results for all outcomes specified in the methods section of the paper were reported
Other bias	Unclear risk	Baselines differences in medial lateral mean defection (page 680)

Characteristics of excluded studies [ordered by study ID]

Study	Reason for exclusion
Ahlgren 2001	Diagnosis does not meet requirements
Alentorn‐Geli 2009	Outcomes were serum insulin‐like growth factor‐1 (IGF‐1) levels in women with fibromyalgia. None of the primary or secondary outcomes of the review were measured in this study
Altan 2004	Physical activity intervention did not meet requirements for vibration training
Altan 2009	Physical activity intervention did not meet requirements for vibration training
Amanollahi 2013	Physical activity intervention did not meet requirements for vibration training
Andrade 2016	Not an RCT
Ang 2007	Randomization does not allow analysis of effects of exercise
Aquino 2013	Exercise requirements not met
Arcos‐Carmona 2011	Physical activity intervention did not meet requirements for vibration training
Assis 2006	Physical activity intervention did not meet requirements for vibration training
Astin 2003	Physical activity intervention did not meet requirements for vibration training
Bailey 1999	Not an RCT
Bakker 1995	Designated outcomes not measured
Baniak 2015	Not an RCT
Baptista 2012	Physical activity intervention did not meet requirements for vibration training
Bardal 2015	Not an RCT
Bircan 2008	Physical activity intervention did not meet requirements for vibration training
Bojner‐Horwitz 2003	Physical activity intervention did not meet requirements for vibration training
Bojner‐Horwitz 2006	Physical activity intervention did not meet requirements for vibration training (companion)
Bote 2013	Not an RCT
Bressan 2008	Physical activity intervention did not meet requirements for vibration training
Buckelew 1998	Physical activity intervention did not meet requirements for vibration training
Calandre 2010	Physical activity intervention did not meet requirements for vibration training
Carbonell‐Baeza 2011	Physical activity intervention did not meet requirements for vibration training
Carbonell‐Baeza 2011a	RCT protocol (physical activity intervention did not meet requirements for vibration training)
Carbonell‐Baeza 2012	RCT protocol (physical activity intervention did not meet requirements for vibration training)
Carson 2010	Physical activity intervention did not meet requirements for vibration training
Carson 2012	Physical activity intervention did not meet requirements for vibration training (companion)
Casanueva‐Fernandez 2012	Exercise requirements not met
Castel 2013	Physical activity intervention did not meet requirements for vibration training
Castro‐Sanchez 2011	Exercise requirements not met
Cedraschi 2004	Physical activity intervention did not meet requirements for vibration training
Cocke 2015	Physical activity intervention did not meet requirements for vibration training
Da Costa 2005	Physical activity intervention did not meet requirements for vibration training
da Silva 2007	Physical activity intervention did not meet requirements for vibration training
da Silva 2015	RCT protocol (physical activity intervention did not meet requirements for vibration training)
Dal 2011	Not an RCT
Dawson 2003	Not an RCT
De Andrade 2008	Physical activity intervention did not meet requirements for vibration training
de Araujo Farias 2013	Physical activity intervention did not meet requirements for vibration training
de Melo Vitorino 2006	Physical activity intervention did not meet requirements for vibration training
Delgado 2011	RCT protocol (physical activity intervention did not meet requirements for vibration training)
Demir‐Gocmen 2013	Physical activity intervention did not meet requirements for vibration training
Duruturk 2015	Physical activity intervention did not meet requirements for vibration training
Ekici 2008	Physical activity intervention did not meet requirements for vibration training
Etnier 2009	Physical activity intervention did not meet requirements for vibration training
Evcik 2008	Physical activity intervention did not meet requirements for vibration training
Field 2003	Physical activity intervention did not meet requirements for vibration training
Finset 2004	Physical activity intervention did not meet requirements for vibration training (companion)
Fioravanti 2015	RCT protocol (physical activity intervention did not meet requirements for vibration training)
Fontaine 2007	Physical activity intervention did not meet requirements for vibration training
Fontaine 2010	Physical activity intervention did not meet requirements for vibration training
Fontaine 2011	Physical activity intervention did not meet requirements for vibration training (companion)
Gandhi 2000	Not an RCT
Garcia‐Martinez 2011	Physical activity intervention did not meet requirements for vibration training
Gavi 2014	Physical activity intervention did not meet requirements for vibration training
Genc 2002	Physical activity intervention did not meet requirements for vibration training
Genc 2015	Physical activity intervention did not meet requirements for vibration training
Giannotti 2014	Physical activity intervention did not meet requirements for vibration training
Gomes da Silva 2008	Physical activity intervention did not meet requirements for vibration training
Gonzalez Gonzalez 2015	Not an RCT
Gowans 1999	Physical activity intervention did not meet requirements for vibration training
Gowans 2001	Physical activity intervention did not meet requirements for vibration training
Gowans 2002	Physical activity intervention did not meet requirements for vibration training (companion)
Gowans 2004	Follow‐up study, randomization lost
Guarino 2001	Diagnosis did not meet requirements
Gusi 2006	Physical activity intervention did not meet requirements for vibration training
Gusi 2008	Physical activity intervention did not meet requirements for vibration training (companion)
Gusi Fuertes 2016	RCT protocol (physical activity intervention did not meet requirements for vibration training)
Hakkinen 2002	Physical activity intervention did not meet requirements for vibration training (companion)
Han 1998	Not an RCT
Hecker 2011	Physical activity intervention did not meet requirements for vibration training
Hoeger Bement 2011	Not an RCT
Hoeger Bement 2014	Not an RCT
Hooten 2012	Physical activity intervention did not meet requirements for vibration training
Hsieh 2010	Not an RCT
Hunt 2000	Physical activity intervention did not meet requirements for vibration training
Huyser 1997	Not an RCT
Häkkinen 2001	Physical activity intervention did not meet requirements for vibration training
Häkkinen 2002	Physical activity intervention did not meet requirements for vibration training
Ide 2008	Physical activity intervention did not meet requirements for vibration training
Ismael Martins 2014	Physical activity intervention did not meet requirements for vibration training
Jentoft 2001	Physical activity intervention did not meet requirements for vibration training
Jones 2002	Physical activity intervention did not meet requirements for vibration training
Jones 2007	Physical activity intervention did not meet requirements for vibration training (companion)
Jones 2008	Physical activity intervention did not meet requirements for vibration training
Jones 2011	Not an RCT
Jones 2012	Physical activity intervention did not meet requirements for vibration training
Joshi 2009	Physical activity intervention did not meet requirements for vibration training
Kadetoff 2010	Not an RCT
Kaleth 2013	Randomization does not allow analysis of effects of exercise
Kaleth 2016	Randomization does not allow analysis of effects of exercise
Karolinska Institutet 2015	RCT protocol (physical activity intervention did not meet requirements for vibration training)
Karper 2001	Not an RCT
Kayo 2011	Physical activity intervention did not meet requirements for vibration training
Keel 1998	Physical activity intervention did not meet requirements for vibration training
Kendall 2000	Exercise requirements not met
Kesiktas 2011	Not an RCT
Khalsa 2009	Not an RCT
Kibar 2015	Physical activity intervention did not meet requirements for vibration training
King 2002	Physical activity intervention did not meet requirements for vibration training
Kingsley 2005	Diagnosis did not meet requirements
Kingsley 2010	Not an RCT
Klug 1989	Not an RCT
Kroenke 2013	Diagnosis did not meet requirements
Kurt 2016	Physical activity intervention did not meet requirements for vibration training
Lange 2011	Not an RCT
Larsson 2015	Physical activity intervention did not meet requirements for vibration training
Latorre 2013	Not an RCT
Latorre Roman 2015	Physical activity intervention did not meet requirements for vibration training
Lemstra 2005	Physical activity intervention did not meet requirements for vibration training
Letieri 2013	Physical activity intervention did not meet requirements for vibration training
Liu 2012	Physical activity intervention did not meet requirements for vibration training
Lopez‐Pousa 2015	Study did not include exercise
Lorig 2008	Exercise requirements not met
Lynch 2012	Physical activity intervention did not meet requirements for vibration training
López‐Rodríguez 2012	Physical activity intervention did not meet requirements for vibration training
Mannerkorpi 2000	Physical activity intervention did not meet requirements for vibration training
Mannerkorpi 2002	Not an RCT
Mannerkorpi 2009	Physical activity intervention did not meet requirements for vibration training
Mannerkorpi 2010	Physical activity intervention did not meet requirements for vibration training
Martin 1996	Physical activity intervention did not meet requirements for vibration training
Martin 2014	Physical activity intervention did not meet requirements for vibration training
Martin‐Nogueras 2012	Physical activity intervention did not meet requirements for vibration training
Mason 1998	Not an RCT
Matsumoto 2011	Data for FM not isolated
Matsutani 2007	Physical activity intervention did not meet requirements for vibration training
Matsutani 2012	Physical activity intervention did not meet requirements for vibration training
McCain 1986	Physical activity intervention did not meet requirements for vibration training (companion)
McCain 1988	Physical activity intervention did not meet requirements for vibration training
Meiworm 2000	Not an RCT
Mendonca 2016	Physical activity intervention did not meet requirements for vibration training
Mengshoel 1992	Physical activity intervention did not meet requirements for vibration training
Mengshoel 1993	Physical activity intervention did not meet requirements for vibration training (companion)
Meyer 2000	Problem with implementation of study design ‐ randomization lost
Mobily 2001	Not an RCT
Munguia‐Izquierdo 2007	Physical activity intervention did not meet requirements for vibration training
Munguia‐Izquierdo 2008	Physical activity intervention did not meet requirements for vibration training (companion)
Mutlu 2013	Physical activity intervention did not meet requirements for vibration training
Newcomb 2011	Exercise requirements not met
Nichols 1994	Physical activity intervention did not meet requirements for vibration training
Nielens 2000	Not an RCT
Norregaard 1997	Physical activity intervention did not meet requirements for vibration training
Offenbacher 2000	Not an RCT
Oncel 1994	Exercise requirements not met
Palekar 2014	Physical activity intervention did not meet requirements for vibration training
Paolucci 2015	Physical activity intervention did not meet requirements for vibration training
Pastor 2014	RCT protocol (physical activity intervention did not meet requirements for vibration training)
Perez‐De la Cruz 2015	Study did not allow analysis of fibromyalgia only
Peters 2002	Diagnosis did not meet requirements
Pfeiffer 2003	Not an RCT
Piso 2001	Not an RCT
Ramsay 2000	Physical activity intervention did not meet requirements for vibration training
Richards 2002	Physical activity intervention did not meet requirements for vibration training
Rivera Redondo 2004	Physical activity intervention did not meet requirements for vibration training
Rooks 2002	Not an RCT
Rooks 2007	Physical activity intervention did not meet requirements for vibration training
Salek 2005	Not an RCT
Santana 2010	Diagnosis did not meet requirements
Sañudo 2010a	Physical activity intervention did not meet requirements for vibration training
Sañudo 2010b	Physical activity intervention did not meet requirements for vibration training
Sañudo 2011	Physical activity intervention did not meet requirements for vibration training
Sañudo 2012a	Physical activity intervention did not meet requirements for vibration training
Sañudo 2015	Physical activity intervention did not meet requirements for vibration training
Schachter 2003	Physical activity intervention did not meet requirements for vibration training
Schmidt 2011	Physical activity intervention did not meet requirements for vibration training
Sencan 2004	Physical activity intervention did not meet requirements for vibration training
Sigl‐Erkel 2011	Not an RCT
Srikuea 2013	Exercise requirements not met
Steiner 2015	Not a physical activity RCT; analysis did not isolate effects of exercise
Suman 2009	Not an RCT
Thieme 2003	Exercise requirements not met
Thijssen 1992	Not an RCT
Tiidus 1997	Not an RCT
Tomas‐Carus 2007a	Physical activity intervention did not meet requirements for vibration training (companion)
Tomas‐Carus 2007b	Physical activity intervention did not meet requirements for vibration training (companion)
Tomas‐Carus 2007c	Physical activity intervention did not meet requirements for vibration training (companion)
Tomas‐Carus 2007d	Physical activity intervention did not meet requirements for vibration training (companion)
Tomas‐Carus 2008	Physical activity intervention did not meet requirements for vibration training
Tomas‐Carus 2009	Not an RCT
Torres 2015	Study did not include exercise
Uhlemann 2007	Not an RCT
Valencia 2009	Physical activity intervention did not meet requirements for vibration training
Valim 2003	Physical activity intervention did not meet requirements for vibration training
Valim 2013	Physical activity intervention did not meet requirements for vibration training (companion)
Valkeinen 2004	Physical activity intervention did not meet requirements for vibration training
Valkeinen 2005	Physical activity intervention did not meet requirements for vibration training (companion)
Valkeinen 2008	Physical activity intervention did not meet requirements for vibration training
van Eijk‐Hustings 2013	Physical activity intervention did not meet requirements for vibration training
van Koulil 2010	Physical activity intervention did not meet requirements for vibration training
VanRavenstein 2014	Not an RCT
vanSanten 2002	Physical activity intervention did not meet requirements for vibration training
vanSanten 2002a	Physical activity intervention did not meet requirements for vibration training
Verstappen 1997	Physical activity intervention did not meet requirements for vibration training
Vlaeyen1996	Exercise requirements not met
Wang 2010	Physical activity intervention did not meet requirements for vibration training
Wang 2015	RCT protocol (physical activity intervention did not meet requirements for vibration training)
Westfall 1999	Diagnosis did not meet requirements
Wigers 1996	Physical activity intervention did not meet requirements for vibration training
Williams 2010	Exercise requirements not met
Worrel 2001	Not an RCT
Yuruk 2008	Physical activity intervention did not meet requirements for vibration training
Zijlstra 2005	Not an RCT

Differences between protocol and review

This review is one of a series of reviews undertaken to update previous reviews completed in 2002 and 2007 on exercise for fibromyalgia. Given the growth in literature, this review has been split into several reviews (ie, resistance, aquatic, mixed, aerobic, flexibility, and vibration).

Differences between the protocol (Busch 2015) and this review included the following.

• Revisions to search terms and databases: three HTA‐specific databases added.

• Changes in membership of the review team (change in the lead author (AJB/JB), dropout of one review author (TO), addition of a new review author (CB) and two consumers (AL and JG).

• Addition of the word "training" to the title of the review.

• Use of new software in addition to electronic forms for selection of studies; this software, which is called Covidence, was recently developed to conduct screening for creating and maintaining systematic reviews (https://www.covidence.org/).

Contributions of authors

Initials correspond to authors as they are listed under the review title.

JB: leading WBV exercise training review team, designing and reviewing review protocol, assessing eligibility of studies, participating in discussion regarding review design and methods, screening studies for eligibility for inclusion in the review, conducting data extraction, conducting methodological and statistical analyses, drafting and reviewing the manuscript, collaborating with consumers throughout creation of the plain language summary, and reading and approving the final manuscript.

AJB: responsible for leading and coordinating Fibromyalgia and Exercise Team, designing and reviewing review protocol, assessing eligibility of studies, supporting and managing data extraction, supervising methodological and statistical analyses, and collaborating in meetings regarding plain language summary, discussion, and conclusions. Read and approved the final manuscript.

IVDS: designing and reviewing review protocol, extracting data, assessing risk of bias, contributing to creation of tables, and participating in discussion and conclusions. Reading and approving the final manuscript.

ST: designing and reviewing review protocol, collaborating on data extraction, providing content expertise on pain, supporting interpretation of findings and contributing to creation of tables, and writing and reviewing discussion and conclusions. Reading and approving the final manuscript.

SYK: designing and reviewing review protocol, collaborating on data extraction, providing content expertise on musculoskeletal matters, writing and reviewing drafts, and approving the final manuscript.

CB: performing literature searches, participating in discussion regarding methods, working on plain language summary with consumers, working on tables and figures, conducting searches to support background and discussion sections of the manuscript, and writing and reviewing the manuscript. Reading and approving the final manuscript.

Sources of support

Internal sources

• No funding support has been received, Canada.

External sources

• No funding support has been received, Canada.

Declarations of interest

We confirm that we have listed below any present or past affiliations or other involvement in any organization or entity with an interest in the review that might lead me/us to have a real or perceived conflict of interest.

Initials correspond to authors as they are listed under the review title.

JB: none known; AJB: none known; IVDS: none known; ST: none known; SYK: none known; CB: none known.

New
