Classification and Nomenclature of CRISPR-Cas Systems: Where from Here?

Abstract

As befits an immune mechanism, CRISPR-Cas systems are highly variable with respect to Cas protein sequences, gene composition, and organization of the genomic loci. Optimal classification of CRISPR-Cas systems and rational nomenclature for CRISPR-associated genes are essential for further progress of CRISPR research. These are highly challenging tasks because of the complexity of CRISPR-Cas and their fast evolution, including frequent module shuffling, as well as the lack of universal markers for a consistent evolutionary classification. The complexity and variability of CRISPR-Cas systems necessitate a multipronged approach to classification and nomenclature. We present a brief summary of the current state of the art and discuss further directions in this area.

Outline of CRISPR Diversity and Classification

Typical of antivirus defense mechanisms that are locked into a perennial evolutionary arms race with pathogens,^1,2 CRISPR^*-Cas systems show remarkable diversity in terms of gene composition, genomic locus architecture, and the actual sequences, even in the core genes shared by many CRISPR-Cas variants.^3–5 To elucidate the origins and evolution of this diversity and, more practically, to keep track of new variants and to achieve coherent annotation of CRISPR-cas loci in microbial genomes, a rational and relatively simple classification of CRISPR-Cas systems is essential. This is, however, much easier said than done. The repeats themselves show some clustering in the sequence space^6,7 but clearly do not contain enough information to serve as the basis of a robust classification. There are no universal cas genes, so a classification based on a single phylogenetic tree is out of the question. Worse yet, a unified approach is hampered by the pronounced modularity of CRISPR-cas evolution, in particular the frequent shuffling of the adaptation and effector modules.^3,8 Accordingly, the efforts on CRISPR-Cas classification have adopted a combined, semi-formal approach that takes into account the signature cas genes that are specific for individual types and subtypes of CRISPR-Cas, sequence similarity between multiple shared Cas proteins, the phylogeny of Cas1 (the most highly conserved Cas protein), and the organization of the genes in the CRISPR-cas loci.^3,9,10 The combined application of these criteria resulted in the current classification that partitions the CRISPR-Cas systems into two distinct classes that differ in the design principles of the effector module (Fig. 1).

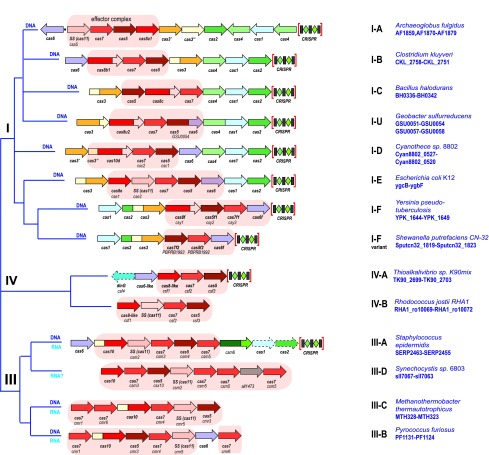

FIG. 1.

Updated classification of Class 1 CRISPR-Cas systems. Typical operon organization is shown for each CRISPR–Cas system subtype. For each CRISPR–Cas subtype, a representative genome and the respective gene locus tag names are indicated. Homologous genes are color-coded and identified by the respective family name. The gene names follow the classification from Makarova et al.³ Where both a systematic name and a legacy name are commonly used, the legacy name is given under the systematic name. The Cas11 gene name was reserved and is now used for small subunits. Most of them are found to be homologous and predicted to be fused to Cas8 protein in many type I systems. Predicted or known targets (DNA or RNA, or both) are shown for each subtype. The genes for the Class 1 effector module are shaded. The specific strains of bacteria in which these systems were identified and locus tags for the respective protein-coding genes are also indicated. The dashed border line indicates that the respective genes are functionally dispensable. The figure was modified from Koonin et al.,⁴ with permission.

Class 1 encompasses the most common and diversified type I, type III that also includes diverse variants and is represented in numerous archaea but is less common in bacteria, and the comparatively rare type IV that consists of rudimentary CRISPR-cas loci that lack the effector nuclease and in most case the adaptation module as well. The effector modules of type I and type III CRISPR-Cas are elaborate complexes that consist of multiple Cas protein subunits. The effector complexes of type I and type III share little readily detectable sequence conservation but nevertheless consist of analogous and in many cases homologous protein subunits and possess highly similar architectures, as revealed by cryo-electron microscopy. The backbones of all these complexes are composed of paralogous repeat-associated mysterious proteins (RAMPs), such as Cas7 and Cas5, which show minimum sequence conservation but all contain the RNA recognition motif (RRM) fold and diagnostic sequence, the C-terminal glycine-rich loop, along with additional “large” and “small” subunits.^11–18 Another RAMP, Cas6, is loosely associated with the effector complex and in most Class 1 systems is the repeat-specific RNase that is directly responsible for the pre-crRNA processing.^19,20 Type I and type III differ with respect to the relationship between the Cas protein complex that is involved in pre-cRNA processing and the target-cleaving nuclease, that is, whether the effector nuclease is part of the processing complex. In type I systems, the effector enzyme is an HD nuclease that most often comprises a domain of the Cas3 helicase or in some variants is a stand-alone protein.^21–26 Both the helicase and the nuclease are not components of the processing machinery and are recruited to the effector complex after target binding. In contrast, in type III systems, the effector HD nuclease is a domain of Cas10, the large subunit of the processing complex.^27–29 Furthermore, in type III, catalytically active RAMPs of the Cas7 group cleave RNA targets.²⁸

Class 2 systems have a much simpler organization, with the effector module consisting of a single, large, multidomain and multifunctional protein (Fig. 2). Class 2 includes the abundant type II (with the effector protein Cas9, the principal tool of the new generation of genome editing methods), and the much rarer types V and VI, each with a unique architecture of the large effector protein (see Fig. 2 and details below).^3,30

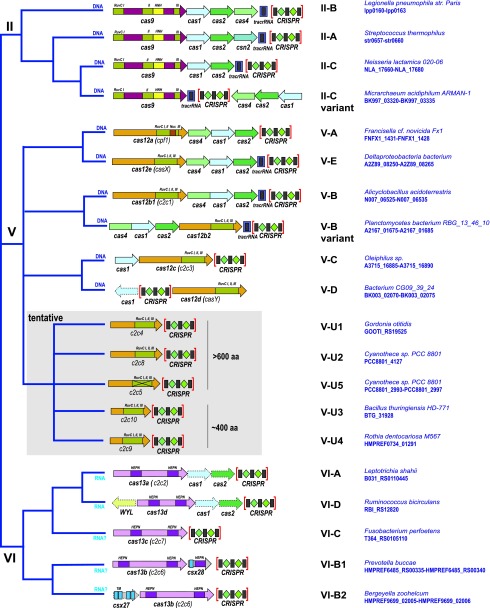

FIG. 2.

Updated classification of Class 2 CRISPR-Cas systems. RuvC I, RuvC II, and RuvC III are the three distinct motifs that contribute to the nuclease catalytic center. tracrRNA, trans-activating RNA, a helper RNA necessary for pre-crRNA processing and targeting functions; TM, predicted transmembrane segment. The proposed new systematic gene names are shown in red and bold type. Systematic gene names for effector protein candidates are shown below the respective shapes as follows; legacy or old names are also indicated in parentheses. For the V-U5 variant, the inactivation of the RuvC-like nuclease domain is indicated by a cross. The rest of the designations are as in Figure 1. The figure was modified from Koonin et al.,⁴ with permission.

In this brief article, we discuss the uncertainties, limitations, and possible future developments of this classification.

Evolving Classification and Nomenclature of CRISPR-Cas Systems

Complexity and complications

In the early years of CRISPR research, the phylogeny of Cas1 protein has been central for classification of CRISPR-Cas systems.³¹ However, with the subsequent fast growth of the collection of genomes containing CRISPR-cas loci, numerous inconsistences between the Cas1 phylogeny on the one hand and the organization and phylogenies of the effector module genes on the other hand became apparent. The underlying cause of these discrepancies seems to be extensive shuffling of the adaptation and effector modules.^3,8,32

Figure 3 shows a phylogenetic tree of Cas1 proteins that includes 2,512 representatives covering the entire diversity of the family. Only a few subtypes remain monophyletic in this tree: I-C, I-F, I-E, and V-A. Furthermore, subtypes II-A and II-C are not particularly prone to module shuffling. However, most of the other systems, especially those of type III and subtypes I-A, I-B, and I-D, appear to be able to combine freely with a variety of adaptation modules.^8,33,34 Subtypes V-C and V-D, the only known CRISPR-Cas systems that lack the cas2 genes^4,30 encoding the structural subunit of the adaptation complex, form a strongly supported long branch, which is indicative of the common origin and distinct evolutionary trajectories of these unusual adaptation modules. In addition, the tree contains two clades that consist of non-CRISPR Cas1 homologs: the casposases, which are the transposases of casposons, the distinct type of transposons thought to be the ancestors of the CRISPR-Cas adaptation modules,^35,36 and archaea-specific uncharacterized “solo” Cas1 (many of these, apparently, inactivated). The central position of the casposases in the tree seems compatible with their ancestral status.

FIG. 3.

Cas1 phylogeny. The alignment of 2,512 representative Cas1 protein sequences was obtained using iterative clustering and alignment merging of Cas1 sequences (see text). The approximate ML tree was reconstructed using FastTree,⁵⁶ with the WAG substitution model and gamma-distributed site rates. Large Cas1 clades that represent (mostly) monophyletic subtype (and other) specific variants are indicated; the other subtypes are scattered across the tree.

The monophyly of Cas1 proteins from several subtypes implies co-evolution and likely functional connection between the respective adaptation and effector modules. Typically, these systems have a well-defined protospacer-adjacent motif (PAM) sequence and highly conserved repeats.^6,7,37,38 In other systems, especially those of type III, the adaptation and effector modules are virtually independent, and the latter are compatible with a variety of crRNAs and have weaker PAM sequence recognition requirements or require no PAM at all.^38–40 Thus, although Cas1 phylogeny is not a suitable guide for CRISPR-Cas classification due to the module shuffling, it remains useful for inference of evolutionary trends and prediction of functional features.

Because of the extensive module shuffling, distinctive features of the effector modules play a key role in the current classification of CRISPR-Cas systems. At the level of the currently known two classes and six types, the classification criteria are quite straightforward: the fundamental difference in the organization of the effector modules between the classes and the unique signature genes for each of the types.³ These signatures include cas3 for type I, cas10 for type III, cas9 for type II, csf1 (large subunit, cas8-like) for type IV, cas12 for type V, and cas13 for type VI. The signature proteins are either unrelated to each other or, when they share a conserved domain such as the RuvC-like nuclease domain in types II and V, evolutionary reconstructions strongly suggest that the effector genes have been recruited by the respective CRISPR-Cas systems independently.^30,41

At the subtype level, things become much more complicated and messier. For some of the subtypes, diagnostic genes can be readily defined. For example, the presence of dinG immediately indicates subtype IV-A, whereas csn2 is specific for subtype II-A. In addition, several other subtype-specific variants of cas genes are recognizable by sequence similarity to particular sequence profiles (e.g., among the profiles for Cas5, profile cd09649 is specific for subtype I-A, whereas profile cd09645 is specific for subtype I-E).³ However, in most cases, multiple profiles are required to describe all variants of the signature Cas proteins, even within one subtype, as shown in Figure 4A for the large subunits of type I systems. There is little or no detectable sequence similarity between different families within the same group, and often several profiles are needed even to identify all instances of describe one variant (see Cas8b1 profiles in Fig. 4A). For example, Cas8 proteins of subtype I-B are currently divided into 13 distinct families that require 27 profiles for complete recognition, and it is expected that this number will grow further with the discovery of additional CRISPR-Cas variants within the same subtype. Obviously, in practice, these details are difficult to follow, which often complicates the identification of subtypes.

FIG. 4.

Deep relationships between sequence profiles of Cas proteins. (A) Relationships between sequence profiles for the type I large subunits. Profile–profile comparisons were performed using HHsearch⁴⁸; scores between two profiles were normalized by the minimum of the self-scores and converted to a distance matrix on the natural log scale. The UPGMA dendrogram was reconstructed from the distance matrix. The dashed line cuts the tree at the depth of 2 (D = 2 roughly corresponds to the pairwise HHsearch score of e^−2D = 0.02 relative to the self-score). Profile names are colored according to their subtype specificity. According to the current CRISPR-Cas classification and nomenclature,³ the large subunits are described using the following notation: major type of the large subunit (Cas8, Cas10), a letter that indicates the subtype and a number corresponding to a distinct variant. For example, Cas8b8 is the large subunit of subtype I-B, family 8. (B) Relationships between the sequences of the type V effector proteins and the homologous TnpB-like proteins. The dendrogram was constructed using the same procedure as in (A); color highlights the recently discovered variants (minimal Cas12b, CasX and CasY). Proteins from the unclassified type V-U systems are shown in gray. “Cas12a var” includes several sequences typified by KFO67988.1 from Smithella sp. SCADC. “Cas12e var” includes two sequences: GBD34782.1 from bacterium HR35 and A3J58_03210 Candidatus Sungbacteria bacterium RIFCSPHIGHO2_02_FULL_52_2.

Those subtypes for which signature genes are not readily identifiable are defined through comparison of conserved genes and locus organization. This classification is riddled with its fair share of uncertainty and ambiguities. Moreover, the number of CRISPR-Cas variants that could not be classified by the existing approaches is growing. Figure 5 shows examples of such systems. Arguably, the most notable among them are derived variants of I-F and I-B subtypes, which were recruited by Tn7 transposon and apparently have lost the immune function completely.⁴² Similarly, subtype I-E variants encoding a STAND superfamily ATPase have lost the cas3 gene and accordingly the capacity to cleave the target, likely evolving into signal transduction systems.⁴³ These derived variants challenge the very definition of CRISPR-Cas as adaptive immunity systems so that it becomes questionable whether they should be called CRISPR-Cas systems at all. One possibility is to broaden the definition to include cas operons with functions other than adaptive immunity. If the derived variants remain within the CRISPR-Cas classification, it is unclear whether they should stay within the ancestral subtypes or become new ones.

FIG. 5.

Unusual and derived CRISPR-Cas systems. The depicted unusual and derived CRISPR-Cas systems have the following principal features. (1) Based on the effector genes similarity, this is a subtype I-A variant but with the HD domain (a stand-alone gene in subtype I-A) fused to the C-terminus of Cas3, the effector gene organization typical of subtype I-B. (2) A I-B variant lacking both adaptation genes and cas3, carried by a Tn7-like transposon.⁴² (3) A I-E variant lacking both the adaptation module and Cas3, and associated with STAND family ATPase.⁴³ (4) A I-F variant lacking the large subunit and containing atypical, highly diverged Cas5 and Cas7 proteins, a fully functional system⁵⁷ that, however, would be considered partial by the current classification schemes. (5) A I-F variant lacking both the adaptation genes and cas3, carried by a Tn7-like transposon.⁴² (6) A I-U system variant lacking an identifiable large subunit and a cas6-like gene but containing the uncharacterized gene csb3; also would be considered partial but is widespread in bacteria and likely to be fully functional. (7) A locus identified in Thermococcus onnurineus and several other archaea that has been classified as type I based on the general organization of the effector module genes³; the HD domain is more similar to that in Cas3 compared to that in Cas10, Cas3 is absent, and Cas7 is most similar to Cas7 protein (Csf2) from type IV systems. (8) A minimal type III system from Thermotoga that lacks multiple cas7-like genes present in all other type III systems. (9) Distinct type III variant present in several Crenarchaea; csx26, putative small subunit that share no detectable similarity with either csm2 or cmr5, the small subunit genes of subtypes III-A,D, and III-B,C, respectively. The rest of the designations are as in Figure 1.

Perhaps the most striking illustrations of classification woes but also some recipes to overcome these come from the recent series of discoveries of new Class 2 CRISPR-Cas systems. In the last few years, the unprecedented success of type II effectors, Cas9 proteins, as genome editing tools has stimulated focused efforts on discovery of new variants of Class 2 systems that might have functionalities and hence applications orthogonal to those of Cas9.^41,43–47 These searches employed dedicated computational pipelines and resulted in the identification of many new varieties of Class 2 systems that neatly fell into two types: V and VI (Fig. 2). The principle of type assignment is simple: each type includes systems with similar domain architectures of the effector protein. Thus, the effectors containing the RuvC-like nuclease domain with an inserted HNH nuclease (Cas9) define type II; effectors in which RuvC is the only recognizable enzymatic domain (Cas12) are the signature of type V; and effectors with two HEPN RNase domains mark type VI (Fig. 2). The criteria for subtype assignment, however, are less obvious and to a considerable extent remain arbitrary. As a general rule of thumb, Class 2 systems are assigned to different subtypes if the respective effectors, despite sharing the domain architecture, do not show significant sequence similarity to each other or at most are “distantly” similar. This is, however, a weak and ambiguous criterion and neither has it been applied fully consistently. Sequence similarity criteria are particularly difficult to use for the classification of large, multidomain proteins such as Cas9, Cas12, and Cas13 because even within relatively narrow families, the conserved cores of the catalytic domains are interspersed with long, poorly conserved regions, often containing compositionally biased sequences. Obtaining reliable high-quality alignment is nearly impossible in a fully automated mode, whereas local similarity search methods usually produce a varying number of “hits” with widely varying coverage and similarity.

One way to alleviate these problems is to move from comparing individual sequences to profile–profile comparisons (which requires clustering and aligning closely related groups of sequences as the first step) and then cluster sequences using hierarchical similarity dendrograms rather than pairwise similarity thresholds, which is the current standard approach. Both these methodological refinements aim to exploit the increase of the signal-to-noise ratio in aggregated comparisons, first when individual sequences are combined into alignments and then when multiple profile-to-profile comparisons are collectively used to infer the deeper hierarchy.

The use of this approach to classify large multidomain effector genes in Class 2 CRISPR-Cas systems is illustrated in Figure 4B. First, sequences were pre-clustered based on pairwise identity using a conservative similarity threshold and aligned within the clusters. Then, these clusters went through several rounds of a computational procedure, including: (1) the cluster alignments were compared to each other using HHsearch,⁴⁸ (2) profile–profile similarity scores were normalized and converted to distances, and (3) unweighted pair group method with arithmetic mean (UPGMA) dendrograms were constructed from the distance matrices. Subtrees below the (user-specified) depth threshold were extracted and used to guide progressive profile–profile alignment with HHalign.⁴⁸ After the last round, when the clusters approach known functionally characterized groups and/or reliable full-length alignments become impossible to obtain, the final UPGMA dendrogram (Fig. 4B) is used to assess the relationship between the clusters. In this particular case (type V effector proteins and related TnpB-like proteins), the dendrogram faithfully reproduced the subtype classification such that most of the subtypes radiated into individual lineages above the standard threshold of 1 to 2 (see legend to Fig. 4). The predicted effectors of subtype V-U that are closely related to the transposon-encoded TnpB nucleases and are thought to represent recently evolved, “baby” CRISPR-Cas effectors³⁰ also formed a distinct cluster albeit below the depth threshold. Notably, “minimal” variants of Cas12b from two bacterial genomes (Phycisphaerae bacterium ST-NAGAB-D1 and Planctomycetes bacterium RBG_13_46_10), which are much shorter than the typical Cas12 proteins and can be considered potential intermediates in the effector evolution, display a higher similarity to TnpB in database searches than to other Cas12 proteins. Nevertheless, our procedure confidently clusters them with the rest of the Cas12b. The recently discovered CasX,⁴⁹ which has been classified as Cas12e,⁴ groups with two new sequences we denote Cas12e var (see the Figure 2 legend for sequence accessions). The CasY effector, discovered in the same work⁴⁹ and subsequently classified as Cas12d,⁴ confidently groups with Cas12c. Indeed, unification of CasY with Cas12c seems a distinct possibility because in addition to the clustering of the effectors themselves, the respective loci share similar, unusual adaptation modules that lack cas2 and contain Cas1 proteins that form a clade in the phylogenetic tree of the Cas1 family (Fig. 3). More generally, it should be noted that the comparison of the effector proteins is not the only criterion to assign subtypes. Additional considerations, such as the phylogenetic position of Cas1, the presence of other genes in the cas operon(s), fused domains, and more, can and arguably should be taken into account. Judging by the recent pace of discovery of new Cas12 effectors,^4,30 even apart from the different V-U variants, a liberal approach in type V subtype assignment can easily exhaust the Latin alphabet within a few years. A more conservative classification approach similar to that currently applied to Class 1 systems could at least delay such a crisis.

A Perspective on the Diversity of CRISPR-Cas Systems and Prospects of New Discoveries

The exploration of the CRISPR-Cas system menagerie over the last decade leads to two superficially contradictory conclusions: (1) the known diversity keeps growing, with a slow but steady trickle of new variants being discovered in the expanding sequence databases, but (2) in the overwhelming majority of bacterial and archaeal genomes, most of the CRISPR-cas loci belong to already-known types and subtypes.^4,30 This apparent contradiction is resolved by noting that the newly discovered variants are increasingly rare in the genomic and metagenomic databases and have increasingly narrow distributions among the microbial taxa.³⁰ Thus, the discovery process has already reached far into the tail of the frequency distribution of the CRISPR-Cas systems. This certainly does not rule out the possibility of future discovery of new and potentially technologically promising types and subtypes. However, such discoveries are likely to be feasible only through searching substantially increased volumes of sequence data and might require development of better-performing computational methods for screening such databases. Clearly, this prediction hinges on the incremental model of sequence database expansion. If, for example, major new clades of microbes, especially those with large genomes and occupying complex, highly competitive niches, are discovered, a variety of new CRISPR-Cas systems, perhaps comparable to the currently known diversity, might become available.

In contrast to the decreasing likelihood of discovering new CRISPR-Cas types and subtypes, the number and diversity of the genes that are loosely associated with CRISPR-Cas systems can be expected to grow continuously in the foreseeable future. As suggested by recent efforts on systematic discovery of such genes, CRISPR-Cas molecular machinery has been repeatedly recruited for a variety of cellular processes other than antivirus defense (see examples in Fig. 5).^42,43,50 Each such case reveals new ways Cas proteins interact with their molecular environment and new, specialized variants tuned to the expanded functional repertoire.

A “Natural” Classification of CRISPR-Cas Systems?

Is a new “rational” or “natural” CRISPR-Cas classification needed and/or feasible? Obviously, it is preferable for any classification to be based on naturally observed patterns of diversity that reflect evolutionary processes rather than on arbitrarily chosen features. Also, making the classification minimally dependent on expert opinions is highly desirable.

Several features of CRISPR-Cas systems render them recalcitrant to the construction of a fully rational, automated classification. Most fundamentally, the characteristic modular organization, whereby the adaptation and effector modules appear to evolve quasi-independently and are frequently swapped without the loss of functionality,^3,8,51 makes the feasibility of an all-encompassing classification questionable in principle because different parts of the same cas locus could and often will be classified differently. This feature either requires recognizing the hybrid status of many loci or making more or less arbitrary decisions on the character precedence. The current system under which CRISPR-Cas systems are classified, primarily by comparing the effector genes, with the adaptation modules and accessory genes assigned secondary roles, illustrates one such choice.

Furthermore, CRISPR-Cas systems are strongly hierarchical in their organization and functional loading of the different parts. The core components of these systems are (nearly) ubiquitous and evolutionarily stable, whereas the wide variety of accessory components are much more fluid.^3,8,43,50,51 Characterization of this hierarchy and the appropriate assignment of diagnostic weights to different parts of CRISPR-Cas systems is likely to remain the domain of expert decision for the foreseeable future. Furthermore, any attempt at automated classification is limited by the rapid decay of sequence similarity with the evolutionary distance for most of the CRISPR-Cas components (Cas1 is a notable exception but, as discussed above, is not particularly useful for classification purposes). The core subunits of the effector complexes in different subtypes are barely recognizable as homologs, even using structural data. Identification and quantification of the similarity between these proteins from sequence alone requires substantial expertise if feasible at all. Until structural data become readily available for a broad diversity of Cas proteins and methods for quantitative structural comparison are adequately refined, classification of CRISPR-Cas systems will require considerable involvement of human experts.

Considering all these issues, we believe it should be accepted that in the foreseeable future, the backbone of the CRISPR-Cas classification (classes and types) will have to remain largely as it is now, that is, based on the expert-assigned hierarchy of features and expert-assisted identification of the system components. In practice, this might not be a severe limitation because, as discussed in the preceding section, it is unlikely that many new types of CRISPR-Cas will be discovered. In contrast, within the types, the similarity among the subtypes can be sufficient to make the classification amenable to more rigorous approaches. Developing a consistent methodology for CRISPR-cas loci comparison that is based on both sequence similarity between the components and the gene content, with subsequent clustering, appears to be the most realistic direction.

The Nomenclatural Morass

If classification of CRISPR-Cas systems is difficult, nomenclature of the cas genes is an even more damning problem, as already touched upon above, with regard to the classification of type I large subunits (Fig. 3A). So far, only 13 groups of CRISPR-associated genes that comprise the cores of the adaptation and effector modules but represent a small minority of the entire diversity of CRISPR-linked genes have been assigned systematic cas names. Even for these genes, “legacy” names, such as csm, cmr, cse, csy, or csa, continue to be used frequently, making it impossible to infer from the name to which group the given protein belongs.^3,10 Otherwise, though, the approach to the naming of CRISPR-associated genes so far has been quite conservative, such that even some genes that are common in certain types or subtypes and essential for their function have not been assigned cas names. A notable example is type III genes encoding proteins consisting of a CARF and HEPN domains, such as csm6 and csx1. Thus, for the great majority of the CRISPR-associated genes, legacy names are all that exists, but even these are used inconsistently, sometimes erroneously, and in particular do not reflect the already-known diversity of the CARF-domain containing genes.^43,52

The recent systematic efforts on prediction of genes functionally linked to CRISPR-Cas have yielded dozens of new, strong candidates.^43,50 Obviously, for these genes, no CRISPR-related names exist (yet), and often they have no names at all other than the systematic designations specific to the corresponding genomes and the IDs of the respective sequence profiles. So, a major question is whether we need to extend the systematic nomenclature to all genes for which there is evidence of functionally relevant association with CRISPR-Cas, or perhaps only to genes that are found in a reasonably broad range of CRISPR-Cas systems—if so, what are the criteria?—and/or have been linked to CRISPR-Cas functions experimentally. Making no effort on systematic nomenclature at all seems like a losing proposition because even at this stage, published descriptions of CRISPR-associated genes are far from being uniform or transparent, and the situation will only get worse with the further growth of the collection of CRISPR-cas loci.

Concluding Remarks

Classification of defense systems that are typically highly diverse and evolve rapidly in the course of the arms race with parasites is an inherently difficult task as well illustrated, for example, by the long-term efforts on classification of restriction-modification (RM) enzymes.^53–55 The CRISPR-Cas systems do not reach the same level of diversity as RM modules, but the organization of CRISPR-Cas is more complex, which arguably makes the problem no easier. A consistent, “natural” classification does not appear feasible, given the complexity of the evolutionary relationships between CRISPR-Cas variants that include extensive module shuffling and are further confounded by the rapid sequence and structural divergence of homologous Cas proteins.⁵ Nevertheless, simple and reliable criteria for the delineation of CRISPR-Cas classes and types are available, and moreover it appears unlikely that many new types will be discovered, so that, at the top levels, the current classification could be (nearly) complete. At the level of subtypes, the situation is far more complicated. The current criteria are not fully consistent, and there seems to be room for developing more advanced and rigorous methodologies. Such developments are particularly pertinent because it can be expected that a considerable number of new subtypes will be discovered, at least in Class 2. Furthermore, the present, relatively small number of Class 1 subtypes could be but an illusion caused by the inadequacy of the current classification approaches. A distinct problem is the classification of derived forms of CRISPR-Cas systems and their exaptation for non-defense functions or at least functions distinct from adaptive immunity. Whether such systems even qualify as CRISPR-Cas depends on the definition that perhaps should be expanded to include all cas operons. If CRISPR-Cas systems are redefined in this broader manner, it remains to be determined whether the derived variants stay within the respective ancestral subtypes or are given a separate status.

Although (nearly) all the CRISPR-Cas types might already be known and new subtypes are being discovered at a moderate pace, the list of CRISPR-linked genes is growing much faster, so that their classification and especially nomenclature present separate challenges. All in all, although much development, analysis, and expert effort are required, we believe that given the extensive but limited diversity of the CRISPR-Cas systems, the current classification and nomenclature can be substantially improved, resulting in a stable and consistent systematics. This seems to be a realistic task that can be completed within a few years.
