On the evolution and physiology of cable bacteria

Significance

Cable bacteria are globally occurring multicellular filamentous bacteria that are electrically conductive: they transfer electrons from sulfide oxidation at one end over centimeter distances to oxygen reduction at the other end. Unlike any other organism known, cable bacteria thus split their central energy-conserving redox reaction into 2 half-reactions that occur in different cells as far as several centimeters apart. Before this study, the molecular foundation, evolutionary origin, and genomic basis of this unique metabolism were unknown. Here we reconstructed 5 genomes from single filaments and 1 from a cable bacterium enrichment culture to shed light on the evolution and physiology of cable bacteria; and, together with proteomic and experimental data, we propose a metabolic model of how cable bacteria work.

Abstract

Cable bacteria of the family Desulfobulbaceae form centimeter-long filaments comprising thousands of cells. They occur worldwide in the surface of aquatic sediments, where they connect sulfide oxidation with oxygen or nitrate reduction via long-distance electron transport. In the absence of pure cultures, we used single-filament genomics and metagenomics to retrieve draft genomes of 3 marine Candidatus Electrothrix and 1 freshwater Ca. Electronema species. These genomes contain >50% unknown genes but still share their core genomic makeup with sulfate-reducing and sulfur-disproportionating Desulfobulbaceae, with few core genes lost and 212 unique genes (from 197 gene families) conserved among cable bacteria. Last common ancestor analysis indicates gene divergence and lateral gene transfer as equally important origins of these unique genes. With support from metaproteomics of a Ca. Electronema enrichment, the genomes suggest that cable bacteria oxidize sulfide by reversing the canonical sulfate reduction pathway and fix CO₂ using the Wood–Ljungdahl pathway. Cable bacteria show limited organotrophic potential, may assimilate smaller organic acids and alcohols, fix N₂, and synthesize polyphosphates and polyglucose as storage compounds; several of these traits were confirmed by cell-level experimental analyses. We propose a model for electron flow from sulfide to oxygen that involves periplasmic cytochromes, yet-unidentified conductive periplasmic fibers, and periplasmic oxygen reduction. This model proposes that an active cable bacterium gains energy in the anodic, sulfide-oxidizing cells, whereas cells in the oxic zone flare off electrons through intense cathodic oxygen respiration without energy conservation; this peculiar form of multicellularity seems unparalleled in the microbial world.

Cable bacteria are multicellular, filamentous bacteria (1, 2) found worldwide in marine and freshwater sediments (3–5). They facilitate long-distance electron transport (LDET) over centimeter distances (6), thereby coupling the oxidation of sulfide (H₂S) in deeper sediment layers with the reduction of O₂ or nitrate near the sediment–water interface (Fig. 1A) (1, 7). Phylogenetically, cable bacteria belong to the deltaproteobacterial family Desulfobulbaceae (1), which otherwise is known to contain sulfate-reducing or sulfur-disproportionating species but not canonical, aerobic sulfide oxidizers (8). Based on 16S rRNA gene sequence phylogeny, cable bacteria form a monophyletic sister group to the genus Desulfobulbus (9). Currently, the cable bacteria clade consists of the genera “Candidatus Electrothrix” and “Candidatus Electronema,” with 6 described candidate species (9); so far, none of them has been isolated into pure culture.

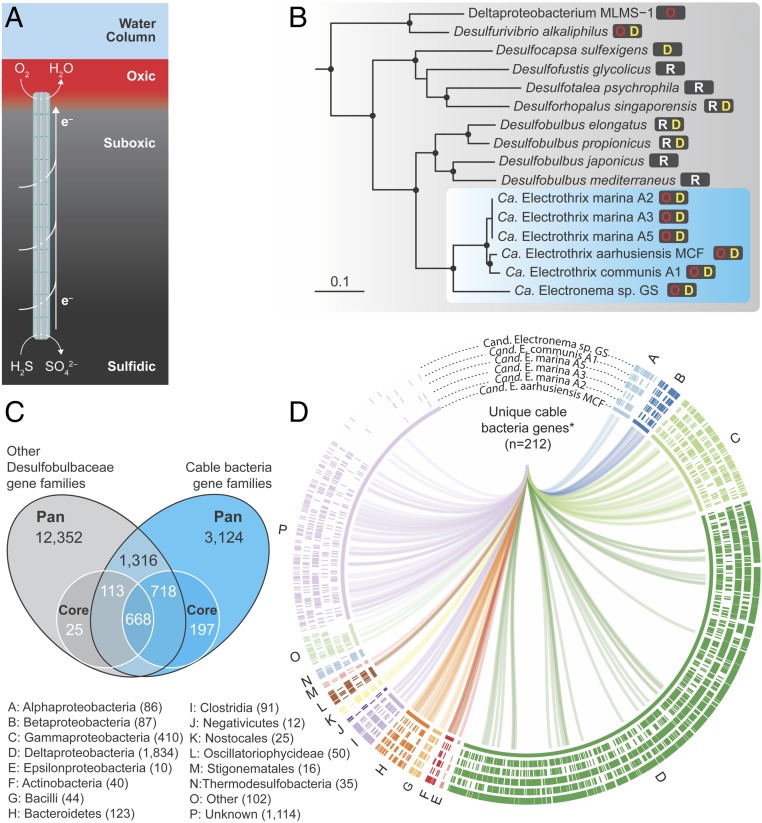

Fig. 1.

(A) Conceptual model of electrogenic sulfur oxidation in aquatic sediments by cable bacteria. Anodic cells oxidize sulfide in the anoxic zone deeper in the sediment, and the electrons derived from sulfide are transported through the cable bacteria into the oxic zone, where cathodic cells use them to reduce oxygen. (B) Phylogeny of the Desulfobulbaceae inferred by maximum likelihood analysis based on the concatenated amino acid sequence of 31 single-copy genes conserved within the Desulfobulbaceae. Cable bacteria form a monophyletic group (blue box). Full circles at tree nodes indicate 100% bootstrap support. The scale bar represents 10% estimated sequence changes. Colored letters indicate the primary energy metabolism of the associated species: O (red), sulfide oxidation; R (black), sulfate reduction, D (yellow), sulfur disproportionation. (C) Comparative analysis between genomes of cable bacteria and other Desulfobulbaceae. For core gene families of cable bacteria, simultaneous presence in Ca. E. aarhusiensis MCF and Ca. Electronema sp. GS was interpreted as present in the whole group. (D) Comparison and origin of genes of cable bacteria genomes. The inner ring shows the concatenated genes of the genome of Ca. E. aarhusiensis MCF grouped by last common ancestor (LCA; predicted by MEGAN with default settings; only LCA groups with at least 10 assigned genes were considered). The total numbers of genes for each LCA group are shown in brackets. Similar genes (≥75% nucleotide identity; BLASTN) in the draft genomes of other cable bacteria are indicated in the outer circles. *The 212 unique genes, i.e., present in cable bacteria but not in other previously published Desulfobulbaceae genomes (identified by bidirectional best BLAST hit via ITEP and representing 197 gene families), are indicated with inner-circle links.

Cable bacteria can dominate benthic microbial communities (3, 10), and the cable bacteria-associated electrogenic sulfur oxidation (e-SOx) can account for the larger part of a sediment’s oxygen consumption (2, 3, 11). The metabolic activity of cable bacteria has distinct effects on sediment biogeochemistry (11–13), especially on the cycling of sulfur, iron, phosphorus, and nitrogen, with implications for eutrophication and habitability of sediments (14–16). Notably, cable bacteria induce the formation of a 1- to 4-cm-deep suboxic zone devoid of O₂ and H₂S and a pronounced pH peak in the oxic zone, consistent with the consumption of protons during O₂ reduction to water (1, 11, 12).

Based on these biogeochemical observations, it has been suggested that cells within an individual cable bacterium filament can display 2 types of metabolism: “anodic” cells oxidize sulfide in the anoxic zone, and the resulting electrons are transported along the longitudinal axis of the filament to the oxic zone, where “cathodic” cells use the electrons to reduce oxygen (Fig. 1A) (1, 17). LDET along living, individual cable bacteria filaments has recently been demonstrated using resonance Raman microscopy (18); other metabolic traits have only been indirectly inferred from the disappearance of substrates or the appearance of metabolites in the sediment environment. A consistent model for cable bacteria metabolism and intra- and intercellular electron transport is currently lacking, and the evolutionary origin of this unique lifestyle remains unclear. Likewise, neither the mechanism of LDET nor the underlying biological structures have been identified; the best candidates are continuous periplasmic fibers of unknown composition that run along the entire filament length and show charge storage capacity (1, 19, 20).

Here we reconstruct cable bacteria draft genomes from individual Ca. Electrothrix filaments and a Ca. Electronema enrichment, identify highly expressed proteins by metaproteomic analysis of a Ca. Electronema sediment enrichment, and visualize selected traits in individual filaments. The goal of this proteogenomic approach was to gain insight into the evolution and physiology of cable bacteria and to reconstruct a consistent model for the metabolism of this unique life form.

Results and Discussion

Cable Bacteria Largely Feature the Core Genome of Desulfobulbaceae and Contain Many Unique Genes.

We assembled 5 genomes of Ca. Electrothrix from 6 individual filaments, picked from marine sediment, and 1 genome of Ca. Electronema from a metagenome of a freshwater enrichment culture (see SI Appendix for details). Phylogenetic analysis of 31 concatenated, conserved single-copy genes placed the cable bacteria as a monophyletic sister group to the genus Desulfobulbus within the deltaproteobacterial family Desulfobulbaceae (Fig. 1B), thus confirming previous 16S rRNA-based analyses (1, 9). The genomes were 21 to 93% complete, with a GC content of 47.5 to 51.9% and an estimated genome size of 2.7 to 4.0 Mbp (SI Appendix, Table S1), well within the range of the Desulfobulbaceae family (SI Appendix, Table S2). Based on their average nucleotide identities (ANIs), the 6 genomes represent 4 cable bacteria species (SI Appendix, Table S3), of which Ca. Electrothrix aarhusiensis MCF and Ca. Electronema sp. GS showed the most complete genomes (both 93%). Therefore, they form the basis of this study, whereas the remaining genomes of the species Ca. Electrothrix communis and Ca. Electrothrix marina were used as complementary information to help identify general trends.

The Desulfobulbaceae contain primarily single-celled sulfate-reducing bacteria, but (compared with other deltaproteobacterial families) also a large fraction of sulfur disproportionators, and some species can even grow by sulfide oxidation (Fig. 1B) (8). This somewhat unusual lineage might thus have been well prepared for the evolutionary innovations that gave rise to cable bacteria. In fact, the morphologically and metabolically distinct cable bacteria still largely feature the core genomic makeup of the Desulfobulbaceae, including an almost complete canonical dissimilatory sulfate reduction (DSR) pathway (as detailed later). Only 25 of the 806 core gene families of the Desulfobulbaceae were not detected in any of the cable bacteria genomes (Fig. 1 C and D). Core gene families missing in cable bacteria include gene families that encode flagella, the glycolytic enzyme enolase, subunits DsrOP of the DsrKMJOP complex (21), and the original NADH-quinone oxidoreductase (Nuo) enzyme complex, which has apparently been replaced with a xenolog by lateral gene transfer (SI Appendix, Table S4).

A comparison of the cable bacteria genomes versus other Desulfobulbaceae using the Clusters of Orthologous Groups (COG) revealed that the functional categories “energy production and conversion,” “amino acid transport and metabolism,” and “carbohydrate transport and metabolism” were underrepresented in cable bacteria genomes (SI Appendix, Fig. S1A). This is a first indication of a limited organotrophic catabolic potential (as discussed later). Furthermore, and consistent with their unique lifestyle, a large fraction (37 to 66%) of cable bacteria genes could not be assigned to a COG category (SI Appendix, Fig. S1A), and many gene families were unique and not found in other Desulfobulbaceae. In “Ca. E. aarhusiensis MCF,” a total of 1,721 gene families, representing approximately 44% of its total gene families, were not present in other Desulfobulbaceae or highly divergent from their homologs. Of these, 385 were also detected in at least one of the other, more incomplete Ca. Electrothrix genomes. Across the Ca. Electrothrix/Electronema genus boundary, 197 gene families (representing 212 individual genes) were unique and conserved for the cable bacteria lineage (Fig. 1 C and D and Dataset S1). Last common ancestor (LCA) analysis (Fig. 1D) predicted that approximately half of these cable bacteria-specific genes originated from Deltaproteobacteria (21.7%) or Gammaproteobacteria (28.8%), including many from the sulfur-oxidizing orders Chromatiales and Thiotrichales (22–24). Approximately 20% of the cable bacteria-specific genes could not be assigned to an ancestral lineage, indicating an origin from a genomically undescribed donor lineage or that they arose from evolutionary innovation. The functional role of these cable bacteria-specific gene families could not be determined, as almost half of them encode hypothetical proteins and 71% could not be assigned a COG category (SI Appendix, Fig. S1B). Remarkably, however, approximately one third of them has a predicted extracytoplasmic or membrane localization (SI Appendix, Fig. S1B), suggesting major innovations in the cell envelope, which is consistent with the conspicuous ultrastructure of the cable bacterium cell envelope (20).

The high number of conserved Desulfobulbaceae genes as well as unique cable bacteria genes (Fig. 1 C and D), together with an average Desulfobulbaceae genome size (SI Appendix, Tables S1 and S2), suggests that the divergence of the cable bacteria clade (Fig. 1B) and the evolution of the unique filamentous “electrogenic lifestyle” of its members were driven by neither massive gene loss nor major genome expansion. Rather, substantial horizontal gene transfer in combination with the moderate replacement and divergence of ancestral genes was key for the evolution of cable bacteria. This could imply that electric conduction along filaments may also have evolved in other phylogenetic lineages, as indicated by putative LDET in a filamentous groundwater Desulfobulbaceae species distinct from the Ca. Electrothrix/Electronema clade (25), or the possibly electric signal transduction in the filamentous cyanobacterium Phormidium uncinatum (26).

Cable Bacteria Likely Oxidize Sulfide by Reversal of the Canonical Sulfate Reduction Pathway.

The current conceptual model for cable bacteria metabolism, consistent with the large body of geochemical data (as reviewed in ref. 17), is that anodic sulfide oxidation in anoxic cells is coupled via LDET by continuous periplasmic fibers over thousands of cells to cathodic oxygen reduction in oxic cells (Fig. 1A). To assess this hypothesis and to shed further light on the physiology of cable bacteria, we combined the genome dataset with metaproteomics for the Ca. Electronema sp. GS enrichment culture. The proteomic data covered 313 of the 2,649 predicted genes of Ca. Electronema sp. GS, with a few genes approximately 10-fold higher expressed than the rest (Fig. 2 and Dataset S2). Cable bacteria lack genes diagnostic for sulfide-oxidizing bacteria, i.e., genes encoding the Sox pathway, reverse-type dissimilatory sulfite reductase (rDSR), or flavocytochrome C sulfide dehydrogenase (27). In contrast, and consistent with their evolutionary descent from sulfate-reducing Desulfobulbaceae, cable bacteria encode all key genes of the canonical sulfate reduction (DSR) pathway (21, 28) (Fig. 3 and Dataset S2), and many of them were highly expressed in Ca. Electronema sp. GS (Fig. 2 and Dataset S2). We propose that cable bacteria reverse this pathway for sulfide oxidation and, in this respect, resemble their close relative Desulfurivibrio alkaliphilus (Fig. 1B), which grows by nitrate-dependent sulfide oxidation and sulfur disproportionation (29). In D. alkaliphilus, sulfide is initially oxidized to elemental sulfur, which is then disproportionated or oxidized to sulfate (29, 30). Such a 2-step process has also been concluded from physiological studies of sulfate reducers capable of aerobic sulfide oxidation (31). The best candidate enzyme for the first step in D. alkaliphilus is a type I sulfide:quinone oxidoreductase (SQR) (29), whereas, in cable bacteria, a type III SQR is present and expressed (SI Appendix, Fig. S2 and SI Discussion). Sulfur produced by SQR in the periplasm can react chemically with sulfide to form dissolved polysulfide (Fig. 3) or may be transported into the cytoplasm. Cable bacteria encode a membrane-anchored polysulfide reductase (PSR), which was expressed in Ca. Electronema sp. GS (Fig. 3) and can reduce polysulfide to sulfide with electrons from the quinone pool in the cytoplasmic membrane. Unlike SQR, PSR may conserve energy by proton translocation (32) while balancing the reduced quinone pool. Sulfur disproportionation, by combining PSR activity with sulfur oxidation to sulfate, may allow energy conservation in cable bacterial cells when disconnected from their external electron acceptors oxygen or nitrate.

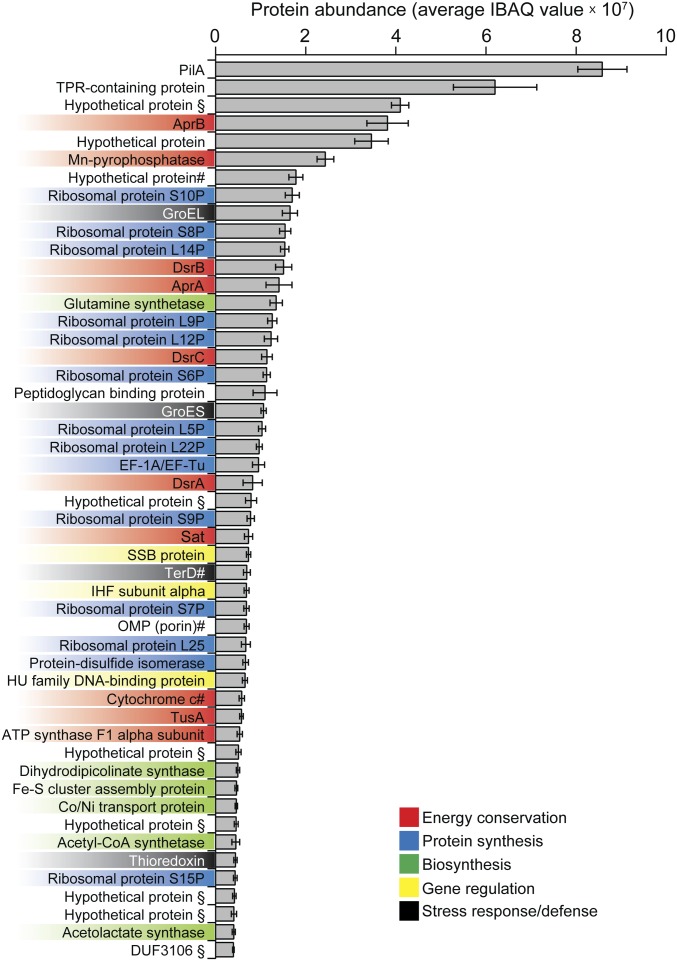

Fig. 2.

Top 50 most abundant proteins detected in the proteome of Ca. Electronema sp. GS. Protein abundances were quantified and expressed as intensity-based absolute abundance (iBAQ); average values ±SD of 6 individual analyses are shown. Dataset S2 provides details including locus tags and abbreviation of protein names. The inferred functional category of proteins is indicated by color. ^#Protein encoded by a gene uniquely conserved in cable bacteria relative to other Desulfobulbaceae (see Dataset S1 for details). ^§Protein encoded by a gene unique to Ca. Electronema sp. GS relative to other cable bacteria.

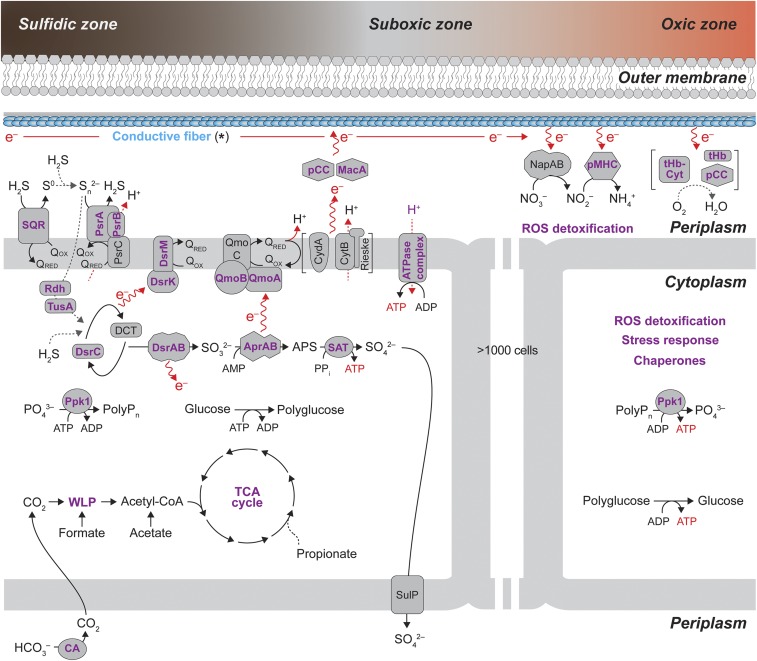

Fig. 3.

Genome-based metabolic model for cable bacteria with emphasis on electron flow and energy conservation during oxygen and nitrate-dependent sulfide oxidation. One anodic cell (Left) and one cathodic cell (Right) are shown. Electron transport between anodic and cathodic cells is indicated by red arrows. Gray dotted arrows indicate putative reactions with an unclear enzymatic foundation. Proteins detected in the proteome of Ca. Electronema sp. GS are indicated in purple boldface. Only marine cable bacteria possess the genetic potential for propionate assimilation. Apr, Adenosine phosphosulfate reductase; CA, carbonic anhydrase; CydA, membrane-bound cytochrome bd quinol oxidase–subunit A; CytB, cytochrome bc complex–subunit B; DCT, DsrC-trisulfide; Dsr, dissimilatory bisulfite reductase; MacA, cytochrome c peroxidase; Nap, periplasmic nitrate reductase; pCC, periplasmic cytochrome C; pMHC, periplasmic multiheme cytochrome (nitrite reductase); PolyP, polyphosphate; PpK, polyphosphate kinase; Psr, polysulfide reductase; Q(ox/red), quinone (oxidized or reduced); Qmo, quinone-interacting membrane-bound oxidoreductase complex; Rdh, rhodanese; Rieske, Rieske Fe-S domain protein; ROS, reactive oxygen species; Sat, ATP sulfurylase; SQR, sulfide:quinone oxidoreductase; TCA, tricarboxylic acid cycle; tHB, truncated hemoglobin; tHb-Cyt, truncated hemoglobin-cytochrome domain fusion protein; TusA, sulfur transferase; WLP, Wood–Ljungdahl pathway. Periplasmic enzymes include superoxide reductase and hydrogen peroxide reductase; cytoplasmic enzymes include catalase. Asterisk indicates an unknown molecular structure of the conductive fiber. We hypothesize that PilA (or possibly c-type cytochrome) monomers align along a periplasmic structure to form an electrically conductive fiber. Further details are provided in the main text and SI Appendix, SI Discussion.

In the second step, sulfur formed by the activity of SQR could be oxidized to sulfate by a reversal of the cytoplasmic DSR pathway (Fig. 3). The transport mechanism of elemental sulfur across the cytoplasmic membrane is generally poorly resolved, but may involve the membrane protein YeeE, a cytoplasmic rhodanese, and the sulfur transferases TusA and DsrEFH (33, 34). Homologs of YeeE, rhodanese, and TusA are encoded in the cable bacteria genomes (Fig. 3 and Dataset S3), and the rhodanese and TusA homologs were expressed in Ca. Electronema sp. GS (Fig. 3 and Dataset S2). In contrast, DsrEFH is not encoded in cable bacteria genomes (SI Appendix, SI Discussion). According to our model, reduced sulfur from TusA, but possibly also directly from sulfide, reacts with DsrC to form DsrC-trisulfide (DCT). DCT is then oxidized by the dissimilatory bisulfite reductase DsrAB to release sulfite and DsrC (28). Sulfite is further oxidized to sulfate by adenosine-5-phosphosulfate reductase (AprAB) and sulfate adenylyltransferase (Sat), generating ATP by substrate level phosphorylation in the process (35). Finally, sulfate is transported out of the cell by SulP, which is considered a common sulfate transporter in SRM (36).

Our genomic data suggest that electrons released by the oxidation of reduced DsrC and of sulfite are transferred to the quinone pool in the cytoplasmic membrane of the cable bacteria via the DsrMK and QmoABC membrane complexes, respectively (Fig. 3). This model is, to a large extent, a reversal of the electron flow during dissimilatory sulfate reduction (21, 28), and similar to the electron transport proposed for sulfide-oxidizing microorganisms utilizing the rDSR pathway (35). It is supported by the proteomic detection of QmoAB and DsrMK; only the membrane-bound subunit QmoC was not detected (Dataset S2). The lack of Dsr(J)OP (SI Appendix, Fig. S3) and other membrane complexes, which, in sulfate reducers, typically transport electrons between cytoplasm and periplasm, may indicate that cable bacteria tightly control the flow of electrons between cytoplasm and periplasm (SI Appendix, SI Discussion). In sulfate-reducing microorganisms, the QmoABC and DsrMK(JOP) complexes were proposed to facilitate energy conservation by generating a proton gradient across the cytoplasmic membrane (28, 37), although this has not been experimentally validated. This proton translocation is scalar and thus obtained by releasing protons from the oxidation of quinone on the periplasmic side of the cytoplasmic membrane. The QmoAC and DsrMK complexes of cable bacteria share high amino acid similarity and identical cytoplasmic membrane topology to those of sulfate-reducing members of the family Desulfobulbaceae. For this reason and because the complexes are inferred to reduce the quinone pool during S oxidation (Fig. 3), it is unlikely that they are directly involved in energy conservation in cable bacteria.

Electron Transfer across the Membrane and in the Periplasm.

The proposed LDET by periplasmic fibers requires electrons to be passed from the quinone pool to the periplasm (Fig. 3). In Geobacter, such electron transfer is facilitated by one of at least 2 membrane-bound cytochrome bc complexes (ImcH, CbcL) that deliver electrons to soluble periplasmic cytochromes (38, 39), whereas, in Shewanella, this function is fulfilled by the multiheme cytochrome CymA (40–42). Homologs of ImcH, CbcL, and CymA are absent in cable bacteria, which, however, encode 2 structurally similar complexes that may enable electron transfer coupled to quinol oxidation (Fig. 3): a Rieske Fe-S domain protein with an adjacent membrane-bound cytochrome b-domain protein and an orphan homolog of the CydA subunit of the membrane-bound bd quinol oxidase (SI Appendix, Fig. S4 and SI Discussion). We speculate that quinol oxidation by these complexes results in a proton gradient across the membrane (Fig. 3 and SI Appendix, SI Discussion) and that they thus represent a key site for energy conservation in cable bacteria.

Soluble cytochromes may then act as electron shuttles in the periplasm, as described for multiheme cytochromes in Geobacter and Shewanella (40). With the exception of the diheme cytochrome MacA (43), which, in cable bacteria, is predicted as not membrane-associated, no homologs of those well-studied periplasmic cytochromes (e.g., Ppc, Fcc, STC) are present in cable bacteria. Instead, several multiheme cytochromes and 2 single-heme cytochromes with predicted periplasmic or extracytoplasmic localization are conserved among cable bacteria, and some were also expressed in Ca. Electronema sp. GS (SI Appendix, Table S5 and Dataset S2). Resonance Raman microscopy showed high abundance of c-type cytochromes in living cable bacteria (18), and these c-type cytochromes were most abundant in the cell envelope, as also revealed by Raman microscopy (SI Appendix, Fig. S5).

We therefore propose a model whereby periplasmic c-type cytochromes transfer electrons from the Rieske–cytochrome b complex or the CydA homolog to periplasmic fibers for LDET (Fig. 3). As shown for Geobacter (44), highly abundant c-type cytochromes could also act as capacitors in sulfide-oxidizing cells during short periods without access to oxygen.

LDET: A Role for Periplasmic Cytochromes or Conductive Pili?

At present, the conductive structures enabling LDET in cable bacteria have not been identified (17), but fiber structures running in parallel through the joint periplasm of all cells have been designated as prime candidates (1, 20). Type IV pili (45) and, recently, multiheme cytochrome nanowires (46) have been described as electrically conductive fibers; could they be candidates for (part of) the conductive structure? The cytochrome nanowires of Geobacter, with a diameter of 4 nm and a length of a few nanometers, consist of polymerized hexaheme cytochromes (OmcS). Cable bacteria contain no OmcS homologs (SI Appendix, Table S5), but other c-type cytochromes are abundant in their cell envelope (SI Appendix, Fig. S5) and show a redox gradient along the cable bacterium filament (18). However, besides MacA, a cytochrome c554–hemoglobin fusion protein, and a cytochrome c554-containing putative nitrite reductase (all 3 of which are unlikely candidates for conductive fibers), only 2 single-heme cytochromes were detected in the proteome of Ca. Electronema sp. GS (SI Appendix, Table S5 and Dataset S2). Whether any of them would be conductive upon a possible polymerization (47) or form superstructures of larger diameters, possibly with other polymers (as discussed later), remains to be shown.

The electrically conductive pili (e-pili) of Geobacter and other, diverse bacteria (48, 49) consist of PilA with conserved aromatic amino acid residues. PilA was the single most abundant protein in the proteome of Ca. Electronema sp. GS (Fig. 2 and Dataset S2) and contained 4 of 5 aromatic residues conserved in the N-terminal part of PilA of Geobacter sulfurreducens and other bacteria (45, 48, 49) (Fig. 4). These aromatic residues seem to play a crucial role for the level of pilus-mediated electrical conduction in G. sulfurreducens and Pseudomonas aeruginosa, as shown by loss-of-function (50) and gain-of-function (51) experiments. Also, the overall densities of aromatic amino acids in PilA of cable bacteria (7 to 10%) are similar to that in experimentally confirmed e-pili (9 to 15% aromatic AAs) of diverse bacteria (49). Although the predicted cable bacteria PilA proteins show variation in length (59 to 182 aa; Fig. 4), length and electrical conductivity appear not to be correlated in e-pili (49). Type IV pili display a highly conserved N-terminal part with an alpha-helical structure forming the core of type IV pili polymers, and an extremely variable (in sequence and length) C-terminal part forming a beta strand-rich head domain (52). This head domain was recently suggested to form an insulating layer around the conductive core in type IV pili (53). The cable bacteria PilA feature the predicted alpha helix, conserved phenylalanine (F1), and glutamic acid (E5) of type IV pili, which are needed for prepilin cleavage, methylation, and pilin assembly (52–54), and the highly variable beta strand-rich head domain (Fig. 4). In contrast, cable bacteria PilA lack the random hook structure for metal interactions, including the exposed tyrosine (Y57), which is predicted to transfer electrons to solid electron acceptors (53, 54). Because of this predicted lack of metal interaction capability, the absence of external pili on the outside of cable bacteria filaments (1, 9, 19, 20), and the apparent lack of outer membrane cytochromes (SI Appendix, Table S5) to transfer electrons onto extracellular pili (55), we find it conceivable that PilA in cable bacteria does not form external e-pili but may assemble to internalized, periplasmic fibers.

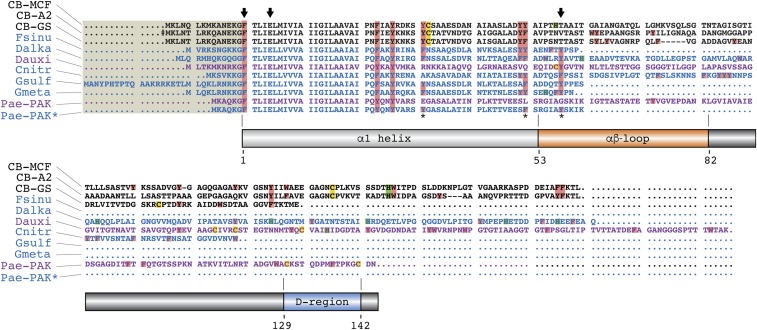

Fig. 4.

Domain architecture and alignment of cable bacteria PilA amino acid sequences with PilA from experimentally confirmed e-pili (blue) of other bacteria (49), and with nonconductive PilA (purple) (49) for comparison. Pae-PAK* shows a modified version of the Pae-PAK PilA, which was conductive upon truncation and insertion of 3 aromatic residues (asterisk) (51). Aromatic residues (red), histidines (green), and cysteines (yellow) are highlighted in the sequence; key residues mentioned in the text (F1, E5, Y57) are indicated with arrows. ^#Manually corrected start site. CB_A2, Ca. Electrothrix marina A2; CB_GS, Ca. Electronema sp. GS; CB_MCF, Ca. Electrothrix aarhusiensis MCF; Cnitr, Calditerrivibrio nitroreducens; Dalka, D. alkaliphilus; Dauxi, Ca. Desulfofervidus auxilii; Fsinu, Flexistipes sinusarabici; Gmeta, Geobacter metallireducens; Gsulf, Geobacter sulfurreducens; Pae-PAK, P. aeruginosa; Pae-PAK*, P. aeruginosa modified PilA (51). Note that cable bacteria PilA do not contain a clear D-region, as only 1 cysteine is present in the distal C-terminal part of the head domain.

Cable bacteria contain at least 2 operons of genes associated with type IV pili or type II secretion systems (SI Appendix, Table S6). However, the pilA genes in Ca. E. aarhusiensis MCF and Ca. Electronema sp. GS are not part of any of those operons but instead linked to genes encoding proteins with tetratricopeptide repeats (SI Appendix, Fig. S6). These repeats represent a structural motif mediating protein–protein interactions (56), and it is tempting to speculate that this aids in assembling individual PilA subunits into continuous fibers that span the entire cable bacterium filament. Ultrastructural analyses have shown a diameter of approximately 50 nm for the periplasmic fibers (20), whereas type IV pili have a diameter of 3 to 5 nm in G. sulfurreducens (45), and so would have to form larger superstructures or integrate with other polymer structures into larger assemblies (SI Appendix). Based on proteogenomic and imaging data, we therefore suggest that LDET in cable bacteria occurs in periplasmic fibers consisting of multiple e-pili or of carbohydrate backbones “decorated” with pilin (or possibly cytochromes). We emphasize, however, that this model is only a hypothesis that needs to be experimentally tested.

Oxygen Reduction and Detoxification.

The last step in e-SOx is the transfer of electrons from the periplasmic fibers to the terminal electron acceptor, most commonly oxygen (Fig. 1A). Surprisingly, we were unable to identify terminal oxidases in any cable bacterium genome or in the proteome of Ca. Electronema (SI Appendix, Table S5 and Dataset S3), with a single exception: the single-filament genome of Ca. Electrothrix communis A1 possibly encodes a membrane-bound cytochrome c oxidase (SI Appendix, SI Discussion). Most deltaproteobacterial sulfate reducers carry the quinol-dependent, membrane-bound terminal oxidase CydAB (57). In contrast, cable bacteria contain only a homolog of the quinol oxidase subunit CydA (as detailed earlier; SI Appendix, Discussion), whereas the oxygen reductase subunit is absent.

In the absence of membrane-bound terminal oxidases, which could couple oxygen reduction to proton translocation and thus conserve energy in the oxygen-respiring cells, we hypothesize that cable bacteria reduce oxygen by periplasmic cytochromes without energy conservation. As discussed earlier, c-type cytochromes are conserved in cable bacteria genomes (SI Appendix, Table S5), expressed in Ca. Electronema sp. GS (Dataset S2), abundant, and localized in the periplasm (SI Appendix, Fig. S5); they may also be involved in oxygen reduction, like in Desulfovibrio species, in which periplasmic oxygen reduction is correlated with c-type cytochrome activity (58). Alternatively, cable bacteria may utilize a unique, periplasmic fusion protein consisting of a cytochrome domain and 1 or 2 truncated hemoglobin domains (SI Appendix, Fig. S7 A and B and SI Discussion). In mammalian cells, neuroglobin can act as electron donor for cytochrome c (59). In contrast, little is known about the function of hemoglobin in bacteria; suggested roles are nitrosative stress protection and oxygen sensing, binding, and activation (60–62). In Bacillus subtilis, a truncated hemoglobin efficiently binds and reduces oxygen to water (63). It is thus tempting to speculate that the unique fusion protein accepts electrons from the conducting fiber, with its 2 domains facilitating sensing, activation, and reduction of oxygen in the periplasm of cable bacteria (Fig. 3 and SI Appendix, Fig. S7). Besides the fusion protein, cable bacteria genomes also encode a truncated hemoglobin with a predicted periplasmic localization (Dataset S2), which could also serve a role in oxygen reduction (Fig. 3). Periplasmic oxygen reduction may lead directly to the production of water or, by 1-electron transfer, to reactive oxygen species (ROS) that immediately need to be detoxified to water (as detailed later).

Why may cable bacteria have abandoned membrane-bound terminal oxidases, and thus energy conservation, during LDET-fueled oxygen reduction? One explanation could be the high oxygen reduction rates required: in each filament, only a few cells are located in the oxic sediment surface, whereas many (often approximately 10×) more cells perform sulfide oxidation in the anoxic zone. To maintain electron balance, electron flow has to be at least 10 times higher in the oxic, cathodic cells than in the anoxic, anodic cells (2). This may explain why the estimated cell-specific oxygen reduction rates are 4 to 14× higher in cable bacteria than in closely related sulfate reducers or in aerobic sulfide oxidizers (2). Thus, oxygen reduction may have been optimized for speed instead of energy conservation.

High cell-specific oxygen reduction rates usually result in high production of reactive oxygen species (64). Cable bacteria possess multiple systems for protection against oxidative stress, both periplasmic and cytoplasmic (Fig. 3, Dataset S3, and SI Appendix, SI Discussion). Several key enzymes, i.e., catalase, superoxide reductase, and rubrerythrin, were also detected in the proteome of Ca. Electronema sp. GS (Dataset S2). In addition, the chaperonins GroEL/ES and several general stress proteins are among the highest expressed proteins (Fig. 2 and Dataset S2 and S3); they may, as for other bacteria, e.g., Escherichia coli (65) or Caulobacter crescentus (66), also play a protective role during oxidative stress in cells exposed to oxygen.

Nitrate and Nitrite as Alternative Electron Acceptors.

Geochemical and electrical potential measurements in marine sediment have shown that cable bacteria can couple anodic sulfide oxidation via LDET to the cathodic reduction of nitrate and nitrite, but not nitrous oxide (7, 67). This indicates that cable bacteria reduce nitrate and nitrite to NO, N₂O, or ammonium. The cable bacteria genomes encode the periplasmic nitrate reductase NapAB (Dataset S3) but no typical nir- or nrf-type nitrite reductase (68). However, a periplasmic multiheme cytochrome (SI Appendix, Table S5) is encoded adjacent to the nap operon and was expressed in Ca. Electronema sp. GS (Dataset S2). The inferred protein shares 57% sequence identity with a homolog from an orange Ca. Maribeggiatoa sp. (locus tag BOGUAY_0691), which reduced nitrite to ammonium in vitro (69). We therefore hypothesize that cable bacteria can couple sulfide oxidation with nitrate reduction to ammonium (Fig. 3), and suspect that one of the periplasmic cytochromes could transfer the electrons to the catalytic enzymes.

Cable Bacteria Are Capable of Autotrophic CO₂ Fixation and Show Limited Organotrophic Potential.

A mixotrophic metabolism, i.e., inorganic sulfur as electron donor and an organic carbon source, has been inferred for cable bacteria based on geochemical data (11) and time-series experiments (2). Organic carbon assimilation has been experimentally confirmed for marine cable bacteria, which incorporated ¹³C-propionate but not (or only to a minor extent) ¹³C-bicarbonate (70). However, like other autotrophic members of the family Desulfobulbaceae (71, 72), cable bacteria encode the complete Wood–Ljungdahl pathway (SI Appendix, Table S7), and most of its proteins were detected in the proteome of Ca. Electronema sp. GS (SI Appendix, Table S7 and Dataset S2). This pathway may facilitate CO₂ fixation to acetyl-CoA (73), which would require reducing power in the form of ferredoxin (SI Appendix, SI Discussion). In addition, a periplasmic carbonic anhydrase (CA) was expressed in Ca. Electronema sp. GS (Dataset S2); CAs are typically used by autotrophs to convert bicarbonate into CO₂ that freely diffuses over the membrane, enhancing CO₂ fixation (74). We experimentally confirmed ¹⁴CO₂ uptake by cable bacteria enriched from Aarhus Bay using microautoradiography and fluorescence in situ hybridization (MAR-FISH; SI Appendix, SI Methods). Of 51 cable bacteria filaments analyzed, 43% showed incorporation of ¹⁴C-bicarbonate (Fig. 5A and SI Appendix, Fig. S8A), and quantification of MAR-derived silver grains per micrometer revealed a 20-fold difference in ¹⁴C-bicarbonate uptake between individual filaments (SI Appendix, Fig. S8B). These data provide evidence that cable bacteria can fix CO₂, but the activity varied strongly. In addition, cable bacteria have the genetic potential to fix N₂ (SI Appendix, SI Discussion and Dataset S3). The quantitative importance and environmental regulation of autotrophy and diazotrophy compared with heterotrophy are currently unknown. When growing autotrophically, many sulfate reducers, including members of the family Desulfobulbaceae, use H₂ as electron donor (8, 75). In contrast, periplasmic hydrogenases are absent in cable bacteria, and only Ca. E. aarhusiensis MCF encodes a cytoplasmic hydrogenase (SI Appendix, SI Discussion), suggesting that H₂ is not a general electron donor for cable bacteria.

Fig. 5.

Visualization of CO₂ assimilation, storage compounds, and protein biosynthesis in cable bacteria. (A) The ¹⁴C-bicarbonate uptake detected by microautoradiography (MAR; black spots, Upper) of a single filament of Ca. Electrothrix spp. identified by fluorescence in situ hybridization (FISH; Lower). (Scale bar, 40 µm.) (B) Polyphosphate granules (black arrows) in filaments of Ca. Electrothrix sp. GS. Polyphosphate inclusions (0 to 4 per cell) appear as dark spheres after staining with toluidine blue. (Scale bar, 5 µm.) (C) Polyglucose granules (black arrows) in a single filament of Ca. Electronema sp. GS as detected by light microscopy after iodine staining. (Scale bar, 5 µm.) (D) Active protein biosynthesis in several filaments of Ca. Electrothrix spp. detected by BONCAT (green) and overlaid with FISH identification of cable bacteria (red). (Scale bar, 20 µm.) (Inset) Fraction of cable bacteria cells that were BONCAT-positive in the oxic (Ox), suboxic (SOx), and sulfidic (Sul) sediment layers, respectively. Bars and error bars represent mean values with SD; n = 11 (Ox), n = 21 (SOx), and n = 17 (Sul) filaments; in total, more than 3,000 cells were analyzed.

Heterotrophic potential appears rather limited according to our genome analysis: formate may be assimilated via the Wood–Ljungdahl pathway (76), and acetate by the enzyme acetyl-CoA synthetase, both into acetyl-CoA as first intermediate; propionate assimilation, as observed in marine cable bacteria (70), may proceed via the methylmalonyl-CoA pathway to succinyl-CoA, similar to propionate degradation in Desulfobulbus species (77); all 4 enzymes catalyzing this pathway are encoded in the genome of Ca. E. aarhusiensis MCF (SI Appendix, Table S8). In contrast, Ca. Electronema sp. GS lacks the methylmalonyl-CoA pathway and the gene coding for succinyl-CoA synthetase, which would link into the TCA cycle; Ca. Electronema sp. GS should thus be incapable of assimilating propionate.

Generally, genes encoding amino acid and carbohydrate transport and catabolism are underrepresented in cable bacteria compared with other Desulfobulbaceae (SI Appendix, Fig. S1), indicating a limited potential for organic carbon assimilation and dissimilation.

Specifically, unlike most other members of the family Desulfobulbaceae, cable bacteria lack genes encoding lactate dehydrogenase and the beta-oxidation of fatty acids. We note, however, that acetate dissimilation could, in principle, proceed via the Wood–Ljungdahl pathway operating in oxidative direction, as known from acetate oxidation by sulfate reducers (78). Cable bacteria do also encode 4 different unspecific Fe and Zn alcohol dehydrogenases (matching pfam00465 and pfam00107), suggesting a potential for catabolizing alcohols (Dataset S3).

In many sulfate-reducing bacteria, as well as other anaerobes, growth on organic compounds is dependent on electron-bifurcating reactions involving heterodisulfide reductase (HdrABC) (21, 79). HdrABC is encoded in all Desulfobulbus genomes by the linked hdrABC and also in the genome of Ca. E. aarhusiensis MCF. In contrast, hdrB is absent and hdrA and hdrC are not linked in Ca. Electronema sp. GS; both HdrA and HdrC were detected in the proteome and are possibly involved in CO₂ fixation and sulfur disproportionation, respectively, rather than organotrophic growth (SI Appendix, SI Discussion). This observation suggests a greater organotrophic potential for Ca. E. aarhusiensis MCF compared with Ca. Electronema sp. GS. In support of this, Ca. E. aarhusiensis MCF encodes a full TCA cycle, whereas Ca. Electronema sp. GS lacks several genes, including genes encoding the aforementioned key enzyme succinyl-CoA-synthase (SI Appendix, Fig. S9).

Cable bacteria encode a full glycolytic and Entner–Doudoroff pathway, except that all 6 genomes lack genes encoding the enzyme enolase (SI Appendix, Fig. S9). The absence of enolase, although unusual, has also been reported for Butyrivibrio proteoclasticus and Bacteroidetes family BS1 (80, 81), in which it is rescued by the methylglyoxal detoxification pathway. With its key enzyme, methylglyoxal synthase, missing in cable bacteria, we suspect them to contain a different, yet unknown, “work-around” to complete glycolysis.

Storage Compounds.

Polyphosphate granules have been described in marine cable bacteria (15, 82), and many sulfate reducers can store poly-hydroxyalkanoates (PHAs) as carbon and energy reserves (83). Cable bacteria carry the genes for polyphosphate kinases (ppk1 and ppk2; Dataset S3) and thus have the genetic potential to produce and use polyphosphates (Fig. 3); Ppk1 was also detected in the proteome of Ca. Electronema sp. GS. These kinases catalyze the polymerization and depolymerization of polyphosphate by transfer of the terminal phosphate group of ATP or GTP or phosphorylation of ADP/AMP or GDP (84–86); therefore, polyphosphate could be an energy storage for cable bacteria. Ca. E. aarhusiensis MCF, but not Ca. Electronema sp. GS, also possesses an exopolyphosphatase, which catalyzes the terminal cleavage of polyphosphate, releasing P_i (84). We confirmed the presence of polyphosphate granules in Ca. Electronema sp. GS by light microscopy and in cable bacteria filaments enriched from Aarhus Bay by electron microscopy (Fig. 5B and SI Appendix, Fig. S11).

No genes for the production or breakdown of PHA were detected in the cable bacteria genomes. However, cable bacteria have the genetic potential for the interconversion of polyglucose and glucose (SI Appendix, Fig. S9 and Dataset S3) and thus may use polyglucose as carbon and energy storage (87, 88). In support of these predictions, polyglucose granules were detected in Ca. Electronema sp. GS (Fig. 5C). In addition to providing energy, polyglucose degradation could, as in sulfate reducers (75), fuel oxygen detoxification by providing NADH for the cytoplasmic rubredoxin-oxygen oxidoreductase (SI Appendix, SI Discussion).

Motility and Chemotaxis.

Cable bacteria are motile and actively position themselves in an oxygen-sulfide gradient, presumably by chemotaxis (89). Cable bacteria genomes do not contain flagella genes, but instead several polysaccharide exporters, which could be involved in excretion-based gliding motility (SI Appendix, SI Discussion). This is also indicated by trails of extracellular polymeric substances (EPSs) left behind by cable bacteria on glass slides (82). Cable bacteria contain only 3 chemotaxis operons, compared with 11 to 23 in other Desulfobulbaceae (SI Appendix, SI Discussion), and a comparably low density of regulatory genes (SI Appendix, Fig. S12); this indicates a limited or highly focused response capability to environmental signals.

Ecological Implications.

Collapses of cable bacteria populations have been observed in laboratory incubations (2, 3, 13) and field surveys (14, 90), and have been explained by resource depletion, most notably the depletion of the sedimentary iron-sulfide pool, which fuels anodic sulfide oxidation (17). Alternatively, cable bacteria may, like other blooming organisms, experience a high rate of virus predation according to the “kill-the-winner” hypothesis (91); indeed, their genomes bear restriction-modification enzymes, toxin-antitoxin modules (SI Appendix, Table S9), and CRISPR regions (SI Appendix, Table S10) as evidence of previous virus attack (92–94) (SI Appendix, SI Discussion). Yet another factor limiting cable bacteria blooms may be the pronounced pH peak of 8.5 and higher produced by cable bacteria in the oxic sediment surface (1, 2, 95): isoelectric-point analysis of the periplasm (and thus external pH)-exposed proteins of cable bacteria suggests that they are adapted to neutral pH (SI Appendix, Fig. S13) and may become denatured under alkaline conditions; this may contribute to the collapse of cable bacteria blooms (SI Appendix, SI Discussion).

A Conceptual Model for Metabolism and Lifestyle of Cable Bacteria.

Taken together, our data suggest that cable bacteria, even though, at first glance, their genomes resemble sulfate-reducing Desulfobulbaceae, are chemolithoautotrophs and mixotrophs that oxidize sulfide by reversing the canonical sulfate reduction pathway (Fig. 3). Electrons are channeled via the quinone pool into the periplasm, where cytochromes transfer them onto conductive fibers that contain e-pili. After LDET over centimeter distances, electrons are transferred directly from the periplasmic fibers to the terminal electron acceptors oxygen, nitrate, and nitrite, which are reduced by periplasmic enzymes, apparently without further energy conservation. This model implies that energy conservation occurs only in the anodic, sulfide-oxidizing cells, both by substrate-level and oxidative phosphorylation. In contrast, the cathodic, oxygen- or nitrate- reducing cells would have no means of energy conservation but merely act as electron sink for the entire cable bacterium filament. A first indication for this unusual division of labor is provided by visualizing active protein biosynthesis in marine cable bacteria from oxic, suboxic, and sulfidic sediment layers by bioorthogonal noncanonical amino acid tagging (BONCAT) (96). In agreement with the proposed energy distribution, >90% of cable bacteria cells detected in the suboxic and sulfidic layers were actively synthesizing new protein, whereas protein biosynthesis in the oxic surface cells could be detected in only very few filaments, accounting for approximately 20% of oxic cable bacteria cells (Fig. 5D).

The cable bacteria’s evolutionary descent from obligate anaerobic sulfate reducers implies that a lack of energy conservation is not their only challenge in the oxic zone: oxygen likely is inhibitory to many of their core enzymatic systems, high oxygen reduction rates inevitably generate abundant reactive oxygen species, and the high pH may inhibit and denature periplasmic and outer membrane proteins. Yet, for the multicellular cable bacterium, the lack of growth and a high death risk for the cells in the oxic zone may constitute an affordable price for access to a potent electron sink and the monopolization of sulfide oxidation. The chemotaxis of cable bacteria and their ability to move in loops (89) allows each filament to direct a few cells at a time to the oxic zone to fulfill their essential cathodic function, i.e., flaring off electrons by reducing oxygen. While exposed to oxygen, these cells may live on their storage compounds (polyphosphate and polyglucose; Fig. 5) that have been accumulated and can be recharged during periods in the anoxic zone.

In conclusion, our analyses provide a glimpse at how cable bacteria may work, using the genome fraction for which functions could be assigned. Many of the hypotheses outlined here, although generally well supported by gene homology, gene expression, and functional data, still need to be proven experimentally. Last but not least, a large fraction of the genomes remains uncharacterized; in particular, the limited number of unique, conserved, hypothetical proteins, which were detected in the proteome (Datasets S1 and S2), are prime candidates for future studies, and may support or challenge the current metabolic model for cable bacteria.

Materials and Methods

SI Appendix includes a detailed description of the study materials and methods.

Genome Sequencing.

The 5 Ca. Electrothrix draft genomes were generated from 6 single filaments, which were extracted by micromanipulation with capillary glass hooks from whole sediment cores enriched for cable bacteria as previously described (1). Whole genomes were amplified from individual filaments using the GenomePlex Single Cell Whole Genome Amplification Kit (Sigma–Aldrich). The amplified DNA was sequenced on an Ion Torrent PGM sequencer (Life Technologies). The Ca. Electronema sp. GS draft genome was assembled from a low-complexity metagenome obtained from a cable bacterium enrichment culture by sequencing of extracted DNA on an Illumina MiSeq system.

Genome Reconstruction and Annotation.

The individual sequence libraries were assembled with gsAssembler version 2.6 (Roche 454 Life Sciences) and SPAdes version 2.2.1 (97); assembly refinement procedures, quality checks, and further genome analyses are described in detail in SI Appendix, Methods. The resultant cable bacteria draft genomes were annotated using the IMG-ER pipeline (98).

Proteome Analysis.

A metaproteome was generated from 500 µL sediment of the Ca. Electronema sp. GS enrichment culture. Proteins were extracted, separated by SDS/PAGE, analyzed by mass spectrometry, and identified by comparison against the annotated Ca. Electronema sp. GS draft genome (SI Appendix, Methods).

Raman Microspectroscopy.

C-type cytochromes were detected in individual cable bacteria cells on a confocal Raman microscope (Horiba) as described previously (18). For each cell, 2 to 3 line scans with 10 to 20 measuring points each were performed across the filament. The largest cytochrome peak (ν15 mode at 750 cm⁻¹) was used for a relative quantification of cytochromes across the cable bacterium filament.

Microautoradiography/FISH.

The ability of cable bacteria to assimilate dissolved inorganic carbon was analyzed by MAR-FISH. Marine cable bacteria enrichments were incubated with 10 μCi mL^{−1 14}C-bicarbonate for 8 h at 15 °C. Cable bacteria were then fixed and immobilized, and MAR-FISH, imaging, and quantification of silver grains was done as previously described (99). Further details are provided in SI Appendix, Methods.

Visualization of Polyphosphate and Polyglucose Inclusions in Cable Bacteria.

Polyphosphate granules were visualized by light microscopy after toluidine blue staining (100) and by transmission electron microscopy (TEM) on a Tecnai Spirit microscope (120 kV); polyphosphate was confirmed by scanning electron microscopy (SEM) on a NanoSEM (Nova 600; FEI) operated at low vacuum and low voltage (3 kV) with an integrated energy dispersive X-ray spectrometer (EDX) with 20 keV beam energy. Cable bacteria were hand-picked, transferred onto EM grids, and dried at room temperature. Polyglucose was visualized by light microscopy after iodide staining (100).

Bioorthogonal Noncanonical Amino Acid Tagging (BONCAT).

Active protein biosynthesis in cable bacteria filaments was visualized by BONCAT (96). Marine sediment cores enriched for cable bacteria were incubated with 500 µM l-homopropargylglycine (HPG) and sectioned into oxic, suboxic, and sulfidic layers as determined by microsensor measurements. BONCAT analysis and FISH identification of cable filaments were performed from each layer (SI Appendix, Methods).
