Ferroelectric behavior and spectroscopic properties of La-Modified lead titanate nanoparticles prepared by a sol-gel method

Abstract

The sol-gel method was used to prepare perovskite type (Pb_1-1.5x La_x□_0.5x)TiO₃ (PLT) ceramics with x = 0.21, 0.22, 0.23, 0.24, 0.25 in order to investigate their structural, optical, and dielectric properties. The crystallite compounds were obtained by calcinating the mixture of PbCO₃, TiO₂, and La₂O₃ at 1000 °C for different time periods. After 4 h annealing, PLT23 sample, approximately a very little secondary phases have been observed in the XRD spectrum of the PLT sample with 23% La content (PLT23). The presence of La dopants might have affected the tetragonality of the Lead titanate crystal structure. The PLT samples tolerance factor decreases from 0.991 as in x = 0.21 to 0.986 for x = 0.25. Hence, these structures tend, generally, to be in the perovskite phase as t ~ 1. In the doped ceramics, characteristic phase transitions were shifted to lower temperatures. The dielectric permittivity value showed the tendency of a slight increase with lanthanum addition and achieved its maximum ε_m (3649) at x = 0.23, then it decreases for higher concentrations of La. The samples' estimated average crystallite size ranged from 40 nm to 50 nm, the maximum crystallite size about (49.6 nm) at x = 0.23 La. The calculated bandgaps were 3.1, 3.26, 3.28, 3.08, and 3.12 for the PLT with 0.21, 0.22, 0.23,0.24 and 0.25% La, respectively. The Curie constant C was obtained as the slope of the curve of the inverse values of ε_r vs. temperature. The highest C value (5.2 × 10⁵ K) was measured for the 23% La sample. The sample with 23% La content appears to be notably distinguished in its structural, optical, and dielectric characteristics compared with other samples.

Materials science; Nanotechnology; Ceramics; Ferroelectrics; PLT; Sol-gel; Optical; Dielectric

1. Introduction

Due to the importance of the ferroelectric ceramics as electronic materials, they are applied in many industries such as capacitors, transducers, sensors, and ultrasonic motors [1]. Perovskite systems (ABO₃), a potential applicant as the ferroelectric materials, have attracted great research interests. The common structure of the perovskite materials is labeled as ABX₃, where the positions A and B are considered as cations with dissimilar sizes and both are bonded by X is an anion. The B atoms are usually smaller than the B atoms [2]. In general, semimetal or metal founded in the periodic table may replace A and B positions. In general, the anion can be any other one at this location as oxygen [3]. Perfectly, the perovskite structure is a cubic in its form. The corners of the cubic cells are occupied by A atoms, where the center is placed by B atoms, but the atoms of oxygen can be found in the centers of the faces. Atom in position A represents a larger radii or alkali earth metals lanthanide in perovskite cubic unit cell [4]. Generally, oxygen anions coordinate A cations that are 12-fold which occupy the corners of the cube with a corner position of (0, 0, 0), the cubic lattice's face center is occupied by oxygen atoms at the position of (½,½, 0); however, the body center is occupied by the B cations which lie inside the center of oxygen octahedral at the position (½, ½, ½) [5]. Lead titanate (PbTiO₃ or PT) ceramics were studied extensively as one of the important perovskite ferroelectric materials. The improvement in the piezoelectric and pyroelectric properties is achieved by replacing Pb in the A site of the ABO₃ structure [6, 7, 8]. The prominent PbTiO₃ with the perovskite crystal structure possesses a relatively high Curie point of 490 °C. The high c/a ratio in PbTiO₃ at low temperature confers tetragonal phase. So, it disintegrates into powder when cooled to the Curie point [9]. Various methods of PbTiO₃ nanopowder preparation, such as the conventional mixed-oxide method, Pechini-type processes, mechanochemical synthesis, hydrothermal process, sputtering, spray drying, and sol-gel processing have already been reported by some authors [10, 11, 12, 13, 14, 15, 16]. Among these methods, the low-cost and simple sol-gel technique can precisely control the composition, making it more advantageous.

Lanthanum (La) – modified lead titanate or lead lanthanum titanate (PLT) is an important ferroelectric material that is characterized with its excellent dielectric, ferroelectric, pyroelectric, and electro-optic properties. The resulting PLT's permittivity increases with Tc when doping PbTiO₃ nanopowders with La, while its tetragonality decreases with increasing La content [17]. The coercive field, that is required to polarize the ceramic drops, and a pyroelectric coefficient larger than that of PT, was observed [18]. Relaxor ferroelectrics based on lead with complex perovskite structure are commonly used in piezoelectric actuators, ultrasonic transducers, and multilayer capacitors because of their exceptional piezoelectric and dielectric properties [19, 20, 21, 22]. In lanthanum that contains lead titanate [23], La³⁺ ions occupy Pb²⁺ sites and produce vacancies ( □ ) in the cation lattice of (Pb_1-1.5x La_x ‘□ _0.5x)TiO₃ ceramics. The transition temperature T_c decreases linearly with an increasing La³⁺ content. Some ferroelectric properties of ceramics with previous chemical formulas have been investigated previously and related experimental and theoretical studies [24] noted that the dielectric peak ε_max behavior is alike to the single vacancies at the same La content. It has been found that the maximum value of ε_max at x = 0.2 compatible with the maximum number of single vacancies signifying that both the dielectric peak ε_max and the number of single vacancies is relative to La content till the value reaches 20 %. Wu et al. [25] studied the perovskite structure with the general formula ABO₃ and found that the A site of vacancies decreases the local stress in the domains undergoing domain switching and the domain width is proportional to the crystallite size [26]. Many studies [ e.g., [27, 28, 29, 30, 31, 32, 33]] found that the increase in crystallite size was associated with the increasing dielectric peak ε_max.

Recently, lead titanate (PT) based ceramics has increasingly become one of the most ferroelectric materials that have been investigated and used in the scientific and industrial communities for its high Curie temperature (Tc) and low dielectric constant, which made it a valuable research object [34]. This research aimed at studying the microstructural, optical, and dielectric properties of PbTiO3 with various La-doping concentrations (i.e., x = 0.21, 0.22, 0.23, 0.24, and, 0.25 mol La, denoted as PLT21, PLT22, PLT23, PLT24, and PLT25, respectively).

2. Materials and methods

The (Pb_1-1.5x La_x□_0.5x)TiO₃, where (x = 0.21, 0.22, 0.23, 0.24, and 0.25 mole La) nanoparticles were prepared by the sol-gel method. The raw materials used were commercially available lead carbonate (PbCO₃), titanium dioxide (TiO₂), and lanthanum oxide (La₂O₃), which were purchased from Alfa Aesar, a Johnson Matthey Co. Potassium hydroxide (KOH, 0.2 moles) was dissolved in 100 ml distilled water and 0.1 moles of PbCO₃ were added to the prepared KOH solution. The mixture was magnetically stirred for 1 h and then filtered. The solids retained on the filter was added to La₂O₃ with distilled water under stirring the mixture for 2h, finally, 0.1 moles of TiO₂ were added to 100 ml distilled water. The resultant mixture was magnetically stirred for 2 h to obtain a homogeneous solution (colloidal solution). Then, the mixture powders were calcined at the calcination temperature-which are chosen as appropriate calcination from previous work [14]- of 1000 °C, for 2 and 4 h at a heating/cooling rate of 5 °C/min. X-ray diffraction (XRD) was employed to identify the phase formed. The particle morphology and size were directly imaged by transmission electron microscopy (TEM); Scherrer equation is used to determine the average crystallite size. A powder of PLT consisted of 7 mm diameter and 1 mm thickness is compressed in a pellet. were prepared in order to be used in the investigation on the electrical properties. electrodes made of silver thin film were printed onto the two ceramic disk opposite faces. In order to remove the organic contamination, the printed disks were kept on an alumina plate, and heated for 2 h at 500 °C first. For measuring the pellets' capacitance, the heated disk was placed between two probes of copper connected to a computerized capacitance meter (RLC meter -model SRS) [32] (see Figure 1).

Figure 1.

The block diagram of the sol-gel preparation method.

3. Results and discussion

3.1. X-ray diffraction

The XRD patterns were obtained for the powders calcined at 1000 °C using XRD (EMMA) diffractometer in the range of Bragg's angle (2θ) from 20° to 80°. According to the results shown in Figures 2 and 3, it is clear that, in the case of the sample calcined at 1000 °C for 2 h, crystallization started to form perovskite PLT phase along with small impurities of PbO and TiO₂. However, the impurity phases gradually decreased when annealed at 1000 °C for a longer period of time. As a result, after 4 h of calcination, the TiO₂ impurities disappeared in all PLT samples with La concentrations ranging from 21% to 25%. The sample with 23% La sintered at 1000 °C for 4 h showed the highest purity. The sharp intensity peak at 2θ = 31.85° shows the formation of perovskite PLT phase; while approximately no peaks for the unwanted TiO₂ or PbO phases were observed in the XRD patterns except some little peaks that have a low intensity, which indicated that the sol-gel process used in this study was an appropriate technique for the preparation of PLT nanoparticles. The broad XRD peaks suggest the presence of nanocrystalline particles. Based on these XRD patterns, the Scherrer's equation was used to calculate the crystallite sizes (1):

t = 0.9λ/βcosθ (1)

where λ is the wavelength, β is the full width at half maximum (FWHM), and θ is the diffraction angle. The calculated crystallite size was 45.5 nm, 44.6 nm, 49.6 nm, 40.3 nm, and 40.6 nm for the PLT with 0.21, 0.22, 0.23,0.24 and 0.25% La, respectively.

Figure 2.

X-ray diffraction patterns of PLT ceramics annealed for 2 h at 1000 °C: x = (a) 0.21, (b) 0.22, (c) 0.23, (d) 0.24, and (e) 0.25.

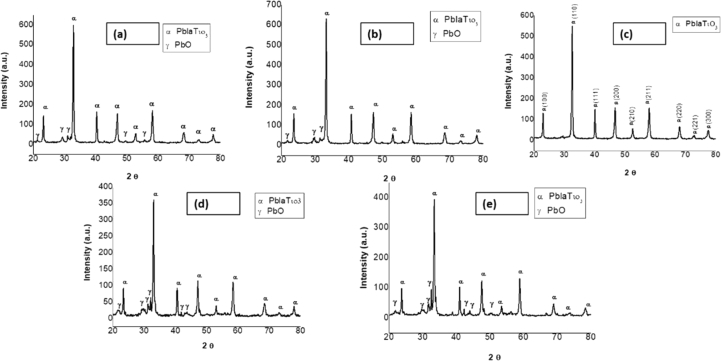

Figure 3.

X-ray diffraction patterns of PLT ceramics annealed for 4 h at 1000 °C: x = (a) 0.21, (b) 0.22, (c) 0.23, (d) 0.24, and (e) 0.25.

3.2. SEM analysis

Figure 4 shows the morphology and size distribution PLT powders of 21, 22, 23,24 and 25 % La, respectively. In general, the particles are spherical in their morphology. The observed individual particles in the SEM were expected to be found as polycrystalline and hence their size was larger than the crystallite size obtained from X-ray peak broadening. SEM micrographs showed also a fine-grained microstructure with a uniform grain size distribution and a high percentage of porosity (Figure 4a, 4b and 4e). It was observed that lanthanum permits grain growth for samples 23% and 24 % La (Figure 4c, 4d), this is probably due to the preferable distribution of La in the boundary region. La segregation at grain boundaries and therefore inhibition of grain growth is also possible. According to the obtained microstructure, it was expected that the microstructure formed in PLT ceramics could enable better dielectric properties of the material. As grain size of the PLT was observed to be maximum for the sample with 23% La dopant, which would indicate its conformity with the XRD results, and thus it was expected to achieve the dielectric properties among other La dopant concentrations.

Figure 4.

SEM images of [(Pb_1-x La_x □_0.5x)]TiO₃ ceramics sintered at 1000 °C: x = (a) 0.21, (b) 0.22, (c) 0.23, (d) 0.24, and (e) 0.25.

3.3. TEM analysis

Figure 5 presents the typical TEM images of the PLT powders with different La contents calcined at 1000 °C. According to TEM images, the PLT powders were heterogeneous, which may be the cause of the agglomeration of particles during their preparation. The primary particle sizes of the powder were determined by TEM analysis.

Figure 5.

TEM images of [(Pb_1-x La_x □_0.5x)]TiO₃ ceramics sintered at 1000 °C: x = (a) 0.21, (b) 0.22, (c) 0.23, (d) 0.24, and (e) 0.25.

3.4. Optical properties

The prepared nanoparticles' optical properties were studied by a UV-Visible Spectrophotometer (UV-300II, TECHCOMP). Figure 5 presents the UV-Vis transmission spectra of the electrochemically synthesized nanoparticles in the 400–750 nm wavelength range at room temperature. The value of the optical gap $E_g^{opt}$ is calculated based on the Tauc plot [16]:

$${\text{hνα}=\text{(hν}-E_g^{opt}\text{)}}^2$$ (2)

where h is the Plank constant, ν is the frequency, and ${\text{E}}_{\text{g}}^{\text{opt}}$ α is the optical bandgap. The PLT bandgap Eg can be estimated by plotting (αhν)² versus hν and extrapolating the linear portion of the plot to (αhν)² = 0 (as shown in Figure 6). The calculated bandgaps were 3.1, 3.26, 3.28, 3.08, and 3.12 for the PLT with 0.21, 0.22, 0.23,0.24 and 0.25% La, respectively.

Figure 6.

Energy gaps of PLT powders annealed at 1000 °C for 4 h x = (a) 0.21, (b) 0.22, (c) 0.23, (d) 0.24, and (e) 0.25.

Average particle sizes and the energy gap, calculated by the Scherrer's equation and the Tauc plot, respectively, are presented in Figure 7 as a function of the La concentration. The sample with 23% La possessed the largest grain size (49.6 nm) and the highest energy gap (4.5 eV) among all tested samples.

Figure 7.

Crystallite sizes and energy gap of PLT powders with different La concentrations after annealing.

3.5. Dielectric properties of PLT nanoparticles

Dielectric studies of the PLT nanoparticles were conducted to analyze their reactions to an applied ac voltage (1 V) as a function of temperature and frequency. Figure 8 indicates the dielectric constant (ε_r) of the PLT ceramics as a function of temperatures at the frequency of 10 kHz. ε_r increased gradually with the rise in temperature and reached the maximum value ε_m at a particular temperature known as the Curie Temperature T_m. ε_m values of PLT are listed in Table 1, showing that PLT with 23% La had the highest ε_m (3649). The Curie Temperature T_c and temperature corresponding to the maximum dielectric constant Tm for La-doped samples shifted towards low temperature.

Figure 8.

The temperature in Kelvin Vs the dielectric constant of (Pb_1-x La_x □_0.5x)TiO₃ single phase calcined at 1000 °C, where x = 0.21, 0.22, 0.23, 0.24, and 0.25.

Table 1.

Values of the maximum dielectric permittivity (ε_m), the temperature corresponding to the maximum dielectric constant (T_m), Curie–Weiss temperature (T_c), the temperature above which the dielectric constant (ε) follows the Curie–Weiss law (T_cw), (ΔT_m = T_cw − ΔT_m) and the critical parameter (γ), Curie–Weiss constant (C) , Energy Gap and Crystallite size for PLT ceramic at different La% concentrations.

Sample	εm	Tm (K)	Tc (K)	Tcw (K)	ΔTm (K)	γ	C.105 K	Energy Gap (eV)	Crystallite size (nm)
21% La	3486	330	345	355	25	1.74	0.66	3.1	45.5
22% La	2737	329	340	355	26	2.60	0.99	3.26	44.6
23% La	3649	318	310	320	2	1.37	5.2	3.28	49.6
24% La	3115	291	275	295	4	1.83	3.3	3.08	40.3
25% La	2394	296	270	298	2	1.04	1.4	3.12	40.6

It is recognized that all the ferroelectric materials dielectric permittivity over the Curie temperature follows the Curie–Weiss law:

$${1\text{/ε}}_{\text{r}}=\text{ (}{\text{T}-\text{T}}_{\text{c}}\text{)/C}\text{where T >}{\text{ T}}_{\text{c}}$$ (3)

where T_c is Curie–Weiss temperature and C is the Curie–Weiss constant. It is observed that in part of the paraelectric phase at a temperature higher than T_m, T_cw is the Burns Temperature. A deviation from Curie–Weiss law starting at T_cw can be seen. The parameter that describes the deviation degree is defined as

$$\Delta {\text{T}}_{\text{m}}={\text{T}}_{\text{cw}}{-\text{T}}_{\text{m}}$$ (4)

The Curie constant C was obtained as the slope of the curve of the inverse values of ε_r vs. temperature (Figure 9). With an increasing La-dopant amount, the value of C increased. The highest C value (5.2 × 10⁵ K) was measured for the 23% La sample (Table 1). The C value is related to the grain size and porosity of the samples [35]. The transition temperature T_c decreases linearly with the increasing La content.

Figure 9.

The relationship between the inverse dielectric permittivity (10000/ε_r) versus the temperature at 10 kHz. (The solid colored lines indicate the fitting curves based on the Curie–Weiss law for (Pb_1-x La_x □_0.5x) TiO₃ single-phase calcined at 1000 °C, where x = 0.21, 0.22, 0.23, 0.24, and 0.25.). Where T_c1,T_m1, T_cw1 is Curie–Weiss temperature, the temperature of permittivity maximum, and the Burns Temperature for -as for example- 21% La respectively.

The dielectric characteristics of the relaxor ferroelectric, different from the Curie–Weiss behavior, can be defined by an important modified equation of Curie–Weiss:

$$1\text{/ε}-{1\text{/ε}}_{\text{m}}=\left(\text{T }-{\text{ T}}_{\text{m}}\right)\text{γ}/{\text{C}}_1\text{,}1\le \text{γ}\le 2\text{,}$$ (5)

where γ and C₁ are constants. The parameter γ is used to obtain data on the character of the phase transition: when γ = 1 a normal Curie–Weiss law is obtained and γ = 2 describes a complete diffuse phase transition [36].

Plots of ln(1/ϵ−1/ϵ_m) as a function of ln(T−T_m) for the tested PLT samples with deferent La concentrations are presented in Figure 10. Linear relationships were observed for all five samples. By fitting the data to Eq. (1), the critical exponent γ representing the degree of diffuse transition was obtained as the slope of the fitting curve. At 10 kHz, γ = 1.74, 2.61, 1.37, 1.83, and 1.04 for PLT ceramics with La concentration of 21%, 22%, 23%, 24%, and 25 %, respectively.

Figure 10.

Ln (1/ϵ−1/ϵ_m) as a function of ln (T−T_m) for different grain sizes: x = (a) 0.21, (b) 0.22, (c) 0.23, (d) 0.24, and (e) 0.25. [Symbols: experimental data, solid line: fits to Eq. (5)].

Table 1 shows that T_m, T_c and T_cw decreases with increasing La-doping concentration, while ÄT_m which illustrates the deviation degree from the Curie–Weiss law is fluctuated, it achieved its minimum value for 23% la and 25 %.

Understanding the tolerance factor assists in achieving the main developments of new compounds within the perovskite family. In order to classify the formation of perovskite-type compounds, Goldschmid expressed in the following tolerance factor t [37] was used:

$$t=\frac{r_{A+}{r}_O}{\sqrt{2}(r_B+r_O)}$$ (6)

Where r_A, r_B,r_O are the effective ionic radii of A sites and B and the oxygen ion sites respectively. The average ionic radii of A-site are calculated using the following relation [38]:

$$r_A=\left[\left(1-1.5x\right)P{b}^{2+}\right]+\left[x\left(L{a}^{3+}\right)\right]+\left[0.5x\left(V\right)\right]$$ (7)

Where, $r_{P{b}^{2+}}$ = 1.49 Å, $r_{L{a}^{3+}}$ = 1.36 Å indicates Shannon's radii values. The mismatch between the A-site and B-site cations' bonding requirements in the ABO₃ perovskite is measured quantitatively by the Tolerance factor which reflects the distortion structure that contains the octahedral rotation and tilt. As the substituent radii $L{a}^{3+}\text{ion }$ at A-site is lesser than Pb, the tilt and the centrosymmetric distortion reduce. As indicated in Table 2, the tolerance factor calculated values of the PLT samples decrease from 0.991 (as in x = 0.21) to 0.986 (as in x = 0.25). Hence, the general the structures tend to be in the perovskite structure as the calculated tolerance factor t ~ 1.

Table 2.

The Tolerance factor (t) of La-doped lead titanate ceramics.

Substitution (x)	0.21	0.22	0.23	0.24	0.25
Tolerance factor (t)	0.991	0.99	0.988	0.987	0.986

Figure 11 a show The PLT atomic distribution of unit cell. As illustrated in figure the Ti⁴⁺ ions at the origin as TiO₆ octahedral. This octahedral distortion is assumed as a result of the covalent O-Ti-O bond displacement in the structure. Replacement of trivalent ions (La³⁺) in the sites generally occupied by divalent ions (Pb²⁺) has led to negative charge restitution in the PLT lattice and creation A-site– deficient structures. The distortion presence in the PLT crystallizing in the cubic perovskite structure was linked to structural defects as a result of the different doping mechanism [39].

Figure 11.

Atomic structure PLT unit cell perovskites. On the left, the positions of the ions in a tetragonal structure. On the right, the Pb/La atoms corner-sharing TiO₆ octahedra and oxygen vacancy migration path.

Figure 11 b shows a centrosymmetric illustration of PLT ceramics. The VESTA software is used to model the Atomic structure PLT unit cell perovskites [39]. Figure 11 (b) shows how the octahedral are connected at their corners to form a 3D simple cubic system, enclosing a large space busy by Pb or La atom. The structure can also be described by the Ti -O chains run in parallel lines with all three Cartesian coordinates.

It can be expected that La³⁺ ions if possible, occupy the Pb²⁺ site in the lead titanate ceramics due near ionic radii. Thus, increasing La³⁺ ions concentration maybe causes the increase the functions as a donor leading to some single vacancies of A site in the lattice, which eases the movement of domain wall so as to improve the dielectric properties significantly [40] to reach the maximum at lanthanum concentration equal to 23%, then for more La³⁺ concentrations (24% and 25 %) it can be expected that it leads to some double vacancies of A site in the lattice which will complicate movement of domain wall so as to minimize the dielectric properties.

As La³⁺ substitutes a Pb ion in the lead titanate lattice and doping generally induced the creation of defects such as vacancies V_pb and probably V_Ti and V_O in low concentrations. It was predictable that La³⁺ as a smaller ion would stabilize the cubic structure as predicted by Goldschmidt's tolerance factor (calculated in Table 2.). The existence of La on a Pb site creates the tetragonal structure weaker and possible generation of Ti vacancies (V_Ti) destroys Ti-O-Ti linkages. This occurrence leads to a lowering of T_C [41].

4. Conclusion

PLT nanoparticles with different La concentrations (i.e., 21%, 22%, 23%, 24%, and 25%) have been successfully prepared by the sol-gel method with different annealing times (i.e., 2 and 4 h) at the same sintering temperature of 1000 °C. In general, no secondary phases have been observed for the PLT with 23% La (PLT23) in its XRD spectrum. Structural, optical, and dielectric properties of the synthesized PLT have been studied. Sample PLT23 is distinguished from other PLT samples due to its relatively higher grain size (~49.6 nm), energy gap (~3.28 eV), Curie–Weiss constant (~5.2 × 105 K), and the maximum dielectric constant (~3649). The calculated values for the parameters (ΔTm, γ, Tc) approve its relaxor behavior. The Curie Temperature Tc and temperature corresponding to the maximum dielectric constant Tm decreases with increasing the La concentration. Goldschmidt's tolerance factor is calculated for the PLT samples, it decreases from 0.991 as in x = 21 to 0.986 for x = 0.25.
