Ginsenoside Rg5 overcomes chemotherapeutic multidrug resistance mediated by ABCB1 transporter: in vitro and in vivo study

Abstract

Background

Multidrug resistance (MDR) to chemotherapy drugs remains a major challenge in clinical cancer treatment. Here we investigated whether and how ginsenoside Rg5 overcomes the MDR mediated by ABCB1 transporter in vitro and in vivo.

Methods

Cytotoxicity and colon formation as well as the intracellular accumulation of ABCB1 substrates were carried out in MDR cancer cells A2780/T and A549/T for evaluating the reversal effects of Rg5. The expressions of ABCB1 and Nrf2/AKT pathway were determined by Western blotting. An A549/T cell xenograft model was established to investigate the MDR reversal activity of Rg5 in vivo.

Results

Rg5 significantly reversed ABCB1-mediated MDR by increasing the intracellular accumulation of ABCB1 substrates without altering protein expression of ABCB1. Moreover, Rg5 activated ABCB1 ATPase and reduced verapamil-stimulated ATPase activity, suggesting a high affinity of Rg5 to ABCB1 binding site which was further demonstrated by molecular docking analysis. In addition, co-treatment of Rg5 and docetaxel (TXT) suppressed the expression of Nrf2 and phosphorylation of AKT, indicating that sensitizing effect of Rg5 associated with AKT/Nrf2 pathway. In nude mice bearing A549/T tumor, Rg5 and TXT treatment significantly suppressed the growth of drug-resistant tumors without increase in toxicity when compared to TXT given alone at same dose.

Conclusion

Therefore, combination therapy of Rg5 and chemotherapy drugs is a strategy for the adjuvant chemotherapy, which encourages further pharmacokinetic and clinical studies.

1. Introduction

Although chemotherapy is one of the most effective ways for treating patients with cancer now, drug resistance leads to chemotherapy failure which is associated with the death of a great majority of patients [1]. The chemotherapy resistance induced by one drug usually are cross-resistant to multidrugs (named as multiple drug resistance, MDR) [2]. Numerous mechanisms have been explored to explain MDR, including transporter-based classical MDR mechanisms and nonclassical mechanisms which are related with alterations in the cancer cell biochemistry [3]. The classical MDR mechanisms are related to the adenosine triphosphate (ATP)-binding cassette family of membrane transporters which were overexpressed in cancer cells and pump anticancer drugs out of the cell resulting in drug concentrations below the effective concentration for therapy [4]. The first to third generations of MDR reversal agents were inhibitors of ABC transporters. Even third generation reversal agents are currently evaluated in clinical trials; however, none of them have yielded any applicable clinical results so far [5]. Therefore, finding new compounds to overcome MDR with high efficacy and low toxicity is still one of the major goals in cancer research all over the world [6], [7].

Currently, researchers are stepping toward natural products for searching potential MDR antagonists based on the increasing knowledge on their safety and efficacy [8], [9]. Moreover, studies carried out recently for exploring the mechanisms of reversing MDR by natural products suggested they act on multiple targets to achieve their biological activities such as modulation of drug efflux transporters and induction of apoptosis [10], [11]. Ginsenosides, also called ginseng saponins, are the major pharmacologically active ingredients of ginseng (Panax ginseng) with promising chemoprevention and anticancer activities. It has been demonstrated that ginsenosides could modulate the MDR [12]. For example, protopanaxadiol ginsenosides Rh2 and Rg3 from red ginseng could reverse P-glycoprotein (ABCB1, P-gp)-mediated MDR [13], [14], [15].

Ginsenoside Rg5 (Fig. 1A, C₄₂H₇₀O₁₂) is one of the main constituents of red ginseng and also belongs to protopanaxadiol ginsenosides [16]. It has been reported that Rg5 has antiinflammatory, anticancer, and neuroprotective activities [17], [18]. However, the reversal effect of Rg5 against the chemotherapy resistance has not been studied so far. Therefore, in this study, we investigated the effects of Rg5 in ABCB1 (P-gp)-mediated MDR at nontoxic concentrations and analyzed underlying molecular mechanisms.

Fig. 1.

Chemical structure and cytotoxicity of Rg5 in MDR cancer cells. (A) Chemical structure of Rg5. (B) Cytotoxicity of Rg5 alone in pairs of A2780/T or A2780 cells. (C) The cells were treated with various concentrations of docetaxel (TXT) for 48 hours in pairs of A2780/T or A2780 cells. (D) Cytotoxicity of Rg5 alone in pairs of A549/T or A549 cells. (E) The cells were treated with various concentrations of TXT for 48 hours in pairs of A549/T or A549 cells. Cell growth was determined using the SRB assay (n ≥ 3).

MDR, multidrug resistance; SRB, Sulforhodamine B.

2. Materials and methods

2.1. Reagents and cell culture

Rg5 was isolated and purified in our lab, and its structure and purity were confirmed by LC-MS (data were not shown). Paclitaxel (PTX), doxorubicin (DOX), docetaxel (TXT), 5-fluorouracil (5-FU), daunorubicin (DON), quinidine (QND), verapamil (Ver), propidium iodide (PI), aprotinin, leupeptin, phenyl methyl sulfonyl fluoride, and other chemicals were purchased from Sigma-Aldrich (St. Louis, MO). Extracellular signal–regulated kinases (ERK) 1/2 and actin antibodies were purchased from Santa Cruz Biotechnology; ABCB1 (P-gp) antibodies were purchased from Calbiochem, USA; Nrf2 antibodies were purchased from Abcam, Hong Kong; other antibodies such as AKT, P-AKT, and P-ERK1/2 were purchased from Cell Signaling Technology, Inc.

Human ovarian cancer cells A2780, human nonsmall cell lung cancer (NSCLC) A549 and their PTX-resistant cell line A2780/T, and A549/T were purchased from KeyGen Biotech Co., Ltd, Nanjing, China. The expression of P-gp at mRNA and protein level was confirmed in A549/T and A2780/T cells (Supplementary Fig. 1). Roswell Park Memorial Institute (RPMI)-1640 medium supplemented with 10% fetal bovine serum (GIBCO, Paisley, Scotland) was used as media for culture cancer cells at 37°C with a humidified 5% CO2 atmosphere. To maintain drug resistance, PTX (0.94μM for A2780/T and 0.24μM for A549/T) was added to the culture medium.

2.2. Cell cytotoxicity and colony formation assay

The degree of resistance was estimated by cytotoxicity using Sulforhodamine B (SRB) assay [19] and by colony formation assay [20] in human ovarian cancer cells A2780, NSCLC A549, and their PTX-resistant cell line A2780/T and A549/T (KeyGen Biotech Co., Ltd, Nanjing, China). In brief, after an incubation period, cell monolayers are fixed with 10% (wt/vol) trichloroacetic acid for 60 min, after which the excess dye is removed by washing repeatedly with 1% (vol/vol) acetic acid. The protein-bound dye (0.4% SRB) is dissolved in 10 mM tris buffer for determination at 490 nm using a plate reader (Spectra MAX 250; Molecular Devices, Sunnyvale, CA). The reversal of resistance was calculated by dividing the half maximal inhibitory concentration (IC₅₀) for cells with the drugs in the absence of Rg5 to that obtained in the presence of Rg5.

In colony formation assays, Rg5 in different concentration (containing 1.2 μM TXT) were added to A2780/T cells (1200 cells/well) in 6-well plates for 8 days. After experiments, cells were fixed with 70% ethanol and stained with crystal violet (0.5% in ethanol). The plates were rinsed with phosphate buffered saline (PBS), and the colony numbers were counted using the software of Quantity One colony counting.

2.3. Cell cycle analysis and apoptosis analysis by flow cytometry

For cell cycle analysis and apoptosis analysis, A2780/T cells were harvested after treatment, stained, and analyzed by flow cytometry as previously described [20]. Briefly, after incubation, the cells were harvested, washed with cold PBS, fixed, and permeabilized with 70% ice-cold ethanol overnight at 4°C or 2 h at −20°C. After another wash, staining solution containing PI (50μg/ml) and RNase A (200μg/ml) is incubated with cells for 1 hour in the dark. The cell cycle distribution of each sample was then determined using a flow cytometry BD FACS Aria (BD Biosciences, San Jose, CA) after pelleted, washed, and resuspended in PBS to a final concentration of 1 × 10⁶/ml.

Apoptosis analysis were performed by double supravital staining with 5 μl recombinant fluorescein isothiocyanate–conjugated Annexin-V and 5 μl PI (50 μg/ml) for 15 min with apoptotic cells after treatment at room temperature in the dark and analyzed by flow cytometry BD FACS Aria with FlowJo software.

2.4. Drug combination assay

To evaluate the synergistic therapeutic effect between Rg5 and TXT, the Chou–Talalay methods were used according to the literature [21], [22]. In brief, single drugs or premixed drug combinations were administered to A2780/T cells for 48 h. Drug dilutions in single or in combination were prepared by 2-fold serial dilutions with concentrations above or below its IC₅₀ for evaluating cytotoxicity by SRB method as above description. Combination index (CI) was calculated for quantitatively defining synergism (CI < 1), additive (CI = 1), or antagonism (CI > 1) effect in drug combination by using CalcuSyn software v. 2.1 (Bio-soft). Moreover, synergism (CI < 1) include synergism (CI = 0.3–0.7), strong synergism (CI = 0.1–0.3), and very strong synergism (CI < 0.1).

2.5. Intracellular accumulation of DOX and Rho123

The accumulation of Rho123 (5μM) and DOX (10μM) in A2780 or A2780/T cells were measured in the absence or presence of Rg5 (2, 4, 8μM) or 20μM QND (a known ABCB1 inhibitor) as a positive control by flow cytometry analysis as described previously [20]. For fluorescent observation, cells were fixed in 4 wt% formaldehyde (Sigma-Aldrich) and stained with 1μg/mL blue-fluorescent 4′,6-diamidino-2-phenylindole (DAPI) (1 mg/mL in H2O stock solution; Invitrogen D1306) for nuclear DNA after treatment. For flow cytometry analysis, cells were then detached, resuspended in PBS after they were washed three times with cold PBS, and analyzed by flow cytometry BD FACS Aria.

2.6. Transport assay performed in Caco-2 monolayer model

For the transport assays, human colon carcinoma Caco-2 cells (ATCC) were plated in transwell at the density of 1.7 × 105/mL in 6-well plate for 21 days. The bidirection transport and efflux behavior of rhodamin123 (Rho123, 5μM) were evaluated in the Caco-2 cells in the absence or presence of Rg5 (8μM) or QND (20μM) as described previously [23]. Before and after experiments, transepithelial electrical resistance (WPI EVOM2 Epithelial voltohmmeter, FL, USA) was detected for evaluating the integrity of cell monolayer. At appropriate times (30, 60, 90, and 120 min), 100-μl aliquots of the apical/basolateral side were collected and replaced by fresh medium. Each sample was immediately detected for the fluorescence intensity using a microplate reader (infinite M200 PRO, TECAN, Switzerland).

2.7. ABCB1 ATPase activity assay

The impact of Rg5 on P-gp ATPase activity and the inhibitory effects of Rg5 against a Ver-stimulated ABCB1 ATPase activity were estimated with Pgp-Glo™ assay systems (Promega, USA) following manufacture's instruction [20].

2.8. Molecular docking analysis for P-gp transporter

The crystal structure of P-gp with a bound inhibitor QZ59-RRR (PDB ID 4M2S) was used for molecular docking. All the residues in P-gp were protonated at pH 7.0. Partial charges of the atoms were assigned by the Sybyl force field. The protomol which represents a set of molecular fragments to characterize the active site was generated by a ligand-based approach, and the bound ligand was utilized for protomol generation. The proto_thresh and proto_bloat parameters represent how much the protomol can be buried in the protein and how far the protomol extends outside the cavity, respectively, which were assigned by the default value 0.5 and 0. For the reliability of the molecular docking method, the bound inhibitor QZ59-RRR was redocked back to the protein with the average root-mean-square deviation (RMSD) less than 1.5 Å for the docking poses compared with the original one.

2.9. A549/T xenograft model

All animal studies were approved by the Animal Care and Use Committee at Guangzhou University of Chinese Medicine (No # ZYYL20150807). A549/T tumor bearing nude mice model was modified from A549 NSCLC xenograft models reported in the literature [24]. When the tumors grow to approximately 100 mm³, mice were randomly divided into six groups (9-10 for each group). Saline, TXT (10 mg/kg), Rg5 (50 mg/kg), mixture of TXT (10 mg/kg) plus low dosage Rg5 (10 mg/kg), mixture of TXT (10 mg/kg) plus middle dosage Rg5 (30 mg/kg), and mixture of TXT (10 mg/kg) plus high dosage Rg5 (50 mg/kg) were intraperitoneal injection every 3 days to a total of nine injections, and tumor volume was measured every 3 days until it reached 2,000 mm³. The animals were sacrificed on the 27th day and all tumors were immediately detached and weighed. The tumor volume was calculated using the following equation: volume = (width² × length)/2.

2.10. Western blot analysis

Western blot was performed as preciously described [20]. Cells were washed with ice-cold PBS and were lysed in radioimmunoprecipitation assay (RIPA) buffer supplemented containing protease inhibitor mixture (1×) (Roche life Science, IN, USA). Equal amounts of proteins (30μg/lane) were resolved in 10% sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) and transferred onto polyvinylidene difluoride (PVDF) membranes (Millipore, Darmstadt, Germany). After blocking with 10% nonfat dry milk powder in tris-buffered saline (TBS) containing 0.1% Tween20, membranes were incubated with primary and secondary antibodies and visualized using a chemiluminescence ECL system (Super Signal West Femto, ThermoScientific). β –Actin was used as loading control.

2.11. Statistical analysis

Each experiment was repeated at least three times and presented as the mean ± standard deviation unless noted otherwise. Statistical analysis was calculated using one-way analysis of variance or Student t test with GraphPad Prism software, version 5.00, and the level of significance was set at a P value of <0.05(*), <0.01 (**), or <0.001(***).

3. Results

3.1. Rg5 reverses ABCB1-mediated MDR

The IC₅₀ values of Rg5 were 64.59 and 54.36μM for resistant A2780/T cell (without adding 0.94 μM PTX to culture medium) and sensitive A2780 cell, respectively (Fig. 1B). This compound showed antitumor effects against both resistance and sensitive human ovarian and lung cancer cell lines, but its cytotoxicity is much lower than that of PTX, TXT, DOX, and etc (Fig. 1C). As Rg5 did not inhibit the growth of MDR cell lines at concentration of 8μM, therefore, the maximum concentration of Rg5 used in the reversal assays was 8 μM.

As the cytotoxicity curves shift left (Fig. 2B), treatment with Rg5 significantly enhanced the antitumor effects of TXT by decreasing the IC₅₀ in a dose-dependent manner in A2780/T cells. Specifically, treatment with 2, 4, and 8 μM Rg5 reduced the IC₅₀ of TXT by 1.95-, 4.55-, and 17.38-fold, respectively. However, Rg5, at tested concentrations, did not affect the IC₅₀ of TXT in the sensitive A2780 cells (Fig. 2A). In addition, as shown in Table 1, Rg5 (8 μM) also sensitizing PTX, DOX, and DON to A2780/T cells with reversal fold of 6.68, 6.38, and 5.31, respectively; however, it also enhanced the effects of 5-FU (nonsubstrate of ABCB1) with a reversal fold of 6.67.

Fig. 2.

Rg5 recovered sensitivity to docetaxel. Cells were treated with the indicated drugs for 48 hours and subjected to SRB assay. Rg5 reduces the IC₅₀ of TXT in resistant cancer cells (A2780/T) (B) and A549/T (D) but not in drug sensitive (A2780) (A) and A549(C). (E) Rg5 inhibited the colony formation of TXT in resistant cancer cells A2780/T in a dose-dependent manner. ^##,**p < 0.01, ^###,***p < 0.001 vs absence of Rg5.

TXT, docetaxel; SRB, Sulforhodamine B.

Table 1.

Rg5 sensitized the chemotherapy Drug Paclitaxel, docetaxel, 5-fluorouracil, daunorubicin, and doxorubicin to ABCB1-Mediated Drug resistance A2780/T Cells.

Drug	A2780/T		A549/T
	IC50 ± SD (μM)	Fold reversal	IC50 ± SD (μM)	Fold reversal
Paclitaxel	3.55 ± 0.88	1.00	3.35 ± 0.38	1.00
+2μM Rg5	1.78 ± 0.69	1.20	1.89 ± 0.27	1.78
+4μM Rg5	0.94 ± 0.45*	3.76	1.12 ± 0.35*	2.99
+8μM Rg5	0.53 ± 0.36**	6.68	0.60 ± 0.26**	5.62
Docetaxel	14.22 ± 1.31	1.00	8.41 ± 1.17	1.00
+2μM Rg5	7.28 ± 0.75*	1.95	5.31 ± 0.84	1.58
+4μM Rg5	3.13 ± 0.66**	4.55	1.88 ± 0.76**	4.47
+8μM Rg5	0.82 ± 0.27***	17.38	0.75 ± 0.28***	11.22
Doxorubicin	6.76 ± 0.79	1.00	3.58 ± 0.85	1.00
+2μM Rg5	5.62 ± 0.92	1.20	3.25 ± 1.04	1.13
+4μM Rg5	1.87 ± 0.66*	3.59	2.25 ± 0.56	1.58
+8μM Rg5	1.08 ± 0.59**	6.38	1.42 ± 0.23*	2.52
Daunorubicin	8.91 ± 0.97	1.00	6.38 ± 0.89	1.00
+2μM Rg5	6.68 ± 1.26	1.33	4.16 ± 0.59	1.35
+4μM Rg5	3.34 ± 0.83*	2.66	2.32 ± 0.72*	2.43
+8μM Rg5	1.68 ± 0.78**	5.31	0.82 ± 0.26**	6.90
5-Fluorouracil	149.87 ± 12.19	1.00	119.05 ± 9.68	1.00
+2μM Rg5	95.50 ± 7.93	1.48	94.57 ± 7.69	1.27
+4μM Rg5	42.24 ± 3.44*	3.34	59.67 ± 4.86*	1.99
+8μM Rg5	21.17 ± 1.73**	6.67	22.39 ± 2.43**	5.01

SRB, Sulforhodamine B; SD, standard deviation

Cell growth was determined using the SRB assay. The data are representative of three different experiments and are shown as mean ± SD (n = 3). *p < 0.05, **p < 0.01, ***p < 0.001, means significantly different from the control group in the absence of Rg5

Moreover, another ABCB1-overexpressing MDR A549/T cells and its parental A549 cells were used to demonstrate the reversal effects of Rg5 to TXT and other chemotherapy drugs (Table 1). In Fig. 2C, Rg5 at dosage of 2, 4, and 8 μM significantly reduced the IC₅₀ of TXT with reversal fold of 1.58, 4.47, and 11.22, respectively (Fig. 2D). Rg5 did not affect the IC₅₀ of TXT in the sensitive A549 cells at same concentrations (Fig. 2C).

Colony formation assays, a gold standard for measuring the effects of cytotoxic agents on cancer cells in vitro, were used to evaluate the long-term reversal effects of Rg5. As expected, treatment with 1.2 μM TXT and Rg5 completely inhibited colony formation of MDR cancer cells (Fig. 2E). Either 8 μM Rg5 or 1.2 μM TXT alone did not affect the colony formation. All these results suggested that Rg5 significantly sensitized MDR cancer cells to chemotherapy drugs.

3.2. Rg5 potentiates apoptosis induced by TXT

Consistent with the results of cell growth, apoptosis was significantly enhanced by cotreatment of TXT and Rg5 as shown in Fig. 3A, while TXT (1.2 μM) or Rg5 (8 μM) alone did not induce cell apoptosis. Notably, we found that the inhibition of Rg5 at 2 μM with TXT (1.2 μM) on the cell growth is same as that of 14.22 μM TXT (IC₅₀ of TXT in A2780/T) in A2780/T cells.

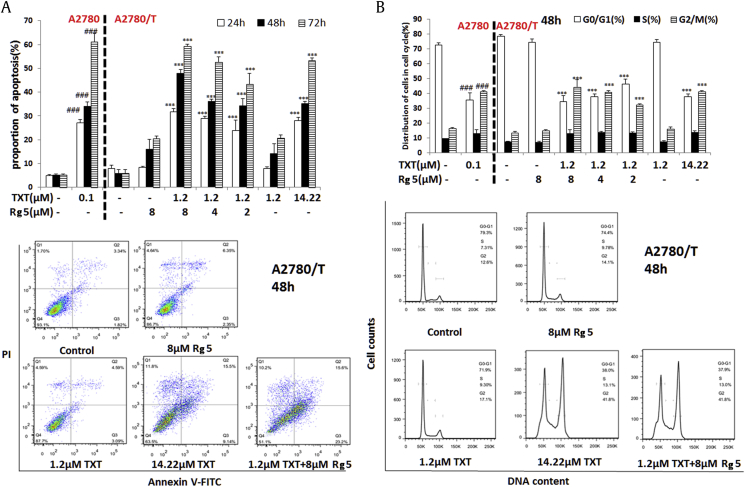

Fig. 3.

Effects of Rg5 on the apoptosis and cell cycle of MDR cancer cells. (A) The cells were treated with different concentrations of Rg5 and/or TXT (1.2μM) for 48h, stained with annexin V–FITC and PI, and analyzed by flow cytometry. (B) The cell cycle distribution profiles of the cells treated with Rg5 and/or TXT (1.2μM) were determined by flow cytometry. The data are representative of three different experiments and are shown as mean ± SD (n = 3). ^###, ^∗∗∗p < 0.001 vs the control group.

FITC, fluorescein isothiocyanate; MDR, multidrug resistance; PI, propidium iodide; SRB, Sulforhodamine B; SD, standard deviation; TXT, docetaxel.

Since it has been recently reported that Rg5 (100 μM) induced cell cycle arrest in G0/G1 phase [25], we then evaluated whether cell cycle arrest is related to sensitizing effect of Rg5. Cell cycle progressions were examined by flow cytometry in asynchronously growing A2780/T cells and its sensitive A2780 cells treated with TXT in the absence or presence of Rg5.

There were 71.9% of cells at G1 phase and 17.1% of cells at G2 phase after incubated with 1.2μM TXT, which is similar to the phase ratios in vehicle group. Exposure to TXT (14.22μM) for 48 hours resulted in G2-M arrest (>60%) in A2780/T cells (Fig. 3B). We observed that cells treated with Rg5 and TXT (1.2μM) significantly shifted to 37.9% of G1 and 41.8% of G2 phase (Fig. 3B). This pattern was evident at 24 h after cotreatment and persisted over to 72 h. However, cell cycle distribution of A2780/T was not changed after treatment with Rg5 (8 μM) alone. Therefore, Rg5 significantly enhances the cell growth inhibition, G2M cell cycle arrest, and apoptosis induced by 1.2μM TXT, although A2780/T cells were remarkably resistant to 1.2μM TXT.

3.3. Synergistic effects of Rg5 and TXT against MDR cells

To evaluate the synergistic cytotoxic effects of Rg5 and TXT against A2780/T cells, CI based on the median-effect method were determined at 50% effective dose (ED₅₀) and 90% effective dose (ED₉₀) [22]. We found that the CI values of Rg5–TXT combination at ED₅₀ and ED₉₀ were 0.23 and 0.05, indicating a strong synergistic cytotoxic effect (CI < 0.3) for Rg5–TXT combination in the A2780/T cells as shown in Table 2. With CalcuSyn simulation, the ED₅₀ of Rg5 or TXT given alone is 69.56μM and 16.02 μM in A2780/T cells. But, combination with Rg5 (8.12 μM) could significantly reduce the ED₅₀ of TXT to 1.79 μM which is an 8.95-fold decrease compared with TXT given alone (Table 2). The quantitative diagnostic graphics for this synergistic effect between Rg5 and TXT were shown in Supplementary Fig. 2. In addition, we evaluated the cytotoxicity of Rg5 and TXT singly or in-combination and noticed that Rg5 did not affect cytotoxicity of TXT in normal lung cells BEAS-2b (Supplementary Fig. 3).

Table 2.

The values of CI and the synergism dose of Rg5 and TXT at Fa 0.5 (ED₅₀) and Fa 0.9 (ED₉₀).

	CI value	Dose Rg5(μM)	Dose TXT(μM)
Data for Fa = 0.5
Rg5	/	69.56	/
TXT	/	/	16.02
Rg5+TXT	0.23	8.12	1.79
Data for Fa = 0.9
Rg5	/	6.29	/
TXT	/	/	1.8
Rg5+TXT	0.05	0.18	0.04

CI, combination index; TXT, docetaxel

CI analyses of the effects of Rg5 in combination with paclitaxel are shown. The CI values were plotted as a function of the particular inhibitory effect. CI values < 1 represent a synergistic combination, CI values equal to 1 are additive and CI values > 1 represent antagonistic combinations

3.4. Intracellular accumulation of DOX and Rho123

To explore the underlying mechanism of this phenomenon, the intracellular accumulation of P-gp substrates such as DOX and Rho123 in sensitive A2780 cells and drug resistant A2780/T cells were performed with flow cytometry analysis.

As shown in Fig. 4, accumulation of DOX and Rho123 in A2780 indicated with fluorescence were much higher than that in A2780/T. When the drug-resistant cells were treated with 8 μM Rg5 or 20 μM QND (a reference P-gp inhibitor), the intracellular accumulation of Rho123 (Fig. 4A) and DOX (Fig. 4B) were significantly increased in A2780/T compared with vehicle control. In contrast, Rg5 did not affect the intracellular levels of DOX and Rho123 in the sensitive A2780 cells. Therefore, our results indicated that Rg5 enhanced the antitumor effects of chemotherapy agents in MDR cancer cells by significantly increasing their intracellular accumulation.

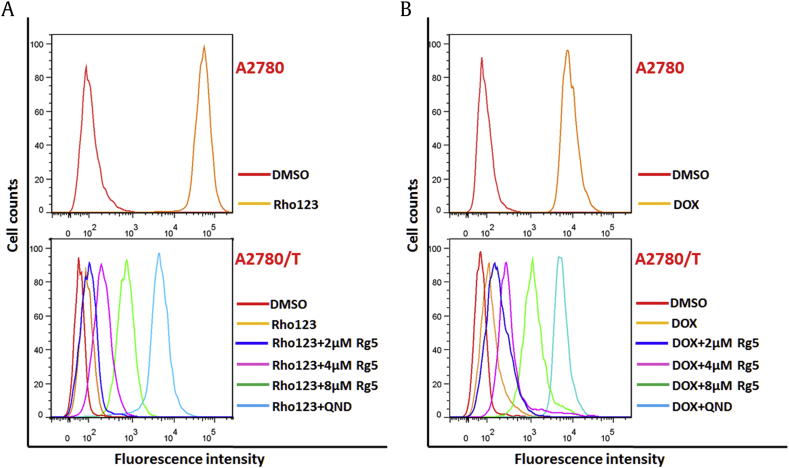

Fig. 4.

Effects of Rg5 on the intracellular accumulation of Rho123 and doxorubicin (DOX) in MDR ovarian cancer cells. (A) A2780 cells or A2780/T cells treated with 5μM Rho123 for 8 hours in the absence or presence of Rg5(2,4,8μM), and 20μM quinidine (positive control) as indicated. (B) A2780 cells or A2780/T cells treated with 10μM DOX for 8 hours in the absence or presence of Rg5(2,4,8μM), and 20μM quinidine (positive control) as indicated. Intracellular DOX and Rho123 accumulation were evaluated by measuring fluorescence with flow cytometry as described in Method. The experiments were repeated for at least 3 times, presented are representative images.

DMSO, dimethyl sulfoxide; MDR, multidrug resistance; QND, quinidine.

3.5. Rg5 inhibits ABCB1-mediated efflux in Caco-2 cells

To confirm the effect of Rg5 on the function of ABCB1 transporter (P-gp), Caco2 monolayer cell model which has been widely used for predicting human drug absorption and efflux activity of transporters [26] were used to evaluate the efflux ratio of the P-gp substrate Rho 123 in the presence or absence of Rg5. Notably, Rg5 increased the values of Papp (A-B) of Rho 123 (Fig. 5A) and reduced efflux ratio of Rho123 (>50%) dose dependently after 2 hours incubation (Fig. 5B). These results confirmed that Rg5 inhibited ABCB1 transporter leading to increased Rho 123 accumulations in MDR cells.

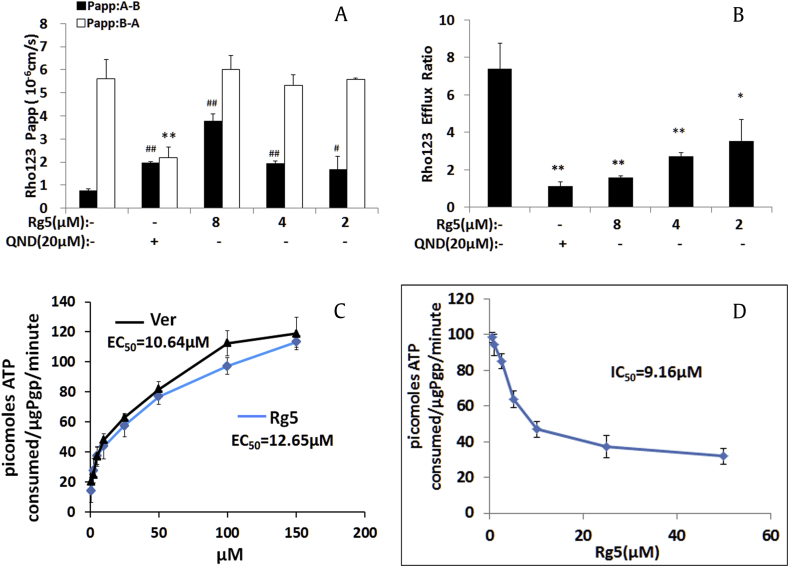

Fig. 5.

Effects of Rg5 on the efflux ratio of Rho123 and DOX as well as the P-gp ATPase activity. (A) Rg5 increased the directional transport of Rho123 (5μM) and (B) decreased the efflux ratio of Rho123 (5μM) in Caco2 cells. ■AP→BL transport, □BL→AP transport. (C) EC₅₀ measurements for stimulating the P-gp ATPase activity by Rg5 or verapamil (positive control). (D) IC₅₀ measurements for inhibiting 200μM verapamil-stimulated P-gp ATPase activity. Luminescence was read on a luminometer, and data were analyzed as described in Material and Method. ^#,*p < 0.05, ^##, ^∗∗p < 0.01 vs absence of Rg5.

P-gp, P-glycoprotein; DOX, doxorubicin; Ver, verampil; QND, quinidine.

3.6. Rg5 activates the ATPase activity of ABCB1

Transporters use ATP hydrolysis to pump molecules across the membrane; therefore, we evaluated the effects of Rg5 on the ABCB1-mediated ATP hydrolysis. As shown in Fig. 5C, there is a three-fold increase over the basal activity for the ATPase activity of ABCB1 after treatment with Rg5 with EC₅₀ at 9.75μM, indicating that Rg5 might interact at the drug–substrate binding site as a substrate of ABCB1.

We also examined the inhibition effects of Rg5 on Ver-stimulated ABCB1 ATPase activity for further understanding the interaction of Rg5 on the ABCB1 binding site. Ver, an ABCB1 inhibitor and substrate for transport, could competitively interfere with transportation of other ABCB1 substrates. Here, we showed Rg5 significantly reduced the ATPase activity stimulated by Ver with an IC₅₀ value of 9.16μM (Fig. 5D), which suggested that Rg5 was an ABCB1 inhibitor and competitive bound to the ABCB1trasnporter.

3.7. Molecular docking analysis

To understand the binding mechanism between Rg5 and P-gp, Surflex-dock embedded in Tripos Sybyl X 2.0 was performed using the crystal structure of QZ59-RRR bound to P-gp (PDB ID: 4M2S). The selected pose of Rg5 fitted the binding site pocket of P-gp well with the docking score (Total_Score) of 5.95, which is close to that (6.01) of the reference compound QND. Our docking result indicated that Rg5 formed several kinds of specific interactions with P-gp (Fig. 6). Rg5 formed four hydrogen bonds with Tyr306, Gln721, and Tyr949 (Fig. 6B). The π-σ interaction was also observed between Rg5 and P-gp. Besides these interactions, Rg5 also formed Van der Waals interactions and hydrophobic interactions with such residues as Met68, Phe331, Phe332, Leu335, Ile336, Phe339, Gln343, Phe724, and Phe979 in the binding pocket (Fig. 6C). All these interactions contributed to the putative binding pattern of Rg5 in P-gp.

Fig. 6.

Molecular docking analysis of binding pattern of Rg5 with P-gp protein. (A) Molecular docking analysis of Rg5 with P-gp. The putative binding pattern of Rg5 (yellow) and P-gp (green) is shown in the binding site. (B) The interactions between Rg5 and P-gp. Hydrogen bonds are depicted in dashed yellow lines. (C) Two-dimensional interaction mode between Rg5 and P-gp. Hydrogen bonds and π-π/σ-π interactions are shown in green and blue lines. Green and purple bubbles represent hydrophobic and polar amino acid residues, respectively.

3.8. Rg5 does not affect the expression of ABCB1

Reducing ABCB1 expression or inhibiting the function of ABCB1 transporter are the most common mechanisms for the sensitizing effect on efflux transporter–mediated MDR. Here, we also evaluated the effect of Rg5 on the expression of ABCB1. Interestingly, Rg5 did not alter the protein level of ABCB1 (Fig. 7A) in A2780/T cells at the reversal concentrations. Therefore, Rg5 inhibited ABCB1 transporter function but not affect the expression of ABCB1.

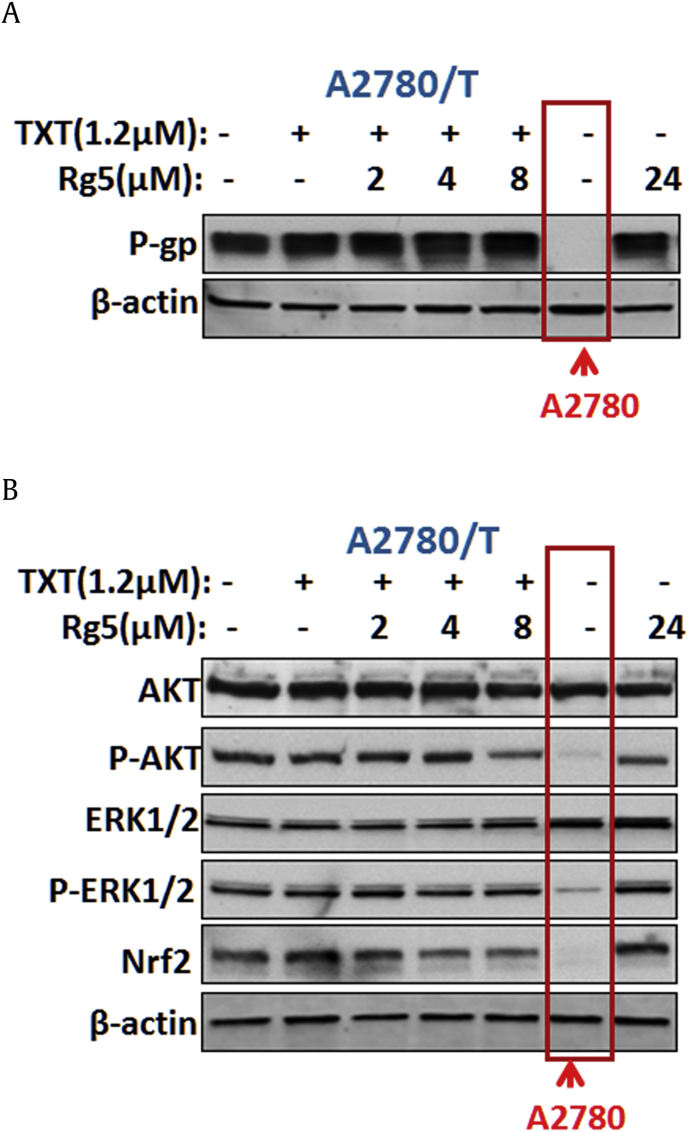

Fig. 7.

Effects of the combination treatment of TXT and Rg5 on the expression of ABCB1 and AKT/ERK/Nrf2 pathway. (A) Combination treatment of TXT and Rg5 did not influence P-gp expression levels in A2780/T cells, but (B) reduced the phosphorylation of AKT and the expression level of Nrf2 which are significantly increased in A2780/T cells by compared with A2780 cells (marked with red lines).

P-gp, P-glycoprotein; TXT, docetaxel.

3.9. Rg5 inhibits Nrf2/AKT pathways

Recently studies indicated that activation of Nrf2/PI3K/AKT, ERK pathways was closely associated with resistance to chemotherapy drugs [27], [28]. Moreover, it has been reported that antitumor drugs inhibited these signaling pathways and could enhance tumor cell sensitivity to chemotherapy drugs [29], [30]. Hence, we also explored the expression of total and phosphorylated AKT and ERK after treatment with Rg5. Our data indicated that phosphorylated AKT was significantly increased in A2780/T cells compared with A2780 cells. Rg5 (24μM) alone or in combination with TXT significant inhibited the expression of phosphorylated AKT, but not the expression of total AKT, ERK, and phosphorylated ERK (Fig. 7B). Therefore, inhibition of PI3K/AKT pathways was related with the enhanced cytotoxic response by combination treatment with Rg5 and TXT in ABCB1-mediated MDR cancer cells.

Moreover, it was demonstrated that blockade of transcription factor Nrf2 could sensitize a variety of cancer cells to chemotherapy drugs [31], [32], indicating that the activation of Nrf2 enhances chemoresistance [33]. Here, we observed a remarkably higher level of Nrf2 in A2780/T cells than that of A2780 cells, while combination treatment of Rg5 with TXT suppressed the expression of Nrf2 (Fig. 7). These results indicated that MDR reversal effect of Rg5 to chemotherapy agents was also caused by inhibition of Nrf2/PI3K/AKT pathways.

3.10. Rg5 overcomes TXT resistance in nude mice bearing A549/T cells tumor

We next evaluated whether Rg5 could overcome TXT resistance in A549/T xenograft model. Based on the literature, an effective dose (10 mg/kg) was chosen for the TXT [34], [35], which is within the safety range and well tolerated in our study (Fig. 8A). As shown in Fig. 8B, TXT alone has no effect on treating MDR tumors at 10 mg/kg as there is similar tumor progression between TXT treated group and vehicle control group. However, treatment with both TXT and Rg5 significantly inhibited the growth of drug resistance tumor in a dose-dependent manner, indicating considerable therapeutic efficacy. Notably, high dose of Rg5 (50mg/kg) with TXT greatly diminished the growth of tumors by 48% in A549/t xenograft model.

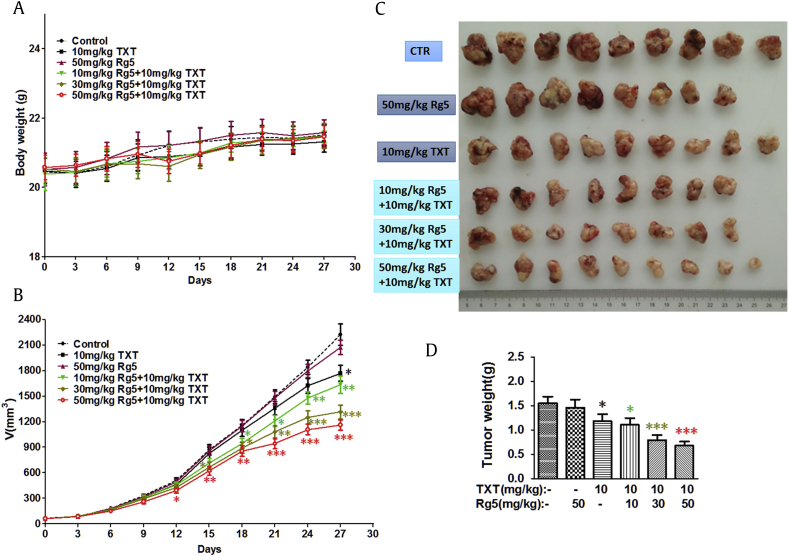

Fig. 8.

Effects of treatment of Rg5 and docetaxel on A549/T cell xenograft nude mice model. (A) The body weight was drawn to monitor the body weight and tumor volume with time after implantation. (B) Tumour growth curves were drawn to monitor the body weight and tumor volume with time after implantation. The tumor xenografts were excised. (C) The tumors were photographed on the 27th day after implantation. (D) The tumors weighted on the 27th day after implantation. The data shown are expressed as the mean ± SD for each group (n = 9 or 10), *p < 0.05, **p < 0.01, **p < 0.001.

CTR, control group given vehicle; SD, standard deviation; TXT, docetaxel.

At the end of the experiment, tumors were carefully removed and weighed (Fig. 8C–D). The smallest tumor weight was observed with the group given TXT and high dose of Rg5, which was 2.3-fold smaller than that of the vehicle group and nearly two-fold smaller than that of TXT or Rg5 treated groups. Moreover, weight loss was not observed in the combination treatment groups indicating Rg5 did not increase toxicity of TXT. All results demonstrate that combination therapy of Rg5 with TXT overcomes the ABCB1-mediated resistance in vitro and in vivo.

4. Discussion

TXT has been used as first-line chemotherapy drug since 2004, but the occurrence of resistance to TXT has been a major reason leading to the treatment failure of cancer. Currently, scientists are aimed on discovering more efficacious and less toxic compounds from natural products to reverse MDR. Pilot studies in small animal and human clinical trials indicated that Rg5 had a favorable safety profile and significant effects in reducing cisplatin-induced nephrotoxicity, antioxidant, antiapoptotic, and antiinflammatory effects as well as treating diabetes [16], [36]. Although the pharmacokinetic behavior of Rg5 has not been investigated, other protopanaxadiol ginsenosides such as Rh2 and Rg3 from red ginseng have relative high plasma concentrations. For example, the average maxima concentration of Rg3 was 36.4mg/L (46.5μM) in tumor-bearing rats and 81.6 mg/L (104.2μM) in rats after oral administration at the dose of 50 mg/kg of ginsenoside Rg3 [37]. Considering its appropriate structure and safety, we investigated whether Rg5 could sensitize the ABCB1-overexpression MDR cancer cells to chemotherapy agents in vitro and in vivo, as well as the underlying mechanisms.

In this study, for the first time, we found that Rg5 at noncytotoxic concentrations significantly potentiated the antitumor effects of chemotherapy agents including DOX, PTX, TXT, and DON to MDR cell lines A2780/T, and A549/T, but not affect the toxicity in sensitive cells. Moreover, Rg5 and TXT significantly inhibited the growth of drug resistance tumor by 48% in the A549/T xenograft model, which is comparable with the in vivo MDR effects reported in literature for the third generation P-gp inhibitors such as OC144-093 [38] and LY335979 [39]. The underlying mechanism study indicated that Rg5 inhibits the efflux activity of ABCB1 transporter leading to the intracellular accumulation of drugs in MDR cancer cells but not in sensitive cells, which was illustrated clearly by docking analysis as the ligand Rg5 was well-fitted into a druggable cavity of ABCB1 transporter with a similar affinity as QND.

As energy used by ABCB1 transporter comes from ATP hydrolysis, we also investigated the ATPase activity of ABCB1 transporter to confirm our previous assumption. Our results indicated that Rg5 might be a substrate of ABCB1 as it stimulated the activity of ATPase. Moreover, it inhibited the ATPase activity stimulated by Ver, indicating it bound to the ABCB1 transporter with high affinity and left little place for other agents bind to the transporter, which resulted in decreased activity of ABCB1 transporter.

Moreover, recent studies suggested that the MAPK/ERK, PI3K/AKT, and Nrf2 signaling pathways is important for multiple drugs resistance [28] as downregulating the AKT/ERK and Nrf2 signaling pathways could overcome MDR to drugs such as PTX, DOX, and 5-FU [30]. In this study, inhibition of AKT/ERK and Nrf2 pathways are associated with the sensitizing effect of Rg5. These results not only elucidate the multiple targets for the therapeutic effects of Rg5 but also was helpful for explaining the reversal effect of Rg5 against 5-FU which is not a P-gp substrate. Moreover, as Nrf2 expression could be induced via upregulation of PI3K/AKT and/or MAPK/ERK signaling pathways [40], the sensitizing effect of Rg5 to MDR could be caused by downregulating the PI3K-Akt pathways which reduced the Nrf2 expression.

Although Nrf2 has emerged as an important contributor to chemoresistance, how Nrf2 plays such a role still remains unknown. A growing amount of evidence indicates that Nrf2 transcription promotes ROS detoxification and carcinogenesis though metabolic rewiring to support the antioxidant systems, leading to cancer cell growth and proliferation [41], [42], [43]. In addition, Nrf2-mediated regulation of ABCC2 and ABCG2 expression confers chemoresistance via enhancing drug efflux [44], [45]. Recently, overexpression of Nrf2 and ABCB1/P-gp were observed in colorectal cancer patients [46], and Nrf2 overexpression is associated with P-glycoprotein upregulation in gastric cancer [47] which is consistent with our observation in A2780/T cells and A549/T cells. However, in this study, Rg5 could downregulate Nrf2 signaling but not change P-gp protein level in A2780/T cells, indicating that inhibition of Nrf2 expression can improve the efficacy of chemotherapeutic agents in addition to inhibiting P-gp mediated drug efflux.

In conclusion, this study demonstrated that Rg5 effectively overcomes ABCB1-mediated drug resistance by inhibiting ABCB1 transporter and suppressing the chemoresistance-related AKT/Nrf2 pathways. In addition, Rg5 did not affect the expression of ABCB1 transporter. Considering the safety of Rg5, we believe that Rg5 may be a good combination therapy candidate for ABCB1-medicated drug resistance.

Conflicts of interest

All authors declare no conflict of interest.
