GC-NICI-MS analysis of acetazolamide and other sulfonamide (R-SO₂-NH₂) drugs as pentafluorobenzyl derivatives [R-SO₂-N(PFB)₂] and quantification of pharmacological acetazolamide in human urine

Abstract

Acetazolamide (molecular mass (MM), 222) belongs to the class of sulfonamides (R-SO₂-NH₂) and is one of the strongest pharmacological inhibitors of carbonic anhydrase activity. Acetazolamide is excreted unchanged in the urine. Here, we report on the development, validation and biomedical application of a stable-isotope dilution GC-MS method for the reliable quantitative determination of acetazolamide in human urine. The method is based on evaporation to dryness of 50 μL urine aliquots, base-catalyzed derivatization of acetazolamide (d₀-AZM) and its internal standard [acetylo-²H₃]acetazolamide (d₃-AZM) in 30 vol% pentafluorobenzyl (PFB) bromide in acetonitrile (60 min, 30 °C), reconstitution in toluene (200 μL) and injection of 1-μL aliquots. The negative-ion chemical ionization (NICI) mass spectra (methane) of the PFB derivatives contained several intense ions including [M]^‒ at m/z 581 for d₀-AZM and m/z 584 for d₃-AZM, suggesting derivatization of their sulfonamide groups to form N,N-dipentafluorobenzyl derivatives (R-SO₂-N(PFB)₂), i.e., d₀-AZM-(PFB)₂ and d₃-AZM-(PFB)₂, respectively. Quantification was performed by selected-ion monitoring of m/z 581 and 83 for d₀-AZM-(PFB)₂ and m/z 584 and 86 for d₃-AZM-(PFB)₂. The limits of detection and quantitation of the method were determined to be 300 fmol (67 pg) and 1 μM of acetazolamide, respectively. Intra- and inter-assay precision and accuracy for acetazolamide in human urine samples in pharmacologically relevant concentration ranges were determined to be 0.3%–4.2% and 95.3%–109%, respectively. The method was applied to measure urinary acetazolamide excretion after ingestion of a 250 mg acetazolamide-containing tablet (Acemit®) by a healthy volunteer. Among other tested sulfonamide drugs, methazolamide (MM, 236) was also found to form a N,N-dipentafluorobenzyl derivative, whereas dorzolamide (MM, 324) was hardly detectable. No GC-MS peaks were obtained from the PFB bromide derivatization of hydrochlorothiazide (MM, 298), xipamide (MM, 355), indapamide and metholazone (MM, 366 each) or brinzolamide (MM, 384). We demonstrate for the first time that sulfonamide drugs can be derivatized with PFB bromide and quantitated by GC-MS. Sulfonamides with MM larger than 236 are likely to be derivatized by PFB bromide but to lack thermal stability.

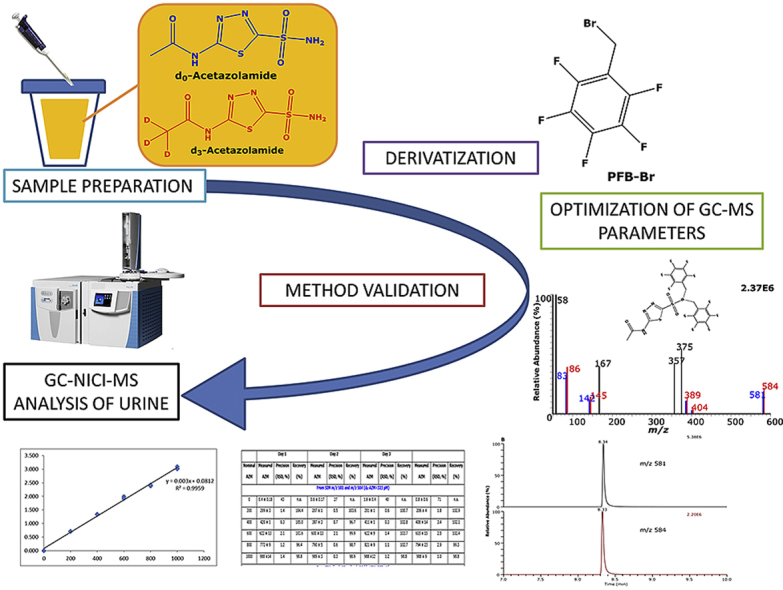

Graphical abstract

Highlights

• •The sulfonamide group of acetazolamide was derivatized for the first time with pentafluorobenzyl bromide.
• •Other sulfonamides were also derivatized for the first time with pentafluorobenzyl bromide.
• •Pentafluorobenzyl derivatives of acetazolamide and other sulfonamides are useful for GC-MS.
• •The validated method was used to quantify pharmacological acetazolamide in human urine.

1. Introduction

Acetazolamide (N-(5-sulfamoyl-1,3,4-thiadiazol-2-yl)acetamide, MM 222.25; CAS number 216665-38-2; see Fig. S1) is one of the oldest therapeutically used diuretic drugs. Acetazolamide is a strong inhibitor of carbonic anhydrase (CA) which catalyzes the reversible reaction between CO₂ and H₂O to form bicarbonate and protons (CO₂ + H₂O ↔ HCO_3⁻ + H⁺) [1]. Acetazolamide and other sulfonamide (R-SO₂-NH₂) drugs (see Fig. S1) are widely used for the treatment of glaucoma, mountain sickness, sleep apnea, epilepsy and hypertension [1]. The pharmacological action of acetazolamide and relatives in several organs such as eyes, brain and kidney is based on the inhibition of CA activity. In glaucoma and epilepsy, inhibition of CA activity by acetazolamide results in reduction of intraocular and cerebral pressure. Inhibition of CA activity in the kidney results in enhanced excretion of HCO₃⁻ and inorganic nitrite (NO₂⁻) [2,3]. Acetazolamide-induced loss of nitrite may be of particular importance because NO₂⁻ is considered an abundant reservoir of the endogenous potent vasodilator nitric oxide (NO). The urinary nitrate-to-nitrite molar ratio, i.e., U_NOxR, may be a useful measure of renal CA-dependent reabsorption of urinary nitrite in humans [4]. Besides its therapeutic use, acetazolamide gained importance as a potential performance-enhancing drug in sport doping [5].

Several analytical methods based on liquid chromatography (LC) [[6], [7], [8], [9], [10], [11], [12]] and gas chromatography (GC) [[13], [14], [15], [16], [17], [18], [19], [20], [21]] have been reported for the determination of acetazolamide and related sulfonamides in various biological samples including plasma and urine. For GC analysis, sulfonamides such as acetazolamide require conversion of their sulfonamide group to thermally stable and volatile derivatives. The amine group of the sulfonamide group of acetazolamide and many other sulfonamides is the only functional group that is accessible for chemical derivatization. Methylation of the amine group of sulfonamides has been often performed using methyl iodide (iodomethane, CH₃I) [[13], [14], [15], [16], [17], [18], [19]]. Silylation of the amine group of sulfonamides for GC has also been reported [20,21].

Pentafluorobenzyl (PFB) bromide (PFB-Br) is a versatile derivatization reagent in chromatography (GC, LC) and mass spectrometry (MS) [22]. It can be used for the derivatization of nucleophilic substances and inorganic and organic anions both in aqueous phase such as plasma and urine and in anhydrous organic solvents such as acetonitrile [2,[23], [24], [25]]. Analogous to the derivatization of amine groups such as those in creatinine with PFB-Br [24], we assumed that PFB-Br may be useful as a derivatization reagent for the amine group of acetazolamide and other sulfonamides in GC-based analytical methods. The reaction of R-SO₂-NH₂ with PFB-Br may lead to the formation of mono-PFB derivatives (R-SO₂-NHPFB) and di-PFB derivatives (R-SO₂-N(PFB)₂). To the best of our knowledge, the derivatization of acetazolamide or other sulfonamides with PFB-Br has not been reported thus far.

In the present work, we demonstrate that PFB-Br is useful for the N-alkylarylation of the sulfonamide group of acetazolamide representing the group of sulfonamides. We found that the derivatization of acetazolamide is best performed in anhydrous acetonitrile using N,N-diisopropylethylamine (i.e., Hünig base) as the catalyst under very mild conditions (30 °C) (Fig. S1). As acetazolamide is excreted in the urine without metabolization, we developed and validated a GC-MS method for the quantitative determination of acetazolamide in human urine using commercially available [acetylo-²H₃]acetazolamide as the internal standard (IS). Negative-ion chemical ionization (NICI) of the PFB derivative of acetazolamide provided the lowest limit of detection (LOD) thus far reported for acetazolamide. We also tested the utility of PFB-Br for the derivatization of other sulfonamide drugs. The applicability of the method in clinical-pharmacologic settings was demonstrated upon ingestion of a 250 mg acetazolamide tablet by a healthy volunteer.

2. Experimental

2.1. Materials and chemicals

[acetylo-²H₃]Acetazolamide (d₃-AZM; declared amount, 1 mg) was obtained from Hycultec (Beutelsbach, Germany) and was diluted in dimethyl sulfoxide (DMSO) in the original flask. The chemical and isotopic purity of d₃-AZM had not been declared by the supplier. 2,3,4,5,6-Pentafluorobenzyl bromide, N,N-diisopropylethylamine, pentafluoropropionic anhydride (PFPA, >99%), 2,3,4,5,6-pentafluorobenzoyl chloride (>99%), unlabeled acetazolamide (d₀-AZM; >99%) and all the other sulfonamides (>98%) used in the present study were obtained from Sigma-Aldrich (Darmstadt, Germany). DMSO and acetonitrile (GC grade; dried over molsieve) were purchased from Merck (Darmstadt, Germany). Toluene (p.a.) was purchased from Baker (Deventer, The Netherlands). The silylation reagent N,O-bis(trimethylsilyl)trifluoroacetamide (BSTFA, >99%) was obtained from Macherey-Nagel (Düren, Germany).

2.2. Safety considerations

PFB-Br and PFPA are corrosive. PFB-Br is an eye irritant. Inhalation and contact with skin and eyes should be avoided. All work should be performed in a well-ventilated fume hood.

2.3. Preparation of calibration standards

Acetazolamide is freely soluble in DMSO. Solutions and dilutions of acetazolamide and all other sulfonamides were prepared in DMSO. Stock solutions of d₀-AZM (100 mM) and d₃-AZM (50 mM) and their working dilutions (each 10 mM) were stored at 8 °C and −18 °C, respectively.

2.4. Biological samples and preparation of urine samples

Acetazolamide-free urine samples used in method development and validation were obtained from healthy volunteers after conformed consent. These volunteers did not ingest acetazolamide at least two weeks before. Samples (1 mL aliquots) were kept frozen at −18 °C until analysis. Prior to sample derivatization, urine samples were thawed and centrifuged (3350×g, 5 min).

In quantitative analyses, 50 μL aliquots of the clear urine supernatants were placed in 1.8 mL glass vials and 5 μL aliquots of a 10 mM solution of d₃-AZM in DMSO were added. Urine and DMSO were evaporated to dryness under a stream of nitrogen gas. To remove effectively remaining water, ethanol (100 μL) was added, the vials were vortex-mixed for about 10 s and then ethanol was evaporated to dryness under a stream of nitrogen gas.

2.5. Derivatization procedure with PFB-Br in water-free phase

Solid residues were dissolved in anhydrous acetonitrile (100 μL). Then, 10 μL of N,N-diisopropylethylamine and 10 μL of 30 vol% PFB-Br in anhydrous acetonitrile were added, the glass vials were tightly sealed and vortex-mixed for about 10 s. Subsequently, the samples were heated for 60 min at 30 °C on a thermostatic block model MBT250-4 from Kleinfeld Labortechnik (Gehrden, Germany). After cooling to room temperature the samples were evaporated again to dryness under a stream of nitrogen gas and the residues were reconstituted with 200 μL aliquots of toluene and vortexed for 2 min. Clear and particle-free aliquots (about 180 μL) of the toluene phases were transferred into 1.8 mL autosampler glass vials equipped with 200 μL microinserts for GC-MS analysis as described below.

2.6. Validation of the method

The GC-MS method was validated for acetazolamide in urine samples donated by three healthy humans. Pharmacologically relevant concentrations ranges (0–1000 μM acetazolamide) were used. Validation experiments included linearity, accuracy (recovery, %) and precision (RSD, %). For the sake of clarity, the validation experiments are described in detail in the sections Results and Discussion.

2.7. GC-MS conditions

GC-MS analyses were performed on a single-quadrupole mass spectrometer model ISQ directly interfaced with a Trace 1310 series gas chromatograph equipped with an autosampler AS 1310 from ThermoFisher (Dreieich, Germany). The gas chromatograph was equipped with a 15 m long fused-silica capillary column Optima 17 (0.25 mm I.D., 0.25 μm film thickness) from Macherey-Nagel (Düren, Germany). In quantitative analyses, the following oven temperature program was used with helium (at a constant flow rate of 1 mL/min) as the carrier gas: 1.0 min at 90 °C, then increased to 250 °C at a rate of 35 °C/min and to 320 °C at a rate of 35 °C/min, respectively. The column was held at 320 °C for 6 min. Interface, injector and ion-source were kept constant at 260 °C, 200 °C and 250 °C, respectively. Electron energy was set to 70 eV and electron current to 50 μA. Methane (2.4 mL/min) was used as the reagent gas for NICI. Aliquots (1 μL from the toluene phase) were injected in the splitless mode by means of the autosampler. Quantification of acetazolamide was performed in the NICI mode by selected-ion monitoring (SIM) the ions with m/z 581 and m/z 83 for d₀-AZM and m/z 584 and m/z 86 for d₃-AZM (IS) with a dwell-time of 50 ms for each ion. The electron multiplier voltage was set to 2025 V. Deviations from the conditions described above are mentioned in the sections Results and Discussion.

2.8. Data analysis and presentation

If not otherwise specified, quantitative analyses were performed in triplicate. Unpaired t-test was used to check statistical significance. Values are presented as mean ± SD.

3. Results

3.1. Testing derivatization methods for acetazolamide

Acetazolamide (Fig. S1) and methazolamide have a single functional group that is accessible to chemical derivatizaton. This is the amine group of the sulfonamide functionality; other sulfonamides such as dorzolamide possess additional derivatizable functional groups. We tested the utility of several derivatization agents for acetazolamide representing the group of sulfonamide drugs for GC-NICI-MS analysis. These derivatization reagents included pentafluorobenzyl bromide (PFB-Br), pentafluorobenzoyl chloride (PFBzoyl-Cl) and pentafluoropropionic anhydride (PFPA). Previously, we found these reagents to be useful for amine groups-containing substances such as creatinine [24], dimethylamine (DMA) [26] and amino acids [27], respectively.

We also tested BSTFA, which is a versatile reagent for different functionalities including hydroxyl and amine groups. In our tests, BSTFA was found to be not suitable, because derivatization (60 min, 60 °C) resulted in loss of the acetyl group in d₀-AZM and d₃-AZM, thus not allowing quantitative analysis of acetazolamide (data not shown). Procedures previously reported for the derivatization of methyl esters of amino acids [27] revealed that PFPA is not useful for the derivatization of acetazolamide (data not shown). By using a previously reported procedure for the extractive derivatization of urinary DMA with PFBzoyl-Cl [26], acetazolamide could also not be derivatized (data not shown).

PFB-Br is a versatile derivatization reagent in nucleophilic substitution reactions [22]. Its utility in GC-MS has been demonstrated for different classes of substances in aqueous and anhydrous systems [22]. We found that acetazolamide cannot be derivatized in aqueous buffered solutions including phosphate and Tris buffer of neutral pH value and in human urine (pH range, 5.5–7.8) (data not shown). In contrast, acetazolamide was found to be readily derivatized with PFB-Br in anhydrous acetonitrile using N,N-diisopropylethylamine as the base catalyst under very mild conditions and short derivatization times as has been reported for carboxylic acids including prostaglandins [28], i.e., warming the derivatization mixture for 60 min at 30 °C. Higher derivatization temperatures tested (i.e., 40 °C, 50 °C, 60 °C) were found to provide yellow-to-brownish colored derivatization solutions, most likely due to decomposition reactions (data not shown). For these reasons we selected PFB-Br derivatization of acetazolamide in anhydrous acetonitrile and tested the utility of this derivatization for methazolamide and other sulfonamide drugs.

3.2. GC-NICI-MS characterization of the PFB derivatives of sulfonamides

Each 50 nmol of d₀-AZM and d₃-AZM were mixed, derivatized with PFB-Br (60 min, 30 °C), the sample was evaporated to dryness and the residue was reconstituted with toluene as described in Experimental section. The appearance of the originally clear and colorless solution did not change upon derivatization. GC-NICI-MS mass spectra were obtained by injecting 1 μL aliquots of the toluene phases (180 μL) each corresponding to 250 pmol of d₀-AZM and d₃-AZM (assuming quantitative derivatization). GC-NICI-MS analysis of the sample in scan mode resulted in few GC peaks. The mass spectrum obtained from the GC peak of the PFB derivatives of the mixture of d₀-AZM and d₃-AZM eluting at about 8.35 min is shown in Fig. 1. It contains five pairs of ions differing by 3 Da each, most likely due to the presence of the intact acetyl groups in the PFB derivatives of d₀-AZM and d₃-AZM.

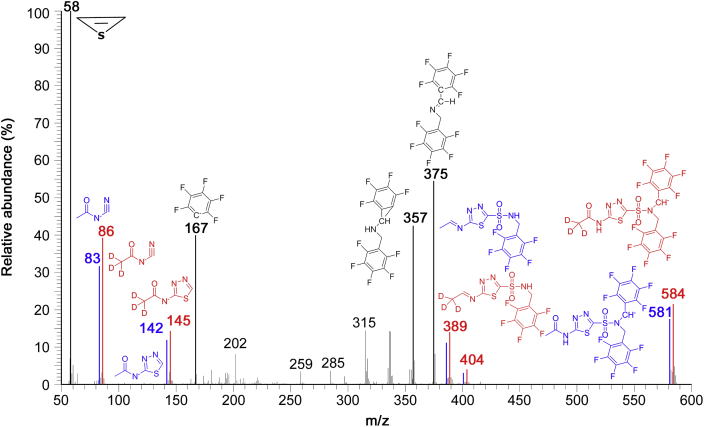

Fig. 1.

GC-NICI-MS spectrum obtained from a mixture containing each about 250 pmol of unlabeled acetazolamide (d₀-AZM) and [acetylo-²H₃]-acetazolamide (d₃-AZM) as pentafluorobenzyl (PFB) derivatives eluting at about 8.35 min. Inserts indicate the proposed structures for the anions of the PFB derivatives of d₀-AZM and d₃-AZM. Mass fragments differing by 3 Da are shown in blue and red. For simplicity the charge of the anions is not indicated.

The largest anions at m/z 581 and m/z 584 in the mass spectrum can be assigned to the N,N-dipentafluorobenzyl derivatives of d₀-AZM (R-SO₂-N(PFB)₂; molecular mass, 582) and d₃-AZM (R(d₃)-SO₂-N(PFB)₂; molecular mass, 585), respectively. The ions m/z 375 and m/z 357 are common to the d₀-AZM and d₃-AZM derivatives and are likely produced from breaking of the derivatized sulfonamide groups. Presumably, m/z 357 derives from m/z 375 by loss of a water molecule (H₂O, 18 Da). The ion m/z 167 is also common to d₀-AZM and d₃-AZM and is due to [C₆F₅]^‒. The ions m/z 83 and m/z 86 carry each one acetyl group and their structures are likely to be [CH₃CO-N-CN]^‒ and [CD₃CO-N-CN]^‒, respectively. The most intense and common ion in the mass spectra of d₀-AZM-(PFB)₂ and d₃-AZM-(PFB)₂ is m/z 58 and is likely to be the negatively charged thio-ethene epoxide [(CH CH)S]^‒.

It is worth mentioning that the retention time of the PFB ester-methoxime (MO)-trimethylsilyl (TMS) ether derivative of prostaglandin E₂ (i.e., PGE₂-PFB-MO-(TMS)₂; molecular mass, 705) under the same GC-MS conditions was 8.32 min. This observation indicates that the C₃₄-species PGE₂-PFB-MO-(TMS)₂ is as volatile as the C₁₈-species d₀-AZM-(PFB)₂ and d₃-AZM-(PFB)₂, presumably because of its two TMS ether functionalities.

The mass spectrum obtained from the GC peak of the PFB derivative of methazolamide (retention time, 7.8 min) is shown in Fig. 2. The ions at m/z 357 and m/z 375 in this mass spectrum indicate that dorzolamide reacts with PFB-Br to form the N,N-dipentafluorobenzyl derivative R-SO₂-N(PFB)₂ (molecular mass, 596) analogous to acetazolamide. However, the R-SO₂-N(PFB)₂ derivative of methazolamide ionizes quite differently than the R-SO₂-N(PFB)₂ derivative of acetazolamide. The intense ion at m/z 415 is likely to be due to [M‒PFB]^‒. The most intense ion at m/z 220 in the mass spectrum of the N,N-dipentafluorobenzyl derivative of methazolamide is likely to be due to [M‒NH(PFB)₂]^‒ which is absent in the mass spectrum of N,N-dipentafluorobenzyl derivative of acetazolamide. The reason for this disparity could be the formation of the electrically neutral [M‒NH(PFB)₂] or radical species [M‒NH(PFB)₂]^•. A likely explanation of the remarkable differences in the NICI mass spectra of the N,N-dipentafluorobenzyl derivatives of the structurally closely acetazolamide and methazolamide and the shorter retention time of the methazolamide derivative could be the methyl group on the amidic N atom of methazolamide. This methyl group makes the derivative more lipophilic, volatile, presumably more stable, and influences the NICI as well (see Fig. S2).

Fig. 2.

GC-NICI-MS spectrum obtained from unlabeled methazolamide (about 250 pmol) as pentafluorobenzyl derivative eluting at about 7.8 min. Insets indicate the proposed structures for the PFB derivative of methazolamide and of mass fragments.

The mass spectrum obtained from the GC peak of the PFB derivative of dorzolamide (retention time, 10.2 min) is shown in Fig. S3. The ions at m/z 357 and m/z 375 in this mass spectrum indicate that dorzolamide reacts with PFB-Br to form the N,N-dipentafluorobenzyl derivative R-SO₂-N(PFB)₂ (molecular mass, 684) analogous to acetazolamide and methazolamide. Yet, in contrast to the mass spectra of the PFB derivatives of acetazolamide and methazolamide, the NICI mass spectrum of the dorzolamide derivative does not contain the anion at m/z 58 ([(CH CH)S]^‒). This could be due to the lack of the thiadiazo structure in dorzolamide.

3.3. GC-NICI-MS characterization and standardization of [acetylo-²H₃]acetazolamide (d₃-AZM)

Declared amounts of commercially available stable-isotope labelled analogs, especially of those delivered in very small, not (accurately) weighable amounts, may differ from those obtained experimentally. The chemical and isotopic purity of the d₃-AZM used in our study had not been declared by the supplier and was, therefore, determined experimentally as follows.

Aliquots (5 μL) of separate 10 mM solutions of d₃-AZM and d₀-AZM in DMSO were derivatized and analyzed separately. Aliquots (1 μL) of the toluene phases assuming to contain 250 pmol of d₃-AZM or d₀-AZM were injected on three different days each in triplicate per day and SIM of m/z 581, m/z 584, m/z 83 and m/z 86 was performed. The peak area ratio (PAR) values for d₃-AZM in the absence of synthetic d₀-AZM were determined to be (mean ± SD, n = 9) 0.00257 ± 0.001 for the PAR m/z 581 to m/z 584 and 0.00477 ± 0.002 for the PAR m/z 83 to m/z 86. These data indicate an isotopic purity of the commercially available d₃-AZM preparation of about 99.7% at ²H and no appreciable contribution of d₀-AZM to d₃-AZM in the commercially available d₃-AZM. The PAR values for d₀-AZM in the absence of d₃-AZM were determined to be (mean ± SD, n = 9) 0.0233 ± 0.001 for the PAR m/z 584 to m/z 581 and 0.00122 ± 0.0007 for the PAR m/z 86 to m/z 83, indicating no appreciable contribution of d₃-AZM to d₀-AZM.

The standardization procedure of d₃-AZM and the linearity of the method were performed in matrix-free samples, i.e., by using solutions of d₃-AZM (10 mM) and d₀-AZM (10 mM) in DMSO. Standard curves were prepared on three different days by derivatizing mixtures containing a fixed amount of d₃-AZM (50 nmol; 5 μL) and different amounts of d₀-AZM (0 nmol, 0 μL; 40 nmol, 4 μL; 80 nmol, 8 μL; 120 nmol, 12 μL; 160 nmol, 16 μL; 200 nmol, 20 μL) and by analyzing the samples by GC-MS in the SIM mode: m/z 83, m/z 86, m/z 581 and m/z 584 each a dwell-time of 50 ms. Triplicate injections were performed for each concentration point. The concentration of d₃-AZM in the toluene phases (each 200 μL) was considered (assuming quantitative derivatization and extraction) to be 250 μM. The concentrations of d_o-AZM in the toluene phases (each 200 μL) were considered (assuming quantitative derivatization and extraction) to be 0, 200, 400, 600, 800 and 1000 μM. These concentrations were chosen in order to simulate pharmacologically relevant concentrations for acetazolamide in human urine.

Linear regression analysis between the PAR of m/z 581 to m/z 584 (y₁) measured on three days and the nominal acetazolamide concentration (x₁) yielded the regression equation y₁ = 0.0581(±0.016) + 0.0031(±0.00003)x₁ (r = 0.997). Linear regression analysis between the PAR of m/z 83 to m/z 86 (y₂) measured and the nominal acetazolamide concentration derivatized (x₂) yielded the regression equation y₂ = 0.1024(±0.0190) + 0.0028(±0.00003)x₂ (r = 0.994). The reciprocal slope values of the regression equations provide the concentration of the internal standard d₃-AZM. In this experiment, the d₃-AZM concentration was calculated to be 323 μM using the PAR of m/z 581 to m/z 584, and 357 μM using the PAR of m/z 83 to m/z 86. Both values differ from the nominal d₃-AZM concentration of 250 μM considering the delivered amount of d₃-AZM. The concentration of the internal standard was corrected using the experimentally observed data. Accuracy and precision data obtained using the PAR of m/z 581 to m/z 584 (corrected d₃-AZM concentration, 323 μM) and the PAR of m/z 83 to m/z 86 (corrected d₃-AZM concentration, 357 μM) are summarized in Table S1. GC-MS chromatograms from the analysis of acetazolamide (at 600 μM) in DMSO and urine are shown in Fig. S4.

Linear regression analysis between the corresponding PAR values of m/z 83 to m/z 86 (y) and the PAR values of m/z 581 to m/z 584 (x) resulted in the regression equation y = 0.05(±0.02)+0.913(±0.009)x (r = 0.995). The slope value of this regression equation is very close to the ratio of the corrected concentrations of d₃-AZM, i.e., 323/357 = 0.905. In method validation experiments and in quantitative analyses of acetazolamide in urine samples, the above mentioned corrected d₃-AZM concentrations were used.

The retention time of the R-SO₂-N(PFB)₂ derivatives in the standardization experiment described above was determined to be (mean ± SD, n = 124) 8.33 ± 0.008 min (RSD, 0.09%) for d₃-AZM and 8.35 ± 0.007 min (RSD, 0.09%) for d₀-AZM (paired t-test, P < 0.0001). The ratio of the retention times of d₀-AZM and d₃-AZM was calculated to be (mean ± SD) 1.002 ± 0.001 (RSD, 0.1%), indicating a highly reproducible GC behaviour of the R-SO₂-N(PFB)₂ derivatives of AZM. The PFB derivative of d₃-AZM eluted constantly in front of the PFB derivative of d₀-AZM, indicating an interaction of the acetyl groups of the PFB derivatives of d₃-AZM and d₀-AZM with the stationary phase of the GC column.

3.4. Accuracy and precision of the method for urinary acetazolamide

Method validation was performed using urine samples from three healthy volunteers. Native urine samples were used without dilution, yet centrifugation was performed to remove solid material. Aliquots (50 μL) of clear supernatants were used throughout. The internal standard d₃-AZM was added to urine samples at a final added concentration to cover a pharmacologically relevant concentration range (0–1000 μM). The method was validated on three days in triplicate for each concentration using the SIM of m/z 83, m/z 86, m/z 581 and m/z 584. d₀-AZM was calculated by multiplying the PAR of m/z 581 to m/z 584 with the d₃-AZM concentration of 323 μM and the PAR of m/z 83 to m/z 86 with the d₃-AZM concentration of 357 μM (see above). The results from the validation of the GC-MS method for acetazolamide in the human urine samples from three healthy subjects are summarized collectively in Table 1. In the urine samples spiked with d₃-AZM only, the concentration of d₀-AZM was determined to be around 1 μM, likely originating from unlabeled acetazolamide (d₀-AZM) present in the commercially available d₃-AZM preparation (see above). The PAR values (y) were linear in the entire concentration range of added AZM (x). Precision (RSD) ranged between 5.3% and 12.9% for the spiked urine samples. Accuracy (recovery) ranged between 97.8% and 109.1% for AZM added to the urine samples. These data indicate that the GC-MS method is precise and accurate for the measurement of AZM in human urine.

Table 1.

Inter- and intra-day GC-MS validation data for acetazolamide in urine samples of three healthy volunteers (1, 2, 3) using SIM of m/z 581, 584, 83 and 86.

Sample	PAR 581/584			PAR 83/86
	Urine 1	Urine 2	Urine 3	Urine 1	Urine 2	Urine 3
Day 1	y = 0.094 + 0.00332x r2 = 0.9907	y = 0.066 + 0.00321x r2 = 0.9977	y = 0.0084 + 0.00341x r2 = 0.9952	y = 0.064 + 0.00313x r2 = 0.9916	y = 0.166 + 0.00276x r2 = 0.9773	y = −0.058 + 0.0033x r2 = 0.9953
Day 2	y = −0.055 + 0.00427x r2 = 0.9992	y = 0.041 + 0.00383x r2 = 0.9987	y = −0.018 + 0.00403x r2 = 0.9994	y = −0.054 + 0.00401x r2 = 0.9966	y = 0.102 + 0.00346x r2 = 0.9887	y = −0.058 + 0.00408x r2 = 0.9876
Day 3	y = 0.088 + 0.00365x r2 = 0.989	y = 0.060 + 0.00357x r2 = 0.9988	y = 0.074 + 0.00362x r2 = 0.9848	y = 0.125 + 0.00326x r2 = 0.9693	y = 0.167 + 0.0032x r2 = 0.968	y = 0.133 + 0.00319x r2 = 0.9652
All days	y = 0.049 + 0.00369x r2 = 0.9968 1/slope = 271 μM	y = 0.056 + 0.00354x r2 = 0.9992 1/slope = 283 μM	y = 0.009 + 0.0038x r2 = 0.9999 1/slope = 262 μM	y = 0.051 + 0.0034x r2 = 0.9971 1/slope = 293 μM	y = 0.145 + 0.0031x r2 = 0.9821 1/slope = 319 μM	y = 0.006 + 0.0035x r2 = 0.9959 1/slope = 284 μM
	y = 0.032 + 0.00368x, r2 = 0.9993 1/slope = 272 μM d3-AZM			y = 0.067 + 0.00336x, r2 = 0.9944 1/slope = 298 μM d3-AZM
AZM (μM)	AZM measured (μM) (mean ± SD, n = 9)	Precision (RSD, %)	Recovery (%)	AZM measured (μM) (mean ± SD, n = 9)	Precision (RSD, %)	Recovery (%)
0	1.11 ± 0.69	62.0	not applicable	1.7 ± 0.9	52.0	not applicable
200	206 ± 18	8.8	102.4	215 ± 22	10.4	106.7
400	417 ± 28	6.7	104.0	426 ± 26	6.1	106.1
600	626 ± 33	5.3	104.1	656 ± 64	9.7	109.1
800	803 ± 66	8.2	100.2	845 ± 104	12.3	105.4
1000	1002 ± 103	10.3	100.1	980 ± 127	12.9	97.8

3.5. Limit of detection (LOD) of the method for acetazolamide

For the determination of the LOD value of the GC-MS method, 50 nmol of d₀-AZM and 50 nmol of d₃-ΑΖΜ (each 5 μL of two separate 10 mM solutions in DMSO) were combined and derivatized as described above. The residue was reconstituted in 200 μL toluene aliquots corresponding to an amount of 250 pmol per 1 μL. Subsequently, serial 1:1-dilutions (by volume) with toluene were performed to construct samples containing 125, 62.5, 31.3, 15.6, 7.8, 3.9 pmol per 1 μL toluene. Each 1 μL of the samples was injected in triplicate and analyzed by SIM of m/z 83, m/z 86, m/z 581 and m/z 584.

The PAR values of m/z 581 to m/z 584 and of m/z 83 to m/z 86 were determined to be (mean ± SD, n = 21) 0.745 ± 0.011 and 0.797 ± 0.035 (P < 0.0001, Wilcoxon test), respectively. The ratio of the signal-to-noise (S/N) value of the peak areas of m/z 581 and m/z 584 was determined to be (mean ± SD, n = 21) 1.33 ± 1.43. The S/N values of the peak areas of m/z 83 and m/z 86 was calculated to be (mean ± SD, n = 21) 1.16 ± 0.57. The S/N values of m/z 581, m/z 584, m/z 83 and m/z 86 were correlated with the injected amounts of d₀-AZM and d₃-AZM derivatives (P < 0.0001 for all). The corresponding Spearman correlation coefficients were 0.948, 0.916, 0.940 and 0.918. Linear regression analysis between the S/N values of m/z 581, m/z 584, m/z 83 and m/z 86 (y) and the injected amounts of d₀-AZM and d₃-AZM (x, pmol) resulted in the regression equations y = −395 + 53x (r = 0.944), y = 601 + 30x (r = 0.633), y = 68 + 2.1x (r = 0.876), and y = 83 + 1.98x (r = 0.813), respectively.

The S/N values of the lowest injected amount (each 3.9 pmol of d₀-AZM and d₃-AZM) were determined to be 38.7 ± 3.2 (RSD, 8.3%) for m/z 581, 41.0 ± 8.0 (RSD, 19.5%) for m/z 584, 18.3 ± 4.55 (RSD, 24.6%) for m/z 83, and 14.7 ± 6.7 (RSD, 45%) for m/z 86. These data indicate that SIM of m/z 581 and m/z 584 is associated with a higher precision compared to SIM of m/z 83 and m/z 86 for very low AZM concentrations. Extrapolation of the mean S/N value of 39 to an S/N value of 3 (for m/z 581) yields an LOD value of about 0.3 pmol (300 fmol, 67 pg) for the d₀-AZM derivative (SIM of m/z 581, m/z 584, m/z 83 and m/z 86; 50 ms dwell-time for each ion).

3.6. Limit of quantitation (LOQ) for acetazolamide in human urine

The LOQ of the method for urinary acetazolamide was determined in the same urine samples (each three 50 μL aliquots) used in the method validation. In this experiment, urine samples were spiked with d₀-AZM to reach final added concentrations of 0, 25, 50, 100, 150 and 200 μM. The concentration of d₃-AZM added to the urine samples was 250 μM. Each toluene extract was injected three times and SIM of m/z 581, m/z 584, m/z 83 and m/z 86 with 50 ms dwell-time for each ion was performed.

Plotting the PAR of m/z 581 to m/z 584 (y₁) versus the concentration of d₀-AZM added to urine (x₁, μM) yielded the regression equation y₁ = 0.018 + 0.00381x₁ (r = 0.9983). Plotting the PAR of m/z 83 to m/z 86 (y₂) versus the concentration of d₀-AZM added to urine (x₂, μM) yielded the regression equation y₂ = 0.018 + 0.0035x₁ (r = 0.9943). The reciprocal slope values correspond to d₃-AZM concentrations of 262 μM and 283 μM, respectively, which are close to the nominal concentration of 250 μM. Acetazolamide was determined in the urine samples of this experiment with a precision ranging between 1.9% and 7%, and with a recovery ranging between 101% and 120%. The lowest added d₀-AZM concentration of 25 μM was determined with a precision of 5% (using m/z 581 and m/z 584) and 7% (using m/z 83 and m/z 86). The corresponding recovery values were 120.5% and 120%. These data suggest that the LOQ value for acetazolamide in 50 μL aliquots human urine samples is 25 μM or lower using SIM of m/z 581, m/z 584, m/z 83 and m/z 86. The results of this experiment are summarized in Table 2.

Table 2.

Results of the experiment performed to determine the LOQ of the GC-MS method for acetazolamide (AZM) in human urine.

Added AZM (μM)	PAR 581/584	Measured AZM (μM)	Precision (RSD, %)	Recovery (%)	PAR 83/86	Measured AZM (μM)	Precision (RSD, %)	Recovery (%)
0	0.006 ± 0.004	1.57 ± 1.05	66.9	not applicable	0.008 ± 0.002	2.26 ± 0.57	25.2	not applicable
25	0.121 ± 0.006	31.7 ± 1.57	5.0	120.5	0.114 ± 0.008	32.3 ± 2.26	7.0	120
50	0.217 ± 0.007	56.9 ± 1.83	3.2	110.7	0.200 ± 0.004	56.6 ± 1.13	2.0	108.7
100	0.396 ± 0.010	103.8 ± 2.62	2.5	102.2	0.367 ± 0.019	103.9 ± 5.4	5.2	101.6
150	0.593 ± 0.011	155.4 ± 2.88	1.9	102.6	0.550 ± 0.015	155.7 ± 4.2	2.7	102.3
200	0.777 ± 0.019	203.6 ± 5.0	2.5	101.0	0.723 ± 0.047	204.6 ± 13.3	6.5	101.2

3.7. Stability of PFB derivatives of acetazolamide in toluene

The stability of the PFB derivatives of d₀-ΑΖΜ and d₃-AZM in toluene extracts from 50 μL aliquots of a human urine sample spiked with 0, 250, 500, 750 and 1000 μM of d₀-AZM and with the fixed concentration of 250 μM of d₃-ΑΖΜ (see above) were analyzed immediately after sample work up and after storage at room temperature (about 18 °C) for 21 days.

Linear regression analysis between the PAR values of m/z 581 to m/z 584 (y₁) and d₀-ΑΖΜ concentration in urine (x₁) resulted in the regression equations y₁ = 0.074 + 0.0036x₁ (r = 0.9950) for day 1 and y₁ = −0.006 + 0.0039x₁ (r = 0.9969) for day 21. Linear regression analysis between the PAR values of m/z 83 to m/z 86 (y₂) and the d₀-ΑΖΜ concentration in urine (x₂) resulted in the regression equations y₂ = 0.135 + 0.0034x₂ (r = 0.9877) for day 1 and y₂ = 0.011 + 0.0037x₂ (r = 0.9965) for day 21. Considering the data of all samples of this experiment, the peak area (arbitrary unit, a.u.) of the d₃-ΑΖΜ derivative (m/z 584) decreased by a mean factor of 2.6 (mean ± SEM; from 7,186,105 ± 71,508 a.u. on day 1 to 2,807,011 ± 98,903 a.u. on day 21). The corresponding values for the peak area of m/z 86 decreased by a mean factor of 1.5 (mean ± SEM; from 4,379,094 ± 86,864 a.u. to 3,001,832 ± 183,046 a.u.). The PAR of m/z 86 to m/z 584 was (mean ± SEM) 0.586 ± 0.022 on day 1 (PAR_1d) and 1.096 ± 0.039 on day 21 (PAR_21d), resulting in a PAR_21d/PAR_1d ratio of 1.94 ± 0.16. These data indicate that the PFB derivatives of d₀-ΑΖΜ (from urine samples spiked with 0–1000 μM d₀-ΑΖΜ) and d₃-ΑΖΜ (from the same urine samples spiked at 250 μM) in toluene are relatively stable when stored for 21 days at 18 °C.

3.8. Biomedical application

We tested the usefulness of our GC-MS method in the setting of a pilot study. One healthy volunteer (female, 29 years of age, 70 kg), being an author of this article, ingested 250 mg acetazolamide (one tablet Acemit® from medphano, Germany). Before (time zero) and after (up to 5 h) drug administration urine samples were collected in polypropylene bottles pre-cooled in an ice bath. The pH of the urine samples was measured, the urine specimens were aliquoted, and the samples were analyzed for nitrate, nitrite and creatinine with previously reported GC-MS methods after acidification by using a 20 vol % acetic acid solution to remove CO₂/NaHCO₃/Na₂CO₃ [2,3]. The urinary concentration of acetazolamide was measured in 50 μL aliquots as described in this article by SIM of m/z 581, m/z 584, m/z 83 and m/z 86. The concentration of the internal standard was 250 μM in all urine samples. Urinary excretion of nitrate, nitrite, creatinine and acetazolamide was corrected for urinary creatinine excretion and the creatinine-corrected excretion rates are expressed as μmol analyte per mmol creatine (μmol/mmol).

After a lag-time of about 0.5 h, the creatinine-corrected excretion of acetazolamide increased almost linearly within the subsequent 1.5 h to reach the value 96 μmol/mmol, which remained almost unchanged for the next 3 h (Fig. 3A). SIM of m/z 581 and m/z 584, and SIM of m/z 83 and m/z 86 resulted in closely correlating acetazolamide concentrations using urine volumes of 50 μL (r = 0.929). Similar results were also obtained by using urine volumes of 40, 30, 20, 10 and 5 μL from this study (Fig. S5). The creatinine-corrected excretion rates of nitrite and nitrate increased in parallel to reach their maximum values about 1 h after acetazolamide ingestion (Fig. 3B). The pH value of the urine samples collected in this experiment increased from 7.10 before acetazolamide ingestion to 7.65 after 1.5 h (Fig. 3C). The highest concentration of acetazolamide measured in the urine samples of this experiment was 278 μM. GC-MS chromatograms from analyses of urine samples from this experiment are shown in Fig. 4. The acetazolamide concentrations in the urine samples measured in the present study are in agreement with previously reported data using other analytical methods such as HPLC [7,8,29,30], indicating a relatively constant and long-lasting excretion of acetazolamide. The acetazolamide concentrations in blood of humans ingested acetazolamide have also been reported to be relatively constant for many hours upon acetazolamide ingestion at therapeutical doses [31,32].

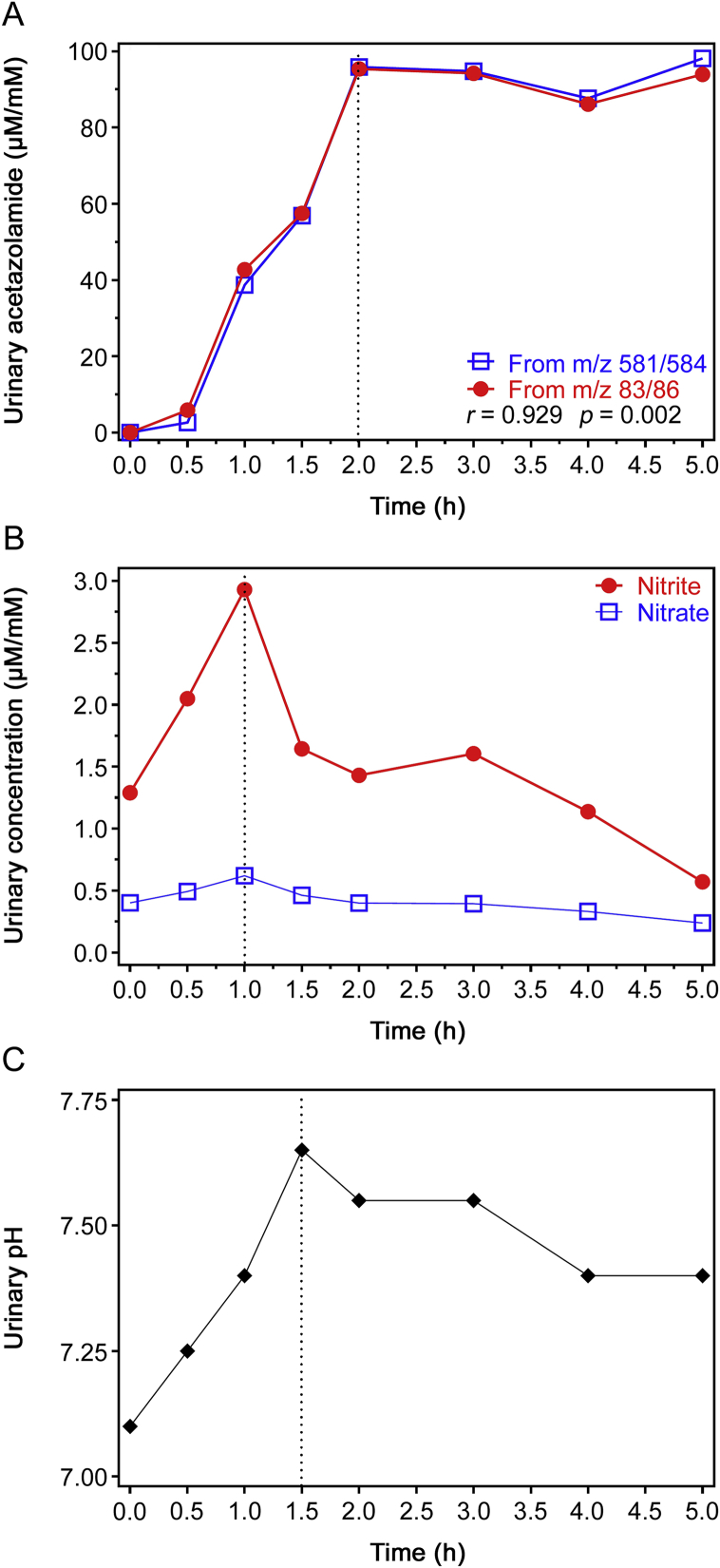

Fig. 3.

Creatinine-corrected urinary excretion of (A) acetazolamide and (B) nitrate and nitrite, and (C) urinary pH before (0 h) and after ingestion of a 250 mg tablet acetazolamide. The arrows indicate the time point of ingestion.

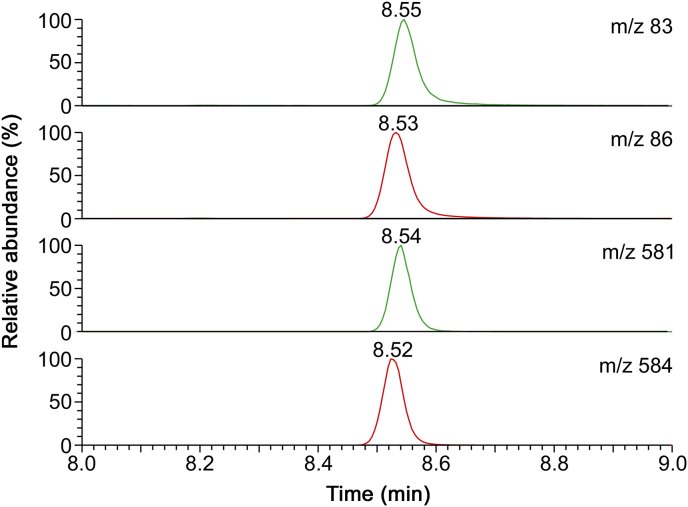

Fig. 4.

GC-MS chromatograms from the analysis of acetazolamide in urine (50 μL) collected 2 h after ingestion of a 250 mg acetazolamide tablet (Acemit®). SIM of m/z 83, 86, 581 and 584 was performed. The concentration of the internal standard was 250 μM. The retention time of 8.53 min is due to the use of a new GC column.

The results with respect to urinary excretion of nitrite and nitrate collaborate with our previous observations, indicating reversible acetazolamide-dependent inhibition of nitrite and nitrate reabsorption in the kidney [2,3].

4. Discussion

The sulfonamide group (R-SO₂-NH₂) is common to many classes of drugs. Acetazolamide is one of the oldest and structurally simplest and still therapeutically used sulfonamide drugs, administered for the treatment of many diseases [1], but also used as a potential performance-enhancing drug in sport doping [5]. We have recently shown that acetazolamide ingested at therapeutic doses by healthy subjects enhanced excretion of HCO₃⁻ and inorganic nitrite (NO₂⁻) in urine [[2], [3], [4]], most likely by inhibiting nitrite-dependent renal CA activity and by additional not yet well understood mechanisms. This newly recognized pharmacological action of acetazolamide may be of particular importance, since NO₂⁻ is considered an abundant reservoir of NO, one of the strongest endogenous vasodilators. In order to better understand the effects of acetazolamide on nitrite excretion in vivo in humans, reliable analytical methods for the quantitative measurement of acetazolamide in urine are required.

Nowadays, liquid chromatography-tandem mass spectrometry (LC-MS/MS) is one of the most efficient analytical techniques used to measure numerous analytes in biological samples, commonly with negligible labour and without analyte derivatization. This has been recently demonstrated for the measurement of acetazolamide in human plasma [6]. Historically, GC-MS was the first instrumental technique combining chromatographic with MS separation and gained a wide application area in various disciplines, notably including pharmacology. Concerning acetazolamide and other sulfonamides, derivatization of the amino group is indispensable in GC-based methods. Alkylation (e.g., with iodomethane) and silylation (e.g., with MSTFA) of the amine group of sulfonamides including acetazolamide have been used for their analysis by GC-MS and GC-MS/MS using electron ionization [14,21]. In GC-MS-based methods using negative-ion chemical ionization (NICI), incorporation of fluorine (F) atoms in the analytes by using F-containing derivatization reagents such as PFB-Br, PFBoyl-Cl and PFPA, enhances analytical sensitivity by several orders of magnitude. In the present work, we tested these derivatizations reagents and the silylation reagent BSTFA for the GC-MS analysis of acetazolamide and other sulfonamides including methazolamide and dorzolamide. For this we used derivatization procedures that have been turned out to be very useful for some analytes including creatinine [24], dimethylamine [26] and amino acids [27].

In the present work, the most useful derivatization reagent for acetazolamide was found to be PFB-Br. PFB-Br is a versatile derivatization reagent [22]. Derivatization reactions with PFB-Br can be performed directly in aqueous solutions including human plasma and urine, as has been demonstrated by us for carbonate [2], nitrite and nitrate [23], and creatinine [24]. Derivatization reactions with PFB-Br can also be performed indirectly in non-aqueous solutions such as in anhydrous acetonitrile in the presence of a base serving as the catalyst. This derivatization approach is most useful for long-chain carboxylic acids including the eicosanoids [28]. In the present study, we found that acetazolamide can be derivatized with PFB-Br in anhydrous acetonitrile to form a di-PFB derivative [RSO₂N(PFB)₂] under very mild derivatization conditions (60 min, 30 °C). For the measurement of acetazolamide in urine, urine-water is completely removed under a stream of nitrogen. The solid residue is then reconstituted in anhydrous acetonitrile. After derivatization complete removal of acetonitrile, remaining base and PFB-Br reagent is performed under a stream of nitrogen gas; the remaining charge-free PFB derivative of acetazolamide is reconstituted in toluene, which is best suited as a solvent for PFB derivatives. We found that methazolamide and dorzolamide can also be converted to their di-PFB derivatives, suggesting the general use of PFB-Br for the derivatization of the sulfonamide group of organic sulfonamides. Using sulfonamides with larger molecular weights, we found that this derivatization reaction is limited by the size of the sulfonamide analyte rather than by the reactivity of the sulfonamide group towards PFB-Br. To our knowledge this is the first work to report on the derivatization of acetazolamide with PFB-Br.

Due to our interest in acetazolamide as a pharmacological potent carbonic anhydrase (CA) inhibitor [1], we developed and validated a straightforward GC-MS method for the precise and accurate quantitative measurement of acetazolamide in 50 μL aliquots of human urine using a commercially available isotopically labelled internal standard, [acetylo-²H₃]acetazolamide (d₃-AZM). NICI of the PFB derivative of acetazolamide generates multiple ions, from which some are characteristic for acetazolamide. These anions are m/z 581, m/z 83 and m/z 58. NICI of the PFB derivative of the internal standard [acetylo-²H₃]acetazolamide generates multiple ions including m/z 584, m/z 86 and m/z 58. The mass fragment at m/z 58 is obtained from the PFB derivatives of both, unlabeled acetazolamide and [acetylo-²H₃]acetazolamide. Therefore, the ion m/z 58 cannot be used for quantitative measurements using [acetylo-²H₃]acetazolamide as the internal standard. The method validation demonstrated that SIM of m/z 581, m/z 584, m/z 83 and m/z 86 is specific for acetazolamide and provides closely comparable results in human urine in a pharmacologically relevant concentration range of acetazolamide.

We applied the method to measure acetazolamide in urine samples collected before and for 5 h after ingestion of a 250 mg acetazolamide (1.11 mmol) tablet by a healthy young volunteer. Two hours after ingestion, the creatinine-corrected excretion rate reached a relative constant plateau at the value of 96 μmol acetazolamide per mmol creatinine. This observation is in line with observations from other studies, which used HPLC with ultraviolet absorbance detection after solvent extraction of acetazolamide [5]. A similar pharmacokinetic behaviour has been reported for acetazolamide in human plasma by other groups [31,32], suggesting a fairly constant long-term equilibrium between circulating and excretory acetazolamide.

In the urine samples of the present study, we also measured the concentration of nitrite and nitrate by GC-MS as PFB derivatives [23] and the pH value of the urine samples. In confirmation of previous findings of our group, we found that the creatinine-corrected excretion rate of nitrite and nitrate reached temporary maximum values. This observation suggests that acetazolamide inhibited the CA-dependent reabsorption of nitrite and nitrate in the kidney [[2], [3], [4]]. In the present study, urinary pH reached its maximum value approximately 1.5 h post-ingestion. Previously, we found that ingested acetazolamide increased the excretion of bicarbonate in the urine with a kinetics resembling that of nitrite and nitrate [2,3]. All these observations suggest that excretion of nitrite and nitrate in the urine partly depends upon the CA activity in the proximal tubule of the kidney. Further, the different kinetics of urinary (and circulating) acetazolamide compared to that of nitrite, nitrate and bicarbonate suggests that acetazolamide inhibits renal CA activity in two phases. First, acetazolamide inhibits acutely and strongly the CA activity 1–2 h post-ingestion, resulting in temporary inhibition of the reabsorption of urinary nitrite, nitrate and bicarbonate in the kidney. Consecutively, acetazolamide inhibits weakly but sustainably the activity of CA; inhibition of the CA activity in this phase is presumably not associated with nitrite and nitrate reabsorption, but is apparently associated with inhibition of urinary bicarbonate reabsorption in the kidney.

Table 3 summarizes main characteristics of our GC-MS method in comparison with those of previously reported LC- and GC-based methods for the measurement of acetazolamide in human urine and other biological samples. For the quantification of acetazolamide in human urine by GC-MS, we used only 50 μL urine volume, while others used up to 5 mL urine in the GC-MS methods (Table 3). In the vast majority of reported GC-based methods, acetazolamide was analyzed after derivatization mostly using CH₃I. In our GC-MS method we used PFB-Br for derivatization of the sulfonamide group. This allows for a highly sensitive measurement of acetazolamide with minimum urine volume and sample work up. The LOQ value of our method may be reduced by increasing the urine volume and by decreasing the toluene volume. For practical reasons we used 200 μL aliquots of toluene for reconstituting the acetazolamide derivative. Reduction of the toluene volume is limited for technical reasons. In our GC-MS system the minimum solvent volume is about 50 μL in commercially available autosampler vials including microinserts. In LC-based methods, acetazolamide is generally analyzed without any derivatization step as they utilize the UV absorbance of acetazolamide. In HPLC methods with UV absorbance detection, endogenous compounds may interfere with the measurement of acetazolamide in human urine, despite the use of extraction steps such as solvent extraction with ethyl acetate [7]. By using an HPLC system previously reported for the analysis of reduced glutathione (GSH) as o-phthaldialdehyde (OPA) derivative [33], we observed co-elution of unknown endogenous compound(s) with acetazolamide which may become important in the lower μM-range (Fig. S6). As the extent of such interferences is unpredictable, accurate measurement of low concentrations of acetazolamide in human urine may be seriously compromised.

Table 3.

Reported liquid chromatographic (LC) and gas chromatographic (GC) methods for the quantification of acetazolamide in human urine, plasma or serum.

Method	Matrix	Column	Derivati-zation	Mobile phase		Sample preparation	LOD; LOQ	Ref.
Liquid chromatography
LC-MS/MS	Plasma	Hypurity advance (50 mm × 4.6 mm)	none	MeCN + 0.1% FA		100 μL plasma + IS + FA. SPE. Evaporation to dryness and reconstitution with 500 μL MeCN +0.1% FA	n.r.; 50 ng/mL	[6]
HPLC-DAD	Urine	HP-Hypersil ODS-Cls (250 mm × 4.0 mm)	none	A: phosphate buffer; B: MeCN		2 mL urine + 0.5 g sodium phosphate + 0.5 g NaCl. Extraction with 4 mL EA, addition of 5% lead acetate to the organic phase. Centrifugation, evaporation to dryness, reconstitution in 300 μL MeOH; 10 μL injection	8 ng/mL	[7]
HPLC-DAD	Urine	HP-LiChrospher 100 RP 18 (125 mm × 4.0 mm)	none	MeCN-H2O		native urine; column-switching technique	10 ng/mL	[8]
LC-MS/MS	Plasma (beagle)	Shimadzu VP-ODS C18 (150 mm × 2.0 mm)	none	A: H2O; B: MeCN		100 μL plasma + IS. Protein precipitation with 600 μL MeCN.	n.r.; 200 ng/mL	[9]
UHPLC-HRMS	Urine	Zorbax SB-C8 (2.1 mm × 50 mm)	none	A: H2O + 1 mM ammonium acetate + 0.001% AA; B: MeOH + 1 mM ammonium acetate + 0.001% AA		100 μL urine + IS; centrifugation	50 ng/mL; n.r.	[10]
LC-MS/MS	Urine	Supelco Discovery HS-C18 (50 mm × 2.1 mm)	none	A: H2O + 0.2% FA; B: MeOH + 0.2% FA		SPE. Evaporation to dryness and reconstitution with H2O + 0.2% FA. Filtration through a 0.45-μm membrane.	25 ng/mL; n.r.	[11]
UHPSFC-MS/MS	Urine	Acquity UPC2 BEH (100 mm × 3.0 mm)	none	CO2 + MeOH + 10 mM FA + 2% H2O		100 μL urine and 10-fold dilution with H2O-MeCN	0.15 ng/mL; n.r.	[12]
Gas chromatography
GC-ECD	Serum	Glass columns (150 cm × 0.18 cm)	CH3I		Nitrogen	100 μL serum + IS + 1 mL tetrapentylammonium + 0.2 mL NaOH + H2O. Addition of 1 mL CH2Cl2 with 5% CH3I. Evaporation of the organic phase, reconstitution with 1 mL toluene washing with aqueous silver sulphate.	500 ng/mL	[13]
GC-MS	Urine	HP Ultra 1 (25 m × 0.20 mm)	CH3I		Helium	1 mL urine + 25 μL NaOH 6 M + IS + 150 μL tetrahexylammonium hydrogensulphate + 5 mL CH3I. Extraction with toluene, centrifugation. Filtration through SM-7 resin, evaporation to dryness and reconstitution in 100 μL toluene.	50 ng/mL; n.r.	[14]
GC-MS	Urine	HP (25 m × 0.20 mm)	CH3I		Helium	5 mL urine + IS, filtration through XAD-2 resin. Evaporation to dryness and reconstitution with 200 μL Me2CO. Addition of 20 μL CH3I and K2CO3. Derivatization for 3 h at 60 °C.	n.r.	[15]
GC-MS	Urine	DB1 MS (5 m × 0.10 mm)	CH3I		Helium	2 mL urine + 80 μL NaOH + 1 mL CH2Cl2-2-propanol. Reconstitution with 50 mg K2CO3 + 400 μL of Me2CO/CH3I. Derivatization using microwaves for 10 min at 900 W. Evaporation to dryness and reconstitution with 100 μL Me2CO.	3 ng/mL	[16]
GC-MS	Urine	VF-DA (12 m × 0.20 mm)	CH3I		Helium	5 mL urine + IS + 200 mg Na2SO4 + NaOH + 5 mL organic solvent. Evaporation to dryness and reconstitution with CH3I.	50 ng/mL; n.r.	[17]
GC-MS	Urine	HP-1 (12 m × 0.2 mm)	CH3I		Helium	2 mL urine + 0.02 THA + 6 mL CH3I in toluene. Derivatization for 30 min at 50 °C. SPE. Evaporation to dryness and reconstitution with 50 μL EA.	10 ng/mL; n.r.	[18]
GC-MS	Urine	HP5 (18 m × 0.2 mm)	CH3I		Helium	5 mL urine + IS. SPE. Evaporation to dryness. Derivatization with CH3I in acetone +50 mg K2CO3 under microwave irradiation.	50 ng/mL	[19]
GC-MS	Urine	Agilent Ultra 1 (17 m × 0.2 mm)	MSTFA NH4I, PrSH		Helium	2.5 mL urine + acetate buffer + IS + Na2CO3. Extraction with diethylether-2-propanol (5:1, v/v) + Na2SO4. Evaporation to dryness. Two-step silylation: 1) 50 μL MSTFA + MeCN (10 min, 80 °C); 2) 50 μL MSTFA/NH4I/PrSH (10 min, 80 °C)	n.r.	[21]
GC-MS	Urine	Optima 17 (15 m × 0.25 mm)	PFB-Br		Helium	50 μL urine + IS, evaporation to dryness. Addition of 100 μL EtOH, evaporation to dryness. Reconstitution with 100 μL MeCN +10 μL PFB-Br + 10 μL Hünig base, 60 min at 30 °C. Evaporation to dryness and reconstitution with 200 μL toluene.	0.3 pmol; 25 μM	Present study

Abbreviations. AA, acetic acid; EA, ethyl acetate; EtOH, ethanol; FA, formic acid/formate; IS, internal standard; MeCN, acetonitrile; MeOH, methanol; Me₂CO, acetone; n.r., not reported; SPE, solid-phase extraction.

5. Conclusion

Acetazolamide, an organic sulfonamide drug (RSO₂NH₂) and a potent CA inhibitor, can be derivatized with PFB-Br in anhydrous acetonitrile using an organic base as the catalyst to form RSO₂N(PFB)₂. Derivatization of acetazolamide of urinary origin is performed under mild conditions (30 °C, 1 h) after evaporation of the urine water to dryness without prior extraction from the urine. In routine, acetazolamide can be analyzed quantitatively in urine (50 μL urine; range, 0–1000 μM acetazolamide; 200 μL toluene) by GC-MS in NICI mode using [acetylo-²H₃]acetazolamide as the internal standard (250 μM). Ingestion of a 250 mg acetazolamide containing tablet by a healthy volunteer resulted in constant creatinine-corrected excretion rates of acetazolamide in the urine and in reversible inhibition of the reabsorption of urinary nitrite and nitrate after about 1.5 h. The PFB-Br derivatization procedure is applicable to the measurement of methazolamide, another sulfonamide. The size of the organic moiety of the sulfonamide drug rather than the reactivity of its sulfonamide group towards PFB-Br limits the application of the GC-MS method to other larger sulfonamides.
