Abstract
Light-sensitive capacitance variation of Bi0.95La0.05FeO3 (BLFO) ceramics has been studied under violet to UV irradiation. The reversible capacitance enhancement up to 21% under 405 nm violet laser irradiation has been observed, suggesting a possible degree of freedom to dynamically control this in high dielectric materials for light-sensitive capacitance applications. By using ultraviolet photoemission spectroscopy (UPS), we show here that exposure of BLFO surfaces to UV light induces a counterintuitive shift of the O2p valence state to lower binding energy of up to 243 meV which is a direct signature of negative electronic compressibility (NEC). A decrease of BLFO electrical resistance agrees strongly with the UPS data suggesting the creation of a thin conductive layer on its insulating bulk under light irradiation. By exploiting the quantum capacitance model, we find that the negative quantum capacitance due to this NEC effect plays an important role in this capacitance enhancement
Subject terms: Ceramics; Surfaces, interfaces and thin films; Electronic properties and materials; Ferroelectrics and multiferroics
Introduction
Bismuth Ferrite (BiFeO3) is a multiferroic oxide material which has been extensively studied due to its ability to simultaneously exhibit both magnetic and strong ferroelectric properties at room temperature1,2. As such, BiFeO3 has recently drawn much interest in potential applications spanning spintronics, magnetoelectric sensors and photovoltaic devices3–5. Several studies also attempt to enhance the dielectric constant of BiFeO3 which could effectively improve its ferroelecticity6. In fact, a pure BiFeO3 is difficult to synthesize whose dielectric constant was reported only 50–100 at 10 kHz7,8. Slight modifications to BiFeO3 ceramics have been reported featuring both giant dielectric constant (>104 at room temperature) and sufficiently low dissipation factor9,10 to be suitable for magnetodielectric applications11. Recently, efforts to improve the dielectric behavior of BiFeO3 have been reported, such as varying preparation methods12 and dopants13. Such extrinsic dielectric constant enhancement can be controlled by lattice distortions, particle sizes, domains, or impurities12,14.
In addition to extrinsic dielectric constant enhancement, the capacitance of oxide materials can intrinsically be improved by tuning carrier densities (i. e. n-type doping or applied gate electric field). Such dielectric tunabilities have potential applications as various microwave devices, such as phase shifters and varactors15. Recently, capacitance enhancement at the LaAlO3/SrTiO3 interface in excess of 40% was found to originate from negative electron compressibility (NEC) at low electron density (n)16, enabled as the accumulation of all mobile electrons in the interfacial region which make quantum conduction and therefore quantum capacitance is the dominant model16–18. The negative thermodynamic density of state (), where μ is chemical potential, has been observed in several 2D materials and interfaces16,19, carbon nanotubes20, and bulk materials21. Hence, researching and modifying materials having this NEC behavior could effectively enhance their capacitances, presenting alternatives to the use of high dielectric materials for nanoscale devices.
Alternatively, carrier densities on metal oxide surfaces can be controlled by the creation of oxygen vacancy states induced by light irradiation22–25. Recently, the capacitance enhancement induced by surface charge accumulation has been reported on CaCu3Ti4O1226. This is similar to the case of applying electric field (i. e. introduction of the quantum conductive interfaces) which might indicate the analogous microscopic origin. In this work, we observe a striking capacitance enhancement in lightly-doped metal oxide Bi0.95La0.05FeO3 (BLFO) under 405 nm violet laser irradiation. By using ultraviolet photoemission spectroscopy (UPS) and transport measurements, a signature of NEC has been revealed. By light irradiation, the experimentally-observed changes indicate that the quantum capacitance model plays a major role, which therefore supports claims for a strong interplay between NEC and capacitance enhancement. These findings are critical in understanding the fundamental nature of such system as well as establishing a new synthetic route to light-sensitive capacitive devices.
Methods
Sample preparation and characterisation
Our BLFO polycrystals were prepared by a simple co-precipitation method9. The dried precursors were calcined in air at 600 °C for 3 h. Sample powders were pressed into pellets with 1 cm diameter and sintered at 800 °C in air for 3 h. A small decrease of grain size (compared to the pure BiFeO3) and structural distortion were revealed in BLFO samples by X-ray diffraction (XRD) and scanning electron microscopy (SEM). The remarkable enhancement of BLFO capacitance might solely be affected by the reduction of electrical conductivity and leakage current27. We chose BLFO because of its high initial capacitance, for example, its dielectric constant was more than three times that of pure BiFeO3 ceramics prepared by the same method9,14,28. Details of sample preparation and characterisation are shown in Supplementary Information.
Capacitance measurement
Instead of a metal top electrode, our capacitor was fabricated with transparent conductive indium tin oxide (ITO) allowing light irradiation on this side. The BLFO sample was mechanically compressed against ITO and metal electrode as shown in Fig. 1(a). The capacitance measurements were performed using a standard impedance analyzer (Agilent: model 4294A) with alternating voltage output (Vac = 0.5 V) and frequency ranging from 1 kHz to 1 MHz. A 405 nm laser corresponding to 3.06 eV photon energy (with fixed intensity of 1.8 W.cm−2 and 3 × 3 mm2 beamsize) was used throughout the experiment. This photon energy is smaller than the ITO optical band gap and work function of most materials (≈4eV), hence, competing effects occurring upon light irradiation such as light absorption and photoelectron ejection would not be expected29.

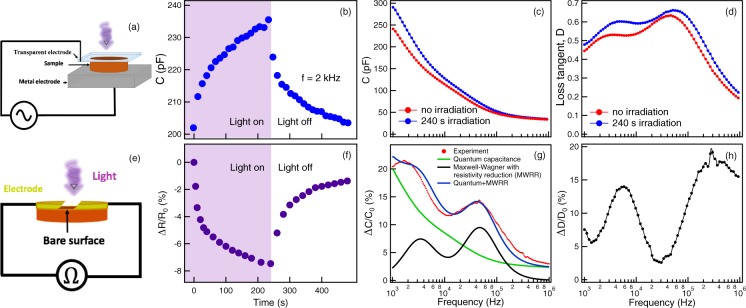

Figure 1.
(a) Setup of capacitance measurement allowing light irradiation on the top electrode. (b) BLFO capacitance measured as a function of violet laser irradiation at f = 2 kHz with 480 s time scale. Frequency dependence of (c) capacitance and (d) loss tangent with and without violet laser irradiation. (e) Diagram of resistance measurement. (f) BLFO resistance measured under violet laser irradiation. (g) The change of capacitance after 240 s irradiation (red-dotted curve). Green and black curves represent the calculated capacitance enhancement using quantum capacitance and Maxwell-Wagner with resistivity reduction (MWRR) model, respectively. The summation of these model is represented by blue curve which is in agreement with the observed capacitance enhancement by light irradiation. (h) The change of loss tangent after 240 s irradiation.
Ultraviolet photoemission spectroscopy
To understand the microscopic mechanism that drives this light-sensitive behavior in BLFO, the electronic structure of the BLFO sample was measured by ultraviolet photoemission spectroscopy (UPS) using Scienta R4000 electron analyzer located at BL 10.0.1 of the Advanced Light Source (USA) and BL 3.2a of the Synchrotron Light Research Institute (SLRI), Thailand. The measurements were performed at room temperature with base pressure better than 5 × 10−8 mbar. Photon energy was set to be 60 eV with 0.3 × 0.1 mm2 beam size.
Results and discussion
The BLFO capacitance measured at f = 2 kHz as a function of light irradiation is shown in Fig. 1(b). The initial capacitance measured in this setup is found to be around 200 pF. After irradiation for 240 s, the capacitance increased gradually and then became saturated at 236 pF. After turning off the irradiation, its capacitance decayed slowly and then reached the value close to the initial value. The frequency dependent measurements of capacitance and loss tangent before and after irradiation are shown in Fig. 1(c,d). The dielectric behaviour can be described by the Debye type equation including electrode and grain-boundary effects30.
Resistance measurement under light irradiation was performed on BLFO surfaces by preparing 1 mm-wide surface in between the gold electrodes (Fig. 1(e)). After turning on the laser for 240 s, BLFO resistance decreased by 8%. Similar to the capacitance measurement, its resistance recovers close to the initial value after a 240 s absence of irradiation (Fig. 1(f)). The features of the changes in capacitance and resistance suggest the existence of at least two effects occurring during the on-off process, including photogeneration of charge carriers (photoconductivity) and creation of oxygen vacancy. When light is on, photoconductivity is known to contribute to the changes in capacitance and resistance instantly and dynamically. It was found that both capacitance and resistance change quickly and immediately when turning off the light (at time ≈240 s of Fig. 1(b,f)) which could be described by the photogeneration of charge carriers. However, since the capacitance measured here does not instantly recover back to its original value when the irradiation is off, such changes are attributed to the creation of a thin conductive layer upon the insulating bulk referred to as a quantum-confined electron gas which is related to the creation of oxygen vacancies induced by light irradiation26,31,32.
The increases of capacitance and loss tangent are shown in Fig. 1(g,h). We found that the capacitance enhancement can be measured as high as 21% at frequency around 2 kHz after 240s of irradiation. The capacitance enhancement lineshape is nicely-fitted with incorporating of a reduction of surface resistivity (due to photogeneration of charge carrier) described by Maxwell-Wagner model33 (see Supplementary Information) and NEC effect described below.
The UPS spectrum of the fresh sample was measured immediately (i. e. 0 min of irradiation, the black spectrum in Fig. 2(a)). It was found that the O2p state located at a binding energy around 6-8 eV was consistent with other metal oxides25,26,34 indicating a good electrical contact between our sample and a sample holder. A counterintuitive shift of the O2p state to lower binding energy was initially observed by the first doping condition (5 min of UV light exposure) as illustrated by the red spectrum in Fig. 2(a). The UPS spectrum after zeroth order light irradiation, i. e., light with all frequencies, clearly indicates a significant shift of around 1 eV to lower binding energy (the blue spectrum in Fig. 2(a)). Moreover, an intergap peak emerged at around 4 eV binding energy which can be assigned to the oxygen vacancy state (VO)23,26. In contrast, the C1s state was also measured immediately after each UV irradiation (hν = 500 eV) which clearly indicates no binding energy shift of C1s state (inset of Fig. 2(a)) confirming the distinctive character of BLFO sample. By using standard Gaussian fitting35,36, a continuous shift of O2p state as a function of UV dosing was found to reach the value as high as 243 meV at a maximum UV dosing of 180 J.cm−2 as summarized in Fig. 2(b) (see Supplementary Information).

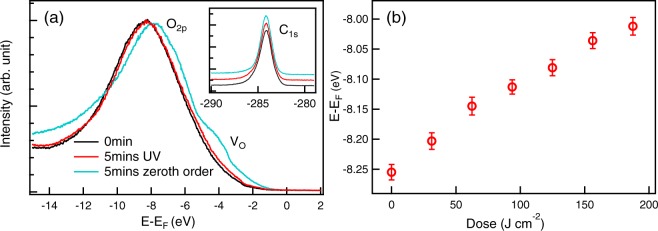

Figure 2.
(a) Valence band spectra of BLFO ceramic measured at different conditions. The O2p state shifts to lower binding energy while the C1s (inset) is located at the same energy. (b) Summary of the O2p position as a function of light dose.
Capacitance enhancement induced by light irradiation has been studied in several metal oxides26,37. To explain this, possible scenarios such as filling of material’s mid-gap state38, enhancement of total charge carrier density39, and the creation of a two-dimensional electron gas at the surface26,40 as a result of photo illumination have been proposed. Regarding these corroborated with our observed UPS spectra, we introduce the quantum capacitance (Cq) model to explain the capacitance enhancement in BLFO. This quantum capacitance model is a consequence of the Pauli principle which requires extra energy for filling a quantum well with electrons accumulated near the surface18.
In our case, Cq formed on the irradiated-surfaces is manifested as capacitors in series with a geometric capacitance (Cgeo) between two electrical plates41. Total capacitance (Ctot) can then be calculated by , where Cgeo = is solely dependent on the geometry16,42. Cq can be derived by the electron-electron interaction between layers (i. e. Cq = Ckin + Cex-corr) which represents capacitances due to kinetic and exchange-correlation energies respectively. Notably, Cq can be expressed by a term of thermodynamic density of states ()16 which strongly indicates that Cq can either be positive or negative depending on the sign of 16,43. From above equation, Ctot can be increased only in the case of negative Cq which means , whereby increasing the electron density leads to a decrease of chemical potential. In view of increasing Ctot as a function of light irradiation (Fig. 1b), the absolute value of measured Cq has been plotted by circle symbols in Fig. 3(a). Note that the similar values of Cq estimated from UPS spectra and impedance measurement are shown in the inset of Fig. 3(a).
Figure 3.
(a) Cq as a function of light dose. The calculated Cq between capacitance and UPS measurements is shown in the inset. (b) The calculated surface carrier density (n2D) as a function of light dose. For comparison of the line shape of n2D, we have added the n2D measurement of SrTiO3 (inset) from ref. 24. (c,d) The increase of and μ as a function of n2D. All the circle symbols are from measurement and the lines are fit.
According to the available information of both NEC and quantum capacitance, the creation of two-dimensional electron density (n2D corresponding to n) upon UV light exposure can be estimated by 16, where is the shift of O2p state and D is light dose (see Supplementary Information). As shown in Fig. 3(b), the calculated n2D increases as a function of light dosing reaching the value of 0.95 × 1010cm−2 at 180 J.cm−2. This exhibits similar trend with three orders of magnitude smaller than previous report of a light-irradiated surface of bulk SrTiO3 (reproducing data is shown in the inset of Fig. 3(b) with permission from ref. 24).
Regarding the expression of Cq, (or ) is found to be a crucial parameter which offers a quantitative capacitance calculation. As shown in Fig. 3(c), the calculated increases in negative values up to 43 × 10−12 meV cm2 at a maximum n2D of 0.95 × 1010 cm−2. This value is about 2 times smaller than the previously observed 40% capacitance enhancement in LaAlO3/SrTiO3 interfaces16. A plot of negative chemical potential shift versus n2D is shown in Fig. 3(d). Note that the circle symbols are the measured data taken from Fig. 2(b). This negative value can be described by the random phase approximation (RPA) for exchange and correlation interactions where the negative compressibility (up to 600 meV) can happen in two-dimensional electron system19,44. Overall, we note that our observed NEC and the capacitance enhancement is generally described by the creation of two-dimensional electron layer on BLFO ceramic16,45 induced by light irradiation.
Conclusion
We have observed an increase of BLFO capacitance by up to 21% by visible light irradiation. Our experimental UPS data indicate creation of oxygen vacancies and the counterintuitive shift to lower binding energy on BLFO surfaces. The calculated negative values of Cq and the increase of n2D under light irradiation suggest an emerging of negative quantum capacitance in our system which leads to the enhancement of overall capacitance. We have also demonstrated a presence of negative induced by light irradiation which provides an important role in driving such mechanism in two-dimensional electron system. Finally, our findings could create the new pathway in the study of the three-coupled degrees of freedom, i.e. light, charge and spin. Moreover, the capacitance enhancement in BLFO (multiferroics) could also help in the magnetoelectric/magnetocapacitance research and application.
