. Author manuscript; available in PMC: 2021 Dec 1.
Published in final edited form as: Curr Opin Allergy Clin Immunol. 2020 Dec;20(6):582–590. doi: 10.1097/ACI.0000000000000689

PIRD: Primary Immune Regulatory Disorders, A Growing Universe of Immune Dysregulation

Alice Y Chan 1, Troy R Torgerson 2
PMCID: PMC7769114  NIHMSID: NIHMS1651367  PMID: 32941318

Structured Abstract

Purpose of review

Primary Immune Regulatory Disorders (PIRD) are a growing subset of diseases referred to as inborn errors of immunity. Unlike classical primary immune deficiency disorders that typically present with severe, recurrent, or unusual infections, the clinical manifestations of PIRD are dominated by immune-mediated pathology (autoimmunity, autoinflammation/hyperinflammation, lymphoproliferation, malignancy, and severe atopy). This review introduces the concept of PIRD including clinical phenotypes, treatments, and new PIRD-associated gene defects.

Recent findings

The number of genetic defects associated with PIRD is rapidly growing. The identified genes often encode proteins that play critical roles in regulating the immune response to various triggers. Understanding the molecular mechanisms underlying PIRD has shed light on the clinical phenotypes and has helped to identify targeted therapies. In some cases, hematopoietic cell transplant (HCT) has been successfully employed as a cure.

Summary

It is important to recognize the broad clinical manifestations of PIRD as patients may have symptoms atypical of classical “immunodeficiency”. Because of their diverse immune dysregulation problems, they are often primarily managed by other subspecialists. Immunologists can help connect the diverse immune-mediated pathologies to a gene defect. This, in turn, can play a significant role in directing clinical management, selecting effective therapy, and deciding on appropriateness of HCT.

Keywords: autoimmunity, autoinflammation, immunodeficiency, non-malignant lymphoproliferation, hematopoietic cell transplantation

Introduction

A recent update from the International Union of Immunological Societies (IUIS) Expert Committee on inborn errors of immunity, lists 430 genes associated with disorders of the immune system (1). Among these, 129 have clinical manifestations predominantly resulting from immune-mediated pathology rather than infections (1). This pathology arises from a breakdown in immune regulation resulting in clinical phenotypes such as autoimmunity, autoinflammation/hyperinflammation, lymphoproliferation, malignancy, and severe atopy. This group of disorders is rapidly expanding and is collectively termed Primary Immune Regulatory Disorders or “PIRD” (Figure 1) (2). This review focuses on the defining PIRD, highlighting new PIRD genes, and discussing general treatment considerations.

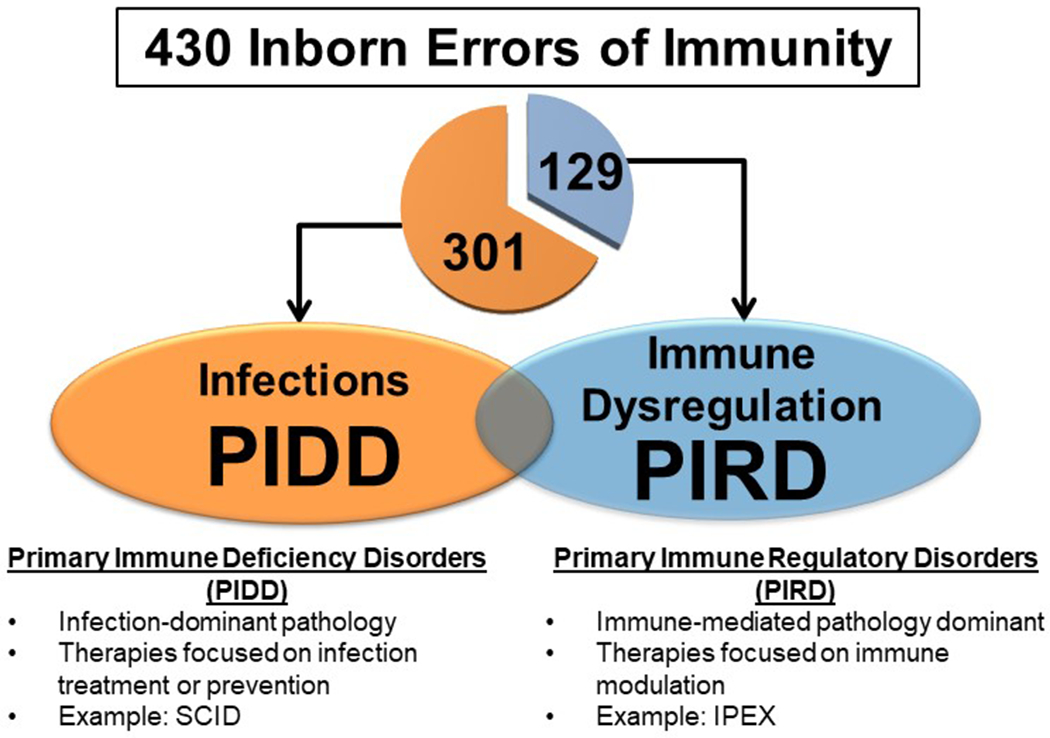

Figure 1:

Figure 1:

Inborn Errors of Immunity (IEI). A total of 430 genes IEI were reported in the IUIS of which 129 are considered a primary immune regulatory disorder (PIRD).

Overview of Primary Immune Regulatory Disorders

PIRD are a group of diseases with clinical phenotypes mainly caused by immune-mediated pathology and less prominent pathology from severe, recurrent, or unusual infections. Immune Dysregulation, Polyendocrinopathy, Enteropathy, and X-linked (IPEX) syndrome is a prototypical PIRD. Due to mutations in FOXP3 causing defective T regulatory cells (Tregs), the clinical features are prominently autoimmune-mediated including autoimmune enteropathy, type I diabetes, thyroiditis, autoimmune cytopenias, and immune-mediated dermatitis (3,4). Infections occur in IPEX but are less prominent (3,4). Common Variable Immunodeficiency (CVID) and CVID-like diseases can also have a PIRD phenotype with severe autoimmune, inflammatory, or lymphoproliferative manifestations that dominate their clinical presentation. Several genetic defects in immunoregulatory genes have been identified in these patients including CTLA4, NFKB2, PIK3CD, and others.

Diversity of PIRD Phenotypes

PIRD encompasses a broad range of disease categories stemming from defects in various immune regulatory pathways (Table 1). One disease category called tregopathies is caused by defective Tregs which includes IPEX and IPEX-like disorders (5). PIRD can also develop from exaggerated innate and adaptive inflammatory responses as seen in autoinflammatory syndromes and hyperinflammatory disorders (8), and amplified atopic phenotypes in congenital atopic hypersensitivity is another PIRD phenotype. Additionally, PIRD can develop from aberrant inflammatory signals generated from improper sensing and clearance of cell debris (i.e. debris defects). PIRD can also present with non-malignant lymphoproliferation due to uncontrolled immune cell activation and proliferation like Autoimmune Lymphoproliferative Syndrome (ALPS) or ALPS-like disorders (7). Some PIRD genes can result in hematopoietic malignancies (7). Two other PIRD categories include monogenic inflammatory bowel diseases (IBD) which arise from a dysfunction in intestinal immune regulation (6), and rheumatologic diseases which arise from a breakdown in self-tolerance. Lastly, PIRD patients can have a combination of these phenotypes if the gene defect is at the intersection of multiple immune regulatory pathways.

Table 1:

PIRD Phenotypes

PIRD Phenotypes Diseases/Pathways Example Genes (Protein)*
Tregopathies IPEX (Immune Dysregulation, Polyendocrinopathy, Enteropathy, X-linked) FOXP3
IPEX-Like CD25
CTLA4, LRBA, DEF6
IL2RB
STAT1-GOF
STAT3-GOF
STAT5B
Autoinflammatory Syndromes TRAPS (Tumor Necrosis Factor Receptor Associated Periodic Syndrome) TNFRSF1A
TNFRSF11A
CAPS-like (Cryopyrin-Associated Autoinflammatory Syndromes) CDC42
NLRP3
FMF (Familial Mediterranean Fever) MEFV
DAD2 (Deficiency of Adenosine Deaminase 2) ADA2
DIRA (Deficiency of the Interleukin-1 Receptor Antagonist) IL1RN
CRIA (Cleavage-resistant RIPK1-Induced Autoinflammatory) syndrome RIPK1
Hyperinflammatory Disorders
(predisposition to HLH)
Cytolytic Defects LYST
PRF1
RAB27A
UNC13D (MUNC13-4)
Signaling Defect CDC42
ITK
MAGT1
SH2D1A
STAT1-GOF
Inflammasome Defects NLRC4
XIAP
Debris Defects Complement deficiency C1q, C2
Interferonopathies COPA
DNAse I
IFIH1 (MDA5)
STING
TREX1
PRAAS (Proteasome-Associated Autoinflammatory Syndrome) PSMB8
Non-Malignant Lymphoproliferation ALPS (Autoimmune Lymphoproliferative Syndrome) CASP10
FAS, FASL
ALPS-Like/ALPS-U CTLA4, LRBA, DEF6
PIK3CD, PIK3R1
STAT3-GOF
TNFRSF9 (CD137, 4-1BB)
TET2
RALD (Ras Associated Autoimmune Leukoproliferative Disease) KRAS, NRAS
Hematopoietic Malignancies SPTCL (Subcutaneous panniculitis-like T-cell lymphoma) HAVCR2 (TIM3)
LGL (Large Granular Lymphocytic Leukemia) STAT3-GOF
DLBCL (Diffuse Large B-Cell Lymphoma) CARD11, BCL10, MALT1 PIK3CD
AML (Acute Myeloid Leukemia) / MDS (Myelodysplastic Syndromes GATA2
Various Types of Lymphomas TET2
Congenital Atopic Hypersensitivity JAK1-GOF
PGM3
STAT5-GOF
Inflammatory Bowel Disease (IBD) Infant Onset-IBD IL10, IL10RA, IL10RB
SKIV2L
TTC7A
VEO-IBD (Very early Onset Inflammatory Bowel Disease) CYBB, NCF1
RIPK1
XIAP
Rheumatologic Diseases Bechet’s Disease TNFAIP3
WDR1
Lupus C1q, C2
FAS
NCKAP1L (HEM1)
JIA (Juvenile Idiopathic Arthritis) subtypes LACC1

GOF = Gain of Function, HLH = Hemophagocytic Lymphohistiocystosis

*

genes listed together function in the same pathway or complex

Evaluating and Diagnosing PIRD

Given the wide clinical spectrum of PIRD, evaluation is focused on identifying the predominant immune-mediated pathology such as enteropathy, dermatitis, endocrinopathy, and cytopenias. A multidisciplinary team approach is essential for gathering clinical data, assessing tissue pathology, and monitoring disease activity. Routine immunological labs are often limited in their ability to identify the specific genetic cause but can be informative to predict which aspect of the immune system needs bolstering or suppressing. Broad-based genetic testing (e.g. exome sequencing, targeted gene panel) is often the most informative and should be considered early in the evaluation. The absence of a positive family history does not eliminate a genetic cause since PIRD can be associated with heterozygous defects causing dominant gain- or loss-of-function so can arise de novo. Lastly, different mutations in the same gene can lead to widely discordant phenotypes. As a result, identification of a defect in a PIRD-associated gene should be considered based on its immunologic function and not discounted solely on previously described phenotype with that gene.

New PIRD Genes

Several recent correlations have been made between new gene defects and a PIRD phenotype. Some of these genes were previously described but only recently associated with PIRD features (Table 2).

Table 2:

Newly Described PIRD Genes

Gene Onset (years) Mode of Inheritance Immune Clinical Manifestation Immune Labs Treatment Outcomes (Alive/Dead)
Immunodeficiency Autoimmunity Auto-/Hyper-inflammation Non-Malignant Lympho-proliferation Malignancy Atopy Infection Ppx Immune Modulatory Therapies HSCT
CDC42 0-2 AD     YES
• Bacterial: pseudomonas, staphylococcus, group A streptococcus
• Viral: varicella, EBV
• Organs: GI, sinopulmonary
NR     YES
• Recurrent fevers
• NOMID-like
• HLH
    YES
• LAD, HM, SM
    YES
• Hodgkin’s lymphoma
    YES
• Hyper-eosinophilia
• Hyper IgE from skin
↑ ESR, CRP, Ferritin
↑ IL-18
↓ Ig
↓ memory B cells
+ HLH labs
• Ig replacement • IL-1 inhibitors
• Emapalumab
1 (alive)
1 (dead)
5/5
DEF6 0-10 AR     YES
• Bacterial
• Viral: CMV, EBV
• Organs: respiratory, sepsis
    YES
• AIHA, ITP
• AutoAb present
• Enteropathy
    YES
• Recurrent fevers
    YES
• HM, SM
    YES
• Hodgkin’s lymphoma
NR Treg variable
↓naïve CD4
Nl to ↓ Ig
Nl to ↓ specific ab
+ AutoAb
• Ig replacement • B cell tx
• Abatacept
• Azathioprine
NR 6/1
Il2RB 0-1 AR     YES
• Viral: CMV, EBV
• Fungal Candida
• Organs: GI, GU, sinopulmonary
    YES
AIHA
Grave’s
Vasculitis
Enteropathy
Celiac
    YES
• Colitis
    YES
• LIP
• LAD, HM, SM
NR     YES
• Eczema
• Food allergy
↑ NK
↓ Tregs
↑ g
• Viral ppx • Sirolimus
• Steroids
• B cell tx
2 (alive)
2 (dead)
3/7
NCKAP1L (HEM1) 0-1 AR     YES
• Bacterial: pneumococcal, staphylococcus, pseudomonas
• Viral: EBV, HSV1
• Organs: meningitis, skin, sinopulmonary
    YES
• ITP
• Celiac disease
• Lupus GN
• AutoAb present
    YES
• Recurrent fevers
    YES
• LAD, HM, SM
• ALPS-like
• Rosai-Dorfman disease
• HLH
NR     YES
• Asthma
• Allergic rhinitis
• Food allergy
Nl subsets
↑ T memory
↓ proliferation
Variable IgG/A/M
↑ IgE
↓ specific ab
+ AutoAb
• Ig replacement
• Microbial ppx
• Steroids
• Sirolimus
• MMF
• B cell tx
• CsA
• Azathioprine
NR 7/0
RIPK1 0-1 AD NR NR     YES
• Recurrent fevers
    YES
• LAD, HM, SM
NR NR ↑ inflammatory cytokines
+ AutoAb
NR • Tocilizumab NR 9/0
TET2 0-1 AR     YES
• Viral: CMV, EBV, RSV
• Organs: sinopulmonary, meningitis, skin
    YES
• AIHA
• AutoAb present
NR     YES
• LAD, HM, SM
    YES
• Hodgkin’s lymphoma
• PTCL
• Benign skin tumors
• PMBCL
NR ↑ DN alpha/beta T cells
↓ FAS-mediated, apoptosis
↓ class-switch memory B cells
Ig variable
Specific ab variable
• Ig replacement
• Microbial ppx
• B cell tx
• IVIG
• steroids
1 (alive) 2 (dead) 1/2
TNFRSF9 (41BB, CD137)
2-8 AR     YES
• Bacterial: pneumococcal
• Viral: Adeno, EBV, HSV
• Organs: sinopulmonary, sepsis
    YES
• AIHA, ITP
• AutoAb present
    YES
• HLH
    YES
• LAD, SM
• ALPS-like
    YES
• Hodgkin’s lymphoma
• Burkitt’s
• DLBCL
    YES
• Eczema
↓ proliferation
↓ memory B
Ig variable
Specific ab variable
+ AutoAb
• Ig replacement
• Microbial ppx
• B cell tx
• Sirolimus
• MMF
1 (ongoing) 6/0

Ab=antibody, Adeno=adenovirus, AutoAb=autoantibodies, CsA=cyclosporin A DLBCL= Diffuse large B-cell lymphoma, GN=glomerulonephritis, HLH=hemophagocytic lymphohistiocytosis, HM=hepatomegaly, Ig=immunoglobulin, LAD=lymphadenopathy, LIP=lymphocytic interstitial pneumonitis, LPD=lymphoproliferative disorder, MMF=mycophenolate mofetil, Nl=normal, NOMID=Neonatal Onset Multisystem Inflammatory Disease, NR=none reported, PMBCL=primary mediastinal B cell lymphoma, PTCL=Peripheral T-cell lymphoma, Ppx=prophylaxis, SM=splenomegaly, Tx=therapies

CDC42

CDC42 (Cell division cycle 42) is a Rho GTPase family member that functions in controlling various cellular functions including actin cytoskeleton and vesicle trafficking. It is known to interact directly with the Wiskott-Aldrich Syndrome protein (WASp). Mutations in CDC42 have previously been linked to Takenouchi-Kosaki syndrome (OMIM 116952), characterized by neurodevelopmental disorders and thrombocytopenia but no reported immune-mediated pathology. Recent reports describe four heterozygous mutations in CDC42 from ten families with PIRD phenotypes (912). Three of the mutations had a clinical picture resembling the IL-1-mediated Neonatal-Onset Multisystem Inflammatory Disease with symptoms of recurrent fevers, urticarial-like rashes, hepatosplenomegaly, and cytopenias that started as a neonate (1012). Some patients developed recurrent bacterial and viral infections, and one developed lymphoma (9,12). Patients had elevated inflammatory markers including elevated IL-18. Most patients responded to IL-1 inhibitors, and one improved with emapalumab, an anti-interferon-gamma (IFNγ) antibody. Recurrent HLH prompted HCT in two cases, with one successful outcome (10).

DEF6

Mutations in DEF6 (Differentially expressed in FDCP 6 homolog) have been found in three consanguineous families with seven affected patients (13,14). All patients had homozygous mutations that included two missense mutations and one truncation mutant (13,14). DEF6, also called IRF4 binding protein (IBP) or SWAP-70-like adaptor of T cells (SLAT), is a guanine nucleotide exchange factor that interacts with Rab11 GTPase, which plays an important role in vesicular trafficking of CTLA4 (13). Mutant DEF6 protein reduces binding to RAB11 and thus decreases the surface availability of CTLA4 upon T cell activation (13). This reduced CTLA4 level results in a clinical phenotype similar to CTLA4 haploinsufficiency and LRBA deficiency with recurrent infections (viral and bacterial infections), autoimmunity predominantly autoimmune cytopenias, and lymphoproliferation (13,14). One family did develop early-onset enteropathy though also had a homozygous variant in SKIV2L that was predicted to be pathogenic and may be contributing to a blended phenotype (13). One patient developed Hodgkin’s lymphoma (14). Immune phenotyping showed reduced naïve T cells and variable Treg numbers. Immunoglobulin levels were predominantly normal with variability in vaccine response (13,14). Patients with severe disease were treated with a variety of immunomodulating medications including abatacept, which successfully treated the enteropathy (13,14). Some milder cases had symptom resolution without treatment.

HEM1 or NCKAP1L

HEM1 (Hematopoietic protein 1), encoded by the gene NCKAP1L (NCK associated protein 1 like), plays a role in both the reorganization of the actin cytoskeleton and mTOR2 signaling (15,16). Two publications reported seven patients from five families with biallelic mutations resulting in reduced protein levels or disruption of a critical binding site for other protein partners (15,16). Mutant HEM1 led to impaired T cell function and aberrant B cell development and function (15,16). The disease started in infancy, and patients developed recurrent infections, autoimmunity, and lymphoproliferation (15,16). Clinical labs include variable antibody levels, poor antibody responses, and elevated proportion of memory T cells (15,16). Patients were treated with a variety of immunomodulatory medications including azathioprine, mycophenolate mofetil, rituximab, cyclosporin, and sirolimus. At least two patients have been controlled on long-term immunomodulatory therapies (15,16). No reported patients have undergone HCT.

IL2RB

Two recent papers reported ten patients from five unrelated consanguineous families who presented with clinical features resembling IPEX with enteropathy, eczematous dermatitis, autoimmunity, lymphadenopathy, and recurrent bacterial and viral infections (17,18). Affected patients had homozygous mutations in the IL2RB (Interleukin-2 Receptor Beta Subunit) gene. IL2RB is the core subunit of the IL-2 and IL-15 receptor complexes that also include the common gamma chain (IL2RG) and a cytokine-specific alpha chain (IL2RA or IL15RA). IL-2 and IL-15 signals are critical for the development and function of T cells and NK cells, respectively. Tregs are particularly dependent on IL-2 signaling for their proliferation and ongoing competitive fitness. The four mutations resulted in reduced or complete loss of IL2RB protein (17,18). The most severe patients had complete loss of IL2RB and led to intra-uterine growth retardation with skin-like floating membrane in the amniotic fluid similar to prenatal IPEX patients (17). The other three mutations altered the extracellular domain leading to dysregulated IL-2/IL-15 signaling and function. Clinical labs in the patients showed elevated immunoglobulin levels, reduced to absent Treg numbers, and an expansion in NK cells (17,18). Patients were treated with various immune modulatory medications for their autoimmune manifestations (17,18). Four patients underwent HCT with one succumbing to respiratory failure (likely from CMV) and the other from multiorgan failure (17,18).

RIPK1

RIPK1 (Receptor-Interacting Serine/Threonine-Protein Kinase 1) has been previously linked to biallelic mutations in patients who developed predominantly very-early onset inflammatory bowel disease (1921). Two new reports highlight a new hyperinflammatory syndrome, referred to as Cleavage-resistant RIPK1-Induced Autoinflammatory (CRIA) syndrome, due to a dominant mutation found in five unrelated families (22,23). RIPK1 plays an important role in controlling inflammation and cell death and is inactivated when it is cleaved by caspase-8. Interestingly, all mutations linked to the hyperinflammatory syndrome affected amino acid p.D324 which is the critical cleavage site for caspase-8 thus rendering RIPK1 non-cleavable and persistently active (22,23). This leads to uncontrolled inflammatory signaling with excessive production of inflammatory cytokines such as IL-6. Patients present in infancy with recurrent high fevers every 1-4 weeks lasting 1-7 days in addition to lymphadenopathy and hepatosplenomegaly (22,23). Patients had elevated inflammatory gene signatures and inflammatory cytokines (22,23). Treatment with the IL-6 inhibitor, tocilizumab, showed the most benefit compared to steroids, IL-1 inhibitors and TNF inhibitors (23).

TET2

TET2 (Ten-Eleven Translocation methylcytosine dioxygenase 2), a member of the TET family, is an epigenetic regulator that plays a direct role in DNA demethylation and interacts with other partners to affect epigenetic modifications (24). While somatic TET2 mutations have previously been linked to malignancy and myelodysplastic syndromes, a recent paper reported germline mutations in patients with recurrent bacterial and viral infections, autoimmunity, lymphoproliferation, and lymphoma (25). Three patients from two unrelated consanguineous families were found to have two different homozygous mutations. One was a missense and the other was a nonsense mutation that both resulted in loss of function and DNA hypermethylation (25). Patients showed elevated double negative alpha-beta T cells and most had decreased Fas-mediated apoptosis similar to ALPS patients (25). Patients also had reduced class-switch memory B cells, and two were placed on immunoglobulin replacement (25). All three developed lymphoma and underwent HCT with only one surviving with mixed chimerism. Interestingly, all 3 developed autologous T cell reconstitution (25).

TNFRSF9

TNFRSF9 (Tumor Necrosis Factor Receptor Superfamily, member 9) gene mutations were found in six unrelated families that develop clinical manifestations including lymphoproliferation associated with EBV viremia, lymphoma, autoimmune cytopenias, and recurrent bacterial and viral infections (26,27). All patients had homozygous mutations in the TNFRSF9 gene which encodes the protein called CD137 or 4-1BB. The mutations were all clustered in the extracellular domain and resulted in reduced or absent protein expression (26,27). Interestingly, there are three asymptomatic homozygous family members suggesting incomplete penetrance in this disease (26). CD137/4-1BB is a cell surface protein that functions as a coreceptor to modulate immune cell activation (28). It gets upregulated in activated T cells and promotes CD8 expansion and cytotoxic function. In B cells, it plays a role in activation, maturation, and class switch recombination. Cells from patients showed defective T cell activation and reduced B cell differentiation and function (26,27). Clinical immune labs include reduced T cell proliferation, variable T and B cell subsets, and variable immunoglobulins and specific antibodies (26,27). Most patients were treated with immunoglobulin replacement and/or anti-microbial prophylaxis (26,27). Some patients were also treated with immunomodulatory medications such as sirolimus, mycophenolate mofetil, and B cell therapies (26,27). One patient underwent a HCT with HLA-matched sibling though the outcome was not reported (27).

Overview of Treatments for PIRD

Management of PIRD patients is particularly challenging with balancing immune modulatory therapies in the setting of a potential increased risk for infection (29). Ideal therapy for PIRD patients is targeted at the specific genetic defect. Fortunately, there are a growing number of immune modulatory medications targeted at specific immune pathway, and some PIRD patients may be controlled on such therapies lifelong although data on long-term use and risk of infection is lacking in many cases. Some patients with insufficient clinical response and/or unacceptable side-effects require more definitive therapy such as HCT, gene therapy, or gene editing as these become available.

Immunomodulatory Therapies

Understanding the specific immune pathway defect can help identify drug targets to control disease manifestations. For example, CTLA4 haploinsufficiency and LRBA deficiency are diseases that reduce CTLA4 or alter itsintracellular trafficking. CTLA4 soluble fusion proteins composed of the Fc fragment of human IgG1 linked to the extracellular domain of CTLA4, such as abatacept and belatacept, are directed therapies that have been helpful in controlling CTLA4-like diseases (30,31). Jak inhibitors have been successfully used to control the inflammatory processes in gain of function mutations in STAT3 and STAT1 (32,33). Ruxolitnib, a Jak inhibitor, is also being used to treat HLH (34). Rapamycin is also shown to be effective for treating patients with Treg defects such as IPEX (35) and patients with ALPS or ALPS-like disease (36). Phosphoinositide 3-kinase (PI3K) inhibitors as well as rapamycin have also been effective in the treatment of PIK3CD disease (37,38). As more targeted therapies are developed, precision therapies can be aligned to the specific gene mutation. However, it is unclear whether lifelong immunomodulatory therapies will be sufficient. Thus, more long-term data is needed to better understand who can be maintained on such therapies versus those that need more definitive therapies like an HCT.

Hematopoietic Cell Transplant

HCT can be a successful treatment option for PIRD patients depending on the genetic defect and other transplant conditions (2,39). First, the genetic defect must be expressed in the hematopoietic compartment. If the gene also functions in non-hematopoietic cells, then HCT may only be partially beneficial. For example in NF-κB essential modulator (NEMO) deficiency, the gene functions in both immune and epithelial cells so HCT can resolve some, but not all, of the clinical manifestations (40). Second, control of the hyperinflammatory process prior to transplant may help decrease the risk for alloreactivity and potentially improve engraftment of donor cells (41). Third, it is important to have a conditioning regimen that maximizes donor engraftment with the lowest degree of toxicity. The optimal regimen will likely vary depending on the genetic mutation and prior disease activity causing organ dysfunction. At present, data is lacking about the best conditioning regimens for PIRD patients. Fourth, identifying a suitable donor is critical. While a matched-related donor without the gene mutation is ideal, it is not always possible. In some conditions, a family member, who is a carrier for the genetic defect, may be an acceptable donor but in other cases it is not an option (42). Lastly, HCT outcomes for these patients depend on the level of stable donor chimerism (i.e. the percent of stem cells derived from the donor). Some PIRD may successfully be treated with mixed donor chimerism whereas others require full donor chimerism to prevent disease relapse post-HCT. Overall, HCT can be a potential therapy for PIRD but significant questions remain.

Conclusion

The PIRD disorders account for a growing subset of inborn errors of immunity. They present with dominant features of autoimmunity, autoinflammation/hyperinflammation, lymphoproliferation, malignancy, severe atopy, and immunodeficiency. The genes associated with PIRD are typically central modulators of immune regulation. Knowing the exact molecular defect can help identify effective therapies. HCT can be a potential curative treatment in some diseases whereas others may be successfully managed on long-term immunomodulatory therapies. Overall, the current understanding of the natural history of PIRD is limited, and more studies are needed to advance our knowledge of how best to manage and treat these patients.

Key Points.

  • Primary immune regulatory disorders (PIRD) predominantly have clinical features of autoimmunity, hyperinflammation, lymphoproliferation, malignancy, and severe atopy with less dominant features of immunodeficiency and infection.

  • Genetic causes of PIRD function in immune pathways that regulate the various types of immune responses.

  • Treatment for PIRD are directed at the specific genetic defect, and HCT can be a curative therapy for some cases.

Acknowledgements

We would like to thank the Primary Immune Deficiency Treatment (PIDTC) consortium.

Financial support and sponsorship

AC and TRT are funded by NIH U54 (PIDTC). AC is funded by NIH K08.

Footnotes

Conflicts of interest

AC is a consultant for Invitae. TRT is a consultant for Takeda, Grifols, and CSL Behring.

References

  • 1.Tangye SG, Al-Herz W, Bousfiha A, Chatila T, Cunningham-Rundles C, Etzioni A, et al. Human Inborn Errors of Immunity: 2019 Update on the Classification from the International Union of Immunological Societies Expert Committee. J Clin Immunol. 2020. January 1;40(1):24–64. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 2.•.Chan AY, Leiding JW, Liu X, Logan BR, Burroughs LM, Allenspach EJ, et al. Hematopoietic Cell Transplantation in Patients With Primary Immune Regulatory Disorders (PIRD): A Primary Immune Deficiency Treatment Consortium (PIDTC) Survey. Front Immunol. 2020;11:239. [DOI] [PMC free article] [PubMed] [Google Scholar]; This study introduces the PIRD term and illustrates the overall survival of transplant in PIRD.
  • 3.Barzaghi F, Amaya Hernandez LC, Neven B, Ricci S, Kucuk ZY, Bleesing JJ, et al. Long-term follow-up of IPEX syndrome patients after different therapeutic strategies: An international multicenter retrospective study. J Allergy Clin Immunol. 2018;141(3):1036–1049.e5. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 4.Gambineri E, Ciullini Mannurita S, Hagin D, Vignoli M, Anover-Sombke S, DeBoer S, et al. Clinical, Immunological, and Molecular Heterogeneity of 173 Patients With the Phenotype of Immune Dysregulation, Polyendocrinopathy, Enteropathy, X-Linked (IPEX) Syndrome. Front Immunol. 2018;9(Journal Article):2411. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 5.Cepika A-M, Sato Y, Liu JM-H, Uyeda MJ, Bacchetta R, Roncarolo MG. Tregopathies: Monogenic diseases resulting in regulatory T-cell deficiency. J Allergy Clin Immunol. 2018. December 1;142(6):1679–95. [DOI] [PubMed] [Google Scholar]
  • 6.Kelsen JR, Sullivan KE, Rabizadeh S, Singh N, Snapper S, Elkadri A, et al. North American Society for Pediatric Gastroenterology, Hepatology, and Nutrition Position Paper on the Evaluation and Management for Patients With Very Early-onset Inflammatory Bowel Disease. J Pediatr Gastroenterol Nutr. 2020. Mar;70(3):389–403. [DOI] [PubMed] [Google Scholar]
  • 7.Chandrakasan S, Chandra S, Saldana BJD, Torgerson TR, Buchbinder D. Primary immune regulatory disorders for the pediatric hematologist and oncologist: A case-based review. Pediatr Blood Cancer. 2019;66(5):e27619. [DOI] [PubMed] [Google Scholar]
  • 8.de Jesus AA, Canna SW, Liu Y, Goldbach-Mansky R. Molecular Mechanisms in Genetically Defined Autoinflammatory Diseases: Disorders of Amplified Danger Signaling. Annu Rev Immunol. 2015;33:823–74. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 9.Szczawinska-Poplonyk A, Ploski R, Bernatowska E, Pac M. A Novel CDC42 Mutation in an 11-Year Old Child Manifesting as Syndromic Immunodeficiency, Autoinflammation, Hemophagocytic Lymphohistiocytosis, and Malignancy: A Case Report. Front Immunol. 2020;11:318. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 10.Lam MT, Coppola S, Krumbach OHF, Prencipe G, Insalaco A, Cifaldi C, et al. A novel disorder involving dyshematopoiesis, inflammation, and HLH due to aberrant CDC42 function. J Exp Med. 2019. December 2;216(12):2778–99. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 11.Bekhouche B, Tourville A, Ravichandran Y, Tacine R, Abrami L, Dussiot M, et al. A toxic palmitoylation of Cdc42 enhances NF-κB signaling and drives a severe autoinflammatory syndrome. J Allergy Clin Immunol [Internet]. 2020. April 10 [cited 2020 Jul 25];0(0). Available from: https://www.jacionline.org/article/S0091-6749(20)30426-7/abstract [DOI] [PubMed] [Google Scholar]
  • 12.•.Gernez Y, Jesus AA de, Alsaleem H, Macaubas C, Roy A, Lovell D, et al. Severe autoinflammation in 4 patients with C-terminal variants in cell division control protein 42 homolog (CDC42) successfully treated with IL-1β inhibition. J Allergy Clin Immunol. 2019. October 1;144(4):1122–1125.e6. [DOI] [PMC free article] [PubMed] [Google Scholar]; First report of CDC42 mutations linked to autoinflammatory condition.
  • 13.•.Serwas NK, Hoeger B, Ardy RC, Stulz SV, Sui Z, Memaran N, et al. Human DEF6 deficiency underlies an immunodeficiency syndrome with systemic autoimmunity and aberrant CTLA-4 homeostasis. Nat Commun. 2019. July 15;10(1):3106. [DOI] [PMC free article] [PubMed] [Google Scholar]; This report illustrates the biological link of DEF6 to CTLA4 tracking.
  • 14.Fournier B, Tusseau M, Villard M, Malcus C, Chopin E, Martin E, et al. DEF6 deficiency, a mendelian susceptibility to EBV infection, lymphoma and autoimmunity. J Allergy Clin Immunol [Internet]. 2020. June 17 [cited 2020 Jul 22]; Available from: http://www.sciencedirect.com/science/article/pii/S0091674920308332 [DOI] [PubMed]
  • 15.•.Cook SA, Comrie WA, Poli MC, Similuk M, Oler AJ, Faruqi AJ, et al. HEM1 deficiency disrupts mTORC2 and F-actin control in inherited immunodysregulatory disease. Science. 2020. Jul 10;369(6500):202–7. [DOI] [PMC free article] [PubMed] [Google Scholar]; This study provides a connection for HEM1 to both mTORC2 signaling and the WAVE complex.
  • 16.•.Salzer E, Zoghi S, Kiss MG, Kage F, Rashkova C, Stahnke S, et al. The cytoskeletal regulator HEM1 governs B cell development and prevents autoimmunity. Sci Immunol [Internet]. 2020. July 10 [cited 2020 Jul 23];5(49). Available from: https://immunology.sciencemag.org/content/5/49/eabc3979 [DOI] [PMC free article] [PubMed] [Google Scholar]; This paper provides mechanistic data for the role of HEM1 in B cell biology.
  • 17.•.Zhang Z, Gothe F, Pennamen P, James JR, McDonald D, Mata CP, et al. Human interleukin-2 receptor β mutations associated with defects in immunity and peripheral tolerance. J Exp Med. 2019. June 3;216(6):1311–27. [DOI] [PMC free article] [PubMed] [Google Scholar]; One of two papers reporting patients with IL2RB mutations.
  • 18.•.Fernandez IZ, Baxter RM, Garcia-Perez JE, Vendrame E, Ranganath T, Kong DS, et al. A novel human IL2RB mutation results in T and NK cell–driven immune dysregulation. J Exp Med. 2019. June 3;216(6):1255–67. [DOI] [PMC free article] [PubMed] [Google Scholar]; One of two papers reporting patients with IL2RB mutations.
  • 19.Cuchet-Lourenço D, Eletto D, Wu C, Plagnol V, Papapietro O, Curtis J, et al. Biallelic RIPK1 mutations in humans cause severe immunodeficiency, arthritis, and intestinal inflammation. Science. 2018. August 24;361(6404):810–3. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 20.Li Y, Führer M, Bahrami E, Socha P, Klaudel-Dreszler M, Bouzidi A, et al. Human RIPK1 deficiency causes combined immunodeficiency and inflammatory bowel diseases. Proc Natl Acad Sci U S A. 2019. 15;116(3):970–5. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 21.Uchiyama Y, Kim CA, Pastorino AC, Ceroni J, Lima PP, de Barros Dorna M, et al. Primary immunodeficiency with chronic enteropathy and developmental delay in a boy arising from a novel homozygous RIPK1 variant. J Hum Genet. 2019. September;64(9):955–60. [DOI] [PubMed] [Google Scholar]
  • 22.•.Tao P, Sun J, Wu Z, Wang S, Wang J, Li W, et al. A dominant autoinflammatory disease caused by non-cleavable variants of RIPK1. Nature. 2020. Jan;577(7788):109–14. [DOI] [PubMed] [Google Scholar]; This is one of two papers illustrating the mechanism of this specific mutation in RIPK1 causing a autoinflammatory syndrome.
  • 23.•.Lalaoui N, Boyden SE, Oda H, Wood GM, Stone DL, Chau D, et al. Mutations that prevent caspase cleavage of RIPK1 cause autoinflammatory disease. Nature. 2020. January;577(7788):103–8. [DOI] [PMC free article] [PubMed] [Google Scholar]; This is one of the two papers showing how this specific mutation in RIPK1 leads to the autoinflammatory disease using a mouse model.
  • 24.Feng Y, Li X, Cassady K, Zou Z, Zhang X. TET2 Function in Hematopoietic Malignancies, Immune Regulation, and DNA Repair. Front Oncol [Internet]. 2019. [cited 2020 Jul 26];9 Available from: https://www.frontiersin.org/articles/10.3389/fonc.2019.00210/full#h2 [DOI] [PMC free article] [PubMed]
  • 25.•.Stremenova Spegarova J, Lawless D, Mohamad SMB, Engelhardt KR, Doody GM, Shrimpton J, et al. Germline TET2 Loss-Of-Function Causes Childhood Immunodeficiency And Lymphoma. Blood. 2020. June 9; [DOI] [PubMed] [Google Scholar]; This study reports the first germline mutation in TET2 leading to a PIRD phenotype.
  • 26.•.Somekh I, Thian M, Medgyesi D, Gülez N, Magg T, Gallón Duque A, et al. CD137 deficiency causes immune dysregulation with predisposition to lymphomagenesis. Blood. 2019. October 31;134(18):1510–6. [DOI] [PMC free article] [PubMed] [Google Scholar]; One of two papers describing cases of patients with CD137/41BB mutations.
  • 27.•.Alosaimi MF, Hoenig M, Jaber F, Platt CD, Jones J, Wallace J, et al. Immunodeficiency and EBV-induced lymphoproliferation caused by 4-1BB deficiency. J Allergy Clin Immunol. 2019;144(2):574–583.e5. [DOI] [PMC free article] [PubMed] [Google Scholar]; One of two papers describing cases of patients with CD137/41BB mutations.
  • 28.Watts TH. TNF/TNFR family members in costimulation of T cell responses. Annu Rev Immunol. 2005;23:23–68. [DOI] [PubMed] [Google Scholar]
  • 29.Walter JE, Farmer JR, Foldvari Z, Torgerson TR, Cooper MA. Mechanism-Based Strategies for the Management of Autoimmunity and Immune Dysregulation in Primary Immunodeficiencies. J Allergy Clin Immunol Pract. 2016;4(6):1089–100. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Kiykim A, Ogulur I, Dursun E, Charbonnier LM, Nain E, Cekic S, et al. Abatacept as a Long-Term Targeted Therapy for LRBA Deficiency. J Allergy Clin Immunol Pract. 2019. November 1;7(8):2790–2800.e15. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 31.Schwab C, Gabrysch A, Olbrich P, Patiño V, Warnatz K, Wolff D, et al. Phenotype, penetrance, and treatment of 133 cytotoxic T-lymphocyte antigen 4-insufficient subjects. J Allergy Clin Immunol. 2018;142(6):1932–46. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 32.Forbes LR, Vogel TP, Cooper MA, Castro-Wagner J, Schussler E, Weinacht KG, et al. Jakinibs for the treatment of immune dysregulation in patients with gain-of-function signal transducer and activator of transcription 1 (STAT1) or STAT3 mutations. J Allergy Clin Immunol. 2018. November 1;142(5):1665–9. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 33.Weinacht KG, Charbonnier L-M, Alroqi F, Plant A, Qiao Q, Wu H, et al. Ruxolitinib reverses Dysregulated T Helper Cell Responses and controls Autoimmunity caused by a Novel STAT1 Gain of Function Mutation. J Allergy Clin Immunol. 2017. May;139(5):1629–1640.e2. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 34.Broglie L, Pommert L, Rao S, Thakar M, Phelan R, Margolis D, et al. Ruxolitinib for treatment of refractory hemophagocytic lymphohistiocytosis. Blood Adv. 2017. August 17;1(19):1533–6. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 35.Yong PL, Russo P, Sullivan KE. Use of Sirolimus in IPEX and IPEX-Like Children. J Clin Immunol. 2008. May 15;28(5):581. [DOI] [PubMed] [Google Scholar]
  • 36.Sirolimus is effective in relapsed/refractory autoimmune cytopenias: results of a prospective multi-institutional trial | Blood | American Society of Hematology [Internet]. [cited 2020 Jul 27]. Available from: https://ashpublications.org/blood/article/127/1/17/34867/Sirolimus-is-effective-in-relapsed-refractory
  • 37.Rao VK, Webster S, Dalm VASH, Šedivá A, van Hagen PM, Holland S, et al. Effective “activated PI3Kδ syndrome”–targeted therapy with the PI3Kδ inhibitor leniolisib. Blood. 2017. November 23;130(21):2307–16. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 38.Maccari ME, Abolhassani H, Aghamohammadi A, Aiuti A, Aleinikova O, Bangs C, et al. Disease Evolution and Response to Rapamycin in Activated Phosphoinositide 3-Kinase δ Syndrome: The European Society for Immunodeficiencies-Activated Phosphoinositide 3-Kinase δ Syndrome Registry. Front Immunol [Internet]. 2018. [cited 2020 Jul 23];9 Available from: https://www.frontiersin.org/articles/10.3389/fimmu.2018.00543/full?&utm_source=Email_to_authors_&utm_medium=Email&utm_content=T1_11.5e1_author&utm_campaign=Email_publication&field=&journalName=Front [DOI] [PMC free article] [PubMed]
  • 39.•.Bakhtiar S, Fekadu J, Seidel MG, Gambinieri E. Allogeneic Hematopoietic Stem Cell Transplantation for Congenital Immune Dysregulatory Disorders. Front Pediatr. 2019;7(Journal Article):461. [DOI] [PMC free article] [PubMed] [Google Scholar]; This study reports on transplants in specific genes associated with PIRD.
  • 40.Hematopoietic stem cell transplantation in 29 patients hemizygous for hypomorphic IKBKG/NEMO mutations [Internet]. [cited 2020 Jul 23]. Available from: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5609334/
  • 41.Slatter MA, Engelhardt KR, Burroughs LM, Arkwright PD, Nademi Z, Skoda-Smith S, et al. Hematopoietic stem cell transplantation for CTLA4 deficiency. J Allergy Clin Immunol. 2016;138(2):615–619.e1. [DOI] [PubMed] [Google Scholar]
  • 42.Tesch VK, Abolhassani H, Shadur B, Zobel J, Mareika Y, Sharapova S, et al. Long-term outcome of LRBA deficiency in 76 patients after various treatment modalities as evaluated by the immune deficiency and dysregulation activity (IDDA) score. J Allergy Clin Immunol. 2020. May 1;145(5):1452–63. [DOI] [PubMed] [Google Scholar]
