Abstract
Intranasal drug administration is a promising method for delivering drugs directly to the brain. Animal studies have described pathways and potential brain targets, but nose-to-brain delivery and treatment efficacy in humans remains debated. We describe the proposed pathways and barriers for nose-to-brain drug delivery in humans, drug properties that influence central nervous system delivery, clinically tested methods to enhance absorption, and the devices used in clinical trials. This review compiles the available evidence for nose-to-brain drug delivery in humans and summarizes the factors involved in nose-to-brain drug delivery.
Keywords: Intranasal administration, Nose-to-brain, Bioavailability, Biodistribution, Devices
INTRODUCTION
Neurological disorders are the leading cause of disability worldwide, increasing the burden on healthcare [1]. Brain drug delivery is challenging due to the Blood Brain Barrier (BBB), the complexity of the brain, and safety and toxicity concerns [2]. Nose-to-brain drug delivery has emerged as a novel, non-invasive route with advantages over systemic drug administration such as: evasion of systemic toxicity, better side effect profile, non-invasiveness, short latency, and increased Central Nervous System (CNS) bioavailability [3,4]. Nose-to-brain drug delivery bypasses the BBB through neural connections among the olfactory epithelium, olfactory bulb, trigeminal nerve, and the brain [5,6].
This review compiles the available evidence for nose-to-brain drug delivery in humans and provides a framework to determine the feasibility and limitations of this approach. We describe the proposed pathways, potential barriers, optimal drug properties, agents that may promote nose-to-brain delivery, devices targeting this pathway; review the evidence for brain bioavailability and bio distribution, and efficacy evidence from clinical trials.
METHODOLOGY
A literature search was performed through EMBASE, PubMed-NCBI Database, and Google scholar including published scientific articles in English. EMBASE search criteria: nose: ti, ab, kw and brain: ti, ab, kw and human: ti, ab, kw. Google scholar search criteria: allintitle: nose, brain, delivery. PubMed search criteria: nose-to-brain; intranasal administration; intranasal device; brain targeting; blood-brain barrier; olfactory epithelium; olfactory nerve; trigeminal nerve; physiological barriers; physicochemical properties; absorption enhancers; formulation; pharmacokinetics; bioavailability; bio distribution. Articles that did not measure direct or indirect evidence of nose-to-brain delivery were not considered for this review. 280 articles were screened, 93 excluded because they did not focus on nose-to-brain delivery and 187 papers were included. We included 93 clinical studies, 65 non-clinical studies, 24 reviews, 2 case reports, 1 case series, 1 survey, and 1 patent. Per the Centre for Evidence-Based Medicine (CEBM) Levels of evidence [7], studies were classified as Level 2 evidence if they mentioned random treatment allocation in their study design or if observational with a dramatic effect, Level 3 if they were non-randomized controlled studies, and Level 4 if they were presented as a case report or case series.
PATHWAYS FOR NOSE-TO-BRAIN DRUG DELIVERY
The nasal cavity is divided in half by the nasal septum; each half has three regions; the nasal vestibule, the respiratory region, and the olfactory region. The nasal vestibule is the entrance to the nose; it is lined with squamous epithelium and contains hair (vibrissae) and sebaceous glands [8]. The respiratory region constitutes most of the nasal surface area. It is lined with ciliated pseudostratified columnar epithelium (respiratory epithelium) and contains the nasal turbinates. The nasal turbinates are vascular structures containing sinusoids and erectile tissue they humidify and warm incoming air and allow for venous congestion. The olfactory region, is located in the roof of the nasal cavity, approximately 7-cm away from the nostrils. It is lined with pseudostratified columnar epithelium (olfactory epithelium), and contains the olfactory nerve which provides direct CNS access by bypassing the BBB Figure 1.

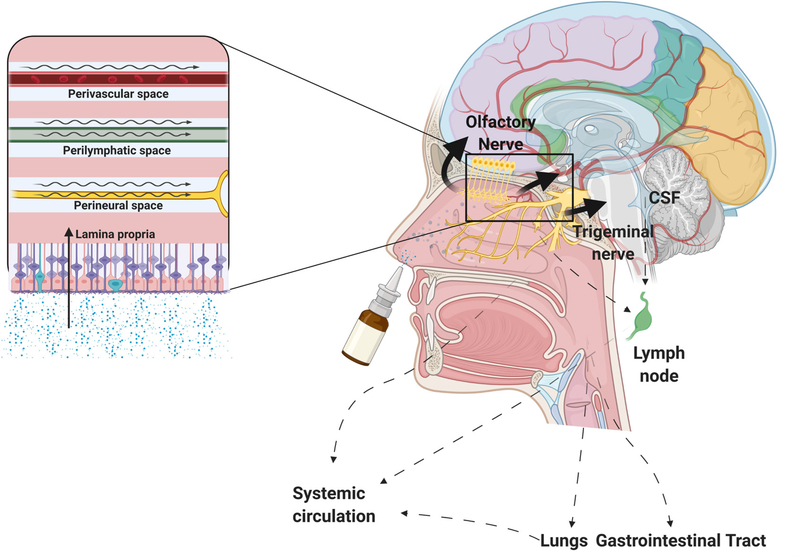

Figure 1:
Nose-to-brain delivery pathways. The target region for effective nose-to-brain drug delivery is the olfactory epithelium in the upper nasal cavity. This region contains olfactory nerve cells which bypass the BBB & provide direct access to the brain & CSF. Nose-to-brain transport is depicted by the solid lines; clearance is depicted by the dotted lines. The box shows transport through the following routes: perivascular pump, bulk flow, lymphatic drainage, & endoneural transport through the olfactory & trigeminal nerves. Minimal amounts of intranasally administered drug may enter the CNS via carotid artery branches; the main limiting barrier for this route is vascular endothelium permeability. Systemic absorption through the nasal mucosa is not significant.
Several pathways for human nose-to-brain delivery have been proposed based on pre-clinical studies. Evidence from animal studies is not readily transferable to humans due to fundamental anatomical and physiological differences. Nevertheless, clinical trials have demonstrated nose-to- brain delivery in humans; but the pathways have not been confirmed.
Once inhaled, substances enter the nasal vestibule where vibrissae, turbulence, and mucosal contact filter particles larger than 12 μm [8]. Substances pass through the nasal valve, composed of the nasal turbinates and cartilages, and arrive to the respiratory region. The nasal turbinates undergo alternating congestion and decongestion every 3–7 hours due to selective autonomic innervation [8]. Age and increased tissue elasticity can result in temporary nasal valve collapse [8]. The nasal valve has the smallest cross-sectional area of the nose and small changes in this area are likely to affect air flow. This mechanism reduces the amount of substances that reach the olfactory region. However, up to 45% of a drug can be delivered into the olfactory region with special devices [9]. The remaining drug may be absorbed in the respiratory region, which has the largest nasal surface area (around 130 cm2), and a rich vascular supply [10]. The maxillary branch of the trigeminal nerve innervates the respiratory region and enters the CNS through the pons; making it a relevant target for CNS drug transport [10,11]. A recent study in rats has shown that intranasal insulin can reach the CNS alongside the extracellular components of the trigeminal nerve [12]. These findings suggest that intranasally administered macromolecules can bypass the BBB and enter the CNS along the trigeminal nerve [13].
After overcoming the nasal valve, drugs enter the olfactory region, the only place where the brain meets the outside world. The olfactory epithelium has been proposed as the predominant site of drug absorption for nose-to-brain delivery [14].
The surface area of the human olfactory region is between 2–10 cm2. However, the olfactory nerve can potentially be accessible over a larger area [15]. Once a drug crosses the olfactory epithelium, intracellular and extracellular transport ensues along the olfactory nerve. Transport occurs through paracellular passive diffusion for lipophilic drugs and carrier-mediated transport for hydrophilic drugs; endocytosis and axonal transport play a smaller role [14].
Olfactory nerve cells penetrate the cribriform plate of the ethmoidal bone and project to the olfactory bulb in the CNS. The olfactory bulb relays sensory information to the amygdala, orbitofrontal cortex, and hippocampus. In the olfactory bulb, the drug can enter the brain through axonal transport, passive diffusion, or carrier-mediated transport depending on the drug’s characteristics. The extracellular pathway involves absorption through the paracellular space of the olfactory mucosa, into the lamina propria, and the Cerebrospinal Fluid (CSF) through perivascular and perineural transport [3]. In the lamina propria, the drug undergoes different transport mechanisms along the nerves, vessels, and lymphatics, namely intracellular and extracellular transport, perivascular pumping, and bulk flow.
Bulk flow and perivascular pumping within the lamina propria, a subepithelial layer of loose connective tissue containing nerves, blood vessels, and lymphatics, have also been shown to deliver substances into the brain parenchyma [16]. The perivascular pump mechanism depends on systolic arterial pressure waves travelling across the vessels which compress the perivascular space and help move its contents forward [10]. The nose has a rich vascular supply from ethmoidal arteries branching from the ophthalmic and internal carotid artery [8]. Drugs may travel through the perivascular spaces along these vessels into the CNS [5,11].
Pre-clinical studies comparing intranasal and arterial administration have found that intranasally- administered substances are present in cerebral perivascular spaces within 20 minutes of administration [16], have higher concentrations in the dura mater and circle of Willis [17], and have higher concentrations in deep and superficial cervical nodes of rats; suggesting potential transport through lymphatic drainage from the nasal passages and CSF [17]. Minimal amounts of intranasal drugs enter the CNS via branches of the carotid artery including the maxillary, ophthalmic, and facial arteries. The permeability of the vascular endothelium is the main limiting barrier for this route. Further, the nasal cavity has a rich autonomic innervation; transport along parasympathetic nerves to the sphenopalatine ganglion cannot be excluded.
Drugs unable to reach the olfactory region undergo enzymatic degradation and mucociliary clearance. A small amount of the remaining drug is potentially reabsorbed into the systemic circulation via the respiratory mucosa; although this might not be significant [10].
OVERCOMING ABSORPTION BARRIERS
Drug formulation is key for safe and effective nose-to-brain delivery, and may determine the absorption pathway it will follow [11,18]. The absorption pathway and molecular weight are related to bioavailability. There is an inverse relationship between molecular weight and percent drug absorption. Nose-to-brain transport depends on the physicochemical characteristics of the drug and the physiology of the human nose. Liquid formulations are well established and have been shown to be more effective for intranasal drug delivery; however they are subject to rapid mucociliary clearance and gravity [9,18].
Physiological barriers for nose-to-brain delivery include the nasal vestibule, nasal valve, epithelial tight junctions, efflux transporters, nasal metabolism, mucociliary clearance, surface area of the olfactory region, presence of drug-specific target receptors/transporters, and the BBB [19–21].
Permeation enhancers and epithelial tight junctions
The tight junctions of the olfactory and respiratory epithelium and their protective mucus lining act as selective filters that decrease permeability and diffusion [21]. During passive diffusion, drug lipophilicity is paramount; whereas during active transport, a prolonged nasal residence time is crucial [19]. Absorption through the olfactory epithelium is reduced for drugs with molecular weight over 1000 Da due to low permeability and poor absorption through the endothelial basement membrane [9,22]. Permeation enhancers have been tested to improve the absorption of drugs with large molecular weight. Proposed mechanisms include: increased membrane fluidity and tight junction permeability, hydrophilic pore generation, and reduction of viscosity and enzymatic activity [19].
Penetratin, a cell-penetrating peptide, enhanced insulin delivery into the rat brain [23]. Commonly used permeation enhancers include: cyclodextrins, surfactants, saponins, fusidic acids, phospholipids, bile salts, laureth-9-sulfate, and fatty acids [19]. Bioadhesive materials such as carbopol and starch microspheres have also been shown to increase tight junction permeability [24]. Further, mucoadhesive agents such as chitosan have been shown to enhance permeation by opening tight junctions in addition to improving adhesion and prolonging residence time in the nasal mucosa [19].
Mucoadhesive agents and mucociliary clearance
Mucociliary clearance transports drugs from the respiratory epithelium to the nasopharynx, increasing the risk of entering the gastrointestinal tract. The olfactory cilia are immotile; mucus overproduction results in migration of the mucus layer towards the respiratory region and clearance by respiratory cilia. This mechanism protects against drug inhalation, reduces nasal residence time, and decreases absorption in the respiratory region [18]. Mucociliary transit time in healthy subjects ranges from 2.5 to 25 minutes [19]. Administering compounds with semisolid formulations and mucoadhesive agents may decrease the mucociliary clearance rate and potentially overcome this barrier. Semisolid gels with increased viscosity enhance nasal residence time and brain uptake by up to two-fold [18,25].
Mucoadhesives such as carbopol and starch microspheres enhance absorption by opening intercellular tight junctions and increasing the nasal residence time [3]. Trymethyl chitosan complexes successfully enhanced the nose-to-brain delivery of insulin [26] and buspirone [27] in rats. Tamarind seed polysaccharide has also been shown to enhance selective particle deposition and retention in the olfactory mucosa under simulated conditions using a nasal cast model [28]. Mucoadhesive agents also increase bioavailability for nose-to-systemic drug delivery [29].
P-glycoprotein efflux transport and nano carriers
P-glycoproteins are glycosylated membrane proteins that act as multidrug resistance pumps across the nasal mucosa and BBB. Intranasally administered drugs are subject to active P-glycoprotein efflux transport [19,30]. Nano carriers are a promising strategy to bypass this barrier [31]. They achieve high efficacy and increased absorption rates by encapsulating and protecting the drug from biological and chemical breakdown [31,32]. Nanostructured lipid carriers have a wide range of uses, have less toxicity, and allow for controlled or sustained release of the drug [32]. The advantages of nanocarriers include: minimum toxicity, biodegradability, physical stability, and compatibility with small molecules, peptides, and nucleic acids [33].
Nasal metabolism and enzyme inhibitors
Although the nose provides a low metabolic environment, drug metabolism in the nasal cavity is considered a major barrier for nasally-delivered proteins and peptides. Cytochrome-P450 enzymes, exopeptidases, and endopeptidases in the respiratory and olfactory mucosa lead to local enzymatic degradation and potentially limit drug absorption [19,21,34]. Peptidase inhibitors reduce nasal metabolism and prolong residence time, aiding absorption and improving bioavailability [24]. Commonly used enzyme inhibitors includes: bestatin, amastatin, boroleucine, fusidic acids, and phospholipids [19].
DEVICES FOR NOSE-TO-BRAIN DELIVERY
The nasal vestibule and nasal valve are the first barriers to reach the olfactory region. Drugs delivered with conventional nasal delivery systems deposit here and do not reach the olfactory epithelium [9,35]. Once deposited in the nasal vestibule and turbinates, drugs may be absorbed into the systemic circulation, swallowed, or inhaled. This is undesirable as drug inhalation does not come without risk. The Exubera® trial highlighted the risks of inhaling insulin; the trial was stopped due to hypoglycemia and respiratory adverse events [36].
Studies using human nasal cast models and mathematical algorithms have tried to determine the ideal conditions for olfactory region deposition and nose-to-brain absorption in humans. Results have shown that ideal particle size for olfactory deposition is between 1 nm and 10 μm [37] with a flow rate between 5–20 L/min [38]. Based on these results, new devices have been designed to improve drug deposition into the olfactory epithelium; some of which have been tested in clinical trials. The decisive role that specialized delivery devices play on nose-to-brain delivery was recently highlighted by a recent study in which unreliable device performance required investigators to switch devices mid-study. (Table 1) describes intranasal delivery devices used in clinical trials that have shown promising results in terms of safety and efficacy across different outcome measures. Technical specifications of these devices and findings of included clinical trials are described below.
Table 1:
Specialized delivery devices used in randomized clinical trials Table 1 describes clinical trials that used specialized intranasal delivery devices for nose-to- brain transport. Clinical evidence is further described in Tables 2 & 3.
| Author (Year) | Drug (dose) | N participants | |
|---|---|---|---|
| ViaNase™ (Kurve Technology, Inc. Lynwood, WA, USA) creates a vortex of nebulized particles targeting the olfactory region, maximizes IN distribution, & minimizes pharyngeal deposition. | |||
| Craft et al. (2012) [82] | INI (20 IU & 40 IU) | 104 | |
| Novak et al. (2014) [43] | INI (40 IU) | 29 | |
| Zhang et al. (2015) [41] | INI (40 IU) | 28 | |
| Akintola et al. (2017) [42] | INI (40 IU) | 19 | |
| Craft et.al. (2017) [44] | INI (40 IU) | 36 | |
| Craft et al. (2020) [46] | INI (40 IU) | 49 | |
| Total | 265 | ||
| Precision olfactory delivery® (Impel Neuropharma, Seattle, WA, USA) uses a gas propellant to deliver liquids & powders to the olfactory epithelium. | |||
| Craft et al. (2020) [46] | INI (40 IU) | 240 | |
| Total | 240 | ||
| AeroPump (Aero Pump, Hochheim, Germany) spring mechanism with integrated backflow block to deliver drugs & prevent contamination. | |||
| Schmidt et al. (2009) [141] | INI (0.5–1.5 IU/kg/day) | 6 | |
| Jauch-Chara et al. (2012) [54] | INI (40 IU) | 15 | |
| Schilling et al. (2014) [56] | INI (40 IU) | 48 | |
| Brunner et al. (2016) [57] | INI (40 IU) | 11 | |
| Scherer et al. (2017) [55] | INI (160 IU) | 20 | |
| Rodriguez-Raecke (2018) [142] | INI (40 IU) | 30 | |
| Total | 130 | ||
| Metered Nasal Dispenser (Pharmasystem, Markham ON, Canada) delivers 25–200 μl (median: 100 μl)/spray; well-suited for daily administration over extended durations. | |||
| Dash et.al.(2015)[59] | INI (40 IU) | 8 | |
| Xiao et.al.(2017)[58] | INI (40 IU) | 9 | |
| Total | 17 | ||
| Mistette MK Pump II, GL18 (MeadWestvaco Calmar, Hemer, Germany) spring mechanism produces a fine mist to deliver drugs into the olfactory region. | |||
| Stockhorst et.al.(2011)[143] | INI (120 IU) | 32 | |
| Total | 32 | ||
| SP270+ (Nemera, La Verpillière, France) an actuator produces droplets (median size: 40 μm) & an elliptical plume to deliver compounds to the olfactory region. | |||
| Wingrove et.al.(2019)[61] | INI (160 IU) | 16 | |
| Total | 16 | ||
| OptiMist™ activated by blowing into a mouthpiece to close the soft palate & isolate the nasal cavity while providing positive pressure; minimizing the risk of lung deposition & optimizing delivery into the olfactory epithelium. | |||
| Luthringer et.al.(2009)[144] | Sumatriptan (10, 20 mg) | 12 | |
| Djupesland et.al.(2010)[65] | Sumatriptan (10, 20 mg) | 117 | |
| Total | 129 | ||
ABBREVIATIONS: IN: Intranasal; INI: Intransal Insulin; IU: International Units
ViaNase™
ViaNase™ (Kurve Technology, Inc. Lynnwood, WA, and USA) electronic atomizers create a vortex of nebulized particles to maximize distribution to the upper nasal cavity and minimize pharyngeal deposition. The device allows for precise electronic dosing, targeted delivery into the olfactory epithelium, and maximizes nose-to-brain transport [39,40]. Intranasal Insulin (INI) delivered using ViaNase™ devices has been shown to modify functional connectivity within memory networks [41], improve cortical blood flow [42], enhance vasoreactivity, cognition [43], and improve functionality [4,44], without altering fasting plasma glucose and insulin [45]. This device was used in a subset of 49 participants in the Study of Nasal Insulin to Fight Forgetfulness (SNIFF) trial (NCT01767909), who experienced a modest improvement of verbal recall [46].
However, the investigators switched devices mid-trial, due to frequent malfunction of the trial-specific design modifications. The ViaNase™ device was also used in the Memory Advancement ™ by Intranasal Insulin in Type 2 Diabetes (MemAID) trial (NCT02415556), which evaluated the long term effects of INI on cognition, memory, and gait in older people with type 2 diabetes (results not available) [47].
The ViaNase™ is currently being tested in clinical trials with patients with psychiatric disorders (NCT04071600, not yet recruiting; NCT03943537, ongoing), post-stroke (NCT02810392, completed), and cognitive impairment related to multiple sclerosis (NCT02988401, ongoing).
Precision olfactory delivery®
The Precision Olfactory Delivery® (Impel Neuropharma, Seattle, WA, USA) device features a semi-disposable unit-dose format, vowing consistent dose delivery, and higher CNS bioavailability when compared to systemic administration. This device uses an inert liquid (hydrofluoroalkane) that forms a gas propellant to deliver liquids and powders to the olfactory epithelium [48]. This device has been shown to deliver up to 45% of the administered dose to the upper nasal cavity [49]. Studies using this device have demonstrated a higher deposition of radiolabeled drug compounds in the olfactory region of rats and a higher drug concentration visible in human brain regions [50,51]. The device was used in 240 participants of the SNIFF trial [46], but did not show improvement of memory in patients with mild Alzheimer’s disease. The Precision Olfactory Delivery® device was used in recently completed clinical trials (results not available) in patients with migraines (NCT03557333), Parkinsons Disease (PD) (NCT03541356), investigating memory in healthy participants (NCT02758691), and safety of intranasal olanzapine (NCT03624322).
Aero Pump system
The Aero Pump system for nasal application (Aero Pump, Hochheim, Germany) has been used for INI administration. This device uses a mechanical spring with an integrated backflow block to deliver drugs and prevent contamination. Systematic reviews [52,53] have assessed the effects of INI and melanocyte-stimulating hormone/adrenocorticotropin4–10 (MSH/ACTH4–10), a melanocortin receptor agonist, on memory, cognition, and weight regulation using this device. INI has shown promising effects on memory and MSH/ACTH4–10 on weight loss in non-overweight subjects. Several double-blind Randomized Controlled Trials (RCT) have administered INI using this device to assess its effect on weight by modifying cerebral energy metabolism [54], branched-chain amino acid levels [55], and regional blood flow to the insular cortex [56]. These studies support the hypothesis that brain insulin has a role in coordinating energy intake, metabolism, and cerebral blood flow in regions that control eating behavior. However, INI did not show improvement of memory performance in one trial [57]. Another trial investigated the effect of INI on tissue-specific insulin sensitivity (NCT02933645) (results not available).
Metered nasal dispenser
The metered nasal dispenser (Pharmasystem, Markham ON, Canada) is a finger actuated device that can deliver 25–200 μl (median: 100 μl) per spray. It can be used in any position and is suitable for daily drug administration over an extended period. When delivered with this device, drugs with a narrow therapeutic window demonstrate lower efficacy [39]. Recent studies using this dispenser found that INI reduced endogenous hepatic glucose production [58,59], suggesting peripheral effects rather than central effects. Ongoing clinical trials are investigating the effect of INI on blood glucose, plasma and CSF insulin concentrations (NCT02729064), post-operative delirium (NCT03415061), and post-operative cognitive function (NCT03324867).
Mistette MK Pump II, GL18
The Mistette MK Pump II, GL18 (MeadWestvaco Calmar, Hemer, Germany) uses a mechanical spring to produce a fine mist. One RCT used this device to administer INI to the brain and assessed the effect on pancreatic glucose and the results suggested brain-pancreas crosstalk [60].
SP270+
The SP270+ (Nemera, la Verpilliére, France) has an actuator that produces droplets with a median size of 40 μm and an elliptical plume. The SP270+ was recently used in a double-blind, randomized, crossover, fMRI study investigating the effect of INI on cerebral blood flow; which demonstrated changes in blood flow after INI delivery against placebo [61]. A pre-clinical study compared this device and the VP3 device and concluded that both produced similar sized droplets (mean volume diameter 40.8 ± 8.9 μm and 42.4 ± 2.8 μm, respectively). However, the SP270+ was negatively affected by viscosity variations.
OptiMist™
The Optimist™ (OptiNose AS, Oslo, Norway) device is activated by blowing into a mouthpiece to close the soft palate and isolate the nasal cavity while providing positive pressure. This mechanism minimizes the risk of lung deposition during nasal administration [62] and optimizes delivery into the olfactory epithelium [63]. This device has been primarily tested for local nasal drug delivery (nasal polyposis, sinusitis) and to a lesser extent migraine (NCT01507610), headache (NCT01667679), and autism spectrum disorder treatments (NCT02414503).
Optimist™ has been reported to deliver up to 18% of the dosage to the upper nasal cavity [49]. A comparative study using a human nasal cavity replica found this device performed significantly better than a regular aerosol mask in delivering particles to the olfactory region [37]. A double-blind RCT using Optimist™ to deliver midazolam and sumatriptan nasal formulations in adults showed no serious adverse events and suggested drugs could be delivered directly into the brain through routes that bypass the BBB [64,65].
Unit Dose system
Unit Dose system (Aptar Pharma, Crystal Lake, IL, USA) was designed to address the nose-to-brain pathway. This device uses a piston with a ball-valve at the tip to deliver drugs. It features one-handed actuation and is suitable for liquid and powdered drug delivery [39]. Merkus et al. used this device to administer peptide drugs to neurosurgical patients with a CSF drain and failed to demonstrate nose-to-brain drug delivery [66]. Unit Dose System was used in a RCT, which evaluated the safety and efficacy of three doses of a third-generation calcitonin gene-related peptide receptor antagonist known as BHV-3500 (vazegepant) for acute treatmentof moderate to severe migraine (NCT03872453) [67]. Preliminary results showed a reduction of migraine symptoms when compared to placebo.
Sipnose
The Sipnose device (SipNose LTD, Yokneam, Israel) uses a pressurized delivery system with compressed air, resulting in an aerosol with a narrow plume geometry which targets the olfactory epithelium. Its mechanism allows better localization of aerosolized drug in the olfactory epithelium and the trigeminal nerve. This device can be used with liquids, dry powders, and molecules of small and large sizes [68]. The Sipnose device is currently being used in clinical trials looking at preoperative anxiety and sedation in infants (NCT03635398, not yet recruiting) and safety of INI in type 1 diabetes patients (NCT04028960).
NOVEL DEVICES NOT YET USED IN CLINICAL TRIALS
Naltos™
The Naltos™ (Nanomerics, London, UK) is a single-use, disposable device that uses an inert gas to propel powder through the nares [69]. Developers intend to use this device for delivering medications for postoperative and neuropathic pain, among others [70]. Testing is still at the pre-clinical stage.
VP3
The VP3 device (Aptar Pharma, Le Vaudreuil, France) has high dose accuracy and is suitable for administering suspensions and viscous formulations. This device coupled with the Aptar 144GI actuator generated a minimal amount of droplets that could be potentially deposited in the lower airways (3% of droplets <10 μm) [71]. It was compared to the SP270+device and results showed they produced similar-sized droplets and the VP3 was better at handling viscous solutions than the SP270+; Results warranted testing at the pre-clinical level.
Aeroneb® Pro
The Aeroneb® Pro (Aerogen 112 Inc. Galway, Ireland) is a reusable nebulizer that produces a fine particle, low-velocity aerosol used to deliver drugs systemically. This device has been tested in human nose models, which showed it has the technical capabilities to be used as a nose-to-brain delivery platform [38].
Versidoser® and VRX2™
The Versidoser® (Mystic Pharmaceuticals, Austin, TX, USA) is designed to deliver liquids using nozzle dispensing technology. According to its manufacturer, it allows for precise, efficient, and safe dosing of liquids across a wide range of volumes and fluid properties [72]. The VRX2™ uses the same technology and mechanism to dispense powders and reconstituted combination liquids. Developers recently obtained a patent for dose dispensing containers which have been specifically designed to target nose-to-brain delivery and will be incorporated into the Versidoser® and VRX2™ to extend their capabilities [73].
BRAIN BIOAVAILABILITY AND BIODISTRIBUTION AFTER NOSE-TO BRAIN DELIVERY
Research concerning bioavailability and biodistribution following intranasal drug delivery has relied on preclinical animal studies [74–76], use of human nasal replica casts, mathematical modeling, imaging, and in a much smaller scale, human CNS/CSF sampling.
Brain bioavailability, biodistribution, and the efficacy of nose-to-brain delivery are determined by dynamic and concurrent biological factors and processes. Pre-clinical studies have provided evidence of drug activity in the brain following intranasal administration [12,16,17,76–78]. To date, the most extensive, descriptive, and quantitative pre-clinical study of in vivo brain targeting efficiency via the nasal route analyzed 73 publications and 82 compounds. This study showed intranasal administration is more efficient than systemic administration [75], confirming the feasibility of in vivo nose-to-brain drug delivery in animals. An extensive review of pharmacokinetic preclinical studies comparing the Area Under the Curve (AUC) of brain tissue and CSF showed higher brain bioavailability for a broad range of drugs [75]. One study measuring concentrations in rat CSF after intranasal administration resulted in a relative bioavailability (AUC intranasal/AUC intra-arterial) of 43% for procaine and 100% for tetracaine, bupivacaine, and lidocaine [74]. Intranasal administration of remoxipride in rats showed a total bioavailability of 89%, out of which 75% was attributed to nose-to-brain transport [76]. Nevertheless, qualitative and quantitative differences between animal and human nasal surface area, olfactory region, capillaries, airflow rate, cerebral blood flow, CSF turnover, brain tissue binding, and intracerebral distribution, may be a limitation for successful translation of preclinical evidence [15,79,80].
Brain imaging can be used as an alternative to brain sampling to determine nose-to-brain delivery and its effectiveness in clinical and preclinical trials [81]. MRI, Positron Emission Tomography (PET), Single-Photon Emission Computed Tomography (SPECT), and gamma scintigraphy have been used in clinical studies. Several trials using different drugs and devices have demonstrated human nose-to-brain delivery through changes in brain metabolism [44,82], selective insulin impairment [83], changes in brain blood flow [61], antineoplastic effects [84], neuromodulation [85], and brain bioavailability and biodistribution [86,87]. The use of in vivo imaging techniques can ease the translation of intranasal drug delivery from animals to humans [81]. PET/MRI is hypothesized to be the most sensitive method to quantify in vivo nose-to-brain delivery, as it provides high tissue contrast and good spatial resolution [81].
Evidence of nose-to-brain delivery in humans has also been obtained from comparing concentrations of melanocortin, vasopressin, and insulin in CSF and systemic circulation after intranasal administration in healthy volunteers [88]. Post INI administration, CSF insulin levels increased within 10 minutes, peaked between 30 and 45 minutes, and remained elevated at 80 minutes [88]. This timeline was later replicated by other clinical and animal studies [16,17,45]. Human nose-to-brain transport has been questioned by some studies [89]. A cohort (n=8) of neurosurgical patients with CSF drains received intranasal and intravenous melatonin and hydroxycobalamin; CSF and plasma comparisons failed to demonstrate nose-to-brain drug transport. These findings were attributed to the use of non-peptide drugs (which are better absorbed by the systemic circulation), and low doses of the administered intranasal drug (100 μL per nostril) [66]. Further, studies have shown that nose-to-brain delivery is particularly sensitive to methodological variation, which could also explain these findings [57].
CURRENT CLINICAL EVIDENCE
Tables 2 and 3 summarize clinical trials that looked at direct and indirect evidence of nose-to-brain delivery.
Table 2:
Clinical trials evaluating nose-to-brain delivery of intranasal insulin.
| Author (Year) | Design | N (Male) | Characteristics | Dose | Outcome measures | Conclusion | Evidence level* |
|---|---|---|---|---|---|---|---|
| Kern et al. (1999) [145] | Double-blind, placebo-controlled, crossover | 18 (M) | Male, healthy, 18–34 yo, BMI 23.8 ± 1.2, non-smoking, no history of DM | 20 IU | AERP, BP, serum insulin, blood glucose | INI reduced amplitudes of N1 & P3 components of AERP & increased P3 latency. No changes in serum insulin or glucose. | 2 |
| Born et al. (2002) [88] | Open label | 36 (27 M) | Healthy, 25–41 yo | 40 IU | CSF, blood glucose | Increased CSF concentration within 10 minutes of INI administration, peaked at 30 minutes, remained elevated at 80 minutes. No change in plasma glucose. | 2 |
| Benedict et al. (2004) [146] | Double-blind, placebo-controlled, parallel | 38 (24 M) | Healthy, 18–34 yo, normal weight | 160 IU | Blood glucose, insulin, declarative memory, attention, mood | Blood glucose & plasma insulin did not differ compared to placebo. Delayed word-recall improved after 8 weeks. Subjects on INI reported enhanced mood & self-confidence. No systemic side effects. | 2 |
| Hallschmid et al. (2004) [147] | Double-blind, placebo-controlled, crossover | 40 (24 M) | Healthy, 23–27 yo, normal weight, non-smoking | 160 IU | Anthropometry, BIA, WC, eating behavior, hunger, HR variability, epinephrine & norepinephrine levels, plasma ACTH, BP, serum electrolytes, total cholesterol, HDL, LDL, TG | Men on INI lost 1.28 kg body weight, 1.38 kg body fat, WC decreased by 27%. Women on INI did not lose body fat, gained 1.04 kg extracellular water. | 2 |
| Benedict et al. (2005) [148] | Double-blind, placebo-controlled, crossover | 32 (16 M) | Healthy, 24–25 yo, BMI<25, non-smoking | 160 IU | BP, HR, muscular sympathetic nervous activity | After immediate INI, systolic, diastolic, & mean BP increased; muscular sympathetic nervous system activation & HR unaffected. | 2 |
| Reger et al. (2006) [149] | Randomized, placebo-controlled, counter-balanced | 61 (28 M) | 35 healthy; 25 probable AD/aMCI; 68–83 yo | 20 IU 40 IU |
Blood glucose, insulin, verbal declarative & visual working memory, selective attention, ApoE genotype | No INI effect on plasma insulin or glucose. INI improved story recall, had no effects on attention or working memory. Cognitive responses to acute INI may vary according to APOE genotype. | 2 |
| Benedict et al. (2007) [53] | Double-blind, placebo-controlled, crossover | 36 (M) | Male, 18–35 yo, BMI<25 | 160 IU | Plasma glucose, serum insulin, immediate & delayed word recall | Plasma glucose & serum insulin were not affected by acute or sub-chronic INI. Memory performance improved significantly after 8 weeks. Healthy controls did not benefit from acute INI. Insulin aspart has greater potential to improve memory in humans. | 2 |
| Benedict et al. (2008) [150] | Placebo-controlled, crossover | 32 (14 M) | Healthy, 21–23 yo, normal weight | 160 IU | Hippocampus-dependent object location, mirror-tracing, & working memory task, food intake, serum insulin, C-peptide, cortisol, adiponectin, leptin | Hippocampus-dependent memory & working memory improved in women; independent mirror-tracing task was not affected. INI decreased food intake in men, not women. Men did not benefit from INI. Plasma glucose & C-peptide decreased after INI; circulating insulin, cortisol, leptin, & adiponectin not affected. | 117 |
| Böhringer et al. (2008) [151] | Double-blind, placebo-controlled, parallel | 26 (M) | Male, 20–31 yo, BMI 21–23 | 40 IU | Baseline plasma & salivary cortisol, HR, BP, & post social stress test | INI effectively lowers stress-induced HPA axis responsiveness. | 2C |
| Hallschmid et al. (2008) [52] | Randomized, placebo-controlled | 30 (M) | Male, 31–35 yo, obesity, non-smoking | 160 IU | Anthropometry, BIA, WC, HR variability, leptin, insulin, ACTH, cortisol, epinephrine, norepinephrine, declarative & non-declarative memory, mood, selective attention, hunger, thirst, tiredness | INI did not induce body composition or
body weight changes. SBP elevated only after initial 40 IU dose, DBP
& all other parameters unchanged. Plasma ACTH decreased during INI
treatment, INI decreased serum cortisol. Leptin, blood glucose, plasma
insulin, epinephrine, & norepinephrine unaffected. Acute INI
decreased introversion & anxiousness. Word delayed-recall enhanced after 8 weeks INI. |
2 |
| Reger et al. (2008) [45] | Randomized, counter-balanced | 92 (NA) | 59 cognitively normal, 33 probable AD/aMCI, 70–78 yo | 10 IU 20 IU 40 IU 60 IU |
Declarative memory, selective attention, visual working memory, psychomotor processing speed ApoE4, blood glucose, insulin, amyloid-β | INI did not affect peripheral glucose or insulin, facilitated verbal memory in memory-impaired adults who were not ApoE4 carriers. 10, 20, & 40 IU improved declarative memory in memory-impaired ApoE4 carriers. INI modulated plasma amyloid-β, acute clinical benefits of treatment greatest with 20 IU. | 2 |
| Reger et al. (2008) [96] | Randomized, double-blind, placebo-controlled | 25 (NA) | Adults, AD/aMCI, 77–80 yo | 40 IU | Story recall, selective attention, response inhibition, fasting glucose, insulin, β-amyloid, cortisol-binding globulin | INI was well tolerated, reduced postprandial insulin levels, improved cognition, & modulated plasma β-amyloid levels. | 2 |
| Schmidt et al. (2009) [141] | Randomized, double-blind, placebo-controlled | 6 (2 M) | Children, 22q13 deletion syndrome, 9mo-6 yo | 0.5–1.5 IU/kg/day | Anthropometry, blood glucose, cortisol, insulin antibodies, neurodevelopmental exam, EEG | 1 week: decreased restlessness, improved
attention span. 6 months: improved control & coordination of fine & gross motor function, improved everyday life behavior control. 12 months: Improved strength, motor function, speech understanding, use of communication devices, hand function, autonomy, & prolonged attention span. |
2 |
| Guthoff et al. (2010) [95] | Randomized, blinded, placebo-controlled, crossover | 9 (5 M) | 24.6 ± 1.3 yo, BMI 21.4 ± 0.7, HbAlc 5.2 ± 0.1% | 160 IU | 3T-fMRI during visual recognition task, plasma glucose, insulin, C-peptide, cortisol | Fasting plasma insulin & glucose did not differ between INI-placebo. Reduced cortical activity during food picture categorization after INI; effect restricted to food pictures; placebo had no effect. INI downregulates brain activation by food pictures. | 2 |
| Krug et al. (2010) [152] | Double-blind, balanced, crossover | 14 (0 M) | Female, healthy, 51–62 yo, BMI 23.7±0.6, postmenopausal | 160 IU | Working memory, visuospatial memory, food intake | INI did not affect food intake; enhanced performance in prefrontal cortex-dependent working memory. | 3 |
| Stingl et al. (2010) [153] | Randomized, single-blind, placebo-controlled, crossover | 20 (6 M) | 24–28 yo, 10 BMI 21 ± 0.4 10 overweight/obesity BMI 29 ± 3 | 160 IU | MEG recordings, functional connectivity analysis, plasma glucose, insulin, & C-peptide | Systemic metabolic parameters did not show significant change after INI. INI modifies global brain network during resting state. | 2 |
| Benedict et al. (2011) [154] | Double-blind, placebo-controlled, balanced, crossover | 19 (M) | Male, healthy, 18–26 yo, normal weight | 160 IU | Energy expenditure, blood glucose, insulin, C-peptide, FFA | INI increased postprandial energy expenditure & decreased postprandial circulating insulin & C-peptide; postprandial plasma glucose did not differ from placebo. INI induced a transient decrease in prandial serum FFA. | 3 |
| Fan et al. (2011) [155] | Double-blind, placebo-controlled | 30 (10 M) | 18–65 yo, schizophrenia, stable antipsychotic dose | 40 IU | Serum insulin, plasma glucose, immediate & delayed recall, sustained attention | Decrease in serum insulin after INI, no plasma glucose changes; single dose INI had no significant effect on cognition & is safe in this population. | 2 |
| Guthoff et al. (2011) [156] | Randomized, single blind, placebo-controlled, crossover | 20 (6 M) | 24–28 yo, 10 BMI 20.9±0.4 10 BMI 28.8±0.6 | 160 IU | HbA1c, fasting plasma glucose, insulin, C-peptide, one-back visual memory task | INI had no effects on blood glucose, insulin, or C- peptide. INI increased components of evoked fields related to identification & categorization of pictures in lean subjects. INI did not modulate food-related brain activity in obese subjects. | 2 |
| Stein et al. (2011) [157] | Randomized, open-label, placebo-controlled | 32 (15 M) | Community dwelling, ≥60 yo, MMSE 12–24 | 240 IU | ADAS-Cog, WMS-RLM, MMSE, DAD, GDS, plasma calcium, albumin, uric acid, creatinine | No significant difference between INI & placebo for any endpoint. | 2 |
| Stockhorst et al. (2011) [60] | Randomized, double-blind, placebo-controlled | 32 (M) | Male, 24.2±0.5 yo, BMI 22.4±0.3 | 20 IU | Blood glucose, insulin, epinephrine | Blood glucose stayed within euglycemic range during INI. Peripheral insulin increased after INI & placebo. Epinephrine decreased after INI compared to placebo. | 2 |
| Craft et al. (2012) [4] | Randomized, double-blind, placebo-controlled | 104 (59 M) | Older adults, 64 aMCI, 40 probable AD | 20 IU 40 IU |
PET, lumbar puncture, ADAS-Cog, ADAS-ADL scale | INI stabilized/improved cognition, function, & cerebral glucose metabolism for adults with aMCI or AD. | 2 |
| Grichisch et al. (2012) [158] | Randomized, open-label, controlled | 8 (3 M) | Healthy, 18–34 yo, BMI 20–25 | 160 IU | Cerebral blood flow, MRI- BOLD response in visual cortex, ASL | No direct INI effects on baseline & stimulus-induced CBF. No change in task-induced BOLD post-INI in visual cortex. No evidence of direct INI effect on CBF. | 2 |
| Hallschmid et al. (2012) [159] | Randomized, placebo-controlled, balanced, crossover | 13 (0 M) | Female, healthy, 22–24 yo, BMI 21–22, non-smoking | 160 IU | Habitual eating behavior, tendency towards disinhibition | INI reduced appetite & snack intake during the postprandial state but not during fasting. Plasma glucose decreased post-INI but remained within euglycemic range. Postprandial INI enhances the satiating effect of meals & reduces palatable snack intake | 2 |
| Heni et al. (2012) [160] | Randomized, crossover | 103 (35 M) | Healthy, 19–37 yo, BMI 22.6±2.9, no psychiatric, neurologic, metabolic illness | 160 IU | Plasma glucose, insulin, C- peptide, fMRI (n12), HOMA-IR | After INI, plasma insulin increased & glucose decreased, increased activity in hypothalamus, putamen, right insula, & OFC. Peripheral insulin sensitivity decreased immediately after INI, & increased 1 hour post-INI. | 2 |
| Jauch-Chara et al. (2012) [54] | Randomized, double-blind, placebo-controlled, crossover | 15 (M) | Male, healthy, 23–25 yo, BMI 22.2±0.4 | 40 IU | Brain ATP, PCr, blood glucose & insulin, caloric consumption | Increase in brain ATP 10 minutes
post-INI. INI raised PCr content. Plasma glucose was comparable
throughout the entire study. C-peptide & insulin were similar at
baseline & did not change during the study. INI reduced total caloric consumption by 11.7%. |
2 |
| McIntyre et al. (2012) [161] | Randomized, double-blind, placebo-controlled | 62 (33 M) | 28–51 yo, bipolar disorder 1/2, euthymic | 40 IU | Hippocampus-dependent memory recollection tasks, premorbid IQ | INI improved one executive function measure, was well tolerated, no hypoglycemias or safety concerns | 2 |
| Brunner et al. (2013) [162] | Double-blind, placebo-controlled, balanced, crossover | 17 (10 M) | Healthy, 24.6±0.7 yo, BMI 22±0.4, normosmic | 40 IU | Glucose, insulin, cortisol pre & post-INI/placebo. Olfactory threshold testing | Serum insulin & cortisol were not altered after INI. Statistically significant drop in plasma glucose within euglycemic range. Olfactory discrimination skills unaffected in response to INI. | |
| Claxton et al. (2013) [163] | Randomized, double-blind, placebo-controlled | 104 (59 M) | Older adults, 64 aMCI, 40 probable ADC | 20 IU 40 IU |
PET, lumbar puncture, ADAS-Cog, ADAS-ADL scale | 20 IU improved story recall over time compared to placebo. 40 IU improved memory in men, not in women. When comparing INI to placebo, only females benefit from INI. ApoE4 did not predict treatment response for cognitive or functional outcomes. ApoE4- negative males benefited from 40 IU, ApoE4-negative females declined over time on 40 IU. | 2 |
| Fan et al. (2013) [164] | Randomized, double-blind, placebo-controlled | 45 (36 M) | Adults, 18–65 yo, schizophrenia/schizoaffective disorder, stable antipsychotic dose | 20 IU 40 IU 160 IU |
PANS & SANS performance | No significant differences in psychopathology, cognitive outcomes, or adverse effects between groups. | 2 |
| Li et al. (2013) [165] | Randomized, double-blind, placebo-controlled | 39 (32 M) | Adults, 18–65 yo, schizophrenia/schizoaffective disorder, stable antipsychotic dose | 160 IU | Body weight, BMI, WC, DXA, fat mass, lean mass, total mass | INI did not affect body weight, BMI, WC, waist-hip ratio, resting energy expenditure, BMC, fat mass, fat %, lean mass, or total mass. No significant differences in fasting glucose, insulin, HOMA-IR, HbA1c, CRP, total cholesterol, LDL, HDL, TG, & LDL. No beneficial effect INI on major metabolic outcomes. | 2 |
| Kullmann et al. (2013) [166] | Randomized, placebo-controlled, crossover | 17 (0 M) | Female, healthy, 24.4 ± 2.2 yo, BMI 21.1 ± 1.6 | 160 IU | resting state fMRI, fALFF | INI induced fALFF decrease in hypothalamus & OFC, fasting plasma glucose & insulin did not differ between INI-placebo. Intrinsic brain activity is modulated by INI 30 & 90 minutes after application. BMI-associated activity in response to INI in the PFC & ACC. INI modulated central elements of the reward system in the OFC. | 2 |
| Ferreira de Sa et al. (2014) [167] | Randomized, placebo-controlled, balanced | 54 (M) | Male, healthy, 19–36 yo | 40 IU | Salivary cortisol, EMG blink response, subjective motivation to eat, hunger, stress | Startle responsiveness was not affected by INI. | 2 |
| Heni et al. (2014) [168] | Randomized, single-blind, placebo-controlled, crossover | 15 (M) | Male, 10: 26 ± 1.3 yo, BMI 21.8
± 0.7 5: 28 ± 1.7 yo, BMI 33.2 ± 3.7 |
160 IU | fMRI, hyperinsulinemic-euglycemic insulin clamp, blood glucose, insulin, C- peptide, EKG, HR variability | INI improves insulin sensitivity in lean men. C-peptide & glucose levels did not differ between INI-placebo. Change in high-frequency HR variability after INI. Change in hypothalamic CBF after INI correlated with change in insulin sensitivity. INI does not cause peripheral insulin resistance & enhances whole-body insulin sensitivity. | 2 |
| Iwen et al. (2014) [169] | Placebo-controlled, balanced, crossover | 14 (M) | Male, healthy, 24.7 ± 1.1 yo; BMI 24.4 ± 0.6 | 160 IU | FFA, TG, blood glucose, glucoregulatory hormones, BIA, abdominal subcutaneous tissue | INI lowered FFA concentration, TG
concentrations unchanged. No treatment effects on blood glucose,
insulin, C-peptide, glucagon, ACTH, cortisol, or
leptin. Epinephrine, norepinephrine, & TSH unchanged. INI effect was conveyed through CNS pathways. |
3 |
| Ketterer et al. (2014) [170] | Randomized, single-blind, crossover | 43 (23 M) | 40 ± 13 yo, BMI 30.3 ± 9.7 | 160 IU | MEG, functional connectivity, plasma glucose, insulin, & C-peptide, food-related visual working memory | High brain insulin sensitivity facilitates weight loss during lifestyle interventions. Brain insulin sensitivity determines the effectiveness of lifestyle interventions in terms of weight loss. | 2 |
| Novak et al. (2014) [43] | Randomized, double-blind, placebo-controlled, crossover | 29 (12 M) | 15 healthy, 14 T2DM for >5 years, 50–70 yo | 40 IU | Regional perfusion, vasoreactivity, brief visuospatial memory test, verbal fluency | INI does not affect systemic glucose levels, improves visuospatial memory & vasoreactivity in anterior brain regions. | 2 |
| Schilling et al. (2014) [56] | Randomized, double-blind, two-by-two, parallel | 48 (M) | Male, healthy, 20–27 yo, right-handed | 40 IU | Salivary cortisol, mood & hunger ratings, MRI | Increase in regional CBF in insular cortex post-INI. | 2 |
| Brunner et al. (2015) [171] | Double-blind, counter-balanced, crossover | 18 (M) | Male, healthy, 24.2 ± 0.8 yo BMI: 22.6 ± 0.4, normosmic | 40 IU | Odor-place memory, odor-recognition, pleasantness ratings, blood glucose, insulin, epinephrine, cortisol, leptin, & acetylcholine levels | INI eases odor-cued delayed recall of spatial memories. INI did not exert relevant systemic effects on glucose & insulin levels. INI may have a global impact on CNS networks relevant for odor-cued recall of spatial memory. | 3 |
| Dash et al. (2015) [59] | Randomized, single blind, crossover | 8 (M) | Male, healthy, 49.1 ± 2 yo, BMI 23.9 ± 0.8 | 40 IU | Plasma glucose, insulin, FFA, TG | Transient decrease in glucose & transient increase in insulin post-INI. INI suppresses endogenous glucose production compared to placebo. | 2 |
| Gancheva et al. (2015) [172] | Randomized. placebo-controlled, single-blind, crossover | 20 (16 M) | 10:healthy, 24–27 yo, BMI 22–24; 10: insulin-naïve T2DM on oral glucose lowering agents, 58–62 yo, BMI 28–30 | 160 IU | MRS, plasma TG, FFA, cholesterol, glucose, insulin, C-peptide, HbA1c, AST, ALT, HOMA-IR, QUICKI | INI did not affect glucose production; increased hepatic ATP, decreased hepatic TG in healthy group, not in T2DM. Transient insulin increase after INI, transient glucose decline in glucose & FFA | 2 |
| Kullmann et al. (2015) [83] | Randomized, placebo-controlled, crossover | 48 (27 M) | Adults, 25 lean,10 overweight, 13 obesity, BMI 19–46, no psychiatric, neurologic or metabolic diseases | 160 IU | MRI, CBF | After INI, hypothalamic CBF decreased in lean, overweight, & obese participants. INI reduced CBF in prefrontal cortex of lean participants only, which correlated with peripheral insulin sensitivity, disinhibition, & food craving. Magnitude of response correlated with visceral adipose tissue. INI reduced sweet food craving in lean men only. | 2 |
| Schopf et al. (2015) [173] | Open label, crossover | 10 (7 M) | 22–56 yo, BMI 21.5–36.3, post-infectious olfactory loss | 40 IU | Olfactory detection test | Improved olfactory sensitivity after INI; improved odor identification in subjects with higher BMI. | 3 |
| Zhang et al. (2015) [41] | Randomized, double-blind, placebo-controlled | 28 (11 M) | 14 T2DM, 14 Control, 50–70 yo | 40 IU | Resting state fMRI, neuropsychological assessment | Single INI dose increases resting-state functional connectivity between hippocampal regions & default mode network in older adults with T2DM. Increased resting-state connectivity between hippocampal regions & medial frontal cortex after INI compared to placebo. | 2 |
| Brunner et al. (2016) [57] | Double-blind, placebo-controlled, counter-balanced | 11 (M) | Male, healthy, 24.9 ± 1.3 yo, BMI 23.7 ± 0.2, right- handed, non-smoking | 40 IU | fMRI, memory performance (encoding maze with visual & olfactory clues) | INI has no effect on declarative memory; INI application is sensitive to methodological variations. | 3 |
| Feld et al. (2016) [174] | Double-blind, placebo-controlled, balanced, crossover | 32 (16 M) | Healthy, 18–30 yo, BMI ≥ 26, non-smoking | 160 IU | Declarative memory, blood glucose, GH, insulin, EEG, vigilance, sleepiness, mood, hunger, thirst | INI increased GH concentrations in the first night. | 3 |
| Zwanenburg et al. (2016) [175] | Randomized, double-blind, placebo-controlled, stepped- wedge | 25 (6 M) | Children, 1–16 yo, starting weight 25.3 ± 13.8 kg, confirmed 22.q13.3 deletion including SHANK3 gene | 20–40 IU/day (age-dependent) | Cognitive, language, motor development, adaptive, social, & emotional behavior | INI did not cause serious AE, increased developmental functioning level by 0.4–1.4 months per 6-month period, & had a significant effect for cognitive & social skills for children > 3 years. | 2 |
| Akintola et al. (2017) [42] | Randomized, double-blind, placebo-controlled, crossover | 19 (M) | Male, 11: 60–69 yo, 8: 20–26 yo | 40 IU | CBF & perfusion, venous glucose & insulin | INI improved tissue perfusion of occipital cortex & thalamus in older adults only. INI did not change mean blood flow through cerebropetal arteries. | 2 |
| Cha et al. (2017) [176] | Randomized, double-blind, placebo-controlled, crossover | 35 (13 M) | 18–65 yo, major depressive disorder (DSM-IV) | 160 IU | MADRS Positive & Negative Affect Schedule | INI did not improve overall mood, emotional processing, neurocognitive function, or self-reported quality of life. | 2 |
| Craft et al. (2017) [44] | Randomized, double-blind, placebo-controlled | 36 (17 M) | 22 aMCI, 14 probable AD, 60–80 yo, (MMSE<15) | 40 IU | Delayed list & story recall composite score, global cognition, daily functioning, MRI volume changes, CSF AD markers | Group on regular INI had better memory after 2 & 4 months compared to placebo. No effects observed in INI-Detemir group. | 2 |
| Heni et al. (2017) [177] | Randomized, placebo-controlled | 21 (M) | Male, healthy, 23–29 yo, 10 lean, BMI 23.3 ± 1.8; 10 overweight, BMI 28.3 ± 4.6 | 160 IU | Endogenous blood glucose production rate, CBF, fMRI | Brain insulin may improve peripheral insulin sensitivity. INI administration to the brain did not alter peripheral metabolism in overweight participants. | 2 |
| Kullmann et al. (2017) [178] | Randomized, single-blind, placebo-controlled, crossover | 47 (26 M) | Adults, 25 lean, 10 overweight, 12 obesity, 22–29 yo, BMI 19–40 | 160 IU | fMRI, functional connectivity, total body adipose tissue, visceral adipose tissue, peripheral insulin sensitivity index | INI increases functional connectivity between prefrontal regions of default mode network, hippocampus, & hypothalamus. Change in hippocampal functional connectivity significantly correlated with visceral adipose tissue & change in subjective hunger feelings after INI. | 2 |
| Kullmann et al. (2017) [179] | Open label, crossover | 48 (27 M) | Healthy, 21–40 yo, BMI 19.2–46.5 | 160 IU | MRI CBF, 75 gr OGTT, plasma glucose, insulin, & C- peptide, insulin sensitivity indexes | Hypothalamic insulin resistance might contribute to pancreatic insulin hypersecretion. | 3 |
| Rodriguez-Raecke et al. (2017) [180] | Pseudo-randomized, placebo-controlled | 24 (M) | Male, healthy, 25 ± 4.7 yo, BMI range 19.6–26.8 | 40 IU | Insulin, glucose, leptin, HOMA-IR, Beck depression inventory, MOCA, Brief Symptom Inventory | INI improved taste sensitivity for sweet & salty tastes. | 3 |
| Santiago & Hallschmid (2017) [181] | Double-blind, placebo-controlled, balanced, crossover | 51 (26 M) | 32 healthy, 23.7 ± 0.4 yo, 19 70.8 ± 0.8 yo, BMI 22.8 ± 0.3 | 160 IU | Memory test battery, blood glucose, EEG, HR | INI before sleep reduced carbohydrate intake by 9%, did not alter hunger, thirst, or fatigue before breakfast. INI did not alter sleep latency or whole-night sleep architecture. | 3 |
| Scherer et al. (2017) [55] | Randomized, double-blind, placebo-controlled | 20 (M) | Male, healthy, 26–40 yo, BMI 23.9–25.9 | 160 IU | Hepatic TG content & circulating BCAA | INI did not alter body weight, BMI, or hepatic lipid contents; but reduced circulating BCAA levels. | 2 |
| Xiao et al. (2017) [58] | Randomized, single-blind, placebo-controlled, crossover | 9 (M) | Male, healthy, 45–51 yo, BMI 25.4–26.6, normolipidemic, normoglycemic | 40 IU | Plasma TG, TG rich lipoprotein, plasma FFA | INI does not modulate hepatic & intestinal lipoprotein particle production. | 2 |
| Thienel et al. (2017) [182] | Double-blind, placebo-controlled, crossover | 44 (24 M) | 14 healthy 67–74 yo, BMI 24.8 ± 0.6; 30 healthy 19–30 yo, BMI 22.9 ± 0.3 | 160 IU | Serum cortisol, C-peptide, insulin, glucose, plasma ACTH, appetite, thirst, sleepiness, well-being, subjective sleep quality | Compared to placebo, INI decreased cortisol in elderly subjects during the first half of the night. Insulin was not affected by INI in the elderly. Insulin rose shortly after INI in young subjects. C-peptide decreased after INI in both groups. INI did not alter sleep latency, whole night sleep architecture or total sleep time. | 3 |
| van Opstal et al. (2017) [183] | Randomized, double-blind, placebo-controlled, crossover | 8 (M) | Male, healthy, 22.3 ± 1.8 yo, BMI 23.6 ± 2.2 | 40 IU | Hypothalamic activation, BOLD | INI did not change circulating glucose or insulin, it further decreased post-glucose hypothalamic BOLD response. In healthy volunteers, higher plasma glucose lead to reduced hypothalamic BOLD responses. In patients with T2DM, there was no post-glucose decrease in BOLD response. | 2 |
| Hamidovic et al. (2018) [184] | Randomized, placebo-controlled, parallel | 50 (37 M) | 18–65 yo, BMI 18.5–30, smoking, normal vital signs, blood glucose | 60 IU | Learning, episodic memory, immediate & delayed recall | INI did not improve learning, short or long-term recall. | 2 |
| Kullmann et al. (2018) [94] | Randomized, placebo-controlled, crossover | 9 (M) | Male, healthy, 23–30 yo, BMI 20–26 | 40 IU 80 IU 160 IU |
fMRI, HR variability, plasma insulin, C-peptide, glucose, subjective hunger | INI dose-dependently modulates regional brain activity, strongest effects after 160 IU. 160 IU transiently increases circulating insulin concentrations. | 2 |
| Ritze et al. (2018) [185] | Randomized, placebo-controlled, crossover | 36 (M) | Male, healthy, 18–40 yo, BMI 23.5 ± 0.3 | 160 IU | Body weight, body composition, glucose, insulin, ACTH, cortisol, GH, IGF-1, adiponectin, leptin, declarative & procedural memory | INI did not induce changes in body weight or body composition, delayed word recall improved after INI evening administration, serum cortisol concentrations reduced after 2 weeks INI. | 2 |
| Rodriguez-Raecke et al. (2018) [142] | Double-blind, placebo-controlled, crossover | 30 (16 M) | Healthy, 22–26 yo, BMI<25, non-smoking, normosmic | 40 IU | Olfactory sensitivities for n- butanol & peanut, blood glucose, insulin, leptin, cortisol | After INI, female olfactory sensitivity for n-butanol was lower. Effects of cortical insulin levels are likely gender-modulated. | 3 |
| Wingrove et al. (2019) [61] | Double-blind, placebo-controlled, crossover | 16 (M) | Males, healthy, 20–28 yo, BMI 25–31 | 160 IU | CBF, ASL, blood glucose, insulin, C-peptide | Significant decrease in regional CBF in areas with high insulin-receptor density after INI compared to placebo. No changes in blood glucose, insulin, or C-peptide. | 2 |
| Craft et al. (2020) [46] | Randomized, double-blind, placebo-controlled | 289 (155 M) | 289 (155 M)55–85 yo, mild cognitive impairment/AD, (MMSE>20) | 40 IU | Mean score change on ADAS-COG | No cognitive or functional benefits were observed with INI over a 12-month period. | 2 |
Evidence level determined in accordance with CEBM levels of evidence. Studies were classified as Level 2 evidence if they mentioned random treatment allocation in their study design or if observational with a dramatic effect; Level 3 if they were non-randomized controlled studies & Level 4 if they were presented as case reports or case-series. Table 2 summarizes clinical trials using INI & the available evidences for nose-to-brain delivery.
ACC: Anterior Cingulate Cortex; ACTH: Adrenocorticotropic Hormone; AD: Alzheimer Disease; ADAS-ADL: Alzheimer’s Disease Assessment Scale-Activities of Daily Living; ADAS-Cog: Alzheimer’s Disease Assessment Scale-Cognitive; AE: Adverse Effects; AERP: Auditory Evoked Related Potentials; ALT: Alanine Aminotransferase; aMCI: Amnestic Mild Cognitive Impairment; ApoE: Apolipoprotein E; ASL: Arterial Spin Labeling; AST: Aspartate Aminotransferase; ATP: Adenosine Triphosphate; BCAA: Branched-Chain Amino Acid, BIA: Body Impedance Analysis; BMC: Bone Mineral Content; BMI: Body Mass Index; BOLD: Blood Oxygenation Level Dependent; BSI: Body Sensitivity Index; BP: Blood Pressure; CBF: Cerebral Blood Flow; CRP: C-Reactive Protein; CSF: Cerebrospinal Fluid; DAD: Disability Assessment in Dementia Questionnaire; DBP: Diastolic blood pressure; DM: Diabetes Mellitus; DSM-IV: Diagnostic & Statistical Manual of Mental Disorders 4th edition; DXA: Dual- energy X-Ray Absorptiometry; EEG: Electroencephalogram; EMG: Electromyography; FALFF: Fractional Amplitude of Low Frequency Fluctuations; FFA: Free Fatty Acids; fMRI: functional Magnetic Resonance Imaging; GH: Growth Hormone; HbA1c: Hemoglobin A1c; HOMA-IR: Homeostatic Model Assessment Insulin Resistance; HPA: Hypothalamic-Pituitary-Adrenal; IGF-1: Insulin-like Growth Factor 1; INI: Intranasal Insulin; IU: International Units; GDS: Geriatric Depression Scale; HDL: High Density Lipoprotein; HR: Heart Rate; LDL: Low Density Lipoprotein; MADRS: Montgomery Asberg Depression Rating Scale; MEG: Magnetoencephalography; MMSE: Mini Mental Status Examination; MRS: Magnetic Resonance Spectroscopy; MOCA: Montreal Cognitive Assessment; PANS: Positive & Negative Syndrome Scale; OGTT: Oral Glucose Tolerance Test; OFC: Orbitofrontal Cortex; PCr: Phosphocreatine; PET: Positron Emission Tomography; PFC: Prefrontal Cortex; SANS: Scale for Assessment of Negative Symptoms; SBP: Systolic blood pressure; QUICKI: Quantitative Insulin Sensitivity Check Index; T2DM: Type 2 Diabetes Mellitus; TG: triglycerides; WC: Waist Circumference; WMS-RLM: Wechsler Memory Scale Revised Logical Memory; Yo: Years old
Table 3:
Clinical trials evaluating nose-to-brain delivery of substances other than insulin.
| Substance | Author (Year) | Design | N (Male) | Characteristics | Dose | Outcome measures | Conclusion | Evidence level* |
|---|---|---|---|---|---|---|---|---|
| CCK | Pietrowsky et al. (1996) [102] | Double-blind, placebo-controlled, crossover | 20 (10 M) | Healthy, 21–27 yo, mean weight 69.5 kg, non- smoking, no hearing deficiency | 10 μg | AERP while performing an attention task; plasma ACTH & cortisol | P3 complex significantly increased only after IN-CCK. IN-CCK increased ACTH when compared to placebo, cortisol did not differ. Plasma CCK was comparable after IN & IV administration. | 3 |
| CCK | Pietrowsky et al. (2001) [103] | Double-blind, placebo-controlled, crossover | 32 (16 M) | Healthy, 22–38 yo, mean BMI 21.9 | 10 μg | AERP while performing an attention task; plasma ACTH & cortisol AERP, plasma CCK | After IN-CCK, post-stimulus AERP latency interval increased in women compared to placebo. | 2 |
| CCK | Denecke et al. (2002) [101] | Double-blind, crossover | 20 (10 M) | Healthy, 21–38 yo, non- smoking | 10 μg 20 μg |
AERP, BP, HR, salivary cortisol | Both doses of IN-CCK increased LPC magnitude compared to placebo. No change in BP, HR, or salivary cortisol. | 3 |
| CCK | Smolnik et al. (2002) [100] | Double-blind, placebo-controlled | 26 (14 M) | 13 PD, 63–71 yo, without dementia, continuous L-dopa therapy for 6 months; 13 age-matched controls | 25 μg | AERP, UPDRS-III, fine motor skills | IN-CCK delayed peak latency of N2 & P3 AERP components in PD & reduced them in controls. IN-CCK reduced peak latency. No difference in fine motor skills after IN-CCK. | 3 |
| CCK | Denecke et al. (2004) [104] | Double-blind, placebo-controlled, crossover | 16 (0 M) | Females, healthy, 20–28 yo, non-smoking, non-pregnant | 10 μg | AERP, BP, HR, salivary cortisol, plasma CCK, alertness task | P3 amplitude largest following IN-CCK. BP, HR, salivary cortisol, & plasma CCK did not differ. Alertness not affected by IN-CCK. | 3 |
| CCK | Schneider et al. (2005) [98] | Randomized, double-blind, placebo-controlled, between-subject | 64 (32 M) | Healthy, 18–39 yo, non- smoking | 40 μg | Conscious & unconscious memory performance | IN-CCK decreases controlled memory recollection component | 2 |
| CCK | Schneider et al. (2009) [99] | Randomized, double-blind, factorial | 64 (32 M) | Healthy, 20–39 yo | 40 μg | Conscious & unconscious memory performance, self-perceived activation levels | CCK increased familiarity-based recognition memory. | 2 |
| EPO | Santos-Morales et al. (2017) [110] | Randomized, open-label, parallel | 25 (11 M) | Healthy, 18–40 yo | 1 mg 0.5 mg |
Baseline health change, CBC, coagulation parameters, glycemia, creatinine, urea, liver enzymes | IN-EPO is safe, well tolerated, did not stimulate erythropoiesis. | 2 |
| EPO | Pedroso et al. (2018) [186] | Randomized, placebo-controlled | 26 (15 M) | 45–67 yo, PD, Hoehn & Yahr stage 1–2 | 1 mg | Global cognitive & executive function, visual memory | IN-EPO improves cognitive function in PD. | 2 |
| Melanocortin | Fehm et al. (2001) [111] | Randomized, placebo-controlled, crossover | 36 (18 M) | Healthy,19–35 yo, BMI 21.9 ± 0.3, non-smoking | 0.5 mg MSH/ACTH4-10 & 0.84 mg deacetyl-α-MSH | BIA, plasma leptin, insulin, ACTH, cortisol, TSH, T3, T4, BP, serum electrolytes, creatinine, CRP, liver enzymes | 6-week treatment decreased body fat & weight. Body fat reduction associated with a decrease in plasma leptin & insulin. Cardiovascular parameters, cortisol, thyroid & laboratory measures unchanged. | 2 |
| Melanocortin | Born et al. (2002) [88] | Open label | 36 (27 M) | Healthy, 25–41 yo | 10 mg | CSF | Increased CSF melanocortin within 10 minutes of IN administration, peaked at 30 minutes, & remained elevated at 80 minutes. No change in plasma MSH/ACTH concentration. | 2 |
| Melanocortin | Wellhöner et al. (2012) [114] | Randomized, double-blind, crossover | 10 (M) | Male, healthy, 25–30 yo, BMI 20–25, stable weight for 3 months | 10 mg | Interstitial glycerol, local blood flow, BP, HR, FFA, superficial peroneal nerve activity | IN-MSH-ACTH increases white adipose tissue lipolysis & muscle sympathetic nerve activity. | 2 |
| Glutathione | Mischley et al (2013) [118] | Survey | 70 (19 M) | 20–78 yo, on IN glutathione | NA | Individual tolerability perception, adverse events, health benefits | Well-tolerated, 78% reported positive overall experience; 45% symptom improvement, 28% improved sense of well-being, 27% decreased sinus infection incidence. | N A |
| Glutathione | Mischley et al. (2015) [117] | Randomized, double-blind, placebo-controlled | 30 (15 M) | >21 yo, PD diagnosed in last decade | 600 mg | UPDRS, CBC, liver enzymes, BUN, creatinine | IN glutathione is safe & well tolerated. Mild improvement in UPDRS. | 2 |
| Glutathione | Mischley et al. (2016) [116] | Open label | 15 (11 M) | Adults, 54–76 yo, PD, Hoehn & Yahr stage 2–3 | 200 mg | MRS | IN-GSH raises brain GSH levels. | 4 |
| Glutathione | Mischley et al. (2017) [119] | Randomized, double-blind, placebo-controlled | 45 (23 M) | Adults, 49–71 yo, PD diagnosed in last decade | 100 mg 200 mg |
UPDRS, GSH tolerability, MR spectroscopy | 200 mg group improved UPDRS. IN-GSH was not superior to placebo. | 2 |
| Perillyl alcohol | DaFonseca et al. (2006) [123] | Case report | 1 (0 M) | Female, 62 yo, anaplastic oligodendroglioma, Karnofsky index ≥70% | 220 mg | Tolerability, tumor size | No toxicity evidence after 5 months therapy, decreased tumor size. | 4 |
| Perillyl alcohol | DaFonseca et al. (2008) [126] | Open label | 37 (NA) | 35–69 yo, relapsing malignant glioma, Karnofsky index ≥70%, measurable contrast enhancing tumor on MRI | 220 mg | Disease progression, progression-free survival, tolerability | Improved tumor response rates after treatment; overall treatment was well tolerated. | 3 |
| Perillyl alcohol | DaFonseca et al. (2011) [125] | Open label, controlled | 89 (50 M) | >18 yo, recurrent GBM, measurable contrast- enhancing tumor on MRI, Karnofsky index ≥70%, no laboratory abnormalities, CHF evidence or unstable angina. | 440 mg | Overall survival, tumor recurrence, clinical progression | IN-POH increased survival in patients with primary & secondary GBM localized to deep brain regions. | 3 |
| Perillyl alcohol | DaFonseca et al. (2013) [124] | Retrospective cohort | 185 (NA) | 154 GBM, 26 grade 3 astrocytoma, 5 anaplastic oligodendroglioma | 266.8 mg 533.6 mg |
Long-term response, toxicity | 19% remain in remission after 4 years, IN-POH is safe & efficient for recurrent malignant glioma | 2 |
| Perillyl alcohol | Faria (2020) [187] | Retrospective cohort | 100 (62 M) | 18–78 yo; recurrent GBM, measurable contrast enhancing tumor on MRI, failed conventional therapy | NA | Presence of MTHFR rs1801133 variant | IN-POH prolonged survival of patients with recurrent GBM. IN-POH decreases deleterious effects of global DNA hypomethylation due to mutated MTHFR variant. | 3 |
| Angiotensin II | Derad et al. (1998) [127] | Blinded, balanced, placebo-controlled, crossover | 10 (M) | Male, healthy, 22.8–28.8 yo, 68.6–84.6 kg, non- smoking | 100 μg 400 μg |
Plasma AGII, vasopressin, catecholamines, BP, activation feelings, mood | Low-dose IV & IN-ANGII did not affect plasma AGII, vasopressin, norepinephrine, BP, mood, or activation feelings. Plasma vasopressin & norepinephrine increased significantly after high dose IN-ANGII, mirroring intraventricular ANGII administration. | 2 |
| Angiotensin II | Derad et al. (2014) [130] | Double-blind, placebo-controlled, balanced, crossover | 16 (8 M) | Healthy, 21–27 yo, normotensive, non-smoking | 400 μg | Plasma ANGII, aldosterone, renin, vasopressin, norepinephrine, continuous BP & HR recordings | Plasma ANGII increased after administration & remained elevated for 95 minutes. Systolic BP significantly decreased after IN-AGII compared to placebo. Other measured hormones did not change significantly. | 2 |
| Neurotrophic factors | De Bellis et al. (2018) [139] | Case series | 4 (0 M) | Female, 58–64 yo, with FTD & CBS | 10 μl | Cognition, rigidity, speech, PET | Long-term IN-NGF improved motor & cognitive abilities. Significant increase in FDG uptake after 3 months of IN-NGF. | 4 |
| Neurotrophic factors | Chiaretti et al. (2017) [140] | Case report | 1 (M) | Male, 4 yo, post-TBI, unresponsive wakefulness syndrome | 0.1 mg/kg | Sensorimotor score, SPECT/CT, EEG, VEP, CSF | Improved communication strategy, attention, verbal comprehension, facial mimicry, head rotation, oral motility, bowel function & cough reflex after IN-NGF. Increased FDG uptake in cortical, subcortical regions, & CSF after treatment. | 4 |
| Sumatriptan | Luthringer et al. (2009) [144] | Randomized, open-label | 12 (1 M) | Healthy, 21–43 yo, BMI 18– 24, migraine without aura | 10 mg 20 mg |
EEG, sumatriptan plasma concentration, subjective migraine assessment | IN sumatriptan induced a similar EEG profile than SC sumatriptan. | 2 |
| Sumatriptan | Djupesland et al. (2010) [65] | Randomized, double-blind, placebo-controlled, parallel | 117 (17 M) | 18–65 yo, moderate-severe migraine, within 4 hours of onset | 10 mg 20 mg |
Headache severity score, functional disability, migraine-associated symptoms, EKG, CBC | More subjects on sumatriptan had symptom resolution at 60 & 120 minutes compared to placebo. | 2 |
Evidence level determined in accordance with CEBM levels of evidence. Studies were classified as Level 2 evidence if they mentioned random treatment allocation in their study design or if observational with a dramatic effect; Level 3 if they were non-randomized controlled studies & Level 4 if they were presented as case reports or case-series.
ACTH: Adrenocorticotropic Hormone; AERP: Auditory Event Related Potential; AGII: Angiotensin II; BIA: Body Impedance Analysis; BMI: Body Mass Index; BP: Blood pressure; BUN: Blood Urea Nitrogen; CBC: Complete Blood Count; CBS: Cortico-Basal Syndrome; CCK: Cholecystokinin; CHF: Congestive Heart Failure; CRP: C- Reactive Protein; CSF: Cerebrospinal Fluid; DHE: Dihydroergotamine Mesylate; EEG: Electroencephalography; ERP: Event Related Potential; EPO: Erythropoietin; FDG: Fluorodeoxyglucose; FTD: Fronto-Temporal Dementia; GBM: Glioblastoma Multiforme; HR: Heart Rate; IN: Intranasal; IV: Intravenous; LPC: Late Positive Complex; mg: milligram; MRS: Magnetic Resonance Spectroscopy; MSH: Melanocyte Stimulating Hormone; NGF: Nerve Growth Factor; PD: Parkinson Disease; PDP: Process Dissociation Procedure; TBI: Traumatic Brain Injury; TSH: Thyroid Stimulating Hormone; SC: Subcutaneous; SPECT-CT: Single Photon Emission Computed Tomography; UPDRS-III: Unified Parkinson Disease Rating Scale; VEP: Visual Evoked Potentials; Yo: Years old; μg: micrograms
Tables 2 and 3 summarize clinical trials that looked at direct and indirect evidence of nose-to-brain delivery.
Insulin
INI is the most widely tested drug in RCTs for nose-to-brain delivery due to its potential for improving memory, cognition, and appetite control (Table 2). Even though insulin has a high molecular weight (5808 Da), studies have shown peptide molecules can be absorbed through specialized pathways involving receptor-mediated transcytosis and passive diffusion [88,90–92]. Moreover, the presence of insulin receptors in the olfactory bulb, hippocampus, hypothalamus, and lower brainstem, makes it an ideal candidate for nose-to-brain delivery [93].
RCTs have demonstrated successful nose-to-brain insulin delivery through the use of fMRI [42,57,94,95], cerebral blood flow measurements [42,56,83], CSF measurements [88], functional disability scales [64,65], and cognitive tests in healthy, diabetic, and Alzheimer’s disease populations [43,44,52,96]. Studies have also demonstrated INI increases cerebral metabolism [54], affects brain-pancreas crosstalk [60], lowers endogenous glucose production [59], and has no effects on triglyceride secretion and lipid content [55,58].
Most RCTs using INI have administered doses of 40 and 160 International Units (IU) and have achieved short term efficacy without any major adverse events [4,21,41–43,54,56,58,97]. One study comparing intranasal administration of 10 IU, 20 IU, 40 IU, and 60 IU of insulin, demonstrated improved verbal memory in their study population with a performance peak at 20 IU [45].
Administering 20 IU twice daily may affect efficiency by increasing exposure duration (as opposed to one 40 IU dose) while maintaining the same dose [45].
Cholecystokinin (CCK)
CCK has been administered intranasally to test cognitive, behavioral, motor, and physiological outcomes in healthy, young adults [98–100]. Pre-clinical studies have shown varied results regarding successful nose-to brain delivery of CCK.
Nose-to-brain CCK delivery in humans has been demonstrated by studies observing increases in event-related potentials in the brain following intranasal CCK [101–103]. One study described a maximum recording 120 minutes following administration and another noted no dose-response relationship of CCK after administering 10 and 20 micrograms [102,104]. Repetitive intranasal administration favors bypassing a saturable dose-response curve and enhances effectivity [104]. A study involving PD patients observed delayed brain potential signals following intranasal CCK, possibly explained by the effect of the neuropeptide on transmitter systems (e.g. GABAergic) rather than the dopamine system [100].
Erythropoietin (EPO)
EPO has been tested in the setting of preventing amyloid toxicity in Alzheimer ‘s disease and as a neuroprotective factor in stroke [105–109]. A phase I human study showed EPO to be safe, well tolerated, and did not stimulate erythropoiesis in healthy volunteers [110]. Further clinical studies in humans are required to establish efficacy in treating CNS diseases.
Melanocortin
Melanocortin has been used to promote lipid metabolism and decrease body fat in animals and humans [111–113]. A direct effect of melanocortin in human CNS has been suggested. An experiment conducted observing changes in melanocortin CSF levels following intranasal administration found higher levels 80 minutes after administration compared to placebo [88]. An increase in CSF concentration with higher doses of intranasal melanocortin [88] was also observed. A clinical trial saw increased abdominal lipolysis in adipose tissue 45 minutes after melanocortin receptor agonist administration against placebo [114]. Reductions in body fat, weight, plasma leptin, and insulin levels were demonstrated following intranasal melanocortin administration in humans [111].
Glutathione
Glutathione deficiency in the brain has been reported in several disease states including Parkinson Disease (PD) [115]. One study administered intranasal glutathione in patients with PD and followed levels in the CSF using Magnetic Resonance Spectroscopy (MRS) and found significantly higher levels compared to baseline for most time points [116]. A phase I study did not find differences among safety measures comparing intranasal glutathione to placebo in PD patients [117] (NCT01398748). Further, a survey of intranasal glutathione administration in PD patients showed most respondents found the therapy effective and without significant adverse events [118]. A Phase IIb study in PD patients showed improvement in Unified PD Rating Scale and motor subscore over three months of medium-dose intranasal glutathione treatment compared to baseline [119]. However, they found neither the low or medium-dose treatment group to be superior to placebo [119]. Further studies are warranted to understand the role of intranasal glutathione therapy in patients in a deficient state.
Perillyl alcohol
Perillyl alcohol is a potent antitumor agent used for the treatment of recurrent gliomas [120]. Phase I studies have administered the medication orally have not shown promising results [121,122]. Intranasal administration of perillyl alcohol in humans was first described in a case report of a patient with anaplastic oligodendroglioma intranasal treatment resulted in tumor shrinkage [123]. Multiple trials have been successful at treating multiple gliomas, anaplastic oligodendrogliomas, astrocytomas, and recurrent glioblastomas with intranasal perillyl alcohol [124–126]. The ineffectiveness of perillyl alcohol as an oral agent and its subsequent effectiveness when administered intranasally suggests the drug can enter the BBB via previously mentioned pathways including the olfactory and trigeminal nerve.
Angiotensin II
Angiotensin II has been administered intranasally to test cardiovascular control [127]. Pre- clinical studies showed similar changes in blood pressure and norepinephrine levels after comparing intranasal and intra-cerebroventricular administration of angiotensin II, suggesting successful nose-to-brain delivery [128,129]. Nose-to-brain delivery of angiotensin II was clinically tested by administration following blockade of peripheral receptors [130]. Interestingly, results showed increased levels of plasma angiotensin II, unaffected plasma levels of vasopressin and norepinephrine, and an acute reduction in blood pressure [130]. These outcomes demonstrate opposite findings when compared to no peripheral blockade of receptors, indicating a need for further research to understand the role central angiotensin II plays in blood pressure regulation.
Neurotrophic factors
Successful nose-to-brain delivery of neurotrophic factors has been demonstrated in animal models [17,131–138]. Human trials with neurotrophic factors are lacking and evidence is limited to case studies. One pilot study administered intranasal nerve growth factor over 12–18 months to two females with frontotemporal dementia and showed a slower decline measured by clinical and neurological outcomes [139]. Another case study administered intranasal nerve growth factor for 10 days in a four-year-old boy in a persistent unresponsive wakefulness syndrome following a traumatic brain injury [140]. Following administration, CSF nerve growth factor levels were increased [140]. Clinically, there were improvements in voluntary movements, facial mimicry, phonation, attention, verbal comprehension, ability to cry, cough reflex, oral motility, feeding capacity, bowel and urinary function [140]. More clinical studies are warranted to investigate the feasibility of intranasal delivery of neurotrophic factors.
CONCLUSION
Safe and effective nose-to-brain delivery has been shown by direct and indirect measurements in pre-clinical and clinical studies. Three main pathways for nose-to-brain delivery have been proposed and supported by variable evidence: olfactory nerve, trigeminal nerve, and perivascular transport. Physicochemical drug properties, physiological barriers, delivery devices, and even head positioning may influence the efficacy of drug delivery into the brain. The advent of new nose-to- brain delivery technologies, including devices and drug formulations, and the improvement of the currently available ones may improve overall nose-to-brain delivery. These technologies will help broaden and exploit the therapeutic potential of this pathway and may shift the current paradigm of neurodegenerative diseases. Insulin is the most widely studied drug for nose-to-brain delivery and, there is significant level 2 and level 3 evidence suggesting insulin and other substances can be delivered directly into the brain through the aforementioned pathways. Limitations of studies evaluating other substances are mainly due to lack of randomization, blinding, or case studies. Future clinical studies are needed to determine optimal strategies based on drug dose, formulation, devices, and timing for nose-to-brain delivery. Additionally, clinical investigators should continue to rely on pre-clinical translational pharmacokinetics-pharmacodynamics modeling to improve the safety and effectiveness of the clinical studies they design.
ACKNOWLEDGMENTS
The research reported in this publication was supported by the National Institute of Diabetes And Digestive And Kidney Diseases of the National Institutes of Health under Award Number R01DK103902 (PI Vera Novak) and with support from Harvard Catalyst | The Harvard Clinical and Translational Science Center (National Center for Advancing Translational Sciences, National Institutes of Health Award UL 1TR002541) and financial contributions from Harvard University and its affiliated academic healthcare centers. The content is solely the responsibility of the authors and does not necessarily represent the official views of Harvard Catalyst, Harvard University and its affiliated academic healthcare centers, or the National Institutes of Health. The research in this study was supported by study drug from Novo-Nordisk Inc.; Bagsværd, Denmark through an independent ISS grant (ISS-001063). Safety sub-study was supported with CGM monitoring devices and supplies from Medtronic Inc.; Northridge CA, USA through an independent grants NERP15-031.
ABBREVIATIONS
- AUC
Area Under the Curve
- BBB
Blood Brain Barrier
- CCK
Cholecystokinin
- CNS
Central Nervous System
- CSF
Cerebrospinal Fluid
- CEBM
Centre for Evidence-Based Medicine
- EPO
Erythropoietin
- INI
Intranasal Insulin
- IU
International Units
- MemAID
Memory Advancement by Intranasal Insulin in Type 2 Diabetes
- MRI
Magnetic Resonance Imaging
- MRS
Magnetic Resonance Spectroscopy
- MSH/ACTH4–10
Melanocyte-Stimulating Hormone/Adrenocorticotropin 4–10
- PD
Parkinson Disease
- PET
Positron Emission Tomography
- RCT
Randomized Controlled Trial
- SNIFF
Study of Nasal Insulin to Fight Forgetfulness
- SPECT
Single-Photon Emission Computed Tomography
REFERENCES
- 1.GBD 2016 neurology collaborators. Global, regional, and national burden of neurological disorders, 1990–2016: A systematic analysis for the global burden of disease study 2016. Lancet Neurol 2019;18(5):459–480. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 2.Dong X Current strategies for brain drug delivery. Theranostics. 2018;8(6):1481–1493. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 3.Erdő F, Bors LA, Farkas D, Bajza Á, Gizurarson S. Evaluation of intranasal delivery route of drug administration for brain targeting. Brain Res Bull. 2018;143:155–170. [DOI] [PubMed] [Google Scholar]
- 4.Craft S, Baker LD, Montine TJ, Minoshima S, Watson GS, Claxton A, et al. Intranasal insulin therapy for alzheimer disease and amnestic mild cognitive impairment: A pilot clinical trial. AMA. 2012; 69(1):29–38. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 5.Dhuria SV, Hanson LR, Frey WH II. Intranasal delivery to the central nervous system: mechanisms and experimental considerations. J Pharm Sci. 2010;99(4):1654–1673. [DOI] [PubMed] [Google Scholar]
- 6.Lioutas VA, Alfaro-Martinez F, Bedoya F, Chung CC, Pimentel DA, Novak V. Intranasal insulin and insulin-like growth factor 1 as neuroprotectants in acute ischemic stroke. Transl Stroke Res. 2015;6(4):264–275. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 7.Explanation of the 2011 OCEBM Levels of Evidence — Centre for Evidence-Based Medicine (CEBM), University of Oxford. 2011. [Google Scholar]
- 8.Jones N The nose and paranasal sinuses physiology and anatomy. Adv Drug Deliv Rev. 2001;519(1–3):5–19. [DOI] [PubMed] [Google Scholar]
- 9.Warnken ZN, Smyth HDC, Watts AB, Weitman SD, Kuhn JG, Williams RO. Formulation and device design to increase nose to brain drug delivery. J Drug Deliv Sci Technol. 2016;3:213–222. [Google Scholar]
- 10.Crowe TP, Greenlee MHW, Kanthasamy AG, Hsu WH. Mechanism of intranasal drug delivery directly to the brain. Life Sciences. 2018;195:44–52. [DOI] [PubMed] [Google Scholar]
- 11.Lochhead L, Thorne RG. Intranasal delivery of biologics to the central nervous system. Adv Drug Deliv Rev. 2011;64:614–628. [DOI] [PubMed] [Google Scholar]
- 12.Lochhead JJ, Kellohen KL, Ronaldson PT, Davis TP. Distribution of insulin in trigeminal nerve and brain after intranasal administration. Scientific reports. 2019;9(1):1–9. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 13.Thorne RG, Hanson LR, Ross TM, Tung D, Frey Ii WH. Delivery of interferon-ő to the monkey nervous system following intranasal administration. Neurosci. 2008;152(3):785–797. [DOI] [PubMed] [Google Scholar]
- 14.Pardeshi CV, Belgamwar VS. Direct nose to brain drug delivery via integrated nerve pathways bypassing the blood–brain barrier: An excellent platform for brain targeting. Expert opinion drug del. 2013;10(7):957–972. [DOI] [PubMed] [Google Scholar]
- 15.Illum L Is nose-to-brain transport of drugs in man a reality. J Pharm Pharmacol. 2004;56:3–17. [DOI] [PubMed] [Google Scholar]
- 16.Lochhead JJ, Wolak DJ, Pizzo ME, Thorne RG. Rapid transport within cerebral perivascular spaces underlies widespread tracer distribution in the brain after intranasal administration. J Cereb Blood Flow Metab. 2015;35(3):371–381. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 17.Thorne RG, Pronk GJ, Padmanabhan V, Frey Ii WH. Delivery of insulin-like growth factor-I to the rat brain and spinal cord along olfactory and trigeminal pathways following intranasal administration. Neurosci. 2004;127(2):481–496. [DOI] [PubMed] [Google Scholar]
- 18.Gänger S, Schindowski K. Tailoring formulations for intranasal nose-to-brain delivery: A review on architecture, physico-chemical characteristics and mucociliary clearance of the nasal olfactory mucosa. Pharmaceutics. 2018;10(3):116. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 19.Bhise S, Yadav A, Avachat A, Malayandi R. Bioavailability of intranasal drug delivery system. Asian J Pharm. 2018; 2:201. [Google Scholar]
- 20.Illum L Transport of drugs from the nasal cavity to the central nervous system, Eur J Pharm. 2000;11:1–18. [DOI] [PubMed] [Google Scholar]
- 21.Ruigrok MJ, De Lange EC. Emerging insights for translational pharmacokinetic and pharmacokinetic-pharmacodynamic studies: Towards prediction of nose-to-brain transport in humans. AAPS J. 2015;17(3):493–505. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 22.Wu H, Hu K, Jiang X. From nose to brain: Understanding transport capacity and transport rate of drugs. Expert Opin Drug Deliv. 2008;5:1159–1168. [DOI] [PubMed] [Google Scholar]
- 23.Kamei N, Okada N, Ikeda T, Choi H, Fujiwara Y, Okumura H, et al. Effective nose-to-brain delivery of exendin-4 via coadministration with cell-penetrating peptides for improving progressive cognitive dysfunction. Sci rep. 2018;8(1):1–4. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 24.Hinchcliffe M, Illum L. Intranasal insulin delivery and therapy. Adv Drug Deliv Rev. 1999;35:199–234. [DOI] [PubMed] [Google Scholar]
- 25.Vyas TK, Babbar AK, Sharma RK, Singh S, Misra A. Intranasal mucoadhesive microemulsions of clonazepam: Preliminary studies on brain targeting. J Pharm Sci. 2006;95(3):570–80. [DOI] [PubMed] [Google Scholar]
- 26.Jintapattanakit A, Peungvicha P, Sailasuta A, Kissel T, Junyaprasert VB. Nasal absorption and local tissue reaction of insulin nanocomplexes of trimethyl chitosan derivatives in rats. J Pharm Pharmacol. 2010;62(5):583–591. [DOI] [PubMed] [Google Scholar]
- 27.Khan MS, Patil K, Yeole P, Gaikwad R. Brain targeting studies on buspirone hydrochloride after intranasal administration of mucoadhesive formulation in rats. J Pharm Pharmacol. 2009;61(5):669–75. [DOI] [PubMed] [Google Scholar]
- 28.Yarragudi SB, Richter R, Lee H, Walker GF, Clarkson AN, Kumar H, et al. Formulation of olfactory-targeted microparticles with tamarind seed polysaccharide to improve nose-to-brain transport of drugs. Carbohydr Polym. 2017;163:216–226. [DOI] [PubMed] [Google Scholar]
- 29.Chaturvedi M, Kumar M, Pathak K. A review on mucoadhesive polymer used in nasal drug delivery system. J Adv Pharm Technol Res. 2011;2:215–222. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 30.Mittal D, Ali A, Md S, Baboota, Sahni JK, Ali J. Insights into direct nose to brain delivery: Current status and future perspective. Drug Delivery. 2014;21:75–86. [DOI] [PubMed] [Google Scholar]
- 31.Kulkarni AD, Vanjari YH, Sancheti KH, Belgamwar VS, Surana SJ, Pardeshi CV. Nanotechnology-mediated nose to brain drug delivery for parkinson’s disease: A mini review. J Drug Target. 2015;21:23(9):775–788. [DOI] [PubMed] [Google Scholar]
- 32.Selvaraj K, Gowthamarajan K. Karri VVSR. Nose to brain transport pathways an overview: Potential of nanostructured lipid carriers in nose to brain targeting. Artif Cells Nanomed Biotechnol. 2018;46:2088–2095. [DOI] [PubMed] [Google Scholar]
- 33.Pardeshi CV, Rajput PV, Belgamwar VS, Tekade AR, Surana SJ. Novel surface modified solid lipid nanoparticles as intranasal carriers for ropinirole hydrochloride: application of factorial design approach. Drug deliv 2013;20(1):47–56. [DOI] [PubMed] [Google Scholar]
- 34.Wong YC, Zuo Z. Intranasal delivery-modification of drug metabolism and brain disposition. Pharm Res. 2010;27:1208–1223. [DOI] [PubMed] [Google Scholar]
- 35.Xi J, Yuan JE, Zhang Y, Nevorski D, Wang Z, Zhou Y. Visualization and quantification of nasal and olfactory deposition in a sectional adult nasal airway cast. Pharm Res. 2016;33:1527–1541. [DOI] [PubMed] [Google Scholar]
- 36.Oleck J, Kassam S. Goldman JD, Commentary why was inhaled insulin a failure in the market. Diabetes Spectr. 2016;29:180–184 [DOI] [PMC free article] [PubMed] [Google Scholar]
- 37.Dong J, Shang Y, Inthavong K, Chan HK, Tu J. Numerical comparison of nasal aerosol administration systems for efficient nose-to-brain drug delivery. Pharm Res. 2018;35(1):5. [DOI] [PubMed] [Google Scholar]
- 38.Stützle M, Carle S, Engelhardt L, Simon U, Schafmeister A, Mavoungou C, et al. Protein aerosol for intranasal nose to brain (N2B) delivery. BMC Proc. 2015;9:11. [Google Scholar]
- 39.Djupesland PG. Nasal drug delivery devices: Characteristics and performance in a clinical perspective-A review. Drug Deliv Transl Res. 2013;3:42–62. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 40.Musumeci T, Bonaccorso A, Puglisi G. Epilepsy disease and nose-to-brain delivery of polymeric nanoparticles: an overview. Pharmaceutics. 2019;11:118. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 41.Zhang H, Hao Y, Manor B, Novak P, Milberg W, Novak ZJ. Intranasal insulin enhanced resting-state functional connectivity of hippocampal regions in type 2 diabetes. Diabetes. 2015; 64:1025–1034. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 42.Akintola AA, Van Opstal AM, Westendorp RG, Postmus I, Van der Grond J, Van Heemst D. Effect of intranasally administered insulin on cerebral blood flow and perfusion; A randomized experiment in young and older adults. Aging (Albany NY). 2017;9(3):790. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 43.Novak V, Milberg W, Hao Y, Munshi M, Novak P, Galica A, et al. Enhancement of vasoreactivity and cognition by intranasal insulin in type 2 diabetes. Diabetes Care. 2014;37:751–759. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 44.Craft S, Claxton A, Baker LD, Hanson AJ, Cholerton B, Trittschuh EH, et al. Effects of regular and long-acting insulin on cognition and alzheimer’s disease biomarkers: A pilot clinical trial. J Alzheimers Dis. 2017;57:1325–1334. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 45.Reger MA, Watson G, Green PS, Baker LD, Cholerton B, Fishel MA, et al. Intranasal insulin administration dose-dependently modulates verbal memory and plasma amyloid-ő in memory-impaired older adults. J Alzheimers Dis. 2008;13(3):323–31. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 46.Craft S, Raman R, Chow TW, Rafii MS, Sun CK, Rissman RA, et al. Safety, efficacy, and feasibility of intranasal insulin for the treatment of mild cognitive impairment and alzheimer disease dementia: A randomized clinical trial. JAMA Neurol 2020;77(9):1099–109. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 47.Galindo-Mendez B, Trevino JA, McGlinchey R, Fortier C, Lioutas V, Novak P. Memory advancement by intranasal insulin in type 2 diabetes (MemAID) randomized controlled clinical trial: Design, methods and rationale, Contemp Clin Trials. 2020;89:105934. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 48.Hoekman JD, Hite D, Brunelle A, Relethford, Ho RJY. Nasal drug delivery device. 2017.
- 49.Warnken ZN, Smyth HDC, Davis DA, Weitman S, Kuhn JG, Williams RO. Personalized medicine in nasal delivery: The use of patient-specific administration parameters to improve nasal drug targeting using 3d-printed nasal replica casts. Mol Pharm. 2018;15:1392–1402. [DOI] [PubMed] [Google Scholar]
- 50.Hoekman JD, Ho RJY. Effects of localized hydrophilic mannitol and hydrophobic nelfinavir administration targeted to olfactory epithelium on brain distribution. AAPS Pharm Sci Tech. 2011;12:534–543. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 51.Majgainya S, Soni S, Bhat P. Novel approach for nose-to-brain drug delivery bypassing blood brain barrier by pressurized olfactory delivery device. J Appl Pharm. 2015;7. [Google Scholar]
- 52.Hallschmid M, Benedict C, Schultes B, Perras B, Fehm HL, Kern W. Towards the therapeutic use of intranasal neuropeptide administration in metabolic and cognitive disorders. Regul Pept. 2018;149:79–83. [DOI] [PubMed] [Google Scholar]
- 53.Benedict C, Hallschmid M, Schultes B, Born V, Kern W. Intranasal insulin to improve memory function in humans. Neuroendocrinol. 2017;86:136–142. [DOI] [PubMed] [Google Scholar]
- 54.Jauch-Chara K, Friedrich A, Rezmer M, Melchert UH, Scholand-Engler HG, Hallschmid M, et al. Intranasal insulin suppresses food intake via enhancement of brain energy levels in humans diabetes. 2012;61:2261–2268. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 55.Scherer T, Wolf A, Smajis S, Gaggini M, Hackl M, Gastaldelli A, et al. Chronic intranasal insulin does not affect hepatic lipids but lowers circulating bcaas in healthy male subjects. J Clin Endocrinol Metab. 2017;102:1325–1332. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 56.Schilling TM, Ferreira de Sá DS, Westerhausen R, Strelzyk F, Larra MF, Hallschmid M, et al. Intranasal insulin increases regional cerebral blood flow in the insular cortex in men independently of cortisol manipulation. Hum Brain Mapp. 2014;35:1944–1956. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 57.Brünner YF, Rodriguez-Raecke R, Mutic S, Benedict C, Freiherr J. Neural correlates of olfactory and visual memory performance in 3D-simulated mazes after intranasal insulin application. Neuro Learn Mem. 2016;34:256–263. [DOI] [PubMed] [Google Scholar]
- 58.Xiao C, Dash S, Stahel P, Lewis GF. Effects of intranasal insulin on triglyceride-rich lipoprotein particle production in healthy men. Arterioscler Thromb Vasc Biol. 2017;37(9):1776–1781. [DOI] [PubMed] [Google Scholar]
- 59.Dash S, Xiao C, Morgantini C, Koulajian K, Lewis GF. Intranasal insulin suppresses endogenous glucose production in humans compared with placebo in the presence of similar venous insulin concentrations. Diabetes. 2015;64(3):766–74. [DOI] [PubMed] [Google Scholar]
- 60.Stockhorst U, De Fries D, Steingrueber HJ, Scherbaum WA. Unconditioned and conditioned effects of intranasally administered insulin vs. placebo in healthy men: A randomised controlled trial. Diabetologia. 2011;54(6):1502–1506. [DOI] [PubMed] [Google Scholar]
- 61.Wingrove J, Swedrowska M, Scherließ R, Parry M, Ramjeeawon M, Taylor D, et al. Characterisation of nasal devices for delivery of insulin to the brain and evaluation in humans using functional magnetic resonance imaging. JCR. 2019;302:140–147. [DOI] [PubMed] [Google Scholar]
- 62.Djupesland PG, Skretting A, Winderen M, Holand T. Bi-directional nasal delivery of aerosols can prevent lung deposition. J Aerosol Med. 2004;117(3):249–59. [DOI] [PubMed] [Google Scholar]
- 63.Djupesland PG, Skretting A, Winderen M, Holand T. Breath actuated device improves delivery to target sites beyond the nasal valve. Laryngoscope. 2006;116(3):466–472. [DOI] [PubMed] [Google Scholar]
- 64.Dale O, Nilsen T, Loftsson T, Tønnesen HH, Klepstad P, Kaasa S, et al. Intranasal midazolam: A comparison of two delivery devices in human volunteers. J Pharm Pharmacol. 2006;58(10):1311–1. [DOI] [PubMed] [Google Scholar]
- 65.Djupesland PG, Doőekal P. Czech migraine investigators group. Intranasal sumatriptan powder delivered by a novel breath-actuated bi-directional device for the acute treatment of migraine: A randomised, placebo-controlled study. Cephalalgia. 2010;30(8):933–942. [DOI] [PubMed] [Google Scholar]
- 66.Merkus P, Guchelaar HJ, Bosch DA, Merkus FW. Direct access of drugs to the human brain after intranasal drug administration. Neurol. 2003; 60(10):1669–1671. [DOI] [PubMed] [Google Scholar]
- 67.Acute treatment trial in adult subjects with migraines. 2019.
- 68.My blog-my word press Blog. 2020.
- 69.Wang Z, Xiong G, Tsang WC, Schätzlein AG, Uchegbu IF. Nose-to-brain delivery. J Pharmacol Exp Ther. 2019;370:593–601. [DOI] [PubMed] [Google Scholar]
- 70.MET Nose-to-brain delivery. Nanomerics 2020. [Google Scholar]
- 71.Salade L, Wauthoz N, Deleu M, Vermeersch M, Vriese CD, Amighi K, et al. Development of coated liposomes loaded with ghrelin for nose-to-brain delivery for the treatment of cachexia. Int J Nanomedicine. 2017;12:8531. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 72.Delivery platforms: Versidoser® and VRx2TM. 2020.
- 73.Mystic pharmaceuticals receives us patent for novel nose to brain delivery of therapeutics to treat neurodegenerative disorders. 2016.
- 74.Chou KJ, Donovan MD. The distribution of local anesthetics into the CSF following intranasal administration. Int J Pharmaceutics. 1998;168:137–145. [Google Scholar]
- 75.Kozlovskaya L, Abou-Kaoud M, Stepensky D. Quantitative analysis of drug delivery to the brain via. nasal route. J Control Release. 2014;189:133–140. [DOI] [PubMed] [Google Scholar]
- 76.Stevens J, Ploeger BA, Van der Graaf PH, Danhof M, de Lange EC. Systemic and direct nose-to-brain transport pharmacokinetic model for remoxipride after intravenous and intranasal administration. Drug Metab Dispos. 2011;39(12):2275–2282. [DOI] [PubMed] [Google Scholar]
- 77.Wang D, Gao Y, Yun L. Study on brain targeting of raltitrexed following intranasal administration in rats. Cancer Chemother Pharmacol. 2006;57(1):97–104 [DOI] [PubMed] [Google Scholar]
- 78.Kumar NN, Lochhead JJ, Pizzo ME, Nehra G, Boroumand S, Greene G, et al. Delivery of immunoglobulin G antibodies to the rat nervous system following intranasal administration: Distribution, dose-response, and mechanisms of delivery. J Control Release. 2018;286:467–484. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 79.De Lange EC, The mastermind approach to CNS drug therapy: Translational prediction of human brain distribution, target site kinetics, and therapeutic effects. Fluids Barriers CNS. 2013;10:12. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 80.Tian L, Shang Y, Chen R, Bai R, Chen C, Inthavong K, et al. Correlation of regional deposition dosage for inhaled nanoparticles in human and rat olfactory. Part Fibre Toxicol. 2019;16(1):1–7. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 81.Veronesi MC, Alhamami M, Miedema SB, Yun Y, Ruiz-Cardozo M, Vannier MW. Imaging of intranasal drug delivery to the brain. Am J Nucl Med Mol Imaging. 2020;10(1):1. [PMC free article] [PubMed] [Google Scholar]
- 82.Craft S, Baker LD, Montine TJ, Minoshima S, Watson GS, Claxton A, et al. Intranasal insulin therapy for alzheimer disease and amnestic mild cognitive impairment: A pilot clinical trial. Arch Neuro. 2012; 69(1):29–38. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 83.Kullmann S, Heni M, Veit R, Scheffler K, Machann J, Häring HU, et al. Selective insulin resistance in homeostatic and cognitive control brain areas in overweight and obese adults. Diabetes Care. 2015;38(6):1044–1050. [DOI] [PubMed] [Google Scholar]
- 84.Da Fonseca CO, Quirico-Santos T. Perillyl alcohol: A pharmacotherapeutic report, in: de Sousa DP (Ed), bioactive essential oils and cancer, springer international publishing, Cham. 2015:267–288. [Google Scholar]
- 85.Mottolese R, Redouté J, Costes N, Le Bars D, Sirigu A. Switching brain serotonin with oxytocin. PNAS. 2014;111(23):8637–8642. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 86.Johansson J, Hirvonen J, Lovró Z, Ekblad L, Kaasinen V, Rajasilta O, et al. Intranasal naloxone rapidly occupies brain mu-opioid receptors in human subjects. Neuropsychopharmacol. 2019;44(9):1667–1673. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 87.Yates R, Sörensen J, Bergström M, Antoni G, Nairn K, Kemp J, et al. Distribution of intranasal 11C-zolmitriptan assessed by positron emission tomography. Cephalalgia. 2005;25(12):1103–1109. [DOI] [PubMed] [Google Scholar]
- 88.Born J, Lange T, Kern W, McGregor GP, Bickel U, Fehm HL. Sniffing neuropeptides: A transnasal approach to the human brain. Nat Neurosci. 2002;5(6):514–516. [DOI] [PubMed] [Google Scholar]
- 89.Merkus FWHM, Van den Berg MP. Can nasal drug delivery bypass the blood-brain barrier: Questioning the direct transport theory. Drugs R D. 2007;8:133–144. [DOI] [PubMed] [Google Scholar]
- 90.Fehm HL, Perras B, Smolnik R, Kern W, Born J. Manipulating neuropeptidergic pathways in humans: A novel approach to neuropharmacology. Eur J Pharmacol. 2000;405(1–3):43–54. [DOI] [PubMed] [Google Scholar]
- 91.Rhea EM, Rask Madsen C, Banks WA. Insulin transport across the blood–brain barrier can occur independently of the insulin receptor. J Physiol. 2018;596(19):4753–65. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 92.Barar J, Rafi MA, Pourseif MM, Omidi Y. Blood-brain barrier transport machineries and targeted therapy of brain diseases. BioImpacts: BI. 2016;6(4):225. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 93.Stockhorst U, de Fries D, Steingrueber HJ, Scherbaum WA. Insulin and the CNS: Effects on food intake, memory, and endocrine parameters and the role of intranasal insulin administration in humans. Physiol Behav. 2004;83(1):47–54. [DOI] [PubMed] [Google Scholar]
- 94.Kullmann S, Veit R, Peter A, Pohmann R, Scheffler K, Häring HU, et al. Dose-dependent effects of intranasal insulin on resting-state brain activity. J Clin Endocrinol Metab. 2018;103(1):253–262. [DOI] [PubMed] [Google Scholar]
- 95.Guthoff M, Grichisch Y, Canova C, Tschritter O, Veit R, Hallschmid M, et al. Insulin modulates food-related activity in the central nervous system. J Clin Endocrinol. 2010;95(2):748–755. [DOI] [PubMed] [Google Scholar]
- 96.Reger MA, Watson GS, Green PS, Wilkinson CW, Baker LD, Cholerton B, et al. Craft, Intranasal insulin improves cognition and modulates beta-amyloid in early AD, Neurol. 70;2008:440–448. [DOI] [PubMed] [Google Scholar]
- 97.Schmid V, Kullmann S, Gfrörer W, Hund V, Hallschmid M, Lipp HP, et al. Safety of intranasal human insulin: A review. Diabetes Obes Metab. 2018;20(7):1563–1577. [DOI] [PubMed] [Google Scholar]
- 98.Schneider R, Stöhr C, Pietrowsky R. Intranasally administered cholecystokinin decreases controlled memory. Biol Psychol. 2003;69:297–314. [DOI] [PubMed] [Google Scholar]
- 99.Schneider R, Osterburg J, Buchner A, Pietrowsky R. Effect of intranasally administered cholecystokinin on encoding of controlled and automatic memory processes. Psychopharmacol. 2009;202(4):559–567. [DOI] [PubMed] [Google Scholar]
- 100.Smolnik R, Fischer S, Hagenah J, Kis B, Born J, Vieregge P. Brain potential signs of slowed stimulus processing following cholecystokinin in parkinson’s disease. Psychopharmacol. 2002;161(1):70–76. [DOI] [PubMed] [Google Scholar]
- 101.Denecke H, Czehak N, Pietrowsky R. Dose-response relationships of intranasal cholecystokinin and the P300 event-related brain potential, Pharmacol Biochem Behav. 73;2002:593–600. [DOI] [PubMed] [Google Scholar]
- 102.Pietrowsky R, Thiemann A, Kern W, Fehm HL, Born J. A nose-brain pathway for psychotropic peptides: Evidence from a brain evoked potential study with cholecystokinin . Psychoneuroendocrinol.1996;559–572. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 103.Pietrowsky R, Claassen L, Frercks H, Fehm HL, Born J. Time course of intranasally administered cholecystokinin-8 on central nervous effects, Neuropsychobiol. 2001;43:254–259. [DOI] [PubMed] [Google Scholar]
- 104.Denecke H, Meyer F, Feldkamp J, Fritzen R, Pietrowsky R. Repetitive intranasal administration of cholecystokinin potentiates its central nervous effects. Physiol Behav. 83;39–45. [DOI] [PubMed] [Google Scholar]
- 105.Fletcher L, Kohli S, Sprague SM, Scranton RA, Lipton SA, Parra A, et al. Intranasal delivery of erythropoietin plus insulin-like growth factor-I for acute neuroprotection in stroke. Laboratory investigation. J Neurosurg. 2009;111:164–170. [DOI] [PubMed] [Google Scholar]
- 106.Garcia-Rodriguez JC, Sosa-Teste I. The nasal route as a potential pathway for delivery of erythropoietin in the treatment of acute ischemic stroke in humans, Sci World J 2009;9:970–981. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 107.Maurice T, Mustafa MH, Desrumaux C, Keller E, Naert G, De la C García-Barceló M, et al. Intranasal formulation of Erythropoietin (EPO) showed potent protective activity against amyloid toxicity in the A non-transgenic mouse model of Alzheimer’s disease. J Psychopharmacol. 2013;27:1044–1057. [DOI] [PubMed] [Google Scholar]
- 108.Parra AL, Rodriguez JCG. Nasal neuro EPO could be a reliable choice for neuroprotective stroke treatment. Cent Nerv Syst Agents Med Chem. 2012;12:60–68. [DOI] [PubMed] [Google Scholar]
- 109.Rodríguez Cruz Y, Strehaiano M, Rodríguez Obaya T, García Rodríguez JC, Maurice T. An intranasal formulation of erythropoietin (Neuro-EPO) prevents memory deficits and amyloid toxicity in the appswe transgenic mouse model of alzheimer’s disease. J Alzheimers Dis. 2017;55:231–248. [DOI] [PubMed] [Google Scholar]
- 110.Santos-Morales O, Díaz-Machado A, Jiménez-Rodríguez D, Pomares-Iturralde Y, Festary-Casanovas T, González-Delgado CA, et al. Nasal administration of the neuroprotective candidate NeuroEPO to healthy volunteers: A randomized, parallel, open-label safety study. BMC Neurol. 2017;17:129. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 111.Fehm HL, Smolnik R, Kern W, McGregor GP, Bickel U, Born J. The melanocortin melanocyte-stimulating hormone/adrenocorticotropin(4–10) decreases body fat in humans, J. Clin Endocrinol Metab. 2001;86;1144–1148. [DOI] [PubMed] [Google Scholar]
- 112.Nogueiras R, Wiedmer P, Perez-Tilve D, Veyrat-Durebex C, Keogh JM, Sutton GM, et al. The central melanocortin system directly controls peripheral lipid metabolism. J Clin Invest. 2007;117:3475–3488. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 113.Tian X, Switzer AG, Derose SA, Mishra RK, Solinsky MG, Mumin RN, et al. Discovery of orally bioavailable 1,3,4-trisubstituted 2-oxopiperazine-based melanocortin-4 receptor agonists as potential antiobesity agents. J Med Chem. 2008;51:6055–6066. [DOI] [PubMed] [Google Scholar]
- 114.Wellhöner P, Hörster R, Jacobs F, Sayk F, Lehnert H, Dodt C. Intranasal application of the melanocortin 4 receptor agonist MSH/ACTH(4–10) in humans causes lipolysis in white adipose tissue. Int J Obes 2012;36:703–708. [DOI] [PubMed] [Google Scholar]
- 115.Martin HL, Teismann P. Glutathione a review on its role and significance in parkinson’s disease. FASEB J. 2009:23:3263–3272. [DOI] [PubMed] [Google Scholar]
- 116.Mischley LK, Conley KE, Shankland EG, Kavanagh TJ, Rosenfeld ME, Duda JE, et al. Central nervous system uptake of intranasal glutathione in parkinson’s disease. NPJ Parkinsons Dis. 2016;2:16002. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 117.Mischley LK, Leverenz JB, Lau RC, Polissar NL, Neradilek MB, Samii A, et al. A randomized, double-blind phase i/iia study of intranasal glutathione in parkinson’s disease. Mov Disord. 2015;30:1696–1701. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 118.Mischley LK, Vespignani MF, Finnell JS. Safety survey of intranasal glutathione. J Altern Complement Med. 2013;19;459–463. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 119.Mischley LK, Lau RC, Shankland EG, Wilbur TK, Padowski JM. Phase IIb study of intranasal glutathione in parkinson’s disease. J Parkinsons Dis. 2017;7:289–299. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 120.Chen TC, Da Fonseca CO, Schönthal AH. Intranasal perillyl alcohol for glioma therapy: molecular mechanisms and clinical development. Int J Mol Sci. 2018;19. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 121.Hudes GR, Szarka CE, Adams A, Ranganathan S, McCauley RA, Weiner LM, et al. Phase I pharmacokinetic trial of perillyl alcohol (NSC 641066) in patients with refractory solid malignancies. Clin Cancer Res. 2000;6:3071–3080. [PubMed] [Google Scholar]
- 122.Ripple GH, Gould MN, Arzoomanian RZ, Alberti D, Feierabend C, Simon K, et al. Phase I clinical and pharmacokinetic study of perillyl alcohol administered four times a day. Clin Cancer Res. 2000;6:390–396. [PubMed] [Google Scholar]
- 123.Da Fonseca CO, Masini M, Futuro D, Caetano R, Gattass CR, Quirico-Santos T. Anaplastic oligodendroglioma responding favorably to intranasal delivery of perillyl alcohol: A case report and literature review. Surg Neurol. 2006;66:611–615. [DOI] [PubMed] [Google Scholar]
- 124.DA Fonseca CO, Teixeira RM, Silva JCT, DE Saldanha DA Gama Fischer J, Meirelles OC, Landeiro JA, et al. Long-term outcome in patients with recurrent malignant glioma treated with perillyl alcohol inhalation. Anticancer Res. 2013;33:5625–5631. [PubMed] [Google Scholar]
- 125.Da Fonseca CO, Simão M, Lins IR, Caetano RO, Futuro D, Quirico-Santos T. Efficacy of monoterpene perillyl alcohol upon survival rate of patients with recurrent glioblastoma. J Cancer Res Clin Oncol. 2011;137:287–293. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 126.Da Fonseca CO, Schwartsmann G, Fischer J, Nagel J, Futuro D, Quirico-Santos T, et al. Preliminary results from a phase I/II study of perillyl alcohol intranasal administration in adults with recurrent malignant gliomas. Surg Neurol. 2008;70:259–266. [DOI] [PubMed] [Google Scholar]
- 127.Derad I, Willeke K, Pietrowsky R, Born J, Fehm HL. Intranasal angiotensin II directly influences central nervous regulation of blood pressure Am. J. Hypertens. 1998;11:971–977. [DOI] [PubMed] [Google Scholar]
- 128.Nakamura K, Shimizu T, Yanagita T, Nemoto T, Taniuchi. Angiotensin ii acting on brain at1 receptors induces adrenaline secretion and pressor responses in the rat. Sci Rep 2014;4. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 129.Speth RC, Vento PJ, Carrera EJ, Gonzalez-Reily L, Linares A, Santos K, et al. Acute repeated intracerebroventricular injections of angiotensin II reduce agonist and antagonist radioligand binding in the paraventricular nucleus of the hypothalamus and median preoptic nucleus in the rat brain. Brain Res. 2014;1583:132–140. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 130.Derad I, Sayk F, Lehnert H, Marshall L, Born J, Nitschke M. Intranasal angiotensin II in humans reduces blood pressure when angiotensin II type 1 receptors are blocked. Hypertension. 2014;63:762–767. [DOI] [PubMed] [Google Scholar]
- 131.Alcalá-Barraza SR, Lee MS, Hanson LR, McDonald AA, Frey WH, McLoon LK. Intranasal delivery of neurotrophic factors BDNF, CNTF, EPO, and NT-4 to the CNS. J Drug Target. 2010;18:179–190. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 132.Aloe L, Bianchi P, De Bellis A, Soligo M, Rocco ML. Intranasal nerve growth factor bypasses the blood-brain barrier and affects spinal cord neurons in spinal cord injury. Neural Regen Res. 2014;9:1025–1030. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 133.Chen XQ, Fawcett JR, Rahman YE, Ala TA, Frey WH. Delivery of nerve growth factor to the brain via the olfactory pathway. J Alzheimers Dis. 1998;1:35–44. [DOI] [PubMed] [Google Scholar]
- 134.Frey WH, Liu J, Chen X, Thorne RG, Fawcett JR, Ala TA, et al. Delivery of 125I-NGF to the Brain via the Olfactory Route. Drug Delivery. 1997;4:87–92. [Google Scholar]
- 135.Fukuda Y, Katsunuma S, Uranagase A, Nota J, Nibu KI. Effect of intranasal administration of neurotrophic factors on regeneration of chemically degenerated olfactory epithelium in aging mice. Neuroreport. 2018;29:1400–1404. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 136.Jiang Y, Wei N, Lu T, Zhu J, Xu G, Liu X. Intranasal brain-derived neurotrophic factor protects brain from ischemic insult via modulating local inflammation in rats. Neuroscience. 2011;172:398–405. [DOI] [PubMed] [Google Scholar]
- 137.Sansevero G, Baroncelli L, Scali M, Sale A. Intranasal BDNF administration promotes visual function recovery in adult amblyopic rats. Neuropharmacol. 2019;145:114–122. [DOI] [PubMed] [Google Scholar]
- 138.Vaka SRK, Murthy SN, Balaji A, Repka MA. Delivery of brain derived neurotrophic factor via nose to brain pathway. Pharm Res. 2012;29:441–447. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 139.Bellis A, Bellis M, Aloe L. Long-term non-invasive treatment via intranasal administration of nerve growth factor protects the human brain in frontotemporal dementia associated with corticobasal syndrome: A pilot study. J Alzheimers Dis Rep. 2018;2:67–77. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 140.Chiaretti A, Conti G, Falsini B, Buonsenso D, Crasti M, Manni L, et al. Intranasal nerve growth factor administration improves cerebral functions in a child with severe traumatic brain injury: A case report. Brain Inj. 2017;31:1538–1547. [DOI] [PubMed] [Google Scholar]
- 141.Schmidt H, Kern W, Giese R, Hallschmid M, Enders A. Intranasal insulin to improve developmental delay in children with 22q13 deletion syndrome: An exploratory clinical trial. J Med Genet. 2009;46:217–222. [DOI] [PubMed] [Google Scholar]
- 142.Rodriguez-Raecke R, Brünner YF, Kofoet A, Mutic S, Benedict C, Freiherr J. odor sensitivity after intranasal insulin application is modulated by gender. Front Endocrinol (Lausanne). 2018;9. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 143.Stockhorst U, De Fries D, Steingrueber HJ, Scherbaum WA. Unconditioned and conditioned effects of intranasally administered insulin vs. placebo in healthy men: A randomised controlled trial. Diabetologia. 2011;54:1502–1506. [DOI] [PubMed] [Google Scholar]
- 144.Luthringer R, Djupesland PG, Sheldrake CD, Flint A, Boeijinga P, Danjou P, et al. Rapid absorption of sumatriptan powder and effects on glyceryl trinitrate model of headache following intranasal delivery using a novel bi-directional device. J Pharm Pharmacol. 2009;61:1219–1228. [DOI] [PubMed] [Google Scholar]
- 145.Kern W, Born J, Schreiber H, Fehm HL. Central nervous system effects of intranasally administered insulin during euglycemia in men. Diabetes. 1999;48:557–563. [DOI] [PubMed] [Google Scholar]
- 146.Benedict C Intranasal insulin improves memory in humans. Psychoneuroendocrinol. 2004;29:1326–1334. [DOI] [PubMed] [Google Scholar]
- 147.Hallschmid M, Benedict C, Schultes B, Fehm HL, Born J, Kern W. Intranasal insulin reduces body fat in men but not in women. Diabetes. 2004;53:3024–3029. [DOI] [PubMed] [Google Scholar]
- 148.Benedict C, Dodt C, Hallschmid M, Lepiorz M, Fehm HL, Born J, et al. Immediate but not long-term intranasal administration of insulin raises blood pressure in human beings. Metabolism. 2005;54:1356–1361. [DOI] [PubMed] [Google Scholar]
- 149.Reger MA, Watson GS, Frey WH, Baker LD, Cholerton B, Keeling ML, et al. Effects of intranasal insulin on cognition in memory-impaired older adults: Modulation by APOE genotype. Neurobiol Aging. 2006;27:451–458. [DOI] [PubMed] [Google Scholar]
- 150.Benedict C, Kern W, Schultes B, Born J, Hallschmid M. Differential sensitivity of men and women to anorexigenic and memory-improving effects of intranasal insulin, Clin Endocrinol Metab. 2008;93:1339–1344. [DOI] [PubMed] [Google Scholar]
- 151.Bohringer A, Schwabe L, Richter S, Schachinger H. Intranasal insulin attenuates the hypothalamic-pituitary-adrenal axis response to psychosocial stress. Psychoneuroendocrinol. 2008;33:1394–1400. [DOI] [PubMed] [Google Scholar]
- 152.Krug R, Benedict C, Born J, Hallschmid M. Comparable sensitivity of postmenopausal and young women to the effects of intranasal insulin on food intake and working memory. J Clin Endocrinol Metab. 2010;95:468–472. [DOI] [PubMed] [Google Scholar]
- 153.Stingl KT, Kullmann S, Guthoff M, Heni M, Fritsche A, Preissl H. Insulin modulation of magnetoencephalographic resting state dynamics in lean and obese subjects. Front Syst Neurosci. 2010;4. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 154.Benedict C, Frey WH, Schioth HB, Schultes B, Born J, Hallschmid M. Intranasal insulin as a therapeutic option in the treatment of cognitive impairments. Exp Gerontol. 2011;46:112–115. [DOI] [PubMed] [Google Scholar]
- 155.Fan X, Copeland PM, Liu EY, Chiang E, Freudenreich O, Goff DC, et al. No effect of single-dose intranasal insulin treatment on verbal memory and sustained attention in patients with schizophrenia. J Clin Psychopharmacol. 2011;31:231–234. [DOI] [PubMed] [Google Scholar]
- 156.Guthoff M, Stingl KT, Tschritter O, Rogic M, Heni M, Stingl K, et al. The insulin-mediated modulation of visually evoked magnetic fields is reduced in obese subjects. Plos One. 2011;6:19482. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 157.Stein MS, Scherer SC, Ladd KS, Harrison LC. A randomized controlled trial of high-dose vitamin D2 followed by intranasal insulin in Alzheimer’s disease. J Alzheimers Dis. 2011;26:477–484. [DOI] [PubMed] [Google Scholar]
- 158.Grichisch Y, Cavusoglu M, Preissl H, Uludag K, Hallschmid M, Birbaumer NH, et al. Differential effects of intranasal insulin and caffeine on cerebral blood flow. Hum Brain Mapp. 2012;33:280–287. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 159.Hallschmid M, Higgs S, Thienel M, Ott V, Lehnert H. Postprandial administration of intranasal insulin intensifies satiety and reduces intake of palatable snacks in women. Diabetes. 2012;61:782–789. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 160.Heni M, Kullmann S, Ketterer C, Guthoff M, Linder K, Wagner R, et al. Nasal insulin changes peripheral insulin sensitivity simultaneously with altered activity in homeostatic and reward-related human brain regions. Diabetologia. 2012;55:1773–1782. [DOI] [PubMed] [Google Scholar]
- 161.McIntyre RS. A randomized double-blind, controlled trial evaluating the effect of intranasal insulin on neurocognitive function in euthymic patients with bipolar disorder. Bipolar Disord. 2012;14:697–706. [DOI] [PubMed] [Google Scholar]
- 162.Brunner YF, Benedict C, Freiherr J. Intranasal insulin reduces olfactory sensitivity in normosmic humans. J Clin Endocrinol Metab. 2013;98:1626–1630. [DOI] [PubMed] [Google Scholar]
- 163.Claxton A, Baker LD, Wilkinson CW, Trittschuh EH, Chapman D, Watson GS, et al. Sex and ApoE genotype differences in treatment response to two doses of intranasal insulin in adults with mild cognitive impairment or Alzheimer’s disease. J Alzheimers Dis. 2013;35:789–797. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 164.Fan X, Liu E, Freudenreich O, Copeland P, Hayden D, Ghebremichael M, et al. No effect of adjunctive, repeated-dose intranasal insulin treatment on psychopathology and cognition in patients with schizophrenia. J Clin Psychopharmacol. 2013;33:226–230. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 165.Li J, Li X, Liu E, Copeland P, Freudenreich O, Goff DC, et al. Fan, No effect of adjunctive, repeated dose intranasal insulin treatment on body metabolic in patients with schizophrenia. Schizophr Res. 2013;146:40–45. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 166.Kullmann S, Pape AA, Heni M, Ketterer C, Schick F, Haring HU, et al. Functional network connectivity underlying food processing: disturbed salience and visual processing in overweight and obese adults. Cereb Cortex. 2013;23:1247–1256. [DOI] [PubMed] [Google Scholar]
- 167.Ferreira de Sá DS, Schulz A, Streit FE, Turner JD, Oitzl MS, Blumenthal TD, et al. Cortisol, but not intranasal insulin, affects the central processing of visual food cues. Psychoneuroendocrinol. 2014;50:311–320. [DOI] [PubMed] [Google Scholar]
- 168.Heni M, Schopfer P, Peter A, Sartorius T, Fritsche A, Synofzik M, et al. Evidence for altered transport of insulin across the blood-brain barrier in insulin-resistant humans. Acta Diabetol 2014;51:679–681. [DOI] [PubMed] [Google Scholar]
- 169.Iwen KA, Scherer T, Heni M, Sayk F, Wellnitz T, Machleidt F, et al. Intranasal insulin suppresses systemic but not subcutaneous lipolysis in healthy humans. J Clin Endocrinol Metab. 2014;99:246–251. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 170.Ketterer C, Tschritter O, Preissl H, Heni M, Haring HU, Fritsche A. Insulin sensitivity of the human brain. Diabetes Res Clin Pract. 2011;93:S47–S51. [DOI] [PubMed] [Google Scholar]
- 171.Brünner YF, Kofoet A, Benedict C, Freiherr J. Central insulin administration improves odor-cued reactivation of spatial memory in young men. J Clin Endocrinol Metab. 2015;100:212–219. [DOI] [PubMed] [Google Scholar]
- 172.Effects of intranasal insulin on hepatic fat accumulation and energy metabolism in humans diabetes. 202. [DOI] [PubMed]
- 173.Schöpf V, Kollndorfer K, Pollak M, Mueller CA, Freiherr J. Intranasal insulin influences the olfactory performance of patients with smell loss, dependent on the body mass index: A pilot study. Rhinol. 2015;53:371–378. [DOI] [PubMed] [Google Scholar]
- 174.Feld GB, Wilhem I, Benedict C, Rüdel B, Klameth C, Born J, et al. Central nervous insulin signaling in sleep-associated memory formation and neuroendocrine regulation. neuropsychopharmacol. 2016;41:1540–1550. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 175.Zwanenburg RJ, Bocca G, Ruiter SAJ, Dillingh JH, Flapper BCT, van den Heuvel ER. Is there an effect of intranasal insulin on development and behaviour in Phelan-McDermid syndrome? A randomized, double-blind, placebo-controlled trial. Eur J Hum Genet. 2016;24:1696–1701. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 176.Cha DS, Best MW, Bowie CR, Gallaugher LA, Woldeyohannes HO, Soczynska JK. A randomized, double-blind, placebo-controlled, crossover trial evaluating the effect of intranasal insulin on cognition and mood in individuals with treatment-resistant major depressive disorder. J Affect Disord. 2017;210:57–65. [DOI] [PubMed] [Google Scholar]
- 177.Heni M, Wagner R, Kullmann S, Gancheva S, Roden M, Peter A. Hypothalamic and striatal insulin action suppresses endogenous glucose production and may stimulate glucose uptake during hyperinsulinemia in lean but not in overweight men. Diabetes. 2017;66:1797–1806. [DOI] [PubMed] [Google Scholar]
- 178.Kullmann S, Heni M, Veit R, Scheffler K, Machann J, Haring H, et al. Intranasal insulin enhances brain functional connectivity mediating the relationship between adiposity and subjective feeling of hunger. Sci Rep. 2017;7. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 179.Kullmann S, Fritsche A, Wagner R, Schwab S, Häring HU, Preissl, et al. Hypothalamic insulin responsiveness is associated with pancreatic insulin secretion in humans. Physiol Behav. 2017;176:134–138. [DOI] [PubMed] [Google Scholar]
- 180.Rodriguez-Raecke R, Yang H, Bruenner YF, Freiherr J. Intranasal insulin boosts gustatory sensitivity. J Neuroendocrinol. 2017;29. [DOI] [PubMed] [Google Scholar]
- 181.Santiago JCP, Hallschmid M. Central nervous insulin administration before nocturnal sleep decreases breakfast intake in healthy young and elderly subjects. Front Neurosci. 2017;11. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 182.Thienel M, Wilhelm I, Benedict C, Born J, Hallschmid M. Intranasal insulin decreases circulating cortisol concentrations during early sleep in elderly humans. Neurobiol Aging. 2017;54:170–174. [DOI] [PubMed] [Google Scholar]
- 183.Van Opstal AM, Akintola AA, Van der Elst M, Westendorp RG, Pijl H, Van Heemst D, et al. Effects of intranasal insulin application on the hypothalamic BOLD response to glucose ingestion. Sci Rep 2017;7. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 184.Hamidovic A, Candelaria L, Rodriguez I, Yamada M, Nawarskas J, Burge M. Learning and memory performance following acute intranasal insulin administration in abstinent smokers. Hum Psychopharmacol 2018;33:2649. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 185.Ritze Y, Kern W, Ebner EM, Jahn S, Benedict C, Hallschmid M. Metabolic and cognitive outcomes of subchronic once-daily intranasal insulin administration in healthy men. Front Endocrinol (Lausanne). 2018;9. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 186.Pedroso I, Garcia M, Casabona E, Morales L, Bringas ML, Pérez L, et al. Protective activity of erythropoyetine in the cognition of patients with parkinson’s disease. Behav Sci. 2018;8. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 187.Faria GM, Soares IDP, D’Alincourt Salazar M, Amorim MR, Pessoa BL, Da Fonseca CO, et al. Intranasal perillyl alcohol therapy improves survival of patients with recurrent glioblastoma harboring mutant variant for MTHFR rs1801133 polymorphism. BMC Cancer. 2020:20. [DOI] [PMC free article] [PubMed] [Google Scholar]
