The Evolution of Interdependence in a Four-Way Mealybug Symbiosis

Abstract

Mealybugs are insects that maintain intracellular bacterial symbionts to supplement their nutrient-poor plant sap diets. Some mealybugs have a single betaproteobacterial endosymbiont, a Candidatus Tremblaya species (hereafter Tremblaya) that alone provides the insect with its required nutrients. Other mealybugs have two nutritional endosymbionts that together provision these same nutrients, where Tremblaya has gained a gammaproteobacterial partner that resides in its cytoplasm. Previous work had established that Pseudococcus longispinus mealybugs maintain not one but two species of gammaproteobacterial endosymbionts along with Tremblaya. Preliminary genomic analyses suggested that these two gammaproteobacterial endosymbionts have large genomes with features consistent with a relatively recent origin as insect endosymbionts, but the patterns of genomic complementarity between members of the symbiosis and their relative cellular locations were unknown. Here, using long-read sequencing and various types of microscopy, we show that the two gammaproteobacterial symbionts of P. longispinus are mixed together within Tremblaya cells, and that their genomes are somewhat reduced in size compared with their closest nonendosymbiotic relatives. Both gammaproteobacterial genomes contain thousands of pseudogenes, consistent with a relatively recent shift from a free-living to an endosymbiotic lifestyle. Biosynthetic pathways of key metabolites are partitioned in complex interdependent patterns among the two gammaproteobacterial genomes, the Tremblaya genome, and horizontally acquired bacterial genes that are encoded on the mealybug nuclear genome. Although these two gammaproteobacterial endosymbionts have been acquired recently in evolutionary time, they have already evolved codependencies with each other, Tremblaya, and their insect host.

Introduction

Insects with nutrient-poor diets (e.g., plant sap, blood, wood) maintain microbial symbionts that supplement their diet with compounds such as amino acids and vitamins (Baumann 2005; Douglas 2006). Mealybugs (fig. 1A) are insects that exclusively consume phloem sap and maintain nutritional endosymbiotic bacteria within specialized cells called bacteriocytes (Buchner 1965; von Dohlen et al. 2001; Baumann et al. 2002). Mealybug bacteriocytes house between one and three different bacterial endosymbionts depending on the mealybug species (Kono et al. 2008; Koga et al. 2013; López-Madrigal et al. 2013; Husník and McCutcheon 2016; Szabó et al. 2017; Gil et al. 2018). These mealybug endosymbionts produce essential amino acids and vitamins, which are present in plant sap at levels insufficient for insect growth. Although it is not uncommon for insects to simultaneously maintain multiple endosymbionts (Buchner 1965; Fukatsu and Nikoh 1998; Thao et al. 2002; Toh et al. 2006; Moran et al. 2008; McCutcheon and Moran 2010), the spatial organization of the dual mealybug endosymbiosis is unusual: each bacteriocyte house cells of Candidatus Tremblaya princeps (betaproteobacteria, hereafter referred to as Tremblaya), and inside each Tremblaya cell reside tens to hundreds of cells of another endosymbiont from the gammaproteobacterial family Enterobacteriaceae (von Dohlen et al. 2001; Downie and Gullan 2005; Gatehouse et al. 2012), with the titer of gammaproteobacterial symbionts varying depending on host species and developmental stage (Kono et al. 2008; Parkinson et al. 2017). Many of these intra-Tremblaya endosymbionts are members of the Sodalis genus, which are well-represented among endosymbionts of insects (Toh et al. 2006; Clayton et al. 2012; Oakeson et al. 2014; Husník and McCutcheon 2016; McCutcheon et al. 2019; Hall et al. 2020).

Fig. 1.

The structure of the Pseudococcus longispinus symbiosis. (A) Image of P. longispinus mealybugs on a sprouted potato. (B) Montaged TEM overview image of a bacteriocyte from P. longispinus. The six to seven light gray blobs are Tremblaya cells, surrounding a central eukaryotic nucleus. Within each Tremblaya cell reside rod-shaped and more electron-dense gammaproteobacterial cells. Black-colored rods in between Tremblaya are mitochondria within eukaryotic cytoplasm. The insect nucleus is at the center of the bacteriocyte in a gray shade that is similar to Tremblaya. (C) Details from an electron tomographic slice showing the boundary of a Tremblaya cell, where a mitochondrion is visible near the Tremblaya cell envelope. (D) Higher magnification view of the mitochondrion shown in C. (E) Tomographic slice of a gammaproteobacterial symbiont that resides inside Tremblaya, showing numerous outer membrane vesicles (red arrows). The bacterial symbionts are easily distinguished from eukaryotic mitochondria. (F) Fluorescent in situ hybridization (FISH) image of P. longispinus bacteriome tissue showing the localization of two different gammaproteobacterial endosymbionts within Tremblaya cells. Fluorophore-labeled probes were used to localize Tremblaya cells (green) and the two gammaproteobacterial endosymbionts (yellow and magenta). Tremblaya cells that appear to harbor exclusively, or almost-exclusively, one type of gammaproteobacterial endosymbiont are circled in red. DNA and, therefore, insect nuclei were counterstained with Hoechst (white). Each nucleus is surrounded by several Tremblaya cells per bacteriocyte. (G) Zoomed in and annotated detail fluorescence microscopy image of a P. longispinus bacteriocyte. (H) Schematic representation of P. longispinus bacteriocytes.

Genomic studies of numerous insect–endosymbiont systems have revealed strong and consistent patterns of complementary gene loss and retention among all members of the symbiosis (Shigenobu et al. 2000; van Ham et al. 2003; Wu et al. 2006; McCutcheon and Moran 2010; Sloan and Moran 2012; Łukasik et al. 2018). Although, in most cases, a single endosymbiont genome will retain complete or near-complete pathways for individual metabolites, mealybug endosymbionts are unusual in that the reciprocal pattern of gene loss and retention exists within biochemical pathways (McCutcheon and von Dohlen 2011; López-Madrigal et al. 2013; Husník and McCutcheon 2016; Szabó et al. 2017; Gil et al. 2018). Most of the previously published mealybug endosymbiont genomes were highly reduced in size (less than 1 Mb) and gene dense (containing few pseudogenes), which made discerning these complementary gene loss and retention patterns relatively straightforward.

Pseudococcus longispinus harbors the symbiont Tremblaya, but unlike Tremblaya in other mealybugs, the P. longispinus strain of Tremblaya house not one but two gammaproteobacterial endosymbionts (Rosenblueth et al. 2012; Husník and McCutcheon 2016). We previously reported draft genome assemblies of these two gammaproteobacterial endosymbionts, which suggested that their combined genome sizes were large, approximately 8.2 megabase pairs (Mbp) in length (Husník and McCutcheon 2016). Phylogenetic analysis showed that one of these gammaproteobacterial symbionts belonged to the Sodalis genus, and the other was more closely related to members of the Pectobacterium genus. However, the poor quality of these draft genome assemblies made detailed genomic analysis impossible. Light microscopy on P. longispinus (Gatehouse et al. 2012) suggested that the gammaproteobacterial endosymbionts reside inside Tremblaya cells, as is the case in other mealybugs (von Dohlen et al. 2001). But it was unclear from these data whether one or both of these gammaproteobacteria are restricted to Tremblaya cells (i.e., if they are also in the cytoplasm of the host insect bacteriocyte), whether each gammaproteobacterial species is restricted to particular Tremblaya cell types, or whether the two gammaproteobacterial symbionts are mixed together inside undifferentiated Tremblaya cells. Here, we add long-read data generated from P. longispinus bacteriome tissue to greatly improve the gammaproteobacterial genome assemblies and annotations. We describe the relative cellular locations of the endosymbionts using fluorescence and transmission electron microscopy and report the genome evolutionary patterns and metabolic contributions of the microbial members of this unusual four-way symbiosis.

Results

Gammaproteobacterial Endosymbionts Are Located within Tremblaya

Previous light microscopy suggested that at least some, if not all, of the gammaproteobacterial endosymbionts of P. longispinus resided inside of Tremblaya (Gatehouse et al. 2012). However, these data lacked the resolution to clarify whether or not both species of gammaproteobacterial endosymbionts were exclusively contained within Tremblaya or whether some might also live in the cytoplasm of bacteriocytes. We used transmission electron microscopy (TEM) to identify the localization of the gammaproteobacterial cells. Our TEM data suggest that all gammaproteobacterial endosymbiont cells are contained within Tremblaya and are not free in the cytoplasm of the host insect cell (fig. 1B–E). At low magnification, elongated cells of different shapes and sizes, which we presume to be the gammaproteobacterial symbionts, can be seen inside of Tremblaya cells (fig. 1B). Structures of roughly similar size and electron density can be observed outside of Tremblaya cells, but these were found to be mitochondria upon examination at higher magnification (fig. 1C and D). We note numerous outer membrane vesicles (OMVs, Toyofuku et al. 2019) apparently being extruded by the Sodalis- or Pectobacterium-related endosymbiont cells (fig. 1E). The function of these OMVs in the symbiosis, if any, is unknown.

Using previously reported small subunit (SSU) ribosomal RNA (rRNA) sequences (Husník and McCutcheon 2016), we next performed fluorescence in situ hybridization (FISH) targeting the SSU rRNA to establish the relative locations of the two gammaproteobacterial endosymbionts. Here, we were testing whether there were two different types of Tremblaya cells, each containing only one type of gammaproteobacterial cell, or whether both gammaproteobacterial species were mixed together inside of one type of Tremblaya cell. We find that both gammaproteobacterial endosymbionts are mixed together in one type of Tremblaya cell (fig. 1F–H). The overall distribution of endosymbionts within Tremblaya cells suggests that the Pectobacterium relative is more abundant than the Sodalis relative (colored yellow and violet, respectively, in fig. 1F and G). We note that there are some Tremblaya cells or regions of Tremblaya cells where the Pectobacterium relative appears highly abundant, with almost no cells of the Sodalis relative present, and vice versa, with some Tremblaya regions containing mostly cells of the Sodalis relative (red circles in fig. 1F). It is important to note that the image in figure 1F is a single plane of focus in a Z-stack; thus, the apparent absence of one of the endosymbionts from a Tremblaya cell does not necessarily indicate that endosymbiont is definitively missing there. Cells of the Pectobacterium relative appear to be longer than cells of the Sodalis relative. This mixture of long and short cells is consistent with what we see in the TEM images, although the identities of the two cell types cannot be discerned in TEM (fig. 1B).

Gammaproteobacterial Endosymbionts Have Large Genomes Similar to Free-Living Bacteria

Previous efforts to assemble the genomes of the two gammaproteobacterial symbionts using only short-read Illumina technology resulted in highly fragmented genome assemblies (Husník and McCutcheon 2016). Our addition of PacBio reads greatly improved the quality of the Sodalis symbiont’s genome (3 vs. ∼200 contigs from short reads alone) due to their ability to span repetitive insertion sequences (ISs) that appear to be abundant in that genome (supplemental file 1, Supplementary Material online). The Pectobacterium-related symbiont genome was also improved by long-read sequencing (9 vs. 40 contigs from short reads alone). Despite numerous computational and polymerase chain reaction-based experiments, we were unable to close either genome into complete circular-mapping molecules. To aid in the binning of contigs for each endosymbiont genome, we relied on their differential read coverage calculated from Illumina short reads as well as the similarity of endosymbiont genes compared with their nonendosymbiont Sodalis and Pectobacterium relatives. At 4.3 and 3.6 Mb, both gammaproteobacterial endosymbiont genomes are similar in size to genomes of many free-living bacteria. One circular-mapping contig of approximately 150 kb was putatively assigned as a plasmid to the Pectobacterium relative, based on its circular structure and its predicted genes showing high similarity to genes from other Pectobacterium and Brenneria spp. One additional contig of approximately 90 kb, containing genes with high similarity to other Sodalis spp. genes, showed 3-fold higher coverage relative to the other Sodalis-related contigs; this could be a plasmid or a large repeat region of the genome. Finally, we identified an Arsenophonus-related plasmid, encoding mostly hypothetical proteins, in addition to eight genes annotated as Type II and IV secretion proteins, although 71 of the total 101 predicted genes on this plasmid appear to be pseudogenized. As no other Arsenophonus contigs are found in our assembly, we assume that this plasmid resides in one of the two gammaproteobacteria, although we did not pursue the cellular location of this plasmid further. An overview of the endosymbiont genomes is shown in table 1.

Table 1.

Assembly Summary for the Three Endosymbionts and Their Putative Plasmids Assembled from Pectobacterium longispinus Bacteriomes

Endosymbionts and Plasmids	Genome/PlasmidSize (bp)	Average ReadDepth (Illumina)	Number ofContigs	Candidate Pseudogenes/Intact Genes
Pectobacterium symbionts	4,343,494	43.08	9	3,093/2,814
Pectobacterium plasmid	148,954	47.04	1	126/900
Sodalis symbiont	3,638,256	22.33	3	1,887/2,405
Sodalis (possible plasmid)	89,872	56.70	1	71/48
Tremblaya a	144,042	1,565.37	1	11/123
Arsenophonus plasmid (unbinned)	64,583	160.98	1	71/101

Note.—The Pectobacterium and Sodalis symbionts are named Symbiopectobacterium endolongispinus and Sodalis endolongispinus, respectively (see Naming of the Two Gamma-proteobacterial Symbionts).

^aGenome of Tremblaya taken from Husník and McCutcheon (2016).

Mapping of Illumina sequence reads to the endosymbiont genomes indicates that the Pectobacterium endosymbiont is twice as abundant as the Sodalis endosymbiont. This is consistent with FISH images, where the Pectobacterium-related cells appear more abundant than the Sodalis-related cells (fig. 1B). We note that using read mapping as a proxy for endosymbiont abundance may be prone to error because endosymbiont genomes are known to exist in multiple copies per cell. For example, Illumina read mapping to the genome of Tremblaya suggests that it is approximately 25 times more abundant than its gammaproteobacterial cosymbionts, but Tremblaya cells are clearly less abundant than gammaproteobacterial cells because each Tremblaya cell contains numerous gammaproteobacterial cells (fig. 1). It is likely that Tremblaya’s genome is present in hundreds or thousands of copies per cell, consistent with previous reports of extreme polyploidy in ancient endosymbionts with tiny genomes, such as Candidatus Hodgkinia cicadicola (Van Leuven et al. 2014), Candidatus Sulcia muelleri (Woyke et al. 2010), and Buchnera aphidicola (Komaki and Ishikawa 1999).

Gammaproteobacterial Symbionts Are Related to Opportunistic Pathogens Known to Infect Insects

The closest sequenced nonendosymbiont relatives of the P. longispinus gammaproteobacterial symbionts are Pectobacteriumwasabiae (average amino acid identity = 76.1%) and Sodalis praecaptivus HS (average amino acid identity = 86.0%; hereafter, Sodalis HS). Sodalis HS was isolated from a human infection (Clayton et al. 2012; Chari et al. 2015), and its genome suggests that this bacterium may be an opportunistic pathogen capable of infecting animal and plant cells (Clayton et al. 2012). P. wasabiae is a known pathogen of plants and has been identified as the causative agent of potato soft rot (Gardan et al. 2003; Pasanen et al. 2013; Yuan et al. 2014). Phylogenomic analysis, using a concatenated set of 172 single-copy genes common to Gammaproteobacteria (Lee 2019), confirms the affiliation of one endosymbiont squarely within the Sodalis genus, closely related to other recently established endosymbionts such as Ca. S. glossinidius (hereafter, S. glossinidius) and S. pierantonius str. SOPE (hereafter, SOPE) (Husník and McCutcheon 2016) (fig. 2). Of note, SOPE was estimated to have been established as an insect endosymbiont from a Sodalis HS relative very recently, approximately 28,000 years ago (Clayton et al. 2012). Using the GC-content among 4-fold degenerate sites in the Sodalis endosymbiont of P. longispinus (in comparison with SOPE), and assuming a clock-like reduction in GC-content following host restriction, we estimate that its divergence from Sodalis HS occurred approximately 67,000 years ago, although we stress that this is a very rough estimate (supplementary file 2, Supplementary Material online). For example, selective pressures are likely different between the intra-Tremblaya space inside mealybugs and the insect intracytoplasmic space of weevils, where SOPE resides.

Fig. 2.

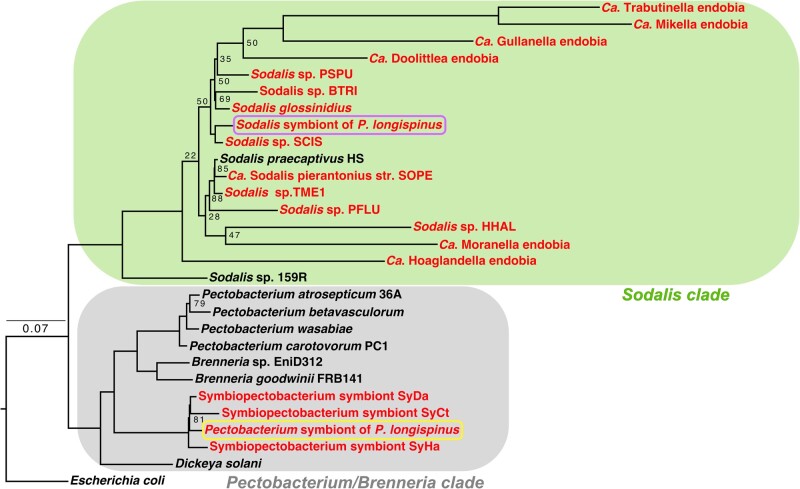

The gammaproteobacterial endosymbionts belong to two different groups. A phylogenomic tree constructed with a concatenated set of 172 single-copy genes designed for gammaproteobacteria (Lee 2019), of Sodalis- and Pectobacterium-related endosymbionts (colored red) and the closest free-living relatives (colored black). Escherichia coli genome is used as the outgroup. This tree reveals two distinct clades: one containing the Pectobacterium-/Brenneria-related bacteria and one containing the Sodalis-related bacteria. The two endosymbionts residing within P. longispinus bacteriocytes are emphasized in yellow (Pectobacterium related) and violet (Sodalis related) boxes. Unlabeled nodes have bootstrap support values greater than 90%.

The second gammaproteobacterial endosymbiont in P. longispinus is affiliated with Pectobacterium and Brenneria spp. and appears to fall within a newly proposed group of nematode and insect endosymbionts, named Symbiopectobacterium (Martinson et al. 2020). Blast-based comparison of open-reading frames confirms that these Symbiopectobacterium-clade symbionts are very closely related, sharing 94–97% average nucleic acid identity across their genomes (supplementary fig. 1, Supplementary Material online).

Naming of the Two Gammaproteobacterial Endosymbionts

For the Sodalis relative, we propose the name Candidatus Sodalis endolongispinus (hereafter, Sod. endolongispinus). This name highlights its close phylogenetic relationship with other bacteria in the Sodalis genus (fig. 2) and its localization inside P. longispinus bacteriomes. Similarly, we propose the name Candidatus Symbiopectobacterium endolongispinus (hereafter, Sym. endolongispinus) for the Pectobacterium relative, reflecting its close phylogenetic relationship with the new Symbiopectobacterium group (Martinson et al. 2020), along with its localization inside P. longispinus bacteriomes.

Pseudogenes Abound in the Gammaproteobacterial Endosymbiont Genomes

Newly established endosymbionts contain unusually high numbers of pseudogenes compared with most bacterial genomes (Toh et al. 2006; Burke and Moran 2011; McCutcheon and Moran 2011; Clayton et al. 2012; Oakeson et al. 2014). Pseudogenes are thought to form as a bacterium transitions to a strict intracellular lifecycle because many previously essential genes are no longer required in the intracellular environment (Toh et al. 2006; Burke and Moran 2011; McCutcheon and Moran 2011). Additionally, rapid pseudogenization of some genes coding for immune-stimulating compounds, such as lipopolysaccharide, is likely to be adaptive for bacteria that have recently transitioned to an intracellular lifestyle (D’Souza and Kost 2016; McCutcheon et al. 2019).

The genomes of both gammaproteobacterial endosymbionts of P. longispinus contain thousands of pseudogenes (fig. 3 and supplementary table 1 and supplementary files 3, 4, Supplementary Material online). The coding densities of both of these genomes are approximately 50%, much lower than average for most other free-living bacteria (Ochman and Davalos 2006). Pseudogenes in Sod. endolongispinus and Sym. endolongispinus are found in nearly all gene categories, including membrane transport, amino acid metabolism, energy generation, secretion systems, transcriptional regulation, and motility. Several regions that appear to be remnants of prophages are also largely pseudogenized. Pseudogenes have been formed in a variety of ways, and some genes show multiple signs of pseudogenization (e.g., truncations and dN/dS values >0.3, Oakeson et al. 2014) (fig. 3B). A substantial proportion of pseudogenes were formed by frameshifts and nonsense mutations, resulting in partial gene deletions or multiple gene fragments derived from what used to be a single ancestral gene. Consequently, many predicted pseudogenes are shorter (labeled “truncated” in fig. 3B) relative to their closest, presumably functional, homologs in nonendosymbiotic bacteria (fig. 3C). Additionally, a small proportion of genes appear to be longer than their closest orthologs (labeled “run-on” in fig. 3B) likely due to a frameshift that results in the loss of a stop codon. Many putative pseudogenes or pseudogene fragments were unrecognizable to the prokaryotic gene-finding program Prodigal (Hyatt et al. 2010), possibly due to missing start/stop codons and/or frameshift-causing indels, and were only identified by performing BlastX (Camacho et al. 2009) searches of intergenic regions against NCBI’s RefSeq database. We also detected cryptic pseudogenes, or genes that are structurally intact but are likely experiencing relaxed purifying selection, inferred from dN/dS ratios greater than 0.3 (Oakeson et al. 2014). However, we find that only a small proportion of predicted genes have elevated dN/dS values (0.5% of genes in Sym. endolongispinus and 2.2% in Sod.endolongispinus), suggesting that most genes are still experiencing strong purifying selection (fig. 3C).

Fig. 3.

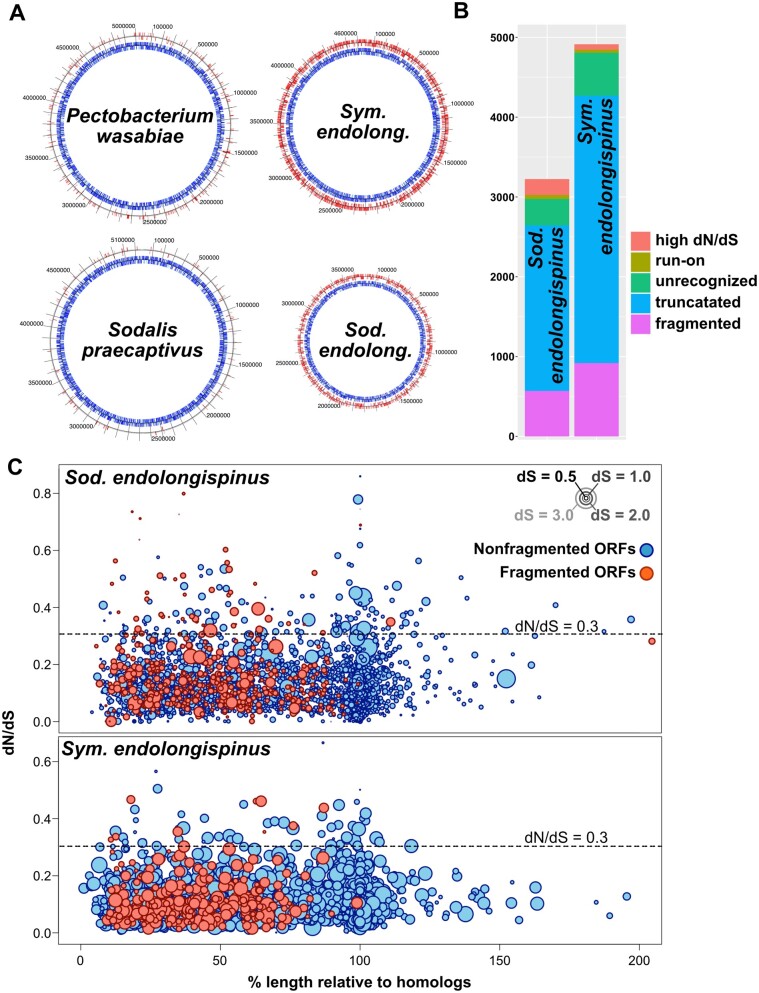

The features of gammaproteobacterial pseudogenes. (A) Genome maps showing the positions of candidate pseudogenes in the two Pectobacterium longispinus gammaproteobacterial endosymbiont genomes and their closest free-living relatives. Input genes (predicted using Prokka/Prodigal) are on the inner tracks and colored blue. Predicted pseudogenes are on the outer tracks and colored red. Numbers next to tick marks indicate the genome position (in bp) of each respective tick mark. (B) Summary of the types of gene disruptions occurring in each of the gammaproteobacterial symbionts. The total number of disruptions is greater than the total number of pseudogenes in each genome because many pseudogenes have more than one type of disruption. Truncated and run-on genes are those that are shorter or longer, respectively, relative to closest orthologs in NCBI’s nr database; unrecognized genes are those that were failed to be identified by Prodigal’s gene-finding algorithm but recruited more than five orthologs from NCBI’s reference database; fragmented genes are those that are present in more than one ORF but appear to be derived from a single ancestral gene. (C) Plots showing gene degradation of endosymbiont genes. Each circle represents an endosymbiont gene; the x-axis represents the length of each gene relative to its ortholog in the reference genome (Sodalis HS or P. wasabiae); the y-axis represents dN/dS of each gene relative to its ortholog in the reference genome; genes that have truncating stop codons and appear fragmented relative to orthologs in free-living genomes are colored red; finally, the size of each circle represents dS, a proxy for evolutionary divergence.

Transposases Recently Proliferated within the Genome of Sod. endolongispinus

Sym. endolongispinus and Sod. endolongispinus were screened for ISs, which are types of mobile genetic elements in bacteria. ISs are typically made up of transposase genes along with other accessory and passenger genes (Mahillon and Chandler 1998) and have previously been suggested to proliferate during the early stages of host restriction in endosymbionts (Gil et al. 2008; Plague et al. 2008; Belda et al. 2010; Schmitz-Esser et al. 2011; Clayton et al. 2012; Oakeson et al. 2014). Sod. endolongispinus encodes at least 220 transposase genes, 96% of which are part of the IS3 family (supplementary fig. 2A, Supplementary Material online). The rest of the transposases are part of the ISNCY transposase family. Both of these IS families are also found in the close relative Sodalis HS, but in smaller numbers and different proportions. The expansion of IS3 family transposases in Sod. endolongispinus appears to have occurred very recently, because the vast majority of these transposases are part of two distinct clusters of paralogs, where each cluster contains approximately 80 nearly identical copies of the same transposase that has proliferated throughout the genome (supplementary file 1 and supplemental fig. 3, Supplementary Material online). Only a handful of transposase duplications have a dS value (a proxy for evolutionary divergence) greater than 0.5, which is the average dS of homologs between Sod. endolongispinus and Sodalis HS, suggesting that most transposition events occurred after divergence of the two species. Bouts of recent transposition are further supported by phylogenetics, where transposase sequences from Sod. endolongispinus and Sym. endolongispinus group together in highly similar clades to the exclusion of Sodalis HS and P. wasabiae transposases (supplementary fig. 4A, Supplementary Material online). There is one cluster of transposases, where single Sod. endolongispinus and Sym. endolongispinus sequences group with single Sodalis HS and P. wasabiae sequences, suggesting that at least in some cases, transposase duplications (and possibly horizontal gene transfers [HGT] events) might have occurred prior to speciation (supplementary fig. 4B, Supplementary Material online).

In contrast, nontransposase gene duplicates in Sod. endolongispinus, which comprise 101 genes, have an average dS of 1.3, suggesting that they likely duplicated prior to host restriction. Gene duplication prior to divergence of nontransposase genes is also supported by the fact that orthologs to most duplicated genes are also encoded as duplicates on the genome of Sodalis HS. Long-term maintenance of gene duplicates is considered rare in prokaryotic genomes (Hooper and Berg 2003); however, in certain bacterial species, gene duplicates do persist and can accumulate to a considerable fraction of the genome (Gevers et al. 2004; Miller et al. 2011). In contrast to Sod. endolongispinus, we find that Sym. endolongispinus does not appear to have undergone an expansion of transposases.

Many of the identified transposase genes appear to have been pseudogenized in some way. In Sod. endolongispinus and Sym. endolongispinus, 26% and 70%, respectively, of all identified transposases have been flagged as pseudogenes. The vast majority of these pseudogene predictions are based on the shorter length of each transposase relative to the closest homologs available in NCBI. These short pseudogene fragments are likely caused by deletions, which may have been preceded by some kind of nonsense mutation, or frameshift-inducing indel. There are also some transposases that appear to have acquired nonsense mutations and exist as multiple fragments on the genome. The fact that many transposases have become pseudogenized is not unique to the P. longispinus endosymbionts. Other Sodalis and Symbiopectobacterium-related symbionts show similar levels of pseudogenization among their transposases (supplementary file 5, Supplementary Material online).

Both Gammaproteobacterial Endosymbionts Show Complementary Patterns of Gene Pseudogenization and Loss in Amino Acid and Vitamin Biosynthesis Pathways

Although the genomes of the gammaproteobacterial symbionts of P. longispinus are still large, the pseudogenization of nearly half of their genes allows us to ask whether gene inactivation events show nascent signals of the interdependency that is common in more established endosymbionts (Martin and Herrmann 1998; Shigenobu 200l; Wu et al. 2006; Gosalbes et al. 2008; McCutcheon and Moran 2010; Lamelas et al. 2011; Sloan and Moran 2012; Husník et al. 2013; López-Madrigal et al. 2013; Bennett et al. 2014; Santos-Garcia et al. 2014; Luan et al. 2015; Husník and McCutcheon 2016; Szabó et al. 2017; Ankrah et al. 2020). Clear patterns of complementary gene loss and retention have been observed in other mealybug symbioses that host intra-Tremblaya gammaproteobacterial symbionts, but in these other cases, the gammaproteobacterial endosymbionts have highly reduced and gene-dense genomes of less than 1 Mb, consistent with much longer periods of host restriction (Husník and McCutcheon 2016; Szabó et al. 2017).

We find that Sym. endolongispinus and Sod. endolongispinus show signs of nascent complementarity in gene loss and retention. This pattern is most clear in key host-required pathways used to build essential amino acids and vitamins (fig. 4A). For example, the pathways for biosynthesis of the amino acids histidine, cysteine, arginine, threonine, and methionine show signs of partitioning between both gammaproteobacterial genomes through reciprocal pseudogene formation and gene loss. Some of the biosynthetic genes missing or pseudogenized from both Sod. endolongispinus and Sym. endolongispinus (e.g., hisF, ribC, bioA, bioB) are encoded either by Tremblaya or on the host genome as bacterial HGTs. There are also many pathway components that remain redundant in the system, with multiple gene copies present between the symbiotic partners (supplementary fig. 5, Supplementary Material online). For example, three of the genes responsible for lysine biosynthesis (dapA, dapB, and dapF) are encoded on the host as HGTs, but these genes are also retained in both Sod. endolongispinus and Sym. endolongispinus. There are also two instances where a required gene (argA [arginine] and bioC [biotin]) is missing completely from the symbiosis. These genes are also missing in other symbioses, and it is possible that their roles have been taken over by host proteins of eukaryotic origin (Husník et al. 2013).

Fig. 4.

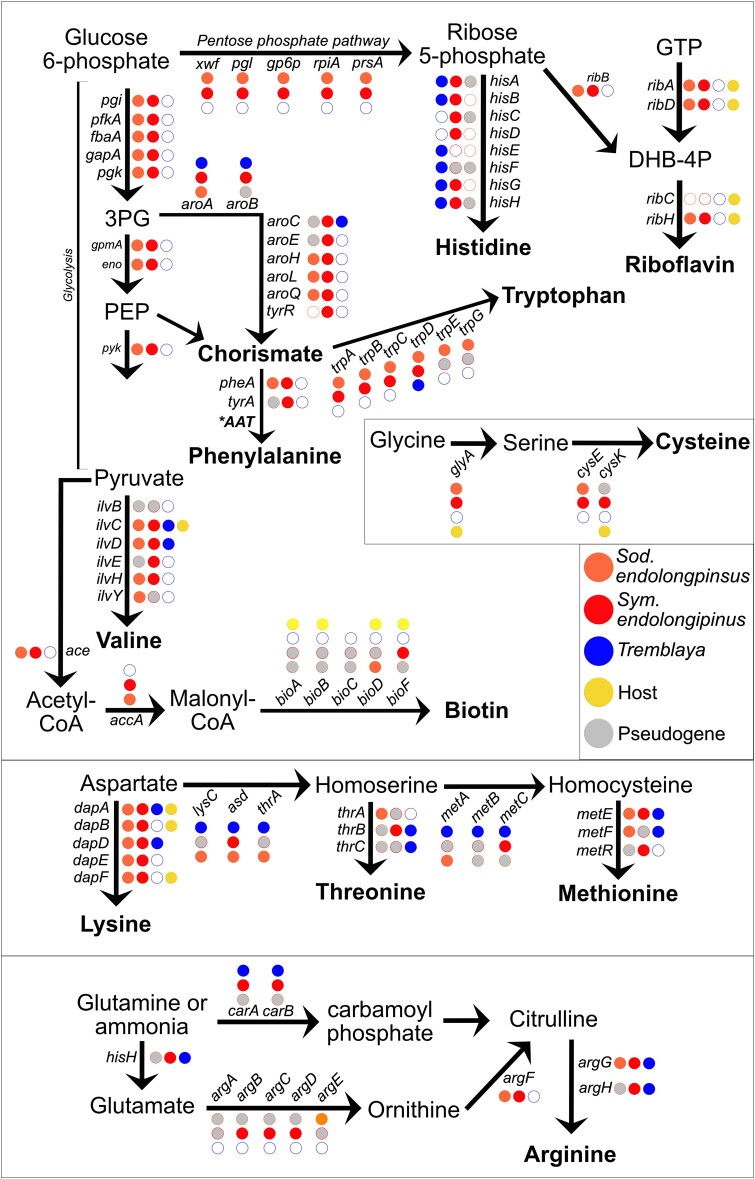

Distribution of metabolic genes in the Pectobacterium longispinus symbiosis. Presence, absence, and pseudogenes among the various biosynthetic pathways in P. longispinus. Also shown are the central metabolism pathways (glycolysis, pentose phosphate, and acetate node). Pseudogenes are colored gray. The presence of a gene on the host genome (either native or from HGT) is shown as a filled yellow circle. Essential amino acids and vitamins provided by the endosymbionts are shown in bold.

Core Metabolic and Cell Structural Genes in Gammaproteobacterial Genomes Are Strongly Retained

Contrary to the pattern of complementary degradation in pathways for amino acid and vitamin biosynthesis, genes that are part of the core metabolic and cell structural pathways show strong retention in both Sod. endolongispinus and Sym. endolongispinus (figs. 4 and 5). Specifically, genes for glycolysis, pentose phosphate, and the acetate node, as well as other essential pathways (e.g., iron–sulfur cluster biosynthesis, tRNA modification), are completely intact on both of the young endosymbiont genomes in P. longispinus (fig. 4).

Fig. 5.

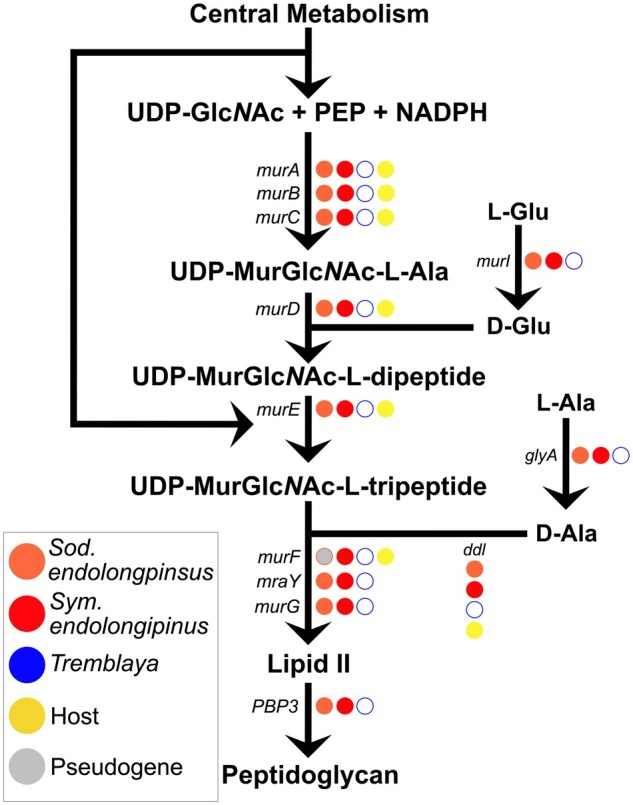

The peptidoglycan biosynthesis pathway in Pectobacterium longispinus symbiosis. Presence, absence, and pseudogenes within the peptidoglycan biosynthesis pathway in P. longispinus endosymbionts. Pseudogenes are colored gray. The presence of a gene on the host genome is shown as a filled yellow circle.

Finally, we investigated the pathway for peptidoglycan (PG) biosynthesis. PG is an important component of the bacterial cell envelope; it provides rigidity and shape to most bacterial cells (Otten et al. 2018). We have previously shown that in a related mealybug species, Planococcus citri, PG is produced by a biosynthetic pathway split between horizontally acquired genes encoded on the host genome and genes on the gammaproteobacterial endosymbiont genome (Bublitz et al. 2019). However, in P. citri, Tremblaya harbors an ancient and long-established gammaproteobacterial symbiont, Ca. Moranella endobia (hereafter, Moranella), which has a highly reduced genome with many deleted PG-related genes. P. citri and P. longispinus are somewhat closely related mealybugs and share the same PG-related bacterial HGTs on their nuclear genomes (Husník and McCutcheon 2016). Here, we find that the core PG biosynthesis pathway is intact in Sym. endolongispinus (fig. 5A). In Sod. endolongispinus, however, one PG-related gene, murF, has acquired a single-base frameshift-causing insertion in the middle of the gene (supplementary file 6, Supplementary Material online). This frameshift resulted in an internal stop-codon, causing Prodigal to predict two separate open-reading frames for this gene (supplementary file 3, Supplementary Material online). Interestingly, murF is present as an HGTs on the P. longispinus genome (Husník and McCutcheon 2016), but it is unclear if this HGT somehow complements the early loss of murF in Sod. endolongispinus in a manner similar to that in P. citri (Bublitz et al. 2019).

Discussion

Gammaproteobacterial Endosymbionts in P. longispinus Are of Recent Origin

We conclude that the gammaproteobacterial endosymbionts in P. longispinus mealybugs have been introduced into a host-restricted lifestyle relatively recently, on a timescale roughly similar (tens to hundreds of thousands of years) to other young endosymbionts of insects and nematodes (Toh et al. 2006; Burke and Moran 2011; Clayton et al. 2012; Boyd et al. 2016; Oakeson et al. 2014; Martinson et al. 2020). We base this conclusion on three features of their genomes. First, their genome sizes are large, comparable with those of free-living bacteria (table 1 and fig. 3) (Husník and McCutcheon 2016), showing that they have not yet undergone most of the genome reduction seen in more established bacterial endosymbionts (McCutcheon and Moran 2011). Second, a phylogenomic tree, consisting of endosymbionts (old and young) and free-living bacteria, shows the gammaproteobacterial endosymbionts of P. longispinus on short branch lengths (fig. 2), indicating that they have not yet experienced the rapid sequence evolution typical of older endosymbiotic bacteria (Moran 1996). The branch lengths of P. longispinus gammaproteobacteria are similar to those of other recently acquired endosymbionts and are substantially shorter than the branch lengths of older symbionts that have undergone millions of years of genome erosion. Third, their GC-contents at 4-fold degenerate sites in coding regions remain relatively high (supplementary file 4, Supplementary Material online), whereas older endosymbionts typically show pronounced AT biases at these sites (Wernegreen 2002; Van Leuven and McCutcheon 2012).

We attempted to infer which gammaproteobacterial endosymbiont might have been established first within P. longispinus bacteriocytes. The lower average dS and shorter branch length relative to its closest free-living relative (fig. 2) suggests that Sod. endolongispinus is the younger of the two gammaproteobacterial endosymbionts in P. longispinus. This is consistent with our rough estimate of 68,000 years as the divergence time between Sod. endolongispinus and Sodalis HS compared with an estimated divergence of 466,000 years for Sym. endolongispinus and P. carotovorum (Martinson et al. 2020). It is important to emphasize that these dates are extremely speculative. Additionally, it is possible that the longer branch length of Sym. endolongispinus (as well as the other Symbiopectobacterium symbionts) relative to the free-living Pectobacterium/Brenneria spp. is due to the fact that a close relative to the Symbiopectobacterium has not yet been sequenced.

Creation of Pseudogenes Is Likely Coupled with Rapid Deletion

During their brief period of host restriction and vertical transmission, Sym. endolongispinus and Sod. endolongispinus have accumulated thousands of pseudogenes (fig. 3). This is in stark contrast to nonendosymbiotic bacteria, where pseudogenes have been reported to account for only 1–5% (in some cases, as high as 8%) of the genetic repertoire (Liu et al. 2004; Lerat and Ochman 2005). The high level of gene inactivation in both Sym. endolongispinus and Sod. endolongispinus genomes is caused by many frameshift-causing indels and nonsense mutations, resulting in either truncated, run-on, and fragmented genes (supplemental files 3 and 4, Supplementary Material online).

A small proportion of apparently functional genes appear to be cryptic pseudogenes, or genes that have elevated dN/dS values (>0.3) relative to orthologs in a closely related nonendosymbiont genome (Clayton et al. 2012; Oakeson et al. 2014; Van Leuven et al. 2014; Burke and Moran 2011). However, the vast majority of both intact and broken genes have low dN/dS values consistent with strong purifying selection. This suggests that pseudogenes in Sym. endolongispinus and Sod. endolongispinus have formed very recently and have not yet had time to accumulate substitutions that would elevate their dN/dS values. As noted in previous studies of pseudogene flux in several strains of Salmonella (Kuo and Ochman 2010) and consistent with the previously reported deletional bias in bacterial genomes (Mira et al. 2001; Kuo and Ochman 2009; Burke and Moran 2011), it is likely that deletion of pseudogenes happens quickly, on time scales shorter than these genes can accumulate significant numbers of nonsynonymous sequence substitutions.

Recent Transposase Expansion a Common, but Not Universal, Feature of Early Genomic Disruption in Endosymbionts

Sod. endolongispinus encodes 220 transposases, over an order of magnitude greater than its closest sequenced free-living relative. The high number of transposases in Sod. endolongispinus is consistent with previous reports of IS expansion as a by-product of relaxed selection on large parts of the genome as well as a mechanism for genome rearrangement and reduction (Mahillon and Chandler 1998; Plague et al. 2008; Belda et al. 2010; Schmitz-Esser et al. 2011; Oakeson et al. 2014; Hendry et al. 2018). Indeed, other recently acquired Sodalis endosymbionts (SOPE and S. glossinidius) also encode high numbers of transposases (Clayton et al. 2012; Oakeson et al. 2014). Each Sodalis endosymbiont encodes different types and distributions of IS families (supplementary fig. 2A, Supplementary Material online). Certain IS families present in the other Sodalis endosymbionts encode transposases that are not found in Sodalis HS (e.g., IS21 in SOPE, IS1 in Sodalis sp. SCIS). Given that ISs are highly dynamic, moving within and between genomes (Touchon and Rocha 2007), it is possible that even a very close relative to Sodalis HS could have radically different types and distributions of ISs.

Similar to Sod. endolongispinus, SOPE and S. glossinidius have likely undergone an IS expansion very recently, since the vast majority of the transposase sequences fall into only a handful of sequence clusters composed of nearly identical copies of just a few families per genome (supplementary file 1 and supplementary fig. 2B, Supplementary Material online) (Gil et al. 2008; Oakeson et al. 2014). Because transposases are known for facilitating genomic deletions (Mahillon and Chandler 1998) and have proposed to be involved in genome reduction in endosymbionts (Siguier et al. 2014), it is possible that this deletional tendency of transposases results in the elimination of IS elements themselves over time (Plague et al. 2008; Schmitz-Esser et al. 2011; Siguier et al. 2014). Consistent with this idea, the genomes of older endosymbionts encode no or very low numbers of IS elements (supplementary fig. 2, Supplementary Material online).

IS proliferation does not appear to be a universal phenomenon in young endosymbionts, at least not among the Sodalis and Symbiopectobacterium endosymbionts screened here. Several Sodalis endosymbionts (e.g., Sodalis sp. TME1, Sodalis sp. SCIS), whose genomes are comparable in size to Sod. endolongispinus (supplementary table 1, Supplementary Material online), appear to have few or no transposases (supplementary fig. 2, Supplementary Material online). None of the Symbiopectobacterium symbionts encodes nearly as many transposases as Sod. endolongispinus or S. glossinidius but has similar or lower numbers of transposases relative to P. wasabiae and P. cartovorum, the closest nonendosymbiotic relatives of the Symbiopectobacterium clade. The relative lack of transposases is surprising, given the vast amount of superfluous genome space in these young endosymbiont genomes in which transposases could insert themselves (supplementary table 1, Supplementary Material online). It is possible that there are large and diverse populations of free-living Sodalis and Symbiopectobacterium strains in nature that vary in IS content, and that the amount of IS proliferation that occurs in a newly established endosymbiont reflects the IS load of the ancestral free-living strain. Although it is also possible that the dearth of detectable transposase genes is caused by the low assembly quality of some of the endosymbiont genomes that are highly fragmented (e.g., >100 contigs) (supplementary table 2, Supplementary Material online). The highly fragmented nature of these short-read assemblies can, in part, be caused by the prevalence of identical or nearly identical transposases that cannot be resolved using short reads alone. For example, the assembly corresponding to Sym. endolongispinus published by Martinson et al. (2020) comprised 83 contigs (using only the Illumina reads published by Husník and McCutcheon 2016), with only 6 transposases detected using the ISfinder software that is included in the Prokka annotation pipeline. Our hybrid assembly using PacBio and Illumina reads resolved this genome into 9 contigs, from which we were able to identify 36 transposases. Similarly, our Illumina-only assembly of the Sod. endolongispinus genome resulted in 109 contigs, with only 7 identifiable transposases; our PacBio/Illumina hybrid assembly resolved the genome of Sod. endolongispinus into 3 contigs with 220 identifiable transposases. It seems likely that the estimated number of transposases in genomes generated from short-read data alone are significantly underestimated, with near-identical ISs collapsing into small unassembled contigs.

Establishment of Interdependence Occurs Early During Endosymbiont Establishment

Previous research has demonstrated that newly evolved endosymbiotic bacteria lose genes in response to the preexisting genetic inventory of their cosymbionts and (if present) HGTs on the host genome (Wu et al. 2006; McCutcheon and Moran 2007; Nikoh and Nakabachi 2009; McCutcheon et al. 2009; Sloan and Moran 2012; Husník et al. 2013; Luan et al. 2015; Nowack et al. 2016). The occurrence of two recently acquired endosymbionts in P. longispinus presented us with a unique opportunity to investigate the inception of genomic complementarity and metabolic interdependence in a complex four-way symbiosis.

During this early period of host restriction, we might expect to see more rapid gene loss in pathways whose precursors, intermediates, and products are more easily transported between different members of the symbiosis. This can include metabolites for which dedicated transporters (e.g., amino acid permeases) already exist in the free-living predecessor. For example, Sod. endolongispinus encodes genes for the transport of histidine and biotin, possibly contributing to the rapid loss of the biotin and histidine biosynthesis pathways in that endosymbiont (fig. 4). Many genes that are part of amino acid and vitamin metabolism are either encoded on the host’s nuclear genome as HGTs from bacteria or on Tremblaya’s diminutive genome, relieving the need for these new gammaproteobacterial symbionts to continue maintaining these genes. Consistent with this, we observe loss and pseudogenization of many pathway components for amino acid and vitamin biosynthesis in Sym. endolongispinus and Sod. endolongispinus (fig. 4A), suggesting that genes in these pathways are lost rapidly and in response to genes already present in the symbiosis.

As Sym. endolongispinus and Sod. endolongispinus are relatively new to a host-dependent lifestyle, they still encode many genes redundant with other genes present in the system (fig. 4B). Most of these redundant genes appear to be undergoing strong purifying selection, evident from their low dN/dS values (supplementary files 3 and 4, Supplementary Material online). Because other older and longer-established mealybug symbioses show little evidence of genetic redundancy across genomes (Husník and McCutcheon 2016), we suspect that many of the redundant genes in the gammaproteobacterial endosymbionts simply have not had a chance to accumulate substitutions that would break genes, elevate their dN/dS values, or delete them completely from one genome or the other.

Loss of Core Metabolic and Structural Genes Occurs More Slowly

In contrast to the rapid gene loss in pathways for amino acid and vitamin biosynthesis, genes in pathways for peptidoglycan biosynthesis and central metabolism are more strongly conserved in both of the gammaproteobacterial symbionts of P. longispinus. We have previously demonstrated that in Moranella, the ancient gammaproteobacterial symbiont of P.citri, peptidoglycan biosynthesis occurs in concert with bacterial genes encoded on its host’s nuclear genome as HGTs (Bublitz et al. 2019). Consequently, Moranella has lost much of its peptidoglycan biosynthesis pathway and is presumably reliant on the import of host-derived proteins. Although this level of cellular integration represents a potential future state for Sym. endolongispinus and Sod. endolongispinus, it appears that this level of integration has not yet been achieved in the relatively short amount of time that these symbionts have been inhabiting P. longispinus.

We hypothesize that the generally stronger retention of the peptidoglycan biosynthesis pathway throughout the early stages of endosymbiosis is due to the difficulty of integrating pathways that require the shuttling of complex molecules (such as PG precursors) or proteins between different cellular compartments. The loss of a key gene of the peptidoglycan biosynthesis pathway (murF) in Sod. endolongispinus is therefore quite interesting given that the protein product of this gene has been shown to be imported by the gammaproteobacterial endosymbiont in a related mealybug (Bublitz et al. 2019). It is possible that the repeated recruitment and maintenance of endosymbionts from the Sodalis genus (Husník and McCutcheon 2016) has made mealybugs particularly suited for rapid cellular integration of Sodalis relatives after infection. Rapid Sodalis adaptation to mealybug endosymbiosis is consistent with stronger conservation of peptidoglycan biosynthesis in Sym. endolongispinus, even though we estimate that Sym. endolongispinus is the older of the two gammaproteobacterial endosymbionts. More rapid Sodalis adaptation is also supported by the patterns observed in the degradation of pathways for the synthesis of essential amino acids and vitamins: out of those pathway components that are encoded by Tremblaya or the host genome as HGTs, 21 genes are lost by Sod. endolongispinus, whereas only 11 are lost by Sym. endolongispinus (fig. 4). Members of the Symbiopectobacterium clade do not seem to commonly infect mealybugs, as only one of seven mealybug species for which we have genomic data houses a Symbiopectobacterium-related symbiont (Husník and McCutcheon 2016; Szabó et al. 2017). A possible preference of mealybugs toward recruitment of Sodalis-related endosymbionts may be due to a combination of factors, including as of yet unknown factors within the host, as well as the genetic repertoire of the infecting bacteria, although it just may be that mealybugs interact more frequently with Sodalis in nature.

Materials and Methods

Insect Rearing

Pseudococcus longispinus populations were reared on sprouted potatoes (fig. 1A) at 25 °C, 77% relative humidity, and a 12 h light/dark cycle in a Percival 136LL incubator.

RNA-Fluorescence In Situ Hybridization

Whole P. longispinus individuals of the second and third instar developmental stage were submerged in Ringer solution (3 mM CaCl2 × 2H₂O, 182 mM KCl, 46 mM NaCl, 10 mM Tris base; adjusted to pH 7.2) and carefully opened for better buffer infiltration. Samples were transferred into Carnoy’s fixative (EtOH:chloroform:acetic acid; 6:3:1) and fixed overnight at 4 °C. Tissue samples were then dehydrated in a graded ethanol series from 70% to 100% ethanol. Samples were transferred into tissue bags and cassettes for paraffin embedding using a Leica ASP 300 Tissue Processor. Ethanol was exchanged for methyl salicylate and then incubated in 100% xylene before infiltration with paraffin. Each individual sample was embedded in a single paraffin block, semi-thin sections (5–6 µm) were prepared with a microtome and mounted onto microscopy slides.

Sections designated for RNA-FISH experiments were deparaffinized in xylene and rehydrated in a graded ethanol series (100–30% ethanol). Tissue sections were then prehybridized in hybridization buffer (900 mM NaCl, 20 mM Tris–HCl pH 7.5, 35% formamide). Hybridization was performed by adding 1.5–2 µl of the probe targeting the Pectobacterium-related endosymbiont (5′[Cy3]-ccacgcctcaagggcacaacctc; 100 µM) to each 100 µl hybridization buffer and incubated at 40 °C. Samples were then briefly rinsed in wash buffer (70 mM NaCl, 20 mM Tris–HCl pH 7.5, 5 mM EDTA pH 8.0, 0.01% SDS) before mounting the slides with hybridization buffer supplemented with 1.5–2 µL of each probe (per 100 µl buffer) targeting the Sodalis-related endosymbiont (5′[Cy5]-aaagccacggctcaaggccacaacctt; 100 µM) and Tremblaya (5′[fluorescein]-gccttagcccgtgctgccgtac; 100 µM), followed by overnight incubation at 30 °C. Slides were then washed in washing buffer at 30 °C and counterstained with Hoechst in washing buffer. After another washing step, sample slides were rinsed in dH₂O, mounted with FluorSave™ Reagent (Sigma Millipore) and analyzed by confocal laser scanning microscopy with a Zeiss LSM 880. Images were processed using Fiji version 1.0.

Electron Microscopy

Bacteriomes were dissected from second and third instar P. longispinus individuals as previously described (Bublitz et al. 2019). Isolated bacteriomes were prefixed with 3% glutaraldehyde, 1% paraformaldehyde, and 5% sucrose in 0.1 M sodium cacodylate trihydrate for 12–24 h at 4 °C, then rinsed briefly with cacodylate buffer. Bacteriomes were placed into brass planchettes (Ted Pella Inc.) prefilled with cacodylate buffer + 10% 70 kD Ficoll (extracellular cryoprotectant; Sigma) and ultra-rapidly frozen with a HPM010 High Pressure Freezing machine (BalTec/ABRA, Switzerland). Vitreously frozen samples were transferred, under liquid nitrogen, to Nunc cryovials (Thermo-Fisher Scientific) containing 2% OsO₄ and 0.05% uranyl acetate in acetone and placed into an AFS-2 Freeze Substitution Machine (Leica Microsystems, Austria). Samples were freeze-substituted at −90 °C for 72 h, warmed to −20 °C over 12 h, held at −20 °C for an additional 12 h, and then brought to room temperature. Samples were rinsed 4× with acetone, infiltrated into Epon-Araldite resin (Electron Microscopy Sciences, Port Washington, PA), then flat-embedded between two Teflon-coated glass microscope slides. Resin was polymerized at 60 °C for 24–48 h. Embedded samples were observed by phase-contrast microscopy to ascertain specimen quality and to select appropriate regions for electron microscropy (EM). Blocks of tissue (typically containing a single bacteriome) were excised with a scalpel and glued to plastic sectioning stubs. Serial semi-thick (150–300 nm) sections were cut with a UC6 ultramicrotome (Leica Microsystems) using a diamond knife (Diatome Ltd, Switzerland) and collected onto Formvar-coated copper-rhodium 1 mm slot grids (Electron Microscopy Sciences). Grids were stained with 3% uranyl acetate and lead citrate; then, 10 nm colloidal gold particles were applied to both sides of the sections to serve as fiducial markers for subsequent tomographic image alignment.

Dual-Axis Tomography

Grids were placed in a dual-axis tomography specimen holder (Model 2040; E.A. Fischione Instruments Inc., Export PA) and viewed with a Tecnai TF-30ST TEM at 300 KeV. Dual-axis tilt-series were acquired automatically using the SerialEM software package (Mastronarde 2005) and recorded digitally with a 2k × 2k CCD camera (XP1000; Gatan Inc., Pleasanton, CA). Briefly, sections were tilted ±64° with images taken at 1° increments. The grid was then rotated 90° and a similar tilt-series was recorded around the orthogonal axis. Tomograms were calculated, joined, and analyzed using the IMOD software package (Mastronarde 2008; Mastronarde and Held 2017) on Mac Pro and iMac Pro computers (Apple Inc.).

Sequencing and Assembly

Raw reads (Illumina HiSeq 2000) published in 2016 by Husník and McCutcheon (BioProject: PRJEB12068) were downloaded from the National Center for Biotechnology Information (NCBI) Sequence Read Archive (SRA), using the SRA Toolkit v2.10.8 (SRA Toolkit Development Team). Reads were trimmed using Trimmomatic v0.36 (minimum length = 36 bp, sliding window = 4 bp, minimum quality score = 15 [ILLUMINACLIP: TruSeq3-PE : 2:30:10 LEADING : 3 TRAILING : 3 SLIDINGWINDOW : 4:15 MINLEN : 36]) (Bolger et al. 2014). For PacBio sequencing, genomic DNA was prepared from pooled mealybugs of the second and third instar stage using Qiagen Genomic Tip 500 g extraction kits, size selected for fragments >20 kb using a BluePippen device, followed by library preparation using a single molecule realtime (SMRTbell) Template Prep Kit v1.0. The resulting libraries were sequenced on 28 SMRT PacBio cells using P6 version 2 chemistry and reagents by Sci-Life labs in Uppsala, Sweden. This sequencing effort resulted in 6,101,355 reads with an average length of 9,805 bases, for a total of 59,828,022,374 bases. These reads were error corrected and trimmed, resulting in 5.05 million reads with an average sequence length of 9,318 bases. These corrected and trimmed reads were then assembled using Canu v1.6 (correctedErrorRate = 0.45, genomesize = 284 m) (Koren et al. 2017), which produced 3,049 contigs spanning 438,113,873 bases. Preliminary gammaproteobacterial contigs were extracted from the Canu assembly using the SprayNPray software (https://github.com/Arkadiy-Garber/SprayNPray; last accessed June 11, 2021). Briefly, SprayNPray uses Prodigal v2.6.3 (Hyatt et al. 2010) to predict genes from coding sequences and then queries the protein translation for each gene against NCBI’s RefSeq database (release 200; Pruitt et al. 2007) using DIAMOND v2.0.4.142 (e-value cutoff 1E−6; Buchfink et al. 2015). Putative endosymbiont contigs were then extracted from the larger assembly based on gene density, GC-content, and taxonomy of top DIAMOND hits (to Sodalis- and Pectobacterium/Brenneria-related spp.) to each contig. These contigs were then used to identify and extract all Illumina and PacBio reads associated with the gammaproteobacterial symbionts. Identification of endosymbiont-derived Illumina short reads was performed using Bowtie2 v2.3.4.1 (Langmead and Salzberg 2012). Identification of endosymbiont-derived PacBio reads was performed using BLASR v5.1 (Chaisson and Tesler 2012). About 3.2% of all PacBio reads mapped to the CANU-assembled contigs affiliated with the gammaproteobacterial endosymbionts. Of the 124.5 million Illumina read pairs, 4.8% mapped to the crude gammaproteobacterial endosymbiont contigs.

Once these gammaproteobacterial subsets of short and long reads were identified and extracted, Unicycler v0.4.8 (Wick et al. 2017) was used, with “normal” mode (minimum bridge quality = 10) to carry out a hybrid SPAdes v3.13.0 (Bankevich et al. 2012) assembly (default k-mers). This resulted in 15 contigs, out of which the two gammaproteobacterial genomes were binned using a combination of metrics, including coverage of Illumina reads mapped against the final assemblies. Coverage of the short Illumina reads was estimated using the jgi_summarize_bam_contig_depths script from the MetaBAT package (Kang et al. 2019). Since the closest phylogenomic affiliations of each gammaproteobacterial symbiont are known (Husník and McCutcheon 2016), we also used BlastP (Camacho et al. 2009) to compare predicted proteins from each contig against NCBI’s RefSeq database (Pruitt et al. 2007). Proteins were derived from Prodigal’s gene predictions (Hyatt et al. 2010), and the phylogenetic affiliation of each contigs’ proteins was inferred by the top BlastP hits from NCBI’s RefSeq database (Pruitt et al. 2007).

Phylogenomic Analysis

Phylogenomic analysis was carried out using GToTree v1.5.38 (Lee 2019) and RAxML (Stamatakis 2014). Briefly, single-copy genes were identified using a set of HMMs for genes common to gammaproteobacteria (Lee 2019). As part of the GToTree pipeline, single-copy genes are identified using HMMER v3.2.1 (Johnson et al. 2010), aligned with Muscle v3.8 (Edgar 2004), and concatenated. We then used these concatenated alignments to build a phylogenomic tree with RAxML, with 100 bootstraps (-N 100), the PROTCAT model for amino acid substitution, and the BLOSUM 62 amino acid matrix (-m PROTCATBLOSUM62) (Stamatakis 2014). Phylogenomic trees were visualized using FigTree (http://tree.bio.ed.ac.uk/software/figtree/; last accessed June 11, 2021).

Average nucleotide and amino acid identities between endosymbionts were estimated using a Blast-based approach: genes from each endosymbiont were queried in a Blast search against all other symbionts, requiring an e-value of 1E−10 or lower, and allowing for the reporting of only one top Blast hit. We then calculated the average sequence identity among all of the Blast matches between each endosymbiont comparison.

Annotation and Biosynthetic Pathway Reconstruction

Each endosymbiont was annotated using Prokka v1.14.6 (Seemann 2014). As part of Prokka’s pipeline, coding regions are detected using Prodigal; noncoding RNA sequences were also identified: tRNAs and tmRNAs using Aragorn (Laslett and Canback 2004) and rRNAs using RNAmmer (Lagesen et al. 2007). Prokka annotation also included identification of transposases, using the ISfinder database of insertion sequences (Siguier et al. 2006). Genes were also annotated using the GhostKOALA v.2.2 web server, which uses the Kyoto Encyclopedia of Genes and Genomes (KEGG) Orthology database (Kanehisa et al. 2016). Biosynthetic pathways for amino acids, vitamins, peptidoglycan, and translation-related genes were manually identified and reconstructed from these annotations and organized into pathways. HGTs present on the mealybug genome were previously identified (Husník and McCutcheon 2016; Bublitz et al. 2019) and further confirmed with the SprayNPray software.

Pseudogene Prediction

Candidate pseudogenes were identified using the Pseudofinder software v1.0 (https://github.com/filip-husnik/pseudofinder; last accessed June 11, 2021), with DIAMOND v2.0.4.142 (Buchfink et al. 2015) as the search engine (–diamond) to find each gene’s closest homologs in NCBI’s RefSeq (Pruitt et al. 2007) database. This allowed us to identify pseudogenes based on length and gene fragmentation due to early stop codons. Proteins shorter than 75% (–length_pseudo 75) compared with the average length of the 15 top homologs (–hitcap 15, –evalue 1E−4) from RefSeq were flagged as potential pseudogenes. Additionally, genes with internal stop codons and frameshift mutations were also flagged as pseudogenes. These fragmented genes were identified by Pseudofinder by finding adjacent proteins that have the same protein sequence as their top DIAMOND hit. For adjacent genes to be considered as fragmented parts of the same ancestral gene, we used a distance cutoff of 2,000 bp (–distance 2,000). The length of each gene and pairwise homology (between the putative fragments) was also taken into consideration to exclude adjacent genes that represent gene duplication events, which may have resulted in tandem-encoded duplicate genes. Nongenic regions, in which Prodigal did not detect any genes, were also compared against NCBI’s RefSeq database, to identify pseudogenized genes that were missed by Prodigal’s gene-finding algorithm. Nongenic regions required at least five DIAMOND matches to proteins in the RefSeq database (–intergenic_threshold 0.3) to be considered as pseudogenes.

Using DIAMOND BlastP, Pseudofinder also compared genes from each endosymbiont to genes encoded by its closest free-living relative, inferred from phylogenomic analysis and average amino acid identity. We identified P.wasabiae as the closest free-living relative to one endosymbiont and Sodalis praecaptivus HS as the closest relative to the other. Using PAL2NAL v14 (Suyama et al. 2006), Pseudofinder generates codon alignments for each ortholog pair, then, using Codeml v4.9j (Yang 2007), calculates dN/dS values for each pairwise comparison. We provide the control file (codeml.ctl) containing the parameters used by Codeml in the following GitHub repository: https://github.com/Arkadiy-Garber/PLON-genome-paper; last accessed June 11, 2021. We required dS to be greater than 0.001 and lower than three for dN/dS calculation (-m 0.001, -M 3). This allowed us to infer cryptic pseudogenes, or genes that are likely undergoing relaxed selection but have not acquired any obvious inactivating mutations (Clayton et al. 2012; Oakeson et al. 2014; Van Leuven et al. 2014). We used a dN/dS cutoff of 0.3 (Oakeson et al. 2014), flagging genes as pseudogenes if their dN/dS values are higher than this threshold (–max_dnds 0.3).

Pseudogene calls from Pseudofinder were manually inspected, using AliView (Larsson 2014) to confirm gene fragmentation, dN/dS values, and other inactivating mutations.

Identification of Duplicated Genes

We used ParaHunter to identify gene duplicates in the endosymbiont genomes (Miller et al. 2020;https://github.com/Arkadiy-Garber/ParaHunter; last accessed June 10, 2021). This software uses MMseqs2 v12.113e3 (Steinegger and Söding 2017) to identify homologous gene clusters within each genome. For this analysis, we used a cutoff of 50% amino acid identify (-m 0.5) over at least 50% of the length (-l 0.5) of target sequence. After clusters are identified, within-cluster analysis is carried out, where pairwise amino acid and nucleotide alignments are converted to codon alignments using PAL2NAL (Suyama et al. 2006), and then dN/dS is calculated using Codeml (Yang 2007). Calculation of dN/dS was only performed on those gene pairs where dS values were greater than 0.001 and lower than 3.

Additional Scripts and Plotting

Additional custom python scripts were used to process the data presented in this study. These scripts are all annotated and available in the following GitHub repository: https://github.com/Arkadiy-Garber/PLON-genome-paper; last accessed June 11, 2021. Many plots presented in this study were made in R (R Core Team 2013), using the following packages: ggplot2 (Wickham 2009) and reshape (Wickham 2007).

Supplementary Material

Supplementary data are available at Genome Biology and Evolution online.
