Evaluation of Specific Binding of [11C]RTI-97 to Kappa Opioid Receptor by Autoradiography and PET Imaging in Rat

Fabien Fillesoye †, Méziane Ibazizène †, Nicolas Marie ‡, Florence Noble ‡, Cécile Perrio †,*
PMCID: PMC8591749  PMID: 34795862

Abstract

graphic file with name ml1c00369_0005.jpg

Kappa opioid receptor (KOR) PET imaging remains attractive to understand the role of KOR in health and diseases and to help the development of drugs especially for psychiatric disorders such as depression, anxiety, and addiction. The potent and selective KOR antagonist RTI-97 labeled with carbon-11 was previously demonstrated to display specific KOR binding in mouse brain by ex vivo autoradiography studies. Herein, we evaluated [11C]RTI-97 in rat by in vitro autoradiography and by in vivo PET imaging. The radiosynthesis of [11C]RTI-97 was optimized to obtain high molar activities. Despite a low cerebral uptake, the overall results showed a heterogeneous repartition and specific KOR binding of [11C]RTI-97 in brain and a high and specific accumulation of [11C]RTI-97 in pituitary in accordance with KOR expression.

Keywords: Kappa opioid receptor, RTI-97, JDTic, carbon-11, autoradiography, positron emission tomography

Kappa opioid receptors (KORs) are known to play an important role in many physiological and pathological functions including immunomodulation, mood control, sensation of pain, anxiety, depression, drug abuse, and psychiatric disorders.1−4 They belong to the G-protein-coupled receptor family and are the most abundant ORs in the human brain.5 Although they have homology with MOR and DOR subtypes, KORs display a unique pharmacology with aversive effects produced by KOR agonists whereas MOR and DOR agonists are rewarding and reinforcing.6 Potent KOR antagonists such as JDTic have been proposed as chemotherapy for cocaine, morphine, and nicotine addiction as well as alcohol seeking.7−11 As a result, efforts have been made to develop KOR PET imaging in order to better understand in vivo KOR pharmacology, to measure the KORs density, to investigate disease states, and to evaluate new therapeutics.12,13 The past decades have seen progress in the validation of KOR radioligands (Figure 1). Among them, [11C]GR103545, [11C]EKAP, and [11C]LY2795050 have been assessed in clinical trials. [11C]GR103545 displayed slow binding kinetics and ultrapotency leading to the risk of side effects such as dysphoria, sedation, and psychosis due to its KOR agonist property.14,15 The novel KOR agonist [11C]EKAP was recently reported to display faster tissue kinetics than [11C]GR103545 in test–retest reproducibility studies.16−18 [11C]LY2795050, identified as a KOR antagonist with short-term effects, was shown to possess favorable brain uptake, pharmacokinetic properties, and binding profiles but poor stability and moderate KOR selectivity.19−24 The analogue [11C]/[18F]LY2459989 recently evaluated in nonhuman primates was suggested to display a similar in vivo behavior.25,26 Thus, characterization of KOR radiopharmaceuticals with antagonism properties and high target specificity is still desirable.27

Figure 1.

Figure 1

Open in a new tab

Structure of main KOR PET radioligands and JDTic derivatives.

A few years ago, we developed KOR radiotracers derived from JDTic [(3R)-7-hydroxy-N-((1S)-1-{[(3R,4R)-4-(3-hydroxyphenyl)-3,4-dimethyl-1-piperidinyl]methyl}-2-methylpropyl)-1,2,3,4-tetrahydro-3-isoquinolinecarboxamide] established as the most potent and selective KOR antagonist reported so far (Figure 1).28,29 Among them, the N-[11C]-methylated derivative [11C]RTI-97 (or [11C]RTI-5989-97, [11C]-MeJDTic, (3S)-7-hydroxy-N-((1S)-1-{[(3R,4R)-4-(3-hydroxyphenyl)-3,4-dimethyl-1-piperidinyl]methyl}-2-methylpropyl)-2-[11C]methyl-1,2,3,4-tetrahydro-3-isoquinolinecarboxamide) was reported to exhibit a high specific binding to KOR in the brain by ex vivo studies in mouse using the competition and counting method.28 RTI-97 was also reported to display advantageous pharmacological properties compared to JDTic. In vitro experiments from rodent brain tissues [RTI-97: Ki (KOR) = 0.053 ± 0.03 nM, Ki (MOR)/Ki (KOR) = 700, Ki (DOR)/Ki (KOR) = 1162; JDTic: Ki (KOR) = 0.32 ± 0.05 nM, Ki (MOR)/Ki (KOR) = 12, Ki (DOR)/Ki (KOR) = 940] and human cloned receptors [RTI-97: Ki (KOR) = 1.01 ± 0.14 nM, Ki (MOR)/Ki (KOR) = 8.8, Ki (DOR)/Ki (KOR) = 117; JDTic: Ki (KOR) = 0.41 ± 0.10 nM; Ki (MOR)/Ki (KOR) = 2.3, Ki (DOR)/Ki (KOR) = 72] revealed that RTI-97 was more potent and selective than JDTic.30 RTI-97 was also found to have a shorter duration of antagonism than JDTic in models of analgesia in mouse and in diuresis in rat, suggesting that pharmacokinetics would remain appropriate for imaging studies.31 The long duration of action of JDTic and its derivatives, producing measurable antagonism for several weeks at minimally effective doses, raised questions of mechanism, especially since brain penetration was low and clearance from plasma was rapid.32 Lysosomes sequestration was proposed as an explanation for JDTic brain persistence. However, such a hypothesis would lead to nondisplaceable KOR binding, which was not in accordance with the previously cited [11C]RTI-97 evaluation.28 Thus, the overall findings prompted us to further investigate the KOR binding properties of [11C]RTI-97. Here, we report the results for the KOR specificity of [11C]RTI-97 by in vitro autoradiography, in vivo PET imaging, and ex vivo experiments in rats.

First of all, we revisited the radiosynthesis of [11C]RTI-97 in order to obtain high molar activities. The radiolabeling was realized by 11C-methylation of JDTic with [11C]-methyl triflate obtained from 11CH4 instead of 11CO2 (Figure 2). [11C]RTI-97 was purified and isolated by normal phase HPLC and then concentrated to dryness and formulated. This method was advantageous for time saving reasons (see Supporting Information). The overall production was performed on a commercial automated carbon-11 synthesis unit (TRACERlab FX MeI GE Healthcare). Ready to use [11C]RTI-97 was obtained within 33 min from the end of bombardment in 11–16% radiochemical yield (not decay corrected and relative to 11CH4) with >99% radiochemical and chemical purities and 111–259 GBq/μmol molar activities. Molar activities were 50–100 times higher than those obtained according to the previously reported procedure (1.4–4.5 GBq/μmol).28

Figure 2.

Figure 2

Open in a new tab

Radiosynthesis scheme of [11C]RTI-97 from cyclotron produced [11C]CH4 (A) with representative semipreparative HPLC (high performance liquid chromatography) chromatogram at the end of the radiosynthesis for the purification and isolation of [11C]RTI-97 (B).

In vitro experiments were performed on healthy male Wistar rat brain slices with the radiotracer alone (baseline conditions) and with the addition of a large excess (×2500) of naloxone, a nonselective OR antagonist, or U-50,488, a selective KOR agonist (blocking conditions) for the determination of [11C]RTI-97 binding selectivity. All experiments were performed in triplicate with three different productions of [11C]RTI-97. Autoradiography images revealed that the radioactivity was distributed heterogeneously over brain sections under baseline conditions and that radioactivity levels were significantly reduced under blocking conditions (Figure 3 and Table 1). Under baseline conditions, the highest concentration of [11C]RTI-97 was found in OT (olfactory tubercle), TH (thalamus), SC (superior colliculi), and CPU (caudate-putamen), with radioactivity ratios relative to CB (cerebellum) known to be poor in KORs reaching 1.5–1.7. Less binding was observed in ACB (nucleus accumbens), SNR (substantia nigra), CTX (cortex), HIP (hippocampus), and HY (hypothalamus), corresponding to radioactivity ratios relative to CB in the 1.4–1.2 range; and the lowest radioactivity levels were measured in CC (corpus callosum), AMY (amygdala), and CB as expected. This distribution was in accordance with KOR expression in rat brain regions.33,34 In the competition studies using either naloxone or U-50,488, [11C]RTI-97 binding was significantly reduced in all cerebral regions except CC and CB. Binding inhibition rates were in the 30–50% range in KOR expressing regions, while they were below 20% in KOR devoided structures such as CC and CB. These results indicated [11C]RTI-97 binding specificity. Globally, naloxone and U-50,488 displayed a similar inhibition effect in [11C]RTI-97 binding. The absence of a significant difference between naloxone and U-50,488 was in agreement with the specificity of [11C]RTI-97 for KOR.

Figure 3.

Figure 3

Open in a new tab

Representative autoradiography images of coronal brain sections after incubation with [11C]RTI-97 (0.7 ± 0.2 GBq/L, i.e. 4.3 ± 0.8 nM; baseline conditions) or after coincubation of [11C]RTI-97 with naloxone (10 μM) or U-50,488 (10 μM) (blocking conditions). Tissue sections were counterstained with thionine for brain structure identification.

Table 1. Brain Structure (BS) Distribution of Radioactivity after Incubation of Rat Brain Slides with [11C]RTI-97.

  Radioactivity (103 × DLU/mm2 ± SEM)
   Binding inhibition (%)e
Brain structure (BS)a Baseline Conditionsb blocking with naloxonec blocking with U50,488c BS/CB ratiod (baseline) naloxone U50,488
OT 8.07 ± 0.27 3.54 ± 0.70 3.10 ± 0.55 1.7 ± 0.6 47 43
TH 7.98 ± 0.18 4.97 ± 0.57 4.26 ± 0.13 1.6 ± 0.4 34 31
SC 7.79 ± 1.71 4.80 ± 0.47 3.94 ± 0.18 1.6 ± 0.4 35 35
CPU 7.62 ± 1.09 4.87 ± 1.03 3.28 ± 0.24 1.5 ± 0.3 37 49
ACB 6.86 ± 0.81 4.59 ± 0.83 2.98 ± 0.35 1.4 ± 0.3 33 51
SNR 6.79 ± 1.55 4.97 ± 0.40 3.86 ± 0.53 1.4 ± 0.1 20 27
CTX 6.41 ± 0.72 4.29 ± 0.94 3.57 ± 0.16 1.3 ± 0.2 32 38
HIP 6.29 ± 0.93 4.01 ± 0.56 3.51 ± 0.33 1.2 ± 0.2 35 34
HY 5.68 ± 1.08 4.14 ± 0.63 3.08 ± 0.54 1.2 ± 0.3 26 32
CC 5.67 ± 0.70 4.67 ± 0.63 4.03 ± 0.22 1.1 ± 0.1 18 22
AMY 5.31 ± 0.71 3.49 ± 0.59 2.56 ± 0.31 1.1 ± 0.2 35 44
CB 5.23 ± 0.91 5.11 ± 0.94 4.39 ± 0.67 1.0 ± 0.1 3 17
Open in a new tab
a

BS are listed by decreasing radioactivity level.

b

Incubation of [11C]RTI-97 (0.7 ± 0.2 GBq/L, i.e. 4.3 ± 0.8 nM) alone.

c

Coincubation of [11C]RTI-97 (0.7 ± 0.2 GBq/L, i.e. 4.3 ± 0.8 nM) with naloxone (10 μM) or U50,488 (10 μM).

d

BS/CB ratios calculated from values obtained under baseline conditions.

e

Calculated from values obtained under baseline conditions and blocking experiments with naloxone or U50,488 (significant inhibition >30%).

The in vivo specific binding of [11C]RTI-97 was then assessed by in vivo PET/CT imaging in healthy male Wistar rats. Rats were injected (iv, tail vein) with 34.2 ± 8.0 MBq of [11C]RTI-97 (corresponding to 0.2 to 12.1 μg/kg of RTI), and dynamic PET imaging was acquired over 30 min. In competition experiments, rats received naloxone or U-50,488 (1 mg/kg, iv, tail vein) 10 min prior injection of [11C]RTI-97 or JDTic (10 mg/kg, ip) 30 min prior to injection of [11C]RTI-97. The use of different blockers was important as discrepancies in KOR radioligand binding has previously been revealed.35

PET images under baseline conditions (injection of only [11C]RTI-97) showed that brain uptake of [11C]RTI-97 was very low and that [11C]RTI-97 accumulated in the pituitary gland (Figure 4). Thus, time-activity curves (TACs) were extracted for whole brain, pituitary gland, and muscle as reference. [11C]RTI-97 uptake in pituitary gland was rapid with the maximum peak SUV values of about 1.6 reached from 3.5 min postinjection. These values remained constant until the end of 30 min acquisition, and they were 4 times higher than the SUV values for muscle uptake. TAC for muscle uptake displayed a similar profile of that for pituitary gland but with a lesser magnitude as the maximum peak SUV value also reached at 3.5 min was only 0.4. For pituitary gland and muscle, no wash out was observed during acquisition time. Uptake in brain was lower than in muscle with SUV values that did not exceed 0.4 at 1 min, and it decreased to 0.2 to stay stable from 3 to 30 min.

Figure 4.

Figure 4

Open in a new tab

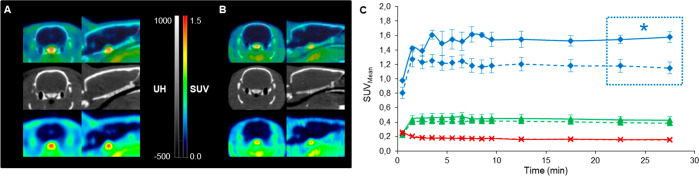

Representative axial and sagittal plans of fusion PET/CT (up), CT (middle), and PET (down) images with [11C]RTI-97 under baseline (A) and blocking (B, using JDTic as blocker) conditions. Time-activity curves (TACs; SUV: standardized uptake value) of [11C]RTI-97 obtained for pituitary (blue, * for p < 0.05), muscle (green), and whole brain (red) under baseline (solid lines, n = 4) and blocking (dotted lines, taken in account all results with naloxone (n = 5), U-50,488 (n = 5), and JDTic (n = 6) as blockers) conditions (C). Data were reported as mean values ± standard error of the mean (SEM).

For competition studies, TACs were determined for whole brain, pituitary gland, and muscle by pooling all data obtained with naloxone, U-50,488, and JDTic. The preinjection of the blockers had significant influence on [11C]RTI-97 uptake in pituitary gland with SUV values of about 1.15 during the 3.5–30 min plateau, corresponding to a 30% inhibition rate. In contrast, no difference between baseline and blocking conditions was observed in muscle and whole brain. As remarked, the low radioactivity levels in the brain were not appropriate to detect any significant inhibition.

In order to refine and complete the in vivo results, we undertook ex vivo experiments. Animals were euthanized at the end of the PET imaging session for brain and cerebral regions dissection and radioactivity counting and also for evaluation of [11C]RTI-97 stability in blood (Table 2). Ex vivo data were expressed as the uptake index to correct for differences in animal body weight and injected dose (see Supporting Information). Radioactivity amounts in blood corresponding to an uptake index of 0.25–0.33 were similar under baseline and blocker preinjection conditions, confirming that the pharmacokinetics of [11C]RTI-97 was not modified by the blockers. Moreover, HPLC analyses revealed that more than half of [11C]RTI-97 was recovered intact in the circulation, and radiometabolites were found to be more polar than [11C]RTI-97 and not to cross the BBB. These findings were in accordance with our previously reported studies carried out in mouse.28

Table 2. Radioactivity Distribution 30 min Post-injection Determined by Counting after Dissection.

  Uptake index (±SEM)
   Uptake inhibition (%)d
Tissue or BS Baseline conditions blocking with naloxonea blocking with U50,488b blocking with JDTicc BS/CB ratio (baseline) naloxone U50,488 JDTic
Blood 0.25 ± 0.04 0.33 ± 0.09 0.24 ± 0.03 0.27 ± 0.04 nae nae nae nae
Pituitary 8.06 ± 0.28 5.58 ± 0.48 5.61 ± 0.19 4.59 ± 0.67 nae 31 30 43
1/2 Brain 0.06 ± 0.01 0.05 ± 0.01 0.05 ± 0.01 0.06 ± 0.01 nae
HY 0.23 ± 0.07 0.17 ± 0.02 0.13 ± 0.02 0.17 ± 0.02 3.70 ± 1.31   43
OT 0.15 ± 0.03 0.17 ± 0.08 0.09 ± 0.01 0.13 ± 0.02 2.09 ± 0.30   40
CPU 0.12 ± 0.04 0.08 ± 0.01 0.13 ± 0.04 0.09 ± 0.01 1.61 ± 0.23 37
HIP 0.10 ± 0.01 0.09 ± 0.02 0.10 ± 0.01 0.10 ± 0.02 1.59 ± 0.39
CTX 0.09 ± 0.01 0.11 ± 0.05 0.08 ± 0.01 0.09 ± 0.01 1.31 ± 0.30
TH 0.08 ± 0.02 0.11 ± 0.06 0.06 ± 0.01 0.06 ± 0.01 1.11 ± 0.31
CB 0.07 ± 0.02 0.06 ± 0.01 0.07 ± 0.01 0.06 ± 0.01 1.00 ± 0.01
Open in a new tab
a

Preinjection of naloxone (1 mg/kg; iv; 10 min).

b

Preinjection of U-50,488 (1 mg/kg; iv; 10 min).

c

Preinjection of JDTic (10 mg/kg; ip; 30 min).

d

Only values for significant inhibition (P < 0.041).

e

Not applicable.

As expected following PET imaging results, the [11C]RTI-97 concentration was high in the pituitary gland with an uptake index reaching around 8 under baseline conditions. The uptake index decreased to 5.6 under blocking conditions with naloxone and U-50,488 as blockers, corresponding to around 30% inhibition, and it dropped to 4.6 using JDTic, leading to an inhibition rate of 43%. The inhibition rate was found to be significantly higher with JDTic than with naloxone and U-50,488. This difference could not be shown from PET imaging data due to a lack of sensibility compared to counting measurement, but globally the overall ex vivo results were of the same magnitude as those in vivo.

The radioactivity level for half brain remained very low with an uptake index of 0.5–0.6 under both baseline and blocking conditions, a value in the same order than that for CB. Once again, these results are in accordance with the low brain penetration determined by PET imaging. Interestingly, data for cerebral substructures displayed a significant heterogeneous radioactivity repartition despite the low radioactivity levels. Under baseline conditions, [11C]RTI-97 uptake was high in HY and OT with radioactivity ratios relative to CB of 3.70 and 2.09, respectively, and it was lower in CPU, HIP, and CTX with radioactivity ratios relative to CB ranging from 1.61 to 1.31. The radioactivity levels in TH were similar to that in CB. In HY and OT, 40% of [11C]RTI-97 uptake was inhibited by preinjection of U50,488. These inhibition results are coherent with those obtained by autoradiography (Table 1). The uptake inhibition in HY and OT was lower with naloxone and JDTic as blockers. In contrast, naloxone and JDTic lead to 28–37% of [11C]RTI-97 binding inhibition in CPU whereas no effect was observed with U50,488. Inhibition by naloxone, U50,488, and JDTic below 25% was not significant in the other brain regions.

In summary, we have successfully developed the radiosynthesis of [11C]RTI-97 with high molar activities. In vitro autoradiography studies demonstrated KOR specific binding in rat brain in accordance with the KOR cerebral distribution. In vivo PET imaging and ex vivo studies in rats revealed a low brain penetration but a high uptake of [11C]RTI-97 in pituitary. It has been largely shown that the implication of the KOR system in several physiopathological states such as addiction, stress, and anxiety-related behaviors was related to the modulation of the hypothalamic–pituitary–adrenal (HPA) axis.36,37 It was also well established that the pituitary gland displayed a high density of KORs.38 MORs have also been found to be expressed but not DORs. Thus, the high accumulation of [11C]RTI-97 in pituitary was expected, especially since this brain region was not protected by the blood–brain barrier (BBB). However, a nonspecific entry could occur due to the significant vascularization and to the hydrophobic properties of RTI-97. Both in vivo and ex vivo data demonstrated a significant [11C]RTI-97 binding inhibition in pituitary by either naloxone, U-50,488, or JDTic. The higher inhibition effect measured in ex vivo studies using JDTic was also consistent with a higher affinity and specificity of JDTic for KORs compared to naloxone and U-50,488 and also confirmed [11C]RTI-97 specific KOR binding. The high uptake and specific binding of [11C]RTI-97 in pituitary was also nicely correlated to the significant concentration and specific binding revealed in HY by ex vivo experiments, according to the known KOR enriched expression in these two strongly attached structures. These results may raise the question of whether KOR pituitary binding may be related to centrally mediated effects induced by RTI-97 and drugs from the same class of compounds.

To our knowledge, binding in pituitary was poorly investigated in the evaluation of KOR PET radiotracers, and the consideration of this structure may be underestimated. [3H]Cyclofoxy, a ligand with high affinity for both MOR and KOR, was shown to label pituitary in ex vivo autoradiography studies.39 A decreased binding of nonselective OR [11C]diprenorphine in pituitary was revealed in undernourished restrictive anorexia nervosa patients compared to controls.40 This latter study was a typical example suggesting that a focus on the quantification of ORs and especially KORs in pituitary could bring rapid and important information in PET imaging of neurologic diseases, while avoiding the problems of BBB permeability and subsequent low brain uptake throughout cerebral substructures. In this regard, [11C]RTI-97, with its high pituitary labeling and its unambiguous KOR specificity, would remain a valuable radiotracer for at least preliminary investigation by preclinical PET imaging.

Acknowledgments

The authors thank Région Normandie, CNRS, CEA, Labex IRON (ANR-11-LABX-0018-01), and FR3038 INC3M. They are grateful to the cyclotron operators Olivier Tirel and Jérôme Delamare for production of carbon-11 and to Martine Dhilly and Laurent Chazalviel from the biology laboratory.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsmedchemlett.1c00369.

  • Experimental details and HPLC analyses (PDF)

Author Contributions

The manuscript was written through contributions of all authors. All authors have given approval to the final version of the manuscript.

The authors declare no competing financial interest.
