The neurobiological effects of electroconvulsive therapy studied through magnetic resonance – what have we learnt and where do we go?

Abstract

Electroconvulsive Therapy (ECT) is an established treatment choice for severe, treatment-resistant depression, yet its mechanisms of action remain elusive. Magnetic resonance imaging (MRI) of the human brain before and after treatment, has been crucial to aid our comprehension of the ECT neurobiological effects. However, to date the majority of MRI studies have been underpowered, used heterogeneous patient samples as well as different methodological approaches, altogether causing mixed results and poor clinical translation. Hence, an association between MRI markers and therapeutic response remains to be established. Recently, the availability of large datasets through a global collaboration has provided the statistical power needed to characterize whole-brain structural and functional brain changes following ECT. In addition, MRI technological developments allow new aspects of brain function and structure to be investigated. Finally, more recent studies have also investigated immediate and long-term effects of ECT, which may aid in the separation of the therapeutically relevant effects from epiphenomena. The goal of the present review is to outline MRI studies (T1, Diffusion-weighted imaging, 1-Hydrogen Magnetic Resonance Spectroscopy) of ECT in depression, to advance our understanding of the ECT neurobiological effects. Based on the reviewed literature, we suggest a model whereby the neurobiological effects can be understood within a framework of disruption, neuroplasticity and rewiring of neural circuits. An improved characterization of the neurobiological effects of ECT may increase our understanding of ECT´s therapeutic effects, ultimately leading to improved patient care.

Introduction

Major depression is a leading cause of disability worldwide, ranked among the top 10 causes of disability-adjusted-life-years in ages 10-49 (1). Although efficient pharmacological and psychological treatments have been available for decades, a significant proportion of patients do not respond sufficiently to these first-line treatments, and relapse rates are high (2). Notably, these patients may benefit from electroconvulsive therapy (ECT), which is still regarded as the most effective treatment for severe or treatment-resistant depressive episodes (3). The ECT procedure is completed under general anesthesia, when electric currents are passed through the brain, intentionally triggering a brief seizure. It is typically administered 2-3 times per week, with the average patient requiring a range of 6 to 12 treatments (4). Despite the well-documented clinical efficacy, ECT’s mechanism of action remains poorly understood. Preclinical animal models have contributed substantially to our understanding of the neurobiological effects, which includes observations of altered monoaminergic transmission, stimulation of neuroendocrine systems, immune system activation and augmented neuroplasticity (5, 6). However, the results of these models cannot be directly translated to human populations. As such, neuroimaging, especially magnetic resonance imaging (MRI), is an important tool to improve our understanding of ECTs neurobiological and eventually clinically relevant effects.

Over the past couple of decades, an increasing number of studies have investigated the neurobiological effects of ECT through the use of MRI. The earliest studies were mainly concerned with ECT causing brain damage (7-9), which could be reflected in signs of reactive gliosis or edema. While some accumulation of extracellular tissue fluid may be present (10), the majority of studies have failed to support post-ECT gliosis or global brain edema (11-13) even after lengthy courses of ECT (14). In contrast to early work, more recent MRI studies have focused on ECT’s mechanisms of action. However, many of these investigations have considerable limitations related to a selective focus on a few regions of interests (ROIs), underpowered samples, unstructured treatment algorithms, and heterogeneity in clinical and sociodemographic characteristics of the included subjects. Accordingly, the results of these neuroimaging studies vary considerably, both in terms of the distribution and the extent of findings and should be addressed in studies synthesizing existing evidence.

Here, we review anatomical and molecular MRI (including T1 weighted imaging, 1-Hydrogen Magnetic Resonance Spectroscopy (1H-MRS) and Diffusion Weighted Imaging (DWI)) studies of ECT in depression. Information regarding the search strategy and the included studies can be found in the Supplement. We also discuss emerging areas of study, including mega-analyses, machine-learning, innovative MRI techniques and extended data sampling, which ultimately may lead to a deeper understanding of ECTs neurobiological effects. Based on the reviewed literature, we propose a model which directly incorporates the immediate disruptive effects of the electrical stimulation and seizure, which are well known aspects of ECT usually not accounted for in contemporary models. The immediate disruptive effects are followed by temporary enhanced neuroplasticity, which enables the brain to rewire in more optimal patterns over time. We end by outlining several testable predictions of this mechanistic model and suggest new imaging studies, which eventually may improve our understanding of the ECT's therapeutic actions.

Impaired neuroplasticity in depression

Brain plasticity is a generic term that refers to the brain's ability to change and adapt as a result of experience. It is seen at multiple levels, including molecular and cellular alterations, synaptic connectivity, and changes in large-scale brain networks. Depression has been characterized by a failure or down-regulation of neuroplasticity (15, 16). This is based on work in animal models showing reduced dendritic complexity and synaptic loss in the prefrontal cortex (PFC) and the hippocampus (17, 18) respectively, as well as impaired hippocampal neurogenesis (19). Equivalently, post-mortem investigations in depressed subjects have demonstrated reduced number of granule cells in the dentate gyrus, a stem-cell containing niche of the hippocampus (20, 21) and reduced neuronal size and number of spine synapses in PFC (22). These microanatomical changes may translate into volumetric reductions of gross anatomical ROIs measured using MRI. Accordingly, reduced hippocampal and PFC volume are two of the most replicated findings in MRI studies of depression, especially in patients experiencing an early onset or recurrent episodes (23, 24). Depression is also associated with changes in the functional and structural connectivity of large-scale brain networks (25-27). Interestingly, such network alterations have recently been linked to lower synaptic density in a combined synaptic vesicle glycoprotein 2A (SV2A) ligand PET and MRI study (28) suggesting a plausible biological underpinning. The cellular and neuroimaging findings are presumed to result from decreased levels of neurotrophins (16, 29) and altered levels of pro-inflammatory cytokines (30) possibly related to stress and hypercortisolemia (16, 31). Although speculative, a lower plastic potential may impair cognitive flexibility and the regulatory control of stimulus-driven affective processing (32), which may translate into the rigidity and repetitive negative thought patterns commonly seen in depression.

MRI studies of ECT in depression

T1 structural MRI

Recent theoretical conceptualizations suggest that antidepressants, including ECT, may act through reversing a neuroplasticity deficit in depression (33, 34). Given that MRI volumetric reductions in depression to some extent reflects reduced or impaired neuroplasticity, successful treatment may reverse these volumetric deficits. ECT-mediated changes of gray matter are derived from T1-weighted images acquired pre-post treatment and estimated using either a data driven whole-brain or a ROI approach. The majority of volumetric studies have focused on temporal lobe structures, most notably the hippocampus and the amygdala. These studies generally observed an increase in hippocampus and/or amygdala volume post-treatment (12, 35-59), although a few exceptions exist (8, 9, 60). The findings are further corroborated by recent meta- and mega-analyses reporting volume increases up to 4-5% (61, 62) for the hippocampus and 5-6 % for the amygdala (63). The volumetric expansions are positively associated with number of ECTs (61), and may be mediated, at least partly, by the strength of the electrical field (64). The volumetric changes have been further delineated to mainly the grey matter subfields of the hippocampus (37, 39, 49, 65-67) and the basolateral nuclei of the amygdala (39).

Beyond the hippocampus-amygdala complex, increase of grey matter volume or cortical thickness in temporal cortex (36, 39, 41, 44, 50, 53, 68, 69), insula (36, 39, 41, 44, 53, 69, 70), anterior cingulate cortex (ACC) (36, 38, 41, 50, 55, 68, 70), medial prefrontal cortex (41, 53, 68), striatum (36, 39, 45, 46, 71, 72), postcentral gyrus (41, 73), fusiform gyrus (68, 70), limbic cerebellum (74) and the supplementary motor cortex (73) have also been reported post-treatment. As most studies used a right unilateral electrode placement, findings are more frequently reported in the right hemisphere, which aligns with the distribution of electric field strength (64). Together, the results of these studies indicate volumetric enlargement of several corticolimbic brain regions (Figure 1a); however, until recently, the pattern of whole-brain structural alterations following ECT remained unresolved.

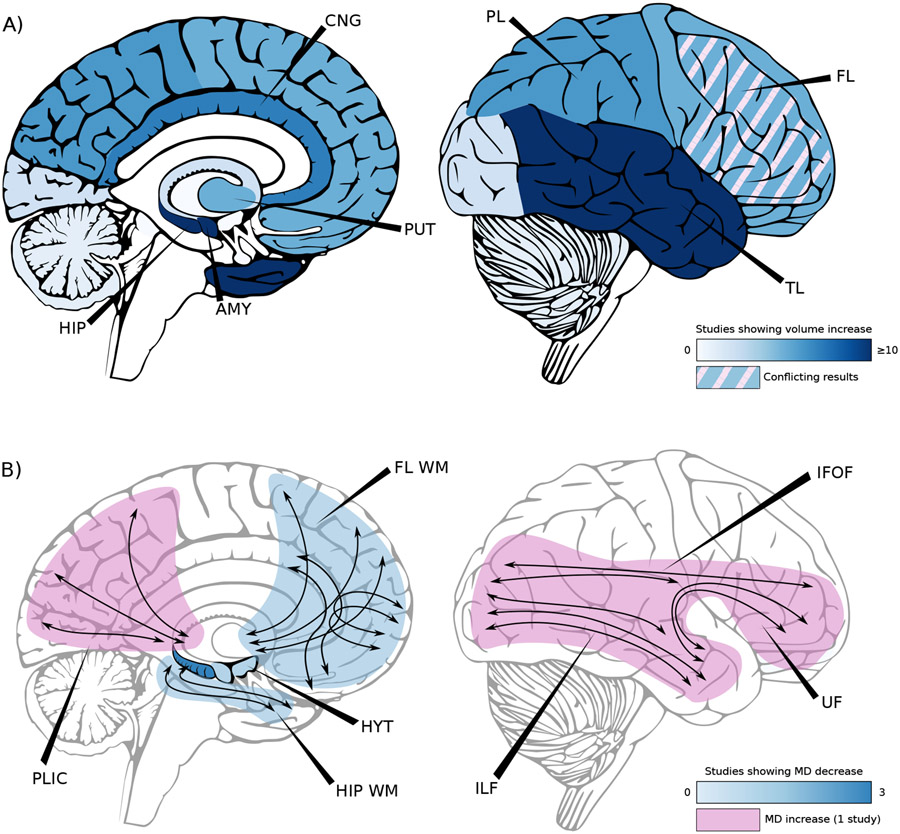

Figure 1. Density of studies reporting ECT-related volume and mean diffusivity (MD) changes.

A) Summary of T1 MRI studies reporting whole-brain or regional volumetric increases (blue colour) pre-post ECT. Colour intensity refers to the number of studies reporting volumetric increase for the anatomical region. Shaded areas indicate conflicting results. Results from different hemispheres were combined. Abbreviations: AMY, amygdala; CNG, cingulate cortex; FL, frontal lobe; HIP, hippocampus; PL, parietal lobe; PUT, putamen; TL, temporal lobe. B) Summary of diffusion weighted imaging studies reporting changes in MD pre-post ECT. Blue colour indicates MD decrease, while red colour indicates MD increase. Colour intensity refers to the number of studies reporting MD changes in the anatomical region. Results from different hemispheres were combined. Abbreviations: FL WM, anterior thalamic radiations, minor forceps and anterior cingulum bundle; HIP WM, hippocampal white matter tracts; HYT, hypothalamus; IFOF, inferior fronto-occipital fasciculus; ILF, inferior longitudinal fasciculus; PLIC, posterior limb of the internal capsule; UF, uncinate fasciculus.

Thus, to investigate changes in whole-brain gray matter, the Global ECT-MRI Research Collaboration (GEMRIC) performed a multi-site mega-analysis of individual-level subject data. With the largest sample size to date (N=328), the authors reported gray matter volumetric changes in most cortical and subcortical ROIs, with the exception of the cerebellum (75). The volumetric expansion of all subcortical ROIs negatively correlated with total ventricle size, indicating that the increase of subcortical gray matter may be at the expense of cerebrospinal fluid spaces. The study explains why earlier work suggested anatomical specificity of gross volumetric effects, which could be due to their limited statistical power to detect the full range of gray matter change. Furthermore, the results suggest that morphological alterations in the immediate aftermath of treatment are not restricted to specific depression circuits, but instead may represent a mixture of therapeutically relevant and non-relevant effects.

In addition to the focus on a selected number of ROIs, most studies have compared baseline MRIs with MRIs acquired within 2 weeks after treatment completion. Understanding the time-dependency of the MRI effects is important, as this may point toward their neurobiological underpinning as well as their clinical relevancy. Based on a limited number of studies, volumetric increases could be present already after two ECT sessions (52) with further increases after the remainder of the ECT series (52). Moreover, existing evidence suggests that the volumetric expansions are transient, with a return to baseline of both the hippocampal and the PFC volumes by 3-12 months (35, 45, 53, 65, 66, 76). Notably, no study has investigated the full spectrum of anatomical ROIs, thus it remains to be established if the return to baseline is global or show regional specificity. In addition, extended data sampling from individual subjects will be necessary in order to understand the emergence and resolution of the structural effects at a finer scale and at the individual level.

How the changes in gray matter indices relate to clinical response remains debated. Some of the earliest studies reported a correlation between baseline hippocampal volume or the hippocampal volumetric increase and the reduction in depressive symptoms (38, 52). However, the majority of studies have failed to find an association (35, 42, 45, 47, 48, 50, 51, 59, 61, 64, 75). The lack of association could be related to the notion that hippocampus is a heterogenous entity. Thus, clinical response may selectively pertain to structural changes in anterior subregions (77) or the dentate gyrus (67, 78). Beyond the hippocampal complex, the baseline volume or the volumetric change of several cortical (i.e. orbitofrontal (53), inferior frontal gyrus (79)), ACC (38, 40, 50), temporal (50, 68), insula (69) and subcortical (amygdala (52), striatum (46, 71)) ROIs have also been linked to the clinical efficacy of ECT, yet these varying findings generally await replication in larger samples. Alternatively, clinical effect may be driven by the simultaneous change of several anatomical regions, which could be tested through the use of machine learning. The majority of machine learning studies so far have been modestly successful, using volumetric change (80), baseline surface-based morphometry (81, 82), or multimodal fusion (83). With refinement of analyses and larger sample sizes, these methods may bring novel insight into possible anatomical correlates of clinical response.

Diffusion-weighted imaging

Studies of whole-brain or regional gray matter volume changes upon ECT treatment are important, however, they do not inform us regarding the underlying tissue properties. Thus, to understand the biological underpinning of the volumetric changes, DWI can be useful. DWI measures the restriction of freely moving water molecules in tissue and uses these restrictions to infer the organization of the tissue. If modeled with an ellipsoid shape, represented by a tensor, metrics like fractional anisotropy (FA), mean (MD), radial (RD) and axial (AD) diffusivity can be derived (84-86).

With regards to brain white matter, early work suggested a significant increase in FA of the anterior cingulum, forceps minor and left superior longitudinal fasciculus following the treatment series (87), in addition to a more general increase in frontal white matter FA (88) (Figure 1b). While biological unspecific, the increased FA supported increased integrity of white matter tracts in these cortico-limbic regions. However, the findings have not been replicated in more recent studies (10, 60, 89), which instead showed increased MD in widespread white matter tracts (10, 89) (Figure 1b). At the microstructural level, increased MD may represent an increase in the amount of extracellular fluid in white matter or alternatively reduced integrity of the white matter parenchyma itself (84). The clinical translation of the DWI findings is presently limited. Early work found treatment-related increases in FA and decreases in MD in dorsal fronto-limbic circuits to be associated with decreased depression severity (87). However, subsequent whole-brain studies failed to find any associations between white matter MD or FA and clinical response (10, 60, 89).

Although mostly used to delineate brain white matter, DWI can also be used to investigate gray matter properties. Accordingly, a reduction of average gray matter MD in amygdala and hippocampal ROIs is consistently reported (59, 90, 91) post-ECT (Figure 1b). Reduced MD has also been observed in anterior hippocampal pathways (92). The reduction is not observed after one ECT session (92) or at 4-weeks post-treatment (59). Moreover, it may be independent of the concomitant volumetric expansion of these anatomical regions (91). Reduced gray matter MD suggests a shift in tissue properties with an increased proportion of water molecules in compartments with more restricted diffusion and may signify an increase in the number of cells, dendrites or axons in the amygdala and the hippocampus (84). Similar to white matter DWI investigations, studies linking amygdala and/or hippocampus MD and clinical response have also produced mixed results (59, 90-92).

Magnetic Resonance Spectroscopy

Changes in brain macro- and microstructure are likely to be preceded or followed by changes in brain metabolites. In humans, concentrations of metabolites in the brain can be measured using 1H- MRS. Measurements are performed within a specific volume, a voxel, with the anatomical placement varying between studies (i.e., hippocampal, anterior cingulate cortex, prefrontal cortex or occipital cortex). Although results are mixed (55, 93-101) and many studies do not report on all metabolites within the spectra, a reduction in N-acetylaspartate (NAA) was reported in six studies (55, 95, 98-101). The finding is difficult to reconcile with a theory that only comprises plasticity enhancing effects (102). A decrease in NAA is often paralleled by an increase in Choline in clinical radiology, and increased Choline has indeed been reported by some 1H-MRS investigations (93, 94, 101) after ECT. Although two studies reported increased NAA in responders only (95, 97), alterations in NAA has generally not been associated with clinical response.

The seizure threshold is known to increase during an ECT treatment series (103, 104), which supports the hypothesis that ECT mediates antidepressant efficacy through anticonvulsive mechanisms (105). Increased GABAergic transmission would provide additional support for ECT’s anticonvulsant properties. Early work supported this notion with increased GABA concentrations after an ECT series (106). However, more recent work has not found significant changes in GABA upon treatment completion (99, 107). In contrast, ECT may affect excitatory neurotransmission (55, 95-97, 100, 101, 108), which is suggested by recent studies reporting an increase in glutamate or Glx (glutamate + glutamine) post-ECT (96, 97, 100, 101, 108).

The biological significance of the MRI findings

Several biological processes have been proposed to underlie the MRI structural effects, but amongst them, neuroplasticity, including augmented neurogenesis, has received most attention recently. The neuroplasticity hypothesis is based on work in preclinical animal models suggesting a dose-dependent increase of neurogenesis in the dentate gyrus of the hippocampus following electroconvulsive stimulation (ECS, the animal model of ECT (109)). Importantly, interfering with this neurogenic process blocks the antidepressant effect (110) (but see (111)). Although increased neurogenesis may not be exclusive to ECT treatment, the neurogenic effect of ECS exceeds that of antidepressant medications and the onset is faster, being comparable to the superior and fast onset effects of ECT (112). ECT may operate by inducing neurogenesis in humans as well; however, neurogenesis is not likely to be the main mediating factor of the T1 gray matter volumetric effects. First, the volumetric changes induced by neurogenesis are expected to be microscopic and confined to a few anatomical structures (113, 114). Thus, neurogenesis cannot explain the global volumetric changes reported in recent MRI studies. Second, discrepant hippocampal volumes in animal models of depression are largely explained by differences in neuropil and glial cell numbers, while deficits in neuronal number contributes to a lesser extent (115). Third, the timing of effects makes neurogenesis as the principal mediator of the volumetric changes unlikely. While structural changes may be seen even after two ECT sessions (52), the maturation, migration and integration of newborn neurons into functional circuits takes place over several months (116).

Beyond neurogenesis, a plethora of other plastic processes have been reported in animal models of ECT, including synaptogenesis, dendrogenesis, dendritic arborization, gliogenesis, mossy fiber sprouting and angiogenesis (117-119). Notably, these neuroplastic processes are closely interconnected through the actions of trophic factors and are not restricted to the hippocampal complex. Among the various plastic processes, shifts in cumulative length of dendrites and dendritic spine density have recently been associated with the gray matter density signal in voxel based morphometry (120) or gray matter volume (121). This is arguably in line with studies linking electrical field strength to dendritic arborization in animal models (122). Moreover, MRI detectable volumetric changes in relation to psychopathology and learning, have both been correlated with the synaptic marker GAP43 (123, 124), which is essential for the growth, regeneration and function of neurites (i.e., dendrites and axons). These various lines of evidence suggest an effect of ECT on neurites, which accords with the DWI studies investigating gray matter properties.

Although commonly interpreted to reflect augmented neuroplasticity, the volumetric expansions could also reflect fluid shifts. Indeed, the volumetric changes may be driven by changes in blood flow, as the T1 relaxation times for arterial blood and gray matter are not clearly distinguishable (125). Accordingly, a recent study using arterial spin labelling reported that ROIs with significant volumetric enlargements also exhibited increased blood flow post-ECT (126). Alternatively, an increase of fluids in the extracellular space (i.e. vasogenic edema) secondary to the hypertensive surge and a possible breach of the blood-brain barrier (127) could also explain the volumetric expansion. However, this is not supported by studies investigating gray matter MD, which instead suggest an increased volume fraction of more restricted water pools in subcortical gray matter following treatment (59, 90, 91). Although speculative, the findings may reflect neuroplastic changes leading to greater occupation and hence restriction of water molecules in the extracellular space (84, 85). Taken together, a multitude of plastic processes may contribute to the MRI-like plasticity following ECT, however the type and extent remain undetermined and may show regional variability. As such, brain regions exhibiting the greatest volumetric alterations may be those subjected to several plastic processes, which makes gross volumetric change more readily detectable (128)

Notably, not all MRI findings fit with the neuroplasticity conceptualization, and indeed there is evidence to support that ECT also has transient disruptive effects on brain function and structure. Early work in animal models reported ECS to cause a reversible loss of long-term potentiation (LTP) in the hippocampus (129, 130). LTP is a process by which synaptic connections are strengthened, producing a long-lasting increase in signal transmission between neurons. Since LTP is likely to be the process by which information is stored in the brain, a temporary loss of LTP may be related to some of ECT´s side effects (e.g., confusion, amnesia). More importantly, these preclinical and clinical observations support a temporary disruption of brain function upon treatment. Likewise, reports of decreased levels of NAA (55, 95, 98-101) (and to some extent increased levels of Choline (93, 94, 101)) are also difficult to reconcile with a mechanistic model which only entails plasticity enhancing effects. A decrease in the NAA peak suggests reduced neuronal integrity following ECT (131). Notably, reduced neuronal integrity is likely to affect the connectivity of large-scale neuronal networks. Although not included in the present review, several studies have indeed reported reduced resting-state functional connectivity following ECT (132-134), which in some patients may be paralleled by changes in corresponding structural pathways (10). Notably, reduced functional connectivity has been related to cognitive side effects by some (134). As such, the brain disruptive effects may underlie both the rapid clinical response and the side effects, which is further suggested by studies reporting associations between duration of post-ictal confusion and clinical outcome (135) as well as post-ictal confusion and ECT-mediated cognitive impairments (136). The temporary disruption may act upon neural circuits which promotes the rigid negative bias of attention, memory, interpretations and selfrepresentations, and allowing these to rewire in non-depressed states (32). However, disruption beyond the neural circuits maintaining depressive symptoms (likely related to dose (137)) may add side effects without further symptom reduction.

Conclusion and future directions

The current review focuses on MRI structural and biochemical changes associated with ECT. Based on the reviewed literature, we show that ECT causes broad volumetric expansions of brain gray matter in the post-treatment phase, which is likely to represent a mixture of therapeutic and non-therapeutic ECT-induced effects. Accordingly, attempts to link the gray matter volumetric changes to clinical response have produced mixed results. Measurements of gray matter diffusivity suggest that the changes are not due to fluid shifts, but instead represents plastic changes in the parenchyma itself. However, the exact biological underpinning of the volumetric expansions remains to be established. In contrast, investigations of the brain´s metabolite spectra, white matter properties and functional connectivity suggest that ECT also has disruptive effects. Thus, we propose a mechanistic model which includes a temporary disruption followed by augmented neuroplasticity and rewiring (Figure 2a-b). Indeed, while neuroplastic effects have been postulated before, we here suggest a sequential model which includes the cause and the consequence of the neuroplasticity enhancement. Notably, there are likely to be optimal levels of disruption and neuroplasticity, which produces sufficient antidepressant response with minimal side effects, and these optimal levels may be related to ECT dose (i.e., electric stimulation and seizure characteristics). Thus, ECT dose may have to be individually tailored to obtain remission while simultaneously ensuring cognitive safety (Figure 2c-d).

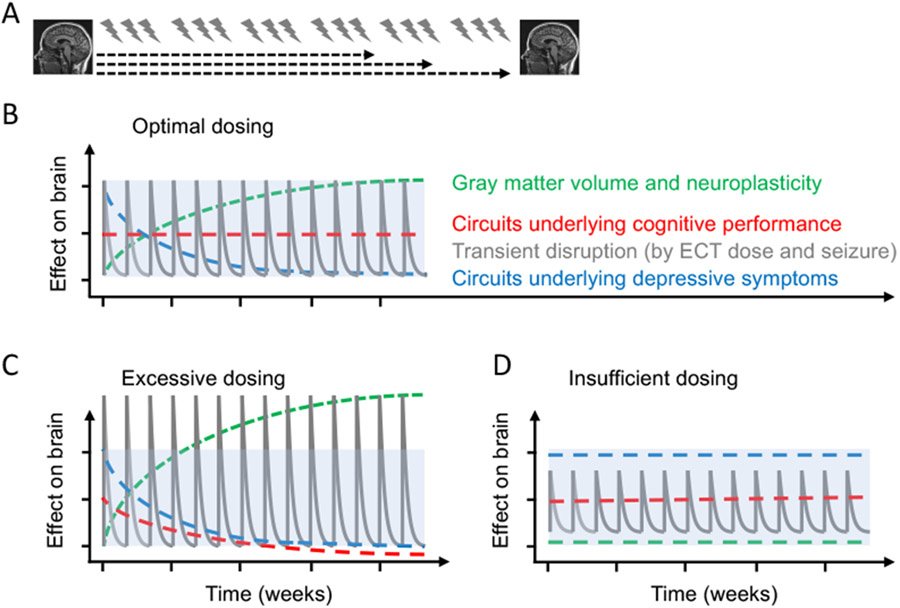

Figure 2. Disrupt, potentiate and rewire.

This figure illustrates the proposed mechanistic model. The model assumes that the subject has the potential to respond to ECT and does not address non-response despite adequate dosing. a) Exemplary Electroconvulsive Therapy-Magnetic Resonance Imaging (ECT-MRI) study protocol. Number of ECTs depends on the clinical response and judgement of the treating ECT practitioner and are usually performed within a period of 2-6 weeks (--->). MRI is typically acquired within 1 week before and within 2 weeks after the treatment series. b) Proposed model integrating the effects of ECT at ideal dosing. Before treatment (left side of x-axis) the brain is in a depressed state; characterized by high symptom load and possibly low plastic potential (reduced neurotrophic factors). Each session of ECT (electrical stimulation and seizure) constitutes a temporary disruption (gray curve; peaks with exponential decay) of brain function (post-ictal confusion etc) with corresponding physiological effects (reduced N-acetylaspartate, functional connectivity and white matter integrity). The brain´s response to the disruptive effects is a temporary enhancement of neuroplasticity (green line) which may lead to an increase in volume of gray matter (green line). The disruption and neuroplastic effects in combination lead to rewiring of neural circuits underlying depressive symptoms (blue line). During optimal dosing neural circuits implicated in cognition are minimally affected (red line). Note that the lines represent mean change over time and are not necessarily representative for each ECT session. c) Excessive ECT dosing (high electric field strength, very long seizure duration) will result in long post-ictal recovery, more widespread disruptive effects (affecting circuits implicated in depression and cognition) and possibly more extensive volumetric effects. The clinical outcome will be antidepressant response with cognitive impairment. d) Insufficient ECT dosing (low electric field strength, very short seizure duration) will result in short post-ictal recovery times, limited disruption and insufficient changes in neuroplasticity. The clinical outcome will be minimal antidepressant response and no side effects.

While the theoretical basis and the indirect evidence for our model may at first seem compelling, the model needs to be tested more rigorously in future studies. These studies should aim to study the brain at a higher resolution, which is made possible by some of the latest advances in MRI acquisition, image processing and modelling. Combined with animal studies, such methods may delineate the biological processes, one element at the time. Alterations in synaptic connections may be assessed by studies of the individual functional connectome (138-140), preferably in combination with SV2A ligand PET, which (indirectly) measures synaptic densities. We hypothesize that ECT´s disruptive effects lead to a loss of individual connectome stability early in the treatment course, possibly reflecting changes in inter-neuronal communication at the level of brain synapses (129, 130). These effects may be paralleled by regional reductions of SV2a density. Moreover, we propose that the disruption and neuroplasticity enhancement should be linked, thus the degree of connectome instability early in the treatment course should predict later increases in regional synaptic density as measured by SV2a ligand PET. To further investigate neuroplasticity, we suggest using the latest advances in DWI which combine multi-shell acquisition with refined modelling (e.g. Neurite Orientation Dispersion and Density Imaging – NODDI (141), restricted spectrum imaging (RSI) (142) and spherical mean technique multi-compartment (SMT mc) (143). These techniques may provide valuable information regarding changes in the amount of neuropil following ECT treatment and may show cumulative effects over the course of an ECT treatment series. Finally, although the electrical field seems important for the gray matter changes (64), the role of the seizure characteristics needs further study (144, 145).

Notably, existing studies of ECT´s morphometric and biochemical effects have produced mixed results, which is likely to reflect clinical and demographic differences between the data samples in combination with different data processing and analyses pipelines. The variability of results is reinforced by the small sample sizes of most studies. Thus, to increase replication, there is a need for prospective collaborative efforts aiming to collect harmonized in-depth clinical and demographic information, as well as using a harmonized imaging protocol. In addition, attempts to harmonize the way ECT is administered, including electric dosage and electrode placement, will also be important in order to discover the neurobiological mechanisms related to its therapeutic action.

In summary, although preclinical animal models have been useful in understanding the working mechanisms of ECT in depression, human MRI studies are important in order to delineate which aspects that can be translated and which aspects that may be unique to human populations. Based on the reviewed literature, we propose a model where brain disruption, plasticity potentiation and rewiring occur in sequence, and ultimately explain immediate, short and long-term effects of ECT. Although evidence for our model is indirect, it may be a framework for understanding the neurobiological underpinning of ECTs therapeutic effects and derive new testable hypotheses, which ultimately may bring the field forward.
