Evolutionarily conserved genetic interactions between nphp-4 and bbs-5 mutations exacerbate ciliopathy phenotypes

Abstract

Primary cilia are sensory and signaling hubs with a protein composition that is distinct from the rest of the cell due to the barrier function of the transition zone (TZ) at the base of the cilium. Protein transport across the TZ is mediated in part by the BBSome, and mutations disrupting TZ and BBSome proteins cause human ciliopathy syndromes. Ciliopathies have phenotypic variability even among patients with identical genetic variants, suggesting a role for modifier loci. To identify potential ciliopathy modifiers, we performed a mutagenesis screen on nphp-4 mutant Caenorhabditis elegans and uncovered a novel allele of bbs-5. Nphp-4;bbs-5 double mutant worms have phenotypes not observed in either individual mutant strain. To test whether this genetic interaction is conserved, we also analyzed zebrafish and mouse mutants. While Nphp4 mutant zebrafish appeared overtly normal, Bbs5 mutants exhibited scoliosis. When combined, Nphp4;Bbs5 double mutant zebrafish did not exhibit synergistic effects, but the lack of a phenotype in Nphp4 mutants makes interpreting these data difficult. In contrast, Nphp4;Bbs5 double mutant mice were not viable and there were fewer mice than expected carrying three mutant alleles. In addition, postnatal loss of Bbs5 in mice using a conditional allele compromised survival when combined with an Nphp4 allele. As cilia are still formed in the double mutant mice, the exacerbated phenotype is likely a consequence of disrupted ciliary signaling. Collectively, these data support an evolutionarily conserved genetic interaction between Bbs5 and Nphp4 alleles that may contribute to the variability in ciliopathy phenotypes.

Introduction

Cilia are highly specialized microtubule-based structures that are evolutionarily conserved from protozoa to primates (Carvalho-Santos et al. 2011; Sung and Leroux 2013). While there are exceptions, cilia can be described as either motile or nonmotile and are made up of either a 9 + 2 or 9 + 0 radially symmetric microtubule scaffold, respectively (Porter 1955). Motile cilia are typically present in multiples on epithelial cells lining surfaces in tissues such as the lungs and reproductive tract and are responsible for movement of viscous materials along the epithelial surface. Non-motile cilia, or primary cilia, serve as a sensory and signaling hub for the cell and in vertebrates, are present on nearly every cell type (Satir and Christensen 2007). In humans, the failure of the cilium to form or function properly manifests in a spectrum of syndromes collectively termed ciliopathies. The phenotypes observed among ciliopathies are highly variable (Reiter and Leroux 2017). Classic ciliopathies such as Alstrom Syndrome (OMIM #203800; Tsang et al. 2018), Bardet-Biedl Syndrome (OMIM #209900; Suspitsin and Imyanitov 2016), Joubert Syndrome (OMIM #213300; Valente et al. 2013), Meckel-Gruber Syndrome (OMIM #249000; Hartill et al. 2017), Nephronophthisis (OMIM #256100; Luo and Tao 2018), Oral-facial-digital syndrome (OMIM #311200; Franco and Thauvin-Robinet 2016), Polycystic Kidney Disease (OMIM #173900; Yoder 2007), and Senior-LØken syndrome (OMIM #266900; Ronquillo et al. 2012) present with pathologies that include, but are not limited to, developmental delay, obesity, hypogonadism, polydactyly, kidney cysts, and retinopathies. Patients can display a wide variability in symptoms with little correlation to specific genetic mutations. One possible explanation for the variability in the phenotypes could be modifier alleles in other ciliopathy genes in the patient’s genetic background.

Following ciliary assembly, a functional primary cilium requires the precise orchestration of multiple complexes to carry out cell signaling events. The cilium’s transition zone (TZ), located at the base, is ideally positioned to function as a barrier between the ciliary compartment and the rest of the cell (Chih et al. 2011; Garcia-Gonzalo et al. 2011). The TZ is made up of three main modules: the NPHP, MKS, and CEP290 complexes (Sang et al. 2011). For the cilium to function properly, the TZ not only serves as a barrier, but it must also facilitate the passage of necessary materials into and out of the cilium. To do this it must work coordinately with Intraflagellar Transport (IFT) complexes and the BBSome (Zhao and Malicki 2011; Goetz et al. 2017; Ye et al. 2018). While retrograde (IFT-A) and anterograde (IFT-B) IFT particles are required for ciliary assembly, maintenance, cargo transport, and disassembly, the BBSome is an octameric complex responsible for shuttling transmembrane proteins through the TZ into and out of the cilium but does not typically affect cilia assembly (Nachury et al. 2007; Loktev et al. 2008; Nakayama and Katoh 2018).

The highly conserved nature of the cilium and its underlying mechanisms allows for studies to be performed in a wide variety of model organisms. Zebrafish have become a powerful tool to better understand the underlying mechanisms of ciliopathies (Drummond 2009). Zebrafish have both motile and non-motile cilia as seen in mammalian systems. In addition, ex utero development and the transparency of zebrafish embryos allow for easy visualization of developmental abnormalities in cilia mutants. Caenorhabditis elegans is another powerful tool to study ciliary proteins and to understand the genetic interactions between mutations in ciliary genes. Mutations in cilia genes that would otherwise be lethal in vertebrate models result in easily quantifiable behavioral abnormalities such as altered chemotaxis, defects in dauer formation, and osmotic avoidance defects, but not lethality. Caenorhabditis elegans contain a single ciliated cell type, the sensory neuron (Inglis et al. 2007). In hermaphrodites, this includes 60 ciliated sensory neurons. A subset of these ciliated neurons, the eight pairs of bilaterally symmetric amphid neurons at the nose of the animal (ASE, ASG, ASH, ASI, ASJ, ASK, ADF, and ADL) and two pairs of symmetrical phasmid neurons in the tail (PHA and PHB), project through the cuticle exposing them to the external environment (Ward et al. 1975). This allows cilia integrity to be readily assayed through a lipophilic dye-filling protocol (Perkins et al. 1986). In addition, the short life cycle of C. elegans make them a tractable tool to perform forward genetic screens (Perkins et al. 1986; Yee et al. 2015).

In previous work, we conducted a modifier screen in C. elegans nphp-4 mutants to uncover novel alleles that exacerbate ciliopathy phenotypes (Masyukova et al. 2016). In support of previous studies showing a genetic interaction between nphp-4 and bbs-5 (Yee et al. 2015), we identified a novel, and more severe, allele of bbs-5. In this work, we extend the previous studies and identify behavioral effects of loss of bbs-5 and nphp-4 and demonstrate this new allele is more detrimental than the previously published bbs-5 deletion allele. To determine if this genetic interaction is evolutionarily conserved, Nphp4 and Bbs5 mutant zebrafish and mice were analyzed. Interestingly, double mutant fish do not show an additive effect over the abnormalities shown in Bbs5 single mutant fish, although assessing possible genetic interactions in the fish model is complicated due to the absence of any overt phenotype in Nphp4 single mutants. In contrast to the zebrafish model, double mutant mice are nonviable and highlight neurological manifestations that are not detected in either of the single mutants alone. In addition, we observed reductions in the number of mice containing any combination of three Nphp4 and Bbs5 mutant alleles supporting the conservation of genetic interactions between Bbs5 and Nphp4 alleles across species. The conserved genetic interactions we observed in these mouse models demonstrate that the overall genetic mutational load in cilia-related genes will impact the severity and variability of phenotypes presented by ciliopathy patients.

Materials and methods

Caenorhabditis elegans strains

Nematodes were cultivated on NGM agar plates with Escherichia coli OP50 bacteria according to standard techniques (Brenner 1974). Nematode culture and observations were performed at 20°C, unless otherwise indicated. The strains used in this study are described in Supplementary Table S1.

Caenorhabditis elegans genetic crosses

All double mutant and reporter strains were generated using standard genetic techniques (Brenner 1974). Homozygosity of alleles and the presence of transgenes were confirmed by PCR genotyping and observation of reporter expression using epifluorescence microscopy.

Generation of transgenic C. elegans strains

To generate the strains YH2108 and YH2114, a mixture of the following plasmids was injected into the syncytial gonad of YH1158 or YH1126 adult animals, respectively: 5 ng/µl p341 [rpi-2p::RPI-2::GFP], 5 ng/µl p350 [osm-5p::TRAM-1::tdTomato], 50 ng/µl pRF4 [rol-6(su1006)], 90 ng/µl pBluescript II.

Dye-filling in C. elegans

Dye-filling assays were performed as described previously with modifications (Perkins et al. 1986). Briefly, synchronized L4 animals were washed off NGM plates using M9 buffer and collected into 1.5 ml tubes. Following two washes with M9 buffer, animals were resuspended in 200 µl of M9 and 1 µl of 2 mg/ml DiI (Molecular Probes, Carlsbad, CA, USA) in dimethylformamide was added. Animals were incubated in DiI in M9 for 2 h, rocking gently. After incubation, animals were washed twice with M9 buffer and returned to a fresh NGM plate with OP50. Dye-filling in amphid and phasmid neurons was observed in adults 24 h later using a Nikon SMZ18 fluorescence stereomicroscope. Worms were scored as follows: “Normal” dye-filling describes a pattern where amphid/phasmid neurons showed complete dye-filling; “Partial Dyf” describes a pattern where there was a loss of detectable dye-filling in some, but not all of the amphids/phasmids as indicated by a change in the pattern of neuronal cell bodies labeled with the dye; and “Dyf” defined as the complete loss of detectable dye-filling in the amphids/phasmids. For fluorescent imaging, animals were anesthetized using 10 mM levamisole in M9 and immobilized on a 2% agar pad. Confocal images were captured on a Nikon Spinning-disk confocal microscope with Yokogawa X1 disk, using Hamamatsu flash4 sCMOS camera. 60× apo-TIRF (NA = 1.49). Images were processed using Nikon Elements and ImageJ software.

Behavioral assays in C. elegans

Chemotaxis assays were performed as described (Bargmann 1993; Lee and Portman 2007). Briefly, to prepare assay plates, 8 g of agar was added to 500 ml of deionized (DI) H₂O, the solution was boiled to fully dissolve the agar, and the following solutions were added after cooling to below 65°C: 2.5 ml 1 M Phosphate buffer, 500 µl 1 M CaCl₂, 500 µl 1 M MgSO₄. Ten microliters of agar solution was added to 6 cm petri dishes and left to dry for between 3 and 7 days (longer during humid seasons). Prior to the start of assays, plates were marked with spots 4 cm apart to indicate the site of odorant and control (95% ethanol) compounds. Odorant compounds were prepared fresh each time in 95% ethanol at the following concentrations: diacetyl 1:1000; pyrazine 10 mg/ml; 2,3-pentanedione 1:1000; benzaldehyde 1:200. To start assays, worms were collected into 1.5 ml tubes with M9 buffer, then washed twice with M9, and washed once with DI H₂O. One microliter of 0.8 M sodium azide was added to marked spots on plates. Worms in a small amount of water were transferred to assay plates at a location equidistant between marked spots. One microliter each of odorant or control compound was added to the respective marked spots, then a Kimwipe was used to wick away excess water from worms. The total number of worms per plate was counted immediately following water removal (50–150 worms/plate). After 60 min, the number of worms immobilized at each marked spot was scored. A chemotaxis index (CI) was calculated by subtracting the number of worms at the control spot from the number of worms at the odorant spot, then dividing by the total number of worms counted at the start of the experiment. Each odorant compound was tested at least five times per strain.

Dauer formation assays were performed as described previously (Starich et al. 1995). Worms were grown on NGM plates to starvation (∼9 days). Worms were then collected with M9 buffer, spun down, resuspended in 1% SDS in M9, and rocked gently for 1 h at room temperature. After SDS treatment, worms were washed once with M9 buffer, then transferred to a fresh NGM plate with OP50. The presence of surviving dauer animals was assessed immediately and confirmed after 24 h.

Egg laying and brood sizes were measured using the following methods. Synchronized L4 animals were singled out on NGM plates with OP50 and allowed to lay eggs for 24 h. After 24 h, the adult animals were transferred to fresh NGM plates and the number of eggs and hatchlings laid in the previous 24 h were counted. This process was repeated every 24 h until animals from all strains were no longer laying fertilized eggs (4 days). The total number of eggs laid by each individual animal was calculated to determine the brood size. In addition, images were taken at 24 h post-L4 to show eggs laid during the first 24-h window of the time course.

To count the number of eggs present in the uterus, synchronized adults at 24 h post-L4 were transferred to chilled NGM plates. A drop of bleach was placed on each worm to dissolve the cuticle. Remaining fertilized eggs were counted. Eggs were counted from 20 separate animals for each strain.

Fluorescence recovery after photobleaching in C. elegans

To assess the mobility of ODR-10 in the AWA neurons, animals expressing ODR-10::GFP were anesthetized using 10 mM levamisole and immobilized on a 2% agar pad. A fluorescence recovery after photobleaching (FRAP) 100 mW 405 nm laser was used to photobleach a portion of the AWA neuron and recovery was observed for 5 min.

Vertebrate animal studies

All vertebrate animal studies were conducted in compliance with the National Institutes of Health Guide for the Care and Use of Laboratory Animals and approved by the Institutional Animal Care and Use Committee at the University of Alabama at Birmingham.

Zebrafish lines

Zebrafish lines were maintained as previously described (Westerfield 2000). The wild type strain used was AB.

Generation of mutant zebrafish lines

Alt-R crRNA target sites were designed with Integrated DNA Technologies Alt-R CRISPR HDR Design Tool (https://www.idtdna.com/pages/tools/alt-r-crispr-hdr-design-tool). Alt-R CRISPR-Cas9 crRNA, tracrRNA (IDT, 1072532), and Alt-R S.p. Cas9 Nuclease V3 (IDT, 1081058) was prepared following manufacturer’s instruction. Three micromolar of sgRNA were obtained through diluting 100 µM crRNA and 100 µM tracrRNA into Nuclease-Free Duplex Buffer (IDT 11-05-01-03), heating at 98°C for 5 min, then cooling to room temperature. The total sgRNA concentration was the same when one or three guides were used. About 0.5 µl Cas9 protein was diluted with Cas9 working buffer (20 mM HEPES; 150 mM KCl, pH7.5) to yield a working concentration of 0.5 µg/µl. The diluted Cas9 protein working solution was mixed 1:1 with 3 µM sgRNA solution and then incubated at 37°C for 10 min to obtain RNP complex. Microinjection was performed by injecting ∼1 nl of RNP complex into yolk of 1-cell stage embryos. RNP complex was fresh prepared and left on ice until microinjection. Validation of mutant alleles was performed by sequencing cDNA generated from mutant animals. The following primers were used for the Nphp4^d7/d7 allele: 5′-CTCACCGGGTCAGAGCTATC-3′ and 5′-CCTTCCTTCTGCACCCCTAT-3′. The following primers were used for the Bbs5^+5/+5 allele: 5′-CCTCAGCCTACGCTAAATCG-3′ and 5′-GGGACCACATTCGTGAAGAT-3′.

Generation of cDNA for sequencing

RNA was isolated from wild-type and mutant zebrafish via Trizol extraction (Invitrogen). cDNA was generated using SuperScript IV reverse transcriptase as per the manufacturer’s instructions (Invitrogen). Sequencing was performed via Sanger Sequencing.

Genotyping with high resolution melt analysis in zebrafish

To isolate genomic DNA from adults, tail clippings from each fish were incubated at 98°C for 20 min in 40 µl 25 mM NaOH in a 96-well plate; then neutralized with 40 µl of 40 mM Tris-HCl. Early-stage or stained embryos were incubated at 55°C for 2 h in 25 µl ELB (10 mM Tris pH 8.3, 50 mM KCl, 0.3% Tween 20, 0.3% NP40, 1 mg/ml Proteinase K) in 96-well plates; then incubated at 95°C for 15 min to inactivate the Proteinase K. PCR reactions contained 1 µl of LC Green Plus Melting Dye (Biofire Defense, BCHM-ASY-0005), 1 µl of 10× enzyme buffer, 0.2 µl of dNTP Mixture (10 mM each), 0.3 µl of MgCl₂, 0.3 µl of each primer (10 µM), 1 µl of genomic DNA, 0.05 µl of Genscript Taq (E00101), and water up to 10 µl. The PCR reaction protocol was 98°C for 30 s, then 45 cycles of 98°C for 10 s, 59°C for 20 s, and 72°C for 15 s, followed by 95°C for 30 s and then rapid cooling to 4°C. Following PCR, melting curves were generated and analyzed using the LightScanner instrument (Idaho Technology) over a 65–95°C range.

Microcomputed tomography on zebrafish

Microcomputed tomography (µCT) imaging was performed using the Scanco µCT 40 at a resolution of 16 µm voxels. Contrast enhancement was achieved using Lugol’s iodine solution (Sigma, L6146-1L).

Zebrafish histology

Zebrafish were paraffin embedded and histological analyses were performed as described previously (LaBonty et al. 2017). The fixation procedure was modified such that 6-month-old adult zebrafish were fixed in 4% paraformaldehyde overnight at room temperature.

Mice

All animal studies were conducted in compliance with the National Institutes of Health Guide for the Care and Use of Laboratory Animals and approved by the Institutional Animal Care and Use Committee at the University of Alabama at Birmingham. Mice were maintained on LabDiet^® JL Rat and Mouse/Irr 10F 5LG5 chow.

Mouse embryo isolation

Timed pregnancies were established with embryonic time-point of E0.5 being noted as noon on the morning of observing the copulatory plug. To isolate embryos, pregnant females were anesthetized using isoflurane followed by cervical dislocation. Embryonic tissues or whole embryos were isolated and fixed in 4% paraformaldehyde (Sigma PFA, 158127) in PBS.

Immunofluorescence microscopy on mouse tissue sections

Ten-micrometer-thick tissue cryosections were used for immunofluorescence microscopy. Sections were fixed with 4% PFA for 10 min, permeabilized with 0.1% Triton X-100 in PBS for 8 min and then blocked in a PBS solution containing 1% BSA, 0.3% TritonX-100, 2% (vol/vol) normal donkey serum, and 0.02% sodium azide for 1 h at room temperature. Primary antibody incubation was performed in blocking solution overnight at 4°C. Primary antibodies include anti-acetylated α-tubulin (Sigma, T7451) direct conjugated to Alexa 647 (Invitrogen, A20186) and used at 1:1000, anti-Arl13b (Proteintech, 1771-1AP, 1:500). Cryosections were then washed with PBS three times for 5 min at room temperature. Secondary antibodies, donkey anti-rabbit conjugated Alexa Fluor 594 (Invitrogen, 1:1000), diluted in blocking solution were added for 1 h at room temperature. Samples were washed in PBS and stained with Hoechst 33258 (Sigma-Aldrich) for 5 min at room temperature. Cover slips were mounted using Immu-Mount (Thermo Fisher Scientific). Fluorescence images were captured on Nikon Spinning-disk confocal microscope with Yokogawa X1 disk, using a Hamamatsu flash4 sCMOS camera. 60× apo-TIRF (NA = 1.49) or 20× Plan Flour Multi-immersion (NA = 0.8) objectives were used. Images were processed using Nikon’s Elements or Fiji software.

Tamoxifen administration in mice

Recombination of the Bbs5^flox/flox allele was induced in juvenile CAGG-cre^ERT2 (Jax Mice stock# 004682) positive mice at postnatal day 7 by a single intraperitoneal (IP) injection of 9 mg tamoxifen (Millipore Sigma, T5648) per 40 g body weight. Tamoxifen was dissolved in sterile corn oil.

Statistical analyses

For C. elegans chemotaxis and egg laying behavioral assays, we used a two-way ANOVA with multiple comparisons to identify statistically significant data points. For brood size and egg retention counts, we used a one-way ANOVA with multiple comparisons. Analyses were performed with GraphPad Prism 9 (GraphPad Software, LLC, San Diego, CA, USA).

Results

Amphid dye-filling is disrupted in C. elegans bbs-5;nphp-4 double mutants

Previously, we conducted a large-scale modifier screen in C. elegans to identify genetic interactions able to exacerbate cilia-related phenotypes caused by a null mutation in the TZ component nphp-4 (Winkelbauer et al. 2005; Masyukova et al. 2016). From this screen, 10 independent strains were isolated, each showing more severe dye-filling defects than nphp-4(tm925) mutants alone (see Materials and methods for detailed description of dye filling classifications as Dyf, partial Dyf, or normal dye filling). Subsequent analysis identified a novel allele in the BBSome complex member, bbs-5, in one of the strains from the screen. The bbs-5(yhw62) allele is a single nucleotide mutation that results in a tryptophan to stop codon transition in the third exon of the gene (Figure 1A).

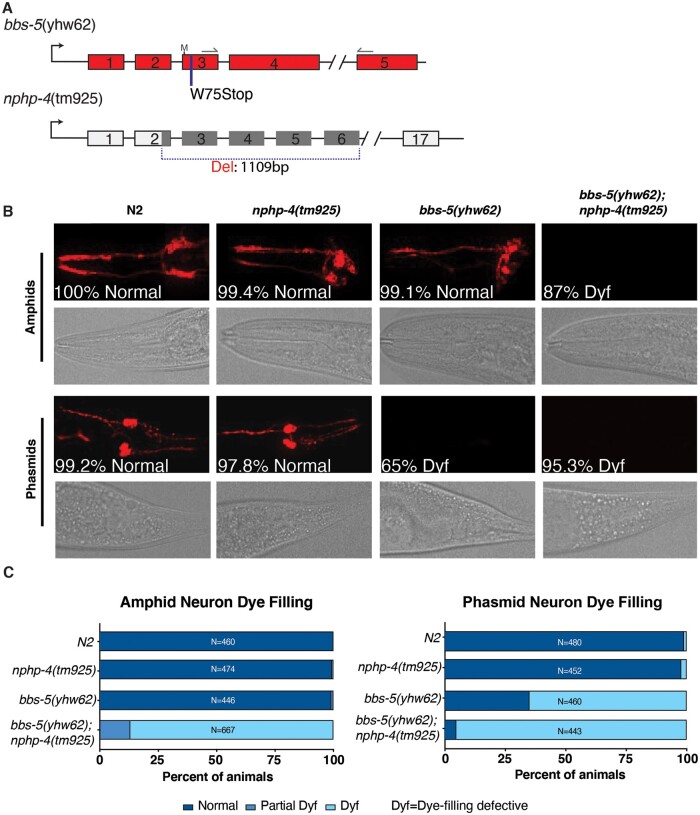

Figure 1.

A forward mutagenesis screen identifies genetic interactions between nphp-4 and bbs-5 alleles. (A) Allele maps of bbs-5(yhw62) and nphp-4(tm925). “M” indicates in-frame methionine residue at the beginning of exon 3. Arrows above exons 3 and 5 of bbs-5(yhw62) indicate the position of PCR primers used for rtPCR with the head of the arrow at the 3′ end of the primer. (B) DiI dye filling of amphid (top) and phasmid (bottom) neurons in C. elegans. Percentages indicate frequency of most common dye filling phenotype (see Materials and methods for details). (C) Quantification of Normal, Partial Dyf, and Dyf phenotypes in amphid (top panels) and phasmid (bottom panels) neurons. N values represent total number of animals analyzed. Dyf, dye filling defective.

Both N2 and nphp-4(tm925) worms show normal dye-filling in both the amphid and phasmid sensory neurons (Figure 1B, phenotype distribution shown in Figure 1, C and D). Similarly, the bbs-5 mutant line obtained from the screen, bbs-5(yhw62), displayed normal dye-filling in the amphid neurons. In contrast, phasmid neurons in most (65%) bbs-5(yhw62) animals were dye-filling defective (Dyf). When the nphp-4(tm925) mutation was combined with bbs-5(yhw62) it resulted in significant dye-filling defects, with 87% and 95.3% of animals showing dye-filling defects in the amphids and phasmids, respectively. Collectively, these data provide support for a genetic interaction between nphp-4 and bbs-5 in C. elegans.

Additional alleles in the bbs-5 gene, bbs-5(gk537), and bbs-5(gk507) have previously been reported, and we compared them with the new allele obtained from the screen. Both the bbs-5(gk537) and bbs-5(gk507) alleles contain large deletions spanning the putative promoter, the 5′ untranslated region (5′UTR), and the first and second exons (Supplementary Figure S1A). bbs-5(gk537) and bbs-5(gk507) single mutant animals exhibit normal dye-filling in both the amphid and phasmid neurons (Supplementary Figure S1B, quantified in Supplementary Figure S1C). Double mutant animals harboring either deletion allele along with nphp-4(tm925) display a partial dye-filling defect, defined as a reduced number of neurons taking up the dye, in their amphid neurons (60.7% in bbs-5(gk537);nphp-4(tm925) and 67% in bbs-5(gk507);nphp-4(tm925)). A majority of bbs-5(gk537);nphp-4(tm925) animals show dye-filling defects in the phasmid neurons (72.2%), while most of the bbs-5(gk507);nphp-4(tm925) animals display normal phasmid dye-filling (55.2%).

The location of the deletions paired with the differences between these alleles and the newly generated bbs-5(yhw62) allele led us to investigate whether the bbs-5(gk507) and bbs-5(gk537) are likely to retain some expression and function, perhaps due to the presence of alternate bbs-5 transcripts. To determine whether any transcript is being made in the bbs-5(gk507) and bbs-5(gk537) alleles, despite deletion of all predicted promoter sequences, we designed primers downstream of the deletion region (exon 3 to exon 5; Supplementary Figure S1A). The resulting rtPCR generated distinct bands at the predicted size in bbs-5(gk507), bbs-5(gk537), and bbs-5(yhw62) alleles (Supplementary Figure S1D), suggesting that there is an alternate transcript of bbs-5 that is still expressed in the gk507 and gk537 stains. Importantly, the bbs-5(yhw62) alternate transcript still contains an early stop codon in exon 3 that would yield a very short and likely nonfunctional protein product. The expression of alternate transcripts in the bbs-5(gk507) and bbs-5(gk537) mutants likely explains the differences in phenotypes observed and suggests that these alleles are hypomorphic, while the bbs-5(yhw62) allele is a likely null mutation and therefore shows a more severe phenotype.

Since the bbs-5(gk507) and bbs-5(gk537) alleles include a portion of the 3′UTR of the upstream R01H10.7 gene, we performed rtPCR to determine if a read-through transcript was generated. We only detected a minimal amount of possible readthrough transcription in bbs-5(gk507; Supplementary Figure S1D).

Sensory neuron-mediated behaviors are differentially affected by bbs-5 and nphp-4 mutant alleles

Many C. elegans behaviors, including chemosensation, dauer formation, and egg laying, have been connected to the proper development and function of the ciliated sensory neurons (Ward 1973; Albert et al. 1981; Golden and Riddle 1982; Bargmann 1993; Winkelbauer et al. 2005; Lee and Portman 2007). Given the prominent role of cilia in these behaviors, we assessed whether any sensory neuron-mediated behaviors might be impacted by the bbs-5 or nphp-4 alleles, and whether any behavioral impairments might be exacerbated by the presence of both alleles. First, we assessed chemotaxis to four different attractive compounds: diacetyl and pyrazine, which are recognized by the AWA neurons, as well as benzaldehyde and 2,3-pentanedione, which are recognized by the AWC neurons (Bargmann 1993). For all four odorants, N2 controls yielded an average CI between 0.74 and 0.86, indicative of animals that can detect and preferentially move toward an attractive compound (Figure 2A). In contrast, both nphp-4(tm925) and bbs-5(yhw62) worms show a significant deficiency in chemotaxis, with average CI values between 0.36 and 0.48 for all four compounds. We did not see any further chemotaxis deficiency in the bbs-5(yhw62);nphp-4(tm925) mutants (average CI values between 0.34 and 0.5). This suggests that nphp-4(tm925) and bbs-5(yhw62) work through the same mechanism to cause a significant deficiency in chemotaxis abilities.

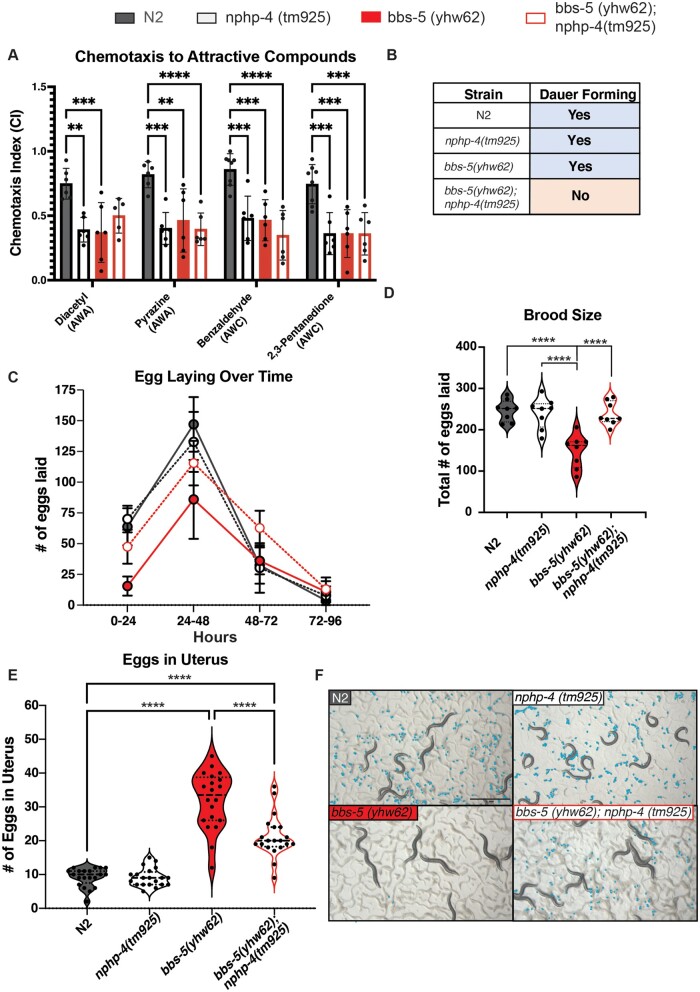

Figure 2.

Genetic interaction between nphp-4 and bbs-5 alleles alters ciliated sensory neuron-mediated behaviors. (A) Chemotaxis to attractive compounds recognized by the AWA neurons (diacetyl and pyrazine) or AWC neurons (benzaldehyde or 2,3-pentanedione) was measured, generating a CI. n $\ge$ 50 animals per strain, for at least six replicate experiments. (B) Assessment of ability to form dauer-stage animals. N = 4 replicate experiments. (C) Number of eggs laid during 24-h intervals following L4 stage. n $\ge$ 6 animals per strain. (Average eggs per strain over time N2: 64 eggs from 48 to 72 h, 147 eggs from 72 to 96 h, 32 eggs from 96 to 120 h, and 4 eggs from 120 to 144 h. nphp-4(tm925): 70 eggs from 48 to 72 h, 133 eggs from 72 to 96 h, 30 eggs from 96 to 120 h, and 8 eggs from 120 to 144 h. bbs-5(yhw62): 16 eggs from 48 to 72 h, 86 eggs from 72 to 96 h, 36 eggs from 96 to 120 h, and 11 eggs from 120 to 144 h. nphp-4(tm925);bbs-5(yhw62) 48 eggs from 48 to 72 h, 116 eggs from 72 to 96 h, 63 eggs from 96 to 120 h, and 13 eggs from 120 to 144 h.) (D) Total number of eggs laid during the course of adulthood. n $\ge$ 6 animals per strain. (E) Measurement of eggs retained in the uterus of adults 24 h following L4 stage. n = 20 animals per strain. (F) Visualization of eggs laid in first 24 h following L4 stage. Each individual egg is pseudo-colored in blue. Scale bar is 1 mm. Error bars in this figure represent standard deviation. ** indicates P < 0.01, *** indicates P < 0.001, **** indicates P < 0.0001.

In contrast to the bbs-5(yhw62) allele, the two large deletion alleles [bbs-5(gk507) and bbs-5(gk537)] did not show any significant deficiency in chemotaxis in the AWA neurons [average CI values: bbs-5(gk507) 0.77 and 0.88; bbs-5(gk537) 0.79 and 0.74] while the bbs-5(gk507) allele alone showed defects in chemotaxis mediated by AWC neurons (average CI values between 0.37 and 0.47) compared to N2 (Supplementary Figure S2A). The bbs-5(gk507);nphp4(tm925) double mutants were not significantly different from nphp-4(tm925) single mutants for chemotaxis to all four compounds [average CI values: bbs-5(gk507);nphp-4(tm925) between 0.28 and 0.51; nphp-4(tm925) between 0.36 and 0.48]. Bbs-5(gk537);nphp-4(tm925) mutant animals (average CI values between 0.63 and 0.73) more closely resembled the bbs-5(gk537) single mutants (average CI values between 0.71 and 0.79) and were not significantly different when compared to N2 (average CI values between 0.74 and 0.86). Interestingly bbs-5(gk537);nphp-4(tm925) showed a significant improvement in chemotaxis to diacetyl (AWA-mediated; average CI value 0.73) and 2,3-pentanedione (AWC-mediated; average CI value 0.67) compared to nphp-4(tm925) single mutant animals (average CI value: diacetyl 0.39; 2,3-pentanedione 0.36), but not to pyrazine (AWA-mediated) and benzaldehyde (AWC-mediated). Taken together these data show a complex interaction between nphp-4 and bbs-5 in regulation of chemotaxis behaviors and differential severity of the two deletion alleles.

Next, we determined whether each strain could enter the dauer stage in response to starvation conditions, another phenotype requiring cilia function (Schafer et al. 2006). The N2 control worms and each of the single mutant lines, nphp-4(tm925), bbs-5(yhw62), bbs-5(gk537), and bbs-5(gk507), survive SDS treatment, indicating an ability to properly form dauers (Figure 2B, Supplementary Figure S2B). In contrast, for all the double mutant lines, none are able to survive SDS treatment, suggesting that the genetic interaction between any bbs-5 allele and nphp-4 eliminates the ability to form dauers.

Prompted by the observation that we saw few unhatched, fertilized embryos on plates with bbs-5(yhw62) worms (Figure 2E), we analyzed the strains for possible defects in egg laying, egg retention, and total brood size. To address egg laying and total brood size, we age-synchronized hermaphrodites from N2, bbs-5(yhw62), and nphp-4(tm925);bbs-5(yhw62) double mutants and counted the number of eggs laid in 24-h time intervals over 4 days after the L4 stage. Brood size was determined by summing the total number of eggs laid over the 4-day period. The bbs-5(yhw62) mutants showed a delay in egg laying over the first 48 h (Figure 2C, Supplementary Figure S2C) and a significant decrease in total brood size (n = 148 eggs, P < 0.0001) when compared with the remaining strains, including N2 controls (n = 247 eggs, Figure 2D, Supplementary Figure S2D). Surprisingly, the phenotypes observed in bbs-5(yhw62) mutants were rescued in nphp-4(tm925);bbs-5(yhw62) double mutants. In contrast to the bbs-5(yhw62) mutants, brood size in bbs-5(gk507) and bbs-5(gk537) strains and their corresponding double mutants were not significantly different than controls or nphp-4(tm925) single mutants (Supplementary Figure S2D). Although there was some variation across timepoints, overall, none of the strains differed significantly from N2 controls during the final time interval.

We reasoned that the lack of embryos laid in the first 24-h period and overall delayed egg laying in the bbs-5(yhw62) worms could be a result of egg retention or delayed maturation (Figure 2F, Supplementary Figure S2F; eggs pseudocolored blue). To test this, we quantified the number of fertilized embryos that were retained in the uterus 24 h post L4 stage. N2 control animals had an average of nine eggs retained in the uterus (Figure 2E). The number of eggs retained by nphp-4(tm925), bbs-5(gk537), bbs-5(gk507) bbs-5(gk537);nphp-4(tm925), and bbs-5(gk507);nphp-4(tm925) animals was not significantly different from N2 controls (Figure 2E, Supplementary Figure S2E). In contrast, bbs-5(yhw62) animals retained more than three times as many eggs, with an average of 31 eggs per animal (P < 0.0001). The presence of a large number of eggs retained in the uterus at 24 h post-L4 shows that despite the lack of eggs present on the plate, the animals are fertile adults at this timepoint and that the lack of embryos visualized on the plate is due to their retention within the uterus. Addition of nphp-4(tm925) in the bbs-5(yhw62) background partially rescued this defect, with animals retaining an average of 21 eggs in the uterus.

BBS-5 and NPHP-4 are individually necessary for TZ integrity

Given that NPHP-4 is a component of the TZ, which functions as a barrier between the cilium and the rest of the cell, and BBS-5 is a component of the BBSome that mediates both entry and removal of membrane-associated proteins from the cilium, we wondered whether there were changes in trafficking of ciliary or non-ciliary proteins in the sensory neurons that may be related to the phenotypic differences observed in the single vs double mutants. We first analyzed RPI-2, a GTPase activator that is normally localized in a region just outside of the primary cilium called the periciliary membrane (Blacque et al. 2005; Williams et al. 2011; Figure 3A). When the integrity of the TZ is disrupted, RPI-2 localization can be seen inside the ciliary compartment (Williams et al. 2011). We replicated this result in nphp-4(tm925) animals (Figure 3A). Interestingly, we also see RPI-2 expression inside the cilium in both bbs-5(yhw62) and bbs-5(gk537) mutants analyzed indicating that loss of BBS-5 alone results in improper localization of non-ciliary membrane proteins into the cilium (Figure 3A, Supplementary Figure S3A). Analysis of the double mutants revealed no overt differences in the RPI-2::GFP localization pattern or level of accumulation in the cilium compared to single mutants.

Figure 3.

Localization of nonciliary RPI-2 and ciliary ODR-10 membrane proteins is not affected by genetic interaction between nphp-4 and bbs-5. (A) RPI-2::GFP protein is excluded from the cilium in N2 worms but enters the cilium in nphp-4(tm925), bbs-5(yhw62), and bbs-5(yhw62);nphp-4(tm925) mutants. Data are shown for the phasmid sensilla. (B) ODR-10::GFP protein is present in the cilium compartment of AWA amphid neuron of nphp-4(tm925), bbs-5(yhw62), and bbs-5(yhw62);nphp-4(tm925) mutants. Representative images selected from among at least five animals.

As we saw defects in chemotaxis toward diacetyl in both the nphp-4(tm925) and bbs-5(yhw62) backgrounds (Figure 2A), we also analyzed whether there are changes in the localization of ODR-10::GFP, the G-protein coupled receptor for diacetyl. ODR-10 is expressed solely in the AWA neurons (Sengupta and Bargmann 1996). In N2 controls, ODR-10::GFP uniformly fills the wing-shaped AWA cilia (Figure 3B). None of the strains carrying mutations in either nphp-4 or bbs-5 showed any discernable differences in the localization of ODR-10::GFP (Figure 3B, Supplementary Figure S3B). Furthermore, analysis via FRAP showed no overt differences in trafficking within the cilium in any of the strains analyzed (Supplementary Figure S4). These data suggest that the chemotaxis defects toward diacetyl observed in the bbs-5(yhw62), nphp-4(tm925), and double mutant strains are not due to loss of the receptor in the cilium but likely a result of disruption of signal transduction downstream of ODR-10.

Bbs5;Nphp4 double mutant zebrafish do not display exacerbated phenotypes compared to single mutant fish

To investigate whether the genetic interactions between nphp4 and bbs5 alleles detected in our C. elegans model are evolutionarily conserved, we generated Nphp4 and Bbs5 mutant zebrafish using CRISPR/Cas9. The Nphp4 mutant zebrafish allele (Nphp4^d7/d7) contains a seven base pair deletion (TGCACCC) at amino acid 163 (exon 4) resulting in a frameshift and premature stop codon at amino acid 165 (P165X). The Bbs5 mutant zebrafish allele (Bbs5^+5/+5) contains a six base pair deletion (CTCTGG) with an insertion of 11 base pairs (AGACAGAGACA) causing a + 5 insertion and a frameshift at amino acid 8 (exon 1), which results in a premature stop codon at amino acid 16 (F16X; Figure 4A). For both mutants, the premature stop codon in the transcript was confirmed by rtPCR analysis followed by sequencing (Supplementary Figure S5).

Figure 4.

Generation of bbs5 and nphp4 mutant zebrafish. (A) Allele map of Bbs5^+5/+5 and Nphp4^d7/d7 mutant zebrafish. (B) μCT of control, Nphp4^d7/d7, Bbs5^+5/+5, and Bbs5^+5/+5;Nphp4^d7/d7 mutant zebrafish. (C) H&E analysis of vertebra, kidney, heart, and eye in control, Nphp4^d7/d7, Bbs5^+5/+5, and Bbs5^+5/+5;Nphp4^d7/d7 mutant zebrafish. INL, inner nuclear layer; ONL, outer nuclear layer; PE, pigmented epithelium; PR, photoreceptors.

Bbs5^+5/+5 mutant zebrafish display severe scoliotic curvature of the spine (Figure 4B). Unexpectedly, no discernable phenotypes were detected in Nphp4 mutant fish even though rtPCR analysis indicate that only a mutant transcript is produced. We then generated Nphp4^d7/d7;Bbs5^+5/+5 double mutant fish. In contrast to the data in C. elegans, the addition of the Nphp4^d7/d7 mutation did not exacerbate the scoliotic phenotype nor did it present with new phenotypes that are not present in the Bbs5^+5/+5 mutant alone. Histological analysis did not reveal gross morphological abnormalities in the vertebrae or vertebral discs in Bbs5^+5/+5 and Nphp4^d7/d7;Bbs5^+5/+5 mutant fish (Figure 4C). Similarly, no overt differences were noted by histological analysis of the kidney or heart in Nphp4^d7/d7, Bbs5^+5/+5, and Nphp4^d7/d7;Bbs5^+5/+5 mutant zebrafish (Figure 4C). Histological analysis of the retina indicates that organization of the photoreceptor (PR) inner and outer segments are thinner and disorganized in Bbs5^+5/+5 mutant fish and that it is not further exacerbated in Nphp4^d7/d7;Bbs5^+5/+5 mutant fish (Figure 4C).

Bbs5^−/−;Nphp4^−/−congenital mutant mice do not survive to weaning age

To determine if genetic interactions between Nphp4 and Bbs5 mutations are conserved in a mammalian model, we generated Nphp4;Bbs5 double mutant mice (allele maps, Figure 5, A and B). It has previously been reported that male Nphp4^−/− mice are sterile due to sperm motility defects (Won et al. 2011). Similarly, we previously described sterility defects and sub-mendelian ratios at birth and weaning in congenital Bbs5^−/− animals (Bales et al. 2020; Bentley-Ford et al. 2021). For this reason, double heterozygous Bbs5^−/+;Nphp4^−/+ female by Bbs5^−/+;Nphp4^−/+ male matings were established. Embryos isolated from these crosses show no outward defects at E16.5. Analysis of embryos by contrast-enhanced µCT similarly showed no obvious defects in tissue morphology including left-right body axis patterning, heart structure, lung, and kidney morphology (Figure 5C). Furthermore, cilia are present in the lateral plate mesoderm of double mutants (Figure 5D). Despite the presence of cilia and the lack of obvious morphological differences between wild type and double mutant animals, Bbs5^−/−;Nphp4^−/− mice do not survive until weaning age [Figure 5E;  ${\chi }^2$(8, N = 103) = 37.4, P < 0.001]. There is also a significant decrease in the number of Bbs5^−/−;Nphp4^−/+ and Bbs5^−/+;Nphp4^−/− animals, further indicating a genetic interaction between the TZ component, Nphp4, and BBSome component, Bbs5 that compromises viability.

Figure 5.

Effect of mutations in Bbs5 and Nphp4 mice. (A) Allele map of Bbs5^tm1a (Bbs5^−/−), Bbs5^tm1c (Bbs^flox/flox), Bbs5^tm1d (Bbs5^Δ/Δ). (B) Schematic depicting the Nphp4⁻ allele. (C) Contrast enhanced µCT of Bbs5^flox/+;Nphp4^+/+ and Bbs5^Δ/−;Nphp4^−/− embryos isolated at E18.5. (D) Immunofluorescence staining for cilia (Arl13b, green) in the lateral plate mesoderm of Bbs5^+/−;Nphp4^+/+ and Bbs5^−/−;Nphp4^−/− double mutant embryos. (E) Expected vs observed frequencies of genotypes at weening age generated from a double heterozygous by double heterozygous mating. (F) Kaplan–Meier survival curve of P7 induced mice utilizing the conditional Bbs5 allele (Bbs5^flox/flox) crossed onto Cagg-Cre^ERT wild-type, Nphp4^−/+ and Nphp4^−/− mutant backgrounds. When induced at 7 days following birth (P7), Bbs5^Δ/Δ (N = 7) animals survived at rates comparable to wild-type (N = 7) and Nphp4^−/− (N = 4) single mutant animals. Comparatively, a significant number of Bbs5^Δ/Δ;Nphp4^−/− animals (80%, N = 5) die following induction. A similar effect is seen in Bbs5^Δ/Δ;Nphp4^−/+ animals (50%, N = 6), further supporting the existence of a genetic interaction between Bbs5 and Nphp4 mutant alleles.

Loss of BBS5 in a congenital Nphp4^−/− mutant background results in neurological abnormalities and lethality

To test for genetic interactions between alleles of Nphp4 and Bbs5 postnatally, we utilized the conditional Bbs5 allele (Bbs5^flox/flox) crossed onto Cagg-Cre^ERT, Nphp4^−/+, and Nphp4^−/− mutant backgrounds. Recombination of Bbs5^flox/flox was induced by IP injection of tamoxifen. When induced at 7 days following birth (P7), Bbs5^Δ/Δ (N = 7) and Nphp4^−/− (N = 4) single mutant animals survived at rates comparable to wild type (N = 7) animals. Comparatively, there is a significant increase in lethality in Bbs5^Δ/Δ;Nphp4^−/− double mutant animals (80%, N = 5) within 20 days following induction. A similar effect is seen in Bbs5^Δ/Δ;Nphp4^−/+ animals (50%, N = 6). These data further support a strong genetic interaction between Bbs5 and Nphp4 alleles (Figure 5F). Bbs5^Δ/Δ;Nphp4^−/− animals frequently exhibited uncoordinated behaviors and seizure-like activity (Supplementary Video S1). The ataxia phenotype does not appear to correlate with morphological abnormalities in the cerebellum (Supplementary Figure S5). At the time of death, Bbs5^Δ/Δ;Nphp4^−/− and Bbs5^Δ/Δ;Nphp4^−/+ animals appear runted compared to littermates. The cause of lethality following induction is not known. These data indicate the genetic interactions between the alleles are important during the development and perinatal periods.

Discussion

Using a forward genetic modifier screen, we identify genetic interactions between the ciliary TZ component nphp-4 and the BBSome component bbs-5 in C. elegans. This interaction was identified via severe dye-filling defects that are present in bbs-5(yhw62);nphp-4(tm925) double mutant animals compared to bbs-5(yhw62) and nphp-4(tm925) single mutants individually. Additional large deletion alleles that include the 5′ end of the bbs-5 gene, bbs-5(gk537), and bbs-5(gk507), were also analyzed. Genetic interactions between bbs-5(gk507) and nphp-4(tm925) have been previously reported to cause an exacerbated phenotype (Yee et al. 2015). However, we show that the bbs-5(yhw62) allele identified in our screen displays more severe phenotypes when compared to the bbs-5(gk537) and bbs-5(gk507) alleles by themselves and when combined with the nphp-4(tm925) allele.

The enhanced severity of phenotypes seen with the bbs-5(yhw62) allele when compared with the two deletion alleles led us to investigate whether they may retain some function despite the loss of the putative promoter. Our data suggest that both deletion alleles are still able to generate a shorter transcript despite having lost their promoter region. Upon evaluation of the bbs-5 gene, we identified the presence of an in-frame methionine residue at the beginning of exon 3 (Figure 1A, Supplementary Figure S1A) as well as an SL1 trans-splice leader sequence and several putative transcription factor binding sites suggesting a separate promoter element for generation of an alternative transcript that is predicted to begin at exon 3. These elements are all present in intron 2, which is an uncharacteristically large (1156 bp) intron for C. elegans. The location of the bbs-5(yhw62) mutation would still result in an in-frame nonsense mutation within the alternative transcript supporting the conclusion that it is the most severe bbs-5 mutant allele studied to date, if not the only null allele studied.

Furthermore, when we assayed chemosensing abilities, we note that the two large deletion alleles [bbs-5(gk537) and bbs-5(gk507) are more phenotypically similar to each other compared to the bbs-5(yhw62) allele]. An exception to this is observed specifically within the AWC neurons. In these neurons, we observe chemosensing defects in the bbs-5(gk507) mutants alone compared to the bbs-5(gk537) mutants. We predict that this variability also stems from the location of the deletions found in these alleles. The transcription factor binding region located in intron 2 includes predicted binding sites for HPL-2, which has been shown to regulate odor adaption specifically in the AWC sensory neurons (Juang et al. 2013). The deletion mutation in the bbs-5(gk507) allele ablates the entire HPL-2 binding region compared to the bbs-5(gk537) deletion, which only disrupts part of the region. This could effectively explain why we see deficiency in AWC-specific chemotaxis behavior only in the bbs-5(gk507) allele. Interestingly, this region is conserved across worms, mice, and humans.

Bbs-5(gk537);nphp-4(tm925) mutants also surprisingly showed an improvement in chemotaxis to two of the four compounds when compared with nphp-4(tm925) mutants alone, including one sensed by each of the two neurons tested. While the CI values for these studies varied widely, this could indicate a hypersensitivity of the bbs-5(gk537) allele to specific compounds that blunt the effect of loss of nphp-4 in the double mutants. Although this is an intriguing possibility, the chemotaxis assay used in these studies is not able to detect hypersensitivity in the bbs-5(gk537) single mutant background. It can only be used to distinguish a reduced ability to chemotax to attractive odorants.

Assays investigating egg laying, the number of eggs retained in the uterus, and brood size also show a defect in bbs-5(yhw62) animals alone. Surprisingly, we see a partial rescue of these defects when the bbs-5(yhw62) allele is combined with the nphp-4(tm925) allele; the mechanisms involved in this partial rescue are not known. Regarding egg laying behaviors, bbs-5(gk507) single and bbs-5(gk507);nphp-4(tm925) double mutants exhibit moderate delays in the temporal pattern of egg laying. Unlike the results for the bbs-5(yhw62) animals, this delay in the bbs-5(gk507) animals is not caused by egg retention, nor does it result in a decreased total brood size.

Interestingly, the only behavior that mirrored the exacerbated dye-filling defects seen in all double mutant animals is the ability to form dauers. These results raise a question regarding dye-filling and what it tells us about ciliated sensory neurons. Each of the performed assays are commonly accepted for evaluation of ciliary structure and function in C. elegans. The variability seen in double mutant animals between behavioral defects suggests that dye-filling is a readout of a process that is independent of chemosensing ability or TZ integrity but may be linked to dauer formation. While we do not show disruption of ciliary membrane receptor trafficking based on ODR-10 localization, we do note TZ integrity abnormalities based on RPI-2::GFP localization. Because these defects are observed in our single mutant animals by themselves, it is not possible to determine whether this is exacerbated in double mutant strains. It is likely that disruption of events downstream of ciliary trafficking in double mutant strains is driving the phenotypes observed.

To determine whether these interactions are conserved across species, Nphp4 and Bbs5 mutant zebrafish were generated using CRISPR/Cas9. While Bbs5 mutant zebrafish exhibit severe scoliotic curvature of the spine and defects in the ONL of the retina, Nphp4 mutant zebrafish did not exhibit any overt phenotypes. We have conducted rtPCR analysis from the Nphp4 mutant fish. Only the mutant transcript with the frameshift in the reading frame was obtained and there was no evidence for alterative splicing. Thus, the data would support this allele disrupts Nphp4 coding potential. In addition, there is no evidence in ZFIN of a genetic duplication of Nphp4 resulting in a potential paralog compensation mechanism. The lack of a phenotype in the Nphp4 mutant fish argues for potential different functions across these species and thus, we feel that data from this model will be important for future analyses of interactions between ciliary complexes. The absence of phenotypes in Nphp4 fish is surprising considering the effect of mutations in Nphp4 in mouse models and in human patients, and the important role it has in forming the NPHP complex in the TZ of C. elegans. Compared to mice, which have rod dominated visual systems, zebrafish have a cone dominated visual system (Zang and Neuhauss 2021). It is possible that this difference contributes to the lack of retinal phenotype observed in the Nphp4 mutant fish compared to Bbs5 mutant fish. Furthermore, it is possible that Nphp4 may not be as functionally important in fish or that it preferentially impacts primary cilia compared to motile cilia. Many of the zebrafish ciliopathy phenotypes are associated with defects in motile cilia. Alternatively, Nphp4 mutant zebrafish may have subtle phenotypes that were simply not detected with the analysis methods employed here or neurological phenotypes that were not analyzed. When combined, Nphp4;Bbs5 double mutant zebrafish are viable and do not exhibit additional phenotypes when compared with Bbs5 mutants alone, which is in direct contrast to what we find in the C. elegans and mouse models. The lack of observable phenotypes in the Nphp4 zebrafish makes interpretation of whether a genetic interaction between the alleles is occurring in the double mutant fish challenging.

Previously, we described a congenic mouse model with a mutated Bbs5 allele (Bentley-Ford et al. 2021) and crossed this allele with the Nphp4 mutant mouse (Won et al. 2011) to test whether the genetic interaction occurs in a mammalian model. While mice with either mutation alone are viable, no double mutant animals were obtained at weaning age. More significantly regarding demonstrating a genetic interaction between the alleles, we observed significantly fewer mice that are homozygous for one allele and heterozygous for the other than would be expected. Analysis of embryos at E16.5 revealed that Nphp4^−/−;Bbs5^−/− mutant embryos appear morphologically normal and that cilia are still present. Thus, the exacerbated phenotypes are not due to defects in ciliogenesis. As we have previously reported, abnormal splicing events in the Bbs5^−/− congenital mouse model causes aberrant tissue specific splicing from the mutant allele, with some tissues able to maintain normal splicing to generate the normal coding region. Due to the complex splicing in the congenital model, we utilized a conditional allele of Bbs5 crossed with the Nphp4 allele. Using the inducible Cagg-Cre^ERT, we were able to induce the loss of BBS5 on the Nphp4 congenital mutant background. When loss of BBS5 is induced in Nphp4 mutant juvenile mice (P7), animals frequently exhibit seizures or ataxia, the latter of which could be related to defects in the cerebellum. Induction of BBS5 loss in adult animals (8 weeks old) does not have this effect, supporting a neurodevelopmental consequence caused by combined loss of the Bbs5 and Nphp4. This also points to defects in function of the cerebellum as its maturation occurs during the perinatal period (Chizhikov et al. 2007); although we do not observe any overt morphological defects in the cerebellum of the double mutants (Supplementary Figure S6).

Collectively, our results demonstrate an importance for bbs-5, and possibly the BBSome, in interacting with nphp-4 and the TZ to regulate ciliary signaling. Future work will evaluate whether similar genetic interactions are observed between mutations in Nphp4 and other BBSome components and aim to identify the disrupted downstream signaling cascades that are responsible for the variety of behavioral phenotypes observed in both C. elegans and mice. These data also help address possible mechanisms involved in the phenotypic variability observed in human ciliopathy patients with disease severity being dictated by the overall mutational load in ciliopathy genes that occur in the patients’ genetic backgrounds.

Data availability

Strains and plasmids are available upon request. The bbs-5(yhw62) strain will be available through the Caenorhabditis Genetics Center (CGC) following publication.

Supplementary material is available at GENETICS online.
