Ammonium nitrate explosion at the main port in Beirut (Lebanon) and air pollution: an analysis of the spatiotemporal distribution of nitrogen dioxide

Tarig Ali 1, Mohamed Abouleish 2, Rahul Gawai 3, Nasser Hamdan 4, Ahmed Elaksher 5,✉
PMCID: PMC8881550  PMID: 35252547

Abstract

An explosion of the ammonium nitrate (AN) stored at Beirut Port devastated the city on Tuesday 4 August 2020. Such an explosion produces pollutants such as nitrogen oxides (NOx). The most common NOx is nitrogen dioxide (NO2), which is present in the atmosphere due to natural and anthropogenic processes. The presence of NO2 is used as indicator of air pollution. However, the specific contribution of NO2 to air quality is uncertain due to the presence of other constituents, especially particulate matter (PM10). Research has shown that extended exposure to NO2 may result in serious health effects. This study investigated the impact of the explosion on NO2 levels in the atmosphere above Beirut and the surrounding area. NO2 data from the Sentinel-5P program were used to map the levels of NO2. Furthermore, ground-monitoring data were used to assess the levels of PM10 and ozone (O3) due to the evident association between these constituents and NO2. Results showed that NO2 levels were higher than before the blast. However, 7 days after the explosion, NO2 levels had returned to normal, while the levels of PM10 and O3 remained normal following the explosion. However, a slight increase in the daily average atmospheric pressure was noticed after the explosion, which was attributed to the decomposition of ammonium nitrate.

Keywords: Beirut explosion, Ammonium nitrate, Air pollution, Nitrogen dioxide, Sentinel-5P data

Introduction

Amid the coronavirus pandemic around the world and the increasing number of deaths caused by it, an explosion occurred at the main port of Beirut, Lebanon, that added more casualties and suffering to the country and its people. On 4 August 2020, about 2700 tons of ammonium nitrate (AN) that were stored at the port exploded, causing mass destruction that extended 20 km from the port (Silva 2020; OCHA 2020). The explosion affected the surrounding residential and business communities and caused about 150+ deaths, 5000+ injuries, and left 300,000+ people homeless (OCHA 2020). In addition to the structural damage that the city of Beirut endured, an explosion of such magnitude involving the combustion of AN releases air pollutants, including particulate matter (PM), that cause a deterioration in both outdoor and indoor air quality. The level of health effects varies according to the amount of pollutants that people are exposed to and the protective measures they adopt, which largely depend on their perception and awareness of the situation (Abouleish 2020). Although AN is stable at ambient pressure and temperature, does not burn, and is used as a fertilizer, under the right conditions it can act as an explosive (USEPA 2015; Sinditskii et al. 2005). As a result, the explosion of AN at the Port of Beirut led to the release of toxic gases such as ammonia and nitrogen oxides, as well as other pollutants, depending on the other chemicals present (USEPA 2015).

The most hazardous oxides of nitrogen are nitrogen dioxide (NO2) and nitric oxide (NO) (NLM 2020). Although these nitrogen oxides are present naturally in the environment, anthropogenic sources such as the explosion at the main port of Beirut can increase their levels in the environment and cause health and environmental problems. Short-term exposure to nitrogen oxides can cause eye and skin irritation/burns, respiratory problems, coughing and choking, headache, nausea, and abdominal pain (NLM 2020). Research has shown that exposure to high levels of NO2 can have a severe impact on public health. For example, Saeha et al. (Shin et al. 2020) uncovered a correlation between exposure to NO2 and high blood pressure, Gan et al. (2012) reported a connection to cardiovascular diseases, and Abbey et al. (1993) presented evidence relating such exposure to obstructive pulmonary disease. Furthermore, such exposure may adversely affect lung function in children (Avol et al. 2001) and middle-aged adults (Bowatte et al. 2017). Therefore, we studied the initial impact of the explosion at the main port of Beirut on NO2 levels in the atmosphere. We used Sentinel-5P program data to map the spatiotemporal levels of tropospheric NO2 over a period of 8 days from the event. In addition, ground-monitoring data were used to assess the levels of particulate matter (PM10) and ozone due to the evident association between these constituents and NO2.

Experimental procedures

Daily levels of atmospheric NO2 were obtained from the Sentinel Hub, which provides this product along with other atmospheric constituents acquired by the European Commission’s Sentinel-5P sensor, which has a spatial resolution of 5.5 km. Sentinel-5P is part of the European Commission’s Earth Observation Program, but this mission is specifically designed for air monitoring purposes (Ogen 2020; Veefkind et al. 2012). Sentinel-5P operates in seven spectral bands: 270–300 nm, 300–370 nm, 370–500 nm, 685–710 nm, 745–773 nm, 1590–1675 nm, and 2305–2385 nm. Table 1 below shows the Sentinel-5P NO2 image acquisition times. The image from 4 August 2020 (the day of the explosion) was acquired at 10.48 am (Lebanon time), about 8 h before the incident (Sentinel Hub; Sinergise Laboratory for Geographical Information Systems, Ltd. 2020).

Table 1.

Sentinel-5P NO2 image acquisition times

Date Sentinel-5P NO2 image acquisition times
UTC time Lebanon time Time with respect to blast
4 Aug 20 7:48:25 UTC 10:48 am 8 h before blast
5 Aug 20 7:28:25 UTC 10:30 am 16 h after blast
6 Aug 20 7:08:11 UTC 10:08 am 40 h after blast
7 Aug 20 6:53:11 UTC 09:53 am 64 h after blast
8 Aug 20 6:33:11 UTC 09:33 am 88 h after blast
9 Aug 20 7:53:11 UTC 10:53 am 112 h after blast
10 Aug 20 7:33:11 UTC 10:33 am 136 h after blast
11 Aug 20 7:18:11 UTC 10:18 am 160 h after blast
Open in a new tab

The location of the explosion site is shown in Fig. 1. Given that there is a relationship between the presence of NO2 in the atmosphere and the PM10 and O3 levels (WHO 2003), it was important to examine the average daily levels of PM10 and O3 before and after the blast (Table 2). Table 2 shows the average daily PM10 and O3 data on 3–11 August for Beirut. The PM10 data was obtained from the PurpleAir Air Quality Database (PurpleAir 2020). The O3 data were obtained from the World Air Quality Index Database (World Air Quality Index 2020) for the Upper Galilee station, which is located 76 km to the southeast of Beirut, due to the unavailability of these data for the Beirut station. To investigate the effect of the explosion and the surrounding environmental conditions on the dispersion of the pollutants in the atmosphere, the average temperature, pressure, wind speed, and direction were obtained on 3–11 August 2020 (Table 3) from the Meteoblue Weather Platform (MWP; Meteoblue 2020).

Fig. 1.

Fig. 1

Open in a new tab

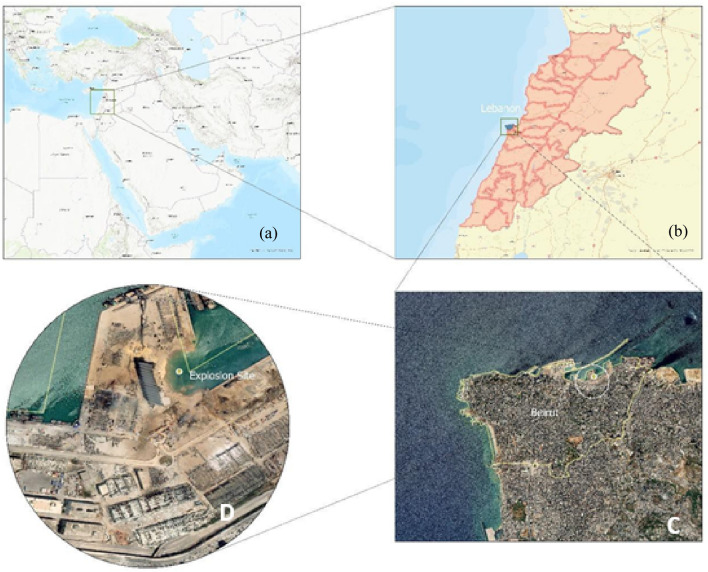

The explosion site at the main port of Beirut, Lebanon, on 4 August 2020

Table 2.

Average levels of PM10 and O3 in the atmosphere in Beirut on 3–11 August 2020

Date PM10 (μg/m3) O3 (ppb)
3 Aug 20 28.54 43
4 Aug 20 38.82 42
5 Aug 20 22.82 45
6 Aug 20 28.89 40
7 Aug 20 40.27 43
8 Aug 20 32.16 44
9 Aug 20 19.29 43
10 Aug 20 18.60 42
Open in a new tab

Table 3.

Average temperature, pressure, wind speed, and wind direction at the main port of Beirut on 3–11 August 2020 (Meteoblue 2020)

Date Temperature (°C) Mean sea-level pressure (HPa) Wind speed (km/h) Main wind direction
3 Aug 24.01 1016.342 06.43 S–W/N–W
4 Aug 22.07 1011.617 10.71 S–E/S–W
5 Aug 22.78 1016.533 06.36 S–W/N–W
6 Aug 22.41 1018.779 07.83 N–E/S–E
7 Aug 22.01 1019.425 03.80 N–E/S–E
8 Aug 23.01 1020.204 02.66 N–W/S–W
9 Aug 24.61 1018.985 04.43 S–W
10 Aug 25.83 1016.525 03.21 S–W
11 Aug 25.58 1013.946 06.48 N–E/S–W
Open in a new tab

Results and discussion

Figure 2 shows maps of tropospheric NO2 levels from 4 to 11 August 2020. The map in Fig. 2a shows the NO2 levels a few hours before the explosion. The maps in Fig. 2b–g show that NO2 levels in the air increased following the day of the explosion until the morning of 10 August (acquisition: 10.33 am local time). Figure 2h shows levels of NO2 that are comparable to those before the explosion (as illustrated in Fig. 2a). For better visualization, Fig. 3a and b show zooms of the NO2 maps presented in Fig. 2. Note that the key in Fig. 3 shows the United States Environmental Protection Agency (USEPA) air quality classification standard for NO2. The USEPA standard uses five classes of air quality: good, moderate, unhealthy for sensitive groups, unhealthy, and very unhealthy (USEPA 2011). There was a small hotspot over Beirut before the blast (Fig. 2a), but we can see that the hotspot spread over most of Lebanon and the region, especially in the west of Syria, on the days following the blast (Fig. 2a–g). Moreover, it is evident that the gas dissipated in all directions, but mainly in the southeastern to southwestern directions. The concentrations of NO2 were mainly high, ranging mostly from unhealthy to moderate per the USEPA standard, over large areas of Beirut and Lebanon and all the way to western Syria from the day of the explosion, with an average NO2 concentration of about 150 µmol/m2. Then, on 11 August, as shown in Fig. 2h, NO2 concentrations returned to the levels seen before the blast.

Fig. 2.

Fig. 2

Open in a new tab

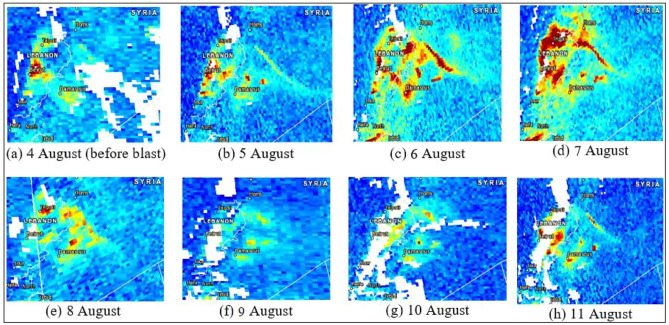

Sentinel-5P NO2 maps for 4–11 August 2020 over Beirut (Lebanon) and the surrounding region

Fig. 3.

Fig. 3

Open in a new tab

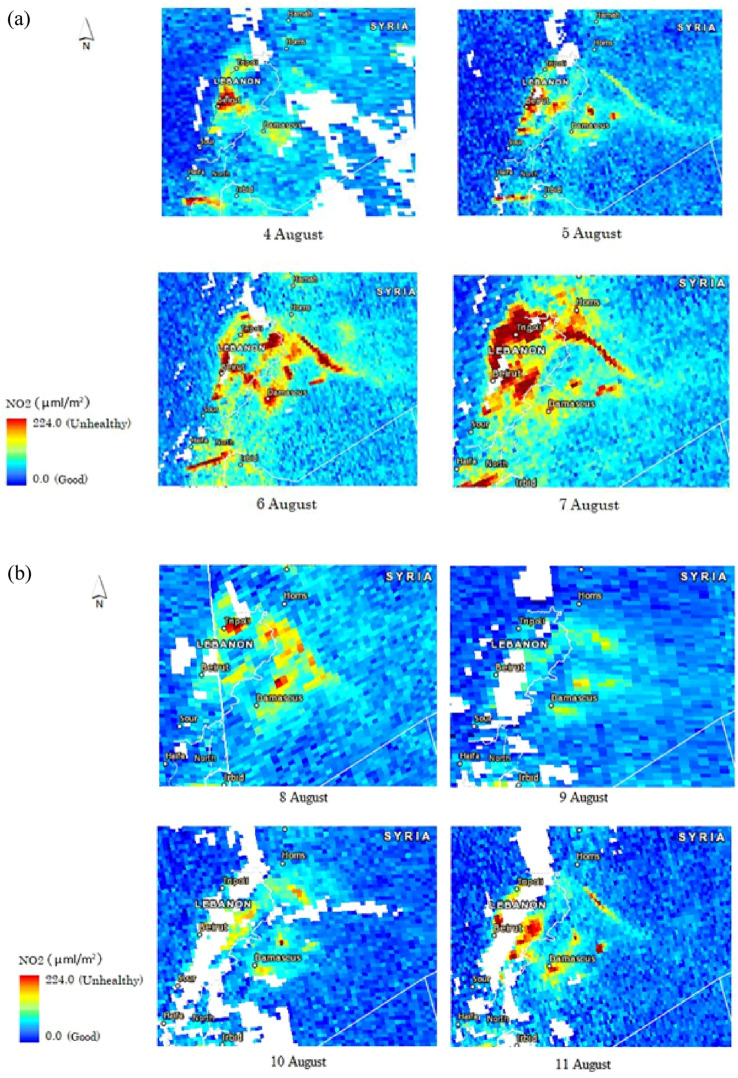

a Sentinel-5P NO2 maps for 3–6 August 2020 over Lebanon and the surrounding region. b Sentinel-5P NO2 maps for 7–11 August 2020 over Lebanon and the surrounding region

No change was noticed in the levels of PM10 and O3 in the atmosphere over the studied period. A slight increase in the daily average atmospheric pressure was noticed over the city following the explosion, which can be attributed to the decomposition of ammonium nitrate and the magnitude of the explosion. The maps shown in Figs. 2 and 3 illustrate the spatiotemporal distribution of NO2 over Beirut, Lebanon, and the surrounding region on 4–11 August 2020. Given the depth of the tropospheric layer, we needed to examine the air movement in the vertical direction at the time of the explosion. The latest vertical airflow data was obtained from the NOAA Physical Science Laboratory (PSL) in Boulder, CO, USA (PSL 2020). Figure 4 shows the vertical airflow at 1500 m above sea level at the explosion site and the surrounding area in July 2020. The vertical wind, which drives the air column vertically up and down, is represented by the omega equation, which is crucial to weather and storms in meteorology. Positive omega values illustrate downward airflow, while negative values mean upward flow. As shown in Fig. 4, omega was positive at the explosion time, which means that the tropospheric NO2 plume shown in Figs. 2 and 3 was pushed downward—closer to the ground. This would have reduced outdoor and indoor air quality and led to higher exposure to NO2.

Fig. 4.

Fig. 4

Open in a new tab

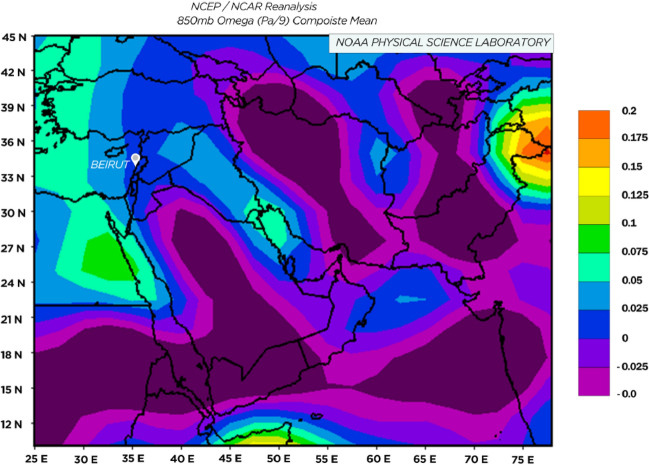

Vertical airflow at about 1500 m above sea level at Beirut, Lebanon, and the surrounding area (x axis: longitude, y axis: latitude; omega values in the Beirut area were about + 0.025, which indicates downward airflow)

Conclusions

In this study, the levels of tropospheric NO2 above Beirut and the surrounding area, as acquired by the Sentinel-5P satellite, were obtained from the Sentinel Hub and then used to study the effect of the AN explosion in the Port of Beirut on the air quality over Beirut and Lebanon for the eight-day period 4–11 August 2020. The Sentinel-5P data showed NO2 hotspots over wide areas of Beirut and Lebanon and all the way to Syria. These hotspots increased and spread out after the blast. The average value of the NO2 concentration during this period was about 150 µmol/m2, with mainly high concentrations ranging between unhealthy and moderate over most of Beirut from the day of the explosion. These results suggest that high NO2 concentrations accompanied by a large displaced population (approx. 5000 people) in Beirut presented a major health concern. This situation was aggravated by the downward airflow at the time of the incident. As a result, a high incidence of respiratory problems due to low air quality should be expected. Exposure to such poor air quality may also have caused inflammation in the lungs, which may have undermined the immune response to the already spreading coronavirus (Blomberg et al. 1999). Seven days from the explosion, NO2 levels returned to normal. The levels of PM10 and O3 in the atmosphere remained within the normal range following the explosion. A slight increase in daily average atmospheric pressure was noticed over the city following the explosion, which can be attributed to the decomposition of ammonium nitrate and the magnitude of the explosion.

Acknowledgements

We acknowledge the Office of Research at the American University of Sharjah for providing partial support through grant EN0-284.

Funding

This research was funded by the Office of Research at the American University of Sharjah.

Availability of data and material

Sentinel-5P NO2 maps. https://sentinels.copernicus.eu/web/sentinel/data-products/-/asset_publisher/fp37fc19FN8F/content/sentinel-5-precursor-level-2-nitrogen-dioxide.

Code availability

Code availability.

Declarations

Conflict of interest

The authors declare no conflict of interest.
