Promoting Plant-Based Therapies for Chronic Kidney Disease

Abstract

Chronic kidney disease (CKD) is debilitating, increasing in incidence worldwide, and a financial and social burden on health systems. Kidney failure, the final stage of CKD, is life-threatening if untreated with kidney replacement therapies. Current therapies using commercially-available drugs, such as angiotensin-converting enzyme inhibitors, angiotensin II receptor blockers and calcium channel blockers, generally only delay the progression of CKD. This review article focuses on effective alternative therapies to improve the prevention and treatment of CKD, using plants or plant extracts. Three mechanistic processes that are well-documented in CKD pathogenesis are inflammation, fibrosis, and oxidative stress. Many plants and their extracts are already known to ameliorate kidney dysfunction through antioxidant action, with subsequent benefits on inflammation and fibrosis. In vitro and in vivo experiments using plant-based therapies for pre-clinical research demonstrate some robust therapeutic benefits. In the CKD clinic, combination treatments of plant extracts with conventional therapies that are seen as relatively successful currently may confer additive or synergistic renoprotective effects. Therefore, the aim of recent research is to identify, rigorously test pre-clinically and clinically, and avoid any toxic outcomes to obtain optimal therapeutic benefit from medicinal plants. This review may prove to be a filtering tool to researchers into complementary and alternative medicines to find out the current trends of using plant-based therapies for the treatment of kidney diseases, including CKD.

Introduction

Chronic kidney disease (CKD) is an insidious, multifactorial, and slowly progressive disease, defined using altered kidney structure or dysfunction present for three months or more. ¹ CKD is graded into six progressive stages (Stage 1, 2, 3a and 3b, 4, and 5) based on glomerular filtration rate (GFR). ² While not progressive in everyone, CKD progresses in many people to total and permanent kidney failure, or Stage 5 CKD, previously termed end-stage kidney disease (ESKD).^2,3 CKD is one of the major public health burdens in developed and developing countries. Although statistics differ from country to country, the prevalence of this disease has tended to increase from year to year recently. ⁴ CKD increases rapidly with age, with rates among those aged 75 and over, twice as high as for 65-74 year olds, and around 7 times as high as those aged 18-54 (42%, 21% and 6%, respectively). Prevalence is generally higher in lower socioeconomic groups (14% compared with 8% in higher socioeconomic groups), ⁵ and Indigenous populations often experience higher risk of CKD than the non-Indigenous populations.^6,7

Interest in the health-benefiting properties of plant-based therapies is driven, in part, by the potential to prevent onset, or ameliorate progression, of certain diseases and reduce health care costs. The financial burden to health systems for CKD hospitalizations and treatments, worldwide, is immense and expected to increase.^5,6 Complementary and alternative medicines have been used for CKD patients for many years, with reportedly disparate results for improving outcome. ⁸ In Western countries, these therapies are most likely used to complement conventional medicines, whereas in other countries such as China, other Asian, and African countries, sole use of alternative medicines is practiced for CKD patients. ⁹ Therefore, an important challenge to researchers is identifying low-cost and effective plant-based therapeutic options for CKD patients in poorer countries and disadvantaged populations. This review will describe the pathogenetic mechanisms of CKD that may be modulated by these therapies and emphasize and summarize information on some plants used for complementary and alternative medicine, using examples from pre-clinical and clinical studies.

Materials and Methods

PubMed, Medline, Google Scholar, Web of Science, Cochrane Library and China Journal Full-text Database for relevant articles published in English were used for this review of pre-clinical and clinical plant-based therapies for CKD. The contents of full articles were checked by Muhammad Ali Khan (MAK) and Glenda Gobe (GG) for quality of investigations. Only English articles were included.

Results

Pre-clinical research using plant-based therapies in in vitro and in vivo experiments demonstrates some robust therapeutic benefits. In the CKD clinic, combination treatments of plant extracts with conventional therapies that are seen as relatively successful currently may confer additive or synergistic renoprotective effects. These results are summarized in the following paragraphs.

Pathogenetic Mechanisms of CKD

The most common causes of CKD are aging, male gender, diabetes, hypertension and lifestyle. ¹⁰ Common pathogenetic mechanisms include tubulointerstitial fibrosis and chronic inflammation, tubular atrophy, glomerulosclerosis and proteinuria. ¹¹ Chronic inflammation occurs through a series of biological signaling pathways involving the vasculature and the immune system, leading to the accumulation of inflammatory mediators in the tissue. ¹² Fibrosis is a multifaceted cellular response primarily driven by various profibrotic and inflammatory cytokines such as transforming growth factor-β (TGF-β), tumor necrosis factor-α (TNF-α), platelet-derived growth factor, fibroblast growth factor-2, and some of the interleukins (ILs).^13,14 Mechanistically, fibrosis and inflammation are exacerbated by oxidative stress. ¹⁵ Another key mechanism for kidney fibrosis is epithelial-mesenchymal transition (EMT) which is induced by various factors, including TGF-β, IL-1β and angiotensin II. ¹⁶

Hypoxia and inflammation coexist and have interactive roles in CKD. Hypoxia promotes inflammation by increasing vascular permeability, a central process in the movement of inflammatory cells that facilitate the production of inflammatory mediators. In contrast, inflamed tissues are often severely hypoxic because of increased metabolic demands. Some important inflammatory signaling pathways in CKD involve mitogen-activated protein kinase (MAPK), the transcription factor nuclear factor kappa B (NF-κB), p65 and some of the ILs. ¹⁷ The MAPK family consists of extracellular signal-regulated kinase, Jun N-terminal kinase and p38 MAPK. NF-κB is a key player in the production of pro-inflammatory cytokines and chemokines, such as TNF-α, IL-1β, IL-6, chemokine motif ligand 2 and macrophage inflammatory protein-2. ¹⁷ Hypoxia is closely regulated by hypoxia-inducible factor (HIF). HIF plays a critical role in inflammation and fibrosis during CKD through determining gene transcription, activation of multiple signaling pathways and epigenetic regulation, and contributes to the pathogenesis of comorbidities of CKD such as anemia, and aberrant angiogenesis. ¹⁸ Tissue hypoxia also causes mitochondrial dysfunction and oxidative stress, which lead to the generation of reactive oxygen species and reactive nitrogen species. Other leading causes of oxidative stress are proteinuria, uremic toxins, hyperglycemia and increased activity of the intra-renal angiotensin system.^15,19

One of the recent research interests for pathogenesis of CKD is continuum of chronic injury after repair of acute kidney injury (AKI).^20,21 AKI involves tubular epithelial cell apoptosis and/or necrosis. If the injury is mild, an adaptive repair process can lead to complete recovery. In contrast, if severe or prolonged injury occurs, this may be followed by maladaptive repair that progresses to chronic inflammation, vascular rarefaction, nephron loss, fibrosis and finally progression to CKD. One of the main causes of AKI is ischemia-reperfusion. Ischemia also causes release of damage-associated molecular pattern molecules (DAMPs) by damaged cells.^22,23 The DAMPs promote and exacerbate the inflammatory response. ²³ Inflammatory mediators such as inducible nitric oxide synthase, and pro- and anti-apoptotic signaling pathways also act in the continuum of disease progression from AKI to CKD. Ultimately, tubulointerstitial fibrosis develops, thereby impairing local oxygenation. Thus, a time-dependent, combined and cumulative interplay of fibrosis, inflammation and tubular cell loss leads finally to progression to CKD. Figure 1 shows relevant selected mechanisms for the pathogenesis of CKD.

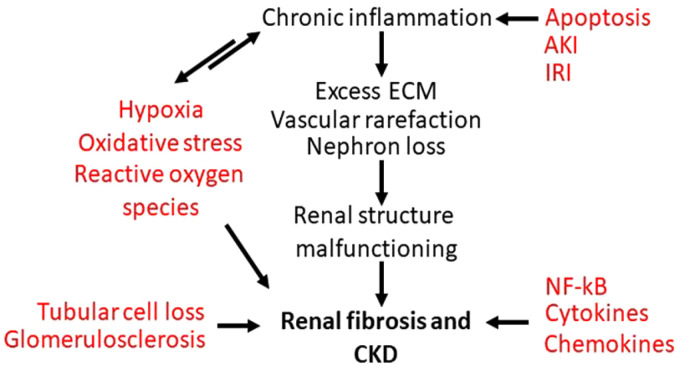

Figure 1.

Proposed mechanistic pathways to chronic kidney disease.

Multiple factors and many signaling pathways are responsible for chronic kidney disease (CKD). Ischemia-reperfusion injury (IRI) is one of the key causes of acute kidney injury (AKI) and apoptosis. Hypoxia produces oxidative stress and reactive oxygen species. Tubular inflammation stimulates immune cells to produce and accumulate extracellular matrix (ECM), causing malfunctioning of kidney structure. Chronic tubular inflammation causes vascular rarefaction and nephron loss. The transcription factor nuclear factor-κB (NF-κB) stimulates proinflammatory cytokines. Reactive oxygen species, proinflammatory cytokines and kidney structure malfunction cause kidney fibrosis and, ultimately, CKD.

Current CKD Treatment Strategies

As mentioned previously, there are limited therapies for CKD. Many current therapies rely on modulating the renin angiotensin system (RAS) which consists of angiotensinogen, renin, angiotensin-converting enzyme (ACE), angiotensin II, angiotensin II type 1 receptor and angiotensin II type 2 receptor. The renin-angiotensin-aldosterone system helps to regulate normal blood pressure. ²⁴ Renin and ACE produce angiotensin II, which alone or in combination with other components of the RAS, upregulates TGF-β1 and causes renal fibrosis through extracellular matrix accumulation, via multiple signaling pathways. The RAS also regulates other profibrotic factors that lead to accumulation of extracellular matrix, causing podocyte loss in glomeruli and decrease in GFR. ²⁵ ACE inhibitors (ACEi) and angiotensin receptor blockers (ARB), alone or in combination, are currently the most efficacious treatments for inhibition of the RAS and for maximal therapeutic effect on CKD, ²⁶ although their use is not without controversy for kidney failure. ²⁷ Recently, there has been an increasing interest in diet and the gut microbiome as modulators of CKD progression.^28,29 Dietary supplements or natural foods are attractive, beneficial, and feasible complementary strategies to prevent or delay the progression of CKD. Natural products can also prevent kidney fibrosis through suppressing the RAS, inflammation and oxidative stress. ³⁰ These products can also prevent kidney fibrosis by suppressing the Wnt/β-catenin and the TGF-β/small mother against decapentaplegic (Smad) profibrotic signaling pathways. ³¹ The inclusion of diet regulation in CKD therapies could be cost effective and possibly safer than combined regular drugs in reducing morbidity and mortality of CKD. Figure 2 summarizes the targets for current and alternative CKD therapies.

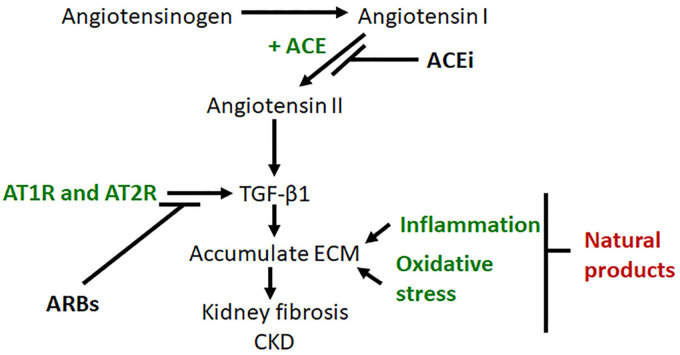

Figure 2.

Pathways for current and alternative chronic kidney disease treatments.

After conversion of angiotensinogen to angiotensin by renin, angiotensin-converting enzyme (ACE) converts angiotensin I to angiotensin II. Angiotensin II together with angiotensin type 1 and type 2 receptors (AT1R and AT2R) stimulate pro-fibrotic transforming growth factor-β1 (TGF-β1) to produce and accumulate extracellular matrix, causing kidney fibrosis and finally chronic kidney disease (CKD). Inflammation and oxidative stress also stimulate ECM accumulation. The ACE inhibitor (ACEi) inhibits production of angiotensin II. Angiotensin receptor blockers (ARBs) block AT1R and AT2R and so TGF-β1 synthesis is blocked, ultimately inhibiting accumulation of extracellular matrix. Natural products (alternative therapies) may block the final common pathway of kidney fibrosis through multiple mechanisms, including those stimulated by oxidative stress and inflammation.

Plants as Natural Medicines

Plants, algae and fungi have been utilized as natural medicines throughout human history. ³² Medicinal plants are regarded as an acceptable, cheap, easily available and relatively safe source of many active compounds for pharmaceuticals. ⁹ In China, the use of traditional herbal medicine for kidney disease has shown some advantages over single conventional drug treatment.^32,33 The beneficial effect of medicinal plants on kidney disease is often derived from their ability to boost the natural antioxidant defence mechanisms in the body. ³⁴ Different types of phytochemicals such as flavonoids, vitamins, resveratrol, anthocyanin, curcumin and phenolic acid are often found in the plant-based medicines and may act as antioxidant.^32,34,35 In this review, plants known to be beneficial in CKD, and to have minimal adverse outcomes, are discussed. Although by no means restricted to these plants, benefit has been demonstrated from Rheum spp. (Rhubarb), Astragalus membranaceus (Astragalus), Cordyceps sinensis (CS), Triptirygium wildfordii Hook F (TwHF), Abelmoschus manihot (L.) medic (AM), Salvia miltiorrhiza (SM), Vitis vinifera (Grape), and Zingiber officinale (Ginger). These plants and their extracts are sometimes used alone, but in many countries they are used in polyherbals for the treatment of kidney disease.^36,37 The following section describes these selected plants and their extracts for treating CKD, their mechanisms of action, and their particular beneficial effects for CKD, using pre-clinical and clinical studies. Tables 1 and 2 give a broader list of plants used in pre-clinical and clinical studies for the treatment of CKD.

Table 1.

Medicinal Plants with Known Renoprotective Effects in Pre-clinical Trials.

Common/Botanical Name	Plant part and delivery dose	Animal and renal effect	Ref.
Abelmoschus manihot	Flower; Huangkui capsule (HKC) (75 mg ‐ 300 mg/kg/d)	Rats: Reduced ER stress and cJun NH2-terminal kinase activation in the liver and kidney; subsequently improved renal injury and also improved lipid metabolic disorders by activating PPARα/γ.	38
Astragalus membranaceus var. mongholicus with Angelica sinensis	Roots (14 g/kg/d); Decoction of water extract	Rats: Decreased urinary protein excretion, up-regulated VEGF and improved kidney microstructure.	39
Cornus officinalis with Radix Astragalus membranaceus	Roots (10 gm – 20 gm/kg/d); Aqueous extract	Mice: Reduced urinary protein excretion.	40
Cordyceps sinensis with Tripterygium wilfordii Hook. F.	Fruiting body (16 mg/kg/d – 5 g/kg/d); Polyglycosidium powder from both herbs	Rats: Attenuated glomerular damage by preventing the downregulation of podocin and nephrin in diabetic kidney disease.	41
Anthurium schlechtendalii Kunth	Roots (125 mg/kg/d); Aqueous extract	Rats: Potential nephron-protective action, but not evident in animals under study.	42
Cordyceps cicadae	Fruiting body (46 mg/kg/d – 2 g/kg/d); Extracts	Rats: Inhibited renal fibrosis by inhibiting TGF-β1/CTGF.	43
Cordyceps sobolifera	Fruiting body; Extracts	Unknown: Prevented progression of glomerulosclerosis.	44
Zingiber officinale	Roots (60 mg/kg); Aqueous extract	Rats: Prevented glomerular mesangial matrix deposits and protected nephrons.	45
Asparagus racemosus	Roots (125 mg/kg/d); Ethanolic extract	Rats: Significantly decreased plasma glucose, creatinine, BUN, total cholesterol and triglyceride levels. Attenuated renal hypertrophy, polyuria, hyperfiltration, microalbuminuria, structural abnormalities and oxidative stress.	42
Anrederea cordiforia	Leaves (50 mg/kg/d – 150 mg/kg/d); Ethanolic extract	Rats: Reduced serum creatinine, urea, influenced renal index and improved kidney function.	46
Urtica dioica	Leaves (100 mg/kg); Ethanolic extract	Rabbits: Decreased BUN and SCr; increased glutathione and reduced MDA level.	47
Elsholtzia ciliate (Thunb.) Hylander	Whole plant (300 mg/kg – 500 mg/kg); Ethanolic extract	Rats: Improved tubulointerstitial fibrosis via regulation of TGF-ß and Smad3 expression.	48
Vigna angularis	Seeds (10 mg/kg); Aqueous extract	Rats: Significantly reduced glucose, triglycerides, VLDL, uric acid, ALT, urea, SCr and increased HDL.	49
Panax ginseng	Whole plant (0.2 g/kg/d – 0.4 g/kg/d); Decoction with water	Mice: Reduced SCr, BUN and histopathology; increased Cr clearance.	50
Rheum palmatum L., Salvia miltiorrhiza, Astragalus membranaceus Fisch. Bunge with Carthamus tinctorius L.	Polyherbal (2 g/kg/d – 8 g/kg/d); Shenkang granules (SKGs) with normal saline	Rats: Significantly decreased levels of microalbumin, total protein, SCr, BUN and serum lipid.	51
Paeonia lactiflora, Angelica acutiloba, Astragalus membranaceus, Rehmannia glutinosa, Cnidium officinale, Uncaria rhynchophylla with Phellodendron ammurense	Polyherbal (0.15 g/kg – 0.45 g/kg); Shichimotsu-koka-To (SKT) decoction	Rats: Significantly decreased urinary albumin excretion and prevented loss of ClC-5 in renal cortex.	52
Radix astragali, Salvia miltiorrhiza, Panax notoginseng with Rosewood	Polyherbal (250 mg/kg/d – 500 mg/kg/d); QiShenYiQi (QSYQ) water-ethanol extract	Rats: Inhibited downstream fibrogenic action and ameliorated renal tubulointerstitial fibrosis.	53
Rheum palmatum, Salvia miltiorrhiza, Cordyceps sinensis, Leonurus sibiricus, Epihedium macranthum, Radix Astragali with Radix Codonopsis Pilosulae	Polyherbal (50 mg/kg); WH30+	Rats: Improved Cr clearance and effectively prevented acute renal failure.	54
Curcuma longa	Seeds (1 mg/kg – 5 mg/kg); Powder in food	Mice: Inhibited MCP-1 mRNA expression and IL-2 mRNA and secretion of MCP-1 and IL-8.	55
Vigna angularis	Flower (300 mg/kg – 500 mg/kg); Aqueous extract	Rats: Improved renal function of CKD.	48
Mangifera indica	Bark (250 mg/kg); Water and ethanolic extracts	Rats: Exhibited diuretic effect.	56
Mimosa pudica	Leaves (100 mg/kg – 400 mg/kg); Aqueous extract	Rats: Diuretic; increased electrolyte excretion.	57
Achyranthes aspera	Whole plant (400 mg/kg); Various extracts	Rats: Diuretic; increased electrolyte excretion.	58
Bixa orellana	Leaves (500 mg/kg); Methanolic extract	Rats: Diuretic; increased electrolyte excretion.	59
Taraxacum officinale/Dandelion	Leaves (50 ml/kg); Aqueous extract	Mice: Potent diuretic comparable to furosemide.	60
Orthosiphon stamineus	Unknown (100 mg/kg – 200 mg/kg); Methanolic extract	Rats: Decreased SCr, blood urea, urinary protein and extent of renal damage.	61
Strychnos potatorum	Seeds (200 mg/kg); Ethanolic extract	Rats: Normalize BUN, blood protein and SCr.	62
Aerva javanica	Roots (400 mg/kg); Aqueous extract	Rats: Recover functional biomarkers of kidneys.	63
Ficus religiosa L.	Latex (200 mg/kg); Methanolic extract	Rats: Increased MDA, decreased SOD, catalase, glutathione level, exhibited nephroprotective and curative activity.	64
Vernonia cinerea	Aerial plant parts (500 mg/kg); Various extracts	Rats: Pronounced curative, prophylactic, and protective action on the Kidney.	65
Acorus calamus	Aerial plant parts (250 mg/kg – 500 mg/kg); Various extracts	Rats: Increased Hb, leukocytes, packed cell volume and mean corpuscular volume, Cr clearance, body weight; decreased neutrophils, granulocytes, uric acid and platelets.	66
Boerhaavia diffusa	Roots (200 mg/kg – 400 mg/kg); Aqueous extract	Rats: Prevented acetaminophen-induced nephrotoxicity.	67
Aegle marmelos	Leaves (250 mg/kg – 750 mg/kg); Aqueous extract	Rats: Significantly reduced MDA, SCr, urea and BUN; increased GSH and catalase in gentamicin toxicity.	68
Euphorbia neriifolia	Leaves (150 mg/kg – 400 mg/kg); Hydro alcoholic extract	Rats: Significantly restored antioxidant enzymes in the kidney and exhibited protective effect.	69
Pomegranate (Punica granatum)	Peel (286 mg/kg – 667 mg/kg); Ethanolic extract	Rats: Significantly decreased lipid peroxidation, serum urea and Cr levels; recovered glutathione-S-transferase and antioxidant enzymes.	70
Sesamum indicum	Seeds (500 mg/kg); Ethanolic extract	Rats: Decreased serum total protein, albumin and globulin; increased blood urea, SCr and uric acid.	71
Launaea procumbens	Aerial plant parts (100 mg/kg – 200 mg/kg); Various extracts	Rats: Improved Cr clearance; decreased proteinuria and hematuria.	72
Rutin (extracted from, for example, onions, apples, red grapes/wine)	Bioflavonoid (100 mg/kg/d); Powder	Rats: Rutin improved kidney and heart structure and function, decreased HO-1 and PLA-2 expression in a model of CKD.	73
Camellia sinensis	Leaves; Tea polyphenol	Rats: Reduced tubulointerstitial fibrosis, inflammation, prevented obesity related CKD in offspring programmed by maternal malnutrition.	74

Abbreviations: ALT, alanine amino transferase; BUN, blood urea nitrogen; CIC-5, chloride channel 5; CTGF, connective tissue growth factor; CKD, chronic kidney disease; Cr, creatinine; ER, endoplasmic reticulum; ECM, extracellular matrix; GSH, glutathione; Hb, hemoglobin; HO-1, heme-oxygenase-1; HDL, high density lipoprotein; IL-2, interleukin-2; IL-8, interleukin-8; MDA, malondialdehyde; MCP-1, monocyte chemoattractant protein-1; PPARα/γ, peroxisome proliferator-activated receptor α/γ; PLA-2, phospholipase A2; SCr, serum creatinine; SOD, superoxide dismutase; TGF-β1, transforming growth factor β1; VEGF, vascular endothelial growth factor; VLDL, very low density lipoprotein.

Table 2.

Medicinal Plants with Known Beneficial Effects in Human Clinical Trials.

Common/Botanical Name	Plant part and delivery dose	Renal effect	Ref.
Rheum officinale; Radix pseudostellariae; Coptis chinensis; Carthamus tinctorius; Salvia miltiorrhiza with Bidentate achyranthes.	Polyherbal; Shen shuaining capsule (1.4 g-2.1 g)	Reduced SCr, BUN; increased Hb; improved signs and symptoms in patients with CKD.	36
Rheum species	Whole rhubarb plant; Capsule (350 mg)	Reduced blood glucose, blood urea, SCr, urine protein; increased Hb, urine volume and GFR.	75
Rheum palmatum	Unknown; Baoshen pill	Improved serum albumin, lipoprotein and apolipoproteins.	76
Rheum officinale	Unknown; Powder plus ACEi	Decreased SCr, BUN and CKD.	77
Panax ginseng, Astragalus membranaceus, Cassia cinnamomi, Glycyrrhiza uralensis with Rheum palmatum.	Polyherbal; Dahuang decoction	Reduced BUN, Cr and improved quality of CKD patients.	78
Astragalus membranaceus	Roots; Tablet (15 g)	Decrease Pr/Cr; increased serum albumin and complete remission of proteinuria.	79
Tripterygium wilfordii Hook F (TwHF) with Irbesartan	Triptolide (1-2 mg); with Irbesartan (150-300 mg)	Significantly reduced excretion of proteins and podocytes; decreased CTGF and TGF-β1.	80
Grape (Vitis viniferae)	Seeds powder (350 mg)	Increase GFR; decreased proteinuria, depressed triglyceride and prevent anemia.	81
Cordyceps sinensis	Fruiting body; Capsule (2 g)	Ameliorate glomerulosclerosis, renal interstitial fibrosis; decrease triglycerides, lipoproteins, TCH, possess renoprotective and curative effect on CKD.	82
Glycyrrhiza glabra	Glycyrrhetinic acid food supplement (500 mg)	Decreased serum potassium concentration and frequency of severe hyperkalaemia.	83
Silybum marianum	Silibinin (350 mg)	Restored imbalance of thiols in patients with end stage diabetic nephropathy.	84
Lespedeza capitate	Unknown; Tincture	Potential benefit for patients with acute and chronic renal failure.	85
Beta vulgaris	Roots (300 mg); Concentrated juice	Reduced peripheral systolic, diastolic, mean arterial pressure and also reduced renal resistive index significantly.	86
Coptis species	Berbarine (0.1 g)	Significantly reduced inflammation, OS, renal damage biochemical markers (UACR, urinary osteopontin KIM-1); improved renal hemodynamics.	87
Parietaria judaica	Leaves; Tonic/tea	Completely safe and effective for the treatment of CKD.	85
Curcuma longa	Curcumin capsule (600 mg – 1500 mg)	Reduced OS of diabetic or nondiabetic proteinuric CKD patients.	88
Curcuma longa with Boswellia serrata	Unknown; Extract (824 and 516 mg)	Decreased PGE2 and ameliorated inflammation in patients with CKD.	89
Bupleurum root; Pinellia tuber;Alisma rhizome; Scutellaria root; Ginseng; Poria sclerotium; Polypoms sclerotium; Astractylodes lancea rhizome; Jujube; Glycyrrhiza; Cinnamon bark with Ginger.	Roots/bark; Sairei-to polyherbal	Significantly reduced urinary protein excretion, hematuria and normalized proteinuria.	90

Abbreviations: BUN, blood urea nitrogen; CKD, chronic kidney disease; CTGF, connective tissue growth factor; Cr, creatinine; Hb, hemoglobin; KIM-1, kidney injury molecule 1; OS, oxidative stress; PGE2, prostaglandin E2; SCr, serum creatinine; TGF-β1, transforming growth factor-β1; TCH, total cholesterol; UACR, urine albumin/creatinine ratio.

Rheum spp. (Rhubarb)

Rhubarb, derived from the root of Rheum spp indigenous to Asia, belongs to the Polygonaceae family. ⁹¹ Some species are cultivated for their potential to treat CKD.^92,93 Rhubarb contains compounds such as saponins, flavonoids, volatile oils, polysaccharides, tannins, stilbene glycosides (resveratrol and piceatannol) and anthraquinone glycosides (physcion, aloe emodin, chrysophanol, emodin and rhein). The anthraquinone glycosides may have some inherent toxicities, but they can be removed from extracts ⁹⁴ to produce an effective extract that is nephroprotective. ⁹⁵ Many clinical and pre-clinical trials have consistently shown that extracts of rhubarb can reduce serum creatinine levels and offset other metabolic dysfunction related to kidney failure.

In CKD therapy, rhubarb increases the excretion of nitrogenous and other waste products through the intestine ⁷⁵ and ameliorates uremic toxin accumulation, as demonstrated in various pre-clinical animal models of kidney failure. Using a model of diabetic nephropathy in mice, the proposed mechanism was thought to target the gut-kidney axis and trigger protective gut microbiota, rather than being directly nephroprotective. ⁹⁶ The two primary active anthraquinones in rhubarb are rhein and emodin. Rhein prevents kidney damage by modulating various signaling pathways. It down-regulates the Wnt/β-catenin signaling pathway, up-regulates Sirtuin 1, decreases EMT that normally leads to fibrosis and ameliorates dyslipidemia.^96–99 Rhein also improves cell metabolism through modulation of the glucose transporter I, decreasing mesangial cell hypertrophy and glomerulosclerosis. ¹⁰⁰ Emodin reduces glycation of proteins, inhibits the lipopolysaccharide-induced expression of TLR4 and down-regulates pro-inflammatory TNF-α and IL-6 in the damaged kidney. ¹⁰¹ Emodin also decreases mesangial cell proliferation by inhibiting cellular FLICE-like inhibitor protein, ¹⁰² TGF-β1 and fibronectin, ¹⁰³ p38 MAPK, ¹⁰⁴ differentiation and maturation of dendritic cells, and increases the number of regulatory T cells. ¹⁰⁵ These results indicate that the active ingredients in rhubarb have multiple mechanisms of action for the treatment of CKD, including regulation of inflammation and the immune response. Most of these reports have used pre-clinical models. ¹⁰⁶ Clinically, rhubarb extract alone, or as a polyherbal, was beneficial in CKD patients, ⁷⁵ delaying CKD progression and decreasing adverse effects of hemodialysis. The most common adverse side effects of rhubarb are nausea, vomiting, diarrhea, electrolyte disorders and liver toxicity.^107,108

Astragalus membranaceus (Astragalus)

Astragalus membranaceus (synonymous name of Astragalus propinquus), belongs to the family Fabaceae and the genus Astragalus, which has more than 3000 species worldwide. ¹⁰⁹ The plant is indigenous to the north and eastern regions of China but is grown worldwide and used widely in complementary and alternative medicines. Astragalus contains more than 60 bioactive compounds, including polysaccharides, saponins (astragalosides I–VII), flavonoids, amino acids and trace elements.^110,111 In vitro and in vivo pre-clinical trials have revealed that Astragalus extract has potent antioxidant and anti-inflammatory effects.^112,113 Other mechanisms include downregulating angiotensin receptors, inhibiting nitric oxide synthase and TNF-α production, and stimulating vascular endothelial growth factor and the immune system. ¹¹⁴ In addition, the plant extracts from Astragalus can rebalance profibrotic TGF-β/Smad signaling activity and inhibit endoplasmic reticulum stress-induced pathways.^115,116

Several pre-clinical CKD models reported that the plant extract, either alone or as a polyherbal, showed anti-fibrotic effects, ameliorated proteinuria, attenuated kidney injury and promoted Reno protective effects.^117,118 Wojcikowski et al. performed a pre-clinical trial in rats using the unilateral ureteral obstruction (UUO) model ¹¹⁹ of kidney fibrosis, with or without Astragalus membranaceus and Angelica sinensis (A and A). The ACEi Enalapril was administered in drinking water in some groups. The combined effect of A and A, with or without Enalapril, had anti-fibrotic benefits. Several clinical trials have reported that Astragalus significantly ameliorated CKD by decreasing proteinuria, with a corresponding increase in creatinine clearance, and hemoglobin levels.^79,120 Astragalus is safe for most of the recipients. However, the plant is known to inhibit CYP3A4 hence it could affect the action of some other drugs that are metabolized by this enzyme. ¹²¹

Cordyceps sinensis (CS)

CS is a fungus that derives its nutrients from the larvae of Lepidoptera. ¹²² It is endemic to the Tibetan plateau but is produced commercially now. Various bioactive compounds, including amino acids, polysaccharides, organic acids, trace elements, nucleosides, peptides, steroids and other chemical components are present in CS extracts.^123,124 The ability of CS to ameliorate urinary disorders and edema was described over 2000 years ago in traditional Chinese medicine. ⁹ In vitro studies with CS demonstrate potent antioxidant capacity. ¹²⁵ In vivo, glomerular protection via inhibition of mesangial cell proliferation was demonstrated. ¹²⁶ Treatment with CS also decreased apoptosis and kidney tubular atrophy, ¹²⁷ and enhanced the immune system. ¹²⁸

Extensive work has been carried out on CS alone, or in combination with other existing drugs, or other plant extracts. Different pre-clinical animal studies have been used to observe the beneficial effect on kidney disease, especially in CKD. In rat models of CKD, CS improved kidney function, reduced cardiovascular and endocrine comorbidities, inhibited oxidative stress, and reduced CKD-triggering metabolites.^129–131 Clinically, CS extracts significantly reduced the levels of serum creatinine, proteinuria, hematuria, inflammatory cytokines, monocyte chemo attractant protein-1 and TNF-α. ¹³² Clinical trials of CS, alone or in combination with other medicinal plant extracts or existing drugs, showed significant improvement of kidney function, with reduced levels of serum creatinine, albuminuria, proteinuria, blood urea nitrogen (BUN) and profibrotic TGF-β1, and increased creatinine clearance.^133–137 There are very limited reports of adverse effects of dietary supplements of CS in humans. The most common adverse side effects are nausea, dry mouth and stomach upset. ¹³⁷

Tripterygium wilfordii Hook F (TwHF)

TwHF is a member of the Celastraceae family, and is native to Eastern and Southern China, Korea, Japan and Taiwan. ¹³⁸ A stable glycoside named “multi-glycoside of TwHF” (GWT) ¹³⁹ has been approved by the China State Food and Drug Administration (Z32021007) for the treatment of chronic diseases such as rheumatoid arthritis and glomerulonephritis. In China, GWT has been used extensively for the treatment of proliferative glomerulonephritis for more than three decades.^140,141 The major active compound of GWT is triptolide. ¹⁴² GWT showed several beneficial therapeutic effects via its immunosuppressive, immunomodulatory, anti-inflammatory, antioxidant and antitumor activities.^143,144

Pre-clinical studies of CKD have demonstrated that TwHF reduced tubular apoptosis and kidney fibrosis, as well as improving kidney function by inhibiting the TGF-β1/Smad3 signaling pathways. ¹⁴⁴ Clinically, GWT in combination with irbesartan reduced excretion of urinary proteins, including urinary connective tissue growth factor and TGF-β1, in diabetic nephropathy patients. ¹⁴⁵ In combination with an ARB, podocyte injury was reduced in a similar patient population. ⁸⁰ However, the use of TwHF extract is limited due to the lack of high-quality clinical trial data. ¹⁴⁶ TwHF causes some common adverse side effects, such as stomach upset, diarrhea, skin rash and changes in skin pigmentation. ¹⁴⁷ The other concerning, although reversible, side effects are infertility in men and amenorrhea in women. ¹⁴⁸ These adverse side effects limit its usefulness for the treatment of CKD.

Abelmoschus manihot (L.) medic (AM)

AM belongs to the Malvaceae family. It has been used as a traditional medicine for hundreds of years in China, notably for the treatment of CKD. ¹⁴⁹ Due to its potential renoprotective properties, the State Food and Drug Administration of China approved the Huangki capsule (HKC, made from AM) as a Class III new drug (GUOYAOZHUNZI Z19990040) for the treatment of chronic glomerulonephritis. The main active components of HKC are total flavonoids extracted from the flowers of AM, sometimes known as Aibika flowers. Recent research considered HKC as an important adjuvant treatment for CKD, especially as a side effect of diabetes, and suggested that HKC is more effective than the ARB losartan in reducing proteinuria.^150,151

The beneficial effect of AM or HKC on CKD and other kidney complications relate to potential anti-inflammatory and antioxidant activities, probably via the flavonoids. ¹⁵² Several pre-clinical studies in animal models demonstrated that HKC reduced urinary albumin excretion, serum triglycerides, cholesterol levels and podocyte apoptosis. ¹⁵³ Kidney inflammation and glomerular injury were reduced as evidenced by fewer activated macrophages in glomeruli, reduced TNF-α protein expression in the kidney, and a dampened p38 MAPK signaling pathway.^154,155 There are limited data on AM (or HKC) as an anti-fibrotic agent in clinical trials. AM alone, or together with other drugs, reduced levels of proteinuria, BUN, serum creatinine, and also decreased oxidative stress. ¹⁵⁶ There were no serious adverse effects from taking AM, except mild to moderate gastrointestinal discomfort.

Salvia miltiorrhiza (SM)

SM, commonly known as Danshen, is a perennial plant of the genus Salvia, within the family Lamiaceae. It is native to most Asian countries, including China. The roots and rhizomes of the plant have been widely used in traditional Chinese medicine for thousands of years. ¹⁵⁷ More than 100 bioactive compounds have been isolated from this plant and characterized for their structure. SM has been used for the treatment of numerous diseases, including CKD, because of its potent anti-inflammatory and antioxidant properties.^158–161 The bioactivity of SM extract relates to the presence of phenolics, flavonoids, terpenoids, polysaccharides and other related quinone compounds. ¹⁶⁰ For instance, Tanshinone IIA, a di-terpenoid isolated from SM, showed antioxidant benefit by activating the Nrf2 signaling pathway, improving the metabolic profile and exhibiting potent renoprotective effects, ¹⁶⁰ and the lipophilic fraction attenuated oxidative stress in diabetic nephropathy. ¹⁶¹

Pre-clinical trials of SM alone, or in combination with other drugs, reduced albuminuria, improved kidney function, decreased fibrosis and TGF-β/Smad3 signaling, suppressed pro-inflammatory cytokines and adhesion molecules, and inhibited apoptosis.^162,163 SM extracts also ameliorated proteinuria, serum and kidney tissue levels of TGF-β1 and collagen IV, reduced numbers of monocytes/macrophages and exhibited a significant renoprotective effect. Of note, a clinical trial of a polyherbal that contained SM for CKD stabilized the albumin/creatinine ratio, increased hemoglobin content and improved accumulative survival rate of the test group. ¹⁶⁴ No serious adverse side effects of SM have been reported.

Vitis vinifera (grape)

Vitis vinifera, or grape, belongs to the Vitaceae family. ¹⁶⁵ Grape seeds contain more than 1600 phytonutrients, including flavonoids, catechin, anthocyanins, flavonols, non-flavonoids and pro-anthocyanidins, and their extracts exhibit enormous biological activity. ¹⁶⁶ For this review, one of the most important of the biological actions is inhibition of progress in CKD. ¹⁶⁷ Grape seed extracts typically act by alleviating oxidative stress and endoplasmic reticulum stress-induced apoptosis.^168–170 Pre-clinical studies of grape seed extracts in animal models of CKD have also reported improved kidney function, decreased proteinuria and reduced podocyte cell death. ¹⁷¹ Clinical trials have demonstrated that grape seed extracts increased GFR, decreased proteinuria and triglycerides, prevented anemia, and counteracted plasma low density lipoprotein and thrombocytopenia. ⁸¹ There are no known adverse side effects at normal doses of grape seed extracts.

Zingiber officinale (ginger)

Ginger is used widely as a spice but also often in folk medicine. It belongs to the Zingiberaceae family and has been cultivated for thousands of years especially in China and the South Asian countries. ¹⁷² Ginger contains many beneficial compounds, the most important of which are 6-, 8-, and 10-gingerol and 6-shogaol. ¹⁷³ It displays diverse beneficial biological actions due to its potent antioxidant, anti-inflammatory, anti-tumour, anti-diabetic and neuroprotective activities. In pre-clinical animal models of kidney and cardiovascular diseases, ginger extracts lowered blood glucose levels, restored the total carbohydrates, pyruvate, glycogen and total protein in kidney tissue, promoted the regeneration of tubules and restored glomeruli, and reduced fatty infiltration.^174–177 One clinical trial of ginger extract in CKD patients on peritoneal dialysis, demonstrated that daily administration of 1000 mg ginger reduced serum fasting glucose, a risk factor for diabetes, diabetic nephropathy and cardiovascular disease. ¹⁷⁸ There have been no adverse side effects reported when doses are kept to a moderate level.

Some other nephroprotective medicinal plants

There are many other plants reported to have benefits for kidney failure and/or CKD. Rutin (or quercetin) is a flavonoid present in onions, apples, tea and red wine. This plant extract is readily available “over the counter” and has demonstrated strong antioxidant and anti-inflammatory properties in heart and liver in a high fat-high carbohydrate diet model of metabolic syndrome in rats. ¹⁷⁹ Rutin also protected the kidney against ischemia-reperfusion injury, ¹⁸⁰ cisplatin-induced nephrotoxicity, ¹⁸¹ and diabetic nephropathy. ¹⁸² It normalized BUN, thereby modulating a key factor in the pathogenesis of CKD. ⁷³ However, some other studies did not show benefits. For example, rutin may induce protein-energy malnutrition in CKD. ¹⁸³ Although there are some promising results, more analyzes are needed to confirm whether, or not, preclinical and clinical benefits exist for this plant extract, particularly in the context of CKD. Clinically, Glycyrrhiza glabra extracts consistently decreased pre-dialysis serum potassium concentrations in chronic hemodialysis patients. ⁸³ Silybum marianum, known as “milk thistle” or silymarin, is a very safe herb that protects against kidney failure and end-stage diabetic nephropathy. ¹⁸⁴ Significant benefits have been claimed for Lespedeza tincture for both AKI and CKD patients. ¹⁸⁵ Clinically, beetroot juice decreased peripheral systolic and diastolic blood pressure, mean arterial pressure, improved kidney function, histological damage and kidney prognosis, and prevented cardiovascular events.^86,186 In a recent study, a beetroot protease inhibitor was isolated and characterized. ¹⁸⁷ The results showed the potential of such plant protease inhibitors for peptide-based drug discovery against targets involved in diseases such as cancers and immune system related diseases, such as is seen in CKD in some instances. Coptis rhizome extracts significantly reduced biomarkers of kidney damage, such as urinary albumin-to-creatine ratio, urinary osteopontin and KIM-1, and improved kidney hemodynamics. In addition, clinically, it decreased inflammation and oxidative stress. ⁸⁷ Extracts of Urtica dioica, or “stinging nettle”, significantly attenuated kidney damage and tubular atrophy, loss of brush border, hydropic epithelial cell degeneration, glomerular shrinkage, and tubulointerstitial fibrosis, as well as demonstrating clinical benefits in patients undergoing partial nephrectomy or kidney transplantation. ¹⁸⁸ The polyherbal named “Sairei-To” significantly decreased urinary protein excretion, hematuria and normalized proteinuria in CKD patients. ⁹⁰ A dietary supplementation with curcumin (turmeric) reduced oxidative stress and proteinuria in CKD patients. ⁸⁸ A combination of Curcuma longa and Boswellia serrata decreased the levels of inflammatory cytokines and ameliorated inflammatory markers in patients with CKD. ⁸⁹

Concerns of Toxicities of Plant-Based Extracts to the Kidney

Natural products are often considered safer than traditional drugs, and many of our modern drugs are derived from herbs. Nonetheless, some researchers are concerned over their safe use.^189–191 The possible nephrotoxicity and other chronic or insidious health disorders of using popular complementary and alternative medicine in different countries is not properly reported. The most well-known toxicity or side-effect is associated with traditional Chinese herbal medication that uses aristolochic acid and induces aristolochic acid nephropathy (AAN). The clinical features of AAN are characterized by extensive interstitial fibrosis and tubular atrophy in the kidney without obvious glomerular injury. Prolonged use causes uroepithelial malignancies. ¹⁸⁹ In addition, traditional herbal remedies have been implicated in 35% of all cases of AKI in Africa. ¹⁹⁰ The Therapeutic Goods Administration restricted the use of ephedra in Australia due to its potential toxic effects (quickened heartbeat and elevated blood pressure, heart palpitations, nausea and vomiting). ¹⁸⁹ Some herbal drugs that contain specific herbs, nuts and mushrooms may also be associated with inherent nephrotoxicity. Interestingly, the inherent properties of the herbs are not the only source of herb-associated kidney disorders. Herb-drug interactions, mistakes in dosage and identification, contaminants within mixtures, adulteration with heavy metals, and even deliberate adulteration with non-labelled plant extracts are all issues of concern. ¹⁹¹ However, with proper identification, rigorous pre-clinical and clinical trials, strict controls on the presence of adulterants within herbal medicines, labeling of dosages and contraindications, and robust manufacturing techniques, the safety of those consuming herbal medicines should be maintained.

Conclusion

There is no doubt that medicinal plants present a largely untapped source of new CKD therapies. Clinical and pre-clinical trials of plant extracts sometimes demonstrate benefit but some research has also demonstrated that plant extracts may produce chronic organ dysfunction when used for long term due to the presence of harmful chemicals. Therefore, the aim of recent research is to identify, rigorously test pre-clinically and clinically, and avoid such toxic outcomes in order to obtain optimal therapeutic benefit from medicinal plants. This review may prove to be a filtering tool to researchers into complementary and alternative medicines to find out the current trends of using medicinal plants and plant extracts for the treatment of kidney diseases, including CKD.

Abbreviations List

A and A

Astragalus membranaceus and Angelica sinensis

AAN

aristolochic acid nephropathy

AKI

acute kidney disease

AM

Abelmoschus manihot (L.) medic

CKD

chronic kidney disease

CS

Cordyceps sinensis

DAMPs

damage-associated molecular patterns

HIF

hypoxia inducible factor

HKC

Huangki capsule

IL

interleukin

MAPK

mitogen activated protein kinase

NF-κB

nuclear factor kappa B

SM

Salvia miltiorrhiza

TGF-β

transforming growth factor-beta

TNF-α

tumor necrosis factor-alpha

TwHF

Tripterygium wilfordii Hook
