PABLO-QA: A sensitive assay for quantifying monophosphorylated RNA 5′ ends

Summary

Generated by RNA deprotection or cleavage, 5′ monophosphates trigger RNA degradation in all organisms. Here we describe PABLO-QA (Phosphorylation Assay By Ligation of Oligonucleotides and Quantitative Amplification), a sensitive, low-cost procedure for determining the percentage of specific RNA 5′ ends that are monophosphorylated from their ability to undergo ligation to an oligonucleotide. Comparison to a cognate internal standard and a fully monophosphorylated control allows precise quantification of monophosphorylated 5′ termini by RT-PCR, enabling the analysis of transcripts undetectable by blotting.

For complete details on the use and execution of this protocol, please refer to Richards and Belasco (2021).

Graphical abstract

Highlights

• •PABLO-QA measures the percentage of a given RNA 5′ end that is monophosphorylated
• •This electrophoretic assay is reliable, inexpensive, and quantitatively accurate
• •The sensitivity of the assay makes it possible to examine even low-abundance RNAs
• •This approach enables simultaneous analysis of heterogeneous 5′ termini

Generated by RNA deprotection or cleavage, 5′ monophosphates trigger RNA degradation in all organisms. Here we describe PABLO-QA (Phosphorylation Assay By Ligation of Oligonucleotides and Quantitative Amplification), a sensitive, low-cost procedure for determining the percentage of specific RNA 5′ ends that are monophosphorylated from their ability to undergo ligation to an oligonucleotide. Comparison to a cognate internal standard and a fully monophosphorylated control allows precise quantification of monophosphorylated 5′ termini by RT-PCR, enabling the analysis of transcripts undetectable by blotting.

Before you begin

In both prokaryotic and eukaryotic organisms, rates of RNA processing and degradation are often governed by 5′-terminal deprotection to generate a 5′ monophosphate that triggers subsequent ribonucleolytic attack (Muhlrad et al., 1994; Deana et al., 2008; Richards et al., 2011; Cahová et al., 2015). To enable regulatory pathways of this kind to be dissected, we previously devised a quantitative procedure known as PABLO (Phosphorylation Assay By Ligation of Oligonucleotides) for determining the percentage of a particular RNA 5′ terminus that is monophosphorylated on the basis of the unique ability of such ends to undergo splinted ligation to a synthetic oligonucleotide (Celesnik et al., 2007, 2008; Luciano and Belasco, 2019). A limitation of that method was its reliance on Northern blotting, as many cellular transcripts are present at a concentration that is insufficient for detection on a blot. It also required prior knowledge of the precise location of the 5′ end of interest. We recently modified that assay to improve its sensitivity. Because the new procedure, PABLO-QA (Phosphorylation Assay By Ligation of Oligonucleotides and Quantitative Amplification), involves reverse transcription and PCR amplification, quantification requires spiking in a cognate internal standard whose RT-PCR yield is compared to that of the cellular RNA under investigation (Richards and Belasco, 2021). In addition, to correct for transcript-dependent differences in ligation efficiency, RT-PCR yields are compared before and after treating the RNA sample with an excess of the RNA pyrophosphohydrolase RppH to fully convert each 5′ end to a monophosphate. A benefit of using T4 RNA ligase 1 instead of T4 DNA ligase for PABLO-QA is that it obviates the need for a splint, thereby enabling the simultaneous analysis of heterogeneous RNA 5′ termini, whose exact locations are conveniently determined by sequencing the RT-PCR products.

PABLO-QA also has significant advantages over other methods for measuring the percentage of 5′ ends that are monophosphorylated. Compared to those based on RNA-seq (German et al., 2009; Bischler et al., 2017), it is less costly, generates data that are easier to analyze, and enables accurate measurements even for low-abundance RNAs. In addition, it is quantitatively more reliable than methods based on sensitivity to degradation by 5′-monophosphate-dependent exonucleases such as XRN1 and Terminator (Bandyra et al., 2012), especially when less than half of the 5′ termini under investigation are monophosphorylated.

PABLO-QA involves two stages of analysis. The preliminary stage (i) verifies the efficacy and selectivity of two transcript-specific primers designed by the investigator, (ii) identifies the precise location of the RNA 5′ end(s), and (iii) suggests a suitable location for the 5′ end of a cognate internal standard, which is then synthesized in vitro as a fully monophosphorylated transcript and spiked into the cellular RNA. In the final stage, the percentage of 5′ termini that are monophosphorylated is determined by comparing the band intensities of the RT-PCR products obtained from the RNA 5′ end(s) of interest and the internal standard before and after exhaustive treatment with RppH to convert all of the cellular 5′ ends to monophosphates.

Oligonucleotides

Timing: 1 h

PABLO-QA requires several desalted oligonucleotides, most of which are universal but two of which (primer X and primer Y) are specific for the RNA of interest (see Figure 1 and the key resources table for a diagram and sequences). The RNA-specific primers are designed as follows.

• 1.
  Design a DNA primer (primer X) for target-specific reverse transcription of the RNA of interest and the first round of PCR.

  • a.
    This primer needs to anneal far enough downstream of the transcription start site for the product of the first round of PCR to be >100 nt long. This allows for purification of the first-round PCR products on a Qiagen QiaQuick column. A primer length of 18–25 nt, depending on its GC content, is sufficient.
  • b.
    A possible pitfall in positioning a reverse transcription primer too far from the RNA 5′ end is that it may increase the likelihood of intervening RNA structure that could hinder reverse transcriptase. For that reason, a primer that generates an extension product longer than 250 nt should generally be avoided.
• 2.Design a nested DNA primer (primer Y) for the second round of PCR.

  A primer length of 18–25 nt, depending on its GC content, is sufficient. This primer should be designed to anneal 15–50 nt downstream of the 5′ end of the transcript of interest so as to generate one or more PCR products that are sufficiently short (<100 bp) to enable resolution of closely spaced 5′ ends.

Figure 1.

Primers and templates for PABLO-QA

The steps in PABLO-QA after RppH treatment and addition of the internal standard are illustrated. (1) Ligation of the chimeric oligonucleotide (blue and red rectangle) to monophosphorylated RNA (gray line preceded by the letter p). (2) Reverse transcription by extension of primer X (broad white arrow). (3) First round of PCR amplification by extension of primers A (broad blue arrow) and X. (4) Second round of PCR amplification by extension of nested primers B (broad red arrow) and Y (broad black arrow). The products of the second round of PCR amplification are then either examined by gel electrophoresis to compare band intensities and calculate the percentage of 5′ ends that are monophosphorylated (% monoP) or gel purified, individually PCR amplified a third time by extension of primers C (broad green and red arrow) and Y, gel purified again, and sequenced with a primer (primer D, not shown) matching the 5′-terminal segment of primer C to map RNA 5′ ends.

RNA extraction

Timing: 1 day

200–400 μg of total RNA is required to complete the analysis. It can be isolated from bacterial or eukaryotic cells by a number of methods, such as extraction with hot acidic phenol (Luciano et al., 2017), extraction with a phenol/guanidine isothiocyanate reagent (e.g., Invitrogen TRIzol), or elution from a silica matrix (e.g., QIAGEN RNeasy or New England Biolabs Monarch) and must be DNase-treated before use.

Key resources table

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Chemicals, peptides, and recombinant proteins
RppH	New England Biolabs	M0356S
10× RppH buffer	New England Biolabs	M0356S
Phusion high-fidelity DNA polymerase	Thermo Fisher Scientific	F530S
5× Phusion polymerase buffer	Thermo Fisher Scientific	F530S
Taq DNA polymerase	New England Biolabs	M0273L
10× Taq polymerase buffer	New England Biolabs	M0273L
T7 RNA polymerase	Thermo Fisher Scientific	EP0111
10× T7 RNA polymerase buffer	Thermo Fisher Scientific	EP0111
T4 RNA ligase 1	New England Biolabs	M0204S
10× T4 RNA ligase buffer	New England Biolabs	M0204S
RNasin	Promega	N251B
SuperScript IV reverse transcriptase	Thermo Fisher Scientific	18080-044
5× 1st strand buffer	Thermo Fisher Scientific	18080-044
TURBO DNase	Thermo Fisher Scientific	AM2239
10× Turbo DNase buffer	Thermo Fisher Scientific	AM2239
Pyrophosphatase, inorganic (yeast)	New England Biolabs	M2403L
ATP	Roche	11140965001
GTP	Roche	11140957001
CTP	Roche	11140922001
UTP	Roche	11140949001
GMP	Millipore Sigma	G8377-5G
Deoxynucleotide (dNTP) solution mix	New England Biolabs	N0447L
tRNA from E. coli	Millipore Sigma	10109541001
Poly(A)	Millipore Sigma	P9403
Phenol/chloroform/isoamyl alcohol pH 4.3	Thermo Fisher Scientific	BP1754I-100
Phenol/chloroform/isoamyl alcohol pH 6.7	Thermo Fisher Scientific	BP1752I-100
40% Acrylamide:bis-acrylamide (19:1)	Thermo Fisher Scientific	J60909
Ammonium persulfate	Thermo Fisher Scientific	BP179-100
TEMED	Thermo Fisher Scientific	BP150-20
Urea	Thermo Fisher Scientific	AAJ75826A7
Critical commercial assays
Qiagen QiaQuick PCR purification kit	QIAGEN	28106
Qiagen QiaQuick gel purification kit	QIAGEN	28706
Oligonucleotides
Chimeric oligonucleotide: CGACTGGAGCACGAGGACACTGACATGGA CTGAAGGAGTAGrArArA	Integrated DNA Technologies	N/A
Primer A:CGACTGGAGCACGAGGACACTGA	Integrated DNA Technologies	N/A
Primer B: ACATGGACTGAAGGAGTA	Integrated DNA Technologies	N/A
Primer C: TCATCGTCGCGCTCCAGCGAAAGCGGTCC TCGCCGAAAATGACCCAGAGCGCTG CCGG CAGGACACTGACATGGACTGAAGGAGTA	Integrated DNA Technologies	N/A
Primer D: CATCGTCGCGCTCCAGCG	Integrated DNA Technologies	N/A
Software and algorithms
Image Lab 6.1	Bio-Rad	12012931

Materials and equipment

Non-denaturing sample buffer

Reagent	Final concentration	Amount
500 mM EDTA (pH 8.0)	10 mM	1 mL
Glycerol	50%	25 mL
Bromophenol blue	0.1%	50 mg
Water		24 mL
Total		50 mL

Store at room temperature for up to one year.

Formamide sample buffer

Reagent	Final concentration	Amount
500 mM EDTA (pH 8.0)	20 mM	2 mL
Glycerol	1%	500 μL
Bromophenol blue	0.05%	25 mg
Formamide	95%	47.5 mL
Total		50 mL

Store at –20°C for up to one year.

Step-by-step method details

Preliminary analysis

RppH treatment

Timing: 4 h

Exhaustive pretreatment of the cellular RNA with RppH generates a control sample in which the 5′ end of the transcript of interest is fully monophosphorylated. In the preliminary stage of analysis, this allows the visualization of transcripts that are predominantly triphosphorylated or capped. Additionally, in the final, quantitative stage of analysis, this control enables the percentage of RNA 5′ ends that are monophosphorylated to be determined by making it possible to correct mathematically for transcript-dependent differences in ligation efficiency.

• 1.Assemble the RppH reaction mixtures.

Reagent	1	2
	Mock treatment (μL)	RppH treatment (μL)
Total cellular RNA (1 μg/μL)	7.5	7.5
RNasin (40 U/μL)	0.5	0.5
10× RppH buffer	2.0	2.0
RppH (5 U/μL)	–	1.2
1× RppH buffer	1.2	–
Water	8.8	8.8
Total	20.0	20.0

• 2.Incubate at 37°C for 2 h.
• 3.
  Add 130 μL of 3 mM EDTA (pH 8.0), extract with phenol/chloroform (pH 4.3), and ethanol precipitate the RNA.

  • a.
    Add an equal volume of phenol/chloroform (pH 4.3) and mix by shaking.
  • b.
    Centrifuge at 15,000×g for 5 min at room temperature. Collect the aqueous (upper) layer and transfer it to a new microcentrifuge tube.
  • c.
    Add 1/10^th volume of 3 M sodium acetate (pH 5.2) and 3 volumes of ethanol. Vortex and incubate at −20°C for 15 min.

    Pause point: At this point the samples can be stored indefinitely at −20°C.

  • d.
    Centrifuge at 15,000×g for 30 min at 4°C and discard the supernatant.
  • e.
    Add 800 μL of 70% ethanol and centrifuge at 15,000×g for 10 min at 4°C.
  • f.
    Discard the supernatant and air dry the RNA pellets until no liquid is visible.
• 4.Dissolve the RNA pellets in 10 μL of sterile water.

Pause point: At this point the samples can be stored indefinitely at −20°C.

Ligation of a chimeric oligonucleotide

Timing: 4 h

This step uses T4 RNA ligase 1 to ligate a chimeric oligonucleotide to the 5′ end of transcripts that are monophosphorylated (Figure 1). Comprising 41 deoxyribonucleotides and three 3′-terminal ribonucleotides, this chimeric oligonucleotide is long enough to encompass the sequences of two nested forward primers (primers A and B) (key resources table). The three ribonucleotides at its 3′ end are required for T4 RNA ligase 1 to efficiently ligate the oligonucleotide to 5′-monophosphorylated RNA, while the inclusion of deoxyribonucleotides lowers the cost of synthesis.

• 5.Assemble the ligation mixtures for the mock-treated and RppH-treated cellular RNA samples.

Nucleic acid mixture
Reagent	Amount for one reaction (μL)
Mock- or RppH-treated cellular RNA (0.75 μg/μL)	10.0
Chimeric oligonucleotide (1 μg/μL)	1.0
Subtotal	11.0

• 6.Incubate at 65°C for 5 min and then transfer to ice for 1 min.
• 7.Add 14 μL of ligase master mix to each tube.

Ligase master mix
Reagent	Amount for one reaction (μL)
Water	9.25
10× T4 RNA ligase buffer	2.5
ATP (100 mM)	0.25
RNasin (40 U/μL)	0.5
T4 RNA ligase 1 (10 U/μL)	1.5
Subtotal	14.0

Reagent	Amount for one reaction (μL)
Nucleic acid mixture	11.0
Ligase master mix	14.0
Total	25.0

• 8.Mix thoroughly and incubate at 37°C for 2 h.
• 9.Add 125 μL of 3 mM EDTA (pH 8.0), extract with phenol/chloroform (pH 4.3), and ethanol precipitate as described in step 3. Dissolve the RNA pellets in 11.5 μL of sterile water.

Pause point: At this point the samples can be stored indefinitely at −20°C.

Reverse transcription

Timing: 2 h

Reverse transcription with a transcript-specific primer generates cDNA complementary to a 5′-terminal segment of the RNA of interest and the chimeric oligonucleotide to which the RNA has been ligated (Figure 1).

Nucleic acid mixture
Reagent	Amount for one reaction (μL)
Ligated RNA	11.5
Primer X (10 pmol/μL)	0.5
dNTP mix (10 mM each)	1.0
Subtotal	13.0

• 10.Transfer the ligated RNA sample to a 0.2-mL thin-walled PCR tube and mix with primer X and the dNTP mix. Incubate at 65°C for 5 min and transfer to ice for 1 min.
• 11.Prepare a master mix containing reverse transcriptase buffer, DTT, RNasin, and reverse transcriptase, and combine it with the nucleic acid mixture.

Reverse transcriptase master mix
Reagent	Amount for one reaction (μL)
5× 1st strand buffer	4.0
DTT (0.1 M)	1.0
RNasin (40 U/μL)	0.5
Superscript IV (200 U/μL)	1.5
Subtotal	7.0

Reagent	Amount for one reaction (μL)
Nucleic acid mixture	13.0
Reverse transcriptase master mix	7.0
Total	20.0

• 12.Transfer the tube to a thermocycler with a heated lid. Incubate at 55°C for 1 h and then at 70°C for 15 min.

Pause point: At this point the samples can be stored indefinitely at −20°C.

Amplification

Timing: 6 h

Two rounds of PCR with nested primers (Figure 1) allows the detection of low-abundance cellular RNAs while achieving a high level of transcript specificity.

• 13.
  Perform the first round of PCR.

  • a.
    Assemble the PCR mixtures.

    Reagent	Amount for one reaction (μL)
    Primer A (10 pmol/μL)	2.5
    Primer X (10 pmol/μL)	2.5
    10× Taq polymerase buffer	5.0
    dNTP mix (10 mM each)	1.0
    cDNA sample	1.5
    Water	36.5
    Taq DNA polymerase (5 U/μL)	1.0
    Total	50

  • b.
    Use a thermocycler with a heated lid and programmed as follows.

    Temperature	Time	Cycles
    95°C	1 min	1
    95°C	30 s	30
    58°C	30 s
    72°C	30 s
    72°C	5 min	1

• 14.Remove the primers for the first round by purifying the PCR reaction products with a Qiagen QiaQuick PCR purification kit according to the manufacturer’s instructions and eluting the DNA from the column with sterile water.
• 15.
  Perform the second round of PCR.

  • a.
    Assemble the PCR mixtures.

    Reagent	Amount for one reaction (μL)
    Primer B (10 pmol/μL)	2.5
    Primer Y (10 pmol/μL)	2.5
    10× Taq polymerase buffer	5.0
    dNTP mix (10 mM each)	1.0
    Purified 1st round PCR product	5.0
    Water	33.0
    Taq DNA polymerase (5 U/μL)	1.0
    Total	50

  • b.
    Use the same thermal cycling conditions as for the first round PCR, as described in step 13.

    Pause point: Samples can be stored indefinitely at −20°C after either of the PCR steps.

Electrophoresis

Timing: 5 h

Electrophoresis on a non-denaturing 12% polyacrylamide gel allows the PCR products to be separated even if derived from closely spaced transcription start sites or RNA cleavage sites (Figure 1).

• 16.Cast a non-denaturing 12% polyacrylamide gel.

Note: We routinely use a V16 vertical gel system with a 19-well comb and a gel thickness of 1.5 mm.

Reagent	Amount
40% Acrylamide:Bis-Acrylamide (19:1)	15 mL
10× TBE	5 mL
Water	30 mL
10% Ammonium persulfate	500 μL
TEMED	40 μL

• 17.Use 1× TBE as the gel running buffer and pre-run the polyacrylamide gel for 30 min at 100 V.
• 18.Add 5 μL of non-denaturing sample buffer containing bromophenol blue to each PCR reaction product.
• 19.Load 40 μL of each sample onto the gel. Run at 100 V for 15 min or until the dye has entered the gel, and then increase the voltage to 150 V.
• 20.Stop electrophoresis once the bromophenol blue has reached the bottom of the gel.
• 21.Stain the gel with 0.5 μg/mL ethidium bromide in 1× TBE for 30 min with gentle agitation.
• 22.Visualize and photograph the PCR products with a UV transilluminator and excise the bands of interest for sequencing.

5′ end mapping

Timing: 2 days

PCR is used to amplify the small amount of DNA extracted from the polyacrylamide gel and to lengthen the segment upstream of the junction between the ligated oligonucleotide and the RNA (Figure 1). This allows sequencing of the RNA 5′ end that was ligated to the chimeric oligonucleotide, which otherwise would be too close to the end of the PCR product.

• 23.
  Extract DNA from the excised polyacrylamide gel slice(s).

  • a.
    Place the excised gel slice into a 1.5-mL microcentrifuge tube and crush the slice with a 1-mL pipette tip. Rolling the tip around the wall of the microcentrifuge tube breaks the polyacrylamide into small pieces.
  • b.
    Add 300 μL or more of 1 mM EDTA (pH 8.0) to the tube, enough to fully submerge the gel pieces. Vortex and incubate for 16 h at 4°C.
  • c.
    Pellet the gel fragments by centrifugation at 15,000×g at 4°C for 30 min. Use a pipette to carefully transfer the supernatant to another microcentrifuge tube. If the supernatant still contains small gel pieces, repeat the centrifugation and transfer.
  • d.
    Add an equal volume of phenol/chloroform (pH 7.6) to the supernatant and mix by shaking.
  • e.
    Centrifuge at 15,000×g for 5 min at room temperature. Transfer the aqueous layer to another microcentrifuge tube.
  • f.
    Add 1/10^th volume of 3 M sodium acetate (pH 5.2) and 3 volumes of ethanol. Vortex briefly and incubate at −20°C for 15 min.

    Pause point: At this point the samples can be stored indefinitely at −20°C.

  • g.
    Centrifuge at 15,000×g for 30 min at 4°C and discard the supernatant.
  • h.
    Add 800 μL of 70% ethanol and centrifuge at 15,000×g for 10 min at 4°C.
  • i.
    Discard the supernatant and air dry the precipitate until no liquid is visible.
  • j.
    Dissolve the DNA precipitate in 10 μL of water.
• 24.
  Amplify and extend each purified PCR product by performing another round of PCR with universal primer C (key resources table) and transcript-specific primer Y.

  • a.
    Assemble the PCR mixtures.

    Reagent	Amount for one reaction (μL)
    Primer C (10 pmol/μL)	2.5
    Primer Y (10 pmol/μL)	2.5
    10× Taq polymerase buffer	5.0
    dNTP mix (10 mM each)	1.0
    Extracted PCR product	2.0
    Water	36.0
    Taq DNA polymerase (5 U/μL)	1.0
    Total	50

  • b.
    Use the same thermal cycling conditions as for the first round PCR, as described in step 13.

• 25.Resolve the PCR products on a horizontal 1.8% agarose gel in 1× TBE alongside an appropriate DNA size ladder. Stain the gel with ethidium bromide, visualize the PCR products with a UV transilluminator, and excise the bands of interest.
• 26.Extract the PCR products from the gel slices by using a Qiagen QiaQuick gel purification kit according to the manufacturer’s instructions.
• 27.Using primer D (key resources table), sequence the PCR products to identify the 5′ end of each of the original RNAs.

Preparation of an internal standard

Timing: 2 days

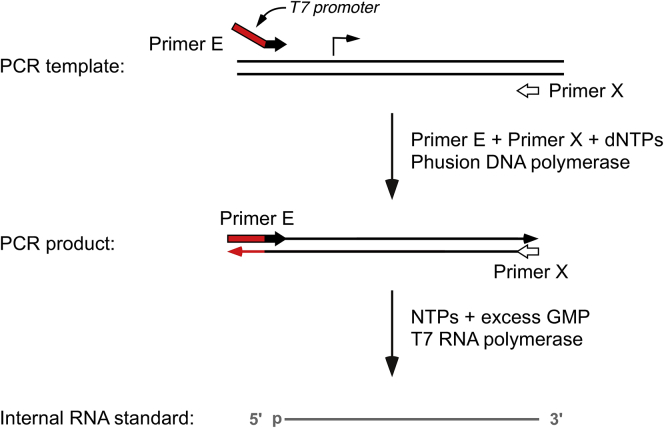

Determining the percentage of the 5′ ends of interest that are monophosphorylated requires quantitative comparison to a monophosphorylated internal standard that can be reverse transcribed and amplified with the same set of primers. The RT-PCR product of this cognate internal standard must be well resolved from the other RT-PCR products. Visualization of the products of the preliminary round of PABLO-QA on a polyacrylamide gel makes it possible to identify a clear zone on the gel above the RT-PCR products arising from cellular RNA. An internal standard whose 5′ terminus is located 10–50 nucleotides upstream of the 5′ end of the longest cellular transcript under investigation should generate an RT-PCR product that migrates there.

• 28.
  Use PCR to generate a DNA template for synthesizing the internal standard by in vitro transcription (Figure 2).

  • a.
    The internal standard should be cognate to the cellular transcript under investigation, but with a 5′ extension.
  • b.
    The template for PCR can be a cell suspension or a cloned DNA fragment encoding the RNA of interest.
  • c.
    The forward PCR primer (primer E) should incorporate a T7 promoter (TAATACGACTCACTATAG, underlined) upstream of the intended transcription start site (boldface G). This promoter should be preceded by 5 nucleotides and followed by about 20 transcribed nucleotides complementary to the PCR template.
  • d.
    Use primer X as the reverse PCR primer.
  • e.
    Assemble the PCR mixture.

    Reagent	Amount (μL)
    Primer E (10 pmol/μL)	2.5
    Primer X (10 pmol/μL)	2.5
    5× Phusion polymerase buffer	10.0
    dNTP mix (10 mM each)	1.0
    DNA template	0.5
    Water	33.0
    Phusion DNA polymerase (2 U/μL)	0.5
    Total	50

  • f.
    Use a thermocycler with a heated lid and programmed as follows.

    Temperature	Time	Cycles
    98°C	1 min	1
    98°C	30 s	30
    55°C	30 s
    72°C	30 s
    72°C	5 min	1

  • g.
    Resolve the PCR products by electrophoresis on a 1.2%–1.8% agarose gel in 1× TBE alongside an appropriate DNA size ladder. Stain the gel with ethidium bromide, visualize the PCR products with a UV transilluminator, and excise the band of interest. Extract the PCR product from the gel slice by using a Qiagen QiaQuick gel purification kit according to the manufacturer’s instructions.
  • h.
    For use as a template for in vitro transcription, the concentration of the purified PCR product should be >20 ng/μL. If necessary, its concentration can be increased by evaporation (e.g., on a SpeedVac concentrator).
• 29.
  Synthesize the monophosphorylated internal standard by in vitro transcription with T7 polymerase in the presence of a 30-fold molar excess of GMP over GTP (Figure 2).

  • a.
    Assemble the reaction mixture.

    Reagent	Final concentration	Amount
    10× T7 RNA polymerase buffer	1×	10.0 μL
    DNA template (20–100 ng/μL)	10–50 ng/μL	50.0 μL
    GMP (75 mM)	7.5 mM	10.0 μL
    GTP (50 mM)	0.25 mM	0.5 μL
    ATP (100 mM)	1 mM	1.0 μL
    UTP (100 mM)	1 mM	1.0 μL
    CTP (100 mM)	1 mM	1.0 μL
    RNasin (40 U/μL)	0.4 U/μL	1.0 μL
    Water		13.5 μL
    Inorganic pyrophosphatase (0.1 U/μL)	2 U/mL	2.0 μL
    T7 RNA polymerase (50 U/μL)	1,000 units/mL	10.0 μL
    Total		100 μL

  • b.
    Incubate the reaction mixture at 37°C for 4–12 h.
  • c.
    Degrade the DNA template by adding 11 μL of 10× Turbo DNase buffer and 4 μL (8 U) of Turbo DNase to the RNA synthesis reaction. Mix well and incubate at 37°C for 1–2 h.
• 30.
  Purify the in vitro transcript on a 6% denaturing polyacrylamide gel.

  • a.
    Cast a denaturing 6% polyacrylamide-urea gel.

    Note: We routinely use a V16 vertical gel system with a 19-well comb and a gel thickness of 1.5 mm.

    Note: This method of purification involves loading the products of in vitro transcription in two wells of unequal width. If a comb that creates a broad well for preparative electrophoresis is not available, then two or three narrower teeth of a regular comb can be taped together for that purpose.

    Reagent	Amount
    Urea	24 g
    40% Acrylamide:Bis-Acrylamide (19:1)	7.5 mL
    10× TBE	5 mL
    Water	To 50 mL
    10% Ammonium persulfate	500 μL
    TEMED	40 μL

  • b.
    Use 1× TBE as the running buffer for electrophoresis and pre-run the polyacrylamide gel for 30 min at 100 V.
  • c.
    Add 220 μL of formamide sample buffer to the in vitro transcription reaction, heat at 95°C for 5 min, and transfer to ice.
  • d.
    Wash the unpolymerized acrylamide and urea out of the wells of the gel and load the denatured RNA sample into two wells: 20 μL in a narrow well (the marker lane) and the remainder (∼315 μL) in a broad neighboring well (the preparative lane).
  • e.
    Run the gel at 100 V for 15 min or until the dye has entered the gel, and then increase the voltage to 180 V. Stop electrophoresis when the bromophenol blue has reached the bottom of the gel.
  • f.
    Cut the gel vertically between the two lanes and stain the marker lane with 0.5 μg/mL ethidium bromide in 1× TBE for 30 min with gentle agitation. Cover the remainder of the gel with plastic wrap or a plastic sheet protector to prevent it from drying out.
  • g.
    Place the stained part of the gel on a sheet of clear plastic such as a sheet protector. Visualize the RNA band with a UV transilluminator and use a pen to mark the upper and lower boundaries of the band on the sheet protector.
  • h.
    Place the unstained portion of the gel on the marked sheet protector so as to align it with the marker lane. Use the outline of the marker band as a guide for excising the RNA band from the unstained part of the gel. This method allows the RNA product to be gel purified without exposing it to ethidium bromide or UV light.
  • i.
    Extract the RNA from the polyacrylamide gel slice by the method described in step 23, substituting phenol/chloroform (pH 4.3) for phenol/chloroform (pH 7.6).
  • j.
    After ethanol precipitating and drying the RNA, dissolve it in 40 μL of sterile water and determine its concentration by measuring the absorbance at 260 nm.

Figure 2.

Synthesis of a cognate internal standard

A DNA template for RNA synthesis is generated by PCR amplification of the gene of interest (parallel black lines) with two transcript-specific primers: primer E (broad red and black arrow), which contains a T7 promoter (red segment) and anneals 10–50 nucleotides upstream of the transcription initiation site (bent black arrow) of the cellular transcript under investigation, and primer X (broad white arrow), which anneals >100 nt downstream. The 10–50 nt extension added by primer E need not match the upstream region of the gene encoding the cellular transcript under investigation as long as the primer can anneal near the initiation site of that gene. In vitro transcription of the PCR product by T7 RNA polymerase in the presence of a 30-fold molar excess of GMP over GTP generates a cognate internal standard (gray line) bearing a monophosphate (p) at its 5′ end.

Final analysis

Timing: 21 h

Using RT-PCR to measure the percentage of a cellular transcript that is monophosphorylated requires comparison to a cognate internal standard that itself is monophosphorylated and can be reverse transcribed and replicated with the same set of primers. To be informative, the internal standard must be added at a concentration that is comparable to that of the transcript(s) under investigation. This concentration is determined empirically by serially diluting the internal standard and spiking equal amounts (0.001–10 ng) into samples of cellular RNA (7.5 μg) that have or have not been treated with RppH. The resulting pairs of mixtures are then ligated to the chimeric oligonucleotide, reverse transcribed, PCR amplified, and examined by electrophoresis as described for the preliminary analysis.

RppH treatment

Perform as described for the preliminary analysis.

Ligation of a chimeric oligonucleotide

Perform as described for the preliminary analysis (Figure 1), but include the monophosphorylated internal standard.

Nucleic acid mixture
Reagent	Amount for one reaction (μL)
Cellular RNA (0.75 μg/μL) (± RppH treatment)	10.0
Monophosphorylated RNA standard	5.0
Chimeric oligonucleotide (1 μg/μL)	1.0
Subtotal	16.0

Note: An additional nucleic acid mixture should contain only the monophosphorylated internal standard and the chimeric oligonucleotide, with 7.5 μg of tRNA, poly(A), or total RNA from another species substituted for the cellular RNA listed above. Parallel analysis of this additional mixture enables the bands on the final polyacrylamide gel to be identified correctly.

• 31.Incubate the nucleic acid mixture at 65°C for 5 min and then transfer it to ice for 1 min.
• 32.Add 9 μL of ligase master mix to each tube.

Ligase master mix
Reagent	Amount for one reaction (μL)
Water	4.25
10× T4 RNA ligase buffer	2.5
ATP (100 mM)	0.25
RNasin (40 U/μL)	0.5
T4 RNA ligase 1 (10 U/μL)	1.5
Subtotal	9.0

Reagent	Amount for one reaction (μL)
Nucleic acid mixture	16.0
Ligase master mix	9.0
Total	25.0

• 33.Mix thoroughly and incubate at 37°C for 2 h.
• 34.Add 125 μL of 3 mM EDTA (pH 8.0), extract with phenol/chloroform (pH 4.3), and ethanol precipitate as described in step 3. Dissolve the RNA pellets in 11.5 μL of sterile water.

Reverse transcription, amplification, and electrophoresis

Perform as described for the preliminary analysis (Figure 1). Quantify as described below.

Quantitative analysis of PABLO-QA data

The final stage of PABLO-QA concludes with quantifying band intensities and calculating the percentage of 5′ ends that are monophosphorylated. The two gel lanes (±RppH, spiked with identical amounts of the internal standard) in which the intensity of the DNA band representing the monophosphorylated internal standard is most similar to that for the transcript(s) of interest are scanned and quantified with ImageJ or commercial software to determine the relative intensities of those bands. Because ethidium bromide staining can result in substantial fluorescence between DNA bands, background correction is essential. Finally, the percentage of each cellular transcript that is monophosphorylated is calculated by comparing the relative band intensities with or without prior treatment of the cellular RNA with excess RppH, as follows:

$$\text{\% monophosphorylated }=100\times \frac{{(\text{Transcript}/\text{Standard})}_{-\text{RppH}}}{{(\text{Transcript}/\text{Standard})}_{+\text{RppH}}}$$

The experiments (±RppH) with the optimal concentration of the internal standard should be performed in triplicate to allow mean values and standard deviations to be calculated.

Expected outcomes

PABLO-QA is a sensitive method for accurately measuring the percentage of any particular RNA 5′ end that is monophosphorylated, even when that percentage is small. It is particularly useful for examining the phosphorylation state of RNAs whose cellular concentration is low or that have multiple closely spaced 5′ termini. It can be used to differentiate RNA processing sites from transcription initiation sites, as the former will generally be 100% monophosphorylated whereas the latter will typically be more heterogeneous, potentially comprising a mixture of triphosphorylated, diphosphoryated, monophosphorylated, and/or capped 5′ ends caught at various stages of maturation or deprotection. For a 5′ terminus generated by transcription initiation, the percentage that is monophosphorylated reflects the relative rates of formation and decay of the monophosphorylated intermediate. In combination with genetic mutations, this information can be used to identify the RNA features and proteins that govern these processes.

We have used PABLO-QA to examine the phosphorylation state of the three principal 5′ ends of sugE mRNA in Legionella pneumophila (Richards and Belasco, 2021). A preliminary analysis of the kind described above identified the location of these termini and led us to design a cognate internal standard whose 5′ end preceded that of the longest sugE transcript by 19 nt (Figure 3). After spiking this fully monophosphorylated standard into total RNA from Legionella, a final PABLO-QA analysis was performed to determine the percentage of each sugE 5′ end that was monophosphorylated in vivo (Figure 4, Table 1). In addition, the quantitative reliability of PABLO-QA was verified by analyzing a set of in vitro transcribed sugE RNA mixtures in which the 5′ phosphorylation state of the RNA was known in advance (Figure 5).

Figure 3.

Preliminary analysis of Legionella pneumophila sugE 5′ ends by PABLO-QA

Total RNA extracted from L. pneumophila by the hot phenol method (Richards and Belasco, 2021) was analyzed by PABLO-QA with sugE-specific primers in the absence of an internal standard, with or without prior treatment of the RNA with excess RppH. The sugE-specific primers X (AATCAGTGTGGTGGCTGTAA) and Y (TGTCTTAACCGGGTACGG) used for this analysis annealed 0.18 kb or 15–22 nt, respectively, downstream of the heterogeneous 5′ ends of sugE mRNA. Above the bands representing the sugE 5′ ends is a clear zone where no bands are visible. For comparison, a cognate internal standard whose principal PABLO-QA product migrates in the clear zone was analyzed in parallel. This internal standard comprised sugE mRNA bearing a 5′-terminal 19-nt extension derived from the sugE promoter region. It was synthesized by in vitro transcription of a DNA template prepared by PCR amplification of L. pneumophila DNA with sugE-specific primers, one of which contained a T7 promoter (underlined) followed by 22 nt of the sugE promoter and transcription unit (lowercase): CCAAAAGAATTCCAAATTAATACGACTCACTATTagtgatatgctataaaataatc.

Figure 4.

Final analysis of Legionella pneumophila sugE 5′ ends by PABLO-QA

(Left) Total RNA extracted from L. pneumophila was analyzed by PABLO-QA with sugE-specific primers X and Y in the presence of the monophosphorylated sugE internal standard described in Figure 3, with or without prior treatment of the cellular RNA with excess RppH. (Right) The intensities of four bands representing the internal standard and three distinct sugE 5′ termini (P1, P2, and P3) were quantified and used to calculate the percentage of each sugE 5′ end that was monophosphorylated. Each value is the average of three biological replicates. Error bars correspond to standard deviations. Modified from Figure 5D of Richards and Belasco (2021).

Table 1.

Example: calculating the percentage of monophosphorylated 5′ ends from PABLO-QA band intensities

Transcript	Band intensity (raw data)		Normalized band intensity (transcript/standard)		% MonoP a
	– RppH	+ RppH	– RppH	+ RppH	– RppH/+ RppHb
sugE standard	2,986,575	1,085,950	1.000	1.000
sugE P1	307,475	2,337,900	0.103	2.153	5
sugE P2	2,728,350	2,279,975	0.914	2.100	44
sugE P3	2,106,750	2,310,375	0.705	2.128	33

^aCalculated percentage of each 5′ end that is monophosphorylated.

^bCalculated from the ratio of normalized band intensities.

Figure 5.

Quantitative accuracy of PABLO-QA

(Top) Monophosphorylated (MonoP) and triphosphorylated (TriP) forms of sugE model RNA synthesized by in vitro transcription were combined at six different molar ratios and spiked with equal amounts of the fully monophosphorylated sugE internal standard described in Figure 3. The mixtures were then analyzed by PABLO-QA with sugE-specific primers. (Bottom) The percentage of sugE model RNA that was monophosphorylated was calculated from the relative band intensities in each lane and compared to the actual percentage of monophosphorylated sugE model RNA in the original mixture. In these calculations, the ratio of band intensities in the lane representing fully monophosphorylated sugE model RNA (100% monoP) served as a surrogate for the ratio obtained with an RppH-treated sample. Each value is the average of three independent measurements. Error bars (some too small to see) correspond to standard deviations. The line represents an ideal experimental outcome. Reproduced from Figure 5C of Richards and Belasco (2021).

Limitations

Transcripts whose abundance is exceptionally low

Even though the use of PCR amplification makes PABLO-QA very sensitive, some transcripts may be so scarce that PCR cannot amplify their signal above that of non-specific amplification products.

Stable secondary structure that masks the 5′ end

In principle, sequestration of an RNA 5′ end in thermodynamically stable base pairing might impair its reactivity with RppH and/or T4 RNA ligase 1. Nevertheless, we have successfully used PABLO-QA to determine the phosphorylation state of a transcript with only one unpaired nucleotide at the 5′ end.

Troubleshooting

Problem 1

Low yield of cellular RNA.

Potential solution

Thanks to PCR amplification, the mRNA of interest may be sufficiently abundant to allow less cellular RNA to be used in each reaction.

Problem 2

Structural obstacle to reverse transcription.

Potential solution

Additional PCR cycles may compensate for a low yield of full-length reverse transcription products caused by premature termination.

Problem 3

Non-specific amplification products.

Potential solution

This problem can be solved by redesigning primers X and Y or by increasing the PCR annealing temperature.

Problem 4

The DNA sequencing electropherogram obtained during 5′ end mapping contains overlaid peaks due to a mixed population of PCR products.

Potential solution

Overlaid DNA sequences indicate inadequate separation of the PCR products generated by amplification with primers B and Y. The electrophoretic resolution of these PCR products can be improved by changing the percentage of polyacrylamide or by allowing the PCR products to migrate further.

Problem 5

High background fluorescence on polyacrylamide gels stained with ethidium bromide.

Potential solution

Background fluorescence can be reduced by destaining the gel in 1× TBE for 10 min. If this does not resolve the problem, then use of a fluorescently labeled primer in the second round of PCR would obviate the need for ethidium staining.

Resource availability

Lead contact

Inquiries about the protocol should be addressed to the lead contact, Joel Belasco (joel.belasco@med.nyu.edu).

Materials availability

The materials and reagents needed for this protocol are commercially available.

Data and code availability

All of the pertinent data are presented in Table 1 and Figures 3, 4, and 5. No computer code was generated in the course of this study.
