Abstract
Introduction
With the increase in life expectancy and consequent aging of the population, degenerative lumbar spine diseases tend to increase its number exponentially. Several treatment options are available to treat degenerative spinal diseases, such as laminectomies, posterior fusions, and interbody fusions, depending on their locations, correction necessities, and surgeon philosophy. With the advance in technology and surgical knowledge, minimally invasive techniques (MIS) arose as a solution to reduce surgical morbidity, while maintaining the same benefits as the traditionally/open surgeries. Several studies investigated the possible advantages of MIS techniques against the traditional open procedures. However, those articles are usually focused only on one technique or on one pathology.
Methods
The electronic databases, including PubMed, Google Scholar, Ovid, and BVS, were systematically reviewed. Only original articles in English or Portuguese were added to the review, the revision was performed following the PRISMA guideline.
Results
Fifty-three studies were included in the meta-analysis. Of the studied outcomes the Length of Stay Odds of complications, Blood Loss, and Surgery costs presented significantly favored MIS approaches, while the Last FUP ODI score, and Surgery Time did not differ among the groups.
Conclusion
Minimally invasive techniques are a remarkably interesting option to traditional open surgeries, as these procedures showed a significant reduction in blood loss, hospitalization time, complications, and surgical costs.
Keywords: Minimally invasive surgery, Open surgery, Systematic review, Clinical outcomes, Surgical outcomes
Introduction
With the increase in life expectancy and consequent aging of the population, degenerative lumbar spine diseases tend to increase its number exponentially [1, 2]. Furthermore, the daily life impact of degenerative spinal diseases is not the only negative impact of those conditions; it is estimated that low back pain and similar pathologies become the first cause of work absenteeism worldwide [3].
Several treatment options are available to treat degenerative spinal diseases, such as laminectomies, posterior fusions, and interbody fusions, depending on their locations, correction necessities, and surgeon philosophy [4–6]. Traditionally those techniques were made in an open fashion, which allowed a great visualization of the surgical field; however, it comes with a more morbid and tissue-damaging procedure [7, 8]. Therefore, with the advance in technology and surgical knowledge, minimally invasive techniques (MIS) arose as a solution to reduce surgical morbidity, while maintaining the same benefits of the traditionally/open surgeries, in this way allowing older and weakened patients could have access to the benefits of those surgeries with a reduced risk of complications [9, 10].
Several studies investigated the possible advantages of MIS techniques against the traditional open procedures. Showing that the MIS procedures were usually associated with reduced blood loss, and length of hospital stay, were usually like open surgeries regarding the clinical benefits and surgical duration, and with incremental cost–benefit varying according to the techniques included in the studies [11–13]. However, those articles are usually focused only on one technique or on one pathology [14–16], which might raise questions about whether the observed effects are exclusively related to a specific condition or technique or if they might be true in a more general aspect.
Therefore, trying to investigate how MIS approaches compare to open techniques in a more general aspect, this work aims to perform a broad systematic revision to identify the effects of minimally invasive surgery versus open surgery without restraining to a specific technique or lumbar degenerative pathology.
Methods
Search and retrieval strategy
The electronic databases, including PubMed, Google Scholar, Ovid, and BVS, were systematically reviewed using the following Search strategy “(((((Minimally invasive) AND Open) AND Spine surgery) AND Degenerative)) AND Lumbar).” Only original articles in English or Portuguese were added to the review. Two authors checked all the retrieved references, and any disputes on whether to include an article were settled by mutual consensus. The step-by-step selection process is depicted as a flowchart as recommended by PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-analyses) (Fig. 1). This study is registered in PROSPERO. However, it has not been evaluated due to the COVID-19 pandemic.

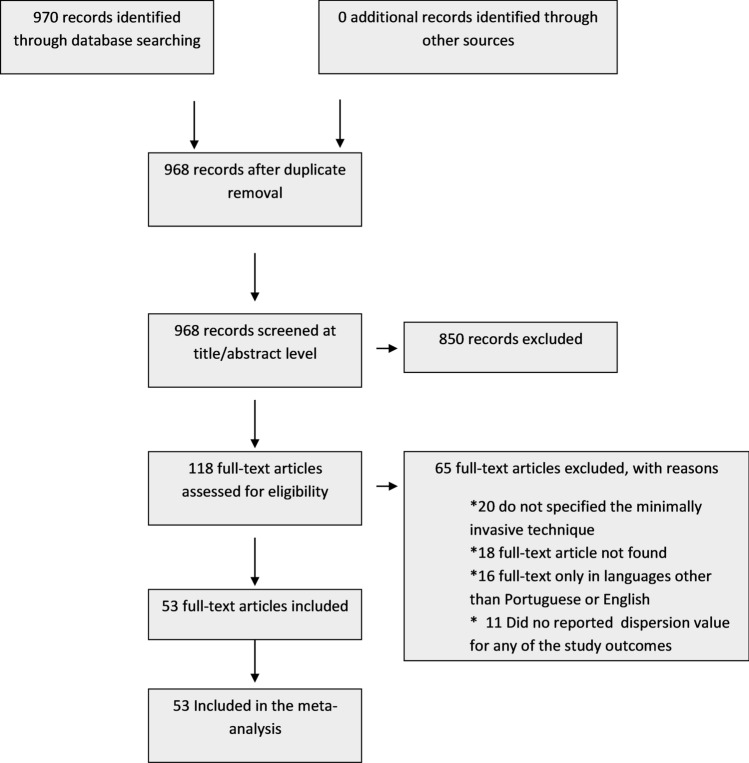

Fig. 1.
Figure showing the flowchart of study selection and extraction
Selection and inclusion criteria
The authors performed the study selection in a two-step fashion. The first consisted of a brief title/abstract analysis in which the authors seek evidence on whether to pass or not the work to the next round. In this round, articles that raised doubt about whether they met the inclusion criteria went to the second round.
For the second round, the author performed a full-text check of the remaining articles. For this time, the inclusion criteria were the following: The article compares an MIS with an open technique (i) it is distinguishable or mentioned which technique is open and which is MIS, (ii) the article presents one of the following outcomes (ODI, VAS, Length of Hospitalization, Blood Loss or Cost analysis, (iii) the article presents mean values and side deviation for both techniques, (iv) the article is a randomized clinical trial, or a prospective study, or a retrospective study (Fig. 1).
Data extraction
Two authors independently extracted the articles’ data, and any disputes were solved by consensus between the authors. The inclusion of continuous variables only occurred if the article informed the standard deviation or contained information that allowed the calculus of standard deviation for each group. Studies presenting two or more subgroups were divided into the number of the presented subgroups by adding the “− x” to the article id’s side (Ex: 949, 949–1).
Study outcomes
In the current meta-analysis, the outcomes were divided into three categories. One consisted of intraoperative variables, estimated blood loss, and surgical time. Other composed of surgical outcomes, ODI Last FUP, (defined as the last follow up with more than 12 months), the number of complications, and finally, a third category made up of only surgery costs.
Quality assessment
To assess the quality of the included articles, the authors used two tools, for Randomized Clinical Trials, the RoB-Risk2 Tool from Cochrane Foundation [17], and the Newcastle Ottawa scale (NOS) [18] for Prospective and Retrospective studies. Table 2 presents the itemized and total risk of bias of each article. Two independent authors applied the tools for each article, and in cases of disputes, the “worst” result was kept.
Table 2.
Table containing the risk of bias evaluation and study design of the selected articles
| Article id | Study quality | Study design |
|---|---|---|
| 17 | 7 | Prospective |
| 23 | 7 | Retrospective |
| 23 | 7 | Retrospective |
| 32 | Some concerns | RCT |
| 35 | 7 | Retrospective |
| 37 | 7 | Prospective |
| 44 | 3 | Retrospective |
| 45 | 5 | Prospective |
| 52 | 6 | Retrospective |
| 52 | 6 | Retrospective |
| 55 | 6 | Prospective |
| 88 | 6 | Retrospective |
| 113 | 7 | Prospective |
| 124 | 4 | Retrospective |
| 125 | Some concerns | RCT |
| 133 | 8 | Retrospective |
| 134 | Some concerns | RCT |
| 136 | 6 | Retrospective |
| 140 | 6 | Retrospective |
| 140 | 6 | Retrospective |
| 140 | 6 | Retrospective |
| 142 | 6 | Prospective |
| 149 | 7 | Retrospective |
| 151 | 6 | Prospective |
| 153 | 6 | Retrospective |
| 155 | 7 | Retrospective |
| 157 | 6 | Prospective |
| 157 | 6 | Prospective |
| 159 | 7 | Retrospective |
| 160 | High | RCT |
| 161 | 6 | Prospective |
| 165 | 7 | Prospective |
| 166 | 6 | Prospective |
| 169 | 6 | Retrospective |
| 173 | 6 | Retrospective |
| 182 | 7 | Retrospective |
| 185 | Some concerns | RCT |
| 187 | 6 | Retrospective |
| 188 | 4 | Retrospective |
| 196 | 7 | Retrospective |
| 245 | 6 | Retrospective |
| 290 | 6 | Retrospective |
| 378 | 7 | Retrospective |
| 446 | Some concerns | RCT |
| 531 | 7 | Retrospective |
| 642 | 7 | Prospective |
| 670 | 6 | Retrospective |
| 786 | 8 | Retrospective |
| 786 | 8 | Retrospective |
| 828 | 6 | Retrospective |
| 836 | 7 | Retrospective |
| 888 | 6 | Prospective |
| 936 | 6 | Retrospective |
| 952 | 5 | Retrospective |
| 955 | 7 | Retrospective |
| 958 | 6 | Retrospective |
| 962 | 7 | Retrospective |
| 966 | 7 | Retrospective |
| 969 | 7 | Retrospective |

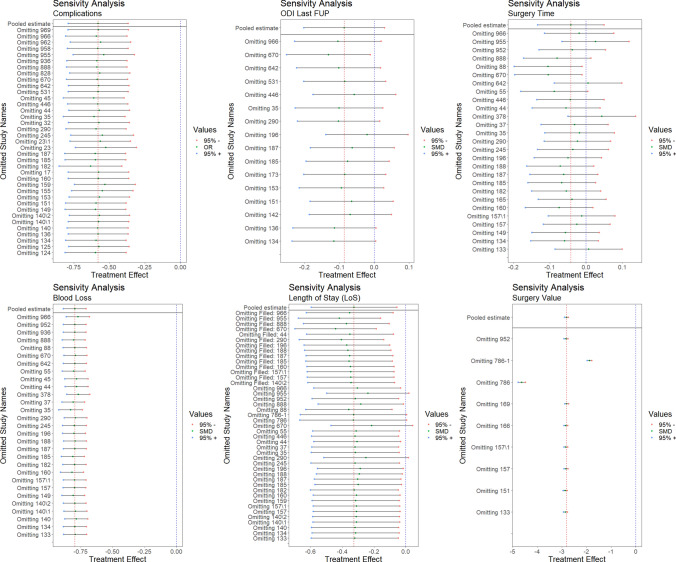

Sensitivity analysis
The sensibility analysis was performed with the leave-one-out method, where one article was removed from the specific outcome meta-analysis. Then the results of each study were plotted into a Cleveland dot plot to show the variation of the result for each of the leave-one-out studies.
Statistical analysis
The results for continuous variables were presented in standard mean differences (SMD), while dichotomous variables in odds ratios (OR). Meanwhile, inter-study heterogeneity was assessed using Cochran’s Q-statistic test, and heterogeneity between the studies included was evaluated using the chi-square test, with a < 0.05 indicating heterogeneity. In the presence of heterogeneity, the random-effects model was employed, and in the other cases, the fixed-effects model. Moreover, the publication bias was assessed using the funnel plot and the eggers regression, in which values p < 0.05 indicated publication bias. In cases of publication bias, the authors opted to use the trim-fill method of the “meta” package in R, which estimated and adjusted the meta-analysis results to account for the possible publication bias. Moreover, the authors chose to use the fixed-random model when performing the trim-fill [19–21].
Results
Study selection and risk of bias
After the final screening, fifty-three articles were included, with four articles divided into two pieces and one into three pieces (Table 1), totalizing fifty-nine analyzed studies. Table 1 also contains the extracted values of each article.
Table 1.
Table containing the summary of the collected variables from the selected articles
| Article id | 17 | 23 | 23\1 | 32 |
|---|---|---|---|---|
| First author | Byval'tsev | Mueller | Mueller | Yang |
| Year | 2018 | 2019 | 2019 | 2018 |
| Title | [Minimally invasive dorsal decompression-stabilization surgery in patients with overweight and obesity] | The difference in surgical site infection rates between open and minimally invasive spine surgery for degenerative lumbar pathology: a retrospective single center experience of 1442 cases | The difference in surgical site infection rates between open and minimally invasive spine surgery for degenerative lumbar pathology: a retrospective single center experience of 1442 cases | Microendoscopy-assisted minimally invasive versus open transforaminal lumbar interbody fusion for lumbar degenerative diseases: 5-Year outcomes |
| Pathology | Mixed | Mixed | Mixed | Mixed |
| Gender MIS (female/male) | 11/21 | NA/NA | NA/NA | 13/17 |
| Gender open (female/male) | 13/28 | NA/NA | NA/NA | 20/10 |
| Blood loss MIS (SD) | 130 (NA) | 19 (NA) | 92.3 (NA) | 187.5 (NA) |
| Blood loss open (SD) | 490 (NA) | 60.4 (NA) | 266.4 (NA) | 467.5 (NA) |
| Surgical time MIS (SD) | 105 (NA) | 98.6 (NA) | 186.5 (NA) | 180 (NA) |
| Surgical time open (SD) | 145 (NA) | 121.9 (NA) | 246.4 (NA) | 150 (NA) |
| LoS MIS (SD) | 9 (NA) | 1.5 (NA) | 4.3 (NA) | 2.5 (NA) |
| LoS open (SD) | 13 (NA) | 2.5 (NA) | 6.5 (NA) | 4 (NA) |
| Preoperative ODI MIS (SD) | 81 (NA) | NA (NA) | NA (NA) | 52 (NA) |
| Preoperative ODI open (SD) | 79 (NA) | NA (NA) | NA (NA) | 48 (NA) |
| Last FUP ODI MIS(SD) | 8 (NA) | NA (NA) | NA (NA) | 7 (NA) |
| Last FUP ODI open (SD) | 20 (NA) | NA (NA) | NA (NA) | 7 (NA) |
| Cost MIS (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Cost open (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Complications MIS (events/population) | 3/32 | 2/555 | 3/406 | 5/30 |
| Complications open (events/population) | 7/41 | 11/285 | 5/196 | 9/30 |
| Article id | 35 | 37 | 44 | 45 |
|---|---|---|---|---|
| First author | Wu | Marengo | Lee | Ohba |
| Year | 2018 | 2018 | 2017 | 2017 |
| Title | Comparison of minimally invasive and open transforaminal lumbar interbody fusion in the treatment of single segmental lumbar spondylolisthesis: minimum two-year follow up | Cortical Bone trajectory screws in posterior lumbar interbody fusion: minimally invasive surgery for maximal muscle sparing-a prospective comparative study with the traditional open technique | Outcomes of minimally invasive surgery compared to open posterior lumbar instrumentation and fusion | Comparison of serum markers for muscle damage, surgical blood loss, postoperative recovery, and surgical site pain after extreme lateral interbody fusion with percutaneous pedicle screws or traditional open posterior lumbar interbody fusion |
| Pathology | Spondylolisthesis | Mixed | Mixed | Spondylolisthesis |
| Gender MIS (female/male) | 46/33 | 8/12 | 34/26 | 31/15 |
| Gender open (female/male) | 50/38 | 11/9 | 13/16 | 29/27 |
| Blood loss MIS(SD) | 163.7 (49.6) | 276.5 (67.92) | 211.33 (100.23) | 51 (41) |
| Blood loss open(SD) | 243.3 (70.2) | 330.5 (90.41) | 683.79 (1161.1) | 206 (191) |
| Surgical time MIS(SD) | 145.5 (21.5) | 157.45 (21.74) | 170.67 (51.53) | NA (NA) |
| Surgical time open(SD) | 151.4 (19.9) | 169.65 (23.87) | 157.41 (49.38) | NA (NA) |
| LoS MIS (SD) | 5.8 (1.4) | 2.9 (1.37) | 3.8 (2.38) | NA (NA) |
| LoS open (SD) | 7.3 (2.9) | 3.8 (1.32) | 7.38 (4.45) | NA (NA) |
| Preoperative ODI MIS (SD) | 60.7 (10.6) | 68 (37) | 50.95 (18.55) | 21.2 (6.9) |
| Preoperative ODI open (SD) | 62.1 (10.6) | 58 (15) | 55.17 (11.64) | 19.2 (6.5) |
| Last FUP ODI MIS (SD) | 25.3 (6.3) | 9 (10) | 25.48 (12.92) | 9.2 (7.4) |
| Last FUP ODI Open (SD) | 25.3 (6.2) | 23 (9) | 36.41 (10.91) | 13.5 (6.4) |
| Cost MIS (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Cost Open (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Complications MIS (events/population) | 10/79 | NA/20 | 6/60 | 6/56 |
| Complications open (events/population) | 12/88 | NA/20 | 6/29 | 2/46 |
| Article id | 46 | 52 | 52\1 | 55 |
|---|---|---|---|---|
| First author | Price | Mummaneni | Mummaneni | Tian |
| Year | 2018 | 2017 | 2017 | 2017 |
| Title | Clinical and radiologic comparison of minimally invasive surgery with traditional open transforaminal lumbar interbody fusion: a review of 452 patients from a single center | Minimally invasive versus open fusion for Grade I degenerative lumbar spondylolisthesis: analysis of the quality outcomes database | Minimally invasive versus open fusion for grade I degenerative lumbar spondylolisthesis: analysis of the quality outcomes database | Computer-assisted minimally invasive transforaminal lumbar interbody fusion may be better than open surgery for treating degenerative lumbar disease |
| Pathology | Mixed | Spondylolisthesis | Spondylolisthesis | Mixed |
| Gender MIS (female/male) | 99/49 | 42/34 | 11/4 | 14/16 |
| Gender open (female/male) | 198/106 | 115/66 | 39/34 | 8/23 |
| Blood loss MIS (SD) | 133 (NA) | 143 (NA) | 220 (NA) | 142.17 (72.01) |
| Blood Loss Open (SD) | 411 (NA) | 290 (NA) | 512 (NA) | 231.29 (109.84) |
| Surgical time MIS (SD) | 149 (NA) | 212 (NA) | 282 (NA) | 159.2 (20.12) |
| Surgical time open (SD) | 190 (NA) | 190 (NA) | 226 (NA) | 113.06 (23.19) |
| LoS MIS (SD) | 3.2 (NA) | 3.21 (NA) | 4 (NA) | 4.53 (1.5) |
| LoS Open (SD) | 4.3 (NA) | 3.36 (NA) | 3.88 (NA) | 5.58 (0.79) |
| Preoperative ODI MIS (SD) | 42 (NA) | 48.1 (NA) | 55.3 (NA) | 43.56 (4.85) |
| Preoperative ODI Open (SD) | 46 (NA) | 45.1 (NA) | 42.1 (NA) | 44.71 (5.42) |
| Last FUP ODI MIS (SD) | 23 (NA) | 20.49 (16.4) | 27.87 (23.2) | 17.23 (2.83) |
| Last FUP ODI Open (SD) | 27 (NA) | 19.56 (16.9) | 26.21 (16) | 18.24 (2.38) |
| Cost MIS (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Cost open (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Complications MIS (events/population) | NA/148 | NA/76 | NA/15 | NA/31 |
| Complications Open (events/population) | NA/304 | NA/181 | NA/73 | NA/30 |
| Article id | 88 | 113 | 124 | 125 |
|---|---|---|---|---|
| First author | Guan | Adogwa | Radcliff | Mobbs |
| Year | 2016 | 2015 | 2014 | 2014 |
| Title | Comparison of clinical outcomes in the national neurosurgery quality and outcomes database for open versus minimally invasive transforaminal lumbar interbody fusion | A prospective, multi-institutional comparative effectiveness study of lumbar spine surgery in morbidly obese patients: does minimally invasive transforaminal lumbar interbody fusion result in superior outcomes? | What is the rate of lumbar adjacent segment disease after percutaneous versus open fusion? | Outcomes after decompressive laminectomy for lumbar spinal stenosis: comparison between minimally invasive unilateral laminectomy for bilateral decompression and open laminectomy: clinical article |
| Pathology | Mixed | Mixed | Mixed | Estenose |
| gender MIS (female/male) | 25/19 | 20/20 | 16/7 | 22/5 |
| Gender open (female/male) | 24/30 | 61/47 | 17/13 | 13/14 |
| Blood loss MIS (SD) | 120.2 (63.7) | NA (NA) | NA (NA) | 40 (NA) |
| Blood loss open (SD) | 306.5 (165.7) | NA (NA) | NA (NA) | 110 (NA) |
| Surgical time MIS (SD) | 329.3 (69.3) | NA (NA) | NA (NA) | NA (NA) |
| Surgical time open (SD) | 234.9 (67.4) | NA (NA) | NA (NA) | NA (NA) |
| LoS MIS (SD) | 5 (1.3) | NA (NA) | NA (NA) | NA (NA) |
| LoS open (SD) | 3.8 (1.3) | NA (NA) | NA (NA) | NA (NA) |
| Preoperative ODI MIS (SD) | 24.1 (7.5) | 50.18 (16.74) | NA (NA) | 51.4 (19.4) |
| Preoperative ODI open (SD) | 22.9 (8.3) | 49.15 (15.21) | NA (NA) | 46.6 (18.9) |
| Last FUP ODI MIS (SD) | NA (NA) | 11.61 (25.52) | NA (NA) | NA (NA) |
| Last FUP ODI open (SD) | NA (NA) | 14.88 (22.07) | NA (NA) | NA (NA) |
| Cost MIS (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Cost open (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Complications MIS (events/population) | NA/44 | NA/40 | 15/23 | 1/27 |
| Complications open (events/population) | NA/54 | NA/108 | 20/30 | 3/27 |
| Article id | 133 | 134 | 136 | 140 |
|---|---|---|---|---|
| First author | Singh | Gu | Brodano | Lau |
| Year | 2014 | 2014 | 2015 | 2013 |
| Title | A perioperative cost analysis comparing single-level minimally invasive and open transforaminal lumbar interbody fusion | Comparison of minimally invasive versus open transforaminal lumbar interbody fusion in two-level degenerative lumbar disease | transforaminal lumbar interbody fusion in degenerative disk disease and spondylolisthesis grade I: minimally invasive versus open surgery | Comparison of perioperative outcomes following open versus minimally invasive transforaminal lumbar interbody fusion in obese patients |
| Pathology | Mixed | Mixed | Mixed | Mixed |
| Gender MIS (female/male) | 10/23 | 25/19 | 12/18 | 19/19 |
| Gender Open (female/male) | 12/21 | NA/15.23 | 14/20 | 11/12 |
| Blood loss MIS (SD) | 124.4 (92) | 248.4 (94.3) | 230 (NA) | 141.7 (125.1) |
| Blood loss open (SD) | 380.3 (191.2) | 576.3 (176.2) | 620 (NA) | 741.3 (453.7) |
| Surgical time MIS (SD) | 115.8 (28.2) | 195.5 (28) | 2.4 (NA) | NA (NA) |
| Surgical time open (SD) | 186 (31) | 186.6 (23.4) | 1.7 (NA) | NA (NA) |
| LoS MIS (SD) | 2.3 (1.2) | 9.3 (3.7) | 4.1 (NA) | 3 (2) |
| LoS open (SD) | 2.9 (1.1) | 12.1 (3.6) | 7.4 (NA) | 4.2 (2.1) |
| Preoperative ODI MIS (SD) | NA (NA) | 43.7 (4.3) | 2.6 (6.2) | NA (NA) |
| Preoperative ODI open (SD) | NA (NA) | 44.3 (5.2) | 0.66 (6.6) | NA (NA) |
| Last FUP ODI MIS (SD) | NA (NA) | 16.5 (2) | 3.2 (7.1) | NA (NA) |
| Last FUP ODI open (SD) | NA (NA) | 15.9 (1.9) | 0.6 (5.8) | NA (NA) |
| Cost MIS (SD) | 19,512 (4868) | NA (NA) | NA (NA) | NA (NA) |
| Cost open (SD) | 23,550 (3501) | NA (NA) | NA (NA) | NA (NA) |
| Complications MIS (events/population) | NA/33 | 5/44 | 1/30 | 7/38 |
| Complications open (events/population) | NA/33 | 4/38 | 2/34 | 6/23 |
| Article id | 140\1 | 140\2 | 142 | 149 |
|---|---|---|---|---|
| First Author | Lau | Lau | Rodriguez-Vela | Archavlis |
| Year | 2013 | 2013 | 2013 | 2013 |
| Title | Comparison of perioperative outcomes following open versus minimally invasive transforaminal lumbar interbody fusion in obese patients | Comparison of perioperative outcomes following open versus minimally invasive transforaminal lumbar interbody fusion in obese patients | Clinical outcomes of minimally invasive versus open approach for one-level transforaminal lumbar interbody fusion at the 3- to 4-year follow-up | Comparison of minimally invasive fusion and instrumentation versus open surgery for severe stenotic spondylolisthesis with high-grade facet joint osteoarthritis |
| Pathology | Mixed | Mixed | Degenerative disc disease | Spondylolisthesis |
| Gender MIS (female/male) | 14/12 | 7/7 | 7/14 | 14/10 |
| Gender open (female/male) | 11/8 | 4/3 | 7/13 | 17/8 |
| Blood loss MIS (SD) | 153.5 (114.2) | 269.2 (269.2) | NA (NA) | 185 (140) |
| Blood loss Open (SD) | 596.8 (415.7) | 614.3 (449.7) | NA (NA) | 255 (468) |
| Surgical time MIS (SD) | NA (NA) | NA (NA) | NA (NA) | 220 (48) |
| Surgical time open (SD) | NA (NA) | NA (NA) | NA (NA) | 190 (65) |
| LoS MIS (SD) | 3 (1.4) | 3 (1.4) | NA (NA) | 7 (NA) |
| LoS open (SD) | 4.7 (2.1) | 4.7 (2.1) | NA (NA) | 11 (NA) |
| Preoperative ODI MIS (SD) | NA (NA) | NA (NA) | 28.85 (5.52) | 46 (NA) |
| Preoperative ODI open (SD) | NA (NA) | NA (NA) | 27.19 (8.19) | 48 (NA) |
| Last FUP ODI MIS (SD) | NA (NA) | NA (NA) | 12.09 (7.59) | 23 (NA) |
| Last FUP ODI open (SD) | NA (NA) | NA (NA) | 18.1 (12.45) | 24 (NA) |
| Cost MIS (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Cost open (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Complications MIS (events/population) | 3/26 | 2/14 | NA/21 | 7/24 |
| Complications open (events/population) | 4/19 | 3/7 | NA/20 | 7/25 |
| Article id | 151 | 153 | 155 | 157 |
|---|---|---|---|---|
| First author | Parker | Zairi | Lucio | Pelton |
| Year | 2014 | 2013 | 2012 | 2012 |
| Title | Minimally invasive versus open transforaminal lumbar interbody fusion for degenerative spondylolisthesis: comparative effectiveness and cost-utility analysis | Transforaminal lumbar interbody fusion: comparison between open and mini-open approaches with two years follow-up | Economics of less invasive spinal surgery: an analysis of hospital cost differences between open and minimally invasive instrumented spinal fusion procedures during the perioperative period | A comparison of perioperative costs and outcomes in patients with and without workers' compensation claims treated with minimally invasive or open transforaminal lumbar interbody fusion |
| Pathology | Spondylolisthesis | Mixed | Mixed | Spondylolisthesis |
| Gender MIS (female/male) | 34/16 | 20/20 | 61/48 | 2/9 |
| Gender open (female/male) | 32/18 | 32/28 | 56/45 | 3/10 |
| Blood loss MIS (SD) | NA (NA) | 148 (NA) | NA (NA) | 127 (103.35) |
| Blood loss open (SD) | NA (NA) | 486 (NA) | NA (NA) | 254 (48.66) |
| Surgical time MIS (SD) | NA (NA) | 170 (NA) | 162.3 (NA) | 116 (30.26) |
| Surgical time open (SD) | NA (NA) | 186 (NA) | 156.5 (NA) | 184 (32.31) |
| LoS MIS (SD) | NA (NA) | 4.5 (NA) | 1.2 (NA) | 2 (0.786) |
| LoS open (SD) | NA (NA) | 5.5 (NA) | 3.2 (NA) | 3 (0.94) |
| Preoperative ODI MIS (SD) | 32.3 (6.7) | 60 (2) | NA (NA) | NA (NA) |
| Preoperative ODI open (SD) | 34.3 (7.9) | 60 (2) | NA (NA) | NA (NA) |
| Last FUP ODI MIS (SD) | 11 (9.4) | 30 (2) | NA (NA) | NA (NA) |
| Last FUP ODI Open (SD) | 15.6 (10.3) | 30 (1) | NA (NA) | NA (NA) |
| Cost MIS (SD) | 38,563 (10,594) | NA (NA) | 25,272 (NA) | 19,705 (5391) |
| Cost open (SD) | 47,858 (20,148) | NA (NA) | 23,686 (NA) | 24,115 (3313) |
| Complications MIS (events/population) | 3/30 | 1/40 | 5/109 | NA/11 |
| Complications open (events/population) | 2/33 | 5/60 | 14/101 | NA/13 |
| Article id | 157\1 | 159 | 160 | 161 |
|---|---|---|---|---|
| First author | Pelton | Mobbs | Wang | Harris |
| Year | 2012 | 2012 | 2011 | 2011 |
| Title | A comparison of perioperative costs and outcomes in patients with and without workers' compensation claims treated with minimally invasive or open transforaminal lumbar interbody fusion | Minimally invasive surgery compared to open spinal fusion for the treatment of degenerative lumbar spine pathologies | Minimally invasive lumbar interbody fusion via MAST quadrant retractor versus open surgery: a prospective randomized clinical trial | Mini-open versus open decompression and fusion for lumbar degenerative spondylolisthesis with stenosis |
| Pathology | Spondylolisthesis | Mixed | Mixed | Spondylolisthesis |
| Gender MIS (female/male) | 8/14 | 18/19 | 17/24 | 20/10 |
| Gender open (female/male) | 9/11 | 14/16 | 15/23 | 12/9 |
| Blood loss MIS (SD) | 124 (61.5) | NA (NA) | 207.7 (57.6) | 208 (NA) |
| Blood loss Open (SD) | 288 (121.17) | NA (NA) | 258.9 (122.2) | 335 (NA) |
| Surgical time MIS (SD) | 110 (34.35) | NA (NA) | 168.7 (36.4) | 150 (NA) |
| Surgical time open (SD) | 185 (35.57) | NA (NA) | 145 (26.8) | 156 (NA) |
| LoS MIS (SD) | 2 (0.64) | 5.889 (3.133) | 6.4 (2.5) | 2.5 (NA) |
| LoS open (SD) | 3 (1.26) | 9.655 (6.699) | 8.7 (2.1) | 3.2 (NA) |
| Preoperative ODI MIS (SD) | NA (NA) | 54.56 (19.47) | NA (NA) | 45.7 (NA) |
| Preoperative ODI open (SD) | NA (NA) | 52.38 (17.25) | NA (NA) | 45.7 (NA) |
| Last FUP ODI MIS (SD) | NA (NA) | 22.97 (16.5) | NA (NA) | 13.9 (NA) |
| Last FUP ODI open (SD) | NA (NA) | 28.09 (16.71) | NA (NA) | 6.4 (NA) |
| Cost MIS (SD) | 19,429 (8179) | NA (NA) | NA (NA) | NA (NA) |
| Cost open (SD) | 26,084 (1208) | NA (NA) | NA (NA) | NA (NA) |
| Complications MIS (events/population) | NA/22 | 2/37 | 3/41 | NA/30 |
| Complications open (events/population) | NA/20 | 12/30 | 5/38 | NA/21 |
| Article id | 165 | 166 | 169 | 173 |
|---|---|---|---|---|
| First author | Kotani | Parker | Parker | Adogwa |
| Year | 2012 | 2012 | 2013 | 2011 |
| Title | Mid-term clinical results of minimally invasive decompression and posterolateral fusion with percutaneous pedicle screws versus conventional approach for degenerative spondylolisthesis with spinal stenosis | Cost-effectiveness of minimally invasive versus open transforaminal lumbar interbody fusion for degenerative spondylolisthesis associated low-back and leg pain over two years | Cost-utility analysis of minimally invasive versus open multilevel hemilaminectomy for lumbar stenosis | Comparative effectiveness of minimally invasive versus open transforaminal lumbar interbody fusion: 2-year assessment of narcotic use, return to work, disability, and quality of life |
| Pathology | Spondylolisthesis | Spondylolisthesis | Estenose | Spondylolisthesis |
| Gender MIS (female/male) | 29/14 | 8/7 | 9/18 | 8/7 |
| Gender open (female/male) | 25/12 | 10/5 | 16/9 | 10/5 |
| Blood loss MIS (SD) | 181 (NA) | 200 (NA) | NA (NA) | 200 (NA) |
| Blood loss open (SD) | 453 (NA) | 295 (NA) | NA (NA) | 295 (NA) |
| Surgical time MIS (SD) | 172 (33) | 300 (NA) | NA (NA) | 300 (NA) |
| Surgical time open (SD) | 176 (37) | 210 (NA) | NA (NA) | 210 (NA) |
| LoS MIS (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| LoS open (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Preoperative ODI MIS (SD) | 52 (13.2) | 36.9 (6.3) | NA (NA) | 36.9 (6.3) |
| Preoperative ODI open (SD) | 48.96 (10.8) | 34.3 (11.5) | NA (NA) | 34.3 (11.5) |
| Last FUP ODI MIS (SD) | NA (NA) | NA (NA) | NA (NA) | 15.7 (8.9) |
| Last FUP ODI open (SD) | NA (NA) | NA (NA) | NA (NA) | 17.1 (9.5) |
| Cost MIS (SD) | NA (NA) | 35,996 (10,008) | 23,109 (156.73) | NA (NA) |
| Cost open (SD) | NA (NA) | 44,727 (15,223) | 25,420 (154.2) | NA (NA) |
| Complications MIS (events/population) | NA/43 | NA/15 | NA/27 | NA/15 |
| Complications open (events/population) | NA/37 | NA/15 | NA/27 | NA/15 |
| Article id | 182 | 185 | 187 | 188 |
|---|---|---|---|---|
| First author | Villavice io | Shunwu | Wang | Ntoukas |
| Year | 2010 | 2010 | 2010 | 2010 |
| Title | Minimally invasive versus open transforaminal lumbar interbody fusion | Minimally invasive transforaminal lumbar interbody fusion for the treatment of degenerative lumbar diseases | Comparison of one-level minimally invasive and open transforaminal lumbar interbody fusion in degenerative and isthmic spondylolisthesis grades 1 and 2 | Minimally invasive approach versus traditional open approach for one level posterior lumbar interbody fusion |
| Pathology | Mixed | Mixed | Spondylolisthesis | Mixed |
| Gender MIS (female/male) | 31/45 | 14/18 | 29/13 | 7/13 |
| Gender open (female/male) | 25/38 | 16/14 | 27/16 | 9/11 |
| Blood loss MIS (SD) | 163 (131.2) | 399.8 (125.8) | 264 (89) | 135 (98) |
| Blood loss open (SD) | 366.8 (298.2) | 517 (147) | 673 (145) | 432 (151) |
| Surgical time MIS (SD) | 222.5 (67.5) | 159.2 (21.7) | 156 (32) | 275 (73) |
| Surgical time open (SD) | 214.9 (60) | 142.8 (22.5) | 145 (27) | 152 (38) |
| LoS MIS (SD) | 3 (2.3) | 9.3 (2.6) | 10.6 (2.5) | 5 (2.2) |
| LoS open (SD) | 4.2 (3.5) | 12.5 (1.8) | 14.6 (3.8) | 10 (3.1) |
| Preoperative ODI MIS (SD) | NA (NA) | 49.7 (11.8) | 41.2 (6.6) | 74 (5) |
| Preoperative ODI open (SD) | NA (NA) | 52 (12) | 38.5 (7.4) | 72 (6) |
| Last FUP ODI MIS (SD) | NA (NA) | 24.7 (10.1) | 10.8 (3.3) | 15 (4) |
| Last FUP ODI open (SD) | NA (NA) | 27.2 (8.4) | 12.2 (3.9) | 18 (3) |
| Cost MIS (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Cost open (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Complications MIS (events/population) | 24/76 | 6/32 | 5/42 | NA/20 |
| Complications Open (events/population) | 20/63 | 5/30 | 4/43 | NA/20 |
| Article id | 196 | 245 | 290 | 378 |
|---|---|---|---|---|
| First author | Fan | Ge | Zhu | Kuang |
| Year | 2010 | 2019 | 2018 | 2017 |
| Title | Multifidus muscle changes and clinical effects of one-level posterior lumbar interbody fusion: minimally invasive procedure versus conventional open approach | Comparative analysis of two transforaminal lumbar interbody fusion techniques: open TLIF versus Wiltse MIS TLIF | Comparing stand-alone oblique lumbar interbody fusion with posterior lumbar interbody fusion for revision of rostral adjacent segment disease: a STROBE-compliant study | Transforaminal lumbar interbody fusion versus mini-open anterior lumbar interbody fusion with oblique self-a hored stand-alone cages for the treatment of lumbar disc herniation: a retrospective study with 2-year follow-up |
| Pathology | Mixed | Mixed | Adjacent level disease | Disc herniation |
| Gender MIS (female/male) | 18/10 | 55/56 | 10/7 | 24/18 |
| Gender open (female/male) | 15/16 | 61/55 | 10/9 | 23/17 |
| Blood loss MIS (SD) | 464.4 (217.2) | 197 (223) | 34.9 (4) | 57 (12) |
| Blood loss open (SD) | 887.7 (553.2) | 499 (431) | 340.6 (25.2) | 295 (81.4) |
| Surgical time MIS (SD) | 203.6 (36.6) | 240 (75) | 52.2 (6.2) | 60.4 (20.8) |
| Surgical time open (SD) | 194.5 (47.2) | 247 (93) | 134.3 (15.8) | 130.7 (45.1) |
| LoS MIS (SD) | 9.5 (2) | 2.7 (1.5) | 6 (1.1) | NA (NA) |
| LoS open (SD) | 15.2 (3.4) | 3.6 (1.4) | 13.1 (1.4) | NA (NA) |
| Preoperative ODI MIS (SD) | 69.2 (17.6) | NA (NA) | 53.8 (7.4) | 50.3 (13.1) |
| Preoperative ODI open (SD) | 69.2 (17.7) | NA (NA) | 54 (6.3) | 52.1 (13.6) |
| Last FUP ODI MIS (SD) | 10.7 (4) | NA (NA) | 12.8 (2.8) | NA (NA) |
| Last FUP ODI Open (SD) | 21.2 (6.4) | NA (NA) | 11.8 (1.7) | 24.4 (7.7) |
| Cost MIS (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Cost open (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Complications MIS (events/population) | NA/28 | 13/111 | 3/17 | 6/82 |
| Complications open (events/population) | NA/31 | 28/116 | 2/19 | NA/40 |
| Article id | 446 | 531 | 642 | 670 |
|---|---|---|---|---|
| First author | Hyun | Gandhoke | Wang | Seng |
| Year | 2017 | 2016 | 2014 | 2013 |
| Title | Minimally invasive robotic versus open fluoroscopic-guided spinal instrumented fusions: a randomized controlled trial | A cost-effectiveness comparison between open transforaminal and minimally invasive lateral lumbar interbody fusions using the incremental cost-effectiveness ratio at 2-year follow-up | Comparison of the clinical outcome in overweight or obese patients after minimally invasive versus open transforaminal lumbar interbody fusion | Five-year outcomes of minimally invasive versus open transforaminal lumbar interbody fusion: a matched-pair comparison study |
| Pathology | Mixed | Mixed | Mixed | Mixed |
| Gender MIS (female/male) | 21/9 | 8/7 | 29/13 | 33/7 |
| Gender open (female/male) | 22/8 | 10/5 | 27/12 | 33/7 |
| Blood loss MIS (SD) | NA (NA) | 200 (NA) | 274 (99) | 127.3 (45.7) |
| Blood loss Open (SD) | NA (NA) | 295 (NA) | 645 (163) | 405 (80) |
| Surgical time MIS (SD) | 208.5 (62.5) | 300 (NA) | 127 (25) | 185 (8.7) |
| Surgical time Open (SD) | 208.5 (66.7) | 210 (NA) | 168 (37) | 166 (7) |
| LoS MIS (SD) | 6.8 (2.1) | 3 (NA) | NA (NA) | 3.6 (0.3) |
| LoS open (SD) | 9.4 (5.4) | 5 (NA) | NA (NA) | 5.9 (0.4) |
| Preoperative ODI MIS (SD) | 24.5 (7.4) | 39.6 (6.3) | 41.1 (10.3) | 41.3 (20.1) |
| Preoperative ODI open (SD) | 28.9 (8.5) | 34.3 (11.5) | 40.2 (9.6) | 42.1 (16.3) |
| Last FUP ODI MIS (SD) | 11.7 (7.1) | 15.7 (8.9) | 18.2 (5.9) | 13.6 (2.8) |
| Last FUP ODI open (SD) | 16.6 (7.9) | 17.1 (9.5) | 17.4 (7.1) | 12.3 (1.9) |
| Cost MIS (SD) | NA (NA) | NA (NA) | NA (NA) | 21,722 (NA) |
| Cost open (SD) | NA (NA) | NA (NA) | NA (NA) | 20,759 (NA) |
| Complications MIS (events/population) | 1/30 | 0/15 | 4/42 | 6/40 |
| Complications open (events/population) | 1/30 | 0/15 | 7/39 | 8/40 |
| Article id | 786 | 786–1 | 828 | 836 |
|---|---|---|---|---|
| First author | Wang | Wang | Ghahreman | Tsutsumimoto |
| Year | 2012 | 2012 | 2010 | 2009 |
| Title | Acute hospital costs after minimally invasive versus open lumbar interbody fusion: data From a US national database with 6106 patients | Acute hospital costs after minimally invasive versus open lumbar interbody fusion: data from a US national database with 6106 patients-1 | Minimal access versus open posterior lumbar interbody fusion in the treatment of spondylolisthesis | Mini-open versus conventional open posterior lumbar interbody fusion for the treatment of lumbar degenerative spondylolisthesis: comparison of paraspinal muscle damage and slip reduction |
| Pathology | Mixed | Mixed | Spondylolisthesis | Spondylolisthesis |
| Gender MIS (female/male) | NA/NA | NA/NA | 13/12 | 8/2 |
| Gender open (female/male) | NA/NA | NA/NA | 14/13 | 7/3 |
| Blood loss MIS (SD) | NA (NA) | NA (NA) | NA (NA) | 352.6 (NA) |
| Blood loss open (SD) | NA (NA) | NA (NA) | NA (NA) | 282 (NA) |
| Surgical time MIS (SD) | NA (NA) | NA (NA) | 220 (NA) | 148.3 (NA) |
| Surgical time open (SD) | NA (NA) | NA (NA) | 203 (NA) | 155.8 (NA) |
| LoS MIS (SD) | 3.3 (2.2) | 3.4 (2.1) | 4 (NA) | NA (NA) |
| LoS open (SD) | 3.6 (2.3) | 4 (3.1) | 7 (NA) | NA (NA) |
| Preoperative ODI MIS (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Preoperative ODI open (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Last FUP ODI MIS (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Last FUP ODI open(SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Cost MIS (SD) | 29,187 (461) | 33,879 (521) | NA (NA) | NA (NA) |
| Cost open (SD) | 29,947 (324) | 35,984 (269) | NA (NA) | NA (NA) |
| Complications MIS (events/population) | NA/951 | NA/716 | 0/25 | NA/10 |
| Complications open (events/population) | NA/1804 | NA/2635 | 3/27 | NA/10 |
| Article id | 888 | 936 | 952 | 955 |
|---|---|---|---|---|
| First author | Park | Kim | Luna | Virdee |
| Year | 2007 | 2005 | 2018 | 2017 |
| Title | Comparison of one-level Posterior lumbar interbody fusion performed with a minimally invasive approach or a traditional open approach | Comparison of multifidus muscle atrophy and trunk extension muscle strength: percutaneous versus open pedicle screw fixation | TLIF-MIS vs. TLIF-open: cost evaluation | Comparison of peri-operative and 12-month lifestyle outcomes in minimally invasive transforaminal lumbar interbody fusion versus conventional lumbar fusion |
| Pathology | Mixed | Mixed | Mixed | Mixed |
| Gender MIS (female/male) | 24/8 | 5/3 | 6/3 | NA/NA |
| Gender open (female/male) | 16/13 | 7/4 | 4/3 | NA/NA |
| Blood loss MIS (SD) | 432.8 (294.8) | 261.3 (69) | 307 (81.6) | NA (NA) |
| Blood loss open (SD) | 737.9 (224.3) | 769.1 (253.6) | 803 (701.3) | NA (NA) |
| Surgical time MIS (SD) | 191.7 (37.7) | 260 (NA) | 320 (92.6) | 260.4 (9.9) |
| Surgical time open (SD) | 148.8 (24.2) | 258.6 (NA) | 372 (95.2) | 297 (9.2) |
| LoS MIS (SD) | 5.3 (2.6) | 8 (NA) | 6.7 (4.3) | 3.2 (0.3) |
| LoS open (SD) | 10.8 (2.5) | 9.2 (NA) | 11.1 (6.5) | 6.92 (1.1) |
| Preoperative ODI MIS (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Preoperative ODI open (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Last FUP ODI MIS(SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Last FUP ODI open (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Cost MIS (SD) | NA (NA) | NA (NA) | 11,593 (2240) | NA (NA) |
| Cost open (SD) | NA (NA) | NA (NA) | 10,734 (3036) | NA (NA) |
| Complications MIS (events/population) | 4/32 | 2/8 | NA/9 | 6/36 |
| Complications open (events/population) | 4/29 | 2/11 | NA/7 | 26/60 |
| Article id | 958 | 962 | 966 | 969 |
|---|---|---|---|---|
| First author | Zhang | Yee | Lee | Menezes |
| Year | 2015 | 2014 | 2012 | 2009 |
| Title | Modified minimally invasive transforaminal lumbar interbody fusion using a trans-multifidus approach: a safe and effective alternative to open-TLIF | Comparison of adjacent segment disease after minimally invasive or open transforaminal lumbar interbody fusion | Clinical and radiological outcomes of open versus minimally invasive transforaminal lumbar interbody fusion | Avaliação clínica radiológica da artrodese lombar transforaminal aberta versus minimamente invasiva |
| Pathology | Mixed | Mixed | Mixed | Mixed |
| Gender MIS (female/male) | 27/22 | 28/24 | 52/20 | 13/17 |
| Gender open (female/male) | 27/22 | 11/5 | 50/22 | 7/8 |
| Blood loss MIS (SD) | 75.2 (NA) | NA (NA) | 50.6 (161) | NA (NA) |
| Blood loss open (SD) | 215.2 (NA) | NA (NA) | 447.7 (519.2) | NA (NA) |
| Surgical time MIS (SD) | 91.3 (NA) | NA (NA) | 166.4 (52.1) | 221 (NA) |
| Surgical time open (SD) | 82.5 (NA) | NA (NA) | 181.8 (45.4) | 222 (NA) |
| LoS MIS(SD) | 3.7 (NA) | NA (NA) | 3.2 (2.9) | 3.3 (NA) |
| LoS Open (SD) | 6.9 (NA) | NA (NA) | 6.8 (3.4) | 1.8 (NA) |
| Preoperative ODI MIS (SD) | 51 (NA) | NA (NA) | 48.1 (18.8) | 46.6 (NA) |
| Preoperative ODI open (SD) | 52 (NA) | NA (NA) | 44.4 (18) | 42.3 (NA) |
| Last FUP ODI MIS (SD) | 15 (NA) | NA (NA) | 21.4 (20.9) | 12.6 (NA) |
| Last FUP ODI open (SD) | 16 (NA) | NA (NA) | 20.7 (16.5) | 13.5 (NA) |
| Cost MIS (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Cost open (SD) | NA (NA) | NA (NA) | NA (NA) | NA (NA) |
| Complications MIS (events/population) | 4/49 | 3/52 | 7/72 | 5/30 |
| Complications open (events/population) | 6/49 | 4/16 | 9/72 | 4/15 |
NA Not available
As for the risk of bias, the RCTs in its majority (5/6) had some concerns, with only one bearing an elevated risk of bias. As for the retrospective and prospective cohort articles, only one article (1/47) received a score of 3, with most of the articles receiving a score of 6 (21/47) (Table 2).
Table 3 contains the number of pooled patients and the number of studies included in each of the analyses.
Table 3.
Table containing a summary of the total pooled patients and total studies included in each of the analyzed outcomes
| Variable | Total pooled patients | # Of included studies |
|---|---|---|
| Complications | 4264 | 37 |
| ODI “Last FUP” | 1184 | 16 |
| EBL | 2197 | 29 |
| Surgery time | 2185 | 27 |
| LoS | 8153 | 29 |
| Costs | 6347 | 9 |
Complications
Thirty-seven articles reported complications after the procedures and were included in the analysis. The included studies presented significant publication bias (p = 0.94) or heterogeneity (I2 = 6%). The analysis showed a significant reduction in the risk of complications when adopting an MIS approach (OR = 0.56, 95%CI 0.45–0.69, p < 0.0001) (Fig. 2).

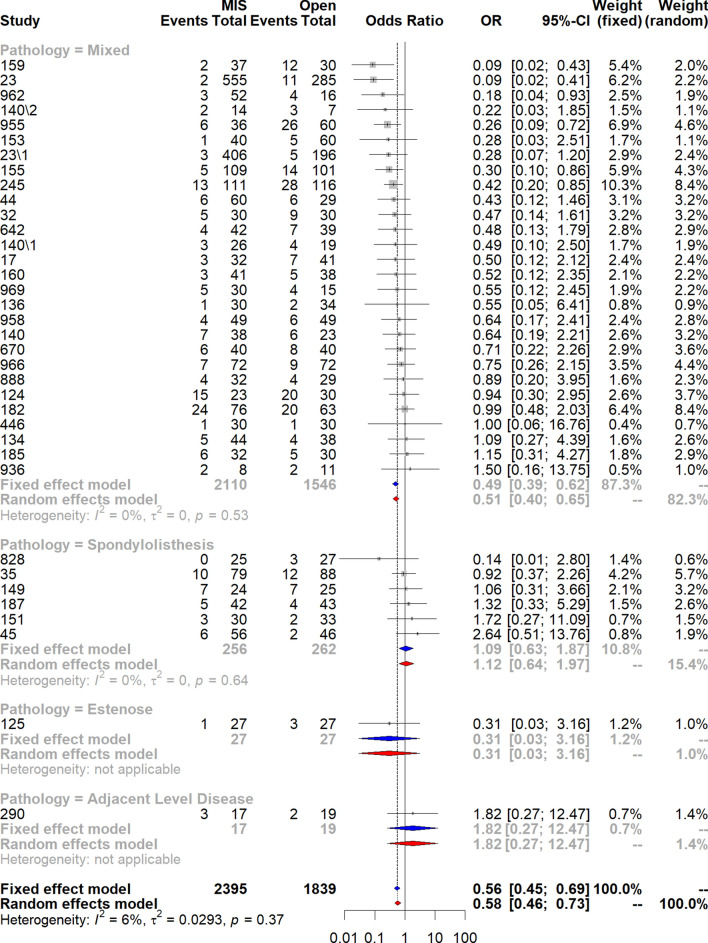

Fig. 2.
Forest plot showing the Odds Ratio of complications in MIS versus Open Surgeries. CI Confidence interval, MIS Minimally invasive surgery, OR Odds ratio
ODI Last FUP
Sixteen articles harbored enough information and length of FUP to enter the ODI analysis. There was significant heterogeneity (I2 = 76%), but no significant publication bias (p = 0.20). The results showed that the MIS procedures do not present a significant impact on the reduction of ODI (SMD = − 0.14, 95%CI − 0.39 to 0.09; p = 0.23) (Fig. 3).
Fig. 3.
Forest plot showing the SMD between MIS and Open Surgeries for the ODI Last FUP variable. CI Confidence interval, MIS Minimally invasive surgery, SMD Standard mean difference
Surgical time
Regarding the total surgery duration, twenty-seven articles were included. The sample presented significant heterogeneity (I2 = 95%), but no significant publication bias (p = 0.32). The MIS approaches did not exert any significant impact on the surgical duration (SMD = − 0.27, 95%CI − 0.73–0.18, p = 0.24) (Fig. 4).

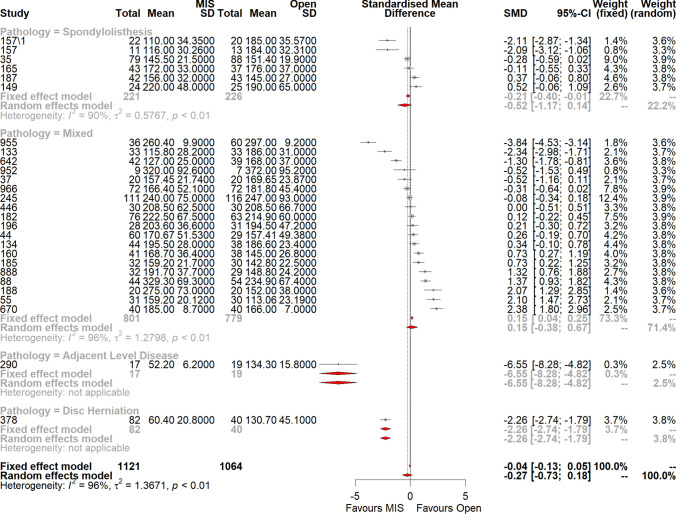

Fig. 4.
Forest plot showing the SMD between MIS and Open Surgeries for the Surgery Time variable. CI Confidence interval, MIS Minimally invasive surgery, SMD Standard mean difference
Estimated blood loss
Twenty-nine studies meet the criteria to undergo analysis regarding blood loss. Preliminary analysis showed no significant publication bias (p = 0.89) nor significant heterogeneity among the studies (I2 = 38%). As for the treatment effect, MIS surgeries promoted a significant reduction in surgical blood loss (SMD = − 0.79, 95%CI − 0.88 to − 0.70, p < 0.0001) (Fig. 5).

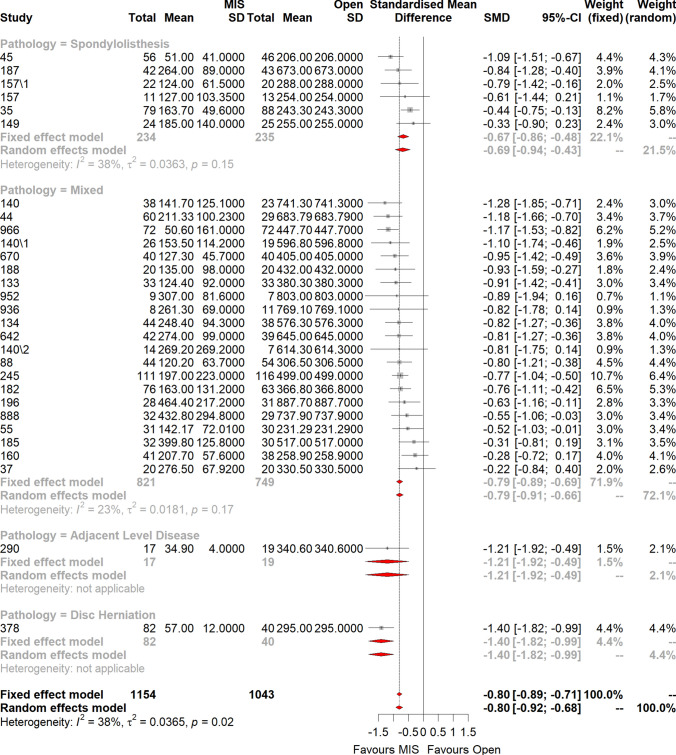

Fig. 5.
Forest plot showing the SMD between MIS and Open Surgeries for the Estimated Blood Loss variable. CI Confidence interval, MIS Minimally invasive surgery, SMD Standard mean difference
Length of stay
Twenty-nine studies reported the length of hospitalization, however, due to significant publication bias (p = < 0.0001), we applied the trim-fill method. After the trim-fill, 14 artificial studies to balance the publication bias were added to the meta-analysis (marked as “filled: X”). The trim-fill, as expected, showed no publication bias (p = 0.56). Moreover, it presented a significant heterogeneity (I2 = 95%) and showed a small reduction of the LoS when using MIS approaches (SMD = − 0.33, 95%CI − 0.60 to − 0.06, p = 0.01) (Fig. 6).

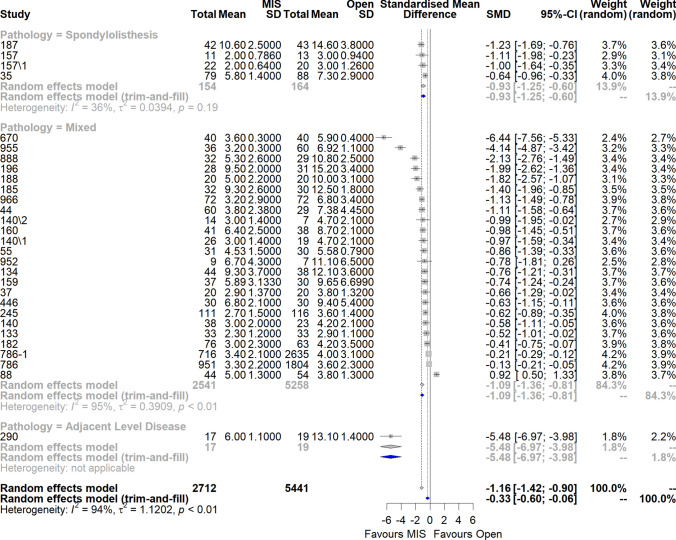

Fig. 6.
Forest plot showing the SMD between MIS and Open Surgeries for the Length of Stay variable. CI: Confidence interval, MIS Minimally invasive surgery, SMD Standard mean difference
Surgical costs
Nine studies evaluated the total costs of surgery. No publication bias was evidenced by the analysis (p = 0.86). The meta-analysis demonstrated a high heterogeneity (I2 = 99%), and that MIS approaches did exert significant effect regarding costs (SMD = − 2.69, 95%CI − 4.49 to − 0.90, p = 0.002) (Fig. 7).

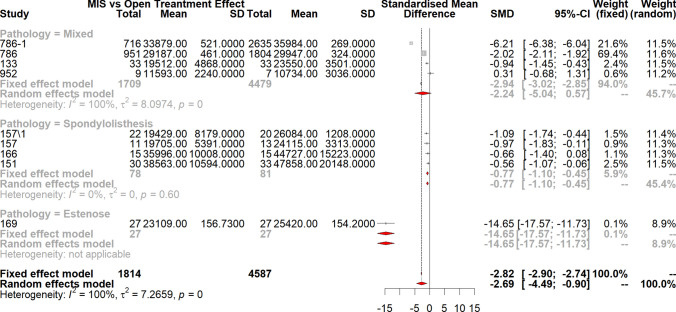

Fig. 7.
Forest plot showing the SMD between MIS and Open Surgeries for the Costs variable. CI confidence interval, MIS Minimally invasive surgery, SMD Standard mean difference
Sensitivity analysis
All outcomes underwent a sensitivity analysis (Fig. 8). ODI “Last FUP,” Surgical Time, and Length of Stay had articles that when removed could change the interpretation of the results, of whether the differences were or not significant. For the ODI, one article (670) when removed led to the SMD and its 95% interval to be under 0 (significantly favoring MIS approaches). For the surgical time, two articles (88, 670) when removed led to the SMD and its 95% interval to be under 0 (significantly favoring MIS approaches). As for the LoS, five articles (290,670,789,789-1,955) when removed led to the upper 95% of the expected distribution of the SMD crossing the 0-threshold line (No significant differences among the approaches). However, even for those outcomes, the central SMD or OR values were close to the original values for most of the sensitivity analysis (Fig. 8).
Fig. 8.
Dot plots showing the sensitivity analysis for each of the analyzed variables
Summary of results
Table 4 contains a summary of the treatment effects reported on the above items (Table 4).
Table 4.
Summary of the results obtained after the meta-analysis
| Variable | Unit | Treatment effect | Lower CI | Upper CI | p value | Interpretation |
|---|---|---|---|---|---|---|
| Complications | OR | − 0.56 | − 0.78 | − 0.36 | < 0.001 | Favors MIS |
| ODI “last FUP” | SMD | − 0.14 | − 0.39 | 0.09 | 0.23 | No effect |
| Surgical time | SMD | − 0.27 | − 0.73 | 0.18 | 0.24 | No effect |
| Estimated blood loss (EBL) | SMD | − 0.79 | − 0.91 | − 0.68 | < 0.001 | Favors MIS (high effect) |
| Length of stay (LOS) | SMD | − 0.33 | − 0.60 | − 0.06 | 0.01 | Favors MIS (small effect) |
| Costs | SMD | − 2.69 | − 4.49 | − 0.90 | < 0.001 | Favors MIS (high effect) |
CI: Confidence interval, FUP: Follow-up surgery, SMD: Standard mean difference, OR: Odds ratio
Discussion
Minimally invasive techniques were and still are one of the greatest revolutions in spinal surgery, as those techniques allowed surgeons to treat patients that usually require but were too weakened to receive an open procedure and to face its complications [22]. However, the MIS techniques are not without pitfalls such as pricy materials and steep learning curves [23, 24].
Complications and length of stay
One of the key points of minimally invasive surgery is its theoretical ability to reduce the intra and postoperative complications involving lumbar surgery. Goldstein et al., 2016 showed in a meta-analysis that using MIS PLIF or TLIF could lead to reduced medical complications compared to the open version of the same procedures [25]. Similarly, Hu et al., 2016 showed that using MIS TLIF significantly reduced the complications rate when compared with the open TLIF procedure [26].
Interestingly studies investigating specifically the use of MIS technology to treat spondylolisthesis showed a significant reduction in length of stay, but not in the complication rates [27, 28].
Surgical duration and blood loss
In a recent study comparing MIS versus open TLIFs Hockley et al., showed that patients who underwent MIS procedures had significantly lower surgical time and blood loss [29]. Further, Lu et al., showed that using MIS techniques to treat spondylolisthesis could lead to a significant reduction in surgical time and blood loss [27].
Similar to when comparing open with MIS decompressions for extraforaminal diskectomy, Akinduro et al., 2017 showed that MIS techniques showed lower blood loss and surgical time [30]. Also, when studying the effects of MIS decompression against open decompressions, Evaniew et al., 2021 showed that patients receiving MIS decompressions had lower blood loss and surgical time [31].
Finally, Qin et al., 2018, also showed the advantages of MIS-TLIFs over open TLIFs in blood loos, however, differently than the previous study, the authors reported higher operative in the MIS-TLIF group [28], in consonance with the findings of the prospective subgroup of Lu et al., 2017 study that showed an increased operative time in MIS surgeries [27], also similar to the findings presented by Miller et al., 2020, who reported no differences in surgical time between patients receiving MIS-TLIF or open TLIF for single-level degenerative pathologies. [32]
Quality of life
Like the present study, there is heterogeneity between the effects of MIS surgeries compared to open surgeries regarding the improvement of the quality-of-life measures. Evaniew et al., 2019, in a registry study, reported that patients receiving MIS or open had similar leg pain improvement, with MIS patients having a slightly lower chance to achieve back pain MCIDs at 12 months [31]. Further, Heemserk et al., 2021 showed that MIS and open surgeries have similar outcomes at two years of follow-up when treating degenerative lumbar diseases [33].
Finally, Miller et al., 2020 showed that pain severity between MIS and open patients was similar, however, the ODI at the last follow-up slightly favored MIS techniques [32] results consistent with the presented by Qin et al., 2019 that reported better ODI outcomes for patients receiving MIS TLIFs to treat spondylolisthesis [28].
Surgical costs
One of the most controversial aspects of the MIS-open corundum is the cost-effectiveness of the minimally invasive techniques, on whether the reduction in blood loss and hospitalization times compensates for the costlier materials needed to perform MIS surgeries.
In a study published in 2016, Goldstein and collaborators reported a cost-saving from MIS procedures ranging from 2.5 to 49% [25]. Further Vertuani et al. 2018, in a simulation of costs and cost-effectiveness based on the United Kingdom and Italy surgical prices for both MIS and open surgeries, showed that in both countries the MIS techniques were presented with increased cost-effectiveness compared to open procedures [34]. Finally, Droehaag et al. 2021, showed in a recent meta-analysis that MIS-TLIF was more cost-effective than Open TLIF, with all the four included studies lying in the “Less Costly & More Effective” [35].
Limitations
As with every study this study presents its pitfalls and drawbacks. First, we only included studies where the author specified and differentiated between the MIS and open procedure, which might exclude studies where the MIS and open procedures were “of common knowledge,” however, the author assumed that it would be better to leave those studies out than accidentally compare open versus open or MIS versus MIS studies. Another limitation is the high heterogeneity found among several outcomes, which might reduce the true impact of the findings presented in the study. The authors assumed that this heterogeneity is born from the broad revision proposed and the intrinsic difference that occurs in the literature regarding MIS and open techniques comparison. Finally, only studies in Portuguese or English were included, which might have excluded studies published in other languages.
Conclusion
Minimally invasive techniques are a remarkably interesting option to traditional open surgeries, as these procedures showed a significant reduction in blood loss, hospitalization time, complications, and surgical costs.
Funding
There was no funding for this research.
Declarations
Conflict of interest
Dr. Luiz Pimenta and Dr. Rodrigo Amaral receive consultancy fees from Alphatec.
Footnotes
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
References
- 1.Fehlings MG, Tetreault L, Nater A, Choma T, Harrop J, Mroz T, et al. The aging of the global population. Neurosurgery. 2015;77(4):S1–S5. doi: 10.1227/NEU.0000000000000953. [DOI] [PubMed] [Google Scholar]
- 2.Ravindra VM, Senglaub SS, Rattani A, Dewan MC, Härtl R, Bisson E, et al. Degenerative lumbar spine disease: estimating global incidence and worldwide volume. Available from: https://us.sagepub.com/en-us/nam/open-access-at-sage [DOI] [PMC free article] [PubMed]
- 3.Fehlings MG, Tetreault L, Nater A, Choma T, Harrop J, Mroz T, et al. The aging of the global population: the changing epidemiology of disease and spinal disorders. Neurosurgery. 2015;77(4):S1–S5. doi: 10.1227/NEU.0000000000000953. [DOI] [PubMed] [Google Scholar]
- 4.Pimenta L, Tohmeh A, Jones D, Amaral R, Marchi L, Oliveira L, et al. Rational decision making in a wide scenario of different minimally invasive lumbar interbody fusion approaches and devices. J Spine Surg. 2018;4(1):142–155. doi: 10.21037/jss.2018.03.09. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 5.Mobbs RJ, Phan K, Malham G, Seex K, Rao PJ. Lumbar interbody fusion: techniques, indications and comparison of interbody fusion options including PLIF, TLIF, MI-TLIF, OLIF/ATP. LLIF and ALIF J Spine Surg. 2015;1(1):2–18. doi: 10.3978/j.issn.2414-469X.2015.10.05. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 6.Badlani N, Yu E, Ahn J, Kurd M, Khan S. Minimally invasive/less invasive microdiscectomy. Clin spine surg. 2016;29(3):108–110. doi: 10.1097/BSD.0000000000000369. [DOI] [PubMed] [Google Scholar]
- 7.Ohba T, Ebata S, Haro H (2017) Comparison of serum markers for muscle damage, surgical blood loss, postoperative recovery, and surgical site pain after extreme lateral interbody fusion with percutaneous pedicle screws or traditional open posterior lumbar interbody fusion. BMC Musculoskelet Disord, Oct 16 [cited 2021 May 24], 18(1). Available from: https://pubmed.ncbi.nlm.nih.gov/29037186/ [DOI] [PMC free article] [PubMed]
- 8.Tsutsumimoto T, Shimogata M, Ohta H, Misawa H, et al. Mini-open versus conventional open posterior lumbar interbody fusion for the treatment of lumbar degenerative spondylolisthesis: comparison of paraspinal muscle damage and slip reduction. Spine. 2009;34(18):1923–1928. doi: 10.1097/BRS.0b013e3181a9d28e. [DOI] [PubMed] [Google Scholar]
- 9.Virk SS, Yu E. The top 50 articles on minimally invasive spine surgery. Spine (Phila Pa 1976) 2017;42(7):513–519. doi: 10.1097/BRS.0000000000001797. [DOI] [PubMed] [Google Scholar]
- 10.Rodgers WB, Gerber EJ, Rodgers JA. Lumbar fusion in octogenarians: the promise of minimally invasive surgery. Spine. 2010;35(SUPPL. 26S):S355–S360. doi: 10.1097/BRS.0b013e3182023796. [DOI] [PubMed] [Google Scholar]
- 11.Rosenthal BD, Mendoza M, Boody BS, Hsu WK (2018) Approaches and relative benefits of open versus minimally invasivesurgery for degenerative conditions. The Spine Handbook, p 409
- 12.Goh GSH, Liow MHL, Yeo W, et al. The influence of body mass index on functional outcomes, satisfaction, and return to work after single-level minimally-invasive transforaminal lumbar interbody fusion: a five-year follow-up study. Spine. 2019;44(11):809–817. doi: 10.1097/BRS.0000000000002943. [DOI] [PubMed] [Google Scholar]
- 13.Eck J, Hodges S, Humphreys S. Minimally invasive lumbar spinal fusion. J Am Acad Orthop Surg. 2007;15(6):321–329. doi: 10.5435/00124635-200706000-00001. [DOI] [PubMed] [Google Scholar]
- 14.Villavicencio AT, Burneikiene S, Roeca CM, Nelson EL, Mason A. Minimally invasive versus open transforaminal lumbar interbody fusion. Surg Neurol Int. 2010;1:12. doi: 10.4103/2152-7806.63905. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 15.Lawrence M, Hayek S. Minimally invasive lumbar decompression: a treatment for lumbar spinal stenosis. Curr Opin Anaesthesiol. 2013;26(5):573–579. doi: 10.1097/01.aco.0000432520.24210.54. [DOI] [PubMed] [Google Scholar]
- 16.Podichetty V, Spears J, Isaacs R, Booher J, Biscup R, et al. Complications associated with minimally invasive decompression for lumbar spinal stenosis. J Spinal Disord Tech. 2006;19(3):161–6. doi: 10.1097/01.bsd.0000188663.46391.73. [DOI] [PubMed] [Google Scholar]
- 17.Lundh A, Gøtzsche PC. Recommendations by cochrane review groups for assessment of the risk of bias in studies. BMC Med Res Methodol. 2008;8(1):1–9. doi: 10.1186/1471-2288-8-22. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 18.Ottawa Hospital Research Institute [Internet]. [cited 2022 Mar 30]. Available from: http://www.ohri.ca/programs/clinical_epidemiology/oxford.asp
- 19.Duval S, Tweedie R. A Nonparametric Trim and Fill Method of accounting for publication bias in meta-analysis. J Am Stat Assoc. 2000;95(449):89–98. doi: 10.1080/01621459.2000.10473905. [DOI] [Google Scholar]
- 20.Duval S, Tweedie R. Trim and fill: A simple funnel-plot-based method of testing and adjusting for publication bias in meta-analysis. Biometrics. 2000;56(2):455–463. doi: 10.1111/j.0006-341X.2000.00455.x. [DOI] [PubMed] [Google Scholar]
- 21.Peters JL, Sutton AJ, Jones DR, Abrams KR, Rushton L. Performance of the trim and fill method in the presence of publication bias and between-study heterogeneity. Stat Med. 2007;26(25):4544–4562. doi: 10.1002/sim.2889. [DOI] [PubMed] [Google Scholar]
- 22.Vaishnav AS, Othman YA, Virk SS, Gang CH, Qureshi SA. Current state of minimally invasive spine surgery. J Spine Surg. 2019;5(Suppl 1):S2. doi: 10.21037/jss.2019.05.02. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 23.Ahn J, Iqbal A, Manning BT, Leblang S, Bohl DD, Mayo BC, et al. Minimally invasive lumbar decompression-the surgical learning curve. Spine J Off J N Am Spine Soc. 2016;16(8):909–916. doi: 10.1016/j.spinee.2015.07.455. [DOI] [PubMed] [Google Scholar]
- 24.Sclafani J, Kim C. Complications associated with the initial learning curve of minimally invasive spine surgery: a systematic review. Clin Orthop. 2014;472(6):1711–1717. doi: 10.1007/s11999-014-3495-z. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 25.Goldstein CL, Macwan K, Sundararajan K, Rampersaud YR. Perioperative outcomes and adverse events of minimally invasive versus open posterior lumbar fusion: meta-analysis and systematic review. J Neurosurg: Spine. 2016;24(3):416–427. doi: 10.3171/2015.2.SPINE14973. [DOI] [PubMed] [Google Scholar]
- 26.Hu W, Tang J, Wu X, Zhang L, Ke B. Minimally invasive versus open transforaminal lumbar fusion: a systematic review of complications. Int Orthop. 2016;40(9):1883–1990. doi: 10.1007/s00264-016-3153-z. [DOI] [PubMed] [Google Scholar]
- 27.Lu VM, Kerezoudis P, Gilder HE, McCutcheon BA, Phan K, Bydon M. Minimally invasive surgery versus open surgery spinal fusion for spondylolisthesis: A systematic review and meta-analysis. Spine (Phila Pa 1976) 2017;42(3):E177–E185. doi: 10.1097/BRS.0000000000001731. [DOI] [PubMed] [Google Scholar]
- 28.Qin R, Liu B, Zhou P, Yao Y, Hao J, Yang K, et al. Minimally invasive versus traditional open transforaminal lumbar interbody fusion for the treatment of single-level spondylolisthesis grades 1 and 2: a systematic review and meta-analysis. World Neurosurg. 2019;122:180–189. doi: 10.1016/j.wneu.2018.10.202. [DOI] [PubMed] [Google Scholar]
- 29.Hockley A, Ge D, Vasquez-Montes D, Moawad MA, Passias PG, Errico TJ, et al. Minimally invasive versus open transforaminal lumbar interbody fusion surgery: an analysis of opioids, nonopioid analgesics, and perioperative characteristics. Global Spine J. 2019;9(6):624. doi: 10.1177/2192568218822320. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 30.Akinduro OO, Kerezoudis P, Alvi MA, Yoon JW, Eluchie J, Murad MH, et al. Open versus minimally invasive surgery for extraforaminal lumbar disk herniation: a systematic review and meta-analysis. World Neurosurg. 2017;108:924–938. doi: 10.1016/j.wneu.2017.08.025. [DOI] [PubMed] [Google Scholar]
- 31.Evaniew N, Bogle A, Soroceanu A, Jacobs WB, Cho R, Fisher CG, et al.(2021) Minimally invasive tubular lumbar discectomy versus conventional open lumbar discectomy: an observational study from the canadian spine outcomes and research network. Global Spine J. Jul 9 [cited 2022 Feb 23]: 21925682211029864. Available from: http://www.ncbi.nlm.nih.gov/pubmed/34238046 [DOI] [PMC free article] [PubMed]
- 32.Miller LE, Bhattacharyya S, Pracyk J. Minimally invasive versus open transforaminal lumbar interbody fusion for single-level degenerative disease: a systematic review and meta-analysis of randomized controlled trials. World Neurosurg. 2020;133:358–365.e4. doi: 10.1016/j.wneu.2019.08.162. [DOI] [PubMed] [Google Scholar]
- 33.Heemskerk JL, Oluwadara Akinduro O, Clifton W, Quiñones-Hinojosa A, Abode-Iyamah KO. Long-term clinical outcome of minimally invasive versus open single-level transforaminal lumbar interbody fusion for degenerative lumbar diseases: a meta-analysis. Spine J. 2021;21(12):2049–2065. doi: 10.1016/j.spinee.2021.07.006. [DOI] [PubMed] [Google Scholar]
- 34.Vertuani S, Nilsson J, Borgman B, Buseghin G, Leonard C, Assietti R, et al. A cost-effectiveness analysis of minimally invasive versus open surgery techniques for lumbar spinal fusion in Italy and the United Kingdom. Value Health. 2015;18(6):810–816. doi: 10.1016/j.jval.2015.05.002. [DOI] [PubMed] [Google Scholar]
- 35.Droeghaag R, Hermans SMM, Caelers IJMH, Evers SMAA, van Hemert WLW, van Santbrink H. Cost-effectiveness of open transforaminal lumbar interbody fusion (OTLIF) versus minimally invasive transforaminal lumbar interbody fusion (MITLIF): a systematic review and meta-analysis. Spine J. 2021;21(6):945–954. doi: 10.1016/j.spinee.2021.01.018. [DOI] [PubMed] [Google Scholar]
