. 2022 Jul 20;8(8):e10010. doi: 10.1016/j.heliyon.2022.e10010

Biosynthesis and antibacterial activity of silver nanoparticles using Flos Sophorae Immaturus extract

Zhong Cheng a,b, ShanWen Tang a,b, Jing Feng a,b, Yu Wu a,b,c,∗
PMCID: PMC9358468  PMID: 35958264

Abstract

The current study proposes a green synthesis method for silver nanoparticles (Ag NPs) using various concentrations of Flos Sophorae Immaturus extract as reducing and capping agents. The UV-Visible (UV-Vis) spectroscopy, X-ray Diffraction (XRD), Fourier Transform Infrared spectroscopy (FTIR), X-ray Photoelectron Spectroscopy (XPS), Dynamic Light Scattering (DLS) and Transmission Electron Microscopy (TEM) were used to characterize resulting brown nanopowder. The as-prepared Ag NPs had a high negative zeta potential value of ∼ -38 mv, indicating the existence of electrostatic stabilization. The average sizes of ∼27.8 nm, 28.5 nm, 34.3 nm and 36.5 nm were measured by TEM. Moreover, FTIR and XPS analyses validated the production and chemical composition of Ag NPs from silver nitrate. The antibacterial activity of Ag NPs was examined against E. coli, P. aeruginosa, and S. aureus using agar well diffusion and the minimum inhibitory concentration (MIC) method. The antibacterial activity of the as-prepared Ag NPs from 4 mL extract was excellent against E. coli, P. aeruginosa, and S. aureus and the MIC values were 31.250, 15.625, and 31.250 mg/L, respectively. Based on these results, this study proposes a practical approach for the synthesis of Ag NPs in the industry and medical fields.

Keywords: Biosynthesis, Flos sophorae immaturus extract, Ag NPs, Nanotechnology, Bacteria, Antibacterial activity

Biosynthesis; Flos sophorae immaturus extract; Ag NPs; Nanotechnology; Bacteria; Antibacterial activity.

1. Introduction

Multidrug-Resistant (MDR) infections of microorganism pathogens are becoming common due to the abuse of antimicrobials and natural selection in the environment. The MDR bacteria genetically and biochemically overcome antibiotics stress, posing major challenges for the treatment of hospital and community-acquired infectious diseases [1, 2, 3]. For instance, E. coli, P. aeruginosa and S. aureus are resistant to methicillin and penicillin and can cause serious risks of burns, urinary tract infections, and post-operative infections [4, 5, 6, 7]. Therefore, it is necessary to explore novel viable strategies against MDR pathogens for public health. Presently, the introduction of nanomaterials with unique properties, particularly metal nanoparticles, offers new prospects to eradicate and treat the aforementioned diseases.

Among the metal nanoparticles, Ag NPs have been widely used as antibacterial agents because of their broad-spectrum bactericidal properties against some common bacteria and low minimum inhibitory concentration (MIC) [8, 9]. In general, reducing agents and surfactants are frequently used during the chemical synthesis of Ag NPs, to reduce silver ions and control the growth of Ag NPs [10]. However, due to the involvement of these toxic compounds, chemical methods suffer various deficiencies. Therefore, it is crucial to make more effort to explore environmentally friendly methods for preparing Ag NPs.

Researchers are increasingly interested in biosynthetic methods since they avoid toxic chemicals and involve simple steps [11, 12]. In comparison to other chemical methods, biosynthetic methods can synthesize Ag NPs with controlled size and shape without using hazardous substances [9, 13]. Fungi, algae, bacteria, and plants, among others, may currently synthesize Ag NPs [14]. The plant extract has been a better choice among the different bio-tools owing to their abundant components that can act as reducing as well as stabilizing agents. Thymus algeriensis, Jasminum subtriplinerve Blume, and Cinnamomum camphora leaf extracts were used to biosynthesize Ag NPs with higher antibacterial activity [15, 16, 17]. Furthermore, the Flos Sophorae Immaturus extract contains numerous polyhydroxy flavonoids with strong antioxidant activity, which can act as reducing agents in the production of Ag NPs [18].

The objective of this study is to develop a simple approach to the biosynthesis of Ag NPs. We successfully synthesized Ag NPs of different sizes using varying amounts of Flos Sophorae Immaturus extract as reducing and capping agents. A series of characterization techniques including Ultraviolet-Visible (UV-Vis) spectroscopy, X-ray Diffraction (XRD), X-ray Photoelectron Spectroscopy (XPS), Fourier Transform Infrared spectroscopy (FTIR) and Transmission Electron Microscopy (TEM), were used to validate the properties of the biosynthesized Ag NPs. The agar well diffusion and MIC methods were used to evaluate the antibacterial activities of Ag NPs against E. coli, P. aeruginosa, and S. aureus. This study will provide a cost-effective and environmentally friendly approach to the synthesis of Ag NPs.

2. Materials and methods

2.1. Materials and chemicals

Flos Sophorae Immaturus was obtained from the traditional Chinese medicine store, Chongqing. Rutin (>98.0%) was provided by Gelipu Biotechnology Co. Ltd, Chengdu. Dimethyl sulfoxide (C2H6OS, DMSO) was obtained from Titan Technology Co. Ltd, Shanghai. Methanol (HPLC grade) was supplied by Honeywell Burdick & Jackson trading, Ltd, Shanghai. Calcium hydroxide (Ca(OH)2) was supplied from Damao Chemical Reagent Factory, Tianjin. Sodium tetraborate pentahydrate (NaBH4·5H2O) and silver nitrate were purchased from Kelong Chemical Reagent Factory, Chengdu. Agar was obtained from Chron Chemicals, Ltd, Chengdu. Peptone, Beef extract, and Yeast extract were procured from Aoboxing bio-tech Co. Ltd, Beijing. E. coli, P. aeruginosa, and S. aureus bacterial strains were stored in our laboratory. Throughout the experiments, double distilled water was used. All the reagents were used without further purification.

2.2. Preparation of Flos Sophorae Immaturus extract and HPLC analysis

The dried Flos Sophorae Immaturus were ground into a coarse powder. A ratio of 20 g: 200 mL between Flos Sophorae Immaturus dosage and freshly prepared 0.4% NaBH4 solution was used. After 1 h of simmering, the pH of the mixture was adjusted to 8–9 with saturated Ca(OH)2 solution. After cooling, the extract was vacuum filtered and stored at 4 °C for further use. The main ingredient of the extract was detected by High Performance Liquid Chromatography (HPLC). A reversed-phase column (Sinopak, 5 μm C18, 150 mm × 4.6 mm, Elite, Dalian, China) was used with an HPLC system (LC-20A, Shimadzu, Kyoto, Japan). The mobile phase was methanol: water (40: 60 v/v) with acetic acid (1%) using isocratic elution at 1.0 mL/min. Chromatograms were taken at 257 nm with a run time of 20 min.

2.3. Biosynthesis of Ag NPs

Different volumes of Flos Sophorae Immaturus extract (4, 8, 12, 16 mL) and 40 mL AgNO3 solution (4 mM) were added to beakers, respectively. All reactions were performed at room temperature for 5 h in the dark. The production of Ag NPs was noticed as the colloidal solution turned to dark brown color. Subsequently, the samples were centrifuged at 10000 rpm for 3 min and the precipitate was dried in an oven.

2.4. Characterization of Ag NPs

UV-Vis spectroscopy, XRD, DLS, TEM, FTIR, and XPS were used to characterize the structure, morphology, and elemental composition of the as-prepared samples. Spectrophotometer UV 2600 (Tianmei Scientific Instrument Co. Ltd, China) was used to measure UV-Vis spectra of Ag NPs over a wavelength range of 330–800 nm. To investigate the crystallographic character of Ag NPs, XRD patterns were obtained in the 2θ range from 5° to 85° by an X-ray diffractometer (D8 ADVANCE, Bruker, Germany) using Cu Ka radiation (λ = 1.5406 Å). At room temperature, the Zeta potential of Ag NPs was measured by Brookhaven 90 Plus Particle Size Analyzer (Brookhaven Instruments Corporation, American). TEM (JEM2100, JEOL, Japan) was used to examine the morphology and size of Ag NPs at an accelerating voltage of 200 kV. The surface composition of Ag NPs was identified by FTIR (Spectrum Two, PerkinElmer, USA) in the range of 4000–400 cm−1 and XPS (ESCALAB 250Xi, Thermo-VG Scientific, USA) using Al-Ka (1486.6 eV) radiation.

2.5. Antibacterial activity of Ag NPs

To examine the antibacterial activity of the as-prepared Ag NPs against E. coli, P. aeruginosa, and S. aureus, the agar well diffusion method was used to culture E. coli and S. aureus grew in Luria-Bertani (LB) nutrient solution and incubated at 37 °C for 6 h, whereas P. aeruginosa was grown in Nutrient Broth and incubated at 30 °C for 6 h. The bacteria were then diluted to a 5–8×107 colony-forming unit (CFU/mL) with sterilized water.

The 100 μL bacterial suspensions (5–8 × 107 CFU/mL) of E. coli and S. aureus were pipetted and spread on the surface of Petri plates containing LB medium. Similarly, 100 μL bacterial suspensions (5–8 × 107 CFU/mL) of P. aeruginosa were swabbed on the surface of Petri plates containing Nutrient Agar Broth medium. Then, wells with 8.0 mm diameter were made on the plate, and 100 μL of Ag NPs solution (2 mg/mL) and 50% DMSO (negative control) were added to respective wells. After 12 h of incubation at 37 °C, the Zone of Inhibition (ZOI) was measured using a Vernier caliper. All the experiments were repeated 5 times independently, and the data were calculated as means ± SD.

The broth microdilution method was used to determine the minimum inhibitory concentration (MIC) [19]. Serial dilutions of Ag NPs were prepared using a broth medium. The 100 μL of various concentrations of Ag NPs (500–3.75 μg/mL) were transferred into 96-well microplates and then mixed with 10 μL of E. coli, P. aeruginosa, and S. aureus (5–8 × 105 CFU/mL) [20]. The mixed solutions were incubated at 37 °C for 16 h. Finally, UV-Vis spectroscopy was used to measure the absorbance of wells at 600 nm, and the OD600 measurement indicates the bacterial growth kinetics in a broth medium [21]. The MIC was considered to be the lowest concentration that inhibits visible bacterial growth, and all the experiments were done in triplicate.

3. Results and discussion

3.1. Characterization

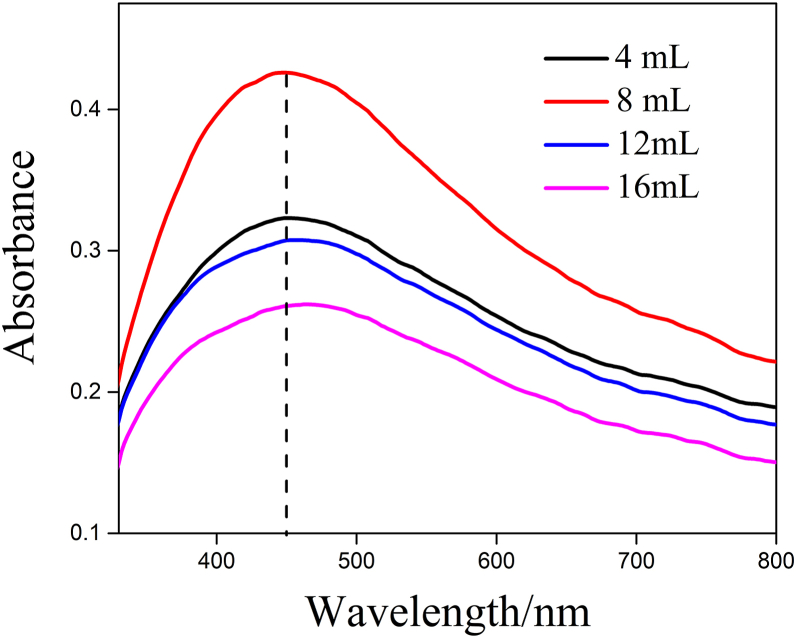

UV-Vis spectroscopy was used to monitor the formation of Ag NPs from different amounts of extract (4, 8, 12, 16 mL). The single and strong peak around 450 nm shown in Figure 1 indicates the bioreduction of Ag+ ions to Ag0 by extract [22, 23]. Moreover, when the additional volume was more than 8 mL, the surface plasmon resonance (SPR) absorption peaks of Ag NPs showed a slight red-shift (from 450 to 465 nm), which can be ascribed to the increase in the size of Ag NPs [24]. It could be due to the interaction between capping molecules attached to the surface of particles and the secondary reduction process on the surface of the accomplished nuclei [25].

Figure 1.

Figure 1

Open in a new tab

UV-Vis spectra of Ag NPs synthesized from different volumes of extract.

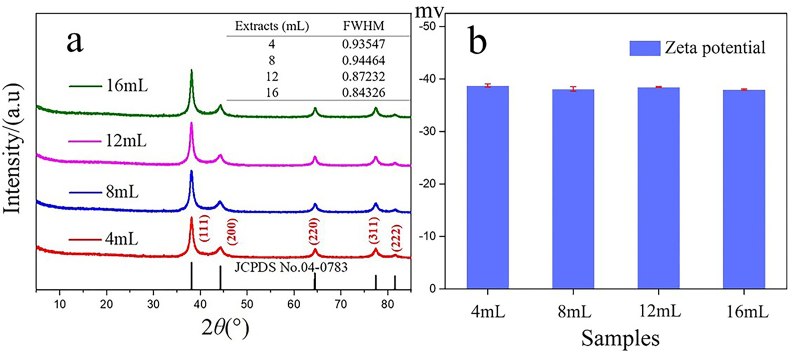

Figure 2a shows the XRD patterns of the synthesized Ag NPs. It displays five distinct diffraction peaks at 81.61°, 77.42°, 64.33°, 44.35°, and 38.10°, corresponding to the diffractions of (222) (311) (220) (200), and (111) lattice planes of face-centered cubic silver (JCPDS card No. 04–0783) [26]. The full width at half maximum (FWHM) of the (111) lattice plane was determined by MDI Jade 6.5 software. When the extract volume addition increased to 12 and 16 mL, FWHM become significantly narrower. This may be attributed to the increase in size of Ag NPs, which is consistent with the UV-Vis analysis [27].

Figure 2.

Figure 2

Open in a new tab

XRD patterns (a), Zeta potential values (b) of Ag NPs synthesized from different additional volumes of extract.

The stability of Ag NPs was predicted by Zeta potential analysis. The zeta potential values of the as-prepared Ag NPs are displayed in Figure 2b, and it ranges from -37.89 ± 0.12 mV to -38.77 ± 0.31 mV, confirming the negative-charged groups on the surface of Ag NPs. The negatively charged surface aids in preventing the aggregation of Ag NPs and controlling the shape and size of Ag NPs [22].

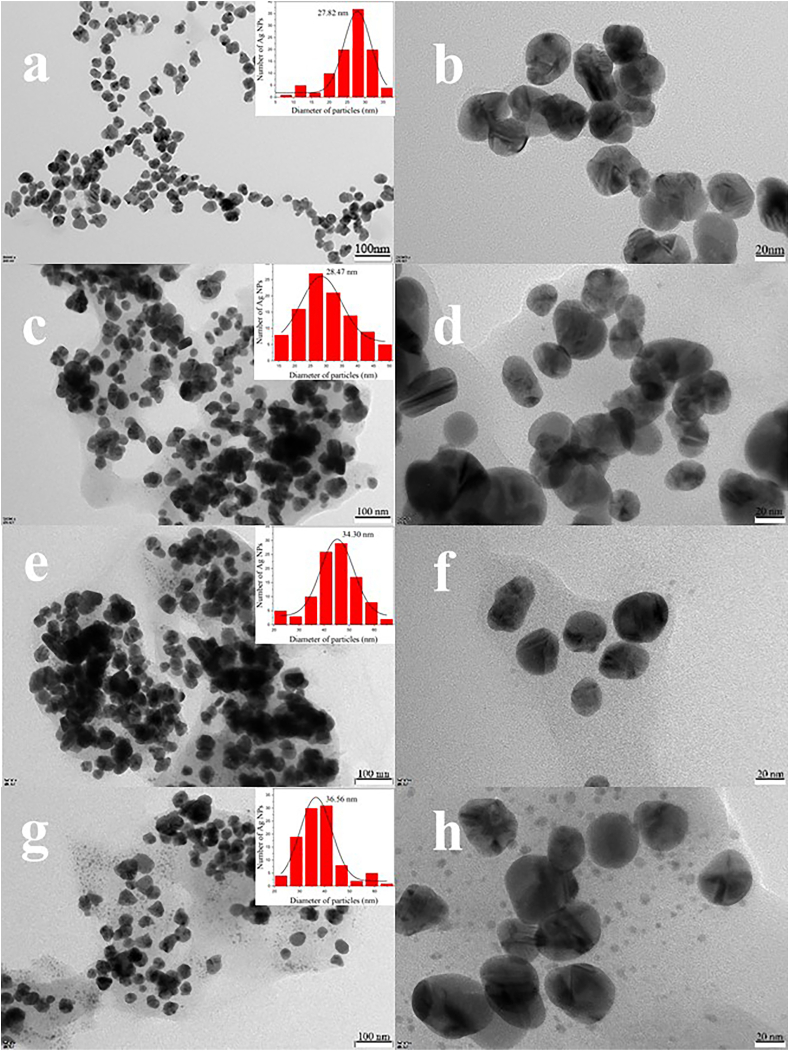

The size and morphology of nanoparticles were characterized by TEM analysis. As illustrated in Figure 3, the images show the agglomeration of small grains and some dispersed nanoparticles, which corresponds with the previous findings [28]. The average size of the synthesized Ag NPs from 4 mL, 8 mL, 12 mL, and 16 mL extracts are ∼27.8 nm, 28.5 nm, 34.3 nm and 36.5 nm, respectively. The particle size gradually increased with an increasing volume of the extract, confirming the response observed in the SPR band, as shown in Figure 1.

Figure 3.

Figure 3

Open in a new tab

TEM images of Ag NPs synthesized by 4 mL (a, b), 8 mL (c, d), 12 mL (e, f), and 16 mL (g, h) extract, the insets are the histograms of the corresponding Ag particles size distribution, counts = 100.

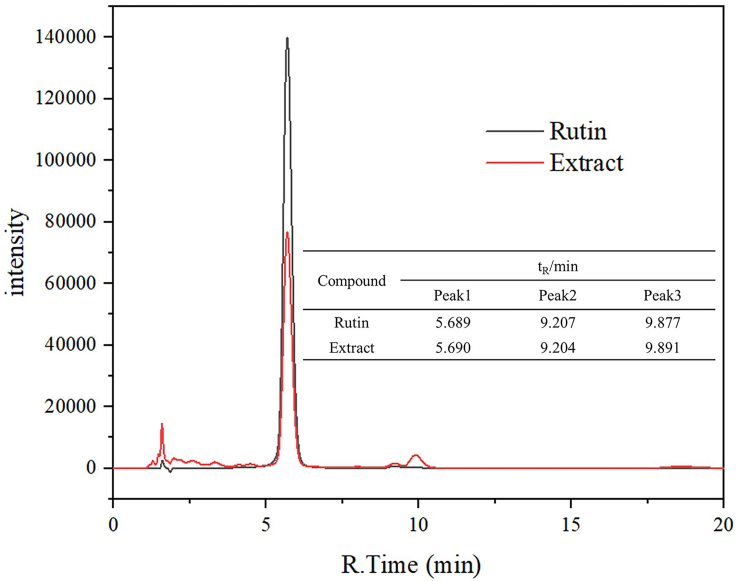

The rutin was discovered to be the primary component in Flos Sophorae Immaturus [29]. In this study, HPLC was used to identify rutin in Flos Sophorae Immaturus extract. Chromatograms of rutin and extract are presented in Figure 4. At the same chromatographic condition, the retention time of the main component in the extract is consistent with rutin. Therefore, rutin was the main component of the Flos Sophorae Immaturus extract.

Figure 4.

Figure 4

Open in a new tab

Chromatograms of rutin and extract.

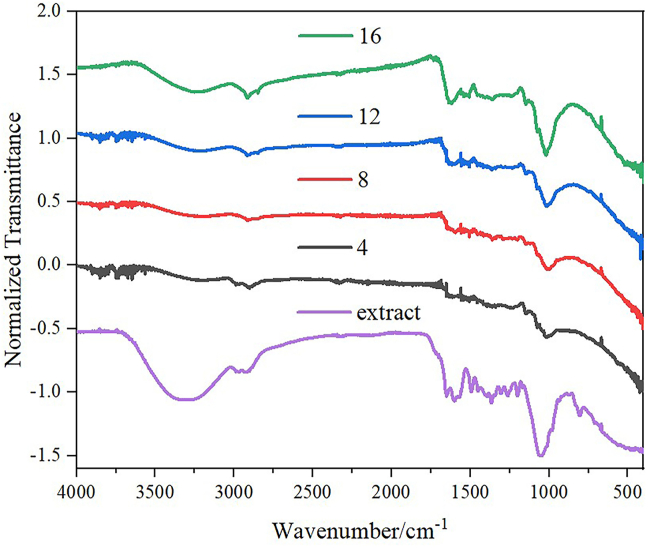

Figure 5 shows the FTIR spectra of Flos Sophorae Immaturus extract and the green synthesized Ag NPs by adding different volumes of extract. According to the spectra of Ag NPs, the peak at 3269 cm−1, 2910 cm−1, 1628 cm−1 and 1009 cm−1 correspond to O–H stretching, C–H stretching vibration of CH2, C=O stretching, and C–O–C stretching, which consistent with the spectrum of Flos Sophorae Immaturus extract. The FTIR spectra suggest that rutin in extract acts as a capping and reducing agent.

Figure 5.

Figure 5

Open in a new tab

FTIR spectra of extract (purple line) and Ag NPs synthesized by adding 4 mL (black line), 8 mL (red line), 12 mL (blue line), and 16 mL (green line) extract.

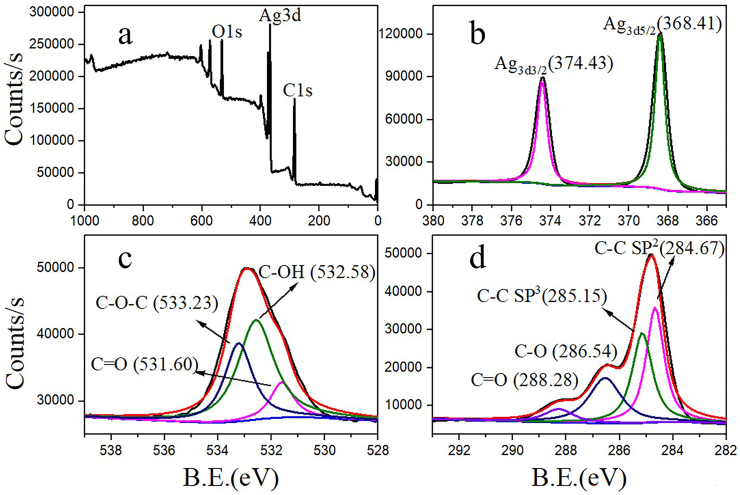

The detailed chemical states of the Ag NPs synthesized from 4 mL extract were further analyzed by XPS. Some clear peaks are assigned to Ag3d, C1s, and O1s as illustrated in Figure 6a. The high-resolution spectra of Ag3d are shown in Figure 6b, and the binding energies of Ag3d3/2 and Ag3d5/2 are 374.43 and 368.41 eV, respectively. The difference of ∼6.0 eV between Ag3d3/2 and Ag3d5/2 indicates the formation of Ag NPs [30, 31]. Additionally, the high-resolution O1s and C1s spectra indicate the presence of biocompounds derived from the extract. The high-resolution O1s spectrum (Figure 6c) displays a broad peak deconvoluted into three subpeaks at ∼531.60, ∼532.58, and ∼533.23 eV corresponding to C=O, C–OH, and C–O–C [32, 33]. These functional groups are derived from the phytochemicals of Flos Sophorae Immaturus extract. The C1s spectrum of the synthesized Ag NPs is deconvoluted into four subpeaks, with binding energies of C=C (sp2 carbon), C–C (sp3 carbon), C–O and C=O are ∼284.67, ∼285.15, ∼286.54, and ∼288.28 eV, respectively (Figure 6d) [34, 35].

Figure 6.

Figure 6

Open in a new tab

XPS spectrum of Ag NPs synthesized from 4 mL extract. Survey scan of Ag NPs (a), XPS high-resolution spectrum of Ag3d region (b), O1s region (c) and C1s region (d).

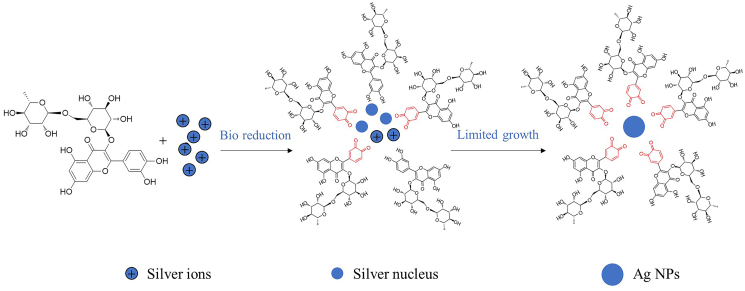

3.2. Mechanism for the green synthesis of Ag NPs

The green synthesized Ag NPs can reduce the use of organic solvents as well as avoid the production of toxic waste. Rutin is the primary component in Flos Sophorae Immaturus extract as per HPLC and FTIR studies, and it acts as a capping and reducing agent during the green synthesis of Ag NPs. Previous research found that the –OH groups in flavonoids may reduce silver ions to Ag NPs [36, 37]. Figure 7 depicts a schematic of the proposed mechanism for the Ag NPs synthesis by Flos Sophorae Immaturus extract. Firstly, the tautomeric transformation of flavonoids from enols to ketones can release active hydrogen atoms, which are responsible for the reduction of silver ions to silver nuclei. Subsequently, cumulative reactions on these nuclei lead to the formation of larger Ag NPs.

Figure 7.

Figure 7

Open in a new tab

The mechanism for the greed synthesis of Ag NPs using Flos Sophorae Immaturus extract.

3.3. Antibacterial activity

The agar well diffusion method was used to assess the antibacterial activity of the synthesized Ag NPs against gram-negative (E. coli and P. aeruginosa) and gram-positive (S. aureus) bacteria. The Zone of Inhibition (ZOI) for Ag NPs at the concentration of 2 mg/mL is summarized in Table 1 and Figure 8. The maximum ZOI was observed in the synthesized Ag NPs from 4 mL extract, with the inhibition zone diameters of 16.28 ± 0.55 mm, 16.28 ± 0.77 mm and 14.42 ± 0.08 mm against E. coli, S. aureus, and P. aeruginosa, respectively. Furthermore, the synthesized Ag NPs from 16 mL extract has the lowest antibacterial activity against E. coli, S. aureus, and P. aeruginosa, with ZOI ∼14.06 ± 0.83 mm, 12.28 ± 0.74 mm and 12.76 ± 0.94 mm, respectively. The results show that the synthesized Ag NPs from various amounts of extract had a significant inhibitory effect on both Gram-negative and Gram-positive bacteria. The antibacterial activity of Ag NPs is closely related to the particle size, with smaller Ag NPs having higher activity than larger ones.

Table 1.

Antibacterial activity of Ag NPs synthesized from different volumes of extract.

Pathogenic microorganisms Zone of Inhibition (mm)
4 mL 8 mL 12 mL 16 mL
E. coli 16.28 ± 0.55 15.56 ± 0.91 15.42 ± 0.88 14.06 ± 0.83
S. aureus 16.28 ± 0.77 13.82 ± 1.25 13.44 ± 1.34 12.28 ± 0.74
P. aeruginosa 14.42 ± 0.08 12.98 ± 0.61 13.06 ± 0.94 12.76 ± 0.94
Open in a new tab

Figure 8.

Figure 8

Open in a new tab

The ZOI of the synthesized Ag NPs against E. coli, S. aureus, and P. aeruginosa (Errors bars represent the standard deviation of the mean, n = 5).

The MIC of the synthesized Ag NPs from 4 mL extract is defined as the minimum concentration of Ag NPs that inhibits the growth of bacteria. The broth microdilution method was used to calculate the MIC for Ag NPs against these three tested bacteria (Figure 8 inset) in this study. The MIC for P. aeruginosa was found to be 15.625 mg/L, whereas the MIC for E. coli and S. aureus was 31.250 mg/L. A comparison of the antibacterial activity of the green synthesized Ag NPs with other antibacterial Ag NPs is summarized in Table 2. The Ag NPs synthesized by Flos Sophorae Immaturus extract appear to have a higher bactericidal effect against E. coli, S. aureus, and P. aeruginosa.

Table 2.

Comparison of MIC of Ag NPs synthesized from different plants against different pathogens.

Plants Diameter (nm) Pathogen MIC(μg/mL) References
Cacumen platycladi 60 E. coli 40 [38]
S. aureus 80
Decaspermum parviflorum 8–15 E. coli 31.25 [22]
S. aureus 62.50
p. aeruginosa 15.62
Xanthostemon chrysanthus 6–25 E. coli 31.25
S. aureus 15.62
p. aeruginosa 62.50
Syzygium campanulatum 24–55 E. coli 31.25
S. aureus 62.50
p. aeruginosa 31.25
Carya illinoinensis leaf 20.34 S. aureus 128 [39]
L. monocytogenes 64
E. coli 16
p. aeruginosa 32
Flos Sophorae Immaturus 27.8 E. coli 31.250 This work
S. aureus 31.250
p. aeruginosa 15.625
Open in a new tab

The antibacterial mechanism of biosynthesized Ag NPs has not been fully understood. Recent studies have reported the generalized mechanisms such as (i) the interactions between Ag+ and sulfur-/phosphate-rich proteins in the cell membrane and wall can enhance the permeability leading to breakage of the bacterial cells, and (ii) Ag+ penetrates the bacterial cells and accelerate the generation of ROS, causing cell membrane disruption and DNA modification [26, 40, 41].

4. Conclusion

We proposed a cost-effective and environmentally friendly method for the synthesis of Ag NPs in this study using various amounts of Flos Sophorae Immaturus extract as effective reducing and stabilizing agents. The synthesized Ag NPs were characterized by multiple techniques. The formation of Ag NPs was confirmed by UV-Vis spectroscopy, XRD and XPS. The morphology of nanoparticles is generally spherical, with an average size ranging from 25 to 40 nm, and the high negative zeta potential values indicated that Ag NPs have good stability. The resulting Ag NPs also demonstrated excellent antibacterial activity against gram-negative (E. coli and P. aeruginosa) and gram-positive (S. aureus) bacteria, with antibacterial activities increasing as the size of the nanoparticles decreased. These biosynthesized Ag NPs have a broad spectrum of antimicrobial activities for bacteria and have the potential to be good antibacterial agents in multiple fields.

Declarations

Author contribution statement

Zhong Cheng: Conceived and designed the experiments; Performed the experiments; Analyzed and interpreted the data; Wrote the paper.

Shanwen Tang: Conceived and designed the experiments; Performed the experiments.

Jing Feng: Performed the experiments.

Yu Wu: Conceived and designed the experiments; Analyzed and interpreted the data; Contributed reagents, materials, analysis tools or data; Wrote the paper.

Funding statement

This work was supported by the Scientific Research Foundation of Chongqing University of Technology (Grants No. 2019ZD14), the Science and Technology Research Project of Chongqing Education Commission (Grants No. KJQN201801115), and the Natural Science Foundation of Chongqing (No. cstc2021jcyj-bshX0084).

Data availability statement

Data included in article/supplementary material/referenced in article.

Declaration of interests statement

The authors declare no conflict of interest.

Additional information

No additional information is available for this paper.
