BF₃·Et₂O-Mediated annulation of α-keto acids with aliphatic ketones for the synthesis of γ-hydroxy-butenolides and γ-alkylidene-butenolides

Abstract

Annulation reaction of α-keto acids with cyclic or acyclic aliphatic ketones is reported herein to divergently access γ-hydroxy-butenolides and γ-alkylidene-butenolides depending on the amount of BF₃·Et₂O. This protocol features good functional tolerance and ease of operation, to open a route to access butenolides via an annulation and dehydration process.

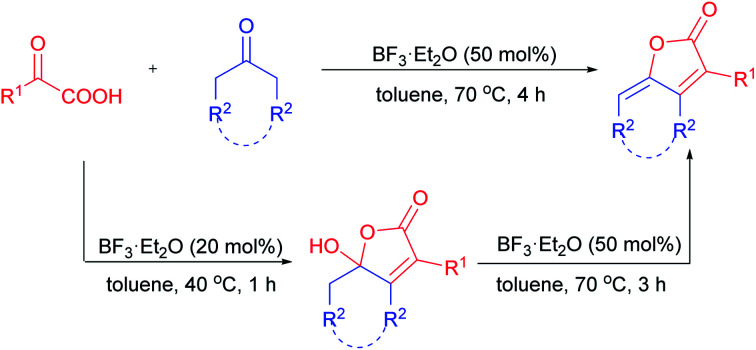

An efficient approach to divergently access γ-hydroxy-butenolides and γ-alkylidene-butenolides via annulation reaction of α-keto acids with simple aliphatic ketones is reported herein.

Introduction

Butenolides are privileged structures widely existing in bioactive terpene natural products. Most of them are naturally-occurring structures and display various bio-activities.¹ They are also widely used in traditional Chinese medicines to relieve cough and invigorate blood circulation.² For example, bioactive eudesmanolides sesquiterpene atractylenolide I, II and III isolated from dried roots are used in diverse disorders like chronic asthenia, anorexia (Fig. 1).³ Styxlactone is a new lactone isolated from Myrmekioderma Styx.⁴ To this end, ever since the initial report of morpholine promoted cyclization of cyclohexanone with 2-chloro-2-methoxyethyl acetate by Baiocchi in 1979,⁵ the construction of butenolides has been of interest in the synthetic community.⁶ For example, Brønsted or Lewis acids promoted annulation reaction α-keto acids with linear aliphatic ketones for the preparation of butenolides have been separately developed by several groups,⁷ while the preparation of highly substituted fused butenolides from α-keto acids and aliphatic ketones has not been reported yet. Thus, developing novel approaches to divergently access γ-hydroxy-butenolides and γ-alkylidene-butenolides with commercially available starting materials and ease of operation is still desirable.

Fig. 1. Representative bioactive eremophilanolides.

On the other hand, α-keto acids have long been serving as acylating agents to deliver a carbonyl group via metal or oxidant-promoted decarboxylative coupling reactions.⁸ However, the annulation reactions of α-keto acids are far less studied.⁹ In 2015, Zhu and coworkers¹⁰ innovatively reported a synergistic acid promoted annulation of α-keto acid with alkenes generated from tertiary alcohols to afford highly substituted butenolides (Scheme 1a). Following the preliminary report, the annulation of α-keto acid with internal¹¹ or terminal alkynes¹² to afford γ-hydroxybutenolides or multiply substituted butenolides was also reported by the same group (Scheme 1b). The strategy was then extended to the annulation reaction of α-keto acids with functionalized alkynes by Wang¹³ and Cui group.¹⁴ In 2018, Fan and coworkers¹⁵ reported an elegant synthesis of furan-2(5H)-one fused N,O-containing bicyclic compounds via the annulation reaction of N-aryl substituted saturated cyclic amines with α-keto acids (Scheme 1c). Despite the substantial progress achieved, the annulation with unsaturated bonds is far less than well developed.

Scheme 1. Previous reports in the annulation of α-keto acid.

Meanwhile, ketones are among the most readily available building blocks in organic synthesis. Great efforts have been devoted to the direct α-functionalization¹⁶ and annulation reaction¹⁷ of ketones by in situ generated enols. However, to the best of our knowledge, the simple acid-promoted annulation reaction of α-keto acid with cyclic or linear aliphatic ketones has not been explored yet. As part of our continuous effort in radical decarboxylation and annulation reaction of α-keto acid,¹⁸ we reported herein a novel avenue to divergently access γ-hydroxy-butenolides and γ-alkylidene-butenolides via BF₃·Et₂O-catalyzed annulation of α-keto acids with aliphatic ketones (Scheme 2). Water was the only by-product generated in the transformation, thus making it a simple and efficient process for the construction of various butenolide.

Scheme 2. BF₃·Et₂O-catalyzed annulation of α-keto acids and aliphatic ketones.

Results and discussion

We commenced our study with 1a (0.5 mmol) and 2a (2.0 equiv.) as model substrates in the presence of BF₃·Et₂O (1.0 equiv.) as catalyst in toluene at 40 °C, 3aa was obtained in 70% yield (Table 1, entry 1). Inspired by the preliminary results, the effects of different catalysts were first investigated. The utilization of other Lewis acids such as FeCl₃ and Bi(OTf)₃ led to the decrease in the yield (entries 2 and 3), while product 3aa could not be detected with p-TSA as catalyst (entry 4). A survey of the solvents revealed that toluene was the optimal solvent, inferior yield was obtained with MeCN, DCE, or fluorobenzene (entries 1 and 5–7). By fine-tuning the amount of BF₃·Et₂O, 3aa was obtained in 86% yield (entries 8 and 9). The yield of 3aa was decreased to 78% by lowering the ratio of 1a : 2a from 1 : 2 to 1 : 1.5 (entry 10). Finally, the optimal reaction conditions were deemed as entry 8 to provide product 3aa in 86% yield after a comprehensive optimization of conditions.

Optimization of reaction conditions for 3aa ^a.

Entry	Variation from the standard conditions	Yieldb (3aa) (%)
1	None	70
2	FeCl3 instead of BF3·Et2O	45
3	Bi(OTf)3 instead of BF3·Et2O	53
4	p-TSA instead of BF3·Et2O	n.d.
5	MeCN instead of toluene	35
6	DCE instead of toluene	46
7	Fluorobenzene instead of toluene	69
8	BF3·Et2O (0.2 equiv.)	86
9	BF3·Et2O (0.1 equiv.)	76
10	1a : 2a = 1 : 1.5	78

^aStandard conditions: 1a (0.5 mmol), 2a (2.0 equiv), BF₃·Et₂O (1 equiv.), toluene (2.0 mL), 40 °C, 1 h.

^bIsolated yields.

Interestingly, it was found that 4aa could be obtained in 82% yield at elevated reaction temperature by prolonging the reaction time to 4 h during the optimization process for the preparation of 3aa (Table 2, entry 1). Then we proceeded to evaluate the effects of temperature on the reaction. The reaction was significantly affected by the temperature. A dramatic erosion in the yield of γ-alkylidene-butenolides (4aa) was observed when the reaction was performed at 40 °C (entry 2). Continuous increasing the temperature to 90 °C didn't improve the yield (entry 3). Then the loading of catalyst was further evaluated. A comparable yield was obtained when the loading of BF₃·Et₂O was decreased to 0.5 equiv. (entry 4), however, a sharp decrease in yield was observed by lowering the loading of BF₃·Et₂O to 0.2 equiv., indicating that BF₃·Et₂O is crucial for the dehydration process of 3aa to form desired product 4aa (entry 5). Furthermore, switching to other Lewis acid provided 4aa in decreasing yield (entries 6 and 7). The replacement of toluene with other solvents failed to improve the yield (entries 8 and 9). Additionally, 4aa was afforded in a similar yield when increasing the ratio of 1a : 2a to 1 : 3 (entry 10). Then the optimal condition for 4aa was identified as entry 4.

Optimization of reaction conditions for 4aa ^a.

Entry	Variation from the standard conditions	Yieldb (4aa) (%)
1	None	82
2	40 °C instead of 70 °C	13
3	90 °C instead of 70 °C	62
4	BF3·Et2O (0.5 equiv.)	82
5	BF3·Et2O (0.2 equiv.)	63
6	Sc(OTf)3 instead of BF3·Et2O	61
7	AlCl3 instead of BF3·Et2O	55
8	Xylene instead of toluene	73
9	Chlorobenzene instead of toluene	71
10	1a : 2a = 1 : 3	79

^aStandard conditions: 1a (0.5 mmol), 2a (2.0 equiv.), BF₃·Et₂O (1 equiv.), toluene (2.0 mL), 70 °C, 4 h.

^bIsolated yields.

With the optimal conditions in hand, we set out to investigate the scope for the synthesis of γ-hydroxy-butenolides (3aa–p) (Table 3). The reaction was slightly affected by the steric hindrance of cyclohexanone, to furnish 3aa and 3ac with relatively higher yields than 3ab with ortho-methyl substituents. Tetrahydro-4-pyrone was a suitable substrate for the reaction, to afford 3ad with moderate yield. Additionally, seven-membered cycloheptanone proceeded well to give 3ae in 79% yield. The reaction also tolerated 1,3-cyclohexanedione, delivering the corresponding product 3af and 3ag in synthetically useful yields. The structure of 3af was unambiguously assigned by the single crystal X-ray crystallography. It was worth noting that acetone was well accommodated to afford the corresponding 3ah in 59% yield. Encouraged by the broad generality of aliphatic ketones, we then examined the scope of α-keto acids. The reaction proceeded well when naphthenic α-keto acid was employed as the substrate to afford product 3ai in 85% yield. Both electron-donating and withdrawing aryl substituents of α-keto acids were tolerated to give 3aj–n in moderate to good yields. Moreover, thienyl α-keto acid reacted smoothly to deliver 3ao in 72% yield. Notably, pyruvic acid was also compatible in this reaction, giving 3ap in 71% yield. Disappointedly, the free hydroxyl group (2h) and alkenyl moiety (2i) could not be tolerated in the reaction.

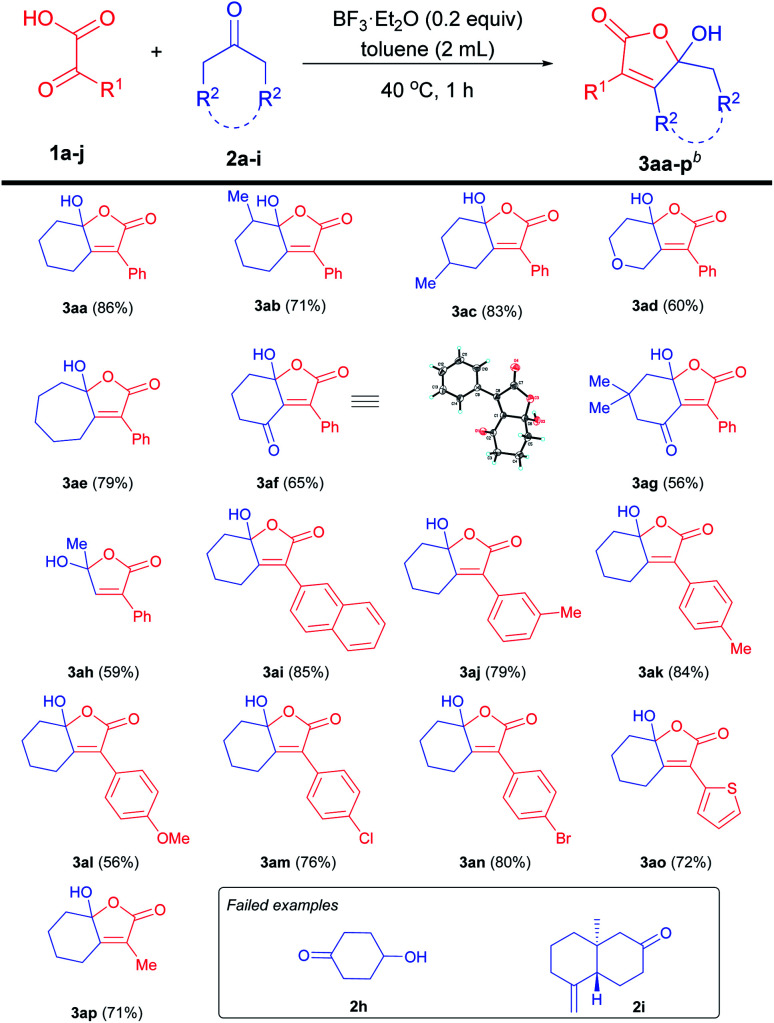

Substrate scope for the generation of 3aa–p ^a,b.

^aStandard conditions: 1a (0.5 mmol), 2a (2.0 equiv.), BF₃·Et₂O (0.2 equiv.), toluene (2.0 mL), 40 °C, 1 h.

^bIsolated yields.

Subsequently, the substrate scope of γ-alkylidene-butenolides 4aa–i was examined (Table 4). The reaction worked well with aryl α-keto acids bearing methyl and chloride substituents to give 4ab–d in good yields, indicating that the electronic properties of the phenyl ring have no obvious influence on the reaction efficiency. Significantly, α-keto acid with thienyl group was a viable substrate for the reaction to furnish 4ae in 61% yield. In addition, both 1,3-cyclohexandione and five-membered cyclopentanone were suitable substrates to afford 4af and 4ag in moderate yields. It was worth mentioning that acyclic ketones such as acetone and 3-pentanone were well tolerated in the reaction to give rise to the corresponding 4ah and 4ai in a relatively lower yield of 45% and 39%, respectively.

Substrate scope for the generation of 4aa–i ^a,b.

^aStandard conditions: 1a (0.5 mmol), 2a (2.0 equiv.), BF₃·Et₂O (0.5 equiv.), toluene (2.0 mL), 70 °C, 4 h.

^bIsolated yields.

To demonstrate the practicality of this protocol, a gram-scale reaction was performed (Scheme 3). Gratifyingly, the substrates were divergently converted to 3aa and 4aa under standard conditions in good yields, further implying this approach's potential utility.

Scheme 3. Gram-scale reactions.

To delineate the mechanism, control experiment was conducted with 3aa as substrate in the presence of excess amount of BF₃·Et₂O at 70 °C, γ-alkylidene-butenolide (4aa) was obtained in 92% yield, to further imply that BF₃·Et₂O was crucial for the dehydration process in this transformation (Scheme 4).

Scheme 4. Control experiment.

Based on the results and previous reports,^10–15 we proposed a plausible pathway accounting for the formation of 3aa and 4aa (Scheme 5). Initially, the enolized cyclohexanone A from 2a underwent nucleophilic attack with α-keto acid (1a) with the assistance of Lewis acid to afford intermediate B. The intermediate B was then cyclized intramolecularly to give intermediate C, followed by dehydration to give 3aa. With increased amount of catalyst at elevated reaction temperature, 3aa was able to transformed to produce 4aa after dehydration.

Scheme 5. Plausible mechanism.

Conclusions

In summary, we have developed an efficient and convenient BF₃·Et₂O-mediated annulation reaction of α-keto acids with aliphatic ketones to simultaneously synthesize γ-hydroxy-butenolides and γ-alkylidene-butenolides. The method features good functional group tolerance and moderate to good yields, thus providing a facial and practical approach for the diversification of the library of butenolides. The application of this method for the synthesis of natural products is underway in our laboratory.

Conflicts of interest

There are no conflicts to declare.
