. 2022 Sep 2;30(4):8835–8852. doi: 10.1007/s11356-022-22786-3

Evaluation of the efficiency of a Venturi scrubber in particulate matter collection smaller than 2.5 µm emitted by biomass burning

Maria Angélica Martins Costa 1, Bruno Menezes da Silva 1, Sâmilla Gabriella Coelho de Almeida 1, Marcos Paulo Felizardo 2, Ana Flávia Martins Costa 3, Arnaldo Alves Cardoso 4, Kelly Johana Dussán 1,✉
PMCID: PMC9438357  PMID: 36053424

Abstract

Energy demand has increased worldwide, and biomass burning is one of the solutions most used by industries, especially in countries that have a great potential in agriculture, such as Brazil. However, these energy sources generate pollutants, consisting of particulate matter (PM) with a complex chemical composition, such as sugarcane bagasse (SB) burning. Controlling these emissions is necessary; therefore, the aim was to evaluate PM collection using a rectangular Venturi scrubber (RVS), and its effects on the composition of the PM emitted. Considering the appropriate use of biomass as an industrial fuel and the emerging need for a technique capable of efficiently removing pollutants from biomass burning, this study shows the control of emissions as an innovation in a situation such as the industrial one with the use of a Venturi scrubber in fine particle collection, in addition to using portable and representative isokinetic sampling equipment of these particles. The pilot-scale simulation of the biomass burning process, the representative sampling of fine particles and obtaining parameters to control pollutant emissions for a Venturi scrubber, meets the current situation of concern about air quality. The average collection efficiency values were 96.6% for PM> 2.5, 85.5% for PM1.0–2.5, and 66.9% for PM< 1.0. The ionic analysis for PM< 1.0 filters showed potassium, chloride, nitrate, and nitrite at concentrations ranging from 20.12 to 36.5 μg/m3. As the ethanol and sugar plants will continue to generate electricity with sugarcane bagasse burning, emission control technologies and cost-effective and efficient portable samplers are needed to monitor particulate materials and improve current gas cleaning equipment projects.

Supplementary Information

The online version contains supplementary material available at 10.1007/s11356-022-22786-3.

Keywords: Particulate matter, Venturi scrubber, Biomass, Control, Air pollution, Clean emission

Introduction

Population growth and increasing global energy demand have stimulated the development and search for new renewable energy sources. The emerging use of bioenergy in multiple countries has opened up an international debate on the environmental impacts related to this practice such as deforestation, biodiversity loss, and population health issues caused by water and air pollution (Roy et al. 2020). Industrial companies, in general, are seeking an economic alternative to their fuels, providing technical, economic, and environmental benefits, and the total or partial substitution of fossil fuels using biomass has shown evidence of this improvement. In Brazil, sugarcane bagasse is bioenergy input. Sugarcane bagasse is defined as the solid remaining from sugarcane juice extraction in the milling stage and predominantly comprises carbon and oxygen. Due to its abundant availability and high calorific value, sugarcane bagasse has been widely used to generate electric energy through combustion processes in Brazil (Dantas et al. 2013; Furtado Júnior et al. 2020; Sthel et al. 2019).

Moreover, sugarcane bagasse burning is of great importance in the sugar and alcohol industry. In energy cogeneration plants, biomass combustion is used to meet industrial energy demands and the energy surplus is sold to concessionaires. This practice is necessary for the economic viability of these industrial processes, and as an alternative to energy sources from fossil fuels (Carvalho et al. 2019; Cavalcanti et al. 2020; Contreras-Lisperguer et al. 2018; Gongora and Villafranco 2018). In addition, the energy recovery by burning this biomass was higher when compared to gasification or anaerobic digestion (Mohammadi et al. 2020; Stanmore 2010).

One of the drawbacks of thermoelectric energy generation methods is the high rate of pollutant emission into the atmosphere. Specially in small-scale thermoelectric plants when combined to a lower technological development, the increased emission of fine particulate matter (PM) is a common issue (Bianchini et al. 2018). Generally, the furnace of thermoelectric plants uses temperatures between 1443 and 1496 K to burn sugarcane bagasse. At this temperature range, sugarcane bagasse combustion emits a large amount of pollutants that are released directly into the atmosphere, which is a serious environmental problem (Salinas et al. 2020). The combustion vapor emitted by the furnace contains an enormous amount of inorganic ions (NO3−, SO42−, NH4+, K+), PM, and volatile organic compounds (benzene, levoglucosan), among others. These compounds, if emitted into the atmosphere or accumulated in enclosed spaces, impact both the environment and the health of those operating the burning equipment (Sharma and Mandal 2017; Urban et al. 2016).

In contrast to the energy benefits, the burning of biomass emits greenhouse gases and fine particulate matter (PM), which impact the climate and human health. Thus, it is evident that there is an urgent need to reduce PM and gas concentrations from industrial processes that use biomass as an energy source, which is abundant, for example, in sugar and alcohol industries. In this context, industrial collection equipment is needed, which can reduce the emission of pollutants and be adapted according to the type of biomass and combustion characteristics. The most indicated harvesting equipment is gas scrubbers, which can be found in most companies in the sector.

Cieslinski et al. (2015) and Samae et al. (2021) showed sample results of PM from burning sugarcane bagasse, for PM2.5 and PM10, respectively. For diameter ranges between 1 and 2.5 µm, PM concentrations of (3.94 ± 0.12) g/kg were found. In this context, Costa et al. (2018) and Sthel et al. (2019) concluded that burning biomass for energy is a mitigating measure for environmental impacts, as it reduces CO2 compared to burning fossil fuel, but has several other impacts. Exposure to pollutant particles smaller than 2.5 µm in the biomass burning process is related to health impacts in the population exposed to this pollution, such as an increased risk of infections and cardiorespiratory diseases. A vast body of research has observed a relationship between the amount of hospital admissions and consultations related to the concentration and diameters of particulate pollutants in the air (Chang et al. 2020; Heinzerling et al. 2016; Krall et al. 2017; Machin et al. 2019; Saleh et al. 2020; Zhao et al. 2021a). Recent studies show the harmful effects of PM emission by biomass burning on populational health in various geographical areas. Populations exposed to fire smoke pollution are more prone to developing respiratory problems, morbidity, and possibly cardiovascular health issues (Mueller et al. 2020; Reid et al. 2016).

Furthermore, in the context of the pandemic due to coronavirus disease, higher concentrations of 2.5 µm particles have been associated with more cases of infection, more complicated cases of infection, and more fatal cases of the disease (Kutralam-Muniasamy et al. 2021; Lorenzo et al. 2021; Marquès and Domingo 2022). Several other studies have evaluated the influence of PM2.5 on human health, linking its effects to increases in the risk of hemorrhagic stroke (Zhao et al. 2021b), hospitalizations due to heart failure (Li et al. 2021), hospital readmissions for schizophrenia (Ji et al. 2021), risk of platelet elevation (Hehua et al. 2021), and loss of life expectancy (Zheng et al. 2021). Another important factor to be considered is the composition of this PM. Ferreira et al. (2016) observed the composition of PM and the types of diseases associated with the elderly. For PM2.5, they observed that higher concentrations of SO42− and NH4+ were related to a higher risk of circulatory diseases. For PM2.5–10, there was a relationship between respiratory diseases and SO42−, and for circulation diseases, SO42−, NO3−, and K+ were related.

In studies carried out by Fang et al. (2019) on PM composition, carcinogenic compounds were found, and they were associated with industrial production. The authors concluded that there is a need to reduce the emitted concentrations of PM from industrial processes for the safety of human health. The emission of atmospheric pollutants by the biomass burning process is a matter of concern. Therefore, developing equipment able to collect pollutants emitted by combustion processes is of the utmost importance. Collection equipment is generally used to control pollutant emission into the atmosphere and can be adapted according to the type of biomass and combustion characteristics (Bianchini et al. 2018; Maduna and Tomašić 2017). Relevant technologies applied in emission control are cyclones, sleeve filters, precipitators, and scrubbers. The most suitable equipment to be applied in combustion pollution control depends on economic and technical efficiency studies, properties of the pollutants, and compliance with local current legislation requirements. In the alcohol and sugar industries, gas scrubbers, also known as scrubbers, can be mentioned as pollution control technology. Scrubbers remove pollutants by spraying liquid inside the equipment (Mardones and Saavedra 2016; Volchyn et al. 2018).

The Venturi scrubber is equipment for fine PM widely used in chemical, ore, timber, cellulose and paper, rock, and solid waste incinerator industries. The Venturi scrubber has some advantages, such as good cost benefits, as it is compact, has high efficiency for fine (PM1.0) and ultrafine particles (PM2.5), and versatility, enabling operation with gases at high temperatures, as well as sticky and explosive particles. Furthermore, this technology is able to reuse the liquid effluent generated in the washing process (Bianchini et al. 2016; Moran 2017).

The liquid to gas ratio in a Venturi scrubber is a process parameter that directly influences the collection efficiency and the economy of this natural resource. Collection efficiencies can be associated with different design variables and phenomena that occur within the throat, such as scrubber geometry, throat length, the ratio between liquid and gas flow, jet penetration, liquid film fraction, droplet distribution, and the diameter of the droplets formed, which are important parameters for the Venturi scrubber (Costa et al. 2005, 2004; Guerra et al. 2017). Lima et al. (2017) studied the influence of the number of orifices, the gas velocity at the throat, and the liquid-to-gas ratio on liquid film formation in two Venturi scrubbers, in the vertical position, of circular section of 20 mm and 40 mm throats. The study then concluded that the greater the number of the orifices, the lower the penetration of the liquid jet into the interior of the throat, thus increasing the adhesion of liquid on the walls of the equipment.

Venturi scrubbers are a preferred design when the required collection efficiency should be higher than between 70 and 99% for particles of 1 µm aerodynamic diameter or smaller (Calvert et al. 1972; Costa et al. 2005; He et al. 2017; Mardones and Saavedra 2016). The washer fluid, usually water, is injected into the throat section of the Venturi scrubber in different ways. When the washer fluid penetrates the Venturi throat, the kinetic energy (high gas velocity) causes the injected liquid to be atomized, thus taking the form of drops that can vary in size from 10 to 500 µm. The resulting drops are dragged and accelerated by the gas. When pollutant particles are in contact with the droplets, the particles are collected by the mechanisms of inertial impaction, direct interception and Brownian diffusion (Maduna and Tomašić 2017; Volchyn et al. 2018; Yamile et al. 2021). The efficiency of a Venturi scrubber depends mainly on the liquid/gas ratio (ratio between the flow of injected liquid and the flow of gas that reaches the throat), length of the throat and speed of the gas inside the equipment (Bianchini et al. 2016, 2018; Costa et al. 2005; Yamile et al. 2021).

Bianchini et al. (2016) compared the 2.5 µm PM efficiency of different cleaning systems tested from corn combustion in a 25-kW boiler. They even evaluated a Venturi scrubber with a bubble column to increase the collection efficiency to values above 90%. For tests where all the fans were turned off, where the water column reached 250 mm, the efficiency was 89.75% and the PM concentration in the outlet gases was 20 mg/m3. Another test, in which the fans were turned on and where the water column reached 360 mm, the removal of PM2.5 increased to 94.77% and the PM emission decreased to 10 mg/m3. Ali et al. (2013) used hydrophobic particles of TiO2 with a diameter of 1 μm and a density of 4.23 g/cm3 and the Venturi scrubber operated at gas mass flow rates of 0.09, 0.115, and 0.14 kg/s and liquid mass flow rates of 0.1, 0.13, and 0.16 kg/s. Overall collection efficiencies ranged from 91 to 98%.

Considering the appropriate use of biomass as an industrial fuel and the emerging need for a technique capable of efficiently removing pollutants from biomass burning, this study shows as an innovation the control of emissions in a situation similar to the industrial one with the use of a Venturi scrubber in the collection of fine particles, in addition to the use of a portable and representative isokinetic sampling equipment of these particles. The pilot-scale simulation of the biomass burning process, the representative sampling of fine particles and obtaining parameters for the control of pollutant emissions to a Venturi scrubber, meets the current situation of concern about air quality. Thus, a closed burning chamber was used to simulate industrial biomass burning, with and without a collection equipment. The PM concentration and size distribution, emitted during the burning, chemical analyses, and SEM images of the PM retained on the filters were analyzed using two samplers to validate the new portable isokinetic sampler. Since the ethanol and sugar plants will continue to generate electricity with sugarcane bagasse burning, emission control technologies and cost-effective and efficient portable samplers are needed to monitor particulate materials and improve current gas cleaning equipment projects.

Materials and methods

Fuel

The sugarcane bagasse and straw used as fuel was provided by the Santa Cruz Sugar and Alcohol Plant of the San Martinho Group—SP. The biomass was grounded and naturally dried (outdoors) to remove water, reaching a final humidity of around 7%. The material was stored in bags to be used in the combustion tests. This fuel was characterized according to its elemental and immediate composition.

Rectangular Venturi scrubber and burner system

The biomass burning and collection systems comprising the Venturi scrubber and cyclone, to separate the liquid droplets, can be seen in Figs. S1 and S2. The sugarcane bagasse was fed through a worm screw to the combustion chamber. In the chamber, the combustion process of the material takes place, where the primary air is induced by a fan and the flow rate is controlled and quantified. The combustion process reaches the regime and remains continuous during the experiments. An average of 6 kg of feedstock was used for each firing test. The pipes used for PM sampling are located upstream and downstream of the Venturi scrubber Pitot tubes and thermo-anemometers were used to characterize fluid flow inside the burner. The piping upstream of the scrubber had rectangular dimensions, while the piping downstream of the scrubber had circular dimensions, as shown in Table 1. The gaseous flow with the pollutants from the combustion was directed by blowers followed by two exhaust fans. These directed all the gaseous flow and the PM to the main duct in which the Venturi scrubber was fixed, reaching a maximum velocity at the scrubber throat. The Venturi scrubber used has 4 water injector nozzles positioned in the throat. The Venturi scrubber, located between the burner and the cyclone, has a rectangular geometry. Table 2 shows the dimensions of the Venturi scrubber used. Water was used as the washing liquid.

Table 1.

Dimensions of the PM sampling ducts

Pipeline upstream of the Venturi
 External width (cm) 6.0
 External height (cm) 4.0
  Thickness (cm) 0.5
 Internal width (cm) 5.0
 Internal height (cm) 3.0
Pipe cross sectional area (cm2) 15.0
Piping downstream of the Venturi
 Internal diameter (cm) 12.4
  Section area (cm2) 120.6
Open in a new tab

Table 2.

Dimensions of the throat, convergent, and divergent section of the Venturi scrubber

Throat length (Lth) 11.7 cm Convergent length (LC) 9.9 cm
Throat width (Wth) 2.4 cm Convergent width (WC) 2.3 cm
Throat height (Hth) 3.5 cm Convergent height (HC) 3.5 cm
Divergent length (LD) 28 cm Injection hole diameter (Dh) 2.05 cm (× 4)
Open in a new tab

The gas stream would collide with water jets coming from the washer injector nozzles. The jets were atomized by the high velocity of the gas flow (70 to 150 m/s). The PM was collected by liquid drops, forming liquid agglomerates that were later separated from the gases by a cyclone, where the clean and cooled gases exited at the top of the equipment and the particles with water followed the conical part of the cyclone and were directed to the liquid collection box. These liquid effluents went through chemical decantation, separating the liquid and the coal sludge. To evaluate the efficiency of the Venturi scrubber, tests were performed with different gas velocities at the throat. For each speed, the flow rates of water injected into the scrubber were evaluated, ranging from 2.5 to 6.0 L/min. Regarding the gas velocity at the throat, five different velocities were used, each one related to a frequency of the compressors that drove the gas mixture into the Venturi scrubber. Tables 3 and 4 show, besides the parameters mentioned, other important variables for the development of the tests.

Table 3.

Test operating conditions

Parameter Values
Installed burner power 8.1 kW (11 CV)
Water flow rate 2.5 L/min e 6.0 L/min
Biomass feed flow 18 kg/h
Air flow for combustion 125 m3/h
Biomass burnt per test 6 kg
Gas velocity at the throat (Vth) 88, 137, 174, 217 e 262 m/s
Liquid/gas ratio 0.2 – 1.4 L/m3
Number of orifices in Venturi 4
Sampling time 20 min (isokinetic sampler)
5 min (cascade impactor)
Open in a new tab

Table 4.

Gas velocities at the Venturi scrubber inlet, throat, and outlet pipes

Venturi frequency (Hz) Vinlet (m/s) Voutlet (m/s) Vth (m/s)
20 49.3 3.4 88.1
30 76.6 5.8 136.9
40 97.3 6.0 173.9
50 121.3 8.8 216.8
60 146.8 10.3 262.4
Open in a new tab

Particulate matter sampling

The isokinetic sampling process was carried out under conditions indicated by the norms that guide a representative of PM sampling. Sampling was carried out at multiple points inside the duct and the British standard BS 3405:1983 was used. In PM sampling smaller than 10 µm, two samplers were used: a new portable isokinetic sampler and an Andersen cascade impactor. Sampling was performed by positioning portable isokinetic samplers before and after the Venturi scrubber simultaneously, in addition to sampling the smoke plume using an eight-stage Andersen cascade impactor. In this sampler, the PM is classified by a varying size range from 0 to 10 µm. The Andersen cascade impactor stages were (μm): S1 (PM9.0–10), S2 (PM5.8–9.0), S3 (PM4.7–5.8), S4 (PM3.3–4.7), S5 (PM2.1–3.3), S6 (PM1.1–2.1), S7 (PM0.7–1.1), S8 (PM0.4–0.7), and backup (PM<0.4). The cascade impactor was positioned vertically in the smoke plume in the exhaust stack. The new portable isokinetic sampler collected PM in three bands of diameter (μm): B1 (PM> 2.5), B2 (PM1.0–2.5) and B3 (PM<1.0) (Fig. S3). This new sampler consisted of three circular filter holders to retain particles larger than 2.5 µm, with sizes between 2.5 and 1.0 µm and smaller than 1.0 µm. The filters used in both PM samplers were fiberglass filters. All the filters were previously dried in an oven at 105 °C and taken for gravimetric analysis when their weight was found to be constant. The fiberglass filters were weighed on an analytical scale with an accuracy of ± 1 μg, packaged and identified. After PM collection, the same procedure was performed with the used filters for the gravimetric analysis.

The sampling system consisted of isokinetic probes and nozzles, suction pumps, needle valves and flowmeters to collect PM in the isokinetic pipelines of the equipment. Sampling was conducted for 20 min after the fuel burning process reached the established regime. The isokinetic samplers acted simultaneously in the PM collection placed downstream and upstream of the Venturi scrubber in all tests. The temperature profile of the gases was recorded and ranged from 150 to 350 °C. The temperature in the combustion chamber exceeded 900 °C.

Soluble ion extraction and chromatographic analysis

After PM collection, the same procedure was performed for gravimetric analysis. The PM retained on the sampler filters after weighing was submitted to analytical methods to determine the water-soluble ions. The fiberglass filters present in each sampler stage of the cascade impactor were cut into pieces of 4 cm2 to facilitate the extraction of soluble ions present in the PM. The filter pieces were inserted into a falcon tube and Milli-Q Millipore deionized water was added to solubilize the ions present in the PM sampled in the atmosphere and by a fixed source. This solution was submitted to mechanical shaking for 40 min to solubilize the ionic species. After mechanical agitation, the resulting solutions were filtered by a hydrolyzed membrane (Millipore) Millex-HV with a pore size of 0.45 μm used to retain material larger than the membrane pores. Approximately 1.5 mL of the filtrate was transferred to a vial for chromatographic analysis. An ion chromatograph (Thermo Scientific) model ICS 5000 analytical was used to determine water-soluble ions in the PM. The analyzed species were anions (fluoride (F−), acetate (HCH3COO−), formate (HCOO−), chloride (Cl−), nitrite (NO2−), nitrate (NO3−), sulfate (SO42−), oxalate (C2O42−), phosphate (PO43−), and cations (sodium (Na+), ammonium (NH4+), potassium (K+), magnesium (Mg2+), and calcium (Ca2+)). Blank filters were also collected and analyzed to examine possible contamination. The analyses were performed in a DIONEX ion chromatograph, model DX-120, with an IonPac AS14 4 mm column for anions and CS 12A 4 mm for cations, containing a conductivity detector and a self-regeneration suppressor. The eluents used were 12 mM H2SO4 for cations and 5 mM Na2CO3/NaHCO3 1.0 mM for the anions.

Particulate matter collection efficiency

The efficiency of the Venturi scrubber collecting pollutants from the flue gases is estimated in Eq. (1), in which Ci,S is the concentration of pollutants leaving the scrubber and Ci,E is the concentration of pollutants entering the Venturi scrubber.

Ei=Ci,E-Ci,SCi,E 1

The PM concentrations (kg/m3) were measured before and after the Venturi scrubber and were calculated according to Eq. (2).

Ci=miV 2

The mass mi (kg) of PM was measured by the difference of weight of the fiberglass filters before and after the sampling tests. The sampled volume V (m3) was measured according to the sampling flow rate and the duration of the tests.

Scanning electron microscope analysis

Imaging tests and particle counts were performed to evaluate the sampling process with the new portable isokinetic sampler. The new filters (unused) and the filters from the three stages of the isokinetic sampler (B1, B2, and B3) for both sampling points (before and after the Venturi scrubber) were analyzed. Two different regions of each filter (the central part and one point more distant from the center) were analyzed using a scanning electron microscope (JSM-7500F, Jeol, Japan and Software PC-SEM Ver 2.1.0.3). The average particle diameter was determined by a method that measures the greatest distance, edge to edge, particles observed by SEM images, using the counting Software Image J 1.52i (64-bit). All samples were metalized with carbon one wire (~ 11.4 nm coating, which was already discounted from the average diameters found for the particles). The elemental compositions of the filters were determined by EDS analysis using a voltage acceleration of 5.0 keV and a live time of 5 min, using a Thermo Fisher Scientific Ultra Dry detector attached to the SEM-FEG. Areas were chosen at random to examine the elements present in each filter.

Results and discussion

Fuel characteristics

The moisture content of the biomass was 7.71% for the straw and bagasse mixture. Biomass-based fuels used in thermochemical processes must have humidity values below 10% as a higher water content makes the process energetically unfavorable and reduces the biomass thermal conversion efficiency. According to Setter et al. (2020), biomass with a low percentage of oxygen and a high carbon content is advantageous to be applied in power generation purposes. The results of the elementary and immediate composition of straw and bagasse mixture, before and after the combustion test, can be seen in Table 5.

Table 5.

Elementary and immediate composition of sugarcane straw and bagasse, before and after the combustion test

Properties Bagasse and straw mixture Combustion material in gas chamber Combustion material in combustion chamber
Elemental analysis (%)
Carbon (C) 42.69 41.48 0.31
Hydrogen (H) 5.38 2.07 0.70
Nitrogen (N) 0.80 1.80 0.77
Oxygen (O) 37.18 13.02 0.00
Sulfur (S) 1.18 0.56 0.09
H/C 0.13 0.05 2.26
O/C 0.87 0.31 0.00
Immediate analysis
Moisture (%) 7.71 ± 0.32 – –
Volatiles (%) 84.22 ± 1.41 – –
Fixed carbon (%) 11.34 ± 1.68 – –
Ash (%) 4.41 ± 0.38 – –
LHV* (MJ/kg) 15.91 14.84 0.29
HCV** (MJ/kg) 18.58 16.90 2.45
Open in a new tab

LHV*, lower heating value; HCV**, higher calorific value

Carbon and hydrogen are important elements for heat release during the burning process. The composition obtained for the bagasse presented in Table 5 is very close to that presented by Demirbas (2004) and Cardoso et al. (2019). Low values of S and N content lead to lower SOx and NOx emissions during biomass burning processes, while high C and H contents contribute positively to the calorific value due to CO, CH4, and H2 conversion (Gautam and Chaurasia 2020). According to Khiari et al. (2019), biomasses with a nitrogen content below 10% do not contribute significantly to NOx production during the thermal degradation process.

The calorific value represents the amount of energy released from a fuel during its complete combustion, and its determination is important to evaluate its use as a fuel. The calorific value found in this study is comparable to the results obtained by other authors, who reported calorific values for sugarcane processing waste of 16.42 MJ/kg (Ferreira et al. 2016) and 17.02 MJ/kg (Lee et al. 2013).

Particulate matter emissions by sugarcane bagasse and straw burning

Biomass burning emits a high concentration of particles smaller than 2.5 μm. For the samplings carried out with both samplers, it was found that the biomass burning, in fact, emits higher concentrations of fine and ultrafine particles, the most harmful to the environment and human health. Figure 1 shows the average concentrations of PM, in µg/m3, emitted and sampled by the Andersen cascade impactor and the new portable isokinetic sampler, respectively. These results refer to the situation in which the Venturi scrubber was not operated (Venturi off).

Fig. 1.

Fig. 1

Open in a new tab

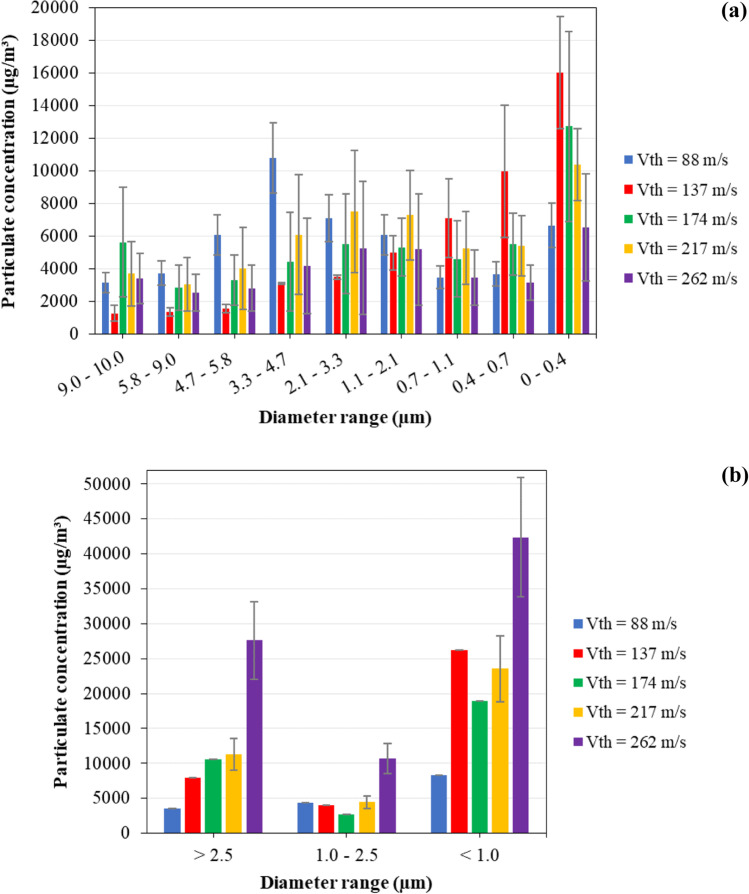

Average PM emission concentrations obtained from (a) the Andersen cascade impactor and (b) the isokinetic sampler with Venturi off at different velocity of the gas flow—Vth. S1 (PM9.0–10), S2 (PM5.8–9.0), S3 (PM4.7–5.8), S4 (PM3.3–4.7), S5 (PM2.1–3.3), S6 (PM1.1–2.1), S7 (PM0.7–1.1), S8 (PM0.4–0.7), and backup (PM<0.4). B1 (PM> 2.5), B2 (PM1.0–2.5) and B3 (PM<1.0)

In Fig. 1a, analyzing the PM range between 0.0 and 0.4 µm (S8) of the Andersen cascade impactor, the condition that used Vth = 137 m/s emitted the highest PM. The conditions that used Vth of 137 m/s, 174 m/s, and 217 m/s were the conditions that emitted the maximum values of PM concentrations in the S8 (0.0–0.4 µm), 16,027 µg/m3, 12,720 µg/m3, and 10,376 µg/m3, respectively, which were at least 14% of the total emitted in each test.

Nevertheless, the results obtained from the isokinetic portable sampler with Vth = 137 m/s, Vth = 217 m/s and Vrh = 262 m/s (Fig. 1b) were the ones with the highest concentration values, considering the PM range of less than 1.0 µm (B3), representing more than 40% of the total emitted in each test, with values of 26,235 µg/m3, 23,556 µg/m3, and 42,400 µg/m3, respectively.

Variations in the individual tests may indicate a change in the combustion process, entrainment of larger particles by the high gas velocity, and variation in fuel characteristics. Hu et al. (2020) obtained PM10-1.0 concentrations between 23,000 and 85,000 µg/m3 for burning two types of wood bark mixture in a 30-MW biomass burning plant. Biomass burning emits higher concentrations of fine and ultrafine particles, which are the most harmful to the environment and human health. In addition to the high PM concentrations in the diameter range of 0.0–0.4 µm (S8), the ranges 3.3–4.7 µm (S4) to 1.1–2.1 µm (S6) also showed high emission concentrations.

For each of the velocities, a tendency of growth in the PM concentration was generally observed at higher gas temperatures in the duct. For these temperature values, the flame phase of the combustion process is more intense, leading to more efficient combustion of the biomass. Table 6 shows the PM emission rates for the 2.5 µm (S5 to the backup stage) and 10 µm (S1 to the backup stage) diameter range and the average combustion gas temperature inside the duct.

Table 6.

PM emissions observed in the Andersen cascade impactor, for each diameter range, according to the combustion gas temperatures

Throat gas velocity (m/s) Combustion gas temperature (ºC) E10 (gPM/kg biomass) E2.5 (gPM/kg biomass) Particulate concentration (µg/m3)
S1
9.0–10.0		 S2
5.8–9.0		 S3
4.7–5.8		 S4
3.3–4.7		 S5
2.1–3.3		 S6
1.1–2.1		 S7
0.7–1.1		 S8
0.4–0.7		 Backup
0–0.4
88 173.0 0.21 0.08 3147 3733 6080 10,773 7093 6080 3467 3680 6667
137 164.3 0.47 0.37 1760 1600 1813 3147 3627 6027 9493 14,027 19,467
199.9 0.28 0.21 800 1120 1333 3040 3360 3947 4693 5920 12,587
174 172.3 0.60 0.33 4747 4480 5547 9280 9653 8053 8213 8267 17,013
187.7 0.24 0.11 11,307 800 1227 1280 2240 3573 2507 2987 4587
234.4 0.30 0.17 2667 3733 3573 2667 2987 4000 2560 4960 9973
274.8 0.45 0.29 3840 2400 2880 4533 7200 5653 5120 5867 19,307
217 132.0 0.78 0.48 1625 1060 1802 3463 5053 4276 3180 3569 9611
177.9 0.34 0.22 2133 1813 1387 2027 2720 4800 2933 3627 7413
213.5 0.87 0.41 6560 4427 5760 11,413 11,573 10,133 7093 6667 11,040
229.4 0.86 0.45 4533 4907 7200 7467 10,773 9920 7893 7733 13,440
262 219.4 0.82 0.37 5067 3840 4587 8160 10,827 9707 5707 4053 7787
228.6 0.51 0.29 3840 2720 2773 3253 3787 4427 3093 3787 9813
230.9 0.52 0.28 1343 1084 1107 1178 1201 1413 1602 1673 2026
Open in a new tab

For the condition of Vth = 217 m/s and combustion gas temperatures of 132 and 229 °C, the PM concentration increased by 140%. On the other hand, by increasing the Vth from 217 to 262 m/s, keeping the gas temperature at approximately 229 °C, the PM concentration was a decrease of − 84.9%. Thus, with higher temperature values in the combustion process, the concentration of fine particles increases. However, due to an increase in gas flow, for the same temperature range, the concentration of particles is diluted.

It was also observed that the PM concentration below 1.0 µm was predominant in high gas temperature flares due to the quality of the combustion in these conditions. Some emission factors (EFs) reported in the literature are in the range of 2.17–2.8 g/kg for combustion tests with sugarcane biomass, in open burning tests carried out in laboratory conditions (Christian et al. 2007; França et al. 2012). The different phases of combustion emit pollutants in different diameter ranges; the more intense fire (flame phase) results in particles of smaller diameters and in higher concentrations, whereas combustion that reaches lower temperatures, results in particles of larger diameters (Hall et al. 2012).

Table 7 shows the emission factors and PM emissions observed in the isokinetic sampler, to the average temperatures of the gases in the duct at each of the gas velocities at the throat. For each value of the gas velocity evaluated, there was an increase in the PM concentration emitted with the increase in the burning temperature, especially for sampled particles smaller than 1.0 micron.

Table 7.

Emission factors and PM emissions observed in the isokinetic sampler, according to combustion gas temperatures

Throat gas velocity (m/s) Gas temperature (ºC) EF2.5 (gPM/kg biomass) EF1.0 (gPM/kg biomass) Particulate concentration (µg/m3)
B1
 > 2.5		 B2
1.0–2.5		 B3
 < 1.0
88 197.3 0.11 0.08 2097 1935 4731
211.5 0.06 0.04 1235 1235 2676
247.0 0.45 0.29 7233 9933 17,533
137 197.5 0.16 0.10 2100 1967 3233
217.5 0.40 0.31 4500 6083 20,000
231.5 2.39 2.05 29,600 11,000 67,000
174 220.7 0.34 0.28 6147 1794 8765
245.9 0.26 0.23 14,933 3600 29,067
217 208.1 0.33 0.27 11,333 4444 23,556
262 216.1 0.73 0.58 27,600 10,667 42,400
Open in a new tab

In experiments on a laboratory scale of burning sugarcane biomass with a moisture content below 9%, Christian et al. (2007) found EF in the order of 2.17 g of PM2.5/kg of dry biomass burned. Hall et al. (2012) obtained emission factors of 2.49 ± 0.66 g of PM2.5/kg of sugarcane biomass using a burner that simulates the field combustion process. Sanchis et al. (2014) evaluated the emission of PM2.5 from the combustion of rice husks in an open combustion chamber; the material with a moisture content of 5% had EF higher than that observed for sugarcane, around 5.86 ± 1.85 g PM2.5/ kg, which is related to the type of biomass used. The different phases of combustion emit pollutants in varying diameter ranges, the most intense fire (flame phase) results in smaller diameter particles and higher concentrations; however, the combustion process at lower temperatures results in larger diameter particles (Hall et al. 2012).

The tests performed in closed combustion chambers are more representative and closer to our study, as the experiments performed the PM collection from the burning of different woods using a controlled combustion chamber. The EF2.5 obtained for the flame phase, which was the same as the one investigated in our study, was 0.65 ± 0.08 g / kg for Pinus radiata, 0.56 ± 0.05 g/kg for Eucalyptus globulus, and 0.52 ± 0.03 g / kg for Nothofagus obliqua (Cereceda-Balic et al. 2017). As well as the results obtained from the impactor, isokinetic sampling showed a high emission of ultrafine particles, which are the most harmful to health.

On the other hand, when comparing the PM concentrations of the two samplers, the Andersen cascade impactor and the new isokinetic sampler, for the ranges of > 2.5 µm (S1 to S5 and B1), 1.0–2.5 µm (S6 and B2), and < 1.0 µm (S7 to backup and B3), it can be observed that for concentrations lower than 2.5 µm, the two samplers have similar PM concentrations. Thus, the new isokinetic sampler is able to quantify particulate matter in ranges smaller than 2.5 µm and is a cheap, portable, and easy-to-use option when compared to other PM quantification samplers.

Controlling particulate matter emissions by sugarcane bagasse burning

The concentrations emitted were compared with those of the Venturi scrubber operating (Venturi on) in the cleaning process and not operating. The values can be seen in Fig. 2, which shows the removal efficiencies for each diameter range in the cascade impactor, with Vth = 174 m/s and a water flow rate of 6.0 L/min. The PM retention in several PM diameter ranges can be observed due to the performance of the Venturi scrubber. The tests with VG = 174 m/s and a liquid flow of 6.0 L/min were the most consistent, according to what was expected for the experiment. Particle removal, in the range of 2.0 to 4.7 µm, showed greater efficiency of the Venturi scrubber in collecting PM.

Fig. 2.

Fig. 2

Open in a new tab

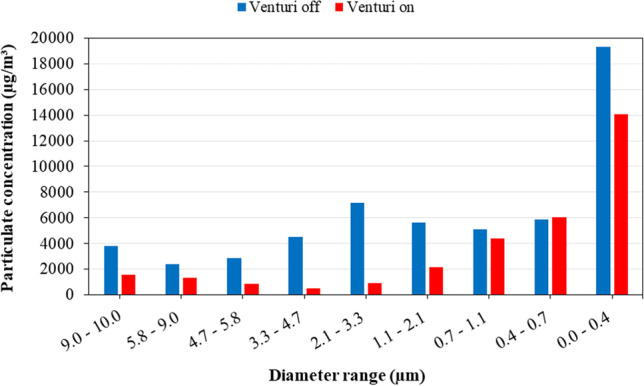

PM emission concentrations for Venturi off (Tgas = 274.8 °C) and Venturi on (Tgas = 244.0 °C), with Vth = 174 m/s and water flow rate of 6.0 L/min. S1 (PM9.0–10), S2 (PM5.8–9.0), S3 (PM4.7–5.8), S4 (PM3.3–4.7), S5 (PM2.1–3.3), S6 (PM1.1–2.1), S7 (PM0.7–1.1), S8 (PM0.4–0.7), and backup (PM<0.4)

For the PM collected above S6 (PM1.1–2.1), the best efficiencies were obtained for a speed of 121.3 m/s, followed by 76.6 m/s. For PM smaller than 1.0 µm, that is, from stage 6, at a speed of 49.3 m/s, the best efficiency results were obtained, followed by a speed of 121.1 m/s. Figure 3 shows the removal efficiencies for each diameter range in the Andersen cascade impactor, with Vth = 174 m/s and a water flow rate of 6.0 L/min for two tests: Test 1—PM emission concentrations for the Venturi off (Tgas = 274.8 °C) and on (Tgas = 244.0 °C) and Test 2—PM emission concentrations for the Venturi off (Tgas = 172.3 °C) and on (Tgas = 244.0 °C). The highest efficiencies occurred for the 3.3–4.7 µm (S4) and 2.1–3.3 µm (S5) ranges, with values of 94.3% and 90.6% for Test 1, and 88.2% and 87.4% for Test 2, respectively. The lowest efficiencies are represented in the smallest PM diameter ranges of 0.7–1.1 µm (S7) and 0–0.4 µm (backup stage) with maximum values of 27.1% for the two ranges, respectively. This reveals the efficiency of the Venturi scrubber in collecting particles above 2.5 µm to the detriment of smaller particles, which are more difficult to collect.

Fig. 3.

Fig. 3

Open in a new tab

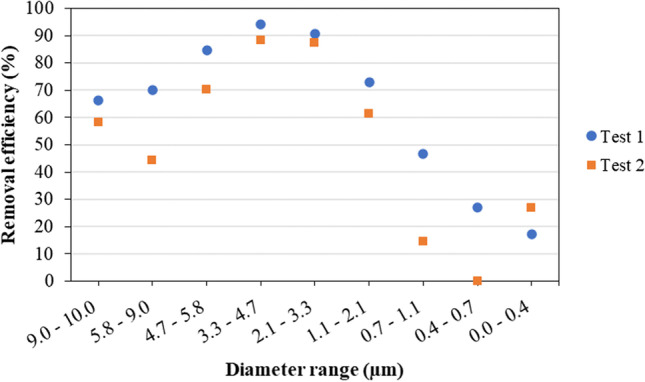

Removal efficiencies for each diameter range in the cascade impactor, with Vth = 174 m/s and water flow rate of 6.0 L/min. S1 (PM9.0–10), S2 (PM5.8–9.0), S3 (PM4.7–5.8), S4 (PM3.3–4.7), S5 (PM2.1–3.3), S6 (PM1.1–2.1), S7 (PM0.7–1.1), S8 (PM0.4–0.7), and backup (PM<0.4)

The lower gas velocity in the throat and the flow rate of 6 L/min generated a liquid jet penetration in the central region of the throat, which better distributed the drops inside the throat, increasing efficiency, decreasing the fraction of liquid film on the walls, which does not collect PM. Values of 86% efficiency were achieved for the 0.18–0.32 µm range and 70% for diameters less than 0.056 µm, which were very satisfactory values for such thin diameters. The jet penetration calculation was performed according to Viswanathan et al. (1983), in which 1.75 cm was the ideal penetration value — half of the 3.5 cm height of the throat. The liquid film fraction profile was drawn according to Viswanathan et al. (1997) for calculations.

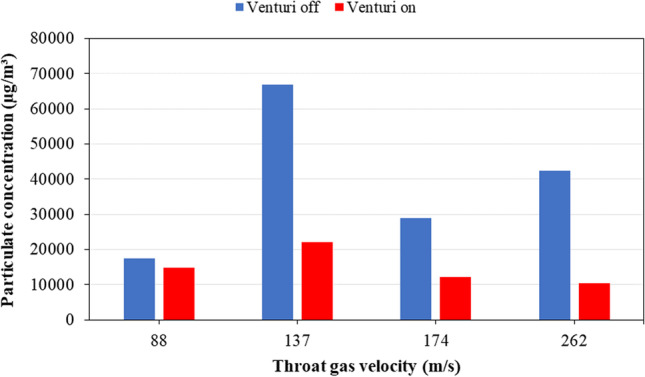

Figure 4 shows PM emission concentrations in the Venturi on and off, for PM < 1.0 µm (B3) using the isokinetic sampler. The results were expressed as Venturi off (blue) and Venturi on (red), and the sampling was simultaneous, before and after the Venturi scrubber. In this situation, the liquid jet penetration reached 14.4 mm inside the throat, close to the central region, which positively influences the collection efficiency.

Fig. 4.

Fig. 4

Open in a new tab

PM emission concentrations in the Venturi on and off, for PM < 1.0 µm (B3) using the new portable isokinetic sampler

When analyzing different Vth, the Venturi scrubber proved to be efficient in collecting particles less than 1.0 μm. Specifically, for Vth = 137 m/s, it can be observed that there was a decrease of 29% in PM concentration when compared to the Venturi off condition. It is highlighted that for this diameter range, the collection process at industrial level is complex and hard. Particles smaller than this diameter can deflect from the collecting liquid drops of this equipment. The liquid jet in this experimental condition did not reach the central region of the drop, which was the optimization situation of the scrubber.

Figure 5 shows the results of the collection efficiency of the Venturi scrubber using the isokinetic sampler. The values refer to the average values of the experiments performed.

Fig. 5.

Fig. 5

Open in a new tab

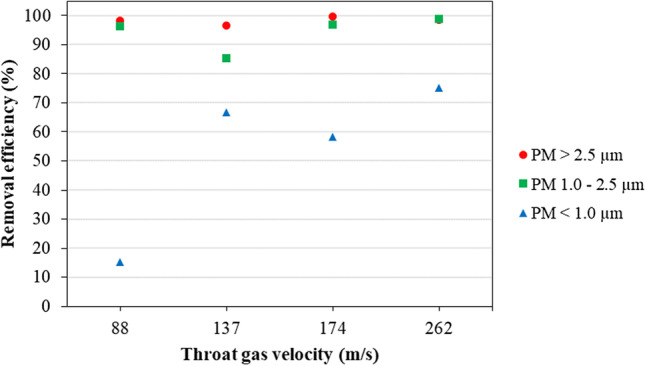

Removal efficiencies for each diameter range using the new portable isokinetic sampler. B1 (PM> 2.5), B2 (PM1.0–2.5) and B3 (PM<1.0)

In this study, we used a liquid/gas ratio of 0.2 to 1.4 L/m3. An optimal performance of the scrubber was found when collecting PM larger than 2.5 (B1) and between 1.0 and 2.5 µm (B2), ranging between 98.4 and 99.6%. Particles larger than 1.0 µm were collected more easily due to their higher inertia, which decreased due to the deflect from the liquid droplets. For fine particulates smaller than 1.0 µm, there was a significant influence on the collection efficiency when increasing the gas velocity at the scrubber throat. After gas velocity was increased, there was more atomization of the water jet at the throat due to an impact, resulting in more liquid droplets available to capture PM.

It was concluded that the experimental condition that includes Vth = 262 m/s, for a liquid flow rate of 2.5 L/min (liquid/gas ratio equal to 0.19 L/m3), was the best condition for the rectangular Venturi used. The collection efficiencies obtained were influenced by parameters such as a high-water flow rate (2.5 L/min), 4 liquid injection orifices — which increases the distribution of water droplets inside the throat — and high gas velocities.

The efficiencies obtained in this study are within what is expected in the literature, in which the efficiencies for PM greater than 1.0 µm are in the range of 70–90% and PM less than 1.0 µm are around 50%. The highest liquid jet penetration obtained was 0.72 cm, for Vth = 88 m/s, and the lowest was 0.24 cm, for Vth = 262 m/s. It was observed that the liquid jet penetration becomes closer to the ideal (1.75 cm) as the gas velocity decreases, consequently increasing the liquid/gas ratio as the water flow rate is constant. This occurred because there was a flattening of the liquid jet as the gas velocity at the throat increased.

In the studies by Bianchini et al. (2016), efficiencies of 60.36% in PM2.5 removal were obtained for a water flow rate of 5 L/min, comparable to those obtained in this work. They are higher even than some PM2.5 washing systems used by Bianchini et al. (2016), such as the tower wash (28.25%) and the bubble column (58.65%). Mi and Yu (2012) obtained removal efficiencies for the 10 µm and 45 µm particles over 95.1% and 92.7%, respectively, which shows that the collection efficiencies obtained for PM larger than 2.5 µm were notable. Ali et al. (2013) obtained overall collection efficiencies of PM ranging from 95 to 99% for different gas velocities at the throat (130 to 200 m/s).

Results of chemical analysis on particulate matter retained on the filters

The results for the ion chromatography analysis of the filters sampled in an isokinetic sampler are shown in Fig. 6 for velocities of Vth = 137 m/s and Vth = 262 m/s. The average temperatures obtained in the gas chamber are shown and monitored throughout the test period. The highest potassium, chloride, and nitrate concentrations occurred at the highest burning temperature (231.5 ºC), as shown in Fig. 6a. The chemical analysis of water-soluble ions showed that chloride and potassium mass percentages reached 35% and 26% of the total ionic mass, respectively. It was found that the predominant ions, K+, Cl−, and NO2−, were present in PM at less than 1.0 µm (B3) and lower concentrations of nitrite, magnesium, calcium, sulfate, phosphate, and oxalate. In the B1 and B2, an increase can be observed in the magnesium, calcium, phosphate, and nitrite concentrations (Fig. 6a).

Fig. 6.

Fig. 6

Open in a new tab

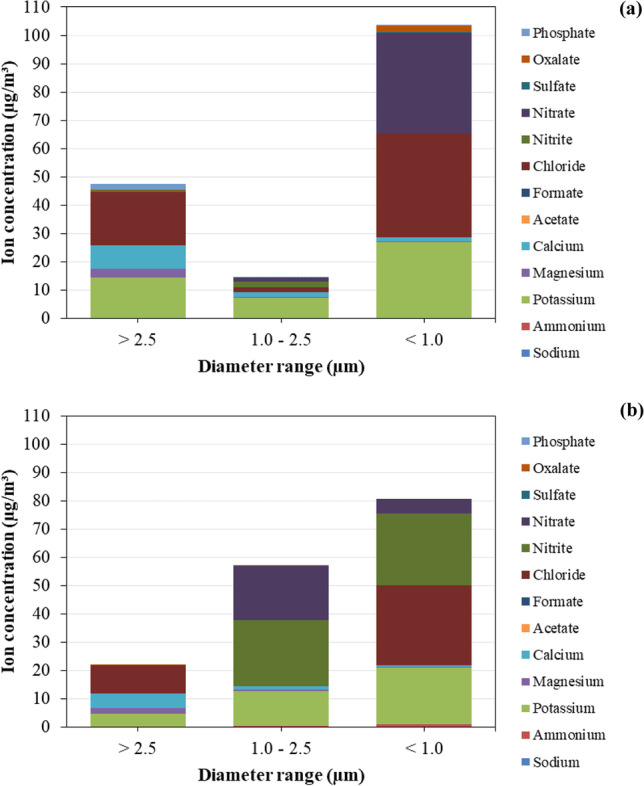

Ion concentration in PM using water flow rate of 2.5 L/min and isokinetic sampler for: (a) Vth = 137 m/s, and Tgas = 231.5 °C and (b) Vth = 262 m/s and Tgas = 184.0 °C. B1 (PM> 2.5), B2 (PM1.0–2.5) and B3 (PM<1.0)

In Fig. 6b, the highest concentration of the species in the different filters of the isokinetic samplers was found for the PM<1.0 (B3): potassium, chloride, and nitrate. Potassium, nitrite, and nitrate for PM1.0–2.5 (B2). Potassium, calcium, and chloride for PM>2.5 (B1).

The predominant emission factors of chloride (Cl−) and potassium (K+), intermediate values for sulfate (SO42−) and ammonium (NH4+), and trace amounts of nitrate (NO3−) and sodium (Na+) were observed in the studies conducted by Chantara et al. (2019) in burning various types of biomasses in an open system combustion chamber. These ions were associated with biomass burning, and the predominance of chloride and potassium was related to the fertilizers and herbicides used in the plantations. Potassium is also a biomass-burning marker. Similarly, studying the impacts of burning on agriculture, NH4+, K+, Mg2+, and HCOO− and small quantities of Cl−, CH3COO−, Ca2+, SO42−, and NO3− were found in the lowest troposphere: dry deposition was associated with the burning periods in the region (Rocha et al. 2005).

Table 8 shows the average concentration values of nitrate, potassium, and sulfate ions in the PM retained in the filters with the Venturi on and off using the Andersen cascade impactor. PM10 was the sum of all concentration ions in the nine stages (S1 to backup), and PM2.5 was the sum of the six to backup stages.

Table 8.

The average concentration values of nitrate, potassium, and sulfate ions in the particulate material retained in the filters with the Venturi on and off in the cleaning process using Andersen Cascade Impactor

Vth (m/s) Venturi operation Particulate matter (µm) Nitrate (mg/m3) Potassium (mg/m3) Sulfate (mg/m3)
217 Off PM2.5 32.4419 2.9130 9.7376
PM10 34.3890 7.1481 15.2574
137 Off PM2.5 12.4704 10.8626 7.5665
PM10 33.6491 22.1459 15.5744
262 On PM2.5 0.0000 10.8266 0.0000
PM10 0.0000 11.1447 0.0000
217 On PM2.5 0.1832 18.1000 0.0000
PM10 0.3262 18.4542 1.5080
174 On PM2.5 0.0224 6.6860 0.0000
PM10 0.0684 6.8908 0.0021
137 On PM2.5 0.0778 15.5065 0.01419
PM10 0.0800 15.6979 0.01419
Open in a new tab

In Table 8, a decrease in the concentrations of nitrate and sulfate ions was observed for Vth = 217 and Vth = 137 m/s, both for PM2.5 and PM10, when the Venturi scrubber was in operation in the cleaning process. When the Venturi scrubber was in operation and for PM2.5, the ionic concentration decreased from 32.4 to 0.1832 for nitrate and from 9.74 to zero for sulfate, respectively. For PM10, the decrease was more significant from 34.9 to 0.326 mg/m3 for nitrate and from 15.25 to 1.51 mg/m3 for sulfate. The importance of reducing the concentration of these ions is associated with the trend of increasing cases of circulatory and respiratory diseases in humans, as indicated by Ferreira et al. (2016). Guo et al. (2018) found high emission factors for potassium, chloride, fluoride, and sulfate in the emission of PM2.5 from the burning of six main tree species in China. Sillapapiromsuk et al. (2013) also reported higher emission factors for chloride and potassium in PM10 determination in a biomass combustion chamber using rice straw, corn residue, and dried leaves.

Scanning electron microscopy images and particle counts for portable isokinetic sampler filters

Figure 7 shows an analysis made by SEM for the PM retained in the last filter (B1) and the unused filters at the isokinetic sampler. The filter images confirmed that PM smaller than 1.0 µm are emitted by biomass burn. In Fig. 7b, evidence can be seen of burned plant material (sugarcane bagasse fibers) confirming the incomplete combustion.

Fig. 7.

Fig. 7

Open in a new tab

SEM images for the isokinetic sampler filters with Venturi off, new filters (left) and B1 filter – PM > 2.5 (right), at a magnification of (a) 100x, (b) 1500x, and (c) 70,000x

In Figs. 8 and 9, the images obtained by SEM for the filters of the three stages of the isokinetic sampler can be observed, both for sampling before the scrubber and the results obtained after collecting the particles by the cleaning equipment.

Fig. 8.

Fig. 8

Open in a new tab

SEM images for the isokinetic sampler filters comparing the filter before (left) and after (right) the Venturi scrubber operation at a magnification of (a) × 300 for B1—PM> 2.5, (b) × 300 for B2—PM1.0–2.5, and (c) × 1500 for B3—PM< 1.0

Fig. 9.

Fig. 9

Open in a new tab

SEM images for PM retained in the (a) B1 Filter—PM > 2.5, (b) B2 filter—PM1.0–2.5 and (c) B3 Filter—PM< 1.0, sampling with the Venturi scrubber in operation

Table 9 shows the results of the particle counts for PM retained in the isokinetic sampler filters, sampling at the point before and after the Venturi scrubber. The calculated average diameters for the three bands were 36 and 42 nm, before and after the Venturi scrubber, respectively.

Table 9.

Particle counting for the filters of the isokinetic sampler using three bands of diameter (μm). Point sampling before and after the Venturi scrubber

Parameters Venturi off Venturi on
B1
PM> 2.5 		B2
PM1.0–2.5 		B3
PM≤1.0 		B1
PM> 2.5 		B2
PM1.0–2.5 		B3
PM≤1.0
Number of particles counted 134 139 148 171 153 140
D10 (nm) 19.3 11.7 9.1 14.5 11.9 13.7
D50 (nm) 34.6 20.8 24.1 33.8 33.4 35.2
D90 (nm) 1.4 60.4 45.7 66.1 65.7 65.2
Average diameter (nm)* 41.5 ± 2.8 34.9 ± 3.2 30.0 ± 2.3 41.8 ± 2.8 41.1 ± 3.1 42.0 ± 3.2
Open in a new tab

* Confidence Interval = 95%

It was found that biomass burning emits very fine particles. The average diameters were 41.5 nm, 34.9 nm, and 30 nm for B1 to B3 before the Venturi Scrubber, respectively. Note that the smallest diameters were identified in B3, whose cut diameter was for PM<1.0. These values of diameters emitted by the biomass burning are in agreement with studies found in the literature. In a study carried out by Naydenova et al. (2020), values were observed of particle diameters of 1 µm in the emission of sugarcane bagasse combustion sampled with an optical monitor. The diameters of the collected particles were mostly submicrometers, in the range of 0.1–2.5 µm. For the results sampled in the three stages with the Venturi on, they were 41.8 nm, 41.1 nm, and 42 nm, respectively. In the SEM images (Figs. 8 and 9), spherical particles with even smaller diameters ranging from 9 nm to 14.5 nm can be observed. It should be mentioned that PM emissions from burning biomass are extremely harmful to health considering that they are very small diameters, which are the most difficult to collect in industrial processes. Thus, it is important to design more accessible, economic, and portable collectors to monitor the PM for the gaseous flows and propose alternative gas cleaning equipment to protect human health and reduce adverse environmental effects.

The elementary analysis of the SEM filters identified the following elements Cl, S, and P for the filters used in the collected PM using the isokinetic sampler before and after the Venturi scrubber (Fig. S4). These elements differed from those presented in the new filter (C, O, Na, Mg, Al, Si, K, Ca, and Ba). These results are according to Artaxo et al. (1998) and Godoi et al. (2004) who associated the Al, Si, Ti, Fe, and Ca to soil aerosol particles, P, S, and Cl to biomass burning, and Cr, Cu, Mn, Ni, Pb, V, and Zn to the structure of the plant cell wall.

Conclusion

Ultrafine particles showed high PM concentrations from biomass burning, where the diameter range that was responsible for the highest PM concentrations was 0.0–0.4 µm (backup stage). The predominant ions in the PM collected using the new portable isokinetic sampler were potassium (K+), chloride (Cl−) and nitrate (NO3−), with potassium and chloride standing out as important ions in the characterization of biomass burning. The vast majority of these ions were present in PM smaller than 1.0 µm (B3). The Venturi scrubber developed optimum fractional and overall collection efficiencies. For the Andersen cascade impactor, the highest efficiencies occurred for the diameter ranges of 4.7–3.3 µm (S4) and 3.3–2.1 µm (S5) with maximum efficiencies of 94.3% and 90.6%. For the new portable isokinetic sampler, the highest partial collection efficiencies were obtained for Vth = 262 m/s and had values of 99.6% for PM greater than 2.5 µm (B1); 98.9% for PM between 1.0 and 2.5 µm (B2); and 75.2% for PM less than 1.0 µm (B3). It was observed that the efficiencies, both fractional and overall, increased with the gas velocity at the Venturi throat. Thus, the best operating condition for the Venturi scrubber was Vth = 262 m/s with a water flow rate of 2.5 L/min. The performance of the Venturi scrubber was very satisfactory, especially as it was responsible for collecting 75.2% of PM1.0 (B3), which is the most dangerous to the respiratory and cardiovascular systems. This shows that a compact, cheap, and practical piece of equipment for flare gas treatment, such as the Venturi scrubber and the cost-effective and efficient portable samplers, can be very interesting for industries that emit high concentrations of pollutants.

Supplementary Information

Below is the link to the electronic supplementary material.

Supplementary file1 (DOCX 749 KB) (749.4KB, docx)

Author contribution

Conceptualization: M.A.M.C.; A.A.C. and K.J.D. Methodology and synthesis: B.M.S. and S.G.C.A. Data organization and analysis: M.P.F., A.F.M.C. and M.A.M.C. Writing original draft preparation: M.A.M.C. and M.P.F. Writing, review, and editing: M.A.M.C.; A.A.C., A.F.M.C., M.P.F. and K.J.D. All authors have read and agreed to the published version of the manuscript.

Funding

The authors would like to express appreciation for the support of the sponsors: FAPESP—Projects #2016/23209–0 and #2018/00697–5.

Data availability

The authors declare that all data supporting the findings of this study are available within the article and its supplementary information files.

Declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare no competing interests.

Footnotes

Publisher's note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

References

  1. Ali M, Yan C, Sun Z, Gu H, Mehboob K. Energy dust particle removal efficiency of a venturi scrubber. Ann Nucl Energy. 2013;54:178–183. doi: 10.1016/j.anucene.2012.11.005. [DOI] [Google Scholar]
  2. Artaxo P, Fernandas ET, Martins JV, Yamasoe MA, Hobbs PV, Maenhaut W, Longo KM, Castanho A. Large-scale aerosol source apportionment in Amazonia. J Geophys Res. 1998;103(D24):31837–31847. doi: 10.1029/98JD02346. [DOI] [Google Scholar]
  3. Bianchini A, Cento F, Golfera L, Pellegrini M, Saccani C. Performance analysis of different scrubber systems for removal of particulate emissions from a small size biomass boiler. Biomass Bioenerg. 2016;92:31–39. doi: 10.1016/j.biombioe.2016.06.005. [DOI] [Google Scholar]
  4. Bianchini A, Pellegrini M, Rossi J, Saccani C. Theoretical model and preliminary design of an innovative wet scrubber for the separation of fine particulate matter produced by biomass combustion in small size boilers. Biomass Bioenerg. 2018;116(4):60–71. doi: 10.1016/j.biombioe.2018.05.011. [DOI] [Google Scholar]
  5. Calvert S, Lundgren D, Mehta DS. Venturi scrubber performance. J Air Pollut Control Assoc. 1972;22(7):529–532. doi: 10.1080/00022470.1972.10469674. [DOI] [Google Scholar]
  6. Cardoso ART, Conrado NM, Krause MC, Bjerk TR, Krause LC, Caramão EB. Chemical characterization of the bio-oil obtained by catalytic pyrolysis of sugarcane bagasse (industrial waste) from the species Erianthus Arundinaceus. J Environ Chem Eng. 2019;7(2):102970. doi: 10.1016/j.jece.2019.102970. [DOI] [Google Scholar]
  7. Carvalho M, Segundo VBDS, De Medeiros MG, Dos Santos NA, Coelho Junior LM. Carbon footprint of the generation of bioelectricity from sugarcane bagasse in a sugar and ethanol industry. Int J Glob Warm. 2019;17(3):235–251. doi: 10.1504/IJGW.2019.098495. [DOI] [Google Scholar]
  8. Cavalcanti EJC, Carvalho M, da Silva DRS. Energy, exergy and exergoenvironmental analyses of a sugarcane bagasse power cogeneration system. Energy Convers Manag. 2020;222(7):113232. doi: 10.1016/j.enconman.2020.113232. [DOI] [PMC free article] [PubMed] [Google Scholar]
  9. Cereceda-Balic F, Toledo M, Vidal V, Guerrero F, Diaz-Robles LA, Petit-Breuilh X, Lapuerta M. Emission factors for PM2.5, CO, CO2, NOx, SO2 and particle size distributions from the combustion of wood species using a new controlled combustion chamber 3CE. Sci Total Environ. 2017;584–585:901–910. doi: 10.1016/j.scitotenv.2017.01.136. [DOI] [PubMed] [Google Scholar]
  10. Chang Q, Zhang H, Zhao Y. Ambient air pollution and daily hospital admissions for respiratory system–related diseases in a heavy polluted city in Northeast China. Environ Sci Pollut Res. 2020;27(9):10055–10064. doi: 10.1007/s11356-020-07678-8. [DOI] [PubMed] [Google Scholar]
  11. Chantara S, Thepnuan D, Wiriya W, Prawan S, Tsai YI. Emissions of pollutant gases, fine particulate matters and their significant tracers from biomass burning in an open-system combustion chamber. Chemosphere. 2019;224:407–416. doi: 10.1016/j.chemosphere.2019.02.153. [DOI] [PubMed] [Google Scholar]
  12. Christian TJ, Yokelson RJ, Carvalho JA, Griffith DWT, Alvarado EC, Santos JC, Neto TGS, Veras CAG, Hao WM. The tropical forest and fire emissions experiment: trace gases emitted by smoldering logs and dung from deforestation and pasture fires in Brazil. J Geophys Res Atmos. 2007;112(18):1–14. doi: 10.1029/2006JD008147. [DOI] [Google Scholar]
  13. Cieslinski JEF, Costa MAM, Carvalho JA, Amaral SS. Study of combustion of different biomass and its atmospheric emissions. Adv Mater Res. 2015;1088:549–556. doi: 10.4028/www.scientific.net/amr.1088.549. [DOI] [Google Scholar]
  14. Contreras-Lisperguer R, Batuecas E, Mayo C, Díaz R, Pérez FJ, Springer C. Sustainability assessment of electricity cogeneration from sugarcane bagasse in Jamaica. J Clean Prod. 2018;200:390–401. doi: 10.1016/j.jclepro.2018.07.322. [DOI] [Google Scholar]
  15. Costa MAM, Ribeiro APRA, Tognetti ÉR, Aguiar ML, Gonçalves JAS, Coury JR. Performance of a Venturi scrubber in the removal of fine powder from a confined gas stream. Mater Res. 2005;8(2):177–179. doi: 10.1590/S1516-14392005000200016. [DOI] [Google Scholar]
  16. Costa MAM, Henrique PR, Gonçalves JAS, Coury JR. Droplet size in a rectangular Venturi scrubber. Braz J Chem Eng. 2004;21(2):335–343. doi: 10.1590/S0104-66322004000200024. [DOI] [Google Scholar]
  17. Costa MAM, Fogarin HM, Costa AFM, Pires LO, Silva DDV, Lima-souza M, Dussán KJ (2018) Nanomaterials: ecotoxicity, safety, and public perception. In Nanomaterials: Ecotoxicity, Safety, and Public Perception. Springer International Publishing. 10.1007/978-3-030-05144-0
  18. Dantas GA, Legey LFL, Mazzone A. Energy from sugarcane bagasse in Brazil: an assessment of the productivity and cost of different technological routes. Renew Sustain Energy Rev. 2013;21:356–364. doi: 10.1016/j.rser.2012.11.080. [DOI] [Google Scholar]
  19. Demirbas A. Combustion characteristics of different biomass fuels. Prog Energy Combust Sci. 2004;30(2):219–230. doi: 10.1016/j.pecs.2003.10.004. [DOI] [Google Scholar]
  20. Fang D, Huang W, Antkiewicz DS, Wang Y, Khuzestani RB, Zhang Y, Shang J, Shafer MM, He L, Schauer JJ, Zhang Y, Zhao S. Chemical composition and health risk indices associated with size-resolved particulate matter in Pearl River Delta (PRD) region, China. Environ Sci Pollut Res. 2019;26(12):12435–12445. doi: 10.1007/s11356-019-04618-z. [DOI] [PubMed] [Google Scholar]
  21. Ferreira TM, Forti MC, de Freitas CU, Nascimento FP, Junger WL, Gouveia N. Effects of particulate matter and its chemical constituents on elderly hospital admissions due to circulatory and respiratory diseases. Int J Environ Res Public Health. 2016;13(10):1–11. doi: 10.3390/ijerph13100947. [DOI] [PMC free article] [PubMed] [Google Scholar]
  22. de França DA, Longo KM, Neto TGS, Santos JC, Freitas SR, Rudorff BFT, Cortez EV, Anselmo E, Carvalho JA. Pre-harvest sugarcane burning: determination of emission factors through laboratory measurements. Atmosphere. 2012;3(1):164–180. doi: 10.3390/atmos3010164. [DOI] [Google Scholar]
  23. Furtado Júnior JC, Palacio JCE, Leme RC, Lora EES, da Costa JEL, Reyes AMM, del Olmo OA. Biorefineries productive alternatives optimization in the Brazilian sugar and alcohol industry. Appl Energy. 2020;259(3):113092. doi: 10.1016/j.apenergy.2019.04.088. [DOI] [Google Scholar]
  24. Gautam N, Chaurasia A. Study on kinetics and bio-oil production from rice husk, rice straw, bamboo, sugarcane bagasse and neem bark in a fixed-bed pyrolysis process. Energy. 2020;190:116434. doi: 10.1016/j.energy.2019.116434. [DOI] [Google Scholar]
  25. Godoi R, Godoi A, Worobiec A, Andrade SJ, Hoog J, Santiago-Silva MR, Grieken RV. Characterisation of sugar cane combustion particles in the Araraquara Region, Southeast Brazil. Microchim Acta. 2004;145:53–56. doi: 10.1007/s00604-003-0126-x. [DOI] [Google Scholar]
  26. Gongora A, Villafranco D. Sugarcane bagasse cogeneration in Belize: a review. Renew Sustain Energy Rev. 2018;96(10):58–63. doi: 10.1016/j.rser.2018.07.034. [DOI] [Google Scholar]
  27. Guerra VG, Achiles AE, Béttega R. influence of Droplet Size Distribution on Liquid Dispersion in a Venturi scrubber: experimental measurements and CFD simulation. Ind Eng Chem Res. 2017;56(8):2177–2187. doi: 10.1021/acs.iecr.6b03761. [DOI] [Google Scholar]
  28. Guo F, Ju Y, WanG G, Alvarado EC, Yang X, Ma Y, Liu A. Inorganic chemical composition of PM2,5 emissions from the combustion of six main tree species in subtropical China. Atmos Environ. 2018;189:107–115. doi: 10.1016/j.atmosenv.2018.06.044. [DOI] [Google Scholar]
  29. Hall D, Wu CY, Hsu YM, Stormer J, Engling G, Capeto K, Wang J, Brown S, Li HW, Yu KM. PAHs, carbonyls, VOCs and PM 2.5 emission factors for pre-harvest burning of Florida sugarcane. Atmos Environ. 2012;55:164–172. doi: 10.1016/j.atmosenv.2012.03.034. [DOI] [Google Scholar]
  30. He J, Chen K, Xu J (2017) Urban air pollution and control. In MA Abraham (ed.), Encyclopedia of Sustainable Technologies 2, 243–257. 10.1016/B978-0-12-409548-9.10182-4
  31. Hehua Z, Qing C, Yuhong Z. Association between ambient particulate matter exposure and platelet counts in adults: a retrospective cohort study. Environ Sci Pollut Res. 2021;28(24):31268–31275. doi: 10.1007/s11356-021-12865-2. [DOI] [PubMed] [Google Scholar]
  32. Heinzerling A, Hsu J, Yip F (2016) Respiratory health effects of ultrafine particles in children: a literature review. Water, Air, Soil Pollut 227(1). 10.1007/s11270-015-2726-6 [DOI] [PMC free article] [PubMed]
  33. Hu Z, Wang X, Zhang L, Yang S, Ruan R, Bai S, Zhu Y, Wang L, Mikulčić H, Tan H. Emission characteristics of particulate matters from a 30 MW biomass-fired power plant in China. Renewable Energy. 2020;155:225–236. doi: 10.1016/j.renene.2020.03.094. [DOI] [Google Scholar]
  34. Ji Y, Liu B, Song J, Pan R, Cheng J, Su H, Wang H. Particulate matter pollution associated with schizophrenia hospital re-admissions: a time-series study in a coastal Chinese city. Environ Sci Pollut Res. 2021;28:58355–58363. doi: 10.1007/s11356-021-14816-3. [DOI] [PubMed] [Google Scholar]
  35. Khiari B, Jeguirim M, Limousy L, Bennici S. Biomass derived chars for energy applications. Renew Sustain Energy Rev. 2019;108(11):253–273. doi: 10.1016/j.rser.2019.03.057. [DOI] [Google Scholar]
  36. Krall JR, Mulholland JA, Russell AG, Balachandran S, Winquist A, Tolbert PE, Waller LA, Sarnat SE. Associations between source-specific fine particulate matter and emergency department visits for respiratory disease in four U.S. cities. Environ Health Perspect. 2017;125(1):97–103. doi: 10.1289/EHP271. [DOI] [PMC free article] [PubMed] [Google Scholar]
  37. Kutralam-Muniasamy G, Pérez-Guevara F, Martínez IE, Chari SV. Particulate matter concentrations and their association with COVID-19-related mortality in Mexico during June 2020 Saharan dust event. Environ Sci Pollut Res. 2021;2020(6):49989–50000. doi: 10.1007/s11356-021-14168-y. [DOI] [PMC free article] [PubMed] [Google Scholar]
  38. Lee Y, Park J, Ryu C, Ganga KS, Yang W, Park Y-K, Jung J, Hyun S. Comparison of biochar properties from biomass residues produced by slow pyrolysis at 500°C. Biores Technol. 2013;148:196–201. doi: 10.1016/j.biortech.2013.08.135. [DOI] [PubMed] [Google Scholar]
  39. Li X, Cheng H, Fang Y, Chen Z, Qi G, Chen R, Kan H, Liu C, Cao J. Association between fine particulate matter and heart failure hospitalizations: a time-series analysis in Yancheng, China. Environ Sci Pollut Res. 2021;28(21):26906–26912. doi: 10.1007/s11356-021-12428-5. [DOI] [PubMed] [Google Scholar]
  40. Lima Costa AC de, Borges LP, Béttega VGG (2017) Estudo da influência das variáveis de processo na formação de filme líquido em lavadores venturi. In: Anais do XII Congresso Brasileiro de Engenharia Química em Iniciação Científica. Blucher Chemical Engineering Proceedings, 1(4):1737–1742. São Paulo: Blucher. 10.5151/chemeng-cobeqic2017-307.
  41. Lorenzo JSL, Tam WWS, Seow WJ. Association between air quality, meteorological factors and COVID-19 infection case numbers. Environ Res. 2021;197(1):111024. doi: 10.1016/j.envres.2021.111024. [DOI] [PMC free article] [PubMed] [Google Scholar]
  42. Machin AB, Nascimento LF, Mantovani K, Machin EB. Effects of exposure to fine particulate matter in elderly hospitalizations due to respiratory diseases in the South of the Brazilian Amazon. Braz J Med Biol Res. 2019;52(2):1–7. doi: 10.1590/1414-431x20188130. [DOI] [PMC free article] [PubMed] [Google Scholar]
  43. Maduna K, Tomašić V. Air pollution engineering. Phys Sci Rev. 2017;2(12):1–29. doi: 10.1515/psr-2016-0122. [DOI] [Google Scholar]
  44. Mardones C, Saavedra A. Comparison of economic instruments to reduce PM2.5 from industrial and residential sources. Energy Policy. 2016;98:443–452. doi: 10.1016/j.enpol.2016.09.011. [DOI] [Google Scholar]
  45. Marquès M, Domingo JL. Positive association between outdoor air pollution and the incidence and severity of COVID-19. A review of the recent scientific evidences. Environ Res. 2022;203(1):111930. doi: 10.1016/j.envres.2021.111930. [DOI] [PMC free article] [PubMed] [Google Scholar]
  46. Mi T, Yu XM. Dust removal and desulphurization in a novel venturi scrubber. Chem Eng Process. 2012;62:159–167. doi: 10.1016/j.cep.2012.07.010. [DOI] [Google Scholar]
  47. Mohammadi F, Roedl A, Abdoli MA, Amidpour M, Vahidi H. Life cycle assessment (LCA) of the energetic use of bagasse in Iranian sugar industry. Renew Energy. 2020;145:1870–1882. doi: 10.1016/j.renene.2019.06.023. [DOI] [Google Scholar]
  48. Moran S (2017) Pollution Control. In Process Plant Layout. Elsevier, 2nd ed., 187–206. 10.1016/B978-0-12-803355-5.00013-5
  49. Mueller W, Loh M, Vardoulakis S, Johnston HJ, Steinle S, Precha N, Kliengchuay W, Tantrakarnapa K, Cherrie JW. Ambient particulate matter and biomass burning: an ecological time series study of respiratory and cardiovascular hospital visits in northern Thailand. Environ Health: Glob Access Sci Source. 2020;19(1):1–12. doi: 10.1186/s12940-020-00629-3. [DOI] [PMC free article] [PubMed] [Google Scholar]
  50. Naydenova I, Sandov O, Wesenauer F, Laminger T, Winter F. Pollutants formation during single particle combustion of biomass under fluidized bed conditions: an experimental study. Fuel. 2020;278(6):117958. doi: 10.1016/j.fuel.2020.117958. [DOI] [Google Scholar]
  51. Reid CE, Brauer M, Johnston FH, Jerrett M, Balmes JR, Elliott CT. Critical review of health impacts of wildfire smoke exposure. Environ Health Perspect. 2016;124(9):1334–1343. doi: 10.1289/ehp.1409277. [DOI] [PMC free article] [PubMed] [Google Scholar]
  52. Rocha GO, Allen AG, Cardoso AA. Influence of agricultural biomass burning on aerosol size distribution and dry deposition in southeastern Brazil. Environ Sci Technol. 2005;39(14):5293–5301. doi: 10.1021/es048007u. [DOI] [PubMed] [Google Scholar]
  53. Roy D, Samanta S, Ghosh S. Performance optimization through response surface methodology of an integrated biomass gasification based combined heat and power plant employing solid oxide fuel cell and externally fired gas turbine. Energy Convers Manag. 2020;222(7):113182. doi: 10.1016/j.enconman.2020.113182. [DOI] [Google Scholar]
  54. Saleh S, Shepherd W, Jewell C, Lam NL, Balmes J, Bates MN, Lai PS, Ochieng CA, Chinouya M, Mortimer K. Air pollution interventions and respiratory health: a systematic review. Int J Tuberc Lung Dis. 2020;24(2):150–164. doi: 10.5588/ijtld.19.0417. [DOI] [PubMed] [Google Scholar]
  55. Salinas CT, Pu Y, Lou C, dos Santos DB. Experiments for combustion temperature measurements in a sugarcane bagasse large-scale boiler furnace. Appl Therm Eng. 2020;175(9):115433. doi: 10.1016/j.applthermaleng.2020.115433. [DOI] [Google Scholar]
  56. Samae H, Tekasakul S, Tekasakul P, Furuuchi M. Emission factors of ultrafine particulate matter (PM<0.1 μm) and particle-bound polycyclic aromatic hydrocarbons from biomass combustion for source apportionment. Chemosphere. 2021;262:127846. doi: 10.1016/j.chemosphere.2020.127846. [DOI] [PubMed] [Google Scholar]
  57. Sanchis E, Ferrer M, Calvet S, Coscollà C, Yusà V, Cambra-López M. Gaseous and particulate emission profiles during controlled rice straw burning. Atmos Environ. 2014;98:25–31. doi: 10.1016/j.atmosenv.2014.07.062. [DOI] [Google Scholar]
  58. Setter C, Silva FTM, Assis MR, Ataíde CH, Trugilho PF, Oliveira TJP. Slow pyrolysis of coffee husk briquettes: characterization of the solid and liquid fractions. Fuel. 2020;261(6):116420. doi: 10.1016/j.fuel.2019.116420. [DOI] [Google Scholar]
  59. Sharma SK, Mandal TK. Chemical composition of fine mode particulate matter (PM2.5) in an urban area of Delhi, India and its source apportionment. Urban Climate. 2017;21:106–122. doi: 10.1016/j.uclim.2017.05.009. [DOI] [Google Scholar]
  60. Sillapapiromsuk S, Chantara S, Tengjaroenkul U, Prasitwattanaseree S, Prapamontol T. Determination of PM10 and its ion composition emitted from biomass burning in the chamber for estimation of open burning emissions. Chemosphere. 2013;93(9):1912–1919. doi: 10.1016/j.chemosphere.2013.06.071. [DOI] [PubMed] [Google Scholar]
  61. Stanmore BR. Generation of energy from sugarcane bagasse by thermal treatment. Waste Biomass Valoriza. 2010;1(1):77–89. doi: 10.1007/s12649-009-9000-3. [DOI] [Google Scholar]
  62. Sthel MS, Mothé GA, Lima MA, de Castro MPP, Esquef I, da Silva MG. Pollutant gas and particulate material emissions in ethanol production in Brazil: social and environmental impacts. Environ Sci Pollut Res. 2019;26(34):35082–35093. doi: 10.1007/s11356-019-06613-w. [DOI] [PubMed] [Google Scholar]
  63. Urban RC, Alves CA, Allen AG, Cardoso AA, Campos MLAM. Organic aerosols in a Brazilian agro-industrial area: speciation and impact of biomass burning. Atmos Res. 2016;169:271–279. doi: 10.1016/j.atmosres.2015.10.008. [DOI] [Google Scholar]
  64. Viswanathan S, Pierre CCST, Gnyp AW. Jet penetration measurements in a Venturi scrubber. Can J Chem Eng. 1983;61(3):504–508. doi: 10.1002/cjce.5450610403. [DOI] [Google Scholar]
  65. Viswanathan S, Gnyp AW, Pierre CS. Particulate science and technology : an international estimating film flow rate in a venturi scrubber. Part Sci Technol. 1997;15:65–76. doi: 10.1080/02726359708906710. [DOI] [Google Scholar]
  66. Volchyn I, Raschepkin V, Iasynetskyi A. Flue gas dedusting in venturi scrubbers at thermal power plants. Environ Eng Manag J. 2018;17(11):2515–2525. doi: 10.30638/eemj.2018.250. [DOI] [Google Scholar]
  67. Yamile S, Restrepo G, Henrique M, Electo R, Silva E, Osvaldo L, Venturini J, Rafael V, Cobas M, Mauricio D, Maya Y (2021) Design and operation of a gas cleaning system for biomass gasification in a two ‑ stage air ‑ blown downdraft gasifier to meet quality requirements of solid oxide fuel cells United States of America. Biomass Convers Biorefin, 012345678910.1007/s13399-021-01796-0
  68. Zhao C, Li Q, Cui Z, Wang JL, Sun L, Yin Y. Impact of ambient fine particulate matter on emergency department admissions for circulatory system disease in a city in Northeast China. Environ Sci Pollut Res. 2021;28:62839–62852. doi: 10.1007/s11356-021-15222-5. [DOI] [PubMed] [Google Scholar]
  69. Zhao K, Li J, Du C, Zhang Q, Guo Y, Yang M. Ambient fine particulate matter of diameter ≤ 2.5 μm and risk of hemorrhagic stroke: a systemic review and meta-analysis of cohort studies. Environ Sci Pollut Res. 2021;28(17):20970–20980. doi: 10.1007/s11356-021-13074-7. [DOI] [PMC free article] [PubMed] [Google Scholar]
  70. Zheng H, Yi W, Ding Z, Xu Z, Ho HC, Cheng J, Hossain MZ, Song J, Fan Y, Ni J, Wang Q, Xu Y, Wei J, Su H. Evaluation of life expectancy loss associated with submicron and fine particulate matter (PM1 and PM2.5) air pollution in Nanjing, China. Environ Sci Pollut Res. 2021;28:68134–68143. doi: 10.1007/s11356-021-15244-z. [DOI] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Supplementary file1 (DOCX 749 KB) (749.4KB, docx)

Data Availability Statement

The authors declare that all data supporting the findings of this study are available within the article and its supplementary information files.

Articles from Environmental Science and Pollution Research International are provided here courtesy of Nature Publishing Group

RESOURCES
