Roles of Ca²⁺ activity in injury-induced migration of microglia in zebrafish in vivo

Abstract

Microglia are the resident immune cells in the brain. It is well known that brain injury can activate the microglia and induce its directional migration towards the injury sites for exerting immune functions. While extracellular ATP released from the injury site mediates the directionality of activated microglia's migration, what endows activated microglia with migration capability remains largely unexplored. In the present study, we used the larval zebrafish as an in vivo model to visualize the dynamics of both morphology and Ca²⁺ activity of microglia during its migration evoked by local brain injury. We found that, in response to local injury, activated microglia exhibited an immediate Ca²⁺ transient and later sustained Ca²⁺ bursts during its migration towards the local injury site. Furthermore, suppression of Ca²⁺ activities significantly retarded microglial cell migration. Thus, our study suggests that intracellular Ca²⁺ activity is required for activated microglia's migration.

Highlights

• •Larval zebrafish was used to in vivo visualize injury-induced microglia migration.
• •An elevated Ca²⁺ activity is correlated with microglia migration.
• •The Ca²⁺ activity depends on IP3Rs and is required for microglia migration.

1. Introduction

Microglia are primary immune cells in the brain and derived from a myeloid lineage in the mesoderm [[1], [2], [3]]. Its high sensitivity to ATP and other injury-relevant molecules enables it to rapidly detect and be activated by brain injury and inflammation [[4], [5], [6]]. Besides its activated state for immune functions, intensive studies illustrate microglia at the resting state as a multifunction player for regulating diverse neural processes, including synapse pruning [7], myelin formation [8], neuronal activity homeostasis [9], learning [10], forgetting [11], and neuronal death [12,13].

Brain injury can alter microglia status from a physiological resting state to an activated state followed by directional migration towards the injury site [2]. It has been discovered that this process is dependent on injury site-released ATP which is sensed by microglia through P2 receptors and that the concentration gradient of ATP can position the injury site to direct microglia migration [[4], [5], [6]]. However, it is still unexplored that what enables activated microglia to migrate. Considering that Ca²⁺ activity is required for the migration of many types of cells [[14], [15], [16], [17], [18]] and Ca²⁺ signaling is important for activating microglia [19,20], we speculate that Ca²⁺ activity plays a role in the migration of activated microglia.

Taking advantage of the optical transparency and small size of the brain in larval zebrafish [21], we performed in vivo time-lapse two-photon imaging and visualized the dynamics of both the morphology and Ca²⁺ activity of microglia in response to local brain injury mimicked by two-photon laser-based neuron ablation and micropipette stabbing in zebrafish larvae at 5–8 days post-fertilization (dpf). Both types of local brain injury could effectively induce the directional migration of microglia. Interestingly, we found that, during its migration towards the injury site, microglia displayed robust sustained Ca²⁺ burst activities. We then found that the Ca²⁺ burst activities of activated microglia could be suppressed by locally applying 2-Aminoethoxydiphenyl Borate (2-APB), a general antagonist of the inositol 1,4,5-trisphosphate receptors (IP3Rs) [22]. Importantly, we found that the speed of microglial cell migration was reduced simultaneously with the suppression of Ca²⁺ activity, which suggests that the intracellular Ca²⁺ activity is important for microglia migration induced by brain injury.

2. Methods

2.1. Zebrafish husbandry and transgenic lines

Adult zebrafish were maintained in an automatic housing system (ESEN, Beijing, China) at 28 °C under a 14-hr light:10-hr dark cycle [9]. Embryos were raised up in an incubator. For two-photon imaging, the 0.003% N-Phenylthiourea was used to inhibit pigment formation. The Tg(coro1a:GCaMP5)ion15d line was generated by using the same promoter as the Tg(coro1a:eGFP) line which was previously described [23]. The Tg(HuC:NES-jRGECO1a)ion72d line was previously described [24].

2.2. In vivo time-lapse two-photon imaging

In vivo time-lapse two-photon imaging [25] with a 4–10 s interval was performed on the double transgenic larvae Tg(coro1a:GCaMP5);Tg(HuC:NES-jRGECO1a) at 5–8 dpf at room temperature (20–22 °C). Zebrafish larvae were first paralyzed by α-bungarotoxin and then immobilized in 1.5% low-melting agarose. Imaging was performed under a 25 × water-immersion objective (N.A., 0.8) on an Olympus FVMPE-RS-TWIN microscope equipped with a two-photon laser (Newport/Spectra-Physics, USA) tuned to 1000 nm for excitation of GCaMP5. The GCaMP5 signal was used to characterize the dynamics of both the morphology and Ca²⁺activity of microglia.

2.3. Two-photon ablation-based local brain injury

The two-photon ablation-based local brain injury was achieved under the Olympus FVMPE-RS-TWIN with an angular tornado-scanning mode. Two-photon laser (800 nm) was targeted on jRGECO1a-positive cells with a circular region of interest (ROI, 5 μm in diameter) in Tg(coro1a:GCaMP5);Tg(HuC:NES-jRGECO1a) larvae. Successful ablation was accepted when the targeted area exhibited a small autofluorescence sphere (5–10 μm in diameter) as described in previous studies [4,26].

2.4. Micropipette-induced local brain injury

Before the injury, the skin on the surface of the hindbrain of zebrafish larvae was dissected. Under FVMPE-RS-TWIN, a glass micropipette (1–2 μm in diameter of the tip open) made from borosilicate glass capillaries (BF100-58-10, Sutter Instrument) was inserted from the surgery site and the tip was placed in the optic tectum cell body layer. After insertion, the micropipette was moved back and forth for around 5–10 μm to induce tissue damage as previously described [4]. The success of injury induction was confirmed by significant microglial cell migration to the injury site.

2.5. Local puff of 2-APB

A stock solution containing 2-APB at 50 mM was first made with DMSO. It was then diluted to 7.5 mM with an extracellular solution (ES) consisted of (in mM): 134 NaCl, 2.9 KCl, 2.1 CaCl₂, 1.2 MgCl₂, 10 HEPES, and 10 glucose (pH = 7.8), and then loaded into a glass micropipette (1–2 μm in diameter of the tip open). Ten minutes after micropipette-induced injury, 2-APB solution contained in the micropipette was ejected out by pulses of gas pressure (4 psi, 10 ms in duration, 1 min in interval) until the end of imaging. In the control group, exact the same amount of DMSO was diluted in ES and puffed out with the same pulse pattern.

2.6. Data analysis

Analysis of both the Ca²⁺ activity and morphology of microglia was performed with ImageJ (NIH). The image sequences were projected using Z-projection via stacking all slices to the same X–Y plane by maximum gray values. An ROI was drawn to include all the processes and cell body of each microglial cell. In terms of Ca²⁺ activity, the mean gray-scale value was represented by F; the averaged gray-scale value of the first 100 values from ascendingly sorted F was calculated as F0. The level of Ca²⁺ activity was quantified by (F–F0)/F0 and an increase of >3 SD was counted as a Ca²⁺ transient activity. The distance to the injury site was measured by calculating the distance between the far side of the microglial cell body and the micropipette tip.

2.7. Statistics

All significance calculation was carried out by Student's t-test. Unpaired and paired Student's t-test was performed for calculating the significance between the data obtained from two groups (migrating microglia versus non-migrating microglia and ES versus 2-APB) and from the same group before and after manipulations (before injury versus after injury, before local puff versus after local puff), respectively. The p < 0.05 was considered as statistically significant. Data were represented as mean ± SEM.

3. Results

3.1. Microglia simultaneously displayed directional migration and Ca²⁺ activities in response to local brain injury in zebrafish in vivo

Firstly, we confirmed the effectiveness of the previously described laser-induced and micropipette-induced brain injury for activating microglia. To visualize the dynamics of microglial morphology, we performed in vivo time-lapse two-photon imaging of the double transgenic larvae Tg(coro1a:GCaMP5);Tg(HuC:NES-jRGECO1a) at 5–8 dpf at 0.1–0.2 Hz (Fig. 1A), in which GCaMP5 (green) and jRGECO1a (red) are expressed specifically in the microglia and neurons of the brain, respectively. Here, GCaMP5 was used to monitor both the morphology and Ca²⁺ activity of microglia, and jRGECO1a was used for absorbing two-photon laser-associated heat to induce local brain injury in the midbrain optic tectum where microglia enrich. In response to the local injury, microglia nearby in the same hemisphere became activated as indicated by an amoeboid-like shape and migrated towards the injury site (Fig. 1B). With time, more and more microglia were recruited to surround the injury site (right, Fig. 1B). Furthermore, we used a micropipette to induce local brain injury and observed a similar pattern of activated microglia's migration but within a smaller spatial range due to the more restricted injury induced by micropipette than by two-photon laser (Fig. 1C). This phenomenon was observed in most of the cases examined (20 out of 20 cases for two-photon laser and 13 out of 15 cases for micropipette).

Fig. 1.

Local brain injury-induced migration of microglia in larval zebrafish in vivo.

(A) Whole-brain projection images showing the distribution of microglia (GCaMP5-positive, green) and neurons (jRGECO1a-positive, red) in a double transgenic larva Tg(coro1a:GCaMP5);Tg(HuC:NES-jRGECO1a) at 5 dpf. The green signals on the eyeballs were auto-fluorescence. C, caudal; L, lateral. Scale bar, 50 μm

(B) In vivo time-lapse (with a 5-s interval) two-photon images showing microglia's directional migration evoked by two-photon laser-induced local brain injury (red dot). Only time series at a 15-min interval were shown. The time point of 0 min indicates the onset of injury induction. The numbers and arrowheads indicate the microglia traced across the whole imaging. The image field is outlined in (A), and the images were obtained from a 7-dpf larva. Scale bar, 20 μm

(C) In vivo time-lapse (with a 4-s interval) two-photon images showing microglia's directional migration evoked by micropipette (dashed orange lines)-induced local brain injury. Only time series at a 5-min interval were shown. The time point of 0 min indicates the onset of micropipette insertion. The numbers and arrowheads indicate the microglia traced across the whole imaging. The image field is outlined in (A), and the images were obtained from a 5-dpf larva. Scale bar, 10 μm. . (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

Then we examined the Ca²⁺ activity of microglia by monitoring changes in GCaMP5 signal (Fig. 2A). A strong Ca²⁺ transient activity was found in nearby microglia immediately after local brain injury and lasted for tens of seconds (arrow, Fig. 2B). And the follow-up Ca²⁺ burst activities were observed while those microglia were migrating towards the injury site (“migrating microglia”, red in Fig. 2A and B). Such Ca²⁺ activities were rarely found in those migrating microglia before injury. This type of Ca²⁺ activities were also rare in microglia located in the contralateral hemisphere to the injury site and did not exhibit directional migration after injury (“non-migrating microglia”, green in Fig. 2A and B).

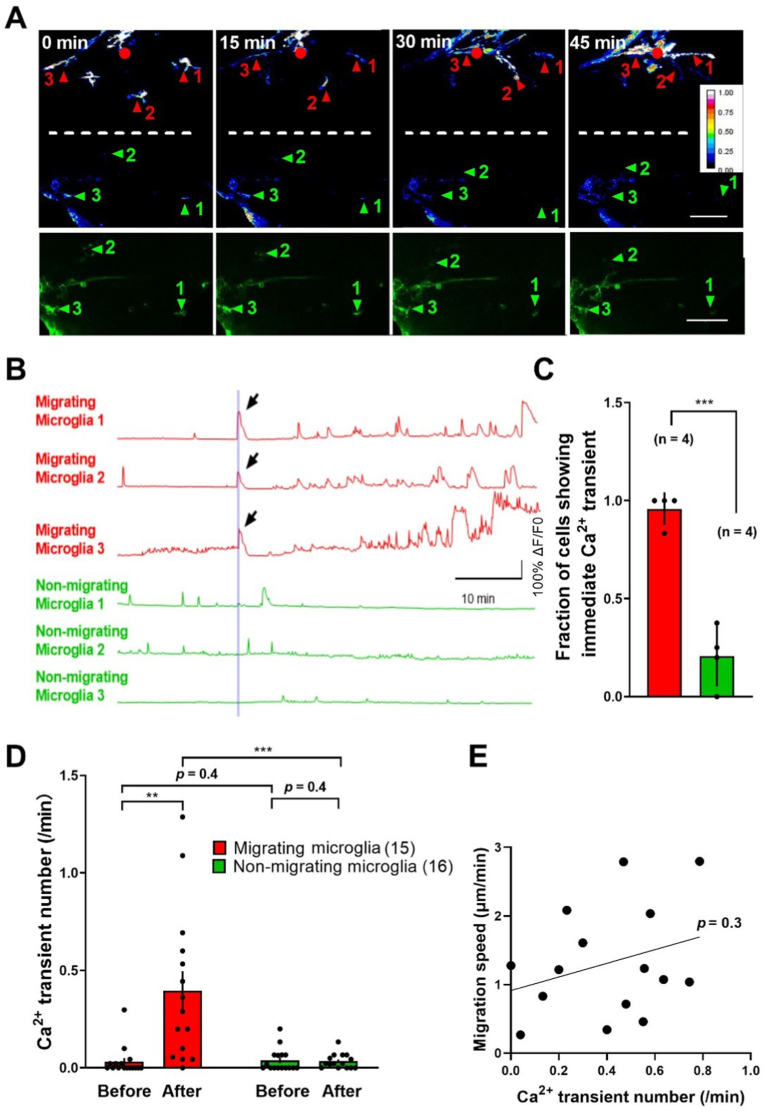

Fig. 2.

Association between the Ca²⁺ activity and migration of activated microglia.

**p < 0.01, ***p < 0.001 (unpaired Student's t-test for (C) and for comparison between migrating and non-migrating microglia in (D), paired Student's t-test for comparison within migrating or non-migrating microglia in (D)). Error bars, SEM.

(A) Up, in vivo time-lapse two-photon images showing Ca²⁺ activities (in heatmaps) accompanying with microglia migration induced by laser-based local brain injury (red dot) at time 0. The data were obtained from the same larvae with that in Fig. 1B. Red numbers and arrowheads, microglia responsive to the injury; green numbers and arrowheads, microglia located in the contralateral hemisphere and non-responsive to the injury. Dashed white lines represent the midline between two hemispheres. Down, raw images showing the morphology of non-responsive microglia in the contralateral hemisphere. Scale bar, 50 μm

(B) Traces of Ca²⁺ activities of microglia numbered in (A). The vertical line indicates the onset of local brain injury. Arrow, immediate Ca²⁺ transient induced by the injury.

(C) Summary of the fraction of cells showing injury-induced immediate Ca²⁺ transient for the migrating (red) and non-migrating (green) microglia. Data were collected from 31 microglial cells in 4 zebrafish larvae, and each dot on the bar represents the data from an individual larva.

(D) Summary of injury-induced later Ca²⁺ transient number per minute before and after the local injury in migrating (red) and non-migrating (green) microglia. The number in the brackets represents the number of microglia examined, and each dot on the bar represents the data from an individual microglial cell. Data were collected from 31 microglial cells in 4 zebrafish larvae.

(E) Association between Ca²⁺ transient number per minute and migration speed before microglia stop moving on the injury site. The black linear line represents the simple linear regression slope (Y = 0.9932*X + 0.9130). Each dot on the graph represents the data from an individual microglial cell. Data were collected from 31 microglial cells in 4 zebrafish larvae. . (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

To characterize the association between the Ca²⁺ activity and migration of microglia, we first analyzed the occurrence of Ca²⁺ transient immediately appeared after the injury in both the migrating and non-migrating microglia (Fig. 2C). We found that there is a significantly higher possibility that the migrating microglia have the immediate Ca²⁺ transients in comparison with the non-migrating microglia (p < 0.001, Fig. 2C). We then compared the follow-up Ca²⁺ burst activities in the migrating and non-migrating microglia before and after the local injury induction (Fig. 2D). Both the migrating and non-migrating microglia had comparable low Ca²⁺ activities before the local injury (p = 0.4). Whereas, after the injury, the number of Ca²⁺ transient events per minute increased markedly in the migrating microglia but not in the non-migrating microglia (p < 0.01 for migrating microglia, p = 0.4 for non-migrating microglia, Fig. 2D). The association between the number of calcium transient and migration speed shows an overall positive relationship but with no statistical significance (p = 0.3, Fig. 2E).

Taken together, these results indicate an association relationship between the migration and Ca²⁺ activity of activated microglia.

3.2. Ca²⁺activity was required for microglia migration towards the injury site

To further explore the role of Ca²⁺ activity in the migration of activated microglia, we examined the effect of Ca²⁺ activity suppression on microglia migration by local application of 2-APB, which is a general antagonist of IP3Rs. The 2-APB was loaded into the same micropipette used for local injury induction. Just as mentioned in Fig. 2, insertion of the micropipette induced elevated Ca²⁺ activity and directional migration of nearby microglia (“−10 min–0 min” data in Fig. 3A–D). After 10 min of injury-induced migration of microglia, 2-APB was puffed out until the end of imaging. As shown in Fig. 3A and B, after the local application of 2-APB, the level of Ca²⁺ activity in the migrating microglia decreased to the baseline. Importantly, the speed of its migration towards the injury site was reduced as well (Fig. 3A and B). In the control, extracellular solution (ES) was ejected out instead of 2-APB with the same pattern. However, after ES application, the microglial cell still exhibited Ca²⁺ activity and migrated to the injury site (Fig. 3C and D).

Fig. 3.

Requirement of Ca²⁺ activity for injury-induced migration of activated microglia.

*p < 0.05 (paired Student's t-test for comparison within each group before and after the puff, unpaired Student's t-test for comparison between groups of 2-APB and ES). Error bars, SEM.

(A) In vivo time-lapse two-photon images showing Ca²⁺ activity (in heatmaps) and migration of microglia evoked by micropipette-induced local brain injury (dashed orange lines) applied at time −10 min before the local puff of 2-APB (just after the time of 0 min). Scale bar, 10 μm

(B) Traces of both the Ca²⁺ activity (black) of the microglial cell and the distance (red) between the microglial cell body and micropipette tip for the case in (A). Gray area, application of 2-APB.

(C and D) Control case with puff of extracellular solution (ES) instead of 2-APB. Scale bar in (C), 10 μm

(E and F) Summary of changes in the Ca²⁺ activity (E) and migration speed (F) induced by puffing of ES or 2-APB. Each dot on the bar represents the data from an individual microglial cell examined. . (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

To quantify the effects of 2-APB, we calculated and compared the changes of Ca²⁺ activity and migration speed before and after the application of 2-APB or ES. Both the Ca²⁺ activity and migration speed significantly decreased after 2-APB application (p < 0.05 for both Ca²⁺ activity and migration speed) but not in the control group (p = 0.1 for Ca²⁺ activity and p = 0.3 for migration speed) (Fig. 3E and F). These results suggest that intracellular Ca²⁺ activity is required for injury-induced microglia directional migration.

4. Discussion

Under the physiological condition, microglia maintain at the resting state and locate dispersedly in the brain [1,2]. In response to local brain injury, nearby microglia will be activated and migrate through an ATP concentration gradient produced by injury-induced ATP release [[4], [5], [6]]. Our study reveals an increase of Ca²⁺ activity in migrating microglia as a necessary mechanism for injury-induced directional migration. A previous in vitro study reported that isolated mouse microglia displayed spontaneous Ca²⁺ activities [27]. Consistent with our finding, it was reported that Ca²⁺ is highly related to the migration of different cell types including endothelial tip cells [14], smooth muscle cells [15], macrophages [16], neural progenitors [17], and oligodendrocyte progenitors [18].

Intracellular Ca²⁺ stores play critical roles in various cell types in regulating Ca²⁺ levels in the cell. Previous in vitro studies showed that the intracellular Ca²⁺ store participates in Ca²⁺ activity in microglia and the inhibition of IP3Rs, a widely expressed channel for Ca²⁺ stores, can influence microglia behavior in the trans-well assay [28]. As an antagonist of IP3Rs, 2-APB was widely used to inhibit intracellular Ca²⁺ release from the store in various cell types including epithelial cells, platelets, and neutrophils [22]. Our results reveal a significant reduction of injury-induced follow-up Ca²⁺ bursts as well as migration speed after 2-APB application, suggesting the possibility of the involvement of IP3R-associated Ca²⁺ stores in the Ca²⁺ activity of migrating microglia and in mediating microglial cell migration. As it is reported that 2-APB may also affect multiple transient receptor potential (TRP) channels [29,30], future investigation is required to confirm the direct involvement of IP3Rs in the Ca²⁺ activity of activated microglia in vivo. In the present study, we did not exclude the participation of other types of glial cells in the microglial cell migration. It is possible that the 2-APB cause a decrease of intracellular Ca²⁺ concentration in the radial glial cells and thus a reduction of nitric oxide production [31], which could then affect microglial cell migration [32].

While our result suggested that the IP3R-induced endoplasmic reticulum (ER) Ca²⁺release is important for active microglial cell migration, there are other existing pathways that could be involved in the microglial cell migration shown in our study. Besides Ca²⁺, Gu et al. showed that the P2Y12 receptor, which is a possible upstream of the Ca²⁺ activity we observed, can also mediate K⁺ efflux, which may contribute to the electrophysiological activation of microglia [33]. As some of the potassium channels like kv1.3 and kir2.1 are found to contribute to microglial cell migration [34], the P2Y12-mediated K⁺ current might work as another downstream of P2 receptors to influence microglial cell migration. Other than the metabotropic P2 receptors, ionotropic P2X4 and P2X7 receptors can both respond to ATP and mediate Ca²⁺ influx [[35], [36], [37]]. In addition, the IP3R-mediated Ca²⁺ release can activate store-operated calcium entry (SOCE) by emptying the ER Ca²⁺ store [38,39], suggesting that IP3R can be even more important than just causing ER calcium release. These Ca²⁺ sources are shown to significantly impact intracellular Ca²⁺ activities and can modulate the microglial cell activation, migration, and inflammation response [36,38].
