Transcriptional response of the xerotolerant Arthrobacter sp. Helios strain to PEG-induced drought stress

Abstract

A new bacterial strain has been isolated from the microbiome of solar panels and classified as Arthrobacter sp. Helios according to its 16S rDNA, positioning it in the “Arthrobacter citreus group.” The isolated strain is highly tolerant to desiccation, UV radiation and to the presence of metals and metalloids, while it is motile and capable of growing in a variety of carbon sources. These characteristics, together with observation that Arthrobacter sp. Helios seems to be permanently prepared to handle the desiccation stress, make it very versatile and give it a great potential to use it as a biotechnological chassis. The new strain genome has been sequenced and its analysis revealed that it is extremely well poised to respond to environmental stresses. We have analyzed the transcriptional response of this strain to PEG6000-mediated arid stress to investigate the desiccation resistance mechanism. Most of the induced genes participate in cellular homeostasis such as ion and osmolyte transport and iron scavenging. Moreover, the greatest induction has been found in a gene cluster responsible for biogenic amine catabolism, suggesting their involvement in the desiccation resistance mechanism in this bacterium.

Introduction

Bacteria of the genus Arthrobacter, belonging to Micrococcaceae family and Actinobacteria phylum, are among the most frequently isolated, indigenous, aerobic bacterial genera found in soils. Members of the genus are metabolically and ecologically diverse and have the ability to survive in environmentally harsh conditions for extended periods of time (Conn and Dimmick, 1947; Koch et al., 1995; Unell et al., 2008). They have been isolated worldwide from a variety of environments, including sediments (Dastager et al., 2014), human clinical specimens (Huang et al., 2005), water (Kim and Quan, 2007), glacier cryoconite (Margesin et al., 2012), sewage (Kim et al., 2008), glacier ice (Liu et al., 2018) and even from contaminated environments with industrial chemicals and radioactive materials (Sánchez-Castro et al., 2017). The prevalence of Arthrobacter in soils can be due to its metabolic versatility and to its ability to survive long periods under stressful conditions such as starvation, temperature shifts, dryness, ionizing radicals and metals, among others (Mongodin et al., 2006; Yao et al., 2015; Porcar et al., 2018). Arthrobacter are described to grow as two distinct shapes, forming either spherical or rod-shape cells depending upon culture medium and growth phase, but both forms appear to be equally resistant to desiccation and starvation (Jones and Keddie, 2006; Santacruz-Calvo et al., 2013).

Arid stress caused by the lack of water or by high concentration of salts in the environment is one of the most common stresses that bacteria face in the natural environment (Holden et al., 1997; Holden and Fierer, 2005). Surface soils are unsaturated habitats where the water fluctuation is one of the major factors affecting bacterial cells. Xerotolerant strains tolerate low water activities (a_w) caused either by an increased extracellular osmolarity or by a general lack of water. Osmotic stress is a constant challenge for bacteria living in a range of soils that also affects symbionts that must alternate between two main biotopes, the soil and the root tissues (Hawkins and Oresnik, 2022). In non-saline soils, capillary forces and physical sorption of water to solids, together constituting the soil matric potential, are the dominating factors determining water availability (Holden, 2001). Low matric potentials (i.e., desiccation) limit transport and diffusion of nutrients, impair microbial mobility, and negatively affect the physiological activity of soil bacteria (Stark and Firestone, 1995; Or et al., 2007; Dechesne et al., 2008). Two strategies have evolved to allow microbes to counterbalance the extracellular osmolarity. The first one is the accumulation in the cytoplasm of K⁺ and their counterion glutamate to provide osmotic balance to the cells (Galinski and Trüper, 1994; Epstein, 2003; Gunde-Cimerman et al., 2018). The second strategy consists in the accumulation of small organic compounds, either by de novo synthesis or by their uptake from the environment (Oren, 1999; Gunde-Cimerman et al., 2018). These compounds are named compatible solutes because they can be accumulated in high concentrations while not interfering with the metabolism. Most common compatible solutes are sugars (e.g., trehalose), polyols (e.g., mannitol), amino acids (e.g., glutamate) and derivatives thereof (e.g., ectoine) as well as trimethylammonium compounds (e.g., glycine betaine; Potts, 1994; Ruhal et al., 2013; Lebre et al., 2017; Zeidler and Müller, 2019).

Remarkably, solar panels provide a new non-natural extreme environment to the microorganisms attached to them, since they are exposed to high and cyclic variations of temperature, sunlight, radiation and humidity, thus resulting in a particular harsh habitat where only heat-, desiccation- and irradiation-adapted microorganisms would survive. Moreover, the surface of solar panels represents a harsh environment exposed to lack of nutrients and water (Dorado-Morales et al., 2016; Porcar et al., 2018). However, solar panels harbor a highly diverse microbial community, including more than 500 different species per panel, most of which belong to drought, heat and radiation-adapted bacterial genera (Dorado-Morales et al., 2016; Tanner et al., 2018; Castillo et al., 2021).

In this work, we have isolated from a solar panel the bacterium Arthrobacter sp. Helios, that showed several extremophile properties, but especially a high xerotolerance. Its genome sequence and several physiological characteristics are described. The transcriptome in the presence of PEG6000 simulating matric stress has been analyzed to determine the strategies developed by this bacterium to resist water stress. The biotechnological applications of this new strain are discussed.

Materials and methods

Isolation of xerotolerant strains from solar panels

Sampling of solar panels was performed as described (Dorado-Morales et al., 2016). Briefly, harvesting of microbiota was carried out by pouring sterile phosphate-buffered saline (PBS; pH 7.4) on the solar panel and scraping the surface with a window cleaner attached to an autoclaved silicone tube (5 mm in diameter). The resulting liquid suspension was collected by using a pipette and transferred to Falcon tubes, placed on ice, and immediately transported to the lab, where it was filtered by a hydrophilic nylon membrane (Millipore, Burlington, MA, United States; 20 μm pore size) to discard particles, most of the fungi, and inorganic debris. A number of 100 μl aliquots of microbiota samples resuspended in saline solution 0.85% (w/v) obtained from solar panels were spread into Millipore™ membrane filters (0.45 μm pore size, 47 mm diameter, mixed cellulose esters, hydrophilic), air dried and incubated in a stove at 37°C with 10%–15% humidity for 10 days. Filters were hydrated with 1 ml of PBS and the bacterial suspension was plated on LB agar and incubated overnight at 37°C. The isolated colonies were cultured individually in liquid LB medium and subjected to an additional desiccation cycle in order to obtain the most xerotolerant strains. The validation of the xerotolerance test was performed using Escherichia coli DH10B, as a bacterial reference for low xerotolerance; and Deinococcus radiodurans, for high xerotolerance. To carry out the comparative tests, 100 μl of the strain cultures in rich media with an optical density at 600 nm (OD₆₀₀) of 0.05 were deposited on the filters and incubated in a stove at 37°C with 10%–15% humidity for several days. The filters were hydrated with 1 ml of PBS after 3, 7, and 15 days. To quantify the survival ratio, viability cell count was performed on LB agar plates. The identification of the xerotolerant isolated strains was made by 16S rRNA sequencing. A 1340 bp conserved fragment of 16S rRNA gene was amplified by PCR from genomic DNA, using universal primers 63F (5′-CAGGCCTAACACATGCAAGTC-3′) and 1387R (5′-GGGCGGWGTGTACAAGGC-3′; Marchesi et al., 1998). PCR products were checked in 0.7% agarose gel and purified with QIAquick PCR Purification Kit. Sequencing was carried out by Secugen S.L. (Madrid, Spain). The resulting sequences were compared to the nucleotide collection at NCBI using the BLAST tool¹ optimized for highly similar sequences (megablast).

Culture and growth and other extremophilic traits

The bacterial strains used in this work were Arthrobacter sp. Helios, Arthrobacter koreensis CA15-8, Exiguobacterium sp. Helios, Pseudomonas putida KT2440, Escherichia coli DH10B and Deinococcus radiodurans. Arthrobacter sp. Helios, A. koreensis CA15-8, Exiguobacterium sp. Helios and P. putida KT2440 were grown in LB medium at 30°C with orbital shaking at 200 rpm, while E. coli DH10B was grown at 37°C in the same conditions. D. radiodurans was grown at 30°C and 200 rpm in TGY medium (tryptone 1%, glucose 0.1% and yeast extract 0.5%, pH 7.2).

Minimal media M63 supplemented with trace elements and vitamins (Cohen and Rickenberg, 1956) was used to study the ability of Arthrobacter sp. Helios to grow in different carbon sources as a sole source of carbon and energy. The carbon sources tested were 10 mM glucose, 3 mM fructose, 10 mM xylose, 17 mM succinate, 10 mM maltose, 10 mM sucrose, 10 mM galactose, 8 mM citrate, 10 mM lactose, 10 mM arabinose, 3 mM ribose, 1 mM phenol, 3 mM benzoic acid, 3 mM 3-hydroxybenzoic acid, 3 mM 4-hydroxybenzoic acid, 3 mM protocatechuate, 3 mM catechol, 3 mM phenylacetic acid, 1 mM cholesterol, 3 mM pyridine, 3 mM phthalate, 3 mM isophthalate and 3 mM terephthalate. All products were purchased from Merck and bacterial growth was assessed measuring culture turbidity (OD₆₀₀).

For the salinity resistance test, cells were grown in LB medium supplemented with increasing concentrations of NaCl (20–100 g/L) and OD₆₀₀ was monitored. In the case of UV resistance, cells were grown until the stationary phase, washed twice with PBS and OD₆₀₀ adjusted to 0.5. 2 ml of each strain were spread in MW6 (Falcon) and serial dilutions were made in order to know the initial CFU/mL. A UV Stratalinker 1800 (Cultek) was used to irradiate cells with increasing doses of UV. Finally, after the exposure, serial dilutions were plated on LB agar plates and colonies were grown overnight to quantify cell viability.

Arthrobacter sp. Helios metals and metalloids resistance was assessed in Tris-Minimal Medium (6.06 g/L Tris–HCl; 4.68 g/L NaCl; 1.49 g/L KCl; 1.07 g/L NH₄Cl; 0.43 g/L Na₂SO₄; 0.2 g/L MgCl₂ 6H₂O; 0.03 g/L CaCl₂ 2H₂O; 0.23 g/L Na₂HPO₄ 12 H₂O; 0.005 g/L Fe(III)NH₄ citrate; 1 μl/L 25% HCl; 70 μg/ml ZnCl₂; 100 μg/ml MnCl₂ 4H₂O; 60 μg/ml H₃BO₃; 200 μg/ml CoCl₂ 6H₂O; 20 μg/ml CuCl₂ 2H₂O; 20 μg/ml NiCl₂ 6H₂O; 40 μg/ml Na₂MoO₄ 2H₂O) supplemented with yeast extract (1 g/L). The metals and metalloids were added to this medium in the following concentrations: 0.62–1.25 mM NiCl₂, 0.62–10 mM ZnCl₂ and K₂TeO₃, 0.62 mM NaAsO₂, 1 mM Na₂HAsO₄, 0.4–3 mM CuSO₄, 0.62 mM CdCl₂ and AgNO₃ and 0.62–2.5 mM Pb(NO₃)₂. Arthrobacter sp. Helios selenite resistance was tested in LB medium with 1–200 mM Na₂SeO₃ and OD₆₀₀ monitored. For the SeNPs production, Arthrobacter sp. Helios was grown in LB medium supplemented with 1 mM Na₂SeO₃ for 24 h at 30°C with orbital shaking at 200 rpm. The range of metal/metalloid concentrations tested to determine the metal resistance of Arthrobacter sp. Helios were selected based on the MIC determined in other bacteria that are resistant to metals.

To test the ability of Arthrobacter sp. Helios to grow in PEG-mediated drought stress, polyethylene glycol 6000 (PEG6000; Sigma-Aldrich) was used. PEG6000 was added to LB medium in concentrations of 10%, 20%, 30%, and 35% (w/v) to assess Arthrobacter sp. Helios resistance. Concentrations of 10% and 35% were selected for transcriptomic analysis. To inoculate 10% and 20% PEG6000 cultures, bacteria were previously grown overnight in LB liquid medium without PEG6000, whereas 30% and 35% PEG6000 cultures were inoculated with Arthrobacter sp. Helios previously grown overnight in the presence of 20% PEG6000. All of these cultures started at an initial OD₆₀₀ of 0.1.

Characterization of the selenium nanoparticles and transmission electron microscopy

Samples of Arthrobacter sp. Helios grown with 1 mM sodium selenite were dropped onto carbon-coated copper grids allowing the solvent to evaporate. TEM analyses were performed with a JEOL model JEM-2100 instrument operated at an accelerating voltage of 200 kV. The elemental composition of the selenium nanoparticles was determined by energy-dispersive X-ray spectroscopy (EDX; Collins, 2007; Li et al., 2014). SeNPs size distribution was calculated using the Image J software.²

Sequencing, assembly, and bioinformatic analyses of genome

Total DNA extraction and sequencing was performed as described previously (Castillo et al., 2021). Briefly, Arthrobacter sp. Helios genome was sequenced and assembled by Microbes NG³ using Illumina technology and its standard pipeline for a de novo assembly. Kraken⁴ was used to identify the closest available reference genome and reads were mapped to this reference genome using BWA mem (Burrows–Wheeler Aligner, http://bio-bwa.sourceforge.net/) in order to check the sequencing data quality. A de novo assembly of the reads was performed using SPAdes, and reads were mapped back to the resultant contigs, using BWA mem to obtain more quality metrics. The number of reads was 1,483,364 with a median insert size of 156 bp and a mean coverage of 147. The number of contigs delivered was 45 with a N50 of 147,883, being the largest contig size of 317,147 bp. To enhance genome quality, we further sequenced the genome with Nanopore technology. A genomic library was created with the 1D Native Barcoding genomic DNA Barcode kit and run through the flow cell FLO-MIN-106D v R9 in a MinION equipment. The number of reads obtained was 406,031 with a median insert size of 2,480 and an average quality of 11.32. The assembly was performed using the Galaxy Community Hub,⁵ first selecting the reads longer than 1 kb and with a quality bigger than 10 using Filtlong software (v 0.2.0; https://github.com/rrwick/Filtlong) and comparing them with the Illumina reads using Unicycler (v 0.4.8; https://github.com/rrwick/Unicycler/releases/tag/v0.4.8) with the standard parameters. This resulted in one single contig of 3,895,998. The genome was structurally annotated using the RAST Server,⁶ and automated genome annotation system, functions, names, and general properties of gene products were predicted using this method. Phylogenetic analyses were performed with Genome BLAST Distance Phylogeny using the Type Strain Genome Server⁷ and the Geneious Tree Builder tool from Geneious v 2022.0.1 software,⁸ with the genetic distance model Tamura-Nei and the Neighbor-Joining tree build method and setting the cost matrix at a 65% of similarity (5.0/−4.0). Comparative analyses were carried out using BLAST software at NCBI.⁹ The genome project has been deposited at GenBank under the accession number CP095402.

Biomass collection and RNA extraction

Total RNA was extracted from cultures of Arthrobacter sp. Helios grown in 50 ml LB medium supplemented with 10 (PEG10) and 35% (PEG35) PEG6000, as the simulated drought conditions, and 0% (PEG0) PEG6000 as the control condition. Bacteria were grown until the middle of their exponential growth and biomass was collected as follows: 10 ml of each culture were centrifuged at 4°C for 10 min at 3,800 rpm in an Eppendorf Centrifuge 5810 R and then washed twice with PBS. 1 ml of a solution containing SDS 1% (v/v), 160 mM EDTA and lysozyme (50 mg/ml) was added to the cell pellet and then transferred to a 15 ml Falcon tube with glass balls previously sterilized. The solution was left at RT for 5 min in order to let the lysozyme lyse the cells. Next, 200 μl of phenol-chloroform-isoamyl alcohol (ROTH) were added and vortexed to obtain the cell lysate. Then, 800 μl of buffer RLT (Qiagen) with β-mercaptoethanol (100:1) were added and incubated on ice during 10 min. 3 cycles of vortex followed by an incubation in ice were performed, and 1.4 ml of phenol-chloroform isoamyl alcohol added. The Falcon tubes were centrifuged 15 min and the aqueous phase transferred to a new tube with 700 μl of ethanol. Finally, the total RNA was purified from this extraction using a RNeasy kit (Qiagen) following the manufacturer’s instructions.

Transcriptomic analysis

Three biological replicates of each condition were used to sequence the total RNA of Arthrobacter sp. Helios grown in PEG-mediated drought stress. The de novo transcriptome sequencing was performed by Macrogen NGS Service¹⁰ (Illumina TruSeq RNA library, 6 GB/sample sequencing coverage) and fragments of 151 bp paired-end reads were obtained. Raw reads were trimmed and cleaned with Trimmomatic 0.39 in order to remove Illumina adapters and low-quality bases (Bolger et al., 2014). After filtration, we obtained more than 58,000,000 reads for each sample and a mapping ratio against Arthrobacter sp. Helios genome ranging between 90–98% (Supplementary Table S1). Besides, the quality score Q30 was above 95%. Trimmed reads were aligned to Arthrobacter sp. Helios genome (accession number CP095402) using Bowtie2 2.4.2 (Langmead and Salzberg, 2012), and reads were counted with Htseq-count 0.13.5 (Anders et al., 2015). Differential gene expression analysis between groups was performed with the DESeq2 1.32.0 from the R software 3.6.3 (R: The R Project for Statistical Computing; https://www.r-project.org/). Genes with a |log₂FC| ≥ 2 and FDR < 0.05 (FC: Fold change; FDR: False discovery rate) were considered as differentially expressed. A Principal Component Analysis (PCA) with the variance stabilizing transformed counts helped to inferred the general quality of the experimental design, i.e., the absence of covariates or batch effects. Heatmap, volcano plots and Venn diagrams were drawn with “ComplexHeatmap,” “VennDiagram,” and “EnhancedVolcano,” respectively, from the R package.

The eggNOG-mapper tool¹¹ (Cantalapiedra et al., 2021) was used for the functional annotation of the proteins with COG and KEGG databases.¹² An enrichment analysis was performed with the function enricher of the “clusterProfiler” R package in order to identify if either up or down regulated genes were significantly overrepresented in each COG category through a hypergeometric test (^*p.adjust<0.05; ^**p.adjust<0.01).

Results

Isolation and identification of the xerotolerant strain Arthrobacter sp. Helios

Arthrobacter sp. Helios was isolated from a solar panel due to its high tolerance to desiccation since it survived the xerotolerance test described in the methods section. It was identified as Arthrobacter sp. according to its 16S rDNA. A BLAST analysis of the 16S rRNA gene sequence from Arthrobacter sp. Helios revealed a high similarity with Arthrobacter luteolus CF-25 (DSM 13067) and Arthrobacter koreensis CA15-8 (DSM 16760), positioning this new strain in the “Arthrobacter citreus group” proposed by Busse (2016) (Supplementary Figure S1). Arthrobacter sp. Helios showed different morphology (coccoid or rod-shape) depending on the growth phase (Figure 1).

Figure 1.

Phase contrast microscopy of Arthrobacter sp. Helios grown in LB at (A) exponential phase and (B) stationary phase.

Arthrobacter sp. Helios appears to be ecologically versatile and capable of growing in a variety of carbon sources. The substrate range that Arthrobacter sp. Helios can use as a sole carbon source was analyzed (Supplementary Table S2), showing that it can metabolize sugars like glucose, fructose, sucrose, xylose and maltose; organic acids such as acetic acid or pyruvate; aromatic compounds such as protocatechuic acid, 4-hydroxybenzoate, phenyl acetic acid and gentisate, and sterols such as cholesterol. However, Helios strain was not able to catabolize various environmental relevant compounds including pollutants such as phenol, phthalate, terephthalate and isophthalate. To compare the desiccation tolerance of Arthrobacter. sp. Helios with other known xerotolerant strains, we performed a desiccation test using D. radiodurans, Exiguobacterium sp. Helios (Castillo et al., 2021), the phylogenetically related strain A. koreensis CA15-8 (Lee et al., 2003), and E. coli DH10B as a negative control. As expected, approximately an 80% of D. radiodurans cells survived after desiccation and no survival of E. coli cells were detected at any studied time (Figure 2). Xerotolerance of Exiguobacterium sp. Helios and A. koreensis was lower than that of D. radiodurans with a viability of less than 10% after 3 days in the tested conditions (Figure 2). However, the survival rate for Arthrobacter. sp. Helios was around 30% suggesting a better xerotolerance capacity than the related xerotolerant strain A. koreensis.

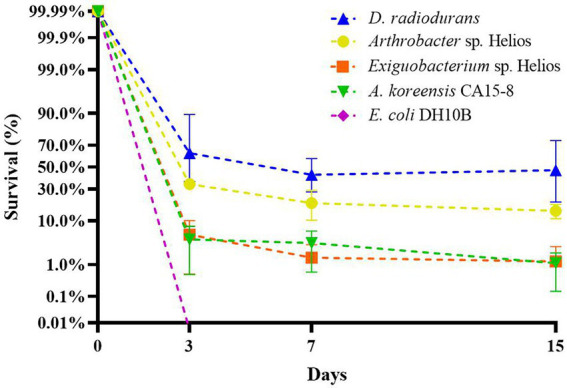

Figure 2.

Desiccation resistance of Deinococcus radiodurans, Arthrobacter sp. Helios, Arthrobacter koreensis CA15-8 and Exiguobacterium sp. Helios cells in exponential phase of growth in LB medium.

The influence of the growth phase on Arthrobacter sp. Helios xerotolerance was also checked. A desiccation test was performed with cells from a stationary phase culture and their desiccation tolerance was compared with that of exponential phase cells. Interestingly, Arthrobacter sp. Helios showed the same xerotolerance capacity regardless of the growing phase (Figure 3). In contrast, Exiguobacterium sp. Helios and A. koreensis CA15-8 survival rate was 10 times lower at the exponential phase than at the stationary phase, suggesting that these strains might use different mechanisms to become adapted to arid environments depending on the growth rates (Figure 3).

Figure 3.

Desiccation resistance of Arthrobacter sp. Helios, A. koreensis CA15-8 and Exiguobacterium sp. Helios at exponential and stationary growth phases.

On the other hand, we have determined that cells adapted to PEG35 are not more tolerant to desiccation than PEG0 cells (Supplementary Figure S2) suggesting that the adaption to matric stress is carried out by different mechanisms than the desiccation adaption and therefore, a previous adaptation to matric stress does not improve desiccation resistance.

Arthrobacter sp. Helios resistance to UV, salinity, metals, and metalloids

Arthrobacter sp. Helios displays high resistance to UV radiation. When resistance to UV radiation was analyzed and compared with other strains, it presented a great capacity to survive up to 1,500 J/m² of UV radiation (Figure 4). Arthrobacter sp. Helios is also a moderate halotolerant strain since it is able to grow in the presence of 80 g/L NaCl (2-times sea water concentration; Supplementary Figure S3). Furthermore, Supplementary Table S3 shows that Arthrobacter sp. Helios has a moderate resistance to some metals and metalloids. When the strain was grown in LB containing 1 mM selenite at 37°C, the culture acquired a red color, suggesting the reduction of selenite to elemental selenium (Supplementary Figure S4). No coloration was observed in the absence of bacterial cells, suggesting a role of this strain in selenite reduction. In fact, Arthrobacter sp. Helios was able to grow in the presence of selenite up to 150 mM at 37°C, indicating that the resistance is close to that reported for highly tolerant selenite strains such as Comamonas testosteroni S44 (Zheng et al., 2014), Pseudomonas moraviensis (Staicu et al., 2015), or Vibrio natriegens (Fernández-Llamosas et al., 2017).

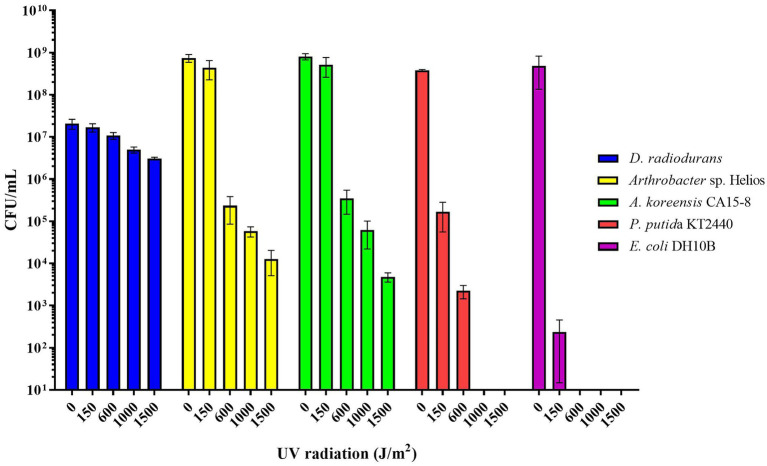

Figure 4.

Comparison of the resistance to UV irradiation of Arthrobacter sp. Helios, A. koreensis CA15-8, D. radiodurans, P. putida KT2440 and E. coli DH10B cells in stationary phase grown in LB medium.

Our results suggest that Arthrobacter sp. Helios can reduce selenite to elemental Se (0). The red deposits appearance in the growth medium of Arthrobacter sp. Helios indicates that, most probably, the selenite is reduced to elemental selenium. Therefore, we checked if this reduction is involved in the production of selenium nanoparticles, as a proof of concept for developing the Helios strain as a biotechnological tool for the bioproduction of Se nanoparticles (SeNPs). TEM preparations of Helios cultures showed the presence of electron-dense nanospheres in the cells after 24 h of growth at 30°C in LB containing 1 mM selenite (Figures 5A,B). The EDX analysis showed that the nanoparticles presented the specific Se peak (Figure 5C). The selected area electron diffraction (SAED) pattern of the nanoparticles showed a diffuse halo, indicating that selenium is present in its amorphous form (Figure 5C, inset). The shape of SeNPs were spherical with an average size of 229 ± 92 nm (Figure 5D).

Figure 5.

Analysis of the SeNPs produced by Arthrobacter sp. Helios. (A,B) TEM images of SeNPs produced by Arthrobacter sp. Helios. (C) EDX analysis of one SeNP composition. In the inset is shown SAED pattern of SeNPs. (D) SeNPs size distribution was calculated using the Image J software. Cells were grown for 24 h at 30°C in LB supplemented with 1 mM sodium selenite.

General features of Arthrobacter sp. Helios genome

The complete genome of Arthrobacter sp. Helios consists in a single circular chromosome of 3,895,998 bp, with a 66% GC content and no plasmids. A total of 3,586 genes were predicted of which 2,275 protein-encoding genes were functionally assigned, whereas the remaining genes were predicted as hypothetical proteins. Arthrobacter sp. Helios whole genome data was uploaded at the NCBI database under the accession number CP095402.

The presence of a large gene cluster, covering a 31 kb region, involved in the synthesis of flagella (ArtHe_17510-ArtHe_17680) suggests that this strain is motile (Supplementary Table S4). The number of alternative RNA polymerase sigma factors is an important strategy of bacteria to successfully face complex environments and induce the response to a particular stress (Lebre et al., 2017). In this sense, Arthrobacter sp. Helios contains six σ factors, the same number as E. coli, but far of the 62 σ factors found in other actinobacteria like Streptomyces coelicolor. The chromosome contains 160 ORFs putatively encoding regulatory proteins belonging to TetR/AcrR (33 proteins), GntR (17 proteins), MarR (13 proteins), LysR (11 proteins), and AraC (5 proteins) family of transcriptional regulators.

Membrane transporters are important for adaptation to low water activity environments to facilitate the uptake of nutrients and the osmolytes required by dehydrated cells. In this sense, Arthrobacter sp. Helios genome encodes 349 putative transporters and substrate binding proteins (9.7% of the Helios genome) which is consistent with its environmental versatility.

Arthrobacter sp. Helios appears to be well poised to respond to various environmental stresses. The chromosome encodes seven ORFs encoding putative universal-stress proteins (USPs), five ORFs coding cold-shock proteins, and two starvation inducible proteins (Supplementary Table S4). USP represents a superfamily of proteins whose production is induced in cells in response to several stresses, such as carbon starvation, exposure to UV radiation, osmotic stress, etc. In addition, this bacterium contains one dnaJ-grpE-dnaK operon (ArtHe_12030-12040) that codes for DnaK and DnaJ chaperons, involved in the response to hyperosmotic and heat shock by preventing the aggregation of stress-denatured proteins. Furthermore, the locus ArtHe_06610 codes an additional copy of DnaJ chaperone that is not organized in an operon. The genes that code for the essential chaperon GroEL are also present in the genome (ArtHe_10200 and ArtHe_00405). Moreover, ArtHe_11930 gene codes a putative ClpB chaperone, that is part of a stress-induced multi-chaperone system involved in the recovery of the cell from heat-induced damage, in cooperation with DnaK, DnaJ and GrpE.

Arthrobacter sp. Helios is also equipped with many genes encoding ROS scavengers’ enzymes required to survive the internal oxidative stress caused by H₂O₂ and other reactive oxygen species that produce extensive damage and cell death. The genome of Helios strain contains genes that code for one superoxide dismutase (ArtHe_05980), four catalases (ArtHe_14485, ArtHe_14120, ArtHe_11075 and ArtHe_01810), five peroxidase-coding genes (ArtHe_12570, ArtHe_11330, ArtHe_10990, ArtHe_08610 and ArtHe_01040), two thioredoxin reductases (ArtHe_14800 and ArtHe_13320), and 5 thioredoxin proteins (ArtHe_16150, ArtHe_14805, ArtHe_12185, ArtHe_11010 and ArtHe_02295). Also, there are genes coding for two orthologous of SoxR (ArtHe_15110 and ArtHe_01455), that is known to play an important regulatory role in resistance to oxidative stress.

Arthrobacter sp. Helios genome sequence predicts different biochemical pathways related with the production of osmoprotectants, such as trehalose and glycogen, which are known to accumulate under extreme water stress in bacteria protecting the cell against desiccation. The glycogen biosynthetic genes ArtHe_06185 and ArtHe_06190 code the glucose-1-phosphate adenyltransferase and the glycogen synthase, respectively. There are up to five different pathways that bacteria may have to accumulate trehalose (Avonce et al., 2006). The presence of several biosynthetic pathways in the same organism suggests a strict requirement to accumulate trehalose under changeable environmental conditions, which could limit substrate availability for each pathway. In this sense, the TPS/TPP pathway involving two enzymatic steps catalyzed by trehalose-6-phosphate synthase (TPS) and trehalose-phosphatase (TPP; Avonce et al., 2006) is present in the Helios strain. ArtHe_00040 and ArtHe_00035, coding TPS and TPP respectively, catalyze the transfer of glucose from UDP-glucose to glucose 6-phosphate forming trehalose 6-phosphate (T6P) and UDP, while TPP dephosphorylates T6P to trehalose and inorganic phosphate. Moreover, ArtHe_17800 codes a trehalose synthase (TS) which is part of a second biosynthetic pathway in which TS isomerizes the alpha1-alpha4 bond of maltose to an alpha1-alpha1 bond, forming trehalose (Potts, 1994; Avonce et al., 2006; Ruhal et al., 2013). A third trehalose biosynthesis pathway is also present in Arthrobacter sp. Helios: ArtHe_10290 and ArtHe_10285 code two putative maltooligosyl synthase and maltooligosyl trehalohydrolase, respectively, that are involved in the conversion of maltodextrins (maltooligosaccharides, glycogen and starch) to trehalose (Avonce et al., 2006; Ruhal et al., 2013).

Bacteria cope with osmotic stress by synthesizing or incorporating osmolytes directly from the environment such as glycine betaine (N,N,N-trimethylglycine). One cluster of ABC type glycine/betaine transport genes seems to be present in the Helios strain genome sequence. The ArtHe_04665-ArtHe_04675 cluster codes two ABC transporter permeases and one ATP binding protein, respectively. Glycine betaine can be synthesized from choline by a two-step pathway with betaine aldehyde as intermediate. The coding genes of a choline uptake protein (ArtHe_11940), betaine aldehyde dehydrogenase (ArtHe_11945) and choline oxidase (ArtHe_11950) are forming a putative operon in the Helios strain with an additional gene coding a choline uptake protein (ArtHe_13245). Finally, Helios strain contains two putative aquaporin Z coding genes (ArtHe_08770 and ArtHe_06700), that are known to modulate water fluxes and therefore could have a main role in cell homeostasis.

The operon ArtHe_11495–11510 codes the three subunits of the nitrate respiratory reductase and the cofactor assembly chaperone. The presence of this enzyme suggests that Arthrobacter sp. Helios has the ability to use nitrate (NO₃) during anaerobic respiration and reduce it to nitrite (NO₂).

To explore possible biotechnological applications of Arthrobacter sp. Helios, we searched possible genes that could be involved in plant growth promoting. In this sense, ArtHe_14430 codes a putative 1-aminocyclopropane-1-carboxylate (ACC) deaminase, that is involved in lowering plant ethylene levels, often a result of various stresses. The ACC deaminase synergistically interacts with the plant and bacterial auxin indole-3-acetic acid (IAA). ArtHe_01245 gene, annotated as amidase, codes a protein very similar to the indolacetamide hydrolase involved in IAA biosynthesis in Agrobacterium tumefaciens and Rhodococcus sp. N774 (Hashimoto et al., 1991). Nitrogen fixation is one of the most remarkable plant-growth-promoting properties among plant colonizing bacteria, and this activity is coded in the nif genes (Mus et al., 2018). However, no nif-homologous genes were found in the Arthrobacter sp. Helios genome, suggesting that this strain is not able to fix atmospheric nitrogen into ammonia.

Identification of differentially expressed genes in the presence of PEG6000

To analyze the desiccation resistance mechanisms of Arthrobacter sp. Helios under low external water activity conditions, we used PEG6000 since these molecules are too large to pass the cytoplasmic membrane and can simulate effectively a matric stress condition to bacteria without causing the toxic effects due to high concentrations of ions used to recreate low water activity conditions (Holden, 2001; Chang et al., 2009). PEG6000 was also selected for these studies since it has been used to simulate drought stress in plants and this can provide another property to Arthrobacter sp. Helios to be useful as plant growth promoting strain under matric stress conditions. It is important to note that desiccation resistance mechanisms that attempt to reduce the effects of water loss induced by matric stress may be different than the mechanisms involved in desiccation tolerance that help cells survive after they have almost completely lost the intracellular water.

First, to set up the culture conditions to perform transcriptomic analyses, Arthrobacter sp. Helios was cultured in the presence of increasing concentrations of PEG6000. Figure 6A shows that bacterial growth is not impaired at PEG concentrations up to 20% (w/v). However, at 30 and 35% of PEG the duplication rates were lower, i.e., 11 and 41 h, respectively, with a decrease on the biomass at the end of the growth curve (Figure 6B). No growth in the presence of 40% PEG6000 or higher concentrations was observed. Based on the results, the conditions selected to find differences in the transcriptome were 0 (PEG0), 10 (PEG10) and 35% PEG6000 (PEG35).

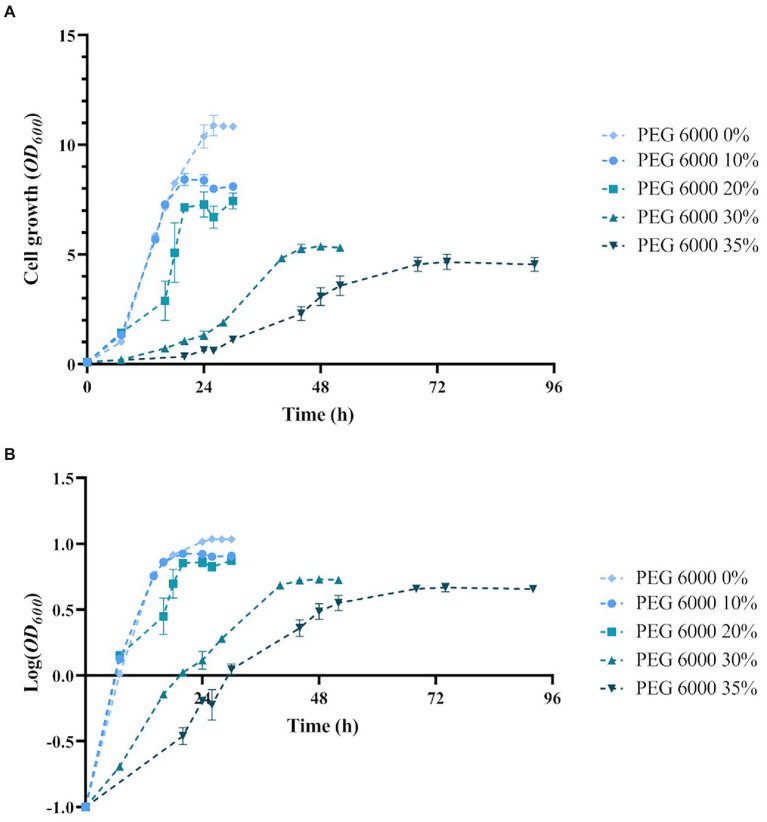

Figure 6.

Growth of Arthorbacter sp. Helios in LB medium with increasing concentrations of PEG 6000. (A) Growth curve (B) Semilogarithmic representation. Mean and standard deviation of three replicas are represented.

Arthrobacter sp. Helios cells were collected in the middle of the exponential growth phase in LB medium with 0%, 10%, and 35% PEG6000 and RNA was extracted to perform the transcriptome analysis. A total of 324 differentially expressed genes (DEG) were identified in the PEG35 vs. PEG0 (control) conditions. Among them, 184 genes were upregulated and 140 were downregulated. The distribution of DEG in both conditions according to their log₂FC and -log₁₀FDR are represented in the volcano maps shown in Figure 7. Meanwhile, 105 DEG were identified in the PEG10 condition compared with the control condition PEG0, from which 52 were upregulated and 53 were downregulated. The comparison of three conditions (PEG0 vs. PEG10 and PEG35) shared 29 upregulated and 13 downregulated genes (Figure 8). The principal component analysis (Supplementary Figure S5) showed a high correspondence between the three biological replicates of each condition, and each group was markedly separated from the others. These results proved that not only the RNA-seq data were highly reproducible but also that there was a unique gene expression at different levels of drought stress.

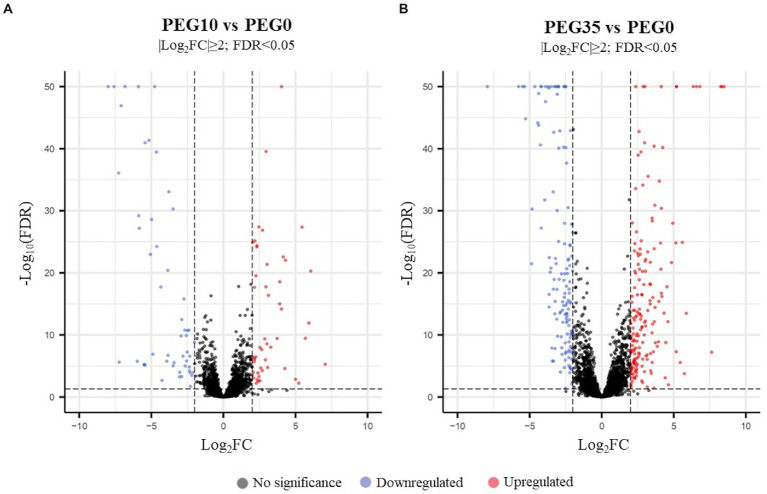

Figure 7.

Volcano maps showing the distribution of DEGs according to their log₂FC and -log₁₀FDR. (A) DEGs found in PEG10 condition compared to control condition PEG0. (B) DEGs found in PEG35 condition vs. the control condition PEG0. Gray spots represent genes with a non-significant expression change, while blue and red circles represent down regulated and up regulated genes, respectively. Genes are considered differentially expressed when |log₂FC| ≥ 2 and FDR < 0.05.

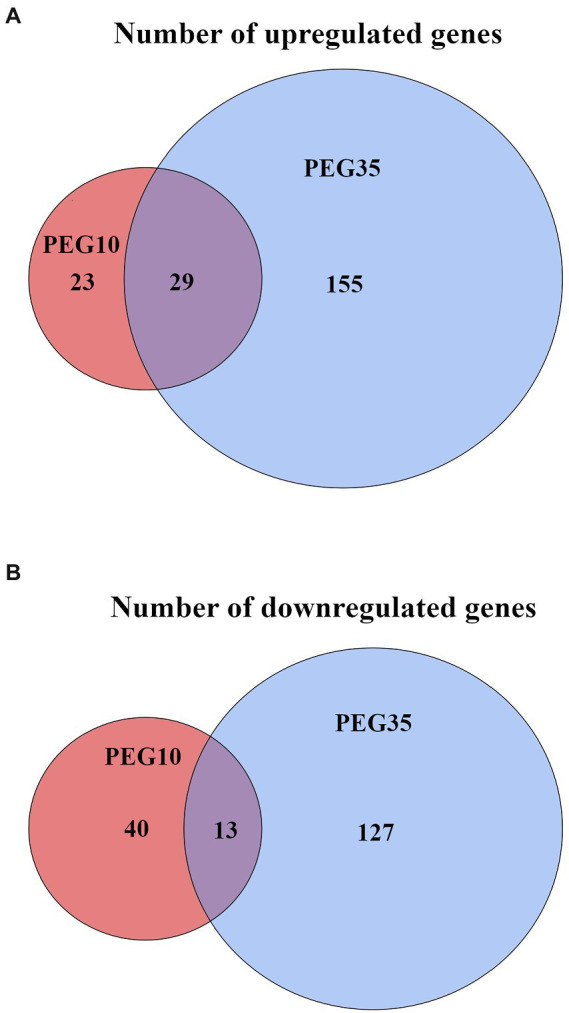

Figure 8.

Venn diagrams summarizing the DEGs of Arthrobacter sp. Helios in the simulated drought vs. control conditions. (A) Number of upregulated genes in PEG10 vs. PEG0 (red circle) and PEG35 vs. PEG0 (blue circle) comparisons. (B) Number of downregulated genes in PEG10 vs. PEG0 (red circle) and PEG35 vs. PEG0 (blue circle) conditions. Genes are considered differentially expressed when |log₂FC| ≥ 2 and FDR < 0.05.

COG and KEGG databases were used to functionally annotate DEGs. Although DEGs were assigned to all COG categories, some of them contained a significantly higher proportion of upregulated or downregulated genes (Figure 9). Using a hypergeometric test in the condition PEG35 vs. PEG0, the categories having statistically enriched upregulated genes were energy production and conversion (C), amino acid transport and metabolism (E) and inorganic ion transport and metabolism (P). In contrast, only cell motility (N) category was enriched with downregulated genes (Figure 9A). Many of the changes observed in PEG35 were already detected in PEG10 such as those assigned to the inorganic ion transport and metabolism category (P). However, we found the genes assigned to category C and secondary metabolites biosynthesis, transport and catabolism category (Q) to be downregulated (Figure 9B). These findings suggested that the ion transport and metabolism seemed to be a common bacterial response against low and high drought stress, although there are some differences depending on the level of stress (PEG10 vs. PEG35; Supplementary Table S5). According to KEGG annotations (Supplementary Table S6), ABC transporter genes in both conditions studied presented a significant upregulation, whereas flagella assembly and nitrogen metabolism associated genes showed a significant downregulation.

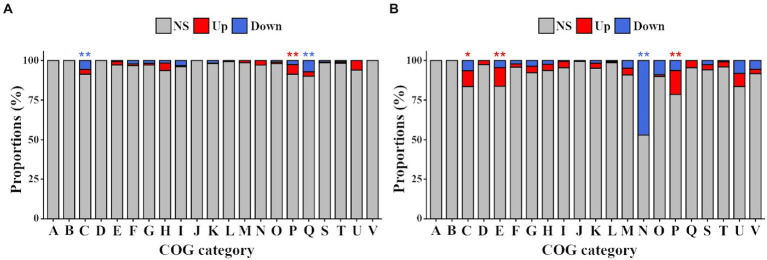

Figure 9.

COG distribution of Arthrobacter sp. Helios DEGs found under simulated desiccation and control conditions. (A) Proportion of DEGs in each COG category when PEG10 condition was compared against control condition PEG0. (B) Proportion of DEGs in each COG category when PEG35 condition was compared against PEG0 condition. The proportions of non-significant (gray), upregulated (red) and downregulated (blue) genes are shown. A: RNA processing and modification; B: Chromatin structure and dynamics; C: Energy production and conversion; D: Cell cycle control, cell division, chromosome partitioning; E: Amino acid transport and metabolism; F: Nucleotide transport and metabolism; G: Carbohydrate transport and metabolism; H: Coenzyme transport and metabolism; I: Lipid transport and metabolism; J: Translation, ribosomal structure and metabolism; K: Transcription; L: Replication, recombination and repair; M: Cell wall/membrane/envelop biogenesis; N: Cell motility; O: Post-translational modification, protein turnover, chaperones; P: Inorganic ion transport and metabolism; Q: Secondary metabolites biosynthesis, transport and catabolism; R: General function prediction only; S: Function unknown; T: Signal transduction mechanisms; U: Intracellular trafficking, secretion and vesicular transport; V: Defense mechanisms. A hypergeometric test was performed to check whether genes were significantly overrepresented in each category (^*p.adjust < 0.05; ^**p.adjust < 0.01).

Bacteria have developed different strategies to overcome osmotic stress and retain water inside the cell when the environment turns hypertonic. As shown in Table 1, Arthrobacter sp. Helios facing water shortage induced the expression of ArtHe_04675 and ArtHe_04665, genes coding glycine betaine ABC transporters involved in the uptake of this compatible solute. The highest induction (>50 fold) was observed in the kdpA (ArtHe_17390), kdpB (ArtHe_17385) and kdpF (ArtHe_17395) genes of the kdpFABC operon encoding a potassium transport ATPase, which catalyzes the hydrolysis of ATP coupled with the electrogenic transport of potassium into the cytoplasm. The expression of the ArtHe_12610 gene coding a CapA family protein, similar to Bacillus anthracis capsule polysaccharide biosynthesis, is induced 8-fold. The presence of PEG also induced 5-fold the expression of ArtHe_12305 gene, that codes a mechanosensitive ion channel family protein that participates in cellular homeostasis. As expected, the aquaporin coding genes (ArtHe_06700 and ArtHe_08770) are downregulated (2 and 5-fold, respectively) most probably to avoid the loss of water by a facilitated diffusion through this channel. Remarkably, no other osmolyte biosynthesis genes, such as those involved in trehalose production, were significantly over-expressed in these conditions (Supplementary Table S7).

Table 1.

DEGs related to osmotic stress in PEG35 vs. PEG0.

COG category	Gene ID	Gene description and/or name	Fold change	FDR
E	ArtHe_04665	Glycine betaine/L-proline ABC transporter ATP-binding protein	8	5.423E−21
E	ArtHe_04675	Glycine betaine ABC transporter substrate-binding protein	6	1.775E−43
G	ArtHe_08770	Aquaporin	−5	2.673E−16
M	ArtHe_12305	Mechanosensitive ion channel family protein	5	6.12E−55
M	ArtHe_16210	CapA family protein	8	6.66E−23
P	ArtHe_17380	Potassium-transporting ATPase subunit (kdpB)	4	7.132E−05
P	ArtHe_17385	Potassium-transporting ATPase subunit (kdpA)	13	7.458E−13

Along with inorganic ions transporters, amino acid and peptide ABC transporters were also massively induced in the Helios strain (Table 2). Most of them are grouped in gene clusters in Arthrobacter sp. Helios genome and their induction was paired with the upregulation of an aminotransferase, a serine ammonia-lyase, hyuA and dapA. The hyuA gene encodes a hydantoin racemase, involved in the racemization of amino acid precursors, and dapA encodes a dihydrodipicolinate synthase, a key enzyme in lysine biosynthesis via diaminopimelic acid.

Table 2.

DEGs involved in amino acid and nitrogen metabolism in PEG35 vs. PEG0.

COG category	Gene ID	Gene description and/or name	Fold change	FDR
E	ArtHe_00090	ABC transporter substrate-binding protein	37	8.9295E−70
E	ArtHe_00190	ABC transporter ATP-binding protein	5	2.6902E−34
E	ArtHe_01080	ABC transporter ATP-binding protein	7	0.00247634
E	ArtHe_01125	Aminotransferase class III-fold pyridoxal phosphate-dependent enzyme	6	5.0422E−05
E	ArtHe_01270	ABC transporter permease	5	5.0422E−05
K/O	ArtHe_01770	Urease accessory protein (ureG)	−9	9.3437E−31
O	ArtHe_01775	Urease accessory protein (ureF)	−13	3.293E−15
E	ArtHe_01780	Urease subunit alpha	−8	8.9318E−26
E	ArtHe_01790	Urease subunit gamma	−5	3.0468E−12
E	ArtHe_04130	Urease subunit gamma	−5	2.094E−21
E	ArtHe_04140	Urease subunit beta	−7	9.8499E−15
E	ArtHe_04145	Urease subunit alpha	−9	4.8753E−23
O	ArtHe_04150	Urease accessory protein	−6	1.3713E−20
K/O	ArtHe_04155	Urease accessory protein (ureG)	−5	1.7988E−17
O	ArtHe_04160	Urease accessory protein (ureD)	−4	1.9348E−23
E	ArtHe_04170	Urea transporter	−5	4.3705E−07
E	ArtHe_04615	Hydantoin racemase (hyuA)	5	1.1471E−14
K	ArtHe_08230	P-II family nitrogen regulator	−29	3.3462E−22
P	ArtHe_08235	Ammonium transporter	−19	2.5332E−41
E	ArtHe_11200	APC family permease	7	7.4576E−35
P	ArtHe_11490	NarK/NasA family nitrate transporter	−5	2.0897E−38
C	ArtHe_11495	Respiratory nitrate reductase subunit gamma	−10	4.0125E−14
C	ArtHe_11500	Nitrate reductase molybdenum cofactor assembly chaperone	−5	7.0658E−16
C	ArtHe_11505	Nitrate reductase subunit beta	−5	3.1799E−31
C	ArtHe_11,510	Nitrate reductase subunit alpha	−4	4.8241E−21
S	ArtHe_12365	M81 family metallopeptidase	59	3.4091E−14
E	ArtHe_12370	D-serine ammonia-lyase	8	2.4774E−07
E	ArtHe_12530	ABC transporter ATP-binding protein	5	5.4086E−21
E	ArtHe_13820	ATP-binding cassette domain-containing protein	13	3.7509E−15
E	ArtHe_13825	ABC transporter ATP-binding protein	16	4.1653E−16
E	ArtHe_13830	Branched-chain amino acid ABC transporter permease	18	6.5006E−17
E	ArtHe_13835	Branched-chain amino acid ABC transporter permease	13	1.346E−24
E	ArtHe_13840	ABC transporter substrate-binding protein	18	4.1367E−31
E	ArtHe_14305	GMC family oxidoreductase	95	1.14E−173
C	ArtHe_14310	Aldehyde dehydrogenase family protein	112	4.8281E−75
E	ArtHe_14315	APC family permease	305	4.265E−174
K	ArtHe_14320	Helix-turn-helix domain-containing protein	81	1.292E−194
Q	ArtHe_14340	Primary-amine oxidase	321	0
	ArtHe_14345	Hypothetical protein	359	3.8362E−58
E	ArtHe_16215	Amino acid ABC transporter ATP-binding protein	10	1.0563E−15
E	ArtHe_16220	Amino acid ABC transporter permease	5	1.0953E−07
E	ArtHe_16565	Amino acid ABC transporter ATP-binding protein	4	0.00272718
E	ArtHe_16635	Dihydrodipicolinate synthase family protein (dapA)	10	5.8743E−19

ArtHe_12365 coding a putative metallopeptidase is one of the most induced genes (Table 2). It has been hypothesized that the increase of the proteolytic activity could play an essential role removing damaged proteins and release amino acids that would provide osmolytes to compensate the osmotic shock (Frees et al., 2007; Ghedira et al., 2018).

The greatest induction (up to 323-fold) in PEG35 was observed in a 11 kb gene cluster spanning from ArtHe_14305 to ArtHe_14345 genes that is putatively involved in the transport and catabolism of phenylethylamine (PEA; Table 2). PEA is a biogenic amine that is catabolized by some bacteria (Luengo and Olivera, 2020). In general, it is described that biogenic amines are involved in chromosomal and ribosomal organization, DNA replication/translation and in the regulation of RNA and protein synthesis in prokaryotes (Wortham et al., 2007; Luengo and Olivera, 2020). Polyamines carry a net positive charge at physiological pH that forms electrostatic bonds with negatively charged macromolecules such as DNA/RNA, for maintaining a stable conformation. Generally, polyamines have been broadly implicated in cell growth due to their ability to interact with nucleic acids and protein translation machinery (Tabor and Tabor, 1985; Dever and Ivanov, 2018). They have a protective role against radiations and oxidative stress and participate in biofilm formation. These molecules can act as free radical scavengers by interaction and subsequent inactivation with these molecules (Wortham et al., 2007). Moreover, spermidine/putrescine ABC transporters genes were found upregulated in Arthrobacter sp. Helios (Table 3). Putrescine and spermidine are polyamines that are essential components for deoxyribonucleic acid (DNA) packaging during the cell cycle.

Table 3.

DEGs involved in DNA repair and protection and general stress in PEG35 vs. PEG0.

COG category	Gene ID	Gene description and/or name	Fold change	FDR
L/U	ArtHe_08110	DNA-processing protein DprA	5	0.00039694
T	ArtHe_11205	Universal stress protein	8	4.439E−89
E	ArtHe_12855	ABC transporter ATP-binding protein	35	0.00015476
E	ArtHe_12860	Extracellular solute-binding protein	15	5.9055E−05
E	ArtHe_12865	ABC transporter permease	11	1.2996E−09
E	ArtHe_12870	ABC transporter permease	11	1.5486E−25
F	ArtHe_13950	8-oxoguanine deaminase	4	9.251E−08
T	ArtHe_16365	Universal stress protein	3	0.01644528

The 8-oxoguanine deaminase coding gene was found upregulated in Arthrobacter sp. Helios (Table 3). The 8-oxoguanine deaminase is known to play a critically important role in the DNA repair activity for oxidative damage and catalyzes the conversion of 8-oxoguanine, formed by the oxidation of guanine residues within DNA by reactive oxygen species, in urate and ammonia (de Rosa et al., 2021).

Only the ArtHe_11205 and ArtHe_16365 genes encoding two of the six universal stress proteins (USPs) annotated in the Helios genome are induced 8- and 3-fold, respectively (Table 3). None of the genes coding cold shock proteins is being induced in the presence of PEG. In contrast, the genes coding GroEL (ArtHe_00405 and ArtHe_10200) and ClpB (ArtHe_11930) chaperonins are slightly induced (2-fold; Supplementary Table S7). DprA gene (ArtHe_08110), encoding a DNA-processing protein that binds ssDNA and loads RecA during transformation, was also greatly induced, suggesting some kind of DNA protection role.

Iron scavenging is known to be crucial for bacterial survival. One mechanism for iron scavenging is the siderophore-mediated acquisition through specific receptor and transport systems and siderophores have been extensively reported to reduce oxidative stress in microorganisms (Khan et al., 2018). Arthrobacter sp. Helios transcriptomic data shows that several iron and siderophore ABC transporter genes are highly upregulated in drought conditions. The different clusters encoding the iron transporter components have a variable induction ranging from 4-fold to 197-fold (Table 4). ArtHe_12765 gene that codes a heme-oxygenase, probably involved in iron reutilization, is induced by 13-fold, while ArtHe_10780 coding the iron storage protein ferritin is downregulated 7-fold.

Table 4.

DEGs related to iron homeostasis in PEG35 vs. PEG0.

COG category	Gene ID	Gene description and/or name	Fold change	FDR
P	ArtHe_05605	Iron chelate uptake ABC transporter family permease subunit	21	8.2729E−05
P	ArtHe_05610	ABC transporter substrate-binding protein	9	7.2506E−09
P	ArtHe_10210	Siderophore ABC transporter substrate-binding protein	49	6.2336E−08
P	ArtHe_10215	ABC transporter permease	6	2.3039E−06
P	ArtHe_10220	Iron chelate uptake ABC transporter family permease subunit	5	4.7516E−06
P	ArtHe_10225	ATP-binding cassette domain-containing protein	5	6.94E−15
P	ArtHe_10780	Ferritin	−7	1.3086E−25
H/P	ArtHe_12265	ABC transporter ATP-binding protein	6	1.5863E−07
P	ArtHe_12270	Iron chelate uptake ABC transporter family permease subunit	7	0.00081522
P	ArtHe_12310	Iron-siderophore ABC transporter substrate-binding protein	5	1.9942E−10
P	ArtHe_12765	Biliverdin-producing heme oxygenase	13	5.0593E−05
P	ArtHe_13015	Fe2+-enterobactin ABC transporter substrate-binding protein	6	2.659E−06
P	ArtHe_13020	Iron ABC transporter permease	5	5.1296E−08
U	ArtHe_13025	Iron chelate uptake ABC transporter family permease subunit	5	0.00074103
H/P	ArtHe_13030	ATP-binding cassette domain-containing protein	12	7.1902E−05
P	ArtHe_13035	Siderophore-interacting protein	11	1.1931E−07
P	ArtHe_13040	DUF3327 domain-containing protein	4	1.8947E−09
H/P	ArtHe_13545	ABC transporter ATP-binding protein	198	2.8605E−07
P	ArtHe_13550	Iron-siderophore ABC transporter substrate-binding protein	15	1.6635E−09
P	ArtHe_13555	Iron ABC transporter permease	8	1.1208E−20
P	ArtHe_16990	ABC transporter substrate-binding protein	36	8.6443E−07
P	ArtHe_16995	Iron ABC transporter permease	9	5.10E−08

Although the genome of Arthrobacter sp. Helios is fully equipped with many genes coding ROS scavengers’ enzymes, only one peroxidase-coding gene ArtHe_10990 is induced 3-fold in PEG condition (Supplementary Table S8). Five genes coding thioredoxins (ArtHe_01455, ArtHe_02295, ArtHe_11010 ArtHe_12185, ArtHe_14805) did not change in PEG conditions (Supplementary Table S7).

Arthrobacter sp. Helios under simulated drought stress showed almost the whole flagellum biosynthesis cluster downregulated, as shown in Table 5. The genes fliD, fliF, fliG, fliM, fliN, fliR, fliS, flgB and flgC showed a diminished transcription ranging from 5 to 12-fold, being the flagellin encoding gene the most downregulated one with a 21-fold change.

Table 5.

DEGs involved in flagellum biosynthesis in PEG35 vs. PEG0.

COG category	Gene ID	Gene description and/or name	Fold change	FDR
N	ArtHe_17535	Flagellin	−21	1.7263E−44
N	ArtHe_17540	Flagellar filament capping protein (fliD)	−13	1.7689E−50
N/O/U	ArtHe_17545	Flagellar export chaperone (fliS)	−9	3.9897E−16
N	ArtHe_17560	Flagellar biosynthesis protein (flgB)	−11	1.6555E−06
N	ArtHe_17565	Flagellar basal-body rod protein (flgC)	−6	9.0718E−08
N	ArtHe_17570	Flagellar hook-basal body complex protein (fliE)	−11	1.3726E−08
N/U	ArtHe_17575	Flagellar M-ring protein (fliF)	−7	1.3841E−43
N	ArtHe_17580	Flagellar motor switch protein (fliG)	−5	8.9054E−23
N	ArtHe_17620	Flagellar FlbD family protein	−8	1.6667E−10
N	ArtHe_17625	MotA/TolQ/ExbB proton channel family protein	−4	7.9446E−07
N	ArtHe_17630	Flagellar motor protein (motB)	−4	2.0114E−11
N	ArtHe_17635	Flagellar motor switch protein (fliM)	−5	8.4607E−14
N/U	ArtHe_17640	Flagellar motor switch protein (fliN)	−5	1.0013E−12
N	ArtHe_17645	FliO/MopB family protein	−6	2.0956E−17
N	ArtHe_17650	Flagellar type III secretion system pore protein (fliP)	−9	3.2463E−22
N/U	ArtHe_17660	Flagellar biosynthetic protein (fliR)	−5	7.4035E−11

Arthrobacter sp. Helios grown in PEG10, i.e., under moderate drought stress, showed a lower number of DEGs than in PEG35, 52 DEGs were upregulated and 53 down regulated (Figure 8). However, some of the 29 upregulated DEGs in common with the PEG35 condition showed a higher fold change in PEG10 (Table 6; Supplementary Table S8). Among those genes, we found potassium transporters, spermidine/putrescine transporters and a CapA family protein. Besides, this drought condition significantly induced the transcription of genes involved in riboflavin biosynthesis, a response not seen at all in PEG35.

Table 6.

DEGs in PEG10 vs. PEG0.

COG category	Gene ID	Gene description and/or name	Fold change	FDR
H	ArtHe_05120	Riboflavin synthase (ribC)	5	0.00013257
H	ArtHe_05125	3,4-dihydroxy-2-butanone-4-phosphate synthase (ribB)	6	2.1007E−05
H	ArtHe_05130	GTP cyclohydrolase II (ribA)	8	1.0498E−06
H	ArtHe_05135	6,7-dimethyl-8-ribityllumazine synthase (ribE)	8	2.8309E−09
E	ArtHe_12855	ABC transporter ATP-binding protein	44	4.4332E−28
E	ArtHe_12860	Extracellular solute-binding protein	67	5.1686E−21
E	ArtHe_12865	ABC transporter permease	61	1.2252E−12
E	ArtHe_12870	ABC transporter permease	51	3.6566E−10
M	ArtHe_16210	CapA family protein	8	4.3305E−22
P	ArtHe_17390	Potassium-transporting ATPase subunit (kdpA)	16	6.6402E−15
P	ArtHe_17395	Potassium-transporting ATPase subunit F	134	5.2826E−06

Genome wide comparative analysis between Arthrobacter sp. Helios and Arthrobacter koreensis

Our results show that, in desiccation conditions, the survival rate of Arthrobacter sp. Helios is higher than that of A. koreensis CA15-8 (DSM 16760). Moreover, the xerotolerance capacity of the Helios strain was independent of the growth phase, in contrast to what is observed in A. koreensis (Figure 3). We have performed a genome-wide comparative analysis to check distinctive genes present in Arthrobacter sp. Helios genome that may be involved in its higher tolerance to desiccation when compared to its closely related strain A. koreensis CA15-8. The complete genome of A. koreensis (Accession number NZ_WACG00000000) contains 3.55 Mbp, which is slightly smaller than the Helios strain genome (3.89 Mpb). Then, 385 genes were found exclusively in Arthrobacter sp. Helios genome, being absent in the A. koreensis CA15-8 genome (Supplementary Table S9). Among them, 106 genes encoding hypothetical proteins, whose role in bacterial metabolism remains unknown. Some of the genes absent in A. koreensis that may be involved in desiccation tolerance are: ArtHe_04665 coding a glycine/betaine substrate-binding protein involved in osmoprotection; ArtHe_14485 that codes a manganese catalase involved in ROS scavenging; ArtHe_14340 coding a putative amino oxidase participating in the catabolism of phenylethylamine and three genes coding universal stress proteins (ArtHe_04185, ArtHe_16365 and ArtHe_07195). Interestingly, ArtHe_14340, ArtHe_04665 and ArtHe_16365 are found induced under matric stress conditions (Supplementary Table S8).

Discussion

Extremophile microorganisms have functionalities of great interest for the biotechnological sector and, for this reason, numerous works have been oriented to isolate these microorganisms from different extremophile niches (Musilova et al., 2015; Raddadi et al., 2015; Orellana et al., 2018; Castillo et al., 2021; Tada et al., 2021). In this work, we have explored a very peculiar extreme niche developed by human technology such as solar panels. The solar panels that are currently spread over large surfaces of fields and cities on the planet mimic the changing weather conditions that can be found, for example, in deserts (Dorado-Morales et al., 2016). Therefore, they can be a source of microorganisms resistant to extreme desiccation and radiation conditions. Using a simple method, we have isolated a cultivable bacterium that shows high tolerance to desiccation and that has been identified within the genus Arthrobacter. The strain Arthrobacter sp. Helios, in contrast with Exiguobacterium sp. Helios, also isolated from the same solar panel (Castillo et al., 2021), has a desiccation tolerant phenotype independent of the growth phase. That is, the cells are ready to tolerate desiccation both in the exponential phase and in the stationary phase of growth. Our results show that this is not the case in a very closely related bacterium such as A. koreensis, which shows greater tolerance to desiccation in the stationary phase of growth like Exiguobacterium sp. Helios (Figure 3). This property can be very relevant for biotechnological applications in environmental conditions, since the desiccation situations may occur at any time and it is not possible to anticipate at which metabolic state the cells can be trapped by the drought. Many bacteria prepare their metabolism in the stationary phase to resist stress situations and, in particular, some are capable of generating spores that makes them highly resistant to many extreme conditions (Phillips and Strauch, 2002; Jaishankar and Srivastava, 2017). However, in the case of Arthrobacter sp. Helios that does not produce spores, it seems to be permanently prepared to handle the desiccation stress, which makes it a very interesting bacterium for biotechnological applications. Bacteria tolerant to desiccation have been proposed not only to directly promote plant growth (Glick, 2014), but they can also protect plants against drought (Vílchez et al., 2016; Molina-Romero et al., 2017), high salinity (Vanissa et al., 2020), metals (Jan et al., 2019), organic contaminants (Zhang et al., 2014), and both bacterial and fungal pathogens (Velázquez-Becerra et al., 2013).

In addition to the desiccation tolerance, Arthrobacter sp. Helios shows a significant resistance to UV irradiation and high salinity conditions. Both properties could be expected since the strain was isolated from a solar panel that is subjected to a high irradiation and to a high salinity due to the progressive accumulation of salts by the daily cycles of humidity and drought, moreover when these solar panels were located near the coast. However, an unexpected property was the high resistance to selenite and the formation of SeNPs. This property can be exploited for biotechnological applications since both elemental selenium and SeNPs can be used in many purposes. For example, selenium supplementation in the diet has been correlated with health benefits effect (Rayman, 2000). Moreover, SeNPs have semiconductor and photoelectrical properties and they have been used successfully in applications ranging from solar cells, photographic exposure meters, photocopiers and rectifiers (Johnson et al., 1998). SeNPs have also applications in diverse areas such as cosmetics, coatings, packaging, biotechnology and biomedicine (Thakkar et al., 2010; Karuppiah et al., 2012; Ali et al., 2013). Many bacteria have been described with the ability to produce SeNPs (Stolz et al., 2006), however the Helios strain represents an excellent candidate for SeNPs production platform due to its high level of selenite resistance, most probably due to its adaptation to the stressful condition promoted by the metal.

The analysis of the Arthrobacter sp. Helios genome confirmed that this bacterium is fully equipped to respond to osmotic, oxidative, UV, and heat shock stresses. Particularly, in this work, we have carried out a transcriptomic study in order to understand how Arthrobacter sp. Helios adapts its metabolism in response to PEG-induced water-stress that has been proposed to mimic arid stress situations (Zhao et al., 2020). Unexpectedly, only few whole omic studies have been performed to analyze the metabolic adaptations of bacteria under PEG-induced stress. Ghedira et al. (2018) studied the PEG-responding desiccome of the microsymbiont Frankia alni by next-generation proteomics. This nitrogen-fixing bacterium allows dicotyledonous plants to colonize soils under nitrogen deficiency and water-stress. The response of Frankia cells to the presence of PEG consisted of an increased in the abundance of envelope-associated proteins like ABC transporters, mechano-sensitive ion channels and CRISPR-associated (cas) components. Besides, unnecessary pathways, like nitrogen fixation, aerobic respiration and homologous recombination, were markedly down-regulated (Ghedira et al., 2018). Zhao et al. (2020) studied the response of the sporulating bacterium Bacillus megaterium FDU301 to PEG-mediated arid stress. Their main observation was the overexpression of genes related to oxidative stress and other genes related to iron uptake, sporulation stage and biosynthesis of compatible solute ectoine (Zhao et al., 2020). Biosynthesis of the compatible solute trehalose appears to be the main mechanism to face arid-stress in the α-proteobacterium Bradyrhizobium japonicum, a leguminous plants symbiont, although other general mechanisms such as cell membrane protection, repair of DNA damage and oxidative stress responses are involved (Cytryn et al., 2007). Using micro-array hybridizations, the group of van der Meer has studied in Arthrobacter chlorophenolicus A6, Sphingomonas wittichii RW1 and Pseudomonas veronii 1YdBTEX2 the response to water stress induced by addition of NaCl (solute stress) or PEG8000 (matric stress; Johnson et al., 2011; Moreno-Forero et al., 2016). These experiments were performed testing the transcriptional response of cells transiently exposed (30 min) to a water stress rather than measuring transcription in cells growing constantly under the applied water stress (Johnson et al., 2011). Common reactions among the three strains included diminished expression of flagellar motility and increased expression of compatible solutes. In addition, a set of common genes including ABC transporters and aldehyde dehydrogenases appeared to constitute a core-conserved response to water stress. However, Gülez et al. (2012) also tested by micro-arrays the effect of PEG8000 in Pseudomonas putida KT2440 and observed that, in this case, PEG does not affect cell mobility and flagellar genes were not downregulated or even suggested increasing expression as the stress prolonged.

The most remarkable differences found in the Arthrobacter PEG6000-induced water shortage were the overexpression of different osmotic stress resistance mechanisms. Our results showed that ABC transporter genes involved in transport of iron and siderophores, as well as of other compatible solute transporters such as glycine-betaine and amino acids, were highly overexpressed compared to the control condition. This response is consistent with other studies, where bacteria exposed to different osmotic stress showed a higher expression of genes involved in the accumulation of K⁺ and different compatible solutes (Dinnbier et al., 1988; Whatmore et al., 1990; Zeidler and Müller, 2019), since it is considered a first, fast response to adjust the cell turgor against an osmotic shock (Zeidler and Müller, 2019). Surprisingly, no overexpression of genes involved in the de novo synthesis of compatible solutes were observed in Arthrobacter sp. Helios. This could be due to the high energetic cost required in their biosynthesis, being their uptake from the environment a more favorable reaction (Oren, 1999). On the other hand, we observed a 5-fold induction of ArtHe_12305 gene, coding a mechanosensitive ion channel (MscS) family protein that becomes open in response to stretch forces in the membrane lipid bilayer, thus facilitating the efflux of all the osmolytes accumulated during the osmotic stress and avoiding a possible cell lysis (Martinac, 2001). Activation of the mechanosensitive channel McsL was found highly upregulated in the PEG induced F. alni proteome as well (Ghedira et al., 2018).

One of the extreme upregulated genes in PEG35 was ArthHe_14340 (321-fold), coding a putative amino oxidase participating in the catabolism of phenylethylamine. It is important to note that this gene is absent in the related bacteria A. koreensis (Supplementary Table S9). The uptake and biosynthesis of polyamines is known to play a key role in the survival upon in response to abiotic stresses, as they participate in many cell defense strategies. Polyamines are known to play an indirect role in plant abiotic stress resistance by participating in osmolyte synthesis in response to stress (Sengupta et al., 2016). PEG induced stress influences the plant immune response and resistance to pathogen infections by enhancing the activity of diamine oxidases and polyamine oxidases (Hatmi et al., 2014). A signal molecule such as H₂O₂ derived from these oxidations is known to mediate many physiological phenomena. Furthermore, the presence of polyamines stabilizes bacterial spheroplasts and protoplasts from osmotic shock (Koski and Vaara, 1991) and improve the survival rate of freeze thawed E. coli cells (Souzu, 1986). On the other hand, the fact that polyamines are toxic to bacteria if produced in excess might explain the high induction fold found in the PEA degradation cluster. It has been suggested that the catabolism and efflux, along with anabolism and uptake mechanism of polyamines, is vital to maintain the homeostasis in bacteria, since the accumulation of polyamines leads to inhibition of cellular growth (Karahalios et al., 1998; Banerji et al., 2021). The activity of this enzyme together with the activity of other induced lyases, such as serine ammonia-lyase, might lead to the accumulation of ammonia that might be the reason why a high number of genes coding enzymes involved in the assimilation of nitrogen-containing compounds were downregulated. For example, ammonium and urea transporters, urease and nitrate reductase coding genes showed a significant downregulation in Arthrobacter sp. Helios under the studied conditions (Table 2).

ArtHe_16370 coding a metallopeptidase is also one of the most induced genes (58-fold) in the PEG35 condition. A high induction of a metallopeptidase coding gene was also found in the F. alni proteome that putatively cleaves dipeptides into single peptides to provide intracellular osmolytes to offset the high extracellular osmotic pressure (Ghedira et al., 2018). ArtHe_11205 and ArtHe_16365 code two members of the Usp universal stress protein family. Usp is a small cytoplasmic bacterial protein whose expression is enhanced when cells are exposed to stress agents. Usp enhances the rate of cell survival during prolonged exposure to such conditions, and may provide a general “stress endurance” activity (Kvint et al., 2003). However, deletion of the UspE-like protein whose expression was induced in desiccation conditions in Salmonella enterica did not yield to any significant phenotype (Gruzdev et al., 2012), suggesting that the Usp are not directly involved in desiccation tolerance.

The comparison of the transcriptomes in PEG0, PEG10 and PGE35 shows that the response under moderate stress (PEG10) and high stress (PG35) conditions have points in common but also show significant differences. In PEG10 conditions, the cells are capable of modifying their metabolism to maintain their growth capacity almost intact, since growth differences compared to PEG0 condition were small. However, when the concentration of PEG becomes higher, the cells have to modify their metabolism to survive, limiting their growth capacity. Some common changes that can be seen between PEG10 and PEG35 are the overexpression of different potassium (ArtHe_17390 and ArtHe_17395), spermidine/putrescine (ArtHe_12855-ArtHe_12870) and several iron and siderophore ABC transporters (Supplementary Table S8), suggesting a general response to cope either with moderate or high drought stress.

One of the biggest differences observed between PEG0 and PEG10 is the overexpression of a gene cluster involved in riboflavin biosynthesis (ArtHe_05120-ArtHe_05140) that was no longer observed in PEG35. It is known that iron metabolism and riboflavin are intrinsically related since both are cofactors used for many enzymes involved in redox metabolism. In addition to their role as ubiquitous intracellular cofactors, flavins have recently gained attention for their involvement in a series of extracellular processes. In bacteria, iron availability influences expression of riboflavin biosynthetic genes. There is documented evidence for riboflavin involvement in surpassing iron-restrictive conditions in some species (Worst et al., 1998; Crossley et al., 2007; Vasileva et al., 2012). Although the specific mechanism through which flavins increase iron reduction in this species is not addressed, it is known that bacterially secreted riboflavin acts as electron shuttle for iron reduction during extracellular electron transfer (García-Angulo, 2017; Sepúlveda-Cisternas et al., 2018).

Arthrobacter sp. Helios transcriptome showed a higher number of DEGs in PEG35 compared to PEG10. We have observed the overexpression of several genes encoding glycine/betaine ABC transporters (ArtHe_04665 and ArtHe_04675), a universal stress protein (ArtHe_11205), the 8-oxoguanine deaminase (ArtHe_13950), the highly induced cluster involved in phenylethylamine metabolism, and a higher number of induced ABC transporters for amino acids, peptides and iron and, on the other hand, we have observed the downregulation of the aquaporin encoding gene (ArtHe_08770). In contrast with PEG10, where few DEGs were detected and cell growth was hardly impaired, the large changes observed in gene expression in PEG35 constitutes a massive cell response to conditions where not only growth but bacterial survival starts being compromised.

Surprisingly, although Arthrobacter sp. Helios appears to be able to produce trehalose by different pathways, we have not observed the induction of these genes, suggesting that either trehalose is not decisively implicated in the adaption to matric stress in this organism or either constitutive expression of these gene clusters already confers a protection role against this matric stress.

The results of this work allow us to anticipate that this new bacterium isolated from solar panels can be very useful for different biotechnological applications where water scarcity or drought can be a critical factor. We will explore its potential as biotechnological chassis in our future investigations to use it in contained bioreactors in low water conditions.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary material.

Author contributions

GH-F carried out the experiments and helped in drafting the manuscript. LC performed the experiments with metals. GH-F, JG, BG, MC, and LC participated in analyzing the data. JG and BG conceived and coordinated the study and drafted the manuscript. All authors have read, reviewed, and approved the final manuscript.

Funding

This research was supported by grants BIO2015-66960-C3-1-R, BIO2016-79736-R, and PID2019-110612RB-I00 from the Ministry of Economy and Competitiveness of Spain, RTI2018-095584-B-C41-42-43-44 from the Ministry of Science and Innovation of Spain, and by grants CSIC 2017 2 0I 015. We acknowledge the support of the publication fee by the CSIC Open Access Publication Support Initiative through its Unit of Information Resources for Research (URICI).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2022.1009068/full#supplementary-material
