Mitochondrial DNA. Part B, Resources logoLink to Mitochondrial DNA. Part B, Resources
. 2022 Oct 25;7(10):1829–1833. doi: 10.1080/23802359.2022.2132840

The complete plastid genome sequence of Chloranthus fortunei (A. Gray) Solms-Laub. in Chloranthaceae

Jong-Soo Kang a, Bo-Yun Kim b, Ki-Oug Yoo a,✉
PMCID: PMC9621198  PMID: 36325282

Abstract

Chloranthus fortunei (A. Gray) Solms-Laub. is a perennial herb in a basal angiosperm family Chloranthaceae. Here, we reported the complete plastid genome of C. fortunei using Illumina short-read data. The total genome size was 157,063 bp in length, containing 79 protein-coding genes, 30 tRNA genes, and four rRNA genes. The gene content and order were consistent with previously reported Chloranthus plastid genomes. The overall GC content of the C. fortunei plastid genome was 39.0%. In the phylogenetic result, genus Chloranthus was monophyletic and divided into two subclades: C. japonicus+C. angustifolius+C. fortunei, and C. henryi+C. spicatus+C. erectus. Our phylogenetic result was consistent with previous phylogenetic studies, and was supported by a previously proposed infrageneric classification of the genus Chloranthus.

Keywords: Chloranthus fortunei, Chloranthus, Chloranthaceae, plastid genome

Chloranthus Swartz (Chloranthaceae) consists of two subgenera, subgenus Tricercandra and subg. Chloranthus, based on androecium morphology, such as the extent of splitting in the tripartite lobes (Kong 2000a; Kong and Chen 2000; Kong et al. 2002). Chloranthus fortunei (A. Gray) Solms-Laub. (1869) belongs to subg. Tricercandra, and is distributed in southern parts of China, Korea, and Japan (Kim 2007; Xia and Jérémie 2007). This species has been cultivated as an ornamental herb, and also used for the Chinese folk medicine as a treatment of bone fractures (Ben Cao 1999). Morphologically, C. fortunei is very similar to C. japonicus Siebold which is widely distributed in East Asia (Kim 2007; Xia and Jérémie 2007); however, C. fortunei can be distinguished from the former by the anther position of the androecium, ploidy level, and tripartite androecium with long longitudinal connections (Kong 2000b; Kim 2007; Xia and Jérémie 2007; Figure 1). Whole plastid genomes have been widely used for molecular phylogenetics, species identifications, and conservation genetics (Burke et al. 2012; Huang et al. 2014; Walker et al. 2014). Here, we report the plastid genome of C. fortunei, which will be useful for the conservation genetic studies of this species as well as phylogenetic reconstructions of Chloranthus and other basal angiosperms.

Figure 1.

Figure 1.

Open in a new tab

Chloranthus fortunei. This species has a tripartite androecium with long longitudinal connections. (A) Habitat, (B) flower, and (C) the specimen deposited in Kangwon National University Herbarium (KWNU) under the voucher no. KWNU91773. The photos of C. fortunei in field (A, B) and the voucher specimen (C) were taken and provided by Jong-Soo Kang and Ki-Oug Yoo, respectively.

Leaf material of C. fortunei was collected from Ongnyeobong, Geoje-si, Gyeongsangnam-do province of South Korea (latitude 34.8455, longitude 128.6954). The voucher specimen (KWNU91773) has been deposited in the Kangwon National University Herbarium (KWNU; https://biology.kangwon.ac.kr/, Ki-Oug Yoo, yooko@kangwon.ac.kr). Total genomic DNA was extracted from silica gel dried leaves using the Exgene Plant SV Midi Kit (Geneall Biotechnology, Seoul, South Korea). Paired-end reads of 2 × 150 bp were generated using an Illumina HiSeq Xten (Theragen Bio Co. Ltd., Suwon, South Korea). A total of 2.26 GB raw reads of 150 bp were generated, of which 146,514 paired-end reads were extracted as plastid genome sequences using a reference genome sequence of the C. japonica plastid genome (KP256024). Using 146,514 reads, the de novo assembly was performed using GetOrganelle pipeline (Jin et al. 2020) with C. japonica plastid genome as a reference, and the assembled contig was manually confirmed using Geneious 7.1 (Biomatters Ltd, Auckland, New Zealand). The initial annotation of the C. fortunei plastid genome was performed using GeSeq (Tillich et al. 2017). After the initial annotation, putative starts, stops, and intron positions were determined by comparison with homologous genes in previously reported Chloranthus plastid genomes. The tRNA genes were annotated using GeSeq and tRNAscan-SE (Schattner et al. 2005). The annotated sequence was deposited in the NCBI GenBank under accession number ON023121, and the circular map of the C. fortunei plastid genome was drawn using the CPGview (http://www.1kmpg.cn/cpgview/).

The genome size of the C. fortunei plastid genome was 157,063 bp, including a pair of inverted repeat (IR) regions of 26,102 bp separated by the small single-copy (SSC) region of 18,484 bp, and the large single-copy (LSC) region of 86,375 bp (Figure 2). The C. fortunei plastid genome contained 113 genes, 18 of which were duplicated in the IR region, giving a total of 131 genes. The plastid genome of C. fortunei contained 30 distinct tRNAs, seven of which were duplicated in the IR region. Ten protein-coding genes (atpF, ndhA, ndhB, petB, petD, rps12, rps16, rpl2, rpl16, and rpoC1) and six tRNA genes (trnA-UGC, trnG-GCC, trnI-GAU, trnK-UUU, trnL-UAA, and trnV-UAC) contained one intron, while two genes (clpP, ycf3) contained two introns. A trans-spliced rps12 gene was divided into two independent transcription units (exon 1, and exons 2–3) as described in previous studies (Hildebrand et al. 1988; Schmitz-Linneweber et al. 2006). The overall GC content was 39.0% in the entire genome, 37.4% in the LSC, 43.2% in the IR, and 34.1% in the SSC regions.

Figure 2.

Figure 2.

Open in a new tab

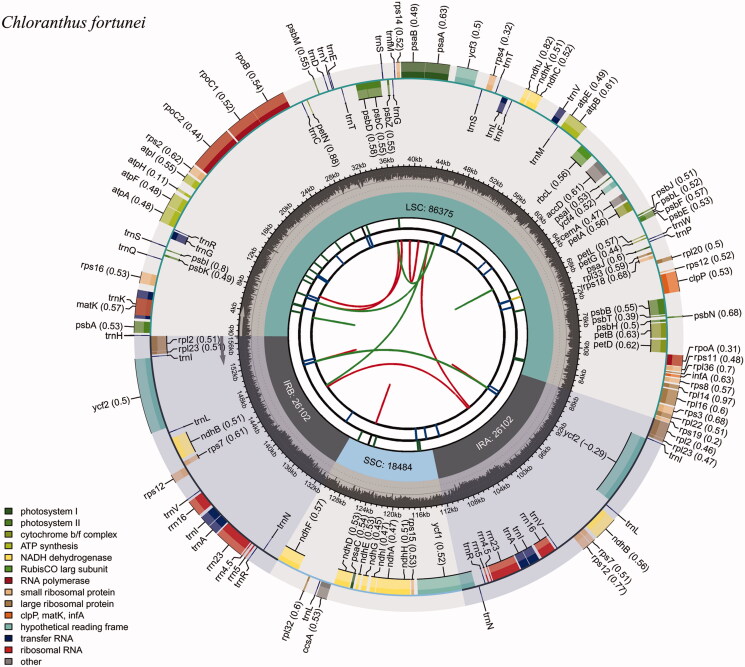

The map of the Chloranthus fortunei plastid genome. The circular map of the C. fortunei plastome was drawn using the CPGview program. The map consists of six circles and information about each circle is as follows: (from the center) the first circle indicates repeat distribution. The second circle indicates the tandem repeats with short bars. The third circle indicates the microsatellite sequences with short bars. The fourth circle indicates the size of LSC, SSC, and IR regions. The fifth circle indicates the GC content. The sixth circle indicates the genes having different colors based on their functions.

Phylogenetic analysis based on 78 protein-coding genes was performed using representative species from Amborellales in basal angiosperms to Magnoliales in magnoliids, and Amborella trichopoda was selected as the outgroup (Figure 3). A total of 69,404 bp was aligned using MAFFT (Katoh and Standley 2013). Maximum-likelihood (ML) analysis was performed using RAxML v. 7.4.2 with 1000 bootstrap replicates and the GTR + I+G model (Stamatakis 2006; Darriba et al. 2012). Our phylogenetic result was consistent with topologies from previous studies in which all families and orders were monophyletic (Angiosperm Phylogeny Group 2016) (Figure 1). Within Chloranthaceae, Sarcandra glabra was sister to the clade of Chloranthus with 100% bootstrap supporting values, and the genus Chloranthus was monophyletic as shown in previous studies (Kong et al. 2002; Zhang et al. 2011). The three species, C. fortunei, C. angustifolius, and C. japonicus of subg. Tricercandra formed a subclade, and the subclade was sister to the other clade of subg. Chloranthus including C. henryi, C. spicatus, and C. erectus with 100% bootstrap supporting values (Figure 3). The pairwise identity of concatenated 78 protein-coding gene sequences within the genus Chloranthus was 99.2%, and those within both two subgenera was 99.5%, respectively.

Figure 3.

Figure 3.

Open in a new tab

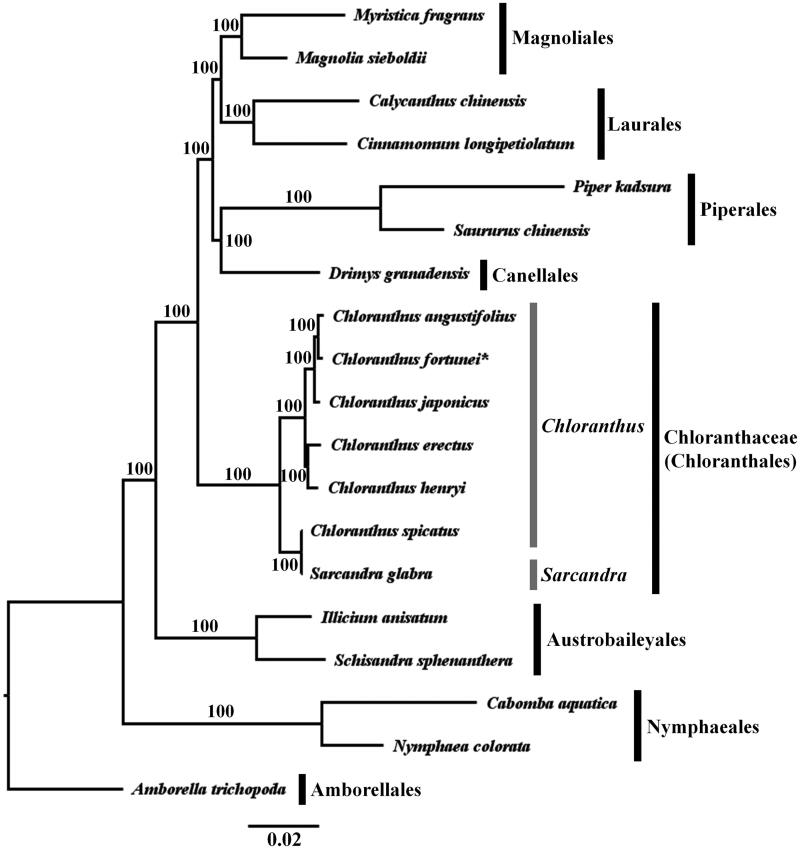

Phylogenetic tree based on 78 protein-coding genes using the ML method. Asterisk indicates newly reported plastid genome in this study. Bootstrap values are shown near the nodes. The following sequences were used: Myristica fragrans MN495963 (Cai et al. 2021), Magnolia sieboldii MN990583 (Wang et al. 2020), Cinnamomum longipetiolatum MN698965 (Zheng et al. 2019), Calycanthus chinensis MG561304 (Chen et al. 2019), Piper kadsura KT223569 (Lee et al. 2016), Saururus chinensis MN263891 (Jin et al. 2019), Drimys granadensis DQ887676 (Cai et al. 2006), Chloranthus fortunei ON023121 (this study), Chloranthus angustifolius MW581013 (Zhang unpublished), Chloranthus japonicus KP256024 (Sun et al. 2016), Chloranthus erectus MH394412 (Zeng et al. 2018), Chloranthus spicatus EF380352 (Hansen et al. 2007), Chloranthus henryi MK922064 (Liu et al. 2019), Sarcandra glabra MH939147 (Wang et al. 2020), Schisandra sphenanthera MK193856 (Wei et al. 2020), Illicium anisatum KY085919 (Zhang and Handy unpublished), Cabomba aquatica MG720559 (Gruenstaeudl et al. 2018), Nymphaea colorata MT107631 (Sun et al. 2021), and Amborella trichopoda AJ506156 (Goremykin et al. 2003).

Funding Statement

This work was supported by the National Institute of Biological Resources (NIBR) Grant funded by the Korea Government [No. NIBR202212101].

Ethical approval

This study complies with relevant institutional, national, and international guidelines and legislations. According to the national and local legislations, no specific permission was required for collecting the species in this study, and Ki-Oug Yoo identified and deposited the voucher specimen in the Kangwon National University Herbarium (KWNU).

Author contributions

Ki-Oug Yoo and Bo-Yun Kim planned and designed the research. Jong-Soo Kang and Ki-Oug Yoo collected the plant material. Jong-Soo Kang and Bo-Yun Kim performed experiments. Jong-Soo Kang performed analysis and interpretation of data. Jong-Soo Kang and Ki-Oug Yoo wrote the first draft of the manuscript, and all authors revised and approved the final manuscript. All authors agree to be accountable for all aspects of the work.

Disclosure statement

No potential competing interest was reported by the authors.

Data availability statement

The genome sequence data that support the findings of this study are openly available in GenBank of NCBI (https://www.ncbi.nlm.nih.gov/) under the accession no. ON023121. The associated BioProject, SRA, and Bio-Sample numbers are PRJNA816642, SRR18360190, and SAMN26686909, respectively.

References

  1. Angiosperm Phylogeny Group . 2016. An update of the Angiosperm Phylogeny Group classification for the orders and families of flowering plants: APG IV. Bot J Linn Soc. 181:1–20. [Google Scholar]
  2. Ben Cao ZB. 1999. Editorial committee of the administration bureau of traditional Chinese medicine. Chinese Materia Medica (Zhonghua Benchao). Vol. 3. Shanghai, China: Shanghai Science & Technology Press; p. 449–450. [Google Scholar]
  3. Burke SV, Grennan CP, Duvall MR.. 2012. Plastome sequences of two New World bamboos-Arundinaria gigantea and Cryptochloa strictiflora (Poaceae)-extend phylogenomic understanding of Bambusoideae. Am J Bot. 99(12):1951–1961. [DOI] [PubMed] [Google Scholar]
  4. Cai CN, Ma H, Ci XQ, Conran JG, Li J.. 2021. Comparative phylogenetic analyses of Chinese Horsfieldia (Myristicaceae) using complete chloroplast genome sequences. J Syst Evol. 59(3):504–514. [Google Scholar]
  5. Cai Z, Penaflor C, Kuehl JV, Leebens-Mack J, Carlson JE, dePamphilis CW, Boore JL, Jansen RK.. 2006. Complete plastid genome sequences of Drimys, Liriodendron, and Piper: implications for the phylogenetic relationships of magnoliids. BMC Evol Biol. 6:77. [DOI] [PMC free article] [PubMed] [Google Scholar]
  6. Chen X, Yang J, Zhang H, Bai R, Zhang X, Bai G, Dai P, Zhao G.. 2019. The complete chloroplast genome of Calycanthus chinensis, an endangered species endemic to China. Conserv Genet Resour. 11(1):55–58. [Google Scholar]
  7. Darriba D, Taboada GL, Doallo R, Posada D.. 2012. jModelTest 2: more models, new heuristics and parallel computing. Nat Methods. 9(8):772. [DOI] [PMC free article] [PubMed] [Google Scholar]
  8. Goremykin VV, Hirsch-Ernst KI, Wölfl S, Hellwig FH.. 2003. Analysis of the Amborella trichopoda chloroplast genome sequence suggests that Amborella is not a basal angiosperm. Mol Biol Evol. 20(9):1499–1505. [DOI] [PubMed] [Google Scholar]
  9. Gruenstaeudl M, Gerschler N, Borsch T.. 2018. Bioinformatic workflows for generating complete plastid genome sequences—an example from Cabomba (Cabombaceae) in the context of the phylogenomic analysis of the water-lily clade. Life. 8(3):25. [DOI] [PMC free article] [PubMed] [Google Scholar]
  10. Hansen DR, Dastidar SG, Cai Z, Penaflor C, Kuehl JV, Boore JL, Jansen RK.. 2007. Phylogenetic and evolutionary implications of complete chloroplast genome sequences of four early-diverging angiosperms: Buxus (Buxaceae), Chloranthus (Chloranthaceae), Dioscorea (Dioscoreaceae), and Illicium (Schisandraceae). Mol Phylogenet Evol. 45(2):547–563. [DOI] [PubMed] [Google Scholar]
  11. Hildebrand M, Hallick RB, Passavant CW, Bourque DP.. 1988. Trans-splicing in chloroplasts: the rps 12 loci of Nicotiana tabacum. Proc Natl Acad Sci USA. 85(2):372–376. [DOI] [PMC free article] [PubMed] [Google Scholar]
  12. Huang H, Shi C, Liu Y, Mao SY, Gao LZ.. 2014. Thirteen Camellia chloroplast genome sequences determined by high-throughput sequencing: genome structure and phylogenetic relationships. BMC Evol Biol. 14:151. [DOI] [PMC free article] [PubMed] [Google Scholar]
  13. Jin JJ, Yu WB, Yang JB, Song Y, dePamphilis CW, Yi TS, Li DZ.. 2020. GetOrganelle: a fast and versatile toolkit for accurate de novo assembly of organelle genomes. Genome Biol. 21(1):241. [DOI] [PMC free article] [PubMed] [Google Scholar]
  14. Jin L, Yang J, Liu C, He M, Yan H.. 2019. Characterization of the complete plastome of medicinal plant Saururus chinensis (Saururaceae). Mitochondrial DNA Part B. 4(2):3206–3207. [DOI] [PMC free article] [PubMed] [Google Scholar]
  15. Katoh K, Standley DM.. 2013. MAFFT multiple sequence alignment software version 7: improvements in performance and usability. Mol Biol Evol. 30(4):772–780. [DOI] [PMC free article] [PubMed] [Google Scholar]
  16. Kim CH. 2007. Chloranthaceae. In: Park CW, editors. The genera of vascular plants of Korea. Seoul, South Korea: Academy Publishing Co.; p. 148–149. [Google Scholar]
  17. Kong HZ. 2000a. Systematics of the genus Chloranthus Swartz (Chloranthaceae) [Ph.D. dissertation]. Beijing: Institute of Botany, Chinese Academy of Sciences. [Google Scholar]
  18. Kong HZ. 2000b. Karyotypes of Sarcandra Gardn. and Chloranthus Swartz (Chloranthaceae) from China. Bot J Linn Soc. 133(3):327–342. [Google Scholar]
  19. Kong HZ, Chen ZD.. 2000. Phylogeny in Chloranthus Swartz (Chloranthaceae) inferred from sequence analysis of nrDNA ITS region. Acta Bot Sin. 42:762–764. [Google Scholar]
  20. Kong HZ, Chen ZD, Lu AM.. 2002. Phylogeny of Chloranthus (Chloranthaceae) based on nuclear ribosomal ITS and plastid trnL-F sequence data. Am J Bot. 89(6):940–946. [DOI] [PubMed] [Google Scholar]
  21. Lee JH, Choi IS, Choi BH, Yang S, Choi G.. 2016. The complete plastid genome of Piper kadsura (Piperaceae), an East Asian woody vine. Mitochondrial DNA Part A. 27(5):3555–3556. [DOI] [PubMed] [Google Scholar]
  22. Liu X, Liao X, Liu Z, Lan S.. 2019. Complete chloroplast genome of Chloranthus henryi (Chloranthaceae). Mitochondrial DNA Part B. 4(2):2964–2965. [DOI] [PMC free article] [PubMed] [Google Scholar]
  23. Schattner P, Brooks AN, Lowe TM.. 2005. The tRNAscan-SE, snoscan and snoGPS web servers for the detection of tRNAs and snoRNAs. Nucleic Acids Res. 33(Web Server issue):W686–W689. [DOI] [PMC free article] [PubMed] [Google Scholar]
  24. Schmitz-Linneweber C, Williams-Carrier RE, Williams-Voelker PM, Kroeger TS, Vichas A, Barkan A.. 2006. A pentatricopeptide repeat protein facilitates the trans-splicing of the maize chloroplast rps12 pre-mRNA. Plant Cell. 18(10):2650–2663. [DOI] [PMC free article] [PubMed] [Google Scholar]
  25. Stamatakis A. 2006. RAxML-VI-HPC: maximum likelihood-based phylogenetic analyses with thousands of taxa and mixed models. Bioinformatics. 22(21):2688–2690. [DOI] [PubMed] [Google Scholar]
  26. Sun C, Chen F, Teng N, Xu Y, Dai Z.. 2021. Comparative analysis of the complete chloroplast genome of seven Nymphaea species. Aquat Bot. 170:103353. [Google Scholar]
  27. Sun J, Zhang G, Li Y, Chen Y, Zhang X, Tang Z, Wu H.. 2016. The complete chloroplast genome sequence of Chloranthus japonicus. Mitochondrial DNA Part A. 27(5):3202–3204. [DOI] [PubMed] [Google Scholar]
  28. Tillich M, Lehwark P, Pellizzer T, Ulbricht-Jones ES, Fischer A, Bock R, Greiner S.. 2017. GeSeq- versatile and accurate annotation of organelle genomes. Nucleic Acids Res. 45(W1):W6–W11. [DOI] [PMC free article] [PubMed] [Google Scholar]
  29. Walker JF, Zanis MJ, Emery NC.. 2014. Comparative analysis of complete chloroplast genome sequence and inversion variation in Lasthenia burkei (Madieae, Asteraceae). Am J Bot. 101(4):722–729. [DOI] [PubMed] [Google Scholar]
  30. Wang W, Zou P, Liu G, Dai S.. 2020. Characterization of the complete chloroplast genome sequence of Sarcandra glabra (Chloranthales). Mitochondrial DNA Part B. 5(1):864–865. [DOI] [PMC free article] [PubMed] [Google Scholar]
  31. Wang YB, Liu BB, Nie ZL, Chen HF, Chen FJ, Figlar RB, Wen J.. 2020. Major clades and a revised classification of Magnolia and Magnoliaceae based on whole plastid genome sequences via genome skimming. J Syst Evol. 58(5):673–695. [Google Scholar]
  32. Wei XP, Li HJ, Che P, Guo HJ, Zhang BG, Liu HT, Qi YD.. 2020. Comparing chloroplast genomes of traditional Chinese herbs Schisandra sphenanthera and S. chinensis. Chin Herb Med. 12(3):247–256. [DOI] [PMC free article] [PubMed] [Google Scholar]
  33. Xia N, Jérémie J.. 2007. Chloranthaceae Blume. In: Wu ZY, Raven PH, Hong DY, editors. Flora of China. Vol. 4. Beijing: Science Press; p. 132–138. [Google Scholar]
  34. Zeng CX, Hollingsworth PM, Yang J, He ZS, Zhang ZR, Li DZ, Yang JB.. 2018. Genome skimming herbarium specimens for DNA barcoding and phylogenomics. Plant Methods. 14:43. [DOI] [PMC free article] [PubMed] [Google Scholar]
  35. Zheng Y, Luo Y, Li Y, Wang Y.. 2019. The complete chloroplast genome sequence of Cinnamomum longipetiolatum. Mitochondrial DNA Part B. 5(1):198–199. [DOI] [PMC free article] [PubMed] [Google Scholar]
  36. Zhang Q, Antonelli A, Feild TS, Kong H-Z.. 2011. Revisiting taxonomy, morphological evolution, and fossil calibration strategies in Chloranthaceae. J Syst Evol. 49(4):315–329. [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Data Availability Statement

The genome sequence data that support the findings of this study are openly available in GenBank of NCBI (https://www.ncbi.nlm.nih.gov/) under the accession no. ON023121. The associated BioProject, SRA, and Bio-Sample numbers are PRJNA816642, SRR18360190, and SAMN26686909, respectively.
