. 2022 Dec 29;8(1):262–270. doi: 10.1021/acsomega.2c03973

Optimization and Synthesis of a La-TMA MOF with Some Improvements in Its Properties

Zohreh Fateminia 1,*, Hossein Chiniforoshan 1
PMCID: PMC9835621  PMID: 36643429

Abstract

graphic file with name ao2c03973_0006.jpg

A La-TMA metal–organic framework (MOF) made up of benzene-1,3,5-tricarboxylate and La(III) was synthesized by a different methodology compared to those in previous reports. By using various approaches, the structural characteristics and physical properties of the La-TMA MOF were analyzed. Eventually, the results showed micro-hexagonal hollow tubes with a high crystallinity grade and thermal stability (up to 400 °C) and a higher surface area compared with those from earlier reports. The BET surface area of a similar previous MOF was about 14.8 m2/g; however, in the current project, the BET surface area increased to about 34.49 m2/g and the Langmuir surface area to 42.3 m2/g.

1. Introduction

Metal–organic frameworks (MOFs) are the types of penetrable crystalline hybrid materials, and these networks have achieved extraordinary growth over the last years, with growing importance in industry, more specifically in science and engineering. These compounds have been known as a pervasive branch of porous materials with crystalline architecture and enormous surface areas. MOFs comprise inorganic moieties or metal-based node centers (ions like alkaline earth metals, transition metals, lanthanides, or clusters) and organic moieties involving the extended family of some multifunctional ligands, which bind to each other through coordination bonds to make crystalline frameworks. The organic linkers are usually based on polytopic N-donor groups, carboxylates, or even phosphonates. However, different building blocks can be assembled to set up analogous structures, and as a way to solve the challenge of the random architecture and resultant behavior, post-synthetic modification of the synthesized product to provide a prospective network has been employed. It is an important area and promising strategy used to design and generate novel scaffolds for exhibiting stupendous properties compared to those of the parent frameworks. The changed chemical and physical properties induced in MOFs by changing their chemical composition have introduced unexampled opportunities for several applications.1−3

These arranged materials possess physicochemical parameters that result in desirable features, such as open metal sites, extraordinary surface area, large inoperative space, arranged topology structure, HOMO–LUMO level, pore size/shape, functionalized surface characteristics, uniform micro/nanopores,4−6 and, finally, excellent thermal, mechanical, and chemical stability. The ability to control their morphology (like micro- or nanoscale spheres, cubes, sheets, and rods) and the chemical nature of their pores and to diversify the building blocks of these structures enables us to synthesize extraordinary MOFs with great potential for applications in energy such as storage media for gases and high-capacity adsorption/separation or in catalysis, dye/toxic material removal,7−16 enzyme immobilization,17 sensing, biomedicine and drug delivery,18,19 separation, luminescence, fuel/energy conversion/storage, thin-film devices, membranes, ferroelectrics, and so on.1,2,5,20−28

Various methods have been suggested for synthesis of MOFs to achieve essential properties such as shape and morphology. The main purpose is to present an alternative method for preparing MOFs, utilizing a proper technique and optimizing the morphology or other properties through various factors, such as the concentration of reagents, reaction time, and different solvents. To date, various methods of MOF preparation in the laboratory and industry have been reported, from conventional solvothermal/hydrothermal synthesis to microfluidic synthesis or dry gel conversion, etc.20,29−32 These materials have had great effects on a broad range of groundbreaking research areas and also industries. Moreover, conditional and environmental challenges such as high temperature, the presence of toxic organic solvents and their types, and excessively acidic or basic pH are the most important parameters.33 The most common solvothermal synthesis necessitates non-renewable solvents, organic compounds, and high boiling temperatures. However, MOFs are mostly synthesized by solvothermal design, which involves poisonous solvents, long procedure times, and environmental and health complications, although the effort to develop green synthesis techniques is a welcome occurrence. Different parameters of MOF synthesis such as reagents, concentrations, molar ratios, surfactants, and solvents can lead to different 3D structures of MOFs.34 One of the most important steps in the synthesis is the selection of a solvent (or solvents) that is a structure-directing agent and will regularize the coordination environment. As a result, the kind of solvent has a significant influence over the resulting lattice structure. Of course, the use of some organic solvents can damage the environment.35,36

Computational assessments have proved that the thermal stability of MOFs is the counterpart with 1- coordination number and 2- coordination environment (not with framework topology).37 The specific heat capacities (Cp) of all MOFs that were studied by Mu and Walton are comparable with those of solid-state materials such as coordination polymers, zeolites, carbon nanotubes, and minerals. Among these MOFs, the one with the highest thermal stability is LaBTB (560 °C) as a result of the high coordination number of La, which is common among lanthanides.37

La-based MOFs with different conditions of synthesis have been reported many times. Of course, their obtained products have some differences. Some of these differences and their unit cells are shown in Table 1.34,38−41 A La(BTC) with a micro-spindly rectangular rod shape and some of its graphene oxide composites were synthesized by Liu et al., which had BET surface areas of 14.8 m2/g for the MOF and, as the best result, 26.6 m2/g for its graphene oxide composite. Furthermore, they acted as good absorbents for proteins (especially for hemoglobin).38 La-based MOFs have been used as purifier agents for water and air several times. Zhang et al. used the calcination process on a La(BTC) MOF to absorb phosphate from water, which could remove more than 170 mg P/g phosphate from water.42 In addition, Jeyaseelan et al. prepared a composite of hydroxyapatite as a substrate with a La(BTC) MOF as a layer on it for defluoridation of water.43 The two La3+-based MOFs that had been prepared by Paz et al. were thermally stable MOFs (up to 400 °C) and had high selectivity for absorbing CO2 and not N2 gas.44 Now, we introduce another micro-La-TMA MOF with a novel hexagonal hollow tube shape to this class of MOFs.

Table 1. Comparison of La-Based MOFs Comprising 1,3,5-Tricarboxylic Acid Linkers.

  conditions
name of MOF solvent/solvents temperature reaction time unit cell morphology
La-TMA MOFa DMF/formic acid (1:1) 100 °C 12 h monoclinic hexagonal hollow tube
La(BTC)(H2O)638 DMF/water (1:1) room temperature 6 h monoclinic spindly rectangular rods
La(1,3,5-BTC)(H2O)634 HNO3, water, ethanol room temperature 15 min monoclinic 3D flowerlike
La-BTC39 DMF 120 °C 24 h   rod-like
La(BTC)(DMF)2(H2O) or LaMOF40 DMF/water 65 °C 24 h monoclinic rod-like
La(BTC)(H2O)(DMF)41 DMF 150 °C 36 h monoclinic rod-like
Open in a new tab
a

This project.

2. Reagents and Instruments

All of the chemical precursors and solvents were of analytical grade and supplied by commercial sources. They were used as received without further purifications. Benzene-1,3,5-tricarboxylic acid, La(NO3)3·6H2O, and solvents comprising dimethylformamide (DMF) and formic acid were purchased from the company Sigma-Aldrich. Fourier transfer infrared (FT-IR) spectra were obtained by a Rayleigh WQF-510A FT-IR spectrometer (400–4000 cm–1) using KBr pellets. Field emission scanning electron microscopy (FE-SEM), energy-dispersive X-ray spectroscopy (EDS), and elemental mapping were carried out with a Quanta FEG 450 FEI. The results of thermogravimetry (TG) and differential scanning calorimetry (DSC) were recorded using a TA thermogravimeter, the Q600. Powder X-ray diffraction (XRD) analysis was carried out by means of an ASENWARE AW-XDM 300 with a step time of 1 s and a step size of 0.05° at 40 kV, 30 mA, and a 0.154184 nm wavelength. The surface area, adsorption/desorption graph, and corresponding data of the La-TMA MOF were obtained by a BELSORP-mini II. And as the other technique, X-ray photoelectron spectroscopy results were obtained using a Bes Tec in a 10–10 mbar vacuum with Kα energy = 1486.6 eV and an Al anode.

3. Experimental Section

Benzene-1,3,5-tricarboxylic acid (0.0417 g, 0.198 mmol) and La(NO3)3·6H2O (0.086 g, 0.198 mmol) at a 1:1 molar ratio were mixed in an autoclavable glassy container that contained 10 mL of formic acid and 10 mL of pure DMF (at a 1:1 voluminal ratio). we shook the dish of the mixture for a few seconds to dissolve the reagents, and then it was put in an oven at 100 °C for 12 h. Then, the product was collected and sequentially washed with 5 mL of pure DMF, 5 mL of deionized water, and 5 mL of absolute acetone. Then, the white precipitate was put in an oven at 50 °C for 30 min to remove the residual solvents. The efficiency was more than 80%.

4. The Characterization Methods of the Material

4.1. FT-IR Spectroscopy

The selected infrared absorption bands (KBr, cm–1) are listed in Table 2.45 Great transformations in the FT-IR pattern of the La-TMA MOF versus that of the pure ligand were observed, which demonstrated the formation of a TMA-bonded-to-La structure.

Table 2. The Main FT-IR Absorption Bands of the La-TMA MOF.

functional group and vibrational mode reference wavenumber of the moieties (cm–1) La-TMA MOF (cm–1)
O–H stretching vibration >3500 (m, very broad) 3442 (m, very broad)
C–H aromatic stretching vibration 3000–3100 2908, 3001 (w)
C=C and 1650–1690 1408, 1421
C=O stretching vibration 1660–1740 (vs) 1577 (vs)
aryl C–H out-of-plane bending (or wag) vibration 795–880 773 (s)
Open in a new tab

4.2. Powder X-ray Diffraction

Normal powder XRD was utilized to find out the class of the crystalline structure with the parameters of the La-TMA MOF (Figure 1b). The unit cell of La-TMA MOF was determined to be monoclinic, with space group I12/c1 and cell specifications a = 7.621(6) Å, b = 5.368(4) Å, c = 3.596(2) Å, α = γ = 90°, and β = 96.73(1)°.

Figure 1.

Figure 1

Open in a new tab

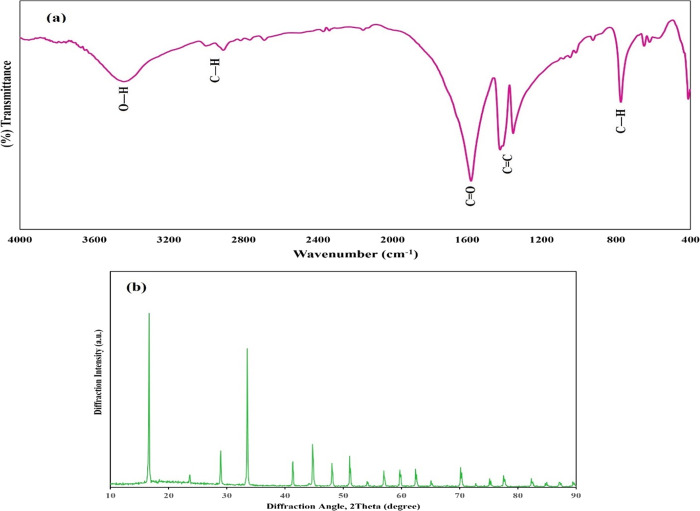

(a) FT-IR spectrum and (b) XRD pattern of the La-TMA MOF.

4.3. X-ray Photoelectron Spectroscopy

X-ray photoelectron spectroscopy (XPS) is a reliable method for comprehensive study of materials and is especially suited for surveying coordination compounds.46,47 The full-survey spectrum of the La-TMA MOF coordination polymer is shown in Figure 2a, where each of the main peaks is deconvoluted to La 3d, La 4p, O 1s, and C 1s zones, confirming the existence of a trimesic acid ligand and metal components in the product. However, we will assess its XPS pattern in detail in the Results and Discussion section.

Figure 2.

Figure 2

Open in a new tab

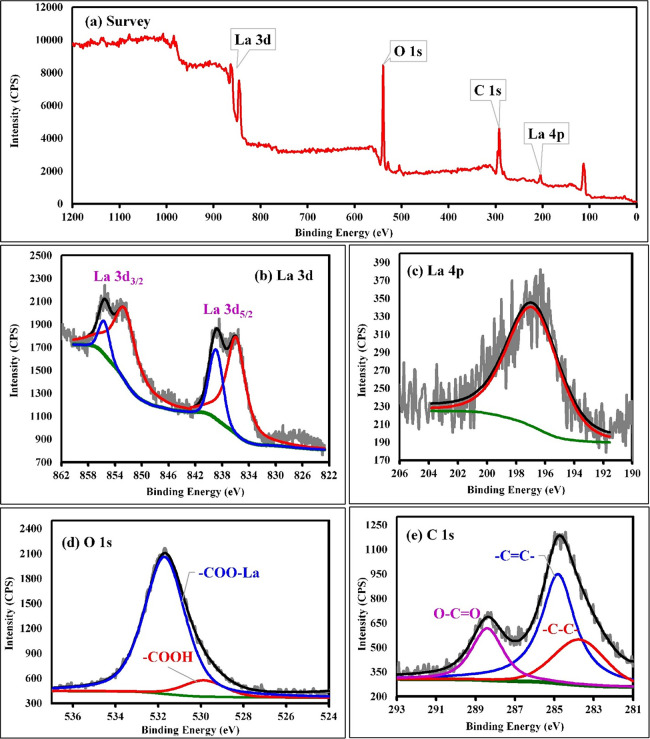

(a) XPS survey spectrum of La-TMA MOF and detailed spectra of (b) La 3d, (c) La 4p, (d) O 1s, and (e) C 1s (e) atoms in the La-TMA MOF.

4.4. Morphological Properties of the La-TMA MOF; SEM, EDS, and Elemental Mapping

The surface features of the La-TMA MOF were scrutinized by the FE-SEM, EDS, and elemental mapping techniques. The SEM images are given in Figure 3a,b.

Figure 3.

Figure 3

Open in a new tab

(a,b) SEM images of La-TMA MOF as well as (c–f) elemental mapping analysis of the La-TMA MOF.

4.5. Thermogravimetry Analysis and DSC

To estimate the thermal stability of the La-TMA MOF, TG (thermogravimetry analysis (TGA) and its derivative, DTG) as well as DSC measurements were performed and their results are depicted in Figure 4a,b. TGA and DSC were carried out at a 15 °C/min heating rate. Both thermostability assessments were performed under a nitrogen atmosphere, in the temperature range ∼28–850 °C.

Figure 4.

Figure 4

Open in a new tab

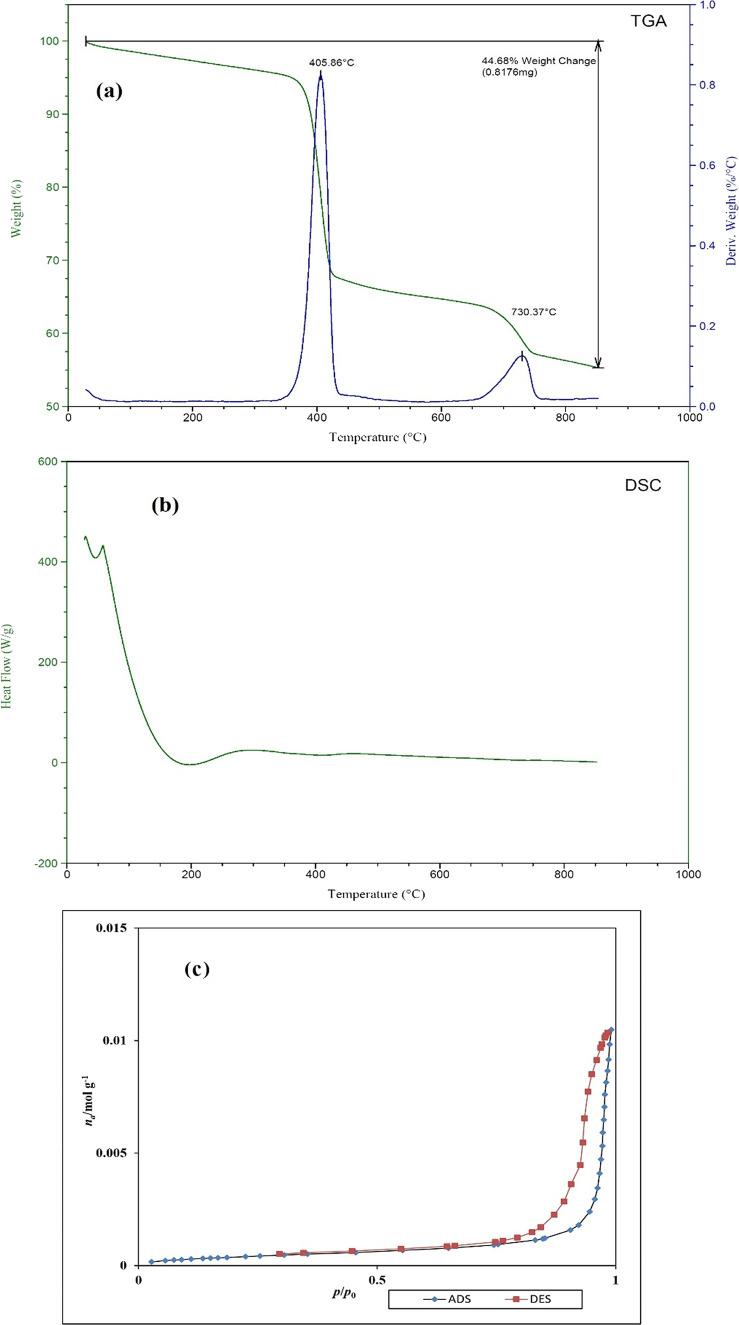

(a) Schemas of TG (green) and DTG (dark blue) of the La-TMA MOF and (b) DSC and (c) adsorption (blue)/desorption (orange) of the La-TMA MOF.

4.6. The Surface Area Studies

The surface area and behavior of the nitrogen gas adsorption/desorption of the La-TMA MOF was studied. The profiles of such behavior and surface area of the MOF were computed using Brunauer–Emmett–Teller (BET) calculations.

5. Results and Discussion

The selected IR absorption bands (Table 2) exhibit great transformations in the FT-IR pattern of the La-TMA MOF versus the those of the pure ligand, which verified the formation of a TMA-bonded-to-La structure. The normal powder XRD showed the monoclinic unit cell of the La-TMA MOF, with an I12/c1 space group and a = 7.621(6) Å, b = 5.368(4) Å, c = 3.596(2) Å, α = γ = 90°, and β = 96.73(1)° cell parameters. The XPS of the La-TMA MOF showed the deconvoluted La 3d spectrum (Figure 2b). The XPS spectrum of La 3d has two main peaks of La 3d3/2 and La 3d5/2 at binding energies of 852.5 and 835.8 eV, respectively, and the difference between the two major peaks is 16.7 eV, as confirmed by the pattern in the spectrum of lanthanum.48,49 Further, the other two peaks at 838.8 and 855.5 eV are La 3d satellite peaks, which are set down to the relocation of electrons of O 2p to an unoccupied La 5f revealing the La3+ oxidation state.50Figure 2c displays the high-resolution La 4p XPS spectrum of the La-TMA MOF compound, which has a peak observed at a binding energy of 196.8 eV.51 The deconvolution of O 1s is displayed in Figure 2d. There are two types of oxygen present in the surface of the La-TMA MOF with BEs of 529.8 and 531.7 eV, which could be assigned to oxygen atoms in the patterns of −(C=O)OH and −COO–La, respectively.52 The two oxygen atoms in the carboxylate (COO−) moiety bound to La(III) might be equivalent.53Figure 2e displays the high-resolution C 1s XPS spectrum of the La-TMA MOF, which is fitted into three peaks at 283.7, 284.6, and 288.3 eV. The peaks at 283.7 and 284.6 eV are assigned to the C=C and C–C bonds of trimesic acid ligands. Another peak (at 288.3 eV) would be ascribed to the −(C=O)OH bond of the ligand.48 The results of SEM, EDS, and elemental mapping studies obviously indicated hollow hexagonal tubes with micrometer dimensions, lengths of several micrometers, and uniform shapes. The presence of C, O, and especially La atoms in the La-TMA MOF was analyzed by EDS (Figure 3a,b).54,55 The peaks reveal the presence of La, O, and C atoms. The uniformity of elemental distributions was examined though elemental mapping analysis. In Figure 3c–f shown is the equally uniform distribution of all elements. A little bit of physically adsorbed molecules and solvents that were trapped in the pores of open channels in the main backbone of the La-TMA MOF, during the heating procedure and by increasing the temperature,56−62 were removed the framework, simultaneously (this step is an endothermic procedure as exhibited in the DSC curve that is shown in Figure 4b). The onset decomposition temperature of the La-TMA MOF is ∼350 °C, and the peak is at 405.86 °C as shown in the TGA/DTG curves of the La-TMA MOF (Figure 4a). Hence, this MOF is thermally stable at least up to 350 °C. The uptake of nitrogen gas by the MOF was 7.9235 cm3/g (STP), and also the pore volume was 0.3581 cm3/g. The BET and Langmuir surface areas were 34.487 and 42.294 m2/g, respectively (Table 3). The nitrogen adsorption/desorption behavior of the La-TMA MOF, which is shown in Figure 4c, represents a type IV isotherm and H1 hysteresis comprising narrow/uniform mesopores.63

Table 3. The Resultant Data of La-TMA MOF BET and Langmuir Computations.

BET plot
Vm 7.9235 [cm3(STP) g–1]
as,BET 34.487 [m2 g–1]
mean pore diameter 41.532 [nm]
Langmuir plot
Vm 9.7166 [cm3(STP) g–1]
as,Lang 42.291 [m2 g–1]
Open in a new tab

Consequently, this La-TMA MOF was synthesized by a comparatively facile method. Clearly, the characterization approaches delineate the formation of a pure, crystalline, and thermally stable La-based MOF with high efficiency. Liu et al. could prepare a La(BTC)(H2O)6 MOF and its graphene oxide composites with BET surface areas of 14.8 and 26.6 m2/g as the best results, respectively.38 However, the La-TMA MOF in this project has BET and Langmuir surface areas of 34.487 and 42.294 m2/g, respectively.

The La-TMA MOF in this project is a thermally stable material (up to 400 °C) because of the high coordination number of La, which is common for lanthanide elements.37 However, the TGA diagrams of La-TMA MOFs that were previously synthesized showed lower thermal stability38,64 in comparison with that of our MOF.

Selection of solvent/solvents is a vital step in the solvothermal synthesis of MOFs and can regularize the coordination environment and have a structure-directing role. In this project, we chose DMF as well as formic acid, which have high boiling points and are common solvents in MOF preparation.36 The obtained MOF has a micro-hexagonal hollow tube shape, which is a novel structure in the group of La-based MOFs. As previously described, this La-TMA MOF can be important in the absorption of proteins (especially hemoglobin (Hb)) with more than double the BET surface area in comparison to those of spindly rectangular rods from a previous work (14 m2/g changes to 34 m2/g)38 or for phosphate absorption42 and defluoridation of water43 as well as absorption of CO2.44 Furthermore, the La-TMA MOF can be used as thermally stable material. As a result, La-based MOFs have the capacity to be studied more and more and used as a science-based industrial product.

6. conclusions

In the current project, by using a new procedure, a La-TMA MOF with good purity and high efficiency in the class of La-based MOFs and desirable thermal stability (∼ 400 °C) was synthesized. The construction of this MOF as well as some of its physical properties was verified through FT-IR, elemental analysis (CHN), FE-SEM, EDS, elemental mapping, XPS, XRD, DSC, TGA and DTG, and BET and nitrogen gas adsorption/desorption analyses. A MOF with a novel microhexagonal hollow tube shape in the class of La-based MOFs with high thermal stability, high quality of crystallinity, and a higher surface area in comparison to those from other research studies and with other considerable features was synthesized. Furthermore, the surface area from a previous work was ∼14 m2/g, which changes to ∼34 m2/g in the current project (increasing by about 20 m2/g). Furthermore, this class of MOFs has an absorption capacity for CO2 and contaminants from water.

Acknowledgments

We greatly appreciate the financial support of the Isfahan University of Technology (IUT).

Glossary

Abbreviations

TMA

trimesic acid or benzene-1,3,5-tricarboxylic acid

m

medium

w

weak

vs

very strong

s

strong

H3BTB

1,3,5-tris-(4-carboxyphenyl)benzene

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsomega.2c03973.

  • The XRD diagram and parameters well as elemental analysis (CHNS) of the La-TMA MOF are given in detail in the Supporting Information file (PDF)

Author Contributions

Z.F. was responsible for data curation, formal analysis, investigation, methodology, and writing. H.C. was responsible for funding acquisition, project administration, resources, supervision, and visualization.

The authors declare no competing financial interest.
