Arsenic and mercury tolerant rhizobacteria that can improve phytoremediation of heavy metal contaminated soils

Abstract

Background

Mining deposits often contain high levels of toxic elements such as mercury (Hg) and arsenic (As) representing strong environmental hazards. The purpose of this study was the isolation for plant growth promoting bacteria (PGPBs) that can improve phytoremediation of such mine waste deposits.

Methods

We isolated native soil bacteria from the rhizosphere of plants of mine waste deposits and agricultural land that was previously mine tailings from Tlalpujahua Michoacán, Mexico, and were identified by their fatty acid profile according to the MIDI Sherlock system. Plant growth promoting traits of all bacterial isolates were examined including production of 3-indoleacetic acid (IAA), siderophores, biofilm formation, and phosphate solubilization. Finally, the response of selected bacteria to mercury and arsenic was examined an in-vitro assay.

Results

A total 99 bacterial strains were isolated and 48 identified, representing 34 species belonging to 23 genera. Sixty six percent of the isolates produced IAA of which Pseudomonas fluorescens TL97 produced the most. Herbaspirillum huttiense TL36 performed best in terms of phosphate solubilization and production of siderophores. In terms of biofilm formation, Bacillus atrophaeus TL76 was the best.

Discussion

Most of the bacteria isolates showed high level of tolerance to the arsenic (as HAsNa₂O₄ and AsNaO₂), whereas most isolates were susceptible to HgCl₂. Three of the selected bacteria with PGP traits Herbispirillum huttiense TL36, Klebsiella oxytoca TL49 and Rhizobium radiobacter TL52 were also tolerant to high concentrations of mercury chloride, this might could be used for restoring or phytoremediating the adverse environmental conditions present in mine waste deposits.

Introduction

In the past few decades, soil pollution caused by heavy metals has increased in prevalence, especially in developing Countries (Samuel et al., 2021). Activities such as rapid industrialization, poor agricultural practices, and mine tailings runoff are often detrimental to soil health and can distribute hazardous metals into the environment, with harmful health consequences (Raklami et al., 2022).

In particular, the intensive extraction of minerals taking place in mining zones has produced a large volume of wastes and tailings, which release potentially toxic elements (PTE) to the environment, including heavy metals. Contamination with heavy metals, particularly arsenic (As) and mercury (Hg), is frequent throughout the planet (Hering et al., 2017).

Soil contamination by heavy metals has become a serious environmental issue, since most metals exert harmful effects at low concentrations (1–10 mg/mL), while some metals such as Hg have a toxic effect at even lower concentrations (0.001–0.1 mg/mL) also, being a mobile element in the environment, its negative impacts are considerable (Kurniati et al., 2014; Devi et al., 2022; Zhang et al., 2010). Arsenic pollution is not only a result of mining activities, but it also enters ecosystems using pesticide and/or herbicides based on this chemical element (Kumar et al., 2016).

One way of reducing the environmental impact of contaminated soils is the use of remediation strategies, some are chemical and physical in nature; however, these methods can be expensive and not always effective (Kunito et al., 2001). Biological techniques, such as phytoremediation and PGPB bioremediation, have emerged as environmentally sound approaches to heavy metal removal (Devi et al., 2022).

Microbial communities also play an important role during the recovery of soils by improving their structure and fertility and are excellent indicators because of their rapid response to environmental changes (Xiao et al., 2017). However, high concentrations of heavy metals might alter the diversity and structure of microbial communities (Quadros et al., 2016), their vital microbiological features (like growth, adhesion, and morphology), and essential biochemical traits such as respiration, nitrogen fixation, and mineralization of nitrogen and phosphorus (Rajapaksha, Tobor-Kapłon & Bååth, 2004). In consequence, soil microbial mediated phytoremediation requires choosing soil bacteria capable of growing in the presence of heavy metals, sometimes in high concentrations. Also, these bacteria have to show plant growth promotion features such as: synthesis of 3-indoleacetic acid (IAA), phosphate solubilization, biofilm formation, and production of siderophores that are important for plant growth in contaminated soils (Khan et al., 2015; Yu et al., 2014b; Santoyo et al., 2016).

In Tlalpujahua, Michoacán, located in west-central Mexico, an over 400-year history of mining activity in the region has generated tailings on which a partial natural regeneration of the vegetation has been taking place in the last 60 years since the mines in the region ceased to operate (Corona-Chávez et al., 2010). In the mining zone of Tlalpujahua-El Oro, little work has been carried out to remediate contaminated soils. Osuna-Vallejo et al. (2019), evaluated the capability of the conifers Juniperus deppeana and Pinus pseudostrobus for extracting mercury from soils contaminated by mining deposits, and found that both species accumulated the metal in their wood, representing excellent candidates for phytoremediation by bioacumulation of mercury. PGPR can improve this type of phytoremediation processes (Raklami et al., 2019, 2021).

The objective of this study was to select cultivable bacteria from tailing soils in Tlalpujahua, with traits of plant growth promotion and tolerance to mercury and arsenic for future use as inoculants in phytoremediation processes. We hypothesized that, in altered soils and substrates (that result from long term mining), bacteria have evolved and developed tolerance mechanisms as a response to the selection pressure imposed by heavy metals, and some also have plant growth promotion mechanisms that make them potentially useful as phytoremediation agents. Our study is relevant due to the small number of studies that have been carried out in this area and the limitation of available strategies to restore soil conditions, so offering alternatives through native microorganisms represents an interesting biological restoration option.

Materials and Methods

Site study and soil sampling

The municipality of Tlalpujahua is located in the state of Michoacán México, between the parallels 19°41′ and 19°53′ northern latitude, and 100°08′ and 100°18′ western longitude, at an elevation ranging from 2,200 to 3,100 m a.s.l. The characterization of our study site has previously been described by Corona-Chávez et al. (2010, 2017) and Osuna-Vallejo et al. (2019), works that describe the physicochemical characteristics of soils in the Tlalpujahua-El Oro mining district and identified potentially toxic elements like arsenic (3.0–83.9 ppm), copper (63.8–548.2 ppm), lead (16.6–317.5 ppm) and mercury (20.51–110.7 ppm).

Three samples were collected from three different sites from the rhizosphere of native and cultivated plants at a depth of 0 to 20 cm: one in wetland dominated by Typha domingensis growing on a channel draining from an abandoned mine (N 19° 48′ 03.3″, W 100° 09′ 29.0″), a second from agricultural land planted with maize plants (N 19° 48′ 28.8″, W 100° 10′ 03.6″) and a third from another agricultural field also planted with maize (N 19° 48′ 26.8″, W 100° 10′ 00.2″; Fig. 1). The three samples were sieved through a 2 mm × 2 mm sieve to remove stones, debris, and other large particles, pooled, mixed, placed in sterile polyethylene bags, and stored in darkness at room temperature for the upcoming experiments.

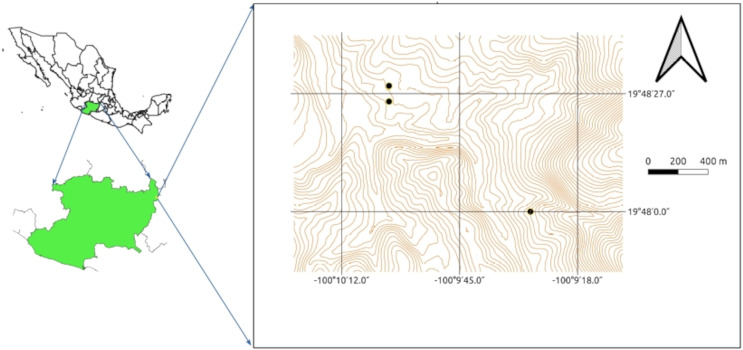

Figure 1. Sampling sites within the Tlalpujahua-El Oro mining district in eastern Michoacán, México.

Each point indicates the site where soil was collected.

Microorganisms were isolated from 0.5 g soil samples diluted in 1 mL of water, which were further diluted and plated on nutritive agar (BD Bioxon, Becto Dickinson de México) culturing medium in Petri dishes that were incubated 24 h at 30 °C. Ninety nine isolates were obtained based on colony morphology. The isolates were incubated at 28 °C for 24 h and preserved in 20% glycerol at −80 °C.

Isolation of cultured rhizobacteria

The selected isolates were cultured in tryptic soy broth medium (TSB) and identified based on the Fatty Acid Methyl Ester (FAME) method based on their fatty acid profiles in the Microbial Identification System (MIDI) of the Sherlock System Software 4.0. The fatty acids were extracted by the four-step method (Mansfeld-Giese, Larsen & Bödker, 2002): (i) Saponification, (ii) methylation, (iii) extraction, and (iv) base wash. The fatty acid methyl esters were analyzed in an Agilent 6890 Plus gas chromatograph and identified in the Sherlock System Software 4.0 using the libraries recommended for aerobic heterotrophic bacteria (Parsley, 1996).

Plant growth promoting traits

Production of siderophores was evaluated by triplicate in chrome azurol sulfonate (CAS) agar medium (Santoyo, Sánchez-Yáñez & de los Santos-Villalobos, 2019) cultures incubated at a temperature of 30 °C. The orange rings surrounding colonies were measured for 2 days.

The content of IAA was determined by the method described by Patten & Glick (2002). Total of 25 mL flasks containing nutrient broth added with 1% tryptophan were inoculated and agitated in a rotating agitator at 150 rpm at a temperature of 30 °C. The cells were harvested by centrifugation at 10,000 × g for 15 min and 2 mL of Salkowski reagent were added to the supernatant. The absorbance of the pink auxin complex was recorded at a wavelength of 540 nm in a Genesys 20 UV-VIS spectrophotometer. The standard curve was generated using dilutions of a pure IAA standard solution (Fluka, Buchs, Switzerland) and the uninoculated medium supplemented with Salkowski reagent as a control.

The biofilm forming capability of isolates was assessed in triplicate with at least two independent sets following the protocol of Wei & Zhang (2006). Briefy, testing strains were grown in LB medium to an O.D. of 1 and then diluted (1:1,000) with fresh LB broth. A 0.5 ml diluted culture was transferred to an Eppendorf tube. Bacteria were incubated without agitation for 24, at 30 °C and the bioflm was quantifed.

Biofilm was stained with 0.1% crystal violet (w/v) for 15 min at room temperature and rinsed with water to remove loose cells and stain residues. The crystal violet stain was solubilized using 95% ethanol and the absorbance at 570 nm of the resultant stain solution was measured in a Genesys 20 UV-VIS spectrophotometer.

Finally, phosphate solubilization was determined in the Pikovskaya medium (with Ca₃PO₄ as phosphate source) in Petri dishes incubated at 30 °C and the yellow rings surrounding the colonies were measured daily for 2 days (Chung et al., 2005; Joshi, Kumar & Brahmachari, 2021).

As-Hg minimal inhibitory concentration

Resistance of isolates to mercury and arsenic was assessed inoculating 10 µL of a 10⁸ cells/mL bacterial suspension in nutrient agar medium supplemented with sodium (meta) arsenite (AsNaO₂) and sodium arsenate dibasic (HAsNa₂O₄) solutions at concentrations of 200, 400, 600, 800, and 1,000 mg/kg, and mercuric chloride (Cl₂Hg) solution at concentrations of 23, 50, 75, 100, and 150 mg/kg. The minimal inhibitory concentration (MIC) was defined as the lowest concentration at which no colony units were formed after 3 days of incubation at a temperature of 30 °C. MIC for heavy metals was evaluated on solid media following studies that show the effectiveness of the procedure or the limitations of the traditional liquid MIC methods (Yu et al., 2014a; Agarwal, Rathore & Chauhan, 2020).

Statistical analysis

Statistical analysis of the results was made in the software STATISTICA 8.0 applying one-way ANOVAs and the Duncan’s multiple range test for mean comparison were used for multiple comparisons.

Results

Of the 99 isolates obtained, only 47 managed to grow in the presence of heavy metals. Seven isolates were obtained from site one, nineteen isolates from site two, and twenty-one isolates from site three. We identified a total of 34 species belonging to 23 genera. Table 1 shows cultivable bacteria obtained from three samples of rhizosphere soils from Tlalpujahua. From the first rhizospheric soil sample, the genera Pseudomonas and Acinetobacter were the most representative, appearing in two occasions, the predominant species were Pseudomonas alcaligenes and Acinetobacter calcoaceticus. From the second soil sample, the most common genus was Bacillus, as it was found on four occasions, two of these identified as Bacillus-GC group 22, while the species Paracoccus denitrificans was identified on two occasions. Finally, from the soil sample of site three, the most representative genera were Bacillus identified on three occasions and Pseudomonas on four occasions. The species that were identified in the greatest number of occasions were Herbaspirullum huttiense with two representatives and Pseudomonas fluorescens with three.

Table 1. Bacterial species isolated from three soil samples from the Tlalpujahua, Michoacán, Mexico.

Bacteria were identified based on their fatty acid profiles.

Isolate	Source	Species	% Similarity (MIDI)
TL1	Sample 1	Paucimonas lemoignei	0.303
TL2	Sample 1	Pseudomonas alcaligenes	0.677
TL3	Sample 1	Citrobacter amalonaticus	0.471
TL4	Sample 1	Acinetobacter calcoaceticus	0.708
TL6	Sample 1	Pseudomonas alcaligenes	0.473
TL7	Sample 1	Acinetobacter calcoaceticus	0.512
TL8	Sample 1	Herbaspirillum huttiense	0.355
TL11	Sample 2	Stenotrophomonas maltophilia	0.278
TL21	Sample 2	Sphingobacterium faecium	0.378
TL22	Sample 2	Pedobacter heparinus	0.221
TL23	Sample 2	Paracoccus denitrificans	0.840
TL24	Sample 2	Rhodobacter sphaeroides	0.747
TL30	Sample 2	Paracoccus denitrificans	0.901
TL31	Sample 2	Cellulomonas fimi-GC subgroup A	0.613
TL33	Sample 3	Brevibacillus centrosporus	0.558
TL34	Sample 3	Bacillus alcalophilus	0.568
TL35	Sample 3	Brevibacillus choshinensis	0.681
TL36	Sample 3	Herbaspirillum huttiense	0.496
TL37	Sample 3	Kocuria rosea-GC subgroup A	0.768
TL38	Sample 3	Pseudomonas fluorescens	0.582
TL39	Sample 3	Bacillus megaterium	0.639
TL40	Sample 3	Paenibacillus validus	0.432
TL41	Sample 3	Staphylococcus gallinarum-GC subgroup A	0.597
TL43	Sample 3	Paenibacillus alvei-GC subgroup A	0.454
TL44	Sample 3	Microbacterium barkeri	0.819
TL47	Sample 3	Paenibacillus pabuli	0.656
TL48	Sample 3	Brevundimonas vesicularis	0.771
TL49	Sample 3	Klebsiella oxytoca-GC subgroup B	0.528
TL51	Sample 3	Bacillus-GC group 22	0.551
TL52	Sample 2	Rhizobium radiobacter	0.811
TL54	Sample 2	Rhodococcus wratislaviensis	0.706
TL55	Sample 2	Microbacterium barkeri	0.695
TL62	Sample 2	Arthrobacter globiformis-GC subgroup A	0.708
TL64	Sample 2	Nocardia otitidiscaviarum	0.477
TL65	Sample 2	Paenibacillus polymyxa	0.563
TL67	Sample 2	Pantoea agglomerans	0.344
TL68	Sample 2	Bacillus-GC group 22	0.707
TL69	Sample 2	Bacillus-GC group 22	0.587
TL74	Sample 2	Sphingopyxis macrogoltabida	0.894
TL76	Sample 2	Bacillus atrophaeus	0.492
TL79	Sample 2	Bacillus alcalophilus	0.568
TL80	Sample 3	Pseudomonas putida	0.161
TL84	Sample 3	Stenotrophomonas maltophilia	0.649
TL85	Sample 3	Rhizobium rubi	0.645
TL86	Sample 3	Klebsiella oxytoca-GC subgroup B	0.401
TL91	Sample 3	Pseudomonas fluorescens	0.634
TL93	Sample 3	Herbaspirillum huttiense	0.492
TL97	Sample 3	Pseudomonas fluorescens	0.907

For the evaluation of the growth promotion characteristics of the 47 identified isolates, only one representative isolate was evaluated for each different species found (Table 2). Among the 27 strains tested nine strains did not produce IAA (therefore, they were not statistically compared with the producing strains), whereas the remaining 18 strains produced IAA in the range 2.13–131 mg mL⁻¹, production of IAA differed among strains (F_(17,36) = 96.38; P = 2 e⁻¹⁶) Four strains produced more than 60 mg mL⁻¹ of the auxin: Sphingopyxis macrogoltabida TL74 (64.28 mg mL⁻¹), H. huttiense TL36 (73.40 mg mL⁻¹), and Pseudomonas putida TL80 (74.20 mg mL⁻¹). The strain showing the highest auxin production was P. fluorescens TL97 (131.02 mg mL⁻¹).

Table 2. Plant growth promoting features.

Summary of plant growth promoting features displayed by the selected isolates.

Bacteria	IAA†	Phosphate solubilization††	Siderophores††	Biofilm production†††
Paucimonas lemoignei TL1	28.99 ± 2.38cd	6.25 ± 0.25ef	5.33 ± 0.33efg	0.20 ± 0.01ab
Pseudomonas alcaligenes TL2	27.99 ± 0.20cd	10.25 ± 1.18cd	5.6 ± 0.60ef	0.10 ± 0.02cde
Acinetobacter calcoaceticus TL7	40.15 ± 0.24de	ND	11.66 ± 1.30b	0.17 ± 0.40ab
Sphingobacterium faecium TL21	ND	7.12 ± 0.98ef	4.83 ± 0.33efg	0.05 ± 0.007ef
Paracoccus denitrificans TL23	8.39 ± 0.17a	7.12 ± 0.47ef	4.5 ± 0.28efgh	0.075 ± 0.003def
Cellulomonas fimi-GC subgroup A TL31	ND	6 ± 0.35e	3.33 ± 0.16gh	0.069 ± 0.005def
Brevibacillus centrosporus TL33	ND	ND	5 ± 0.28efg	0.060 ± 0.006ef
Brevibacillus choshinensis TL35	2.13 ± 0.07ª	5.25 ± 0.14e	5.66 ± 0.88ef	0.069 ± 0.01def
Herbaspirillum huttiense TL36	73.40 ± 2.56g	18.87 ± 1.65a	17.6 ± 0.60a	0.088 ± 0.004def
Kocuria rosea-GC subgroup A TL37	22.08 ± 1.59bc	ND	4 ± 0.28fgh	0.087 ± 0.01def
Paenibacillus validus TL40	2.92 ± 0.22a	ND	8.66 ± 0.16cd	0.099 ± 0.01def
Staphylococcus gallinarum -GC subgroup A TL41	ND	15.25 ± 1.88b	5 ± 0.57efg	0.092 ± 0.01def
Paenibacillus alvei-GC subgroup A TL43	ND	ND	8.33 ± 1.16d	0.082 ± 0.006def
Microbacterium barkeri TL44	ND	ND	3.83 ± 0.44fgh	0.070 ± 0.008def
Paenibacillus pabuli TL47	22.01 ± 0.40bc	ND	2.66 ± 0.16h	0.12 ± 0.01cd
Brevundimonas vesicularis TL48	ND	ND	4.16 ± 0.16fgh	0.06 ± 0.004ef
Klebsiella oxytoca-GC subgroup B TL49	19.27 ± 0.40b	9.12 ± 0.42cde	6 ± 1ef	0.087 ± 0.01def
Rhizobium radiobacter TL52	34.20 ± 1.02de	14.87 ± 0.94b	5.5 ± 1efg	0.183 ± 0.02ab
Rhodococcus wratislaviensis TL54	ND	ND	4.5 ± 0.57efgh	0.117 ± 0.01cd
Arthrobacter globiformis-GC subgroup A TL62	46.49 ± 0.62e	ND	10 ± 0.76c	0.070 ± 0.001def
Paenibacillus polymyxa TL65	8.54 ± 1.17a	7.5 ± 0.20def	4 ± 0.28fgh	0.155 ± 0.004bc
Bacillus-GC group 22 TL68	3.93 ± 0.06a	ND	4.83 ± 0.88fgh	0.083 ± 0.003def
Sphingopyxis macrogoltabida TL74	64.28 ± 6.78f	ND	4.86 ± 0.46fgh	0.105 ± 0.008def
Bacillus atrophaeus TL76	ND	ND	10.33 ± 0.97c	0.21 ± 0.01a
Bacillus alcalophilus TL79	18.14 ± 1.85b	ND	ND	0.005 ± 0.007ef
Pseudomonas putida TL80	74.20 ± 5.99h	11.12 ± 0.31c	4.33 ± 0.60fgh	0.086 ± 0.008def
Pseudomonas fluorescens TL97	131. 02 ± 10.08i	ND	6.5 ± 0.57bc	0.070± 0.009def

Notes:

^†IAA production measured in mg/L.

^††Measured as diameter in mm of the ring of solubilization surrounding the colonies.

^†††Measured as absorbance at 570 nm.

Lowercase letters indicate significant differences relative to the control in Duncan’s multiple range tests (P < 0.05). ND, Not determined.

Concerning phosphate solubilization 15 strains were negative, whereas the remaining 12 strains showed statistically different levels of activity (F_(11,36) = 22.15; P = 8.42 e⁻¹³). Highest phosphate solubilization activity was observed for H. huttiense TL36 (halo diameter of 18.71 mm), Staphylococcus gallinarum TL41 (15.25 mm), and Rhizobium radiobacter TL52 (14.87 mm).

Except for Bacillus alcalophilus TL79, all examined strains produced siderophores, being the differences statistically significant (F_(26,54) = 24.24; P = 2 e⁻¹⁶). The largest halo was observed with Bacillus atrophaeus TL76 with 10.33 mm in diameter, A. calcoaceticus TL7 with 11.66, and H. huttiense TL36 with 17.6 mm.

Biofilm formation capacity for the 27 isolates varied considerably between strains within the range (0.05 and 0.21), being the differences statistically significant (F_(26,54) = 9.74; P = 1.72 e⁻¹²). Four strains had the highest activity: B. atrophaeus TL76 (optical absorption at 570 nm of 0.21), Paucimonas lemoignei TL1 (0.20), R. radiobacter TL52 (0.18), and A. calcoaceticus TL7 (0.17).

Based on the performance shown in the evaluation of growth promotion and bioremediation traits, eleven isolates were selected to determine their tolerance to different concentrations of arsenic and mercury (Table 3). All selected strains tolerated the maximum tested concentration (1,000 mg kg⁻¹) of HAsNa₂O₄ and were able to grow in that condition, while only nine of the isolates could grow in that same concentration of AsNaO₂. Highest MICs for AsNaO₂ were observed for P. fluorescens TL97 and P. putida TL80, with 400 mg kg⁻¹ and 600 mg kg⁻¹, respectively. Six strains were unable to grow at the lowest concentration of Cl₂Hg tested (23,400 mg kg⁻¹), two strains (TL23 and TL97) reached their MIC value at 75,400 mg kg⁻¹, and four strains (TL36, TL49, TL52, and TL80) had a MIC of 100 mg kg⁻¹.

Table 3. Torelance to heavy metals.

Tolerance to the heavy metals, arsenic and mercury, of isolates growing in the presence of heavy metal salts ((+) Growth of colonies, (−) No growth of colonies).

	TL 1	TL 2	TL 7	TL 23	TL 35	TL 36	TL 49	TL 52	TL 65	TL 80	TL 97
HAsNa2O4
200 mg/kg	+	+	+	+	+	+	+	+	+	+	+
400 mg/kg	+	+	+	+	+	+	+	+	+	+	+
600 mg/kg	+	+	+	+	+	+	+	+	+	+	+
800 mg/kg	+	+	+	+	+	+	+	+	+	+	+
1,000 mg/kg	+	+	+	+	+	+	+	+	+	+	+
AsNaO2
200 mg/kg	+	+	+	+	+	+	+	+	+	+	+
400 mg/kg	+	+	+	+	+	+	+	+	+	+	−
600 mg/kg	+	+	+	+	+	+	+	+	+	−	−
800 mg/kg	+	+	+	+	+	+	+	+	+	−	−
1,000 mg/kg	+	+	+	+	+	+	+	+	+	−	−
Cl2Hg
23 mg/kg	−	−	−	+	−	+	+	+	−	+	+
50 mg/kg	−	−	−	+	−	+	+	+	−	+	+
75 mg/kg	−	−	−	−	−	+	+	+	−	+	−
100 mg/kg	−	−	−	−	−	−	−	−	−	−	−
150 mg/kg	−	−	−	−	−	−	−	−	−	−	−

Discussion

One the alternatives for mine tailings or contaminated soil restoration is the use of phytoremediation in combination with inoculation with PGPBs, which, through alteration of the mobility and bioavailability of the metals, play an essential role in facilitating plant growth in conditions of high heavy metal concentrations in the soil (Rehman et al., 2019; Tara et al., 2019; Yahaghi et al., 2019). Currently, many microbial genera have been reported for their ability to reduce the toxic effects caused by heavy metals in the environment, being the most frequent; Aeromonas, Rahnella, Ochrobactrum, Microbacterium, Azospirillum, Rhizophagus, Klebsiella, Enterobacter, Ralstonia, Rhizobium, Bacillus, and Pseudomonas (Mishra, Singh & Arora, 2017; Tiwari & Lata, 2018).

Molecular studies such as metagenomics that allow us to study genetic material from environmental samples are extremely useful (Datta et al., 2020). However, the use of cultivable microorganisms allows us to identify and reproduce bacteria with potentially useful characteristics for phytoremediation by promoting plant growth.

In this study, we applied a culture-dependent approach which consisted in the identification of microbial communities based on the groupings of fatty acids. The FAME method allows to differentiate the main taxonomic groups within a community (Kirk et al., 2004). However, one of the limitations of this technique is that in some cases the differences between fatty acid profiles cannot be contrasting enough to accurately establish the different species that make up a community (Bing-Ru et al., 2006). Being aware of this limitation, we identified 34 species of bacteria belonging to 23 genera. It is important to consider that the diversity of bacterial groups in soils is conditioned by soil conditions and by the identification techniques, so our data might under-represent the true diversity or the sampled soils.

The most abundant identified genera were Bacillus, Pseudomonas, Paenibacillus, Herbaspirillum, and Acinetobacter. Using culture-dependent methods, Hamood et al. (2020) found eleven isolates tolerant to arsenic that were native to gold mining tailings in Malaysia, among which the dominant genera were Bacillus, Pseudomonas, Lysinibacillus, and Micrococcus. The first two also found in our study.

In a study of the bacterial community growing in soils contaminated with heavy metals, Tipayno et al. (2018) found that the structure of the community at the level of phylum depended on the general soil properties. At lower taxonomic levels, the concentrations of arsenic and lead were significant; and species of the genus Bacillus were positively correlated with the concentration of arsenic. Using a culture-independent metagenomic approach, Hemmat-Jou et al. (2018) addressed the biodiversity of the microbial community in soils contaminated with lead and zinc and found ten most abundant bacterial genera: Solirubrobacter, Geobacter, Edaphobacter, Pseudomonas, Gemmatiomonas, Nitrosomonas, Xanthobacter, Sphingomonas, Pedobacter, and Ktedonobacter. This study differs from ours in the contaminating heavy metals and the identification methodology. However, in general, the latter previous reports agree with our results in that Bacillus and Pseudomonas predominate in soils contaminated with heavy metals and with the review by Fakhar et al. (2020), that concluded that Bacillus and Pseudomonas are two of the most frequent genera responsible of bioremediation of contaminated soils.

The presence of microorganisms with bioremediation and phytoremediation potential by producing plant growth promotion compounds, are essential for the search of strategies for the for restoration of soils contaminated with heavy metals. In our study, the isolate with the best plant growth promotion and heavy metal tolerance was H. huttiense TL36, outstanding for its performance in phosphate solubilization and siderophore production.

Siderophore producing bacteria play a major role in the survival and growth of plants present in tailings soils by alleviating the toxicity of metals and providing nutrients, which is due to the combination of bacterial siderophores with metals other than iron, that might explain why microorganisms are able to survive in tailings contaminated with heavy metals (Adler et al., 2012). As mentioned above, the TL36 isolate stood out for its ability to solubilize phosphates. In habitats such as mine tailings, the ability of microorganisms to solubilize recalcitrant substances such as phosphorus is a trait that determines their ability to adapt to these environments (Jones & Oburger, 2011).

Additionally, phosphate solubilizing bacteria in these environments help in the establishment of vegetation. It is known that bacteria can reduce HAsNa₂O₄ to AsNaO₂ the latter accumulates in aerial parts of plants. To overcome the stress caused by arsenic, plants require an adequate supply of phoshorus, therefore bacteria capable of phosphate solubilization are essential for an adequate remediation of soil contamination with HAsNa₂O₄ (Alka et al., 2020).

PGPBs not only mitigate metal toxicity but also act as plant growth promoters. The production of IAA emitted by bacteria alters various physiological processes in plants related with stress tolerance and growth. Ahemad & Kibret (2014) reported that IAA, in addition to stimulating root growth, facilitates water movement, controls vegetative growth, and initiates formation of adventitious and lateral roots. In our study the best producers of IAA were P. fluorescens TL97 (131.02 mg/L) and P. putida TL80 (74.20 mg/L). IAA producing bacteria have proven their usefulness due to their role in plant-bacteria interactions and plant growth in heavy metal contaminated soils (Chiboub et al., 2016). Previous reports have highlighted the species in the genus Pseudomonas particularly P. fluorescens and P. putida as outstanding producers of IAA (Saharan & Nehra, 2011).

In a review of the role of exopolysaccharides in metal removal, Gupta & Diwan (2017) describe the mechanisms by which biofilms can immobilize or modify the redox state of metals, thus reducing their toxic effects on plants. Therefore, this ability is important for the restoration of soils contaminated with heavy metals. Our results showed that the best biofilm producer was Bacillus atrophaeus TL76. Several species in the genus Bacillus have the capability of responding to stress by producing biofilm (Bais, Fall & Vivanco, 2004; Kasim et al., 2016). Biofilm production becomes essential for bacteria growing in heavy metal contaminated soils. Because biofilms are negatively charged, they can adhere to surfaces by electrostatic attraction and to normally positively charged heavy metals, the biofilm layered bacteria thus acting as biosorbents of metals in the soil, therefore reducing their bioavailability to plants (Kalita & Joshi, 2017).

Because tolerance to heavy metals is one of the key factors of bioremediation and restoration of tailings soils using microorganisms, we evaluated tolerance to As (III), As (V), and Hg (I) in eleven isolates selected for their performance in assays of plant growth promotion and bioremediation features. If the bacteria isolated from tailings soils in Tlalpujahua are adapted to withstand heavy metal contamination in soils, we demonstrated their heavy metal tolerance. All assayed isolates showed adaptation to the presence of 1,000 mg kg⁻¹ of pentavalent arsenic (HAsNa₂O₄), possibly due to associated mechanisms including bioaccumulation, oxidation-reduction reactions, efflux mechanisms, and others (Hamood et al., 2020).

In the presence of trivalent arsenic (AsNaO₂), the only isolates that did not tolerate the medium concentration we tested (600 mg/kg) were P. putida TL80 and P. fluorescens TL97. The toxicity of As (III) is tenfold that of As (V), which is due to the former reacting with thiols of small molecules and sulfhydryl residues of cysteine in proteins thus inhibiting essential biochemical processes in organisms including bacteria (Rosen & Liu, 2009). Román-Ponce et al. (2018) isolated 27 bacterial strains from the rhizosphere of Prosopis laevigata and Sphaeralcea angustifolia growing in mine tailings in Santa María, San Luis Potosí, Mexico. The authors determined the minimum inhibitory (MIC) concentration of the isolates that they identified as belonging to the genera Arthrobacter, Bacillus, Brevibacterium, Kocuria, Microbacterium, Micrococcus, Pseudomonas, and Staphylococcus by culturing them in variable concentrations of arsenic, finding MIC values from 20 to over 100 mM for As (V) and between 10–20 mM for As (III), corroborating that the latter has toxic effects limiting bacterial growth.

In our assays for tolerance to HgCl₂, none of the tested isolates was able to tolerate the minimum concentration we used (200 mg/kg). The toxic effect of relatively low concentrations of mercury that we observed on bacteria isolated from soils in Tlalpujahua agrees with the results of Harries-Hellal et al. (2009) the first to report the consequences on the soil microbiota of the presence of mercury, who observed that 0.1 mg kg⁻¹ of mercury changed the structure and abundance of the microbial soil communities, a change that became more noticeable at a concentration of 20 mg kg⁻¹.

The performance of the isolates H. huttiense TL36, K. oxytoca TL49, and R. radiobacter TL52 in our heavy metal tolerance assays was outstanding. The tolerance of species in the genera Rhizobium and Kleibsella to several heavy metals had previously been recognized by authors like Deepika et al. (2016), Meena et al. (2018), Mohan et al. (2019), Kumar et al. (2021), and Chakraborty et al. (2021).

Some species of the genus Klebsiella have been isolated from contaminated soils, and it has been reported that strains of K. pneumoniae y K. Oxytoca tolerate high concentration of cadmium and arsenic (Shakoori et al., 2010; Shamim & Rehman, 2012). Kumar et al., 2021, obtained 108 isolates of arsenic resistant bacteria from mining sites in India. Among them strain RnASA11 of Klebsiella pneumonía was resistant to 600 mM As (V) y 30 mM As (III), and was capable under controlled conditions of reducing the concentration of arsenate in 44% and arsenite in 38.8% when compared with a control.

Rhizobium has been studied mostly for its nitrogen fixation and symbiotic capabilities (Masson-Boivin & Sachs, 2018), but its role as a bioindicator of heavy metal presence in the soil has been also studied (Stan et al., 2011). Deepika et al., 2016, isolated Rhizobium from nodules of Vigna radiata. Isolate VBK102 that was identified as Rhizobium radiobacter, produced exopolysacharides that sequestered arsenic (10% of total cell weight). This species tolerates several heavy metals such as: As(V) (10 mM), Cu (1.5 mM), Pb (0.18 mM), Cr (0.1 mM), Ni (0.08 mM), and Cd (0.004 mM).

Finally, althogh Herbaspirrillum is not frequent in heavy metal contaminated soils, Govarthanan et al. (2014), found that Herbaspirillum sp. GW103 played a role in the biolixiviation of copper in mine deposits. This strain (GW103) besides its effect on Cu, was resistant to As (550 mg/l), Cu (350 mg/L), zinc (Zn) (300 mg/L) and plomo (Pb) (200 mg/L).

Conclusions

Throughout the world, various anthropogenic activities, in particular mining, have directly or indirectly deposited enormous amounts of PTEs in the soil, resulting in negative consequences for the environment and human health. Consequently, identifying bacterial strains that can improve phytoremediation or could facilitate the establishment of native vegetation in the generally uncovered tailing soils offers a promising option for their restoration. In this study, we found genera that have been widely reported in soils contaminated with heavy metals, such as Bacillus and Pseudomonas, also bacteria that are resistant to Hg and As and at the same time present plant growth promotion properties such as H. huttiense TL36, R. radiobacter TL52 and K. oxytoca TL49. It is important to mention that Herbaspirillum is reported for the first time as a genus that has tolerance to high concentrations of heavy metals and participates in the solubilization of phosphates. The identification using the FAME method allowed us to have an approach to the isolated species in our study, however, in future perspectives these isolates that were promising will be identified through phylogenetic analyzes based on the 16SrRNA gene. Our results suggest that isolates TL36, TL52 and TL49 can be an excellent alternative in the remediation of mine tailings; however, some tests are still needed to evaluate the ability of these isolates to remove or transform heavy metals that allow us to corroborate their potential as bioremediation agents.

Additionally, the advantage of obtaining cultivable microorganisms allows us to think of the use of inoculants as a plant-microorganism interaction strategy to optimize bioremediation processes. Therefore, in future perspectives, isolates TL36, TL52 and TL49 will be inoculated in representative crops of the municipality of Tlalpujahua to validate their results under greenhouse conditions as growth promotion and bioremediation agents.

Supplemental Information

Supplemental Information 4. Evaluation of siderophore production in isolates from soil samples.

Evaluation of siderophore production in isolates from soil samples from Tlalpujahua, Michoacán, Mexico, cultivated in chrome azurol sulfonate (CAS) agar medium incubated at 30 °C. The orange rings surrounding the colonies were measured daily.

Supplemental Information 5. Evaluation of phosphate solubilization in isolates from soil samples.

Evaluation of phosphate solubilization in isolates from soil samples from Tlalpujahua, Michoacán, Mexico, cultivated in Pikovskaya medium incubated at 30 °C. The yellow rings surrounding the colonies were measured daily.

Supplemental Information 6. Evaluation of tolerance to heavy metals of isolates from soil samples.

Evaluation of tolerance to heavy metals of isolates from soil samples from Tlalpujahua, Michoacán, Mexico. 1,000 mg/kg (meta) arsenite (AsNaO₂) (a). 1,000 mg/kg sodium arsenate dibasic (HAsNa₂O₄) (b). 75 mg/kg mercuric chloride (Cl₂Hg) (c).
