Interdependent progression of bidirectional sister replisomes in E. coli

Abstract

Bidirectional DNA replication complexes initiated from the same origin remain colocalized in a factory configuration for part or all their lifetimes. However, there is little evidence that sister replisomes are functionally interdependent, and the consequence of factory replication is unknown. Here, we investigated the functional relationship between sister replisomes in Escherichia coli, which naturally exhibits both factory and solitary configurations in the same replication cycle. Using an inducible transcription factor roadblocking system, we found that blocking one replisome caused a significant decrease in overall progression and velocity of the sister replisome. Remarkably, progression was impaired only if the block occurred while sister replisomes were still in a factory configuration – blocking one fork had no significant effect on the other replisome when sister replisomes were physically separate. Disruption of factory replication also led to increased fork stalling and requirement of fork restart mechanisms. These results suggest that physical association between sister replisomes is important for establishing an efficient and uninterrupted replication program. We discuss the implications of our findings on mechanisms of replication factory structure and function, and cellular strategies of replicating problematic DNA such as highly transcribed segments.

Introduction

DNA replication fork stalling is now recognized as a major cause of the genomic instability that underlies many human genetic diseases, from cancer to antibiotic resistance (Tubbs and Nussenzweig, 2017; Zeman and Cimprich, 2014). Investigations into the mechanisms of fork stalling have revealed a wide range of causative factors, including deficiencies in nucleotide pools or replication proteins, and physical impediments such as unrepaired DNA lesions, bulky secondary structures, tightly bound proteins, and transcription complexes (Zeman and Cimprich, 2014). Preventative factors include proteins that promote stability of the large multi-subunit replication complex (replisome) and its association to the DNA template, as well as DNA topoisomerases and helicases that remove obstructive secondary structure and DNA-bound proteins (Brüning et al., 2014; Burgers and Kunkel, 2017; Xu and Dixon, 2018). Far less understood are the effects of organization and localization of replisomes within the cell or nucleus, particularly the grouping of multiple replisomes into a replication factory. Remarkably, replication factories have been observed in all three domains of life (Li et al., 2020), yet the functional advantage(s) of this relationship are unknown.

Because the paths of bidirectional ‘sister’ replisomes, which typically extend for tens to thousands of kilobases, are inherently divergent, it was originally assumed that the two complexes were physically and functionally independent machines (Cairns, 1963). This view changed with the advent of fluorescent protein fusions allowing the observation of replisome components in living cells. First in B. subtilis (Lemon and Grossman, 1998), and then other bacteria (Brendler et al., 2000; Jensen et al., 2001), it was shown that slow growing cells often displayed a single replication focus, suggesting that sister replisomes are often localized within a single complex. Eukaryotic replisomes also display factory behavior, often extending beyond two sister replisomes to include multiple replisomes initiated from different origins (Kitamura et al., 2006). These large fluorescent bodies can be resolved by confocal microscopy into individual diffraction-limited (~200 nm) foci containing two replisomes each, suggesting that sister replisomes might form a stable and possibly compulsory complex (Chagin et al., 2016; Saner et al., 2013). However, due to difficulties in tracking individual replisomes in a nucleus with up to hundreds of replication forks, it is unknown whether sister replisomes remain associated throughout their replication periods.

Cytological observations of slow growing bacteria in which the chromosome is replicated by a single pair of bidirectional forks show that the two replisomes are at times colocalized and at other times well separated (Bates and Kleckner, 2005; Hiraga et al., 2000; Onogi et al., 2002; Reyes-Lamothe et al., 2008), with possible stochastic separation and remerging (Berkmen and Grossman, 2006; Mangiameli et al., 2017b). Analysis of replisome lifecycles by synchronization or time-lapse microscopy suggests that sister replisomes are initially colocalized but then separate into two distinct foci part way through the replication period (Bates and Kleckner, 2005; Hiraga et al., 2000; Japaridze et al., 2020; Onogi et al., 2002; Reyes-Lamothe et al., 2008). This suggests that, at least under slow growth conditions, replisomes undergo a programmed splitting event one-quarter to one-half of the way through the replication period (Figure 1). The mechanism and regulation of sister replisome splitting are unknown, but splitting is contemporaneous with segregation of the origin region of the chromosome (Bates and Kleckner, 2005), which is held together by topological linkages known as precatenanes (Joshi et al., 2013; Wang et al., 2005). It is possible that the sister origin complex, which is likely membrane associated (Bates and Kleckner, 2005; Slater et al., 1995), anchors the approximately 1 MDa replisome complexes as originally proposed by Dingman, 1974.

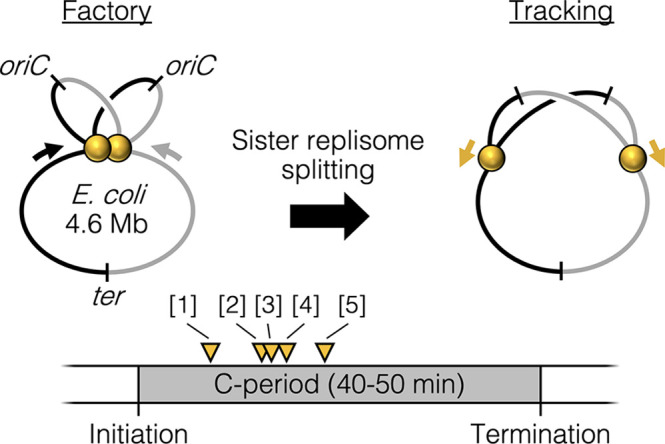

Figure 1. Replisome splitting.

Under slow growth conditions, E. coli bidirectional sister replisomes (yellow spheres) are initially colocalized, then separate part way through the replication period, marking a transition from factory to tracking configurations. Yellow triangles indicate approximate replisome splitting times within the replication phase (C-period) from previous studies: [1] Reyes-Lamothe et al., 2008, [2] Japaridze et al., 2020, [3] Hiraga et al., 2000, [4] Onogi et al., 2000, and [5] Bates and Kleckner, 2005.

Analysis of replisome dynamics in rapidly dividing bacteria is more difficult because origins re-initiate before the previous round of forks finish, resulting in cells with 2–3 overlapping generations or ‘rounds’ of replication totaling 6–14 forks. In such cells it is virtually impossible to determine which round of replication each fluorescent focus corresponds to, and thus the timing of sister replisome pairing and splitting has not been accurately determined. Bulk measurements of replication foci in rapidly growing Escherichia coli cells indicate that the total number of replication foci is about half the number of replication forks estimated from flow cytometry (Fossum et al., 2007; Molina and Skarstad, 2004; Sánchez-Romero et al., 2011). While this ratio implies that sister replisomes are colocalized in a factory for the entire replication period, it can also be explained by a combination of part-time colocalization of sister replisomes and part-time colocalization of ‘cousin’ replisomes initiated from different origins in the previous cell cycle (Molina and Skarstad, 2004). Additional research is required to differentiate these models.

Despite broad evidence that sister replisomes localize near each other for long periods in many systems, very little is known about any benefit this association might provide, or even if sister replisomes are in any way functionally interdependent. In E. coli, it is clear that each replisome can function as an independent unit, as blocking one replication fork with either an ectopic terminus (Breier et al., 2005) or array of transcription factor binding sites (Possoz et al., 2006), does not prevent the unblocked replisome from finishing. Similarly, in S. pombe, a double strand break on one side of an origin does not prevent replication by the opposite-side replisome (Doksani et al., 2009). However, even though sister replisomes have the ability to function independently, there is mounting evidence that they can affect each other’s progression. For example, fork stalling at a site of strong transcription oriented toward the oncoming fork in S. cerevisiae was shown to cause a significant impairment in progression of the sister replisome (Brambati et al., 2018). Also, in both yeast (Natsume and Tanaka, 2010) and human (Conti et al., 2007) cells, sister replisomes exhibit highly coordinate velocities while replisomes initiated from different origins do not. Coordinate sister replisome progression is apparently also dependent on colocalization of the forks, as immobilizing both ends of the templated DNA (forcing sister replisomes to separate) leads to a disconnect between sister replisome velocities (Yardimci et al., 2010).

Here, we investigated the physical and functional relationship between sister replisomes in E. coli to better understand the role of replication factories. Taking advantage of the fact that E. coli replisomes naturally transition between factory and separated conformations in the same replication cycle, we tested the effects of blocking one replication fork before or after the natural splitting transition. This was accomplished by placing inducible transcription factor roadblocks at varying locations on the chromosome. Replication fork progression was analyzed by deep sequencing and timed replication runout assays, and fork stalling was assessed by the ability to complete replication in fork restart-deficient strains and by binding to a four-way DNA junction binding protein. Tests were performed under both slow and rapid growth conditions, and replisome spatial dynamics were quantified by three-dimensional (3D) fluorescence imaging. Our results indicate that physical association between sister replisomes early in the replication period is important for establishing a rapid and uninterrupted replication program. We discuss the implications of our results on models of replication factory structure and function, and cellular strategies of replicating condensed and transcriptionally active DNA.

Results

Quantifying fluorescent replication proteins suggests that sister replisomes are colocalized for about half of the replication period

We sought to determine the duration of sister replisome pairing under slow and fast growth conditions in the common lab strain MG1655 using 3D fluorescence imaging. Replisomes were tagged at the sliding clamp protein (DnaN-YPet) or single stranded binding protein (SSB-YPet), the later which afforded superior fluorescence under slow growth conditions. To improve detection of foci at the top and bottom of cells, multiple z-planes were imaged and deconvolved, rendering 3D data with exceptional spatial resolution (Figure 2A). Quantification of resolvable SSB-YPet foci in >3000 slowly growing cells (τ = 125 min) indicated that >99% of cells contained either 0, 1, or 2 foci per cell (Figure 2B). From independently measured parameters of origins per cell and growth rate (Figure 2C), the cell cycle was delineated with timelines of replication forks, origins, and termini per cell (Figure 2D, top; Materials and methods).

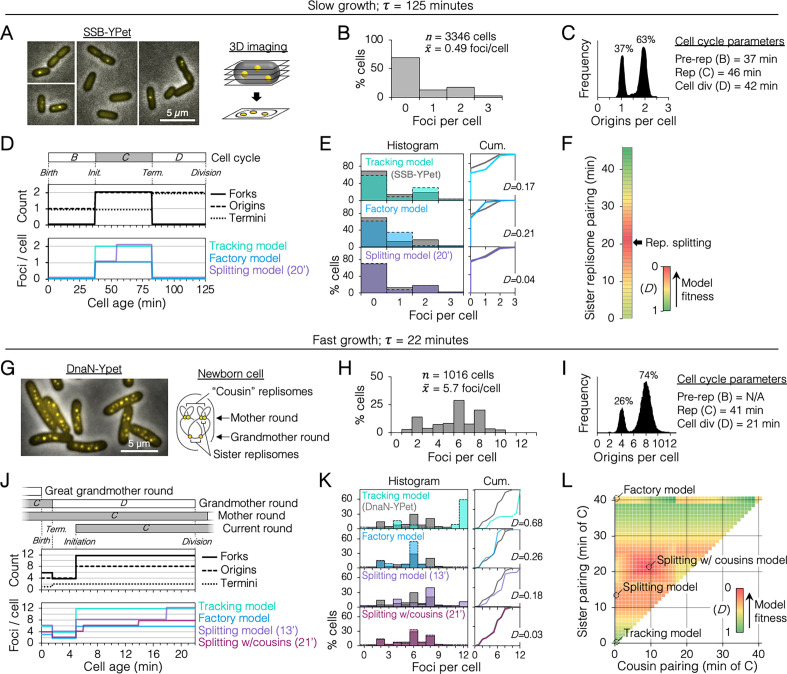

Figure 2. Sister replisome association under slow and fast growth conditions.

(A) Three-dimensional (3D) replisome imaging. E. coli cells with an SSB-YPet tag were grown to mid-exponential phase in M9 minimal media at 37°C then imaged at 0.2 µm z-plane increments, deconvoluted, and combined into a single maximum intensity projection (MIP). (B) Distribution of resolvable SSB-YPet foci. (C) Origins per cell measured by flow cytometry after RIF runout (n = 30,000 cells). Cell cycle parameters are shown. (D) Cell cycle schematic with three models of replisome pairing. Top panel indicates the number of replication forks, origins, and termini per cell as a function of cell age as determined by flow cytometry (Materials and methods). Lower panel indicates the expected number of replisome foci per cell from three models: no replisome pairing (Tracking model), full-time replisome pairing (Factory model), and 20-min transitory replisome pairing (Splitting model). (E) Fitness of replisome modeling. (Left) Overlay of theoretical (colored bars) and SSB-YPet (gray bars) foci per cell histograms. (Right) Kolmogorov–Smirnov (KS) cumulative plots with dissimilarity indexes indicating the difference between modeled and measured data. (F) Heatmap of KS dissimilarity indexes obtained with varying replisome pairing times for the Splitting model. The optimal pairing time (20 min, arrow) is indicated. (G–L) As in (A–F) except cells were grown in Luria-Bertani (LB) media at 37°C and replisomes were tagged with DnaN-YPet. Graphical representation of a newborn cell under fast growth conditions with multiple rounds of replication initiated in prior cell generations (G, right panel). Optimal (lowest D) replisome pairing times under fast growth conditions for Splitting (13 min) and Splitting with cousins (21 min) models are indicated (L).

Figure 2—figure supplement 1. Timeline and spatial dynamics of replication under the Splitting with cousins model.

Arrangement of replisomes and DNA in cell drawings are speculative and are based solely on measurements of genomic content and number of DnaN-YPet foci per cell (Figure 2H, I).

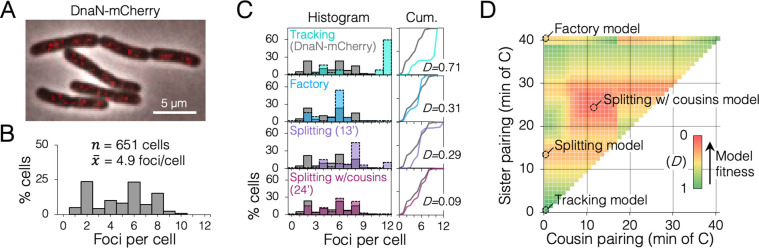

Figure 2—figure supplement 2. Replisome dynamics under fast growth conditions using a monomeric DnaN-mCherry fusion protein.

(A) Image of DnaN-mCherry-expressing wild-type cells (DB2962) under fast growth conditions. (B) Distribution of DnaN-mCherry foci per cell. (C) Fitness of replisome modeling as in Figure 2K. (D) Heatmap of KS dissimilarity indexes as in Figure 2L.

From the timeline of replication forks per cell, theoretical timelines of replisome foci per cell were generated for different models of sister replisome pairing (Figure 2D, bottom panel). Replisome pairing varied from always separate (Tracking model) to always together (Factory model). A third model in which replisomes start out together then separate at a specific time (Splitting model) was created for all possible durations (at 1-min resolution) of pairing from 0 to 46 min, the length of the C-period. Applying these timelines to an exponential age population function yielded theoretical focus distributions (Figure 2E, histogram, colored bars) that were compared to the actual distribution from SSB-YPet imaging (gray bars). Theoretical distributions were evaluated by Kolmogorov–Smirnov analysis, which quantifies a dissimilarity index (D) between cumulative curves of theoretical and SSB-YPet focus distributions, with D = 1 indicating no similarity and D = 0 indicating identical distributions (Figure 2E, Cum.). This analysis showed that neither the Tracking nor Factory models fit well to the SSB-YPet data (D = 0.17, 0.21; Figure 2E). Splitting model distributions more closely matched SSB-YPet, with optimal duration of replisome pairing found to be 20 min (D = 0.04; Figure 2F). This value is similar to previous estimates using synchronized cells and a DnaX-GFP replisome tag (Bates and Kleckner, 2005).

Next, cells were grown under fast growth conditions (τ = 22 min) and DnaN-YPet foci were quantified in >1000 cells (Figure 2G). Cells contained between 1 and 10 foci, with ~70% of cells having either 2, 6, or 8 foci (Figure 2H), and 4 or 8 chromosomes per cell (Figure 2I). Under these conditions, the cell cycle is comprised of three overlapping rounds of replication; the ‘grandmother’ round initiated two generations previously, the ‘mother’ round initiated in the previous generation, and the current round (Figure 2J). The resulting cell cycle timeline predicts that cells contained either 4, 6, or 12 replication forks. Although the expected average number of forks per cell (9.9) is roughly twice the number of DnaN-YPet foci per cell (5.7), supporting the Factory model, the predicted distribution of foci from the Factory model poorly matched the observed focus distribution (D = 0.26; Figure 2K). The Splitting model yielded a more similar focus distribution, with optimal replisome pairing of 13 min (D = 0.18; Figure 2K, L). Additional inclusion of cousin replisome pairing into the model, resulting in a transitory higher-order four-replisome structure for part of sister replisome pairing, provided the best match (D = 0.03) with an optimal sister replisome pairing time of 21 min (Splitting with cousins model). Because these inferences of replisome structures are based on indirect data (foci number), we do not exclude the possibility that replisomes form complexes no larger than two owing to missed foci or imperfect cell cycle modeling. Thus, including both splitting and splitting with cousins models, we estimate that that sister replisomes are paired between 13 and 21 min under fast growth conditions and about 20 min under slow growth conditions. These intervals correspond to 32–51% of the replication period. Imaging replisomes using a monomeric DnaN-mCherry fusion protein yielded similar focus distributions as dimeric DnaN-Ypet fusion protein (Figure 2—figure supplement 2), suggesting that focus dynamics were not influenced by tag multimerization.

Blocking one replisome early in the replication cycle inhibits progression of its sister replisome

A sister replisome splitting time of 20 min corresponds to a genetic position about 1 Mb from the origin. To evaluate whether early association of sister replisomes promotes fork progression, we inserted an array of tet operators at varying distances from oriC, which, when bound by inducible Tet repressor, create a potent replisome barrier or ‘roadblock’ (Figure 3A). After allowing one to three rounds of replication to occur with one chromosome arm roadblocked, progression of the unblocked ‘orphaned’ replisomes was analyzed by sequencing, which provides high resolution DNA copy number. Assuming the rate of replication initiation is unchanged, replication fork velocity is inversely proportional to the slope along the unblocked arm, where a steeper profile indicates slower progression, and a flatter profile indicates faster progression. If indeed association between sister replisomes is beneficial to progression, then blocking one fork early in the replication cycle (near oriC) should affect progression of the other fork more than if the block occurred late in the replication cycle.

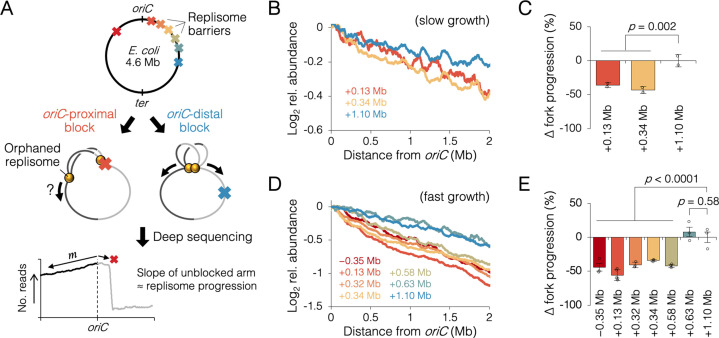

Figure 3. Measuring the effect of replisome pairing on fork progression by whole-genome sequencing.

(A) Experimental approach. Strains carrying an inducible tetO array replication barrier (top) are roadblocked and progression of the unblocked orphaned replisome is quantified by sequencing. Hypothetically, oriC-proximal roadblocks, but not oriC-distal roadblocks, will negatively affect progression of the unblocked replisome. (B) DNA sequencing profiles along the unblocked chromosome arm under slow growth conditions. Values indicate the number of sequencing reads per kilobase relative to oriC, converted to log₂ to show fold changes in copy number from oriC. (C) Relative progression of the unblocked replisome under slow growth conditions. Fork progression was quantified as slope⁻¹ of raw sequencing profiles (B), relative to the most oriC-distal roadblock strain (+1.10 Mb). (D, E) As above (B–D) except under fast growth conditions and with additional roadblocks as indicated. Profiles are 100 kb moving average of the means of two to five independent experiments. Error bars are ±1 standard deviation (s.d.); two-tailed t-test.

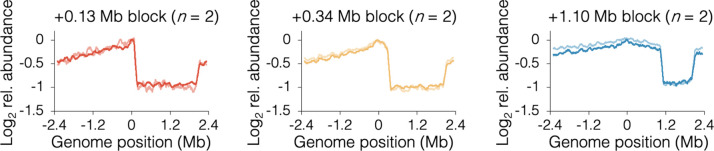

Figure 3—figure supplement 1. Individual sequencing profiles under slow growth conditions.

Profiles along the blocked chromosome arm are approximately flat between the tetO array and the most distal ter site, which terminates replication emanating from the unblocked arm. Profile noise is a consequence of low copy number under slow growth conditions (see Figure 3—figure supplement 2 for comparison). Strains are DB2185 (+0.13 Mb block), DB2193 (+0.34 Mb block), and DB2146 (+1.10 Mb block).

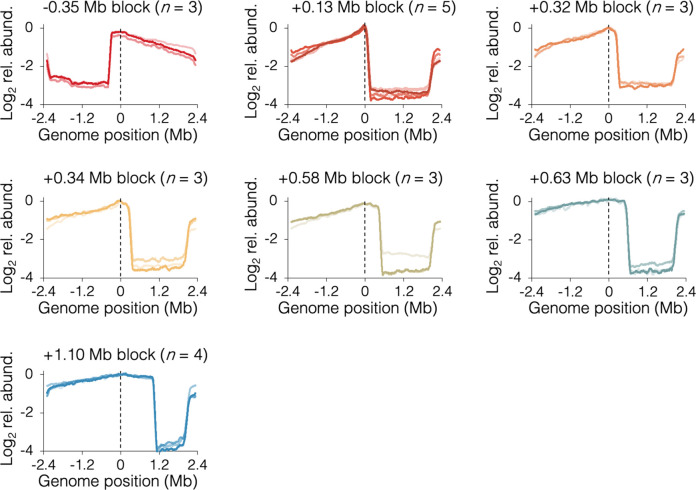

Figure 3—figure supplement 2. Individual sequencing profiles under fast growth conditions.

Slight slope on the blocked chromosome arm downstream of the tetO array indicates partial ‘read-through’ of opposite arm forks through the terminus region, eventually stopping at the tetO array. Strains are DB3216 (−0.35 Mb block), DB2185 (+0.13 Mb block), DB3198 (+0.32 Mb block), DB2193 (+0.34 Mb block), DB3264 (+0.58 Mb block), DB3195 (+0.63 Mb block), and DB2146 (+1.10 Mb block).

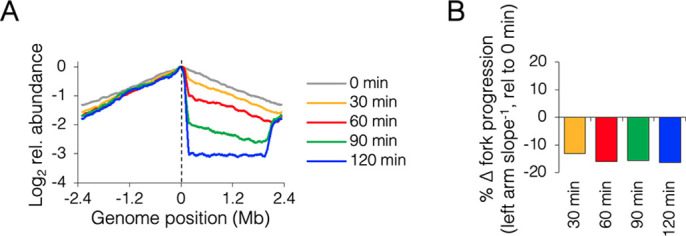

Figure 3—figure supplement 3. Time course of roadblocking under fast growth conditions.

(A) Sequencing profiles for +0.13 Mb roadblock (DB2185) every 30 min after TetR-YFP induction (n = 1). (B) Change in progression of the unblocked (left) replisome after roadblocking relative to time zero, showing little change in progression after 60 min.

Figure 3—figure supplement 4. Imaging replisomes in roadblocked cells under fast growth conditions.

DB2972 cells were roadblocked at +0.13 Mb from oriC for 2 hr and imaged for replisomes (red, DnaN-mCherry) and the roadblock (yellow, TetR-YFP). Multiple dispersed replisome foci rarely colocalizing with the roadblock suggests that unblocked replisomes were unattached to any residual replication factory structure.

Sequencing reads per kilobase were normalized to the number of reads at oriC, and log₂ transformed to indicate fold changes in DNA abundance relative to oriC. Under slow growth conditions, copy number profiles of the unblocked arm were slightly steeper in cells with an oriC-proximal roadblock (+0.13 and +0.34 Mb from oriC) than in cells with an oriC-distal roadblock (+1.10 Mb from oriC, Figure 3B). Slope analysis suggests that fork progression was reduced by 39 ± 5% in cells with an oriC-proximal roadblock relative to cells with an oriC-distal roadblock (Figure 3C). We observed a similar difference between oriC-proximal and oriC-distal roadblocked cells, under fast growth conditions, with proximal blocked cells having on average a 43 ± 7% reduction in fork progression of the unblocked replisome relative to distal blocked cells (Figure 3D, E). Importantly, unblocked arm slopes remained constant after 1 hr of Tet repressor induction, indicating that once all preexisting forks completed, orphaned replisome progression was similarly affected through several rounds of replication initiation (Figure 3—figure supplement 3). Additional roadblock positions were tested at +0.32, +0.58, and +0.63 Mb from oriC, the results showing that all roadblocks within ~0.6 Mb from oriC resulted in reduced progression of the unblocked replisome, while all roadblocks downstream of ~0.6 Mb had negligible effect on progression. Importantly, reduced fork progression in oriC-proximal blocked cells was observed regardless of whether the blocking array was placed on the left or right chromosome arm (−0.35 Mb strain), strongly suggesting that the replication defect was not due to reduced copy number of a specific gene or region. We also observed that some replication profiles appeared to show a progression defect before the other replisome had reached its roadblock (e.g., +0.58 Mb, Figure 3D). Assuming this is not a visual artifact of smoothing (curves are 100 kb moving average) and natural undulations in replication profiles, advanced (upstream) reductions in orphaned fork progression may result from fork stoppage several tens of kilobases before the roadblock (manuscript in prep), which is cumulative through several rounds of blocked replication.

oriC-proximal roadblocks reduce sister replisome velocity by rifampicin runout

Because sequencing is a bulk assay, it is possible that the effects observed after oriC-proximal roadblocking result from poor replication in only a subset of cells. To address this concern, we analyzed replication progression by flow cytometry, which measures DNA content in individual cells. Exponentially growing cells under fast growth conditions were roadblocked at two oriC-proximal positions (−0.35 and +0.34 Mb) and two oriC-distal positions (+0.63 and +1.10 Mb), then the rate of replication was measured by timed rifampicin runout. In this assay, replication initiation and cell division are blocked with rifampicin and cephalexin, respectively, and DNA content is monitored every 5 min by DAPI (4’,6-diamidino-2-phenylindole) staining and flow cytometry (Figure 4A, top). Wild-type cells (no block) initially exhibit a dispersed genomic content (black profile, 0’, Figure 4A), which gradually matures into a characteristic biphasic distribution at 80 min with peaks at 4 and 8 genome equivalents. As expected, roadblocked cells accumulate intermediate genome contents consistent with their roadblock position (Figure 4A, colored profiles). Quantifying flow cytometry histograms via KS analysis (Figure 4—figure supplements 1 and 2), we find that unblocked cells achieved 90% runout by 53 ± 4 min (Figure 4B, top panel). This time includes the interval required for forks to travel from oriC to ter (~41 min, Figure 2I) plus the time required for drug entry and action. Conversely, the two oriC-proximal blocked strains did not achieve 90% runout until 70 ± 3 min (Figure 4B, middle panel), while both oriC-distal blocked strains behaved similarly to unblocked cells, achieving 90% runout by 56 ± 5 min (bottom panel). Relative to cells not receiving a roadblock, this equates to a 32 ± 3% reduction in replication speed when one arm was blocked near the origin, versus a negligible reduction (3 ± 3%) in replication speed when one arm was blocked ≥0.6 Mb from the origin (Figure 4C). Interestingly, −0.35 and +0.34 Mb blocked strains exhibited different flow cytometry profiles despite having blocks ~equidistant from oriC. We believe this stems from slight differences in growth rate in the two strains after roadblocking (27 and 23 min, respectively), shifting the timing of DNA replication in the cell cycle. As −0.35 and +0.34 Mb blocked strains have very similar runout times, we conclude that the observed growth differences do not affect fork velocity.

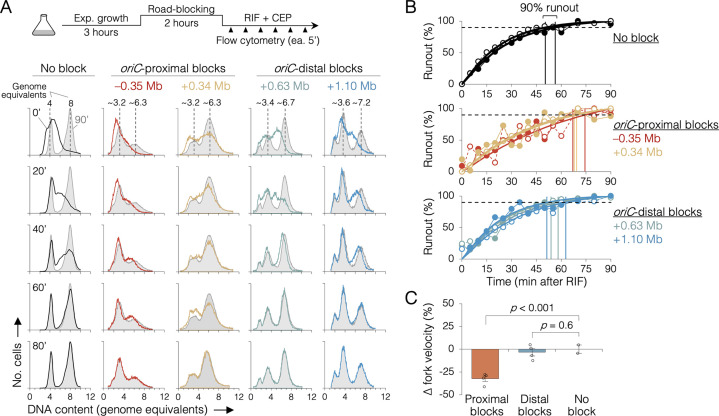

Figure 4. The effect of replisome pairing on replication fork velocity.

(A) Replication elongation measured as a change in cellular DNA content over time after inhibiting replication initiation with rifampicin (RIF) and cell division with cephalexin (CEP). (Top) Experimental procedure. Representative DNA histograms of runout samples in wild-type MG1655 cells (no block) or cells with one replisome blocked proximally or distally to the origin are shown. DNA contents were measured by flow cytometry every 5 min for 90 min after rifampicin treatment (20-min intervals shown) with 90 min time points (light gray) overlaid for comparison. (B) Completion of replication (% runout) quantified by KS dissimilarity analysis between DNA histograms at each time point and at 90 min. Exponential regressions and times at 90% runout (vertical lines) are shown. (C) Change in fork velocity relative to unblocked cells. Values are average time to 90% runout (n = 2 replicates per strain) as determined in (B) relative to unblocked cells. Error bars are ±1 standard deviation (s.d.); two-tailed t-test. All cells were grown under fast growth conditions.

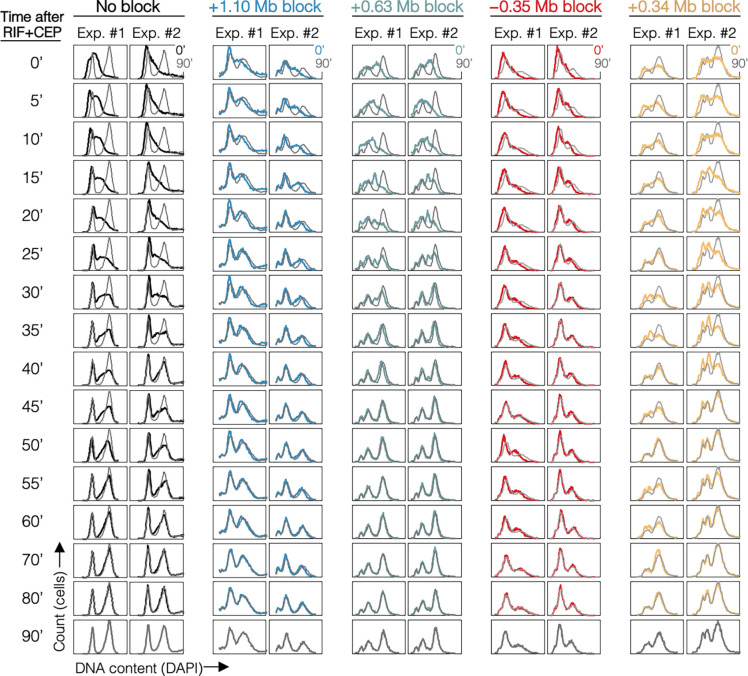

Figure 4—figure supplement 1. DNA histograms for all samples.

DNA histograms are shown at 5-min intervals with 90-min time point overlayed (gray). Strains are MG1655 (No block), DB2146 (+1.10 Mb block), DB3195 (+0.63 Mb block), DB3216 (−0.35 Mb block), and DB2193 (+0.34 Mb block).

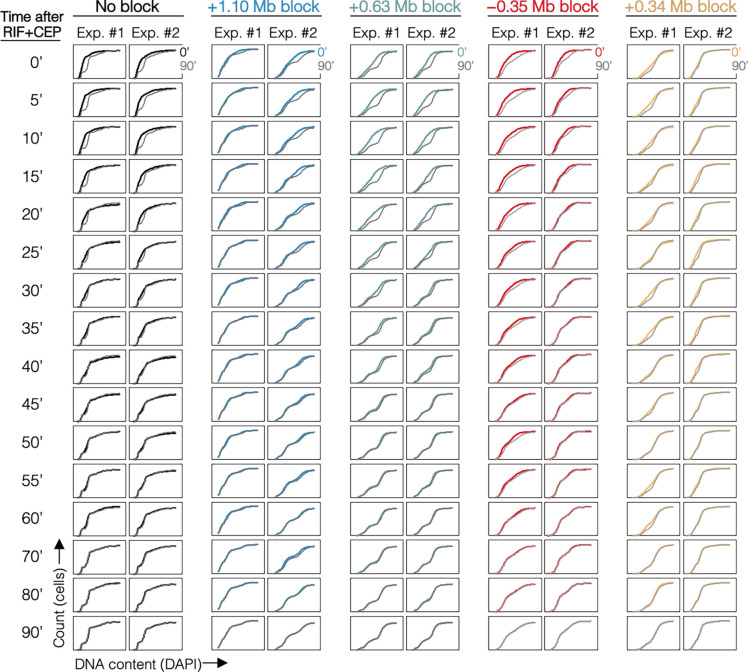

Figure 4—figure supplement 2. Cumulative curve plots for all samples.

Cumulative curves of DNA histograms (Figure 4—figure supplement 1) with 90-min time point overlayed (gray).

Premature sister replisome separation causes increased fork collapse

Fork stalling is a frequent event in wild-type cells, with replisome dissociation estimates as high as 4–5 times per replication cycle (Mangiameli et al., 2017a). Although the majority of stalled forks are restarted quickly via PriA-mediated reloading of the replicative helicase, an estimated 5–20% experience breakage by shearing or collision from a second fork, forming a so-called broken or collapsed fork, which requires recombination-mediated strand invasion steps to reestablish a fork structure (Courcelle et al., 2015; Michel et al., 2018). Because oriC-proximal blocked cells had replication runout histograms with peaks that could not be fully resolved (Figure 4), we reasoned that some forks probably experienced increased collapse in addition to reduced velocity. This was tested by examining whether roadblocked cells could complete ongoing rounds of replication in the absence of the RecBCD recombination-dependent restart complex. As in the previous rifampicin runout experiments, replisomes were roadblocked before or after the natural replisome splitting transition and cells were treated with rifampicin and cephalexin. Cells were incubated for an additional 2 hr to allow ongoing viable forks to complete replication and then copy number profiles of the unblocked arm were determined by deep sequencing. In the absence of a roadblock, wild-type cells produced a flat profile, indicating complete runout (Figure 5A, No block, recB⁺). As expected, inactivating the RecBCD complex via a ∆recB mutation resulted in a profile with a slight downward slope, indicating that some cells experienced a spontaneous fork stalling event requiring RecB to restart at random locations on the chromosome (No block, recB⁻). Similar profiles were observed for cells with one fork roadblocked far from oriC (Figure 5A, +1.10 Mb block), suggesting there was no significant increase in collapsed forks. In contrast, when the roadblock was proximal to oriC, recB⁻ profiles were more steeply sloped (Figure 5A, +0.34 and +0.13 Mb blocks), suggesting a more frequent rate of fork collapse. Quantifying percent replication fork stalling as the fraction of forks on the unblocked chromosome arm in recB⁻ cells that remained after rifampicin runout (Materials and methods), we found that oriC-proximal roadblocking resulted in 21 ± 3% and 26 ± 2% fork stalling, while oriC-distal roadblocking resulted in only 5 ± 1% fork stalling (Figure 5B). Cells with no roadblock experienced 4 ± 1% fork stalling.

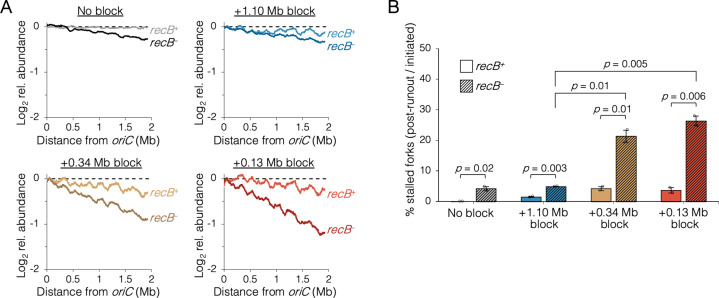

Figure 5. The requirement of RecB-dependent fork restart in uncoupled replisomes.

(A) Raw sequencing profiles of the unblocked chromosome arm in recB⁺ and recB⁻ cells after rifampicin runout. Strains contained either no block (wild-type MG1655 or its recB⁻ derivative), an oriC-distal block at +1.10 Mb, or an oriC-proximal block at +0.34 Mb or +0.13 Mb as indicated (n = 2 replicates per strain). Dashed lines indicate the theoretical DNA profile after complete (100%) runout. (B) The frequency of stalled forks relative to unblocked recB⁺ . Stalled forks are quantified as the number of remaining forks on the unblocked arm after rifampicin runout (Materials and methods). Cells were grown under fast growth conditions. Error bars are ±1 standard deviation (s.d.); two-tailed t-test.

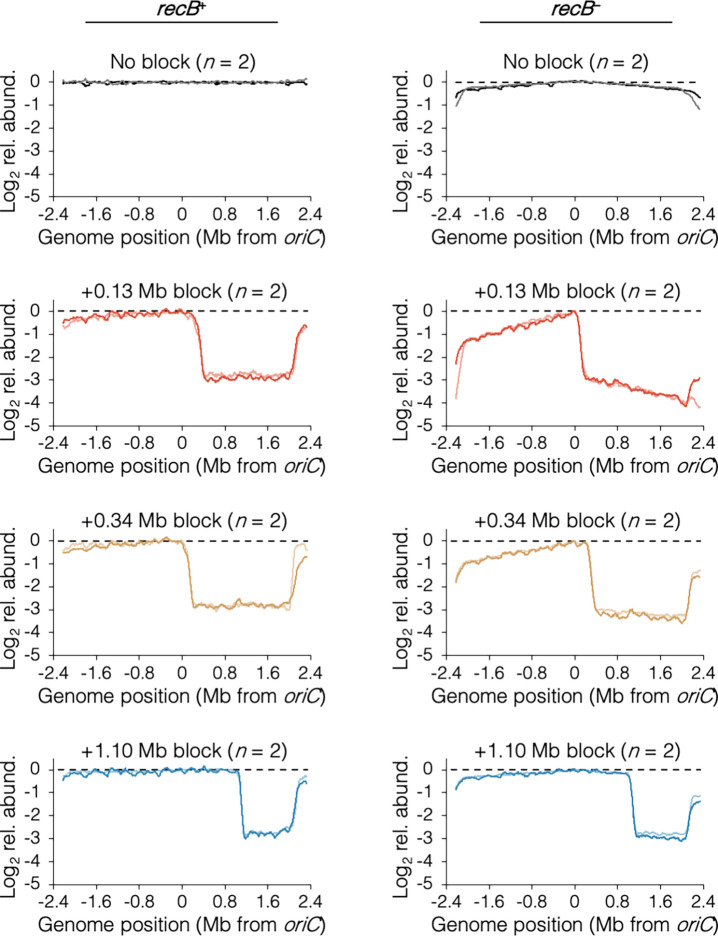

Figure 5—figure supplement 1. Individual sequencing profiles after rifampicin runout.

Data as described in Figure 5A. Strains are MG1655 (recB⁺, No block), DB2257 (recB⁻, No block), DB2185 (recB⁺, +0.13 Mb block), DB2403 (recB⁻, +0.13 Mb block), DB2193 (recB⁺, +0.34 Mb block), DB2722 (recB⁻, +0.34 Mb block), DB2146 (recB⁺, +1.10 Mb block), and DB2725 (recB⁻, +1.10 Mb block).

To confirm that the inability to finish replication in the absence of RecB when one replisome was blocked near oriC was due to collapsed replication forks, we mapped binding of the Holliday junction (HJ) binding protein, RDG, a catalytically deficient derivative of RuvC resolvase (Xia et al., 2016). HJs are four-way DNA junctions formed at stalled forks by either regression of the fork and subsequent annealing of the newly replicated strands (Atkinson and McGlynn, 2009), or by homologous recombination during fork remodeling (Michel et al., 2018). Thus, HJs are hallmarks of stalled forks, which are effectively detected by RDG (Xia et al., 2016). RDG binding across the genome was determined by chromatin immunoprecipitation and sequencing (ChIP-seq) after roadblocking at two oriC-proximal sites and one oriC-distal site. RDG-binding profiles in roadblocked cells show large peaks at the tetO array site and at the replication terminus (Figure 6A). These concentrations of RDG correspond to the expected locations of fork stalling in every roadblocked strain (Mei et al., 2021), and are not informative to the current study. Unreplicated regions downstream of the roadblocks showed low RDG binding, and we assume this region is essentially free of stalled forks. All three roadblocked strains showed elevated RDG binding along the left chromosome arm, but visibly more so in the two oriC-proximal blocked strains. To quantify stalling of the orphaned replisome, the increase in average RDG binding along the left arm (region LA) over average RDG binding on the unreplicated portion of the right arm (region RA) was determined in all four strains (Figure 6B, top diagram). Thus, quantification excludes hyper RDG-bound regions at the roadblock and terminus. This analysis indicates that orphaned replisomes experienced 50 ± 9% more stalling that wild-type replisomes in oriC-distal blocked cells (+1.10 Mb) and 116 ± 6% more stalling than wild-type replisomes in oriC-proximal blocked cells (+0.13 and +0.34 Mb). Thus, replisomes orphaned soon after replication initiation stalled significantly more than replisomes orphaned late in the replication period. Identification of the major peaks of RDG binding revealed about 30 hotspots on the unblocked chromosome arm in oriC-proximal blocked cells, with ~80% of peaks shared among the two strains (Figure 6—figure supplement 2). Interestingly, RDG peaks were dispersed along the unblocked arm, implying that fork collapse was not restricted to regions that are normally replicated by colocalized sister replisomes.

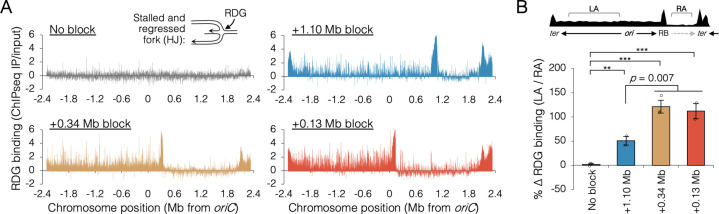

Figure 6. Holiday junction frequency on DNA replicated by uncoupled replisomes.

(A) Genome binding of the Holliday junction protein RuvCDef-GFP (RDG) by chromatin immunoprecipitation and sequencing (ChIP-seq). RDG-expressing cells either contained no roadblock (DB2945) or were roadblocked at position +0.13, +0.34, or +1.10 Mb as indicated. Chromatin immunoprecipitation was performed using RuvC antibody. Log₂ ChIP-seq reads (pull down/input) values >0 indicate RDG enrichment. (B) Percent change in RDG binding on the unblocked chromosome arm. Values are average RDG binding on the left arm between −2 Mb and oriC (region LA) divided by average RDG binding on the right arm (region RA). All cells were grown under fast growth conditions (n = 2–3). Error bars are ±1 standard deviation (s.d.); ***P < 0.001; **P < 0.01; two-tailed t-test.

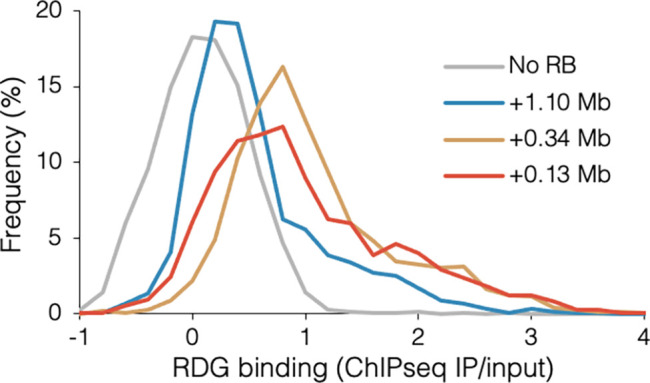

Figure 6—figure supplement 1. Distribution of RuvCDef-GFP (RDG) binding.

Frequency indicates the percentage of RDG chromatin immunoprecipitation and sequencing (ChIP-seq) IP/input values in 0.2-increment bins for wild-type DB2945 (No RB), DB3124 (+1.10 Mb blocked), DB2956 (+0.34 Mb blocked), and DB2954 (+0.13 Mb blocked).

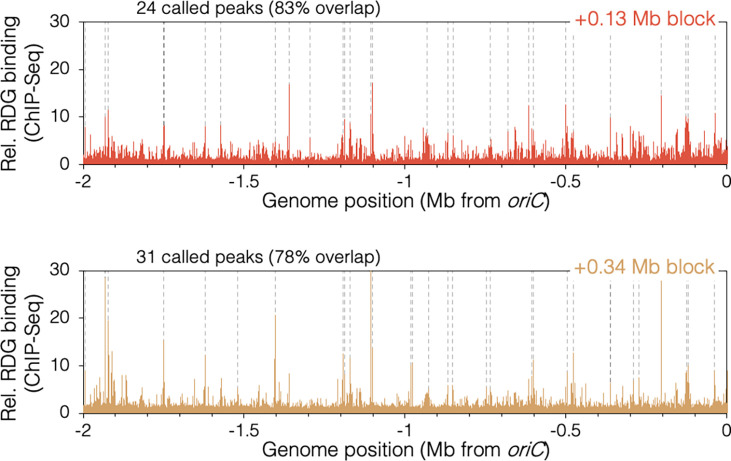

Figure 6—figure supplement 2. RuvCDef-GFP (RDG)-binding peaks in oriC-proximal roadblocked cells.

Unblocked chromosome arm is shown between −2 Mb and oriC. Peaks (dashed lines) are locations of RDG signal ≥4 standard deviation (s.d.) above the 100 kb local median.

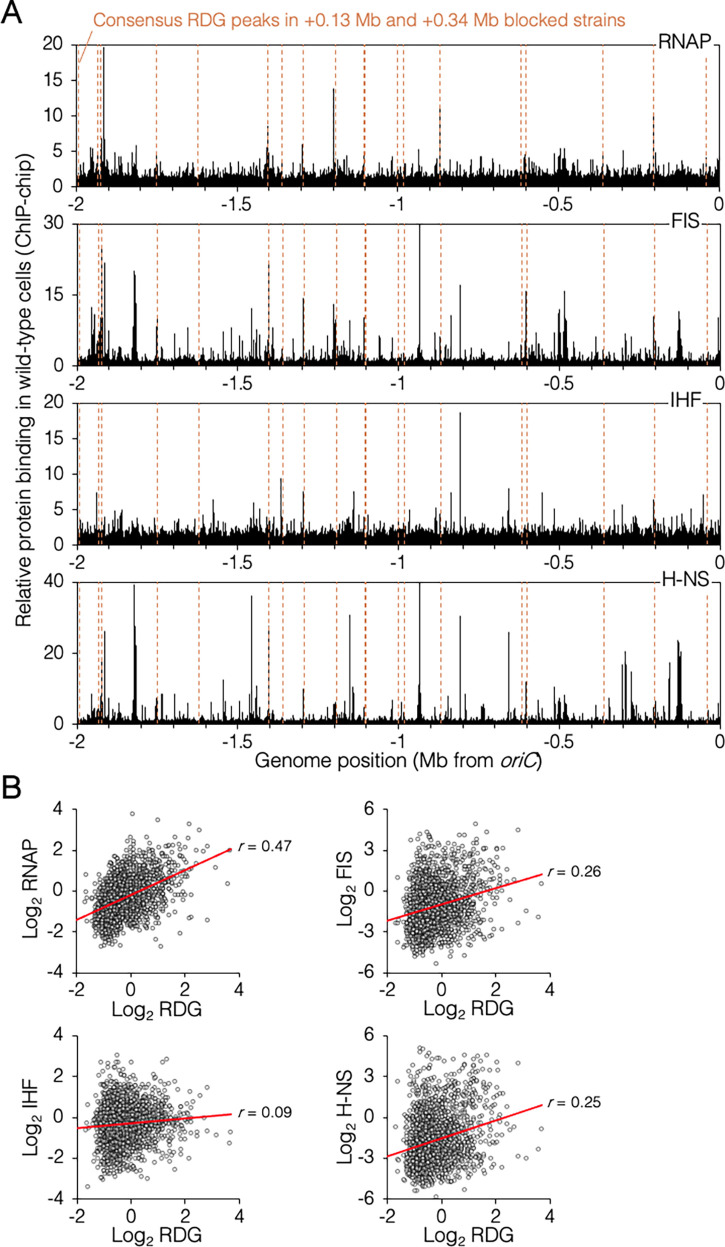

Figure 6—figure supplement 3. Genomic binding of RuvCDef-GFP (RDG) and major nucleoid proteins.

(A) Nucleoid protein-binding profiles (black) and consensus RDG-binding peaks (dashed lines). (B) Correlation plots of nucleoid protein and RDG binding (average +0.13 Mb, +0.34 Mb blocked cells). All data are along the unblocked chromosome arm only, between oriC and −2 Mb.

Discussion

Our data indicate that E. coli sister replisomes exhibit inter-dependent behavior during the early stages of DNA replication. Blocking one replisome within ~0.6 Mb of oriC negatively influenced the sister replisome, resulting in poorer overall fork progression measured by deep sequencing and reduced fork velocity by timed rifampicin runout. Such prematurely split replisomes were six times less likely to complete replication without the restart protein RecB and produced twice as many HJs as control cells, indicating increased fork stalling. Fork barriers placed farther than 0.6 Mb from the origin had minimal effect on progression of the unblocked replisome, suggesting that sister replisomes transition to a fully independent state part way through replication. Fluorescence imaging showed that this functional transition point roughly coincides with a physical transition of the replication machinery from colocalized (factory) replisomes to fully separate complexes. We conclude that replication fork progression through approximately the first third of the chromosome is facilitated by a physical association of leftward and rightward sister replisomes. Our data are consistent with a growing body of evidence that sister replisomes initiated from the same origin have inter-dependent fates. In both yeast (Natsume and Tanaka, 2010) and human cells (Conti et al., 2007), sister replisomes, but not replisomes initiated from different origins, exhibit similar velocities and blocking one fork with strong head-on transcription inhibits progression of its sister fork (Brambati et al., 2018). Notably, our data are not at odds with a those of a previous E. coli study concluding that sister replisomes are independent (Breier et al., 2005). That study used an ectopic termination site to block one replisome; however, the block was placed ~1 Mb from oriC, thus in a region that we would expect to have little effect on the unblocked replisome.

What is the functional advantage provided by sister replisome association? Colocalizing replisomes may facilitate replication simply by increasing the local concentration of resources at the fork. Such resources include nucleotides, replication subunits, accessory helicases, topoisomerases, fork restart proteins, and mismatch repair proteins. Most of these components have been shown to localize or interact with the replisome (Bentchikou et al., 2015; López de Saro and O’Donnell, 2001; Sánchez-Romero et al., 2011; Stracy et al., 2019). It is reasonable to assume that conservation of the spatial distribution of replication resources to a defined volume around the replisomes would promote efficient fork progression, especially in a large cell or nucleus. Alternatively, factory replication may be important for coordinating the timing of left and right replication forks. For organisms with circular chromosomes and a single replication origin, precise convergence of forks at the terminus is critical for chromosome segregation and resolution of chromosome dimers (Dimude et al., 2016). Even though many bacteria possess emergency replication fork traps to limit extensive overtravel, most forks converge within a very narrow termination zone near the dif site (Hendrickson and Lawrence, 2007), implying that movement of sister replisomes is tightly coordinated. While it is unclear if coordinating termination of sister replisomes would confer any advantage in organisms with linear chromosomes since fork convergence occurs between forks initiated at different origins, coordinating sister replisome travel may provide a mechanism for equal transfer of epigenetic marks such as histones (Yuan et al., 2019). Lastly, factories may be important for fork progression through impediments including bound protein and transcription complexes. If sister replisomes are anchored to a cell structure such as a nuclear or cell membrane, or to each other via a stable link, the resulting complex might stabilize replisomes against mechanical stress imposed on the replicative helicase as it travels through dense chromatin. Supporting this idea, up to 70% of all transcription in E. coli, including the highly active ribosomal genes, occurs within the ori-proximal ~1/3 of the chromosome (Grainger et al., 2006), matching closely the region in which sister replisomes are colocalized (Figure 2).

How are sister replisomes linked together? Early models of replication proposed that bidirectional replisomes exist in an obligate binary configuration in which the two helicases are oriented head-to-head (Dingman, 1974). In this configuration, one replisome copies the top strand and one replisome copies the bottom strand, and thus the two replisomes are unable to separate without either (1) pulling Watson away from Crick, or (2) completely dissociating and reassociating both replisomes (Bates, 2008) including DnaB helicase, which is thought to remain stably associated throughout replication (Monachino et al., 2020). Given that sister replisome splitting occurs naturally in bacteria (Bates and Kleckner, 2005; Berkmen and Grossman, 2006; Hiraga et al., 2000; Japaridze et al., 2020; Mangiameli et al., 2017b; Onogi et al., 2002; Reyes-Lamothe et al., 2008) and under forced conditions in eukaryotes (Brambati et al., 2018; Yardimci et al., 2010), such an obligate factory complex seems unlikely. Perhaps more plausible is a scenario in which sister replisomes are tethered by a dedicated protein. One such protein is the eukaryotic Ctf4 protein, which can dimerize CMG helicase between two replisomes forming a stable factory (Yuan et al., 2019). Ctf4 may also direct the lagging strands from both replisomes to a single shared Pol α primase, which would coordinate bidirectional synthesis (Li et al., 2020). Although no analogous tethering protein has been identified in bacteria, there are fork-associated proteins capable of crosslinking, which might link sister replisomes if bound in sufficient quantities. Candidate proteins include one of the highly abundant fork-associated proteins found in bacteria; SeqA in E. coli, YabA in B. subtilis, and GapA in C. crescentus. These proteins can form polymers and some mutants exhibit reduced fork progression and aberrant replisome dynamics (Arias-Cartin et al., 2017; Fossum et al., 2007; Joshi et al., 2013; Soufo et al., 2008).

In contrast to protein linker models, we propose that sister replisomes are instead connected indirectly via entanglements of newly replicated DNA exiting the forks. Topological stress at the fork, totaling 100 duplex twists per second at an elongation rate of 1000 bp per second, are reduced by topoisomerases and diluted by diffusion (as supercoils) into the surrounding DNA. However, excess stress routinely builds to the point that DNA around the fork becomes entwined and highly condensed (Postow et al., 2001). These entanglements might tether sister replisomes together, possibly aided by fork-tracking proteins like SeqA, which form stabilizing crosslinks on catenated DNA (Joshi et al., 2013). Supporting this model, the E. coli chromosome has a higher supercoil density around the replication origin (Visser et al., 2022), coinciding with the region replicated by colocalized replisomes, and supercoiling is highly symmetrical along left and right chromosome arms (Visser et al., 2022). It has also been reported that blockage of yeast replication forks at a site of strong head-on transcription (antiparallel with the direction of replication) impairs progression of the sister replisome (Brambati et al., 2018), while blockage with a double strand break does not (Doksani et al., 2009). Thus, it would seem that the fate of sister replisomes is linked specifically when they encounter topological stress.
