. 2023 Mar 14;8(12):11596–11606. doi: 10.1021/acsomega.3c00791

Theoretical Study on Photothermal Properties of Azobenzene Sulfonate/Magnesium–Aluminum Hydroxide Composite Dye

Peihuan Zhang 1, Yue Zhu 1, Zhewei Li 1, Luocong Wang 1, Caiwei Yue 1, Ming Lei 1,*, Min Pu 1,*
PMCID: PMC10061523  PMID: 37008099

Abstract

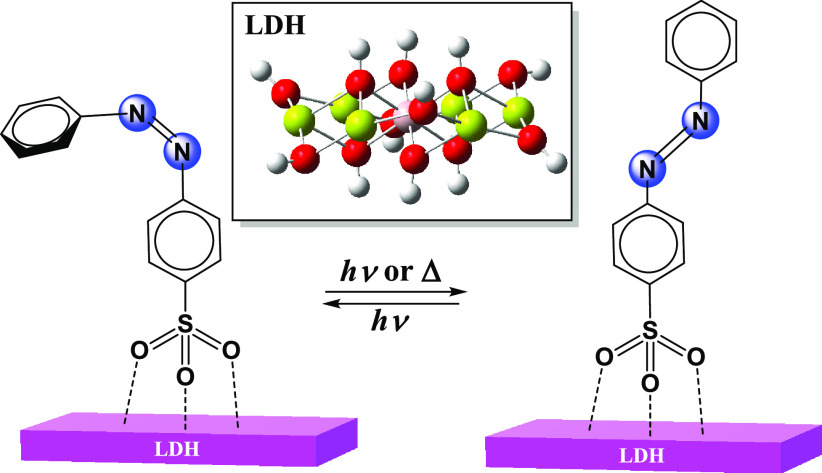

graphic file with name ao3c00791_0012.jpg

The assembly of various azo dyes and pigments with inorganic layered materials could develop new types of intercalation materials. The electronic structures and photothermal properties of composite materials (AbS–-LDH) constituted by azobenzene sulfonate anions (AbS–) and Mg–Al layered double hydroxide (LDH) lamella were theoretically studied at the M06-2X/def2-TZVP//M06-2X/6-31G(d,p) level using density functional theory and time-dependent density functional theory. Meanwhile, the influences of LDH lamella on the AbS– in AbS–-LDH materials were investigated. The calculated results showed that the addition of LDH lamella could lower the isomerization energy barrier of CAbS– anions (CAbS– stands for cis AbS–). The thermal isomerization mechanisms of AbS–-LDH and AbS were related to the conformational change of the azo group, out-of-plane rotation and in-plane inversion. The LDH lamella could reduce the energy gap of the n → π* and π → π* electronic transition and lead to a red-shift in the absorption spectra. When a polar solvent DMSO was applied, the excitation energy of the AbS–-LDHs was increased, making its photostability stronger than in nonpolar solvent and solvent-free.

1. Introduction

Azobenzene dyes are a class of functional materials that can be modified by thermal and photochemical treatment, which could have wide applications in molecular switches, molecular machines, memory storage, and nanodevices.1−12 As known to all, azobenzene dye could undergo a reversible isomerization between cis and trans conformations at appropriate conditions. There are two possible isomerization pathways: via rotation or inversion. The former proceeds via an out-of-plane rotation of a benzene ring around the N=N double bond, and the latter proceeds via an in-plane inversion by increasing the NNC angle to 180°. A thermally induced cis to trans isomerization of azobenzene readily occurs in the ground state.13−17 The cis structure of azobenzene dyes may be converted to the trans one at room temperature and could be accelerated by visible light irradiation, so their relatively poor thermal stability limit azobenzene dyes’ practical application. It is very meaningful to assemble azobenzene dyes into different carrier materials to increase their stabilities and unveil the nature of the isomerization mechanism. Takei et al. encapsulated methyl orange (MO) in a cyclodextrin cavity to study its isomerization and found that the isomerization can be hindered due to a strong intermolecular interaction induced by nanospace confinement.18 Kojima et al. showed that the electrostatic interaction between azobenzene and the metal ions in the zeolite nanocavity could modulate the cis–trans isomerization process.19 Therefore, it is of great significance to find new carrier materials to achieve stable host–guest composite materials capable of isomerization of azobenzene dyes.

As an important class of host–guest materials, layered double hydroxides (LDHs) is one of the promising host carrier candidates, which could provide a good microenvironment for the distribution of azobenzene guest molecules. LDH is a kind of inorganic material with characteristics of interlayer anion exchangeability, thermal stability, and tunability of the composition and structure of the lamellas.20 Its special structure owns advantages of both a guest and host, which could be used in many fields such as catalysis, medicine, photochemistry, etc.21−25 LDH lamellas are positively charged, and the interlayer anions could be replaced by other anions, so they can be used to prepare nanoscale organic/inorganic layered composites.26 LDH films had been widely studied as components of optical, electrical, and magnetic devices, which made their preparations a rapidly growing research area in recent years.27−29 One of the fascinating features of these LDH composite materials is that the intercalated ions could adopt different arrangements and orientations in the interlayer space of LDH. The inorganic LDH host materials could effectively improve not only the optical stability but also the thermal stability of the intercalated organic dye. To improve the thermal stability of azo compounds and prepare the materials with new functions, a variety of azo dyes and pigments such as Naphthol Yellow S, Acid Orange II, Direct Yellow 50, etc. as guest molecules have been successfully intercalated into LDHs.30−37 These research studies showed that the performances of composite intercalated materials were better than that of a single dye molecule and that many kinds of modified or novel intercalated materials could be used to prepare molecular devices. Svoboda et al. pointed out that the dye with a −SO3– substituent intercalated into Zn-Al-LDH could be vertically arranged between layers and that the existence of inorganic layers might improve their thermal and optical stabilities.32 However, the relationship between the physicochemical properties and structures of these host–guest LDH materials is still not clear.

Herein, we used an azobenzene sulfonate (AbS–) anion as a guest molecule and Mg-Al-LDH lamella as a host. The combination of AbS– anions with LDH lamella could form a new type of dye material. The isomerization pathways of 4,4-azobenzene disulfonate dye have been theoretically studied in our previous work,38 which produced two sulfonic groups as electron-withdrawing substituents in the para-positions of azobenzene. Adopting an appropriate cluster model, the structures and properties of the composite materials could be investigated using high-level theoretical methods. This study focuses on the use of cluster models to explore the photo- and thermal properties of the composite (AbS–-LDH) constituted by azobenzene sulfonate anions (AbS–) and Mg–Al hydroxide (LDH) lamella. Our previous studies on LDHs with a Mg/Al ratio of 2 or 3 have shown that their lowest unoccupied molecular orbitals (LUMO) could attract anions in the center of the lamella.39,40 In this work, molecular structures, electronic spectra, and thermal cis–trans isomerization of azobenzene sulfonate anions with different substituent positions (p-azobenzene sulfonate: p-AbS; m-azobenzene sulfonate: m-AbS) combined with LDH lamella were studied by density functional theory (DFT) and time-dependent DFT (TD-DFT) calculations. In addition, the influence of LDH lamella on the AbS– anion was also discussed by comparing the AbS’s isomerization pathways of AbS–-LDH and the AbS molecule.

2. Computational Details

Using density functional theory (DFT), the thermal isomerization mechanisms of AbS–-LDH and the AbS single molecule were studied at the M06-2X/def2-TZVP//M06-2X/6-31G(d,p) level.41,42 The geometric optimization was carried out at the M06-2X/6-31G(d,p) level, and the single point energies and electronic property analysis were calculated at the M06-2X/def2-TZVP level. In addition, functional testing is presented in the Supporting Information. All structures of reactants, transition states, and products along reaction pathways were fully optimized, and the frequencies of all stationary points were calculated. The transition states were confirmed with one and only one imaginary frequency. The vertical excitation properties were also calculated using the TD-DFT method at the same level.43,44 By comparing the UV spectra and difference in energy gaps of frontier orbitals of AbS–-LDH and AbS molecules, the influence of the Mg-Al-LDH lamella on the spectral properties of the AbS– anion was discussed. The polar solvent DMSO and the non-polar solvent CCl4 were used to calculate the solvent effect using the solvation model based on density (SMD). The Gaussian 09 program was used for all computations.45

3. Results and Discussion

To study the influence of LDH lamella on azobenzene sulfonate dye, we carried out theoretical research with LDH1 and LDH2 as templates (see Figure 1, LDH1 and LDH2 refer to LDH cluster models with Mg:Al = 2:1 and Mg:Al = 3:1, respectively). For the LDH1 structure, since Mg:Al = 2:1, the total charge is 2 and the spin multiplicity is 1. For the LDH2 structure, since Mg:Al = 3:1, the total charge is 4 and the spin multiplicity is 1.

Figure 1.

Figure 1

Open in a new tab

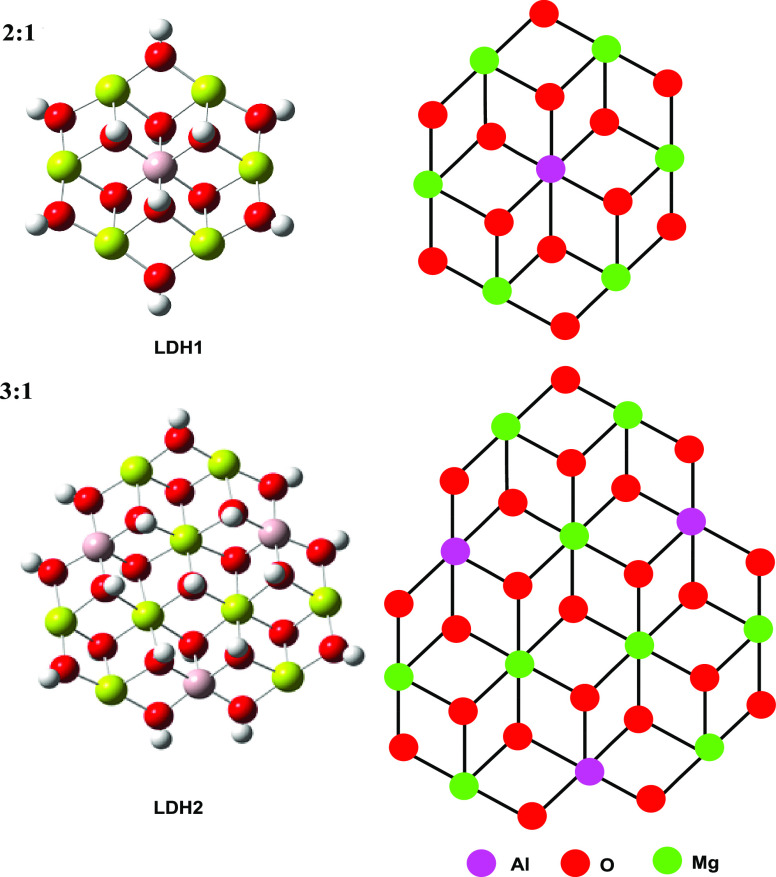

Optimized cluster models and corresponding chemdraw structures of LDH1 and LDH2 at the M06-2X/6-31G(d,p) level.

3.1. Geometrical Structures

The structures of LDH lamella with different magnesium–aluminum ratios combined with AbS– were optimized at the M06-2X/6-31G(d,p) level. As shown in Figure 2, CAbS– and TAbS– (CAbS– and TAbS– mean cis and trans azobenzene sulfonate) anions were arranged vertically on the lamella, and three O atoms of the −SO3– group were connected to the H atoms of the hydroxyl groups of the Mg-Al-LDH lamella. When the Mg/Al ratio of LDH was 2:1, the distances between the O atoms of −SO3– and H atoms of the hydroxyl group of the hydrotalcite lamella were 1.460–1.473 Å for p-TAbS–-LDH1 and 1.459–1.487 Å for m-TAbS–-LDH1, respectively, which implied that there were hydrogen bond interactions between −SO3– and the lamella. When the Mg/Al ratio became 3:1, the distances between the O atoms of −SO3– and H atoms of the hydroxyl group of the hydrotalcite lamella were 1.533–1.557 Å for p-TAbS–-LDH2 and 1.539–1.571 Å for m-TAbS–-LDH2, respectively. The distances between LDH1 and AbS– were shorter than those of LDH2, indicating that the hydrogen bond interaction between AbS– and LDH1 was stronger and the structure was more stable. The O–H bond lengths of the hydroxyl groups of LDH were increased from 0.965 to 1.033–1.038 Å (p-TAbS–-LDH1) and 1.011 to 1.017 Å (p-TAbS–-LDH2), respectively. It can be seen from Table 1 that the structural parameters of the main groups of AbS– of AbS–-LDH and AbS single molecules were very close before and after assembly with LDH1 or LDH2. The dihedral angle ∠C(2)N(3)N(4)C(5) of p-TAbS–-LDH1 was −179.79°, which indicated that the two benzene rings were approximately in a plane. The dihedral angles of ∠C(1)C(2)N(3)N(4) and ∠C(6)C(5)N(4)N(3) were 3.62 and 0.99°, respectively. Similarly, the two benzene rings of m-TAbS–-LDH1 were also approximately coplanar, and the dihedral angles of ∠C(2)N(3)N(4)C(5), ∠C(1)C(2)N(3)N(4), and ∠C(6)C(5)N(4)N(3) were −179.85, 0.75, and 0.46°, respectively. The relative energies (ΔG) are energy differences of trans structures of AbS– anions, AbS molecules, and AbS–-LDH relative to cis. The ΔGp-AbS and ΔGm-TAbS were −12.7 and −13.4 kcal/mol, while the ΔGp-AbS–-LDH1, ΔGm-AbS–-LDH1, ΔGp-AbS–-LDH2, and ΔGm-AbS–-LDH2 were −15.6, −13.7, −19.3, and −18.2 kcal/mol as the AbS– anion was assembled on the LDH layer (see Figure 3). This indicated that the host Mg-Al-LDH lamella could improve the thermal stability of the intercalated AbS– anions. The binding energy (EB) of supramolecules were represented by the general formula: EB = E(AbS–-lamella) – E(AbS–) – E(lamella). The calculated binding energies of p-CAbS–-LDH1, p-TAbS–-LDH1, m-CAbS–-LDH1, and m-TAbS–-LDH1 were −10.3, −10.4, −10.4, and −10.4 eV, respectively; those of p-CAbS–-LDH2, p-TAbS–-LDH2, m-CAbS–-LDH2, and m-TAbS–-LDH2 were −15.0, −15.3, −15.1, and −15.2 eV, respectively. This also demonstrated that host Mg-Al-LDH lamella could improve the thermal stability of the intercalated AbS– anions.

Figure 2.

Figure 2

Open in a new tab

Optimized AbS–-LDHs’ structures at the M06-2X/6-31G(d,p) level (-CAbS refers to cis-azobenzene sulfonic acid, -TAbS refers to trans-azobenzene sulfonic acid).

Table 1. Key Structural Parameters of Optimized AbS–-LDHs at the M06-2X/6-31G(d,p) Level.

  bond (Å)
 dihedral angle (°)
  C(2)-N(3) N(3)-N(4) N(4)-C(5) ∠C(1)C(2)N(3)N(4) ∠C(2)N(3)N(4)C(5) ∠C(6)C(5)N(4)N(3)
p-CAbS–-LDH1 1.431 1.237 1.434 –57.02 –8.88 –47.30
p-TAbS–-LDH1 1.425 1.248 1.415 3.62 –179.79 0.99
m-CAbS–-LDH1 1.438 1.238 1.434 50.86 7.91 49.65
m-TAbS–-LDH1 1.426 1.247 1.417 0.75 –179.85 0.46
p-CAbS–-LDH2 1.416 1.236 1.427 134.65 –11.68 –39.08
p-TAbS–-LDH2 1.415 1.255 1.402 2.30 –179.91 0.33
m-CAbS–-LDH2 1.437 1.239 1.428 47.02 9.13 45.93
m-TAbS–-LDH2 1.423 1.251 1.407 1.19 –179.81 0.56
p-CAbS 1.436 1.239 1.437 –55.11 –7.55 –50.57
p-TAbS 1.427 1.246 1.422 –0.29 –179.97 0.23
m-CAbS 1.438 1.39 1.438 54.24 7.57 51.89
m-TAbS 1.425 1.245 1.423 1.54 –179.88 0.60
Open in a new tab

Figure 3.

Figure 3

Open in a new tab

Free energies of trans-structures (TAbS–, TAbS, TAbS–-LDH1, and TAbS–-LDH2) relative to their corresponding cis-structures (CAbS–, CAbS, CAbS–-LDH1, and CAbS–-LDH2).

3.2. Thermal Isomerization of AbS Molecules with/without LDHs

The inversion and rotation isomerization pathways of AbS–-LDH and AbS molecules were discussed in the ground state in this study. The former can be achieved through the vibration of the N3 or N4 atom in the N=N double bond. The optimized geometric structures of stationary points along the isomerization pathways of AbS–-LDH1 are shown in Figure 4, and the key structural parameters are listed in Table 2. It could be seen from the geometric structures of transition states that two phenyl rings of p-AbS– and m-AbS– anions were neither perpendicular nor coplanar. The angle ∠N(2)N(3)C(4) of p-TS1-LDH1 was 178.91°, which was almost linear, and the dihedral angles ∠N(4)N(3)C(2)C(1) and N(3)N(4)C(5)C(6) were 76.75 and −0.47°, respectively. The angles ∠N(3)N(4)C(5) of p-TS2-LDH1 was 179.23°, which was almost linear, and the dihedral angles ∠N(4)N(3)C(2)C(1) and N(3)N(4)C(5)C(6) were −4.76° and 26.07°, respectively. The dihedral angle ∠C(2)N(3)N(4)C(5) of p-TS3-LDH1 was −88.87°, which was almost perpendicular. These angles and dihedral angles of the m-AbS– anion of m-TS-AbS–-LDH1 were similar to those of the p-AbS– anion of p-TS-AbS–-LDH1, which showed that the substituent positions of the phenyl rings of AbS– anions had little effect on the AbS– structure of AbS–-LDH1. In the isomerization process of p-CAbS–-LDH1, the angle ∠C(2)N(3)N(4) changed from 125.94 to 179.23° for p-TS1-LDH1 and then to 116.31° for p-TAbS–-LDH1, and the angle ∠C(3)N(4)N(5) changed from 124.10 to 179.23° for p-TS2-LDH1 and then to 115.66° for p-TAbS–-LDH1, which both adopted an in-plane inversion pathway. The dihedral angle ∠C(2)N(3)N(4)C(5) was from −11.36 to −88.87° for p-TS3-LDH1 and then to 179.82° for p-TAbS–-LDH1, in which the unsubstituted benzene ring had an out-of-plane rotation. Similarly, the isomerization process of m-CAbS–-LDH1 was close to the isomerization behaviors of p-CAbS–-LDH1. The C(2)N(3)N(4) and N(3)N(4)C(5) linear structures of transition states of isomerizations of p-AbS– and m-AbS– anions of p-TS-LDH1 and m-TS-LDH1 were due to the weakened coupling of the lone electron pairs of two N atoms, in which the hybrid orbital states of the N atoms changed from sp2 to sp. Therefore, the isomerization processes of p-CAbS–-LDH1 and m-CAbS–-LDH1 were one-step concerted processes with the inversion of C(2)N(3)N(4) and the rotation of the unsubstituted benzene ring around the C(2)-N(3) bond. The isomerizations of AbS– in p-CAbS–-LDH2 and m-CAbS–-LDH2 were the same as those in p-CAbS–-LDH1 and m-CAbS–-LDH1 (see the optimized structures of stationary points along the isomerization pathways and key structural parameters for p-CAbS–-LDH2 and m-CAbS–-LDH2 in Figure S1 and Table S1 of the SI).

Figure 4.

Figure 4

Open in a new tab

Optimized structures of stationary points along the isomerization pathways for p-CAbS–-LDH1 and m-CAbS–-LDH1 at the M06-2X/6-31G(d,p) level.

Table 2. Key Structural Parameters of Stationary Points along the Isomerization Pathways for p-CAbS–-LDH1 and m-CAbS–-LDH1 at the M06-2X/6-31G(d,p) Level.

  angle (°)
 dihedral angle (°)
  ∠C(2)N(3)N(4) ∠N(3)N(4)C(5) ∠C(1)C(2)N(3)N(4) ∠C(2)N(3)N(4)C(5) ∠C(6)C(5)N(4)N(3)
p-CAbS–-LDH1 125.94 124.10 –59.40 –11.36 –39.64
p-TS1-LDH1 178.91 117.75 76.75 13.41 –0.47
p-TS2-LDH1 116.31 179.23 –4.76 –80.43 26.07
p-TS3-LDH1 119.89 123.89 1.08 –88.87 0.73
p-TAbS–-LDH1 113.65 115.66 1.19 179.82 –0.05
m-CAbS–-LDH1 123.78 124.00 52.15 9.86 48.98
m-TS1-LDH1 120.40 117.17 0.84 86.47 –2.26
m-TS2-LDH1 116.81 179.22 –0.36 –123.77 31.88
m-TS3-LDH1 119.08 123.32 4.51 –88.26 1.40
m-TAbS–-LDH1 114.54 114.70 0.82 –179.92 0.07
Open in a new tab

The free energy profiles of different isomerization pathways for p- and m-AbS–-LDHs at the M06-2X/def2-TZVP//M06-2X/6-31G(d,p) level are shown in Figure 5. It can be seen that the inversion pathway through the N3 movement was more favorable than that through N4 movement and rotation in both para- and meta-positions for the AbS–-LDHs. The energy barriers of the optimal thermal isomerization of p-AbS–-LDH1, m-AbS–-LDH1, p-AbS–-LDH2, and m-AbS–-LDH2 were 15.7, 22.0, 7.5, and 16.9 kcal/mol, respectively. It is obvious that the isomerization of p-CAbS-LDH2 is easier than others.

Figure 5.

Figure 5

Open in a new tab

Free energy profiles of the isomerization for p- and m-CAbS–-LDH at the M06-2X/def2-TZVP//M06-2X/6-31G(d,p) level.

To explain the effect of lamellas on the isomerization of AbS– anions in AbS–-LDH, the differences in the isomerization pathways between AbS and AbS–-LDH were compared. The free energy profiles of isomerization pathways for p- and m-AbS at the M06-2X/def2-TZVP level are shown in Figure 6. For the isomerization of single-molecule p-AbS and m-AbS, the pathway through TS1 was also advantageous. The energy barrier of TS1 was lower by 5.1 kcal/mol than TS2. This may be due to the smaller steric hindrance when passing through the vibration mode of TS1, so isomerism was more likely to occur. The optimized structures for AbS along the isomerization pathway are shown in Figure 7. It can be seen that in the isomerization process of AbS, the change of AbS structure was almost the same as that of AbS– in the composites. The isomerization processes of p-CAbS and m-CAbS were also one-step concerted processes with the inversion of C(2)N(3)N(4) and the rotation of the unsubstituted benzene ring around the C(2)-N(3) bond.

Figure 6.

Figure 6

Open in a new tab

Free energy profiles of isomerization for p-CAbS and m-CAbS at the M06-2X/def2-TZVP//M06-2X/6-31G(d,p) level.

Figure 7.

Figure 7

Open in a new tab

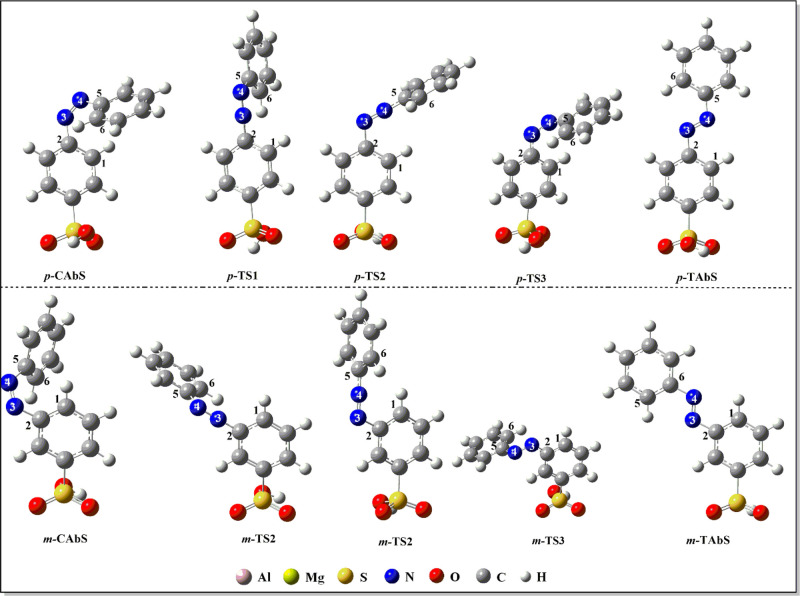

Optimized stable structures along the isomerization pathway of p-AbS and m-AbS at the M06-2X/6-31G(d,p) level.

By comparing the free energy profiles of the isomerization pathways of AbS–-LDHs and AbSs, it was obvious that the LDH host molecule affected the isomerization for AbS– guest anions. The addition of LDH lamella could lower the isomerization energy barrier of CAbS– anions. It was worth noting that the physicochemical properties of LDH could be tuned through the assembly of AbS– anions into LDH layers, which provide insights into the development of new functional intercalation materials.

3.3. Spectroscopic Properties of AbS–-LDH

trans-Azobenzene could be easily converted into a cis structure under visible light irradiation. The TD-DFT method could be used to calculate reliable low-excited state properties, but the results of higher excited states have larger errors. Therefore, the first 50 singlet excited states of each isomer are calculated.46 The properties of singlet vertical excited states for single-molecule p-TAbS, m-TAbS, supramolecules p-TAbS–-LDH1, m-TAbS–-LDH1, p-TAbS–-LDH2, and m-TAbS–-LDH2 were calculated at the M06-2X/6-31G(d,p) level. The calculated frontier molecular orbitals indicated that the HOMO-1 orbital was the π orbital on the benzene ring, the HOMO orbital was the n orbital formed by the lone pair of electrons on the N atoms, and the LUMO orbital was the π* orbital on the benzene ring. The HOMO → LUMO corresponds to n → π* transition, and HOMO-1 → LUMO corresponds to π → π* transition. The n → π* transitions were due to a lone pair of electrons on the central N atoms, and the π → π* transitions were delocalized in the two benzene rings (see Figure 8). The electronic excitation energies of these transitions are listed in Table 3.

Figure 8.

Figure 8

Open in a new tab

Frontier molecular orbitals of TAbS–-LDH1 and TAbS at the M06-2X/6-31G(d,p) level.

Table 3. Electronic Absorption Spectra of cis and trans-Isomers for AbS and AbS–-LDH at the M06-2X/6-31G(d,p) Level.

  S1 ← S0(n → π*)
 S2 ← S0(π → π*)

  Eex/eV λ/nm Eex/eV λ/nm energy difference/eV (Eex (S2 ← S0) – Eex (S1 ← S0))
p-CAbS–-LDH1 2.44 508 3.77 329 1.33
p-TAbS–-LDH1 2.40 517 3.94 315 1.54
p-CAbS–-LDH2 2.35 528 2.80 443 0.45
p-TAbS–-LDH2 2.28 545 2.68 462 0.40
p-CAbS 2.34 529 4.66 266 2.32
p-TAbS 2.46 504 4.21 295 1.75
m-CAbS–-LDH1 2.45 506 3.72 333 1.27
m-TAbS–-LDH1 2.49 498 3.95 314 1.46
m-CAbS–-LDH2 2.35 528 2.72 455 0.37
m-TAbS–-LDH2 2.46 505 2.79 445 0.39
m-CAbS 2.44 508 4.69 264 2.25
m-TAbS 2.44 508 4.15 299 1.71
Open in a new tab

The transition energy (Eex(S1 ← S0)) for p-TAbS was 2.46 eV, which correspond to the maximum of the S1 ← S0 absorption wavelength at 504 nm. The transition energy of S2 ← S0 was 4.21 eV, and the corresponding absorption wavelength was 295 nm. For the p-TAbS–-LDH1 supramolecule, the transition energy of S1 ← S0 was 2.40 eV, and its maximum absorption wavelength showed a 13 nm red-shift compared with that of the p-TAbS molecule. The transition energy of S2 ← S0 was 3.94 eV, and its maximum absorption wavelength showed a 20 nm red-shift. However, the energy gap of S1 ← S0 transition for m-TAbS–-LDH1 was larger than that of the m-TAbS molecule, corresponding to the maximum absorption wavelength with a blue-shift of 10 nm, while the energy gap of S2 ← S0 transition for m-TAbS–-LDH1 was smaller than that of m-TAbS, corresponding to the maximum absorption wavelength with a red-shift of 15 nm. When the Mg-Al-LDH lamella and AbS– were combined by hydrogen bond interaction, if the energy of the n or π orbital decreased, a blue-shift would occur; otherwise, a red-shift would occur.

The excitation of the cis-isomer of p-AbS–-LDH1 and p-AbS was different from those of corresponding trans-isomers, and the S1 ← S0 transition of the cis-isomer was slightly intensive due to its twisted configuration, while the intensities of S2 ← S0 transitions for cis-isomers were low. When p-TAbS–-LDH1 and p-TAbS were converted into p-CAbS–-LDH1 and p-CAbS, respectively, the n → π* transitions were changed from a forbidden state to an allowable state due to the transformation from the planar configuration to the non-planar one. m-TAbS, m-TAbS–-LDH1, and m-TAbS–-LDH2 showed similar spectroscopic properties compared with para-substituted ones. Also, the spectral properties of AbS– molecules with LDH2 were similar to those with LDH1. The maximum absorption wavelength of S1 ← S0 and S2 ← S0 of p-TAbS–-LDH2 showed a red-shift compared with that of the p-TAbS molecule; S1 ← S0 and S2 ← S0 of m-TAbS–-LDH2 showed a blue-shift and a red-shift compared with those of the m-TAbS molecule, respectively. When p-TAbS–-LDH2 was converted into p-CAbS–-LDH2, the n → π* transitions were changed from a forbidden state to an allowable state.

The frontier molecular orbital energy gaps (Δε) could reflect the transition ability of electrons from occupied molecular orbitals to unoccupied molecular orbitals, and it could show the difficulty of a molecule to be excited. It could be seen that the LDH lamella could reduce the energy gap of the n → π* and π → π* electronic transition and lead to a red-shift in the absorption spectra (see Table 4).

Table 4. εHOMO and εLUMO and Energy Gaps (Δε) of AbS–-LDH and AbS at the M06-2X/6-31G(d,p) Level (Unit: eV).

  εHOMO-1 εHOMO εLUMO Δε1a Δε2b
p-CAbS–-LDH1 –11.5 –10.6 –5.6 5.1 5.9
p-TAbS–-LDH1 –11.1 –10.7 –6.1 4.7 5.0
p-CAbS–-LDH2 –14.2 –13.6 –10.2 3.4 4.1
p-TAbS–-LDH2 –13.7 –13.4 –10.1 3.3 3.6
p-CAbS –8.8 –7.7 –0.3 7.5 8.5
p-TAbS –8.5 –8.0 –0.2 7.9 8.3
m-CAbS–-LDH1 –11.4 –10.6 –6.1 4.5 5.3
m-TAbS–-LDH1 –11.2 –10.7 –6.1 4.6 5.1
m-CAbS–-LDH2 –14.2 –13.6 –10.2 3.4 4.1
m-TAbS–-LDH2 –13.9 –13.6 –10.1 3.5 3.8
m-CAbS –8.7 –7.7 –1.3 6.4 7.4
m-TAbS –8.4 –7.9 –1.8 3.9 6.2
Open in a new tab
a

Δε1 = εLUMO – εHOMO

b

Δε2 = εLUMO – εHOMO-1.

The UV spectrum shows that azobenzene sulfonic acid was mainly concentrated in the K band around the period of 125–225 nm and the R band around the period of 225–400 nm in the UV–visible absorption region (see Figure 9). When the AbS– combined with LDHs, a significant red-shift was observed, which was consistent with the result of the frontier molecular orbital energy gaps, and the K band changed from 125–220 nm to 175–250 nm. This may be in that the hydrogen bond formed by the hydrogen atom of the hydroxyl group of the LDH and the oxygen atom of the sulfonate enhanced the degree of conjugation. As a result, the energy gap was reduced, leading to the red-shift, and the absorption spectrum was broadened. However, for the CAbS–-LDH1 structure, only the K band had a red-shift about 50 nm, while the R band changed insignificantly, which may be due to the saddle shape of the cis-structure causing the overall structure to be non-planar, and the degree of planar conjugation was weakened.

Figure 9.

Figure 9

Open in a new tab

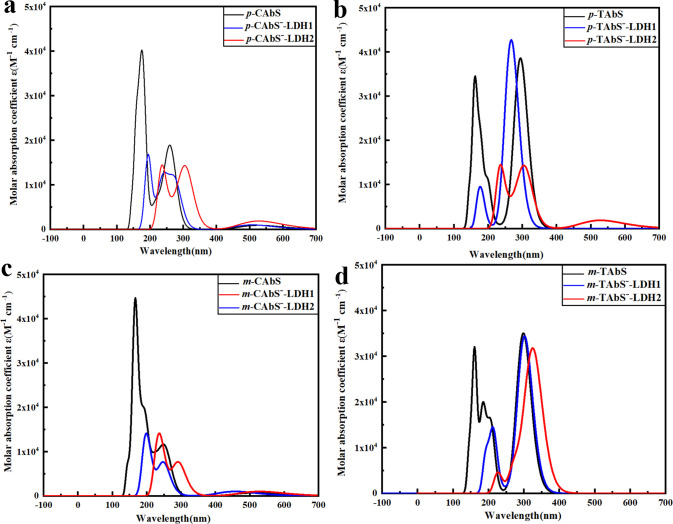

Absorption spectra of (a) p-CAbS and p-CAbS–-LDHs; (b) p-TAbS and p-TAbS–-LDHs; (c) m-CAbS and m-CAbS–-LDHs; and (d) m-TAbS and m-TAbS–-LDHs.

The absorption wavelength of solute can also be shifted due to the influence of the formation of hydrogen bonds between the solvent and the solute molecules and the dipolar polarization. Therefore, the influence of solvents on spectral properties was also studied. As shown in Figure 10a, for the n → π* transition, in the polar solvent DMSO, the n orbital energy of the ground state molecules was reduced, and the energy absorbed during the n → π* transition was larger, which made the absorption shift to the short-wave direction and caused a blue-shift phenomenon (see Table S1). In the non-polar solvent CCl4, the energy of the n → π* transition was also increased, which changed a little compared to that in DMSO solvent. This implied that polar solvents had a greater influence on the absorption wavelength than non-polar solvents. For the π → π* transition, the energy difference between the ground state and the excited state was reduced for AbS in the polar solvent DMSO, and the absorption was shifted to the long-wave region, that is, the red-shift phenomenon occurred. As for the composite AbS–-LDH1, the energy absorbed during the π → π* transition was larger, causing the absorption shift to the short-wave direction (see Figure 10b). Similarly, when in the polar solvent DMSO and the non-polar solvent CCl4, energy gaps (Δε) of AbS–-LDH1 and AbS showed the same pattern (see Table S2).

Figure 10.

Figure 10

Open in a new tab

(a) Influence of solvent on the energy of n → π* transition. (b) Influence of solvent on the energy of π → π* transition (Ordinate Eex refers to the transition energy).

4. Conclusions

The photothermal properties of supramolecular structures of AbS–-LDHs were studied at the M06-2X/def2-TZVP//M06-2X/6-31G(d,p) level as well as those of single AbS molecules. The calculated results showed that the hydrogen bond interaction between AbS– and LDH1 was stronger and the structure was more stable. The addition of LDH lamella could lower the isomerization energy barrier of CAbS– anions compared to the single molecule. The LDH lamella made the AbS spectrum red-shift, and the optical properties were better in the polar solvent DMSO than in the non-polar solvent CCl4. For the isomerization reaction of AbS–-LDH and AbS, the pathway through the transition state TS1 was favorable. The energy barrier of p-TS1-LDH1 was lower by 12.9 kcal/mol than p-TS2-LDH1, and the energy barrier of p-TS1-LDH2 was lower by 16.1 kcal/mol than p-TS3-LDH2. The energy barrier of p-TS1 was lower by 5.1 kcal/mol than p-TS2. Meanwhile, on their spectroscopic properties, the S1 ← S0 and S2 ← S0 transitions for both TAbS–-LDHs and TAbS molecules appeared exceedingly similar: the S1 ← S0 transition was forbidden, and the S2 ← S0 transition was allowed. It was found that there is a red-shift in S1 ← S0 and S2 ← S0 transition, and energy gaps were decreased with the addition of LDH lamella. In summary, AbS–-LDHs are potential composite materials owning better stability than single AbSs.

Acknowledgments

This work is supported by the National Natural Science Foundation of China (Grant No. 22073005). We also thank the High Performance Computing (HPC) Platform at Beijing University of Chemical Technology (BUCT) for providing part of the computational resources.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsomega.3c00791.

  • Relevant reaction mechanism, analysis results, and the geometric coordinates of the main structures (optimized structures, key structural parameters, electronic absorption spectra, εHOMO, εLUMO, and energy gaps, free energy profiles, and Cartesian coordinates) (PDF)

Author Contributions

The manuscript was written through contributions of all authors. All authors have given approval to the final version of the manuscript.

The authors declare no competing financial interest.

Supplementary Material

ao3c00791_si_001.pdf (477.2KB, pdf)
