. 2023 Jan 16;30(14):42255–42266. doi: 10.1007/s11356-023-25157-8

Risk assessment of trace metals in Solanum lycopersicum L. (tomato) grown under wastewater irrigation conditions

Dalia Abd El-Azeem Ahmed 1,✉, Dalia Fahmy Slima 2, Hatim M Al-Yasi 3, Loutfy M Hassan 4, Tarek M Galal 4
PMCID: PMC10067660  PMID: 36645601

Abstract

Heavy metal contamination of food crop plants is viewed as a global issue. Heavy metals like cadmium (Cd), copper (Cu), lead (Pb), chromium (Cr), zinc (Zn), nickel (Ni), arsenic (As), cobalt (Co), and mercury (Hg) are poisonous. Depending on their concentration and capacity for bioaccumulation, they can provide a range of health risks.This research sought to investigate the effects of toxic metals (TMs) on the growth characteristics of produced tomatoes grown under wastewater irrigation. Additionally, it looked into the potential repercussions of both domestic and foreign individuals consuming this plant. In south Cairo, Egypt, two study locations were looked into: a control site in Abu Ragwan, which received water from tributaries of the Nile River, and a contaminated site in El-Shobak El-Sharky, which had raw industrial wastewater. The nutrients of soil and tomato plants (N, P, and K) decreased (P < 0.01), while TMs increased (P < 0.001) significantly as a result of using wastewater for irrigation. Except for Cu, all examined TM accumulating in tomato plants’ roots as opposed to shoots had a bioaccumulation factor (BF) > 1. However, the tomato plant’s shoot had solely undergone Pb and Ni translocation and storage, with a translocation factor (TF) > 1. A significant amount of Fe (5000.1 mg kg−1), Pb (360.7 mg kg−1), and Mn (356.3 mg kg−1) were present in the edible fruits. The ingestion of contaminated crops increases the daily intake rate of metals (DIR). The values of the high hazard quotient (HQ) were obtained (2073.8 and 2558.9 for Pb, 574.0 and 708.3 for Cd, and 41.1 and 50.7 for Fe for adults and children, respectively). Therefore, tomato plants grown in soils irrigated with untreated wastewater may offer a greater danger to human health, indicating that they should not be grown as a crop for human consumption.

Keywords: Heavy metals, Translocation and bioaccumulation factors, Daily intake of metals, Hazard quotient

Introduction

The continuous and rapid expansion of agriculture, society, and the economy, as well as the preservation of human health, depend on the quality and safety of the soil environment (Chen et al. 2016; Liu et al. 2022). Because poisonous heavy metals are not biodegradable and accumulate in living tissues along the entire food chain, they are seen as a global problem that affects food crops (Adekunle et al. 2009). Their accumulation in agricultural soils is likewise thought to be a significant problem for humanity. Base rock, landfills for solid or liquid waste, mineral fertilisers, pesticides, agricultural inputs, industrial emissions, and urban pollutants are only a few of the sources of toxic metals in soil.. The majority of TMs are found in industrial settings and are major environmental polluters (Mitra et al. 2022). Therefore, TMs buildup in the soil results in agricultural soil pollution, which affects the quality and safety of food (Jolly et al. 2013; Huang et al. 2014).

One of the ways that poisonous heavy metals can enter human tissues and endanger human health is through food crops, especially fruits and vegetables (Siddiqui 2010). Because they are rich in fiber, vitamins, minerals, carbs, and proteins, fruits and vegetables are healthy for your health (Cherfi et al. 2014). Food crops play a significant role in our diet and may include a range of both essential and dangerous metals, depending on the characteristics of the growth medium utilized (Waqas et al. 2015). Heavy metals accumulate in both edible and non-edible parts of plants, causing a variety of problems for humans (Jarup 2003). The majority of a person’s intake of heavy metals, or about 90% of it, comes from eating contaminated vegetables, with the remaining 10% coming from skin contact and breathing in polluted dust (Khan et al. 2014). When used in moderation, heavy metals are beneficial to human health; nevertheless, when used in excess, they can cause serious diseases. Some fruits and vegetables include nutrients that are crucial for psychological and biochemical health, but they shouldn't be ingested in excess since they may result in a range of metabolic symptoms (Maleki and Zaras 2008; Fawad et al. 2017). The levels of these metals in particular media and the period of exposure determine the health hazards associated with TMs. Even at modest doses, prolonged and chronic exposure to TMs may have negative health effects (Mahalakshmi et al. 2012).

The cultivated tomato, Solanum lycopersicum L., is a member of the Solanaceae family. Due to its widespread use as a fundamental component in a variety of raw, cooked, and processed cuisines, it is the most planted vegetable in the world. Tomatoes rank among the most popular vegetables consumed worldwide. found in abundance in tomatoes, has been linked to a number of health advantages, including a decreased risk of cancer and heart disease. Phylloquinone (vitamin K1), potassium, folate, and vitamin C are also abundant in them (FAO 2021). Tomato pulp can also be used as a skin cleanser for oily skin, and sliced fruits can be used as a first-aid treatment for burns, scalds, and sunburns. Furthermore, the tomato fruit skin contains lycopene, which helps treat an enlarged prostate and related urinary issues as well as prevent heart attacks. Tomatoes are a unique crop in Egypt because they can be cultivated in all governorates and are available throughout the year. It is the vegetable with the largest total production capacity and cultivated area (FAO 2021). The volume of tomatoes produced in Egypt in 2019 was about 6.8 million metric tonnes (www.statista.com).

A comprehensive assessment of heavy metal contamination and subsequent risks for ecosystems and humans is necessary to develop management measures, reduce soil insecurity, and handle climate change (Kumar et al. 2019; Lian et al. 2022). Additionally, large quantities of Egyptian tomatoes are shipped to other nations throughout the world. Determining the health risk to people in this regard requires knowledge of the nutritional values and TMs concentrations in fruits and vegetables (Roba et al. 2016). As a result, this study explores the possibility of TMs spreading to tomato edible sections and the potential effects on both domestic and foreign customers.

Material and methods

Experiment

The sampling of tomato plants, as well as the irrigation water and soil samples, were collected from six farms (2 acres each) in south Greater Cairo, Egypt, during the summer of 2021. Three open farms are located at Abu Ragwan city (29° 47′ 6.57″ N and 31° 16′ 0.51″ E), receiving irrigation water from Nile River tributaries as control and the other three are located in the industrial area of El-Shobak El-Sharky city (29° 45′ 22.35″ N and 31° 17′ 36.20″ E) and receives irrigation water from untreated industrial effluents (Fig. 1). The farms’ owners permitted us to conduct the research on their property. The prevailing climate of the study area showed that the mean annual rainfall was 1.67–2.13 mm year−1, while the annual mean temperature was 21.08 °C, and the annual mean relative humidity was 52.68–56.08%.

Fig. 1.

Fig. 1

Open in a new tab

Location map of south Greater Cairo showing the study sites, 29° 44′ 56.54″ N; 31° 15′ 54.88″ E. Source: Google Earth on 7 June 2021

Soil and water sampling and analysis

Three combined soil samples from each farm were collected at a depth of 0–50 cm, air-dried, and sieved through a 2 mm sieve to remove gravel and other debris. A soil water extract was prepared (1:5 w/v) for determining soil pH using a pH meter (Model 3520 JENWAY) according to Brower and Zar (1984) and electrical conductivity (EC) as an indicator of soil salinity using a conductivity meter (Model 4510 JENWAY) according to Roweel (1994). For soil nutrient (N, P, and K) and heavy metal (Pb, Cd, Cr, Cu, Ni, Fe, Mn, Zn, and Co) determination, the soil was digested using the acid digestion method (1 g soil sample was digested in 20 mL tri-acid mixture of HNO3/H2SO4/HClO4 (5:1:1, v/v/v) for 8 h at 80 °C, digestion was continued until the solution became clear, then the transparent digests were filtered using a 0.45 m pore size cellulose nitrate membrane filter paper (Millipore) and diluted up to 50 mL with distilled water then stored for analysis) according to Wade et al. (1993). The Kjeldahl method was used to determine total soluble nitrogen (N) according to Piper (1947), and the molybdenum blue method for determination of P content in soil samples using a spectrophotometer (V-760 UV–Visible spectrophotometer) at 660 nm for N and 700 nm for P. Simultaneously, the potassium (K) content was determined using a Flame Photometer (FP910-5 SHENZHEN). All previous procedures are listed in Allen (1989). The concentrations of the heavy metals investigated were determined using an Atomic Absorption Spectrophotometer (a Perkin-Elmer 3100) following APHA (1999).

In addition, three composite water samples were collected in plastic bottles from effluent received from untreated industrial wastewater and the river Nile. The pH/electric conductivity meter (914 pH/Conductometer-Metrohm AG) was used to measure the EC and pH of the water samples. The water samples were then directly acidified with nitric acid (1 ml HNO3/l) to determine the concentrations of Pb, Cd, Cr, Cu, Ni, Fe, Mn, Zn, and Co (APHA 1999). The relative oxygen requirements of wastewater were determined by measuring the chemical and biological oxygen demand (COD and BOD, respectively); COD was determined using titrimetric analysis (Pitwell 1983), while BOD was determined using the 5-day biochemical oxygen demand method (BOD5) (Delzer and Mckenzie 2003).

Plant sampling and growth measurements

Tomato plants were collected from the six farms under investigation. Ten quadrats (each 1 m2) were randomly selected at each farm for collecting tomato plants at the end of the growing season. Some growth parameters (number of individuals per m2, stem and root length, number of leaves per individual) of the harvested plants were measured. Fresh and dry weights of leaves and stems per m2, fresh and dry biomass, and productivity (t acre−1) were calculated using the collected samples divided into root, shoot, and fruits (edible part). According to Allen et al. (1986), dry weight for leaves and stems was determined by keeping samples at 40 °C for 3 days.

Heavy metals and plant nutrition

To measure the quantities of different harmful heavy metals (Pb, Cd, Cr, Cu, Ni, Fe, Mn, Zn, and Co), as well as plant nutrients (N, P, and K), proteins, and carbohydrates, the plant samples were divided into roots, shoots, and fruits before being air-dried and ground using an electric mill. One gram of each plant sample (control and contaminated) was digested using the acid-mixture digestion technique (Lu 2000). Ten milliliters of concentrated HNO3 (69%) and 0.5 mL of hydrofluoric acid (40%) were added to 1 g of dry plant sample in a closed Teflon vessel, which was then heated to 130 °C for 24 h. Until the mixture was clear, the digesting procedure was repeated. The samples were digested before being filtered through cellulose nitrate membrane filter paper at a 0.45 m thickness (Millipore). The volume was diluted with distilled water to 50 mL. An atomic absorption spectrophotometer was used to assess the content of heavy metals in plant samples (DW-AA320N), and nutrients (N, P, and K) were determined as mentioned in the “Soil and water sampling and analysis” section. Using a spectrophotometer (V-760 UV–Visible spectrophotometer) and the Bio-Rad protein assay (Lowry et al. 1951) and the anthrone-sulfuric acid techniques, the proportion of total soluble proteins and carbohydrates (Umbriet et al. 1959) was determined, respectively.

Plant pigments

According to Metzner et al. (1965), 2 g of fresh tomato leaves were extracted with approximately 20 mL of 50% acetone (v/v) in total darkness (light promotes chlorophyll degradation) and held at 4 °C overnight in order to identify leaf pigments (chlorophyll a, b, and carotenoids). The following pigments were measured: carotenoids = 4.2 E453—(0.0264 chl.a + 0.426 chl.b), Chl. a = 10.3 E663—0.918 E644, Chl. b = 19.7 E644—3.87 E663, and E stands for absorbance at a certain wavelength (nm).

Data analysis

Soil–plant transfer of heavy metals

The following formula was used to determine the bioaccumulation factor (BF), which assesses a plant’s capacity to accumulate a particular metal in relation to soil concentration: Croot and Csoil are the corresponding heavy metal concentrations in the root and soil, respectively, and BF = Croot/Csoil. The translocation factor (TF), where Cshoot and Croot stand for the heavy metal concentrations in the plant’s shot and root, respectively, analyzes the relative translocation of metal from the plant’s root to the shoot (Ahmed et al. 2022).

Health risk assessment

The daily intake rate (DIR) of trace metals from tomato fruits was calculated using the following equation (Sharma et al. 2009): DIR = Cheavy metal × Cfactor × Dintake/BW, where Cheavy metal is the average heavy metal concentration in the edible parts (fruits) of tomato (mg kg−1); Cfactor is a factor of 0.085 was used to convert the fresh to dry weight of these green fruits (Rattan et al. 2005); Dintake is the daily intake of tomato (0.345 and 0.232 kg person−1 day−1 FW) for adults and children, respectively; and BW is the average body weight (60.0 and 32.7 kg) for adults and children, respectively. The hazard quotient (HQ) for the consumers through the consumption of contaminated tomatoes was assessed as (USEPA 2013): HQ = DIR/RfD where RfD is the reference dose of heavy metals. The values of RfD for Pb, Cd, Cr, Cu, Ni, Fe, Mn, Zn, and Co were used as 0.001 (USEPA 2013) for Pb and Cd, 1.500 (USEPA 2013) for Cr, 0.040 (WHO 2013) for Cu, 0.020 (USEPA 2010) for Ni, 0.700 (WHO 2013) for Fe, 0.014(WHO 2013) for Mn, 0.300 (WHO 2013) for Zn and 0.043 mg kg−1 BW day−1 (USEPA 2013) for Co. The values of HQ < 1 are considered no risk, but if the values are > 1, they are supposed to be a high risk of TMs with long-term health hazard effects (Singh and Kumar 2017).

Statistical analysis

The differences in the analyzed variables in the soil, water, and plant at the studied sites were examined using the paired-sample t-test. Additionally, one-way analysis of variance (ANOVA) was utilized with SPSS software (version 23) to examine the data for normality and homogeneity of variance in addition to determining the significance of heavy metal changes among various plant organs (SPSS 2006).

Results

Soil and water characters

Irrigation with untreated industrial wastewater harmed soil characteristics studied (Table 1). All investigated characters were significantly increased (P < 0.05, P < 0.01, and P < 0.001) in contaminated farm soil. The control farm had an alkaline pH (pH = 8.25), a low EC (1.98 µs cm−1) and very low concentrations of the studied heavy metals. While the contaminated farm was slightly neutral pH (pH = 6.80), salinized (EC = 6.45 µs cm−1) and contained high levels of heavy metals (e.g., Fe = 194.33, Mn = 95.13, Zn = 91.67, and Cu = 24.37 mg kg−1). Furthermore, the PLI revealed that the soil of contaminated farms contained a high concentration of heavy metals; Pb had the highest PLI value (183.3), followed by Zn (39.0) and Cr (30.4).

Table 1.

Soil characteristics (mean ± SD) and pollution load index (PLI) of tomato crops watered with untreated wastewater (contaminated farms) and Nile water (uncontaminated farms). Significant probability level: *P < 0.05, **P < 0.01, and ***P < 0.001

Soil characters Farm t-test PLI
Uncontaminated Contaminated
PH 8.25 ± 0.05 6.80 ± 0.02 18.6** –
EC (µs cm−1) 1.98 ± 0.01 6.45 ± 0.06 22.6** –
Total N (%) 2.95 ± 0.64 11.98 ± 3.25 114.3*** –
Total P (%) 4.45 ± 2.00 10.23 ± 2.27 28.6** –
K mg kg−1 25.78 ± 0.16 52.53 ± 3.44 132.4*** –
Pb 0.50 ± 0.01 91.67 ± 12.52 252.8*** 183.3
Cd 0.03 ± 0.04 0.53 ± 0.02 64.4*** 17.7
Cr 0.14 ± 0.00 4.26 ± 0.61 92.4*** 30.4
Cu 3.05 ± 0.01 24.37 ± 2.67 98.6*** 8.0
Ni 0.11 ± 0.01 2.25 ± 0.13 18.9** 20.5
Fe 13.70 ± 0.02 194.33 ± 2.08 172.3*** 14.2
Mn 25.63 ± 0.03 95.13 ± 1.10 121.5*** 3.7
Zn 2.35 ± 0.02 91.67 ± 3.79 256.6*** 39.0
Co 0.11 ± 0.01 0.74 ± 0.01 8.3* 6.7
Open in a new tab

PLI = Cp/Cn, where Cp and Cn represent the toxic heavy metal concentrations in the soil of contaminated farm and soil of uncontaminated farm (control)

Analysis of irrigation water revealed that industrial wastewater was slightly alkaline (pH = 7.92), salinized (EC = 1664.33 µs cm−1), and had high BOD and COD values (673.33 and 1848.00 mg L−1, respectively) when compared to control. Furthermore, all heavy metals studied were significantly higher (P < 0.001 and P < 0.01) (Table 2). Furthermore, all chemicals (NO3, PO4, Cl, and SO4) were significantly higher (P < 0.01), particularly sulphates (758.00 mg L−1) and Cl (411.76 mg L−1).

Table 2.

Irrigation water characteristics (mean ± SE). BOD and COD are the biological and chemical demand, respectively, TDS is total dissolved salts and Nd: not detected. t-value is provided. Significant probability level at: *P < 0.01 and **P < 0.001

Canal water variable Farm t-test
Nile water Untreated wastewater
PH 7.59 ± 0.04 7.92 ± 0.23 8.9*
BOD mg l−1 2.81 ± 0.04 673.33 ± 6.66 143.3**
COD 5.44 ± 0.07 1848.00 ± 6.24 97.8**
TDS 19.21 ± 0.30 1664.33 ± 5.51 65.7**
NO3 0.22 ± 0.03 3.14 ± 0.05 10.6*
PO4 0.09 ± 0.00 4.58 ± 0.03 2.3*
Cl 3.21 ± 0.03 411.67 ± 3.51 77.8*
SO4 3.96 ± 0.12 758.00 ± 2.65 53.7*
Pb Nd 0.49 ± 0.04 183.3**
Cd Nd 0.69 ± 0.03 17.7**
Cr Nd 0.12 ± 0.01 30.4**
Cu Nd 2.43 ± 0.09 8.0**
Ni Nd 0.55 ± 0.01 20.5*
Fe 0.01 ± 0.00 2.41 ± 0.06 14.2**
Mn 0.04 ± 0.004 0.66 ± 0.04 3.7**
Zn Nd 2.01 ± 0.09 39.0**
Co Nd 0.09 ± 0.00 6.7*
Open in a new tab

Growth parameters

Plants watered with wastewater had a significant decrease (at P < 0.05, P < 0.01, and P < 0.001) in all studied growth parameters except the number of individuals, which remained constant (Table 3, Fig. 2). When compared to the control, stem length was reduced by 51.4%, root length by 46.3%, the number of leaves per individual by 51.6%, leaves fresh and dry weight by 57 and 53.4%, respectively, and stem fresh and dry weight by 55.2 and 53.2%, respectively. Furthermore, fresh and dry biomass was reduced by 55.2 and 53.1%, respectively, while productivity was reduced by 65.9%.

Table 3.

Growth measurements (mean ± SD) of tomato plant (N = 60) watered with untreated wastewater (contaminated farms) and Nile water (uncontaminated farms). *P < 0.05, **P < 0.01, and ***P < 0.001

Plant parameter Farm t-test
Uncontaminated Contaminated
Number of individuals m−2 1.00 ± 0.00 1.00 ± 0.00 0
Stem length (cm) 12.00 ± 1.0 5.83 ± 0.35 7.91*
Root length (cm) 13.33 ± 1.15 6.17 ± 0.25 13.36**
Number of leaves individual−1 73.00 ± 3.61 35.33 ± 3.51 16.14**
Leaves fresh weight (g m−2) 496.00 ± 18.33 213.33 ± 23.44 40.06***
Leaves dry weight (g m−2) 116.00 ± 8.0 54.00 ± 2.80 20.65**
Stem fresh weight (g m−2) 2792.00 ± 226.24 1249.33 ± 144.30 8.53*
Stem dry weight (g m−2) 545.47 ± 21.30 255.20 ± 37.19 9.94**
Open in a new tab

Fig. 2.

Fig. 2

Open in a new tab

Fresh and dry biomass and production of tomato crop watered with untreated wastewater (contaminated farm) and Nile water (uncontaminated farm). Vertical bars are standard deviations. **p < 0.01

Tomato plant analyses

Photosynthetic pigments

Photosynthetic pigments (chlorophyll a and b) in tomato leaves decline significantly (P 0.01) when the plants are watered with wastewater. Carotenoids had a non-significant decrement when compared to controls (Fig. 3). Carotenoids declined by 17.9%, while chlorophyll a and b decreased by 43.5 and 55.2%, respectively.

Fig. 3.

Fig. 3

Open in a new tab

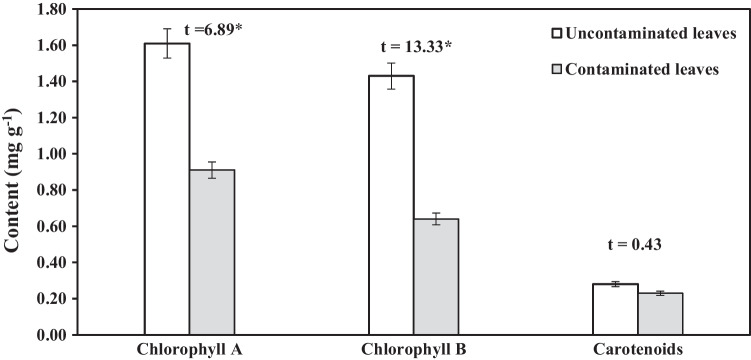

Photosynthetic pigments content of tomato leaves watered with untreated wastewater (contaminated farm) and Nile water (uncontaminated farm). Vertical bars are standard deviation. * p < 0.01

Nutrients and heavy metals

In shoot, the percentages of carbohydrates and proteins decrease from 18.95% and 14.96%, respectively, to 15.92% and 10% (Table 4). Furthermore, the percentages of N, P, and K in tomato shoots irrigated with wastewater decreased by 33.1%, 54.9%, and 18.8%, respectively (contaminated farms). While in roots, the percentages of carbohydrates and proteins decreased from 16.91% and 12.81%, respectively, to 14.3% and 7.35%, and N, P, and K decreased by 42.4%, 58.8%, and 61.6%, respectively. However, due to wastewater watering, the concentrations of all TMs studied (Pb, Cd, Cr, Cu, Ni, Fe, Mn, Zn, and Co) increased in the shoots, roots, and fruits (edible part) of tomatoes grown in contaminated farms (Tables 4 and 5). The difference percentage of accumulated TMs in tomato fruit (edible part) was Fe (98.9%), followed by Pb (93.8%), Mn (93.7%), and Zn (91.3%) (see Table 5).

Table 4.

Nutrients and Heavy metals concentrations (mean ± SD) in the shoot and roots of tomato watered with untreated wastewater (contaminated farms) and Nile water (uncontaminated farms)

Nutrients Uncontaminated farms Contaminated farms
Shoot Root Shoot Root
Organic (%)
  Carbohydrates 18.95 ± 0.60a 16.91 ± 3.14ab 15.92 ± 1.45ab 14.30 ± 0.81b
  Proteins 14.96 ± 1.62a 12.81 ± 0.45b 10.00 ± 0.57c 7.35 ± 1.14d
Inorganic
  Total N (%) 2.39 ± 0.26a 2.05 ± 0.07b 1.60 ± 0.09c 1.18 ± 0.18d
  Total P (%) 2.57 ± 0.21a 1.70 ± 0.20b 1.16 ± 0.05c 0.70 ± 0.15d
  K (mg kg−1) 25.50 ± 0.74a 21.53 ± 1.07b 20.71 ± 0.17b 8.26 ± 0.18c
Heavy metals (mg kg−1)
  Pb 41.67 ± 3.82d 69.17 ± 3.82c 420.00 ± 10a 270.00 ± 13.23b
  Cd 52.50 ± 15.21c 41.67 ± 3.82c 91.67 ± 7.64b 130.00 ± 21.79a
  Cr 0.27 ± 0.01c 0.28 ± 0.03c 3.92 ± 0.15b 4.42 ± 0.23a
  Cu 0.29 ± 0.01c 0.31 ± 0.01c 4.42 ± 0.08b 4.90 ± 0.05a
  Ni 1.08 ± 0.14b 0.75 ± 0.25b 3.67 ± 0.29a 3.68 ± 0.29a
  Fe 668.33 ± 9.46d 4008.33 ± 38.19c 5700.00 ± 56.35b 7375.00 ± 90.14a
  Mn 29.17 ± 3.82c 66.67 ± 6.29b 295.00 ± 10.0a 296.67 ± 16.07a
  Zn 11.67 ± 3.82c 42.50 ± 6.61b 53.33 ± 7.64b 74.00 ± 11.53a
  Co 0.42 ± 0.14d 0.83 ± 0.14c 4.08 ± 0.13b 4.47 ± 0.08a
Open in a new tab

Means with the same letters in a row are not significant according to Duncan’s multiple range tests

Table 5.

Heavy metals concentrations (mean ± SD) in the edible fruits of tomato watered with untreated wastewater (contaminated farms) and Nile water (uncontaminated farms)

Heavy metal (mg kg−1) Farm t-test Difference (%)
Uncontaminated Contaminated
Pb 22.25 ± 3.25 360.67 ± 40.37 56.99*** 93.8
Cd 25.83 ± 3.44 99.83 ± 5.51 30.00*** 74.1
Cr 0.29 ± 0.02 0.76 ± 0.02 52.92*** 61.3
Cu 0.26 ± 0.01 0.63 ± 0.03 22.00** 58.7
Ni 0.61 ± 0.01 1.63 ± 0.06 43.86*** 62.7
Fe 56.58 ± 6.74 5000.11 ± 242.10 878.37*** 98.9
Mn 22.5 ± 2.50 356.33 ± 31.26 378.53*** 93.7
Zn 5.17 ± 0.38 59.67 ± 4.16 22.69** 91.3
Co 0.98 ± 0.12 2.42 ± 0.12 20.81** 59.4
Open in a new tab

Soil–plant transfer of heavy metals

According to the findings in Table 6, tomato plants accumulate the majority of the TMs studied in their roots (BF values greater than one); Cd was the most accumulated metal (BF = 815), followed by Fe (BF = 165.26) and Pb (BF = 70.64). Tomato plants, on the other hand, accumulate only Pb (TF = 1.08) and Ni (TF = 1.27) in their shoots (TF values greater than 0ne), with little or no strategy for accumulating heavy metals in their fruits (edible part).

Table 6.

Bioaccumulation (BF) and translocation (TF) factors of heavy metals in tomato plants watered with untreated wastewater (contaminated farms). Values > 1 are in bold

Heavy metal BF TF
Shoot Fruit
Pb 70.64 1.08 0.83
Cd 815.97 0.98 0.69
Cr 1.52 0.94 0.61
Cu 0.15 0.95 0.48
Ni 4.00 1.27 0.66
Fe 165.26 0.47 0.35
Mn 2.86 0.72 0.77
Zn 9.45 0.50 0.46
Co 6.79 0.71 0.86
Open in a new tab

DIR of metals and HQ

The present investigation showed that the DIR increased due to the consumption of wastewater irrigated crops grown in contaminated soil (Table 7). The DIR for the toxic heavy metals studied shows that the DIM for Pb (2.0738 and 2.5589), Fe (28.75 and 35.474), and Mn (2.0489 and 2.5281) are higher in adults and children who consume tomatoes grown in contaminated soil due to untreated wastewater irrigation, respectively.

Table 7.

Daily intake rate (DIR) and hazard quotient (HQ) of heavy metals in tomato fruits watered with untreated wastewater (contaminated farms) and Nile water (uncontaminated farms). A: adult, C: children, and RfD: reference dose of trace metals. Values > 1 are in bold

Heavy metal Contaminated farms Uncontaminated farms RfD References
DIR (mg day−1) HQ DIR (mg day−1) HQ
A C A C A C A C
Pb 2.0738 2.5589 2073.8333 2558.8583 0.6525 0.4388 652.4813 438.7700 0.0010 (US-EPA 2013)
Cd 0.5740 0.7083 574.0417 708.2977 0.7576 0.5094 757.5625 509.4333 0.0010 (US-EPA 2013)
Cr 0.0044 0.0054 0.0029 0.0036 0.0086 0.0058 0.0057 0.0038 1.5000 (US-EPA 2013)
Cu 0.0036 0.0044 0.0898 0.1109 0.0076 0.0051 0.1894 0.1274 0.0400 (FAO/WHO 2013)
Ni 0.0094 0.0116 0.4696 0.5794 0.0179 0.0120 0.8932 0.6006 0.0200 (US-EPA 2010)
Fe 28.7500 35.4740 41.0714 50.6772 1.6593 1.1158 2.3704 1.5940 0.7000 (FAO/WHO 2013)
Mn 2.0489 2.5281 146.3512 180.5796 0.6598 0.4437 47.1295 31.6929 0.0140 (FAO/WHO 2013)
Zn 0.3431 0.4233 1.1436 1.4111 0.1515 0.1019 0.5050 0.3396 0.3000 (FAO/WHO 2013)
Co 0.0139 0.0171 0.3232 0.3987 0.0288 0.0194 0.6695 0.4502 0.0430 (US-EPA 2013)
Open in a new tab

For many studied TMs (Pb, Cd, Fe, Mn, and Zn), the HQ for consumers (adults and children) through the consumption of contaminated tomatoes causes a high risk in the long term (as HQ values more than one) (Table 7). For adults and children, the HQ values are 2073.8 and 2558.9 for Pb, 574.0 and 708.3 for Cd, 41.1 and 50.7 for Fe, 146.4 and 180.6 for Mn, and 1.1 and 1.4 for Zn.

Discussion

Soil and water characters

It is only possible to prevent heavy metal accumulation in crops’ edible components, such as fruits, by using untreated wastewater for irrigation. The physical and chemical properties of the soil are one factor that affects the uptake of heavy metals by vegetation, which is a complex phenomenon (Galal et al. 2021). When a farm was watered with untreated industrial wastewater, the soil’s pH declined while its salinity (EC) rose, indicating that the soil became more saline (EC = 6.45 S cm−1) and somewhat acidic (6.8). Low pH and high salinity increase the availability, mobility, and redistribution of heavy metals in different soil fractions (Ahmed et al. 2022). The current study found that irrigation with wastewater increased the levels of nutrients and heavy metals. According to Slima and Ahmed (2020), the increase in nutrient concentrations in polluted soil may be the result of absorption competition with accessible heavy metals, which became more mobile and available as salinity rose (Nzediegwu et al. 2020). High levels of Pb (PLI = 183.3) saturated the polluted soil. Pb was overloaded in soil because it was a relatively immobile heavy metal compared to others that were more mobile (Cu, Cd, and Co) (Ahmed and Slima 2018).

Additionally, the untreated wastewater utilised for irrigation had significantly high BOD (673.33 mg L−1) and COD (1848.00 mg L−1) values in comparison to the control, according to the current study. As a result, there is a rise in BOD and COD due to the high concentration of contaminants in the river, particularly organic matter. As a result, the water was no longer fit for drinking, irrigation, or other purposes. Additionally, untreated wastewater has high TM concentrations, which contaminates the soil and, as a result, the crops grown in areas that use it for irrigation (Gatta et al. 2015). Galal and Shehata (2015), Farahat et al. (2017), Slima and Ahmed (2020), and Ahmed et al. (2022) reported the same results.

Growth parameters

Similar harmful effects of heavy metals on plants, both necessary and non-essential, include growth inhibition, low biomass output, photosynthesis, and nutrient assimilation, all of which result in plant death (Singh et al. 2016). With the exception of population, which stayed steady, all growth metrics of tomatoes watered with untreated wastewater in the current study were decreased. This result is in line with those of Mami et al. (2011), who found that tomato plants watered with water having a high concentration of trace metals, particularly Fe, Pb, and Cu, experienced a decline in growth metrics. Marwari and Khan (2012) reported that root and shoot length, root and shoot dry weight, and total dry weight were reduced to 50.55, 52.06, 69.93, 72.42, and 72.10%, respectively, in tomato plants irrigated with textile wastewater. According to Asati et al. (2016), heavy metal-contaminated soil caused rice plants to grow much shorter and produce fewer tillers and panicles. In addition to the Cd pollution in the soil (Cd as low as 5 mg/L), which inhibits the growth of wheat plants’ shoots and roots.

Tomato plant analyses

Photosynthetic pigments

The amount of photosynthetic pigments significantly decreased when untreated wastewater was used for irrigation. Marwari and Khan (2012) found that chlorophyll content was severely affected by the increase in heavy metal concentration and the total chlorophyll content showed a reduction of 72.44% in tomato plants irrigated with textile wastewater. Heavy metals’ impact on CO2 assimilation, either by reducing the activity of the carboxylase enzyme or by reducing the ATP and reductant pool, maybe the cause of the decline in photosynthetic pigments (Singh et al. 2016). The same finding was made in Pisum sativum, Abelmoschus esculentus, and Japanese mustard spinach (Galal et al. 2021; Ahmed et al. 2022). (Abul Kashem and Kawai 2007). Mn, Cd, Cu, Ni, and Zn decrease the chlorophyll content (Maleva et al. 2012). Additionally, Dong et al. (2005) found that Cd stress had a detrimental effect on the rate of photosynthetic activity.

Nutrients and heavy metals

The concentration of N, P, and K in various plant organs significantly decreased when untreated wastewater was used to irrigate tomato plants (root and shoot). Begum et al. (2011) reported that a significant quantity of Pb metal was found in rice plant irrigation water as a result of water contamination from textile effluents, which resulted in a decrease in plant nutrients. Pb metal has the greatest percentage of any metal in the plant shoot in the current investigation (420 mg/kg). According to Osawa and Tajuke (1990), Cu had an adverse influence on N and decreased its content. In the current study, it was shown that tomato plants irrigated with untreated wastewater had lower levels of photosynthetic pigments, which in turn resulted in lower levels of carbs and proteins. This result corroborated those of Galal (2016) on Cucurbita pepo, Ahmed and Slima (2018) on Corchorus olitorius, Slima and Ahmed (2020) on Pisum sativum, and Ahmed et al. (2022) on Abelmoschus esculentus. According to Palma et al. (2002), under stress, the protease enzyme’s activity rises, leading to increased protein degradation and, eventually, a decrease in the amount of protein in plant tissues. Marwari and Khan (2012) reported that carbohydrate, protein and nitrogen content had a reduction of 46.83, 71.65, and 71.65% respectively in tomato plants irrigated with textile wastewater.

The concentration of the investigated heavy metals significantly increased when untreated wastewater was used to water plants (Table 4). With the exception of lead (420 mg/kg), all heavy metals investigated for uptake and distribution are detected in higher amounts in the tomato plant's root than in its shoot. This diminishing pattern in plant parts from the root to the shoot, with the exception of Pb, points to inadequate translocation of the examined heavy metals. The wastewater-irrigated fruit has a higher concentration of all tested heavy metals than the control (Table 5) and the highest concentration of heavy metals in contaminated tomato fruit is Fe with 98.9% difference from the uncontaminated one. Salem et al. (2016) found that Fe accumulated in all tomato parts including fruit. And With regard to tomato, peanut, and a number of plant species, the current study concurred with (Frederick and Ching 2014), (Ching, 2008), and (Peng et al. 2005). All of these data lend credence to the concept that some plant species' roots can gather metal contaminants and keep them from getting to the aerial sections of the plant. A similar finding was made on the okra plant by Ahmed et al. in 2022, suggesting that it is a hyperaccumulator for all heavy metals investigated. This outcome might be explained by the ability of certain ions to pass through physiological barriers such as the endodermis in tissues and the plasmalemma in cells (Seregin et al. 2003) or compartmentalization in cell vacuoles (Cheng 2008). While Gupta et al. (2008) found that although tomato plants show some phenotypic changes, the survival of tomato plants as well as least accumulation of metals in fruit reveals their tolerance to heavy metals and also it may be suggested that this plant can be grown successfully in the heavy metal contaminated soil.

Soil–plant transfer of heavy metals

Calculating BF and TF, all of which rely on the type of plant, confirms the mobility of trace metals from soil to plant root and subsequently from root to shoot (Eltaher et al. 2019). The plant can store the metal in its root when the BF value is higher than one, but it can translocate and store it in its shoot when the TF value is higher than one (Ahmed et al. 2022). The results in Table 6 show that tomato plants store the majority of the examined heavy metals in their roots (BF values greater than one). In contrast, Gupta et al. (2008) reported that the transfer factor of heavy metals from soil to tomato plants shows average value of less than 1, suggesting less uptake of heavy metals from soil. TF values greater than one, however, only Pb (TF = 1.08) and Ni (TF = 1.27) are translocated to their shoots, and these processes are either ineffective or nonexistent. Nitu et al. (2019) reported that there is a tendency to increase the final heavy metal content noticed in the tomato fruit and a decrease in the transfer coefficient of heavy metal in the fruit at the end of the vegetation period, and despite the high concentration of Zn, Cu, and Pb in tomato fruits, they still show a low risk for human consumption; due to the weak bioaccumulation transfer factors of heavy metals from soil. Murtć et al. (2018) show that the low accumulation of heavy metals in tomato fruits is the result of a synergy of different plant defense mechanisms that limit or reduce heavy metal transport from root to fruits.

DIR of metals and HQ

Numerous potential routes for human exposure to pollutants must be investigated in order to determine their hazard quotient (health risk), with the food chain being the most significant (Galal 2016). The DIR for the analyzed hazardous heavy metals (Pb, Fe, and Mn) in the reference plant and contaminated plants exceeded 1 in both adults and children. Since tomato plants were grown in polluted soil due to untreated wastewater irrigation rather than controlled soils, the tested metals (apart from Pb, Fe, and Mn) posed essentially no risk to both adults and children who consumed them (WHO 1996). Additionally, according to Horiguchi et al. (2006), some of the ingested toxic heavy metals are expelled, while the remaining are stored in body tissues that have an impact on human health, so the eaten dose of toxic heavy metals is not equivalent to the absorbed pollutant dose in reality. The HQ is frequently employed to evaluate the risk of harmful substances in foods (Asgari and Cornelis 2015). The FAO/WHO (2013) and US-EPA (2013) both deem HQ values larger than one to be hazardous to human health. In the current study, the HQ for consumers (adults and children) from eating contaminated tomatoes offers a high risk in the long term (as HQ values surpass one) to local Egyptians for many of the heavy metals evaluated (Pb, Cd, Fe, Mn, and Zn) (Table 7). Due to the synergistic effects of metal combinations like Cd and Zn, there may be a risk (Symeonidis and Karataglis 1992). Furthermore, Pb and Cu work together, while Zn counteracts the toxicity of other metals like Cd, Ni, Mn, and Co, according to Chu and Chow (2002).

Conclusion

The biomass and productivity of tomato plants growing in soil irrigated with untreated industrial wastewater are greatly reduced. Also, irrigation with wastewater reduced the amount of photosynthetic pigments in tomato leaves. The majority of the investigated heavy metals are deposited in the roots (BF > 1) of tomato plants and Cd was the most accumulated metal, followed by Fe and Pb (BF = 815.97, 165.26 and 70.64, respectively). It is worth to note that the edible parts (fruits) did not accumulate heavy metals except Pb and Ni with TF > 1. The investigated metals (except Pb, Fe, and Mn) offered little risk to both adults and children. However, Pb, Cd, Fe, and Mn in the polluted and Pb, Cd, Fe, Mn, and Zn in the unpolluted plants had HQ values greater than 1. Therefore, customers will be at danger for health concerns because local inhabitants consume a lot of tomatoes. Growing tomatos as a cash crop in contaminated soil for consumption by the public is not recommended due to the great danger they offer to human health.

Author contribution

Dalia Abd El-Azeem Ahmed and Tarek M. Galal: conception and design, acquisition, analysis, statistic analysis and interpretation of results, also drafting the article and revising it. They approved the final version to be submitted for publication. Dalia Fahmy Slima: design, acquisition, analysis, statistic analysis and interpretation of results, also drafting the article and revising it. She approved the final version to be submitted for publication. Hatim M. Al-Yasi and Loutfy M. Hassan: drafting the article and revising it. They approved the final version to be submitted for publication.

Funding

Open access funding provided by The Science, Technology & Innovation Funding Authority (STDF) in cooperation with The Egyptian Knowledge Bank (EKB).

Data availability

Please contact the authors for data requests.

Declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Conflict of interest

All of the authors confirm that there are no conflicts of interest.

Footnotes

Publisher's note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

References

  1. AbulKashem MDA, Kawai S. Alleviation of cadmium phytotoxicity by magnesium in Japanese mustard spinach. Soil Sci Plant Nutr. 2007;53:246–251. doi: 10.1111/j.1747-0765.2007.00129.x. [DOI] [Google Scholar]
  2. Adekunle IM, Olorundare O, Nwange C. Assessments of lead levels and daily intakes from green leafy vegetables of southwest Nigeria. Nutr Food Sci. 2009;39:413–422. doi: 10.1108/00346650910976284. [DOI] [Google Scholar]
  3. Ahmed DA, Slima DF (2018) Heavy metal accumulation by Corchorus olitorius L. irrigated with wastewater. Environ Sci Pollut Res 25:14996–15005. 10.1007/s11356-018-1675-1 [DOI] [PubMed]
  4. Ahmed DA, Galal T, Al-Yasi HM, Hassan L, Slima DF. Accumulation and translocation of eight trace metals by the different tissues of Abelmoschus esculentus Moench. irrigated with untreated wastewater. Environ Sci Pollut Res. 2022;29:21221–21231. doi: 10.1007/s11356-021-17315-7. [DOI] [PubMed] [Google Scholar]
  5. Allen SE. Chemical analysis of ecological materials. London: Blackwell Scientific Publications; 1989. [Google Scholar]
  6. Allen SE, Grimshaw HM, Parkinson JA, Quarmby C, Roberts JD. In: Methods in plant ecology. 2. Moore PD, Chapman SB, editors. Oxford: Blackwell; 1986. pp. 411–466. [Google Scholar]
  7. APHA . Standard methods for the examination of water and wastewater. Washington DC: American Public Health Association; 1999. [Google Scholar]
  8. Asati A, Pichhode M, Nikhil k, Effect of heavy metals on plants: an overview. Int J Appl Innov Eng Manage (IJAIEM) 2016;5(3):56–66. [Google Scholar]
  9. Asgari K, Cornelis WM. Heavy metal accumulation in soils and grains, and health risks associated with use of treated municipal wastewater in subsurface drip irrigation. Environ Monit Assess. 2015;187(7):410. doi: 10.1007/s10661-015-4565-8. [DOI] [PubMed] [Google Scholar]
  10. Begum RA, Zaman MW, Mondol ATMAI., Islam MS, Hossain KMF (2011) Effects of Textile Industrial Waste Water and Uptake of Nutrients on the Yelid of Rice. Bangladesh J Agril Res 36(2):319–331. 10.3329/bjar.v36i2.9260
  11. Brower JE, Zar JH. Field and laboratory methods for general ecology. WmC: Brown Publishers Dubugue, Low; 1984. p. 226. [Google Scholar]
  12. Chen T, Chang Q, Liu J, Clevers JGPW, Kooistra L. Identification of soil heavy metal sources and improvement in spatial mapping based on soil spectral information: a case study in Northwest China. Sci Total Environ. 2016;565:155–164. doi: 10.1016/j.scitotenv.2016.04.163. [DOI] [PubMed] [Google Scholar]
  13. Ching JA (2008) Phytoremediation and Biomarker Potentials of Arachis hypogaea L.(Peanut) to Heavy Metals in Soils (Doctoral dissertation, UST Graduate School). Chicago
  14. Cherfi A, Abdoun S, Gaci O. Food survey: levels and potential health risks of chromium, lead, zinc and copper content in fruits and vegetables consumed in Algeria. Food Chem Toxicol. 2014;70:48–53. doi: 10.1016/j.fct.2014.04.044. [DOI] [PubMed] [Google Scholar]
  15. Chu KW, Chow KL. Synergistic toxicity of multiple heavy metals is revealed by a biological assay using a nematode and its transgenic derivative. Aquat Toxicol. 2002;61:53–64. doi: 10.1016/S0166-445X(02)00017-6. [DOI] [PubMed] [Google Scholar]
  16. Delzer GC, McKenzie SW (2003) Five-day biochemical oxygen demand: U.S. geological survey techniques of water resources investigations. Book 9, chap A7.0. 10.3133/twri09A7.0
  17. Dong J, Wu FB, Zhang GP. Effect of cadmium on growth and photosynthesis of tomato seedlings. J Zhejianguniv Sci B. 2005;6:974–980. doi: 10.1631/jzus.2005.B0974. [DOI] [PMC free article] [PubMed] [Google Scholar]
  18. Eltaher GT, Ahmed DA, El-Beheiry M, Sharaf El-Din A (2019) Biomass estimation and heavy metal accumulation by Pluchea dioscoridis (L.) DC. in the Middle Nile Delta, (Egypt): Perspectives for phytoremediation South Africa. J Bot 127:153–166. 10.1016/j.sajb.2019.08.053
  19. FAO/WHO (Food and Agriculture Organization of the United Nations, World Health Organization) Expert Committee on Food Additives: evaluation of certain food additives and contaminants: seventy-seventh report of the joint FAO/WHO expert committee on food additives. Geneva Switzerland: World Health Organization; 2013. [Google Scholar]
  20. FAO (Food and Agriculture Organization of the United Nations) (2021) Crop prospects and food situation- Quarterly global report No. 4. Rome pp 46. 10.4060/cb7877en
  21. Farahat E, Galal TM, Elawa O, Hassan L. Health risk assessment and growth characteristics of 1 wheat and maize crops irrigated with contaminated wastewater. Environ Monit Assess. 2017;189(11):535–545. doi: 10.1007/s10661-017-6259-x. [DOI] [PubMed] [Google Scholar]
  22. Fawad A, Hidayat U, Ikhtiar K. Heavy metals accumulation in vegetables irrigated with industrial influents and possible impact of such vegetables on human health. Sarhad J Agric. 2017;33(3):489–500. doi: 10.17582/journal.sja/2017/33.3.489.500. [DOI] [Google Scholar]
  23. Frederick A, Ching JA (2014) Phytoremediation potential of Tomato (Lycopersicon esculentum Mill) in artificially contaminated soils. Presented at the DLSU Research Congress. De La Salle University, Manila, Philippines
  24. Galal TM. Health hazards and heavy metals accumulation by summer squash (Cucurbita pepo L.) cultivated in contaminated soils. Environ Monit Assess. 2016;188:434–446. doi: 10.1007/s10661-016-5448-3. [DOI] [PubMed] [Google Scholar]
  25. Galal TM, Shehata HS. Impact of nutrients and heavy metals capture by weeds on the growth and production of rice (Oryza sativa L.) irrigated with different water sources. Ecol Indic. 2015;54:108–115. doi: 10.1016/j.ecolind.2015.02.024. [DOI] [Google Scholar]
  26. Galal TM, Hassan LM, Ahmed DA, Alamri SAM, Alrumman SA, Eid EM. Heavy metals uptake by the global economic crop (Pisumsativum L.) grown in contaminated soils and its associated health risks. PLOS One. 2021;16(6):1–15. doi: 10.1371/journal.pone.0252229. [DOI] [PMC free article] [PubMed] [Google Scholar]
  27. Gatta G, Libutti A, Gagliardi A, Beneduce L, Brusetti L, Borruso L, Disciglio G, Tarantino E. Treated agro-industrial wastewater irrigation of tomato crop: effects on qualitative/quantitative characteristic of production and microbiological properties of the soil. Agric Water Manag. 2015;149:33–43. doi: 10.1016/j.agwat.2014.10.016. [DOI] [Google Scholar]
  28. Gupta S, Nayek S, Saha RN, Satpati S. Assessment of heavy metal accumulation in macrophyte, agricultural soil, and crop plants adjacent to discharge zone of sponge iron factory. Environ Geol. 2008;55:731–739. doi: 10.1007/s00254-007-1025-y. [DOI] [Google Scholar]
  29. Horiguchi G, Fujikura U, Ferjani A, Ishikawa N, Tsukaya H (2006) Large-scale histological analysis of leaf mutants using two simple leaf observation methods: identification of novel genetic pathways governing the size and shape of leaves. Plant J 48:638–644 [DOI] [PubMed]
  30. Huang Z, Pan X-D, Wu P-G, Han J-L, Chen Q. Heavy metals in vegetables and the health risk to population in Zhejiang China. Food Control. 2014;36:248–252. doi: 10.1016/j.foodcont.2013.08.036. [DOI] [Google Scholar]
  31. Jarup L. Hazards of heavy metal contamination. Br Med Bull. 2003;68:167–182. doi: 10.1093/bmb/ldg032. [DOI] [PubMed] [Google Scholar]
  32. Jolly YN, Islam A, Akbar S. Transfer of metals from soil to vegetables and possible health risk assessment. Springerplus. 2013;2:385–391. doi: 10.1186/2193-1801-2-385. [DOI] [PMC free article] [PubMed] [Google Scholar]
  33. Khan S, Reid BJ, Li G, Zhu YG. Application of biochar to soil reduces cancer risk via rice consumption: a case study in Miaoqian village Longyan. China Environ Int. 2014;68:154–161. doi: 10.1016/j.envint.2014.03.017. [DOI] [PubMed] [Google Scholar]
  34. Kumar V, Sharma A, Kaur P, Sidhu GPS, Bali AS, Bhardwaj R, Thukral AK, Cerda A. Pollution assessment of heavy metals in soils of India and ecological risk assessment: a state-of-the-art. Chemosphere. 2019;216:449–462. doi: 10.1016/j.chemosphere.2018.10.066. [DOI] [PubMed] [Google Scholar]
  35. Lian Z, Zhao X, Gu X, Li X, Luan M, Yu M. Presence, sources, and risk assessment of heavy metals in the upland soils of northern China using Monte Carlo simulation. Ecotoxicol Environ Saf. 2022;230:113154. doi: 10.1016/j.ecoenv.2021.113154. [DOI] [PubMed] [Google Scholar]
  36. Liu Z, Fei Y, Shi H, Li Mo, Qi J. Prediction of high-risk areas of soil heavy metal pollution with multiple factors on a large scale in industrial agglomeration areas. Sci Total Environ. 2022;808:151874. doi: 10.1016/j.scitotenv.2021.151874. [DOI] [PubMed] [Google Scholar]
  37. Lowry OH, Rosen BJ, Fan AC, Randel RJ. Protein measurement with Folin phenol reagent. J Biol Chem. 1951;193:225–275. doi: 10.1016/S0021-9258(19)52451-6. [DOI] [PubMed] [Google Scholar]
  38. Lu RK (2000) Methods of inorganic pollutants analysis. In: soil and agrochemical analysis methods. Agricultural Science and Technology Press. Beijing
  39. Mahalakshmi M, Balakrishnan S, Indira K, Srinivasan M. Characteristic levels of heavy metals in canned tuna fish. J Toxicol Environ Heal Sci. 2012;4(2):43–45. doi: 10.5897/JTEHS11.079. [DOI] [Google Scholar]
  40. Maleki A, Zaras MA. Heavy metals in selected edible vegetables and estimation of their daily intake in Sanandaj Iran. Southeast Asian j Trop Med Public Health. 2008;39(2):335–340. [PubMed] [Google Scholar]
  41. Maleva MG, Nekrasova GF, Borisova GG, Chukina NV, Ushakova OS. Effect of heavy metal on photosynthetic apparatus and antioxidant status of elodea. Russ J Plant Physiol. 2012;59:190–197. doi: 10.1134/S1021443712020069. [DOI] [Google Scholar]
  42. Mami Y, Ahmadi G, Shahmoradi M, Ghorbani RH. Influence of different concentration of heavy metals on the seed germination and growth of tomato. African J Environ Sci Technol. 2011;5(6):420–426. doi: 10.5897/AJEST10.260. [DOI] [Google Scholar]
  43. Marwari R, Khan TI. Effect of textile wastewater on tomato plant, Lycopersicon esculentum. J Environ Biol. 2012;33:849–854. [PubMed] [Google Scholar]
  44. Metzner H, Rauand H, Senger H. Unter suchungen zur synchronisier barteit einzelner pigmentan angel mutanten von chlorella. Planta. 1965;65:186–194. doi: 10.1007/BF00384998. [DOI] [Google Scholar]
  45. Mitra S, Chakraborty AJ, Tareq A, Bin Emran T, Nainu F, Khusro A, Idris AM, Uddin M, Osman H, Alhumaydhi FA, Simal-gandara J. Science impact of heavy metals on the environment and human health : novel therapeutic insights to counter the toxicity. J King Saud Univ - Sci. 2022;34(3):101865. doi: 10.1016/j.jksus.2022.101865. [DOI] [Google Scholar]
  46. Murtć S, Zahirović Ć, Čivic H, Karić L, Furković J (2018) Uptake of heavy metals by tomato plants (Lycopersicum esculentum Mill.) and their distribution inside the plant. Agric For 64(4):251–261. 10.17707/AgricultForest.64.4.25
  47. Nitu M, Pruteanu A, Bordean DM, Popescu C, Deak G, Boboc M, Mustăţea G. Reserches on the accumulation and transfer of heavy metals in the soil in tomatoes- Solanum lycopersicum. E3S Web of Conferences. 2019;112:03020. doi: 10.1051/e3sconf/201911203020. [DOI] [Google Scholar]
  48. Nzediegwu C, Prasher S, Elsayed E, Dhiman J, Mawof A, Patel R. Impact of soil biochar incorporation on the uptake of heavy metals present in wastewater by spinach plants. Water Air Soil Pollut. 2020;231:123. doi: 10.1007/s11270-020-04512-2. [DOI] [Google Scholar]
  49. Osawa T, Tajuke A (1990) The effect of form of nitrogen supplied and pH level of the nutrient solution on copper toxicities in vegetative crops. J Jpn Soc Hort Sci 59(3):519–525
  50. Palma JM, Sandalio LM, Corpas FJ, Romero-Puertas MC, Mccarthz I, Del Rio LA (2002) Plant proteases, protein degradation, and oxidative stress: role of peroxisomes. Plant Physiol Biochem 40:521–526
  51. Peng HY, Yang XE, Jiang LY (2005) Copper phytoavailability and uptake by Elsholtzi asplendens from contaminated soil as affected by soil amendments. J Environ Sci Health 40:839–856. 10.1081/ESE-200048283 [DOI] [PubMed]
  52. Piper CS. Soil and plant analysis. New York: Interscience Publishers Inc; 1947. [Google Scholar]
  53. Pitwell LR. Standard COD. Chem Brit. 1983;19:907. [Google Scholar]
  54. Rattan R, Datta S, Chhonkar P, Suribabu K, Singh A. Long-term impact of irrigation with sewage effluents on heavy metal content in soils, crops and groundwater: a case study. Agr Ecosys Environ. 2005;109:310–322. doi: 10.1016/j.agee.2005.02.025. [DOI] [Google Scholar]
  55. Roba C, Roşu C, Piştea I, Al O, Baciu C. Heavy metal content in vegetables and fruits cultivated in Baia Mare mining area (Romania) and health risk assessment. Environ Sci Pollut. 2016;23(7):6062–6073. doi: 10.1007/s11356-015-4799-6. [DOI] [PubMed] [Google Scholar]
  56. Salem NM, Albanna SL, Awwad AM. Toxic heavy metals accumulation in Tomato plant (Solanum lycopersicum) J Agric Biol Sci. 2016;11(10):399–404. [Google Scholar]
  57. Seregin IV, Kozhevnikova AD, Kazyumina EM Ivanov VB (2003) Nickel Toxicity and Distribution in Maize Roots. Russian Journal of Plant Physiology 50:711–717. 10.1023/A:1025660712475
  58. Sharma RK, Agrawal M, Marshall FM. Heavy metals in vegetables collected from production and market sites of a tropical urban area of India. Food Chem Toxicol. 2009;47:583–591. doi: 10.1016/j.fct.2008.12.016. [DOI] [PubMed] [Google Scholar]
  59. Slima DF, Ahmed DA. Trace metals accumulated in pea plant (Pisum sativum L.) as a result of irrigation with wastewater. J Soil Sci Plant Nutr. 2020;20:2749–2760. doi: 10.1007/s42729-020-00341-8. [DOI] [Google Scholar]
  60. SPSS (2006) SPSS base 15.0 Users guide. SPSS inc., Chicago, USA
  61. Siddiqui MF. Cadmium induced renal toxicity in male rats. J Med. 2010;15:93–96. [Google Scholar]
  62. Singh UK, Kumar B. Pathways of heavy metals contamination and associated human health risk in Ajay River basin, India. Chemosphere. 2017;174:183–199. doi: 10.1016/j.chemosphere.2017.01.103. [DOI] [PubMed] [Google Scholar]
  63. Singh S, Parihar P, Singh R, Singh VP, Prasad SM. Heavy metal tolerance in plant: role of transcription, proteomics, metabolomics and ionomics. Front Plant Sci. 2016;6:1143. doi: 10.3389/fpls.2015.01143. [DOI] [PMC free article] [PubMed] [Google Scholar]
  64. Symeonidis L, Karataglis S. Interactive effects of Cd, Pb, and Zn on root growth of two metal tolerant genotypes of Holcus lanatus L. Biol Met. 1992;5:173. [Google Scholar]
  65. Umbriet WW, Burris RH, Stauffer JF, Cohen PP, Johanse WJ, Lee PGA, Potter VR, Schneider WC (1959) Monometric technique, a manual description method, applicable to study of desiring metabolism Burgess Publishing Company
  66. US-EPA (United States Environmental Protection Agency) Risk-based concentration table. Washington DC: United State Environmental Protection Agency; 2010. [Google Scholar]
  67. US-EPA (United States Environmental Protection Agency) (2013) Reference dose (RfD): Description and use in health risk assessments. Background Document 1A, Integrated Risk Information System (IRIS). United States Environmental Protection Agency: Washington, DC
  68. Wade TL, Brooks JM, Kennicutt MC, McDonald TJ, Sericano JL, Jackson TL (1993) Trace metals and organic contaminants analytical techniques 5. In: Lauenstein GG, Cantillo AY (Eds), Sampling and analytical methods of the national status and trend program. National Benthic Surveillance and Mussel Watch Projects 1984–1992, pp. 121–139. NOAA Technical Memorandum NOS ORCA 71. Silver Spring, MD
  69. Waqas M, Li G, Khan S, Shamshad I, Reid BJ, Qamar Z, Chao C. Application of sewage sludge and sewage sludge biochar to reduce polycyclic aromatic hydrocarbons (PAH) and potentially toxic elements (PTE) accumulation in tomato. Environ Sci Pollut Res. 2015;22(16):12114–12123. doi: 10.1007/s11356-015-4432-8. [DOI] [PubMed] [Google Scholar]
  70. WHO (World Health Organization) (2013) Guidelines for the safe use of wastewater and food stuff; volume 2: wastewater use in agriculture. World Health Organization, Geneva
  71. WHO (1996) Health criteria other supporting information. In guidelines for drinking water quality, Vol. 2 (2nd ed.). Geneva, 31–388

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Data Availability Statement

Please contact the authors for data requests.

Articles from Environmental Science and Pollution Research International are provided here courtesy of Springer

RESOURCES
