. 2023 Mar 27;12(7):1466. doi: 10.3390/plants12071466

Conventional vs. Microwave-Assisted Hydrodistillation: Influence on the Chemistry of Sea Fennel Essential Oil and Its By-Products

Olivera Politeo 1,*, Marijana Popović 2, Maja Veršić Bratinčević 2, Petra Koceić 3, Tonka Ninčević Runjić 4, Ivana Generalić Mekinić 3,*
Editors: Sheng-Yang Wang, KJ Senthil Kumar
PMCID: PMC10097284  PMID: 37050091

Abstract

The main objectives of this study were to investigate the effects of the applied essential oil (EO) isolation method, conventional hydro-distillation (HD), and microwave-assisted hydro-distillation (MHD) on the chemical profile of sea fennel (Crithmum maritimum L.) essential oil and to investigate the main constituents present in the liquid by-products of EOs isolation (hydrolate and residual wastewater). Headspace-solid phase microextraction (HS-SPME) was used to isolate hydrolate components, while gas chromatography coupled with mass spectrometry (GC-MS) was used to detect and analyse the chemical constituents of the essential oils and hydrolates. The phenolic composition of the wastewater extracts was analysed by high performance liquid chromatography (HPLC). The EO obtained by MHD had a higher yield of limonene and sabinene. The chemical composition of the hydrolates differed from the EO compositions. The content of terpinen-4-ol in the MHD hydrolate was higher, while several compounds were detected in relatively high proportions only in the HD hydrolate. MHD also resulted in a higher phenolic content of the wastewater, where an increase in the concentration of chlorogenic acid was also observed. It can be concluded that the isolation method had a great influence on the profile of sea fennel EOs, especially on their corresponding hydrolates and residual wastewater extracts. Due to their valuable chemical composition, these by-products can be a cost-effective source of bioactive compounds that have great potential for use in various industries.

Keywords: sea fennel, essential oils, hydrolates, residual wastewater, HS-SPME, GC-MS, HPLC

1. Introduction

Essential oils (EOs) are isolates of volatile metabolites, usually obtained by the distillation of different plant materials, and have been used since ancient times for food preservation, in traditional medicine, as pharmaceuticals, and for cosmetic purposes. In general, the methods for isolating EOs can be divided into two groups: (i) conventional, traditional methods (e.g., hydro-distillation (HD), steam distillation, cold pressing, etc.), and (ii) modern, innovative techniques (e.g., microwave-assisted hydro-distillation (MHD), microwave hydro-diffusion and gravity, supercritical fluid extraction, etc.) [1,2].

Of all the EOs isolation methods, hydro-distillation is the most commonly used due to numerous advantages over the others. One of the most important advantages is the use of water as a green extraction solvent as it is environmentally friendly, inexpensive, non-toxic, and non-flammable [3]. HD is also a very simple and low-cost technique. However, it is time-consuming and requires high energy consumption. In addition, elevated temperatures and longer extraction time may lead to losses or chemical modifications of EO components. In order to isolate EOs with higher quality and to optimize the time, yield, and cost of production, new EO extraction methods have been developed in recent decades, which comply with the principles of environmentally friendly process engineering. One of these methods is MHD, which has attracted particular attention due to its unique heating mechanism. In HD, heat transfer within the samples can only be achieved by convection and conduction, while MHD, additionally, utilizes radiation, which significantly accelerates the process [4]. MHD is more expensive due to equipment costs, but the extraction time and energy consumption are lower, and the yield of the final product is, usually, higher. This technique also minimizes the environmental impact because it is solvent-free and is characterized by lower CO2 emissions. Therefore, the MHD technique is more suitable for laboratory-scale studies [2,3,4,5,6].

The two distillation processes mentioned above for the isolation of essential oils reduce to four main products: (i) essential oil as the main product and by-products such as (ii) hydrolates (often called hydrosol, floral, or aromatic water), (iii) distillation residual wastewater, and (iv) residual plant material (pomace) [7,8,9,10], the first three being liquid. Hydrolate is the water fraction that remains after the separation of essential oils and, usually, contains some essential oil components and other water-soluble volatile plant constituents (mainly oxygenated compounds with significant biological properties). Recently, hydrolates have enjoyed great popularity in cosmetology, in the food sector as flavouring agents, in traditional medicine/pharmacy, and in aromatherapy [7,8,11,12]. In both HD and MHD, the plant material is in direct contact (immersed) with water, leaving residual wastewater at the end of the process. It contains various water-soluble components, the most important of which are phenolics [7,13,14].

Sea fennel (Crithmum maritimum L., Apiaceae) is a wild-growing halophytic plant with remarkable aromatic notes and pleasant sensory properties, which is why it is widely used in food, pharmaceutical, and cosmetic preparations in most Mediterranean countries [15,16]. In recent years, the number of studies on sea fennel has increased exponentially, but there are few studies dealing with the characterization of the by-products of EO isolation. The composition of the residual wastewater that remains after the isolation of sea fennel EO has been studied only in the work of Alves-Silva et al. [13], while, to the authors’ knowledge, there is no research on sea fennel hydrolates and the chemistry of sea fennel EOs and the by-products isolated by the different hydro-distillation methods. Therefore, the aim of this study was to investigate the effects of the isolation method used (HD and MHD) on the chemical profile of sea fennel EOs, hydrolates, and residual isolation wastewaters.

2. Results and Discussion

EOs are liquid plant isolates containing complex mixtures of volatile and highly aromatic compounds. Traditionally, they are obtained by distillation from plant material by exposing the plants to steam generated in situ or ex situ. In this process, EO compounds are released from the plant material by vaporization, the steam volatilizes the oil, and the vapour mixture of EO and water condenses. The recovered oil is separated from the water due to the difference in density [17]. As the isolated oil remains in contact with water for some time, various polar hydrophilic volatile compounds that can form hydrogen bonds with water are distributed in the water phase, which is then called hydrolate. The content of volatile aromatic compounds from EOs in hydrolate is usually less than 1 g/L, and they mainly contain oxygenated compounds due to their relatively higher solubility in water compared to the solubility of hydrocarbons. Therefore, hydrolates are also characterized by specific flavours and organoleptic properties [8,11,18]. Another by-product is the non-distilled aqueous phase or wastewater. This fraction is also valuable as it contains large amounts of valuable secondary plant compounds, mainly water-soluble polar phenolics [13,14].

According to Ferhat et al. [5], there are two main MHD mechanisms involved in EO isolation. The first mechanism is based on the selective heating of water in the sample matrix, where microwaves interact with free water molecules distributed in vascular systems and plant glands, which then expand dramatically. This leads to rupture of the tissue and extraction of the oil components into the water phase. The second mechanism is related to the dipolar moments of the EO organic compounds that are able to absorb microwave energy. The compounds with a high dipolar moment are easier to extract because they interact more strongly with microwaves than those with a low dipolar moment.

2.1. Essential Oils

The results of the chemical composition of the essential oils of sea fennel isolated by the two distillation methods are summarized in Table 1, while the corresponding chromatograms are shown in Figure 1. The constituents of EO were identified and quantified by gas chromatography coupled with mass spectrometry (GC-MS) (Table 1, Figure 1).

Table 1.

Chemical composition of sea fennel essential oils isolated by hydro-distillation (HD) and microwave-assisted hydro-distillation (MHD), analysed by gas chromatography coupled with mass spectrometry (GC-MS).

No. Component Rt LRI Literature LRI HD (%) MHD (%) Mode of Identification
1. α-thujene 5.989 926 924 0.69 ± 0.13 0.50 ± 0.09 GC, MS
2. α-pinene 6.195 932 932 4.26 ± 0.84 2.33 ± 0.44 GC, MS
3. camphene 6.608 946 946 tr nd GC, MS
4. sabinene 7.410 972 969 25.24 ± 2.64 27.81 ± 4.30 GC, MS
5. ß-pinene 7.986 991 974 1.77 ± 0.43 1.14 ± 0.26 GC, MS
6. α-terpinene 8.897 1016 1014 1.12 ± 0.05 0.72 ± 0.09 GC, MS
7. p-cymene 9.175 1023 1020 1.84 ± 0.65 2.53 ± 0.09 GC, MS
8. limonene 9.337 1027 1024 51.38 ± 4.42 53.05 ± 5.20 GC, MS
9. (E)-ß-ocimene 9.698 1037 1044 4.04 ± 0.59 2.96 ± 0.38 GC, MS
10. γ-terpinene 10.506 1057 1054 7.12 ± 0.73 6.54 ± 0.43 GC, MS
11. (Z)-sabinene hydrate 10.820 1065 1065 0.14 ± 0.13 0.41 ± 0.06 GC, MS
12. terpinolene 11.689 1088 1086 0.38 ± 0.08 0.15 ± 0.03 GC, MS
13. linalool 12.073 1097 1095 nd 0.38 ± 0.06 GC, MS
14. (E)-p-mentha-2,8-dien-1-ol 13.024 1120 - tr nd GC, MS
15. terpinen-4-ol 15.438 1177 1174 1.76 ± 0.04 1.30 ± 0.31 GC, MS
Total identified (%) 99.82 99.74
Total non-oxygenated compounds
Total oxygenated compounds 		97.92
1.90 		97.73
2.09
Open in a new tab

Rt—Retention time, LRI—Linear Retention Index, tr—traces (<0.10%), nd—not detected.

Figure 1.

Figure 1

Open in a new tab

GC-MS total ion chromatogram of sea fennel essential oil obtained hydro-distillation (a) and microwave-assisted hydro-distillation (b). Peak assignment is given in Table 1.

As can be seen from the results, 15 detected compounds differed in their occurrence in the EO samples obtained by HD and MHD. Similar to our previous reports [14,19], as well as other reports on Croatian sea fennel [20], the dominant components were non-polar monoterpene compounds, of which limonene (51.4–53.1%) and sabinene (25.2–27.8%) were found in the highest amounts. In the MHD sample, both compounds were detected in higher amounts. Of the other non-oxygenated compounds, only the content of p-cymene was highest in the MHD sample (1.84% in HD and 2.53% in MHD, respectively), while all other compounds were detected in lower amounts in EO obtained by MHD.

A particularly significant decrease was observed for the content of α-pinene (from 4.26 to 2.33%), (E)-β-ocimene (from 4.04 to 2.96%), β-pinene (from 1.77 to 1.14%), and α-terpinene (from 1.12 to 0.72%). The yield of oxygenated monoterpenes was significantly lower in both samples, 1.90% in HD EO and 2.09% in MHD EO, with only four compounds from this chemical group detected, namely, (Z)-sabinene hydrate, linalool, (E)-p-mentha-2,8-dien-1-ol, and terpinen-4-ol. Of them, terpinen-4-ol (1.3–1.76%) was found in the highest amount. In Croatian sea fennel, non-oxygenated compounds dominated, accounting for about 91% of the total EO compounds (for both hydrodistillation methods), thus no significant differences in oil profiles were expected due to this specific chemical profile.

Published studies have come to conflicting conclusions regarding the influence of the EO isolation method on the chemical profile of EO. While some of them report significant differences between samples, especially in terms of EO yield [2,5], others confirm that EOs are not significantly affected by the extraction method [4,21]. However, in general, a higher content of oxygenated compounds and a lower number of hydrocarbons are reported in EOs isolated by the MHD method. This can be explained by the higher dipole moment of the oxygenated compounds, which is why they interact more strongly with microwaves and are, therefore, more easily extracted than the monoterpene hydrocarbons with weak dipole moment [4]. Agreement with these observations was found in studies by Lucchesi et al. [22] on basil, garden mint, and thyme; Ferhat et al. [5] on citrus peel’s EO; Filly et al. [6], Moradi et al. [23], and Elyemni et al. [4] on rosemary; and Bui Phuc et al. [2] on mint EO. Cardoso-Ugarte et al. [21] studied the influence of the method used and different extraction parameters on the chemistry of basil essential oil and reported a greater number of detected compounds in the oil obtained by MHD, as well as Ferhart et al. [5] in the citrus peel oils obtained by MHD compared to HD and cold pressing. Finally, almost all the mentioned studies reported significant advantages of MHD distillation over conventional hydrodistillation, especially in terms of short duration and lower energy consumption.

2.2. Hydrolates

According to Jensch and Strube [10], about 30% of the EO constituents remain in the hydrolate during hydro-distillation, which represents a major product loss. The main volatile components in hydrolates are monoterpene alcohols, aldehydes, ketones, and sesquiterpene alcohols, while lipophilic compounds such as non-oxygenated monoterpenes are usually absent or present in negligible amounts due to their low water solubility [18]. According to Aćimović et al. [18], the similarity between the composition of EOs and their corresponding hydrolates depends mainly on the relation of hydrocarbons and oxygenated compounds in an EO. When oxygenated compounds dominate in EOs, there is a high similarity between the composition of EOs and hydrolates, while the chemistry of hydrolates differs significantly from the composition of EOs in the case of hydrocarbons.

The results of the chemical composition of sea fennel hydrolates extracted by headspace-solid phase microextraction (HS-SPME) and detected by GC-MS are shown in Table 2 and in Figure 2.

Table 2.

HS-SPME-GC-MS analysis of sea fennel hydrolates obtained by hydro-distillation (HD) and microwave-assisted hydro-distillation (MHD).

No. Component Rt LRI Literature LRI HD (%) MHD (%) Mode of Identification
1. benzaldehyde 10.747 950 952 0.46 ± 0.11 0.70 ± 0.02 GC, MS
2. (E,E)-heptadienal 13.695 1005 1005 0.91 ± 0.04 tr GC, MS
3. limonene 14.552 1021 1024 1.16 ± 0.11 0.61 ± 0.02 GC, MS
4. benzacetaldehyde 15.402 1037 1036 5.34 ± 0.01 1.15 ± 0.04 GC, MS
5. γ-terpinene 16.259 1054 1054 tr tr GC, MS
6. (Z)-sabinene hydrate 16.659 1061 1065 1.54 ± 0.26 3.95 ± 0.04 GC, MS
7. (E)-sabinene hydrate 18.294 1093 1098 2.37 ± 0.36 4.72 ± 0.08 GC, MS
8. linalool 18.536 1097 1095 1.29 ± 0.04 0.60 ± 0.01 GC, MS
9. 6-methyl-3,5-heptadien-2-one 18.750 1101 1107 0.45 ± 0.05 tr GC, MS
10. (E)-p-mentha-2,8-dienol 19.488 1116 1118 2.40 ± 0.03 4.34 ± 0.83 GC, MS
11. (Z)-p-mentha-2,8-dienol 20.216 1131 1133 1.49 ± 0.17 2.50 ± 0.13 GC, MS
12. (E)-limonene oxide 20.359 1134 1137 nd 1.84 ± 0.37 GC, MS
13. (E)-p-menth-2-en-1-ol 20.421 1135 1136 1.38 ± 0.21 1.18 ± 0.07 GC, MS
14. terpinen-4-ol 22.446 1176 1174 13.86 ± 0.56 17.45 ± 0.87 GC, MS
15. 3-methylacetophenone 22.649 1180 1179 1.13 ± 0.02 0.74 ± 0.20 GC, MS
16. p-cymen-8-ol 22.794 1183 1179 0.82 ± 0.05 tr GC, MS
17. isocarveol 22.896 1185 1187 1.23 ± 0.06 4.17 ± 0.32 GC, MS
18. α-terpineol 23.032 1188 1186 2.92 ± 0.02 3.85 ± 0.03 GC, MS
19. isocarvomenthone 23.078 1189 1194 0.87 ± 0.01 Tr GC, MS
20. (Z)-carvomenthone 23.221 1192 1194 nd 2.52 ± 0.01 GC, MS
21. (Z)-dihydrocarvone 23.307 1194 - nd 1.12 ± 0.12 GC, MS
22. (E)-carvomenthone 23.482 1197 - 1.53 ± 0.10 1.63 ± 0.40 GC, MS
23. (E)-piperitol 23.826 1204 1207 0.35 ± 0.02 0.45 ± 0.03 GC, MS
24. (E)-carveol 24.438 1218 1215 4.92 ± 0.29 5.70 ± 0.35 GC, MS
25. neoiso dihydro carveol 24.591 1221 1226 3.03 ± 0.16 3.20 ± 0.46 GC, MS
26. (Z)-carveol 24.828 1226 1226 1.58 ± 0.01 1.25 ± 0.35 GC, MS
27. carvone 25.520 1241 1239 1.10 ± 0.03 tr GC, MS
28. α-ionene 25.848 1248 - 0.50 ± 0.01 nd GC, MS
29. (E)-2-decanal 26.424 1261 1260 nd tr GC, MS
30. perillaldehyde 26.800 1269 - nd tr GC, MS
31. bornyl acetate 27.492 1284 1283 0.38 ± 0.01 2.04 ± 0.25 GC, MS
32. p-cymen-7-ol 27.631 1287 1287 0.68 ± 0.04 3.54 ± 0.87 GC, MS
33. thymol 27.899 1293 1289 0.38 ± 0.02 0.97 ± 0.04 GC, MS
34. carvacrol 28.306 1301 1298 2.62 ± 0.02 4.32 ± 0.02 GC, MS
35. p-vinyl guaiacol 28.719 1311 1309 1.63 ± 0.25 nd GC, MS
36. (E,E)-2,4-decadienal 28.879 1315 1315 nd 0.47 ± 0.01 GC, MS
37. myrtenyl acetate 29.431 1327 1324 1.63 ± 0.13 0.49 ± 0.03 GC, MS
38. longipinene 29.666 1333 1350 1.76 ± 0.06 nd GC, MS
39. 1H-indene,2,3-dihydro-1,1,4,5-tetramethyl 30.383 1349 - 1.22 ± 0.03 nd GC, MS
40. (Z)-β-damascenone 31.859 1383 1387 4.80 ± 0.34 tr GC, MS
41. 10-(acetylmethyl)-3-carene 32.121 1390 - 13.45 ± 0.61 nd GC, MS
42. α-ionone 33.245 1416 1428 10.04 ± 0.33 tr GC, MS
43. α-copaen-11-ol 37.739 1527 1539 nd 0.52 ± 0.10 GC, MS
44. cyperene epoxyde 38.136 1537 - tr 1.99 ± 0.11 GC, MS
45. spathulenol 39.648 1575 1577 1.50 ± 0.12 8.78 ± 0.37 GC, MS
46. ar-tumerol 39.767 1579 1582 0.88 ± 0.06 3.66 ± 0.89 GC, MS
47. β-copaen-4-α-ol 39.870 1581 1590 tr 1.17 ± 0.13 GC, MS
48. dill apiol 41.474 1624 1620 1.12 ± 0.12 1.56 ± 0.12 GC, MS
49. muurola-4,10(14)-dien-1β-ol 41.941 1636 1630 tr 0.56 ± 0.00 GC, MS
50. 4,5-dehydro isolongifolene 42.415 1649 - tr 0.62 ± 0.04 GC, MS
Total identified (%) 94.72 94.36
Total non-oxygenated compounds
Total oxygenated compounds 		4.64
90.08 		1.23
93.13
Open in a new tab

Rt—Retention time, LRI—Linear Retention Index, tr—traces (<0.10%), nd—not detected.

Figure 2.

Figure 2

Open in a new tab

GC-MS total ion chromatogram of sea fennel hydrolates obtained hydro-distillation (a) and microwave-assisted hydro-distillation (b). Peak assignment is given in Table 2.

Following the previously stated conclusions from the study by Aćimović et al. [18], the chemistry of sea fennel hydrolates differed significantly from the composition of EOs, as expected. Of the 51 compounds detected in both samples (isolated by HD and MHD), only a few were non-oxygenated and present in relatively low amounts (4.64 and 1.23%, respectively). The content of limonene in the hydrolate HD was almost twice that in the MHD sample (1.16 and 0.61%, respectively). γ-Terpinene was found in trace amounts in both samples, while the presence of α-ionene (0.5%) and longipinene (1.76%) was confirmed only in HD hydrolate.

Terpinen-4-ol was the predominant compound in both HD and MHD samples, with yields of 13.86 and 17.45%, respectively, Figure 2. HD hydrolate was characterised by the presence of (Z)-β-damascenone (4.80%), 10-(acetylmethyl)-3-carene (13.45%), and (E)-α-ionone (10.04%), the presence of which was either not confirmed or detected in trace amounts in the MHD sample. The contents of benzacetaldehyde (5.34%) and linalool (1.29%) were significantly higher in the HD than in the MHD sample.

Among the other compounds, the most significant increase in yield in the MHD sample compared to the HD sample was observed for spathulenol (5.8-fold higher amount) and ar-tumerol (4.16-fold higher amount). The yields of (E)-carveol, isocarveol, and α-terpineol were also higher in the MHD hydrolates with proportions of 4.92 and 5.70%, 1.23 and 4.17%, and 2.92 and 3.85%, respectively. Other dominant components such as (Z)-sabinene hydrate, (E)-sabinene hydrate, (E)-p-mentha-2,8-dienol, (Z)-p-mentha-2,8-dienol, and carvacrol were found in about twice the amounts in the MHD hydrolate. It is interesting that among the compounds detected in the hydrolates there was also dillapiol, which has not been found so far in Croatian sea fennel [14,19,20]. This compound was interesting because, according to Pateira et al. [24], two different chemotypes of sea fennel can be distinguished in terms of its content, and, according to their report, Croatian sea fennel belongs to the chemotype II, with a content of 0–6% dillapiol. In this study, the content of dillapiol in hydrolates was also quite low, 1.12% in HD hydrolate and 1.56% in MHD hydrolate, while its presence in EOs was again not confirmed.

2.3. Residual Wastewater

This study also aimed to investigate the phenolic compounds present in the residual wastewater after the isolation of EO, and the results are shown in Table 3 and in Figure 3.

Table 3.

Phenolic profile (mg/g of dry extract) of residual wastewater extracts after essential oil extraction by hydro-distillation (HD) and microwave-assisted hydro-distillation (MHD) detected by high performance liquid chromatography (HPLC).

No. Component HD MHD
1. gallic acid 0.03 ± 0.01 0.02 ± 0.00
2. protocatechuic acid 0.05 ± 0.02 0.04 ± 0.00
3 neochlorogenic acid 7.92 ± 0.04 4.48 ± 0.11
4. p-hydroxybenzoic acid 0.78 ± 0.06 0.53 ± 0.02
5. chlorogenic acid 13.67 ± 0.03 22.18 ± 0.03
6. cryptochlorogenic acid 7.75 ± 0.05 5.17 ± 0.02
7. caffeic acid 0.04 ± 0.01 0.03 ± 0.02
8. ferulic acid 0.11 ± 0.00 0.22 ± 0.00
9. sinapic acid 0.16 ± 0.01 0.11 ± 0.00
10. rutin 0.35 ± 0.00 0.34 ± 0.01
Open in a new tab

Figure 3.

Figure 3

Figure 3

Open in a new tab

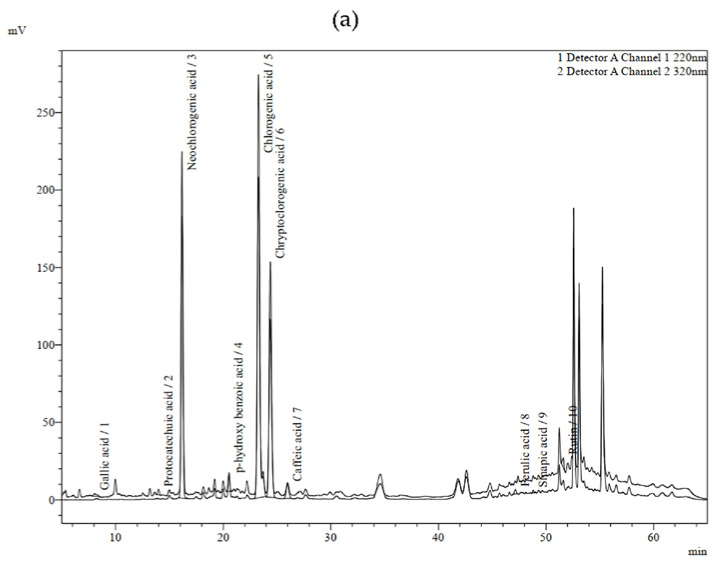

HPLC chromatogram of residual wastewater extracts after essential oil extraction by hydro-distillation (a) and microwave-assisted hydro-distillation (b). Peak assignment is given in Table 3.

In their study, Irakli et al. [25] pointed out the lack of information on the comprehensive profiling of the residual biomass left after the production of EOs and the importance of utilising their bioactive compounds and further converting them into value-added products that can, potentially, be used in various industries. Our previous study reported on the phenolic compounds detected in the residual water left after EO extraction by conventional hydro-distillation of various parts of the sea fennel plant [14]. Similar to this study, chlorogenic acid was the dominant compound with a concentration of 13.67 mg/g dry extract in the HD sample and 22.18 mg/g in the MHD sample. In Figure 4. the chemical structures of the dominant compounds in all investigated samples are presented.

Figure 4.

Figure 4

Open in a new tab

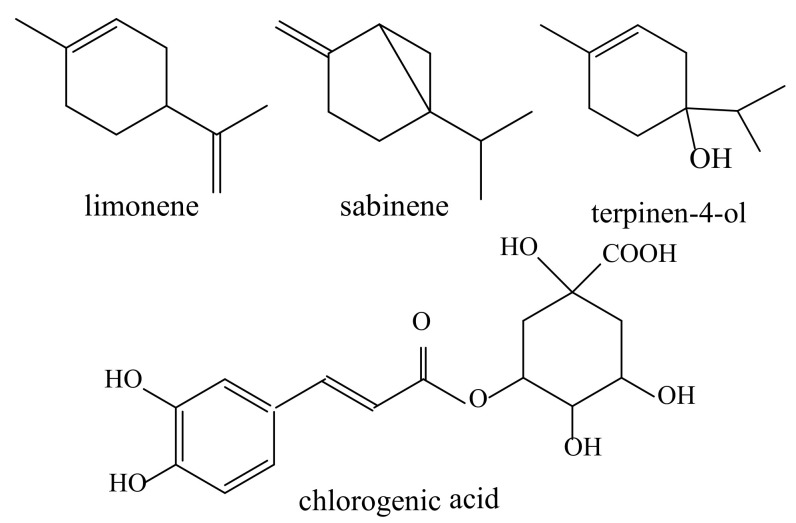

Major components detected in sea fennel essential oils, hydrolates and residual wastewater.

The presence of this bioactive phenolic compound in sea fennel samples has also been reported by other authors [13,14,26,27,28,29]. As expected, the other two compounds present in the samples at high concentrations were cryptochlorogenic acid and neochlorogenic acid. However, these two compounds were found in lower concentrations in the MHD residual wastewater compared to the samples from HD, as were the levels of p-hydroxybenzoic acid and sinapic acid, while the content of ferulic acid was higher in the MHD wastewater extract. This is in agreement with the conclusions of Sánchez-Faure et al. [30] and Siracusa et al. [26], who reported that chlorogenic acid and its isomers are almost the only class of phenolic compounds in sea fennel. Of the flavonoids, only rutin was detected, and its concentration was not significantly different between the HD and MHD samples. In general, the sum of extracted identified phenolics were higher in the MHD sample than in HD, 33.11 and 30.87 mg/g, respectively, also indicating that this novel technique produces by-products with a higher amount of useful phenolic phytochemicals.

3. Materials and Methods

3.1. Plant Material

Sea fennel (Crithmum maritimum L.) aerial parts, in the stage of plant full flowering, were collected in late August 2022 on the coast of the island of Čiovo (43.493389° N, 16.272505° E, Central Dalmatia, Croatia). The identity of the plant species was established by the Ph.D. Tonka Ninčević Runjić (Department of Plant Science, Institute for Adriatic Crops and Karst Reclamatio) using identification keys [31] and assigned to the species C. maritimum L. based on their morphology and geographical distribution [32]. Voucher specimens of the plant material were deposited in the herbarium of the Department of Biochemistry, Faculty of Chemistry and Technology, University of Split. Air-dried plant material (two weeks at room temperature in a shaded and aerated place) was used for the extraction of essential oils.

3.2. Isolation of EOs, and Preparation of Residual Wastewater Extracts

The essential oils of sea fennel were extracted from the plant material (100 g) by hydro-distillation (HD) and microwave-assisted hydro-distillation (MHD). Hydro-distillation was performed in a Clevenger-type apparatus according to the procedure described in detail by Kulišić-Bilušić et al. [20], while microwave-assisted hydro-distillation (MHD) was performed according to the procedure described by Blažević et al. [33]. In both cases, hydro-distillation was performed using a solvent trap (pentane/diethyl ether = 2/1, v/v) to prevent the migration of lipophilic components into the water layer. The isolation parameters for both methods are summarised in Table 4. The isolated essential oils were dried over anhydrous sodium sulphate and stored at −20 °C until analysis.

Table 4.

Parameters of the used essential oil isolation methods.

Hydro-Distillation Microwave-Assisted Hydro-Distillation
Equipment Clevenger-type apparatus MAE Ethos X, (Milestone Srl, Italy)
Heating time * 15 min 3 min
Temperature 100 °C 98 °C
Duration 3 h 30 min
Soaking Yes Yes
Other Microwave power 500 Hz
Open in a new tab

* time needed to obtain the distillation of the essential oil first droplet.

The hydrolates, the water layer under the trap, were also separated and stored at −20 °C until analysis. The wastewater that remained after oil isolation was cooled, filtered, and freeze-dried, and the crude extracts obtained were dissolved in water (at a concentration of 1 mg/mL) and used for further analysis.

3.3. Isolation of Volatile Organic Compounds from Hydrolates by HS-SPME

Solid-phase microextraction (SPME) fibre with DVB/CAR/PDMS coating, 50/30 µm, was purchased from Supelco (Sigma Aldrich, Bellefonte, PA, USA). The fibre used for sample extraction was conditioned at 250 °C for 1 h before use in the unit for conditioning. Hydrolate and NaCl were added to 20 mL glass vials, which were sealed with the magnetic cap and silicone septum. The SPME fibre was inserted into the headspace of the vial, and the samples were thermostatted at 40 °C for 30 min. The fibre was then inserted into the GC injection port for thermal desorption for 3 min. Each sample was analysed in duplicate, and the presented results are mean value ± standard deviation.

3.4. Identification of the EOs and Hydrolate Constituents by GC-MS

Identification and quantification of the chemical constituents of the essential oil and hydrolates of sea fennel were performed by GC-MS using a gas chromatograph (gas chromatograph model 8890 GC equipped with an automatic liquid injector model 7693A, and a tandem mass spectrometer (MS) model 7000D GC/TQ (Agilent Inc., Santa Clara, CA, USA). Chromatographic separation was performed on the nonpolar HP-5MS UI column (30 m × 0.25 mm × 0.25 µm, Agilent Inc., Santa Clara, CA, USA). Helium was used as the carrier gas at a flow rate of 1.0 mL min, and the sample injection volume was 1 µL. Analyses were performed using MS full scan (33–350 m/z). The ion source temperature was set at 200 °C, the interface temperature at 250 °C, and the ion voltage at 70 eV. For EOs analysis, the column temperature program was set for the first 3 min at 60 °C and then heated to 246 °C at 3 °C/min and maintained for 25 min isothermally. For hydrolate analyses, the initial oven temperature started with a 3 min isotherm at 40 °C, followed by a temperature increase to 80 °C at a rate of 3 °C/min, followed by another temperature increase at a rate of 10 °C/min to 220 °C, where it was maintained for 5 min.

Compounds were identified by comparing their retention indices with the series of n-hydrocarbons (C7–C30, Supelco Inc., Sigma Aldrich) analysed under the same conditions as described above for both groups of samples, EOs, and hydrolates, respectively. The identification of each component was based on a software comparison of mass spectra with library entries from two commercial databases, Wiley 7 MS library (Wiley, NY, USA) and NIST02 (Gaithersburg, MD, USA), as well as the comparison of their mass spectra and linear retention indices with published data [34]. Relative percentages of the oil components (%) were calculated based on the peak areas on HP-5MS UI column and are reported in tables according to their elution order, while Linear Retention Indexes (LRIs) were computed using van den Dool and Kratz’s equation [35]. Analyses were performed in duplicate, and the percentages shown in Table 2 and Table 3 were calculated as the mean value ± standard deviation.

3.5. Identification of the Wastewater Chemical Components by HPLC

The wastewater extracts were dissolved in water (1 mg/mL) and injected into a high-performance liquid chromatograph (Shimadzu Nexera LC-40, Shimadzu, Kyoto, Japan) with a UV-Vis detector. Separation was performed at 35 °C using a Phenomenex C18 reversed-phase column (250 mm × 4.6 mm, 5 μm; Torrance, CA, USA) with a binary gradient mixture of solvent A (ultrapure water/85% o-phosphoric acid = 99.8/0.2, v/v) and solvent B (methanol/acetonitrile = 1/1, v/v) at a flow rate of 1 mL/min: 0–16 min, 4–15% B; 16–50 min, 15–35% B; 50–62 min, 35–4% B; 65 min, 4% B. Phenolic compounds were identified by comparing retention times and absorption maxima at 220 and 320 nm with data obtained for corresponding standards and by sample spiking. Concentrations were expressed as mg of compound per gram of dry extract (mg/g).

4. Conclusions

Nowadays, the interest and number of studies on aromatic and medicinal plants have increased due to the exponentially growing popularity of the use of natural products in various industries. While the application and benefits of various EOs have been extensively studied, this research confirms the great chemical potential of their liquid by-products, which were usually treated as waste (hydrolate and residual wastewater). The isolation process is an essential element to improve the overall quality of EO. Hydro-distillation by long heating (up to several hours) (as in the case of conventional HD), and exposure to microwaves (as in the case of MHD) have a great influence on the profile of sea fennel EOs and especially on their corresponding hydrolates. In addition, the wastewater from MHD had a higher phenolic content compared to HD. Due to the much lower time and energy consumption, MHD is a good alternative for the conventional HD of sea fennel EOs. Additionally, the liquid by-products of EO isolation, both the hydrolates and the wastewater, can be used to obtain high value-added products from low-cost raw materials that are often treated as waste.

Acknowledgments

The authors would like to thank Martina Čagalj from the University Department of Marine Studies (Split, Croatia) for their help in plant material sampling. The authors are also thankful for the scientific research equipment financed by the EU grant “Functional integration of the University of Split, PMFST, PFST and KTFST through the development of the scientific and research infrastructure” (KK.01.1.1.02.0018).

Author Contributions

Conceptualization, O.P., M.P. and I.G.M.; methodology, O.P., M.P., M.V.B., T.N.R. and I.G.M.; validation, O.P., M.P. and M.V.B.; formal analysis, O.P., M.P., P.K., T.N.R. and M.V.B.; investigation, O.P., M.P., M.V.B., P.K., T.N.R. and I.G.M.; data curation, O.P., M.P. and M.V.B.; writing—original draft preparation, I.G.M.; writing—review and editing, O.P., M.P., M.V.B. and T.N.R.; visualization, O.P., M.P., M.V.B. and I.G.M.; supervision, I.G.M.; funding acquisition, O.P. and I.G.M. All authors have read and agreed to the published version of the manuscript.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Funding Statement

This work is part of the PRIMA programme supported by the European Union. Project title: “Innovative sustainable organic sea fennel (Crithmum maritimum L.)-based cropping systems to boost agrobiodiversity, profitability, circularity, and resilience to climate changes in Mediterranean small farms” (acronym: SEAFENNEL4MED) (https://seafennel4med.com/, accessed on 23 March 2023)).

Footnotes

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

References

  • 1.Rassem H.H.A., Nour A.H., Yunus R.M. Techniques for extraction of essential oils from plants: A review. Aust. J. Basic Appl. Sci. 2016;10:117–127. [Google Scholar]
  • 2.Bui-Phuc T., Nhu-Trang T., Cong-Hau N. Comparison of chemical composition of essential oils obtained by hydro-distillation and microwave-assisted extraction of Japanese mint (Mentha arvensis L.) grown in Vietnam. IOP Conf. Ser. Mater. Sci. Eng. 2020;991:012039. doi: 10.1088/1757-899X/991/1/012039. [DOI] [Google Scholar]
  • 3.Filly A., Fabiano-Tixier A.S., Louis C., Fernandez X., Chemat F. Water as a green solvent combined with different techniques for extraction of essential oil from lavender flowers. Comptes Rendus Chimie. 2016;19:707–717. doi: 10.1016/j.crci.2016.01.018. [DOI] [Google Scholar]
  • 4.Elyemni M., Louaste B., Nechad I., Elkamli T., Bouia A., Taleb M., Chaouch M., Eloutassi N. Extraction of essential oils of Rosmarinus officinalis L. by two different methods: Hydrodistillation and microwave assisted hydrodistillation. Sci. World J. 2019;2019:3659432. doi: 10.1155/2019/3659432. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 5.Ferhat M.A., Meklati B.Y., Chemat F. Comparison of different isolation methods of essential oil from Citrus fruits: Cold pressing, hydrodistillation and microwave ‘dry’ distillation. Flavour Fragr. J. 2007;22:494–504. doi: 10.1002/ffj.1829. [DOI] [Google Scholar]
  • 6.Filly A., Fernandez X., Minuti M., Visinoni F., Cravotto G., Chemat F. Solvent-free microwave extraction of essential oil from aromatic herbs: From laboratory to pilot and industrial scale. Food Chem. 2014;150:193–198. doi: 10.1016/j.foodchem.2013.10.139. [DOI] [PubMed] [Google Scholar]
  • 7.Zheljazkov V.D., Astatkie T. Effect of residual distillation water of 15 plants and three plant hormones on Scotch spearmint (Mentha× gracilis Sole) Ind. Crops Prod. 2011;33:704–709. doi: 10.1016/j.indcrop.2011.01.011. [DOI] [Google Scholar]
  • 8.Rajeshwara Rao B.R. Recent Progress in Medicinal Plants: Essential Oils I. 1st ed. Volume 36 Studium Press LLC; Houston, TX, USA: 2013. Hydrosols and water-soluble essential oils: Medicinal and biological properties. Chapter 6. [Google Scholar]
  • 9.Ieri F., Cecchi L., Giannini E., Clemente C., Romani A. GC-MS and HS-SPME-GC×GC-TOFMS Determination of the volatile composition of essential oils and hydrosols (by-products) from four eucalyptus species cultivated in Tuscany. Molecules. 2019;24:226. doi: 10.3390/molecules24020226. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 10.Jensch C., Strube J. Proposal of a new green process for waste valorization and cascade utilization of essential oil plants. Sustainability. 2022;14:3227. doi: 10.3390/su14063227. [DOI] [Google Scholar]
  • 11.Jakubczyk K., Tuchowska A., Janda-Milczarek K. Plant hydrolates-Antioxidant properties, chemical composition and potential applications. Biomed Pharmacother. 2021;142:112033. doi: 10.1016/j.biopha.2021.112033. [DOI] [PubMed] [Google Scholar]
  • 12.Shafie M.H., Kamal M.L., Abdul Razak N.A., Hasan S., Uyup N.H., Rashid N.F.A., Zafarina Z. Antioxidant and antimicrobial activity of plant hydrosol and its potential application in cosmeceutical products. Jundishapur J. Nat. Pharm. Prod. 2022;17:e124018. doi: 10.5812/jjnpp-124018. [DOI] [Google Scholar]
  • 13.Alves-Silva J.M., Guerra I., Gonçalves M.J., Cavaleiro C., Cruz M.T., Figueirinha A., Salgueiro L. Chemical composition of Crithmum maritimum L. essential oil and hydrodistillation residual water by GC-MS and HPLC-DAD-MS/MS, and their biological activities. Ind. Crops Prod. 2020;149:112329. doi: 10.1016/j.indcrop.2020.112329. [DOI] [Google Scholar]
  • 14.Politeo O., Popović M., Veršić Bratinčević M., Kovačević K., Urlić B., Generalić Mekinić I. Chemical profiling of sea fennel (Crithmum maritimum L., Apiaceae) essential oils and their isolation residual waste-waters. Plants. 2023;12:214. doi: 10.3390/plants12010214. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Atia A., Barhoumi Z., Mokded R., Abdelly C., Smaoui A. Enviromental eco-physiology and economical potential of the halophtye Crithmum maritimum L. (Apiaceae) J. Med. Plants Res. 2011;5:3564–3571. [Google Scholar]
  • 16.Renna M., Gonnella M. The use of the sea fennel as a new spice-colorant in culinary preparations. Inter. J. Gastron. Food Sci. 2012;1:111–115. doi: 10.1016/j.ijgfs.2013.06.004. [DOI] [Google Scholar]
  • 17.Reyes-Jurado F., Franco-Vega A., Ramírez-Corona N., Palou E., López-Malo A. Essential oils: Antimicrobial activities, extraction methods, and their modeling. Food. Eng. Rev. 2015;7:275–297. doi: 10.1007/s12393-014-9099-2. [DOI] [Google Scholar]
  • 18.Aćimović M., Tešević V., Smiljanic K., Cvetkovic M., Stankovic J., Kiprovski B., Sikora V. Hydrolates: By-products of essential oil distillation: Chemical composition, biological activity and potential uses. Adv. Technol. 2020;9:54–70. doi: 10.5937/savteh2002054A. [DOI] [Google Scholar]
  • 19.Generalić Mekinić I., Blažević I., Mudnić I., Burčul F., Grga M., Skroza D., Katalinić V. Sea fennel (Crithmum maritimum L.): Phytochemical profile, antioxidative, cholinesterase inhibitory and vasodilatory activity. J. Food Sci. Technol. 2016;53:3104–3112. doi: 10.1007/s13197-016-2283-z. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 20.Kulišić-Bilušić T., Blažević I., Dejanović B., Miloš M., Pifat G. Evaluation of the antioxidant activity of essential oils from caper (Capparis spinosa) and sea fennel (Crithmum maritimum) by different methods. J. Food Biochem. 2010;34:286–302. doi: 10.1111/j.1745-4514.2009.00330.x. [DOI] [Google Scholar]
  • 21.Cardoso-Ugarte G.A., Juárez-Becerra G.P., Sosa Morales M.E., López-Malo A. Microwave-assisted extraction of essential oils from herbs. J. Microw. Power Electromagn. Energy. 2013;47:63–72. doi: 10.1080/08327823.2013.11689846. [DOI] [PubMed] [Google Scholar]
  • 22.Lucchesi M.E., Chemat F., Smadja J. Solvent-free microwave extraction of essential oil from aromatic herbs: Comparison with conventional hydro-distillation. J. Chromatogr. A. 2004;1043:323–327. doi: 10.1016/j.chroma.2004.05.083. [DOI] [PubMed] [Google Scholar]
  • 23.Moradi S., Fazlali A., Hamedi H. Microwave-assisted hydro-distillation of essential oil from rosemary: Comparison with traditional distillation. Avicenna J. Med. Biotechnol. 2018;10:22–28. [PMC free article] [PubMed] [Google Scholar]
  • 24.Pateira L., Nogueira T., Antunes A., Venâncio F., Tavares R., Capelo J. Two chemotypes of Crithmum maritimum L. from Portugal. Flavour Fragr. J. 1999;14:333–343. doi: 10.1002/(SICI)1099-1026(199909/10)14:5&#x0003c;333::AID-FFJ839&#x0003e;3.0.CO;2-V. [DOI] [Google Scholar]
  • 25.Irakli M., Skendi A., Bouloumpasi E., Chatzopoulou P., Biliaderis C.G. LC-MS identification and quantification of phenolic compounds in solid residues from the essential oil industry. Antioxidants. 2021;10:2016. doi: 10.3390/antiox10122016. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 26.Siracusa L., Kulisic-Bilusic T., Politeo O., Krause I., Dejanovic B., Ruberto G. Phenolic composition and antioxidant activity of aqueous infusions from Capparis spinosa L. and Crithmum maritimum L. before and after submission to a two-step in vitro digestion model. J. Agric. Food Chem. 2011;59:12453–12459. doi: 10.1021/jf203096q. [DOI] [PubMed] [Google Scholar]
  • 27.Nabet N., Boudries H., Chougui N., Loupassaki S., Souagui S., Burló F., Hernández F., Carbonell-Barrachina Á.A., Madani K., Larbat R. Biological activities and secondary compound composition from Crithmum maritimum aerial parts. Int. J. Food Prop. 2017;20:1843–1855. doi: 10.1080/10942912.2016.1222541. [DOI] [Google Scholar]
  • 28.Pereira C.G., Barreira L., da Rosa Neng N., Nogueira J.M.F., Marques C., Santos T.F., Varela J., Custódio L. Searching for new sources of innovative products for the food industry within halophyte aromatic plants: In vitro antioxidant activity and phenolic and mineral contents of infusions and decoctions of Crithmum maritimum L. Food Chem. Toxicol. 2017;7:581–589. doi: 10.1016/j.fct.2017.04.018. [DOI] [PubMed] [Google Scholar]
  • 29.Alemán A., Marín D., Taladrid D., Montero P., Gómez-Guillén M.C. Encapsulation of antioxidant sea fennel (Crithmum maritimum) aqueous and ethanolic extracts in freeze-dried soy phosphatidylcholine liposomes. Food Res. Int. 2019;119:665–674. doi: 10.1016/j.foodres.2018.10.044. [DOI] [PubMed] [Google Scholar]
  • 30.Sánchez-Faure A., Calvo M.M., Pérez-Jiménez J., Martín-Diana A.B., Rico D., Montero M.P., Gómez-Guillén M.C., López-Caballero M.E., Martínez-Alvarez O. Exploring the potential of common iceplant, seaside arrowgrass and sea fennel as edible halophytic plants. Food Res. Int. 2020;137:109613. doi: 10.1016/j.foodres.2020.109613. [DOI] [PubMed] [Google Scholar]
  • 31.Domac R. Flora Hrvatske. Školska Knjiga; Zagreb, Croatia: 1994. [Google Scholar]
  • 32.Nikolić T. Prirodoslovno-Matematički Fakultet, Sveučilište u Zagrebu. [(accessed on 16 March 2023)]. Available online: http://hirc.botanic.hr/fcd.
  • 33.Blažević I., Đulović A., Čikeš Čulić V., Popović M., Guillot X., Burčul F., Rollin P. Microwave-assisted versus conventional isolation of glucosinolate degradation products from Lunaria annua L. and their cytotoxic activity. Biomolecules. 2020;10:215. doi: 10.3390/biom10020215. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 34.Adams R.P. Identification of Essential Oil Components by Gas Chromatography/Mass Spectroscopy. 4.1 ed. Allured Publishing Corporation; Carol Stream, IL, USA: 2017. [Google Scholar]
  • 35.Dool H.V.D., Kratz P.D. A generalization of the retention index system including linear temperature programmed gas-liquid partition chromatography. J. Chromatogr. A. 1963;11:463–471. doi: 10.1016/S0021-9673(01)80947-X. [DOI] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Data Availability Statement

Not applicable.

Articles from Plants are provided here courtesy of Multidisciplinary Digital Publishing Institute (MDPI)

RESOURCES
