Recent Advances in Responsive Membrane Functionalization Approaches and Applications

Abstract

In recent years, significant advances have been made in the field of functionalized membranes. With the functionalization using various materials, such as polymers and enzymes, membranes can exhibit property changes in response to an environmental stimulation, such as heat, light, ionic strength, or pH. The resulting responsive nature allows for an increased breadth of membrane uses, due to the developed functionalization properties, such as smart-gating filtration for size-selective water contaminant removal, self-cleaning antifouling surfaces, increased scalability options, and highly sensitive molecular detection. In this review, new advances in both fabrication and applications of functionalized membranes are reported and summarized, including temperature-responsive, pH-responsive, light-responsive, enzyme-functionalized, and two-dimensional material-functionalized membranes. Specific emphasis was given to the most recent technological improvements, current limitations, advances in characterization techniques, and future directions for the field of functionalized membranes.

1. Introduction

The field of functionalized membranes, in both extent of applications and fabrication methodology, has seen a continuous growth in recent years. This technological interest is due to membranes being powerful systems that can be functionalized with different materials, such as polymers, chelating groups, enzymes, and reactive nanoparticles, to exhibit a change in certain properties in response to an environmental stimulus¹. With a flexible responsive nature, “smart” membrane systems can effectively tackle both new and old environmental, industrial, and community problems, showing certain advantages, such as cost or efficiency, over other existing technologies. While these advantages are not present unanimously in every single situation, functionalized membranes continue to be a leading technology in the field of separations.

Development of functionalization methods has greatly increased the breadth of membrane applications, as the membrane system has additional abilities than traditional filtration/separation². Depending on the intended application, the surface and/or pores of the membrane are functionalized with the responsive material³ by different means, ranging from physical methods to chemical modifications and incorporation of separate nanomaterials within system matrices⁴. Furthermore, the environmental stimulus that a responsive membrane can react to varies significantly on the functionalization material, but is typically based on a temperature, pH, or light⁵ environmental change to produce such a responsive nature¹. Additional functionalization can be achieved for the enhancement of a specific functionality (without an expressive property change in the membrane matrix), such as the addition of a thin 2-dimensional layer⁶ or the addition of certain functional groups (i.e., thiol⁷).

There are five primary reasons for membrane functionalization, which consist of increasing (1) structural stability of the filtration system, (2) separation selectivity, (3) membrane permeability, (4) reactivity, whether it be degradative or for anti-fouling abilities, and (5) large-scale scalability for industrial applications (Fig. 1). Within membrane science, these enhancements increase the variety of applications that functionalized membranes can apply to. A consistent application of such membranes is the use of smart gating strategies that control permeability and pollutant/ion transport through the system. This allows for high selectivity through porous membranes to improve performance for various applications ranging from separations to drug delivery^3,8–10. Other applications include self-cleaning antifouling surface modifications, highly sensitive molecular detection, detoxification of toxic water/air pollutants, and gas separation.

Figure 1.

Summarization of primary functionalized membranes, their responsive nature, and key improvements.

This review provides a broad overview of the most recent technological advances in functionalized membranes for separation applications, ranging from functionalization methods to new membrane uses covering temperature, pH, and light-responsive membranes, as well as enzyme, thiol, and graphene oxide functionalization. This work will focus on the most cutting-edge membrane developments in the field in the past 5 years. Specific attention was given to current limitations, technological improvements in characterization techniques, and future directions of the field of functionalized and responsive membranes.

2. Responsive functionalized membranes

2.1. Temperature-responsive functionalized membranes

2.1.1. Overview of temperature-responsive functionalized membranes

Temperature-responsive membranes are smart materials that can exhibit conformation changes, depending on the temperature of the membrane system, a wide variety of applications, such as environmental remediation, drug delivery, and controllable membrane transport through the membrane. To achieve this reversible responsiveness, the membrane surface and/or pores are typically functionalized with thermo-responsive polymers that undergo volume phase transitions at specific temperature ranges. This transition leads to the swelling/deswelling of the polymer hydrogel, due to changes in hydrophobic/hydrophilic properties, and is governed by fluctuation in hydrogen bonding properties and preferences.

These polymers can be generally categorized into lower critical solution temperature (LCST) materials, such as N-isopropylacrylamide (NIPAm), methyl vinyl ether (MVE), and N,N-diethylacrylamide (DEAM), and upper critical solution temperature (UCST) materials, such as a combination of acrylic acid (AA) and acrylamide (AM)¹¹. These polymers transition from hydrophilic to hydrophobic behavior or vice versa when exceeding their LCST or UCST, respectively (Fig. 2A). This transition is often expressed using the following equation for the polymer’s root-mean-square end-to-end distance¹:

$$⟨r^2⟩{}^{1/2}=al{\left(n{C}_n\right)}^{1/2}$$ (1)

Figure 2. Schematic of thermo-responsive membranes functionalized with UCST and LCST polymers.

(A) Change in thermo-responsive membrane permeability and hydrophilicity, based on changes in temperature across the critical solution temperature. (B) Transition between coil-globule phase and (C) example of hydrogen bonding preference of thermo-responsive hydrogel (PNIPAm) on membrane surface and pores across the critical solution temperature.

Where a is the chain expansion factor, $l$ is the polymer chain length, $n$ is the number of freely jointed links in the $l$-length of hypothetical chain, and $C_n$ is the characteristic ratio (considers valence angles and chain rotation). In the hydrophilic state, the polymer exhibits a coiled structure and swells due to favorable interactions with aqueous solutions (a>1), thus decreasing the effective diameter of the membrane pores. In the hydrophobic state, the polymer retracts upon itself and exhibits a globular structure, as interaction with the aqueous solvent is non-favorable ($a$<1), which increases the effective membrane pore diameter (Fig. 2B). Overall, due to the flexible nature of temperature-responsive polymers, membrane functionalization with such materials is a favorable procedure for large-scale and research purposes.

2.1.2. PNIPAm-functionalized membranes

Poly(N-isopropylacrylamide) (PNIPAm) is a common temperature-responsive polymer, due to its highly studied nature and biocompatibility. PNIPAm contains a hydrophilic amide group and a hydrophobic isopropyl group¹², thus creating a sharp behavioral response across its LCST of around 30-34°C. Below the LCST, hydrogen bond interaction between the water and certain groups, such as C=O and N-H moieties¹³, is preferred. Above the LCST, though, the polymer exhibits preferred intermolecular hydrogen bond interaction between the amide groups of nearby PNIPAm polymer¹⁴ (Fig. 2C).

PNIPAm functionalization has been reported with several different membrane materials, such as poly(vinylidene fluoride) (PVDF)¹⁵, polypropylene (PP)¹⁶, polyethylene (PE)¹⁷, and polycarbonate (PC)¹⁸. Functionalization is typically achieved using a pore-filling method ^19,20, which utilizes the redox free-radical polymerization of the monomer within the membrane pores. Other methods for incorporating PNIPAm into the membrane system include plasma treatment and high energy radiation¹². These membranes have shown several different uses, such as enhanced water remediation^21,22, the development of antifouling/self-cleaning surfaces²³, and effective separation of hydrophobic/hydrophilic liquids²⁴.

The responsive nature of PNIPAm hydrogels is independent of the polymer’s molecular weight and concentration²⁵, but can be limited in certain scenarios of membrane functionalization. Microfiltration PVDF membranes with PNIPAm has shown significant responsive nature below and above the LCST with weight gains post-functionalization ranging from 15-17%^21,22. Weight gains greater than such values or with functionalization primarily in membrane pores could, however, inhibit the responsive phase transition of the hydrogel and permeability through the membrane²⁶, as the maximum available volume for the hydrogel to change conformation is limited by the pore volume.

Furthermore, the temperature range that results in PNIPAm’s thermo-responsive behavior can be affected by the ionic strength of the surrounding solution via the Hofmeister series^27,28. Essentially, the high presence of salts in the environment can prevent the water from interacting with the amide group of PNIPAm, thus lowering the LCST (salting-out). Vu et al. showed this ionic strength-responsiveness in a PNIPAm-functionalized nanofiltration membrane system, where control of PNIPAm phase (coil or globular) was controlled by change in salt concentration, instead of ambient temperature, via change in the specific value of the polymer’s LCST²⁹.

Several significant advances have been made in the functionalization process of membranes with PNIPAm. Fabricating temperature-responsive membranes using PNIPAm-hydrogel particles and an existing membrane structure has been a common practice, resulting in a mixed-matrix membrane (MMM). This method has several advantages, such as the single step preparation method for the responsive particles and membrane itself, which offers customization and further control of the resulting membrane systems without the need for a complex multi-step process³⁰. Furthermore, this method has shown the potential to yield higher PNIPAm particle presence on certain membranes, which greatly increases the temperature-response of water permeabilities on the resulting membranes^31,32.

Creating MMMs with PNIPAm has been achieved with flat-sheet membranes^33,34 using the process of non-solvent induced phase separation (NIPS) but has not been applied to hollow fiber membranes (HFM) until recent years. HFM geometry is often favorable for further development after technology validation in flat-sheet applications, as this geometry offers a higher membrane packing density of surface area per volume utilized, thus increasing the scalability and commercial practicality³⁰. Götz et al. recently adapted the NIPS process from flat-sheet membranes to HFM fabrication. This study functionalized a polyether sulfone (PES) HFM (using wet spinning process) with temperature-responsive PNIPAm hydrogels³⁰. PNIPAm presence in the membrane was confirmed using carbon-hydrogen-nitrogen-sulfur (CHNS) elemental analysis, and the membranes showed a 12x increase in water permeability (0.5 to 6 LMH/bar) through the resulting membrane when transitioning above the LCST (at 1 bar of applied pressure). This investigation indicates a significant advance in the fabrication and scalability of thermo-responsive membrane systems for commercial applications.

The technology and understanding of HFM functionalization with PNIPAm have recently been expanded with investigations of microgel mobility and interaction with membranes. Wiese et al. controlled the charge of PNIPAm microgels on a PES-HFM surface and examined how microgel charge affected the functionalization process³⁵, which has not been previously investigated in literature. To achieve this, the authors developed a novel microscopy module, which allows for online movement monitoring of single microgels and layer formation. Furthermore, this study concluded that slightly negatively charged PNIPAm microgels can functionalize a PES membrane without particle loss or rearrangement under specific flow (Reynolds Number Re=100), while highly charged microgels display significant particle loss and rearrangement at Re of 100³⁵. The resulting microscopy tool, along with the discovered effect of microgel charge, has significant current and future implications for the investigation and optimization of PNIPAM hydrogel functionalization of HFMs.

Track-etched membranes with uniform pores have also been a promising medium for PNIPAm functionalization to create responsive membranes with tunable pore sizes. In the past, functionalized ultrafiltration (UF) membranes were shown to achieve an effective pore diameter of 20-100 nm using a controlled surface-initiated atom transfer radical polymerization (SI-ATRP) of PNIPAm³⁶. Ulbright et al. further demonstrated that the effective pore diameter of track-etched poly(ethylene terephthalate) (PET) membrane can be reduced to under 10 nm²⁶. In this study, controlled lysosome rejection (~4 nm in diameter) was validated as 65% and 99% above and below the LCST, respectively, indicating effective tunable filtration of nano-sized material. Furthermore, this study showed that, even in effective nano-diameter pores, effective pore size and functionalization degree was linearly correlated to SI-ATRP reaction time. These recent advances widen the application abilities of thermo-responsive membrane systems for tunable filtration.

The applications of PNIPAm-functionalized membranes have been expanded in recent years with investigations showing uses for environmental remediation and filtration. Temperature swing adsorption/desorption methods have shown promise, as the filtration system can achieve tunable and reusable remediation of water sources from pollutants. Above the LCST of PNIPAm, the functionalized membrane can exhibit enhanced adsorption of contaminants, such as oil^24,37, copper³⁸ and proteins^39,40, due to the hydrophobic domain that allows greater interaction between the contaminant and membrane system. Below the LCST, PNIPAm exhibits hydrophilic behavior, thus allowing adsorbed contaminants to desorb into a lower volume of solution for further treatment, regenerating the system for further cycles of reuse.

Recent advances have been made to broaden the contaminants that PNIPAm-functionalized membranes can remove. Saad et al. examined the efficacy of temperature-responsive membranes for enhanced removal of harmful perfluorooctanoic acid (PFOA) from water sources²², which had not been previously investigated in literature. With PNIPAm-functionalized PVDF membranes above the LCST, this study achieved an over 4x increase in PFOA adsorbed (ratio of mass of PFOA over mass of membrane) compared to below the LCST. The driving force of this drastic increase in PFOA adsorbed is further explained in Figure 3, where the increased hydrophobic interaction (such as Hansen dispersion parameter) between the isopropyl domain of PNIPAm and the hydrophobic fluorinated tail of PFOA is significantly expressed above the LCST⁴¹. This is likely due to the isopropyl groups dehydrating when increasing the temperature above the LCST, where hydrogen bonds of the polymer-bound water (with C=O and N-H) become less favorable and hydrogen bonds (Hansen hydrogen bonding parameter) between the polymer chains themselves become favorable¹³.

Figure 3. Hydrophobic interaction changes between functional groups of PNIPAm and PFOA below and above the polymer LCST.

Adapted from Saad et al.²²

The resulting membranes also displayed stable adsorption/desorption properties over 5 temperature swing cycles (Fig. 4A), indicating high stability and reusability of the system. As previously mentioned, this increased adsorption of PFOA was due to the increased hydrophobic interactions between the polymer’s isopropyl group and the fluorinated chain of the contaminant, while the subsequent desorption of PFOA was caused by the re-hydration of the isopropyl groups below the LCST, thus decreasing the hydrophobic interactions available.

Figure 4. Results of PFOA capture/rejection by recent advances of thermo-responsive functionalized membranes.

(A) PFOA temperature-swing adsorption and desorption using PNIPAm functionalized PVDF400 demonstrates reusability of PFOA-capturing membranes over five adsorption/desorption cycles. Reproduced with permission from Saad et al.²² (B) PFOA adsorption (above LCST) over time in a batch mode using thin film nanofiltration on PNIPAm-functionalized microfiltration composite membrane shows how functionalization with thermo-responsive polymers can add secondary mechanism to further increase removal of contaminants such as PFOA. Reproduced with permission from Léniz-Pizarro et al.⁴³

Furthermore, these adsorption values were comparable to that of granulated activate carbon (GAC)⁴², an industry standard for PFOA adsorption. Further work on this topic has been conducted by Léniz-Pizarro et al. with the formation of a thin film (polyamide nanofiltration layer) on PNIPAm pore-functionalized microfiltration membranes⁴³. The resulting membrane systems utilized two separation mechanisms, achieving adsorption of 178 mg PFOA adsorbed on the support layer per m² membrane (Fig. 4B) and exclusion (via thin film layer) of approximately 70% rejection of PFOA at high water fluxes (~100 LMH with applied pressure of 7 bar). Overall, these studies indicate promising new applications for thermo-responsive membranes in the advancement of environmental remediation from perfluoro-organic pollutants.

Further advancements in this field combined PNIPAm and catalytic functionalization for environmental remediation applications. Functionalizing membranes with zero-valent iron (ZVI)-palladium nanoparticles (Fe/Pd NPs) have shown promise for the reductive degradation of certain water pollutants, yet have been shown to be limited in functionality due to mass transfer limitations between the catalyst (Pd) and the contaminants²¹. Saad et al. incorporated PNIPAm-functionalization into Fe/Pd catalytic PVDF membranes to overcome such limitations for degrading polychlorinated biphenyl (PCB-1). Utilizing PNIPAm functionalization, the resulting Fe/Pd-functionalized membranes yielded first order rate constant (k_SA) values of 0.28 and 0.72 LMH at 25°C (below) and 35°C (above the LCST), respectively²¹. Li et al. have shown similar advantages using PNIPAm-functionalized membranes for enhanced 2-nitroaniline degradation to 1,2-diaminobenzene by embedded Pd NPs. Degradation efficiency increases of 11.6, 4.3, and 0.3% were observed from 30 to 35°C for membranes with Pd loading content of 0.408, 0.556, and 0.685 mg per gram of membrane, respectively³⁷, indicating that PNIPAm-enhancement could allow for a more efficient remediation process. It is important to note that such systems, with magnetic nanoparticles (such as magnetite nanoparticles), are also responsive to magnetic field stimulation. Such responsiveness is often utilized for other applications, such as enhanced separation, drug delivery, and sensing in the field of automation and material separation⁴⁴.

PNIPAm functionalization is also becoming a promising membrane modification to reduce fouling and add self-cleaning properties. Xu et al. showed that the functionalization of polyamide membranes with PNIPAm exhibited greater resistance to protein adhesion and deposition, due to the hydrophilic properties of the polymer below the LCST, thus reducing long-term fouling²³. Above the LCST, PNIPAm functionalization exhibits hydrophobic properties, allowing for the formation of a “buffer layer”. This reduced interaction between the contaminant and membrane, allowing for self-cleaning applications to combat irreversible fouling. Several studies have recently reported similar advances in antifouling and antibacterial properties with PNIPAm-functionalized zwitterionic membranes^37,45, random copolymer grafted membranes⁴⁶, N-isopropylacrylamide grafted silica nanoparticles embedded in membrane systems⁴⁷, and Bentonite-PNIPAm nanocomposite membranes⁴⁸. Specifically, Mao et al. developed PVDF membranes with thermo-responsive attapulgite (t-ATP) functionalization by incorporating PNIPAm functionalization with ATP fibers⁴⁹. Utilizing a temperature-change coupled ultrasonic cleaning process, these membranes systems were able to remove ~89% of bovine serum albumin (BSA) biofouling present on the membrane surface, indicating significant advances for scalable biological waste remediation. Similar reductions in BSA fouling were observed by Zhao et al. with N-isopropylacrylamide grafted silica nanoparticles embedded in ultrafiltration PVDF membranes⁴⁷.

2.1.2. Other thermo-responsive polymers including poly(N-hydroxymethylacrylamide) and acrylamide/acrylonitrile copolymers

Significant advances in functionalized membranes with other temperature-responsive polymers have been made in recent years. For example, UCST polymers, such as copolymers of acrylic acid, acrylamide and acrylonitrile (AN) at low pH, are less studied than their LCST counterparts. These copolymer hydrogels are fairly temperature-responsive, as increased intermolecular hydrogen bonding is expressed below the UCST (globule-like state), while hydrogen bond interactions between the hydrogel and the surround water are favored above the UCST (coil-like state)⁵⁰.

Ding et al. successfully created nanofibrous membranes with poly(AAm-co-AN)), utilizing a one-step electrospinning method⁵¹. While these membranes displayed a consistent separation efficiency for oil/water separation (99.5% below UCST) over 6 cycles, a permeability of roughly 60,000 LMH/bar was also maintained over these separation cycles (as opposed to only 60% permeability recovery for PVDF membranes). This consistent permeability over 6 cycles was due to reversing the membrane fouling with an acidic high-temperature (55°C) solution above the polymers’ UCST. Another example of an advance in functionalized membranes utilized poly(N-hydroxymethylacrylamide) (PNHMA), an LCST polymer, for enhanced isopropyl alcohol (IPA) dehydration via pervaporation. Baysak et al. recently investigated poly(vinyl alcohol)-graft-PNHMA membranes, showing that membrane flux increased and IPA/water separation factor decreased with increasing operating temperature⁵². Modeling this observed relationship, this study identified an ideal operating temperature for this membrane system at 30°C, achieving an increased flux (due to LCST polymer response) of 0.0085 kg/m²/h while optimizing the separation factor and selectivity to 362 and 2209, respectively. Furthermore, Işıklan et al. utilized the thermo-responsive polymer poly(N,N-diethylacrylamide) (PDEAAm) and a microwave-induced graft copolymerization to create biocompatible pectin-g-PDEAAm copolymers⁵³ with high grafting, thermal stability, and an LCST of ~31°C, thus advancing previous methods of thermo-responsive membrane functionalization with such responsive polymer material.

2.2. pH-responsive functionalized membranes

2.2.1. Overview of pH-responsive functionalized membranes

pH-responsive membranes allow for certain changes in properties, depending on the pH of the membranes’ surroundings. Such membranes encapsulate a large portion of the functionalized membrane field, due to their wide applicability, such as biomaterials, nanotechnology, drug delivery, controlled transport, and water filtration. These membranes typically achieve their responsive nature via surface and pore functionalization with a pH-responsive material, which is typically a weak polyelectrolyte (PEL) polymer, such as poly(acrylic acid) and poly(methyl methacrylate) (PMMA) and are commonly co-functionalized with another functional material (i.e. temperature-responsive or catalytic functionalization via ion exchange of polyelectrolyte groups). These responsive polymers can swell/deswell and change functional group charge with changes in pH, which, in simple terms, is determined by the pKa value (negative base ten log of acid dissociation constant) of each polymer. pKa is inversely correlated to the strength of the acid, meaning that the lower the pKa value for a pH-responsive polymer, the greater its tendency to deprotonate at a given pH. This responsive polymer nature, similar to temperature-responsive polymeric functionalizations, can be described using root-mean-square end-to-end distance relationships (Equation 1).

Many pH-responsive functionalizations consist of acidic PEL polymers, functionalized via physical blending or chemical grafting⁵⁴, where co-valent grafting systems can have a higher responsive nature⁵⁵. More specifically, polyelectrolyte polymers have an electrolyte repeat unit⁵⁶ and the monomers are typically soluble in water, but become insoluble upon polymerization and crosslinking during the membrane functionalization process⁵⁷. These now-insoluble anionic polymers on the surface and pores of the membrane can exhibit different charges, due to their weak acid groups (Fig. 5A). In a solution with a pH below the pKa value of the weak PEL polymer’s responsive group, the polymer groups are protonated. This results in the polymer hydrogel collapsing to a globule-like state, due to increased hydrogen bond interactions between the polymer’s carboxylic groups. In a solution with a pH above the respective pKa, the acidic polymer group is deprotonated, thus releasing a positive charge (H⁺). Due to the negative charge, there is a significant repulsive force that inhibits hydrogen bond interaction between the polymer groups, thus the hydrogel extends into a coil-like state. This interaction change decreases the effective pore diameter. Note that many polymers can have several pKa values, due to multiple electrolyte groups in the repeat unit, thus different protonated and deprotonated group can exist at specific pH ranges. Furthermore, it is important to note that pH levels do not affect the charge distributions of polymers with strong electrolyte groups, only with weak electrolyte groups⁵⁸. This is because weak PEL polymers contain ionizable groups with a lower degree of dissociation, while strong PEL polymers have groups with such high degree of dissociation that they do not exhibit a significant responsive nature¹.

Figure 5. Schematic of pH-responsive membrane section with common polymers.

(A) pH effect on the membrane permeability of membranes functionalized with cationic or anionic polyelectrolytes. Reproduced with permission from Xiao et al⁶². (B) Different types of charged polymer brushes. Reproduced under Creative Commons License (available at http://creativecommons.org/licenses/by/4.0/) from Durmaz et al⁶³. (C) Differences in structure of common weak anionic PEL polymers with acidic groups.

Additionally, many polyelectrolytes are not responsive to only the concentration of hydrogen ions in the surrounding environment, but to ionic strength overall, such as salt concentration⁵⁹. The mechanism for responsiveness is also dependent on the type of polyelectrolyte and its responsive mechanism: (1) cationic, such as poly(ethyleneimine and poly(dimethylaminoethyl methacrylate)⁶⁰, (2) anionic, such as poly(acrylic acid) and poly(methyl methacrylate), and (3) zwitterionic polymers, such as poly[1-vinyl-3(2-carboxyethyl) imidazolium betaine] (PVCIB)⁶¹ (Fig. 5B).

2.2.2. PAA/PMAA/PMMA-functionalized membranes

Acrylic acid, methacrylic acid (MAA), and methyl methacrylate (MMA) are common anionic monomers utilized in the functionalization of different membranes (Fig. 5C) via in-situ free radical polymerization and thermal treatment of monomer-modified membranes or via dip-coating membranes with PAA⁶⁴. These polymers, due to their ion exchange abilities via deprotonated functional groups (carboxylic acid with pKa of 4.5⁶⁵) and fairly hydrophilic properties, are extensively used for various membrane applications, such as metal ion capture^21,66–68, nonionic surfactant adsorption⁶⁹, nanoparticle formation^21,70, and enhanced enzyme immobilization on membranes^71,72. The weight gain of the resulting membranes after polymerization tends to be lower than that of thermo-responsive membranes, typically less than 15%. This is because lower PAA/PMAA/PMMA polymer density maintains significant membrane permeability and high diffusion capacity for exchangeable ions, thus allowing for higher subsequent functionalization capacity. Control of weight gain, cross-linking density, and desired exchangeable ion concentration allows for specific functionalization capacity to meet the separation criteria for intended application.

Specifically, in the field of environmental catalysis, PAA/PMAA/PMMA-functionalized membranes have been vital for the immobilization of iron and the subsequent formation of ZVI particles, due to the ion-exchange properties of their carboxylic acid component (pKa of 4.5⁶⁵). In an environment with a pH less than ~4.5, the carboxyl group remains protonated (COOH). With a pH above 4.5, though, the group becomes deprotonated (COO⁻), allowing for the introduction of a positively-charged ion, such as sodium (Na⁺), into the group. At a high pH, the Na⁺ can be replaced by ferrous iron, via ion-exchange, and then reduced using a strong reducing agent (i.e., sodium borohydride, NaBH₄) or a green reducing agent (i.e., green tea extract⁷³) for the formation of a ZVI nanoparticle. The resulting NP system is more stable long-term in a membrane media than in suspension, and the size of formed NPs in membrane media can be more easily controlled with PAA/PMAA/PMMA cross-linker density⁷⁴.

PAA, PMAA, and PMMA respond similarly to changes in pH levels, but there are several noticeable differences that are considered with an intended application. At pH levels below the pKa, PAA is not a fully globule structure and is still soluble in water, thus the change in effective pore diameter is less pronounced than other PEL polymers⁷⁵. Alternatively, PMAA and PMMA display a “hyper-coiled” and significantly globular structure at a low pH, which occurs due to the methyl group that PAA lacks^2,75. This allows for a more significant change in mean end-to-end distance with pH change and therefore a stronger response in changing effective pore diameter. Furthermore, PMMA has a considerably lower vapor pressure than other acrylic acid-based options²¹. This makes PMMA a more viable functionalization material for the industrial scale, as it can increase functionalization efficiency and reduce air/vapor pollution.

There have been significant advances in membrane functionalization with PAA, PMMA, and PMMA. As previously mentioned, in-situ polymerization of PAA is typically performed using thermal initiation of monomer-coated membrane or dip-coating of membranes with polymer solution. These methods, while highly utilized, have certain limitations. Thermal initiation requires an oxygen-free environment and a lengthy functionalization timeline (60-120 minutes)⁷⁴, which makes it less appealing for scalability. Dip-coating with polymerized solution often results in membranes with agglomeration and clogging of nanoparticles in the membrane system and is limited by polymer compatibility^64,76. Microwave (MW) irradiation has been proven to allow for a faster polymerization time with carboxymethyl cellulose membranes⁷⁷, due to a lower activation energy for initiator formation⁷⁸, and a more stable membrane matrix. MW irradiation methods have not been previously reported with PVDF membranes, which are a more viable membrane for scalability and highly-selective separation of nanomaterials, respectively.

Silva et al. developed a detailed synthesis method of functionalizing PVDF membranes with PAA utilizing microwave irradiation for water treatment and ZVI applications⁷⁶. This study extensively investigated controlling functionalization yield (%) by altering the duration of continuous and multi-dose MW treatment. MW exposure times of (2 × 15 s), (3 × 15 s), and (4 × 15 s) resulted in PAA yields of 1.5, 4.5 and 19.4% weight gain, respectively (Fig. 6A). Utilizing multi-dose exposure with longer irradiation times (i.e., 2 x 30 s) yielded significantly lower PAA than that of the (4 × 15 s) dose (Scanning electron microscope-SEM image on Fig. 6B), indicating that doses longer than 15 s can thermally damage the PAA polymer hydrogel⁷⁶. This damage is most likely due to primary chain scission reactions, which also results in an overall less stable membrane matrix⁷⁷. Similarly, Ashfaq et al. functionalized graphene-oxide coated RO membranes with PAA using MW radiation for antiscalant purposes⁷⁹. This method utilized an irradiation power of 600 W for 40 seconds, although a significant subsequent reaction time of 60 minutes still remained. Overall, these studies show significant advances in scalability for PEL polymer functionalization of membranes by overcoming the time limitation associated with traditional methods.

Figure 6. Functionalization of membranes with PAA using microwave radiation.

(A) PAA conversion yield % due to MW continuous and multi-dose irradiation. Average error: 20%. 2 × 15 s; “2” refers to the number of MW doses and “15 s” is the MW dose time (i.e., total MW dose of 2x15 = 30 s), while air-cooling was applied for 30 s between doses. (B) PVDF membrane treated with (4 × 15 s) MW with 30 s of air-cooling: SEM image of bottom surface. Reproduced with permission from Silva et al.⁷⁶

PAA/PMAA/PMMA-functionalized membranes have a wide range of applications, due to their ability to change charge of certain groups in response to pH level. In recent years, Olimattel et al. reported the use of polyallylamine hydrochloride (PAH)/PAA-functionalized (through fluidic layer-by-layer assembly) UF membranes as a cost-effective alternative to RO membranes for water remediation from perfluorinated toxic pollutants⁸⁰. Due to size and charge exclusion, the functionalized membranes exhibited roughly 30% higher removal efficiency of PFOA and PFOS with an overall 38% reduction in molecular weight cut-off, showing the promise of lower-cost separation methods than existing commercial options. Liu et al. reported functionalizing carbon nanotube-composite membranes with PAA for oil-water separation⁸¹. The highly hydrophilic properties of the membrane (from PAA functionalization) exhibited a high separation efficiency (>95%) of dichloromethane-in-water emulsion over 10 filtration cycles, while maintaining a membrane permeability over 10,000 LMH per bar.

Furthermore, PEL-functionalized membranes have shown advances in removal of hazardous particulate matter filtration from the air phase. Lu et al. fabricated electrospun superhydrophobic polydimethylsiloxane (PDMS) membranes with PMMA as a carrier polymer⁸². The resulting membranes exhibited almost 100% filtration efficiency of fine inhalable particles (~2.5 μm in size) with miniscule pressure drop (70 Pa). This was achieved in a high humidity environment (96±3% relative humidity), which can often hinder the filtration efficiency of hydrophilic air filters. Additionally, Mishra et al. reported functionalizing poly(amide imide) (PAI) hollow fiber membranes with poly(ethylene oxide) (PEO) and PMAA for carbon dioxide separation⁸³. PMAA was incorporated with the intended goal of overcoming a known limitation of PEO-functionalized membranes, crystallinity formation in layer-by-layer deposition. The resulting membranes achieved one of the highest selectivity factors reported for CO₂:N₂ (240:1) with a CO₂ permeability of 1,018 Barrer, which overcame the previously-tested upper limitation of permeability vs. selectivity balance/trade-off for such applications. These studies exemplify that PEL-functionalized membranes have broadening applications and advances in separation of air-based contaminants as well.

PEL functionalizations are also commonly used to enhance existing membrane systems, specifically for increased scalability and antifouling capabilities. Ansari et al. functionalized RO membranes, which are prone to fouling due to the effective filter pore size (less than 1 nm⁸⁴), with PAA for enhanced antifoulant properties⁸⁵. This study found that PAA-functionalized RO membranes, due to the charged surface from the polyelectrolyte, exhibit a slower decrease in water permeability with gypsum (thus less fouling), compared to the unfunctionalized control membrane. The authors also showed that PAA-functionalization does not significantly change the surface roughness of GO-functionalized RO membranes, indicating that this modification process can be used for GO-functionalized membranes without decay in precise structure. Olimattel et al. investigated organic fouling resistance of UF membranes with PAH/PAA functionalization⁸⁶. Using a fluidic layer-by-layer assembly, the resulting membranes showed significant antifouling properties when tested with humic acid with a lower flux decline of 13.8±12% and a higher flux recovery of 86.2±12%, compared to that of the unfunctionalized commercial UA60 membrane with a flux decline of 22.8±8.8% and flux recovery of 74.4±16.1%. The authors state that this correlation is due to the increased negative charge of the membrane surface from the PAA polymer functionalization, which cause “loose foulant layers” that are more easily reversed. Similar antifouling properties were observed by Ma et al., who fabricated highly hydrophilic and oleophobic membranes with PMAA and hydroxide nanosheets, which were grafted in-situ with alternately arranged sodium 1-dodecanesulfonate and 3-aminopropyltriethoxysilane⁸⁷. The resulting membranes displayed a drastic resistance to irreversible fouling, while maintaining filtration permeability and separation efficiencies of PEO in water.

As stated, PMMA is a promising option for membrane functionalization with PEL polymer, due to its lower vapor pressure. Membrane functionalization with PMMA has been well-established^88,89, but its applications in iron-functionalized membrane systems have not been reported in literature prior to 2020. Zdarta et al. developed a fibrous electrospun membrane with PMMA, 1,1,1,3,3,3-hexafluoro-2-propanol (HFP), and embedded magnetic iron oxide particles for laccase enzyme immobilization⁹⁰. With 1-ethyl-3-(3-dimethylaminopropyl)carbodiimide (EDC) and N-hydroxysuccinimide (NHS) chemistry, the methyl group of the PMMA group was utilized for covalent immobilization of laccase, yielding over 60 mg of enzyme loaded per cm² of membrane area. Due to the PMMA and iron material, the enzymes’ thermostability, reusability, and activity maintenance was improved, compared to non-covalently immobilized forms. This is shown during tetracycline removal, where the immobilized enzyme membrane exhibited higher efficiencies than that of free enzyme. With the incorporation of the pH-responsive polymer, the pH resistance of the enzymes was higher as well. Saad et al. also reported flat-sheet PVDF membranes functionalized with PMMA and iron-palladium nanoparticles for PCB degradation²². Using ion-exchange methods, the PMMA functionalization achieved 0.15 mg of iron immobilized per cm² of membrane with a subsequent 2.8 mol% of palladium deposition.

Further advances with metal-immobilized systems via PEL functionalization were reported by Heng et al. for titanium functionalization of membranes with PAA⁹¹. Specifically, the surfaces of PES membranes were functionalized with PAA, which were then utilized as a bridging agent to add a self-assembled layer of nitrogen-doped carbon quantum dot-modified TiO₂. This methodology allowed for precise control of catalyst loading and polymer grafting extent by controlling specific variables, such as concentration of AA monomer or power of plasma (measured in watts) utilized during the polymerization process, while still maintaining a stable membrane system via covalent bonding between the PAA and catalytic components. For Pd-based systems, Wang et al. reported PMAA-functionalized PVDF membranes for the creation of a Pd bilayer composite membrane with a semi-interpenetrating polymer network (IPN)⁹². The resulting membrane can achieve general separation, catalysis, and in situ product separation in a single step, utilizing the PMAA-IPN layer for controllable filtration of two-component contaminants for subsequent catalytic degradation. A 99.74% degradation of p-nitrophenol solution (10 mg/L) with BSA presence was achieved with a membrane permeability of 27 LMH/bar.

2.2.2. PDM-functionalized membranes

Poly(N,N-dimethylaminoethyl methacrylate) (PDM) is a linear PEL (pKa~7) with tertiary amine groups that exhibits both pH- and temperature-responsive nature. PDM-functionalization of membranes is limited by its difficulty to polymerize⁹³, but has several specific advantages, primarily superior antimicrobial capabilities. Stawski et al. showed that significant antimicrobial capabilities of PDM was maintained at varying degrees of polymerization⁹³, indicating the polymer’s advantage in inhibiting microbial growth over other weak PEL materials used in membrane functionalization.

Several advances in PDM-functionalized membranes have been reported in recent years. Abdellaoui et al. developed a PDM-functionalized cellulose triacetate (CTA) membrane, prepared via free radical polymerization, for ion separation of lead and cadmium⁹⁴. The structure of the resulting polymer-including membranes was confirmed using multiple characterization methods (SEM, Fourier-transform infrared spectroscopy-FTIR) and achieved permeate concentrations of 51.0 and 24.8 mg/L compared to the feed concentrations of 76.8 and 49.5 mg/L for cadmium and lead ion, respectively, when using two crown-ethers (15-C-5 and DB-24-C-8) for facilitated transport as carriers. Furthermore, Sánchez et al. utilized a cellulose membrane with PDM (polymerized using reversible addition-fragmentation chain transfer-RAFT) for the removal of chromium (Cr-VI)⁹⁵. Using polymer-enhanced ultrafiltration technique, the increased interaction between the charged metal ion and PEL polymer was investigated at varying pH levels (Fig. 7A). This result, paired with the fractional distribution of different Cr subspecies at varying pH levels (Fig. 7B), indicates that negative or positive charge of PDM (due to pH change) does not simply correlate to increased metal retention, as subspecies can vary between cation and anion.

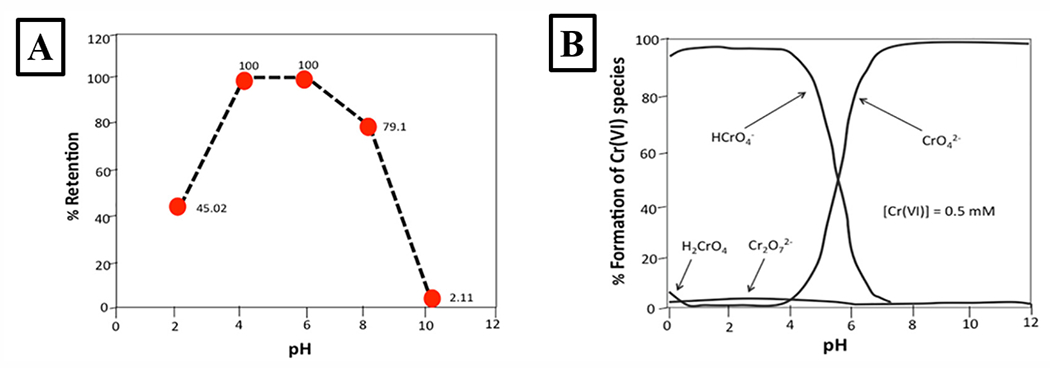

Figure 7. Removal of chromium and subspecies with pH-responsive membranes.

(A) Cr(VI) retention (with an 80:1 polymer-metal ratio) versus pH using 25 mg/L of Cr(VI) at 1 bar of pressure with a filtering factor of 5. (B) Fraction of Cr(VI) species at varying pH (concentration of 0.5 mM). Reproduced with permission from Sánchez et al.⁹⁵.

With the reason behind this trend elucidated, the authors still achieved significant metal ion retention percentages (~100% in certain pH environments), indicating the promising application of using PDM in membranes for ion separation. Another advance in PDM-functionalized membranes was reported by Zhou et al., who functionalized glass fiber membranes with poly(dimethylsiloxane) and PDM⁹⁶. The resulting super-hydrophilic membranes achieved high water-oil separations efficiencies (~99%). Overall, there have been several promising recent advances with functionalizing membrane systems to obtain pH-responsiveness, which are summarized in Table 1.

Table 1.

Advances of polymer-functionalized pH-responsive membranes in recent years.

Base Membrane Material	Functionalizing Polymers	Applications	Reference
Polypiperazine-amide	PAH & PAA	Water remediation from perfluorinated toxic pollutants	Olimattel et al.80
Carboxylated carbon nanotubes	PAA	High efficiency of water-oil separation	Liu et al.81
PDMS (Electrospun)	PMMA	Filtration of fine inhalable particles (low ΔP)	Lu et al.82
PAI (Hollow fiber)	PEO & PMAA	Highly efficient gas separation (CO2:N2)	Mishra et al.83
Composite polyamide (Spiral wound)	PAA	Enhanced antifouling properties of membrane from gypsum	Ansari et al.85
Polypiperazine-amide	PAH & PAA	Enhanced antifouling properties of membrane from humic acid	Olimattel et al.86
PVDF	PMAA	Resistance to irreversible surface and pore fouling	Ma et al.87
HFP (Electrospun)	PMMA	Increased enzyme thermostability, reusability, and activity maintenance (for tetracycline removal)	Zdarta et al.90
PVDF	PMMA	Immobilization of ZVI/Pd for PCB degradation in water sources	Saad et al.22
PES	PAA	Precise catalyst loading during addition of carbon quantum dot-modified TiO2 layer	Heng et al.91
PVDF	PMAA	Addition of Pd bilayer with IPN for filtration control of two-component contaminants	Wang et al.92
CTA	PDM	Ion separation of lead and cadmium in water sources	Abdellaoui et al.94
Cellulose	PDM	Removal of chromium from water	Sánchez et al.95
Glass fiber	PDM and poly(dimethysiloxane)	High efficiency of water-oil separation	Zhou et al.96

2.3. Light-responsive functionalization of membranes

Light-responsive materials have been a recent focus of membrane and separation research, given the low energy input of light irradiation for controlling membrane properties. Pantuso et al. recently provided a review with various examples, including numerous applications for photo-switchable wettability, roughness, gating, and self-cleaning properties by varying photo-responsive moieties⁹⁷. The light-responsive gating properties of photoswitchable components have also been effectively employed in the area of gas separations, as recently reviewed by Rosli and Low, highlighting the advantages of coupling photoresponsive materials with metal-organic frameworks (MOFs) to control transport of gases through dense membranes⁹⁸. Focused applications and limitations of MOFs with photoresponsive functionality, are summarized by Kanj et al.⁹⁹. Notably, bio-inspired channels and pores in separations membranes can also be controlled by light, as reviewed recently by Lu et al.¹⁰⁰. Overall, there are many advantages of photo-responsive functionalized membranes, making this field’s applications vast (Fig. 8)

Figure 8. Common themes in photoresponsive membrane research.

(A) Photocatalytic materials (purple) are capable of absorbing light to excite electrons and generate electron-hole pairs (e⁻ h⁺) which allow the excited electron to be capture by nearby molecules to generate radical species (like hydroxyl radicals) that can then participate in oxidative processes to degrade contaminants like oil emulsion droplets (brown circle), as shown in the example membrane which separates and catalytically degrades oil-water emulsions to mitigate fouling and maintain optimal performance in (B). Panel (C) shows two of the most commonly used photoswitchable groups in membrane applications, azobenzene and spiropyrans which are reversibly changed through treatment with Ultraviolet/Vis light. (D) Common applications for azobenzene-functionalized membranes include photo-controlled transport properties (left of dotted line) where the isomerization can alter flux through the membrane, and for spiropyran-functionalized membranes include photo-controlled surface properties (right of dotted line) where the switching controls hydrophobic-hydrophilic surface transitions. (E) Localized surface plasmon resonance (LSPR) occurs in nanoparticles (yellow spheres) when conduction band electrons (e⁻) are excited by certain wavelengths of light (determined by material properties and nanoparticle dimensions) in an oscillatory fashion, which leads to enhanced local electric fields and ultimately heat generation at the particle surface. (F) Enhanced electric fields can be used for highly sensitive detection as in the case of Surface Enhanced Raman Scattering (above dotted line) for highly sensitive detection of analytes (green pentagon), and the heat generation due to LSPR is also commonly applied for solar energy conversion to heat to vaporize water for desalination applications (below dotted line).

2.3.1. Photocatalytic membranes

A well-studied section of light-responsive membranes is the field of photocatalytic membranes, which are functionalized with materials (i.e., semiconductors or metal organic frameworks-MOFs) that absorb light to generate reactive oxygen species, which have been heavily investigated for water remediation applications (reviewed recently by Mendes-Felipe et al.¹⁰¹). One of the most common materials in photocatalytic membranes functionalization for water treatment is titanium dioxide (TiO₂), due to its low cost and well-studied properties as a photocatalyst. Recently, this topic was reviewed in-depth by Riaz and Park with an overview of recent progress in TiO₂-containing photocatalytic membranes¹⁰². A significant drawback of conventional TiO₂ photocatalysts is the limited spectrum (ultraviolet-UV region) and low efficiency (~5%) of solar energy absorption¹⁰³. However, research in recent years has broadened the absorption spectrum for photocatalytic materials to absorb light in the visible region, leading to expansion of effective membrane applications.

Specifically, biomimetic approaches can allow for broader spectrum light absorption. Fang et al. exhibited a layer-by-layer assembly to create highly porous (~87% porosity) biomimetic porphyrin-based photo-oxidation membranes with high water flux (~387 LMH/bar), achieving >90% removal of three organic dyes under visible light irradiation¹⁰⁴. Another example is reported by Zhang et al. with the investigation of a modular system that utilized graphitic carbon nitride (g-C₃N₄) as the photocatalyst in a polydopamine-functionalized PVDF membrane¹⁰⁵. This system, with a separator membrane capable of Fenton catalytic cleaning and a distinct photocatalytic membrane to generate hydrogen peroxide, achieved visible spectrum generation of peroxide that was able to recover 100% of flux after fouling experiments with dextran, comparatively to only ~80% recovery for hydraulic cleaning¹⁰⁵. A variety of other photocatalysts with visible light absorption have also been used in membranes in recent years, including various MXenes^106,107, metal organic frameworks^101,108,109, modified TiO₂^91,110,111, conjugated polyelectrolytes¹¹², Ag-AgBr¹¹³, and various mixed metal oxides^114–116.

Beyond direct degradation of dissolved pollutants by advanced oxidative processes, one major advantage of photocatalytic membranes is fouling mitigation/prevention, where oxidation of foulants can prevent adsorption, accumulation, and even growth of biofilms that are a major problem with longevity of wastewater treatment systems (reviewed by Nasrollahi et al.¹¹⁷). A recent study showed that functionalizing PVDF membranes with photocatalytic CdS/MIL-101 MOF in a membrane bioreactor setup for microbe-mediated organic pollutant degradation successfully prevented biofouling on the membrane by bacteria and organic foulants under visible light irradiation¹⁰⁸. The functionalized membrane exhibited a ~15% flux loss compared to unmodified membrane with ~40% flux loss after 40 min with BSA as a model foulant, thus significantly advancing the field of eco-friendly microbial water remediation. Another recent example found that visible-light photocatalytic g-C₃N₄/Bi₂MoO₆ microspheres (blended into polysulfone ultrafiltration membranes) not only aided in removal of protein foulants, but also led to a marked increase in porosity with a subsequent high rejection of protein¹¹⁵. Furthermore, photocatalytic membranes have recently been investigated extensively for the case of oily wastewater treatment^{106,107,109,118–121}, where oxidation of oily contaminants can synergistically aid separation in the production of purified water from oil-in-water emulsions.

2.3.2. Photoswitchable moieties in membranes

Membranes functionalized with photoswitchable materials (that change conformation or chemical structures with light treatment) have also been demonstrated as a powerful tool for oil-in-water separations. One of the most common photoswitchable moiety is azobenzene, as it reversibly changes conformation upon irradiation with UV and visible wavelengths of light, with notable prevalence of other groups, such as spiropyrans that can form or break bonds with visible or UV wavelengths of light (Figure 7). The switchable properties of photoresponsive moieties can control transport through dense membranes in several precise filtration applications, such as gas separation. A recent study showed highly precise control of gas transport properties through a porous steel membrane using a photoswitchable azobenzene based grafted layer combined with a chemically inert liquid gating layer. With this functionalization, these researchers achieved controlled interactions of the membrane substrate with the chemically inert gating liquid (nonpolar functional liquid Krytox® 103), thereby allowing remote spatially-resolved control of gas transport (CO₂) through the membrane, while simultaneously preventing corrosion of the metallic porous membrane¹²².

In addition to controlling transport through dense membranes, photoresponsive moieties have been shown to effectively alter surface properties, resulting in light-controlled separation behavior. Azobenzene-mediated reversal and switching of surface properties between hydrophobic/hydrophilic was recently shown to be effective for purification of oily water, demonstrating a stable reversable switchability for at least 30 days¹²³. Another study investigated a photoswitchable aerophobic Janus membrane for unidirectional transport of air bubbles from water¹²⁴. Specifically, an asymmetric laser-drilled zinc membrane that can be altered by UV irradiation and heat treatment to modify aerophobicity of one surface, thus resulting in a Janus membrane to control air permeation through the membrane¹²⁴. Furthermore, asymmetric light irradiation has been used to drive selective cation transport against a concentration gradient¹²⁵, mimicking active transport of ions across biological membranes. A conducting polymer membrane was functionalized with polystyrene sulfonate anions to allow for generation of a surface charge induced by light. The result was a membrane that could transport ions against a 0.02 mM KCl differential under light irradiation, as measured by the current across the membrane; diffusion in the absence of light demonstrated a 0.1 nA ion current, with a change to −4.5 nA under ~700 mW/cm² irradiation¹²⁵.

In comparison with the light-activated cation transport to mimic biological processes, a responsive membrane with enhanced light-responsive functionality was demonstrated recently with the creation of a porous polymer matrix (made of temperature and UV-responsive copolymers using N-isopropylacrylamide and spiropyran as the responsive blocks)¹²⁶. These developed membranes were utilized to encapsulate an enzyme, resulting in confinement-enhanced reaction rates approximately 3-fold higher than the free enzyme in solution. Similarly, an azobenzene-based functionalization in a porous polymer was found to increase enzymatic reaction rates of asparaginase over 4-fold through confinement effects controlled by UV irradiation¹²⁷. These studies highlight the potential power of multiple photoresponsive surface functionalities for optimizing efficiency of enzymatic membrane reactors.

2.3.3. Plasmonic material functionalization in membrane applications

Plasmonic materials are generally nanostructured materials with surface electrons that can be excited in an oscillatory fashion on the material surface, resulting in an increased absorption of certain wavelengths of light. This, in turn, enhances local electric fields and ultimately dissipates as heat at the material surface¹²⁸. One of the most studied applications of plasmonic materials is molecular sensing. Sensing can occur as a direct measurement of plasmonic resonance effects on optical properties like refractive index, as in the case of laboratory SPR equipment¹²⁹, or by the enhancement of local fields to improve sensitivity of other spectroscopic techniques, as in the case of surface enhanced Raman scattering (SERS)¹³⁰. Sensing of biological molecular interactions has a long and continuing history of applying plasmonic materials in membranes for highly sensitive and specific sensors^131,132. For example, a recent study showed the use of cellulose fiber membranes for monitoring wound healing by functionalization with plasmonic silver to detect the biomarkers matrix metalloproteinase 9 and tumor necrosis factor alpha at nanomolar levels using SERS as a noninvasive measurement technique¹³³. Chiral plasmonic nanoparticles with enantiopure phenylalanine coatings have even been recently shown to detect light polarization at high sensitivity in nanoscale membranes. These membranes generated ~2.4 times the photocurrent for illumination with right-handed circularly polarized light than left-handed, highlighting the diversity of powerful applications for plasmonic membranes in developing futuristic chiral photonics¹³⁴.

Plasmonic material-functionalized membranes have also seen effective use as sensors for nonbiological molecules like gases, by detection of both direct SPR optical changes (i.e., extinction through a thin membrane) and through spectroscopic detection like SERS. For instance, another recent study showed the use of palladium and Teflon nanocomposite membranes to overcome diffusion limitations of hydrogen into the palladium transducer as part of a remote plasmonic sensor for hydrogen gas resulting in fast response times of 2.5 s at 10% H₂, highlighting versatile applications plasmonic materials in membranes for inorganic sensing as well¹³⁵. The use of a silica microporous membrane with plasmonic silver nanostructures has also been explored for SERS-based sensing of trace gases (i.e. 0.1 ppm hydrazine and 0.5 ppb anisole in the vapor phase) in real time for use in highly sensitive controlled environments like the international space station, demonstrating the vast potential for plasmonic materials in membranes to contribute to next generation of environmental monitoring technologies¹³⁶. Moreover, a sensor system composed of rare-earth nanosheets assembled into a membrane was shown to separate and detect a mixture of four separate toxic compounds (rhodamine B, crystal violet, bisphenol A, and dichlorophenol) via SERS at concentrations of ~100 nM (with pure component detection in the ~1 pM range), highlighting the flexibility and power of combining plasmonic sensing capabilities with membrane-based separations¹³⁷.

Photothermal heating of plasmonic materials in membranes has also found various applications, like the innovative example of PNIPAm-coated plasmonic particles exhibiting dual functionality in a porous membrane as both a sensor via SERS and a light-controlled LCST-polymer gating strategy¹³⁸ (see also Politano et al. for a 2016 review of thermoplasmonic approaches for controlling membrane transport properties¹³⁹). Importantly, a major segment of recent work regarding plasmonic materials in membrane-based technologies is focused on solar energy harvesting for water purification applications, leveraging the abilities of plasmonic materials to convert light to heat. One recent study showed a high solar-thermal efficiency (66.7%) for purification of simulated seawater (3.5% NaCl) via membrane distillation (1.01 L m⁻² h⁻¹ under 1 solar irradiance) using titanium nitride nanoparticles to promote water vaporization precisely at the membrane surface, where the localization of solar energy absorption at the PVDF membrane surface maximizes efficiency¹⁴⁰. In another recent study, the size of silver nanoparticles was tuned to generate polyacrylonitrile (PAN) nanofiber membranes with broad plasmonic absorption, resulting in a material with 92.8% absorption efficiency across the solar spectrum that was capable of producing 1.34 kg m⁻² h⁻¹ of water vapor flux under 1 solar irradiance¹⁴¹. In another recent example, broadband plasmonic copper telluride nanowires were combined with a cellulose membrane to generate a material for solar-driven desalination, resulting in evaporation efficiencies of 81-90% (4.3 kg m⁻² h⁻¹) capable of generating localized heating at the surface to about 56 °C, which is significantly higher than previously established Cu₂Te (~50 °C) and graphite (~45 °C) membranes tested in this study¹⁴².

In each of these examples, the key feature of the high efficiency for solar energy conversion to water heating/vaporization is the tight coupling between the membrane and plasmonic materials, which maximizes localization of heating effects due to solar radiation at the functional interface. This localized heating has been well explored to this point for application in solar-driven water purification, however, other potential advantages of localized heating in membrane processes are less studied. For example, it is likely that localized heating at the surface of composite nanomaterials with both plasmonic and catalytic properties would provide significant advantages for increasing efficiency of reactions with minimal increase in energy input, especially for plasmonic materials with resonances suited to the solar energy spectrum (as has been shown for solar-thermal water purification research). Indeed, a recent study showed enhanced photocatalytic ROS generation with application as an antimicrobial coating using TiO₂ nanoparticle/Au nanorod composites¹⁴³, lending support for further exploration of the potential for plasmonic-enhanced catalytic materials within membrane science.

2.4. Other stimuli-responsive mechanisms in membrane functionalization

2.4.1. Electro-responsive membranes

Electro-responsive membranes have also been shown to be important in oil-in-water separations. The use of copper-based membranes with rather large pores (2 μm) was shown to efficiently separate ~1 μm oil emulsion droplets from water (water flux of ~2500 LMH/bar with ~98% rejection) via applied negative polarization in the pores. This was shown to reduce oil droplet coalescence and therefore minimize fouling, an effect which was enhanced at low ionic strengths due to screening effects of surfactants in the emulsions¹⁴⁴. A particularly interesting case of electro-responsive membranes was recently developed by Dehkordi et al., who employed a pH responsive polymer (PMMA-co-PDEAMA) doped with hydroxyl functionalized spiropyran that had switchable hydrophilicity based on triggers of CO₂, electric potential (EP), and/or light. While this switching controlled hydrophilicity (water contact angle changing from 138° to <5° to 121° after CO₂ then EP treatment) and water permeability (from ~0 to 1.59 to 0.05 LMH/bar after CO₂ then EP) of the membrane with application for oil/water separations, the most interesting feature was the color-changing property imparted by the spiropyran component, which provided a visually noticeable cue for the hydrophilicity change¹⁴⁵.

While this discussion is mostly focused on the roles for electroresponsive membranes in oil-in-water separations, there are a variety of other applications for controlling membrane behaviors through applied electric fields (Fig. 9). A recent study showed that conjugating electro-responsive polymers to hexokinase enzyme in a hydrogel matrix could enable reversible control of enzyme reaction rate (V_max from ~0.6 mmol/min to ~1.7 mmol/min, comparable to free enzyme at ~1.6 mmol/min) with application of external electric fields by tuning accessibility of the enzyme to its substrate with potential applications in bioseparations¹⁴⁶. Overall, methods for creating electroresponsive membranes and their advantages have recently been reviewed by Formoso et al.¹⁴⁷ and Alayande et al.¹⁴⁸. Monovalent ion selective membranes (MIMS), that often employ electric fields and redox reactions¹⁴⁹, has recently been reviewed by Wang et al.¹⁵⁰ as well. Another thorough recent review by Srimuk et al. was more focused on desalination, ion-selective separations, and element (primarily lithium) recovery, including the use of ion-exchange membranes in concert with charge-transfer materials¹⁵¹. It is important to note that redox-responsive membranes can be considered a subset of electroresponsive membranes, and has been recently reviewed by Gallei & Rüttiger regarding redox-responsive porous membranes and their applications in separations¹⁵².

Figure 9. Examples of common methods and applications for electroresponsive membrane functionalization.

Reproduced under Creative Commons License (available at http://creativecommons.org/licenses/by/4.0/) from Alayande et al.¹⁵³

2.4.2. Mechanical/pressure responsive membranes

An interesting application of mechanically responsive membranes is for enhancing flux of oil/water separations using membranes. A smart material utilizing a hydrophobic thermoplastic polyurethane substrate functionalized with zeolite-imidazole framework (ZIF-L) nanosheets demonstrated strain-responsive flux control (~10,000 LMH to ~35,000 LMH under gravity for hexane) via hydrophobic transition (water contact angle ~47° to ~113°), while maintaining >98% selectivity in oil/water separation for strains from 0% to 100%¹⁵⁴. Another study recently showed success in minimizing fouling in oil-water emulsion separations using piezoelectric ceramic membranes with pulsed transmembrane pressure (0-2 bar). This converted mechanical energy from pressure pulses to local high voltage electric fields that demulsify the oil-water mixture and subsequently remove it from the membrane surface by dielectrophoresis¹⁵⁵. Conversely, piezoelectric materials in membranes can also be stimulated by applied electric fields to generate a mechanical response, as shown in ultrafiltration membranes made of composite carbon nanotubes/PbZr_0.52Ti_0.48O₃ membranes that were able to achieve a ~80% increase in permeability due to mitigation of fouling during filtration of 2.5 g/L dextran¹⁵⁶.

Pressure response can also be more specific, as shown in several examples in the gas separations area. Composite MOF nanosheet/graphene oxide nanosheet membranes were recently shown to enable highly selective CO₂ separations (~23 and ~20 for N₂ and CH₄, respectively) based upon CO₂ partial pressure sensitive gating (at ~0.55 bar CO₂) in the MOF portion of the composite¹⁵⁷. A similar example using hydrogen-bonded organic framework membranes achieved H₂/N₂ selectivity of ~20 based on differential permeability of the material at higher pressures, a characteristic suggested to be due to stretching of hydrogen bonds and resulting lattice parameter lengthening in the framework at higher pressures¹⁵⁸.

3. Enhanced functionality surfaces

Membranes offer a large surface area that provide a great potential for surfaces with enhanced functionality to interact extensively with fluids in a process. Environmental remediation is one field in which the separating ability of membranes coupled with enhanced surfaces has found powerful uses. For example, immobilization of palladium in membranes has shown to be effective for dehalogenation of persistent organic pollutants like polychlorinated biphenyls¹⁵⁹. Palladium and other nanoscale zero-valent metal catalytic membrane reactors have been recently reviewed with thorough discussions of functionalization approached^160,161.

3.1. Enzyme-functionalized membranes

Porous membranes represent a powerful tool for improving performance of enzymes in catalyzing relevant reactions for industrial scale by providing a highly controllable local environment to enhance stability, control transport, and integrate separations processes for resultant products. A particularly powerful application for enzyme-coupled membranes is in next generation sequencing of nucleic acids, where biological nanopore enzymes are immobilized in an electrically conductive membrane and the current is monitored as nucleic acids are passed through to decode the genetic sequence¹⁶². Importantly, the inclusion of stimuli-responsive features, along with enzymes, can further enhance the strengths of enzymes in membranes; Stimuli-responsive membranes functionalized with enzymes were recently reviewed by Qi and Qiao¹⁶³. More recently, several advances have been made in the area, which are briefly reviewed here.

3.1.1. Advances of enzyme-functionalized membranes

Generally, the methods for attachment of enzymes to membranes have not changed significantly in recent years, with physical approaches (i.e. adsorption, electrostatic, entanglement) and covalent approaches (i.e. aldehyde, carboxyl, epoxide surface chemistries that can crosslink enzymes to the surface) both having strengths and weaknesses for the ultimate function of the membrane reactors (see Figure 10 and also recent review by Cen et al.¹⁶⁴). However, several studies have shown advantages for immobilizing enzymes (i.e., lipase, acylase, dehydrogenases) to nanoscale carriers directly with subsequent nanocarrier immobilization on or in membranes for the creation of enzymatic membrane bioreactors. A recent study showed that immobilization of lipase on magnetic nanoparticles (which were then attached to membrane) resulted in ~30-50% improvement of enzyme functionality than direct immobilization on the polyacrylonitrile membrane via similar covalent attachment chemistry using hydrolysis of para-nitrophenyl palmitate to assay enzyme activity¹⁶⁵. Moreover, some nanocarriers are themselves functional materials participating in the reactions, such as photocatalytic oxidation of wastewater contaminants, as summarized in the recent review by Kołodziejczak-Radzimska et al.¹⁶⁶. In some cases, the functional material may improve separation selectivity with or without participating in reactions, as in the case of a recent study showing the use of carbonic anhydrase enzyme-embedded MOFS in a membrane to improve selectivity by ~20-fold for CO₂/N₂ gas separation¹⁶⁷, or the example of membranes employing MOF-enhanced laccase and micropollutant adsorption that resulted in enhanced selectivity for biocatalysis of pollutant degradation¹⁶⁸.

Figure 10. Overview of enzyme functionalization methods and applications in bioremediation of pollutants.

Reproduced under Creative Commons License (available at http://creativecommons.org/licenses/by/4.0/) from Kołodziejczak-Radzimska et al.¹⁶⁶.

Importantly, we focus here primarily on enzyme-functionalized membranes and their role in separations processes, but membrane bioreactors (MBRs) incorporating whole microbial organisms are also extremely valuable for advancing various aspects of eco-friendly membrane processes. In these systems, a key aspect of current and future work is reducing biofouling, since microorganisms are quite efficient at colonizing a surface and impeding transport through the membrane as biofilms are formed blocking pores. To combat these issues, a variety of approaches have been investigated, with a notable recent example being the immobilization of quorum-quenching enzymes (like acylase) on the membrane surface (with or without additional composite components like carbon nanotubes) to prevent biofouling¹⁶⁹. In contrast, some MBRs target growth of microbial communities on the filter media to optimize efficient pollutant removal, as reviewed by Deng et al.¹⁷⁰. Progress in the area of membrane bioreactor process and materials design has been summarized by Qin et al.¹⁷¹, and a focused review comparing traditional versus biofiltration processes for volatile organic and heavy metal separations for polluted water treatment was also recently published by Pachaiappan et al.¹⁷².

3.1.2. Applications of enzyme-functionalized membranes

Enzymatic and microbial MBRs have a great potential for producing value-added and high value products in biorefinery processes, but still face significant challenges like scaleup and improving enzyme stability, as reviewed by Akkoyunlu et al.¹⁷³ and Mazzei et al.¹⁷⁴. Hollow fiber membranes can aid in scaleup, as demonstrated recently with a radial MBR for simultaneous enzymatic hydrolysis and product separation in a lignocellulose digestion to glucose. In this study, the radial flow format showed ~3-fold improvement in yield compared to a flat sheet format, which did not simultaneously remove glucose from the reaction mixture¹⁷⁵. Another recent instance of simultaneous product removal improving process efficiency used pervaporation membranes to remove methanol from a cascade membrane reactor that converted CO₂ to methanol, incorporating MOF composites (including reduced nicotinamide adenine dinucleotide and glutamate dehydrogenase as electron sources) in organized layers (MOF-composites containing formate dehydrogenase, formaldehyde dehydrogenase, and alcohol dehydrogenase) within a microfiltration membrane to enhance methanol production from ~5.8 to ~13.4 μmol¹⁷⁶.

With respect to environmental remediation, there has been extensive study on wastewater treatment using biocatalytic membrane reactors (reviewed by Aslam et al.¹⁷⁷). Figure 9 shows several examples of pollutants degraded by enzyme-functionalized membranes. For example, enzymatic degradation of formaldehyde to methanol (with alcohol dehydrogenase) was achieved with high efficiency (~90%) through immobilization of alcohol dehydrogenase on PVDF membranes, with significant reusability up to at least seven cycles of water treatment¹⁷⁸. Similarly, water purification from oil emulsions also can be aided by enzymatic membrane reactors. Lipase enzymes were recently immobilized on alumina membranes by traditional silane chemistry, as well as via polydopamine coating with and without glutaraldehyde. These membranes showed that the non-glutaraldehyde PDA immobilization provided the highest activity of the enzyme (41% of free enzyme) and also provided twice the flux (~300 LMH/bar vs ~150 LMH/bar) compared to nonactive membranes with a much higher flux recovery (~69% vs ~45%), thus demonstrating the antifouling activity of lipase enzyme for oil-water membrane separations¹⁷⁹. Remediation via enzyme-functionalized membranes, though, is not limited to water environments. Mills et al. functionalized PVDF microfiltration membranes with subtilisin Carlsberg and PMAA for the enhanced capture and denaturation of viral particles, specifically spike glycoprotein (S-Protein of SARS-CoV-2) coated aerosols¹⁸⁰. These membranes achieved significant denaturation of the particles’ surface proteins, due to enzyme-protein interactions, while exhibiting a protection factor of 540 ± 380 from coronavirus-sized aerosols (higher than established protection factor of 10 for commercial N95 masks).

Enzymatic membrane systems also have powerful applications in sensing, as in the case of a hollow fiber membrane nanosystem designed for in situ blood separation and biosensing that used MOF-enzyme hybrids for detection of important biomarkers, such as cholesterol, glucose, and lactic acid¹⁸¹. In another example, a gold-electrode based amperometric detector for glucose with a detection range of 58 μM to 5 mM was created¹⁸². Using supported multilayer liquid membranes decorated with multiwall carbon nanotubes and glucose oxidase enzymes, no interference from uric acid or ascorbic acid was shown. The selectivity of enzyme-functionalized membranes can also be useful for sensing, as in the case of an ultrathin pepsin-functionalized membrane that was shown to retain high molecular weight proteins while selectively allowing peptides from enzymatic digestion through the membrane¹⁸³, thereby protecting them from further breakdown by the protease. These diverse examples of enzyme-functionalized membranes are just a few instances of the powerful applications for enzyme membrane reactors in a wider variety of important fields.

3.2. Two-dimensional membrane functionalization

Two-dimensional (2-D) functionalized membranes consist of ultrathin membranes with sub-nano/atomic thickness and have been making significant advances in the membrane field, due to their separation abilities, mechanical strength, and flexible yet precise functionalization¹⁸⁴. The membranes’ nanolayers allow for the creation of specific interlayer channels (Fig. 11A) to exhibit a high separation efficiency of nano-sized contaminants/ions, while maximizing the membrane permeability that can be achieved, due to minimal thickness. 2-D membranes have additional advantages over traditional membranes, such as lower cost than ceramic membranes¹⁸⁵, and they are typically categorized as either porous nanosheet or laminar membranes (Fig. 11B). Typically, these membranes consist of graphene oxide, metal-organic framework nanosheets, covalent-organic frameworks (COF)¹⁸⁶, zeolites, and transition metal carbides/carbonitrides, and they have several means of functionalization, such as spin coating, hot dropping filtration, and polymer induction. Overall, 2-D membranes could replace many existing membrane technologies in the future, if known limitations such as scalability and stability¹⁸⁵ can be overcome.

Figure 11. Schematic of two types of 2-dimensional membrane systems.

(A) Porous nanosheet membranes and (B) laminar membranes. Reproduced with permission from Cheng et al.¹⁸⁵.

In the past years, 2D-functionalized membrane systems have been reviewed extensively, including the works of Zhang et al.¹⁸⁷, Loske et al. ¹⁸⁸, DuChanois et al.¹⁸⁹, Han et al. (with a focus on GO-functionalized membranes and applications)⁶, as well as Guirguis et al.¹⁹⁰ and Cheng et al. (with a focus on biofouling)¹⁹¹. Due to the highly-reviewed nature of 2D membrane materials, this section will focus specifically on recent advances of GO-functionalized membranes. To summarize, graphene oxide has become a popular option for 2-D membrane functionalization because of its thin two-dimensional structure, chemical resistance, mechanical strength, and specific pore size for highly-selective separation⁶. Furthermore, GO contains several oxygen-containing functional groups, such alcohols, carboxylic acids, and epoxides¹⁹², which can serve as locations for further site-directed functionalization with other materials, such as PAA. These functional groups can also introduce charges to the membrane surface, which subsequently increases the rejection of certain contaminants. It is important to note that there are other significant advances in 2-D membrane functionalizations besides those containing GO, such as 2-D double hydroxide for oil-water separations⁸⁷, metal-organic framework nanosheets for stable thermo-responsive filtration¹⁹³, and ethanol dehydration using 2-D MXene membranes¹⁹⁴.

3.2.1. Advances of graphene oxide functionalization

There are several established methods for GO functionalization, such as carbon nanotube decomposition, mechanical exfoliation, liquid-phase exfoliation, epitaxial growth, and chemical vapor deposition (CVD), the latter being one of the most appealing methods for scalable large-area applications⁶. There are two main modes of creating separating “pores” for GO-functionalized membranes: formation of porous GO layers via defects or stacking GO layers for molecular sieving using interlayer channels. First, to form porous GO layers, defects are introduced into the system using a variety of methods, such as electron beam nanosculpting¹⁹⁵, ion etching¹⁹⁶, or block copolymer lithography¹⁹⁷. Second, stacked GO layers are functionalized in specific ways to allow for flow through the interlayer channels, thus creating a type of sieve system for filtration. This functionalization is primarily done via vacuum-assisted filtration, layer-by-layer assembly, or continuous centrifugal casting. At this point, it is important to note that weak reduction of oxygen-containing functional groups in GO (to make reduced graphene oxide-rGO) is common to increase membrane stability and control surface hydrophilicity (for increased membrane permeability)^6,198.

In recent years, there have been multiple advances in the GO functionalization process and resulting membranes. Fouladivanda et al. functionalized poly(vinylidene fluoride)-co-hexafluoropropylene (PVDF-HFP) electrospun membranes with octadecylamine-reduced graphene oxide (ODA-rGO) for air-gap membrane distillation applications¹⁹⁹, which, to the best of our knowledge, is the first ODA-rGO functionalization using hydrothermal methods reported in literature. The resulting functionalization resulted in an X-Ray diffraction (XRD) peak shift from 10.35° to roughly 21°, which was due to the hydrothermal method removing the oxygen-containing functional groups. Additionally, Quanling et al. developed a process for synthesizing thin-film nanofiltration membrane with 2-D GO and 3-D hyperbranched polymer functionalization to achieve higher permeability, selectivity, chemical resistance, and antifouling properties than existing poly(piperazine-amide) (PPA) thin-film options²⁰⁰. This study functionalized polysulfone membranes with a thin-film of PPA (via interfacial polymerization), which also contained hyperbranched polyester-functionalized GO nanosheets (as nanofillerss) with hydrophilic carboxyl functional groups. Due to this novel functionalization, the resulting membranes were able to maintain high salt rejection (above 90% for NaSO₄ and MgSO₄) with roughly half the flux drop over three BSA filtration cycles than that of traditional options.

Further advances were developed by Qian et al. with a one-step plasma processing method for the addition of polarized nitrogen atoms and amine groups to GO-functionalized membranes²⁰¹. Membranes were functionalized via plasma treatment (200 W power) in the presence of N₂/H₂ gas with 5-minute discharge/cool-down operation cycles. The resulting membranes achieved a mono/divalent cation selectivity and binary cation selectivity of 90 and 28.3, respectively, due to electrostatic interactions, while maintaining a high water flux of 120 mol/m²/h. Additionally, Chen et al. recently synthesized GO-functionalized PVDF fibrous membranes via electrospinning²⁰². Using a simple preparation method, this study both dip-coated GO on PVDF membranes and electrospun a GO-PVDF blend solution, resulting in nanofibers with a mean diameter of 991 nm and 551 nm, respectively. Overall, these studies indicate that the methods of membrane functionalization with graphene oxide are significantly advancing the field of separations and taking important steps towards scalable and commercially practical processes.

3.2.2. Applications of graphene oxide functionalization

GO-functionalized membranes have a large variety of applications, such as gas, dye, oil-water, and ion separation. Recently, several advances have been made for self-cleaning and anti-fouling properties of GO-functionalized membranes. Cao et al. developed a PVDF membrane with PNIPAm and GO functionalization for a novel self-cleaning process²⁰³. GO can convert near-infrared (NIR) light to heat²⁰⁴, thus utilizing NIR light for reversing pore fouling from BSA resulted in higher flux recovery ratios than traditional back-washing methods. Similarly, Alkhouzaam et al. utilized polydopamine (PDA)-functionalized graphene oxide nanoparticles for nanofiller functionalization of polysulfone membranes²⁰⁵. The resulting functionalized membranes with PDA-GO achieved a 30% increase in flux recovery ratio than the unfunctionalized membranes, as well as a lower contact angle (27.8±3.6° compared to 53.3±1.5° of the GO-functionalized membrane), indicating superior antifouling properties from this nanofiller functionalization. Another interesting advance was made by Karimipour et al. with the investigation of melamine-based dendrimer amine (MDA) and GO functionalization of PES membranes²⁰⁶. The resulting membrane showed an increased flux recovery ratio of 78.5%, compared to the unfunctionalized membrane (50.4%).

GO-functionalized membranes have immense applicability for dye separation, as the minute interlayer channels can effectively filter the extremely low molecular weight dye compounds. This topic was recently reviewed Januário et al. in 2021²⁰⁷, but some new advances are highlighted below. Choi et al. recently synthesized a three-layered diafiltration membrane via a scalable bar-coating approach²⁰⁸. This membrane consisted of a GO nanoribbon selective layer and a functionalized carbon nanotube layer, both on a PES backing material, which achieved ~100% dye rejection rate and a permeability of 138 LMH with stable filtration up to 30 bar of pressure. Previously mentioned for antifouling properties, the work of Karimipour et al. also achieved almost complete rejection of reactive red 198 dye with significant divalent ion retention (77.4% for Na₂SO₄ and 56.4% for MgSO₄) with MDA-GO-functionalized PES membranes²⁰⁶. Another recent advance includes the work of Januário et al. developing a simple method for PES membrane functionalization with polyvinyl alcohol and GO via layer-by-layer assembly²⁰⁹. The resulting membranes achieved over 99% removal of several dyes (sunset yellow, tartrazine yellow, and amaranth), while maintaining a filtration efficiency of 94% or greater over five filtration cycles. In the presence of dissolved salts, 86.17% of sunset yellow dye was removed, indicating effective implementation in real-world conditions.

Furthermore, GO-functionalized membranes are an appealing system for gas separation, due to the size of their interlayer channels and relatively low pressure drop across the membrane. Azizi et al. recently synthesized a copper benzene-1,3,5-tricarboxylic acid/graphene oxide composite membrane (as a filler on a polysulfone substrate)²¹⁰. The resulting mixed matrix membrane (15% weight gain) achieved reasonably high gas selectivities of 80.03 and 70.46 for H₂/CH₄ and H₂/N₂, respectively, compared to the MOF-functionalized membrane without GO (control) with respective selectivities of 44.56 and 40.92. As discussed in the pressure-responsive section, Ying et al. developed 2-D MOF and GO nanosheet membranes for carbon dioxide separation via a “gate-opening” effect¹⁵⁷. Similar results were found by Sainath et al. for CO₂ separation via functionalized polysulfone hollow fiber membranes with GO nanosheets²¹¹. Due to the presence of GO, the developed membranes exhibited a 201% increase in CO₂/CH₄ separation during mixed gas experimentation, compared to the unfunctionalized membrane systems. Further advances have been achieved by Zhou et al. with the development of 2-D graphitic carbon nitride membranes for hydrogen gas purification²¹². These 2-D membranes are severely limited in their structural stability and nanosheet formation, thus this research added GO functionalization to overcome existing structural defects. The resulting membranes achieved a high H₂/CO₂ selectivity of 39.2 with a stable permeability of 2.16 × 10⁻⁷ mol m⁻² s⁻¹ Pa⁻¹. These studies are great examples of the significant technological advances achieved recently for GO-functionalized membranes, resulting in more scalable options for commercial applications.

3.3. Thiol-functionalized membranes

Thiol-functionalization of membranes is becoming an appealing method for water source remediation from toxic heavy metal ion contamination, such as mercury, copper, nickel, lead and cadmium. This is due to the low energy and material cost of the technology, thus overcoming known limitations with current methods, such as ion exchange, solvent extraction, and precipitation²¹³. Thiol-functionalization of membranes is commonly achieved in several ways. Many studies achieve functionalization via the direct addition of thiol group onto the membrane surface and pores, while other methods incorporate EDC/NHS chemistry/ion exchange for the addition of a thiol-containing amino acid (i.e., cysteine)⁷. This functionalization yields very high capture efficiencies, as thiol groups (-SH) have a very high affinity for heavy metal ion adsorption. Briefly, this is due to soft Lewis acids (i.e., Hg²⁺) strongly favoring interactions with soft bases (i.e., SH⁻) to form a metal-sulfur complex⁷. This complex is insoluble and held together by a strong covalent bond²¹⁴, rendering a significant and effective adsorption mechanism. In 2019, Velempini et al. conducted a review on sulfur-functionalized materials for heavy metal ion adsorption²¹³, thus this work will focus on new advances in thiol-functionalized membranes in recent years.

Several advances in approaches for membrane functionalization with thiol groups, as well as increased heavy metal ion capture efficiencies have been achieved in recent years. Specifically for nanotube-containing membrane systems, Qu et al. developed thiol-functionalized and carboxy-functionalized multi-walled carbon nanotubes (MWCNT) for Pb(II) removal²¹⁵. The resulting membranes were synthesized via grafting of thiol groups onto the carbon nanotubes using 2-mercaptoethanol. This study achieved a 30.5% higher adsorption of Pb(II) with thiol-functionalized MWCNT, compared to COOH-functionalized MWCNT systems (at a pH of 5), showing the higher affinity of thiol than that of the COOH group. This research also found that this adsorption process was both exothermic and spontaneous, and a pseudo-second-order model fit the absorption kinetics, determining that the chemical adsorption is the primary controller of the Pb(II) removal rate. Hezarjaribi et al. achieved a similar functionalization system by functionalizing titanate nanotubes with thiol-containing mercaptosilane (site specific at the free OH groups of the nanotubes) and confirmed the fit of the pseudo-second-order model for Cu(II) and Ni(II) ions²¹⁶. Using their nanotube systems, Hezarjaribi et al. achieved adsorption capacities of 53.77 and 45.29 mg/g for copper and nickel ions, respectively. The pseudo-second-order model that was applied in these research investigations utilized experimental data to fit the following equation²¹⁷:

$$q_t=\frac{t{q}_e^2{k}_2}{1+t{q}_e{k}_2}$$ (2)

Where $q_t$ is the uptake capacity at time t (mg/g), $q_e$ is the uptake capacity at the equilibrium point (mg/g), and $k_2$ is the second order kinetic constant.

Further advances have been achieved by Hezarjaribi et al. using polyvinyl chloride (PVC) electrospun nanofiber membranes with thiol-functionalized hydrous manganese (1.5% weight gain), which has not been previously reported in literature, to achieve 80% and 89% removal of nickel and copper ions²¹⁸. Additionally, a more environmentally-friendly approach has been achieved by Thimmiah et al. with the development of a thiol-functionalized Agave americana-based nanofiber membrane for the single-state removal of both heavy metal ions and organic contaminants²¹⁹. This allowed for a greener fabrication method to achieve a capture efficiency of 97.49% and 99.23% for cadmium and lead ions, respectively. Three-dimensional surface modelling was conducted for the interaction between the resulting membranes and contaminants as well, determining an optimum fiber length of ~1 cm for cadmium ion removal.

Recently, previously-mentioned functionalizations for responsive behavior have been combined with thiol-functionalization to enhance and increase the metal ion capture capabilities of the resulting membranes. In 2020, both Hernández et al. and Islam et al. investigated functionalizing PAA-PVDF membranes with cysteine and cysteamine via both ion exchange and carbodiimide cross-linker chemistry^7,220. Upon membrane characterization with X-ray photoelectron spectroscopy (XPS), it was determined from peak intensity differences that EDC/NHS chemistry for thiol functionalization is a stronger method for increasing thiol presence than that of ion exchange. Hernández et al. reported mercury capturing capabilities of 1015 mg/g PAA and 2446 mg/g PAA for membranes functionalized via ion-exchange and EDC/NHS chemistry⁷, respectively, while Islam et al. investigated long-term capture (over 20 hours) with an achieved mercury adsorption efficiency of 97%²²⁰. Overall, there are many new applications of thiol-functionalization in recent years, showing the promising effectiveness of this technology for scalable and commercial heavy metal ion capture from water sources.

3.4. Antimicrobial functionalized membranes

Membrane functionalization with an antimicrobial agent is a common practice for reduction of surface biofouling and for biological/viral air filtration applications. In recent years, such functionalizations have become immensely important, due to the SARS-CoV-2 pandemic, and increased impact of shortcomings of existing personal protective equipment (i.e., N95 masks)²²¹. However, traditional antimicrobial materials, such as silver nanoparticles, are limited by their toxicity and harmful nature upon human exposure/inhalation²²². In recent years, several advances have been made in the field of antimicrobial-functionalized membranes, specifically for non-toxic applications.

Briefly, the use of salt functionalization has been investigated as a method of developing anti-microbial membranes and coatings in recent years. In 2021, Rubino et. al. showed that functionalization of polypropylene filters with sodium chloride, potassium chloride, and potassium sulfate to be efficacious in the deactivation of K. pneumoniae²²³. The salt crystals immobilized on membrane fibers were shown to facilitate cell wall destabilization and cell agglomeration facilitated by the temporary dissolution and subsequent recrystallization of the salt. Functionalization of large pore (~60 μm) polypropylene membranes with various salts (NaCl, K₂SO_4, KCl) was shown to increase filtration efficiency. Filtration of K. pneumoniae at 15 LPM flowrate increased from 40% for bare membrane to 65%, 43%, and 67% for NaCl, K₂SO_4, and KCl functionalization’s respectively. The use of quaternary ammonium salts for antibiotic coatings has been investigated more frequently in recent years. In 2018, Jie et. al. integrated chitosan quaternary ammonium salts (CQAS) into polymerized surface coatings of piezoelectric sensors²²⁴. In agar plate bacterial growth trials, the CQAS surface coatings showed greater than 99% reduction in cultured bacterial colonies of E. coli, S. aureus, and P. aeruginosa compared to control plates. While allowing for substantial deactivation of bacteria, the addition of the CQAS coating produces little to no reduction in the function of the piezoelectric sensor.

4. Functionalized membrane characterization techniques and advances

Surface and pore characterization is a vital part of the responsive/functionalized membrane field for advancing separation, transport, and structural properties. Functionalized membranes, especially, necessitate advanced characterization techniques to confirm functionalization, as well as investigate details of responsive behavior. There are many established methods for elucidating membrane properties, both dynamic and static in nature, and were recently reviewed by Tanis-Kanbur et al.²²⁵ (Fig. 12). Briefly, these methods consist of, but are not limited to, Fourier-transform infrared spectroscopy (FTIR), surface contact angle goniometry, transmission and scanning electron microscopy (TEM and SEM), energy dispersive X-ray spectroscopy (EDX), X-ray photoelectron spectroscopy (XPS), X-Ray diffraction (XRD), and zeta-potential measurements²²⁶. Focused ion beams (FIB) are also commonly used to mill membrane samples to image cross-section portions of the system. Advancing these methods is equally important as developing new functionalization techniques to both validate the developed membrane and give vital information for future direction of work. In recent years, several new characterization techniques and adaptations have been achieved to further the field of membrane and separations.

Figure 12. Examples of membrane characterization techniques.

Reproduced with permission from Tanis-Kanbur et al.²²⁵.

Cross section imaging is a very important aspect of membrane characterization. Membranes can be simply cut with a sharp blade/microtome or fractured when frozen to reveal the cross-section view, and FIB is frequently utilized for milling membrane samples. However, FIB cross sectioning is limited by the fragile nature of the membrane (compared to solid metal-like samples) and polymeric structure, which requires a low energy beam to reduce sample damage and consequently results in long milling times for complete cross section imaging (6-8 hours for 100-200 μm thickness). These constraints make FIB cross sectioning a costly process with significant time constraints on FIB-SEM instruments. Recently, broad beam ion milling has become a promising alternative to FIB for milling such membrane samples. Using an argon ion gun, the membrane sample is milled with on/off cycles while being cooled with liquid nitrogen to limit heating of sample, resulting in a pristine membrane sample with minimal melting or structural damage^227,228. While this method can still take a significant amount of time for milling, broad beam ion milling has several significant benefits as it (1) is a more cost-effective method, (2) does not occupy the SEM instrument for sample prep, (3) allows for a larger milled area, and (4) can reduce the damage done to the sample, which subsequently results in a more accurate characterization in SEM or TEM²²⁹.

Tortuosity is one of the more complex variables to characterize in membrane samples. In the past, tortuosity has been roughly calculated from the porosity and effective diffusion coefficient but requires prior knowledge of membrane structure. This method also depends on homogeneous pore structure throughout the membrane, which severely limits the application of this method for asymmetric membranes. Nuclear magnetic resonance (NMR) can also be used to measure the self-diffusion coefficient of a liquid in the pores, but can yield inaccurate results, due to interference with hydrophilic/hydrophobic functionalizations. In recent years, X-ray micro-computed tomography (micro-CT) is becoming an appealing option for overcoming these existing limitations to elucidate and analyze the tortuosity of porous material²³⁰. Briefly, the sample is exposed to an X-ray source while on a rotating stage. The X-ray signal is then converted to visible light via the fluorescent crystal plate, and then the subsequent light is analyzed via a cooled charged-couple device (Fig. 13A). Most membrane pore analyses are greatly enhanced by metal nanoparticle coating for micro-CT analysis, such as silver²³¹, and McNeil et al. showed that the complete three-dimensional pore structure of thin membranes can be accurately reconstructed²³² (Fig. 13B). This method can capture the functionalization structure inside the membrane pores in relatively short amounts of time (~10 hours) without damaging the sample itself, as long as other metal nanoparticles (such as ZVI functionalization) are not present.

Figure 13. Micro-CT as a characterization technique for membrane tortuosity and pore structure.

(A) Schematic diagram of a micro-computed tomography (micro-CT) scanner. The specimen is mounted on a rotating stage, and the specimen is illuminated at angular increments by an X-ray beam. The transmitted X-ray energy is converted to visible light energy by a fluorescent scintillating crystal plate. The visible light is projected onto a cooled charged-couple device (CCD) by a microscope objective. Reproduced with permission from Ortiz et al.²³³ (B) Micro-CT 3D analysis of the cross-section of a Ag-plated dual-phase, Al₂O₃-supported membrane after CO₂ and O₂ permeation. Reproduced with permission from McNeil et al.²³²

Other advances in characterization techniques were achieved by Lu et al. who characterized the dehydration process in situ during ion transport through membrane systems with subnano-sized pores²³⁴. Using a combination of time-of-flight secondary ion mass spectrometry (ToF-SIMS) and molecular dynamics simulations, this novel research achieved quick and dynamic characterization of ion transport, which is difficult to achieve with other methods (NMR, XRD, vibrational sum frequency spectroscopy). Similarly, Monteleone et al. utilized a mass-spectrometric residual gas analyzer for characterization of mixed gas transport through a polydimethysiloxane membrane with corresponding computational modelling for identifying abnormal transport behavior²³⁵. This represents a promising method for analyzing diffusion coefficients of the individual gases present in the mixture, which is not common in literature. Additionally, Barros et al. Recently reviewed ion-exchange membranes and their characterization via chronopotentiometry²³⁶, particularly highlighting that many advances in 3D mathematical modeling for these membranes and techniques will be achieved in upcoming years. Overall, these highlighted advances in membrane characterization are significant steps towards better understanding the properties and transport/separation phenomena of membrane systems, as well as developing novel functionalized membranes.

5. Conclusions and future directions

Most traditional membranes lack tunable properties, but the field of advanced membranes continues to see rapid technological developments for membranes functionalized with enzymes, 2-D layers, pH-responsive polymers, temperature-responsive polymers, and light-responsive polymers. The recent advances achieved for these membranes include (1) improvements in the fabrication/functionalization methods for increased membrane stability, switchable hydrophilicity, and overall scalability, (2) expanding applications to environmental remediation and high-efficiency gas separation, and (3) materials characterization methods to elucidate details of surface/pore structure, charge, and functional groups more accurately. These advances further the field of separations, indicating the myriad processes that can be improved using functionalized membrane technology and continuing to push towards developing commercially feasible systems.

Moving forward, the technologies in this field still have several limitations that should be addressed in the future. The two main limitations of functionalized membranes, in a general sense, consist of either 1) operational constraints (scalability, efficiency, or cost) or 2) environmental impact and longevity. In terms of scalability, the transition from flat-sheet and electrospun membranes to modules with higher packing densities, such as spiral wound and hollow fiber membranes, is vital for proving the scalability of functionalized membrane technology, thus advances with such modules in the future are vital to commercial implementation beyond the lab. Existing functionalization tools reviewed here, such as the hydrophobic-hydrophilic transition of thermo-responsive and pH-responsive membranes, as well as the easy switchability and efficient energy capture of light-responsive membranes, can be applied to existing scalable designs to overcome shortcomings of lab-scale formats, such as flat sheet membranes. These continuing innovations will bolster the utility and value of membrane technologies in solving real-world problems now, as well as in the future, as the world and societal needs change with continued population growth.
