Endocranial Casts of Camelops hesternus and Palaeolama sp.: New Insights into the Recent History of the Camelid Brain

Abstract

Endocranial casts are capable of capturing the general brain form in extinct mammals due to the high fidelity of the endocranial cavity and the brain in this clade. Camelids, the clade including extant camels, llamas, and alpacas, today display high levels of gyrification and brain complexity. The evolutionary history of the camelid brain has been described as involving unique neocortical growth dynamics which may have led to its current state. However, these inferences are based on their fossil endocast record from approximately ∼40 Mya (Eocene) to ∼11 Mya (Miocene), with a gap in this record for the last ∼10 million years. Here, we present the first descriptions of two camelid endocrania that document the recent history of the camelid brain: a new specimen of Palaeolama sp. from ∼1.2 Mya, and the plaster endocast of Camelops hesternus, a giant camelid from ∼44 to 11 Kya which possessed the largest brain (∼990 g) of all known camelids. We find that neocortical complexity evolved significantly between the Miocene and Pleistocene Epochs. Already ∼1.2 Mya the camelid brain presented morphologies previously known only in extant taxa, especially in the frontal and parietal regions, which may also be phylogenetic informative. The new fossil data indicate that during the Pleistocene, camelid brain dynamics experienced neocortical invagination into the sagittal sinus rather than evagination out of it, as observed in Eocene to Miocene taxa.

Introduction

The evolutionary history of the mammalian brain is known from studies of the fossil record of endocranial casts [Edinger, 1966; Dechaseaux, 1969; Jerison, 1971; Macrini, 2009; Rowe et al., 2011; Orliac and Gilissen, 2012] which can capture brain size, shape, and often the neocortical topology [Dechaseaux, 1962; Edinger, 1966; Dechaseaux, 1968; Repérant, 1971b; Jerison, 1977; Dozo, 1998; Rowe et al., 2005; Jerison, 2007; Macrini, 2009; Rowe et al., 2011; Orliac and Gilissen, 2012] due to the high fidelity of the endocranial cavity and the brain mammalian brain. Endocasts can be natural, created by normal fossilization processes, or man-made, by casting fossil endocrania, physically or virtually. Brain complexity has reached exceptional levels in humans and other primates but is closely followed by members of Artiodactyla [Lewitus et al., 2014], the clade including cetaceans (whales, dolphins, and porpoises) and artiodactyls (i.e., ruminants, pigs, camels) [Hassanin et al., 2012]. Among the latter, camelids, which include extant camels, guanacos, and vicuñas, were one of the first lineages to increase their neocortical complexity in the Eocene (∼40 Mya) [Orliac and Gilissen, 2012]. Today, the camelid brain displays remarkable differentiation of the sulcal system and significant expansion of the neocortex, particularly of the peripheral brain (gyrus 2), compared to other mammals [Repérant, 1971b, a].

The physical dynamics by which camelids may have evolved their current brain form is reportedly unique among mammals [Repérant, 1971a]. In most mammals, the neocortex reportedly develops from the midline outward towards the lateral brain. In contrast, the camelid neocortex reportedly develops by invagination of the telencephalon into the sagittal sinus [Repérant, 1971a]. Evidence for developmental invagination is provided by prenatal ontogenetic studies showing “primitive” sulci in the sagittal plane; and evolutionary invagination has been hypothesized based on the camelid fossil endocast record, and the reported sequence of sulcal development throughout geological time [Repérant, 1971a, b]. Brain form and neocortical topologies have been described for camelids from the Eocene, Oligocene, and Miocene Epochs (Fig. 1a–c), revealing the pattern of deep-time brain evolution in this group from approximately ∼40 to ∼11 million years ago. Since then, there has been a void in their fossil endocast record, limiting our understanding of the mode and tempo in which this lineage reached their current brain morphology.

Fig. 1.

a Schematic of the camelid brain from Eocene to Oligocene, and (b) Miocene. Adapted from Repérant [1971]. c Geological timeline for endocasts described here. Procamelus outline based on Edinger [1966], elements not to scale. d Phylogenetic hypotheses for Camelops, based on Scherer [2012]; Lynch et al. [2020]. * PIMUZ A/V 4091 is referred to Palaeolama sp. [Lynch et al., 2020].

Here, we present the first descriptions of Pleistocene camelid endocasts from two different stages. The first is a natural endocranial cast of a newly discovered Palaeolama sp. from the mid-Pleistocene (∼1.2 Mya) of South America, and the second, a plaster endocast of the skull of Camelops hesternus from the late Pleistocene (∼44 Kya to 11 Kya) of North America. Palaeolama is likely the closest fossil relative of extant South American camelids, Lama and Vicugna, according to the latest systematic review of Camelinae [Lynch et al., 2020], and our specimen represents the earliest occurrence of this genus in the fossil record [Scherer, 2012; Lynch et al., 2020]. The genus Camelops contains some of the largest camelids ever known, often referred to as the “giant camels” [Zazula et al., 2011], and is one of the most studied camelid taxa [Leidy, 1873; Hay, 1913; Webb, 1965; Jerison, 1971; Humpula et al., 2007; Heintzman et al., 2015; Baskin and Thomas, 2016; Lynch et al., 2020]. Its endocast has been referred to in one prior publication [Jerison, 1971] but has never been described. The phylogenetic position of genus Camelops remains much debated today, notably due to differences between molecular and morphology-based trees which place it either closer to South American taxa or to Asian camelids [Scott and Jepsen, 1940; Harrison, 1979; Honey et al., 1998; Heintzman et al., 2015; Baskin and Thomas, 2016] (Fig. 1d). Endocranial characters can be an important data source for phylogenetic inference [Macrini et al., 2007]. Here, we describe characters of potential phylogenetic importance to clarify the position of Camelops within Camelidae [Harrison, 1979; Honey et al., 1998; Scherer, 2012; Heintzman et al., 2015; Baskin and Thomas, 2016].

Materials and Methods

Materials

The endocast of Palaeolama sp., PIMUZ A/V 409, is a natural cranial endocast. It belongs to the Roth collection (“Katalog der Non-Xenarthra der Rothschen Sammlung”) of the Palaeontological Institute and Museum of the University of Zurich (PIMUZ) and dates to the Pampeano Inferior (Ensenadan), approximately ∼1.95/1.77 Mya to 0.4 Mya [Verzi et al., 2004; Lynch et al., 2020] from the “San Lorenzo 2” locality in Argentina [Roth, 1889; Schulthess, 1920]. The specimen includes multiple large skull fragments fitting anterior and posterior facets of the endocast, and various rostral and dental fragments that fit the rest of the skull. The endocast of C. hesternus, LACM 4700-1, is a plaster cranial endocast from a C. hesternus skull with catalogue number HC692, both belonging to the Rancho La Brea Tar Pits (RLBTP) in California, USA (A. Farrell, RLBTP, pers. comm.). The C. hesternus skull is dated between ∼44 Kya and 11 Kya (Rancholabrean) [Rook et al., 2019]. No other data are available for this specimen, and it has not been described except as mentioned in a quantitative study by Jerison [1971] (A. Farrell, RLBTP, pers. comm.). Interactive three-dimensional images of the endocast were provided in Adobe Portable Document Format (Adobe®Acrobat® v. 2021.007.20091) by the Rancho La Brea Tar Pits collections staff.

The geological age of Procamelus is based on new data acquired during our investigations. This datum was relevant for the section on brain size evolution. Previous studies on camelid brain size [Jerison, 1971], neocortical anatomy [Repérant, 1971a], and rate of brain size evolution [Kruska, 1982] have referred to the same Procamelus specimen (AMNH F:AM 40366) used here as an early or late Pliocene specimen. This specimen was first illustrated and published by Edinger [1966] as an “early Pliocene Procamelus” [Edinger 1966, p. 157–158], but without a catalogue number. The same specimen was described as a Pliocene taxon by Repérant [1971] (J. Repérant, pers. comm.). Based on textual references, this is the same specimen that Jerison [1971] identified as AMNH F:AM 40366: “a new and hitherto undescribed specimen from the Frick Collection of the American Museum of Natural History” [Jerison 1971, p.228]. The American Museum of Natural History (AMNH) confirms that AMNH F:AM 40366 is a Miocene Procamelus from the Clarendonian North American Land Mammal age (NALMA), dated to ∼12.5 Mya to 9.4 Mya [Barnosky et al., 2014] of the Valentine Formation Burge Member (C. Mehling, AMNH, pers. comm.), and we refer to it as such in this study (Fig. 1b).

Methods

The skull and dental elements of the specimen PIMUZ A/V 4091 are first briefly described in order to evaluate their referral to Palaeolama sp. in the PIMUZ collections catalogue. To improve visualization of the neocortex, the endocast was scanned via X-ray computed tomography (CT) at the University of Montpellier using an EasyTom 150 μ-CT scanner at 92 KV with a resulting resolution of 70 μm. Digital reconstruction of the scan and segmentation to remove remaining cranial bone was executed in Avizo (v. Lite 9.0.1) (Thermo Fisher Scientific-FEI). A small portion of the right parietal region could not be segmented successfully due to a lack of contrast between cranial bone and endocast. The 3D interactive images of the endocast of C. hesternus, LACM 4700-1, were examined in Adobe Acrobat Reader DC (Adobe®Acrobat® v. 2021.007.20091). Models (3D) are available for visualization and free download at http://MorphoMuseuM.com [Lebrun and Orliac, 2016].

The anatomical terminology used for neocortical descriptions is presented in Table 1 and includes our proposed equivalence of terms from prior studies including Dechaseaux [1962], Herre and Thiede [1965], Edinger [1966], Dechaseaux [1969], Repérant [1971], and Barone and Belemlih [1973]. Interpretations of sulcal homologies are based on macroscopic morphological observations and sulcal maps in previous publications on this subject [Dechaseaux, 1962, 1968, 1969; Repérant, 1971b, a; Barone and Belemlih, 1973; Dechaseaux, 1973]. Linear measurements of all specimens were taken in Meshlab (v.2021.05) or Affinity Photo (v.1.9.2.1035) following Macrini [2009] [Cignoni et al., 2020]. For comparisons of encephalization, body mass estimates for Palaeolama sp. and C. hesternus were calculated using four separate body mass prediction equations from Janis [1990] and Damuth and MacFadden [1990], based on upper molar dimensions [Damuth and MacFadden, 1990; Janis, 1990]. The arithmetic mean of these results was used to calculate encephalization quotients (EQs) as per Jerison [1970]. We equate grams and millilitres for comparison purposes. Brain and body size data for extant camelids and other EQ data were taken from Jerison [1971] as noted.

Table 1.

Anatomical terminology used in current study and equivalent terms in prior studies

Current study	Reperant [1971 a,b]	Barone and Belemlih [1973]	Edinger [1966]	Herre and Thiede [1965]	Dechaseaux [1962, 1969]
Coronal	Coronal	Coronalis and postcoronalis	–	Sulcus coronalis	Coronal
Transverse Coronal	Branche tranverse du Coronal (c1t)	–	–	–	–
Lateral	Latérale	Marginalis	–	Sulcus lateralis	Latéral
Anterior Suprasylvian middle Suprasylvian posterior Suprasylvian	Suprasylvien (antérieure, moyenne, postérieur)	Suprasylvius rostralis/medius/caudalis	–	Sulcus suprasylvius	Suprasylvia
Descending Suprasylvian	(branche descendente) Suprasylvien	Suprasylvius rostralis	–	–	–
Ansate	Ansate	Ansatus	Transverse sulcus	Sulcus transversus	Crucial
Entolateral	Entolatéral	–	–	Sulcus entolateralis	-
Ectolateral and accessory ectolaterals	Ectlolatéral principal + ectolatérales accessoires	Ectomarginalis	–	Sulcus ectolateralis	-
Sulcus X	Sillon X	–	–	–	Sillon “upsilon”
Rhinal fissure (anterior and posterior branches)	Scissure rhinale: rameaux aboral, postérieure de “rhinale postérieure” (rh.p.p, rh.p.s); “rhinale antérieure” (rh.a), rameau oral de rhinale antérieure (rh.p.a)	Sulcus rhinalis lateralis pars rostralis + Sulcus rhinalis lateralis pars caudalis	Fissura palaeo-neocorticalis or fissura rhinica	Sulcus rhinalis and Sulcus proreus	Rhinale antérieure + postérieure
Sagittal sinus*	Sinus sagittalis	–	–	–	–
Sylvian complex	Complex sylvien	Fissura lateralis cerebri	–	Lateralis cerebri, acuminis	Complexe sylvien
Presylvian	Presylvia	–	–	Praesylvius	Presylvia
Anterior Ectosylvian	Ectosylvia antérieure (e.a.h)	Subsylvius	–	Lateralis cerebri, anterior	Ectosylvia antérieure
Posterior Ectosylvian	Ectosylvia postérieure (e.p.)	–	–	Lateralis cerebri, posterior	Ectosylvia postérieure
Ascending anterior Ectosylvian	Ectosylvia antérieure, rameau ascendente (r.a.e.a)	–	–	–	–
Obliques 1, 2, 3	Obliques 1, 2, 3	Suprasylvius caudalis + Ectosylvius caudalis	–	Ectosylvius	–
Diagonal	Diagonal	Suprasylvius rostralis	–	–	–
Arched sulcus	Sillon arqué	Ectosylvius rostralis	–	Anterior Ectosylvius	Sillon “delta”
Accessory Sylvian complex	Complex sylvien accessoire	–	–	–	–
Intercalaire	Intercalaire/splenial	Cruciatus	–	–	–

^*Also known as superior sagittal sinus (Macrini et al., 2007).

Results

Systematic Paleontology

Tylopoda Illiger, 1811.

Camelidae Gray, 1821.

Palaeolama Gervais, 1869.

Description: Palaeolama sp. Skull and Teeth

The specimen includes parts of the anterior and posterior cranium which articulate with the endocast but not to each other. The anterior section contains portions of the frontals, orbits, and proximal rostrum (Fig. 2a–c). In dorsal view, the skull's overall shape is similar to that of extant SACs, narrowing sharply from the orbits towards the anterior rostrum. Left and right upper molars (M2-M3), which were reconstructed from multiple fragments by the first author, are high-crowned and selenodont (Fig. 2d). In the maxilla, transverse sections of the roots of P4-M1 are exposed and there is no indication of a P3 alveolus. A diastema extends mesially from position P4. Isolated fragments of the anterior rostrum contain parts of two caniniform, recurved teeth separated by a diastema of approximately ∼3.5 cm, suggesting these are likely the third upper incisor (I3) and upper canine (C) (Fig. 2e–f) [Lynch et al., 2020]. The catalogue identification of Palaeolama sp. is supported by the presence of several characters diagnostic of South American Lamini (Camelidae) including the shape and extent of the choanae, which reach beyond the distal edge of M2 (Fig. 2a) [Scherer, 2012; Lynch et al., 2020]. Its geographic and stratigraphic provenance also supports membership in Lamini. The presence of an I3, a recurved and laterally compressed upper canine, and a shallow maxillary fossa (Fig. 2b) define it further as within or close to Palaeolama [Harrison, 1979]. We refer to this specimen as Palaeolama sp. in the entirety of this study, based on its catalogue data and these observations, while recognizing that a phylogenetic analysis is lacking [Webb, 1965; Scherer, 2012; Lynch et al., 2020].

Fig. 2.

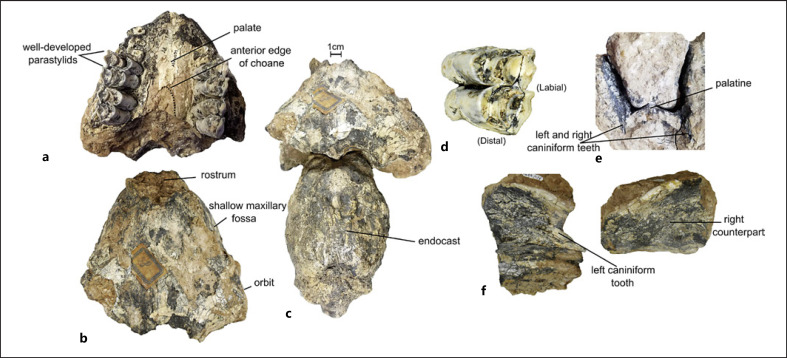

PIMUZ A/V 4091, all elements: (a) palate and teeth; (b) anterior skull fragment, dorsal view; (c) articulated skull and endocranial cast, dorsal view; (d) left M2; (e) anterior snout in transverse section; (f) anterior snout fragments, disarticulated, medial views. Scale bar for part “c” only.

Description: Endocast of Palaeolama sp., PIMUZ A/V 4091

General morphology: The natural endocast of PIMUZ A/V 4091 is nearly complete and minimally distorted (Fig. 3a, c), missing olfactory bulbs and most of the ventral surface. In dorsal view, it has an ovoid outline, narrower anteriorly than caudally, as is typical of camelid brains [Herre and Thiede, 1965; Repérant, 1971a]. Bifurcation of the frontal lobes forms a wide v-shaped gap. The posterior two-thirds of the cerebral portion of the endocast is nearly uniform in width (Fig. 3b). In lateral view (Fig. 3d), the dorsal outline slopes downward from its apex in the caudal cerebrum to the prefrontal margin of the endocast. A nearly complete cerebellar cast comprises approximately one-quarter to one-third of the total endocast length (excluding missing olfactory bulbs). Measurements of general endocast dimensions are in Table 2.

Fig. 3.

Endocranial cast of Palaeolama sp., PIMUZ A/V 4091: (a) dorsal view, natural endocast, (b) dorsal view, digital endocast, (c) lateral left, natural endocast, (d) lateral left, digital endocast, (e) anterior oblique (reflected image), digital endocast. Dotted lines = sulci. Sulci new to Pleistocene camelids in red. Numbers 1–4: gyri. Scale bar specific to part “d”. CT, computed tomography.

Table 2.

Cranial endocast dimensions and brain/body mass estimates for Camelops and Palaeolama sp. described herein

Taxon	Specimen	Age	TEL, mm	CL, mm	CW, mm	CH, mm	OBL, mm	CBL, mm	CBW, mm	CBH, mm	Estimated endocast volume, g	Estimated body mass, kg**
C. hesternus	LACM 4700–1	55–11 Kya	192.1	116	111.3	114.8	51.5	4.33	72.45	85.5	990*	825.9
Palaeolama sp.	PIMUZ A/V 4091	1.2 Mya	137.8	93.6	85.4	77.7	na	37.2	64	49	444.3	263.5

Measurements follow Macrini (2009). TEL, total endocast length; CL, cerebral length (without olfactory bulbs); CW, cerebral width; CH, cerebral height; OBL, olfactory bulb length; OBW, olfactory bulb width; CBL, cerebellar length; CBW, cerebellar width; CBH, cerebellar height.

^*From Jerison [1971].

^**Calculations in online supplementary file SD1, available at www.karger.com/doi/10.1159/000528762.

Telencephalon: The cast of the neocortex of Palaeolama sp. presents a greater number of sulci than earlier known fossil camelids, and comparatively, an expansion of both lateral and prefrontal neocortical regions. The coronal and suprasylvian sulci (anterior, middle, and posterior portions), considered to be “archaic” [Repérant, 1971a], are visible on the dorsal surface of the endocast (Fig. 3b). The suprasylvian sulcus is observed best on the left cerebral hemisphere. It is long and mostly longitudinal, curving around and beyond the coronal sulcus at the anterior endocast, and bifurcating into anterior and descending branches (Fig. 3b). The coronal is a single longitudinal sulcus, with the transverse ansate crossing it perpendicularly. Medial to the suprasylvian sulcus is the ectolateral sulcus [Herre and Thiede, 1965; Repérant, 1971a], also preserved best on the left hemisphere. Between the ectolateral sulcus and the sagittal sinus (Fig. 3b), several short furrows in no particular orientation appear to be fragments of accessory ectolateral sulci. At the anterior-most edge of the prefrontal, Palaeolama sp. presents an intercalaire sulcus (Fig. 3b, e), a short curvilinear furrow just anterior to the proximal end of the suprasylvian sulcus.

In lateral view, the neopallium possesses a well-marked ectosylvian sulcus, with curvilinear anterior and posterior branches that join at the sylvian complex (Fig. 3b). Oblique sulci 1–3 are positioned caudally in the posterior third of the lateral surface of the endocast (Fig. 3d). Oblique sulcus 1 is the longest and most continuous, and oblique sulcus 3 appears mostly rectilinear. The anterior rhinal fissure is not preserved, nor is the region immediately dorsal to it where we would expect to find the presylvia and diagonal sulci [Repérant, 1971b]. In oblique view, sulcus X − shaped just like its name − is just lateral to the intercalaire sulcus (Fig. 3e). Below the suprasylvian sulcus and above the sylvian complex, we observe the arched sulcus − an arrangement of at least three curvilinear boughs [Repérant, 1971a] (Fig. 3e). On the ventral side of the endocast, the pyriform lobes appear small and slightly convex.

Mesencephalon: The tectum of the mesencephalon is not dorsally exposed, fully covered by the posterior expansion of the neocortex (telencephalon) (Fig. 3a).

Metencephalon: Dorsally, the metencephalon is the narrowest region of the endocast (Fig. 3a, b). The cerebellum is nearly half as wide as the cerebrum and particularly short in comparison to the latter. The cerebellar hemispheres are obscured by a salient superior petrosal sinus and their shape and extension cannot be determined precisely (Fig. 3d). However, the cast of the cerebellum indicates that the vermis was much wider than the hemispheres. Parafloccular lobes project laterally, and the internal acoustic meatus is visible (Fig. 3c–d).

Encephalization Quotient: Here, based on dental measurements (see SD1), we estimate that Palaeolama sp. had a body mass of ∼264.5 kg yielding an EQ of 0.90 following Jerison's equation [Jerison, 1970] (SD1).

Systematic Paleontology

Tylopoda Illiger, 1811

Camelidae Gray, 1821

Camelops Leidy, 1854

Camelops Hesternus Leidy [1873].

Description: Endocast of C. Hesternus, LACM-4700-1

General morphology: The natural endocast of C. hesternus is complete, includes olfactory bulbs, and appears undistorted. The cerebral cast is pear-shaped in dorsal view, narrower at its anterior, but somewhat more rectangular than Palaeolama sp. in all views (Fig. 4a–e). Anterior frontal lobes are bifurcated by a wide gap. Cerebellar cast length is approximately one-fifth of the cerebral cast length. Measurements of general endocast dimensions are in Table 2.

Fig. 4.

Endocranial cast of Camelops hesternus, LACM-4700-1: (a) dorsal view, (b) dorsal view with sulci identified, (c) ventral view, (d) lateral view, left, (e) lateral view, left, with sulci identified. Dotted lines = sulci. Solid line = rhinal sulcus. Sulci new to Pleistocene in red. Numbers 1–4: gyri. CN, cranial nerve.

Telencephalon: In dorsal view (Fig. 4a–b), the olfactory bulbs are elongated, pedunculated, and ovoid-shaped. The ethmoidal chamber, also known as the ethmoidal fossa [Rowe et al., 2005], is rather narrow and pierced by the dense sieve of the cribriform plate, visible in ventral view (Fig. 4c). Between the anterior and posterior parts of the neocortex, the rectilinear anterior and descending branches of the suprasylvian sulcus split and simultaneously converge with the short transverse ansate, which turns medially into the sagittal sinus at this point. The coronal sulcus here has at least one additional branch: the anterior transverse coronal sulcus and the intercalaire sulcus are present just anterior to them. A rectilinear fold closest to the midline and parallel to the sagittal sinus − which was not observable in the Palaeolama endocast − is the lateral sulcus, considered an archaic feature of the camelid brain [Repérant, 1971a]. Between the lateral and the suprasylvian sulci, the ectolateral sulcus comprises a dense arrangement of short sulci mostly oriented transversely (Fig. 4b).

On the lateral surface of the endocast, C. hesternus has an ectosylvian sulcus with an additional branch stemming from its anterior end and rising towards the prefrontal cortex: the ascending anterior ectosylvian sulcus (Fig. 4d–e). The oblique sulci are curvilinear and converge into each other; while the arched sulcus is positioned more anteriorly than in Palaeolama sp. The rhinal fissure at the base of the cerebrum is fully preserved, with anterior and posterior branches joining at an acute angle at what appears to be the accessory sylvian complex − a short vertical furrow connecting the posterior ectosylvian sulcus to the posterior rhinal fissure − rather than at the sylvian complex [Repérant, 1971a] [see Repérant 1971, p. 663] (Fig. 4e). The presylvian sulcus is the obliquely oriented sulcus located just dorsal to the anterior rhinal fissure. In the prefrontal region, sulcus X is located just below the ascending anterior ectosylvian sulcus; and the diagonal sulcus is observable posterior to it.

Diencephalon: A cast of the pituitary is captured in ventral view (Fig. 4c–e). It is globular and strongly protrudes ventrally. Its posterior border is located at the level of the foramen ovale, and its anterior margin is at the level of the base of the optic chiasma.

Mesencephalon: The tectum of the mesencephalon is not dorsally exposed, fully covered by the posterior expansion of the neopallium.

Metencephalon: Dorsally, the metencephalon is the narrowest region of the endocast. As in Palaeolama sp., the cerebellum is nearly half as wide as the cerebrum and particularly short in comparison to the latter. The dorsal surface of the cerebellum is covered by wide sinuses which, together with the parietal/occipital suture, mask its external features. The imprints of the petrosal bones and the surrounding sinuses hide the cerebellar hemispheres. Only the width of the vermis can be appreciated and it represents half of the total width of the cerebellum. The pons-medulla oblongata continuum is long and widens posterior to the cast of the petrosal bones (Fig. 4c). The brainstem is particularly wide. Parafloccular lobes project laterally, and the internal acoustic meatus is visible (Fig. 4e).

Cranial nerve exits: The pattern of cranial nerve exits is completely accessible on LACM-4700-1 and strongly resembles that of Lama and Camelus provided by Repérant [1971a]. The optic chiasma lies shortly anterior to the cast of the sphenorbital fissure where the cranial nerves (CNs) III, IV, Vv1-2, and VI exit. The foramen ovale (exit of the mandibular division of the trigeminal nerve, CN Vv3) is rather small and opens at the level of the posterior margin of the pituitary. The pyriform fenestra is twice as wide as the foramen ovale and lies just posterior to it. It is connected to the jugular foramen (exit for CNs IX, X, XI) by a continuous basicochlear fissure. The hypoglossal foramen (exit for CN XII) is a small opening located on the lateral aspect of the brainstem, separated from the jugular foramen by a deep depression.

Encephalization quotient: Here, based on dental measurements (see online suppl. material, available at www.karger.com/doi/10.1159/000528762), we estimate that C. hesternus, had a body mass of ∼825.9 kg, yielding an EQ of 0.94 according to Jerison's equation [Jerison, 1970] (SD1).

Discussion

Camelops Affinities

The phylogenetic position of genus Camelops is currently debated as being either within the clade Lamini (closer to Lama) or Camelini (closer to Camelus) (Fig. 1c). Morphological phylogenetic analyses predominantly place Camelops within the former [Harrison, 1979; Honey et al., 1998; Lynch et al., 2020], while genomic and proteomic analyses place it within the latter [Baskin and Thomas, 2016; Buckley et al., 2019]. The endocranial cast of C. hesternus shows morphological similarities with the brain of extant Camelus (Camelini) and some with Vicugna (Lamini), to the exclusion of Lama (Lamini). Affinities with Camelus include the shape and extent of the olfactory bulbs and their relative proportion to the cerebrum. Like Camelus, Camelops shows rather elongated olfactory bulbs that do not about the anterior part of the cerebrum; whereas in Lama and Vicugna, the olfactory bulbs are stocky and closely opposed to the cerebrum (Fig. 5a–f). In ectolateral morphology, which is a significant feature of the dorsal neocortex for distinguishing Camelini and Lamini [Reperant 1971], C. hesternus is also more similar to Camelus. It has more transverse and oblique orientation of the ectolaterals compared to Lama and Vicugna where the ectolaterals are more longitudinal (Fig. 5a–e). The dorsoventral dimension of the prefrontal is similar between C. hesternus and both Camelus and Vicugna. The latter trait may be correlated with more forward-facing orbits and the evolution of binocular vision in other mammals [Barone and Belemlih, 1973]. Lastly, the superlative absolute size of the Camelops endocast (990 g) would also suggest a closer relationship to the larger brained Camelus (mean brain mass: 570–760 g) than to the South American genera (mean brain mass: 192–276 g) [Jerison, 1971] (SD1 and Table 2). These traits may be phylogenetically informative given a better assessment of intraspecific variation.

Fig. 5.

Comparison of Camelops hesternus versus extant camelid cranial endocasts. a, b C. hesternus in (a) dorsal and (b) lateral views; (c) specific features of Camelini and Lamini based on Repérant (1971b: Fig. 3), dorsal view; (d) Vicugna vicugna, lateral view; (e) Camelus sp. based on Repérant (1971b: Fig. 3), lateral view; (f) Camelus sp. based on Barone and Belemlih (1973: Fig. 6), lateral view. Dotted lines = sulci. Solid lines = rhinal sulcus. Dashed line = circular fissure.

Camelid Brain Evolution: Documented History from Eocene to Present

The two new camelid endocasts described in this work document the most recent part of the history of brain evolution in Camelidae. The earliest known camelid, Protylopus [Wortman, 1898] of the Eocene (∼40 Mya), had a small and simple neocortex restricted to the dorsal half of its endocast [Edinger, 1966], and is considered to represent the primitive camelid brain condition [Orliac and Gilissen, 2012] (Fig. 1a). It had an ovoid general shape and four main longitudinal sulci that are considered in the literature as “archaic” sulci [Repérant, 1971a]: the coronal, suprasylvian (single branch), lateral, and entolateral sulci. Throughout the Cenozoic, the camelid brain progressively enlarged, absolutely and relatively [Jerison, 1971], and increased neocortical folding of the lateral brain as seen by the early Oligocene in Poebrotherium wilsoni, which possessed anterior and posterior ectosylvian sulci, a sylvian complex, a descending suprasylvian sulcus, presylvian sulcus and oblique sulcus 1 [Repérant, 1971a]. By the late Oligocene, the dorsal brain had further evolved with the addition of an ectolateral sulcus as seen in Poebrotherium labiatum [Scott and Jepsen, 1940] (Fig. 1a). During the Miocene, Protolabis and Procamelus developed oblique sulci 2–3 in the posterior brain, while the diagonal sulcus and sulcus X marked evolution of the fronto-lateral region [Repérant, 1971a] (Fig. 1b).

Approximately one million years ago, Palaeolama sp. (∼1.2 Mya) presented the first observed occurrence among camelids of the intercalaire and arched sulci (Fig. 3). These features were previously observed only in extant camelids and reflect an expansion of the surface area of prefrontal and parietal neocortices, respectively. The suprasylvian sulcus − primitive but variable among camelids [Repérant, 1971b, a] − is more convoluted, with anterior and lateral bifurcations in the anterior portion of the endocast. Also novel at this time is the multi-branched ectolateral sulcus of the dorsal neocortex, contrasting with the single, rectilinear ectolateral sulcus observed in Procamelus (Miocene), and earlier forms [Repérant, 1971a].

By the latter stages of the Pleistocene (∼44 Kya − 11 Kya), C. hesternus displayed a denser and more complex neocortical pattern than Palaeolama sp. We observe the first occurrence of a second coronal sulcus branch − the transverse coronal sulcus − just anterior to the original, and a potential third branch between the coronal sulcus and ansate (Fig. 4b), which we cannot confidently identify despite an extensive literature search. At this time, anterior and descending branches of the suprasylvian sulcus converge with the ansate at a single point, more posteriorly than in Palaeolama sp. Together with the broader coronal system, this results in a larger, more complex frontal neocortex. Repérant [1971] reported that extant camelids had frontal regions three times larger than they did ∼11 Mya. C. hesternus appears to have attained a comparable expansion of this area, if not more so (Fig. 5). Further posteriorly, we see a striking difference in the ectolateral sulcus morphology of C. hesternus compared to Palaeolama sp. The sulcus becomes a system of densely packed short furrows in a mix of horizontal and vertical orientations (accessory ectolaterals), comparable to that in modern camelids and most similar to Camelus (Fig. 5c). More peripherally, C. hesternus presents the first occurrence of the ascending anterior ectosylvian sulcus, a posterior ectosylvian sulcus located higher on the endocast and separated from the posterior rhinal fissure, and more convoluted oblique sulci 2–3, which together indicate a progressive expansion of the parietal neocortex, specifically of gyrus 2 (Fig. 4e). This region, also known as the sylvian territory, includes areas bounded by the suprasylvian sulcus (dorsally), oblique sulci (posteriorly), and the presylvia sulcus (antero-ventrally) [Barone and Belemlih, 1973]. The accessory sylvian complex is faint on the endocast of C. hesternus and we identify it with caution. This would be, potentially, the first appearance of this feature in camelids (Fig. 4e). One feature that apparently remained consistent from the Miocene through the Pleistocene is the general outline of the telencephalon: dorsoventrally deep at its caudal end and progressively shallower towards its anterior (Fig. 3, 4). All three modern genera, however, appear to have a more uniform dorsoventral height throughout the telencephalon. In summary, the frontal and parietal neocortices − regions known for associative functions [Repérant, 1971a] − progressively expand in camelids during the last one million years.

Regarding quantitative aspects, we propose an earlier start to the reported surge in encephalization in the camelid lineage, as measured by EQs [Jerison, 1971; Kruska, 1980]. Jerison [1971] calculated a dramatic rise in camelid encephalization beginning with C. hesternus in the late Pleistocene, to modern times. Based on dental proxies, we estimate that Palaeolama sp. had a body mass of ∼264.5 kg, and C. hesternus, ∼825.9 kg, yielding similar EQs for both specimens: 0.90 for the former and 0.94 for the latter [Jerison, 1970] (SD1). Given these data, and assuming a generalized rate of brain size change across the camelid lineage, the proposed leap in relative brain size increase began minimally one million years earlier − in the middle Pleistocene − than previously suggested.

Significance of Neocortical Evolution

Among Artiodactyla, Camelidae are recognizable by the peculiar sulcal pattern of the anterior part of their neocortex, cruciate, and intercalaire sulci and by the presence of an arched sulcus and multiple ectolateral sulci [Repérant, 1971a; Orliac et al. 2022]. Prior observations of neocortical evolution in Eocene to Miocene camelids have been described as a systemic evagination of the frontal neocortex out of the sagittal plane, and a simultaneous invagination of dorsal neocortex into the midline [Repérant, 1971a]. Both entolateral and lateral sulci are observable on the dorsal neocortex in Eocene and Oligocene endocasts (Fig. 1a, b). By the Miocene, only the lateral sulcus is visible but it is partially invaginated [Repérant, 1971a]. The new fossils described here indicate that invagination persisted in two different and geographically distinct camelid taxa from two separate points during the Pleistocene. This partial visibility of the lateral sulcus is also clearly evidenced all extant endocasts, supporting Repérant's [1971] theory of medially directed neocortical evolution in this group [Repérant, 1971a]. However, it is worth noting that C. hesternus still displays most of the lateral sulcus on the external surface (Fig. 4b). Regarding evagination of the anterior-most part of the neocortex, it is mostly embodied by the dorsal exposure of the intercalaire sulcus. The latter is not visible in Procamelus but is present in both Paleolama and Camelops. These observations in the fossil record provide some support to Reperant's [1971] theory of frontal cortex evagination (extroversion out of the sagittal sinus) occurring in tandem with invagination of the posterior dorsal neocortex [Repérant, 1971a, b].

Ontogenetic developmental work [Repérant, 1971a, p. 7] also provides some support for these evolutionary dynamics considered to be a phenomenon in camelids. Dissections of extant camelid brains show dense fissuration of the neocortex including the entolateral sulcus and other archaic sulci in the sagittal plane at different stages of development [Repérant, 1971a]. Reportedly, the more common pattern is neocortical expansion out of the sagittal plane, ontogenetically and evolutionarily [Repérant, 1971a]. Brain growth encounters physical resistance laterally by the basal ganglia and medially by the corpus collosum [Repérant, 1971a; Striedter and Northcott, 2020]. It plausible that differences in these mechanics were an important factor in the pattern of brain development in camelids, leading to what some consider to be extraordinary neocortical complexity of the camelid brain [Repérant, 1971a]. Further comparison of neocortical gyrification across larger mammalian clades would be needed to support this last statement, and we do not provide those here.

Conclusions

The two Pleistocene camelid endocasts: that of Palaeolama sp. from the mid-Pleistocene (∼1.2 Mya) of South America and C. hesternus from the late Pleistocene (∼44 Kya to 11 Kya) of North America, document the first occurrences of neocortical features that are hallmarks of the camelid brain. These are: an external exposure of the intercalaire sulcus, arched sulcus, and complex pattern of multiple ectolateral sulci. These features had been, so far, only observed in modern taxa. The new fossil data provide support for Reperant's [1971a, b] theory of frontal cortex evagination occurring in tandem with invagination of the posterior dorsal neocortex during camelid brain evolution. Regarding quantitative aspects, these two endocasts suggest that a leap in relative brain size increase began minimally one million years earlier − in the middle Pleistocene − than previously suggested [Jerison, 1971]. Our knowledge of camelid brain history during the Pleistocene remains very fragmentary and additional fossil evidence will allow the drawing of more accurate picture of the recent history that led to the modern camelid brain pattern. Yet, the endocast of C. hesternus indicates that by ∼ 44 Kya to 11 Kya camelids had reached the “modern stage” of relative brain size and neocortical complexity.
