Endurance-trained subjects and sedentary controls increase ventricular contractility and efficiency during exercise: Feasibility of hemodynamics assessed by non-invasive pressure-volume loops

Björn Östenson 1,#, Ellen Ostenfeld 1,, Jonathan Edlund 1,, Einar Heiberg 1,2,, Håkan Arheden 1,, Katarina Steding-Ehrenborg 1,*,#
Editor: Hans-Peter Kubis3
PMCID: PMC10171617  PMID: 37163493

Abstract

Introduction

Pressure-volume (PV) loops can be used to assess both load-dependent and load-independent measures of cardiac hemodynamics. However, analysis of PV loops during exercise is challenging as it requires invasive measures. Using a novel method, it has been shown that left ventricular (LV) PV loops at rest can be obtained non-invasively from cardiac magnetic resonance imaging (CMR) and brachial pressures. Therefore, the aim of this study was to assess if LV PV loops can be obtained non-invasively from CMR during exercise to assess cardiac hemodynamics.

Methods

Thirteen endurance trained (ET; median 48 years [IQR 34–60]) and ten age and sex matched sedentary controls (SC; 43 years [27–57]) were included. CMR images were acquired at rest and during moderate intensity supine exercise defined as 60% of expected maximal heart rate. Brachial pressures were obtained in conjunction with image acquisition.

Results

Contractility measured as maximal ventricular elastance (Emax) increased in both groups during exercise (ET: 1.0 mmHg/ml [0.9–1.1] to 1.1 mmHg/ml [0.9–1.2], p<0.01; SC: 1.1 mmHg/ml [0.9–1.2] to 1.2 mmHg/ml [1.0–1.3], p<0.01). Ventricular efficiency (VE) increased in ET from 70% [66–73] at rest to 78% [75–80] (p<0.01) during exercise and in SC from 68% [63–72] to 75% [73–78] (p<0.01). Arterial elastance (EA) decreased in both groups (ET: 0.8 mmHg/ml [0.7–0.9] to 0.7 mmHg/ml [0.7–0.9], p<0.05; SC: 1.0 mmHg/ml [0.9–1.2] to 0.9 mmHg/ml [0.8–1.0], p<0.05). Ventricular-arterial coupling (EA/Emax) also decreased in both groups (ET: 0.9 [0.8–1.0] to 0.7 [0.6–0.8], p<0.01; SC: 1.0 [0.9–1.1] to 0.7 [0.7–0.8], p<0.01).

Conclusions

This study demonstrates for the first time that LV PV loops can be generated non-invasively during exercise using CMR. ET and SC increase ventricular efficiency and contractility and decrease afterload and ventricular-arterial coupling during moderate supine exercise. These results confirm known physiology. Therefore, this novel method is applicable to be used during exercise in different cardiac disease states, which has not been possible non-invasively before.

Introduction

Invasive pressure-volume (PV) loops are gold standard to assess hemodynamic function and cardiac performance [1] and can provide information on both load-dependent and load-independent parameters such as myocardial contractility, ventricular efficiency, and arterial elastance [2]. Thus, PV loops may provide additional information in patients with decreased cardiac function and potentially explain the enhanced cardiac function seen in endurance-trained (ET) athletes during exercise [38]. However, measuring PV loops during exercise has been challenging, likely due to the invasive nature previously needed to acquire the measurements. A newly developed and experimentally validated non-invasive method to calculate left ventricular (LV) PV loops at rest from cardiac magnetic resonance (CMR) images and brachial pressure has recently been presented [9, 10]. This method has later been validated against invasive measurements in humans [11] and could potentially be used to obtain PV loops also in the setting of exercise. Therefore, the aim of this study was to assess if LV PV loops can be obtained from CMR and thereby assess cardiac hemodynamics non-invasively during exercise.

Materials and methods

This single-center, exploratory, observational, prospective study was approved by the regional ethics committee in Lund (Dnr 741/2004, with complementary Dnr 269/2005) and follow the Declaration of Helsinki. All participants provided their written consent to participate in the study. The study complies with the STROBE guidelines for cross-sectional observational studies [12].

Study population

Thirteen ET subjects from a local triathlon association with median age 48 years [interquartile range (IQR) 34–60, one female] and ten healthy sedentary controls (SC) matched for age and sex (age 43 years [27–57], one female) were included. ET were defined as individuals who practice systematic exercise with the intent to improve performance in competition [13]. ET had a weekly training volume of 6 hours [4.4–7.5] over the last six months and had been active in regular endurance training for 15 years [1020]. Weekly training volume of SC was equal to or less than 150 minutes of aerobic exercise at moderate intensity according to the recommendations for physical activity from World Health Organization 2020 guidelines on physical activity and sedentary behavior [14]. Exclusion criteria were any pre-existing cardiovascular diseases, health problems requiring regular medication, smoking, and contraindications to CMR (claustrophobia, or metal implants and devices). Study participants were recruited during 2020 using public advertisements. The rationale of recruiting ET for this feasibility study was that this study population was expected to be comfortable with multiple cycling bouts for a prolonged duration and breath-holds in an exercised state, minimizing the risk of the subject not being able to complete the exercise protocol. The SC were then recruited to study the impact of endurance training on cardiovascular hemodynamics using the proposed method. Sample size was limited in this pilot analysis to demonstrate feasibility of non-invasive PV loops using CMR.

Cardiac magnetic resonance imaging and exercise protocol

Cardiac magnetic resonance images were acquired using a 1.5 T scanner (Siemens Aera, Siemens Healthineers, Erlangen, Germany). Cine balanced steady state free precession images were acquired in short-axis view covering the ventricles, as well as in 2-chamber, 3-chamber, and 4-chamber long-axis views with retrospective ECG gating. Cine images were acquired at rest and during cycling exercise with an MR-compatible pedal ergometer (Lode BV, Groningen, The Netherlands) in the supine position. Breath-hold duration was typically 8–12 seconds for each short-axis image acquisition (1–3 slices) and 8–10 seconds for each long-axis image. Typical image parameters were as follows: spatial resolution 1.0x1.0 mm, slice thickness 8 mm, temporal resolution 46 ms at rest and 31 ms during exercise, flip angle 68°, echo time 1.1 ms, repetition time 41 ms.

Exercise load on the ergometer was manually adjusted using dedicated software (Lode BV, Groningen, The Netherlands). Study participants bicycled during incremental load from a low starting load until achieving moderate exercise intensity, defined as 60% of estimated maximum heart rate calculated as 220 beats per minute minus age [15]. The exercise intensity was chosen to induce an exercise-related effect on hemodynamics, while still minimizing movement artifacts. In the case of unreadable exercise heart rate due to motion disturbances, study participants bicycled until subjective moderate intensity was reached, defined as 14–15 on the Borg rating of perceived exertion scale. Breath-hold cine images were acquired immediately after exercise cessation and, to ensure high heart rates during image acquisition, exercise was interleaved with exercise cessation. Each breath-hold image acquisition was set to last 5–15 seconds by modifying the number of concatenations of the sequence. Shorter breath-holds resulted in fewer acquired short-axis slices per exercise bout compared to longer breath-holds. The number of concatenations was individually modified to adjust for individual breath-hold capacity of the study participants. Typically, one to three short-axis slices were acquired during cessation in the scanner before the next exercise session started. A new exercise bout during incremental load was initiated immediately after image acquisition from a low starting load until target intensity was achieved again. This process was repeated until images of the whole ventricle were acquired. Heart rate was noted for each image slice (S1 Table). Mean exercise heart rate was calculated by summation of heart rates for each imaging slice divided by the number of image slices. For all participants, blood pressure measurement was initiated immediately after exercise cessation using an automatic brachial sphygmomanometer (Invivo Expression, Invivo Corporation, Orlando, FL, USA), followed by breath-hold and image acquisition during the blood pressure measurement. Mean exercise blood pressure was calculated by summation of pressures acquired for each imaging slice acquisition divided by number of acquisitions. Blood pressure values for each exercise bout can be found in S2 Table.

Data analysis

Image analysis was performed using the software Segment v3.2 R8688 (Medviso AB, Lund, Sweden, http://segment.heiberg.se) [16]. LV endocardial and epicardial borders of all slices in all time frames during one cardiac cycle were automatically delineated using an AI-based LV segmentation tool [17] with manual corrections by one observer with seven years of CMR experience (BÖ) to obtain time resolved volume curves. Left ventricular mass (LVM) was measured as an internal validation to ensure less than 2 g differed over one cardiac cycle.

Pressure-volume loop parameters

LV PV loops at rest and exercise were computed using a previously developed and validated plugin analysis tool in the software Segment [10]. In brief, the LV time-varying elastance curve was modeled by the analytical double-Hill equation. The parameters in the double-Hill equation were optimized by data from 875 invasively measured elastance curves. The amplitude of the modeled LV elastance curve is defined by left ventricular end-systolic pressure (LVESP) and end-diastolic pressure (LVEDP). LVESP can be approximated by non-invasive brachial sphygmomanometer measures of systolic blood pressure (SBP) and diastolic blood pressure (DBP) [18]:

LVESP=23SBP+13DBP (1)

The plugin requires user-input assumption of LVEDP, which was set to 0–15 mmHg according to data from previous studies [1921]. LV blood pressure over the cardiac cycle is calculated from the modeled LV elastance curve and time-resolved CMR volumetric measurements, and the final output is the PV loop.

Stroke work (SW), potential energy (PE), pressure-volume area (PVA), ventricular efficiency (VE), energy per ejected volume (EEV), mean external power (MEP), maximal ventricular elastance (Emax), and effective arterial elastance (EA) were computed as follows:

SW is the mechanical energy transferred from the myocardium to the blood to generate left ventricular stroke volume (LVSV). It was derived from the PV loop as the surface integral of the PV loop.

PE is the mechanical energy stored in the myocardium and dissipating as heat during contraction:

PE=V(TLVP,max)×LVESV-V02 (2)

where V(TLVP,max) is the LV volume at the time-point where the LV pressure is maximal, LVESV is left ventricular end-systolic volume, and V0 is the volume axis intercept (i.e. the theoretical LV volume when LV pressure is 0 mmHg). V0 was assumed to be zero mmHg as previously suggested [22].

PVA is the total ventricular mechanical energy of one given heartbeat and is linearly correlated with myocardial oxygen consumption [23, 24]. It was calculated as the sum of PE and SW:

PVA=PE+SW (3)

VE is the relationship between PVA and SW and can be described as the proportion of total ventricular mechanical energy that results in external work used to eject blood. Hence, it was calculated as:

VE=SWPVA (4)

EEV is an energy efficiency measure calculated as:

EEV=PVASV (5)

MEP produced by the LV per second was calculated as:

MEP=SW×HR60 (6)

where HR is the heart rate in beats/min.

Emax is a measure of left ventricular systolic function integrating contractility, structural properties, and neurohormonal response [25, 26]. Frequently it is also denoted Ees in the literature. The maximal ventricular elastance is the reciprocal of compliance, representing the ability of the myocardium to generate pressure for a given inotropic state and at a given volume. This measure is often referred to as a measure of contractility and was calculated as:

Emax=LVESPV(TLVP,max)-V0 (7)

where V0 was assumed to be zero mmHg.

Afterload is the sum of all forces that oppose blood ejection during systole: systemic vascular resistance, arterial input impedance, and arterial compliance [27]. EA was conceptualized as a measure of afterload with the advantage of also being derived from the PV loop and using the definition of LVP at maximum elastance, and thus being comparable to Emax. EA derived from PV loops can be calculated as:

EA=LVESPLVEDV-LVESV=LVESPLVSV (8)

where LVEDV is left ventricular end-diastolic volume and LVSV is left ventricular stroke volume.

Total arterial compliance (TAC) is the compliance in the artery system and can be estimated by the ratio of LVSV to pulse pressure [28]:

TAC=LVSVPP=LVSVSBP-DBP (9)

where PP is pulse pressure.

The systemic vascular resistance (SVR) is the static resistance in the systemic blood circulation and was estimated using the following equation:

SVR=MAPCO (10)

where MAP is the mean arterial pressure and CO is the cardiac output. MAP was estimated as:

MAP=DBP+PP3 (11)

Ventricular-arterial coupling is the interaction between the left ventricle and the arterial system [27] and is calculated as:

EAEmax (12)

Given Eqs (6) and (7), and that V(TLVP,max) is approximately LVESV, ventricular-arterial coupling can also be expressed as:

EAEmaxLVESP/LVSVLVESP/LVESV=LVESVLVSV (13)

Fig 1 shows a schematic illustration of a pressure-volume loop and the cardiovascular hemodynamics that can be derived from it.

Fig 1. Schematic figure of a left ventricular pressure-volume loop with cardiovascular hemodynamics marked.

Fig 1

Dashed lines indicate the slopes of maximal ventricular elastance (Emax) and arterial elastance (EA). EA: arterial elastance; Emax: maximal ventricular elastance; LV: left ventricular; PE: potential energy; SW: stroke work.

Statistical analysis

Statistical analyses were conducted using the software IBM SPSS version 25 (SPS inc., Chicago, Illinois, USA). Gaussian distribution was assessed visually using histograms. Continuous variables are expressed as median and interquartile range [IQR] owing to non-Gaussian distribution. Continuous data were compared using Mann-Whitney U test for independent groups and Wilcoxon signed-rank test for paired comparisons. Intra- and interobserver variability were assessed using Bland-Altman analysis [29] in ten subjects during exercise for LVEDV, LVESV, LVM, and PV loop parameters. The intra- and interobserver variability were quantified using the mean differences between observations and the limits of agreement (bias ± 1.96 SD). Two-tailed P-value of <0.05 was defined as statistically significant [12].

Results

Baseline characteristics are presented in Table 1. ET had higher training volume (6 h/week) than SC (1 h/week). There were no differences in biometrics (age, length, weight, body mass index (BMI), and body surface area (BSA)) between groups.

Table 1. Subject characteristics.

ET (n = 13) SC (n = 10)
Female (n, %) 1 (8%) 1 (10%)
Age (years) 48 [34–60] 43 [27–57]
Height (cm) 180 [178–186] 180 [175–184]
Weight (kg) 77 [69–83] 81 [75–85]
BMI (kg/m2) 23.5 [21.3–25.4] 24.9 [23.5–25.4]
BSA (m2) 1.96 [1.85–2.08] 1.99 [1.89–2.09]
Training Volume (h/week) 6 [4.4–7.5] * 1 [0.4–2]

Number of females with percentage in parenthesis; other variables expressed as median values [IQR].

BMI: body mass index; BSA: body surface area; ET: endurance-trained subjects; SC: sedentary controls.

* p<0.05 ET vs SC.

Cardiac volumes at rest and exercise

Cardiac volumes at rest and during exercise are presented in Table 2. Heart rate increased as expected in ET (67% increase) and in SC (41% increase). Systolic blood pressure increased by 10% in ET and by 14% in SC. Also, rate pressure product increased by 92% in ET and by 74% in SC.

Table 2. Cardiovascular hemodynamics at rest and exercise.

Rest Exercise Δ
ET (n = 13) SC (n = 10) ET (n = 13) SC (n = 10) ET (n = 13) SC (n = 10)
Heart rate and pressure
HR (bpm) 52 [43–59] * 63 [55–71] 87 [80–95] 89 [83–95] 35 (67%*) 26 (41%)
SBP (mmHg) 113 [104–122] 114 [109–129] 124 [118–137] 129 [121–140] 11 (10%) 16 (14%)
DBP (mmHg) 70 [61–78] 65 [62–77] 74 [66–89] 71 [67–84] 4 (6%) 6 (10%)
RPP (BPM * mmHg) 5900 [5300–6400] * 6600 [6200–9300] 11400 [10100–12300] 11500 [10100–12600] 5500 (92%*) 4900 (74%)
Cardiac volumes and function
LVM (g) 99 [89–118] * 71 [70–92] 104 [94–127] * 77 [72–98] 5 (5%) 6 (8%)
LVMI (g/m 2 ) 52 [44–58] * 38 [36–47] 57 [47–66] * 41 [36–47] 5 (9%) 3 (8%)
LVEDV (ml) 218 [198–244] * 191 [180–207] 233 [211–265] 203 [197–233] 15 (7%) 12 (6%)
LVEDVI (ml/m 2 ) 111 [105–120] * 99 [93–104] 123 [112–127] * 107 [99–115] 12 (11%) 8 (8%)
LVESV (ml) 98 [84–111] 92 [82–99] 94 [74–101] 78 [71–89] -4 (-4%) -13 (-15%)
LVESVI (ml/m 2 ) 49 [43–54] 46 [42–50] 45 [37–48] 40 [36–45] -4 (-8%) -7 (-15%)
LVSV (ml) 124 [103–134] * 102 [98–107] 149 [131–164] * 130 [119–144] 25 (20%) 28 (24%)
LVSVI (ml/m 2 ) 64 [56–68] * 52 [49–55] 77 [71–83] * 67 [62–69] 13 (20%) 15 (29%)
LVEF (%) 57 [53–59] 54 [50–57] 64 [61–66] 63 [60–64] 7.6 (13%) 8.3 (15%)
CO (L/min) 6.3 [5.0–7.5] 6.6 [5.5–6.9] 11.0 [9.4–13.7] 11.8 [11.1–13.2] 4.7 (74%) 5.3 (80%)
CI (L/min/m 2 ) 3.2 [2.5–3.7] 3.2 [2.8–3.5] 5.5 [4.9–6.7] 5.9 [5.4–6.6] 2.3 (71%) 2.7 (84%)
Cardiovascular hemodynamics
SW (J) 1.5 [1.1–1.6] 1.3 [1.2–1.3] 1.9 [1.7–2.3] 1.8 [1.6–1.9] 0.4 (27%) 0.5 (40%)
PE (J) 0.6 [0.5–0.8] 0.6 [0.5–0.7] 0.6 [0.5–0.8] 0.6 [0.5–0.7] -0.06 (-9%) 0 (0%)
PVA (J) 2.1 [1.7–2.4] 1.9 [1.7–2.0] 2.4 [2.2–3.1] 2.4 [2.1–2.6] 0.3 (18%) 0.5 (25%)
VE (%) 70 [66–73] 68 [63–72] 78 [75–80] 75 [73–78] 7 (11%) 7 (11%)
MEP (J/s) 1.3 [0.9–1.5] 1.2 [1.1–1.6] 2.6 [2.0–2.9] 2.7 [2.2–3.0] 1.3 (102%) 1.5 (122%)
EEV (J/L) 16 [15–18] 18 [16–20] 17 [15–18] 18 [17–18] 0.04 (0.3%) -0.09 (-0.5%)
Emax (mmHg/ml) 1.0 [0.9–1.1] 1.1 [0.9–1.2] 1.1 [0.9–1.3] 1.2 [1.0–1.3] 0.1 (11%) 0.2 (15%)
EA (mmHg/ml) 0.8 [0.7–0.9] * 1.0 [0.9–1.2] 0.7 [0.7–0.8] * 0.9 [0.8–1.0] -0.1 (-14%) -0.1 (-14%)
E A /E max 0.9 [0.8–1.0] 1.0 [0.9–1.1] 0.7 [0.6–0.8] 0.7 [0.7–0.8] -0.2 (-19%) -0.3 (-30%)
SVR (mmHg * min/L) 14 [11–16] 13 [11–17] 9 [7–10] 8 [8–9] -5 (-36%) -6 (-43%)
TAC (ml/mmHg) 2.7 [2.4–3.1] * 2.0 [1.9–2.5] 82 [77–97] * 75 [64–84] 79 (30%) 73 (36%)

Data expressed as median values [IQR]. Delta values (Δ) are absolute differences between median exercise and median rest, with relative change expressed as percentage in parenthesis.

BPM: beats per minute; BSA: body surface area; CI: cardiac index; CO: cardiac output; DBP: diastolic blood pressure; EA: arterial elastance; Emax: maximal ventricular elastance; EEV: energy per ejected volume; LVEDV: left ventricular end-diastolic volume; LVEDVI: left ventricular end-diastolic volume index; LVEF: left ventricular ejection fraction; LVESV: left ventricular end-systolic volume; LVESVI: left ventricular end-systolic volume index; ET: endurance-trained subjects; HR: heart rate; LVM: left ventricular mass; LVMI: left ventricular mass index; MEP: mean external power; PE: potential energy; PVA: pressure-volume area; RPP: Rate pressure product; SBP: systolic blood pressure: SC: sedentary controls; LVSV: left ventricular stroke volume; LVSVI: stroke volume index; SVR: systemic vascular resistance; SW: stroke work; TAC: total arterial compliance; VE: ventricular efficiency.

* p<0.05 ET vs SC at corresponding condition (rest or exercise).

p<0.05 intragroup comparison of rest vs exercise.

ET had higher LVM, LVEDV, and SV compared to SC at rest (Table 2). During exercise, SV were higher in ET than in SC, while LVEDV did not differ between groups. However, LVEDV indexed to BSA differed between groups both at rest and during exercise (Table 2).

The change in cardiac volumes from rest to exercise is summarized in Table 2 and results for LVEDV and LVESV are shown in Fig 2. ET increased SV by 20% from rest to exercise through decreased LVESV and increased LVEDV. SC increased SV by 24% through decreased LVESV, but with no change in LVEDV.

Fig 2. Left ventricular response in endurance-trained (ET) subjects and sedentary controls (SC) from rest to exercise.

Fig 2

A) left ventricular end-diastolic volume (LVEDV), and B) left ventricular end-systolic volume LVESV). Endurance-trained increased LVEDV and decreased LVESV during moderate exercise compared to rest, whereas sedentary controls had unchanged LVEDV and decreased LVESV. Individual values are plotted, and error bars denote median [IQR]. P-values indicate Wilcoxon signed-rank test comparisons between rest vs exercise in endurance-trained and sedentary controls.

When comparing the response to exercise between ET and SC, there were no differences in delta values from rest to exercise for LVEDV, LVESV, SV, and ejection fraction (Table 2).

Cardiovascular hemodynamics at rest and exercise

An example of a PV diagram in one athlete at rest and during exercise is illustrated in Fig 3. At rest, ET had lower EA and higher TAC compared to SC. There were no differences between ET and SC in SW, PE, VE, EEV, Emax, EA/Emax, or SVR (Table 2, Figs 4 and 5).

Fig 3. Left ventricular pressure-volume loop of one endurance-trained at rest (blue) and during exercise (red).

Fig 3

Dashed lines indicate the slopes of Emax and EA. Note that Emax increases (increased slope) from rest to exercise, whereas EA decreases (decreased slope), resulting in decrease in ventricular-arterial coupling (left sided displacement of the EA/Emax intercept). Stroke work (i.e. the area within the pressure-volume loop) increases from rest to exercise and ventricular efficiency (i.e. the area within the pressure-volume loop divided by the total pressure-volume area) increases from rest to exercise. EA: arterial elastance; Emax: maximal ventricular elastance; LV: left ventricular.

Fig 4. Change of left ventricular stroke work (SW; panel A), potential energy (PE; panel B), ventricular efficiency (VE; panel C), and energy per ejected volume (EEV; panel D) from rest to exercise.

Fig 4

Endurance-trained (ET) and sedentary controls (SC) did not differ in SW, PE, VE, or EEV at neither rest nor during moderate exercise, and there were no differences in delta values (exercise minus rest) of SW, PE, VE, or EEV between groups. Individual values are plotted and error bars denote median [IQR]. P-values indicate Wilcoxon signed-rank test comparisons between rest vs exercise in ET and SC.

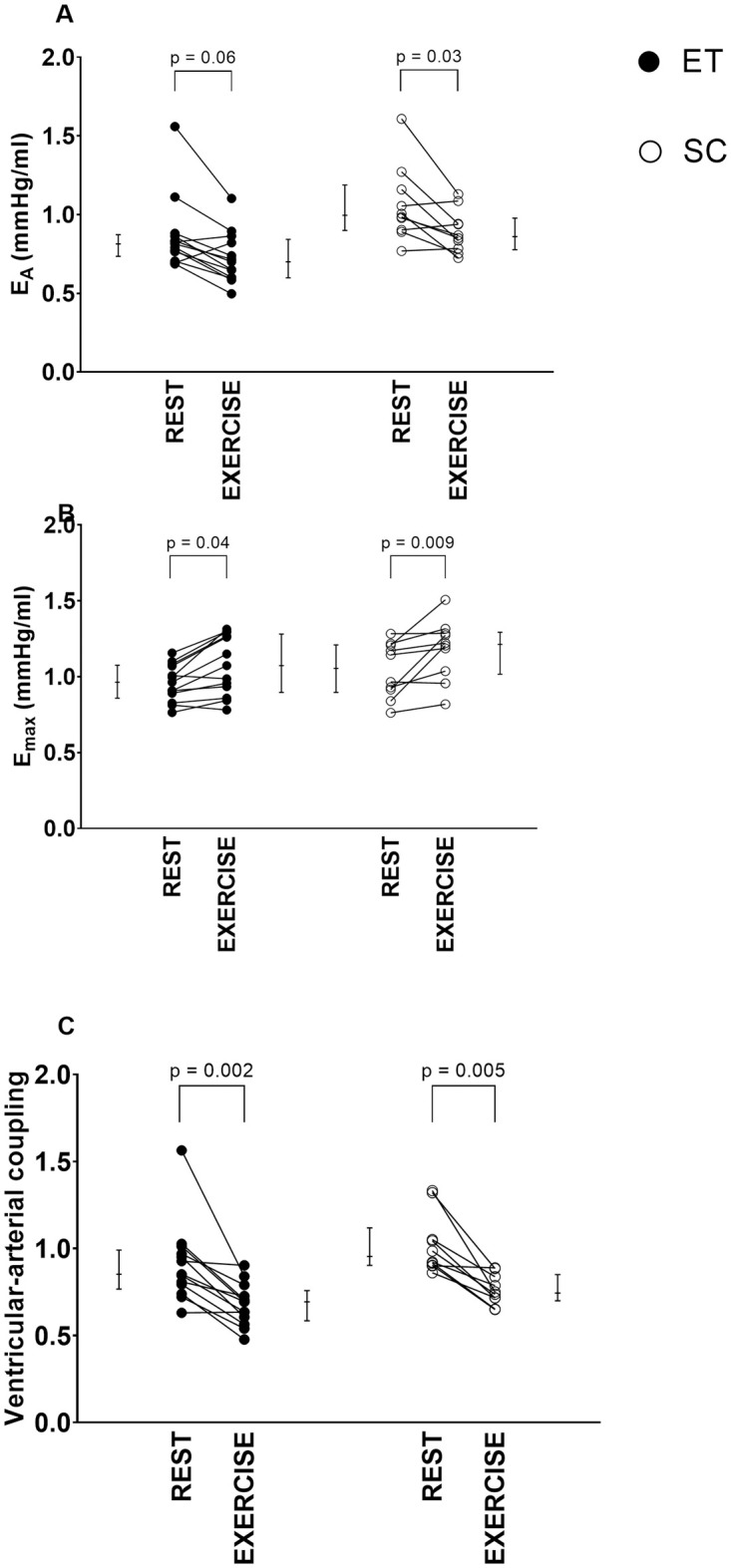

Fig 5. Change of arterial elastance (EA; panel A), maximal ventricular elastance (Emax; panel B), and ventricular-arterial coupling (EA/Emax; panel C) from rest to exercise. Endurance-trained subjects (ET) and sedentary controls (SC) had similar responses in EA, Emax, and ventricular-arterial coupling to exercise.

Fig 5

Individual values are plotted, and error bars denote median [IQR]. P-values indicate Wilcoxon signed-rank test comparisons between rest vs exercise in ET and SC.

During exercise, EA was lower and TAC higher in ET compared to SC, while the remaining hemodynamic measurements (SW, PE, VE, EEV, Emax, EA/Emax, and SVR) did not differ between ET and SC during exercise (Table 2).

For both ET and SC, all hemodynamic variables except PE and EEV differed significantly between rest and exercise. When comparing ET and SC, there were no differences in delta values from rest to exercise in any of the cardiovascular hemodynamics measurements (Table 2).

Intra- and interobserver variability

Intra- and interobserver variability of ten subjects during exercise are presented in Table 3. Intraobserver variability was low for key PV loop input variables (LVEDV, and LVESV) and output parameters (SW, EA, and Emax) (Fig 6). Interobserver variability for LVEDV during exercise was low (4 ± 8%), while for LVESV and LVEF was somewhat larger (21 ± 18% and -23 ± 18%, respectively). Interobserver variability for PV parameters during exercise are presented in Fig 7.

Table 3. Intra- and interobserver variability of variables during exercise in ten subjects.

Intraobserver variability Interobserver variability
LVM (g) 2 ± 10 g (2 ± 10%) -26 ± 23 (-23 ± 18%)
LVEDV (ml) 1 ± 14 ml (0 ± 6%) 10 ± 19 (5 ± 8%)
LVESV (ml) 2 ± 8 ml (2 ± 9%) 17 ± 15 (21 ± 19%)
SW (J) 0.01 J ± 0.10 (1 ± 5%) -0.10 ± 0.28 J (-5 ± 16%)
PE (J) 0.01 J ± 0.06 (2 ± 10%) 0.2 ± 0.1 J (29 ± 27%)
VE (%) -0.2 ± 1.4% (0 ± 2%) -6 ± 6% (-8 ± 8%)
MEP (J/s) 0.02 ± 0.13 J/s (1 ± 5%) -0.1 ± 0.4 J (-5 ± 16%)
EEV (J/L) 0.2 ± 0.5 J/L (1 ± 3%) 0.9 ± 1.2 J/L (5 ± 7%)
Emax (mmHg/ml) -0.02 ± 0.05 mmHg/ml (-2 ± 5%) -0.1 ± 0.2 mmHg/ml (-8 ± 19%)
EA (mmHg/ml) 0.00 ± 0.04 mmHg/ml (0 ± 4%) 0.1 ± 0.2 J (13 ± 23%)

Variability expressed as bias ± 1.96 SD, and as percent in parenthesis.

EA: arterial elastance; Emax: maximal ventricular elastance; EEV: energy per ejected volume; LVEDV: end-diastolic volume; ESV: left ventricular end-systolic volume; LVM: left ventricular mass; MEP: mean external power; PE: potential energy; SW: stroke work; VE: ventricular efficiency.

Fig 6. Bland-Altman plots of intraobserver variability.

Fig 6

Differences between measurements of cardiac magnetic resonance imaging variables and pressure-volume loops parameters during exercise from the same observer across two different time points against the average. Mean of the differences between measurements (bias) and limits of agreement (± 1.96 SD) are marked.

Fig 7. Bland-Altman plots of interobserver variability.

Fig 7

Differences between observations of cardiac magnetic resonance imaging variables and pressure-volume loops parameters during exercise against the average. Mean of the differences between observers (bias) and limits of agreement (± 1.96 SD) are marked.

Discussion

This is the first study to show feasibility of non-invasive PV loops using CMR during exercise for hemodynamic assessment, adding to prior work by Seemann et al. [9] and Sjöberg et al. [10].

The physiological exercise response of LV volumes are in line with previous studies, demonstrating increased LVSV through increased LVEDV and decreased LVESV in ET, and increased LVSV through maintained or decreased LVEDV and decreased LVESV in healthy volunteers [3, 5, 6]. Furthermore, the physiological exercise response of hemodynamics is also in line with previous studies, demonstrating decreased SVR and increased contractility [30, 31], indicating that non-invasively obtained PV loops during exercise can be used to assess hemodynamic changes. This study contributes to increased understanding of how hemodynamics are affected by moderate exercise, but more importantly presents a novel non-invasive method that can be used to assess cardiovascular hemodynamics during exercise. This method can be of importance for example also in patients with heart failure with preserved ejection fraction (HFpEF) where diagnosis is challenging and may require invasive right heart catheterization [32]. These patients demonstrate LV stiffness [33] and impaired cardiovascular function reserve capacity [34]. A previous study from our group has shown that non-invasive PV loops at rest are robust across heart failure subtypes [35]. Cardiac MR performed during exercise with non-invasive PV loops may further improve diagnosis and longitudinal evaluations of cardiac function [36].

Comparing non-invasive and invasive pressure-volume loops

The method of assessing PV loops non-invasively has some advantages compared to the invasive counterpart. Complications of cardiac catheterization include vascular and major incidences, for example hematoma, infection, embolization, and myocardial infarction [37]. In contrast, the method of deriving PV loops non-invasively from exercise CMR comes with the same low risks as an ordinary CMR scan. Although catheterization can provide direct measurements of chamber pressures, the added value of, for example, increased atrial pressures during exercise is limited [38]. While right atrial pressure is demonstrated normal in healthy individuals during excise, right atrial pressure increases during exercise among patients with pulmonary hypertension, and increased left atrial pressures should be excluded in the diagnosis of precapillary pulmonary hypertension [39]. In addition, the contractile reserve, which can be analyzed from both invasive and non-invasive LV PV loops, provide significant information about cardiac hemodynamics, which is not adequately demonstrated simply by looking at atrial pressures [40]. Thus, non-invasive PV loops from exercise CMR is a safe method providing relevant data about hemodynamics.

Considerations when using non-invasive pressure-volume loops from exercise CMR

There are some notable strengths and weaknesses with the novel non-invasive PV loop method from exercise imaging proposed in this study. The strengths include first and foremost that PV loops can be calculated non-invasively, providing quantitative data on cardiac hemodynamics during exercise. Secondly, the algorithm computing the PV loops only needs two simple input data: time-resolved volumetrics, and systolic and diastolic blood pressures. Hereby, we provide a feasible non-invasive method to investigate the effect of exercise on cardiovascular physiology. This method may be clinically useful for diagnosis and prognosis of different cardiovascular diseases that can be unmasked by exercise. Exercise CMR is currently used mainly for research purposes, but with technical advancements we expect this method to be increasingly available clinically in the near future.

The weaknesses of the proposed methods are that LVEDP and V0 must be assumed, and that high quality imaging can be challenging at high exercise intensities due to movement of the upper body and heavy breathing. It also needs to be emphasized that the present study was limited to the LV hemodynamics only. There is a need to study right ventricular (RV) physiology in order to increase the understanding of RV pathology. The proposed method could, if tweaked and validated for the RV in a future study, potentially characterize biventricular hemodynamics.

Exercise effects on cardiac volumes

Cardiac output increased in both groups due to a rise in HR and SV. For both groups, the increase in SV was associated with changes in a combination of load-dependent and load-independent measures as shown by the load-dependent Starling-effect with a rise in EDV and the load-independent contractility measured as Emax. When comparing ET and SC, the increase in CO was to a larger extent driven by an increased HR in ET, whereas it for SC was driven by an increased SV. Notably, the increase in EDV in SC was not statistically significant as one subject had, contrary to the other participants, a large decrease in EDV during exercise. This participant’s CO increase was driven by increasing heart rate, decreasing LVESV, and increasing contractility measured as Emax. Of note, this participant was not well-trained (0 hours of endurance training per week) but had the lowest resting HR of all SC (52 bpm), comparable with ET, and the blood pressure reaction was mild (only 105 mmHg systolic blood pressure during exercise).

Exercise effects on ventricular contractility and arterial elastance

The finding of increased contractility, measured as Emax, as response to exercise is in line with previously known physiological concepts of sympathetic stimuli increasing ventricular contraction during exercise [41] and with invasive studies investigating the effect of exercise on Emax [30, 31, 42, 43]. This supports the feasibility of using CMR images and brachial pressures to calculate PV loops and assess exercise hemodynamics.

The effect on arterial elastance (EA) has differed between previous exercise studies, using both invasive and non-invasive measurements [30, 31, 44]. The results from the present study are in line with Asanoi et al. [30] who found invasive EA to decrease during aerobic and anaerobic supine cycle exercise in healthy volunteers. On the contrary, EA has been shown to increase in an intensity-dependent manner in ET athletes [44] and healthy volunteers [31] during cycle exercise, and in subjects with hypertension and normal blood pressure during isometric handgrip exercise [45]. The conflicting results can be explained by the dependency of EA on the type and intensity of exercise. Hemodynamically, static (isometric) exercise causes pressure load with accompanied increased EA, while dynamic (isotonic) exercise causes volume load with little change in arterial pressure [46]. However, EA may increase during dynamic exercise at high intensities due to increase in cardiac output [47].

Ventricular efficiency during exercise

The present study demonstrates increased ventricular efficiency from rest to exercise in both ET and SC. Our data is in keeping with previous studies showing increased ventricular efficiency during exercise invasively in animals [21] and during pharmacological stress non-invasively in humans [10]. However, energy per ejected volume (EEV), which is a metabolic consumption measure, did not change from rest to exercise in ET or SC in the present study. As EEV is the estimated total work of every heartbeat per ml of LVSV, this indicates that ventricular energy efficiency increases with maintained metabolic expenditure per ml of LVSV when ET and SC go from rest to moderate exercise intensity.

Ventricular-arterial coupling during exercise

The ventricular-arterial coupling (EA/Emax) decreased by almost 30% in both groups in response to exercise in our study, consistent with previous invasive and non-invasive studies [30, 31, 48]. Burkhoff and Sagawa constructed a theoretical framework showing that SW is maximized when ventricular-arterial coupling is equal to 1 and peak ventricular efficiency is achieved when ventricular-arterial coupling is equal to 0.5 [49]. The decrease in EA/Emax seen during exercise in our study indicates that, during exercise, the cardiovascular system is approaching optimal ventricular efficiency rather than maximal SW (defined as when Emax is equal to EA). Interpreted together with the increase in Emax, the heart prioritizes ventricular efficiency at the cost of maximal SW as the ventricular-arterial coupling decreased well below 1 during exercise (Fig 5).

Hemodynamic changes in athletes versus controls

We did not find any differences between ET and SC in delta values of the hemodynamics in this study. A possible explanation could be that the exercise intensity was only moderate. Increased exercise intensity is associated with decrease in end-systolic volume [4] as well as LV filling and ejection times [50]. ET subjects have higher indexed left ventricular EDV, LVESV, and SV at peak exercise compared to healthy controls [6]. Thus, we expect that the hemodynamics difference in response to exercise would be manifested at higher exercise intensities than achieved in the present study.

Limitations

Non-invasive PV loops build on assumptions validated at rest [9]. These assumptions might not be fully valid during exercise when the physiological conditions are changed. For example, the assumption that V0 = 0 ml during different hemodynamic conditions has not been validated during exercise, although V0 has been found to be independent of contractile state [25]. It should be noted that this is a theoretical assumption, as the LV volume physiologically can never be 0 ml, and that it is only relevant when considering the diastolic part of the PV loop.

The assumption that LVEDP is constant during exercise has not been validated. However, when developing the non-invasive PV loop-model, Seemann et al. performed a sensitivity analysis of ventricular pressure values ranging from 0–15 mmHg resulting in low bias and variability compared to invasive measures [9]. This sensitivity analysis suggests that if the LVEDP varies within physiological limits during exercise, the impact on PV loop parameters is likely small. It should be noted, however, that there are pathological conditions where LVEDP exceeds 15 mmHg, for example decompensated heart failure [51]. The results from this study may not be generalized to a population with pathological LVEDP.

High heart rates during exercise might induce a confounding factor of the PV loop computations. A refined version of the algorithm taking the relative durations of systole and diastole at high heart rate into account has recently been validated and presented [10]. The refined version of the algorithm was used in the analysis because high heart rates were expected during exercise.

The CMR imaging protocol used included cine balanced steady state free precession sequences, requiring exercise cessation and breath-holds during image acquisition. The consequence of the exercise cessation was a drop in heart rate during image acquisition and although the target heart rate was reached during exercise, image acquisition was actually performed at slightly lower heart rates. Thus, for future studies using exercise cessation the heart rate during exercise should be higher than target heart rate in order ensure image acquisition occurs at the target heart rate. The breath-holds may influence the systolic and diastolic blood pressure, as they have been found increasing with prolonged apnea [52, 53]. However, the breath-holds were typically 8–12 seconds and any apnea-induced increase in blood pressure would therefore be expected to be minor. Exercise was restrained to moderate intensity to ensure good image quality. The current results show that non-invasively obtained PV loops at these intensities can reproduce known physiology. Higher intensities affect image quality by e.g. motion and could subsequently complicate volumetric delineations. This would challenge the results of the PV loop at that intensity. However, as shown by Edlund et al. [54], end-diastolic and end-systolic delineations are reliable at high exercise intensities, and therefore we believe the proposed method to assess cardiac hemodynamics is useful even in that setting.

The study participants exercised in the CMR scanner using a cycle ergometer in the supine position. Supine body position influence hemodynamics by means of changed blood distribution, leading to greater filling pressures compared to upright body position [55]. Supine exercise has less recruited muscle mass and leg perfusion pressure gradient compared to upright exercise, resulting in lower peak VO2, heart rate, and workload [56, 57]. Thus, hemodynamic abnormalities found during upright exercise may not be adequately comparable with supine exercise results using the proposed method from this study.

A limitation to the method, although not a limitation of the study, is the requirement of a CMR scanner with an MRI compatible cycle ergometer. The equipment and adequate expertise are expensive and of limited availability. Additionally, the time required to conduct the test and analyze the data is not insignificant.

Conclusions

This study shows feasibility of assessing LV PV loops during exercise non-invasively from CMR and brachial pressure. The hemodynamic results are in keeping with invasively demonstrated physiological responses to exercise in healthy subjects. Therefore, our method offers a new useful tool also to assess hemodynamics even during exercise. This opens possibilities to assess hemodynamics in different cardiac disease stages and at higher exercise intensities which has not been possible non-invasively before.

Supporting information

S1 Table. Heart rate (BPM) for each image slice.

ET: endurance-trained subject; SC: sedentary control.

(DOCX)

S2 Table. Systolic and diastolic blood pressures (mmHg) for each exercise bout.

ET: endurance-trained subject; SC: sedentary control.

(DOCX)

Acknowledgments

The authors would like to thank the study participants for their contribution to the study.

Data Availability

Full data cannot be shared publicly because of the small sample size and the risk of identifying individual subjects. Data are available from the Cardiac MR Group in Lund, Lund University, Sweden for researchers who meet the criteria for access to confidential data and after additional consent from the research participants. For data access requests, please contact the Cardiac MR Group in Lund via email: cmr-lund@med.lu.se.

Funding Statement

KSE: Swedish Research Council for Sport Science P2021-0052, Swedish Olympic Committee (grant number N/A, Southern Health Care Region (ALF) 2018-Project0123 EH: VR 2017-04389 The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

References

  • 1.Suga H. Total mechanical energy of a ventricle model and cardiac oxygen consumption. Am J Physiol. 1979;236. doi: 10.1152/ajpheart.1979.236.3.H498 [DOI] [PubMed] [Google Scholar]
  • 2.Bastos MB, Burkhoff D, Maly J, Daemen J, Den Uil CA, Ameloot K, et al. Invasive left ventricle pressure-volume analysis: Overview and practical clinical implications. Eur Heart J. 2020;41: 1286–1297. doi: 10.1093/eurheartj/ehz552 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 3.Steding-Ehrenborg K, Jablonowski R, Arvidsson PM, Carlsson M, Saltin B, Arheden H. Moderate intensity supine exercise causes decreased cardiac volumes and increased outer volume variations: a cardiovascular magnetic resonance study. J Cardiovasc Magn Reson. 2013;15: 96. doi: 10.1186/1532-429X-15-96 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 4.Schairer JR, Stein PD, Keteyian S, Fedel F, Ehrman J, Alam M, et al. Left ventricular response to submaximal exercise in endurance-trained athletes and sedentary adults. Am J Cardiol. 1992;70: 930–933. doi: 10.1016/0002-9149(92)90741-g [DOI] [PubMed] [Google Scholar]
  • 5.Ruijsink B, Velasco Forte MN, Duong P, Asner L, Pushparajah K, Frigiola A, et al. Synergy in the heart: RV systolic function plays a key role in optimizing LV performance during exercise. American Journal of Physiology-Heart and Circulatory Physiology. 2020;319: H642–H650. doi: 10.1152/ajpheart.00256.2020 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 6.Le TT, Bryant JA, Ting AE, Ho PY, Su B, Teo RCC, et al. Assessing exercise cardiac reserve using real-time cardiovascular magnetic resonance. Journal of Cardiovascular Magnetic Resonance. 2017;19: 1–10. doi: 10.1186/s12968-017-0322-1 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 7.Sundstedt M, Hedberg P, Jonason T, Ringqvist I, Brodin LÅ, Henriksen E. Left ventricular volumes during exercise in endurance athletes assessed by contrast echocardiography. Acta Physiol Scand. 2004;182: 45–51. doi: 10.1111/j.1365-201X.2004.01304.x [DOI] [PubMed] [Google Scholar]
  • 8.la Gerche A, Claessen G, van de Bruaene A, Pattyn N, van Cleemput J, Gewillig M, et al. Cardiac MRI: A new gold standard for ventricular volume quantification during high-intensity exercise. Circ Cardiovasc Imaging. 2013;6: 329–338. doi: 10.1161/CIRCIMAGING.112.980037 [DOI] [PubMed] [Google Scholar]
  • 9.Seemann F, Arvidsson P, Nordlund D, Kopic S, Carlsson M, Arheden H, et al. Noninvasive Quantification of Pressure-Volume Loops From Brachial Pressure and Cardiovascular Magnetic Resonance. Circ Cardiovasc Imaging. 2019;12: e008493. doi: 10.1161/CIRCIMAGING.118.008493 [DOI] [PubMed] [Google Scholar]
  • 10.Sjöberg P, Seemann F, Arheden H, Heiberg E. Non‐invasive Quantification of Pressure‐Volume Loops from Cardiovascular Magnetic Resonance at rest and during dobutamine stress. Clin Physiol Funct Imaging. 2021; 1–4. doi: 10.1111/cpf.12718 [DOI] [PubMed] [Google Scholar]
  • 11.Arvidsson P, Green PG, Watson WD, Shanmuganathan M, Heiberg E, de Maria GL, et al. Invasive validation of pressure-volume loops derived from cardiovascular magnetic resonance imaging and brachial blood pressure in heart failure patients. Eur Heart J. 2022;43: e008493. doi: 10.1093/eurheartj/ehac544.229 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 12.Vandenbroucke JP, Von Elm E, Altman DG, Gøtzsche PC, Mulrow CD, Pocock SJ, et al. Strengthening the Reporting of Observational Studies in Epidemiology (STROBE): Explanation and elaboration. PLoS Med. 2007;4: 1628–1654. doi: 10.1371/journal.pmed.0040297 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 13.Pelliccia A, Sharma S, Gati S, Bäck M, Börjesson M, Caselli S, et al. 2020 ESC Guidelines on sports cardiology and exercise in patients with cardiovascular disease. Eur Heart J. 2021;42: 17–96. doi: 10.1093/eurheartj/ehaa605 [DOI] [PubMed] [Google Scholar]
  • 14.Bull FC, Al-Ansari SS, Biddle S, Borodulin K, Buman MP, Cardon G, et al. World Health Organization 2020 guidelines on physical activity and sedentary behaviour. Br J Sports Med. 2020;54: 1451–1462. doi: 10.1136/bjsports-2020-102955 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Norton K, Norton L, Sadgrove D. Position statement on physical activity and exercise intensity terminology. J Sci Med Sport. 2010;13: 496–502. doi: 10.1016/j.jsams.2009.09.008 [DOI] [PubMed] [Google Scholar]
  • 16.Heiberg E, Sjögren J, Ugander M, Carlsson M, Engblom H, Arheden H. Design and validation of Segment—freely available software for cardiovascular image analysis. BMC Med Imaging. 2010;10: 1. doi: 10.1186/1471-2342-10-1 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 17.Berggren K, Hedström E, Steding Ehrenborg K, Carlsson M, Engblom H, Ostenfeld E, et al. Multiple Convolutional Neural Networks for Robust Myocardial Segmentation. In proceedings of SSBA. 2020.
  • 18.Kelly RP, Ting CT, Yang TM, Liu CP, Maughan WL, Chang MS, et al. Effective arterial elastance as index of arterial vascular load in humans. Circulation. 1992;86: 513–521. doi: 10.1161/01.cir.86.2.513 [DOI] [PubMed] [Google Scholar]
  • 19.Levine BD, Lane LD, Buckey JC, Friedman DB, Blomqvist CG. Left ventricular pressure-volume and Frank-Starling relations in endurance athletes. Implications for orthostatic tolerance and exercise performance. Circulation. 1991;84: 1016–1023. doi: 10.1161/01.cir.84.3.1016 [DOI] [PubMed] [Google Scholar]
  • 20.Flessas AP, Connelly GP, Handa S, Tilney CR, Kloster CK, Rimmer RH, et al. Effects of isometric exercise on the end diastolic pressure, volumes, and function of the left ventricle in man. Circulation. 1976;53: 839–847. doi: 10.1161/01.cir.53.5.839 [DOI] [PubMed] [Google Scholar]
  • 21.Nozawa T, Cheng CP, Noda T, Little WC. Effect of exercise on left ventricular mechanical efficiency in conscious dogs. Circulation. 1994;90: 3047–3054. doi: 10.1161/01.cir.90.6.3047 [DOI] [PubMed] [Google Scholar]
  • 22.Starling MR. Left ventricular-arterial coupling relations in the normal human heart. Am Heart J. 1993;125: 1659–1666. doi: 10.1016/0002-8703(93)90756-y [DOI] [PubMed] [Google Scholar]
  • 23.Suga H, Hayashi T, Shirahata M. Ventricular systolic pressure-volume area as predictor of cardiac oxygen consumption. Am J Physiol Heart Circ Physiol. 1981;9: 39–44. doi: 10.1152/ajpheart.1981.240.1.h39 [DOI] [PubMed] [Google Scholar]
  • 24.Takaoka H, Takeuchi M, Odake M, Yokoyama M. Assessment of myocardial oxygen consumption (VO2) and systolic pressure-volume area (PVA) in human hearts. Eur Heart J. 1992;13: 85–90. doi: 10.1093/eurheartj/13.suppl_e.85 [DOI] [PubMed] [Google Scholar]
  • 25.Suga H, Sagawa K, Shoukas AA. Load independence of the instantaneous pressure-volume ratio of the canine left ventricle and effects of epinephrine and heart rate on the ratio. Circ Res. 1973;32: 314–322. doi: 10.1161/01.res.32.3.314 [DOI] [PubMed] [Google Scholar]
  • 26.Suga H, Sagawa K. Instantaneous pressure volume relationships and their ratio in the excised, supported canine left ventricle. Circ Res. 1974;35: 117–126. doi: 10.1161/01.res.35.1.117 [DOI] [PubMed] [Google Scholar]
  • 27.Sunagawa K, Maughan WL, Burkhoff D, Sagawa K. Left ventricular interaction with arterial load studied in isolated canine ventricle. Am J Physiol Heart Circ Physiol. 1983;14. doi: 10.1152/ajpheart.1983.245.5.H773 [DOI] [PubMed] [Google Scholar]
  • 28.Chemla D, Hébert J-L, Coirault C, Zamani K, Suard I, Colin P, et al. Total arterial compliance estimated by stroke volume-to-aortic pulse pressure ratio in humans. American Journal of Physiology-Heart and Circulatory Physiology. 1998;274: H500–H505. doi: 10.1152/ajpheart.1998.274.2.H500 [DOI] [PubMed] [Google Scholar]
  • 29.Bland JM, Altman DG. Statistical methods for assessing agreement between two methods of clinical measurement. Lancet. 1986;1: 307–10. doi: 10.1088/1751-8113/44/8/085201 [DOI] [PubMed] [Google Scholar]
  • 30.Asanoi H, Kameyama T, Ishizaka S, Miyagi K, Sasayama S. Ventriculoarterial coupling during exercise in normal human subjects. Int J Cardiol. 1992;36: 177–186. doi: 10.1016/0167-5273(92)90005-n [DOI] [PubMed] [Google Scholar]
  • 31.Chantler PD, Melenovsky V, Schulman SP, Gerstenblith G, Becker LC, Ferrucci L, et al. The sex-specific impact of systolic hypertension and systolic blood pressure on arterial-ventricular coupling at rest and during exercise. Am J Physiol Heart Circ Physiol. 2008;295: 145–153. doi: 10.1152/ajpheart.01179.2007 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 32.Ponikowski P, Voors AA, Anker SD, Bueno H, Cleland JGF, Coats AJS, et al. 2016 ESC Guidelines for the diagnosis and treatment of acute and chronic heart failure. Eur Heart J. 2016;37: 2129–2200. [DOI] [PubMed] [Google Scholar]
  • 33.Penicka M, Bartunek J, Trakalova H, Hrabakova H, Maruskova M, Karasek J, et al. Heart Failure With Preserved Ejection Fraction in Outpatients With Unexplained Dyspnea. A Pressure-Volume Loop Analysis. J Am Coll Cardiol. 2010;55: 1701–1710. doi: 10.1016/j.jacc.2009.11.076 [DOI] [PubMed] [Google Scholar]
  • 34.Borlaug BA, Olson TP, Lam CSP, Flood KS, Lerman A, Johnson BD, et al. Global Cardiovascular Reserve Dysfunction in Heart Failure With Preserved Ejection Fraction. J Am Coll Cardiol. 2010;56: 845–854. doi: 10.1016/j.jacc.2010.03.077 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 35.Edlund J, Arvidsson PM, Nelsson A, Smith JG, Magnusson M, Heiberg E, et al. Noninvasive Assessment of Left Ventricular Pressure-Volume Relations: Inter- and Intraobserver Variability and Assessment Across Heart Failure Subtypes. Am J Cardiol. 2022. doi: 10.1016/j.amjcard.2022.09.001 [DOI] [PubMed] [Google Scholar]
  • 36.Backhaus SJ, Lange T, George EF, Hellenkamp K, Gertz RJ, Billing M, et al. Exercise Stress Real-Time Cardiac Magnetic Resonance Imaging for Noninvasive Characterization of Heart Failure With Preserved Ejection Fraction. Circulation. 2021;143: 1484–1498. doi: 10.1161/circulationaha.120.051542 [DOI] [PubMed] [Google Scholar]
  • 37.Manda YR, Baradhi KM. Cardiac Catheterization Risks and Complications. 2022. [PubMed]
  • 38.Tedford RJ, Mudd JO, Girgis RE, Mathai SC, Zaiman AL, Housten-Harris T, et al. Right ventricular dysfunction in systemic sclerosis-associated pulmonary arterial hypertension. Circ Heart Fail. 2013;6: 953–963. doi: 10.1161/CIRCHEARTFAILURE.112.000008 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 39.Humbert M, Kovacs G, Hoeper MM, Badagliacca R, Berger RMF, Brida M, et al. 2022 ESC/ERS Guidelines for the diagnosis and treatment of pulmonary hypertension. European Heart Journal. Oxford University Press; 2022. pp. 3618–3731. doi: 10.1093/eurheartj/ehac237 [DOI] [PubMed] [Google Scholar]
  • 40.Hsu S, Houston BA, Tampakakis E, Bacher AC, Rhodes PS, Mathai SC, et al. Right ventricular functional reserve in pulmonary arterial hypertension. Circulation. 2016;133: 2413–2422. doi: 10.1161/CIRCULATIONAHA.116.022082 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 41.Widmaier E, Raff H, Strang K. Cardiovascular Physiology. 15th ed. Vander’s Human Physiology: The Mechanisms of Body Function. 15th ed. New York: McGraw-Hill Education; 2019. pp. 362–444. [Google Scholar]
  • 42.Radovits T, Oláh A, Lux Á, Németh BT, Hidi L, Birtalan E, et al. Rat model of exercise-induced cardiac hypertrophy: hemodynamic characterization using left ventricular pressure-volume analysis. Am J Physiol Heart Circ Physiol. 2013;305: 124–134. doi: 10.1152/ajpheart.00108.2013 [DOI] [PubMed] [Google Scholar]
  • 43.Oláh A, Kovács A, Lux Á, Tokodi M, Braun S, Lakatos BK, et al. Characterization of the dynamic changes in left ventricular morphology and function induced by exercise training and detraining. Int J Cardiol. 2019;277: 178–185. doi: 10.1016/j.ijcard.2018.10.092 [DOI] [PubMed] [Google Scholar]
  • 44.Otsuki T, Maeda S, Iemitsu M, Saito Y, Tanimura Y, Ajisaka R, et al. Systemic arterial compliance, systemic vascular resistance, and effective arterial elastance during exercise in endurance-trained men. Am J Physiol Regul Integr Comp Physiol. 2008;295: 228–235. doi: 10.1152/ajpregu.00009.2008 [DOI] [PubMed] [Google Scholar]
  • 45.Kuznetsova T, D’Hooge J, Kloch-Badelek M, Sakiewicz W, Thijs L, Staessen JA. Impact of hypertension on ventricular-arterial coupling and regional myocardial work at rest and during isometric exercise. Journal of the American Society of Echocardiography. 2012;25: 882–890. doi: 10.1016/j.echo.2012.04.018 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 46.Mitchell JH, Wildenthal K. Static (isometric) exercise and the heart: physiological and clinical considerations. Annu Rev Med. 1974;25: 369–81. doi: 10.1146/annurev.me.25.020174.002101 [DOI] [PubMed] [Google Scholar]
  • 47.Mitchell JH, Haskell WL, Raven PB. Classification of sports. J Am Coll Cardiol. 1994;24: 864–6. doi: 10.1016/0735-1097(94)90841-9 [DOI] [PubMed] [Google Scholar]
  • 48.Najjar SS, Schulman SP, Gerstenblith G, Fleg JL, Kass DA, O’Connor F, et al. Age and gender affect ventricular-vascular coupling during aerobic exercise. J Am Coll Cardiol. 2004;44: 611–617. doi: 10.1016/j.jacc.2004.04.041 [DOI] [PubMed] [Google Scholar]
  • 49.Burkhoff D, Sagawa K. Ventricular efficiency predicted by an analytical model. American Journal of Physiology-Regulatory, Integrative and Comparative Physiology. 1986;250: R1021–R1027. doi: 10.1152/ajpregu.1986.250.6.R1021 [DOI] [PubMed] [Google Scholar]
  • 50.Sundstedt M, Hedberg P, Jonason T, Ringqvist I, Henriksen E. Echocardiographic Doppler assessments of left ventricular filling and ejection during upright exercise in endurance athletes. Clin Physiol Funct Imaging. 2007;27: 36–41. doi: 10.1111/j.1475-097X.2007.00715.x [DOI] [PubMed] [Google Scholar]
  • 51.Lancellotti P, Galderisi M, Edvardsen T, Donal E, Goliasch G, Cardim N, et al. Echo-Doppler estimation of left ventricular filling pressure: Results of themulticentre EACVI Euro-Filling study. Eur Heart J Cardiovasc Imaging. 2017;18: 961–968. doi: 10.1093/ehjci/jex067 [DOI] [PubMed] [Google Scholar]
  • 52.Heusser K, Dzamonja G, Tank J, Palada I, Valic Z, Bakovic D, et al. Cardiovascular regulation during apnea in elite divers. Hypertension. 2009;53: 719–724. doi: 10.1161/HYPERTENSIONAHA.108.127530 [DOI] [PubMed] [Google Scholar]
  • 53.Lin YC. Breath-hold diving in terrestrial mammals. Exerc Sport Sci Rev. 1982;10: 270–307. http://www.ncbi.nlm.nih.gov/pubmed/6811283 [PubMed] [Google Scholar]
  • 54.Edlund J, Haris K, Ostenfeld E, Carlsson M, Heiberg E, Johansson S, et al. Validation and quantification of left ventricular function during exercise and free breathing from real-time cardiac magnetic resonance images. Sci Rep. 2022;12: 5611. doi: 10.1038/s41598-022-09366-8 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 55.Thadani U, Parker JO. Hemodynamics at rest and during supine and sitting bicycle exercise in normal subjects. Am J Cardiol. 1978;41: 52–59. doi: 10.1016/0002-9149(78)90131-5 [DOI] [PubMed] [Google Scholar]
  • 56.Dillon HT, Dausin C, Claessen G, Lindqvist A, Mitchell A, Wright L, et al. The effect of posture on maximal oxygen uptake in active healthy individuals. Eur J Appl Physiol. 2021;121: 1487–1498. doi: 10.1007/s00421-021-04630-7 [DOI] [PubMed] [Google Scholar]
  • 57.Proctor DN, Sinning WE, Bredle DL, Joyner MJ. Cardiovascular and peak VO2 responses to supine exercise: effects of age and training status. Med Sci Sports Exerc. 1996;28: 892–9. doi: 10.1097/00005768-199607000-00017 [DOI] [PubMed] [Google Scholar]

Decision Letter 0

Hans-Peter Kubis

20 Jan 2023

PONE-D-22-29573Endurance-trained subjects and sedentary controls increase ventricular contractility and efficiency during exercise–feasibility of hemodynamics assessed by non-invasive pressure-volume loopsPLOS ONE

Dear Dr. Oestenson,

Thank you for submitting your manuscript to PLOS ONE. After careful consideration, we feel that it has merit but does not fully meet PLOS ONE’s publication criteria as it currently stands. Therefore, we invite you to submit a revised version of the manuscript that addresses the points raised during the review process.

We received three reviews for your manuscript, two with very thorough and proactive comments for improving the manuscript and some questions regarding details and methods of the study. Please use the comments and recommendation by the reviewers to increase the quality of your manuscript and alter your manuscript accordingly. In case you find the requested alterations or concerns not justifiable, please respond and explain in the rebuttal letter. More information about the process is listed below. The third reviewer, who recommended a reject of your manuscript, was concerned about a conflict of interest (one of the authors working for the company who produced the equipment used) and expressed distrust towards the technique. I am sure that this can be addressed by statements and information explaining the influence of the company for the study and also adding some information about the validation of the technique. I therefore recommend to take extra care for dissolving the concerns of this reviewer.

Please submit your revised manuscript by 03/02/2023. If you will need more time than this to complete your revisions, please reply to this message or contact the journal office at plosone@plos.org. When you're ready to submit your revision, log on to https://www.editorialmanager.com/pone/ and select the 'Submissions Needing Revision' folder to locate your manuscript file.

Please include the following items when submitting your revised manuscript:

  • A rebuttal letter that responds to each point raised by the academic editor and reviewer(s). You should upload this letter as a separate file labeled 'Response to Reviewers'.

  • A marked-up copy of your manuscript that highlights changes made to the original version. You should upload this as a separate file labeled 'Revised Manuscript with Track Changes'.

  • An unmarked version of your revised paper without tracked changes. You should upload this as a separate file labeled 'Manuscript'.

If you would like to make changes to your financial disclosure, please include your updated statement in your cover letter. Guidelines for resubmitting your figure files are available below the reviewer comments at the end of this letter.

If applicable, we recommend that you deposit your laboratory protocols in protocols.io to enhance the reproducibility of your results. Protocols.io assigns your protocol its own identifier (DOI) so that it can be cited independently in the future. For instructions see: https://journals.plos.org/plosone/s/submission-guidelines#loc-laboratory-protocols. Additionally, PLOS ONE offers an option for publishing peer-reviewed Lab Protocol articles, which describe protocols hosted on protocols.io. Read more information on sharing protocols at https://plos.org/protocols?utm_medium=editorial-email&utm_source=authorletters&utm_campaign=protocols.

We look forward to receiving your revised manuscript.

Kind regards,

Hans-Peter Kubis, PD. Dr. rer. nat.

Academic Editor

PLOS ONE

Journal Requirements:

When submitting your revision, we need you to address these additional requirements.

1. Please ensure that your manuscript meets PLOS ONE's style requirements, including those for file naming. The PLOS ONE style templates can be found at https://journals.plos.org/plosone/s/file?id=wjVg/PLOSOne_formatting_sample_main_body.pdf and

https://journals.plos.org/plosone/s/file?id=ba62/PLOSOne_formatting_sample_title_authors_affiliations.pdf

2. Please amend your current ethics statement to address the following concerns:

a) Did participants provide their written or verbal informed consent to participate in this study?

b) If consent was verbal, please explain i) why written consent was not obtained, ii) how you documented participant consent, and iii) whether the ethics committees/IRB approved this consent procedure

3. We note that you have stated that you will provide repository information for your data at acceptance. Should your manuscript be accepted for publication, we will hold it until you provide the relevant accession numbers or DOIs necessary to access your data. If you wish to make changes to your Data Availability statement, please describe these changes in your cover letter and we will update your Data Availability statement to reflect the information you provide.

[Note: HTML markup is below. Please do not edit.]

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. Is the manuscript technically sound, and do the data support the conclusions?

The manuscript must describe a technically sound piece of scientific research with data that supports the conclusions. Experiments must have been conducted rigorously, with appropriate controls, replication, and sample sizes. The conclusions must be drawn appropriately based on the data presented.

Reviewer #1: Yes

Reviewer #2: Yes

Reviewer #3: Partly

**********

2. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: Yes

Reviewer #2: Yes

Reviewer #3: Yes

**********

3. Have the authors made all data underlying the findings in their manuscript fully available?

The PLOS Data policy requires authors to make all data underlying the findings described in their manuscript fully available without restriction, with rare exception (please refer to the Data Availability Statement in the manuscript PDF file). The data should be provided as part of the manuscript or its supporting information, or deposited to a public repository. For example, in addition to summary statistics, the data points behind means, medians and variance measures should be available. If there are restrictions on publicly sharing data—e.g. participant privacy or use of data from a third party—those must be specified.

Reviewer #1: Yes

Reviewer #2: Yes

Reviewer #3: Yes

**********

4. Is the manuscript presented in an intelligible fashion and written in standard English?

PLOS ONE does not copyedit accepted manuscripts, so the language in submitted articles must be clear, correct, and unambiguous. Any typographical or grammatical errors should be corrected at revision, so please note any specific errors here.

Reviewer #1: Yes

Reviewer #2: Yes

Reviewer #3: Yes

**********

5. Review Comments to the Author

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #1: The work conducted by the authors is novel and should be commended. This is a well written manuscript and demonstrates the feasibility of this novel methodology in both trained and untrained participants.

The methods and experimental protocol have been performed by an experienced group and the data presented clearly.

I have no major issues to raise within my review.

My minor points are as follows:

Title:

1 – I would recommend the use of a colon before ‘feasibility of hemodynamics…’. This would be more appropriate here.

Study population:

2 – Please note which sports or modality of endurance training your cohort were undertaking because there can be subtle differences in cardiac adaptations between sports. I.e. swimming vs. land-based exercise, or running vs. rowing.

Cardiac magnetic resonance imaging and exercise protocol:

3 – The use of breath-holds for cardiac image acquisition will briefly increase brachial blood pressures. Indeed, this potentially appears evident in Supplemental table 2 with some fairly large fluctuations in systolic blood pressure between exercise bouts.

It appears that blood pressure measures were taken simultaneously with cardiac image acquisition. Please clarify whether there was a specific order for breath holds and brachial blood pressure measures, whether they were separated, or collected was simultaneously. Additionally, please clarify (if you made note) whether there was consistency of this order between subjects.

4 – What determined one or three slices being acquired, and when the participant began exercise again? I think this should be stated here. Was it a heart rate dropping below 55% of their predicted max, or something different?

Also, were all imaged acquired at a heart rate of 55% predicted maximum or above? Three hearts rates in Supplemental table 1 are below 60 bpm and many are 61-70 bpm. Three incorrect heart rates are also included in the S1 table, two for participant ET 1 and one for ET 7.

Cardiac volumes at rest and exercise:

5 – Inconsistent percentage increases during exercise between the text (line 217) and table 2.

Discussion:

6 – The first part of the sentence starting on line 315 needs to be more specific in order to make the conclusion in the latter part, rather than ‘…in line with widely known and accepted exercise physiology…’. Looking at the references, 3 and 5 appear to contract one another in their findings of SV augmentation via EDV increase or ESV reduction. Given this this section is opening your key findings, I feel that these supporting statements should be clearer as to what you are referring to.

Limitations:

7 – Please add the influence of breath holds on blood pressure as a study limitation as per point 3 of this review.

Thank you for the opportunity to read this manuscript.

Reviewer #2: In this manuscript, Ostenson and colleagues sought to determine whether pressure-volume (PV) analysis of resting and exertional ventricular function can be derived noninvasively from a combination of cardiac MR (CMR) and brachial blood pressure. Thirteen endurance trained athletes and ten controls underwent noninvasive hemodynamic assessment during rest and moderate intensity during supine exercise at 60% maximum predicted heart rate (MPHR). Authors nicely demonstrate the feasibility/success of noninvasively deriving PV loops to facilitate enhanced understanding of ventricular function. Overall, I read this manuscript with enthusiasm. This manuscript has enormous potential; while not yet ready for publication in its current form, I ask the authors to consider comments below as constructive criticisms to further develop what could be a very nice manuscript that would sit very well in the literature, the limitations of this model notwithstanding.

MAJOR COMMENTS

In study population, include how many males/females were included in the ET group, since authors indicate the control population was age/sex matched and included gender data for the controls. These data are included neither in the body of the text nor in table 1.

What do authors mean by “sample size was determined by feasibility”? This is a highly confusing statement. I think the authors mean to indicate that this was an exploratory analysis. The sentence in its current form should be removed and authors should write something to the effect of, “In this pilot analysis, sample size was limited to demonstrate feasibility of non-invasive derivation of PV loops”. Or, remove the sentence entirely.

In abstract, authors indicate that exercise was completed at 60% MPHR, but in the methods section, authors indicate exercise was at 55-70% MPHR. Please clarify what was the exercise intensity for the sake of consistency.

Along these lines, I am confused by the data presented and it’s not clear to me that the intended exercise intensity was achieved. The median age for ET group was 48. 220-48 = 172bpm, so the MPHR for ET group is 172bpm. The HR during exercise (table 2) is 77bpm for this group. 77bpm represents 44% of the MPHR. Authors indicate that exercise was completed at 60% MPHR in the abstract, or 55-70% MPHR in the methods section (see above statement on this discrepancy). A HR of 77bpm is nowhere near 60% MPHR. Please clarify this discrepancy. Similar for the SC group.

Authors nicely and succinctly describe some of the benefits and limitations of noninvasive PV analysis. However, there additional limitations which need to be included. First, is the physiology of supine v. upright hemodynamic assessments. Exercise hemodynamics vary depending on the presence/absence of a gravitational load – ie, exercise in a supine v. upright position, as does work intensity of the skeletal muscle – e.g. reliance on muscle groups during supine exercise that are not engaged to the same intensity during upright exercise. As such, hemodynamic abnormalities occurring during upright exercise likely are not adequately redemonstrated by conducting a hemodynamic assessment in a supine position. This issue really needs to be discussed. The second consideration is cost, since cost associated with cardiac MR is not inexpensive. Along these lines is the time required to complete this type of test and the necessity of having MRI-compatible equipment available – ie, having an ergometer available that is MRI compatible.

As a follow-up, do the authors envision that this technique be used for research purposes only, or for clinical purposes as well? I hope it is the latter, since there is enormous potential for this technique to advance the understanding of mechanisms of functional impairments among individuals with cardiovascular and pulmonary vascular disease – both impacting the LV and RV. For this reason, authors need to expand on the section “Considerations when using non-invasive pressure-volume loops from exercise CMR” to include the above-stated issues.

Authors also need to discuss the feasibility of RV PV analysis, albeit briefly, since the focus of this paper is not on RV hemodynamics, but nonetheless, there have been a large number of manuscripts addressing RV PV analysis, and at least in the United States, both the American Heart Association, and the NIH/NHLBI have published scientific statements in the past several years emphasizing the need to further study and characterize RV physiology/pathophysiology. This manuscript has the potential to sit very well given the current landscape of understanding LV and RV physiology/pathophysiology.

The manuscript would benefit from highlighting the added value of PV analysis compared to traditional invasive hemodynamic analysis with a Swan-Ganz catheter. For example, looking at Tedford’s RV PV exercise data in PH patients (Circ HF 2013, Circ 2016), or Cornwell’s RV PV data in healthy individuals (J. Physiology 2020). Limited data are derived from showing that right atrial pressure increases during exercise among patients with PH and RV dysfunction; similarly, limited insight results from completing an invasive CPET on normal healthy individuals demonstrating that RAP is normal. However, RV PV data in healthy individuals demonstrate significant contractile reserve, which is not adequately demonstrated simply by looking at RAP, or even by a stress echo demonstrating “normal ventricular function”. These examples are meant to be illustrative considerations for the authors to include a discussion on this subject, further supporting their argument as to the potential relevance of the novel method they have described in this manuscript. The discussion section should include mention of these concepts.

The discussion section on afterload (EA) should be elaborated on. Authors should review J. Mitchell’s JACC 1994 paper (JACC 1994; 24: 845-849), demonstrating the differences in hemodynamic response to dynamic v. static exercise. It is not surprising that authors found in this manuscript that Ea was reduced during dynamic exercise.

I disagree with the authors discussion section on VA coupling during exercise. Authors need to be careful about how they define VA coupling; in this manuscript, it is defined as EA/EES. Other authors have reported VA coupling as EES/EA. This is relevant inasmuch as during exercise, EES increases and authors found that EA decreases. This change does not imply, at all, that there is VA uncoupling. Rather, it demonstrates an appropriate augmentation in contractility. However, because in this manuscript, VA coupling is defined as EA/EES, the value of this ratio declines during exercise. however, the decline in this ratio should not lead to the conclusion that the ventricle is becoming uncoupled; if the ratio were defined as EES/EA, then the ratio goes up. Please revise this discussion section appropriately.

Authors should include in the discussion why they chose to study ET for this exploratory analysis. The objective of the study was to demonstrate that PV analysis can be obtained noninvasively. It was not to compare exercise hemodynamics in healthy controls v. elite athletes. Why even include endurance athletes here? from a clinical standpoint, it would have been more informative to generate noninvasive PV loops on patients with unexplained dyspnea, for example, or even heart failure prior to and following a drug intervention. Why were endurance athletes included?

Throughout the manuscript, and in the abstract, specify that you are referring to the left ventricle (LV), since there has been a great deal of emphasis placed on right ventricular (RV) PV analysis – see Tedford’s data from MUSC/Hopkins, Cornwell’s data from Colorado, Brener’s Circ:HF review, etc.

Authors go back and forth between using “ET” for endurance-trained, and spelling out endurance-trained. After the acronym “ET” is introduced the first time, use ET consistently throughout the manuscript.

The limitations section is nicely described – authors nicely emphasize the limitations of their model, particularly the discussion on limitations of assuming Vo = 0. It should also be noted that this assumption is entirely theoretical and in reality, is only relevant when considering the diastolic limb of the pressure-volume curve. It is impossible for pressure to be 0 during systole, so there is no physiologic basis for a Vo = 0 for systole.

Reviewer #3: Review of ”Endurance-trained subjects and sedentary controls increase ventricular contractility and efficiency during exercise–feasibility of hemodynamics assessed by non-invasive pressure-volume loops” by Östenson et al.

In the above-mentioned study, the authors assessed endurance-trained athletes and sedentary controls at rest and during exercise with non-invasive pressure-volume loops generated by CMR and NIBP using Segment (a software from Medviso, Sweden).

The aim of the study was to assess if pressure-volume loops could be obtained during exercise.

Twenty-three subjects, 13 endurance-trained athletes, and 10 sedentary controls matched for age and gender were included. They were examined at rest and at moderate exercise intensity.

Pressure volume loops at rest and during exercise were computed using input data from a combination of volumetric measurements obtained from the CMR data and ESP from non-invasive brachial blood pressure. End-diastolic pressure was inputted by the user.

End-systolic elastance (Ees) and Effective arterial elastance (Ea) were found using single-beat technique.

The authors concluded that the method is feasible and a new useful tool to assess hemodynamics even during exercise.

**********

6. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

Reviewer #2: No

Reviewer #3: No

**********

[NOTE: If reviewer comments were submitted as an attachment file, they will be attached to this email and accessible via the submission site. Please log into your account, locate the manuscript record, and check for the action link "View Attachments". If this link does not appear, there are no attachment files.]

While revising your submission, please upload your figure files to the Preflight Analysis and Conversion Engine (PACE) digital diagnostic tool, https://pacev2.apexcovantage.com/. PACE helps ensure that figures meet PLOS requirements. To use PACE, you must first register as a user. Registration is free. Then, login and navigate to the UPLOAD tab, where you will find detailed instructions on how to use the tool. If you encounter any issues or have any questions when using PACE, please email PLOS at figures@plos.org. Please note that Supporting Information files do not need this step.

Attachment

Submitted filename: Review of CMR PVloops.docx

Decision Letter 1

Hans-Peter Kubis

27 Apr 2023

Endurance-trained subjects and sedentary controls increase ventricular contractility and efficiency during exercise: feasibility of hemodynamics assessed by non-invasive pressure-volume loops

PONE-D-22-29573R1

Dear Dr. Oestenson,

We’re pleased to inform you that your manuscript has been judged scientifically suitable for publication and will be formally accepted for publication once it meets all outstanding technical requirements.

Within one week, you’ll receive an e-mail detailing the required amendments. When these have been addressed, you’ll receive a formal acceptance letter and your manuscript will be scheduled for publication.

An invoice for payment will follow shortly after the formal acceptance. To ensure an efficient process, please log into Editorial Manager at http://www.editorialmanager.com/pone/, click the 'Update My Information' link at the top of the page, and double check that your user information is up-to-date. If you have any billing related questions, please contact our Author Billing department directly at authorbilling@plos.org.

If your institution or institutions have a press office, please notify them about your upcoming paper to help maximize its impact. If they’ll be preparing press materials, please inform our press team as soon as possible -- no later than 48 hours after receiving the formal acceptance. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information, please contact onepress@plos.org.

Kind regards,

Hans-Peter Kubis, PD. Dr. rer. nat.

Academic Editor

PLOS ONE

Additional Editor Comments (optional):

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. If the authors have adequately addressed your comments raised in a previous round of review and you feel that this manuscript is now acceptable for publication, you may indicate that here to bypass the “Comments to the Author” section, enter your conflict of interest statement in the “Confidential to Editor” section, and submit your "Accept" recommendation.

Reviewer #1: All comments have been addressed

**********

2. Is the manuscript technically sound, and do the data support the conclusions?

The manuscript must describe a technically sound piece of scientific research with data that supports the conclusions. Experiments must have been conducted rigorously, with appropriate controls, replication, and sample sizes. The conclusions must be drawn appropriately based on the data presented.

Reviewer #1: Yes

**********

3. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: Yes

**********

4. Have the authors made all data underlying the findings in their manuscript fully available?

The PLOS Data policy requires authors to make all data underlying the findings described in their manuscript fully available without restriction, with rare exception (please refer to the Data Availability Statement in the manuscript PDF file). The data should be provided as part of the manuscript or its supporting information, or deposited to a public repository. For example, in addition to summary statistics, the data points behind means, medians and variance measures should be available. If there are restrictions on publicly sharing data—e.g. participant privacy or use of data from a third party—those must be specified.

Reviewer #1: Yes

**********

5. Is the manuscript presented in an intelligible fashion and written in standard English?

PLOS ONE does not copyedit accepted manuscripts, so the language in submitted articles must be clear, correct, and unambiguous. Any typographical or grammatical errors should be corrected at revision, so please note any specific errors here.

Reviewer #1: Yes

**********

6. Review Comments to the Author

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #1: Thank you for addressing my review comments so thoroughly and I would like to congratulate you on a well-written, and novel paper.

**********

7. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

**********

Acceptance letter

Hans-Peter Kubis

2 May 2023

PONE-D-22-29573R1

Endurance-trained subjects and sedentary controls increase ventricular contractility and efficiency during exercise: feasibility of hemodynamics assessed by non-invasive pressure-volume loops

Dear Dr. Östenson:

I'm pleased to inform you that your manuscript has been deemed suitable for publication in PLOS ONE. Congratulations! Your manuscript is now with our production department.

If your institution or institutions have a press office, please let them know about your upcoming paper now to help maximize its impact. If they'll be preparing press materials, please inform our press team within the next 48 hours. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information please contact onepress@plos.org.

If we can help with anything else, please email us at plosone@plos.org.

Thank you for submitting your work to PLOS ONE and supporting open access.

Kind regards,

PLOS ONE Editorial Office Staff

on behalf of

Dr. Hans-Peter Kubis

Academic Editor

PLOS ONE

Associated Data

    This section collects any data citations, data availability statements, or supplementary materials included in this article.

    Supplementary Materials

    S1 Table. Heart rate (BPM) for each image slice.

    ET: endurance-trained subject; SC: sedentary control.

    (DOCX)

    S2 Table. Systolic and diastolic blood pressures (mmHg) for each exercise bout.

    ET: endurance-trained subject; SC: sedentary control.

    (DOCX)

    Attachment

    Submitted filename: Review of CMR PVloops.docx

    Attachment

    Submitted filename: Response to Reviewers.docx

    Data Availability Statement

    Full data cannot be shared publicly because of the small sample size and the risk of identifying individual subjects. Data are available from the Cardiac MR Group in Lund, Lund University, Sweden for researchers who meet the criteria for access to confidential data and after additional consent from the research participants. For data access requests, please contact the Cardiac MR Group in Lund via email: cmr-lund@med.lu.se.


    Articles from PLOS ONE are provided here courtesy of PLOS

    RESOURCES
