. 2023 May 18;8(21):18591–18602. doi: 10.1021/acsomega.3c00423

Nickel Slag/Laterite Soil and Nickel Slag/Iron Sand Nanocomposites: Structural, Optical, and Electromagnetic Absorption Properties

Heryanto Heryanto †, Siswanto Siswanto ‡, Roni Rahmat †, Abdelmoneim Sulieman §, David A Bradley ∥,⊥, Dahlang Tahir †,*
PMCID: PMC10233663  PMID: 37273611

Abstract

graphic file with name ao3c00423_0009.jpg

Efforts to produce microwave absorber materials that are inexpensive and environmentally friendly have become a means of greening the environment. The breakthrough can be focused on industrial waste and natural materials for functional purposes and how to enhance their performance. We successfully synthesized nickel slag/laterite soil (NS/LS) and nickel slag/iron sand (NS/IS) nanocomposites using a simple mechanical alloying technique, and the electromagnetic (EM) wave absorption capacities of the nanocomposites were measured using a vector network analyzer. The structural properties of the nanocomposites were analyzed by X-ray diffraction spectroscopy, where the results of the analysis showed that NS/IS has the largest crystallite size (15.69 nm) and the highest EM wave absorption performance. The optical properties of the nanocomposites were determined from their Fourier transform infrared spectra using the Kramers–Kronig relation. As determined through a quantitative analysis of the optical properties, the distance between the longitudinal and transversal optical phonon wavenumber positions (Δ(LO – TO) = 65 cm–1) is inversely proportional to the reflection loss. The surface morphologies of the nanocomposites were analyzed by scanning electron microscopy, and the particle diameters were observed by binary image and Gaussian distribution analyses. The nanocomposite surface exhibits a graded-like morphology, which indicates multiple reflections of the EM radiation, consequently reducing the EM interference. The best nanocomposite for an attenuated EM wave achieved a reflection loss of −39.14 dB at 5–8 GHz. A low penetration depth has implications for the electrical charge tuning of the storage and composite magnets. Finally, the EM absorption properties of NS/IS and NS/LS indicate a 2-mm-thick environmentally friendly nanocomposite for EM absorption.

1. Introduction

Nickel slag (NS) is a waste product from the nickel industry, which can be incorporated with other natural resources to enhance specific characteristics for various applications.1 The high magnetite content of NS is the primary reason for its use in the absorption of electromagnetic interference (EMI) emissions,2 sensors,3 batteries,4 alkaline activations,5 and shielding.6 Fayalite is a perovskite-type material that can be extracted from NS with useful properties, such as ferromagnetism, ferroelectricity, and superconductivity.7 Fayalite is formed by SiO2 and has a tetrahedral structure with four O atoms bonding to Si atoms at the center coordinate. Six O atoms surrounding the Fe atoms in tetrahedral SiO4 can be a suitable combination of metal and semimetal atoms that have the potential to store and absorb energy. Some studies have reported best-performing microwave absorber materials (MAMs), including Fe–Si flakes, Fe–Si–Al alloy powder, CoFe2O4 pellets, and Fe3O4/carbon nanowires, possibly because of their high atomic weight and density.8−11 Thus, the utilization of fayalite as an electromagnetic (EM) wave absorber could be the focus of further study. Moreover, the low cost and novelty of the utilization of waste materials for MAM applications should be considered. Other studies have used NS as a raw material in the production of Portland cement for road construction12 or to investigate its effect as a fine aggregate on the properties of concrete containing the same superplasticizer content.13

Thin pellets,14 many layer-structured materials,15 induced structural defects on surfaces,16 and surfaces covered by conductive nanosheets17 are important innovations to change the electrical conductivity and mechanical properties of absorption materials in the military and electronics industries for EMI absorption. Currently, MAM applications have been extended to several fields, such as energy storage18/batteries,4 alkaline activations,3 sensors,3 and spacecraft.19 In Figure 1, some applications of fayalite are shown. In advanced application areas, such as batteries, a fayalite nanocomposite (α-Fe2SiO4)@C was successfully fabricated via a solid-state reaction under nitrogen gas flow with enormous potential for next-generation lithium-ion batteries. Another study investigated the mineralogical conditions and content of alkali-activated NS glass to adjust the reactivity, mechanical properties, and microstructure of the material. The alkali-activated samples exhibited differences in the chemical composition of their binder gels at an early stage; consequently, the binder became increasingly homogeneous and consisted of a Na–K–Fe–Si gel with Mg, Ca, and Al. Two effective methods of multisensor detection for reinforced concrete structures, namely, active infrared thermography with microwave excitation and eddy current technique, were employed to identify the steel reinforcement features. Although its structure is different from that of fayalite, the 3D hybrid f-Fe3O4-VCNTs@rGO hierarchical hybrid formation fabricated by Rajesh Kumar et al. utilized a combination of magnetite and non/semi-magnetite materials to enhance EM interface shielding. An EM interface shield for spacecraft based on self-assembled nanostructures of 3D hierarchical triangles of iron oxide containing vertical carbon nanotubes on reduced graphene oxide hybrids has been fabricated. Thus, various combinations of large and medium atoms can be good absorbers for various fields of physics.

Figure 1.

Figure 1

Open in a new tab

Several applications of fayalite materials.

EM wave absorption by electrons and atomic resonance occurs when the interaction energy is dissipated by being converted into heat energy or another energy form.20 The development of interfacial interactions can regulate the capability of the material to respond to physical phenomena around it. The discovery of the giant electrocaloric effect induced by interfacial charge indicates that multilayered oxide heterostructures hold tremendous promise for the development of highly efficient and scalable solid-state cooling applications.21,22 A material with a microlayered surface can achieve maximum energy absorption as a multifunctional electronic device. Given that the combination of Fe and Si performs as effectively as a promising MAM, we need to determine how to change the magnetic and electrical properties of NS. Doping methods and their derivatives lead to the formation of defects, which affect the change in electrical conductivity and mechanical properties of the material. Structural defects affect the reflection angle and enhance absorption opportunities, thereby increasing the shielding effectiveness.23 Impurities derived from natural materials can be used to fine-tune important effects that favor new properties, such as changes in crystallite size, crystal shape, and thermodynamic properties,24,25 and the selection of materials from nature makes composites an environmentally friendly material during or after use. Therefore, we combine NS with natural materials, such as iron sand (IS) and laterite soil (LS), using the milling method26,27 to form NS/IS and NS/LS nanocomposites. The performance of IS and LS as construction materials, radioactive waste treatment, environmental remediation, absorbents, and adsorbents exhibits quite favorable capabilities as doping materials.28−31 Fayalite is a type of mineral with medium electrical conductivity, and we aim to enhance and control its electrical conductivity by doping IS as a material that is dominated by magnetite and LS as a material that is dominated by a combination of Fe and Si, respectively. To the best of our knowledge, only a few reports on environmentally friendly EMI absorbers have been published, and the MAM manufacturing method still takes a long time, uses large amounts of solvents, and is expensive to analyze. Based on these limitations, NS/IS and NS/LS nanocomposites were selected and fabricated by mechanical alloying as an environmentally friendly method. The principle of the mechanical alloying process is that the ball transfers its momentum to the unit mass of the nanocomposite per unit of time as the specific power injected creates a mechanochemical reaction.32 The mechanochemical process can stabilize chemical phases, grain repositioning, and crystal defects without using solvents or high temperatures, making it ecosustainable.33,34

The chemical composition of this nanocomposite was observed and characterized by X-ray fluorescence (XRF), and its structural properties were analyzed by X-ray diffraction (XRD) spectroscopy. The absorption characteristics were identified by vector network analysis spectroscopy; subsequently, the relationship between reflection loss and structural properties was discussed. The objective of this study was to develop a new, natural, high-performance, and low-cost nanocomposite material based on LS, IS, and NS synthesized via simple and environmentally friendly methods.

2. Material and Experimental Methods

2.1. Materials

NS was collected from the nickel industry of Bantaeng Regency, South Sulawesi, Indonesia. IS was obtained from Pantai Lere, Bima Regency, Nusa Tenggara Barat Province, Indonesia (−8.866147°, 118.527858°), and LS was sourced from the Faculty of Mathematics and Natural Sciences, Hasanuddin University, Indonesia. The compound percentage in all samples was characterized and regulated using an XRF spectrometer. The elemental concentration derived from the XRF results indicated that NS contained 58.12 ± 2% Fe and 19.57 ± 0.8% Si, LS contained 34.25 ± 0.39% Fe and 43.48 ± 0.53% Si, and IS contained 77.29 ± 0.27% Fe and 3.09 ± 0.33% Si.

2.2. Experimental Methods

NS/IS and NS/LS were mixed using a RETSCH Mixer Mill MM 400 at 10 Hz for 1 h to homogenize the particle size of the nanocomposites. For more details, a schematic illustration of the synthesis methods used in this study is shown in Figure 2. The sample abbreviations based on the weights of the nanocomposites are as follows

2.2.
2.2.
2.2.

The optical properties and functional groups of the nanocomposites were analyzed using a Fourier transform infrared (FTIR) spectrophotometer (Shimadzu Corp.) in the wavenumber range of 400–4000 cm–1. The structural properties of the nanocomposites were analyzed via XRD (Shimadzu 7000) using Cu–Kα radiation (λ = 1.54 Å). Scanning electron microscopy (SEM) was used to identify the surface morphology and particle distribution in the nanocomposites. The EM wave absorption properties were measured using a vector network analyzer. The details of the experimental method can be found in our previous publication.35

Figure 2.

Figure 2

Open in a new tab

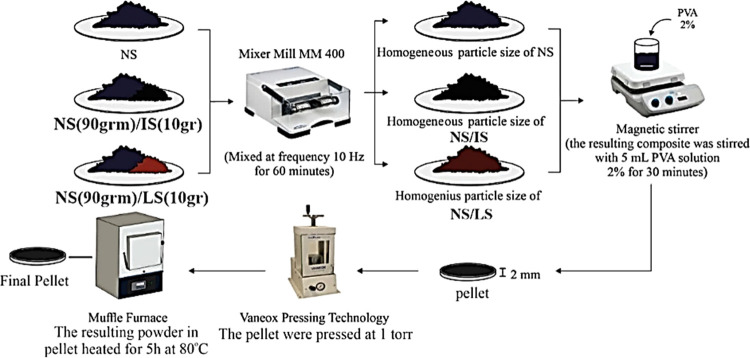

Illustration of pellet compaction for the NS, NS/LS, and NS/IS nanocomposites.

The nanocomposite powder was first mixed with 2% poly(vinyl alcohol) solution and then pelleted by applied pressure of 1 kbar for 10 min until a uniform thickness of 2 mm was reached. The sample pellets were heated for 5 h at 80 °C using a Lab Tech muffle furnace and stored at room temperature for further use.

3. Results and Discussion

3.1. Fourier Transform Infrared Characterization

Figure 3a shows that the FTIR transmittance spectra were slightly different because of the composition, atomic bond, and physicochemical properties.36 The functional groups of the nanocomposites were identified as C–OH,37 C–H,38 C=O,39 OH–,40 C–O,41 and Fe–O.42 In the subsequent analysis, we focused on the wavenumber range of 800–1000 cm–1 to identify the stability of the Fe–O bond. These wavenumbers were used to determine the effect of the addition of IS and LS to the NS matrix on the optical properties of the nanocomposite. The strongest absorption bands were attributed to the Fe–O stretching and bending in the octahedral modes, as shown in Figure 3b. The vertical bending vibration occurred because of the connection between one Fe atom and two O atoms moving vertically at different angles. The stretching vibration arises from the longitudinal bending occurring when the Fe atom in the middle of the two O atoms changes like a spring atom, as indicated by the lattice parameters.

Figure 3.

Figure 3

Open in a new tab

Full Fourier transform infrared (FTIR) spectra: zoomed-in image of the wavenumber range of 700–1000 cm–1 (a), schematic illustration of the atomic interaction via stretching and bending vibrations (b), X-ray diffraction (XRD) spectra, including Joint Committee on Powder Diffraction Standard (JCPDS) number 900559 for comparison, and zoomed-in image of the diffraction angles ranging from 33 to 38° and from 50 to 54° (c), and schematic illustrations of the atomic plane based on the d-spacing model for uniform NS and nonuniform NS/IS and NS/LS with its effect on the peak of Bragg’s angle position (d).

The optical properties were determined from the FTIR spectra using the Kramers–Kronig (K–K) relation43 (Figure 3a).44 We successfully applied the K–K relation to determine the optical properties from the FTIR spectra of the nanocomposites Fe/CNs/PVA,45 SPF/starch/chitosan,46 geopolymer fly ash–metal,47 and CuO/C.35 We repeated the methods and the equation for all of the nanocomposites and converted the transmittance spectra into the reflectance spectra [R(ω)] as follows

3.1. 1

To assess the absorption performance, we applied Lambert’s principle43

3.1. 2

The optical properties consist of n(ω) and k(ω), which can be determined using the following relations48−51

3.1. 3
3.1. 4

where φ(ω) is the phase change between the incident and reflected signals.

3.1. 5

Equation 5 was derived from the infrared spectra by applying the K–K relation.52 The dielectric function is the square of the refractive index and is expressed as follows

3.1. 6

The real part of the dielectric function is ε1(ω) = n2(ω) – k2(ω), and the imaginary part of the dielectric function is ε2(ω) = ε2 = 2n(ω)k(ω). The main peak of ε2(ω) is used to identify the transversal optical phonon denoted by TO and the longitudinal optical phonon denoted by LO, which is confirmed by the main peak of the energy loss function (ELF) [Inline graphic]

3.1. 7

The attenuation constant (α) via ELF, the dielectric function as the input parameter,53 and the phase constant (β) were determined using the following relations

3.1. 8
3.1. 9
3.1. 10

The EM radiation can travel inside a material, and its penetration depth was calculated as follows54

3.1. 11

The permeability and permittivity of a material are denoted by μ1,2 and ε1,2, respectively. Figure 4 shows the results of the calculation of eq 11.

Figure 4.

Figure 4

Open in a new tab

Optical properties (n and k), dielectric functions (ε1 and ε2), energy loss function (Im(−1/ε)), attenuation constant (α), phase constant (β), and penetration depth from the quantitative analysis of the FTIR spectra.

Figure 4 shows the optical properties (n and k), dielectric functions (ε1 and ε2), ELF (Im(−1/ε)), attenuation constant (α), phase constant (β), and penetration depth. The optical properties were used to identify the wavenumber position of the longitudinal (LO) and transversal (TO) optical phonon vibration modes. We have successfully identified the LO and TO to analyze the optical properties of nanocomposites.55 The peaks of ε2 and Im(−1/ε) are similar to the TO and LO positions, respectively. The quantitative analysis of the FTIR spectra shows that Δ(LO – TO) for NS is wider than for NS/LS and NS/IS nanocomposites. The wider Δ(LO – TO) indicates the stable bonding of the nanocomposite,56 and the higher value of NS indicates that the bonding is more stable than others. This finding can be attributed to the differences in bond stability because of the effects of doping and the formation of new bonds; thus, the addition of IS and LS successfully reconditions the initial state of the fayalite structure in NS and can stimulate coherent vibrations.57

In Figure 4 (fourth row), the NS/IS nanocomposite exhibits the highest wavenumber position change of α, which can be attributed to the structural properties and more compact bonds.58−60 Furthermore, the highest wavenumber position for the attenuation and phase constants of NS/IS corresponds to the amount of magnetite and the atomic density of IS.61,62 In general, the higher the attenuation coefficient, the less the EM energy transmitted, which means that the density of the nanocomposite increases. For β in Figure 4 (fifth row), NS/LS shows the minimum peak and consistent wavenumber position with NS. This is comparable to a transmission line, where low-intensity β indicates an increase in phase velocity. Some small peaks of α and β are detected, which can be attributed to the contribution of the purity level and the large and nonuniform shape of the particles in the nanocomposites.63 Given these factors, the nanocomposites exhibit different wavelengths in the frequency domain.

In terms of infrared penetration depth into nanocomposites shown in Figure 4 (last row), NS/IS nanocomposites have lower yields than NS/LS and NS nanocomposites. The difference in the penetration depth of EM waves in nanocomposites can be attributed to the atomic arrangement that can be related to the conversion of energy into atomic structural vibration.64 It is also possibly due to the dominant Fe in the interaction processes.65 However, NS samples and NS/LS nanocomposites require high penetration depth to absorb EM, resulting in low performance as MAM.

3.2. X-ray Diffraction

The XRD spectra of NS, NS/LS, and NS/IS are shown in Figure 3c, with the corresponding JCPDS number 900559 to identify the crystal plane. The diffraction peaks in reported ref (66) indicated that the fayalite (Fe2SiO4) phase was dominant in the NS sample. Fayalite is an orthorhombic structure with the (111), (021), (130), (112), (140), (222), and (242) crystal planes corresponding to the diffraction peaks at 22.37, 24.89, 31.68, 36.2, 40.41, 51.97, and 62.04°, respectively. Another phase detected was Fe, with JCPDS number 4113921, with the (400), (402), (424), and (404) crystal planes at 2θ angles of 45.15, 53.5, 67.54, and 68.36°, respectively. The multiple phases may have originated from the matrix material used, and the basic material in this study is waste. The diffraction peaks of NS/LS and NS/IS shifted to a higher wavelength for LS and a lower wavelength for IS from the pure NS, as indicated by the diffraction shift from 33 to 38° and from 50 to 54° shown in Figure 3c. The (222) crystal plane of NS/LS exhibited a shrinkage strain and that of NS/IS showed a widening strain. The broadening peaks indicated the change in the crystallite size, as reported in ref (67), and the convolution between crystallite size and microstrain can be calculated using the Scherrer, Williamson–Hall (W–H), and size–strain plot (SSP) methods. The crystallite size was calculated using the Scherrer method by focusing on the diffraction peaks of the fayalite phase using Ds = kλCu/β cos θ,68 where the crystallite size determined using the Scherrer method is (Ds), the full width at half-maximum is (β), where β2 = βmeasures2 – βinstrumental, the Scherrer constant or shape factor (k) is equal to 1 for orthorhombic structures, the wavelength (λCu – kα) is equal to 1.5418 Å, and θ is Bragg’s angle. In ref (69), the calculated crystallite size can also be included, and the stacking fault of the nanocomposite can also be predicted using the W–H method. The aforementioned method has been successfully used to obtain our previously reported results for CuO/C,35 Fe3O4/C,67 and Ca2Fe2O5–AC/chitosan.70 In determining the structural parameters using XRD, if the diffraction peaks of the nanocomposites are assumed to be isotropic, then the SSP method can be applied to calculate the size–strain parameters. In this method, the strain profile is denoted by a Gaussian function and the crystallite size is denoted by a Lorentzian function.71,72Figure 5 shows W–H and SSP methods for determining the slope and intercept based on the contribution of microstrains to the isotropic diffraction spectra.

Figure 5.

Figure 5

Open in a new tab

Quantitative analysis of the XRD patterns of the nanocomposites using the Williamson–Hall and size–strain plot methods.

Table 1 shows the d-spacing, lattice parameters, and linear line equation fitting obtained from the slope orientation affected by the d-spacing and Young’s modulus of the crystal, as indicated by peak broadening. The highest dislocation was observed for NS/IS because of the infiltration of Fe atoms, which have a large atomic radius, and the intrinsic strain in fayalite. In Figure 5, the positive and negative slopes that resulted from plotting using the W–H method are related to the lattice rearrangement and lattice shrinkage, respectively.73 As shown in Figure 3d, lattice strain needs to be observed as it is caused by the increase and decrease in the d-spacing having a linear effect on the early and late 2θ positions. In a related study, the strain mechanism for the elastic properties of the material was linked to the energy density of the unit cell.74 The change in lattice size will also provide opportunities for outer atoms to fill, substitute, or sit in suitable positions, thus triggering changes in the magnetic saturation and coercivity properties of the material.75 The quantitative analysis of the XRD spectra using the W–H and SSP methods is shown in Table 2.

Table 1. d-Spacing, Lattice Parameters, and Linear Line Equation Fitting from Figure 5.

ID d-spacing lattice parameters (Å) volume (Å3) y = ax + b UDM USDM UDEDM SSP
NS 2.648 a: 4.78 ± 4 × 10–3   slope –0.00042 –5.17 × 10–6 –3.31 × 10–5 0.024164
b: 10.31 ± 8 × 10–3 298.3 ± 0.678 int. 0.012059 0.012059 0.01205 –2.22 × 10–5
c: 6.04 ± 0.004
b: 10.26 ± 0.006 292.6 ± 0.441 int. 0.007611 0.0076 0.00761 –0.00614
c: 5.97 ± 0.003
NS/IS 2.661 a: 6.23 ± 0.18   slope –0.00665 –8.11 × 10–5 5.20 × 10–4 0.031955
b: 9.54 ± 0.107 337.1 ± 17.32 int. 0.022354 2.24 × 10–2 0.02235 –3.7 × 10–5
c: 5.66 ± 6.4 × 10–2
Open in a new tab

Table 2. Structural Properties Determined from the Quantitative Analysis of the X-ray Diffraction Spectra of the Nanocomposites.

Scherrer (hkl) NS NS/LS NS/IS
Ds (021) 14.05 16.05 6.69
(111) 13.08 17.64 9.45
(130) 12.76 14.94 15.00
(131) 11.20 14.89 11.97
(112) 13.80 14.16 10.35
(222) 13.28 9.53 16.24
(242) 14.21 15.43 12.77
εs (021) 0.0137 0.0119 0.0292
(111) 0.0132 0.0097 0.0181
(130) 0.0108 0.0092 0.0093
(131) 0.0111 0.0093 0.0103
(112) 0.0088 0.0079 0.0118
(222) 0.0065 0.0091 0.0054
(242) 0.0052 0.0046 0.0058
Williamson–Hall parameters NS NS/LS NS/IS
UDM DWH 12.53 19.85 6.77
  ε 0.42 0.234 0.66
USDM DWH 12.51 19.87 6.75
  ε 0.5 0.25 0.72
UDEDM DWH 12.56 19.80 6.77
  ε 0.44 0.435 0.69
SSP DWH 10.93 10.43 8.33
  ε × 10–2 47.21 78.30 60.91
Open in a new tab

The average crystallite size of the NS/IS nanocomposite is the largest at 15.69 nm, whereas that of the NS/LS nanocomposite is the smallest at 10.09 nm and that of NS is 12.81 nm, which depends on the atomic dislocation by the Burgers and line vectors. The influence of the crystallite size in enhancing the EM wave absorption properties by surface modification was reported in ref (76).

3.3. Scanning Electron Microscopy

Figure 6 shows the SEM images of different shapes and diameters of particles. The second column in Figure 6 shows the enlarged image on the left side, and we have included a binary image for a clear particle boundary observation. The grain boundary diameter of the particle was observed at the particle edge and used to calculate the distribution of the average particle diameter. The average particle diameter, as shown in the third column in Figure 6, of NS/LS is (3.5 ± 1.5) μm, that of NS/IS is (11.2 ± 3) μm, and that of NS is (13.5 ± 6.5) μm.

Figure 6.

Figure 6

Open in a new tab

Scanning electron microscopy images of the nanocomposite (left) (a) for sample NS/IS, (b) for NS/LS, and (c) for NS, binary image (center) for the size 20 μm and corresponding probability of particle size prediction from the middle rows (right).

The nanocomposite surface exhibits a graded-like morphology, which indicates multiple reflections of the EM radiation, consequently reducing the EMI. The effect of multiple scattering supported EMI reduction and the conversion of the incoming energy into a different form of energy or heat. The heat affected the lattice, phonon, and plasmon vibration, as well as the magnetic domain wall and electron spin loss, as described in refs (77−79).

3.4. Vector Network Analysis

Figure 7 shows the reflection loss in the maximum frequency range of 1–8 GHz measured using a vector network analyzer. The efficiency of absorbing EM waves can be identified by the broad bandwidth and lowest reflection loss.

Figure 7.

Figure 7

Open in a new tab

Reflection loss of nanocomposites in the frequency range of 0–8 GHz (a) and several illustrations of a physical phenomenon that describes the interaction of electromagnetic wave attenuation when interacting with nanocomposites (b).

In Figure 7 and Table 3, the effectiveness of the nanocomposites in absorbing the EM wave is indicated by the broadest bandwidth and lowest reflection loss of NS/LS, followed by NS/IS and NS. The relationship between the structural and optical properties and the EM wave absorption performance is shown in Table 3.

Table 3. Average Crystallite Size, Penetration Depth, Particle Diameter, Distance between LO and TO Phonon Vibration, and Bandwidth of the Reflection Loss.

      diameter   reflection loss
samples average crystallite size (nm) penetration depth (cm) particle size (μm) Δ(LO – TO) (cm–1) frequency (GHz) bandwidth (cm–1) dB
NS 12.81 0.049 13.5 ± 6.5 147 10 2.3 –26.25
20 1.1
NS/LS 10.09 0.037 3.5 ± 1.5 81 10 2.6 –31.83
20 1.6
NS/IS 15.69 0.016 11.2 ± 3.1 65 10 2.4 –39.14
20 0.8
Open in a new tab

Table 3 shows that LS and IS successfully modified the structural and optical properties of NS along with its morphology and internal reflection, consequently enhancing the EMI absorption.80−82 Energy dissipation was reduced probably because of the reorientated magnetic domain, indicated by the magnetic particles present at the nanocomposite surface.83−85 Several physical phenomena can be correlated to the released energy from the incoming wave to the nanocomposite, such as thermal energy, the generation of new magnetic moment, electron spin loss, hooping of electrons, and eddy current loss.86−88 We also believe in reporting the EM absorption phenomena affected by the step ladder shape of the nanocomposite surface, which directly decreased the EMI wave during multiple interactions to form multiple reflections.89

The dielectric constant (ε) indicates how much a material can store electrical charge, and the magnetic permeability (μ) relates to how easily a material is magnetized.90,91 The penetration depth is the depth that EM energy can penetrate before being absorbed or attenuated.95 Impedance matching also plays an important role in determining how the electric and magnetic fields can propagate through the material, which indicates the effectiveness of the nanocomposites in absorbing EM energy.92 The penetration depth of the material should be proportional to the thickness of the material to ensure effective EM absorption. In general, materials with greater dielectric constant and magnetic permeability have a thinner penetration depth and thus are more effective as a shield; for more details, the correlation results are shown in Figure 4 (last row) and Figure 7 (middle panel). The relationship between these properties is essential to achieve a balance between penetration depth and impedance.

The capability of the material to respond to a magnetic field also plays a prominent role in the absorption of EMI. The appropriate permeability properties can work optimally at certain working frequencies so that the magnetization process will occur to dissipate the EM energy. For the range of 1–10 GHz, only a few studies reported the corresponding permeability related to this study.93−95 The effective permeability for frequencies 5 ≥ 7 ≤ 10 GHz is determined to be 2.4 ≥ 2.6 ≤ 2.9. In addition to the permeability properties, the conductive properties of materials also affect the performance of MAMs. The conductive properties of materials contribute to the conversion of microwave energy into heat through resistive losses; meanwhile, the high dielectric constant enables the storage of EM energy, which can increase absorption. Overall, structural and optical properties, interfacial interaction, and magnetic, conductive, and dielectric properties, as well as specific frequencies and polarization, are the main factors that influence the absorption of incident EM radiation.

Future perspectives and possible challenges for metal-based and semimetal-based materials used in the field of EM absorption and how they can be applied are discussed by comparing their properties and preparation methods. In ref (96), excellent absorption performance was observed from Co/Fe2O3 with a unique atomic arrangement obtained from a <20% carbon doping system using the mechanical alloying method. Alternatively, nonideal crystal conditions contribute to the EM absorption capability of the material. In ref (97), the polycrystalline oxide was prepared via a low-cost microemulsion method. As the concentration of yttrium ions increased, their electrical and magnetic properties changed. This variation also affected the magnetic behavior of the prepared Mn-based spinel ferrites, which is responsible for increasing the magnetic moment and saturation magnetization (Ms). The secondary phase also affected the grain boundaries by increasing the Y3+–O2– bond energy that decreased the grain size, which is responsible for the increase in the Hc value. Nanomaterials also have an advanced role to play in EM absorption. Particles smaller than 100 nm and possessing unique optical and electrical properties due to their small size are designed to have a high surface area-to-volume ratio, which ensures their effectiveness in absorbing EM radiation. Thus, nanomaterials can be engineered to have specific shapes and sizes, which enable precise control over their optical and electrical properties, such as carbon-based nanomaterials/allotropes98 and 1D–2D sp2 carbon nanomaterials.99 Based on the properties of the material, EM-absorbing devices can be designed to have specific control of the absorption properties. These materials can also be lightweight and flexible, making antenna devices easier to incorporate.

4. Conclusions

The mechanical alloying method has been successfully used to fabricate nanocomposites using materials from NS with natural materials, such as IS and LS. The NS/LS nanocomposite exhibited the best bandwidth EMI absorption that has a good correlation to the smaller particle size, which resulted in the formation of multiple reflections. By contrast, the NS/IS nanocomposite showed the largest attenuation of EM wave energy, which can be attributed to the shortening optical wavenumber position for Δ(LO – TO) phonon vibrations, where it can stimulate the presence of coherent vibrations.

Acknowledgments

This work was supported by PDPU (Penelitian Dosen Pemula): 1477/UN4.22/PT.01.03/2022 and funded by Hasanuddin University, Indonesia.

Data Availability Statement

All data and materials generated or analyzed during this study were included in this article.

Author Contributions

H.H.: writing, illustration, and editing—original draft. S.S. and R.R.: software, validation writing—original draft. A.S., D.A.B., and D.T.: writing—original draft, editing, review, and finalization.

The authors declare no competing financial interest.
