The effects of Rf5 and Rf6 on fertility restoration in Honglian-type cytoplasmic male sterile (CMS) lines of japonica rice (Oryza sativa L. ssp. japonica)

Honggen Zhang 1,2,✉, Ruixuan Wang 1, Zuopeng Xu 1, Xiangqiang Zhao 3, Hailin Gao 1, Qiaoquan Liu 1,2, Shuzhu Tang 1,2,✉
PMCID: PMC10236119  PMID: 37309312

Abstract

Honglian (HL)-type cytoplasmic male sterility (CMS) has only been used in the development of three-line indica rice hybrids, and the fertility of HL-type indica CMS lines can be restored by two non-allelic fertility-restorer (Rf) genes, Rf5 and Rf6. For the development of HL-type japonica hybrid combinations, it is therefore necessary to determine whether Rf5 and Rf6 can restore the fertility of HL-type japonica CMS lines. Here, we genetically characterized HL-type japonica CMS lines and the ability of Rf5 and Rf6 to restore fertility for breeding HL-type japonica hybrids. I2-KI pollen staining revealed that HL-type japonica CMS lines and their derived testcross F1 hybrids had stained abortive pollen grains, unlike HL-type indica CMS lines. Crossing experiments showed that Rf5 and Rf6 partially restored the fertility of HL-type japonica CMS lines, and Rf6 showed higher restorability than Rf5. Furthermore, we found that there were additive and dosage effects of Rf5 and Rf6 with respect to fertility restoration in HL-type japonica CMS lines. These results give critical insight into the breeding of HL-type japonica CMS lines and restorers, which will be helpful for the development of commercial HL-type japonica hybrids.

Supplementary Information

The online version contains supplementary material available at 10.1007/s11032-021-01256-7.

Keywords: Japonica rice, HL-type CMS, Restorer-of-fertility gene (Rf), Restoration ability, Marker-assisted selection

Introduction

Rice is the most important staple food crop that feeds more than half of the world’s population, and the breeding of high-yielding rice varieties is very important to meet the requirements of an increasing world population. In the past decade, rice yield has increased significantly with the introduction of semi-dwarf varieties and the exploitation of heterosis, and hybrid rice technology is considered to be a major strategy for increasing the yield potential of rice (Cheng et al. 2007). In breeding practice, three-line and two-line systems are the main strategies for development of hybrid rice. The three-line hybrid breeding system is composed of a cytoplasmic male sterile (CMS) line, a maintainer line, and a restorer line (Fujimura et al. 1996; Yuan 1994). Currently, three-line indica hybrids are grown on a large scale, but the planting area of japonica hybrid rice has been limited to around 100,000 ha, accounting for < 3% of the total japonica rice grown in China (Ma and Yuan 2015; Deng et al. 2006). Therefore, the development and application of japonica hybrids will be an important way to increase the total rice grain yield in China.

The development of three-line hybrid rice is based on CMS, and Wild abortive (WA), Honglian (HL), and Chinsurah Boro II (BT) are three representative types of CMS used for commercial hybrid rice seed production. The BT-type CMS is mainly utilized in japonica hybrid cultivation, while the WA-type and HL-type CMS systems are widely used for three-line indica hybrids (Chen and Liu 2014; Huang et al. 2014; Li et al. 2007; Yuan 1994). Seeds resulting from self-pollination in some BT-type CMS lines and the potential genetic vulnerability caused by intensive use of BT-type CMS are considered to be two main constraints in hybrid japonica rice breeding (Li et al. 2007; Tang et al. 2005, 2008; Wang et al. 1991). In order to overcome the deficiencies of the BT-type CMS lines, the incorporation of WA- and HL-type CMS into japonica hybrids has been proposed as a selection strategy in the past (Zheng et al. 2020). In a previous study, WA-type and HL-type japonica CMS lines were found to have more stable sterility than BT-type japonica CMS lines (Zhu et al. 2010). However, the fertility restoration in WA-type japonica CMS lines is extremely poor, resulting in the lack of restorer lines in japonica, which means that large-scale breeding and cultivation of WA-type hybrid japonica rice is not possible. Compared with WA-type japonica CMS lines, fertility in HL-type japonica CMS lines can be restored more easily, which means that it is possible to breed three-line japonica hybrids based on the HL-type CMS (Tang et al. 2005; Zhu et al. 2010). In addition, the HL- and BT-type CMS lines share similar restoration and maintenance relationships, and the HL-type japonica CMS lines can be bred easily with the BT-type japonica maintainer by backcrossing (Tan et al. 2008; Zhu et al. 2010). In japonica rice varieties, only BT-type restorer lines have been bred and used in the development of hybrids. However, it has been shown that most BT-type japonica restorer lines have only partial fertility restorability to HL-type japonica CMS lines (Zhang et al. 2016; Zhu et al. 2010). Thus, breeding of HL-type japonica restorer lines with strong restorability is the most important and urgent issue in the development of HL-type japonica hybrids.

CMS can be restored by the presence of a fertility restorer gene (Rf) in the nucleus, and Rf genes in restorer lines play a fundamental role in the spikelet fertility of F1 hybrids. Thus, the genetic characterization of Rf genes can provide crucial information for breeding restorer lines. Usually, the CMS/Rf systems act in a target-specific manner, meaning that Rf genes are highly specific in the fertility restoration of the CMS lines. To date, several Rf genes have been identified in rice. Rf3 and Rf4, two major fertility restorer genes located on chromosomes 1 and 10, respectively, have been identified for the recovery of pollen fertility in WA-CMS lines (Ahmadikhah and Karlov 2006; Tang et al. 2014; Zhang et al. 1997). Rf5 and Rf6 are located on chromosomes 10 and 8, respectively, and have been mapped and cloned for HL-CMS (Hu et al. 2012; Huang et al. 2000, 2012, 2015). The restorer genes Rf1a/Rf1b on chromosome 10 for BT-CMS (Akagi et al. 1996; Komori et al. 2004; Wang et al. 2006), Rf17 on chromosome 4 for Chinese wild rice (CW)-CMS (Fujii and Toriyama 2009), and Rf2 on chromosome 2 for Lead Rice-type CMS (Itabashi et al. 2011) have been mapped and cloned. Although the Rf genes for HL-type CMS have been extensively investigated in indica, there are few related empirical studies describing the characterization and mapping of Rf genes for HL-CMS in japonica rice varieties (Zhang et al. 2016). Thus, analyzing the restorability of Rf5 and Rf6 in japonica rice is a reasonable choice for breeding HL-type japonica restorer lines, which will be valuable for breeding high yielding HL-type japonica hybrids.

In our previous study, near-isogenic lines (NILs) for the Rf5 and Rf6 genes and the polygene pyramid lines (PPLs) combining Rf5 with Rf6 were developed in japonica rice (Zhang et al. 2019). Here, crossing experiments were performed using NILs and PPLs as the male parent and HL-type japonica CMS lines as female parents to evaluate the abilities of Rf5 and Rf6 to restore male fertility in japonica lines. In addition, the functional model and effects of Rf5 and Rf6 on the fertility restoration in japonica were analyzed. Our discovery will assist in analyzing the differences of fertility restoration in HL-type CMS in indica/japonica genetic backgrounds and strengthen the breeding of japonica restorer lines for the development of HL-type japonica hybrids.

Materials and methods

Plant materials

The HL-type indica CMS line HL-YuetaiA (HL-YTA) and three pairs of isonuclear alloplasmic japonica CMS lines—HL-LiuqianxinA (HL-LQXA) and BT-LQXA, HL-NipponbareA (HL-NIPA) and BT-NIPA, and HL-LingfengA (HL-LFA) and BT-LFA—were used in this study. Rf5 and Rf6 are two major HL-type Rf genes identified from the elite restorer line indica ‘93-11’(Hu et al. 2012; Huang et al. 2015). In order to identify the effects of Rf5 and Rf6 on fertility restoration in HL-type indica CMS lines, we performed marker-assisted selection (MAS) to develop the near isogenic lines for Rf5 and Rf6 in the HL-YTA (indica variety) background, named as YTA-Rf5 (Rf5rf5) and YTA-Rf6 (Rf6rf6). The near isogenic lines for Rf5, Rf6 designated as NILRf5(Rf5Rf5) and NILRf6(Rf6Rf6), as well as the polygene pyramid lines PPLRf5+Rf6 (Rf5Rf5Rf6Rf6) in the BT-NIPA (japonica variety) genetic background were developed in our previous study (Zhang et al. 2019). In 2018, the isonuclear alloplasmic japonica lines (HL-LQXA and BT-LQXA, HL-NIPA and BT-NIPA, and HL-LFA and BT-LFA)were used as females in separate crosses with NILRf5, NILRf6, and PPLRf5+Rf6, resulting in a testcross population consisting of nine pairs of F1 hybrids for evaluating the fertility restoring ability of these two Rf genes in japonica rice lines. Subsequently, three F2 populations derived from crosses between HL-NIPA and NILRf5, HL-NIPA and NILRf6, and HL-NIPA and PPLRf5+Rf6 were planted in 2019 to further analyze the effects of the Rf genes on fertility restoration in HL-type japonica CMS lines. Twenty plants were grown for each CMS line or each testcross F1 line under natural conditions in the field. These plant materials were all planted at the experimental field of Yangzhou University in Yangzhou, Jiangsu Province (32°23′24″N, 119°25′3″E), and in Lingshui, Hainan Province (18°31′52″N, 110°10′53″E).

Fertility examination

The CMS lines, NILs, and testcross F1 lines (five plants each) were evaluated for pollen fertility, bagged spikelet fertility, and natural spikelet fertility. The natural spikelet fertility levels of all plants in the three F2 populations were quantified. For pollen fertility, mature anthers were harvested, smeared in 1% iodine-potassium iodide (I2-KI) solution, and observed using a light microscope. The numbers of normal dark-blue (stainable), clear (unstainable), and typical aborted pollen grains in each individual were counted (Zhu 1979). For bagged spikelet fertility, two major panicles emerging from the sheath on one plant were bagged before flowering. The natural spikelet fertility level and bagged spikelet fertility level were used as the seed-setting rate by counting the filled and unfilled grains from two opening panicles and the two bagged panicles, harvested 25–30 days after flowering.

DNA extraction and PCR

Total genomic DNA was isolated from fresh leaves of field-grown plants using a cetyltrimethylammonium bromide (CTAB) method with minor modification (Rogers and Bendich 1985), and the resulting DNA concentrations were adjusted to 100 ng/μ1 with TE buffer (pH 8.0) for subsequent analyses. Marker loci closely linked to Rf5 and Rf6 were developed as described in previous studies (Huang et al. 2012; Zhang et al. 2017). Simple sequence repeat (SSR) markers were identified from the Gramene database (http://www.gramene.org/). Newly developed specific functional markers for Rf5 and Rf6 were developed based on the sequences (http://www.ncbi.nlm.nih.gov/) using the BLAST algorithm to search the sequences of ‘Nipponbare’ (rf5, rf6) and ‘93–11’ (Rf5, Rf6). The primers used in this study are given in Table S1. The primers were synthesized by Sangon Biotech Co., Ltd. (Shanghai). The molecular marker assays were performed out in 20-µl reaction mixtures containing 1 × PCR buffer, 0.1 mmol/l of each dNTP, 1.0 U Taq DNA polymerase, 0.2 µmol/l of each primer, and 20 ng template DNA. The amplification reaction consisted of an initial denaturation cycle of 94 °C for 4 min, followed by 30 cycles of 94 °C for 45 s, 55 °C for 45 s, and 72 °C for 50 s, with a final extension step of 72 °C for 5 min. The amplification products were separated by electrophoresis on a 3.0% (w/v) agarose gel containing ethidium bromide, and visualized with a GEL DOC 1000 system (Bio-Rad Company).

Data analysis

Analysis of variance (ANOVA) as implemented in SPSS14.0 was used for statistical analysis of the fertility of the materials and populations used in this study.

Results

HL-type CMS japonica lines and the testcross F1 hybrids have stainable pollen grains.

In 2018, pollen grains of the CMS lines, 93–11, the NILs (NILRf5, NILRf6, and PPLRf5+Rf6), and the testcross F1 plants were analyzed using I2-KI staining. The fertile pollen grains of 93–11 and the NILs stained dark-blue, and the sterile pollen grains of HL-YTA (indica) were spherical and showed no starch accumulation (Fig. 1A, B). The indica 93–11 cultivar and the NILs displayed normal spikelet fertility (data not shown). The sterile pollen grains of BT-type and HL-type japonica lines were filled with starch, similar with those of 93–11, and the pollen grains from the BT-type and HL-type japonica lines were morphologically similar (Fig. 1C–H). All the CMS lines used in this study had bagged spikelet fertility levels of zero, indicating that the pollen grains from these lines are completely sterile. Because BT-type and HL-type CMS are gametophytic CMS systems, 50% or 75% of pollen grains in the F1 hybrids (carrying one Rf gene or two Rf genes) can be theoretically restored. However, the pollen grains of testcross F1 plants derived from BT-type CMS japonica lines and HL-type CMS japonica lines stained dark blue with I2-KI, and the sterile and fertile pollens were morphologically indistinguishable (Fig. 1I–N). Thus, it is obvious that the effect of HL-type CMS on pollen fate differs in the indica and japonica genetic backgrounds, which is consistent with our previous findings (Zhang et al. 2016). Thus, more detailed in-depth studies are needed to understand the underlying mechanisms behind these differences in CMS in indica vs. japonica rice lines.

Fig. 1.

Fig. 1

Open in a new tab

Pollen grains from the parental lines and F1 hybrids stained with I2-KI and corresponding genotypes. (A) HL-YTA (indica). (B) 93–11 (indica). (C–H) Pollen grains from BT-NIPA, HL-NIPA, BT-LQXA, HL-LQXA, BT-LFA, and HL-LFA, respectively. (I–N) Pollen grains from the F1 hybrids BT-NIPA/NILRf5, HL-NIPA/NILRf5, BT-NIPA/NILRf6, HL-NIPA/NILRf6, BT-NIPA/PPLRf5+Rf6, and HL-NIPA/PPLRf5+Rf6, respectively. Scale bars = 50 µm

Development of NILs for Rf5 and Rf6 in the HL-YTA background.

For analyzing the ability of Rf5 and Rf6 to restore fertility in HL-type indica CMS lines, NILs for Rf5 and Rf6 were developed in the HL-YTA background by MAS. In 2015, we first crossed HL-YTA with 93–11, a restorer line carrying Rf5 and Rf6. The resulting F1 plant was backcrossed with HL-YTA to produce a population of 120 BC1F1 plants, and the genotypes of these plants at the Rf5 and Rf6 loci were screened using two markers RM407 (locus tightly linked to Rf6) and RM6100 (locus tightly linked to Rf5). Based on the screening results, five plants carrying only Rf5 or Rf6 were selected for successive backcrossing with the recurrent parent HL-YTA, which generated 10 BC2F1 and 10 BC3F1 lines. In the BC3F1 population, the MAS results showed that all of the plants had the linked markers, and two plants carrying Rf5 or Rf6 that were phenotypically similar to the recurrent parent were preferentially selected to cross with HL-YTA, resulting in four BC4F1 lines, from which two BC5F1 lines, here designed as YTA-Rf5(Rf5rf5) and YTA-Rf6(Rf6rf6), were obtained (Fig. 2A). YTA-Rf5 and YTA-Rf6 had similar plant morphology to HL-YTA, and can be considered to be the near isogenic lines for Rf5 and Rf6 (Fig. 2B).

Fig. 2.

Fig. 2

Open in a new tab

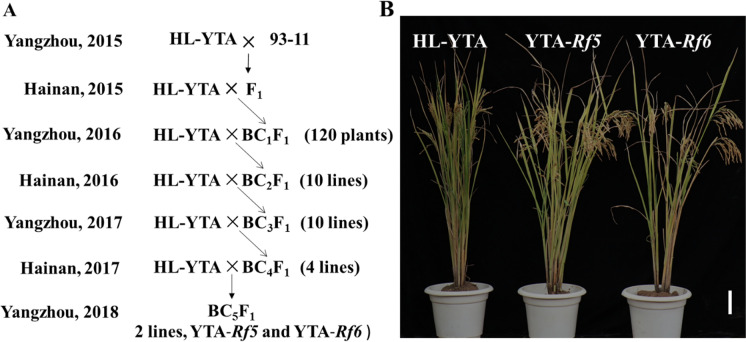

Breeding scheme and gross plant morphology of NILs (near isogenic lines) with HL-YTA genetic background. (A) Breeding scheme showing the development of the YTA-Rf5 and YTA-Rf6. (B) Mature plants of HL-YTA, YTA-Rf5, and YTA-Rf6. Scale bar = 15 cm

Rf5 and Rf6 partially restore fertility in HL-type japonica lines.

In 2018, YTA-Rf5 and YTA-Rf6 were used as the controls to analyze the effects of Rf5 and Rf6 on fertility restoration in HL-type japonica CMS lines. The natural spikelet fertility levels of the plants were used as indicators for evaluating the ability of Rf5 and Rf6 to restorer fertility in HL-type japonica CMS lines. YTA-Rf5 and YTA-Rf6 plants showed spikelet fertility levels of ~ 80%, and no significant differences were observed between these two types of plants (Fig. 3A). The results revealed that Rf5 and Rf6 exhibited similar restorability and were effective at restoring fertility to HL-type indica lines, which was in agreement with previous reports (Huang et al. 2012, 2015).

Fig. 3.

Fig. 3

Open in a new tab

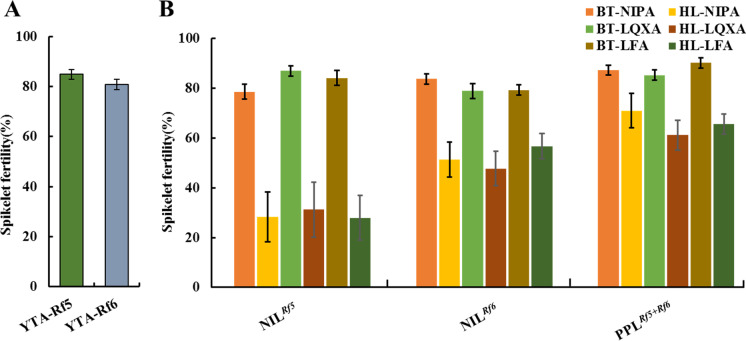

Natural male fertility levels of plants developed in this study. (A) NILs for Rf5 and Rf6 in the YTA background. (B) Testcross F1 plants from crosses between six male-sterile japonica lines (BT-NIPA, BT-LQXA, BT-LFA, HL-NIPA, HL-LQXA, and HL-LFA) and NILRf5, NILRf6, as well as PPLRf5+Rf6, respectively

In the testcross population, natural spikelet fertility levels of the testcross F1 hybrids between BT-type japonica CMS lines and NILRf5, NILRf6, and PPLRf5+Rf6 were > 79%, indicating that these two genes are effective at restoring fertility in BT-type CMS japonica lines (Fig. 3B). In contrast, the testcross F1 hybrids between HL-type CMS japonica lines and NILRf5 showed natural spikelet fertility levels of ~ 30% (ranging from 27.92 to 31.31%), and the natural spikelet fertility levels of the testcross F1 hybrids between HL-type CMS japonica lines and NILRf6 were ~ 50% (ranging from 47.77 to 56.77%), which is significantly lower than that of the corresponding testcross F1 hybrids with BT-type CMS lines (Fig. 3B). These results indicate that Rf5 and Rf6 restore partial fertility to HL-type japonica CMS lines, and the effect of Rf6 is larger than that of Rf5 on fertility restoration in HL-type japonica CMS lines. Moreover, the natural spikelet fertility levels of the testcross F1 hybrids between the HL-type CMS japonica lines and PPLRf5+Rf6 were > 60%, which is considerably higher than the crosses with NILRf5 and NILRf6, implying that Rf5 and Rf6 exert an additive effect on fertility restoration in HL-type japonica CMS lines (Fig. 3B). In addition, similar results were observed for the bagged spikelet fertility levels of the testcross F1 hybrids, although they were significantly reduced compared with the natural spikelet fertility levels (data not shown).

Rf5 and Rf6 display dosage effects on fertility restoration in HL-type japonica CMS lines.

In 2019, there were 40, 40, and 100 plants in the HL-NIPA/NILRf5, HL-NIPA/NILRf6, and HL-NIPA/PPLRf5+Rf6 F2 populations, respectively (Table 1). Due to outcrossing, the HL-NIPA plants exhibited very low natural spikelet fertility levels (< 2%) under natural conditions without isolation. Plants in the three F2 populations exhibited natural spikelet fertility levels of ≥ 20.43% at the same time, indicating that all of these F2 plants were fertile. Also, we screened the plants in the three F2 populations with two molecular markers, Rf1a-M1 (Rf5 functional-marker) and 1870CF (Rf6-functional marker). There were 17 Rf-homozygous individuals and 23 heterozygous individuals, and 25 homozygous individuals and 15 heterozygous individuals in the HL-NIPA/NILRf5 and HL-NIPA/NILRf6 F2 populations, respectively, and the segregation ratios of the homozygous and heterozygous genotypes were 1:1 (χ2 = 0.34 and 0.11 in the HL-NIPA/NILRf5 and HL-NIPA/NILRf6 F2 populations, respectively, which were < χ20.05 = 3.84). Moreover, we failed to detect plants with the genotypes rf5rf5, rf6rf6, and rf5rf5rf6rf6 in the HL-NIPA/NILRf5, HL-NIPA/NILRf6, and HL-NIPA/PPLRf5+Rf6 F2 populations, respectively. These results indicate that fertility restoration in HL-type japonica CMS lines by Rf5 and Rf6 is consistent with a gametophytic restoration model.

Table 1.

Number of plants with different genotypes at the Rf5 and Rf6 loci in the three F2 populations

Population Genotype Number of plants
HL-NIPA/NILRf5 F2 Rf5Rf5 17
Rf5rf5 23
HL-NIPA/NILRf6 F2 Rf6Rf6 25
Rf6rf6 15
HL-NIPA/PPLRf5+Rf6 F2 Rf5Rf5Rf6Rf6 12
Rf5Rf5Rf6rf6 23
Rf5rf5Rf6Rf6 17
Rf5rf5Rf6rf6 21
rf5rf5Rf6Rf6 10
rf5rf5Rf6rf6 7
Rf5Rf5rf6rf6 4
Rf5rf5rf6rf6 6
Open in a new tab

In the HL-NIPA/NILRf5 F2 population, plants harboring the genotype of Rf5rf5 had an average natural spikelet fertility level of 35.60%, and plants with the Rf5Rf5 genotype displayed an average natural spikelet fertility level of 58.09% (Fig. 4A). In the HL-NIPA/NILRf6 F2 population, the average natural spikelet fertility levels of the plants carrying the Rf6rf6 and Rf6Rf6 genotypes were 47.33% and 71.79%, respectively (Fig. 4B). In the HL-NIPA/PPLRf5+Rf6 F2 population, plants carrying the Rf5rf5rf6rf6 genotype had an average natural spikelet fertility of 28.54%, which was the lowest among all of the F2 plants. In contrast, plants carrying the Rf5Rf5Rf6Rf6 genotype had the highest natural spikelet fertility of 78.07% (Fig. 4C). These results indicate that there are dosage effects associated with Rf5 and Rf6 on fertility restoration in the HL-CMS japonica lines.

Fig. 4.

Fig. 4

Open in a new tab

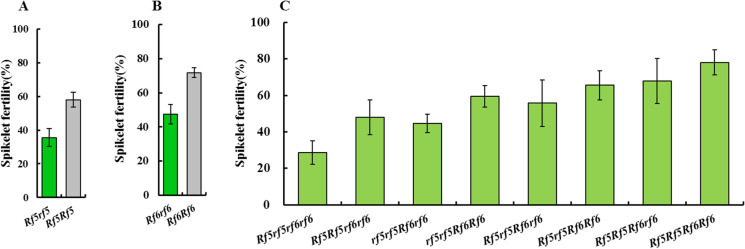

Natural fertility levels of plants with different Rf genotypes in the F2 populations. (A) The HL-NIPA/NILRf5 F2 population, (B) the HL-NIPA/NILRf6 F2 population, and (C) the HL-NIPA/PPLRf5+Rf6 F2 population

Discussion

Development of three-line hybrid rice depends on the breeding of elite CMS lines and restorers. In China, three-line japonica hybrids have been available since 1976 and are based mainly on the BT-type CMS (Shinjyo 1969). To accelerate the development of three-line japonica hybrids, breeders have attempted to develop three-line japonica hybrids using other CMS systems, such as HL-type and WA-type CMS. However, the genetic characters of the HL-type and WA-type CMS japonica lines and restorers have not been well studied, resulting in the failure to breed HL-type and WA-type CMS japonica hybrids. In the present study, we showed that the HL-type japonica CMS lines have aborted pollen grains that stain dark blue with I2-KI. Two HL-type Rf genes, Rf5 and Rf6, both partially restored fertility of HL-type japonica CMS lines, and we identified a dosage effect of these two genes in the fertility restoration of HL-type japonica CMS lines.

HL-type CMS is derived from common red-awned wild rice (Oryza rufipogon),and has been successfully used for developing three-line indica hybrids, which have been planted in China and Southeast Asia for many years (Li et al. 2007). In indica-type rice, the spherical aborted pollen grains are considered to be one of the representative characteristics of HL-type CMS lines (Li et al. 2007; Rao 1988; Zhu 1984). In this study, we found that the HL-type japonica CMS lines and their derived testcross F1 hybrids all have blue-staining aborted pollen grains, which is in line with our previous observations (Zhang et al. 2016; Zhu et al. 2010). These results further confirm that it is the HL-type CMS that causes the blue-staining aborted pollen grains in the japonica genetic background, which is different from the effect of HL-type CMS in indica rice. It has generally been thought that the morphology of aborted pollen grains is determined by the sterile cytoplasm, not the nuclear genetic backgrounds of the CMS lines. Our results clearly show that this is not the case. Thus, we hypothesize that there is a different mechanism underlying the development of aborted pollen grains caused by the HL-type CMS in indica vs. japonica genetic backgrounds, and that different non-restorer genes might exist in japonica and indica maintainer lines. Further studies are needed to test this hypothesis.

In O. sativa ssp. indica, Rf5, an HL-type Rf gene that is present in many different restorers has been mapped to the same region of chromosome 10. Rf5 has been cloned, showing that it is the same gene as Rf1a, a fertility restorer gene for BT-type CMS (Hu et al. 2012; Huang et al. 2003, 2000; Liu et al. 2004). Rf6, the HL-type Rf gene in the indica variety ‘9311’ is located on chromosome 8 (Huang et al. 2012). In a previous study, Rf5 and Rf6 were shown to restore 50% pollen fertility and normal spikelet fertility to F1 plants from a cross between the indica CMS lines and restorers carrying one of the two genes (Huang et al. 2012). In the present study, we constructed NIL populations for Rf5 and Rf6 in the YTA background, and the natural spikelet fertility levels of the NILs were ~ 80%. Our observations indicated that Rf5 and Rf6 are indeed effective for fertility restoration in the HL-type indica CMS lines, which is generally consistent with previously reported results. In contrast, the crossing experiments revealed that Rf5 and Rf6 restore only partial fertility to the HL-type japonica CMS lines, indicating that the ability of these two genes to restore fertility in HL-type CMS differs between the indica and japonica genetic backgrounds, which lends some support for the different non-restorer genes in the japonica and indica maintainer lines mentioned above. However, the crossing experiments also showed that the recoverability of HL-type japonica CMS lines was lower than that of HL-type indica CMS lines and BT-type japonica CMS lines. In rice breeding, it is generally thought that the CMS lines with aborted pollen grains that stain blue can be restored more easily than the CMS lines with either spherical aborted or typical aborted pollen grains. Thus, our current observations provide new insights for recognizing the recoverability of CMS lines, which is of value for further breeding and utilization of CMS lines in the future.

The abilities of Rf5 and Rf6 to restore fertility in HL-type indica CMS lines are similar. In the present study, we initially found that Rf6 shows higher restorability than Rf5 in HL-type japonica CMS lines, although Rf5 and Rf6 are both weakly effective in HL-type japonica CMS lines. Rf5 and Rf6 encode proteins that belong to the pentatricopeptide repeat (PPR) family, and these two genes share a high degree of sequence homology (Hu et al., 2012; Huang et al., 2015). For processing the HL-CMS–associated transcript atp6-orfH79, RF5 is needed to interact with the RNA-processing factor GRP162, but RF6 works with OsHXK6. Thus, RF6 and RF5 function through distinct mechanisms to restore the fertility of HL-type CMS in indica rice lines. It is reasonable to speculate that Rf5 and Rf6 play different roles in the fertility restoration of HL-type japonica CMS lines, and this is the most likely reason behind their different effects. Therefore, it will be necessary to test whether Rf6 and Rf5 function through the same mechanism in japonica rice varieties.

In this study, we observed dosage effects of the Rf genes on fertility restoration of HL-type japonica CMS lines in plants carrying different genotypes in the F2 populations; this shows that more Rf genes combined in the HL-type japonica F1 hybrids is helpful to increase the seed-setting rate. Usually, the seed-setting rate in three-line hybrids should reach 80% in rice production. However, our present observations showed that pyramiding the Rf5 and Rf6 gene is still insufficient to restore a normal level of fertility to HL-type CMS japonica lines. Thus, to breed HL-type japonica restorers, other new major Rf genes will be required for pyramiding with Rf5 and Rf6 to recover full male fertility.

In summary, the results of our study will have important implications for the breeding of japonica hybrids that carry HL-type CMS, and should greatly facilitate the further exploitation of heterosis in rice breeding.

Supplementary Information

Below is the link to the electronic supplementary material.

Supplementary file1 (DOCX 14.1 KB) (14.2KB, docx)

Author contribution

HZ performed the data analysis and drafted the manuscript. RW and ZX performed the phenotypic evaluation and analyzed the data. HG participated in the construction of the NIL populations. QL participated in the design of the study. HZ, ST, and XZ designed the study and revised the manuscript. All of the authors have read and approved the final manuscript.

Funding

This study was financially supported by the National Natural Science Foundation (Grant No. 31971913 and 32001517); the Natural Science Foundation of Jiangsu Province (Grant No. BK20200927); the Government of Jiangsu Province (BE2018357, PAPD, YCSL201904, and PL202004); and the Science and Technology Planning Project of Nantong City, Jiangsu Province (MS12019064).

Data availability

All data supporting the conclusions of this article are provided within the article (and its additional files).

Declarations

Ethics approval and consent to participate

Not applicable.

Consent to participate

Not applicable.

Consent for publication

Not applicable.

Conflict of interest

The authors declare no competing interests.

Footnotes

H. Zhang, R. Wang, and Z. Xu contributed equally to this work

Publisher's note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Contributor Information

Honggen Zhang, Email: zhg@yzu.edu.cn.

Shuzhu Tang, Email: sztang@yzu.edu.cn.
