Secondary diabetes mellitus in acromegaly

Abstract

Secondary diabetes mellitus (DM) is a common complication of acromegaly, encountered in up to 55% of cases. Vice versa, the prevalence of acromegaly is markedly higher in cohorts of patients with type 2 DM (T2DM). The presence of secondary DM depends primarily on acromegaly status and is associated with increased cardiovascular morbidity, malignancy rate and overall mortality. The principal pathophysiologic mechanism is increased insulin resistance due to excessive lipolysis and altered fat distribution, reflected at the presence of intermuscular fat and attenuated, dysfunctional adipose tissue. Insulin resistance is ascribed to the direct, diabetogenic effects of growth hormone (GH), which prevail over the insulin-sensitizing effects of insulin-like growth factor 1 (IGF-1), probably due to higher glucometabolic potency of GH, IGF-1 resistance, or both. Inversely, GH and IGF-1 act synergistically in increasing insulin secretion. Hyperinsulinemia in portal vein leads to enhanced responsiveness of liver GH receptors and IGF-1 production, pointing towards a mutually amplifying loop between GH-IGF-1 axis and insulin. Secondary DM occurs upon beta cell exhaustion, principally due to gluco-lipo-toxicity. Somatostatin analogues inhibit insulin secretion; especially pasireotide (PASI) impairs glycaemic profile in up to 75% of cases, establishing a separate pathophysiologic entity, PASI-induced DM. In contrast, pegvisomant and dopamine agonizts improve insulin sensitivity. In turn, metformin, pioglitazone and sodium-glucose transporters 2 inhibitors might be disease-modifying by counteracting hyperinsulinemia or acting pleiotropically. Large, prospective cohort studies are needed to validate the above notions and define optimal DM management in acromegaly.

Introduction

Acromegaly is a rare disease, with a reported prevalence of 0.006%, being characterized by growth hormone (GH) and insulin-like-growth factor (IGF-1) excess, caused, in ~99% of cases, by a GH-secreting pituitary adenoma [1]. The clinical sequalae of acromegaly stem from hormonal effects in target tissues and mass effects of the pituitary adenoma. The former group includes acral, facial and soft tissue overgrowth, arthritis, carpal tunnel syndrome, hyperhidrosis, visceromegaly, hyperglycemia, hypertension, cardiomyopathy, obstructive sleep apnea and tumorigenesis [1, 2].

The increased prevalence of hyperglycemia in acromegaly has been recognized from early case series in 1950s and 1960s [3, 4]. Actually, the rates of prediabetes and diabetes mellitus (DM) range between 5–33% [5–8] and 14.6–54.5% respectively [5–17] in cohort and national registry studies, while the first international acromegaly database including 3173 patients (Liege Acromegaly Survey Database) indicates 27.5% prevalence of DM at acromegaly diagnosis [18]. The fact that, in the majority of cases, hyperglycemia precedes acromegaly diagnosis [5, 19] reflects the characteristic time lag between clinical presentation and diagnosis of the latter [1].

Vice versa, the prevalence of acromegaly is at least 100-fold higher in cohorts of diabetic or prediabetic patients compared to general population, ~0.6–0.13% [20, 21]. Indeed, employing systematic biochemical screening followed by pituitary magnetic resonance imaging (MRI), when indicated, in hospitalized patients with type 2 diabetes mellitus (T2DM) and unsuspected acromegaly, resulted in picking up 2 cases of acromegaly. Their clinical profile was mild in clinical and biochemical terms, both beared pituitary microadenomas and, interstingly, excibited severe macroangiopathy in the absence of microangiopathy. These data imply that screening T2DM patients for acromegaly, especially those with predominant macroangiopathy, might be a useful strategy of depicting the disease at earlier stages, in which remission post-treatment is more likely [21].

Secondary DM in acromegaly is identified as a specific type of DM [22]; expectedly, its presence depends on acromegaly activity [8, 23, 24] and duration [6]. In contrast, acromegaly treatment and biochemical control decrease the hazard of new-onset DM [23, 24] and might lead to remission of pre-existing DM [7, 10]. In accordance with these observations, patients with prediabetes and DM are demonstrated to have higher IGF-1 [5–7, 13, 17, 25, 26] and GH levels than those with normal glucose tolerance (NGT); in addition, glycemic status might be predicted by IGF-1 level post-operatively [7]. Other risk factors for hyperglycemia in acromegaly include age [6, 11] body mass index (BMI) [5, 6, 11], hypertension [8, 11, 17], female sex [8, 17], and family history of DM [5, 8].

The presence of secondary DM aggravates the clinical presentation and prognosis of acromegaly. Specifically, it is shown to increase overall mortality [27], malignancy rate [25], as well as cardiovascular morbidity and mortality [27], compared to acromegaly alone. The latter derives principally from worsening of hypertrophic cardiomyopathy [28]; this is reflected at recent, 3-dimensional, speckle-tracking, echocardiographic data showing exacerbation of left ventricular deformation [29]. Last but not least, secondary DM is associated with increased prevalence of vertebral fractures [30], postoperative weight and fat gain [31] and worse quality of life [32].

Despite that secondary DM in acromegaly is common and clinically relevant, the underlying pathophysiology is not entirely understood. Furthermore, the medications used in treatment of acromegaly may affect insulin sensitivity or secretion per se. Finally, DM management in acromegaly is scarcely studied.

In this article, we aim to present the relationship between GH, IGF-1, insulin signaling and glucose homeostasis and how acromegaly affects it. Moreover, to discuss how medical treatment for acromegaly and DM join this complex pathophysiological process according to the available experimental and clinical evidence.

Insulin sensitivity

Acromegaly is a state of insulin resistance. According to a recent, large metanalysis (492 patients with acromegaly vs. 12,745 population group), homeostasis model assessment for insulin resistance (HOMA-IR) in treatment-naïve patients is higher than in the reference population [33]. Consistently, cohort studies demonstrate decreased insulin sensitivity (Si) during intravenous glucose tolerance test [34], decreased glucose infusion rate during hyperinsulinemic euglycemic clamp [35], and decreased homeostasis model assessment for insulin sensitivity [5]. These insulin sensitivity indices are impaired not only in patients with secondary DM but also in patients with NGT [5, 33, 34, 36], suggesting that insulin resistance is the primary pathophysiologic defect of glucose metabolism in acromegaly.

Insulin resistance is amenable upon successful acromegaly treatment, shown by significant improvements in the above markers post-surgery [33, 35, 36]. Interestingly, HOMA-IR decreases as early as 9 days postoperatively [36], reflecting exclusively the previous effect of acromegaly in insulin sensitivity. The etiologic association between insulin resistance and acromegaly is mirrored by the correlations between insulin sensitivity markers and IGF-1 level [5, 26, 35, 36]; however, similar correlations with GH level are either not demonstrated [5, 35, 36] or weaker [26].

Insulin resistance presents gender dimorphism with female predominance, concerning especially post-menopausal women and being possibly related to higher visceral adipose tissue (VAT) in comparison to men. This is opposite to general population, where men have higher VAT [37]. Finally, BMI is an independent predictor of insulin resistance, as in “wild-type” T2DM [5].

Growth hormone (GH)

GH is a counter-regulatory hormone that antagonizes the effects of insulin. Lipolysis is the principal operating mechanism [38], as evidenced by restoration of total body insulin sensitivity in GH-exposed subjects upon pharmacologic blockade of lipolysis with acipimox [39]. The relationship between increased free fatty acids (FFAs) and insulin resistance at cellular level has been recognized from early studies, and our pathophysiological perspective has evolved from Randle hypothesis [40] to the theory of post-receptor inhibition of insulin signaling by FFAs [41].

The different sensitivity of subcutaneous adipose tissue (SAT), VAT and intermuscular adipose tissue (IMAT) to GH’s lipolytic effect, leads to a unique form of lipodystrophy, characterized by lower total adipose tissue (TAT), SAT, and VAT yet higher IMAT [42, 43]. In contrast, “wild-type” T2DM and obesity are associated with decreased GH secretion, possibly due to hyperglycemia-increased hypothalamic somatostatin tone, which, in turn, might increase VAT [44].

Muscle

Early studies in 1960s and 1970s have shown that GH administration inhibits glucose uptake in parallel with increasing FFA uptake in muscle [45, 46]. Human and rodent data from magnetic resonance spectroscopy during hyperinsulinemic euglycemic clamp post lipid/heparin infusion show that increased FFA delivery in the myocyte activates protein kinase C theta, which, in turn, favors serine over tyrosine phosphorylation of insulin receptor substrate 1 (IRS-1), resulting into diminishing phosphatidylinositol-3-kinase (PI3K) activity and subsequent insulin-stimulated glucose-transport [41, 47, 48]. Nevertheless, no effect in IRS-1-PI3K-protein kinase B-glucose transporter-4 (GLUT-4) signaling pathway is demonstrated in another study post short-term GH administration [49]. The latter study though, included healthy human subjects, whose FFA level suppressed during hyperinsulinemic euglycemic clamp contrary to patients with acromegaly, whose FFA level remains unsuppressed despite compensatory hyperinsulinemia [50]. Furthermore, GH increases FFA oxidation and shifts glucose metabolism to non-oxidative [50, 51].

Clinical data from patients with acromegaly indicate a negative correlation between intramyocellular lipid and insulin sensitivity [52]. Similar correlations between IMAT and insulin resistance are proven in “wild-type” obesity and T2DM, non-diabetic Afro-American women, and obese human immunodeficiency virus infected women [53–55].

Adipose tissue

GH inhibits lipogenesis and induces lipolysis in adipose tissue. The former is mediated via inhibition of lipoprotein lipase [56] and fatty acid synthase expression [57], while the latter involves enhanced hormone-sensitive lipase expression, adenylate cyclase function and responsiveness to β-adrenergic signaling [58, 59]. In terms of glucose metabolism, GH is demonstrated to increase the expression of p85 subunit of PI3K in mice, a negative regulator of the latter [60], leading directly to decreased glucose uptake.

Furthermore, GH excess perturbs adipokine expression. Leptin is decreased due to SAT depletion; expectedly, it increases post-treatment alongside SAT [61, 62]. Adiponectin is shown to be decreased in mice with GH excess [60] and to increase post-operatively in acromegalic patients [63]. This decrease in adiponectin, otherwise paradoxical considering decreased VAT [64], is probably caused by transcriptional downregulation upon GH binding to signal transducer and activator of transcription 5 site of adiponectin gene promoter [65]. On the contrary, nicotinamide phosphorybosultransferase, another adipokine also known as visfatin, is increased, favoring inflammation and FFA oxidation over glycolysis [66, 67]. Finally, GH upregulates the expression of a variety of inflammatory cytokines, including monocyte chemotactic protein 1, vascular endothelial growth factor-A and interleukin-6 in VAT and SAT [68].

Liver

Data from transgenic mice overexpressing GH demonstrate markedly increased basal levels of IRS-1 phosphorylation and PI3K activity, which fail to further increase post exogenous insulin administration in their portal vein. These findings indicate that both hyperinsulinemia and direct effects of GH to the insulin receptor (IR), lead to maximal basal phosphorylation of IRS-1 and PI3K, inducing insensitivity to further insulin boluses. In addition, these mice have decreased basal IR level, owing to downregulation by hyperinsulinemia; this consists a further mechanism of insulin resistance in this setting [69]. Additionally, GH stimulates glucagon secretion from alpha pancreatic cells in vitro, which may further stimulate liver glucogeogenesis in this setting [70, 71]; however, this has not been demonstrated in a clinical study with acromegalic patients [72].

Insulin-like growth factor 1 (IGF-1)

As denoted by its name, IGF-1 exerts insulin-sensitizing effects [73]. The administration of recombinant IGF-1 in patients with “wild-type” T2DM leads to improvement of glycemic control and insulin sensitivity [74]. Phylogeny studies establish that proinsulin and IGF-1 have evolved from a common ancestor gene; the function of insulin and IGF -1 diverge in vertebrates between metabolic and mitogenic respectively [75]. Likewise, IGF-1 receptor (IGF-1R) is closely related to the IR; they are both members of the subclass of transmembrane tyrosine kinase receptors [76]. IGF-1R is expressed in muscle [77] and adipose tissue [78] but not in liver [79].

Muscle

Muscle expresses both IGF-1Rs and hybrid receptors, i.e., heterodimers consisting of one subunit of IR and one subunit of IGF-1R. Upon IGF-1 stimulation, hybrid receptors activate GLUT-4 translocation and facilitate glucose uptake in healthy subjects but not in “wild-type” obese or diabetic subjects [77]. Of note, these subjects have increased abundance of hybrid receptors [80, 81]. These findings suggest that insulin resistance goes hand-in hand with IGF-1 resistance in muscle.

Adipose tissue

IGF-1R is expressed in adipose tissue, however, as shown in vitro, IGF-1 stimulates glucose-transport predominantly through the IR [78]. As in muscle, hybrid IR/IGF-1R receptors are formed, and their abundance is increased in “wild-type” T2DM; of note, it is proposed that hybrid receptors could contribute to insulin resistance by binding IGF-1 with higher affinity than insulin [82]. Contrary to GH, IGF-1 upregulates the expression of adiponectin [83].

GH vs. IGF-1: What determines the net effect in insulin sensitivity?

It is evident that the diabetogenic effect of GH prevails over the insulin-sensitizing effect of IGF-1. Acromegalic patients with impaired glucose tolerance (IGT) and DM have lower IGF-1/GH ratio than those with NGT in one cohort study, offering a mathematically plausible explanation to this phenomenon [84]. However, considering that insulin resistance indices are correlated with IGF-1 and not with GH in the majority of studies [5, 26, 35, 36], the etiology of predominance of GH effect appears to be more complicated.

Looking at transgenic animal models, liver IGF-1 deficient mice (LID) have subsequent 4-fold increase in GH secretion and are severely insulin-resistant [85]. When crossed with GH antagonist mice (GHa), LID + GHa mice demonstrate enhanced insulin sensitivity in muscle and adipose tissue, despite being more profoundly IGF-1 deficient. Therefore, the diabetogenic potential of GH appears to supersede the insulin-sensitizing capacity of IGF-1 [86].

Furthermore, acromegaly may induce IGF-1 resistance due to IGF-1R downregulation or desensitization in the setting of chronic exposure to IGF-1 and concomitant hyperinsulinemia. Meanwhile, Clotho, a potent inhibitor of both IR and IGF-1R via interruption of their tyrosine phosphorylation, has been recently found to be increased in acromegaly, thus, it may also contribute to IGF-1 resistance. IGF-1 resistance is selective for the metabolic function of IGF-1 receptor [87].

Insulin secretion

Acromegaly is accompanied by fasting and post-prandial hyperinsulinemia [38, 88]. From early studies, it has become evident that the latter is not only a consequence insulin resistance, as the degree of hyperglycemia does not fully account for the the augmented secretion of insulin [88]. Indeed, both GH and IGF-1 have been shown to have direct insulinotropic effects in beta cells [70, 71, 89]. GH administration acutely stimulates insulin release both in vivo and in vitro [70]. This effect is essential for glucose-stimulated first-phase insulin secretion [90], but leads to exaggerated insulin responses both to hyperglycemic and non-hyperglycemic stimuli under circumstances of GH excess, which may last up to 5 h postprandially [88]. Acording to data ex vivo, IGF-1 also enhances glucose- and arginine-stimulated insulin secretion, via promoting exocytosis of beta cell [89]. Furthermore, GH is shown to induce insulin gene expression and biosynthesis, as well as beta cell proliferation in vitro [91] and ex vivo [90]. The underlying mechanisms principally involve activation of Janus kinase/signal transducers and activators of transcription (JAK/STAT) pathways and insulin receptor substrate 2 (IRS-2) activation [90, 91]. Similarly, IGF-1 has been speculated to have similar proliferative proterties [91], yet no effect in insulin content and beta cell mass was demonstrated in the above study ex vivo [89].

Hyperinsulinemia manages to initially compensate for the increased insulin resistance, maintaining NGT. IGT and DM occur when this compensation can no longer be achieved. Indeed, patients with acromegaly and NGT demonstrate higher homeostasis model assessment of beta cell function (HOMA-β) and insulin response to glucose and arginine than those with prediabetes/DM [5, 34, 72, 84]. Apart from defining glycemic status preoperatively, beta cell function status (assessed by c-peptide, HOMA-β, disposition index) is the key predictor of alteration in glucose metabolism post-operatively [92, 93].

Impaired insulin secretion derives from beta cell exhaustion and gluco-lipo-toxicity, similarly to “wild-type” T2DM. Furthermore, glucose-dependent insulinotropic peptide (GIP) level is shown to be increased yet inversely related with HOMA-β, pointing towards GIP resistance as an additional mechanism [94]. Severe insulin deficiency alongside with excessive lipolysis can lead to diabetic ketoacidosis (DKA) in acromegaly, with several cases reported in the literature [95–98].

GH-IGF-1/insulin interplay

The relationship between IGF-1 and insulin is mutually beneficial: IGF-1 increases insulin sensitivity and secretion, and, in turn, insulin enhances IGF-1 secretion via increasing the responsiveness of liver GH receptors (GHR). States of insulin deficiency, like type 1 DM (T1DM) or decompensated T2DM are accompanied by impaired IGF-1 synthesis [99, 100]. IGF-1 level increases upon initiation of insulin therapy in T1DM [99] and glycated hemoglobulin (HbA1c) improvement in T2DM [100]. In both DM types, IGF-1 secretion is best correlated c-peptide level [99, 100], highlighting the importance of endogenous insulin for IGF-1 production, probably due to being related with higher intraportal insulin concentrations. The latter is proven in a study of pancreas-transplanted T1DM patients; specifically, patients with portal-vein drainage grafts exhibit higher IGF-1 and lower GH levels than those with systemic-vein drainage grafts [101].

Poor glycemic control has challenged acromegaly diagnosis due to low/normal IGF-1 level in 2 case studies; similarly to “wild-type” T2DM, IGF-1 also increases post insulin-treatment [102, 103] in secondary DM. On the contrary, analysis from ACROSTUDY reveals that patients with DM require higher pegvisomant (PEGV) doses to normalize IGF-1 [104]; this is explained by the fact that mean HbA1c among diabetic patients in this study is 7%, reflecting an hyperinsulinemic DM phenotype, due to either endogenous or exogenous insulin [104].

The impact of medical treatment of acromegaly in glucose metabolism

Unlike surgery or radiotherapy, which affect glucose metabolism only indirectly, via targeting hormonal excess or inducing hypopituitarism, the medical treatment of acromegaly affects insulin sensitivity or secretion in direct manner.

Somatostatin receptor ligands (SRLS)

Somatostatin is produced in hypothalamus, pancreatic islets and the upper gastrointestinal tract. Apart from suppressing GH secretion by activating somatostatin receptor subtype 2 and 5 (SSR2, SSR5) in somatotroph adenomas, it suppresses glucagon and insulin secretion by activating somatostatin receptor subtype 1(SSR1), SSR2 and SSR5 in alpha and beta cells. Although all the above receptors are axpressed in both alpha and beta cells, the former are more abundant in SSR2 and the latter in SSR1 and SSR5 [105].

First-generation somatostatin receptor ligands (SRLS): ocreotide and lanreotide

These somatostatin receptor ligands (SRLS) have specificity for SSR2 [106]. According to a metanalysis, first-generation SRLS lead to minor worsening of glucose homeostasis, including decreased glucose tolerance and fasting insulin level, with no change in fasting plasma glucose (FPG) or HbA1c [107]. In addition, a comparative study between equally well-controlled patients on either lanreotide or post-pituitary surgery reveals no difference in HbA1c [108]. Consistently, 3 single-center studies indicate similar percentages of deterioration and improvement of glucose tolerance on lanreotide monotherapy [109–111]. As reflected in one of them, the overall impact of SRLS treatment on glucose metabolism for each patient depends on the dynamic interaction between improvement in insulin sensitivity and deterioration of insulin secretion, reflected at oral glucose tolerance test (OGTT) insulin sensitivity index and HOMA-β respectively [109]. The former is principally driven by GH reduction per se; consistently, the key predictor of glycemic deterioration on SRLS treatment in all these studies is suboptimal acromegaly control [109–111]. The latter is caused by SSR2-mediated inhibition of insulin secretion; on the other hand, the SSR2-mediated glucagon suppression might meanwhile improve insulin sensitivity. [111]. Furthermore, patients with pre-existing IGT or DM are more prone to glycemic deterioration during treatment with SRLS [110]. Non-diabetic (at baseline) and biochemically controlled on SRLS patients show an overall 44% deterioration in glycemic status at 6-year follow up in another study, which is fully reversible upon SRLS discontinuation and surgical cure of acromegaly [112]. This study, despite small, is important because it indicates that in the absence of confounding factors such as uncontrolled acromegaly or pre-existing DM, the net direct effect of SRLS in glucose metabolism is adverse, implying that the inhibition of insulin secretion supercedes this of glucagon. Finally, while opposing effects in insulin sensitivity and secretion self-adjust in most cases, enhanced insulin sensitivity in insulin-treated DM patients can increase the risk of hypoglycemia as recently shown in a case report [113].

Second generation somatostatin receptor ligand: Pasireotide (PASI)

Pasireotide (PASI) binds multiple subtypes of somatostatin receptors, bearing high affinity for SSR5 [106] and is associated with markedly higher rates of hyperglycemia compared to first-generation SRLS [114, 115]. According to the analysis of clinical trials data, the rates of hyperglycemia and DM on PASI treatment ~41.5–42.4% and 23.6–24.2% respectively [116, 117], while 65.6–75.3% of patients develop or experience worsening of existing hyperglycemia [118]. Notably, the majority of patients in the above trials are diabetic or prediabetic at baseline [116–118] and the main effect of PASI is to convert prediabetes to DM [116, 117]. Glycemic deterioration presents early, approximately at 3 months, but remains stable thereafter [117, 119]. Based on real-world data, the mean increases in FBG and HbA1c are 13.06 mg/dl and 0.42% respectively, with 23.1 % of patients having deranged glycemic control [119]. Similarly to first-generation SRLS, PASI-related hyperglycemia is reversible upon drug discontinuation [120].

According to data from healthy volunteers, PASI inhibits insulin secretion not only by its direct effect in beta cells, but also indirectly, by decreasing incretin levels, GIP and glucagon-like peptide 1 (GLP-1), possibly by activating SSR5 on K and L cells [121]. Interestingly though, AP102, a new SRL with high affinity for both SSTR2 and SSTR5 is shown to have a neutral effect in glucose metabolism in rats. The two agents have been compared head to head in an in vivo study in rats over a 28-day treatment period and they have been both demonstrated to inhibit insulin secretion. Their main difference is that AP102 does not inhibit GLP-1 secertion. Moreover, AP102-induced glucagon suppression remains stable for the whole treatment period. In contrast, PASI-induced glucagon suppression is reversed post 21 days of treatment, increasing glucagon/insulin ratio over the last 7 days, further aggravating glucose tolerance [122]. These observations suggest that diabetogenic effects of PASI might involve other somatostatin receptors activated by PASI but not by AP102, such as SSR1 and somatostatin receptor subtype 3 (SSR3); of note, both are abundantly expressed in beta cells [105, 122]. Finally, glucose outcomes on treatment with PASI are correlated with age, HbA1c/glycemic status at baseline, and history of hypertension or dyslipidemia [118, 119].

Pegvisomant (PEGV)

Pegvisomant (PEGV) is a pegylated human GHR antagonist. Unlike SRLS, it is associated with favorable glucose homeostasis outcomes. In particular, short-term PEGV administration decreases endogenous glucose production in liver, alongside with suppression of lipolysis [123]. Consistently, analyses of Spanish and international data of ACROSTUDY show that PEGV decreases FPG in patients with secondary DM [124, 125] as well as the percentage of patients with IGT (6.4% vs. 11.2%) [125].

As previously analyzed, GH is the protagonist in mediating insulin resistance; therefore, the blockade of its action would improve insulin sensitivity regardless of concomitant IGF-1 decrease. Laron syndrome is an autosomal recessive disorder characterized by inactivating GHR mutation, therefore it could serve as a natural analogue of PEGV. Indeed, Equadorian adults with Laron Syndrome are demonstrated to have increased insulin sensitivity and decreased T2DM incidence compared to their relatives, despite higher body fat content [126, 127]. Nevertheless, as shown in PAPE study, PEGV cannot mitigate the adverse effect of PASI in glucose homeostasis, when the 2 medications are co-administered, indicating that PEGV has no effect in insulin secretion [128].

Dopamine agonizts (DAs)

Dopamine agonists (DAs) activate dopamine receptors type 2 (DR2), which may be expressed in somatotroph adenomas. DR2 are also expressed in pancreatic islets and adipocytes [129, 130]. Contrary to SRLS, the effect of DAs in glucose metabolism is beneficial [129]. In particular, bromocriptine improves glucose tolerance [131–133] and decreases insulin [131, 133] and glucagon [132] levels in patients with acromegaly [133]. Similarly, the addition of cabergoline to PEGV decreases the postprandial glucose rise [134].

Outside the concept of acromegaly, bromocriptine has been shown to decrease HbA1c, FPG, and mean glucose level during OGTT, in parallel with enhancing insulin sensitivity in “wild-type”, obese T2DM patients [135] and has been FDA-approved as an anti-diabetic medication [129]. This suggests that the anti-diabetic properties of DAs might be independent from their GH-suppressive effects. The underlying mechanisms may involve decrease in glucagon [132], direct effects in adipocytes and inhibition of prolactin (PRL) [129].

Treatment of secondary and PASI-induced DM in acromegaly

Considering its secondary nature, the most effective treatment of DM is remission of acromegaly itself. Indeed, surgical treatment results into diabetes remission [10], improvement of glycemic status [7] and insulin sensitivity [33, 35, 36]. However, surgical remission cannot be achieved in 50% of cases [2] and medical therapy or radiotherapy may be needed. In view of widely recognized guidelines, the presence of secondary DM should not be considered as a criterion to choose among the above adjacent therapies. Furthermore, according to a large retrospective study, the prevalence of DM in acromegaly remains higher than in the general population, several years after multimodal therapy [17]. Therefore, anti-diabetic medications may be needed in order to achieve satisfactory glycemic control.

Few studies have addressed the management of secondary DM in acromegaly and the mainstay of treatment is no different from the guidelines of “wild-type” T2DM [136, 137]. According to a clinical study of 70 patients with acromegaly and secondary DM, 15.7% of patients are controlled on diet, 65.7% of patients receive metformin as monotherapy or in combination with other oral anti-diabetic medications and 21.5% of patients are insulin-treated, with all exhibiting excellent glycemic control (mean HbA1c = 6.4%) and low prevalence of diabetic microangiopathy [138]. Furthermore, thiazolidinediones have been demonstrated to achieve optimal glycemic control and allow insulin discontinuation in 2 case reports [139, 140]. Moreover, a recently-published case series in 9 patients receiving sodium-glucose-co-transporter 2 inhibitors (SGLT2is) shows 1% decrease in HbA1c without adverse events [141]. There is only one reported case of DKA in a SGLT2i-treated, diabetic patient with acromegaly, in which acromegaly was not previously recognized and SGLT2i was prescribed for presumed “wild-type” T2DM [142]; given that active acromegaly is also a DKA precipitant, the use of SGLT2is should be restricted to patients with biochemical control [143].

Regarding PASI-induced DM, a recently-published, multicentre study reveals superior efficacy of incretin-based therapy (sitagliptin followed by liraglutide) in comparison to insulin, as second-line treatment after metformin in 249 randomized patients [144]. This is in line with the recognition of incretin phenomenon inhibition as the key pathophysiologic mechanism of PASI-induced hyperglycemia [121].

Apart from the glucose-lowering potential of anti-diabetic medications in secondary DM, some of them have been suggested to bear disease-modifying or pleiotropic effects. In particular, rosiglitazone is shown to drastically decrease GH and IGF-1 level in a case with persistent acromegaly post-transsphenoidal surgery [139]. Interestingly, peroxisome proliferator-activated receptor gamma (PPARγ) is abundantly expressed in somatotropinomas, prolactinomas and gonadotropinomas and thiazolidinediones are demonstrated to inhibit hormonal secretion and tumor cell growth in vivo and in vitro, via inducing G0-G1 cell-cycle arrest and apoptosis [145]. Interestingly, a similar case of pioglitzone-induced remission of primary aldosteronism attributed to PPARγ-mediated suppression of β-catenin pathway is also reported in the literature [146]. In addition, the use of metformin has been recently shown to lower the prevalence of colonic polyps [147]. Finally, SGLT2is have been also speculated to exert a disease-modifying effect by lowering insulin secretion and therefore possibly decreasing IGF-1; however, no effects in GH or IGF-1 level are reported in the only, so far, case series examining their effect in acromegaly patients [141].

Taking everything into account, there are no robust clinical data on efficacy and safety of anti-diabetic agents in acromegaly, except for the case of PASI-induced DM [144]. Therefore, treating secondary DM as per guidelines for “wild-type” T2DM [148], in consideration of prevailing glucose metabolism defect in each patient and possible favorable or adverse impact of anti-diabetic agents in acromegaly or acromegaly-related complications, seems to be a rational approach.

Conclusions and future perspectives

The key and primary defect of glucose metabolism in acromegaly is insulin resistance, deriving principally from excessive lipolysis and altered fat distribution; this is reflected at the presence of intermuscular fat and attenuated yet dysfunctional adipose tissue.

The actions of GH and IGF-1 are antagonistic; GH induces insulin resistance while IGF-1 enhances insulin sensitivity. Based on the net effect in glucose metabolism, it is evident that the diabetogenic effect of GH supersedes the insulin-sensitizing effect of IGF-1 in target tissues. This might be attributed to higher glucometabolic potency of GH, IGF-1 resistance, or both Fig. 1. It would be interesting to explore how IGF-1R becomes selectively resistant as per its metabolic but not mitogenic functions in future studies in vitro. It should be noted that most of our knowledge regarding GH and IGF-1 effects is based on non-acromegalic models of acute GH or IGF-1 administration. In addition, the role of hybrid receptors in acromegaly has not been explored. Therefore, more basic research in animal models or tissues from patients with acromegaly is required to unravel the molecular basis of insulin resistance. Furthermore, future clinical studies could elaborate a possible pathophysiologic contribution of concomitant hyperprolactinemia and even reveal an additional benefit from DAs in this subset of patients.

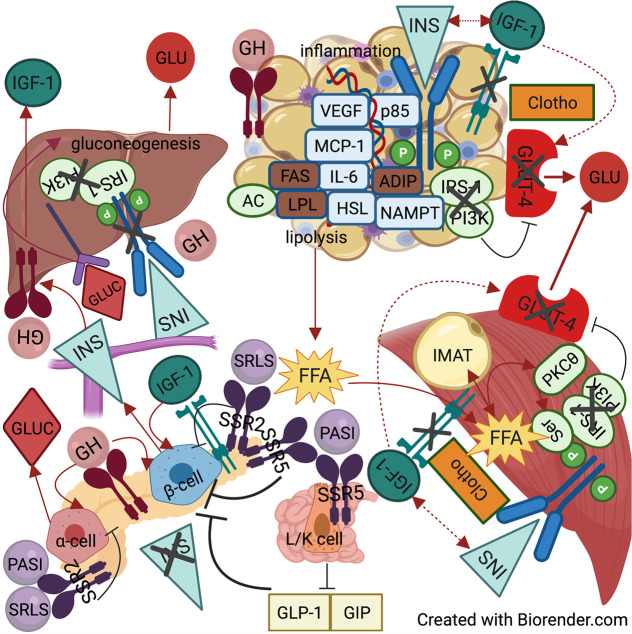

Fig. 1.

Pathophysiological model of secondary DM in acromegaly and the effects of SRLS and PASI in glucose metabolism. Cross-talk among muscle, liver, adipose tissue pancreas, and gut. In adipose tissue, growth hormone (GH) increases the expression of p85 subunit of phosphatidylinositol-3-kinase (PI3K), which is a negative regulator of the latter, leading to inhibition of IRS-1/PI3K pathway and ultimately, to decreased glucose transporter-4 (GLUT-4) translocation and glucose (GLU) uptake. GH also decreases adipokine (ADIP) expression, precipitating insulin resistance. In parallel, there is increased expression of hormone-sensitive lipase (HSL) and decreased expression of the lipogenic enzymes lipoprotein lipase (LPL) and fatty acid synthase (FAS), resulting into excessive lipolysis and free fatty acid (FFA) generation; lipolysis is further promoted by enhanced adenylate cyclase (AC) function. Finally, GH upregulates the expression of nicotinamide phosphorybosultransferase (NAMPT) and inflammatory cytokines, such as monocyte chemotactic protein 1 (MCP-1), vascular endothelial growth factor-A (VEGF-A) and interleukin-6 (IL-6), inducing a state of inflammation. Circulating FFAs are shifted in muscle, where they form intermuscular adipose tissue (IMAT) and activate protein kinase C theta (PKCθ). In turn, PKCθ favors serine (Ser) over tyrosine phosphorylation of insulin receptor substrate 1 (IRS-1), resulting in inhibition of PI3K activity and subsequent decrease in GLUT-4 translocation and GLU uptake. Both adipose tissue and muscle express IGF-1 receptors, which may interact with insulin receptors forming hybrid receptors; however, they do not manage to compensate for insulin resistance via increasing GLUT-4 translocation, due to IGF-1 receptor resistance induced by IGF-1 excess, hyperinsulinemia and increased level of Clotho. In pancreas, GH stimulates insulin (INS) and glucagon (GLUC) secretion, while IGF-1 acts synergistically in stimulating INS secretion. As a result, great amounts of INS are secreted in portal vein, leading to increased responsiveness of liver GH receptor and IGF-1 production. Meanwhile, maximal basal stimulation of liver insulin receptors results into their desensitization, downregulation, and eventually, to increased gluconeogenesis. This is possibly exacerbated by hyperglucagonemia. First-generation somatostatin receptor ligands (SRLS) inhibit INS secretion by activating somatostatin receptor subtype 2 (SSR2) in beta pancreatic cells (β-cells). Pasireotide (PASI) inhibits INS secretion by activating somatostatin receptor subtype 5 (SSR5) in β-cells as well as in K and L enteroendocrine cells in gut, with the latter leading to decreased incretin secretion. Considering the latter in conjuction with greater abundance of β-cells in SSR5 than SSR2, justifies the greater insulin inhibitory effect of PASI in comparison to SRLS (represented by thicker inhibitory line). Both PASI and SRLS inhibit glucagon secretion by activating SSR2 in alpha cells. GH-responsive genes are represented by parallelograms, colored light blue if upregulated and brown if downregulated. Intracellular proteins are represented by light green oval shape. GH is represented by pink oval shape, IGF-1 by cyan blue oval shape, SRLS and PASI by purple oval shape, GLU by red oval shape, GLUC by diamond red shape FFA by yellow star-like shape, INS by light blue triangles, and Clotho by orange parallelograms. The occurring stimulatory or inhibitory effects are represented by solid arrow and inhibitor lines; dashed arrow lines are used to describe the effects of IGF-1 which are impeded owing to IGF-1 receptor resistance. AC adenylate cyclase, ADIP adiponectin, FAS fatty acid synthase, FFA free fatty acid, GH growth hormone, GIP glucose-dependent insulinotropic polypeptide, GLP-1 glucagon-like peptide 1, GLU glucose, GLUC glucagon, GLUT-4 glucose transporter-4, HSL hormone-sensitive lipase, IGF-1 insulin-like growth factor 1, IL-6 interleukin 6, IMAT intermuscular adipose tissue, INS insulin, IRS-1 insulin receptor substrate 1, K cell K enteroendocrine cell, L cell L enteroendocrine cell, LPL lipoprotein lipase, MCP-1 monocyte chemotactic protein 1, p85 p85 subunit of PI3K, P phosphorylation, PASI Pasireotide, PI3K phosphatidylinositol-3-kinase, PKCθ protein kinase C theta, Ser serine, SSR2 somatostatin receptor subtype 2, SSR5 somatostatin receptor subtype 5, VEGF vascular endothelial growth factor, α-cell alpha pancreatic cell, β-cell beta pancreatic cell

Insulin resistance is initially compensated by increased insulin secretion, triggered synergistically by GH and IGF-1, as well as by insulin resistance Fig. 1. IGT and DM occur upon beta cell exhaustion due to gluco-lipo-toxicity, similarly to “wild-type” T2DM. Unlike insulin resistance, which is amenable upon acromegaly remission or control, impaired insulin secretion is hard to reverse and might lead to DM persistence after acromegaly treatment.

Medications used in the treatment of acromegaly may affect glucose homeostasis per se, with SRLS, especially PASI, inhibiting insulin secretion Fig. 1 and PEGV and DAs improving insulin sensitivity. Emerging evidence indicates that PASI-induced DM is a distinct pathophysiologic entity arising mainly from incretin phenomenon inhibition; the possible contribution of SSR1 and SSR3 activation to this phenomenon warrants further investigation in vitro Fig. 1, Table 1.

Table 1.

Hyperglycemia in acromegaly

Causes of hyperglycemia	Pathophysiologic mechanisms			Glycemic phenotype	Suggested management
Insulin resistance	Muscle (GH prevails over IGF-1)	↑ IMAT + FFA uptake→ ↑ PKCθ → ↓ IRS-1/PI3K activity → ↓ glucose uptake		NGT (insulin resistance + ↑ ↑ insulin secretion)	Metformin/Pioglitazone
		↓ glucose oxidation
	Adipose tissue (GH prevails over IGF-1)	↓ lipogenesis, ↑ lipolysis → ↓ TAT/SAT		IGF/IGT (insulin resistance + ↓ insulin secretion)
		↑p85 → ↓ PI3K activity → ↓ glucose uptake
		↓ adiponectin & leptin
		↑ NAMPT → ↓ glucolysis
		Inflammation (via ↑ inflammatory cytokines & adipokines)
	Liver (GH only)	insulin and GH overstimulation → IRS-1/PI3K desensitization + IR downregulation → ↑ gluconeogenesis		DM (insulin resistance + ↓ ↓ insulin secretion)	Metformin/Pioglitazone ↓ SGLT2is*/ Incretin secretagogues ↓ Insulin
Impaired insulin secretion	Beta cell exhaustion	gluco-lipo-toxicity GIP resistance
	Pasireotide	SSR5, SSR1?, SSR3?activation	Beta cells → ↓INS	IGF/IGT (↓ insulin secretion ± insulin resistance)	Metformin/Pioglitazone (in the presence of insulin resistance)
			K and L cells → ↓ GIP, GLP-1	DM (↓↓ insulin secretion ± insulin resistance)	Metformin ↓ Incretin secretagogues ± SGLT2is*/pioglitazone ↓ Insulin

The table is divided in 2 main subsections (raws), corresponding to the 2 main causes of hyperglycemia, insulin resistance and impaired insulin secretion. For each of the two main causes, the corresponding pathophysiologic mechanisms, glycemic phenotype and suggested management is presented (columns). The pathophysiological mechanisms of insulin resistance are subclassified as per the 3 insulin-sensitive tissues and impaired insulin secretion is also etiologically subclassified into beta cell exhaustion- and pasireotide-related. The suggested management matches each clinical phenotype and the principal pathophysiologic mechanism. The presence of cardiovascular disease, heart failure and chronic kidney disease has not been considered in suggested management here, but, if present, the current guidelines for T2DM with glucagon-like peptide 1 receptor agonizts (GLP-1RA) or sodium-glucose co-transporter 2 inhibitors (SGLT2i) should be followed.* only in cases of controlled acromegaly, ↑ increase, ↑↑ big increase ↓ decrease, ↓↓ big decrease, → results into, + plus, ± plus or minus, DM diabetes mellitus, FFA free fatty acid, GH growth hormone, GIP glucose-dependent insulinotropic polypeptide, GLP-1 glucagon-like peptide 1, IMAT intrermuscular adipose tissue, IR insulin receptor, IRS-1 insulin receptor substrate 1, NAMPT nicotinamide phosphorybosultransferase (also known as visfatin), PI3K phosphatidylinositol-3-kinase, PKCθ protein kinase C theta, SAT subcutanenous adipose tissue, SGLT2is sodium-glucose co-transporter 2 inhibitors, SSR1 somatostatin receptor subtype 1, SSR3 somatostatin receptor subtype 3, SSR5 somatostatin receptor subtype 5, TAT total adipose tissue [5, 28, 33–36, 38, 39, 41–43, 45–48, 50, 51, 60–63, 65, 66, 68, 69, 72, 84, 94, 114–119, 121, 139–141, 144, 148]

Keeping in view of the literature data, it would be meaningful to attempt a pathophysiologic classification of patients with acromegaly and insulin resistance and/or impaired glucose homeostasis as: (i) patients with insulin resistance and NGT, (ii) patients with concomitant insulin resistance and impaired insulin secretion (IGT,DM), (iii) patients with SRLS/PASI-induced DM/IGT with sub classification according to pre-existing IGT/DM or new-onset IGT/DM (Table 1).

Secondary DM in acromegaly is mild and easily controlled by diet or pharmacotherapy. However, it has a discordantly huge impact in morbidity and mortality, arising mainly from cardiovascular disease and neoplasia. In the light of the GH-IGF-1/insulin interplay, we are led to believe that hyperinsulinemia might be more detrimental than hyperglycemia. In conjunction with limited but fascinating data pointing towards disease-modifying effects of metformin and pioglitazone, it is worth to explore if treatment with insulin sensitizers could confer clinical benefits in patients with insulin resistance and NGT in prospective, interventional, cohort trials. Similarly, the potential of SGLT2is to prevent cardiovascular and/or other acromegaly complications in appropriately selected patients deserves further investigation.

In conclusion, our perspective towards secondary DM in acromegaly should broaden beyond glycemic control, in order to embrace the impact of its presence and management to acromegaly per se. Pathophysiologic classification of DM in acromegaly and accordingly guided management seems to be the only way forward.

Funding

Open access funding provided by HEAL-Link Greece.

Compliance with ethical standards

Conflict of interest

The authors declare no competing interests.

Supplementary information

The online version contains supplementary material available at 10.1007/s12020-023-03339-1.
