Cell type deconvolution of bulk blood RNA-Seq to reveal biological insights of neuropsychiatric disorders

Abstract

Genome-wide association studies (GWAS) have uncovered susceptibility loci associated with psychiatric disorders like bipolar disorder (BP) and schizophrenia (SCZ). However, most of these loci are in non-coding regions of the genome with unknown causal mechanisms of the link between genetic variation and disease risk. Expression quantitative trait loci (eQTL) analysis of bulk tissue is a common approach to decipher underlying mechanisms, though this can obscure cell-type specific signals thus masking trait-relevant mechanisms. While single-cell sequencing can be prohibitively expensive in large cohorts, computationally inferred cell type proportions and cell type gene expression estimates have the potential to overcome these problems and advance mechanistic studies. Using bulk RNA-Seq from 1,730 samples derived from whole blood in a cohort ascertained for individuals with BP and SCZ this study estimated cell type proportions and their relation with disease status and medication. We found between 2,875 and 4,629 eGenes for each cell type, including 1,211 eGenes that are not found using bulk expression alone. We performed a colocalization test between cell type eQTLs and various traits and identified hundreds of associations between cell type eQTLs and GWAS loci that are not detected in bulk eQTLs. Finally, we investigated the effects of lithium use on cell type expression regulation and found examples of genes that are differentially regulated dependent on lithium use. Our study suggests that computational methods can be applied to large bulk RNA-Seq datasets of non-brain tissue to identify disease-relevant, cell type specific biology of psychiatric disorders and psychiatric medication.

INTRODUCTION

One limitation of standard eQTL studies is that they generally use expression estimates from bulk tissue.^1,2 While this is informative, it has been shown that there are many cell type specific mechanisms driving biology,^3,4 which can be missed when looking at a collection of many cell types. In recent years, single cell RNA-Seq has allowed for the profiling of the gene expression of an individual cell, giving us a clearer picture of cell type gene expression. However, single cell RNA-Seq experiments are considerably more expensive than bulk RNA-Seq⁵. To leverage the advantages of each of these approaches, we can use methods to estimate cell type gene expression from bulk RNA-Seq expression.

There exist many methods^6,7 to estimate cell type expression from bulk RNA-Seq. Here, we elected to use CIBERSORTx⁸ and bMIND⁹ to estimate cell type proportions and cell type expression, respectively. Computational methods for analyzing bulk gene expression data have the potential for being advantageous in some applications as it is possible to obtain much larger sample sizes using bulk RNA-Seq instead of single cell RNA-Seq. While most single cell RNA-Seq studies have sample sizes in the range of several hundreds of cells from a small number of individuals, leveraging low-coverage bulk RNA-Seq allows us to obtain samples from hundreds to thousands of subjects.¹⁰ We used the low-coverage RNA-seq dataset described in Schwarz, et. al.¹⁰ as the primary dataset for analysis of cell type deconvolution in this study.

Associations between immune-related traits and neuropsychiatric disorders have been previously reported¹¹, and we hypothesized that using blood-based expression can provide relevant information regarding the biology of such disorders.^12,13,14 In this work we used cell type deconvolution methods to derive cell type specific estimates for gene expression from bulk blood RNA-seq, specifically within a cohort including psychiatric patients and controls of European ancestry. We used these results to conduct cell type cis-eQTL analyses, and compared the shared and unique cell type associations. We show that these cell type eQTL results derived from deconvoluted bulk RNA-Seq are consistent with eQTLs from scRNA-Seq. We performed colocalization analysis to find loci driving GWAS associations in either neuropsychiatric or blood-based traits and cell type gene expression. We go on to identify several examples of “opposite-effect” eQTLs, where a cell type eQTL signal demonstrates gene expression regulation in the opposite direction from that observed in a bulk eQTL study. Finally, we explored the effects of lithium use¹⁵ on cell type expression, and identified several cases of lithium-SNP interaction dictating presence of an eQTL.

RESULTS

Section 1: Computationally-derived cell type estimates are reliable

Figure 1 provides a graphical abstract of the pipeline used in this study to generate putative cell-type specific eQTLs. To estimate cell type gene expression in whole blood, we analyzed bulk blood RNA-seq of bulk RNA-Seq (N = 1,730) using computational deconvolution tools. First, we estimated cell type proportions using the LM22 signature matrix and CIBERSORTx (Figure 2A). We found that these proportion estimates are consistent with standard white blood cell reference ranges,¹⁶ for which generally neutrophils have the highest abundance, lymphocytes (including T cells, B cells, natural killer (NK) cells combined) the second highest abundance, and monocytes the lowest abundance. However we note that blood cell type proportions vary across individuals depending on numerous factors such as medication use, current illness, and age.¹⁷ We confirmed that the proportions estimated via CIBERSORTx are consistent with the complete blood count measures taken in the clinic for a subset (N=143) of individuals in our dataset (Supplementary Figure 1). We observed a pearson correlation (R²) of 0.76 for cell type proportions estimated in neutrophils using CIBERSORTx and proportions measured in clinic, 0.85 for lymphocytes, and 0.48 for monocytes. These results suggest that the computationally estimated proportions are reliable.

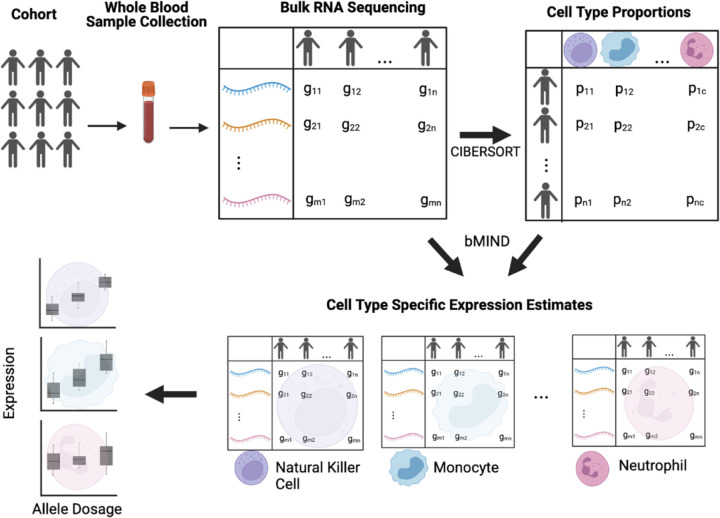

Figure 1: Graphical abstract of pipeline.

Figure created in BioRender.

Figure 2: Cell type expression from computational deconvolution methods.

Figure 2A: Cell type proportion predictions from CIBERSORTx - A violin plot showing the range of estimated cell type proportions for all 1730 individuals in each of the eight major cell types.

Figure 2B: R² of expression between each cell type - A heatmap of correlations (measured by R² of mean expression across samples) between the eight main cell types captured by CIBERSORTx.

Next, we used these proportion estimates and bMIND expression deconvolution (Methods) to estimate cell type expression. Consistent with biological expectations, we found that correlation of estimated expression between different cell types is high, as all cell types are derived from the same tissue (Figure 2B). Next, we investigated whether computationally estimated cell type expression could successfully detect differences in expression between different cell types, despite there being a high correlation structure between different cell types. Principal component analysis confirmed that the major sources of variation in the dataset are attributable to differences in cell type expression (Supplementary Figure 2). These results suggest that using large cohorts of bulk RNA-Seq in blood, paired with computational deconvolution tools, can successfully detect differences in expression dependent on cell type composition.

Finally, we contrasted computationally-derived cell-type estimates with single cell RNA-Seq (scRNA-Seq) data.^18,19 We compared median TPM (transcripts per million) estimates across six cell types and find moderate correlation between the reference single-cell expression and computationally derived expression, ranging from R² of 0.11 in naive B cells to R² of 0.27 in CD8 T cells (Supplementary Table 1 and Supplementary Figure 3). To further check how well computationally estimated expression compares to expression derived from scRNA-Seq, we correlated expression estimates between the two reference scRNA-Seq datasets in monocytes, the one cell type with data available in both reference datasets. We found that the median TPM of the 2,836 eGenes (genes with an associated eQTL) in both datasets have an R² of 0.22, comparable to the R² observed when comparing computationally estimated expression with scRNA-Seq.

Section 2: Cell type eQTL analysis reveals more refined biological signal compared to bulk eQTL

Next, we performed eQTL analyses on the resulting cell type expression estimates to find evidence of genetic regulation of cell type expression. We restricted to the eight cell types with average proportion > 2% including: naive B Cells, memory B Cells, CD4 naive T Cells, CD4 memory T cells, natural killer cells, monocytes, and neutrophils. We conducted local-eQTL mapping with a 1 Mb window using QTLtools (Methods), to identify between 2,875 and 4,629 eQTL-genes (eGenes) with a significant association at FDR correction level of 5%, across the eight different cell types (Figure 3A). In total, we identified 5,752 eGenes with a significant association in at least one of the eight main cell types. We show that there exists a range of concordance of effect sizes for eGenes found in both the individual cell type analyses and the bulk eQTL analysis (Figure 3B and 3C). This confirms findings from previous studies showing a strong shared genetic effect on gene expression across cell types. We observed that most eGenes are detected as significant in either just one, or all eight cell types (Supplementary Figure 4).

Figure 3: eQTLs per cell type, effect size correlation with reference dataset and bulk dataset.

Figure 3A: Number of associations identified per cell type - Number of eGenes with a significant association identified for the eight major cell types detected by CIBERSORTx, using a FDR cutoff of 0.05.

Figure 3B: Comparison of effect size between shared cis-associations with Neutrophils - Restricting to the eGenes with a significant association in both the bulk eQTL analysis and neutrophil eQTL analysis, we compare the estimated effect sizes of the most significant eQTL associations.

Figure 3C: Comparison of effect size between shared cis-associations with Monocytes - Restricting to the eGenes with a significant association in both the bulk eQTL analysis and monocyte eQTL analysis, we compare the estimated effect sizes of the most significant eQTL associations.

Figure 3D: Comparison of effect sizes between shared cis-associations using reference single cell RNA-seq. Restricting to the eGenes with a significant association in both the BLUEPRINT reference neutrophil eQTL analysis and our neutrophil eQTL analysis, we compare the estimated effect sizes of the most significant eQTL associations.

Additionally, we found evidence of cell type “opposite-effect” eQTLs, where a SNP in a given cell type shows an association with the same eGene as detected using bulk RNA-Seq, but in the opposite direction. One such example is the eQTL for FCGR3B (Fc fragment of IgG receptor IIIb); while the bulk eQTL had an effect size of −1.3, the effect size in neutrophils and T cell types ranged between 0.49 and 0.86. Similarly, the eQTL for MACF1 (Microtubule actin crosslinking factor 1) had effect sizes between −1.1 and −0.15 for the T cell types, versus effect sizes ranging between 0.21 and 0.28 for the bulk and remaining immune cell types. MACF1 is known to be involved in neurite growth during brain development and has previously been linked to schizophrenia.²⁰ These examples are especially interesting as it supports the idea that gene expression at the cell type level can uncover nuances of biological mechanisms that go undetected when only using bulk-level analyses. Similar effects have been observed in other studies using both single cell RNA-Seq²¹ and deconvoluted bulk RNA-Seq.²²

To further validate these cell type eQTLs, we compared the results of this analysis with results from eQTL analysis using single cell RNA-Seq from the eQTLCatalogue and BLUEPRINT consortiums.^19,23,24 We restricted to the protein coding genes identified as eGenes using the computational deconvolution approach. Generally, we found that the two approaches to cell type eQTL mapping show strong concordance. For example, in neutrophils, we found that 2,921 out of the 4,629 genes (63%) with a significant association using the computational deconvolution approach also had a significant association in using single-cell RNA-Seq, correcting at an FDR level of 5%. Among these eGenes, comparing the association with the same leading SNP in both of these datasets (Figure 3D), we observed a correlation (R²) of 0.66 between their effect sizes. Similar effect size correlations, for T cells CD4, B cells, and monocytes are shown in Supplementary Figure 5. This suggests that the computational deconvolution approach to large scale bulk RNA-Seq projects can be used to obtain accurate cell type eQTL estimates.

Section 3: Integration of cell type specific eQTL with brain and blood trait GWAS

For every gene with a significant eQTL, we used FUSION²⁵ to estimate the gene expression heritability across each of the contexts, or the proportion of variance in gene expression explained by variance in genetics. Only those genes with significant heritability after five-fold cross validation per each context were retained for further analysis. Table 2 provides the summarized statistics of the significantly heritable genes and the gene with highest estimated SNP-heritability per cell type. An advantage of investigating eQTLs at the cell type level is that it provides a more precise view of biological mechanisms driving the association between gene expression and phenotype. In order to investigate whether there exists variants that drive both the expression of genes in a specific cell type and a GWAS trait, we conducted Transcriptome Wide Association Study (TWAS)²⁵ and colocalization²⁶ analyses using the significant ct-eQTLs from the eight main cell types previously mentioned, and GWAS of several neuropsychiatric and blood-based phenotypes. Figure 4A provides an overview of the overlap across the contexts, both for brain-related and blood-based traits.

Table 2: FUSION heritability results.

Number of Sig. Genes refers to the number of genes that remain significantly (P<0.05) heritable after five-fold cross validation. Q1 = first interquartile, Q3 = third interquartile. Overall, the bulk data shows higher heritability estimates across each of the statistics. Of note is that every gene listed is distinct for each context, including genes that are relevant to neuronal function, such as NSG1 (neuronal vesicle trafficking associated), CAMKK2 (calcium dependent kinase, involved in neuronal differentiation and synapse formation) and BTG1 (B-cell translocation gene 1, found to be involved in neural stem cell renewal).⁶¹

Panel	Number of Sig. Genes	Min	Q1	Median	Mean	Q3	Max	Gene with Max h2
Bulk	5,113	0.0041	0.026	0.055	0.096	0.12	0.728	TRBV28
B Cells Memory	2,541	0.0035	0.024	0.044	0.075	0.093	0.68	BTG1
B Cells Naive	1,552	0.0056	0.024	0.045	0.078	0.095	0.579	PI16
Monocytes	2,431	0.0052	0.025	0.045	0.077	0.095	0.584	NSG1
NK Cells Resting	2,763	0.0042	0.024	0.045	0.078	0.098	0.61	BCAT1
Neutrophils	1,605	0.0056	0.025	0.048	0.083	0.10	0.69	CAMKK2
T Cells CD4 Memory Resting	1,989	0.0057	0.026	0.047	0.080	0.099	0.63	SBF2
T Cells CD8	2,033	0.0057	0.024	0.042	0.069	0.081	0.63	FGFBP2
T Cells CD4 Naive	2,147	0.0053	0.024	0.044	0.075	0.092	0.56	CROT

Figure 4: Colocalization and enrichment analyses of cell type specific eQTLs.

Figure 4A: (top) Number of genes with coloc PP4>0.8 across contexts in neuropsychiatric traits. (bottom) Number of genes with coloc PP4>0.8 across contexts in blood-based traits.

Figure 4B: Conditional analysis of HTR6 expression in memory B cells. All genes in the locus are included in the top panel, with marginally TWAS associated genes highlighted in blue, and those jointly significant (HTR6) in green. The bottom panel includes a Manhattan plot of the GWAS data before (gray) and after (blue) conditioning on the imputed expression of HTR6 in memory B cells. Figure generated by FUSION.post_process.R script.

GWAS for neuropsychiatric traits tested include: BP,²⁷ SCZ,²⁸ major depressive disorder (MDD),²⁹ alcohol dependence,³⁰ cannabis use disorder,³¹ migraines,³² insomnia,³³ attention-deficit/hyperactivity disorder (ADHD),³⁴ and Alzheimer’s disease.³⁵ In total there were 710 eGenes found to be associated only in bulk and no other cell type, and 168 eGenes found to be associated in one or more cell types and not in the bulk (Table 3). Regarding colocalization, in total there were 68 eGenes found to have colocalized SNPs between expression and trait only in the bulk and no other cell type, and 50 eGenes found only in one or more cell types and not in the bulk (Table 3).

Table 3: TWAS & Colocalization neuropsychiatric trait results.

Shared refers to the number of significant (FDR < 0.05) genes that are in common with the bulk TWAS-significant gene set, whereas unique refers to those that are not present in the bulk TWAS-significant gene set.

Cell Type	Significant eGenes	Num Significant TWAS Genes, Shared	Num Significant TWAS Genes, Unique	Num Genes with Coloc PP4>0.8, Shared	Num Genes with Coloc PP4>0.8, Unique
B Cells Naïve	4,009	90	43	43	13
B Cells Memory	3,571	142	58	62	25
T Cells CD8	2,875	108	50	50	15
T Cells CD4 Naïve	3,082	120	46	56	19
T Cells CD4 Memory Resting	3,082	115	43	55	22
NK Cells Resting	3,858	156	72	73	21
Monocytes	3,483	126	52	62	24
Neutrophils	4,629	76	35	35	9
Bulk	7,302	906	/	155	/

Of the 50 eGenes found to have a colocalization posterior probability with the same variant impacting both gene expression and the GWAS trait (PP4>0.8) in a cell type but not in the bulk, half have a higher median TPM across the GTEx v8 brain tissue types than in GTEx whole blood. This suggests that these genes are relevant for brain functions despite being detected in immune cell type specific expression estimates. An example of one such gene is HTR6, a serotonin receptor targeted by certain antidepressant and antipsychotic medication, found to be strongly associated and colocalized with BP in the most recent Psychiatric Genomics Consortium (PGC) study on bipolar disorder²⁷ which used brain-derived gene expression weights from the PsychENCODE project.³⁶ Conditioning on HTR6 memory B cell-specific expression using FUSION completely removed the significant GWAS signal at this locus, suggesting that the genetic factor driving gene expression also encompasses the BP association signal (Figure 4B). The same held true for other immune cell types in which HTR6 was colocalized with BP, including naive B cells and CD4 T cells. This demonstrates the utility of using cell type deconvolution methods in large cohorts of an easily-accessible tissue like blood, since it is able to capture gene expression regulation relevant in brain cell types that otherwise are not detectable in bulk blood eQTLs.

GWAS for blood-based traits tested include: systemic lupus erythematosus³⁷ (an autoimmune disorder), mean corpuscular volume, mean corpuscular hemoglobin,³⁸ red blood cell width distribution, monocyte count, eosinophil count, lymphocyte count, platelet count, white blood cell count, and red blood cell count.³⁹ In total there were 1,765 eGenes found to have associations only in bulk and no other cell type, and 493 eGenes found only in one or more cell types and not in the bulk (Table 4). Regarding colocalization, in total there were 488 eGenes found only in the bulk and no other cell type, and 229 eGenes found only in one or more cell types and not in the bulk (Table 4).

Table 4: TWAS & Colocalization blood-based trait results.

Shared refers to the number of significant (FDR < 0.05) genes that are in common with the bulk TWAS-significant gene set, whereas unique refers to those that are not present in the bulk TWAS-significant gene set.

Cell Type	Significant eGenes	Num Significant TWAS Genes, Shared	Num Significant TWAS Genes, Unique	Num Genes with Coloc PP4>0.8, Shared	Num Genes with Coloc PP4>0.8, Unique
B Cells Naïve	4,009	922	164	289	78
B Cells Memory	3,571	1,582	207	511	106
T Cells CD8	2,875	1,276	168	414	93
T Cells CD4 Naïve	3,082	1,349	183	445	88
T Cells CD4 Memory Resting	3,082	1,257	150	419	80
NK Cells Resting	3,858	1,712	254	557	119
Monocytes	3,483	1,484	212	484	113
Neutrophils	4,629	969	159	331	60
Bulk	7,302	3,893	/	1,175	/

Within the blood-based traits we again found examples of opposite-sign effects in certain cell types when compared to the bulk. For example, when considering systemic lupus erythematosus (SLE) as a trait, we found for the IRF5 gene, natural killer cells have a TWAS Z-score of −10.7 whereas the bulk has a score of +3.91, suggesting distinct mechanisms that are dependent on the cell type context. IRF5 (interferon regulatory factor 5) is known to be implicated in SLE,^40,41 though the exact mechanism by which it is dysregulated in the context of disease remains unknown.

See the TWAS Supplementary Tables to view all FUSION TWAS and colocalization results.

Section 4: Lithium-dependent genetic regulation of gene expression

Given the large number of BP probands in our study sample, we were interested to see whether there were BP-specific effects that could be observed using cell type deconvoluted expression. Since lithium is the most commonly used drug to treat these patients and it has also been established that lithium use has an effect on the blood transcriptome,^42,43 we hypothesized that lithium-dependent genetic regulation of the blood transcriptome may exist. Among the 1,045 bipolar disorder patients in this cohort, 709 were taking lithium at the time of blood draw (“Lithium-User”) and 336 were not (“Lithium Non-User”).

When stratifying by cases versus controls (with all BP and SCZ individuals included as cases), we found significant differences in cell type proportion for CD4 T cells (p=1.8e-7, higher in controls), natural killer resting cells (p=1.2e-7, higher in controls), and neutrophils (p=2.3e-8, higher in cases). Next, considering only the cases of BP, we stratified those who use lithium versus those who do not, and found significant differences in cell type proportion for CD4 naive T cells (p=8e-4, higher in non-users), CD4 memory T cells (p=4e-4, higher in non-users), natural killer resting cells (p=3e-4, higher in non-users), and neutrophils (p=1.5e-9, higher in users). However, when we only include lithium non-users within the BP cases, and compare those against the controls, we found no significant differences in proportion for any of the cell types. See Supplementary Figure 6 for example plots of all three tests using neutrophils. This suggests that the use of lithium within the BP cases drives these differences in cell type proportion, rather than disease status itself, consistent with previous findings.⁴³

We validated the effect of lithium use on blood cell types in a separate cohort of individuals who had electronic health data from the University of California, Los Angeles ATLAS Community Health Initiative.^44,45 Specifically, we included self-reported European patients with a PheCode for bipolar disorder who also had laboratory test orders for complete blood counts and noted whether they had a prescription order for lithium (n=1302 with lithium, n=6208 without). In comparing the neutrophil count between BP patients who had never been prescribed lithium (or before they were prescribed lithium) and those who had a prescription order for lithium, we found that there was a significant (logistic regression p=2.09e-07) elevation of neutrophils in patients with a prescription for lithium (Supplementary Figure 7). Furthermore, for a subset of BP patients within the ATLAS dataset, we also have records for neutrophil counts both before and after the patient was prescribed lithium. Using a Wilcoxon-signed rank test with continuity correction, we found a significant difference between the neutrophil counts between the two groups (p=0.0228) when including individuals of any ancestry (n=376), though when restricting to only European individuals (n=229), the significant difference is lost (p=0.2) (Supplementary Figure 7). The replication of this finding in this large external dataset provides further evidence to suggest that cell type proportion is impacted by lithium usage, though the implications of this are yet to be understood.

Next, we investigated whether estimated cell type expression is a significant predictor for case/control status or lithium use. Restricting to the genes with the highest variance in each cell type, we built logistic regression models to separately predict case/control status and lithium use, including the same covariates as the previous proportion-based models. However, we find that gene expression does not provide additional predictive value over the cell type proportions for either case/control status or lithium use.

To investigate lithium-dependent genetic regulation, we performed an interaction model eQTL scan between lithium users and nonusers, testing whether there exist SNPs whose cell type or cell type specific expression regulation is dependent on the presence of lithium. To do this, we included an interaction term for the genotypes and lithium status in the regression model (Methods). Using bulk expression, we only identified one gene with such an association (FDR p-value < 0.10). With cell type expression derived from bMIND, we identified as many as 34 such eGenes (in monocytes), and a total of 110 examples of genes (Li-eGenes) that show differential regulation of cell type expression, compared to just one gene that shows differential regulation of bulk expression (Supplementary Table 3). We found that 97 of the eGenes that have significant differential lithium regulation exhibit opposite effect sizes between the lithium user and nonuser groups, at the cell type level. The remaining 13 Li-eGenes show same direction effect sizes between the lithium user and nonuser groups, with significantly different magnitudes. For example, in naïve B cells, KITLG (ENSG00000049130) shows opposite effect eQTLs based on rs11104703 (Figure 5A). While in monocytes we see that TNFRSF11A (ENSG00000105641) shows differential effect size, in the same direction, based on rs79143095 (Figure 5B). Due to the large number of samples used in this analysis, we are powered to detect small differences, like these.

Figure 5: Lithium user vs non-user analyses.

Figure 5A: Boxplots showing the expression of KITLG (ENSG00000049130) in naïve B cells, stratified by dosage of SNP rs11104703 in lithium users versus nonusers.

5B: Boxplots showing the expression of TNFRSF11A (ENSG00000105641) in monocytes, stratified by dosage of SNP rs79143095 in lithium users versus nonusers.

Figure 5C: Differential gene expression results for lithium users vs lithium non-users: (left) Volcano plot which highlights differentially expressed genes (FDR < 0.05) in red (N=100 total differentially expressed genes). (right) Average expression of each gene vs the log fold change (logFC) of each gene, with differentially expressed genes highlighted in red.

In order to directly measure expression differences between lithium users and nonusers, we conducted a differential expression analysis test using limma⁴⁶ initially in the bulk dataset (Methods). Comparing the two groups, we tested 17,194 genes from bulk expression measures. We found 100 genes with evidence of differential expression in bulk (FDR < 0.05), with log fold changes of the significant genes ranging from −0.191 to 0.177, suggesting low impact of lithium on differential expression (Figure 5C). Out of the 100 differentially expressed genes found here, 33 were previously reported in Krebs, et. al,⁴³ a significant overlap according to Fisher’s exact test (OR = 6.43, p = 4.74e-14). Overlapping genes include FBXL2 - a gene highly expressed in the brain and involved in neuronal signaling, and CNTNAP3 - which mediates interactions between neurons and glial cells. See Differential Expression Supplementary Tables for full lithium differential expression results.

Though previous studies have not found substantial evidence of differential expression in the blood transcriptome between cases of BP or SCZ and controls,^43,47 we were interested in investigating this within our own cohort given the uniquely large sample size. Using the bulk RNA-seq and the same 17,194 genes selected in the lithium-user differential expression analysis, we found 64 genes with FDR < 0.05, of which nine genes overlapped with the significant genes found in the lithium analysis. Log fold changes of the significant genes ranged only from −0.126 to 0.104, suggesting that if these genes are truly a result of disease status, the differences are minimal (Supplementary Figure 8). See Differential Expression Supplementary Tables file for full case/control differential expression results.

For the cell-type specific differential expression analyses, we leveraged the differential expression function available through the bMIND software. In the case-control analysis, we found four differentially expressed genes in Neutrophils (FDR<0.05), including TSPAN2 and CFAP45 both of which were reported in the Krebs et. al. lithium differential expression study.⁴³ We found 24 differentially expressed genes in memory B cells, and 21 in naive B cells (with 18 differentially expressed genes in common between the two B cell types). Interestingly, when conducting the lithium user versus non-user analysis, we did not find any differentially expressed genes in any cell type. While this may be a result of the smaller sample set used in the lithium analysis as compared to the case-control analysis, it also may reflect that the effects of lithium are only found at the bulk level due to its impact on cell type composition, rather than changes in gene expression within individual cell types. See Differential Expression Supplementary Tables file for q-values of all cell type specific differential expression results.

DISCUSSION

We show that cell type deconvolution of bulk blood RNA-seq provides novel insights not only for immune-relevant biology, but also neuropsychiatric disease biology. While bulk eQTLs tend to provide a greater number of associations overall, we find that cell type specific eQTLs provide unique associations not otherwise detectable in bulk. Many of these unique cell type associations have high expression in brain tissue types, and harbor several example genes that have been previously implicated in BP TWAS²⁷ studies using brain tissue. This demonstrates that large cohorts of an easily accessible tissue like blood is useful for deciphering biology for brain-related phenotypes when cell type deconvolution is applied. An important caveat, however, is that the associations with brain-related traits found in this study are most likely to be shared genetic mechanisms between blood cell types and brain cell types, rather than blood cell type-specific biology.

Considering the BP TWAS results alone, there were 82 total eGenes with an opposite direction of effect in a cell type than in the bulk eQTL analysis (defined as having an opposite-sign TWAS Z-score for the same gene and the same trait). For example, we found 63 eGenes, significantly associated with BP, that have an opposite direction of effect in CD8-T cells when compared to bulk expression. ARID5A, a gene implicated in the most recent PGC bipolar disorder TWAS²⁷ is one example of these genes. In the bulk expression the TWAS Z-score of ARID5A and bipolar disorder is −4.99 (TWAS Z-score −5.32 in PGC BP study), whereas in CD8-T cells it is +6.02. This gene was also found to be colocalized with PP4>0.8 in the CD8 T Cell test, though it does not pass the colocalization threshold in the bulk test or PGC3 BP test. The same is true for ARID5A in CD4 memory resting T cells (TWAS Z-score +6.56). Similarly, the methyltransferase gene WDR82 in CD4 Naive T cells has a positive (TWAS Z-score +3.72) association with BP, whereas the bulk expression has a negative (TWAS Z-score −3.98) association at the same locus (TWAS Z-score −6.75 in PGC BP study). There are many such examples of these genes across each of the cell types and the various traits that we examined.

Examples of novel BP-associated genes were also discovered, including RILPL2, found to be colocalized in the context of memory B cells, monocytes, natural killer resting cells, and CD8 T cells, but not in the bulk. This gene is highly expressed in whole blood in adults (median TPM 27.42 in GTEx), but is also crucial for dendritic-spine morphogenesis in developing neurons⁴⁸ Similarly, CAMKK2 (calcium/calmodulin dependent protein kinase kinase 2), a gene found to be colocalized in the context of monocytes, neutrophils, and CD4 T cells is highly expressed both in whole blood and in brain tissues (particularly cerebellar hemisphere and cerebellum according to GTEx). While CAMKK2 has not been implicated in a BP TWAS, the large PGC GWAS points toward calcium channel signaling as a potential therapeutic target for BP,²⁷ and indeed a loss-of-function mutation in this gene has been previously linked to BP status.⁴⁹ We consider these to be potential BP-relevant genes that are interesting candidates for experimental validation.

We replicated previous findings that immune cell type composition is impacted by lithium use rather than BP status. We also replicated several previously reported genes that are differentially expressed in whole blood in response to lithium, in addition to reporting novel lithium-response genes. Although lithium has been prescribed as a mood stabilizer for decades, its precise mechanism of action is still unclear.⁵⁰ Lithium has been shown to increase the activity of the transcription factor CREB (cAMP response element-binding protein),⁵¹ a protein involved in neuronal plasticity.⁵² Here, we found that ATF4, an eGene in all cell types and the bulk, which encodes for CREB-2, has opposite directions of effect in T cell types than in the other immune cell types or bulk. We found a similar pattern for the AKT1 (Rho-family-alpha serine/threonine-protein kinase) eGene. AKT1 protein levels in brain tissue have been previously associated with both schizophrenia and bipolar disorder, and although genetic associations exist,⁵³ they do not pass genome-wide multiple testing correction.

While we find promising lines of evidence that immune cell type specific expression is useful for discovering candidate brain-relevant genes, there are several limitations to our study. Firstly, while our cohort had an ample number of BP patients, the number of SCZ samples was much lower, and thus underpowered for a diagnosis-specific analysis. Furthermore, we only test SNP-gene pairs in cis, whereas trans eQTLs are known to be more context-specific,⁵⁴ so we miss distal associations that are potentially biologically relevant to the phenotypes of interest. By using computationally-derived expression estimates, there is a greater possibility for spurious associations that are not related to biology, dependent on the specific method of decomposition/deconvolution chosen. Also by using low-coverage RNA-seq, we may be missing important eGenes that are not as highly expressed in blood. Finally, our study consists of all European-ancestry individuals, but to gain a more comprehensive and inclusive understanding of the biology between immune cell types and psychiatric conditions, in addition to better fine-mapping these eQTL, many more samples of diverse ancestries need to be analyzed in future work.

Collectively, this suggests that while the bulk whole blood gene expression provides a greater number of significant findings overall, cell type specific expression allows us to observe additional biological mechanisms that are not possible to capture when only using gene expression measures from bulk alone.

METHODS

Cohort description

The samples included are from a study with individuals ascertained for bipolar disorder (BP) or Schizophrenia (SCZ). The cohort consists of 1,045 individuals with BP, 84 individuals with SCZ, and 601 controls with whole blood RNA-seq and corresponding genotypes (N=1,730 after excluding first degree relatives) included for all individuals.

Bulk RNA-Sequencing

Bulk RNA-sequencing was performed at the UCLA Neurogenomics Core, using the TruSeq Stranded plus rRNA and GlobinZero library preparation method, as described previously.¹⁰ We used FASTQC to visually inspect the read quality from the lower-coverage whole blood RNA-Seq (5.9M reads/sample). We then used kallisto⁵⁵ to pseudoalign reads to the GRCh37 gencode transcriptome (v33) and quantify estimates for transcript expression. We aggregated transcript counts to obtain gene level read counts using scripts from the GTEx consortium (https://github.com/broadinstitute/gtex-pipeline).

Genotyping pipeline

Genotypes for the individuals included in the cohort were obtained from the following platforms: OmniExpressExome (N = 816), Psych Chip (N = 522), COEX (N = 162), Illumina550 (N=19), and Global Screening Array (N=211). Given that the SNP-genotype data came from numerous studies, the number of overlapping SNPs across all platforms was < 80k, prompting us to perform imputation separately for each genotyping platform, as previously described in Schwarz, et. al. 2022. Briefly, genotypes were first filtered for Hardy-Weinberg equilibrium p value < 1.0e-6 for controls and p value < 1.0e-10 for cases, with minor allele frequency (MAF) > 0.01, then were imputed using the 1000 Genomes Project phase 3 reference panel⁵⁶ by chromosome using RICOPILI v.1⁵⁷ separately per genotyping platform, then subsequently merged. Imputation quality was assessed by filtering variants where genotype probability > 0.8 and INFO score > 0.1. We restricted it to only autosomal chromosomes due to sex chromosome dosage, as commonly done.⁵⁸

Cell type proportion estimation

We estimated the proportion of cell types of the bulk whole blood RNA-seq datasets using CIBERSORTx, with batch correction applied and LM22 signature matrix as the reference gene expression profile. The LM22 signature matrix uses 547 genes to distinguish between 22 human hematopoietic cell phenotypes, though here we restrict to 8 cell types with proportions > 0.02.

Complete blood counts (CBC) lab tests from the clinic were provided for a subset of the cohort (N=143), providing us ground truth measures (in units of 10⁹ cells per liter) for neutrophils, lymphocytes, monocytes, basophils, and eosinophils. To make the counts comparable to the proportions outputted by CIBERSORTx, we divided the counts of the cell type of interest by the sum of counts across all cell types in an individual, providing the count ratio shown in Supplementary Figure 1.

Cell type expression estimation

We log2-transformed the matrix of bulk TPM measures before inputting into bMIND since the largest expression measure was greater than 50 TPM. Using the cell type proportions derived from CIBERSORTx in conjunction with these log-transformed bulk expression measures, we used bMIND in order to derive cell type expression estimates, with flag np=TRUE.

bMIND derived estimates and cis-eQTL mapping

Using output from bMIND, we transformed expression estimates from log2(TPM) to counts using sequencing library sizes, restricting to sufficiently expressed genes (estimated count > 1.0 in 40% of individuals). Expression estimates were then standardized (mean = 0) then performed cis-eQTL analysis mapping using QTLTools, using a defined window of 1 Mb both up and downstream of every gene’s TSS, for sufficiently expressed genes (TPM > 0.1 in 20% of individuals). We run the eQTL analysis in permutation pass mode (1000 permutations, and perform multiple testing corrections using the q value FDR procedure, correcting at 5% unless otherwise specified. We then restrict associations to the top (or leading) SNP per eGene.

TWAS and colocalization

We used the FUSION pipeline to perform TWAS on the normalized cell type specific expression estimates and normalized bulk expression measures, residualizing each expression matrix by its first 50 principal components to account for variation due to technical (non-biological) factors. Imputed genotypes were restricted to those that overlap with the 1000 Genomes LD reference panel, providing 272,652 SNPs on which to perform the analysis. A window of 500kb upstream and 500kb downstream of the lead SNP for each eQTL was used as the cis-region to be tested. Gene-trait pairs were selected based on the best performing model after five-fold cross validation, including for Best Unbiased Linear Predictor (BLUP), elastic net (ENET), Least Absolute Shrinkage and Selection Operator (LASSO), and just using the top SNP. We tested for colocalization of GWAS and eQTLs using the –coloc flag within the FUSION/TWAS pipeline. Colocalization is only performed in those gene-trait associations with p < 0.05. In each cell type, we tested eGenes with a significant association between expression and SNP (Tables 4 and 5). We report SNPs with a colocalization probability (PP4) > 0.80.

Cell type specific regressions using estimated cell type proportions and gene expression

We built logistic regression models to evaluate the effect of cell type proportion on case/control status, and lithium use status within only the BP cases. These models included the proportion of one cell type at a time, along with covariates including age, sex, RNA concentration, and RNA integrity number (RIN) as predictors. In testing the differences in cell type proportions between different binary outcomes, we used the glm() function in R with family=binomial.

We also used logistic regression to predict either case control status or lithium use (only in BP cases) from cell type expression estimates after residualizing for 50 expression PCs. Variable numbers of genes were included based on genes with most variance per cell type, using a range of 100 to 1000 genes with an interval of 100. Covariates include age, sex, RNA RIN, RNA concentration, and cell type proportion estimates. A random 70% of individuals were sampled to use for training, and 30% for testing the prediction.

Electronic Medical Record Validation Cohort

ATLAS is an opt-in biobank that enrolls patients when they visit UCLA for a blood draw. ATLAS is a diverse biobank that includes patients from a variety of genetic ancestries that live across the greater Los Angeles region.⁵⁹ Registered ATLAS researchers can access deidentified electronic health record data for patients, consisting of outpatient and inpatient encounters, including information on diagnoses, procedure orders, laboratory orders, and prescription orders. As of 2022, there were approximately 50,000 participants enrolled in ATLAS. A complete description of the ATLAS project and data is available in ⁴⁴.

Bipolar patients were identified in ATLAS using the diagnosis table. The bipolar phenotype was defined as any patient who had at least one diagnosis of any of the ICD 10 codes included in the bipolar Phecode Map 1.2.⁶⁰ Neutrophil counts (measured as 10³ counts/µL) were determined using test results for complete blood count laboratory orders. We restricted this analysis to those individuals with self-reported European ancestry. To prevent severe outliers from biasing results, test results with a neutrophil count greater than 2 standard deviations from the median count value in all bipolar patients were removed. Lithium prescription orders were found by querying the prescription order table for medications of any dose or format that were classified as psychiatric medication and had the generic name lithium.

Neutrophil count data for patients with a bipolar Phecode were separated into three categories: tests administered before the patient was prescribed lithium, tests administered after the first lithium prescription order, and tests for patients without a lithium prescription order. Since many patients had multiple complete blood count orders, the median neutrophil count per patient per category was calculated. Median neutrophil counts were compared between bipolar patients after their first lithium prescription and bipolar patients without a lithium prescription using a logistic regression (implemented in R). Max age and sex were used as covariates. For the subset of patients who had complete blood count tests taken before and after a lithium prescription order, we used a paired Wilcoxon rank test to increase power, implemented in R using the wilcox.test(paired=TRUE) command.

Interaction model

To test whether there exists an interaction between SNP-lithium usage, we included an interaction component in the regression model, as such:

$$y=\beta *X+\beta *l+\beta *\left(X+l\right)+covariates$$

where X refers to the genotype at a particular SNP, and l refers to lithium use.

Differential expression analysis

We used the limma eBayes function with trend=true to conduct differential expression tests in the bulk dataset. We include only those genes with at least 1 TPM in at least 436 individuals (about 25% of the total 1,730 individuals included in the analysis), leaving 17,194 genes to be tested. We then log2-transform this matrix and compute the first 50 expression principal components to be included as covariates. In the lithium user vs non-user analysis, only cases were included to avoid confounding effects caused by disease status, while in the case-control analysis, all individuals diagnosed with BP or SCZ were included as cases and non-affected individuals included as controls.

For the cell-type specific differential expression analysis, we use the bmind_de() function as included in the bMIND software package. To keep the methods comparable to the bulk analysis, we also use the log2-transformed expression measures as input along with the first 50 expression PCs as covariates.

Table 1:

Cell type proportion estimates from CIBERSORTx and number of eQTLs per cell type.

Cell type	Mean cell type proportion estimate (s.d.)	Number of eGenes (FDR < 0.05)
Naive B cells	0.025 (0.020)	4,009
Memory B cells	0.020 (0.014)	3,571
CD8 T cells	0.025 (0.025)	2,875
Naive CD4 T cells	0.15 (0.042)	3,082
Memory Resting CD4 T cells	0.066 (0.034)	3,284
Resting NK Cells	0.066 (0.029)	3,858
Monocytes	0.050 (0.039)	3,483
Neutrophils	0.51 (0.094)	4,629
Bulk (directly from RNA-Seq)	1.0	7,302
