Regulation of mature mRNA levels by RNA processing efficiency

Callum Henfrey; Shona Murphy; Michael Tellier

doi:10.1093/nargab/lqad059

. 2023 Jun 9;5(2):lqad059. doi: 10.1093/nargab/lqad059

Regulation of mature mRNA levels by RNA processing efficiency

Callum Henfrey ¹, Shona Murphy ², Michael Tellier ^3,^4,^✉

PMCID: PMC10251645 PMID: 37305169

Abstract

Transcription and co-transcriptional processes, including pre-mRNA splicing and mRNA cleavage and polyadenylation, regulate the production of mature mRNAs. The carboxyl terminal domain (CTD) of RNA polymerase (pol) II, which comprises 52 repeats of the Tyr1Ser2Pro3Thr4Ser5Pro6Ser7 peptide, is involved in the coordination of transcription with co-transcriptional processes. The pol II CTD is dynamically modified by protein phosphorylation, which regulates recruitment of transcription and co-transcriptional factors. We have investigated whether mature mRNA levels from intron-containing protein-coding genes are related to pol II CTD phosphorylation, RNA stability, and pre-mRNA splicing and mRNA cleavage and polyadenylation efficiency. We find that genes that produce a low level of mature mRNAs are associated with relatively high phosphorylation of the pol II CTD Thr4 residue, poor RNA processing, increased chromatin association of transcripts, and shorter RNA half-life. While these poorly-processed transcripts are degraded by the nuclear RNA exosome, our results indicate that in addition to RNA half-life, chromatin association due to a low RNA processing efficiency also plays an important role in the regulation of mature mRNA levels.

INTRODUCTION

Transcription of human protein coding genes by RNA polymerase (pol) II is a highly complex process requiring the coordination of multiple proteins. In addition to the transcription cycle, composed of transcription initiation, pol II pausing and release, transcription elongation, and transcription termination, co-transcriptional processes, including capping, splicing, cleavage and polyadenylation, and co-transcriptional loading of mRNA export factors are required for the production of mature mRNA (1,2). A key element regulating the crosstalk between transcription and co-transcriptional processes is the carboxyl terminal domain (CTD) of the large subunit of pol II, which comprises 52 repeats of the heptapeptide Tyr1-Ser2-Pro3-Thr4-Ser5-Pro6-Ser7. The pol II CTD can be modified by several post-translational modifications (PTMs), including protein phosphorylation, methylation, acetylation, and proline isomerization (3,4). Phosphorylation of the pol II CTD is one of the major PTMs and can occur on five residues, Tyr1, Ser2, Thr4, Ser5 and Ser7 (3,4). Kinases, including several cyclin-dependent kinases (CDKs), and phosphatases regulate the CTD phosphorylation pattern and level across the transcription cycle (3,4).

Phospho-Ser5 (Ser5P) and phospho-Ser2 (Ser2P) are the most studied modifications and are found at the promoter region and in the gene body/downstream of the poly(A) site, respectively (4). Ser5P is associated with the recruitment of the mRNA capping complex and pre-mRNA splicing factors while Ser2P is linked to the recruitment of elongation factors and proteins of the mRNA cleavage and polyadenylation complex (CPA). The roles of the three other residues, Tyr1, Thr4, and Ser7, are less well understood (5). On protein-coding genes, phosphorylation of Tyr1 is present at promoter and transcription termination regions. Tyr1P has been found to be higher on antisense promoters (PROMPTs) and enhancers compared to protein-coding genes (6,7) and to increase following DNA double-strand breaks and UV irradiation (8,9). In addition, mutation of three quarters of the tyrosine residues to alanine promotes transcriptional readthrough and a loss of the Mediator and Integrator complexes from pol II. Phosphorylation of Thr4 is found at the 3’end of protein-coding genes, indicating a potential role in transcription termination (10,11). In addition, Thr4P has been found to be higher on the gene bodies of long non-coding (lnc)RNAs, which are known to be prone to premature transcription termination (PTT) (10,11). Mutation of Thr4 residues to alanine results in a transcription elongation defect on protein-coding genes and a 3’end-processing defect of histone gene transcripts (10,12). Phosphorylation of Ser7 is currently the least understood but follows a similar pattern to Ser2P. The combination of Ser2P and Ser7P has been shown to be involved in the recruitment of the Integrator complex to small nuclear (sn)RNA genes (13). Mutation of Ser7 residues to alanine results in a decreased transcription of snRNA genes and 3’ processing of transcripts while protein coding genes do not seem to be affected (13,14).

Modification of the pol II CTD is therefore critical for coordinating co-transcriptional processes during transcription. In turn, co-transcriptional processes can affect transcription (2). A major example is the coupling between pre-mRNA splicing, mRNA cleavage and polyadenylation, and transcription termination. It has been shown via long-read sequencing approaches that protein-coding genes transcripts that are poorly processed are associated with pol II transcriptional readthrough, likely due to a failure to recognize the poly(A) site (15,16). Additionally, transcriptional readthrough can be promoted by knockdown of CPA factors, cellular stresses, or viral infection (17–19).

While important steps in the regulation of expression of protein-coding genes occur at the 5’ end of genes, including transcription initiation and pol II pause release, it is becoming increasingly clear that premature transcription termination (PTT) is a major regulator of gene expression. PTT can happen across the whole gene unit, from pol II pausing sites to poly(A) sites, mediated by mRNA decapping followed by Xrn2 degradation (20), the Integrator complex (21–24), co-transcriptional recruitment of the RNA exosome (25), U1 telescripting and intronic poly(A) site usage (26–30), and at the poly(A)-associated checkpoint (31–34).

To better understand how transcription and co-transcriptional processes regulate the production of mature mRNAs from intron-containing protein-coding genes (termed protein-coding genes in the rest of the manuscript), we took advantage of genome-wide data available for HeLa cells. We find that pol II on protein-coding genes producing relatively low levels of mature mRNAs is hyperphosphorylated on the CTD Thr4, and to a lesser extent Tyr1, residues. Interestingly, the reduced production of mature mRNAs from these protein-coding genes is mediated by poor RNA processing, which results in a combination of chromatin association of the transcripts and degradation by the nuclear RNA exosome of the poorly-processed transcripts that are released from chromatin.

Our results indicate that the regulation of RNA processing efficiency plays an important role in controlling gene expression through chromatin association of transcripts and degradation by the nuclear RNA exosome of chromatin-released transcripts. This RNA processing efficiency-dependent regulation of mRNA levels is shared between long non-coding (lnc)RNAs and protein-coding genes, indicating a general regulatory mechanism.

MATERIALS AND METHODS

Genome-wide datasets

The genome-wide data used in this study are summarized in Table 1.

Table 1.

List of genome-wide data and their associated GEO accession numbers and references used in this study

Sample name (number of biological replicates)	GEO study	Reference
HeLa Chromatin RNA-seq (5)	GSE81662, GSE110028	(11,54)
HeLa Nucleoplasm RNA-seq (4)	GSE81662, GSE110028	(11,54)
HeLa Cytoplasmic RNA-seq (2)	GSE110028	(54)
HeLa Chromatin RNA-seq siEXOSC3 and associated siLuc (2)	GSE81662	(11)
HeLa Nucleoplasm RNA-seq siEXOSC3 and siLuc (2)	GSE81662	(11)
HeLa Chromatin RNA-seq siCPSF73 and associated siLuc (2)	GSE60358	(40)
HeLa Total pol II mNET-seq siEXOSC3 and associated siLuc (2)	GSE81662	(11)
HeLa Total pol II mNET-seq (2)	GSE60358, GSE81662	(11,40)
HeLa Pol II Y1P mNET-seq, Empigen treated (2)	GSE81662	(11)
HeLa Pol II S2P mNET-seq, Empigen treated (2)	GSE81662	(11)
HeLa Pol II T4P mNET-seq, Empigen treated (2)	GSE81662	(11)
HeLa Pol II S5P mNET-seq, Empigen treated (2)	GSE81662	(11)
HeLa Pol II S7P mNET-seq (2)	GSE81662	(11)
HeLa Total pol II POINT-seq (2)	GSE159326	(16)
HeLa H3K36me3 and associated Input, mNuc-seq (2)	GSE110028	(54)
HeLa CPSF73 and associated Input, ChIP-seq (2)	GSE127256	(29)
HeLa PCF11 and associated Input, ChIP-seq (2)	GSE127256	(29)
HeLa Xrn2 and associated Input, ChIP-seq (1)	GSE36185	(20)
Raji total pol II, Ser2P, Ser5P, and Thr4P (1)	GSE37519	(10)
Raji total pol II, Ser2P, and Tyr1P (1)	GSE52914	(6)
Raji chromatin and total RNA-seq (2)	GSE94330	(51)

Open in a new tab

RNA-seq and POINT-seq analysis

Chromatin, nucleoplasm, and cytoplasmic RNA-seq were analysed as previously described (35). Briefly, adapters were trimmed with Cutadapt version 1.18 (36) in paired-end mode with the following options: –minimum-length 10 -q 15,10 -j 16 -A GATCGTCGGACTGTAGAACTCTGAAC -a AGATCGGAAGAGCACACGTCTGAACTCCAGTCAC. The remaining rRNA reads were removed by mapping the trimmed reads to the rRNA genes defined in the human ribosomal DNA complete repeating unit (GenBank: U13369.1) with STAR version 2.7.3a (37) and the parameters –runThreadN 16 –readFilesCommand gunzip -c -k –outReadsUnmapped Fastx –limitBAMsortRAM 20000000000 –outSAMtype BAM SortedByCoordinate. The unmapped reads were mapped to the human GRCh38.p13 reference sequence with STAR version 2.7.3a and the parameters: –runThreadN 16 –readFilesCommand gunzip -c -k –limitBAMsortRAM 20000000000 –outSAMtype BAM SortedByCoordinate. SAMtools version 1.9 (38) was used to retain the properly paired and mapped reads (-f 3) and to create strand-specific BAM files. FPKM-normalized bigwig files were created with deepTools2 version 3.4.2 (39) bamCoverage tool with the parameters -bs 10 -p max –normalizeUsing RPKM.

mNET-seq analysis

Adapters were trimmed with Cutadapt version 1.18 in paired-end mode with the following options: –minimum-length 10 -q 15,10 -j 16 –A GATCGTCGGACTGTAGAACTCTGAAC –a AGATCGGAAGAGCACACGTCTGAACTCCAGTCAC. Trimmed reads were mapped to the human GRCh38.p13 reference sequence with STAR version 2.7.3a and the parameters: –runThreadN 16 – readFilesCommand gunzip -c -k –limitBAMsortRAM 20000000000 –outSAMtype BAM SortedByCoordinate. SAMtools version 1.9 was used to retain the properly paired and mapped reads (-f 3). A custom python script (40) was used to obtain the 3’ nucleotide of the second read and the strandedness of the first read. Strand-specific bam files were generated with SAMtools. FPKM-normalized bigwig files were created with deepTools2 bamCoverage tool with the parameters -bs 1 -p max –normalizeUsing RPKM.

ChIP-seq and mNuc-seq analysis

Adapters were trimmed with Cutadapt version 1.18 in paired-end mode with the following options: –minimum-length 10 -q 15,10 -j 16 -A GATCGTCGGACTGTAGAACTCTGAAC -a AGATCGGAAGAGCACACGTCTGAACTCCAGTCAC. Trimmed reads were mapped to the human GRCh38.p13 reference sequence with STAR version 2.7.3a and the parameters: –runThreadN 16 –readFilesCommand gunzip -c -k –limitBAMsortRAM 20000000000 –outSAMtype BAM SortedByCoordinate. SAMtools version 1.9 was used to retain the properly paired and mapped reads (-f 3) and to remove PCR duplicates. Reads mapping to the DAC Exclusion List Regions (accession: ENCSR636HFF) were removed with BEDtools version 2.29.2 (41). FPKM-normalized bigwig files were created with deepTools2 bamCoverage tool with the parameters -bs 10 -p max –e –normalizeUsing RPKM.

Proteomic analysis section

The proteome data of HeLa cells were obtained from (42). To determine whether some of the protein-coding genes could be misannotated lncRNAs, we used the global human proteome data from the Human PeptideAtlas version 2023-01 database (43). The list of genes found in the RNA-seq data was compared to the list of proteins found in the global human proteomic data to keep only protein-coding genes that are supported experimentally by proteomic data.

Differential expression analysis

For differential expression analysis, the number of aligned reads per gene was obtained with STAR –quantMode GeneCounts option during the mapping of raw reads to the human genome or with HTSeq version 1.99.2 (44). The lists of differentially expressed genes were obtained with DESeq2 version 1.30.1 (45) and apeglm version 1.18.0 (46) keeping only the genes with a fold change <–2 or >2 and an adjusted p-value below 0.05. The comparisons between POINT-seq, chromatin RNA-seq, and nucleoplasm RNA-seq were performed by quantifying aligned reads only on exons as the co-transcriptional pre-mRNA splicing rates, and therefore the number of reads mapped on introns, differ between the three techniques (see below).

Human gene annotation and selection of subset of genes

Gencode V38 annotation, which is based on the hg38 version of the human genome, was used to obtain the list of all protein-coding genes. Intronless and histone genes were removed to obtain intron-containing protein-coding genes. For each gene, we kept the annotation (TSS and poly(A) site) of the highest expressed transcript isoform, which was obtained with Salmon version 1.2.1 on four HeLa chromatin RNA-seq experiments. Only transcripts that are expressed (TPM > 0) in at least three of the four biological replicates were retained. The list of similarly expressed of nucleoplasm-enriched genes, chromatin-enriched genes, and non-enriched genes was generated through iterative random-subsampling to achieve subsets of 500 genes with the most similar expression level and distribution in the chromatin RNA-seq. For the total pol II mNET-seq subsets, a comparable subsampling was performed but rather than using 500 genes, we used 10% of similarly expressed genes from each category as we could not obtain a non-significant difference with 500 genes due to the difference in nascent transcription level between chromatin-enriched and nucleoplasm-enriched genes. The set of long lncRNAs has been obtained from (11) using the long intergenic non-coding (linc)RNAs and the antisense transcripts. As the lncRNAs annotation was originally from the hg19 version of the human genome, we overlapped the hg19 annotation with the hg38 annotation and obtained a list of 632 lncRNAs.

Splicing efficiency

The splicing efficiency on POINT-seq and RNA-seq was calculated by first parsing each bam file to obtain the list of spliced and unspliced reads with the awk command (awk ‘/^@/ || $6 ∼ /N/’ for spliced reads and awk ’/^@/ || $6 !∼ /N/’ for unspliced reads). The splicing efficiency was then calculated as the number of spliced reads over total reads with BEDtools multicov –s –split. The splicing efficiency of each transcript was then normalised to the number of exons. Significant changes in splicing events following knockdown of the nuclear RNA exosome were obtained with rMATS version 4.1.2 with the options: bam file input, paired-end mode (47).

Transcription termination index

The transcription termination index is defined as in (40) and we termed it readthrough index in this paper: Inline graphic .

Correlation heatmap

The mNET-seq heatmap was computed with deepTools2 multiBamSummary tool with the following parameters: bins –bs 10000 –distanceBetweenBins 0 –p max –e. The resulting matrix was plotted with deepTools2 plotCorrelation and the following parameters: –corMethod pearson –skipZeros –colorMap RdYlBu_r –plotNumbers.

Metaprofiles, boxplots, and violin plots

Metaprofiles were generated from the matrix output of deepTools2 computeMatrix tool, run on scale-regions mode with the following parameters: -bs 10 -p max -m 4000 -b 2500 -a 2500 with the –maxThreshold 2500 parameter added for mNET-seq analysis. The metaprofiles, boxplots, and violin plots were generated with R version 4.0.5 using the ggplot2, ggpubr and gridExtra packages. Quantifications have been performed across the gene body, TSS to TES. ChIP-seq and mNuc-seq metaprofiles are shown as IP / Input signal.

Statistical tests

The statistical tests are indicated in the figures legends and were performed with R version 4.0.5.

RESULTS

A subset of expressed protein-coding genes produces a low amount of mature mRNA and protein

Previous studies have shown that a subset of lincRNAs, named lincRNA-like protein-coding genes, are similar to mRNAs in that they undergo RNA processing and produce stable nuclear RNA. In addition, a limited number of protein-coding gene transcripts have been found to have features common to lincRNAs, including high chromatin reads relative to transcription levels and RNA exosome sensitivity (11,48). However, the RNA exosome is only one of the protein complexes regulating RNA production. We have therefore more widely investigated the amount of mature mRNAs produced from intron-containing protein-coding genes in relation to transcription and chromatin association of transcripts.

We have used chromatin and nucleoplasm RNA-seq data available from HeLa cells to identify the protein-coding genes whose transcripts are enriched in the nucleoplasm compared to the chromatin (nucleoplasm-enriched, log₂(fold change) > 1, adjusted P-value < 0.05) or that are enriched on the chromatin compared to the nucleoplasm (chromatin-enriched, log₂(fold change) < –1, adjusted P-value < 0.05) (Figure 1A). As the proportion of intronic reads differs between chromatin RNA-seq and nucleoplasm RNA-seq (see below), we therefore focused our analysis on exonic reads. From the DESeq2 analysis, we initially found 4803 nucleoplasm-enriched protein-coding genes and 6130 chromatin-enriched protein-coding genes. We removed histone and intronless genes to keep intron-containing protein-coding genes and also genes that were not found to be expressed in the nucleoplasm RNA-seq. We then kept for each remaining gene the annotation (TSS and poly(A) site) of the most expressed transcript in the nucleoplasm RNA-seq to obtain a list of 4686 transcripts from nucleoplasm-enriched genes and 4119 genes transcripts from chromatin-enriched genes (Figure 1B). For comparison purposes, we have also generated a set of 4140 genes encoding non-enriched transcripts (no significant difference between nucleoplasm RNA-seq and chromatin RNA-seq), defined as the chromatin- and nucleoplasm-enriched categories. As control, we also used a set of 632 lncRNAs, containing lincRNAs and antisense transcripts from (11), which shows a high POINT-seq and chromatin RNA-seq signals, driven by the highly expressed lncRNAs such as MALAT1 and NEAT1, but a limited nucleoplasm RNA-seq signal, located between genes encoding chromatin-enriched and non-enriched transcripts. These results agree with the expected degradation of lncRNAs by the nuclear RNA exosome (Supplementary Figure S1A) (11,48). To determine whether transcripts from the nucleoplasm-enriched and chromatin-enriched genes are exported to the cytoplasm, we re-analysed HeLa cytoplasmic RNA-seq data, which show efficient cytoplasmic export of transcripts from nucleoplasm-enriched genes while mRNAs from chromatin-enriched genes have a limited presence in the cytoplasm (Figure 1C). To determine whether lower nucleoplasm and cytoplasm RNA-seq signals also result in a lower protein production, we compared our RNA-seq results with a previously-published re-analysis of HeLa proteome datasets (42). We could only match ∼5000 genes of the RNA-seq/proteome data but found that fewer of the chromatin-enriched transcripts produce proteins compared to nucleoplasm-enriched transcripts, and chromatin-enriched transcripts produce fewer peptides of each protein (Figure 1D). As only 448 chromatin-enriched transcripts were found to produce proteins in the HeLa proteome datasets, we checked whether genes encoding chromatin-enriched transcripts could be incorrectly annotated lncRNAs. We compared the RNA-seq results with a database of 2299 proteomic experiments from the Human PeptideAtlas (43) version 2023–01 database and found that 3442 chromatin-enriched transcripts (out of 4119 transcripts, 83.6%) produce peptides (Supplementary Figure S1B). In contrast, 4583 nucleoplasm-enriched transcripts (out of 4686 transcripts, 97.8%), and 4088 non-enriched transcripts (out of 4138 transcripts, 98.8%) produce proteins (Supplementary Figure S1B). For the set of 632 lncRNAs from (11), we found only one lncRNA with peptide support from the Human PeptideAtlas while only nine genes annotated as lncRNA in the Gencode V38 annotation have peptide support. These results demonstrate that most genes encoding chromatin-enriched transcripts are transcriptionally active and have the potential to produce proteins, with ∼17% of these genes being potentially incorrectly annotated lncRNAs. For the subsequent analyses, we removed all the chromatin-enriched, nucleoplasm-enriched, and non-enriched transcripts that were not experimentally supported in the Human PeptideAtlas version 2023-01 database.

Figure 1. — A subset of expressed protein-coding genes produces a low amount of mature mRNA and protein. (A) MA plot in HeLa cells of the intron-containing protein-coding genes found to be differentially enriched in the nucleoplasm (nucleoplasm-enriched, purple) or in the chromatin (chromatin-enriched, blue) fraction. The set of non-enriched genes (red) and the remaining genes (grey) are also indicated. (B) Chromatin RNA-seq and nucleoplasm RNA-seq metagene profiles in HeLa cells of nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. (C) Cytoplasmic RNA-seq metagene profiles in HeLa cells of nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. (D) Boxplots, shown as min to max with first quartile, median, and third quartile, of the number of peptides per protein found for nucleoplasm-enriched (purple), chromatin-enriched (blue), and non-enriched (red) genes. The number of proteins found to have at least one peptide are indicated at the top of each category. Statistical test: Wilcoxon rank sum test. P-value: **** < 0.0001. (E) XY correlation plot of the nucleoplasm enrichment ratio (log₂ fold change Nucleoplasm RNA-seq versus Chromatin RNA-seq) versus transcripts half-life obtained from (50). The Pearson correlation with p-value is indicated on the plot. Nucleoplasm-enriched (purple), chromatin-enriched (blue), non-enriched (red), and remaining (grey) genes are shown. (F) Boxplots, shown as min to max with first quartile, median, and third quartile, of the transcripts half-life for nucleoplasm-enriched (purple), chromatin-enriched (blue), non-enriched (red) genes. The number of proteins found to have at least one peptide are indicated at the top of each category. Statistical test: Wilcoxon rank sum test. P-value: **** < 0.0001. (G) Schematic of the total pol II POINT-seq experiments. (H) POINT-seq metagene profiles in HeLa cells of nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. (I) XY correlation plot of the log₁₀ of the baseMean (average expression level) versus the log₂ fold change of ‘Chromatin RNA-seq versus POINT-seq’, which provides a measure of chromatin enrichment. The Pearson correlation with p-value is indicated on the plot. Nucleoplasm-enriched (purple), chromatin-enriched (blue), non-enriched (red), and remaining (grey) genes are shown.

As genes encoding chromatin-enriched transcripts are transcriptionally active but produce only a small amount of proteins, we investigated whether the transcripts produced by the chromatin-enriched genes are more prone to degradation. We compared our RNA-seq results with a previously-published HeLa mRNA half-life dataset (49), which provides half-life data for the transcripts of 1446 chromatin-enriched, 3691 non-enriched, and 4070 nucleoplasm-enriched genes (Figure 1E and F). We found a clear trend where mRNAs from chromatin-enriched genes have on average shorter half-lives compared to transcripts from non-enriched genes and nucleoplasm-enriched genes, with the latter having on average the longest half-lives.

To determine whether the chromatin enrichment of transcripts is explained only by rapid degradation by the nuclear RNA exosome, we re-analysed HeLa POINT-seq data (16), which captures nascent RNA transcription and co-transcriptional splicing (Figure 1G and H). POINT-seq profiles of genes encoding chromatin-enriched, non-enriched, and nucleoplasm-enriched transcripts were similar to the profiles obtained from chromatin RNA-seq (Figure 1B). Chromatin RNA-seq data represents a combination of nascent transcription and of transcripts associated with chromatin while POINT-seq data are a measure of nascent transcription, e.g. transcripts associated with pol II. We therefore reasoned that a comparison of POINT-seq and chromatin RNA-seq data over exons, which avoids technical differences on co-transcriptional splicing efficiency (see below), could indicate increased chromatin association if the chromatin RNA-seq signal is enriched compared to the POINT-seq signal (Figure 1I). We found that chromatin-enriched transcripts are more prone to chromatin association (blue points with a high log2 (Fold change)) compared to non-enriched (red) and nucleoplasm-enriched (purple) transcripts. As chromatin-enriched genes are on average longer than non-enriched and nucleoplasm-enriched genes (Supplementary Figure S1C), we investigated whether the higher chromatin association of transcripts from chromatin-enriched genes is due to their longer size (Supplementary Figure S1D). We observed a moderate positive correlation (R = 0.32, P < 2.2e-16), indicating that gene length only partially explains the higher chromatin retention of transcripts from chromatin-enriched genes. In contrast, for the set of 632 lncRNAs there is no clear chromatin association indicating that these lncRNAs are released from chromatin following transcription (Supplementary Figure S1D).

These findings indicate that in addition to RNA stability, the production of mature mRNAs can also be regulated by chromatin association of transcripts.

Higher level of pol II thr4 phosphorylation might be associated with poor expression and chromatin enrichment of transcripts

Transcription of lncRNA transcripts is associated with a different pol II CTD phosphorylation pattern and with poor co-transcriptional RNA processing, including defective pre-mRNA splicing and mRNA CPA (11). We therefore investigated whether the pol II CTD phosphorylation patterns and/or levels also differ between nucleoplasm-enriched and chromatin-enriched genes. We re-analysed HeLa mNET-seq data for total pol II and the different CTD phosphorylation marks, using Empigen-treated mNET-seq datasets when available as these identify bone fide mNET-seq signals without non-nascent RNA associated with the pol II (Figure 2A and Supplementary Figure S1E). While the total pol II profile follow the expected mNET-seq pattern for the three groups of genes, we observed a higher total pol II level on nucleoplasm-enriched genes compared to chromatin-enriched genes (Figure 2B and Supplementary Figure S1F and S1G). We therefore investigated whether nucleoplasm-enriched genes are more expressed (i.e. more pol II transcribing the genes) and/or pol II is slower, which will also result in a higher pol II signal. To differentiate between these possibilities, we compared the pol II elongation rate data obtained for 1398 protein-coding genes in HeLa cells (50) to the nucleoplasm-enrichment ratio, which corresponds to log₂(Fold change of Nucleoplasm RNA-seq versus Chromatin RNA-seq) (Supplementary Figure S1H). We did not observe any correlation between the pol II elongation rate and nucleoplasm-enrichment, indicating that nucleoplasm-enriched genes are not associated with slower pol II elongation and that chromatin-enriched genes are also not transcribed faster. The higher signals of total pol II, but also of POINT-seq and chromatin RNA-seq (Figure 1B and H), on nucleoplasm-enriched genes compared to chromatin-enriched genes are therefore likely explained by a higher transcriptional level.

Figure 2. — Higher levels of pol II Thr4 phosphorylation might be associated with poor expression and chromatin retention of transcripts. (A) Schematic of the total pol II mNET-seq experiments. (B) Metagene profiles of mNET-seq in HeLa cells of total pol II and the different pol II CTD phosphorylation mark for nucleoplasm-enriched (purple), chromatin-enriched (blue), and non-enriched (red) genes. (C) Metagene profiles of mNET-seq in HeLa cells of each pol II CTD phosphorylation mark ratioed to total pol II for nucleoplasm-enriched (purple), chromatin-enriched (blue), and non-enriched (red) genes. (D) Screenshot of the genome browser chromatin RNA-seq, nucleoplasm RNA-seq, cytoplasmic RNA-seq, and total pol II and CTD phosphorylation mNET-seq tracks of the protein-coding genes *PKM* (nucleoplasm-enriched) and *NFIA* (chromatin-enriched), and the lncRNA (*LINC01409*). The arrow indicates the sense of transcription.

The different pol II CTD phosphorylation profiles follow the expected mNET-seq pattern for the three groups of genes, with a higher signal for all CTD phosphorylation marks on nucleoplasm-enriched genes compared to chromatin-enriched genes (Figure 2B) (4,11). For the set of 632 lncRNAs, the mNET-seq patterns are also in agreement with what was previously published (Supplementary Figure S2A) (11). As total pol II levels differ between the three groups of genes, we ratioed each CTD phosphorylation signal to total pol II to determine whether the CTD phosphorylation levels are similar between the three groups of genes (Figure 2C). We found that the nucleoplasm-enriched genes have generally less phosphorylated CTD than the chromatin-enriched genes or non-enriched genes. In contrast, Tyr1 and Thr4 phosphorylation levels are higher in the gene body of the chromatin-enriched genes compared to the non-enriched genes or the nucleoplasm-enriched genes. For lncRNAs, we found a high Tyr1 phosphorylation level while the serine residues are less phosphorylated (Supplementary Figure S2B). We note however that the ratio approach is limited by potential differences in epitope accessibility and a lack of spike-in controls. Single gene examples of a nucleoplasm-enriched gene (PKM), a chromatin-enriched gene (NFIA), and a lncRNA (LINC01409) are shown in Figure 2D.

As Tyr1P and Thr4P levels are associated with a lower level of nascent transcription, we investigated whether the higher relative Tyr1P and Thr4P we observed for chromatin-enriched genes could be due to generally lower expression of these genes rather than a chromatin enrichment-specific CTD phosphorylation pattern (Figure 2B and Supplementary Figure S1F and G). To correct for difference in expression, we selected for each group, via an iterative random-subsampling approach, a subset of 500 genes with the most similar expression level and distribution in chromatin RNA-seq (see Materials and Methods, Figure 3A–C, Supplementary Figure S2C and D). Re-analysis of the CTD phosphorylation mNET-seq ratioed to total pol II on these three subsets of 500 genes indicates that the nucleoplasm-enriched genes have less Ser2, Thr4, Ser5, and Ser7 phosphorylation while the chromatin-enriched genes still have higher Thr4P, and to a lesser extent, Tyr1P (Figure 3D). To confirm the results, we also selected 10% of genes from each group, via an iterative random-subsampling approach, to obtain a similar nascent expression level and distribution from total pol II mNET-seq (see Methods, Figure 3E–G). Re-analysis of the CTD phosphorylation mNET-seq ratioed to total pol II on these three subsets of genes indicates that the nucleoplasm-enriched genes no longer have less Ser2, Thr4, Ser5 and Ser7 phosphorylation while the chromatin-enriched genes still have higher Tyr1 and Thr4 phosphorylation (Figure 3H). The subsampling performed with total pol II mNET-seq results in the selection of chromatin-enriched genes that are amongst the most expressed (compare y-axis of Figure 3E, average value around 5, to Supplementary Figure S1F, average value around 0.1). As hyperphosphorylation of the pol II CTD Thr4 residues is observed when the mark is either unratioed or ratioed to pol II for this subset of highly expressed chromatin-enriched genes, the higher Thr4 phosphorylation of chromatin-enriched genes is not simply due to generally lower expression but could be a feature of this category of genes.

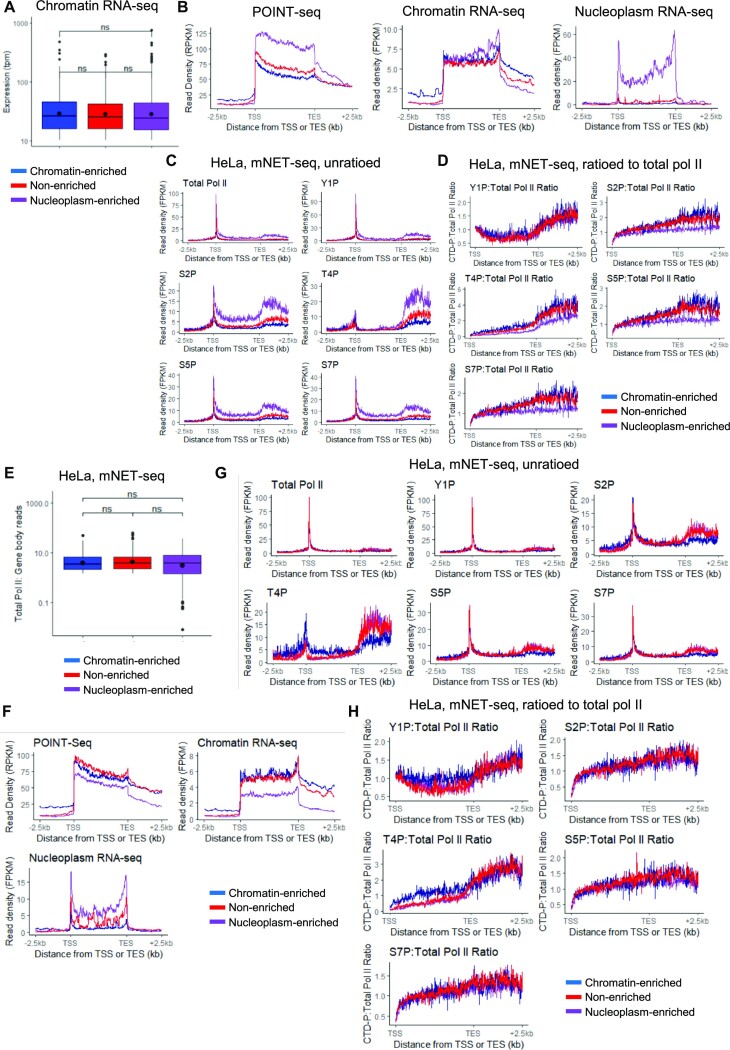

Figure 3. — Pol II CTD phosphorylation levels differ between genes encoding chromatin-enriched or nucleoplasm-enriched transcripts. (A) Boxplots, shown as min to max with first quartile, median, and third quartile, of the expression (TPM) in chromatin RNA-seq of the chromatin RNA-seq selected 500 nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. (B) Metagene profiles in HeLa cells of POINT-seq, chromatin RNA-seq, and nucleoplasm RNA-seq of the chromatin RNA-seq selected 500 nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. (C) Metagene profiles of mNET-seq in HeLa cells of total pol II and the different pol II CTD phosphorylation mark across the chromatin RNA-seq selected 500 nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. (D) Metagene profiles of mNET-seq in HeLa cells of each pol II CTD phosphorylation mark ratioed to total pol II across the chromatin RNA-seq selected 500 nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. (E) Boxplots, shown as min to max with first quartile, median, and third quartile, of the total pol II mNET-seq expression of the total pol II mNET-seq selected nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. (F) Metagene profiles in HeLa cells of POINT-seq, chromatin RNA-seq, and nucleoplasm RNA-seq of the total pol II mNET-seq selected nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. (G) Metagene profiles of mNET-seq in HeLa cells of total pol II and the different pol II CTD phosphorylation mark across the total pol II mNET-seq selected nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. (H) Metagene profiles of mNET-seq in HeLa cells of each pol II CTD phosphorylation mark ratioed to total pol II across the total pol II mNET-seq selected nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes.

We also investigated why the lower CTD phosphorylation to pol II ratio observed on nucleoplasm-enriched genes disappeared with the total pol II mNET-seq subsampling. Unlike the full gene set and chromatin RNA-seq subset of nucleoplasm-enriched genes, the total pol II mNET-seq subset of genes is on average not shorter than the chromatin-enriched and the non-enriched genes (Supplementary Figure S1C and Supplementary Figure S3A and 3B). However, we could not find any correlation between CTD phosphorylation ratioed to pol II and gene length (Supplementary Figure S3C), indicating another reason behind the disappearance. Comparison of the nucleoplasm-enrichment ratio with relative CTD phosphorylation reveals that the most nucleoplasm enriched genes have lower phosphorylation levels for Ser2, Ser5 and Ser7 ratioed to total pol II signal (see distribution of data points for the genes with a nucleoplasm-enrichment ratio above 4 in Supplementary Figure S3D). We therefore plotted the distribution of the nucleoplasm-enrichment ratios for the different subsets (Supplementary Figure S3E). The total pol II mNET-seq subset of nucleoplasm-enriched genes shows a specific decrease in the average nucleoplasm-enrichment ratio compared to the total genes and the chromatin RNA-seq subset genes, likely explaining the disappearance of the lower CTD phosphorylation levels ratioed to total pol II.

To confirm the observations made in HeLa cells, we also reanalysed chromatin RNA-seq and total RNA-seq from Raji cells (51) (Supplementary Figure S4A and B). Re-analysis of Raji pol II CTD datasets (6,10) on the groups of Raji total-enriched, non-enriched, and chromatin-enriched also indicates that there is higher Tyr1 and Thr4 phosphorylation on chromatin-enriched genes while total-enriched genes have less Tyr1, Ser2 and Thr4 phosphorylation (Supplementary Figure S4C and D). Comparison of the genes expressed in both HeLa and Raji shows that 47–63% of the nucleoplasm/total-enriched genes and 19–44% of chromatin-enriched genes are common between both cell lines (Supplementary Figure S4E). In addition, ∼160 genes were found to be in opposite categories between the two cell lines (chromatin-enriched to nucleoplasm/total-enriched or vice-versa).

These findings indicate that higher phosphorylation of Thr4, and to a lesser extent Tyr1, could be markers of chromatin-enriched genes while the nucleoplasm-enriched genes with the highest nucleoplasm enrichment ratio are rather associated with lower CTD phosphorylation levels.

Transcripts from chromatin-enriched genes are poorly processed

As pol II CTD phosphorylation is associated with co-transcriptional processes and we observed differences in CTD phosphorylation levels between nucleoplasm-enriched and chromatin-enriched genes, we investigated whether RNA processing efficiency, including pre-mRNA splicing and mRNA CPA, also differs between the two groups of genes. For pre-mRNA processing, we re-analysed HeLa POINT-seq data, which captures nascent RNA transcription and co-transcriptional splicing (Figure 1G) (16). We calculated co-transcriptional splicing efficiency as the ratio of spliced reads over total reads across each intron-containing protein-coding transcript. As expected, we observed a correlation between the number of exons and our measure of splicing efficiency (Supplementary Figure S5A), which agrees with previous observations that gene length positively correlates with co-transcriptional splicing efficiency (52). As the distribution of the number of exons per gene differs between the chromatin-enriched, nucleoplasm-enriched, and non-enriched genes (Supplementary Figure S5B), we normalized the splicing efficiency of each transcript to its number of exons (Figure 4A and B). We find for the three datasets (POINT-seq, chromatin RNA-seq, and nucleoplasm RNA-seq) that the chromatin-enriched gene transcripts have the lowest splicing efficiency while the nucleoplasm-enriched gene transcripts have the highest splicing efficiency. Importantly, while chromatin-enriched genes are on average longer than non-enriched and nucleoplasm-enriched genes (Supplementary Figure S1C), we observed a lower splicing efficiency on the transcripts from chromatin-enriched genes. As expected, lncRNAs are associated with a poor splicing efficiency on POINT-seq, chromatin RNA-seq, and nucleoplasm RNA-seq (Supplementary Figure S5C) (11). We confirmed the HeLa results with the Raji chromatin RNA-seq and total RNA-seq datasets (Supplementary Figure S5D). We show as examples PKM and NFIA, a nucleoplasm-enriched and a chromatin-enriched gene, respectively, and the lncRNA (LINC01409) with co-transcriptional splicing events indicated by a star (Figure 4C). While co-transcriptional splicing is visible on both NFIA and PKM, NFIA has stronger intronic signals compared to PKM, especially on the chromatin RNA-seq and nucleoplasm RNA-seq. As expected, the lncRNA shows poor co-transcriptional splicing. We also investigated whether there is a more general correlation between splicing efficiency in the POINT-seq or RNA-seq data and the production of mature mRNAs (nucleoplasm-enrichment ratio) (Figure 4D). We found that co-transcriptional splicing efficiency of nascent RNA does not correlate as well as the splicing efficiency of chromatin and nucleoplasm RNA-seq with the nucleoplasm-enrichment ratio (R = 0.25 for POINT-seq versus R = 0.38–0.42 for RNA-seq) (Figure 4D).

Figure 4. — Transcripts from chromatin-enriched genes are less co-transcriptionally spliced. (A) Boxplots, shown as min to max with first quartile, median and third quartile, of the splicing index of each transcript normalized to the number of exons from the POINT-seq data in HeLa cells of the chromatin RNA-seq 500 nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. Statistical test: Wilcoxon rank sum test. P-value: * < 0.05, **** < 0.0001. (B) Boxplots, shown as min to max with first quartile, median, and third quartile, of the splicing index of each transcript normalized to the number of exons from the chromatin RNA-seq and nucleoplasm RNA-seq data in HeLa of the chromatin RNA-seq 500 nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. Statistical test: Wilcoxon rank sum test. P-value: **** < 0.0001. (C) Screenshot of the genome browser POINT-seq, chromatin RNA-seq, and nucleoplasm RNA-seq tracks of the protein-coding genes *PKM* (nucleoplasm-enriched) and *NFIA* (chromatin-enriched), and the lncRNA (*LINC01409*). The read density of one biological replicate for each ChIP-seq is shown in colour while the other biological replicates density is shown below. Stars indicate the location of co-transcriptional splicing events. The arrow indicates the sense of transcription. (D) XY correlation plots of the nucleoplasm fold enrichment, defined as the fold change between nucleoplasm RNA-seq versus chromatin RNA-seq, and of the splicing index of each transcript normalized to the number of exons from POINT-seq, chromatin RNA-seq or nucleoplasm RNA-seq. The Pearson correlation with P-value is indicated on each plot. Nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red), and remaining (grey) genes are shown.

As co-transcriptional splicing is associated with deposition of trimethylation on histone H3 lysine 36 (H3K36me3) by SETD2 (53), we re-analysed HeLa mNuc-seq datasets for H3K36me3 (54) (Supplementary Figure S5E and S5F). In line with less efficient co-transcriptional splicing, chromatin-enriched genes have also lower H3K36me3 across the gene body.

As poor co-transcriptional splicing is also associated with transcriptional readthrough due to failure to recognise the poly(A) site (15,16), we analysed HeLa ChIP-seq of three CPA factors, CPSF73, PCF11, and Xrn2 (Figure 5A and Supplementary Figure S6A) (29). The nucleoplasm-enriched genes, and to a lesser extent the set of 632 lncRNAs, have clear peaks of CPA factors around the poly(A) site while the chromatin-enriched genes do not, suggesting inefficient mRNA CPA, as shown on PKM, NFIA, and LINC01409 (Figure 5B). To investigate mRNA CPA efficiency, we calculated the read-through index (RTI), which measures pol II pausing downstream of the poly(A) site (40), from Ser2P mNET-seq and observed that chromatin-enriched genes and lncRNAs have higher transcriptional readthrough compared to the nucleoplasm-enriched and unchanged genes (Figure 5C and D and Supplementary Figure S6B). We confirmed this observation by re-analysing mNET-seq and chromatin RNA-seq data treated with siLuc or siCPSF73 (Figure 5E and F and Supplementary Figure S6C and S6D) (11,40). The chromatin-enriched genes and lncRNAs are less sensitive to the loss of CPSF73 compared to non-enriched and nucleoplasm-enriched genes, which have more transcriptional readthrough following siCPSF73 treatment.

Figure 5. — Transcripts from chromatin-enriched genes have a weak mRNA cleavage and polyadenylation. (A) Metagene profiles in HeLa cells of CPSF73, PCF11, and Xrn2 ChIP-seq of the chromatin RNA-seq 500 nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. (B) Screenshot of the genome browser ChIP-seq tracks of the protein-coding genes *PKM* (nucleoplasm-enriched) and *NFIA* (chromatin-enriched), and the lncRNA (*LINC01409*). The read density of one biological replicate for each ChIP-seq is shown in colour while the other biological replicates density is shown below. The arrow indicates the sense of transcription. (C) Metagene profiles in HeLa cells of Ser2P mNET-seq treated with siLuc (grey) or siCPSF73 (coloured) of the chromatin RNA-seq 500 nucleoplasm-enriched, chromatin-enriched, or non-enriched genes. (D) Boxplots, shown as min to max with first quartile, median, and third quartile, of the read-through index calculated on the Ser2P mNET-seq treated with siLuc of the chromatin RNA-seq 500 nucleoplasm-enriched (purple), chromatin-enriched (blue), or non-enriched (red) genes. Statistical test: Wilcoxon rank sum test. P-value: ns: not significant, **** < 0.0001. (E) Boxplots, shown as min to max with first quartile, median, and third quartile, of the read-through index calculated on the Ser2P mNET-seq treated with siLuc (grey) or siCPSF73 (red) of the chromatin RNA-seq 500 nucleoplasm-enriched, chromatin-enriched, or non-enriched genes. Statistical test: Wilcoxon rank sum test. P-value: **** < 0.0001. (F) Metagene profiles in HeLa cells of chromatin RNA-seq treated with siLuc (black) or siCPSF73 (blue) of the chromatin RNA-seq 500 nucleoplasm-enriched, chromatin-enriched, or non-enriched genes.

These findings demonstrate that even though chromatin-enriched gene transcripts are on average longer, these transcripts are poorly processed, which could explain their higher chromatin association.

Transcripts from chromatin-enriched genes are sensitive to the nuclear RNA exosome

The nuclear RNA exosome complex promotes RNA degradation, for example of pre-mRNAs with processing defects, such as those with retained introns or transcriptional readthrough (55). We investigated whether the nuclear RNA exosome complex could degrade the transcripts from chromatin-enriched genes, which are poorly processed. We re-analysed previously published HeLa nucleoplasm RNA-seq treated with siLuc or siEXOSC3 (siEX3), a core component of the nuclear RNA exosome activity (Supplementary Figure S7A) (11). 551 transcripts, including 518 from protein-coding genes were downregulated and 1926 transcripts, including 427 from protein-coding genes, were up-regulated after depletion of the RNA exosome. Comparison of siEX3 upregulated genes (siEX3(+)) with chromatin-enriched or nucleoplasm-enriched genes shows only a moderate correlation (R = –0.29, P < 2.2e-16) (Supplementary Figure S7B). This initial analysis of the nuclear RNA exosome knockdown shows a limited effect on the mRNA levels based on exons. To determine whether an effect is observed on intron retention, a splicing defect targeted by the nuclear RNA exosome (55), we used rMATS on the chromatin and nucleoplasm RNA-seq before and after siEXOSC3 to obtain the list of significant splicing changes, including alternative 5’ and 3’ splice sites, mutually exclusive exons, retained introns, and skipped exons (Figure 6A and Supplementary Figure S7C). We found a specific increase in intron retention cases in nucleoplasm RNA-seq following siEXOSC3, indicating that these poorly-processed transcripts are usually degraded by the nuclear RNA exosome. To determine whether transcripts targeted by the nuclear RNA exosome are coming from chromatin-enriched, non-enriched, or nucleoplasm-enriched genes, we compared the changes in expression across the whole transcript units (exons and introns) before and after treatment with siEXOSC3 (Figure 6B and Supplementary Figure S7D and S7E). We found that the expression of transcripts from chromatin-enriched genes is more increased after siEXOSC3 compared to transcripts from non-enriched and nucleoplasm-enriched genes. To confirm the observation that the increase of transcripts from chromatin-enriched genes are also poorly processed, we calculated the splicing efficiency before and after siEXOSC3 (Figure 6C and Supplementary Figure S7F). Importantly, we found that the splicing efficiency of transcripts from chromatin-enriched genes are the most decreased following knockdown of the nuclear RNA exosome, which indicates an increase in the chromatin and nucleoplasm of poorly-processed transcripts from these genes. The increase in poorly-spliced transcripts from chromatin-enriched genes after siEXOSC3 can be observed on single gene examples, NFIA and MDM4, while no obvious changes in RNA splicing are visible for the transcripts of the nucleoplasm-enriched genes PKM and PSAP (Figure 6D). For the lncRNA LINC01409, we observed the expected increase in nucleoplasm RNA-seq following siEXOSC3 (Figure 6D).

Figure 6. — Transcripts from chromatin-enriched genes are sensitive to the nuclear RNA exosome. (A) Bar charts of significant changes in nucleoplasm RNA-seq of splicing events obtained with rMATs in control (siLuc, blue) or following the knockdown of the nuclear RNA exosome (siEX3, pink). A3SS: alternative 3’ splice site; A5SS: alternative 5’ splice site, MXE: mutually exclusive exons; IR: intron retention; SE: skipped exon. (B) Boxplots, shown as min to max with first quartile, median, and third quartile, of the expression level of full-length transcripts, including exons and introns, from the nucleoplasm RNA-seq data in HeLa cells in control (siLuc, blue) or after siEXOSC3 knockdown (siEX3, pink) of all nucleoplasm-enriched, chromatin-enriched or non-enriched genes. Statistical test: Wilcoxon rank sum test. P-value: n.s. not significant, *** < 0.001, **** < 0.0001. (C) Boxplots, shown as min to max with first quartile, median and third quartile, of the splicing index of each transcript normalized to the number of exons from the nucleoplasm RNA-seq data in HeLa cells in control (siLuc, blue) or after siEXOSC3 knockdown (siEX3, pink) of all nucleoplasm-enriched, chromatin-enriched, or non-enriched genes. Statistical test: Wilcoxon rank sum test. P-value: n.s. not significant, **** < 0.0001. (D) Screenshot of the genome browser total pol II mNET-seq, chromatin RNA-seq, and nucleoplasm RNA-seq tracks treated with siLuc (blue) or siEXOSC3 (red) of the protein-coding genes *PKM* and *PSAP* (nucleoplasm-enriched) and *NFIA* and *MDM4* (chromatin-enriched), and the lncRNA (*LINC01409*). The arrow indicates the sense of transcription.

These findings indicate that poorly-processed transcripts from chromatin-enriched genes that are released in the nucleoplasm are degraded by the nuclear RNA exosome.

DISCUSSION

Production of mature mRNA requires both transcription and co/post-transcriptional RNA processing. Regulation of gene expression via the control of transcription initiation and pol II pause release are well established (56). We show here that the efficiency of RNA processing is also an important factor controlling the chromatin association of transcripts, potentially because of higher R-loop levels (57), and the degradation in the nucleoplasm of poorly-processed transcripts by the nuclear RNA exosome (55,58). There is a large subgroup of protein-coding genes that are transcribed but the transcripts are poorly processed and chromatin-associated, which results in poor production of mature mRNAs and proteins. While we observe an enrichment of chromatin-enriched transcripts in the chromatin RNA-seq data compared to the POINT-seq data, the comparison does not provide a direct demonstration of chromatin association of the transcripts. Novel experimental approaches will be needed to properly quantify the extent of chromatin retention of transcripts. However, we found that this subset of chromatin-enriched genes shares transcriptional and co-transcriptional similarities with lncRNA genes (11). These include higher CTD Thr4 phosphorylation, poor pre-mRNA splicing and CPA, higher transcriptional readthrough, decreased sensitivity to CPSF73 KD, and degradation of the poorly-processed transcripts in the nucleoplasm by the nuclear RNA exosome (Figure 7). Together these observations explain the low levels of mature mRNAs from these genes and indicate that the cellular mechanisms that regulate levels of lncRNAs are also used to regulate expression of protein-coding genes. Of interest, Schlackow et al (11) also found a small subset of lncRNA genes whose transcripts are processed efficiently and not retained on the chromatin. These observations indicate that there is overlap between protein-coding genes and lncRNA genes in terms of the mechanisms operating at the transcriptional and co-transcriptional levels. The efficiency of transcription and co-transcriptional processes across transcription units, including protein-coding and non-coding genes, can be viewed as a continuum with poorly-expressed and poorly-processed lncRNAs at one end and highly-expressed and efficiently processed mRNAs at the other end with some overlap in the middle.

Figure 7. — RNA processing efficiency regulates mature mRNA level via a combination of chromatin association and nuclear RNA degradation. The high production of mature mRNAs of nucleoplasm-enriched genes is associated with a more efficient pre-mRNA splicing and mRNA CPA, resulting in the production of more stable mRNA that will be exported to the cytoplasm to be translated. In contrast, transcripts from chromatin-enriched genes are associated with higher phosphorylation of pol II CTD Thr4 residues, less efficient pre-mRNA splicing and mRNA CPA, chromatin association of the poorly processed transcripts, and a shorter mRNA half-life due to degradation by the nuclear RNA exosome of the poorly processed transcripts that are located in the nucleoplasm.

Some of the chromatin-enriched genes are well transcribed but produce hardly any mature mRNAs and proteins, which begs the question: what is the cellular advantage of transcribing a protein-coding gene without producing a protein? It is possible that these genes are transcribed but the transcripts are poorly processed until their proteins are required, which would require only the activation of RNA processing. Our data indicate that the downregulation of these genes occurs via poor co-transcriptional RNA processing, chromatin association of the transcripts, and degradation of the transcripts by the nuclear RNA exosome rather than low transcription. In addition, overlap between the HeLa and Raji datasets show a higher proportion of common genes between nucleoplasm-enriched genes (47–63%) compared to chromatin-enriched genes (19–44%), which indicates a higher diversity in transcribed but poorly-processed transcript genes, at least between these two cancer cell lines. Interestingly, while we found only ∼160 genes that are in opposing categories (chromatin-enriched in one cell line and nucleoplasm-enriched in the other, or vice-versa) between the two cell lines, this indicates that genes could potentially move from one category to another depending on the cell line or following a cellular stress, for example.

A surprising observation is the lower CTD phosphorylation level on the nucleoplasm-enriched genes, especially the genes with the highest nucleoplasm-enrichment ratios. As pol II CTD phosphorylation is known to recruit splicing proteins and mRNA CPA factors (59), it is unexpected that lower Ser2P and Ser5P levels are associated with better RNA processing. Slow pol II elongation has been shown to result in hyperphosphorylation of the CTD Ser2 residues at the 5’ end of genes, promoting a higher dwell time at start sites and a reduced transcriptional polarity (60). In addition, hyperphosphorylation of the pol II CTD during M phase inhibits pol II, which contributes to mitotic gene silencing (61,62). While more work is required, these observations suggest that the level of pol II CTD phosphorylation could play an important role in controlling transcription activity and co-transcriptional processing efficiency. However, the decrease in CTD phosphorylation for the nucleoplasm-enriched genes or the higher Tyr1 and Thr4 phosphorylation for chromatin-enriched genes was generally observed only after normalisation to total pol II. The measurement of pol II CTD phosphorylation using antibody-based technique contains several potential pitfalls, including different affinities of each antibody, the influence of other pol II CTD modifications on the antibody specificity, and CTD-interacting proteins that can influence antibody accessibility.

We previously found that inhibition of the protein phosphatase PP2A causes a higher production of poly(A)+ mRNA without any significant changes in transcription level (34), and this is likely due to more efficient cleavage and polyadenylation. Modulation of RNA processing efficiency can therefore regulate gene expression at several different levels.

DATA AVAILABILITY

The public data sources used in this study are described in the Materials and Methods section. Code and data to reproduce results and figures is available on Zenodo: https://doi.org/10.5281/zenodo.7933151.

Supplementary Material

lqad059_Supplemental_File

Click here for additional data file.^{(2.2MB, pdf)}

ACKNOWLEDGEMENTS

We thank Dr Andrew Angel (University of Aberdeen, UK) and Prof Nick. J Proudfoot (University of Oxford, UK) for discussion.

Author contributions: C.H. carried out all the bioinformatics analysis with supervision from M.T. S.M. supervised C.H. and M.T. M.T. and S.M. designed the project. M.T. wrote the paper with contributions from all the authors.

Contributor Information

Callum Henfrey, Sir William Dunn School of Pathology, University of Oxford, Oxford OX1 3RE, UK.

Shona Murphy, Sir William Dunn School of Pathology, University of Oxford, Oxford OX1 3RE, UK.

Michael Tellier, Sir William Dunn School of Pathology, University of Oxford, Oxford OX1 3RE, UK; Department of Molecular and Cell Biology, University of Leicester, Leicester LE1 7RH, UK.

SUPPLEMENTARY DATA

Supplementary Data are available at NARGAB Online.

FUNDING

Wellcome Trust Investigator Awards [WT106134AIA and WT210641/Z/18/Z to S.M.]. Funding for open access charge: Wellcome Trust.

Conflict of interest statement. None declared.
