Opening of capsaicin receptor TRPV1 is stabilized equally by its four subunits

Abstract

Capsaicin receptor TRPV1 is a nociceptor for vanilloid molecules, such as capsaicin and resiniferatoxin (RTX). Even though cryo-EM structures of TRPV1 in complex with these molecules are available, how their binding energetically favors the open conformation is not known. Here, we report an approach to control the number of bound RTX molecules (0–4) in functional rat TRPV1. The approach allowed direct measurements of each of the intermediate open states under equilibrium conditions at both macroscopic and single-molecule levels. We found that RTX binding to each of the four subunits contributes virtually the same activation energy, which we estimated to be 1.70 to 1.86 kcal/mol and found to arise predominately from destabilizing the closed conformation. We further showed that sequential bindings of RTX increase open probability without altering single-channel conductance, confirming that there is likely a single open-pore conformation for TRPV1 activated by RTX.

Allosteric coupling links structurally separate function domains together through a global conformational rearrangement, which, in protein complexes, introduces cooperativity (1). Cooperative activation can substantially enhance the sensitivity to a stimulus, hence bestows a significant functional advantage to multisubunit complexes. Indeed, multisubunit complex formation is a common phenomenon in biology (2). Even though diverse models have been satisfactorily used to describe the overall cooperative behavior in protein complexes (3, 4), it remains a major challenge to directly access cooperative activation among subunits as it occurs, limiting our understanding of the underlying mechanism. The Monod–Wyman–Changeux (MWC) model proposed over half a century ago (3) postulates that ligand binding to individual subunits promotes a concerted activation transition by an identical cooperative factor, f, which reflects energetic contribution by each subunit (Fig. 1A). However, exactly because of cooperative activation, the intermediate states (shaded in Fig. 1A) are rapidly traversed; their energetic contributions are rarely determined individually. Reflecting this challenge, a common practice has been to fit observed overall activities to a Hill function, yielding a slope factor estimate that is neither the cooperative factor nor the number of subunits but their combined contribution (5).

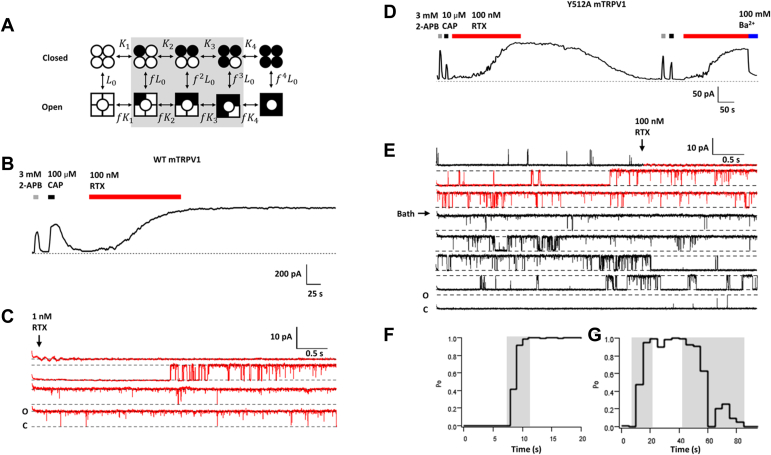

Figure 1.

Intermediate open states of wildtype and Y512A mutant channels.A, a classic MWC-type allosteric model for TRPV1 activation; circles and squares indicate a resting and activated subunit, respectively; open and filled symbols represent apo and resiniferatoxin (RTX)-bound subunits, respectively. L₀, K_n, fⁿK_n, and fⁿL₀ are equilibrium constants for each transition (n = 1–4). B, a representative macroscopic inside–out patch-clamp current trace of wildtype mTRPV1 at +80 mV. C, a representative inside–out single-channel recording of wildtype mTRPV1 activated by RTX. D, a representative inside–out macroscopic current trace of Y512A. Ba²⁺ was used to block channel current. E, a representative inside–out single-channel recording of Y512A activated by RTX. F and G, Po versus time plot for the recording shown in C and E, respectively. Transitional Po phases are highlighted by gray shading. Red segments in C and E indicate duration of RTX application. MWC, Monod–Wyman–Changeux; Po, open probability.

Biological ion channels are usually made of multiple functionally coupled subunits or repeating domains (6, 7). The capsaicin (CAP) receptor TRPV1 is a representative multisubunit ion channel (8, 9) whose activation exhibits allosteric properties (10, 11, 12, 13). TRPV1 is known to serve as a polymodal nociceptor; its activation by vanilloids has been investigated in both functional and structural studies (14). Vanilloid compounds occupy a binding pocket within the transmembrane region surrounded by multiple transmembrane segments and the S4–S5 linker (9). In a typical recording of the mouse TRPV1 activated by CAP, current amplitude reached over 90% maximum within hundreds of milliseconds (Fig. S1). Even though this activation process is slow among ion channels, the intermediate states were swiftly traversed and could not be individually identified and studied (15). Methods to slow down activation and to fix gating transition in individual subunits were developed in this study, which allowed direct assessment of the property of intermediate states and subunit coupling at equilibrium under physiological conditions.

Results

We first used resiniferatoxin (RTX), a potent TRPV1 activator (8), to replace CAP as the agonist. RTX binds in the same vanilloid-binding pocket as CAP (9) but activates the channel with an extremely slow (in minutes) time course; RTX-induced activation is also irreversible (Fig. 1B). The slow activation time course revealed a clear transition phase of increasing open probability (Po) in single-channel recordings (Fig. 1, C and F), indicating sojourns in unstable intermediate open states as suggested by the MWC model. However, these transient and stochastic events were observed under nonequilibrium conditions, hence were still difficult to analyze.

From the RTX–TRPV1 complex structures (9, 16), we identified key channel residues that directly interact with a bound RTX (Fig. S2). Mutations to these residues in most cases either exerted minor gating effects or eliminated function (Fig. S3). Mutating Y512 to alanine retained the slow activation property of the wildtype channel but noticeably made RTX activation completely reversible (Fig. 1D). We have previously suggested that Y512 serves to physically block a bound vanilloid molecule from exiting the binding pocket (17), in agreement with structural (16) and functional (18) observations. Molecular docking of RTX to TRPV1 structures in the closed (C1 and C2) and open (O1) states using RosettaLigand (RosettaCommons, https://www.rosettacommons.org/software/license-and-download) (19, 20) suggested reductions in Rosetta binding energy by this point mutation, in supportive of weakening of RTX binding (Fig. S4). After washing off RTX, Y512A channels could be activated by 2-APB, CAP, and RTX similar to naïve channels without detectable desensitization (under the Ca²⁺-free condition). Single-channel recordings confirmed that Y512A traversed the transition phase during both activation and deactivation time courses (Figs. 1, E and G and S5).

Taking advantage of the reversibility property of the Y512A mutant, we studied rat TRPV1 concatemers containing different numbers of wildtype and Y511A mutant (equivalent to Y512A in mouse TRPV1) subunits (Fig. 2A). These concatemer channels were previously shown to respond to CAP in a concentration-dependent manner, with the CAP potency progressively decreased as the number of mutant protomers increased (21). We confirmed that the spontaneous Po of each concatemer matched that of wildtype channels (Fig. 2, D and E). We observed with macroscopic (Fig. 2B) and single-channel recordings (Fig. S6) that RTX could fully activate all concatemer channels. Importantly, currents from these concatemers exhibited gradually enhanced reversibility upon washing off RTX, with channels containing all or three wildtype subunits (YYYY and YYYA, respectively) exhibiting little current deactivation, whereas those with all Y511A subunits (AAAA) deactivated completely like channels formed by unlinked monomeric mouse Y512A subunits (Fig. 1D). We further confirmed that the remaining currents were not because of an unstable patch (Fig. 2B) but instead represented steady intermediate Pos (Figs. 2C and S6). These behaviors are expected as RTX binding to the Y511A subunits in concatemers is reversible but irreversible when bound to the wildtype subunits. Therefore, after extended washing, the concatemer channels contained a fixed number (zero to four) of bound RTX molecules.

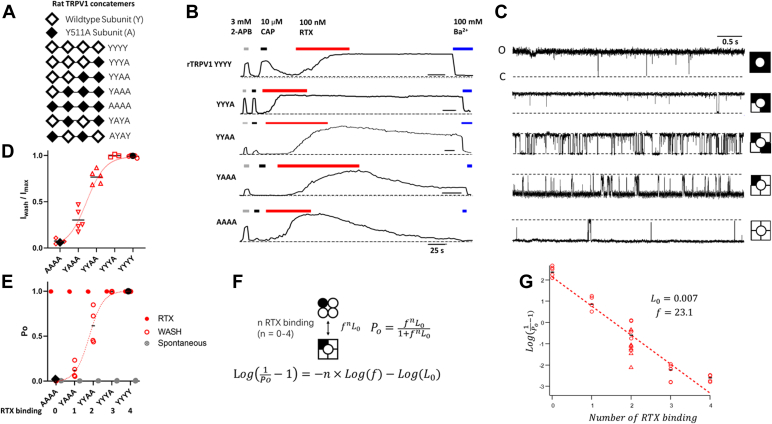

Figure 2.

Equilibrium measurements of transition states.A, illustration of concatemer complementary DNA (cDNA) constructs. B and C, representative inside–out current traces from concatemer channels. Resiniferatoxin (RTX) activation reached near 100% Po and was partially or fully reversible, depending on the number of mutant subunits. The Y511A mutation did not affect 2-APB activation and, as expected, shifted the concentration dependence for capsaicin activation to the right (17, 21). D, normalized remaining currents after complete wash (Iwash/Imax) can be well fitted to the function Po = (fⁿL₀)/(1+fⁿL₀). E, spontaneous (filled gray circles), maximal (filled red circles), and remaining Po (open red circles) measurements from single-channel recordings fitted to the same function as in D. For D and E, black diamonds and circles represent the level of the spontaneous activity of the apo state and maximal activity of the fully RTX-bound state, respectively, of the wildtype channel. F, the simplified MWC model when the number of bound RTX is fixed. G, estimation of Lo and f using the model in F. Data points from YAYA and AYAY are presented in red triangles. MWC, Monod–Wyman–Changeux; Po, open probability.

The concatemers allowed us to characterize each vertical equilibrium of the MWC model (Fig. 1A) in isolation. For example, after fully activating the YYAA channels and washing off RTX from the mutant subunits, each channel contained two RTX molecules (the third column of the model). The Po value of these channels could be determined from both macroscopic currents (77 ± 3% of the maximum response; Fig. 2D) and single-channel currents (62 ± 10%; Fig. 2E) at the steady state. Po estimates for YYYY and AAAA channels matched those from channels made of wildtype and mutant monomeric subunits, respectively (Fig. 2, D and E). The Po measurements from all concatemers could be satisfactorily fitted to a general formula derived from the MWC model that describes the relationship between Po and the number of bound ligands (Fig. 2F). Transformation of the formula yields a linear function that allows easy estimation of the equilibrium constant of unliganded channels, L₀, and the cooperative factor, f. Figure 2G shows results from the single-channel data. We estimated the L₀ value to be 0.007, equivalent to a resting Po of 0.7%, which is consistent with experimental observations from wildtype channels (22); we estimated the f value to be 23.1, equivalent to an activation energy of 1.86 kcal/mol per RTX binding (Fig. 2G).

It is noticed that a linear fit agreed with experimental measurements remarkably well, suggesting that subunit contributions to activation are indeed equal, as postulated by the MWC theorem. The position of wildtype and mutant subunits within the concatemers had no obvious influence on the activation energy, as data from concatemers YAYA and AYAY agreed reasonably well with that from YYAA (Figs. 2G and S7), an observation consistent with the new cryo-EM data showing that RTX binding has no position preference (16).

Where does the 1.86 kcal/mol activation energy arise from? For the isolated transition shown in Figure 2F, the equilibrium can be altered at either the closed state or the open state, both of which could contribute to an increased equilibrium constant. To quantify energetic effects of RTX binding to the closed and open states, we analyzed single-channel dwell-time distributions of the concatemers at steady state (Fig. 3). When results from all concatemers were compared, we found that the mean dwell time of the closed state decreased exponentially with an increasing number of bound RTX, whereas the mean dwell time of the open state increased exponentially (Fig. 3B). Equilibrium constant values estimated from dwell-time measurements matched closely with those estimated from Po measurements (Fig. 3C). From linear fittings of the log-transformed dwell times (Fig. 3B), we estimated that each RTX binding destabilized the closed state by 1.17 kcal/mol, stabilized the open state by 0.53 kcal/mol, therefore producing a total of 1.70 kcal/mol of activation energy. Therefore, activation of TRPV1 by RTX originates predominately from destabilization of the closed state.

Figure 3.

Single-channel dwell-time analysis reveals energetic effects on the closed and open states.A, an example of inside–out single-channel trace from the YAAA channel. B, relationship between dwell time in the closed state or open state and the number of resiniferatoxin (RTX) binding. Dotted lines represent linear fits of the log-transformed data, with a slope factor of 0.86 for the closed state and −0.39 for the open state. The mean values are shown as black bars. n = 3 to 5. C, comparison between log-transformed lifetime ratios (red) and Pos (black). Dashed lines represent linear fits, with slope factor values of 1.36 (Po) and 1.25 (lifetime ratio). Po, open probability.

Measurements from the concatemers revealed that the Po values with 0 to 4 bound RTX molecules. Using this information, we could tentatively identify the intermediate open states produced by sequential bindings of RTX during the course of activation. A typical time course of the wildtype channel single-channel activation exhibited distinct open states with low, moderate, and high Po values, corresponding to one-, two-, and three- or four-bound RTX molecules, respectively (Fig. 4A). All these open states, observed in the same single-channel recording, exhibited identical amplitudes (Fig. 4, B and C). Similar observations were made from the concatemers. This finding is consistent with the classic MWC model in which the multisubunit complex exists in two (tense and relaxed) conformations, with ligand binding progressively shifting the equilibrium toward the relaxed, a.k.a. open, conformation (3). Our results suggest that TRPV1 activated by RTX has a single open pore conformation.

Figure 4.

Resiniferatoxin (RTX)-induced open states exhibit identical single-channel conductance.A, a representative inside–out single-channel trace from the wildtype TRPV1 activated by RTX. Distinct states with varying numbers of bound RTX were assigned according to Po. B, all-point histograms (with double-Gaussian fitting) of the three phases as shown in A; only the Pos, represented by the relative areas of the two Gaussian functions, changed but not the single-channel amplitude. C, comparison of single-channel amplitudes of distinct phases measured from 16 individual patches. One-way ANOVA with Tukey’s multiple comparisons test, p = 0.9025; ns, no significant difference. D, Eyring energy plots for channels with varying numbers of bound RTX. Ligand binding shifts the closed state energy more substantially than the open state; the four ligand-binding steps shift these energies by the same amount; the energy wells for the closed and open states remain at the same locations along the reaction coordinate. The level of energy barrier is artificially set and unchanged. Po, open probability.

Discussion

Previously, we reported that structurally related natural vanilloids from chili peppers and gingers as well as synthetic CAP derivatives induce similar conformational changes of the vanilloid-binding pocket of TRPV1, even though they may bind in different poses (23, 24, 25). We now present data suggesting that the activated channel pore adopts the same open conformation when a varying number of vanilloid-binding pockets are occupied by RTX, consistent of pore opening being a concerted transition. Putting together, these observations support the general assumption that TRPV1 behaves as an allosteric protein (10, 11, 12, 13). By fixing the number of bound RTX molecules, we were able to directly quantify equilibrium properties from otherwise unstable intermediate states at both macroscopic and single-molecule resolutions. We observed that binding of RTX to each of the four subunits yielded an equal activation energy, as predicted by the classic MWC model for homotropic cooperativity. A recent structural study of RTX–TRPV1 complexes indeed suggested nonpreference in RTX binding to the four subunits (16). The activation energy, estimated at 1.70 to 1.86 kcal/mol per liganded subunit, is comparable to that of other channels such as CNG channels (0.84 to 1.3 kcal/mol) determined indirectly from overall ligand activation behaviors (26, 27). The comparable maximal Po of CAP-activated channels indicates that CAP binding is expected to produce a similar activation energy (17). Combining the activation energies from multiple subunits contributes to an exponential increase in Po (the 1.86 × 4 = 7.44 kcal/mol activation energy shifts the closed-to-open equilibrium toward the open state by over 280,000 folds) (Fig. 4D). For TRPV1 activated by RTX, the shift in equilibrium originates mostly from destabilization of the closed state.

Energetic contributions from the four subunits represent substantial activation cooperativity in TRPV1. Indeed, cooperative activation is a common phenomenon for diverse allosteric proteins. However, a general challenge for studying a cooperative process is to capture the intermediate states with either functional methods or structural methods. In the absence of direct information concerning the intermediate states, a mechanistic interpretation is often speculative. The MWC model for allosteric proteins made of identical subunits (3) has been successfully applied to a wide variety of proteins including those made of different subunits. Nonetheless, equivalence in subunit contributions, a key feature distinguishing it from a Koshland–Némethy–Filmer–type sequential model (4), remains a postulation. One key validation of the MWC theorem—measuring directly from the intermediate activation states—has been lacking, because of cooperativity among subunits that makes transitional states intrinsically unstable. Here, we designed methods locking TRPV1 in each of the intermediate activation states with varying ligand occupations, which allowed direct measurements of their thermodynamic properties under physiological conditions at equilibrium. Near-perfect equivalence in subunit contribution to allosteric coupling was confirmed.

All RTX-induced open states are found to produce identical single-channel current amplitudes, suggesting that the activated pore adopts near identical conformations. Therefore, pore opening by RTX appears to be driven by a concerted conformational change. Our functional data hence suggest that structural asymmetry of the activated states occurs mainly in the vanilloid-binding pockets, consistent with the recently reported RTX–TRPV1 complex structures (16). Based on the 1.86 kcal/mol/subunit activation energy, channels with one to four bound RTX molecules are expected to exhibit a Po of 13.9%, 78.9%, 98.8%, and 99.9%, respectively. Channels with two bound RTX molecules already spend two-third of the time in the open state under physiological conditions. Only the fully RTX-bound channels were assigned an open state in cryo-EM studies (16, 28), suggesting a shift in stability of the closed and/or open conformation under these experimental conditions, such as lower temperatures (22).

Concerted pore opening has been previously proposed for other channel types including Kv channels, for which independent voltage-sensor movements in the four subunits precede channel activation (29, 30). Very brief (microseconds) subconductance states were found to be associated with asymmetrical subunit activations by voltage, hence representing intermediate gating states (31, 32). It was proposed that subconductance states could arise from filtering effects on very rapid flickering events—representing likely a concerted transition—between the fully open state and the closed state, with voltage-dependent subunit activations progressively shifting the equilibrium toward the open state (31). While TRPV1 activation by RTX exhibited similar progressive shifting toward the open state, dwell times in the closed and open states appeared to be long enough to skip the filtering effect on current amplitude. The allosteric behavior described in the present study may help correlate published high-resolution channel structures (16, 33) with distinct functional states toward a better understanding of the activation mechanism of TRPV1 and other ion channels.
