Maresin 1 activates brown adipose tissue and promotes browning of white adipose tissue in mice

Abstract

Objective

Maresin 1 (MaR1) is a docosahexaenoic acid-derived proresolving lipid mediator with insulin-sensitizing and anti-steatosis properties. Here, we aim to unravel MaR1 actions on brown adipose tissue (BAT) activation and white adipose tissue (WAT) browning.

Methods

MaR1 actions were tested in cultured murine brown adipocytes and in human mesenchymal stem cells (hMSC)-derived adipocytes. In vivo effects of MaR1 were tested in diet-induced obese (DIO) mice and lean WT and Il6 knockout (Il6^−/−) mice.

Results

In cultured differentiated murine brown adipocytes, MaR1 reduces the expression of inflammatory genes, while stimulates glucose uptake, fatty acid utilization and oxygen consumption rate, along with the upregulation of mitochondrial mass and genes involved in mitochondrial biogenesis and function and the thermogenic program. In Leucine Rich Repeat Containing G Protein-Coupled Receptor 6 (LGR6)-depleted brown adipocytes using siRNA, the stimulatory effect of MaR1 on thermogenic genes was abrogated. In DIO mice, MaR1 promotes BAT remodeling, characterized by higher expression of genes encoding for master regulators of mitochondrial biogenesis and function and iBAT thermogenic activation, together with increased M2 macrophage markers. In addition, MaR1-treated DIO mice exhibit a better response to cold-induced BAT activation. Moreover, MaR1 induces a beige adipocyte signature in inguinal WAT of DIO mice and in hMSC-derived adipocytes. MaR1 potentiates Il6 expression in brown adipocytes and BAT of cold exposed lean WT mice. Interestingly, the thermogenic properties of MaR1 were abrogated in Il6^−/− mice.

Conclusions

These data reveal MaR1 as a novel agent that promotes BAT activation and WAT browning by regulating thermogenic program in adipocytes and M2 polarization of macrophages. Moreover, our data suggest that LGR6 receptor is mediating MaR1 actions on brown adipocytes, and that IL-6 is required for the thermogenic effects of MaR1.

Highlights

• •MaR1 promotes BAT remodeling and activation in diet-induced obese (DIO) mice.
• •MaR1 induces a beige adipocyte signature in WAT of DIO mice and in human adipocytes.
• •The thermogenic properties of MaR1 are abrogated in Il6 null mice.
• •LGR6 mediates MaR1 actions on thermogenic genes in brown adipocytes.

1. Introduction

Brown adipose tissue (BAT) activation has been brought to attention, since it provides a protective mechanism against excessive body weight and fat mass accumulation [1]. Beyond thermogenesis, emerging roles of BAT activation have been described, including control of triglyceride clearance [2], glucose homeostasis and insulin sensitivity [[3], [4], [5]] and, recently, BAT has been identified as an endocrine tissue [6]. In white adipose tissue (WAT), beige adipocytes can also dissipate energy as heat [7], and white-to-beige conversion has been pointed out as a potential therapy against obesity and insulin resistance [8]. BAT activation and WAT browning occur in response to certain stimuli such as β3-adrenergic stimulation and chronic cold exposure [9]. However, associated side effects and uncomfortableness respectively, limit their therapeutic applications. Consequently, the identification of new therapeutic agents capable of activating BAT and promoting WAT browning in an attempt to ameliorate obesity-associated metabolic disorders is highly encouraged.

A variety of bioactive lipid metabolites derived from polyunsaturated fatty acids (PUFAs), like Prostacyclin (PGI2), Prostaglandin E2 (PGE2), Prostaglandin F2alpha (PGF2α) and 12,13-DiHOME have been identified as novel regulators of thermogenesis in BAT and beige adipocytes [[10], [11], [12]]. Particularly, n-3 PUFAs have been described as inducers of BAT activity and WAT browning in mice [13]. The n-3 PUFAs eicosapentaenoic acid (EPA) and docosahexaenoic acid (DHA) are substrates for the formation of specialized proresolving lipid mediators (SPMs), including resolvins, protectins and maresins that actively participate in the resolution of inflammation in several tissues including WAT [14]. Maresin 1 (MaR1) is a DHA-derived SPM that was first identified in macrophages and more recently in other tissues [15,16]. MaR1 and its precursor promote the shift of macrophage phenotype toward an M2 profile [17]. Recently, we and others found that MaR1 modulates adipokine secretion in human white adipocytes and attenuates WAT inflammation, improves insulin sensitivity, and reduces liver steatosis in animal models of obesity [16,[18], [19], [20], [21], [22]]. It has been described that 12-lipoxygenase (12-LOX), an enzyme involved in the biosynthesis of MaR1, regulates cold adaptation in brown fat [23]. A recent lipidomic study carried out by our group detected MaR1 in BAT of mice and found that MaR1 levels are negatively correlated with the expression of C–C motif chemokine ligand 2 (Ccl2), a proinflammatory gene [24]. However, whether MaR1 can activate BAT and/or promote WAT browning remains elusive.

In the present study, we found that MaR1 promotes thermogenic activation of brown murine adipocytes and induces browning of cultured human mesenchymal stem cells (hMSC)-derived adipocytes. MaR1 is also an activator of interscapular BAT (iBAT) and induces browning of inguinal WAT (iWAT) in vivo in diet-induced obese (DIO) mice. Using interleukin-6 (Il6) knockout (Il6^−/−) mice, we also demonstrated that IL-6 is required for MaR1 stimulatory actions on iBAT activation and iWAT browning under cold exposure. Moreover, studies using siRNA-mediated Leucine Rich Repeat Containing G Protein-Coupled Receptor 6 (LGR6) knock-down suggest that this receptor is mediating MaR1 actions in brown mature adipocytes.

2. Materials and methods

2.1. Mice models and treatments

All experimental procedures were performed under protocols approved by the University of Navarra Ethics Committee and Animal Ethics Committee of Eurecat for the use of laboratory animals, according to the National and Institutional Guidelines for Animal Care and Use (Protocols number: 047-15; E59-16(047-15E1); 090c-17; 110-17; 032-20; 10281).

2.1.1. Chronic MaR1 treatment to diet-induced obese mice

C57BL/6J male mice (7 weeks old) were obtained from Harlan Laboratories (Barcelona, Spain), and housed in plastic cages (three-four animals per cage) under controlled conditions (22 ± 2 °C, 12 h light–dark cycle, relative humidity, 55 ± 10%). Animals were fed a standard mouse pelleted chow diet (13% of kcal from fat, 67% from carbohydrates and 20% from protein) from Harlan Teklad Global Diets (Harlan Laboratories, Indianapolis, IN, USA) for an adaptation period of 7 days. Then, one group (Control) was fed ad libitum with standard mouse chow (control) diet, and a second group (DIO) with a high-fat diet (60% of kcal from fat, 20% from carbohydrates and 20% from protein) provided by ResearchDiets (New Brunswick, USA) for three months. Thereafter, the control group received a daily oral gavage of the vehicle (100 μl of sterile saline-0.1% ethanol) for 10 days. Additionally, DIO mice were assigned into two subgroups that received a daily oral gavage of the vehicle or MaR1 (50 μg/kg body weight, Cayman, Ann Arbor, MI, USA) for 10 days.

2.1.2. Acute MaR1 treatment to wild type and Il6 knock-out mice

Il6^−/− mice were a generous gift from the group of Prof. Ávila (University of Navarra) and were housed as described above. WT (C57BL/6J) and Il6^−/− male animals (8 weeks old) were fed control diet. After a single injection with MaR1 (50 μg/kg; i. p.) or vehicle, animals were housed at 4 °C for 24 h. Body weight and rectal temperature (Thermometer pb 0331, Panlab, Barcelona, Spain) were measured before and after treatment.

2.1.3. In vivo study of iBAT activation by positron emission tomography (PET)

BAT activation after both acute and chronic treatment with MaR1 was studied in vivo by PET with the radiotracer ¹⁸F-fluorodeoxyglucose (¹⁸F-FDG). In the chronic treatment, MaR1 (50 μg/kg; 10 days, oral gavage) or vehicle were administered to DIO mice as described above. In the acute treatment, MaR1 (50 μg/kg; i. p.) or vehicle were injected to male lean WT and Il6^−/−mice. Thirty minutes after administration, iBAT was stimulated by cold exposure during 1 h at 4 °C [25]. After cold exposure, ¹⁸F-FDG (10.1 ± 0.9 MBq) was injected through the tail vein. PET static images were acquired 1 h (room temperature) post ¹⁸F-FDG injection in a small animal PET scanner (Mosaic, Philips, Amsterdam, Netherlands). For each study, animals were anesthetized with 2% isoflurane in 100% O₂ gas. All studies were analyzed using PMOD software (PMOD Technologies Ltd., Adliswil, Switzerland). For semiquantitative analysis, ¹⁸F-FDG uptake by BAT was evaluated drawing volume-of-interest (VOIs) on coronal PET images including the interscapular BAT (iBAT). From each VOI, maximum standardized uptake value (SUVmax) was calculated using the formula SUV = [tissue activity concentration (Bq/cm³)/injected dose (Bq)] × body weight (g).

2.1.4. Thermography imaging

In vivo BAT area temperature of mice was measured as previously described [26]. Briefly, temperature of the skin BAT area was measured by infrared thermal images after 1 h cold exposure (4 °C) with or without MaR1 (50 μg/kg, i. p.) in lean WT and Il6^−/− mice. Temperatures were recorded using a T335 infrared digital thermal imaging camera (FLIR Systems, Wilsonville, OR, USA), which features a thermal sensitivity of 0.1 °C. Environmental parameters (relative humidity, room temperature and reflected apparent temperature) were measured in situ and set in the camera as parametric inputs from the experiment. Triplicate infrared pictures of non-anaesthetized animals were taken from 30 cm. Mice were shaved 48 h before thermographic measurements. The resulting images were analysed using the FLIR QuickReport 1.2 software (FLIR Systems). Maximal temperature values from the BAT area were retrieved.

2.1.5. Whole body indirect calorimetry

Whole-body indirect calorimetry analyses were performed using the OxyletProTM System (Panlab, Cornellà, Spain) in seven C57BL/6J male (8-weeks-old) mice treated intraperitoneally with vehicle, and after a week of washout, treated with MaR1 (50 μg/kg). Just after receiving vehicle or MaR1 treatments (at 10 am), mice were transferred to an acrylic box (Oxylet LE 1305 Physiocage, Panlab) with free access to water and food. After 1 h of acclimation period, oxygen consumption (VO₂) and carbon dioxide production (VCO₂) were measured every 15 min by an O₂ and CO₂ analyzer (Oxylet LE 405 gas analyzer, Panlab) at a constant flow rate of 600 mL/min (Oxylet LE 400 air supplier, Panlab). At each measure, the program Metabolism 2.1.02 (Panlab) calculated the respiratory quotient (RER) as the VCO₂/VO₂ ratio and energy expenditure (EE) as VO₂ × 1.44 × [3.815 + (1.232 × RER)] (kcal/day/kgˆ0.75) [27].

2.2. Cellular and tissue models

2.2.1. Brown adipocytes culture and treatments

Primary brown adipocytes were obtained from the iBAT of neonatal mice and immortalized as previously described [28]. Brown pre-adipocytes were differentiated as described [29]. Briefly, immortalized brown preadipocytes were grown in high glucose DMEM (Gibco™) supplemented with 10% fetal bovine serum (FBS; Gibco™), 20 nM insulin (Sigma–Aldrich) and 2 nM triiodothyronine (T3; Sigma–Aldrich) (differentiation medium, DM) until reaching confluence. Next, the cells were cultured for 2 days in induction medium (IM) consisting of DM supplemented with 0.5 μM dexamethasone (Sigma–Aldrich), 0.125 μM indomethacin (Sigma–Aldrich), 1 μM rosiglitazone (Sigma–Aldrich) and 0.5 mM isobutyl-methyl-xanthine (IBMX; (Sigma–Aldrich). Then, cells were cultured in DM until day 7 in which they exhibited a fully differentiated phenotype. Brown mature (fully differentiated) adipocytes were treated with vehicle or MaR1 (0.1 and 1 nM for 24 h). In other set of experiments, brown adipocytes were treated with other SPMs such as Maresin 2 (MaR2), Resolvin D1 (RvD1) and Resolvin D2 (RvD2), at concentrations of 0.1 and 1 nM for 24 h.

Changes in the temperature of brown cultured adipocytes were measured as previously described [13]. Brown adipocytes were grown in a 12-well plate and placed on a 37 °C heat block in a polystyrene box coated with black paper to optimize insulation. Images were acquired and analyzed with the same infrared camera and software pointed above for mice.

2.2.2. Culture and differentiation of brown preadipocytes from iBAT of WT and Fgf21^−/− mice

Stromal vascular cells were obtained from iBAT excised from WT and their counterparts Fgf21 knockout mice (Fgf21^−/−) (3 weeks old; males and females) in Dr. Villarroya's laboratory (UB, Barcelona, Spain). Primary cultures were induced to differentiate into brown adipocytes, following the previously reported procedures [13]. Briefly, brown adipocyte differentiation was achieved by exposing confluent precursor cells from iBAT in DMEM/F12 medium containing 10% FBS and supplemented with 20 nM insulin, 2 nM T3, and 0.1 mM ascorbic acid. Then, mature brown adipocytes were treated with vehicle or MaR1 (1 nM, 24 h).

2.2.3. iBAT and iWAT explants

WT and Il6^−/− mice (8 weeks old) were sacrificed and iBAT and iWAT were removed, washed with PBS and chopped into 8 parts small 1 mm² pieces to generate fat explants that were seed for 2 h in high glucose DMEM (Gibco™) containing 2% bovine serum albumin (BSA; Sigma–Aldrich) [30,31]. After 30 min of acclimation, explants were treated with vehicle or MaR1 (1 nM; 3 h) at 37 °C. Then explants were harvested and stored for protein or mRNA extraction.

2.2.4. Human mesenchymal stem cells (hMSC) culture and treatments

hMSC from subcutaneous abdominal adipose tissue of non-diabetic obese male and female subjects (BMI: 30–41 kg/m²) undergoing elective laparoscopic surgery were obtained by Dr. Arbones-Mainar (Instituto Aragonés de Ciencias de la Salud, Zaragoza, Spain). This study was approved by the Institutional Review Board (Research Ethic Committee of Aragón, CEICA 20/2014), and informed consent was obtained from all participants. hMSC were isolated and maintained as previously described [19,32]. To study the effects of MaR1 treatment during the differentiation process, MaR1 (1, 10 and 100 nM) was added on confluent un-differentiated hMSC cells at the same time of the adipogenic cocktail and then added to fresh medium ever after.

2.2.5. RAW 264.7 macrophages culture and treatments

RAW 264.7 cells (murine macrophage cell line) were grown in complete medium Roswell Park Memorial Institute (RPMI; Gibco™ 1640) supplemented with 10% FBS, 50 U/mL penicillin, and 50 μg/U/mL streptomycin (Gibco™). Cells were untreated or stimulated with bacterial lipopolysaccharide (LPS; Invitrogen) at 100 ng/mL for 24 h and with vehicle or MaR1 (0.1, 1 nM; 24 h). Then, macrophages were collected for analysis of extracted RNA and culture media were collected and centrifuged at 1,950 g for 20 min, and filtered through 0.22 μm filters (Millipore, Billerica, MA, USA) to remove cells and debris. Control medium or conditioned media of RAW macrophages (25%) were used to treat mature brown adipocytes for 24 h with vehicle or MaR1 (0.1, 1 nM; 24 h).

2.3. Biochemical analyses

Serum insulin levels of mice were determined by ELISA (Mercodia, Uppsala, Sweden) according to the manufacturer's guidelines. Fasting glucose levels were measured with a standard glucometer (Accu-Check Advantage blood glucose meter, Roche, Basel, Switzerland). Levels of of fibroblast growth factor (FGF21) in brown adipocytes culture medium and IL-6 levels in serum were measured by Milliplex ELISA kit (Merck, Madrid, Spain).

2.4. Body composition

Body composition was measured in mice before and at the end of the study by QMR technology (EchoMRI-100-700, Echo Medical Systems, Houston, TX, USA) as previously described [19].

2.5. Histological analysis of iBAT and iWAT

iBAT and iWAT pieces of DIO mice treated with vehicle or MaR1 (50 μg/kg; oral gavage for 10 days) were fixed in 4.3% neutral formalin (pH 7.4) for 24 h, dehydrated with 70% ethanol, and embedded in paraffin. Five μm thick sections were deparaffinized and stained with haematoxylin-eosin (H&E) or treated for immunofluorescence (IHF) studies. iBAT and iWAT images (magnification 100×) were taken with the camera Nikon SMZ18 (Nikon Instruments Europe, Amsterdam, Netherlands). Mean lipid droplet area in adipose tissue H&E-stained samples was quantified with ImageJ 2.0 imaging suite (U.S. National Institutes of Health, Bethesda, MD, USA). For IHF, rehydrated tissue sections were blocked with 3% BSA for 1 h at room temperature. Preparations were then incubated with CD206 (Proteintech, Rosemont, IL, USA) antibody followed by IgG secondary antibody (Alexa fluor 488 Goat anti-Rabbit). Immunofluorescence signals were visualized under a fluorescence microscope ZOE Fluorescent Cell Imager, Bio-Rad, Hercules, CA, USA) and quantified using the ImageJ 2.0 imaging suite.

2.6. 2-Deoxy-d-glucose (2-DG) uptake in brown adipocytes

2-DG uptake was measured as previously described [33]. Briefly, fully differentiated mature brown adipocytes treated with vehicle or MaR1 (0.1–1 nM; 24 h), followed a 2-h period of glucose deprivation. Then, cells were incubated with 0.1 μL/mL of 2-DG (Sigma–Aldrich, St. Louis, CA, USA) and 0.2 μCi/mL of ¹⁴C-2-DG (Deoxy-d-glucose, 2-[1–¹⁴C], American Radiolabeled Chemicals) for 15 min. Then, cell lysates were taken to measure ¹⁴C-2-DG radioactivity by liquid scintillation counting, HIDEX 300 SL scintillation counter (Hidex Oy, Turku, Finland). Results were normalized to total protein content of cell extracts.

2.7. Fatty acid oxidation determination in brown adipocytes

Fatty acid oxidation was determined by the sum of ¹⁴CO₂ liberated to the media and ¹⁴C-acid soluble metabolites (ASM) as previously described [34]. For that purpose, fully differentiated mature brown adipocytes were treated with vehicle or MaR1 (0.1–1 nM; 24 h). Briefly, differentiated brown adipocytes were incubated for 4 h in Krebs–Ringer buffer without glucose, containing 125 mM NaCl, 5 mM KCl, 2 mM CaCl₂, 1.25 mM KH₂PO₄, 1.25 mM MgSO₄ ⋅7H₂O, 25 mM NaHCO₃ and 3% fatty acid-free bovine serum albumin (BSA) pH 7.8, 2 mM l-carnitine, 80 μM palmitic acid (Sigma), and 20 μM ¹⁴C-palmitic acid (58 μCi/μmol, Perkin Elmer; Waltham, MA). The medium was transferred to a glass vial with a central well containing benzethonium hydroxide (Sigma).

¹⁴CO₂ was liberated by acidification with 1 M H₂SO₄ and collected during 2 h in the central well. ¹⁴CO₂ was measured by scintillation counting in a scintillation counter HIDEX 300 SL (Hidex Oy, Turku, Finland). Cells were washed and then scraped in cold buffer (0.25 M sucrose; 10 mM Tris–HCl; 1 mM EDTA; 1 mM dithiothreitol, pH 7.4). Neutral lipids and ASM were separated by adding 5 vol chloroform/methanol (2:1) and 0.4 vol 1 M KCl/HCl. Specific activity was measured and used to calculate total oxidation as equivalent of oxidized palmitic acid. Results were normalized to total protein content of cell extracts.

2.8. Free fatty acids uptake in brown adipocytes

Fully differentiated mature brown adipocytes were treated with vehicle or MaR1 (0.1–1 nM; 24 h) and free fatty acids uptake (¹⁴C 2-Bromopalmitate incorporation, Moraveck Biochemicals, Brea, CA, USA) was measured as previously described [34]. Adipocytes were incubated in Krebs–Ringer buffer during 50 min and after this period of time, cold palmitic acid, carnitine and the non-metabolizable analogue 2-Bromopalmitic acid (Moraveck Biochemicals, Brea, CA) were added to the media in a final concentration of 2 mM l-carnitine, 80 μM palmitic acid (Sigma), and 20 μM ¹⁴C-2-Bromopalmitic acid and incubated for 10 min. Culture plates were then put on ice and rinsed twice with cold PBS. Cells were scraped in 0.05 M NaOH, and ¹⁴C-2-Bromopalmitic acid uptake was measured by liquid scintillation counting of cell lysates. The results were normalized to the total protein content of cell lysates.

2.9. Analysis of adipocyte oxygen consumption in brown adipocytes

Oxygen Consumption Rate (OCR) was measured in mature brown adipocytes (treated with vehicle or MaR1 0.1 nM; 24 h) using Seahorse Extracellular Flux (XF) 24 Analyser (Agilent Technologies, Santa Clara, CA, USA). Briefly, 1 h prior the assay, the adipocytes were washed thoroughly with assay medium (DMEM supplemented with 50 mM glucose and 1 mM sodium pyruvate) and incubated in a CO₂-free incubator at 37 °C. During the assay, oligomycin (1 μg/mL), carbonylcyanide-4-(trifluoromethoxy) phenylhydrazone (FCCP; 0.6 μM), and a mixture of rotenone and antimycin A (2 μM of each one), were sequentially injected for OCR measurement to obtain the values for the basal mitochondrial respiration, ATP-linked, proton leak, maximal respiratory capacity, reserve capacity and non-mitochondrial respiration. The results were normalized to total protein content.

2.10. Mitotracker staining in brown adipocytes

MitoTracker green FM stainings were performed as described by the manufacturer (M7514; Molecular Probes, Invitrogen). Briefly, fully differentiated mature brown adipocytes, treated with vehicle or MaR1 (0.1, 1 nM; 24h) were incubated with 100 nM MitoTracker® Green FM for 30 min at 37 °C in serum free medium. Then, brown adipocytes were washed with PBS prior to imaging with the fluorescence microscope ZOE Fluorescent Cell Imager (Bio-Rad, Hercules, CA, USA). Fluorescence signal of MitoTracker® Green FM probe was quantified using the Fluoroskan Ascent FL Fluorometer (Thermo Fisher Scientific) (485 nm excitation and 538 nm emission).

2.11. siRNA transfection in brown adipocytes

Brown adipocytes were transfected with siRNA at day 5 of differentiation as follows: negative control siRNA, Lgr6 siRNA and Lipofectamine RNAiMAX (Life Technologies, 13778-100) were diluted in Opti-MEM I Reduced Serum Medium (Life Technologies, 31985-062) separately before being mixed by pipetting and left to incubate for 5 min at room temperature. Then, the siRNA-RNAiMAX mix was added drop to drop to brown adipocytes in high glucose DMEM supplemented with 10% FBS (Gibco™), 20 nM insulin (Sigma–Aldrich), 2 nM T3 (Sigma–Aldrich), without penicillin and streptomycin and left to incubate for 24 h. The final concentrations of Lipofectamine RNAiMAX and siRNA were 5 μL/mL and 50 nM, respectively. One day after transfection, brown adipocytes were treated with vehicle or MaR1 (0.1, 1 nM; 24h) and supernatants and cells were collected.

2.12. Targeted lipidomics

Targeted lipidomic assays of Maresins biosynthesis pathway was carried out as previously described [24]. All samples were extracted using solid-phase extraction columns as previously described [35,36]. Prior to sample extraction, deuterated internal standards, representing each region in the chromatographic analysis (500 pg each) were added to facilitate quantification in 1 mL of methanol. Samples were kept at −20 °C for a minimum of 45 min to allow protein precipitation. Supernatants were subjected to solid-phase extraction, methyl formate and methanol fractions were collected, brought to dryness, and suspended in phase (methanol/water, 1:1, vol/vol) for injection on a Shimadzu LC-20CE HPLC and a Shimadzu SIL-20AC autoinjector (Shimadzu Corp., Kyoto, Japan), paired with a QTrap 6500+ (Sciex, Warrington, UK). For identification and quantitation of products eluted in the methyl formate an Agilent Poroshell 120 EC-C18 column (100 mm × 4.6 mm × 2.7 μm, Agilent Technologies, Santa. Clara, CA, USA) was kept at 50 °C and mediators eluted using a mobile phase consisting of methanol–water-acetic acid of 20:80:0.01 (vol/vol/vol) that was ramped to 50:50:0.01 (vol/vol/vol) over 0.5 min at flow rate of 0.5 mL/min. The gradient was then ramped to 80:20:0.01 (vol/vol/vol) from 2 min to 11 min, maintained till 14.5 min at a flow rate of 0.35 mL/min, and then, rapidly ramped to 98:2:0.01 (vol/vol/vol) for. the next 0.1 min. This was subsequently maintained at 98:2:0.01 (vol/vol/vol) for 5.4 min, and the flow rate was maintained at 0.5 mL/min. QTrap 6500+ was operated using a multiple reaction monitoring method coupled with information-dependent acquisition and enhanced production scan. Each LM was identified using established criteria, including 1) matching retention time to synthetic and authentic materials, 2) the integrated peak consists of at least 7 data points, and 3) the signal-to-noise ratio of the integrated peak is at least 5. Calibration curves were obtained for each using synthetic compound mixtures at 0.78, 1.56, 3.12, 6.25, 12.5, 25, 50, 100, and 200 pg that gave linear calibration curves with an r² values of 0.98–0.99 [37].

2.13. Analysis of protein levels by Western blot

iWAT and iBAT lysates of mice were obtained as previously described [19]. Membranes were probed with specific primary antibodies against uncoupling protein 1 (UCP1) (1:1,000; Abcam, Cambridge, UK) and β-Actin (1:5,000; Sigma–Aldrich). Thereafter, infrared fluorescent secondary antibodies anti-rabbit (1:15,000; Cell Signaling Technology, Danvers, MA, USA) and anti-mouse (1:15,000; LI-COR Biosciences, Lincoln, NE USA) were used and quantitated using an Odyssey® infrared imaging system (LI-COR).

2.14. Analysis of mRNA levels

Total RNA was isolated from fully differentiated brown adipocytes and hMSC-derived adipocytes, as well as from iWAT and iBAT of mice, and then reverse transcribed to cDNA as previously described [34]. mRNA levels were determined using predesigned Taqman® Assays-on-Demand (Applied Biosystems, Waltham, MA, USA) or analyzed by Power SYBR Green PCR Master Mix (Bio-Rad) using the Touch Real-Time PCR System (CFX384, Bio-Rad). Cyclophilin A (Ppia), 36B4 and 18S were used as housekeeping genes (see Tables S1 and S2 for primers information). Relative expression of the genes was calculated by the 2^−ΔΔCt method [38].

2.15. Statistical analysis

GraphPad Prism 9 software (Graph-Pad Software Inc., San Diego, CA, USA) was used for statistical analyses and significant (p < 0.05) differences between groups were reported. Data are presented as mean ± SEM. Comparisons between the values for different variables were analyzed by one-way ANOVA followed by Bonferroni post hoc tests or by Student's t-tests or Mann–Whitney U-tests once the normality had been screened using Kolmogorov–Smirnov and Shapiro–Wilk tests.

3. Results and discussion

3.1. Maresin 1 promotes glucose uptake, fatty acid utilization, mitochondrial biogenesis, thermogenic gene expression and oxygen consumption in differentiated murine brown adipocytes

MaR1-treated murine brown adipocytes exhibited a significant up-regulation of thermogenic genes (Ucp1 and Iodothyronine deiodinase 2, Dio2), as well as genes related to glucose transport (Solute carrier family 2 member 4, Glut4) and fatty acid oxidation (Carnitine palmitoyltransferase A, Cpt1a and Acyl-coenzyme A oxidase, Acox1), while no significant changes were found in Peroxisome proliferator-activated receptor alpha (Ppara). MaR1 also upregulated the expression of genes involved in mitochondrial biogenesis (Peroxisome proliferator-activated receptor gamma coactivator 1-alpha, Pgc1a; Mitochondrial transcription factor A, Tfam; Nuclear respiratory factor 1, Nrf1), and function, such as mitofusin 2 (Mfn2), an outer mitochondrial membrane GTPase critical for mitochondrial fusion and dynamics, that plays also a critical role in BAT thermogenesis [39,40] (Figure 1A). We also estimated mitochondrial content by using mitotracker green probes, which stain the mitochondrial matrix proteins independently of the mitochondrial membrane potential and, therefore, reflects mitochondrial mass [34]. Our data revealed an increase in mitochondrial mass in MaR1-treated brown adipocytes (Figure 1B). In parallel, basal oxygen consumption rate (OCR), maximal respiratory capacity and proton leak were significantly higher in brown adipocytes treated for 24 h with MaR1 (Figure 1C). Moreover, highly sensitive thermography [13] showed that MaR1 treatment increased the temperature of cultured brown adipocytes (Figure 1D). BAT activation requires fuel supply, which includes glucose and fatty acids [5,41]. Remarkably, MaR1 induced both fatty acid uptake and fatty acid oxidation (Figure 1E). Moreover, MaR1-treated brown adipocytes presented higher glucose uptake than controls (Figure 1F).

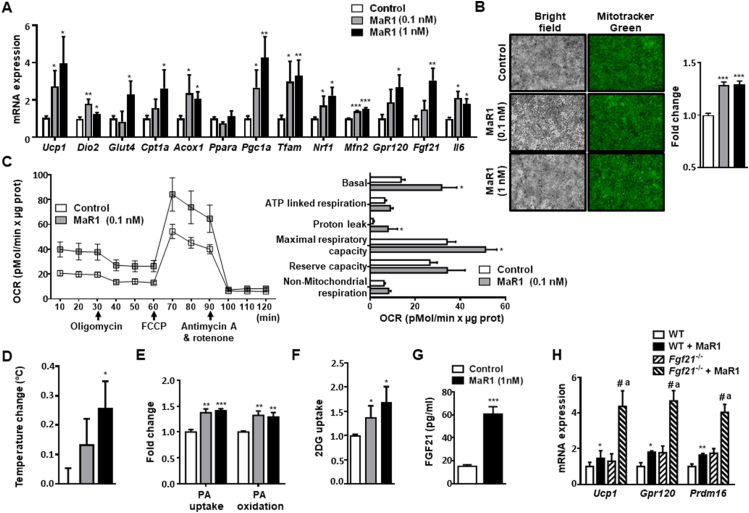

Figure 1.

MaR1 upregulates thermogenic genes and promotes glucose uptake and fatty acid utilization in cultured fully differentiated murine brown adipocytes. (A) mRNA expression levels of genes involved in metabolism and function in murine brown adipocytes treated with MaR1 (0.1, 1 nM) for 24 h (n = 3–12). (B) Analysis of mitochondrial content by mitotracker green staining. Representative images and fluorescence intensity quantification of live cell imaging of mitochondria stained with mitotracker green FM probe (100 nM, 30 min) in murine brown adipocytes treated with MaR1 (0.1, 1 nM) for 24 h (n = 6). (C) Oxygen consumption rate (OCR) was measured in brown adipocytes (control and treated with MaR1 for 24 h) with a Seahorse technology. Left panel shows a representative experiment. Right panel: Bioenergetic parameters were inferred from the OCR traces. FCCP (carbonyl cyanide-p-trifluoromethoxyphenyl-hydrazon) (n = 3–4). (D) Changes in brown adipocytes temperature measured by highly sensitive thermography in mature brown adipocytes treated with vehicle or MaR1 (0.1, 1 nM) for 24 h (n = 8). (E–F) Palmitic acid (PA) uptake (¹⁴C 2-Bromopalmitate incorporation) and Palmitate (PA) oxidation rates (E) and 2-Deoxy-d-glucose (2DG) uptake (F) in MaR1-treated brown adipocytes (n = 6–17). (G) FGF21 secretion levels in cultured media of brown adipocytes treated with vehicle or MaR1 (1 nM, 24 h) (n = 4). (H) Expression of thermogenic genes in differentiated brown adipocytes from wild type (WT) and Fgf21^−/− mice treated with vehicle or MaR1 (1 nM, 24 h) (n = 3–4). Data are mean ± SEM (n = 3–17). mRNA expression, PA uptake and oxidation, and 2DG uptake data are expressed as fold change relative to control or WT cells-treated with vehicle and considered as 1. ∗p < 0.05; ∗∗p < 0.01; ∗∗∗p < 0.001 vs. Control or WT (vehicle-treated) adipocytes; ^#p < 0.05 vs. MaR1-treated brown adipocytes. ^ap < 0.05 vs. Fgf21^−/− (vehicle-treated) brown adipocytes.

It has been shown that thermogenic activation of BAT induces the expression and release of FGF21 [42]. Moreover, the lipid sensor G-protein coupled receptor 120 (GPR120) plays a key role in BAT activation through the induction of FGF21 [13]. Here, we demonstrate that MaR1 treatment also upregulated Gpr120 and Fgf21 gene expression (Figure 1A), as well as induced FGF21 secretion (Figure 1G) in cultured murine brown adipocytes. To characterize whether FGF21 is involved in MaR1 actions on thermogenic genes, we tested MaR1 effects in differentiated primary brown adipocytes from preadipocytes obtained from the stroma-vascular fraction of iBAT of Fgf21-null mice. Figure 1H shows that the stimulatory effects of MaR1 on Ucp1, Gpr120 and PR domain containing 16 (Prdm16) were also observed and even increased in Fgf21 deficient mice, suggesting that the increase in the production of FGF21 by brown adipocytes is not required for the thermogenic effects of this SPM. Surprisingly, the stimulatory actions of MaR1 on these genes were significantly higher in Fgf21 knockout mice, suggesting that FGF21 could be interfering with some of the pathways mediating MaR1-actions in brown adipocytes. Notably, these MaR1 actions in brown adipocytes were observed using physiological doses (0.1–1 nM). In this regard, a recent study of our group found that MaR1 concentration in BAT of young (2-month-old) female mice at room temperature is around 0.15 pg/g tissue [24], which corresponds to 0.375 nM [16].

3.2. In vivo administration of MaR1 promotes iBAT activation and induces beige adipocyte markers in iWAT of DIO mice

We next examined whether in vivo administration of MaR1 (50 μg/kg, oral gavage, 10 days) was able to induce BAT activation in DIO mice. The histological examination of BAT revealed that MaR1-treated DIO mice exhibited smaller lipid droplets as compared to DIO-untreated mice and almost recovered the typical morphological features of iBAT observed in control fed animals (Figure 2A). Interestingly, MaR1-treated DIO mice displayed a significant increase on UCP1 protein levels (Figure 2B). Moreover, MaR1 reversed the downregulation of Pgc1a and Prdm16 mRNA levels observed in iBAT of DIO mice, and up-regulated the expression of Sirtuin 1 (Sirt1), Dio2, Gpr120, Fgf21 and Mfn2 (Figure 2C). In parallel, MaR1 increased the expression of genes related to lipolysis (Adipose triglyceride lipase, Atgl), fatty acid oxidation (Acox1) and glucose uptake (Glut1, Glut4) (Figure 2D). In obesogenic conditions, iBAT is infiltrated by pro-inflammatory M1 macrophages, which can alter its ability to properly respond to thermogenic stimuli [43,44]. A study of our group revealed that MaR1 reduces macrophage infiltration in visceral WAT of DIO mice [19]. Here, we report that MaR1 treatment reversed the high fat diet-induced upregulation of Ccl2, Tumor necrosis factor alpha (Tnfa) and the proinflammatory M1 macrophage marker CD11 Antigen-Like Family Member C (Cd11c), while the expression of anti-inflammatory genes (Adipoq, Interleukin 10, Il10) showed a similar induction to that observed in DIO mice. Interestingly, MaR1-treated mice also exhibited higher levels of Interleukin 4 (Il4), an inducer of M2 macrophage polarization, and Cluster of Differentiation 206 (Cd206), a M2 macrophage marker, as compared to control mice (Figure 2E). Immunofluorescence analyses revealed increased CD206 signals, a specific M2 macrophage marker, in iBAT of MaR1-treated mice (Figure 2F). Next, it was evaluated if treatment with MaR1 could improve the thermogenic response to cold exposure. Interestingly, when DIO mice treated with MaR1 were acutely (1 h) exposed to 4 °C, they lost more body weight (Figure 2G) and were able to better maintain rectal temperature, compared to vehicle-treated DIO mice (Figure 2H). Moreover, the microPET data revealed that MaR1-treated DIO mice exhibited higher ¹⁸F-FDG uptake by iBAT (Figure 2I). Acute treatment with MaR1 also stimulates iBAT ¹⁸F-FDG uptake and interscapular skin temperature assessed by infrared-thermography (Figure S1A-B). Taken together, all these observations strongly support MaR1 as a novel agent promoting iBAT activation in DIO mice.

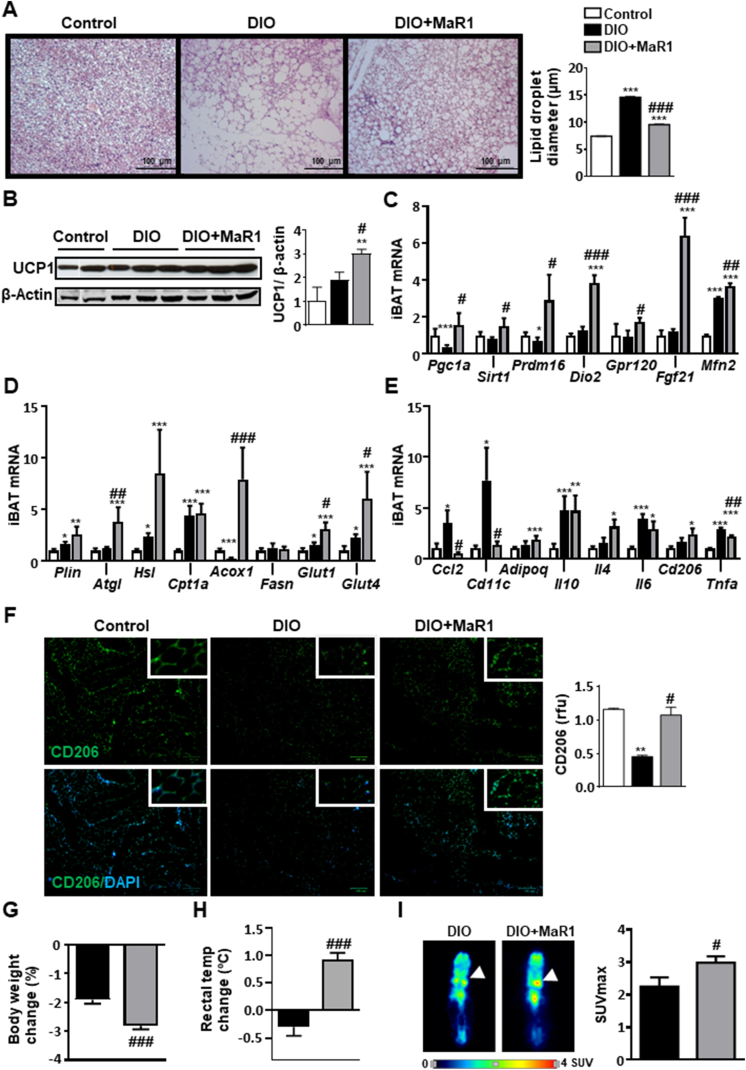

Figure 2.

MaR1 promotes brown adipose tissue (BAT) activation in DIO mice. Twenty weeks-old DIO mice were daily treated either with MaR1 (50 μg/kg) or vehicle by oral gavage for 10 days. (A) Representative photomicrographs (magnification 100×) of iBAT sections stained with H&E dye (left panel) and lipid droplet size quantification (right panel) (n = 3). (B) Representative blot and densitometry analysis of iBAT UCP1 (band densities were normalized to β-Actin (n = 3–6). (C–E) mRNA expression levels of master mitochondrial biogenesis and function regulators and iBAT activator genes (C), and of genes involved in iBAT lipid metabolism and glucose uptake (D) as well as in inflammation and macrophage type markers (E) (n = 5–8). Data (mean ± SEM) are expressed as fold change relative to control (vehicle-treated) mice and considered as 1. (F) Representative images of IHF labelling of CD206 in iBAT (left), and quantification of immunoreactive signals (right panel) (n = 2). (G–H) Body weight changes and rectal temperature changes after acute (1 h) cold exposure (4 °C) in DIO mice treated with MaR1 (n = 5). (I) ¹⁸F-FDG uptake using microPET 1 h after ¹⁸F-FDG injection in mice pre-exposed for 1 h at 4 °C. Left panel: coronal sections of mice. White arrow: iBAT pads. Right panel: maximum standardized uptake value (SUVmax) (n = 3–5). Data (mean ± SEM). ∗p < 0.05; ∗∗p < 0.01; ∗∗∗p < 0.001 vs. Control (vehicle-treated) mice; ^#p < 0.05; ^##p < 0.01; ^###p < 0.001 vs. DIO (vehicle-treated) mice.

MaR1 was also able to induce browning markers in iWAT of DIO mice, as revealed by the increase in UCP1 protein expression (Figure 3A), the up-regulation of genes related to mitochondrial biogenesis and mitochondrial fatty acid oxidation (Figure 3B). Additionally, iWAT from MaR1-treated mice exhibited increased expression levels of genes that typify beige adipocytes (T-box 1 transcription factor, Tbx1; Transmembrane protein 26, Tmem26 and Prdm16), as well as of Gpr120 and Fgf21, which have been also related with the browning process (Figure 3C). Again, this occurs in parallel with a reduction of inflammatory genes (Tnfa, Ccl2) and of M1 macrophages markers and an increase of M2 alternatively-activated macrophages (Figure 3D,E). Immune-adipose interactions may be key regulators to increase fat thermogenesis [45]. In fact, M1:M2 macrophages balance seems to play a role in iBAT activation and iWAT browning. Nguyen et al. [46] proposed that anti-inflammatory M2 macrophages are likely directly involved in promoting BAT thermogenesis in mice. Moreover, IL-4 and adiponectin signaling have been reported to favour WAT beiging via cross-talk with resident macrophages by promoting M2 proliferation [45,47]. In our study, the activation of iBAT and beiging markers in MaR1-treated mice is also accompanied by an increase in Il4, Adipoq and M2 macrophages markers (Figure 3D,E), strongly suggesting that MaR1 could act in part through the regulation of M2 macrophages polarization in fat depots. Nevertheless, it is important to note that controversial observations about the direct role of alternatively activated macrophages in adaptive thermogenesis have been raised [48]. In order to get a better characterization of the role of macrophages on MaR1 actions on BAT, we cultured fully differentiated brown adipocytes with conditioned media of RAW 264.7 macrophages stimulated with LPS in the absence or presence of MaR1. Our data show that MaR1 (1 nM) reduced both basal and LPS-stimulated Tnfa mRNA expression in RAW 264.7 macrophages, suggesting that MaR1 is able to overcome the polarization to M1 macrophages induced by LPS (Figure S2A). Treatment of fully differentiated brown adipocytes with conditioned media from LPS-stimulated macrophages caused a significant downregulation of Ucp1 mRNA expression, suggesting an impairment of thermogenic capacity. Interestingly, this inhibitory effect on Ucp1 was not observed in brown adipocytes treated with conditioned media from LPS-stimulated macrophages co-treated with MaR1 (Figure S2B), suggesting that the crosstalk between macrophages and brown adipocytes could be also mediating the thermogenic effects of MaR1 observed in DIO-treated mice. Our current data suggest that iBAT activation and iWAT remodeling could contribute to the MaR1 moderate body fat lowering effects (Figures S3A-C) and to its previously reported insulin-sensitizing (Figure S3D) [19,49] and anti-steatotic properties in obese mice [50]. Although Fgf21 mRNA levels were induced by MaR1 treatment in both iBAT and iWAT, we have previously reported that MaR1 downregulate hepatic Fgf21 expression levels and decreases circulating FGF21 levels in DIO mice [20], suggesting that circulating FGF21 is not mediating the systemic thermogenic/metabolic actions of MaR1, in agreement with our observations in cultured brown adipocytes. It would have been of interest to determine if the current in vivo treatment with MaR1 (50 μg/kg, oral gavage, 10 days) could affect whole-body oxygen consumption, energy expenditure and physical activity in DIO mice, but unfortunately, we cannot provide these data. However, we characterized the effects of acute MaR1 administration (50 μg/kg, i. p., 24 h) in young (2-month-old) male mice fed on a normal chow diet. Our data show that acute treatment with MaR1 did not modify whole-body oxygen consumption or energy expenditure (Figures S4A-B). However, a significant increase in the respiratory exchange rate (RER) was observed in MaR1-treated mice, indicating that MaR1 promotes carbohydrate oxidation in mice fed with a high carbohydrate diet. Curiously, this increase in RER occurred only during the light period when MaR1 was administered (Figures S4C). This observation opens several questions: i) the relevance of carrying out MaR1 pharmacokinetic studies to determine the most effective dose and frequency of administration. Our observations suggest that it is probably necessary to administer MaR1 twice a day, just at the beginning and at the end of the light period in order to maintain the effect of MaR1 during the dark period, in which mice eat and are more active. ii) it would be of interest to characterize the effects on energy expenditure and RER in mice fed on a high fat diet to study if in this condition MaR1 is able to promote fat oxidation, and iii) to characterize if administration of MaR1 for a longer period could induce increased energy expenditure and weight loss.

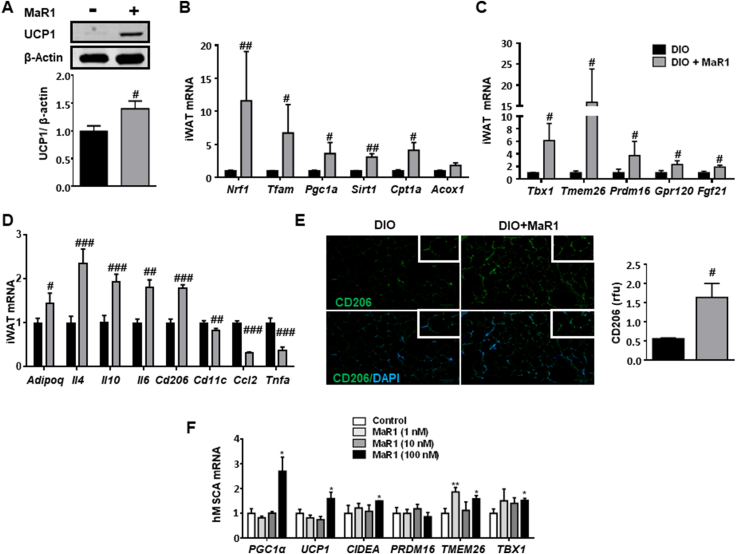

Figure 3.

MaR1 induces beige adipocyte markers in iWAT of DIO mice and in human mesenchymal stem cells (hMSC)-derived adipocytes. (A–D) UCP1 protein (A), and mRNA expression levels of key regulators of mitochondrial biogenesis and fatty acid oxidation genes (B), and of beige/browning characteristic genes (C) as well as of genes related with inflammation and macrophage polarization (D) in iWAT from 20 weeks-old DIO mice treated with MaR1 (50 μg/kg) or vehicle by oral gavage for 10 days. Data (mean ± SEM) are expressed as fold change relative to DIO mice-treated with vehicle and considered as 1. (n = 5–8). ^#p < 0.05,^##p < 0.01, ^###p < 0.001 vs. DIO mice. (E) Representative images of IHF labelling of CD206, and quantification of immunoreactive signals in iWAT of 20 weeks-old DIO mice treated with MaR1 (50 μg/kg) or vehicle by oral gavage for 10 days. (n = 2–3)^{. #}p < 0.05 vs. DIO mice. (F) mRNA expression levels of genes characteristics of the beiging process in hMSC treated along the differentiation process with MaR1 (1–100 nM). Determinations were carried out in fully differentiated hMSC-derived adipocytes. Data (mean ± SEM) are expressed as fold change relative to control cells, treated with vehicle and considered as 1. (n = 2–5). ∗p < 0.05; ∗∗p < 0.01 vs. vehicle-treated adipocytes.

On the other hand, our current data demonstrate the effectiveness of MaR1 to induce BAT activation after oral administration, a non-invasive and often safer route, which could be of relevance for its potential therapeutic use in obesity-related metabolic diseases. Indeed, targeted lipidomic analysis showed higher levels of MaR1 in BAT from MaR1-treated mice (Figure S5), suggesting that the induction of BAT activation observed in MaR1 could be partly mediated by a direct local action on this tissue; however, we cannot discard that other systemic actions could be also participating in this effect.

The fact that MaR1 can directly activate brown adipocytes in culture suggests that this SPM can also partly act in an adipocyte-autonomous manner. In line with this, we observed that the induction of the adipogenic process of hMSC, from subcutaneous WAT of obese subjects, in the presence of MaR1 increased the expression of several beige adipocyte-related genes including UCP1, Cell death-inducing DFFA-like effector A (CIDEA), TMEM26, TBX1 [7], and also PGC1α (Figure 3F). This suggests that MaR1 could be effective in promoting the development of brite adipocytes in human WAT. The concentration of MaR1 necessary to induce browning of human white adipocytes is much higher than that required to activate murine brown adipocytes. Besides of species and adipocyte-type related differences, the need for a higher dose could be also due to the fact that the human adipocytes were obtained from obese subjects. Indeed, obesity reduced the browning capacity and also the physiological levels of SPMs in WAT and BAT in mice [24,51].

3.3. IL-6 is required for MaR1 effects on iBAT activation and iWAT browning

An interesting finding of our study was that MaR1 upregulates Il6 mRNA levels both in vitro in cultured brown adipocytes (Figure 1A) and in vivo in iBAT of cold-exposed lean WT mice (Figure 4A). Several studies have related IL-6 and iBAT functions. Indeed, increased IL-6 expression was associated with thermogenic activation of brown adipocytes [52]. Moreover, the beneficial effects of iBAT transplantation on metabolic health were not observed in Il6-null mice [53]. A recent study has also shown that parabrachial IL-6 plays a key role in the regulation of iBAT thermogenesis and energy metabolism in mice [54]. Furthermore, IL-6 seems also to be required for the induction of WAT browning by cold exposure in mice [55].

Figure 4.

IL-6 is required for the stimulatory effect of MaR1 on BAT and WAT browning. (A) Acute MaR1 treatment (24 h, 50 μg/kg; i. p.) upregulates Il6 mRNA levels in iBAT of cold-exposed (4 °C, 24 h) lean WT mice. Data are expressed as mean ± SEM (n = 7). ∗∗∗p < 0.001 vs. WT (vehicle-treated) mice. (B) MaR1 (1 nM) stimulates thermogenic genes/proteins in ex vivo iBAT explants of lean WT, but not in Il6^−/− mice. (n = 4–7). Data are expressed as fold change relative to WT mice-treated with vehicle and considered as 1. ∗p < 0.05; ∗∗p < 0.01; ∗∗∗p < 0.001 vs. WT (vehicle-treated) mice; ^##p < 0.01 vs. Il6^−/− (vehicle-treated) mice. (C) BAT activity assessed by ¹⁸F-FDG microPET in lean WT or Il6^−/− mice treated with MaR1 (50 μg/kg; i. p.) or vehicle, and then exposed for 1 h at 4 °C, prior injection of ¹⁸F-FDG. Left panel: coronal sections of mice. White arrow: iBAT pads. Right panel: maximum standardized uptake value (SUVmax). (n = 3–5). ∗p < 0.05 vs. WT (vehicle-treated) mice. (D) Temperature of the skin BAT area measured by infrared thermal images after 1 h cold exposure with or without MaR1 (50 μg/kg, i. p.) in lean WT or Il6^−/− mice. (n = 4–9). ∗p < 0.05 vs. WT (vehicle-treated) mice. (E) Changes in rectal temperature in lean WT or Il6^−/− mice treated (i.p.) with MaR1 (50 μg/kg) or vehicle and exposed for 24 h at 4 °C. (n = 6–7). ∗p < 0.05 vs. WT (vehicle-treated) mice. (F–G) Expression of thermogenic genes/proteins in iBAT (F) and iWAT (G) of lean WT or Il6^−/− mice treated with MaR1 (50 μg/kg; i. p.) or vehicle and exposed for 24 h at 4 °C. (n = 3–7). ∗p < 0.05; ∗∗p < 0.01; ∗∗∗p < 0.001 vs. WT (vehicle-treated) mice; ^#p < 0.05; ^##p < 0.01; ^###p < 0.001 vs. Il6^−/− (vehicle-treated) mice. (H–I) Administration of recombinant IL-6 (rIL-6) (3.2 ng/kg, twice, every 12 h, i. p.) restores the stimulatory effect of MaR1 on thermogenic genes in iBAT (H) and iWAT (I) of lean Il6^−/− mice exposed for 24 h at 4 °C. Data are expressed as fold change relative to Il6^−/− mice treated with vehicle and rIL-6 and considered as 1. (n = 5). ∗p < 0.05, ∗∗p < 0.01 vs.Il6^−/− (vehicle + rIL-6-treated) mice.

Several of our current findings strongly support that the presence of IL-6 is required for the browning properties of MaR1: i) The stimulatory effects of MaR1 on thermogenic genes/proteins in ex vivo iBAT explants of WT mice were not observed in Il6^−/− mice (Figure 4B). ii) The higher ¹⁸F-FDG uptake by iBAT after cold exposure found in WT mice treated with MaR1 was not observed in Il6 deficient mice (Figure 4C). iii) Non-invasively infrared-thermography revealed that the temperature of the interscapular skin laying directly above BAT was higher in MaR1-treated WT, but not in Il6 deficient mice after short-term cold-exposure (Figure 4D). iv) The drop in rectal temperature induced by 24 h-cold exposure was prevented by MaR1 treatment in WT, but not in Il6^−/− mice (Figure 4E). Moreover, the upregulation of thermogenic genes/proteins in iBAT (Figure 4F) and iWAT (Figure 4G) observed in WT mice treated with MaR1 was abrogated in Il6^−/− mice treated with this SPM. v) Interestingly, the administration of recombinant IL-6 (rIL-6) to cold exposed Il6-deficient mice restored the stimulatory effect of MaR1 on thermogenic genes in iBAT and iWAT (Figure 4H,I). All these data strongly support that the presence of IL-6 is required for MaR1-thermogenic actions, at least after acute administration in cold-exposed lean mice. It is important to note that with our current data it cannot be established whether IL-6 plays a permissive or an active role on MaR1 thermogenic actions. IL-6 also mediates the metabolic benefits of protectin DX (PDX), another DHA-derived SPM. However, PDX insulin-sensitizing actions take place through a myokine-liver glucoregulatory axis, and it seems to be independent of IL-6 activation in brown adipocytes in mice [56]. In contrast, MaR1 activates Il6 expression mainly in iBAT (close 6-fold increase), and only a moderate upregulation was also found in muscle (around 1.5-fold increase), but not in epididymal WAT (eWAT) or liver of cold-exposed mice (see Figure S6A), suggesting that iBAT could be mainly contributing to the marginally higher levels of circulating IL-6 observed after acute treatment with MaR1 in these cold-exposed WT mice (Figure S6B). A limitation of our study is that we could not test the chronic actions of MaR1 (oral gavage) in diet-induced obese Il6 deficient mice. Therefore, future studies should be performed to better characterize the role of IL-6 in the chronic actions of MaR1 on iBAT of DIO mice housed at room temperature or thermoneutrality.

3.4. LGR6 receptor mediates the MaR1-induced upregulation of thermogenic genes in fully differentiated murine brown adipocytes

Recently, Chiang et al. [57] identified Leucine Rich Repeat Containing G Protein-Coupled Receptor 6 (LGR6) as the receptor activated by MaR1, and mediating MaR1's proresolving functions in phagocytes. We found that Lgr6 is also expressed in iBAT and iWAT, and its expression is upregulated after chronic treatment with MaR1 in DIO mice (Figure 5A). Similarly, Lgr6 mRNA levels were also increased in cultured differentiated brown adipocytes treated with MaR1 (Figure 5B), further suggesting a potential role of the LGR6 receptor in MaR1 thermogenic actions. In order to elucidate the involvement of LGR6 activation in the thermogenic actions of MaR1, we evaluated the effect of MaR1 in LGR6-depleted brown adipocytes using siRNA (Figure 5C–E). Our data revealed that the MaR1-induced upregulation of Ucp1 and Pgc1a mRNA levels was abolished after silencing LGR6 expression in fully differentiated brown adipocytes (Figure 5D,E). These data suggest that LGR6 receptor is mediating the stimulatory effects of MaR1 on thermogenic regulators in cultured brown adipocytes. Future research should be performed to characterize if all the in vivo actions of MaR1 on brown/beige adipose tissue are also dependent of LGR6 receptor by analyzing the effects of MaR1 administration on adipose tissue-specific Lgr6 knockout mice.

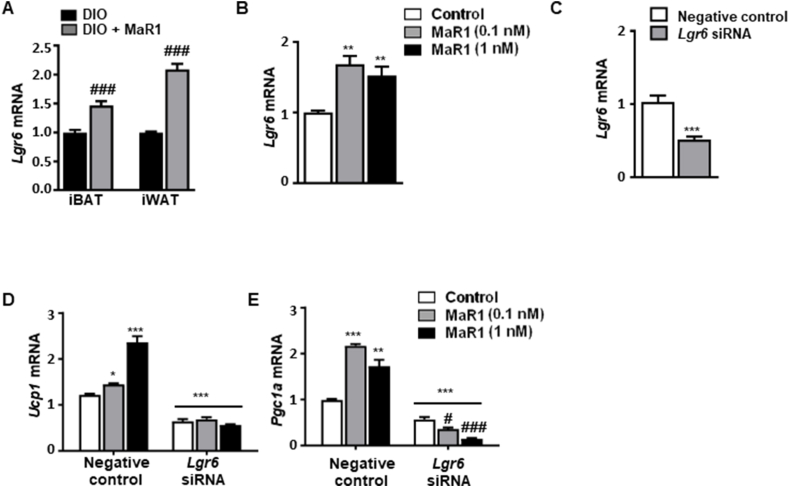

Figure 5.

MaR1 promotes upregulation of thermogenic genes via LGR6 in fully differentiated murine brown adipocytes. (A–B) Expression of Lgr6 in (A) iBAT and iWAT from 20 weeks-old DIO mice daily treated with MaR1 (50 μg/kg) or vehicle by oral gavage for 10 days (n = 5) and (B) mature brown adipocytes treated with vehicle or MaR1 (0.1, 1 nM) for 24 h (n = 4). ^###p < 0.001 vs. DIO mice; ∗∗p < 0.01 vs. control (vehicle-treated) brown adipocytes. (C) Reduced Lgr6 mRNA levels in Lgr6 siRNA-transfected brown adipocytes (n = 6). (D–E) Ucp1 (D) and Pgc1a (E) mRNA levels in Lgr6-silenced brown adipocytes treated with vehicle or MaR1 (0.1, 1 nM) for 24 h (n = 5). Data are mean ± SEM. ∗p < 0.05; ∗∗p < 0.01; ∗∗∗p < 0.001 vs. negative control siRNA brown adipocytes. ^#p < 0.01; ^###p < 0.001 vs. Lgr6 siRNA brown adipocytes.

On the other hand, a study has revealed a key role of 12-LOX in BAT response to cold exposure, mainly by producing the lipid mediator 12-HETE [23]. 12-LOX is a key enzyme in MaR1 biosynthesis, and cold exposure also upregulates the expression of 14-HDHA, a precursor of MaR1, in iBAT and iWAT [23]. Moreover, cold exposure also upregulated EPHX1 and 2 in BAT of mice [11], which also participate in the biosynthesis of Maresins. In this way, our current studies have also found that cold exposure (4 °C, 24 h) increases the iBAT content of MaR1 and its precursor 14-HDHA, in parallel with the upregulation of the Lgr6 mRNA expression as compared to room temperature-housed lean mice (Figure 6 A and B). All these findings and our current data suggest that increased MaR1 production and action could also be involved in physiological BAT activation by cold exposure. In our experimental conditions, we did not find any significant changes in MaR2 content in iBAT in response to cold exposure (data not shown). However, a recent study has revealed that a longer period of cold exposure (4 °C, 7 days) increased MaR2 and related structural isomers, but did not detect changes in MaR1 in BAT of high-fat diet fed obese mice as compared with those mice housed at thermoneutrality [58]. Although both studies are not comparable, they suggest differential in vivo effects of MaR1 and MaR2 administration on BAT and WAT. Thus, in contrast to what is observed in our current and previous studies with MaR1 [19], MaR2 treatment (10 μg/kg i. p., 26 days) did not significantly modulate expression of inflammatory genes in BAT or WAT [58]. In order to get a better insight on the potential differential effects of MaR2 and other SPMs in brown adipocytes, we treated fully differentiated murine brown adipocytes with MaR2, RvD1 and RvD2 (0.1–1 nM, 24 h). MaR2 exerted a moderate upregulation of Ucp1 than MaR1, and in contrast to MaR1, it did not modify Dio2 or even downregulated Fgf21 mRNA (Figure S7A). RvD1 upregulated Dio2 mRNA, no modified Fgf21, but at the dose of 1 nM downregulated Ucp1 (Figure S7B). In contrast, RvD2 (1 nM) upregulated Dio2, Fgf21 and Ucp1 (Figure S7C). These data show differential metabolic effects of these SPMs on brown adipocytes, and suggest that MaR1 seems to be more effective in promoting brown adipocytes activation than the other DHA-derived SPMs tested. Interestingly, a previous study of our group found that the BAT of aged DIO mice have lower levels of SPMs than young mice, suggesting that the increase of inflammation and the drop of BAT activity that occurs during aging and obesity could be related to the decrease in Maresins and other SPMs [24]. These findings highlight the relevance of performing further studies to better understand the specific physiological/therapeutic actions on brown/beige adipose tissue of each SPMs. In summary, the current study provides first evidence of MaR1 acting as a novel inducer of iBAT activity and iWAT browning by regulating thermogenic program in adipocytes and polarization of M2 macrophages. Moreover, our data suggest that LGR6 receptor seems to mediate MaR1 actions on brown adipocytes, and that IL-6 is required for the thermogenic effects of MaR1. Furthermore, these thermogenic actions of MaR1 could contribute to its previously reported insulin sensitizing and anti-steatotic properties, representing a promising therapeutic agent to tackle obesity-associated metabolic disorders.

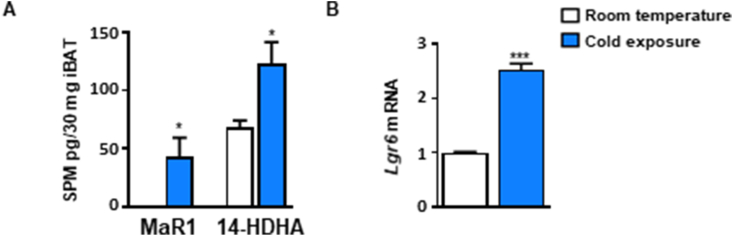

Figure 6.

Cold exposure increases MaR1 and Lgr6 levels in iBAT of lean mice. (A–B) Levels of MaR1 and 14-HDHA (A) and of Lgr6 mRNA (B) in iBAT of sixteen-week-old male mice housed at room temperature or cold (4 °C) for 24 h. Data are mean ± SEM. (n = 3–6). ∗p < 0.05; ∗∗∗p < 0.001 vs. room temperature.

FUNDING

The authors received support for the current study from Ministerio de Ciencia e Innovación/Agencia Estatal de Investigación, Spain, MCIN/AEI/10.13039/501100011033 (grants BFU2012-36089 to MJM-A; BFU2015-65937-R to MJM-A, SL-C; PID2019-106982RB-I00 to MJM-A; SAF2017-83813-C3-1-R to LH and PID2021-122766OB-I00 to AMV), cofinanced by the European Regional Development Fund (ERDF); Dept. of Health, Navarra Government (67–2015) to MJM-A; Merck Health Foundation to LH; CIBEROBN (CB12/03/30002; CB06/03/0001; CB06/03/0025) and CIBERDEM (CB07/08/0033) from ISCIII (Spain). “Juan de la Cierva” Grant to MF-G (IJCI-2016-30025) funded by MCIN/AEI/10.13039/501100011033. Predoctoral grant to LML (Asociación de Amigos, Universidad de Navarra/“la Caixa” Banking Foundation) and to LM-F (FPI, BES-2013-064970). S.Q.-V. is supported by a fellowship from the Vicente Lopez Program (Eurecat).

Author’s contributions

MJM-A directed the research; XE, NS, MF-G, SL-C, FV collaborated in the experimental design. LML, XE, NS, IC-M and LM-F conducted the animal experiments; LML, NS, XE and EF-S performed mRNA expression and protein experiments; LML, XE and MF-G analyzed histological images; ES and CMR-O collaborated in Seahorse experiments; MC performed MicroPET scan studies; LML and NS performed experiments in the human mesenchymal stem cells and in brown adipocytes; AMV and JMA-M provided and collaborate in the in vitro studies with brown adipocytes and human mesenchymal stem cells, respectively; TQ-L, XE and FV participate in the studies in Fgf21^−/− adipocytes. LH collaborated in the thermography studies; SQ-V and XE carried out the indirect calorimetry studies. JD performed the lipidomic analysis. MJM-A, XE, LML, NS and MF-G wrote the manuscript; and JAM, SL-C, CMR-O, ES, AMV, JMA-M, EF-S, LM-F, MC, TQ-L, IC-M, SQ-V, JD, LH and FV revised the manuscript.

Declaration of competing interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Appendix A. Supplementary data

The following is the Supplementary data to this article:

Data availability

Data will be made available on request.
