Abstract
The phantom array effect is one of the temporal light artefacts that can decrease performance and increase fatigue. The phantom array effect visibility shows large individual differences; however, the dominant factors that can explain these individual differences remain unclear. We investigated the relationship between saccadic eye movement speed and phantom array visibility at two different angles and four different directions of saccadic eye movement. The peak speed of saccadic eye movement and the phantom array effect visibility were measured at different modulation frequencies of the light source. Our results show that phantom array visibility increased as eye movement speed increased; the phantom array visibility was higher at a wide viewing angle with fast eye movement speed than at a narrow viewing angle. Moreover, when clustered into subgroups according to individual eye movement speed, the mean speed of the saccadic eye movement of each subgroup is related to the variations in the visibility of the phantom array effect of the subgroup. Therefore, saccadic eye movement speed is related to variations in phantom array effect visibility.
Subject terms: Psychology, Human behaviour
Introduction
Temporal light modulation (TLM) is a fluctuation in the luminous quantity or spectral distribution of the output of a lighting system over time1. The fast response time of solid-state light sources makes the effect of TLM more prominent than that of traditional lighting sources. In many cases, TLMs, such as flicker, stroboscopic, and phantom array effect, may cause distraction in the perception of the environment2 and unacceptable light variation. These undesirable changes in visual perception are also called temporal light artefacts (TLA)3. TLA can cause a decrease in visual performance, an increase in fatigue, and health problems such as migraine4. Symptoms of discomfort are correlated with the visibility of the threshold frequency of the phantom array effect5.
The phantom array effect is the appearance of multiple images of objects lit by a temporally unstable light source as a result of eye movement4. The visibility of the phantom array effect can be influenced by the luminance, modulation frequency, duty cycle of the modulation6, and peripheral field7. Chromaticity, color temperature8, and angular width of the light source9 are also important factors that affect the visibility of the phantom array effect.
However, the visibility threshold frequencies of the phantom array effect exhibit large individual differences10,11. In addition to visual discomfort, the pattern glare sensitivity test12 and critical flicker frequency (CFF) are used to explain the large individual differences in the visibility of the phantom array effect. However, they provide a limited explanation for the individual differences in visibility.
In this study, we investigated the effect of saccadic eye movement speed on the visibility of the phantom array effect. The speed of saccadic eye movements differs depending on the direction of eye movement13. Saccadic, anti-saccadic, and smooth pursuit eye movements also show individual differences14. Individual differences in eye movement speed are also stable15. Previous studies on the visibility of the phantom array effect and eye movement speed showed a potential correlation between the threshold frequency of the visibility of the phantom array effect and eye movement speed16,17. However, it is difficult to ascertain individual differences in the phantom array effect visibility based on eye movement speed. In this study, we investigated the relationship between saccadic eye movement speed and the threshold frequency of the phantom array effect by analyzing the peak eye movement speed when observing the phantom array effect correctly. In addition, we analyzed subgroup characteristics of the phantom array effect visibility and the speed of saccadic eye movement to determine whether the latter can explain large variations in the former.
Results
Phantom array effect visibility is based on the correct response rate. Saccadic eye movement speed was measured using an eye tracker, the ViewPoint EyeTracker® System (Arrington Research, USA). We filtered out many potential artifacts of the tracking data to determine the peak speed of eye movement in addition to the temporal information of the moment the experiment light turns on and off.
Phantom array visibility at different saccadic angles (Exp. 1) and viewing directions (Exp. 2)
The participants’ correct response rates of the phantom array effect for the saccadic angle- and direction-based experiments (Exp. 1 and 2) are described in Table 1 and Fig. 1. The frequency and correct response rate were inversely proportional, which means that phantom array visibility decreased as the modulation frequency increased. In both experiments, the visibility of the phantom array effect was evaluated based on the correct response rate of the participant. If the participant selected the correct answer in all trials, the correct response rate would be 100%, and if the response was randomly selected regardless of the visibility of the phantom array, it would be 50%. Therefore, we set the average correct response rate to 75%, which is half-way, as the visibility threshold frequency of the phantom array effect.
Table 1.
Mean (and standard deviation) of the correct response rates of the phantom array effect of all experiments.
| Experiment type | Session | Frequency | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 kHz | 2 kHz | 3 kHz | 4 kHz | 5 kHz | 6 kHz | 7 kHz | 8 kHz | 9 kHz | 10 kHz | 11 kHz | ||
| Exp. 1: Saccadic angle- based | Narrow (15°) | 89 (17) | 90 (16) | 80 (22) | 76(22) | 73 (22) | 67 (22) | 66 (20) | 67 (17) | 70 (20) | 57 (23) | 54 (21) |
| Wide (30°) | 94 (11) | 92 (11) | 87 (17) | 86 (17) | 78 (24) | 73 (21) | 66 (21) | 69 (25) | 63 (22) | 61 (20) | 60 (20) | |
| Exp. 2: Direction-based | Right upward | 86 (19) | 87 (16) | 80 (20) | 72 (18) | 68 (20) | 63 (19) | 62 (18) | 57 (19) | 60 (17) | 50 (17) | 51 (16) |
| Rightward | 94 (9) | 87 (17) | 86 (22) | 80 (26) | 80 (24) | 80 (19) | 70 (22) | 70 (26) | 65 (23) | 65 (20) | 59 (18) | |
| Right downward | 86 (22) | 79 (25) | 73 (25) | 65 (20) | 59 (23) | 58 (22) | 51(20) | 61 (12) | 50 (15) | 50 (13) | 43 (16) | |
| Downward | 83 (24) | 81 (18) | 74 (21) | 63 (21) | 60 (25) | 66 (19) | 52 (26) | 56 (19) | 55 (20) | 51 (17) | 44 (16) | |
Frequency values above 75% correct response rate are marked in bold.
The correct response rate at the threshold frequency of wide saccadic angle was higher than that of narrow saccadic angle (paired t-test, t(15) = − 3.058, p = 0.003). Regarding saccadic direction, the correct response rate at the threshold frequency was high in the following order: rightward > right upward > right downward ≅ downward (ANOVA, F(3,42) = 9.951, p = 0.000).
Figure 1.
Correct response rate of the phantom array effect. (a) Average correct response rate of the phantom array effect at different angles of saccadic eye movement. The solid gray line indicates the 75% average correct response. (b) Average correct response rate of the phantom array effect at different saccadic angles: narrow saccadic angle (left) and wide saccadic angle (right). Line bar shows the standard deviation of the correct response at each frequency. (c) Average correct response rate of the phantom array effect at different saccadic directions. (d) Average correct response rate of the phantom array effect at different directions of saccadic eye movement: right upward direction (top-left), rightward direction (top-right), right downward direction (bottom-left), and downward direction (bottom-right).
Eye movement speed analysis for different saccade angles (Exp. 1) and viewing directions (Exp. 2)
The participants’ average speed based on peak saccadic eye movement when observing the phantom array effect is shown in Fig. 2. The average speeds of saccadic eye movement for the narrow and wide viewing angles are as follows: 349.31 ± 97.90°/s and 448.95 ± 143.94°/s, respectively. The speed of saccadic eye movement at a wide saccade angle was significantly faster than that of the narrow one (Fig. 2a, paired t-test, t(15) = − 4.279, p = 0.001). Average speeds of saccadic eye movement in the right upward, rightward, right downward, and downward viewing directions are 393.64 ± 93.29°/s, 414.27 ± 98.99°/s, 388.79 ± 88.94°/s, and 358.40 ± 80.85°/s, respectively. Repeated measures ANOVA showed that the difference in saccadic peak velocity according to viewing direction was statistically significant (Fig. 2b, ANOVA, F(3,42) = 37.624, p = 0.000). The speed of saccadic eye movement in the rightward direction was significantly faster than in the other directions.
Figure 2.
Eye movement speed analysis. (a) Peak velocities of the saccadic eye movement at different moving angles (Exp. 1). (b) Peak velocities of the saccadic eye movement at different moving directions (Exp. 2). *p < 0.05; **p < 0.01; ***p < 0.001.
Subgroup differences in the speed of saccadic eye movement and visibility of the phantom array effect
To analyze the individual differences in saccadic eye movements and phantom array visibility, participants were further grouped through k-means according to the speed of saccadic eye movements in each exercise condition. The K value was selected based on the elbow method18, and in the case of the direction-based experiment, k-means was performed after reducing it to two dimensions through multidimensional scaling (MDS)19. Figure 3 shows the two-dimensional embedding and clustering of the saccade angle-based (Fig. 3a) and direction-based experiments (Fig. 3b). Some scatterplot examples of individual saccadic speed in different direction pair using high-, middle, and low subgroups are shown in Fig. 3c.

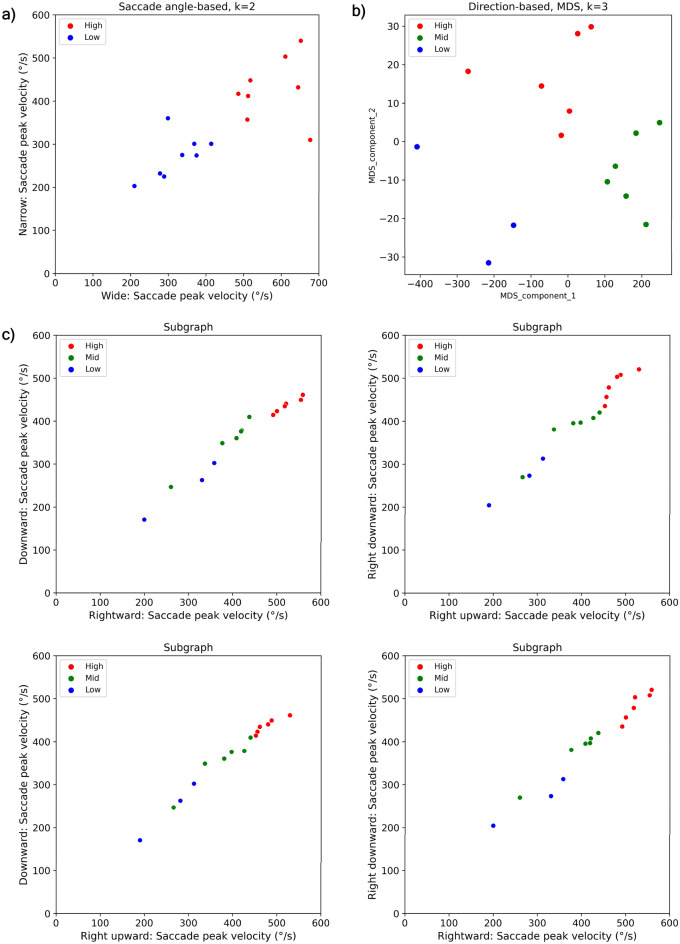

Figure 3.
Grouping individual saccadic eye movement speed. (a) Scatterplots of individual saccadic speed in narrow and wide saccade angle-based experiment (Exp. 1) using k-means. (b) High-, middle- and low-saccadic velocity subgroups through MDS, in viewing direction-based experiment (Exp. 2). c) Scatterplots of individual saccadic speed in different direction pair (Exp. 2) using high-, middle, and low subgroups.
Table 2 shows the subgroup mean and standard deviation of the saccadic eye movement speed (°/s) and mean threshold frequency (kHz) of phantom array visibility for different saccade angles and viewing directions.
Table 2.
Subgroup mean (and standard deviation) of saccadic eye movement speed and mean threshold frequency of phantom array visibility at different saccade angles (Exp. 1) and viewing directions (Exp. 2) (°/s).
| Experiment type | Session | Saccade peak velocity group (n = number of participants) | Saccade peak velocity (°/s) | Visibility threshold frequency (kHz) |
|---|---|---|---|---|
| Exp. 1: Saccade angle-based | Narrow | High (n = 8) | 321.38 (65.25) | 8.75 (1.98) |
| Low (n = 8) | 271.38 (50.72) | 4.88 (3.14) | ||
| Wide | High (n = 8) | 576.38 (77.35) | 9.38 (1.77) | |
| Low (n = 8) | 427.38 (73.61) | 5.25 (2.49) | ||
|
Exp. 2: Direction-based |
Right upward | High (n = 6) | 478.35 (28.93) | 5.83 (2.23) |
| Mid (n = 6) | 374.99 (64.44) | 4.83 (3.43) | ||
| Low (n = 3) | 261.52 (63.59) | 4.00 (2.00) | ||
| Rightward | High (n = 6) | 524.23 (27.35) | 10.00 (1.26) | |
| Mid (n = 6) | 387.34 (65.44) | 9.50 (1.52) | ||
| Low (n = 3) | 296.39 (84.66) | 4.33 (2.08) | ||
| Right downward | High (n = 6) | 483.67 (33.05) | 6.83 (1.47) | |
| Mid (n = 6) | 378.54 (54.77) | 5.83 (1.94) | ||
| Low (n = 3) | 263.56 (54.91) | 2.33 (1.53) | ||
| Downward | High (n = 6) | 437.15 (17.16) | 6.67 (3.83) | |
| Mid (n = 6) | 353.40 (56.10) | 6.33 (2.42) | ||
| Low (n = 3) | 245.22 (67.56) | 4.00 (3.61) |
Figure 4 shows the saccadic peak velocity and mean threshold frequency of phantom array visibility according to the subgroups classified based on saccadic peak velocity. To determine statistical significance, independent t-tests were performed for saccade angle-based experiments (Exp. 1) and one-way ANOVA for direction-based experiments (Exp. 2).
Figure 4.
Subgroup eye movement speed and mean threshold frequency of the phantom array effect visibility. (a) Subgroup in saccade angle-based experiment (Exp. 1). (b) Subgroup in direction-based experiment (Exp. 2). *p < 0.05; **p < 0.01; ***p < 0.001.
Regarding the saccade angle-based experiment (Exp. 1), the difference in saccadic peak velocity between subgroups was significant in narrow and wide angles (independent t-test, t(14) = − 4.939, p = 0.000; t(14) = − 7.128, p = 0.000), and the mean threshold frequency of phantom array visibility was statistically higher in the high-speed group than in the low-speed group in both narrow and wide angles (independent t-test, t(14) = − 2.954, p = 0.010; t(14) = − 3.818, p = 0.002).
For the direction-based experiment (Exp. 2), the saccadic velocity between the three groups was statistically significant in the right upward, rightward, right downward, and downward directions (ANOVA, F(2,14) = 17.712, p = 0.000; F(2,14) = 17.810, p = 0.000; F(2,14) = 22.767, p = 0.000; F(2,14) = 17.103, p = 0.000). The difference in the mean threshold frequency of phantom array visibility was significant in the rightward and right downward directions (ANOVA, F(2,14) = 15.160, p = 0.001; F(2,14) = 7.235, p = 0.009).
Discussion
Saccadic eye movement speed was analyzed for two saccade angles and four viewing directions at a temporal modulation frequency of 1–11 kHz to understand the relationship between saccadic eye movement speed and phantom array effect visibility.
In the saccade angle-based experiment (Exp. 1), the threshold frequency of phantom array effect visibility was higher in the wide-angle eye movement than in the narrow one, and saccadic eye movement speed was faster in the wide-angle eye movement experiment than in the narrow one, which was statistically significant. In the direction-based experiment (Exp. 2), the threshold frequency of phantom array effect visibility was high in the order of rightward > right upward > right downward ≅ downward, and saccadic eye movement speed was high in the order of rightward > right upward > right downward > downward.
For both experiments (Exp. 1 and Exp. 2), correlation analysis was performed for phantom array effect visibility and saccadic eye movement speed. The results show that there was a positive correlation in both the saccade angle-based (Exp. 1) (r = 0.670, N = 16, p = 0.000) and direction-based (Exp. 2) (r = 0.411, N = 15, p = 0.001) experiments. The correlation analysis shows that the visibility of the phantom array effect correlates with the speed of saccadic eye movement, and both experiments show that the speed of saccadic eye movement is related to the threshold frequency of the phantom array effect by 44.9% and 16.9%, respectively. This indicates that saccadic eye movement speed can be an important factor to predict phantom array effect visibility, especially individual differences in visibility even though there seem to be other factors potentially contribute to the visibility. In addition, saccadic suppression20,21 might influence the phantom array visibility. However, the effect of saccadic suppression on the phantom array visibility is not known yet.
Saccadic eye movement speed varied according to the experimental conditions, even within the same participant. Phantom array effect visibility differed depending on the speed of individual saccadic eye movements. As a result of analyzing the threshold frequency by dividing it into two subgroups of low and high or three subgroups of low, mid, and high, by grouping the speed of saccadic eye movement, the threshold frequency of phantom array effect visibility was higher in the high-speed subgroup than in the low-speed subgroup in the narrow and wide saccade angle-based experiment (Exp. 1). In the direction-based experiment (Exp. 2), which used three subgroups (low, middle, and high), each subgroup showed a statistically significant difference in the threshold frequency of the visibility of the phantom array effect. However, in the right and right downward directions, each subgroup showed a statistically significant difference in the peak speed of saccadic eye movement, even though the right upward and downward directions showed an increase in the peak speed of eye movement from the low to high subgroup. Therefore, a subgroup’s saccadic eye movement speed can be useful in predicting its phantom array visibility, and large variations in saccadic eye movement speed may explain the large variation in phantom array effect visibility. Eye movement speed may not be the only factor to explain individual differences in the visibility of the phantom array effect, as it cannot explain all the variations, but it is an important factor to consider. In head-mounted display (HMD) for augmented reality (AR) and virtual reality (VR), it is important to reduce the phantom array effect22. Our experiment result shows that eye movement speed is a factor to be considered in the HMD development for AR and VR.
Methods
Experimental apparatus
We developed a system comprising a DC power supply, an Arduino control board to control the lighting, LED lighting sources, a personal computer (PC) to store experimental data, an eye tracker to record participants’ eye movements, and a control button to receive data from the participant and proceed in the experiment (Fig. 5).
Figure 5.
Experimental system configuration.
We used cool white LEDs as experimental stimuli. The light-emitting surface was 0.2 mm in diameter, which is 0.011°, and the central luminance was 8600 cd/m2, as measured by a spectroradiometer (Konica Minolta CS-2000). Pulse width modulation (PWM) frequency was controlled using an Arduino control board. The modulation frequency was randomly selected between the evaluation frequency and 60 kHz23. The evaluation frequency was between 1 and 11 kHz in step of 1 kHz. The PWM duty cycle was fixed at 50% with full modulation depth at a given frequency. To measure eye movement speed, the ViewPoint EyeTracker® System (Arrington Research, USA), equipped with a binocular high-resolution infrared (IR) camera, was installed in front of the participant. The eye tracker provided the location of the pupil center and its diameter in the x–y plane at 220 Hz.
Participants
We pre-screened the recruited participants; six out of 27 recruited subjects were excluded in the pre-screening step because they could not observe the phantom array effect at 1 kHz under our experimental conditions. Twenty-one participants (11 males, 10 females) participated in the experiments. However, in some cases, participants with highly reflective glasses could not have their pupils accurately recognized at the calibration stage. As a result, we were unable to obtain data from these participants. We removed the participants whose initialization and following processing had missing data from more than one trial. Even with calibration, there were instances where the eye tracker failed to accurately recognize the pupil due to issues such as excessive tear accumulation over time. Since our experimental trial was presented 10 times for each of the 11 frequencies, we excluded trials from the analysis if there was an absence of eye movement speed in more than one out of the ten presentations. Therefore, for eye movement analysis results, data from 16 participants from the saccade angle-based experiment and 15 participants from the direction-based experiment were used.
All participants were in their twenties and were undergraduate or graduate students at Yeungnam University with no color blindness or color weakness. Written informed consent was obtained before participation. The experimental protocol was approved by the Ethics Committee (Yeungnam University, Republic of Korea). The participants received monetary compensation for their participation. All experiments were performed in accordance with relevant guidelines and regulations of the committee.
Experiment environment
The experiment was conducted in a dark room which was 2200 × 1450 mm, with a height of 2600 mm. The experimental equipment panel, which was made of matte fomex, was 950 mm high and 700 mm wide. Participants sat 1000 mm away from the experimental stimuli, adjusted the height of a chair in the darkroom to match the eye level with the experimental stimulus on the panel, and rested their heads on a desk-mounted chin and headrest to reduce head movements. To track the participants’ eye movements, two cameras were positioned in front of them (Fig. 6a).
Figure 6.
Experimental setup. (a) Participant location. (b) Timeline of an experimental trial. (c) Examples of task procedure. The arrow represents the direction of eye movement.
Procedure
In the saccade angle-based experiment (Exp. 1), the participant observed the stimulus by moving the pupil in two different widths: 263 mm, which corresponds to 15° saccadic eye movement, for a narrow saccade angle, and 536 mm, which corresponds to 30° saccadic eye movement, for a wide saccade angle. In the direction-based experiment (Exp. 2), the stimulus was observed by moving the pupil in four directions: right upward, rightward, right downward, and downward. The viewing angle of the saccadic eye movement in the direction-based experiment was 17°. Our experimental light was presented as a small circle with a diameter of 0.2 mm, and saccadic eye movements were induced by guiding LED lights at the starting and ending points. The experimental trial was presented 10 times for each of the 11 frequencies; thus, the participants conducted 110 trials for each experimental session. As each experimental session took 30 min, the saccade angle experiment (Exp. 1) required one hour, and the direction-based experiment (Exp. 2) required two hours. In all experiments, the angle or direction of eye movement and the temporal modulation frequency order of the tasks were randomized, and participants were able to take a break whenever they wanted.
Before starting the experiment, we placed a monitor in front of each participant and removed it after calibrating the eye tracker to track the participant’s eye movement. The participants underwent dark adaptation in a dark room for 7 min and then waited while fixing their gaze on a red LED. After 1000 ms, when the experiment started, the red LED was turned off, and a green LED was turned on for 500 ms and off. After that, another green LED was turned on. The experimental stimulus was turned on and off for 500 ms after 100 ms later of turning on the second green LED. The second green LED was turned off after 1100 ms on. The participant observed the experimental stimulus while moving his/her gaze along the first green LED to the second green LED when the first green LED was off and the second green LED was on (Fig. 6b, c) (Supplementary file).
Each trial appeared as a pair, and the participant pressed a button to indicate which of the two trials was the phantom array effect observed. If they did not observe the phantom array effect in either trial, they had to guess and choose one.
Supplementary Information
Acknowledgements
This research was supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (No. NRF-2020R1I1A3062042).
Author contributions
C.-S.L. supervised and designed the study. H.K. analyzed the data, wrote the manuscript, and prepared all the figures. H.K. and J.-K.K. fabricated the experimental setup and collected the data. H.P. designed the study and supported the statistical analyses. All authors reviewed the manuscript.
Competing interests
The authors declare no competing interests.
Footnotes
Publisher's note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Supplementary Information
The online version contains supplementary material available at 10.1038/s41598-023-38477-z.
References
- 1.CIE TN 012:2021. Guidance on the measurement of temporal light modulation of light sources and lighting systems. 10.25039/TN.012.2021 (2021).
- 2.CIE 249:2022. Visual aspects of time-modulated lighting systems. 10.25039/TR.249.2022 (2022).
- 3.CIE TN006:2016. Visual aspects of time-modulated lighting systems—definitions and measurement models. https://cie.co.at/publications/visual-aspects-time-modulated-lighting-systems-definitions-and-measurement-models (2016).
- 4.IEEE Std 1789:2015. Recommended practices of modulating current in high brightness LEDs for mitigating health risks to viewers. 10.1109/IEEESTD.2015.7118618 (2015).
- 5.Boyce PR, Wilkins A. Visual discomfort indoors. Light. Res. Technol. 2018;50(1):98–114. doi: 10.1177/1477153517736467. [DOI] [Google Scholar]
- 6.Vogels, I. & Hernando, I. Effect of eye movements on perception of temporally modulated light. In Proceedings of Experiencing Light (2012).
- 7.Brückner, S. & Khanh, T. A field experiment on the perception of automotive rear lights using pulsed LEDs with different frequencies. In Proceeding of ISAL A3.15 (2007).
- 8.Kang HR, Kim JG, Park SW, Lee C-S, Park H. Visibility of the phantom array effect at different LED colour temperatures under high-frequency temporal light modulation. Light. Res. Technol. 2022 doi: 10.1177/14771535221101558. [DOI] [Google Scholar]
- 9.Park SW, Lee C-S, Kang HR, Park H, Wilkins A. Visibility of the phantom array effect according to luminance, chromaticity and geometry. Light. Res. Technol. 2019;52(3):377–388. doi: 10.1177/1477153519867115. [DOI] [Google Scholar]
- 10.Lee, C.-S., Park, S.-W., Kim, S.-Y., Lee, J.-I. & Pak, H. Effect of colour and luminance intensity on the phantom array. In Proceedings of CIE 232–240 (2016).
- 11.Wang, L. L., Tu, Y., Cheng, S. L., Yu, X. L., Perz, M. et al. The visibility of the phantom array effect under office lighting condition. In Proceedings of CIE 17–21. 10.25039/x46.2019.OP03 (2019).
- 12.Wilkins, A. J. & Evans, B. J. W. I.O.O. Pattern Glare Test. London, i.O.O Sales Ltd (2012).
- 13.Kakeue K, Fujita K, Tamura R, Mihara M. The velocity of saccadic eye movements by using eye-gaze tracking system. Jpn. Orthopt. J. 2015;44:177–182. doi: 10.4263/jorthoptic.044F020. [DOI] [Google Scholar]
- 14.Gary-Bargary L, Jenny MB, Patrick TG, Adam JL-O, Ruth EH, Mollon JD. Individual differences in human eye movements: An oculomotor signature? Vis. Res. 2017;141:157–169. doi: 10.1016/j.visres.2017.03.001. [DOI] [PubMed] [Google Scholar]
- 15.Henderson JM, Luke SG. Stable individual differences in saccadic eye movements during reading, pseudoreading, scene viewing, and scene search. J. Exp. Psychol. Hum. Percept. Perform. 2014;40(4):1390–1400. doi: 10.1037/a0036330. [DOI] [PubMed] [Google Scholar]
- 16.Kang, H. R., Park, S. W., Lee, J. W. & Lee, C.-S. Eye-movement speed dependence of the phantom array. In Proceedings of CIE 764–771. 10.5207/JIEIE.2020.34.7.001 (2017).
- 17.Wang L, Tu Y, Liu L, Wang L, Perz JM, Teunissen K. Phantom array effect of LED lighting. SID Symp. Digest. Tech. Pap. 2017;48(1):1804–1807. doi: 10.1002/sdtp.12037. [DOI] [Google Scholar]
- 18.Thorndike RL. Who belongs in the family? Psychometrika. 1953;18(4):267–276. doi: 10.1007/BF02289263. [DOI] [Google Scholar]
- 19.Mead A. Review of the development of multidimensional scaling methods. J. R. Stat. Soc. Ser. D (Stat.) 1992;41(1):27–39. doi: 10.2307/2348634. [DOI] [Google Scholar]
- 20.Binda P, Morrone MC. Vision during saccadic eye movements. Annu. Rev. Vis. Sci. 2018;4:193–213. doi: 10.1146/annurev-vision-091517-034317. [DOI] [PubMed] [Google Scholar]
- 21.García-Pérez MA, Peli E. Visual contrast processing is largely unaltered during saccades. Front. Psychol. 2011;247(2):1–15. doi: 10.3389/fpsyg.2011.00247. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 22.Murdison TS, McIntosh C, Hillis J, MacKenzie KJ. 3–1: Psychophysical evaluation of persistence- and frequency-limited displays for virtual and augmented reality. SID Symp. Dig. Tech. Pap. 2019;50(1):1–4. doi: 10.1002/sdtp.12840. [DOI] [Google Scholar]
- 23.Brown E, Foulsham T, Lee C-S, Wilkins A. Research note: Visibility of temporal light artefact from flicker at 11 kHz. Light. Res. Technol. 2020;52(3):371–376. doi: 10.1177/1477153519852391. [DOI] [Google Scholar]
