Cytomegalovirus drug resistance mutations in transplant recipients with suspected resistance

Abstract

Resistant CMV infections are challenging complications after SOT and HSCT. Prompt recognition of ARMs is imperative for appropriate therapy. 108 plasma samples from 96 CMV + transplant recipients with suspected resistance were analysed in CNM in a retrospective nationwide study from January 2018 to July 2022 for resistance genotyping. ARMs in UL97 and UL54 were found in 26.87% (18/67) and 10.60% (7/66) of patients, respectively. Patients’ ARM distribution in UL97 was as follows: L595S n = 3; L595S/M460I n = 1; L595S/N510S n = 1; L595W n = 1; C603W n = 4; A594V n = 3; A594E n = 1; C607Y n = 1; L397R/T409M/H411L/M460I n = 1; L397I n = 1; H520Q n = 1; four patients showed ARMs in UL54 as well (F412C n = 1; T503I n = 2; P522S n = 1), whereas three patients exhibited ARMs in UL54 only (L501I/T503I/L516R/A834P n = 1; A987G n = 2). L516R in UL54 and L397R/I and H411L in UL97 have been found for the first time in a clinical sample. L595S/W was the most prevalent ARM found to lend resistance to GCV. In UL54 all ARMs lent resistance to GCV and CDV. In addition, A834P, found in one patient, also lent resistance to FOS. CMV load did not differ significantly in patients with or without ARMs, and no differences were found either between patients with ARMs in UL97 or in UL97 and UL54. Despite extensive use of classical antivirals for the treatment of CMV infection after HSCT and SOT, ARMs occurred mainly in viral UL97 kinase, which suggests that CDV and mostly FOS continue to be useful alternatives to nucleoside analogues after genotypic detection of ARMs.

Supplementary Information

The online version contains supplementary material available at 10.1186/s12985-023-02127-7.

Introduction

CMV is a herpesvirus with a high worldwide prevalence; it causes serious complications in immunocompromised patients, particularly those who are recipients of hematopoietic progenitors (HSCT) or solid organ (SOT) [1, 2]. The effects of CMV disease in these patients are responsible for high morbidity and mortality rates, as well as an increased risk of long-term graft loss [2-4].

The effectiveness of the preventive strategies currently used has managed to limit the incidence of the disease in the months following transplantation [4, 5]. However, prolonged antiviral treatments increase the risk of selecting drug-resistance viral strains [2, 4, 6], which, added to the scarce therapeutic options, becomes challenging for the management of transplant recipients. Drug resistance, defined as a viral genetic alteration that decreases susceptibility to one or more antiviral drugs, should be suspected when CMV viremia fails to improve or continues to increase after two weeks of appropriately dosed and delivered antiviral therapy [7]. Consequently, the need for genotypic analysis to detect resistance mutations during therapies is imperative. Prophylaxis with GCV IV or VGCV oral is the treatment of choice. FOS is often the first choice for the treatment of UL97-mutant ganciclovir-resistant CMV. A major concern with FOS is its high nephrotoxicity, as well as the alternative CDV. Approved in 2017 by the US Food and Drug Administration for the prevention of CMV in HSCT recipients [8, 9], a novel therapeutic alternative, such as letermovir, that do not have cross-resistance with current treatments has become a concern due to the rapid development of resistance mutations described recently [10]. Mutations conferring resistance to LET are most commonly mapped to UL56. The rates of ARM in SOT patients is 5–12% depending on the group of patients studied but often is higher than 20% in patients with suspected ARM [11].

This study aimed to analyse the frequency of the appearance of mutations in UL97, UL54 and UL56 associated with antiviral resistance in clinical samples obtained from CMV + transplant recipients with suspected resistant CMV to antivirals.

Materials and methods

Clinical samples and transplant patients

In this retrospective study, 108 plasma samples from 96 transplant patients with suspicion of CMV resistant to antivirals were submitted to National Center for Microbiology (CNM) by hospitals all over the country from January 2018 to July 2022, to undergo genotypic analysis of antiviral resistance through sequencing of ul54 and ul97 genes. Residual samples were stored at -80 °C until genotypic LET resistance characterization through ul56 gene sequencing was performed. Median age of patients was 56 years-old. 64 SOT patients (39 SOT-K, 11 SOT-H, 7 SOT-C, 7 SOT-L) received prophylaxis and 32 HSCT patients received pre-emptive therapy. Individual therapy, viral load, gender, age and region where patient was living is detailed in Table 1 of supplementary material. Resistant and refractory CMV infection definitions were in agreement with consistent criteria [7]. This study was approved by the Ethics Committee of the “Instituto de Salud Carlos III” (CEI PI 11_2021-v3).

Table 1.

Previously described mutations associated to resistance to antivirals [13]

Target	Mutation	Antiviral
UL54	D301N	GCV, CDV
	N408D/K	GCV, CDV
	N410K	GCV, CDV
	F412C/S/V/L	GCV, CDV
	D413A/E/V/N/Y	GCV, CDV
	N495K	FOS
	L501I	GCV, CDV
	T503I	GCV, CDV
	K513E/N/R	GCV, CDV
	L516P/W	GCV, CDV
	I521T	GCV, CDV
	P522A/S	GCV, CDV
	L545S/W	GCV, CDV
	D588E/N	GCV, CDV, FOS
	T691S	GCV, CDV, FOS
	A692V	GCV, CDV, FOS
	S695T	GCV, CDV, FOS
	T700A	FOS
	V715A/M	FOS
	L737M	FOS
	E756D/Q/K	FOS, GCV, CDV
	L776M	FOS, GCV
	V781I	FOS, GCV
	V787L	FOS, GCV
	L802M	FOS, GCV
	K805Q	CDV
	A809V	FOS, GCV
	V812L	FOS, GCV, CDV
	T813S	FOS, GCV, CDV
	T821I	FOS, GCV
	A834P	FOS, GCV, CDV
	T838A	FOS
	G841A	FOS, GCV, CDV
	A981-2 del	FOS, GCV, CDV
	A987G	GCV, CDV
UL56	V231L	LET
	V236M	LET
	E237D	LET
	L241P	LET
	T244K	LET
	L257I	LET
	F261C	LET
	Y321C	LET
	C325Y	LET
	M329T	LET
	R369M	LET
UL97	V353A	MBV
	L397R	MBV
	L405P	GCV
	T409M	MBV
	H411L/Y/N	MBV
	M460I/V/Y/L/T	GCV
	V466G	GCV
	P468Q	GCV
	H520E/Q	GCV
	A590V	GCV
	A591V	GCV
	C592G	GCV
	A594V/T/P/E/G	GCV
	L595S/W/F	GCV
	E596G	GCV
	G598S	GCV
	K599T	GCV
	C603W/R/S	GCV
	C607Y/F/L/W	GCV
	A619V/G	GCV
	*591–594; 591–607; 595, 595–603; 600; 601; 601–603	GCV
		GCV

*In frame codon deletions; MBV (maribavir); GCV (ganciclovir or derivate); Boldface in UL97 indicates the seven most common described (canonical) mutations conferring drug resistance to GCV [13].

DNA extraction, PCR design and sequencing

DNA extraction was performed from 200 μM of clinical sample (one sample per patient), using the “QIAamp Min ELUTE Virus Spin” Kit (QIAGEN), as per the manufacturer’s instructions. Systematic search and alignment of partial and complete sequences for the genes ul54, ul56 and ul97 were downloaded from GenBank database. Alignments using SeqMan (DNASTAR, Lasergen INC) and Mega X were performed to obtain the consensus and majority sequences, which were used as wild sensitive or resistance reference sequences. Three synthesized DNA fragments, containing all consensus resistance mutations described to date for each gene [12, 13] were cloned in E. coli plasmids and used as PCR and sequence-positive controls (Table 1). Three pairs of oligonucleotides were designed for PCR amplification of 990, 2246 and 649 bp fragments from ul97, ul54 and ul56, respectively. In addition, eight for UL54, six for UL56 and six for UL97 oligonucleotides were designed for Sanger sequencing (Table 2). Reactions were performed in Biorad C1000 Touch Thermal Cycler in a volume of 50μL and using Platinum SuperFi II DNA Polymerase (Thermo Fisher, Invitrogen), according to the manufacturer’s instructions. The oligonucleotides used to carry out the amplification were at a final concentration of 0.9 μM. PCR conditions for each gene are detailed in Table 3.

Table 2.

Oligonucleotides designed in the study for PCR and sequencing

Name	Oligonugleotide 5´-3’
UL54 F	ACTGCGATGTCTCTGACCTG
UL54 R	TCGCTGCTCTTTGAGGATCG
UL54 seq1 F	CGCTATCGATGCCTGTCCTT
UL54 seq2 F	TGGACGTCTACGAGTTCCCT
UL54 seq3 F	CCCTCGGCTTCTCACAACAA
UL54 seq4 R	TCGGCATTAGCCACGAAACA
UL54 seq5 F	TAAAATTCCGTTGCGGCGTG
UL54 seq6 F	AACAGTAGTAGCAGCGTCGG
UL54 seq7 R	TGATTGTTTCGAGCCCCTCC
UL54 seq8 F	TGTCTTTTTGTGGAGCCCGT
UL97 F	GACATGAGCGACGAGAGCTAC
UL97 R	CTGCGAGCATTCGTGGTAGA
UL97 seq1 F	CGTAAGCACAGCGAGACGG
UL97 seq2 F	CGTTGGCCGACGCTATCAAA
UL97 seq3 R	AGTGGCATACACGACACTGG
UL97 seq4 F	GTGTGGCCGTCTTTCAGGAG
UL97 seq5 F	CGGCGTTATTGCATGTCGG
UL97 seq6 R	GGACATCTTGGCCTCCACAAA
UL56F	GGAGCTGACCATCATCCCGA
UL56R	CAGCGGACGTCGAATCTCCTC
UL56Seq1F	GCTGTGCAACCATATAGCGG
UL56Seq2F	CCACTTGGCTGGAGTCCTTT
UL56Seq3F	GGCCTACCACAGCTACATCC
UL56Seq4R	CCCGCTTGACGATAACCTCC
UL56Seq5R	GAGCACGAAGATGTCCTCCA
UL56Seq6R	TGCTTTCGTGGAGCTTGTTG

Table 3.

PCR conditions for the amplification of target genes

Temperature				Time (min)
	UL54	UL56	UL97
Denaturation	98 ° C	98 ° C	98 ° C	00:30
• Cycling 35x Denaturation  Annealling  Extension	98 ° C	98 ° C	98 ° C	00:10
	60 ° C	60 ° C	60 ° C	00:15
	68 ° C/1 min	68 ° C/ 00:30	68 ° C/00:30
Extension	72 ° C	72 ° C	72 ° C	05:00

A PCR product was considered available for sequencing when a detectable band of appropriate molecular weight was obtained by electrophoresis. Pre-sequencing purification of the PCR product was performed with the ExoProStarTM Enzymatic PCR and Sequence Reaction Clean-Up Kit 500 reactions (IllustraTM, Germany), following the manufacturer’s instructions. PCR products were processed for Sanger dideoxy sequencing with BigDye v. 3.1 (Applied Biosystems) in ABI PRISM 3100 sequencer (Applied Biosystems, California, USA).

Multiplex real-time PCR for determination of CMV and EBV viral load and detection of HHV6, HHV7 and HHV8

We developed a 6-plex real-time PCR assay that is currently used in Reference Laboratory for Immune Preventable Diseases of National Centre for Microbiology. It was able to detect HHV6, HHV7 and HHV8 and to detect and quantify CMV and EBV. Quantitation used two sets of quantitative standards (for CMV and EBV) produced as follows: Relevant fragments of DNA (those amplified in real-time PCR) were inserted in a plasmid and cloned in transformed E. coli. Extracted serial dilutions of DNA from culture media were standardized against WHO standards provided by Health Protection Agency (UK) for determination of CMV and EBV viral load. This multiplex assay included plasmid DNA positive control for HHV6, HHV7, HHV8 and an internal control (IC) of amplification. CMV/EBV quantitation demonstrated a sensitivity of 10 IU/mL and a wide dynamic range between 10 and 106 IU/mL for quantification of CMV and EBV in clinical samples and detection of HHV6, HHV7, HHV8 and an IC simultaneously. Quantitation accuracy was assessed with 2013 Cytomegalovirus and Epstein-Barr (DNA) EQA panels of QCMD and it was checked yearly using WHO standards. Primers (Sygma) and probes (Metabion) are in Table 4.

Table 4.

Primers and probes used in Multiplex real time PCR

Name	Oligonucleotide 5’-3’; probes 5`repórter-3`quencher	Target gene
CMVprobe	6FAM-TAACAACACATATAAGTATCCGTCCTCCTG-BHQ-1	UL123
CMV F	TCTGTTTGACTGTRGAGGAGG	UL123
CMV R	GGGCATIGAGRTAGCGATAAA	UL123
EBVprobe	HEX-ACKTKTAGTAACRCATTCCCTTG-BHQ-1	BZLF1
EBV F	TGTTTCAACTGACTAGGYACC	BZLF1
EBV R	ATTCCTCCAGCTGCGAG	BZLF1
HHV-6 probe	Texas Red-AGATCCGTGGACGGCGG-BHQ-2	HHV6 US22 DR6
HHV-7probe	Cy5-CAGACCACGATCCCCACACC-BHQ-3	HHV7 gp65
HHV67-F	GGCCAYAABCGRTACTG	HHV6 US22 DR6/ HHV7 gp65
HHV67-R	CTGTGTCAGACKCACRC	HHV6 US22 DR6/ HHV7 gp65
HHV-8 probe	Atto390-TGGAGTGCAGGTAAACGCCA-Eclipse	ORF 23, UL21
HHV8F	TCCGGTAGTATCTGCGTGTC	ORF 23, UL21
HHV8 R	CCTACGCGTTAAGAAGCCAC	ORF 23, UL21
IC probe	IRD700-AATGATTGGGCCACGTCACG BHQ-3	Suid alphaherpesvirus 1
IC-F	CAGATTAGCAATTGGTGCGAA	Suid alphaherpesvirus 1
IC-R	GTGGGCAAATCCGAGGAA	Suid alphaherpesvirus 1

Amplification was carried out in a Rotor Gene thermocycler 6-plex with Quantitect Multiplex PCR kit (Qiagen) with 0,24μM of each primer y 0,25μM of each probe under the following conditions: Hold 95ºC 15 min; 6 cycles of 94ºC 30 s, 61ºC 30 s; 40 cycles of 95ºC 20 s,58º 60 s; hold 40ºC 2 min.

Sequence data and statistical analysis

The analysis and editing of the sequences was carried out with the SeqMan (Lasergene) and MegaX software. Amino acid sequences obtained were included in a database with previously created sequences containing all described ARMs for feasible searching of resistance mutations as well as sequences from reference laboratory strains such as Towne and AD169. Statistical analysis was performed using SPSS v28.0 software (SPSS, Chicago, IL). Kruskal Wallis ANOVA test was used to compare the viral load of CMV between clinical samples with and without ARMs and between clinical samples with ARMs in UL97 only and in UL54 plus UL97, as well as with clinical samples which were unable to sequence UL54 and/or UL97. It was followed by Wilcoxon test for pairwise comparisons between medians (SD), 95% CI and p-value ≤ 0.05.

Results

Analysis of antiviral resistance mutations in UL97, UL54 and UL56

108 CMV positive PCR plasma from 96 transplanted patients yielded sequence data which enabled the analysis of at least one of the three genes of study. Studied genes UL54, UL97 and UL56 were fully characterized in 66, 67 and 96 CMV-positive patients, respectively. In 9 patients UL54 were characterized but not UL97. In other 10 patients UL97 were characterized but not UL54. In 20 patients, only UL56 could be fully analysed.

ARM was found in 21 transplant patients, 19 of them SOT recipients and 2 HSCT (Table 5). Regarding ARMs in UL97, 3 were cardiac transplant recipients, 2 liver transplant recipients, 6 lung transplant recipients, 6 kidney transplant recipients and 1 HSCT. Regarding ARM in UL54, 1 cardiac transplant recipient, 1 kidney transplant recipient, 4 lung transplant recipients and 1 HSCT. No ARM was found in UL56.

Table 5.

ARM and CMV load in 21 SOT and HSCT patients with suspicion of resistance to antivirals

Patient	GenBank∞	Transplant	UL54	ARM	UL56	UL97	ARM	CMV load (IU/mL)	Antiviral*
1	UL54P1 UL97P2	SOT-C	R	F412C	S	R	C603W	9,83 × 10 3	GCV, FOS
2	UL97P12	SOT-C	S	-	S	R	L397R / T409M / H411L / M460I	1,00 × 10 5	GCV
3	UL97P13	SOT-K	S	-	S	R	A594V	7,29 × 10 4	GCV
4	UL97P16	SOT-L	S	-	S	R	C603W	1,53 × 10 3	GCV
5	UL97P17	SOT-K	S	-	S	R	L595S/N510S	1,38 × 10 4	GCV
6	UL97P19	SOT-K	S	-	S	R	L595S	5,92 × 10 4	GCV
7	UL54P4	HSCT	R	A987G	S	S	-	8,74 × 10 3	VGCV, CDV
8	UL97P20	SOT-K	S	-	S	R	L595W	4,12 × 10 4	GCV
9	UL97P21	SOT-K	S	-	S	R	C607Y	6,83 × 10 3	GCV
10	UL97P22	SOT-H	S	-	S	R	H520Q	3,75 × 10 5	GCV
11	UL54P6 UL97P8	SOT-L	R	T503I	S	R	C603W	3,75 × 10 5	GCV, FOS
12	UL97P23	SOT-L	S	-	S	R	L397I	2,65 × 10 3	VGCV
13	UL97P24	SOT-L	S	-	S	R	L595S	2,84 × 10 3	GCV
14	UL97P11 UL54P10	SOT-L	R	P522S	S	R	M460I/L595S	6,57 × 10 3	GCV, FOS
15	UL97P14	SOT-H	S	-	S	R	A594V	7,85 × 10 3	VGCV, FOS
16	UL97P25	SOT-C	S	-	S	R	L595S	7,50 × 10 3	GCV
17	UL97P26	HSCT	S	-	S	R	A594E	3,85 × 10 3	VGCV
18	UL97P15	SOT-K	S	-	S	R	A594V	1,45 × 10 4	VGCV
19	UL54P7 UL97P9	SOT-L	R	T503I	S	R	C603W	3,24 × 10 3	VGCV, FOS
20	UL54P3	SOT-K	R	L501I / T503I / L516R / A834P	S	S	-	3,60 × 10 3	GCV,FOS
21	UL54P5	SOT-L	R	A987G	S	S	-	1,21 × 10 4	GCV, CDV

*Antiviral therapy before ARM testing. In bold red ARMs previously described as selected under drug in vitro [13]. In bold purple ARM not previously described [13]. SOT-C = SOT hearth, SOT-K = SOT Kidney, SOT-L = SOT Lung, SOT-H = SOT Hepatic, R = resistant, S = susceptible wild type. ∞GenBank accession numbers: UL54P1 OQ560469; UL54P3 OQ560470; UL54P4 OQ560471; UL54P5 OQ560472; UL54P6 OQ560473; UL54P7 OQ560474; UL54P10 OQ560475; UL97P2 OQ560451; UL97P8 OQ560452; UL97P9 OQ560453; UL97P11 OQ560454; UL97P12 OQ560455; UL97P13 OQ560456; UL97P14 OQ560457; UL97P15 OQ560458; UL97P16 OQ560459; UL97P17 OQ560460; UL97P19 OQ560461; UL97P20 OQ560462; UL97P21 OQ560463; UL97P22 OQ560464; UL97P23 OQ560465; UL97P24 OQ560466; UL97P25 OQ560467; UL97P26 OQ560468.

T503I was the most prevalent ARM in UL54 (3/7 patients), followed by A987G (2/7 patients) and L595S in UL97 (5/18 patients), followed by C603W (4/18 patients), A594V (3/18 patients), M460I (2/18 patients). L397I, L397R, T409M, H411L, H520Q, N510S, L595W and C607Y were found in one patient. Moreover, four patients developed ARMs simultaneously in UL54 (F412C 1; T503I 2; P522S 1), and in three patients ARM was detected in UL54 only (L501I; T503I; L516R; A834P). ARMs L397R and H411L in UL97 and L516R in UL54, which were previously described as obtained by drug selection in vitro, were found in two patients. L397I in UL97, which was detected in one cardiac recipient, has not been described before.

Viral load and the presence of ARM

Viral loads for the 96 patients included in the study are shown in Table 1 supplementary material and Table 1 for the 21 patients with ARMs. No significant differences were found between the viral load of the samples with and without ARMs, either with ARMs only in UL97 and UL54-UL97 or UL54 only. On the contrary, significant differences were found for the viral load of the samples with non-determined UL54/UL97 and without ARMs either with ARMs only in UL97 (Fig. 1; Table 6). A viral load threshold of 9.86 × 10³ IU/mL was established to be able to analyse complete sequences with enough feasibility and accuracy to characterize ARMs in the three genes. Below this threshold, only UL56 was fully sequenced in all clinical samples.

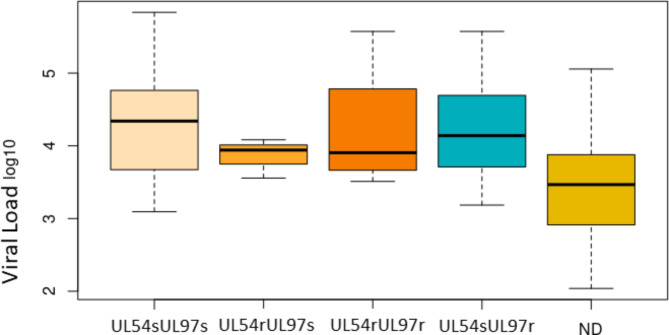

Fig. 1.

Boxplot that represents the distribution of viral load in each group

Non-determined (ND)

Table 6.

Viral load comparisons between groups. Willcoxon test

	UL54sUl97s	UL54rUL97s	UL54rUL97r	UL54sUL97r
UL54rUL97s	0.74964	-	-	-
UL54rUL97r	0.93237	1.00000	-	-
UL54sUL97r	0.87874	0.87874	1.00000	-
ND	0.00071	0.74390	0.43513	0.02603

In bold significant p-value ≤ 0.05.

Polymorphism in UL54 DNA polymerase and UL97 kinase

The occurrence of polymorphism in UL54 is concentrated in specific positions, mostly in S655L and F669L, but other mutations were also found such as T885A, R792C and D898N and a duplication SS in the 585 position. Four patients exhibited D605E mutation in UL97, one of them together with ARM C603W. No polymorphism was found in UL56 sequences.

Discussion

In this study, we developed a genotypic method of amplification through PCR and Sanger sequencing to analyse ARM in the UL54, UL56 and UL97 genes in clinical samples from 96 transplant recipients with suspected resistance to antivirals. To date, this is the study with the highest number of patients conducted in Spain. Moreover, according to a recent review of Chou S [13], we discovered a novel ARM “L397I” in UL97. Additionally, other three ARMs, such as L397R and H411L in UL97 and L516R in UL54, which were previously described as selected under drug in vitro, we detected them directly in clinical samples [13]. Interestingly, mutation at 397 position of UL97 confers resistance to maribavir despite this drug was not used in any patient. In this strain, high level GCV resistance ARM M460I (5–20 fold increase in ganciclovir 50% inhibitory concentrations) was also found, which suggests that GCV therapy could previously selected low level GCV resistance ARMs (< 2,2 Fold-increase in ganciclovir 50% inhibitory concentrations) producing cross-resistance to maribavir [13].

ARM was found in 18/67 (26.87%) patients regarding UL97, whereas 5.97% developed combined resistance to UL97 and UL54, and 4.54% to UL54 only. This rate was close to the 27% detected in SOT patients through Sanger sequencing in a previous study conducted in Barcelona [11]. Most ARMs were found in SOT patients, mainly in kidney and lung transplant recipients as described elsewhere [14, 15].

Most ARM was detected only in UL97 (14/21, 66.66%), indicating that the use of classical antivirals such as CDV and FOS, whose action mechanisms do not depend on UL97 kinase, is a reliable therapeutic option despite their wide use in transplant patients as alternative drugs. There was involvement of both UL97 and UL54 in 19.04% (4/21) of patients with ARM. Surprisingly, in three patients ARM was only found in UL54; this fact may be explained by the fact that some ARM in UL97 may have reverted to wild-type after switching therapy to FOS or CDV. In this sense, previous experiments have shown that, fortunately, the most common ARM found, L595S/W, reverts after a while, provided that the selective pressure of GCV is removed [16], suggesting a certain disadvantage of this ARM compared to susceptible wild-type. Of note is the high proportion of patients with treatment failure unrelated to ARM: 72,72% (48/66) and 89,23% (58/65) regarding UL97 and UL54, respectively. Unknown factors probably related to the patient’s condition and/or virus virulence may be also responsible for most refractory CMV infections. Therefore, the absence of response to treatment is not decisive to establish a case of antiviral resistance, and confirmation with genotypic methods [11, 13] is required at any rate [17]. Only two HSCT patients had not refractory CMV infections, which is in agreement with previous studies indicating that resistant CMV infections remain a rare complication in HSCT recipients, whereas refractory infections are more commonly found [18].

In this study, we searched for consensus ARM related to the lack of effectiveness of the main antivirals used against CMV (GCV, FOS, CDV, VGCV and LET) (Table 1). The presence of each of the mutations can affect a single drug or several ones simultaneously. Among the mutations found in the UL97 gene, H520Q/E and C603W/R/S were previously associated with high rates of resistance to GCV. However, the role of others, such as D605E, is controversial and, depending on the study, may be regarded as a resistance mutation or a variant of the natural sequence [19]. Recent recombinant phenotypic experiments indicated that this mutation did not confer resistance to GCV [13]. Therefore, we did not consider D605E, found in three patients, as an ARM.

Concerning resistance to LET, previously described ARMs were related to mutations located between amino acids 230 and 370 of UL56 [10, 18]. In vitro and clinical studies showed that ARM developed faster than in UL97 and UL54, which is a reason for increasing concern among clinicians and virologists. Regarding UL56, since two naturally occurring sequence polymorphisms (L241P and R369S) were described to confer 160-fold and 38-fold reduced susceptibility to LET [20], respectively, we decided to study this gene despite only one patient with suspected resistance was treated with LET and, even with treatment failure, no ARM was found in UL56. Although the main target of ARM to LET has been found in UL56, other ARMs in UL51 and UL89 could not be ruled out. Seven patients with ARMs in UL54 were found, four of them with combined ARMs in UL97, which suggests that most of the ARMs were accumulated in UL97 kinase when GCV or a closely related antiviral as VGCV was used. This finding is in agreement with previous studies, in which more than 90% of ARMs occurred in the UL97 gene, specifically between codons 460–520 and 590–607 [3, 6, 13, 15]. Other antivirals, such as FOS and CDV could be used instead in these cases, which highlights the importance of genotypic determination of ARMs for a right therapeutic choice. ARM was also found in UL54 DNA polymerase being T503I the most common (3/7 patients) which has been described as conferring resistance to GCV and CDV as well as A987G (2/7 patients). One patient developed multiple ARMs in UL54, one of which (A834P) is related to the appearance of resistance to FOS [19, 21].

In addition to the above-mentioned ARMs, other mutations compared to reference wild-type strains were found because of a certain polymorphism in UL54. The frequency of some of them is high, as in the case of S655L (51.14%) and F669L (42.86%) located at UL54. However, their consideration as candidate ARMs requires further recombinant phenotypic or marker transfer studies. It should be noted that the occurrence of multiple ARMs, which markedly increases antiviral resistance, thus complicating prognosis and treatment management [22, 23], was a common event: (8/21) of patients with ARMs.

In the search of ARMs in cohorts of patients with suspected resistance to antivirals, efforts have been made in many laboratories worldwide to develop NGS-based methods due to their ability to multiplex large numbers of samples. However, in our experience, for routine virological screening with few patients, NGS assays are still quite costly and time-consuming compared to PCR and Sanger sequencing. The main advantage of NGS was that ARMs may be characterised in samples with lower viral load [11] or when minor resistant subpopulations exist.

Despite limitations, the findings of this work contribute to reinforce the observation of the presence of mutations associated with drug resistance previously described, while making a case for the discussion on the involvement of new ones in the emergence of antiviral resistance. It is also shown that drug resistance is an important feature of CMV pathogenesis in transplant recipients that may threaten transplant outcomes, while the value of genotypic testing to identify potential antiviral resistance mutations is highlighted, which in turn could contribute to a better virological diagnosis and clinical performance.

Limitations of the study

CNM service portfolio includes characterization of resistance mutations in UL97 and UL54. Treatment with LET was carried out in only one patient. However, due to the rapid emergence of ARMs in UL56, its characterization was included to know if a basal level of ARM occurred. Sanger sequencing is not able to detect subpopulations of CMV below 20–30% of the total, therefore minor subpopulations of CMV with ARMs, if any, were not identified. We established that direct amplification of clinical samples and sequencing required a viral load threshold ranging from 10³ IU/mL to 10⁴ IU/mL in order to obtain high-quality sequences for feasible analysis. In contrast, real-time PCR was able to detect below 10² IU/mL. Despite CMV has been previously detected at hospital, in many samples UL54, UL97 and UL56 are unable for feasible analysis because of poor quality of sequences attributable to low viral load and/or repeatedly freezing/melting processes, etc. Therefore, the patient was included in the study only when at least one gene was able to analyse. Moreover, different PCR efficacies result in that nearby 30% of patients only UL56 was able to be analysed.

Some relevant characteristics of patients such as CMV serostatus (D/R) or days after SOT or HSCT were not available.

Electronic supplementary material

Below is the link to the electronic supplementary material.

Abbreviations

ARM

Antiviral resistance mutation

CDV

Cidofovir

CMV+

Positive CMV real-time PCR

CMV

Cytomegalovirus

CNM

National Center for Microbiology

EBV

Epstein-Barr Virus

FOS

Foscarnet

GCV

Ganciclovir

HHV-6

Human herpesvirus 6

HHV-7

Human herpesvirus 7

HHV-8

Human herpesvirus 8

HSCT

Hematopoietic stem cells transplantation

LET

Letermovir

SOT

Solid organ transplantation

VGCV

Valganciclovir

Authors’ contributions

David Tarragó contributed to the study conception and design. Material preparation was performed by Vanessa Recio and Irene González, data collection and analysis were performed by David Tarragó, manuscript was written by David Tarragó.

Funding

This work was supported by a grant from Instituto de Salud Carlos III. AESI2021 PCIII00011-MPY434/2021. The funder had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Data Availability

The datasets generated and analysed regarding clinical samples and patients are in Table 1 of Supplementary material.

Declarations

Ethics approval and consent to participate

All methods were carried out in accordance with relevant guidelines and UE regulations. All experimental protocols including the use of residual clinical specimens submitted for virological diagnosis and written informed consent from all subjects and/or their legal guardian(s) was approved by the Ethics Committee of the “Instituto de Salud Carlos III” (CEI PI 11_2021-v3).

Consent for publication

Not applicable.

Competing interests

The authors declare no competing interests.
