Schooling of light reflecting fish

Assaf Pertzelan; Gil Ariel; Moshe Kiflawi

doi:10.1371/journal.pone.0289026

. 2023 Jul 21;18(7):e0289026. doi: 10.1371/journal.pone.0289026

Schooling of light reflecting fish

Assaf Pertzelan ^1,^2,^*, Gil Ariel ³, Moshe Kiflawi ^1,²

Editor: Pilwon Kim⁴

PMCID: PMC10361475 PMID: 37478091

Abstract

One of the hallmarks of the collective movement of large schools of pelagic fish are waves of shimmering flashes that propagate across the school, usually following an attack by a predator. Such flashes arise when sunlight is reflected off the specular (mirror-like) skin that characterizes many pelagic fishes, where it is otherwise thought to offer a means for camouflage in open waters. While it has been suggested that these ‘shimmering waves’ are a visual manifestation of the synchronized escape response of the fish, the phenomenon has been regarded only as an artifact of esthetic curiosity. In this study we apply agent-based simulations and deep learning techniques to show that, in fact, shimmering waves contain information on the behavioral dynamics of the school. Our analyses are based on a model that combines basic rules of collective motion and the propagation of light beams in the ocean, as they hit and reflect off the moving fish. We use the resulting reflection patterns to infer the essential dynamics and inter-individual interactions which are necessary to generate shimmering waves. Moreover, we show that light flashes observed by the school members themselves may extend the range at which information can be communicated across the school. Assuming that fish pay heed to this information, for example by entering an apprehensive state of reduced response-time, our analysis suggests that it can speed up the propagation of information across the school. Further still, we use an artificial neural network to show that light flashes are, on their own, indicative of the state and dynamics of the school, and are sufficient to infer the direction of attack and the shape of the school with high accuracy.

1. Introduction

Free-ranging animals that move in large aggregates, such as schooling fish and flocking birds, are often required to maneuver in unison to evade attacking predators. The collective evasive maneuvers change macroscopic properties of the aggregate, such as its direction, polarization, and density [1–4]. These changes are often manifested as “waves of agitation” or “escape waves” that follow the propagation of information regarding the attack across the aggregate. The complex inter-individual interactions, which bring about such large-scale dynamical patterns, are not fully understood [2–4]. One of the main empirical obstacles to a fuller understanding of these interactions and the consequent escape dynamics is the difficulty of tracking individuals within very large schools; using either cameras (e.g. [5]) or sonars [2, 5].

Large schools of silvery fish are common in the world’s oceans [6]. When swimming close to the surface, the specular (mirror-like) skins of these fish will often reflect direct sunlight. To an underwater observer, these reflections appear as highly conspicuous flashes of light (Fig 1), which increase the fish’s contrast by at least one order of magnitude [7]. When under attack, an agitation wave crossing a school of specular fish, may appear as a shimmering wave of flashes (e.g. Fig 1). The wave arises as the succession of evasive maneuvers by neighboring school members momentarily brings their bodies to an angle that reflects the sun in the direction of the observer [1–4]. As such, shimmering waves could contain information regarding the dynamics of the school and individuals within it, which is more discernable than the actual trajectories of the individual fish. For example, the dark bands typical of agitation waves in starling flocks, which are analogous to shimmering waves, have been used to measure wave intensity and propagation speeds [8].

Fig 1 — The flashes arise when the fish, initially facing to the left, turn into the school (here into the page, perpendicular to the advancing wave), causing their body to face the observer at just the right angle to generate a flash of reflected sunlight. The wave propagates as the decision to turn is taken sequentially by the fish, starting from the left. Bottom-left corner: a “predator’s view” of the wave, taken from a camera mounted on a spear shot into the school. The video clips, from which the snapshot were taken, were filmed while snorkeling along the shoreline of the Golf of Eilat, using Sony RX100 IV and Paralenz Dive Cameras. See S1 and S2 Videos for the actual video clips.

In this paper, we use individual-based simulations to study the dynamics of shimmering-waves. We begin by testing whether a shimmering wave can arise in possible schooling scenarios. We continue by addressing the possibility that flashes observed by the fish themselves can be used to induce apprehension and, thereby, speed-up the transfer of information within the school. We then continue to test the complementary question of whether the dynamic properties of the waves (e.g., their duration and speed of propagation) can be used to differentiate between competing hypotheses relating to the inter-individual interactions that give rise to them; as well as to infer the occurrence and direction of an attack.

Fish schools under attack

In schooling fish, the response to an attack amounts to moving closer together or rolling sideways [1–3]. Once initiated, waves of agitation often propagate faster than the speed at which individuals are moving within the group; a phenomenon often referred to as the ’Trafalgar effect’ [9]. In cases where the stimulus is an approaching predator, the waves have also been found to travel faster than the predator itself [4]. Surprisingly, waves can travel even faster than expected given the estimated response-latencies [3], i.e., the time between the perception of the stimulus and the fear/escape response. The unexpected speed of information-transfer led to speculations regarding possible mechanisms that enhance synchrony and extend beyond the scale of localized social interactions. A prominent example is the “chorus-line hypothesis” [10], which assumes a reduction in latency due to a heightened state of anticipation.

Importantly, the flashes of light reflected off specular fish are visible not only from outside the school but also from within it; and thus, could potentially serve to inform the school members themselves. Indeed, it has been previously hypothesized that the reflective structures on fish can be used for “communicating information on relative positions, orientations, and movements between neighbors” [11]. Here, we explore a hypothesis that the heightened state of anticipation described above is caused by changes in the pattern of reflected light, as perceived by school members found downstream of the propagating wave. Particularly, we propose that observing a large change in the number of flashes reduces the latency and, as a result, speed-up the propagation of information.

Modelling schools under attack

Standard models of schooling typically fall short of generating agitation waves following localized perturbations, such as an attacking predator; presumably because the perturbation is perceived by only a small number of agents [4, 12]. In most models (for example the three-zones model e.g. [13–15]), individuals modify their position and direction based on the average response of neighboring agents. As a result, the initial reaction to the perturbation is “averaged out” [1–3, 12], i.e., the response of an agent close to the perturbation is averaged with agents that are farther away and, thus, did not perceive it. As most agents are far from the perturbation, the intensity of the reaction decreases with distance. Indeed, subsequent models have shown that additional responses, that are not due to a direct observation of the predator but leads to preemptive evasive maneuvers, are needed in order to generate agitation waves [3, 8, 12]. For example, [12] assumed that when an agent sees another agent whose behavior is clearly different from other school members, it will copy its behavior. With this added behavioral component, information of an approaching predator can propagate through the school, forming a response wave that travels at a (approximately) constant speed [4]. The agitation wave gives rise to a collective evasive response, even though the number of individuals that directly experience the perturbation is small [12].

The simulations introduced below accommodate the three basic local-interaction rules which are typically included in collective-motion models (repulsion, attraction, and alignment), as well as the copy response suggested in [12]. On this collective-motion model we superimpose a ray-tracing model [7] that ‘records’ the light-flashes perceived from a pre-prescribed location, either within or outside the school. To the best of our knowledge, our model is the first attempt to model shimmering waves, based on first principles of light propagation and reflectance.

The paper is organized as follows. Section 2 describes the basic methodology underlying our modeling and simulation. More specific details are provided at the beginning of each of the three subsequent sections (3,4 and 5), and in the S1 File. Sections 3,4 and 5 focus on the results pertaining to our three main objectives. In section 3, we demonstrate that the model successfully produces shimmering waves using realistic parameter values (Table 1); contingent on the inclusion of a copy response, i.e. consistent with [12]. We then test, in section 4, the hypothesis that the shimmering wave caused by an attack can: 1) be seen by fish found downstream from the propagating wave; and, were the fish to use this information, 2) leave a discernable signature in the dynamics of the waves. In section 5 we demonstrate the ability to distinguish between different characteristics of the school, based only on observed flash patterns. The characteristics we focus on include: the direction of the attack, the shape of the school, and the underling rules of motion used by the individual; and in particular the use of the flash signature as input. We discuss our results in section 6.

Table 1. Translation of the simulation parameters to real-world values.

Parameter name	Parameter value	Source
Wave speed [m/sec]	10	[1, 17]
Wave Distance Per Frame [m]	28/100	Internal simulation parameter
Number Of Frames Per Second	35	Internal simulation parameter
dt (iteration time) [sec]	0.028	Internal simulation parameter
Latency [sec]	0.084	See [18–21]
Latency After Seeing Signal [sec]	0.028	The iteration time dt
Fish Routine Speed [mm/sec]	107	1.07 BL
Fish Escape Speed [mm/sec]	1070	10.71 BL. Within the range reported by [21]
Fish Body Length [mm]	100	assumed for translating our simulations to realistic values
Rotation Rate Lower Bound [degree/msec]	6.428	[21]

Open in a new tab

2. General methods

Our modeling strategy is a second-order agent-based model (i.e., we specify the acceleration). Simulations include a school of fish and a single predator. The latter appears for a limited number of steps and moves along a fixed linear trajectory. The predator moves towards and into the school faster than the agents’ maximal speed during the ‘schooling’ state (see below).

In the three-zones model (e.g [13, 14]), each agent i at every discrete time-step t is described by its position, p_i(t), and velocity, v_i(t). To account for predator response (the direct-only model), we introduce two additional variables: the acceleration a_i(t), and a discrete internal state s_i(t). The internal state is one of four options: schooling, evasive, predator-response (similar to [16]), or copy-response (similar to [12]), as described below. Moreover, in order to trace the direction at which light-rays reflect off the fish, we keep track of the vertical direction of each agent. To this end, we define a direction b_i(t) that is perpendicular to the velocity, corresponding to the direction of the dorsal side of the fish (the direction that regularly points upward, perpendicular to the vertical axis).

Below, we outline the main components of the model. Details are provided in the S1 File, section 1.

Agent dynamics

At each step, all agents update their positions and velocities synchronously as,

p_{i} (t + 1) = p_{i} (t) + v_{i} (t)

v_{i} (t + 1) = I v_{i} (t) + a_{i} (t),

where I < 1 is an inertia parameter, qualitatively accounting for water resistance. Velocity-updates depend on the current internal state s_i(t), according to the decision process explained below and depicted in Fig 2.

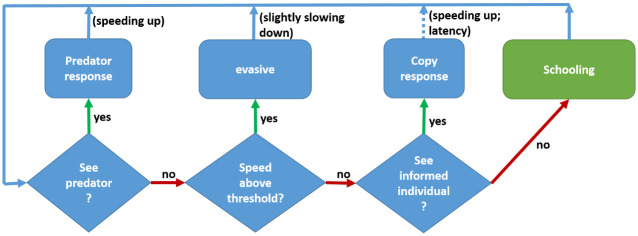

Fig 2 — A diagram of the decision process for moving between states, s_i(t). The states are represented by rectangles and the conditions by diamonds. If an agent sees a predator, it accelerates to a high speed and turns away from the predator. If an agent sees an informed individual (a high-speed individual facing away of the agent direction), it copies the velocity of this individual. From then on, it remains in the *evasive* state until it gradually slows down and return to the *schooling* state. The copy response occurs after several steps of latency (default: 3 steps; corresponding to 0.084 msec. See Table 1), during which the agent remains in the *schooling* state.

See Table 1 for conversion of the simulation parameters to empirical estimates.

Internal states

Schooling: An agent’s acceleration is determined similar to the usual three-zone rules, e.g. [22], i.e. a weighted average of the attraction to all neighbors within a given distance R_o, alignment with all neighbors within a distance R_a and repulsion from neighbors within a distance R_r; with R_r<R_a<R_o (S1 Fig).
Evasive: If an agent in the schooling state attains a speed that is higher than the schooling speed limit $|v_{i} (t)| > s_{max}^{schooling}$ (for example, because it encountered a predator or an informed individual–see copy-response below), it transitions to an evasive state. In this state, the update rules for the velocity are similar to rules while schooling, but with different weights (S1 Table in S1 File) that give a higher priority to cohesion and alignment over repulsion.
predator-response: If an agent in the schooling or evasive states encounters the predator (i.e., the predator is within a distance R_p), it transitions into the predator-response state. In this state, agents turn towards the opposite direction of the predator and start swimming at speed $s_{max}^{evasive}$ .
copy-response: A neighbor (to any schooling agent within radius R_i) is called informed if it is currently making a sharp turn and is swimming fast (above a threshold). Such a behavior indicates (possible) information of an attack. A schooling agent that has an informed neighbor will transition into the copy-response state following a response delay (latency). In this state, agents copy the velocity of the informed neighbor. In the following, we set R_i = R_a, as both represent the distance at which the orientation of neighbors are visible.

Roll angles

To track the angle at which incident light beams are reflected off the agents, we need to model the dynamics of a direction normal to the velocity, corresponding to the ventral side of the fish. We denote this direction as b_i(t). To this end, we define a motion rule for the roll-alignment, which determines the torsion of the trajectory curve of each agent. In addition, we give individuals a tendency to realign b_i(t) with the vertical axis (point upwards). See sections 1 in the S1 File for details.

Optics

We assume a light source above the water-surface that is a cone of light of angle θ around an incident direction d_light. In all simulations, we take d_light = −i₃ = (0,0,−1), i.e., pointing directly downwards. For simplicity, the agents are considered as 2-sided planar mirrors whose normal direction n_i(t) is perpendicular to the velocity and back vectors,

n_{i} (t) = \frac{v_{i} (t) \times b_{i} (t)}{|v_{i} (t) \times b_{i} (t)|} .

A more detailed model that provides a realistic representation of light reflected off the skins of silvery fish is given in [7]. This model, which is computationally expensive, was only used for static snapshots of fish schools with no dynamics. In order to determine if agent i reflects light towards position x in a given time t, we define a vector in the direction of p_i(t) − d_light,

r a y_{i} (t) = \frac{p_{i} (t) - d_{light}}{|p_{i} (t) - d_{light}|} .

Then, we define the reflected vector of ray_i(t) from the plane represented by the normal n_i(t),

r e f_{i} (t) = r a y_{i} (t) - 2 [r a y_{i} (t) \cdot n_{i} (t)] n_{i} (t),

and another vector pointing from the agent position towards a virtual observer that is placed at position x,

o b s_{i}^{x} (t) =_{} \frac{x - p_{i} (t)}{|x - p_{i} (t)|}

If the angle between ref_i(t) and the vector $o b s_{i}^{x} {(t)}_{}$ is smaller than θ, then the agent reflects light towards x. It is possible that an agent will not reflect light both at time t and at time t + 1, but its trajectory for its location between the two times will cross a point in which it will flash. This is taken into account, as explained in the S1 File and in Fig 3).

Fig 3 — The angular distribution of the incident light rays above the agent is represented by the light blue cone. The agent, represented by the gray elliptical cross-section of a forward facing fish in the middle of the frame, has its side facing an observer (e.g. predator) situated to its left. The solid lines represent the incident and the reflected ray reaching the observer. a. A “flashing” agent. The reflected ray enters from within the light cone. b. The reflected ray is outside of the light cone, so the agent does not appear as flashing. c. A “continuous reflection” event. The dashed ellipse in the middle of the frame represents a non-flashing agent at time t-1 and the gray ellipse line represents a non-flashing agent at time t. If the angular trajectory of the agent (represented by the gray arched arrow) reflects a ray that passes through the cone of incident light, it would flash toward the observer sometime between t-1 and t, and would be counted (by the simulation) as a flash at time t.

Classification of behavioral patterns

To test if shimmering waves can be used to differentiate between some of the behavioral and structural configurations accommodated by the model, we apply an artificial deep neural network (DNN) to the ‘recorded’ pattern of reflections. DNNs are increasingly used in the study of collective animal behavior [23–27], owing to their capacity to find features that are intuitive to recognize but unintuitive to define. In particular, DNNs are efficient in detecting features in images taken from different perspectives and scales [28] and in sequences of inputs [29–31]. Since the training of DNNs requires large, annotated datasets, researchers are increasingly turning to synthetic data [24, 26, 27, 32, 33]. We adopted a similar approach, using our model to facilitate supervised leaning by the neural network.

3. Generation of flash waves

Our modeling approach enables us to demonstrate that a model implementing both predator-response and copy-response can successfully generate seemingly realistic shimmering waves. Moreover, the copy response is necessary, i.e., the basic three-zone interaction rules and predator-response alone are not sufficient to explain the waves seen in nature.

Methods

All schools are composed of N = 15,000 agents, initially positioned in an elongated cylinder parallel to the x-axis (assuming a body length of 10cm and a density of ~33 fish/m³, an average distance of ~40cm between agents, corresponding to a cylinder of around 28m long and 5.5m wide; see S1 Table in S1 File for the full configuration).

A virtual observer was placed~12.5m from the school center of mass on the same horizontal plane and perpendicular to the school average velocity, i.e., the observer is watching the school from its side (Fig 4). During each scenario, the observer remains at the same relative position to the center of the school (that is practically stationary) but not moving relative to the orientation of the school. The predator attacks the school head-on and aims its attack at the center of mass of the first 30 individuals, evaluated in relation to the average velocity of the school. The predator was removed from the system at the end of the attack, which lasts five time-steps. Simulations resolve the group dynamics for 115 simulation steps, corresponding to approximately 4 seconds (see Table 1).

Fig 4 — Time-steps are shown on the left, and progress from top to bottom. The shimmering wave appears as fish reflect light (turn ‘white’) toward the observer, as they turn approximately 180 degrees (arrows at top-right corner) to face the other direction and evade the predator.

We compared four response models that differ in their velocity-update mechanisms:

Model 1: Direct-only: A fish in the schooling state that encounters the predator directly performs an evasive response that increases their speed (see Section 2). Under this model, the fish react only to a direct observation of the predator.
Model 2: Direct-and-copy: In addition to the direct response, fish found in the schooling state that do not see the predator, but do see an informed individual, enter a copy-response state and copies the velocity of the informed agent. Copying occurs with a latency of 3 steps (Table 1), corresponding to the reaction time of a fish.

To quantify the dynamics that follow the attack, under each of the four models, we first divided the school into ~300 bins (slices) along the x-axis, each corresponding distance of 100mm. For each bin, at each time-step, we then calculated three measures:

Change in local fish density: The number of fish in bin i at time t, expressed in standard deviations (z-score, using the mean and variance calculated across time-steps). As in previous works [3, 4, 34], we expected a wave of temporarily increased numbers (i.e., density) to propagate across the school.
The proportion of fish that were perceived as flashing by the external observer. This is relevant for establishing the emergence of shimmering waves as the result of the escape maneuvers.
The proportion of fish that encounter at least one informed individual, at time t. This measure quantifies the actual propagation of information.

Each of these measures was plotted, using a heatmap as a function of both the position along the x-axis of the school and time. Patterns in these heatmaps were used for inferring the dynamics of the respective measure. In particular, the presence of a diagonal in a heatmap was taken as indicative of the propagation of the respective measure, with the slope of the diagonal equaling the reciprocal of the speed of propagation.

Results

As expected, a localized predator attack under the direct-only response model did not produce a shimmering wave (Fig 4, left column), indicating a rapid loss of information due to averaging-out of the evasive response. Indeed, all measurements under the direct-only model do not reveal any meaningful patterns or indicate propagation of information (See S1 File section 8 for the plots).

In contrast, the same attack under the direct-and-copy response model produced the expected shimmering wave, which traversed the school at an approximately constant speed (Fig 4, middle column). Neighbors of informed individuals copy its behavior, without loss of the information regarding the direction of the attack. As a result, the copied response propagates through the entire school within 115 steps, corresponding to 3.22 seconds (see Table 1).

The direct-and-copy model produced a density wave, which appears as a diagonal in Fig 5a. The propagation of the density wave is matched by the pattern of flashes perceived by the external observer (Fig 5b), which follows the actual propagation of information across the school (Fig 5c). Thus, the rate at which fish were exposed to an informed individual (and copied its behavior) matches the density and shimmering waves.

The supplementary material (S1 File section 10) details a sensitivity analysis which shows that wave speed decreases with latency and increases with escape speed (the initial evasive speed. Moreover, (S1 File sections 11, 12) the shimmering wave is not sensitive to the exact location of the observer, the shape of the school and, to some degree, the alignment of the school.

4. Possible use of the flash patterns by the group members

Methods

In addition to the appearance of the flash waves to an external observer, we wanted to test whether shimmering patterns could be used as a source of information by the group members themselves. Therefore, we introduced a new assumption/hypothesis–namely, that fish situated within the school can perceive and act upon changes in the number of flashes. To incorporate such a ‘flash response’, we assume that intense shimmering–i.e., the turning ’on’ or ’off’ of a large number of flashes, per time unit–can signal an instability within the school. We will refer to such an occurrence as a flash-signal (see S1 File for the precise definition). We further testing the assumption that agents respond to this signal and, as a precaution to a possible attack, enter an anticipation mode that shortens their response-latency which, thereby, results in a faster evasive maneuver in response to local interactions [35]. We modified the direct-and-copy model by specifying two variations of how a fish respond to an abrupt change (increase or decrease) in the number of flashes, which falls above some specified threshold (+/- 200):

Model 3: flash-latency: Following a flash-signal, the fish reduces the latency of its response to zero.
Model 4: flash-direct: Following a flash-signal, the fish turns away from the center of mass of the signal.

Results

With the flash-latency model (Fig 4, right column), the initial dynamics are similar to those seen with the direct-and-copy response model. However, at some point (~t = 40) the fish downstream of the propagating wave perceive an above-threshold change in the overall flashing pattern which shortens their latency and consequently, speed up the propagation of the wave (Fig 6).

Fig 6 — The wave starts at the same speed as the copy-response scenario (compare plots a, b, and c to their corresponding plots in Fig 5) but changes around t = 40. At this point in time, the flash signal crosses a threshold (set to 200; plot d) for all fish, which reduces the response latency, accelerating the propagation of information.

Given the high detectability of the flashes, the number of flash changes is visible in all areas of the school, including those not yet reached by the propagating wave of informed individuals. As a result, the wave can be used as an early warning. Fig 7 demonstrates how the flash signal is viewed by a virtual fish at the back of the school.

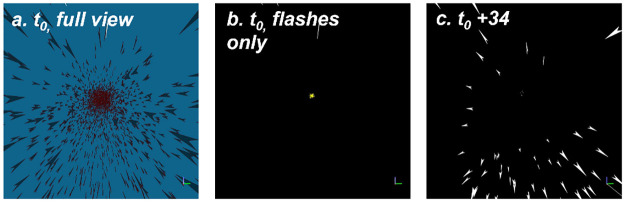

Fig 7 — Plot a. shows the full-detailed view of the school, one time step before the attack. This view, which shows the fish rather than the flashes, cannot be seen fully by the fish due to the low contrast of the non-flashing school members. Plot b is the flash-only version of plot a, showing the predator in the distance (in the middle of the frame) but no visible flashes of yet. After 34 steps (plot c), the flash wave gets close to the observing fish. For illustrative purposes we chose to use relatively sparse schools, placed the observing fish at the “back” of the school and present a narrower field of view than that which is available to the simulated observer. For clarity, we ignore the occlusion of flashes; as we do also in the models. In section 7 of the S1 File we discuss the consequences of excluding occlusion in this scenario (see also the insert at the bottom-left of Fig 1, for a real-world example of the flashes seen from within the school).

With the flash-direct model, an abrupt simultaneous response of all individuals to the predator occurred which resulted in a quick flash cloud. See S1 File and S12 and S13 Figs write column for further information.

5. The information content of shimmering waves

The previous section describes several agent-based models that recreate shimmering waves as a response to predator attacks. The goal was to generate flash patterns that resemble natural waves and explore how fish may respond to them. Here, we take a complementary approach and demonstrate that flash patterns themselves contain enough information to enable an observer to differentiate between scenarios; i.e., the observer could infer differentiate between scenarios that pertain to the behavior of the fish within the schools, or the structure of the school as a whole; without seeing the individual fish themselves. In other words, while in the previous sections we explored properties of flash-patterns that could be used, in this section we aim to provide an example in which such differentiation is indeed possible. As proof-of-concept, we focused on three analytical tasks: detect an attack and its direction, infer the shape of the school under attack and infer the motion-rules of the individual fish (Fig 8).

Fig 8 — a. The direction of attack: front, back, top, bottom, side, and no-attack. b. The shape of the school prior to the attack: cylindrical, ball-, and pancake-shaped (N = 1000 fish) c. The response to the attack: (i) direct-only (ii) direct-and-copy (iii) flash-direct.

Methods

The main idea is to train the observer to classify global states of the school into several categories, as listed below. To this end, we train a neural-network (NN) which only has as input the sequence of light flashes that a stationary observer from outside the school would perceive. We defined three tasks. In each task, the NN needs to distinguish between several classes, as detailed below.

The occurrence and direction of attack (Task 1). We consider six classes, corresponding to attacks from five different directions (relatively to the fish head): front, back, side, top, and bottom, and an additional “no-attack” scenario (Fig 8a). The NN needs to determine whether an attack occurred and if so, from what direction.

The shape of the school (Task 2): We consider attacks on schools of three different shapes: elongated cylinder, ball, and pancake (a thin circular school close to the water surface). The NN needs to determine (using only the flashes) what the shape of the school was.

The motion rules used by the fish (Task 3): The scenarios considered in this task are the original response models (direct-only and direct-and-copy) and the two modifications; flash-direct and flash-latency. In other words, this task tests whether the use of light flashes as a precautionary signal by the fish will leave a discernable signal in the shimmering wave generated by the collective evasive maneuver. The NN, which in this task plays the role of an experimentalist studying the behavioral rules of schooling fish, needs to determine which of the models were used to generate the flashes.

In all simulations, school-size was set to N = 1000 fish, all initially oriented in the same direction (Fig 8). Working with a school-size that is considerably smaller than the 15,000 used in sections 3 and 4 allowed us to increase the dataset size (the number of training and testing runs, which are our samples, pre class). Our underlying assumption is that emergent patterns that appear with small N would also appear with larger (up to a point) N.

Dataset generation

For each of the tasks we generated 150 samples per class using the direct-and-copy response model described above. Each simulated sample consisted of a short image-sequence (a ‘video’) of 15 frames, 90x90 pixels each (equivalent to 0.2–0.8 seconds). See, for example, S4 Fig, showing only the flashes that are visible to the observer.

In order to differentiate between the classes, we used a convolutional-LSTM network (Based on [29]). Intuitively speaking, convolutional networks are efficient for detecting variations of image features regardless of scale and position of the camera. LSTMs are useful for processing sequences by adding a time-dimension to the process and tying together features of frames in different times, based either on timespan or on a set of features that were detected in between. In our case, when the observer neither knows its exact position nor his movement in relation to the group, and when there is a strong temporal factor, the combination of convolutional and LSTM architectures is appropriate [29–31]. See ‘Classification model’ in S1 File for more details.

For each task, the trained network was tested on a new dataset that consisted of multiple samples of the different classes (around 30 samples per class). The network was requested to identify which instance belongs to which class. The results are presented using a confusion matrix, where network classifications are compared to the true classes. Where relevant, we also present the total accuracy of the task results and the f1-score. Briefly, accuracy is the rate of true detections (negative and positive) from the total number of samples. f1-score is a measure that accounts for two other measures–- precision and recall., where precision is the rate of true positives from the total positives detected and recall is the rate of true positives from the total instances. See S1 File section 5 for the full results and the definition of the indices.

Results

Below we demonstrate our ability to infer the state of the school under each of the three tasks outlined above. The results were derived from analyzing the ‘noisy’ datasets, generated by models that included ‘observer-orientation’, ‘look-at-moves’, and ‘roll-noise’. See the S1 File section 3 for results without noise.

Task 1: Attack-direction

The trained network can detect with high accuracy whether an attack occurred or not (f1-score of 0.92 for the no-attack scenario). It can also detect the attack direction, but with lower accuracy. With all noise parameters on, the overall accuracy of this model is 0.74, which is better than chance (1/6) but indicates that there are still some difficulties in distinguishing between the classes (See S1 File section 5.3). These difficulties could be due to either essential similarities between the flash signatures, or non-optimal selection of hyperparameters (Fig 9a).

Fig 9 — a. Direction of attack. The DNN could distinguish among different attack direction in most cases. b. ‘school shape’. The DNN could distinguish among different school shapes in most cases. Some pancake-shaped schools have been mistaken for cylinders, possibly as both present a large school-depth when observed from certain angles. c. ‘fish response’. The DNN could distinguish between different fish responses. The separation between the direct-and-copy and the flash-latency models is weaker than the ability to distinguish among other classes.

Task 2: School shape

The network detected the shape of the school with a high overall accuracy of 0.94 (See S1 File section 5.3). It should be noted that this level of accuracy is relevant to the school-size and observer-distance specified in the model, and may change if these parameters are changed (Fig 9b).

Task 3: Motion rules

The accuracy of this classification was 0.74, which is considerably larger than the 0.25 expected by chance. The identification of direct-and-copy and the flash-latency scenarios is good, and only slightly mixing with each other (f1-score of 0.58 and 0.68 respectively). Surprisingly, the direct-only, where no wave is generated, was mistakenly identified as direct-and-copy or flash-latency in five of the 28 samples (Fig 9c).

6. Discussion

The main goal of this work is three-fold. First, to establish whether models of schooling fish can generate realistic flash waves that propagate across the school in response to an attack. Second, to explore the possibility that school members are using this source of information themselves, and test how that can, in principle, affect the attack-response behavior. Third, to demonstrate that flash patterns indeed contain accessible information relating to the dynamics of the school, the behavior of individuals within it (in particular, their response to threats) and to the nature of the attack. Overall, the simulations provide a proof-of-concept which demonstrates that, on the one hand, flash patterns are indeed indicative of the state and dynamics of the school and the behavior of the individuals that compose it; and, on the other hand, that the flashes may be an important causative factor in shaping the escape behavior of the fish.

Models of collective motion typically view the propagation of information as proceeding at a highly localized scale (e.g. [36–39]). This raises fundamental questions on the efficiency of information transfer within schools. First, noise and measurement errors may add up over long distances so that the signal (or information), for example regarding an approaching predator, is lost or averaged out. For this reason, it has been hypothesized that natural flocks are in a critical state, which implies long range correlations, that can extend over the entire flock [40–42]. Such models are motivated by models of statistical physics in which the interaction is instantaneous [43]. Such an assumption is not realistic in natural groups, including fish schools. For example, the reaction time of a typical fish is around 5–150 msecs [21]. This sets theoretical bounds on the possible speed of propagation of information within a school.

It has long been suggested that, at least in some examples, the actual speed of propagation may be higher [4]. To this end, based on observations of dunlin (Calidris alpina), Potts [10] suggested a “chorus-line” hypothesis according to which “individuals observe the approaching maneuver wave and time their own execution to coincide with its arrival”. From a mechanistic perspective, this suggests long-range instantaneous transfer information, even if very limited. However, the rapid attenuation of light underwater (as opposed to the situation in air [44, 45]) implies that the mechanism suggested for birds, is not relevant for fish.

Our results suggest light flashes as a plausible mechanism for a “chorus-line” effect in near-surface schooling fish. As demonstrated in our simulations, light flashes, due to their high contrast [7], can act as macroscopic, long-distance, many-to-one emergent signaling. Moreover, it may play a role in synchronizing the schooling fish. We explore two hypothesis regarding the information fish can retrieve from a propagating wave of flashes, and their possible response to it. First, if the fish can infer the direction of an attack, as with the flash-direct model, fish can act accordingly and start preemptive measure to escape the attack. Such a response would alleviate the assumption of criticality because the information travels directly from its source, rather than from each individual to its neighbor. Alternatively, as with the flash-latency model, the critical state may still be required for the information to propagate across the school. In this case, fish only use the flash to increase the propagation speed, as discussed above. A similar idea was been proposed for flocks of starlings (Sturnus vulgaris) [46], in which the group converges to a marginal opacity state where the rate of visible sky provides to the individual information which is complementary to the one it gets from local interactions.

Our results show that flash-signatures convey enough information to differentiate between schooling scenarios. Event-detection, individual motion rules, properties of school geometries, and their combinations, could all be explored using the flash signature of schools. These results pave the way to empirical studies of flash waves and other flash-patterns. As we demonstrated using simulations, analyzing flash patterns as they appear for an external observer may also provide insight to the underlying decision-making process of the individuals, and hence bypass, at least partially, the need to track the trajectories of individuals. The abilities demonstrated in this study together with the fact that these flashes may be perceivable by the fish, lead to a possibility that a complex and rich flash-language is awaiting to be discovered, which is possibly already in use by the schooling fish and their predators.

Supporting information

S1 Data. The simulation and analyses codes.

(ZIP)

Click here for additional data file.^{(68.3KB, zip)}

S1 Fig. The relative dimensions of the copy-response zone and the three social zones that give rise to schooling state.

The agent (the black fish in the middle) modifies its motion based on its neighbors’ velocities and locations within the Cohesion zone (the agent is attracted towards the center of the mass of the neighbors’ position within this zone, which is typically the largest). The Alignment zone (the agent adjusts its direction towards the average direction of its neighbors within this zone) and the Repulsion zone (the agent tries to get away of the agents in this zone by swimming away of their center of mass weighted by their relative distance from the agents’ position. This zone, out of all zones, is typically the smallest and of the highest weight). Fish within the copy zone look for informed neighbors, whose swimming speed and direction they copy. Our default for this zone is the same as the alignment, assuming that from this distance the fish can clearly see changes in orientation.

(TIF)

Click here for additional data file.^{(190.7KB, tif)}

S2 Fig. Example for the trajectory of a single agent, correcting its depth.

(TIF)

Click here for additional data file.^{(68.6KB, tif)}

S3 Fig

Wave speed as a function of parameters: a. latency, b. escape speed, c. response distances of all the motion rules (see default values in S1 Table in S1 File), d. the distance at which the fish applies the copy-response.

(TIF)

Click here for additional data file.^{(148.1KB, tif)}

S4 Fig. A comparison between the sequences of flashes generated by a simulated attacks on a cylindrical (top) and a spherical (bottom) school.

The attack came from the opposite direction to the school movement. The observer does not ‘know’ its position relative to the school (based on the flashes only) on the horizontal plane, and the center of the field of view of the observer is not fixed. Some of the flashes are due to random movement of the fish around their roll axis, while other are due to evasive or copy responses.

(TIF)

Click here for additional data file.^{(27.3KB, tif)}

S5 Fig. Uuncertainty parameters.

a. noise in the motion of the fish around the roll axis. b. noise in the look-at point of the observer. c. noise in the location of the observer on the horizontal plane around the school.

(TIF)

Click here for additional data file.^{(93.7KB, tif)}

S6 Fig. The classification_report output structure.

The names of the classes are presented in the top row by the order they appear in the table. For each class we measure the precision, recall, and f1-score. The total accuracy is being calculated for the entire model. Additionally, the support column presents the number of samples we used for testing each class. The last two rows present the weighted, and the non-weighted averages for precision, recall and f-score for the entire model. Since our dataset is balanced, the averaged f1-score is similar to the total accuracy, and there is not much difference between the weighted and the non-weighed averages.

(TIF)

Click here for additional data file.^{(188.3KB, tif)}

S7 Fig. Confusion matrix for attack direction, without uncertainty parameters.

(TIF)

Click here for additional data file.^{(143KB, tif)}

S8 Fig. Confusion matrix for school shape, without uncertainty parameters.

(TIF)

Click here for additional data file.^{(114.1KB, tif)}

S9 Fig. Confusion matrix for fish response, without uncertainty parameters.

(TIF)

Click here for additional data file.^{(139.5KB, tif)}

S10 Fig. The effect of flash change with and without occlusions from a representative point at the back of the school.

a. The flashes the observer sees on time t+20 with occlusions. b. The flashes the observer sees without occlusions. c. The “real” image the observer sees. Note that the red and the green are visual aids for us indicating whether the fish turning towards the observer or away of it. They are not “seen” by the observer. Also, the image here is not limited by the distance the observer “sees” when it calculates its Boids rules. d. Correlation between the changes in total area of the flashes with and without occlusions in the different steps. Each plot (and dataset) was calculated on a different run but is replicable. It is also important to note that in this simulation the fish are two-dimensional and in real three dimensional schools the effect of occlusion may be stronger and depend in the school density.

(TIF)

Click here for additional data file.^{(724.5KB, tif)}

S11 Fig. The four measurements for the direct-only model.

The only pattern that could be clearly detected is the local predation event on the left side of the school at the beginning of the scenario. On plot d we can see that this event generated a weak flash signal towards the entire school.

(TIF)

Click here for additional data file.^{(274.9KB, tif)}

S12 Fig. Flash-direct.

Simultaneous response of the fish to the attack of the predator. The attack is followed by an instantaneous observed flash cloud and no information transfer afterwards. Since all the fish are changing simultaneously into an emergency state, there are no detections of informed individuals.

(TIF)

Click here for additional data file.^{(299.1KB, tif)}

S13 Fig. Comparison of low and high thresholds flash-response models to schools with no flash-response and “normal” (2) or fast (0) latencies.

A very sensitive school behaves practically as a school with low latency, while a non-sensitive school never activates its response to the flashes and acts like a normal school with latency 2. The right column shows the direct response to flashes which results in a fast explosion all over the school.

(TIF)

Click here for additional data file.^{(323.8KB, tif)}

S14 Fig. The 4 measures for short latency, as the one the fish are switching to when getting into emergency mode.

The dynamics are equivalent to those of the ‘normal’ latency but quicker.

(TIF)

Click here for additional data file.^{(301.6KB, tif)}

S15 Fig. When the school is very sensitive to changes in flashes, the latency is practically always 0.

(TIF)

Click here for additional data file.^{(290.5KB, tif)}

S16 Fig. Low sensitivity leaves the school as if it would practically not respond to flashes.

(TIF)

Click here for additional data file.^{(313.9KB, tif)}

S17 Fig. Plots showing the visible flashes for 5 different attack scenarios on 5,000 fish.

The escape response of the fish is to copy informed individuals and ignore flash signals. Plot a. Attack from the front of fish with full field of view. Plot b. Attack from the back of fish with full field of view. Plots c, d: Attack from front/back on fish with 85% field of view. Plot e. Attack from the front on fish with full viewing field while the escape response of the fish does not include turning into the group. In all plots we see that the attack leads to a flash wave in a constant speed (as in Fig 2 in the MS). The attacks from the back lead to a slightly weaker and less ordered wave but of the same speed as in the default configuration.

(TIF)

Click here for additional data file.^{(348.9KB, tif)}

S18 Fig. A flash wave as recorded from different angles horizontally around a cylindrical school.

The wave pattern is clearly seen except from perpendicular angles to the wave distance (plots 90 and 270). The closer the angle to perpendicular, the less linear the visible wave speed is.

(TIF)

Click here for additional data file.^{(236.5KB, tif)}

S19 Fig. A flash wave as recorded from different angles surrounding a cylindrical school around its length axis.

The wave pattern is visible from every angle. In particular, when looking from below (angles of 240, 270 and 300 degrees), an anti-flash wave can be seen.

(TIF)

Click here for additional data file.^{(261.7KB, tif)}

S20 Fig. A flash wave as recorded from different angles horizontally around a ball-shaped school.

The wave pattern is clearly seen and gets distorted the more we apply perpendicular angles to the wave distance (plots 90 and 270). Even in the perpendicular angles, we can see a dynamic of monotone growth/decay of the flashes.

(TIF)

Click here for additional data file.^{(213.9KB, tif)}

S21 Fig. A flash wave as recorded from different angles surrounding a ball shaped school around its length axis.

The wave pattern is visible from every angle. In particular, when looking from below (angles of 240, 270 and 300 degrees), an anti-flash wave can be seen.

(TIF)

Click here for additional data file.^{(217.7KB, tif)}

S22 Fig. The four measurements for a shoaling scenario.

The fish density and the observed flash signals are clear but less significant than in the aligned schools. The flash-change signal cannot be seen.

(TIF)

Click here for additional data file.^{(316.4KB, tif)}

S23 Fig. Another example of shoaling.

Compared to S22 Fig, the patterns of the noises slightly differ but the signals are the same.

(TIF)

Click here for additional data file.^{(345.7KB, tif)}

S24 Fig. Noise sensitivity.

a. The number of Boids reflecting light towards an observer which moves horizontally crossing the center of the mass of an oval group of 1000 “relaxed” Boids under light distribution resembles an ideal Snel’s window. b. is a table of the average number of visible flashes towards a horizontal observer perpendicular to the school‘s swimming direction. The columns represent different noises in the roll of the fish and the rows show different noises in the direction of the velocity of the fish. The roll noises have stronger effects on the flashes. Flashes in the high velocity noise are also due to strong torsion (changes in roll) required to “correct” the noise. A similar analysis with roll always set to zero gave zero flashes in all configurations. c. shows the same scenario of plot b, except that the observer is placed facing the school’s direction. The trend of dependency on the roll-noise is preserved. The combined effect of both noises has a stronger relative influence on the number of flashes and the total numbers of flashes are lower in comparison to each one of them separately.

(TIF)

Click here for additional data file.^{(153.3KB, tif)}

S25 Fig. Sensitivity to rules weights.

In our model, an agent in emergency mode is prioritizing cohesion and alignment over repulsion for the sake of avoiding separation from the group in strong attacks. In our tests, which were consisted of short local attacks, there is no difference in the speed of the flash wave between copy response with weights changes (left column) and copy response without weights changes (right column).

(TIF)

Click here for additional data file.^{(896.6KB, tif)}

S1 Video. Shimmering waves.

(AVI)

Click here for additional data file.^{(81.1MB, avi)}

S2 Video. Attack-like camera angle.

(MP4)

Click here for additional data file.^{(22.2MB, mp4)}

S1 File. Consists of the supplementary information text.

(PDF)

Click here for additional data file.^{(1.1MB, pdf)}

Data Availability

All relevant data are within the paper and its Supporting information files.

Funding Statement

The author(s) received no specific funding for this work.

References

1.Radakov D. Schooling in the ecology of fish. 1973. [Google Scholar]
2.Gerlotto F, Bertrand S, Bez N, Gutierrez M. Waves of agitation inside anchovy schools observed with multibeam sonar: a way to transmit information in response to predation. ICES J Mar Sci. 2006;63: 1405–1417. doi: 10.1016/j.icesjms.2006.04.023 [DOI] [Google Scholar]
3.Hemelrijk CK, van Zuidam L, Hildenbrandt H. What underlies waves of agitation in starling flocks. Behav Ecol Sociobiol. 2015;69: 755–764. doi: 10.1007/s00265-015-1891-3 [DOI] [PMC free article] [PubMed] [Google Scholar]
4.Herbert-Read JE, Buhl J, Hu F, Ward AJW, Sumpter DJT. Initiation and spread of escape waves within animal groups. Royal Society Open Science. 2015;2. doi: 10.1098/rsos.140355 [DOI] [PMC free article] [PubMed] [Google Scholar]
5.Brehmer P, Sancho G, Trygonis V, Itano D, Dalen J, Fuchs A, et al. Towards an Autonomous Pelagic Observatory: Experiences from Monitoring Fish Communities around Drifting FADs. Thalassas. 2019;35: 177–189. doi: 10.1007/s41208-018-0107-9 [DOI] [Google Scholar]
6.Denton EJ, Nicol J a. C. A survey of reflectivity in silvery teleosts. Journal of the Marine Biological Association of the United Kingdom. 1966;46: 685–722. doi: 10.1017/S0025315400033439 [DOI] [Google Scholar]
7.Pertzelan A, Ariel G, Kiflawi M. Light flashes and the geometry of specular fish schools. Journal of The Royal Society Interface. 2022;19: 20210906. doi: 10.1098/rsif.2021.0906 [DOI] [PMC free article] [PubMed] [Google Scholar]
8.Hemelrijk CK, Costanzo A, Hildenbrandt H, Carere C. Damping of waves of agitation in starling flocks. Behav Ecol Sociobiol. 2019;73: 125. doi: 10.1007/s00265-019-2734-4 [DOI] [PMC free article] [PubMed] [Google Scholar]
9.Treherne JE, Foster WA. Group transmission of predator avoidance behaviour in a marine insect: The trafalgar effect. Animal Behaviour. 1981;29: 911–917. doi: 10.1016/S0003-3472(81)80028-0 [DOI] [Google Scholar]
10.Potts WK. The chorus-line hypothesis of manoeuvre coordination in avian flocks. Nature. 1984;309: 344–345. doi: 10.1038/309344a0 [DOI] [Google Scholar]
11.Denton EJ, Rowe DM. Reflective communication between fish, with special reference to the greater sand eel, Hyperoplus lanceolatus. Philosophical Transactions of the Royal Society of London Series B: Biological Sciences. 1994;344: 221–237. doi: 10.1098/rstb.1994.0063 [DOI] [Google Scholar]
12.Sonoda K, Murakami H, Niizato T, Tomaru T, Nishiyama Y, Gunji Y-P. Propagating wave based on transition of interaction within animal group. Biosystems. 2019;185: 104019. doi: 10.1016/j.biosystems.2019.104019 [DOI] [PubMed] [Google Scholar]
13.Aoki I. A simulation study on the schooling mechanism in fish. NIPPON SUISAN GAKKAISHI. 1982. [cited 28 Aug 2021]. doi: 10.2331/suisan.48.1081 [DOI] [Google Scholar]
14.Reynolds. Flocks, herds and schools: A distributed behavioral model | Proceedings of the 14^th annual conference on Computer graphics and interactive techniques. 1987 [cited 20 Jul 2020]. https://dl.acm.org/doi/abs/10.1145/37401.37406
15.Vicsek T, Zafeiris A. Collective motion. Physics Reports. 2012;517: 71–140. doi: 10.1016/j.physrep.2012.03.004 [DOI] [Google Scholar]
16.Lee S-H. Predator’s attack-induced phase-like transition in prey flock. Physics Letters A. 2006;357: 270–274. doi: 10.1016/j.physleta.2006.04.065 [DOI] [Google Scholar]
17.Marras S, Batty RS, Domenici P. Information transfer and antipredator maneuvers in schooling herring. Adaptive Behavior. 2012;20: 44–56. doi: 10.1177/1059712311426799 [DOI] [Google Scholar]
18.Eaton RC, Hackett JT. The Role of the Mauthner Cell in Fast-Starts Involving Escape in Teleost Fishes. In: Eaton RC, editor. Neural Mechanisms of Startle Behavior. Boston, MA: Springer US; 1984. pp. 213–266. [Google Scholar]
19.Batty RS. Escape Responses of Herring Larvae to Visual Stimuli. Journal of the Marine Biological Association of the United Kingdom. 1989;69: 647–654. doi: 10.1017/S0025315400031039 [DOI] [Google Scholar]
20.Domenici P, Batty RS. Escape manoeuvres of schooling Clupea harengus. Journal of Fish Biology. 1994;45: 97–110. doi: 10.1111/j.1095-8649.1994.tb01086.x [DOI] [Google Scholar]
21.Domenici P, Hale ME. Escape responses of fish: a review of the diversity in motor control, kinematics and behaviour. Journal of Experimental Biology. 2019;222. doi: 10.1242/jeb.166009 [DOI] [PubMed] [Google Scholar]
22.Couzin ID, Krause J, James R, Ruxton GD, Franks NR. Collective Memory and Spatial Sorting in Animal Groups. Journal of Theoretical Biology. 2002;218: 1–11. doi: 10.1006/jtbi.2002.3065 [DOI] [PubMed] [Google Scholar]
23.Hughey LF, Hein AM, Strandburg-Peshkin A, Jensen FH. Challenges and solutions for studying collective animal behaviour in the wild. Philosophical Transactions of the Royal Society B: Biological Sciences. 2018;373: 20170005. doi: 10.1098/rstb.2017.0005 [DOI] [PMC free article] [PubMed] [Google Scholar]
24.Dunn KW, Fu C, Ho DJ, Lee S, Han S, Salama P, et al. DeepSynth: Three-dimensional nuclear segmentation of biological images using neural networks trained with synthetic data. Sci Rep. 2019;9: 18295. doi: 10.1038/s41598-019-54244-5 [DOI] [PMC free article] [PubMed] [Google Scholar]
25.Jeckel H, Jelli E, Hartmann R, Singh PK, Mok R, Totz JF, et al. Learning the space-time phase diagram of bacterial swarm expansion. Proc Natl Acad Sci USA. 2019;116: 1489–1494. doi: 10.1073/pnas.1811722116 [DOI] [PMC free article] [PubMed] [Google Scholar]
26.Raghunathan TE. Synthetic Data. Annual Review of Statistics and Its Application. 2021;8: 129–140. doi: 10.1146/annurev-statistics-040720-031848 [DOI] [Google Scholar]
27.Achuthan S, Chatterjee R, Kotnala S, Mohanty A, Bhattacharya S, Salgia R, et al. Leveraging deep learning algorithms for synthetic data generation to design and analyze biological networks. J Biosci. 2022;47: 43. doi: 10.1007/s12038-022-00278-3 [DOI] [PubMed] [Google Scholar]
28.Long J, Shelhamer E, Darrell T. Fully Convolutional Networks for Semantic Segmentation. 2015. pp. 3431–3440. https://openaccess.thecvf.com/content_cvpr_2015/html/Long_Fully_Convolutional_Networks_2015_CVPR_paper.html [DOI] [PubMed] [Google Scholar]
29.Shi X, Chen Z, Wang H, Yeung D-Y, Wong W, WOO W. Convolutional LSTM Network: A Machine Learning Approach for Precipitation Nowcasting. Advances in Neural Information Processing Systems. Curran Associates, Inc.; 2015. https://papers.nips.cc/paper/2015/hash/07563a3fe3bbe7e3ba84431ad9d055af-Abstract.html [Google Scholar]
30.Yin X, Wu D, Shang Y, Jiang B, Song H. Using an EfficientNet-LSTM for the recognition of single Cow’s motion behaviours in a complicated environment. Computers and Electronics in Agriculture. 2020;177: 105707. doi: 10.1016/j.compag.2020.105707 [DOI] [Google Scholar]
31.Jagtap H, Chavaan M. Robust Underwater Animal Detection Adopting CNN with LSTM. In: Merchant SN, Warhade K, Adhikari D, editors. Advances in Signal and Data Processing. Singapore: Springer; 2021. pp. 195–208. [Google Scholar]
32.Mitash C, Bekris KE, Boularias A. A self-supervised learning system for object detection using physics simulation and multi-view pose estimation. 2017 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). 2017. pp. 545–551.
33.Xu Y, Goodacre R. On Splitting Training and Validation Set: A Comparative Study of Cross-Validation, Bootstrap and Systematic Sampling for Estimating the Generalization Performance of Supervised Learning. J Anal Test. 2018;2: 249–262. doi: 10.1007/s41664-018-0068-2 [DOI] [PMC free article] [PubMed] [Google Scholar]
34.Lecheval V, Jiang L, Tichit P, Sire C, Hemelrijk CK, Theraulaz G. Social conformity and propagation of information in collective U-turns of fish schools. Proceedings of the Royal Society B: Biological Sciences. 2018;285: 20180251. doi: 10.1098/rspb.2018.0251 [DOI] [PMC free article] [PubMed] [Google Scholar]
35.Herbert-Read JE, Rosén E, Szorkovszky A, Ioannou CC, Rogell B, Perna A, et al. How predation shapes the social interaction rules of shoaling fish. Proceedings of the Royal Society B: Biological Sciences. 2017;284: 20171126. doi: 10.1098/rspb.2017.1126 [DOI] [PMC free article] [PubMed] [Google Scholar]
36.Berdahl A, Torney CJ, Ioannou CC, Faria JJ, Couzin ID. Emergent Sensing of Complex Environments by Mobile Animal Groups. Science. 2013;339: 574–576. doi: 10.1126/science.1225883 [DOI] [PubMed] [Google Scholar]
37.Rosenthal SB, Twomey CR, Hartnett AT, Wu HS, Couzin ID. Revealing the hidden networks of interaction in mobile animal groups allows prediction of complex behavioral contagion. PNAS. 2015;112: 4690–4695. doi: 10.1073/pnas.1420068112 [DOI] [PMC free article] [PubMed] [Google Scholar]
38.Ballerini M, Cabibbo N, Candelier R, Cavagna A, Cisbani E, Giardina I, et al. Interaction ruling animal collective behavior depends on topological rather than metric distance: Evidence from a field study. PNAS. 2008;105: 1232–1237. doi: 10.1073/pnas.0711437105 [DOI] [PMC free article] [PubMed] [Google Scholar]
39.Herbert-Read JE, Perna A, Mann RP, Schaerf TM, Sumpter DJT, Ward AJW. Inferring the rules of interaction of shoaling fish. PNAS. 2011;108: 18726–18731. doi: 10.1073/pnas.1109355108 [DOI] [PMC free article] [PubMed] [Google Scholar]
40.Bialek W, Cavagna A, Giardina I, Mora T, Pohl O, Silvestri E, et al. Social interactions dominate speed control in poising natural flocks near criticality. PNAS. 2014;111: 7212–7217. doi: 10.1073/pnas.1324045111 [DOI] [PMC free article] [PubMed] [Google Scholar]
41.Cavagna A, Cimarelli A, Giardina I, Parisi G, Santagati R, Stefanini F, et al. Scale-free correlations in starling flocks. Proceedings of the National Academy of Sciences. 2010;107: 11865–11870. doi: 10.1073/pnas.1005766107 [DOI] [PMC free article] [PubMed] [Google Scholar]
42.Gómez-Nava L, Lange RT, Klamser PP, Lukas J, Arias-Rodriguez L, Bierbach D, et al. Fish shoals resemble a stochastic excitable system driven by environmental perturbations. Nat Phys. 2023; 1–7. doi: 10.1038/s41567-022-01916-1 [DOI] [Google Scholar]
43.Romanczuk P, Daniels BC. Phase Transitions and Criticality in the Collective Behavior of Animals? Self-Organization and Biological Function. Order, Disorder and Criticality. WORLD SCIENTIFIC; 2022. pp. 179–208. [Google Scholar]
44.Kastberger G, Schmelzer E, Kranner I. Social Waves in Giant Honeybees Repel Hornets. PLOS ONE. 2008;3: e3141. doi: 10.1371/journal.pone.0003141 [DOI] [PMC free article] [PubMed] [Google Scholar]
45.Hemelrijk CK, Hildenbrandt H. Some Causes of the Variable Shape of Flocks of Birds. PLOS ONE. 2011;6: e22479. doi: 10.1371/journal.pone.0022479 [DOI] [PMC free article] [PubMed] [Google Scholar]
46.Pearce DJG, Miller AM, Rowlands G, Turner MS. Role of projection in the control of bird flocks. PNAS. 2014;111: 10422–10426. doi: 10.1073/pnas.1402202111 [DOI] [PMC free article] [PubMed] [Google Scholar]

PLoS One. doi: 10.1371/journal.pone.0289026.r001

Decision Letter 0

Pilwon Kim

Transfer Alert

This paper was transferred from another journal. As a result, its full editorial history (including decision letters, peer reviews and author responses) may not be present.

20 Feb 2023

PONE-D-23-00798SCHOOLING OF LIGHT REFLECTING FISHPLOS ONE

Dear Dr. Pertzelan,

Thank you for submitting your manuscript to PLOS ONE. After careful consideration, we feel that it has merit but does not fully meet PLOS ONE’s publication criteria as it currently stands. Therefore, we invite you to submit a revised version of the manuscript that addresses the points raised during the review process.

Please submit your revised manuscript by Apr 06 2023 11:59PM. If you will need more time than this to complete your revisions, please reply to this message or contact the journal office at plosone@plos.org. When you're ready to submit your revision, log on to https://www.editorialmanager.com/pone/ and select the 'Submissions Needing Revision' folder to locate your manuscript file.

Please include the following items when submitting your revised manuscript:

A rebuttal letter that responds to each point raised by the academic editor and reviewer(s). You should upload this letter as a separate file labeled 'Response to Reviewers'.
A marked-up copy of your manuscript that highlights changes made to the original version. You should upload this as a separate file labeled 'Revised Manuscript with Track Changes'.
An unmarked version of your revised paper without tracked changes. You should upload this as a separate file labeled 'Manuscript'.

If you would like to make changes to your financial disclosure, please include your updated statement in your cover letter. Guidelines for resubmitting your figure files are available below the reviewer comments at the end of this letter.

If applicable, we recommend that you deposit your laboratory protocols in protocols.io to enhance the reproducibility of your results. Protocols.io assigns your protocol its own identifier (DOI) so that it can be cited independently in the future. For instructions see: https://journals.plos.org/plosone/s/submission-guidelines#loc-laboratory-protocols. Additionally, PLOS ONE offers an option for publishing peer-reviewed Lab Protocol articles, which describe protocols hosted on protocols.io. Read more information on sharing protocols at https://plos.org/protocols?utm_medium=editorial-email&utm_source=authorletters&utm_campaign=protocols.

We look forward to receiving your revised manuscript.

Kind regards,

Pilwon Kim

Academic Editor

PLOS ONE

When submitting your revision, we need you to address these additional requirements.

1. Please ensure that your manuscript meets PLOS ONE's style requirements, including those for file naming. The PLOS ONE style templates can be found at

https://journals.plos.org/plosone/s/file?id=wjVg/PLOSOne_formatting_sample_main_body.pdf and

https://journals.plos.org/plosone/s/file?id=ba62/PLOSOne_formatting_sample_title_authors_affiliations.pdf.

2. Thank you for stating the following in your Competing Interests section:

"NO authors have competing interests."

Please complete your Competing Interests on the online submission form to state any Competing Interests. If you have no competing interests, please state "The authors have declared that no competing interests exist.", as detailed online in our guide for authors at http://journals.plos.org/plosone/s/submit-now

This information should be included in your cover letter; we will change the online submission form on your behalf.

3. Please include captions for your Supporting Information files at the end of your manuscript, and update any in-text citations to match accordingly. Please see our Supporting Information guidelines for more information: http://journals.plos.org/plosone/s/supporting-information.

[Note: HTML markup is below. Please do not edit.]

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. Is the manuscript technically sound, and do the data support the conclusions?

The manuscript must describe a technically sound piece of scientific research with data that supports the conclusions. Experiments must have been conducted rigorously, with appropriate controls, replication, and sample sizes. The conclusions must be drawn appropriately based on the data presented.

Reviewer #1: Yes

Reviewer #2: Yes

**********

2. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: N/A

Reviewer #2: Yes

**********

3. Have the authors made all data underlying the findings in their manuscript fully available?

The PLOS Data policy requires authors to make all data underlying the findings described in their manuscript fully available without restriction, with rare exception (please refer to the Data Availability Statement in the manuscript PDF file). The data should be provided as part of the manuscript or its supporting information, or deposited to a public repository. For example, in addition to summary statistics, the data points behind means, medians and variance measures should be available. If there are restrictions on publicly sharing data—e.g. participant privacy or use of data from a third party—those must be specified.

Reviewer #1: Yes

Reviewer #2: Yes

**********

4. Is the manuscript presented in an intelligible fashion and written in standard English?

PLOS ONE does not copyedit accepted manuscripts, so the language in submitted articles must be clear, correct, and unambiguous. Any typographical or grammatical errors should be corrected at revision, so please note any specific errors here.

Reviewer #1: Yes

Reviewer #2: Yes

**********

5. Review Comments to the Author

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #1: I find this work very interesting and with an important contribution to the field. The methods are sound and the text well written. I have some concerns about some parts and suggestions that in my opinion may help the paper’s impact. Please find below my comments.

1) I am not convinced that the view in Figure 8 provides support to the fact that visual cues of shimmering waves are or aren’t sensed by the fish. The group density has a large effect on such view in a real school, especially when individuals are not flat but the body of ones neighbours covers a large part of its field of view. Also, the emergent group density during schooling is the simulations is not mentioned. At the same time, the anticipation mode assumed in line 445 is supported by empirical findings that show that alarmed fish do reduce their response-latency when there are sensing predator risk at the environment.:

Herbert-Read, J.E., Rosén, E., Szorkovszky, A., Ioannou, C.C., Rogell, B., Perna, A., Ramnarine, I.W., Kotrschal, A., Kolm, N., Krause, J. and Sumpter, D.J., 2017. How predation shapes the social interaction rules of shoaling fish. Proceedings of the Royal Society B: Biological Sciences, 284(1861), p.20171126.

Thus, early signals of predation can also be chemical cues. In terms of the results of section 4, the earlier signal results in the wave accelerating, which is quite intuitive. I thus think that section 4 should be revised to make its take away message clearer or otherwise incorporated as a special case of section 2 and have the machine learning methodology details of section 3 moved earlier before section 2 and the presentation of the sections (line 227).

2) Lines 379-392 are a bit too technical for non-experts on machine learning. I think the authors should either give some more definitions (dropout, patience, introduction of the layers, etc) or move some of the details in the supplementary.

3) The discussion is a bit poor. The only paragraph that relates to literature is the one on section 4, that I think is the less strong part of the paper’s contribution. Extending the discussion I think can highly benefit the paper’s impact.

4) Lines 123-124: there has been previous work on agitation waves of starlings where measurements of luminance were used to measure wave intensity and propagation. I think this work is highly relevant to the methodology presented here and should be included:

Hemelrijk, C. K., Costanzo, A., Hildenbrandt, H., & Carere, C. (2019). Damping of waves of agitation in starling flocks. Behavioral Ecology and Sociobiology, 73, 1-7.

5) Lines 172-173: I think that the decision to give priority to cohesion and alignments over repulsion in evasive steps needs a reference or an explanation.

6) Line 309: it would be nice to have the time also in seconds here rather than only steps.

7) Lines 338-340: it is a bit unclear from the text what differentiation the authors mean. It is clear after reading the tasks, so I would suggest revising these sentences to clarify it.

8) Why does the group size decrease from 15000 to 1000 agents from 2 to 3 and 4?

9) Line 345, 360, 362 etc: I find the ‘class’ terminology confusing and unnecessary. Just referring to scenarios throughout may be more intuitive.

Minor comments:

- Line 131: two opening quotes in ‘schooling’ state

- Figure 4 and 9: the colorscale labels are missing

- Line 369: closing parenthesis missing

- Line 484: figure ref mistake

- Lines 228, 231, 232: I guess it means sections 2, 3, and 4 respectively

- Lines 524: Closing parenthesis missing

Reviewer #2: This paper presents an agent-based model of collective animal behavior designed to replicate the shimmering wave of pelagic fish schools, which propagate flashes of sunlight reflected off fish skin. As an interested reader, I found the methodology of flash observations from the external observer to be innovative. Also, the hypothesis that "the heightened state of anticipation is caused by changes in the pattern of reflected light, as perceived by school members found downstream of the propagating wave" is intriguing. However, I have some comments and suggestions regarding the interpretation of the results:

(1)This paper was conducted entirely through computer simulations, without using empirical or experimental data on real shimmering waves. Therefore, there are likely to be several limitations that should be addressed in future studies with real animal data, but the authors provide almost no descriptions regarding the lack of such data.

(a)For example, the authors suggest that fish are able to perceive shimmering waves, which enables them to rapidly propagate waves and detect the presence of predators. While this is an interesting result from computer simulation, it is not experimentally substantiated. Emphasizing that this can be tested with real animal groups would make the paper more persuasive. Indeed, even with real data, if available, the speeding up of wave propagation caused by flash perception by fish could be observed as a change in the slope of fish density and observed flashes in the time-distance plot (Fig. 9).

(b)One weak point of this study is that the proposed model includes too many parameters, which can make the model behavior difficult to interpret and understand. It is unclear whether, for example, different weights of the three rules (alignment, repulsion, and cohesion) are necessary for different group states (schooling, evasive, predator response, and copy response). While the authors investigated model behavior by varying some parameters such as latency, they fixed other parameters. To determine whether these parameters are essential, comparisons with real fish school data would be necessary.

(2) I am interested in the statement regarding criticality in the Discussion (lines 524-527), but I believe the authors should make less strong assessments. Empirical observations of criticality in collective animal behavior have been accumulated (e.g., Cavagna et al., PNAS, 2010), and even clear power-law behavior was found recently (Gómez-Nava et al., Nat. Phys., 2023), although it was not about wave propagation. I therefore would say that non-local signaling by flashes alleviates the need to assume that the school is poised near criticality, “at least” when it comes to wave propagation involving drastic high-speed turns with almost 180 degree rotation.

In relation to this, I wonder whether there could be other advantages of non-local signaling when compared to criticality, such as avoiding false alarms. A system at a critical point is known to be highly sensitive to external perturbations, and this sensitivity probably increases the chances of 'false alarms,' which can be a disadvantage for the system when induced collective behavior requires large energetic costs to perform, such as the drastic turns observed in the shimmering wave. However, when individuals perceive flashes to perform turns, they should perceive it as a mass of groupmates (a conspicuous area of flashes of light) not as individual group mates, which may enable them to avoid reacting to the decisions of a single member, decreasing the chance of false alarms.

Minors:

Fig. 1: Where and how did you obtain this video? Was it recorded by yourselves? Have you published any papers on this field observation elsewhere? If so, please refer to them. Additionally, would it be possible to include this video as supplemental material to help readers better understand what a shimmering wave is?

Line 140: Would it be more accurate to say "corresponding to the direction of the fish's back" instead of "corresponding to the back of the fish"?

Line 170: Is there any empirical evidence supporting the maximum speed mentioned?

Lines 199-213: It would be beneficial to move Fig. S3 to the main text to assist readers in understanding the calculation of light reflected towards the external observer.

References

Cavagna, A., Cimarelli, A., Giardina, I., Parisi, G., Santagati, R., Stefanini, F., & Viale, M. (2010). Scale-free correlations in starling flocks. Proceedings of the National Academy of Sciences, 107(26), 11865-11870. doi: doi.org/10.1073/pnas.1005766107

Gómez-Nava, L., Lange, R. T., Klamser, P. P., Lukas, J., Arias-Rodriguez, L., Bierbach, D., ... & Romanczuk, P. (2023). Fish shoals resemble a stochastic excitable system driven by environmental perturbations. Nature Physics, 1-7. doi: doi.org/10.1038/s41567-022-01916-1

**********

6. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

Reviewer #2: No

**********

[NOTE: If reviewer comments were submitted as an attachment file, they will be attached to this email and accessible via the submission site. Please log into your account, locate the manuscript record, and check for the action link "View Attachments". If this link does not appear, there are no attachment files.]

While revising your submission, please upload your figure files to the Preflight Analysis and Conversion Engine (PACE) digital diagnostic tool, https://pacev2.apexcovantage.com/. PACE helps ensure that figures meet PLOS requirements. To use PACE, you must first register as a user. Registration is free. Then, login and navigate to the UPLOAD tab, where you will find detailed instructions on how to use the tool. If you encounter any issues or have any questions when using PACE, please email PLOS at figures@plos.org. Please note that Supporting Information files do not need this step.

PLoS One. 2023 Jul 21;18(7):e0289026. doi: 10.1371/journal.pone.0289026.r002

Author response to Decision Letter 0

24 May 2023

Dear Editor,

We thank the referees for their positive reviews and constructive comments. All comments have been addressed. Following the suggestion of reviewer 1, the layout of the paper was changed. Specifically, we first describe generation of flash waves in section 3 (no flash response) and 4 (with flash response). Then, our demonstration that using machine learning, school traits can be inferred from flash patterns is presented in n section 5. Also, as requested, we are hereby stating that the authors have declared that no competing interests exist.

Below we address the specific comments raised by the referees.

Sincerely,

Assaf Pertzelan, Gil Ariel and Moshe Kiflawi

Editorial comments:

Additional requirements

1. Please ensure that your manuscript meets PLOS ONE's style requirements, including those for file naming. The PLOS ONE style templates can be found at

https://journals.plos.org/plosone/s/file?id=wjVg/PLOSOne_formatting_sample_main_body.pdf and

https://journals.plos.org/plosone/s/file?id=ba62/PLOSOne_formatting_sample_title_authors_affiliations.pdf.

Reply: done. For convenience, the formatting changes were done without ‘track changes’.

2. Thank you for stating the following in your Competing Interests section:

"NO authors have competing interests."

This information should be included in your cover letter; we will change the online submission form on your behalf.

Reply: done

Reviewer #1

I find this work very interesting and with an important contribution to the field. The methods are sound and the text well written. I have some concerns about some parts and suggestions that in my opinion may help the paper’s impact. Please find below my comments.

Reply: The role of figure 8 (now 7) is only to provide indication that flashes may potentially be observed from within a school – a possibility that was not discussed earlier in the text. Indeed, the view in real schools may be different. For this reason, our results are only a proof of concept for such a putative mechanism that deserves further study. We have changed the figure caption to clarify this point and noted that the view from real schools may be different due to several effects, including occlusions.

1b) Also, the emergent group density during schooling is the simulations is not mentioned.

Reply: The inter-distance between agents (40 cm, 4BL, corresponding to ~16 fish per m3) is specified in the methods section (line 251). For demonstration purposes we chose a relatively sparse group. However, Fig 1 (bottom-left) provides a qualitative indication that even in denser groups, flashes can transverse a relatively long distance before they are occluded. The effect of density on occlusions is also discussed in the SI.

1c) At the same time, the anticipation mode assumed in line 445 is supported by empirical findings that show that alarmed fish do reduce their response-latency when there are sensing predator risk at the environment:

Reply: We added the reference. Thank you.

1d) Thus, early signals of predation can also be chemical cues. In terms of the results of section 4, the earlier signal results in the wave accelerating, which is quite intuitive. I thus think that section 4 should be revised to make its take away message clearer or otherwise incorporated as a special case of section 2 and have the machine learning methodology details of section 3 moved earlier before section 2 and the presentation of the sections (line 227).

Reply: We thank the reviewer for this important comment. The general layout of the paper was changed accordingly.

2) Lines 379-392 are a bit too technical for non-experts on machine learning. I think the authors should either give some more definitions (dropout, patience, introduction of the layers, etc.) or move some of the details in the supplementary.

Reply: In order to make the section clearer for non-experts, we moved the description of technical aspects to the supplementary (‘classification model’ section) and added reference to the text. Lines 377-404 were moved to the same section as well (old numbering. Sub sections ‘our model’, ‘evaluation of our model’, and ‘random noise’). Instead, we provide a basic description free of ML technical jargon.

Reply: We extended the discussion.

Hemelrijk, C. K., Costanzo, A., Hildenbrandt, H., & Carere, C. (2019). Damping of waves of agitation in starling flocks. Behavioral Ecology and Sociobiology, 73, 1-7.

Reply: Thank you. We added a note related to this study to the introduction (line 51).

5) Lines 172-173: I think that the decision to give priority to cohesion and alignments over repulsion in evasive steps needs a reference or an explanation.

Reply: Please note that during evasive steps cohesion and alignment do not get full priority over repulsion steps, but only the relative weights change. This change prevents sporadic loss of group members. In order to better address this point, we verified that reducing the strength of cohesion does not change the overall dynamics of the shimmering waves. See the new fig S3.2 in the SI.

6) Line 309: it would be nice to have the time also in seconds here rather than only steps.

Reply: Changed. We added “corresponding to 3.22 seconds (see Table 1)”.

7) Lines 338-340: it is a bit unclear from the text what differentiation the authors mean. It is clear after reading the tasks, so I would suggest revising these sentences to clarify it.

Reply: Changed to “Here, we take a complementary approach and demonstrate that, in of themselves, flash patterns contain enough information to enable an observer to differentiate between behavioral scenarios; i.e., the observer could infer what the fish are doing, without seeing the actual fish”.

8) Why does the group size decrease from 15000 to 1000 agents from 2 to 3 and 4?

Reply: Our motivation in section 3 is to establish the existence of emergent behavior on a large scale. Having demonstrated that, in section 5 (previously 4), we sought to demonstrate the ability to extract information from this emergent behavior. The smaller N used in section 5 is due to technical reasons and reduction of the computation cost involved in producing large datasets of synthetic data. As we are assuming fairly simple internal dynamics on the local scale (e.g. the wave is either propagating or not), our underlying assumption is that emergent patterns that appear with small N would also appear with larger N. This point is explained in the revised text.

9) Line 345, 360, 362 etc: I find the ‘class’ terminology confusing and unnecessary. Just referring to scenarios throughout may be more intuitive.

Reply: We believe it would be better to stay with the term ‘class’, which is the standard terminology in the context of classification method. We use the term ‘scenario’ to describe a ’what we told the simulation to do’ (e.g. direct-and-copy) and ‘class’ as the common term in the context of our technical method. We slightly revised the text in order to better explain this point.

Minor comments:

- Line 131: two opening quotes in ‘schooling’ state

- Figure 4 and 9: the colorscale labels are missing

- Line 369: closing parenthesis missing

- Line 484: figure ref mistake

- Lines 228, 231, 232: I guess it means sections 2, 3, and 4 respectively

- Lines 524: Closing parenthesis missing

Reply: All corrected.

Reviewer #2

This paper presents an agent-based model of collective animal behavior designed to replicate the shimmering wave of pelagic fish schools, which propagate flashes of sunlight reflected off fish skin. As an interested reader, I found the methodology of flash observations from the external observer to be innovative. Also, the hypothesis that "the heightened state of anticipation is caused by changes in the pattern of reflected light, as perceived by school members found downstream of the propagating wave" is intriguing. However, I have some comments and suggestions regarding the interpretation of the results:

(1) This paper was conducted entirely through computer simulations, without using empirical or experimental data on real shimmering waves. Therefore, there are likely to be several limitations that should be addressed in future studies with real animal data, but the authors provide almost no descriptions regarding the lack of such data.

(a) For example, the authors suggest that fish are able to perceive shimmering waves, which enables them to rapidly propagate waves and detect the presence of predators. While this is an interesting result from computer simulation, it is not experimentally substantiated. Emphasizing that this can be tested with real animal groups would make the paper more persuasive. Indeed, even with real data, if available, the speeding up of wave propagation caused by flash perception by fish could be observed as a change in the slope of fish density and observed flashes in the time-distance plot (Fig. 9).

Reply: We agree that empirical study is a necessary next-step of our simulation-based study. We added some comments to this effect in the discussion.

(b) One weak point of this study is that the proposed model includes too many parameters, which can make the model behavior difficult to interpret and understand. It is unclear whether, for example, different weights of the three rules (alignment, repulsion, and cohesion) are necessary for different group states (schooling, evasive, predator response, and copy response). While the authors investigated model behavior by varying some parameters such as latency, they fixed other parameters. To determine whether these parameters are essential, comparisons with real fish school data would be necessary.

Reply: Indeed, the model has many parameters. Unfortunately, we could not come up with a simpler model that successfully reproduces the range of behaviors we are interested in. Some parameter values were obtained (at least approximately) from the literature, as detailed in Table 1. Other, were found by trial and error. In the SI, we describe some sensitivity analysis (e.g. rule weights), showing that the main conclusions do not change qualitative in a range of examined parameters. In order to better address this point, we also added (SI fig S3.2) a comparison between emergency response with and without prioritizing the cohesion and alignment over repulsion). Additionally, we study the effect of different latencies in the SI and figs S1, S13, S14.

Reply: We thank the referee for this important point. Accordingly, the discussion regarding criticality was extended in the discussion section. In addition, the following reference, which are related to this discussion, were added:

Bialek W, Cavagna A, Giardina I, Mora T, Pohl O, Silvestri E, et al. Social interactions dominate speed control in poising natural flocks near criticality. PNAS. 2014;111: 7212–7217. doi:10.1073/pnas.1324045111

Romanczuk P, Daniels BC. Phase Transitions and Criticality in the Collective Behavior of Animals ? Self-Organization and Biological Function. Order, Disorder and Criticality. WORLD SCIENTIFIC; 2022. pp. 179–208. doi:10.1142/9789811260438_0004

Cavagna A, Cimarelli A, Giardina I, Parisi G, Santagati R, Stefanini F, et al. Scale-free correlations in starling flocks. Proceedings of the National Academy of Sciences. 2010;107: 11865–11870. doi:10.1073/pnas.1005766107

Gómez-Nava L, Lange RT, Klamser PP, Lukas J, Arias-Rodriguez L, Bierbach D, et al. Fish shoals resemble a stochastic excitable system driven by environmental perturbations. Nat Phys. 2023; 1–7. doi:10.1038/s41567-022-01916-1

Minors:

Reply: The videos were recorded by us but not published. We added the details to the figure caption and the videos to the supplementary information.

Line 140: Would it be more accurate to say "corresponding to the direction of the fish's back" instead of "corresponding to the back of the fish"?

Reply: Changed.

Line 170: Is there any empirical evidence supporting the maximum speed mentioned?

Reply: The line number may be wrong (there is no reference to maximum speed there). The maximum speed is within the range reported by Domenici and Hale (2019). We added a clarification in Table 1.

Lines 199-213: It would be beneficial to move Fig. S3 to the main text to assist readers in understanding the calculation of light reflected towards the external observer.

Reply: Done

Attachment

Submitted filename: Response to Reviewers.pdf

Click here for additional data file.^{(315.9KB, pdf)}

PLoS One. doi: 10.1371/journal.pone.0289026.r003

Decision Letter 1

Pilwon Kim

26 Jun 2023

PONE-D-23-00798R1SCHOOLING OF LIGHT REFLECTING FISHPLOS ONE

Dear Dr. Pertzelan,

Please submit your revised manuscript by July 26th. If you will need more time than this to complete your revisions, please reply to this message or contact the journal office at plosone@plos.org. When you're ready to submit your revision, log on to https://www.editorialmanager.com/pone/ and select the 'Submissions Needing Revision' folder to locate your manuscript file.

Please include the following items when submitting your revised manuscript:

A rebuttal letter that responds to each point raised by the academic editor and reviewer(s). You should upload this letter as a separate file labeled 'Response to Reviewers'.
A marked-up copy of your manuscript that highlights changes made to the original version. You should upload this as a separate file labeled 'Revised Manuscript with Track Changes'.
An unmarked version of your revised paper without tracked changes. You should upload this as a separate file labeled 'Manuscript'.

We look forward to receiving your revised manuscript.

Kind regards,

Pilwon Kim

Academic Editor

PLOS ONE

Journal Requirements:

Please review your reference list to ensure that it is complete and correct. If you have cited papers that have been retracted, please include the rationale for doing so in the manuscript text, or remove these references and replace them with relevant current references. Any changes to the reference list should be mentioned in the rebuttal letter that accompanies your revised manuscript. If you need to cite a retracted article, indicate the article’s retracted status in the References list and also include a citation and full reference for the retraction notice.

[Note: HTML markup is below. Please do not edit.]

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. If the authors have adequately addressed your comments raised in a previous round of review and you feel that this manuscript is now acceptable for publication, you may indicate that here to bypass the “Comments to the Author” section, enter your conflict of interest statement in the “Confidential to Editor” section, and submit your "Accept" recommendation.

Reviewer #1: All comments have been addressed

Reviewer #2: All comments have been addressed

**********

2. Is the manuscript technically sound, and do the data support the conclusions?

Reviewer #1: Yes

Reviewer #2: Yes

**********

3. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: N/A

Reviewer #2: Yes

**********

4. Have the authors made all data underlying the findings in their manuscript fully available?

Reviewer #1: Yes

Reviewer #2: Yes

**********

5. Is the manuscript presented in an intelligible fashion and written in standard English?

Reviewer #1: Yes

Reviewer #2: Yes

**********

6. Review Comments to the Author

Reviewer #1: The authors did an excellent job revising the manuscript according to the given comments, I find the paper very improved and I am happy to recommend its acceptance after a few minor comments being considered, please find them below:

- Figure 3 and Lines 262-271: I find the caption and figure a bit difficult to understand, I think they could be improved a bit: (a) which is the yellow cone? It is only in 3a, (b) Which direction is towards us? (c) what are the dotted blue lines in b? (d) perhaps an annotation for t and t-1 can be added on the figure, (e) what are the yellow arrows representing?

- Line 413: ‘recreate’

- Line 416: ‘in and of themselves’ is confusing appearing before the subject ‘flash patterns’

- Lines 419-420: I think the sentence needs revision, is ‘rather than’ what the authors mean?

- Lines 422: ‘of’ the individual

- Line 424: ‘which is and observer’ ?

- Line 426: ‘that’ before ‘a stationary’ can improve the sentence

- Figure 8 & Lines 452-455: the figure and caption should be reordered to follow the new order of the text (a - attack direction, b – shape, c – motion rules). Also, references to Figure 8b and 8c can be added to the relevant text sessions (line 434 and 439).

- Line 503: ‘attack’

- Perhaps Figures 9-11 could be merged into 1 figure as A, B, C subplots.

- Line 581: I would replace ‘are’ with ‘may’, since its hasn’t been tested in real fish.

Reviewer #2: The authors have done a thorough work of responding to my comments. The previous version was a nice contribution, and the revision have made it more so.

The quality (resolution) of the figures is quite low and some of them are invisible. They should be improved at the proof.

**********

7. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

Reviewer #2: No

**********

PLoS One. 2023 Jul 21;18(7):e0289026. doi: 10.1371/journal.pone.0289026.r004

Author response to Decision Letter 1

5 Jul 2023

Dear Editor and Reviewers,

We thank the referees for their positive reviews and constructive comments. All comments have been addressed. We have accepted all the (minor) comments of Reviewer #1 and made changes accordingly. In particular, we redrew figure #3 in order to make it clearer. Regarding the resolution of the figures (cf. Reviewer #2), the resolution of the figures in the auto-generated PDF appeared to be lower compared to the resolution of the figures we originally submitted. Figures with a higher resolution will be generated per request from the production editor.

Once again, we sincerely appreciate the efforts of the reviewers in evaluating our manuscript. Their feedback has been instrumental in refining our work, and we hope that the revised version now meets the standards of PLoS One.

Yours sincerely,

Assaf Pertzelan, Moshe Kiflawi, and Gil Ariel

Attachment

Submitted filename: Response to Reviewers.docx

Click here for additional data file.^{(19.6KB, docx)}

PLoS One. doi: 10.1371/journal.pone.0289026.r005

Decision Letter 2

Pilwon Kim

10 Jul 2023

SCHOOLING OF LIGHT REFLECTING FISH

PONE-D-23-00798R2

Dear Dr. Pertzelan,

We’re pleased to inform you that your manuscript has been judged scientifically suitable for publication and will be formally accepted for publication once it meets all outstanding technical requirements.

Within one week, you’ll receive an e-mail detailing the required amendments. When these have been addressed, you’ll receive a formal acceptance letter and your manuscript will be scheduled for publication.

An invoice for payment will follow shortly after the formal acceptance. To ensure an efficient process, please log into Editorial Manager at http://www.editorialmanager.com/pone/, click the 'Update My Information' link at the top of the page, and double check that your user information is up-to-date. If you have any billing related questions, please contact our Author Billing department directly at authorbilling@plos.org.

If your institution or institutions have a press office, please notify them about your upcoming paper to help maximize its impact. If they’ll be preparing press materials, please inform our press team as soon as possible -- no later than 48 hours after receiving the formal acceptance. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information, please contact onepress@plos.org.

Kind regards,

Pilwon Kim

Academic Editor

PLOS ONE

PLoS One. doi: 10.1371/journal.pone.0289026.r006

Acceptance letter

Pilwon Kim

13 Jul 2023

PONE-D-23-00798R2

Schooling of light reflecting fish

Dear Dr. Pertzelan:

I'm pleased to inform you that your manuscript has been deemed suitable for publication in PLOS ONE. Congratulations! Your manuscript is now with our production department.

If your institution or institutions have a press office, please let them know about your upcoming paper now to help maximize its impact. If they'll be preparing press materials, please inform our press team within the next 48 hours. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information please contact onepress@plos.org.

If we can help with anything else, please email us at plosone@plos.org.

Thank you for submitting your work to PLOS ONE and supporting open access.

Kind regards,

PLOS ONE Editorial Office Staff

on behalf of

Professor Pilwon Kim

Academic Editor

PLOS ONE

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

S1 Data. The simulation and analyses codes.

(ZIP)

Click here for additional data file.^{(68.3KB, zip)}

S1 Fig. The relative dimensions of the copy-response zone and the three social zones that give rise to schooling state.

(TIF)

Click here for additional data file.^{(190.7KB, tif)}

S2 Fig. Example for the trajectory of a single agent, correcting its depth.

(TIF)

Click here for additional data file.^{(68.6KB, tif)}

S3 Fig

(TIF)

Click here for additional data file.^{(148.1KB, tif)}

S4 Fig. A comparison between the sequences of flashes generated by a simulated attacks on a cylindrical (top) and a spherical (bottom) school.

(TIF)

Click here for additional data file.^{(27.3KB, tif)}

S5 Fig. Uuncertainty parameters.

a. noise in the motion of the fish around the roll axis. b. noise in the look-at point of the observer. c. noise in the location of the observer on the horizontal plane around the school.

(TIF)

Click here for additional data file.^{(93.7KB, tif)}

S6 Fig. The classification_report output structure.

(TIF)

Click here for additional data file.^{(188.3KB, tif)}

S7 Fig. Confusion matrix for attack direction, without uncertainty parameters.

(TIF)

Click here for additional data file.^{(143KB, tif)}

S8 Fig. Confusion matrix for school shape, without uncertainty parameters.

(TIF)

Click here for additional data file.^{(114.1KB, tif)}

S9 Fig. Confusion matrix for fish response, without uncertainty parameters.

(TIF)

Click here for additional data file.^{(139.5KB, tif)}

S10 Fig. The effect of flash change with and without occlusions from a representative point at the back of the school.

(TIF)

Click here for additional data file.^{(724.5KB, tif)}

S11 Fig. The four measurements for the direct-only model.

(TIF)

Click here for additional data file.^{(274.9KB, tif)}

S12 Fig. Flash-direct.

(TIF)

Click here for additional data file.^{(299.1KB, tif)}

S13 Fig. Comparison of low and high thresholds flash-response models to schools with no flash-response and “normal” (2) or fast (0) latencies.

(TIF)

Click here for additional data file.^{(323.8KB, tif)}

S14 Fig. The 4 measures for short latency, as the one the fish are switching to when getting into emergency mode.

The dynamics are equivalent to those of the ‘normal’ latency but quicker.

(TIF)

Click here for additional data file.^{(301.6KB, tif)}

S15 Fig. When the school is very sensitive to changes in flashes, the latency is practically always 0.

(TIF)

Click here for additional data file.^{(290.5KB, tif)}

S16 Fig. Low sensitivity leaves the school as if it would practically not respond to flashes.

(TIF)

Click here for additional data file.^{(313.9KB, tif)}

S17 Fig. Plots showing the visible flashes for 5 different attack scenarios on 5,000 fish.

(TIF)

Click here for additional data file.^{(348.9KB, tif)}

S18 Fig. A flash wave as recorded from different angles horizontally around a cylindrical school.

The wave pattern is clearly seen except from perpendicular angles to the wave distance (plots 90 and 270). The closer the angle to perpendicular, the less linear the visible wave speed is.

(TIF)

Click here for additional data file.^{(236.5KB, tif)}

S19 Fig. A flash wave as recorded from different angles surrounding a cylindrical school around its length axis.

The wave pattern is visible from every angle. In particular, when looking from below (angles of 240, 270 and 300 degrees), an anti-flash wave can be seen.

(TIF)

Click here for additional data file.^{(261.7KB, tif)}

S20 Fig. A flash wave as recorded from different angles horizontally around a ball-shaped school.

(TIF)

Click here for additional data file.^{(213.9KB, tif)}

S21 Fig. A flash wave as recorded from different angles surrounding a ball shaped school around its length axis.

The wave pattern is visible from every angle. In particular, when looking from below (angles of 240, 270 and 300 degrees), an anti-flash wave can be seen.

(TIF)

Click here for additional data file.^{(217.7KB, tif)}

S22 Fig. The four measurements for a shoaling scenario.

The fish density and the observed flash signals are clear but less significant than in the aligned schools. The flash-change signal cannot be seen.

(TIF)

Click here for additional data file.^{(316.4KB, tif)}

S23 Fig. Another example of shoaling.

Compared to S22 Fig, the patterns of the noises slightly differ but the signals are the same.

(TIF)

Click here for additional data file.^{(345.7KB, tif)}

S24 Fig. Noise sensitivity.

(TIF)

Click here for additional data file.^{(153.3KB, tif)}

S25 Fig. Sensitivity to rules weights.

(TIF)

Click here for additional data file.^{(896.6KB, tif)}

S1 Video. Shimmering waves.

(AVI)

Click here for additional data file.^{(81.1MB, avi)}

S2 Video. Attack-like camera angle.

(MP4)

Click here for additional data file.^{(22.2MB, mp4)}

S1 File. Consists of the supplementary information text.

(PDF)

Click here for additional data file.^{(1.1MB, pdf)}

Attachment

Submitted filename: Response to Reviewers.pdf

Click here for additional data file.^{(315.9KB, pdf)}

Attachment

Submitted filename: Response to Reviewers.docx

Click here for additional data file.^{(19.6KB, docx)}

Data Availability Statement

All relevant data are within the paper and its Supporting information files.

[pone.0289026.ref001] 1.Radakov D. Schooling in the ecology of fish. 1973. [Google Scholar]

[pone.0289026.ref002] 2.Gerlotto F, Bertrand S, Bez N, Gutierrez M. Waves of agitation inside anchovy schools observed with multibeam sonar: a way to transmit information in response to predation. ICES J Mar Sci. 2006;63: 1405–1417. doi: 10.1016/j.icesjms.2006.04.023 [DOI] [Google Scholar]

[pone.0289026.ref003] 3.Hemelrijk CK, van Zuidam L, Hildenbrandt H. What underlies waves of agitation in starling flocks. Behav Ecol Sociobiol. 2015;69: 755–764. doi: 10.1007/s00265-015-1891-3 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref004] 4.Herbert-Read JE, Buhl J, Hu F, Ward AJW, Sumpter DJT. Initiation and spread of escape waves within animal groups. Royal Society Open Science. 2015;2. doi: 10.1098/rsos.140355 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref005] 5.Brehmer P, Sancho G, Trygonis V, Itano D, Dalen J, Fuchs A, et al. Towards an Autonomous Pelagic Observatory: Experiences from Monitoring Fish Communities around Drifting FADs. Thalassas. 2019;35: 177–189. doi: 10.1007/s41208-018-0107-9 [DOI] [Google Scholar]

[pone.0289026.ref006] 6.Denton EJ, Nicol J a. C. A survey of reflectivity in silvery teleosts. Journal of the Marine Biological Association of the United Kingdom. 1966;46: 685–722. doi: 10.1017/S0025315400033439 [DOI] [Google Scholar]

[pone.0289026.ref007] 7.Pertzelan A, Ariel G, Kiflawi M. Light flashes and the geometry of specular fish schools. Journal of The Royal Society Interface. 2022;19: 20210906. doi: 10.1098/rsif.2021.0906 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref008] 8.Hemelrijk CK, Costanzo A, Hildenbrandt H, Carere C. Damping of waves of agitation in starling flocks. Behav Ecol Sociobiol. 2019;73: 125. doi: 10.1007/s00265-019-2734-4 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref009] 9.Treherne JE, Foster WA. Group transmission of predator avoidance behaviour in a marine insect: The trafalgar effect. Animal Behaviour. 1981;29: 911–917. doi: 10.1016/S0003-3472(81)80028-0 [DOI] [Google Scholar]

[pone.0289026.ref010] 10.Potts WK. The chorus-line hypothesis of manoeuvre coordination in avian flocks. Nature. 1984;309: 344–345. doi: 10.1038/309344a0 [DOI] [Google Scholar]

[pone.0289026.ref011] 11.Denton EJ, Rowe DM. Reflective communication between fish, with special reference to the greater sand eel, Hyperoplus lanceolatus. Philosophical Transactions of the Royal Society of London Series B: Biological Sciences. 1994;344: 221–237. doi: 10.1098/rstb.1994.0063 [DOI] [Google Scholar]

[pone.0289026.ref012] 12.Sonoda K, Murakami H, Niizato T, Tomaru T, Nishiyama Y, Gunji Y-P. Propagating wave based on transition of interaction within animal group. Biosystems. 2019;185: 104019. doi: 10.1016/j.biosystems.2019.104019 [DOI] [PubMed] [Google Scholar]

[pone.0289026.ref013] 13.Aoki I. A simulation study on the schooling mechanism in fish. NIPPON SUISAN GAKKAISHI. 1982. [cited 28 Aug 2021]. doi: 10.2331/suisan.48.1081 [DOI] [Google Scholar]

[pone.0289026.ref014] 14.Reynolds. Flocks, herds and schools: A distributed behavioral model | Proceedings of the 14^th annual conference on Computer graphics and interactive techniques. 1987 [cited 20 Jul 2020]. https://dl.acm.org/doi/abs/10.1145/37401.37406

[pone.0289026.ref015] 15.Vicsek T, Zafeiris A. Collective motion. Physics Reports. 2012;517: 71–140. doi: 10.1016/j.physrep.2012.03.004 [DOI] [Google Scholar]

[pone.0289026.ref016] 16.Lee S-H. Predator’s attack-induced phase-like transition in prey flock. Physics Letters A. 2006;357: 270–274. doi: 10.1016/j.physleta.2006.04.065 [DOI] [Google Scholar]

[pone.0289026.ref017] 17.Marras S, Batty RS, Domenici P. Information transfer and antipredator maneuvers in schooling herring. Adaptive Behavior. 2012;20: 44–56. doi: 10.1177/1059712311426799 [DOI] [Google Scholar]

[pone.0289026.ref018] 18.Eaton RC, Hackett JT. The Role of the Mauthner Cell in Fast-Starts Involving Escape in Teleost Fishes. In: Eaton RC, editor. Neural Mechanisms of Startle Behavior. Boston, MA: Springer US; 1984. pp. 213–266. [Google Scholar]

[pone.0289026.ref019] 19.Batty RS. Escape Responses of Herring Larvae to Visual Stimuli. Journal of the Marine Biological Association of the United Kingdom. 1989;69: 647–654. doi: 10.1017/S0025315400031039 [DOI] [Google Scholar]

[pone.0289026.ref020] 20.Domenici P, Batty RS. Escape manoeuvres of schooling Clupea harengus. Journal of Fish Biology. 1994;45: 97–110. doi: 10.1111/j.1095-8649.1994.tb01086.x [DOI] [Google Scholar]

[pone.0289026.ref021] 21.Domenici P, Hale ME. Escape responses of fish: a review of the diversity in motor control, kinematics and behaviour. Journal of Experimental Biology. 2019;222. doi: 10.1242/jeb.166009 [DOI] [PubMed] [Google Scholar]

[pone.0289026.ref022] 22.Couzin ID, Krause J, James R, Ruxton GD, Franks NR. Collective Memory and Spatial Sorting in Animal Groups. Journal of Theoretical Biology. 2002;218: 1–11. doi: 10.1006/jtbi.2002.3065 [DOI] [PubMed] [Google Scholar]

[pone.0289026.ref023] 23.Hughey LF, Hein AM, Strandburg-Peshkin A, Jensen FH. Challenges and solutions for studying collective animal behaviour in the wild. Philosophical Transactions of the Royal Society B: Biological Sciences. 2018;373: 20170005. doi: 10.1098/rstb.2017.0005 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref024] 24.Dunn KW, Fu C, Ho DJ, Lee S, Han S, Salama P, et al. DeepSynth: Three-dimensional nuclear segmentation of biological images using neural networks trained with synthetic data. Sci Rep. 2019;9: 18295. doi: 10.1038/s41598-019-54244-5 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref025] 25.Jeckel H, Jelli E, Hartmann R, Singh PK, Mok R, Totz JF, et al. Learning the space-time phase diagram of bacterial swarm expansion. Proc Natl Acad Sci USA. 2019;116: 1489–1494. doi: 10.1073/pnas.1811722116 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref026] 26.Raghunathan TE. Synthetic Data. Annual Review of Statistics and Its Application. 2021;8: 129–140. doi: 10.1146/annurev-statistics-040720-031848 [DOI] [Google Scholar]

[pone.0289026.ref027] 27.Achuthan S, Chatterjee R, Kotnala S, Mohanty A, Bhattacharya S, Salgia R, et al. Leveraging deep learning algorithms for synthetic data generation to design and analyze biological networks. J Biosci. 2022;47: 43. doi: 10.1007/s12038-022-00278-3 [DOI] [PubMed] [Google Scholar]

[pone.0289026.ref028] 28.Long J, Shelhamer E, Darrell T. Fully Convolutional Networks for Semantic Segmentation. 2015. pp. 3431–3440. https://openaccess.thecvf.com/content_cvpr_2015/html/Long_Fully_Convolutional_Networks_2015_CVPR_paper.html [DOI] [PubMed] [Google Scholar]

[pone.0289026.ref029] 29.Shi X, Chen Z, Wang H, Yeung D-Y, Wong W, WOO W. Convolutional LSTM Network: A Machine Learning Approach for Precipitation Nowcasting. Advances in Neural Information Processing Systems. Curran Associates, Inc.; 2015. https://papers.nips.cc/paper/2015/hash/07563a3fe3bbe7e3ba84431ad9d055af-Abstract.html [Google Scholar]

[pone.0289026.ref030] 30.Yin X, Wu D, Shang Y, Jiang B, Song H. Using an EfficientNet-LSTM for the recognition of single Cow’s motion behaviours in a complicated environment. Computers and Electronics in Agriculture. 2020;177: 105707. doi: 10.1016/j.compag.2020.105707 [DOI] [Google Scholar]

[pone.0289026.ref031] 31.Jagtap H, Chavaan M. Robust Underwater Animal Detection Adopting CNN with LSTM. In: Merchant SN, Warhade K, Adhikari D, editors. Advances in Signal and Data Processing. Singapore: Springer; 2021. pp. 195–208. [Google Scholar]

[pone.0289026.ref032] 32.Mitash C, Bekris KE, Boularias A. A self-supervised learning system for object detection using physics simulation and multi-view pose estimation. 2017 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). 2017. pp. 545–551.

[pone.0289026.ref033] 33.Xu Y, Goodacre R. On Splitting Training and Validation Set: A Comparative Study of Cross-Validation, Bootstrap and Systematic Sampling for Estimating the Generalization Performance of Supervised Learning. J Anal Test. 2018;2: 249–262. doi: 10.1007/s41664-018-0068-2 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref034] 34.Lecheval V, Jiang L, Tichit P, Sire C, Hemelrijk CK, Theraulaz G. Social conformity and propagation of information in collective U-turns of fish schools. Proceedings of the Royal Society B: Biological Sciences. 2018;285: 20180251. doi: 10.1098/rspb.2018.0251 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref035] 35.Herbert-Read JE, Rosén E, Szorkovszky A, Ioannou CC, Rogell B, Perna A, et al. How predation shapes the social interaction rules of shoaling fish. Proceedings of the Royal Society B: Biological Sciences. 2017;284: 20171126. doi: 10.1098/rspb.2017.1126 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref036] 36.Berdahl A, Torney CJ, Ioannou CC, Faria JJ, Couzin ID. Emergent Sensing of Complex Environments by Mobile Animal Groups. Science. 2013;339: 574–576. doi: 10.1126/science.1225883 [DOI] [PubMed] [Google Scholar]

[pone.0289026.ref037] 37.Rosenthal SB, Twomey CR, Hartnett AT, Wu HS, Couzin ID. Revealing the hidden networks of interaction in mobile animal groups allows prediction of complex behavioral contagion. PNAS. 2015;112: 4690–4695. doi: 10.1073/pnas.1420068112 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref038] 38.Ballerini M, Cabibbo N, Candelier R, Cavagna A, Cisbani E, Giardina I, et al. Interaction ruling animal collective behavior depends on topological rather than metric distance: Evidence from a field study. PNAS. 2008;105: 1232–1237. doi: 10.1073/pnas.0711437105 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref039] 39.Herbert-Read JE, Perna A, Mann RP, Schaerf TM, Sumpter DJT, Ward AJW. Inferring the rules of interaction of shoaling fish. PNAS. 2011;108: 18726–18731. doi: 10.1073/pnas.1109355108 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref040] 40.Bialek W, Cavagna A, Giardina I, Mora T, Pohl O, Silvestri E, et al. Social interactions dominate speed control in poising natural flocks near criticality. PNAS. 2014;111: 7212–7217. doi: 10.1073/pnas.1324045111 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref041] 41.Cavagna A, Cimarelli A, Giardina I, Parisi G, Santagati R, Stefanini F, et al. Scale-free correlations in starling flocks. Proceedings of the National Academy of Sciences. 2010;107: 11865–11870. doi: 10.1073/pnas.1005766107 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref042] 42.Gómez-Nava L, Lange RT, Klamser PP, Lukas J, Arias-Rodriguez L, Bierbach D, et al. Fish shoals resemble a stochastic excitable system driven by environmental perturbations. Nat Phys. 2023; 1–7. doi: 10.1038/s41567-022-01916-1 [DOI] [Google Scholar]

[pone.0289026.ref043] 43.Romanczuk P, Daniels BC. Phase Transitions and Criticality in the Collective Behavior of Animals? Self-Organization and Biological Function. Order, Disorder and Criticality. WORLD SCIENTIFIC; 2022. pp. 179–208. [Google Scholar]

[pone.0289026.ref044] 44.Kastberger G, Schmelzer E, Kranner I. Social Waves in Giant Honeybees Repel Hornets. PLOS ONE. 2008;3: e3141. doi: 10.1371/journal.pone.0003141 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref045] 45.Hemelrijk CK, Hildenbrandt H. Some Causes of the Variable Shape of Flocks of Birds. PLOS ONE. 2011;6: e22479. doi: 10.1371/journal.pone.0022479 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0289026.ref046] 46.Pearce DJG, Miller AM, Rowlands G, Turner MS. Role of projection in the control of bird flocks. PNAS. 2014;111: 10422–10426. doi: 10.1073/pnas.1402202111 [DOI] [PMC free article] [PubMed] [Google Scholar]

PERMALINK

Schooling of light reflecting fish

Assaf Pertzelan

Gil Ariel

Moshe Kiflawi

Roles

Abstract

1. Introduction

Fig 1. Propagation of an agitation (shimmering) wave in a school of A. lacunosus (top-right corner), filmed at 60 frames per second.

Fish schools under attack

Modelling schools under attack

Table 1. Translation of the simulation parameters to real-world values.

2. General methods

Agent dynamics

Fig 2. State diagram.

Internal states

Roll angles

Optics

Fig 3. Light reflection.

Classification of behavioral patterns

3. Generation of flash waves

Methods

Fig 4. Snapshots of the dynamics that develop following a head-on attack on a cylindrical school swimming to the left, under each of the three models (columns).

Results

Fig 5. The direct-and-copy model, with latency of 3 time-steps.

4. Possible use of the flash patterns by the group members

Methods

Results

Fig 6. The four basic measures for the flash-latency model.

Fig 7. The view from the back of the school (N = 5000, inter distance between fish 400mm).

5. The information content of shimmering waves

Fig 8. Classification with respect to three parameters.

Methods

Dataset generation

Results

Task 1: Attack-direction

Fig 9. Confusion matrices.

Task 2: School shape

Task 3: Motion rules

6. Discussion

Supporting information

Data Availability

Funding Statement

References

Decision Letter 0

Pilwon Kim

Roles

Transfer Alert

Author response to Decision Letter 0

Decision Letter 1

Pilwon Kim

Roles

Author response to Decision Letter 1

Decision Letter 2

Pilwon Kim

Roles

Acceptance letter

Pilwon Kim

Roles

Associated Data

Supplementary Materials

Data Availability Statement

ACTIONS

PERMALINK

RESOURCES

Similar articles

Cited by other articles

Links to NCBI Databases
