Electrocardiogram Detection of Pulmonary Hypertension Using Deep Learning

Structured abstract

Background:

Pulmonary hypertension (PH) is life-threatening, and often diagnosed late in its course. We aimed to evaluate if a deep learning approach using electrocardiogram (ECG) data alone can detect PH and clinically important subtypes.

Research Question:

Does an automated deep learning approach to ECG interpretation detect PH and its clinically important subtypes.

Study Design and Methods:

Adults with right heart catheterization (RHC) or an echocardiogram within 90 days of an ECG at the University of California, San Francisco (2012–2019) were retrospectively identified as PH or non-PH. A deep convolutional neural network was trained on patients’ 12-lead ECG voltage data. Patients were divided into training, development, and test sets in a ratio of 7:1:2.

Results:

Overall, 5016 PH and 19,454 non-PH patients were used in the study. Mean (SD) age at time of ECG was 62.29 (17.58) years and 49.88% were female. Mean interval between ECG and RHC or echocardiogram was 3.66 and 2.23 days for PH and non-PH patients, respectively. In the test dataset, the model achieved an area under the receiver operating characteristic curve (AUC), sensitivity, and specificity, respectively of 0.89, 0.79, and 0.84 to detect PH; 0.91, 0.83, and 0.84 to detect pre-capillary PH; 0.88, 0.81, and 0.81 to detect PAH, and 0.80, 0.73, and 0.76 to detect Group 3 PH. We additionally applied the trained model on ECGs from participants in the test dataset that were obtained from up to 2 years before diagnosis of PH: AUC was ≥0.79.

Interpretation:

A deep learning ECG algorithm can detect PH and PH subtypes around the time of diagnosis and can detect PH using ECGs that were done up to 2 years before RHC/echocardiogram diagnosis. This approach has the potential to reduce diagnostic delay in PH.

INTRODUCTION

Pulmonary hypertension (PH) is a life-threatening condition that encompasses a group of severe clinical entities with different etiologies. The World Health Organization (WHO) system is used to classify PH according to clinical presentation, hemodynamic characteristics, and treatment strategy¹. PH can arise from pre-capillary or capillary abnormalities of the pulmonary vasculature (WHO Group 1, 3, 4, or 5) or from a post-capillary etiology of left-sided heart disease (WHO Group 2)¹. The prognosis of PH depends on the etiology and severity of the condition but is often fatal if untreated^{2, 3}. PH is frequently diagnosed late in its course, with the mean time between symptom onset and diagnosis of Group 1 PH (pulmonary arterial hypertension, PAH) ranging from 2.5 years⁴ to 3.9 years⁵. Despite the development of numerous targeted therapies for PAH, and treatments for other forms of pre-capillary PH in the past decade^6-8, there has been no meaningful decrease in the diagnostic delay^{9, 10} due to lack of established screening guidelines for most forms of PH¹¹.

Definitive diagnosis of PH relies on measurements from the right heart catheterization (RHC) procedure, which is invasive and costly. Echocardiography is the current gold standard in PH screening⁶; however, it is a more specialized, time-consuming procedure that is not readily accessible to all physicians^{12, 13}. In contrast, the electrocardiogram (ECG) is the most performed cardiovascular diagnostic procedure, being ordered at 5% of US office visits¹⁴, 22% of annual health examinations¹⁵ and at 17% of emergency department visits¹⁶. Traditional ECG findings such as right axis deviation, right ventricular hypertrophy, and right bundle branch block raise suspicion for PH but are not sufficient diagnostic purposes, and are typically not detected until severe stages of PH⁶. Prior work evaluating traditional ECG features showed that the presence of a qR pattern in V1 and the magnitude of the p wave amplitude in the inferior leads were highly predictive of an adverse outcome¹⁷, which reflects the prognostic importance of the degree of impairment of the right ventricle. However, guidelines and standard-of-care does not presently rely on ECG alone for PH detection.

Prior proof-of-concept work from our group has demonstrated that machine learning applied to ECG interpretation can extend the clinical utility of the ECG in diagnosis and disease progression across a wide range of cardiovascular disease, including PH¹⁸. In the current work, we hypothesize that an automated deep learning approach to ECG interpretation can be used to detect PH and certain clinically important subtypes. We developed and tested an algorithmic framework that can detect PH broadly, as well as specific subtypes including pre-capillary PH, WHO Group 1 PH, and WHO Group 3 PH (PH due to lung disease and/or hypoxia). The algorithm represents a novel approach to identify patients with suspected PH for the purposes of reducing the delay in diagnosis.

METHODS

Human Subjects Research

University of California, San Francisco (UCSF) Institutional Review Board approval was received for this study and informed consent was waived due to minimal risk.

Cohort Definitions

Eligible patients were adults who had undergone right heart catheterization (RHC) or had an echocardiogram within 90 days before or after an ECG at the University of California, San Francisco, between 2012 and 2019. Eligible patients were retrospectively identified and classified as PH or control: PH patients were those with mean pulmonary arterial pressure (mPAP) >20 mmHg by RHC or peak tricuspid regurgitation velocity (TRV) >3.4 m/s by echocardiogram; and control patients were those with RHC mPAP ≤20 mmHg or peak TRV ≤2.8 m/s.¹ It is standard practice in the UCSF catheterization laboratory to obtain the mean PCWP by measuring the pressure at the mid a-wave. If PCWP is > 15mHg, it is also standard practice in our lab to confirm with either a highly saturated blood sample (O2 sat >90%), or obtain an LVEDP measurement. Echocardiographic data were only used to classify patients if RHC was not available. Patients who had intermediate probability of PH according to their TRV measurement (TRV between 2.8 and 3.4 m/s) or had no resting mPAP measurement from RHC were excluded. Summaries of hemodynamic measurements from echocardiogram and RHC for our cohort can be found in supplemental tables 1 and 2. The PH cohort was used to train and validate the convolutional neural network (CNN) algorithm as described below.

In order to test the algorithm’s performance in identifying subtypes of PH, patients with subtypes of PH were identified according to RHC measurements as defined by the 6^th World Symposium on Pulmonary Hypertension consensus statement¹. Patients without RHC data were not used in this PH subtype analysis. Pre-capillary PH patients were identified only if RHC was performed and were defined as having mPAP >20 mmHg, pulmonary artery wedge pressure (PAWP) ≤15 mmHg and pulmonary vascular resistance (PVR) ≥3 WU. Those without pre-capillary PH were defined as those with RHC data demonstrating mPAP ≤20 mmHg. Group 1 PH (PAH) patients were defined as PH patients with RHC mPAP >20 mmHg who had ≥1 code for a PAH-specific medication ordered during the 3 months prior or 6 months following the qualifying RHC. A full list of PAH-specific medications is shown in the Supplemental Appendix. Group 3 PH (PH due to lung disease and/or hypoxia) patients were defined as PH patients with RHC demonstrating mPAP >20 mmHg who also had an International Classification of Disease (ICD) code that was consistent with a diagnosis of Group 3 PH within 3 months before or after RHC PH diagnosis. A full list of the qualifying ICD codes is listed in the Supplementary Appendix.

Data Extraction and Processing

RHC, echocardiogram reports, and patient heath record data such as demographics, ICD codes, and medications were extracted from their respective UCSF electronic health record databases. Free text in RHC and echocardiogram reports was parsed to extract the required data (i.e. mPAP or TRV) into a structured format for each procedure. The nearest ECG within 90 days in either direction of the procedure date was matched to the RHC or echocardiogram, yielding one ECG per patient for model training. If no ECG was found within 90 days of a procedure date, patients were excluded. Patients were then randomly divided into training, development, and test datasets in a ratio of 7:1:2 for training, tuning, and validation of the model, respectively. Within the test dataset, PH subgroups (as defined above) were also identified. ECGs were recorded as part of routine clinical care at either 250 Hz or 500 Hz across 12 leads for 10 seconds and converted to a 2,500x12 matrix, and down-sampled as necessary. These data are available from any standard 12-lead ECG performed by any clinic.

Algorithm Development

We trained a single CNN to predict the presence of PH. The model had a one-dimensional ResNet architecture¹⁹, similar to that previously described²⁰. The architecture of the CNN accepts the input matrix of ECG voltages and produces an output score between 0 and 1 that corresponds to predicted probability of PH. The CNN is comprised of 15 convolutional layers, implemented in Keras version 2.2.4 and Python 3.6. The filter size is 8, each with a convolution, a ReLU non-linearity²¹, and a batch normalization layer²². Alternating layers are connected by a residual layer. A max-pooling layer applies to every 4^th layer, and this reduces the time resolution by a factor of 2 starting from 2500. The number of convolutional channels is doubled every 8^th layer, starting from the 64^th layer. The output of the final layer of convolution is a 256 x 10 matrix, which is fed into a fully connected layer that outputs a 128 x 1 matrix. This feeds the sigmoid activation function to complete our model. This final architecture was decided upon after a grid search sweep of the following architectural parameters: number of convolutional layers {11,12,13,14,15,16,17}, number of fully connected layers {0,1}, size of fully connected layer {64,128,256,1024}. The Adam optimizer trained each model until convergence with a learning rate of 0.001, and the learning rate was then reduced by a factor of 10 and the training was continued until reaching convergence thrice²³. The model output consists of two classes of predicted binary outcomes, each with a probability value between 0 and 1. The outcomes are mutually exclusive, so output probabilities add up to 1.

AI Explainability

Understanding the features used by deep learning models can be important to contextualize their predictions, build trust in their conclusions, and possibly elucidate patterns in their input previously unknown to humans. Here, we apply an explainability technique called Linear Model-Agnostic Explanations (LIME) to highlight the voltage features of the ECG used by the model to make predictions about the presence of PH²⁴ (Figure 3). We present voltages with importance weight represented by red highlights, in which color intensity corresponds to importance.

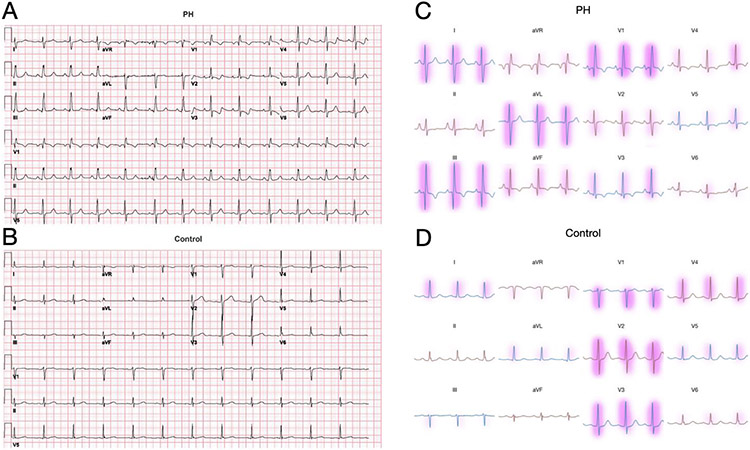

Figure 3.

A,B: Examples of ECG tracings used for algorithm development from an example patient with longstanding PH (top) and a patient without PH (bottom). Note some classic ECG features of PH in (left) including rightward axis and prominent R wave in V1. C,D: Features of the ECG voltages that were important for the model’s classification are highlighted in red, with color intensity corresponding to LIME-derived importance values. ECG, electrocardiogram; PH, pulmonary hypertension

Statistical Performance Metrics

CNN performance was evaluated by calculating the area under the receiver operating characteristic curve (AUC), sensitivity, specificity, positive predictive value (PPV), negative predictive value (NPV) and F1 score (harmonic mean of the PPV and sensitivity).²⁵ A threshold for binary decision was chosen to optimize the F1 score in the development dataset and then applied to the test set for calculation of the F1 score, sensitivity and specificity and predictive values.

The trained model was also tested on a subset of patients from the test set in which the prevalence of PH was made to be 1%, to simulate the estimated prevalence of PH in the general population.²⁶ The trained model was then also tested on several PH subgroups, namely pre-capillary PH, Group 1 PH, and Group 3 PH, that were identified within the test dataset using the criteria described above; the same binary threshold was used as in the primary analysis. Of note, the CNN was not specifically re-trained for these subtypes due to low sample sizes. In these analyses (PH and its subgroups), the model was tested on ECGs from within 90 days of diagnosis by RHC or echocardiogram. In a separate analysis, the trained model was also applied on ECGs from patients in the test dataset taken from up to 2 years before the date that the diagnosis was made. To examine whether a CNN can also detect PH using fewer than 12-leads, as is commonly obtained from remote ECG monitoring devices, we trained separate CNNs using only 2 or 1 input ECG leads (leads I and V2) and reported results in the hold-out test dataset; all CNN hyperparameters were kept identical to those used during 12-lead training.

RESULTS

Patient Cohorts

A total of 24,470 adult patients were retrospectively identified from adults who had undergone RHC or had an echocardiogram within 90 days before or after an ECG (Figure 1). Patient demographics and characteristics are shown in Table 1. We identified 5016 PH patients (2830 by RHC, 56%) and 19,454 control patients. Mean (SD) age at time of ECG was 62.29 (17.58) years and 49.88% were female. The mean interval between ECG and RHC or echocardiogram was 3.66 and 2.23 days for PH and control patients, respectively; the median was 0 days between ECG and both RHC and echocardiogram. Demographics and patient characteristics were similar across the training, development, and test sets (data not shown). From the PH patients in the test set (N=982), 147 patients were confirmed as having pre-capillary PH by RHC, 119 were classified as Group 1 PH patients, based on RHC hemodynamics and medication orders, and 169 were classified as Group 3 PH patients, based on RHC hemodynamics and ICD codes.

Figure 1.

Patient flow diagram (Consort diagram) and PH Cohort Venn Diagram. ECG, electrocardiogram; echo, echocardiogram; EHR, electronic health records; PH, pulmonary hypertension; RHC, right heart catheterization; UCSF, University of California, San Francisco. *Forty ECG files were incomplete and were not used in model development.

Table 1.

Patient demographics and characteristics in the PH cohorts

	Overall N=24,470	PH (mPAP >20 mm Hg or TRV >3.4 m/s), N = 5016	Pre-capillary PH (by RHC only) N=701	Group 1 PH - PAH (mPAP >20 mm Hg + 1 PAH-medication) N=572	Group 3 PH – PH due to lung disease and/or hypoxia (mPAP >20 mm Hg + 1 qualifying ICD code) N=958
Male gender, n (%)	12,257 (50.1)	2650 (52.8)	296 (42.2)	237 (41.4)	562 (58.7)
Female gender, n (%)*	12,206 (49.9)	2366 (47.2)	405 (57.8)	335 (58.6)	396 (41.3)
Mean (SD) age, years	62.3 (17.6)	65.3 (16.8)	58.4 (14.5)	55.0 (14.6)	62.5 (12.4)
Race, n
White	13,194 (53.9)	1586 (31.6)	235 (33.5)	292 (51.0)	553 (57.7)
Black/African American	2084 (8.5)	425 (8.5)	51 (7.3)	72 (12.6)	132 (13.8)
Asian	4309 (17.6)	521 (10.4)	59 (8.4)	77 (13.5)	97 (10.1)
Native Hawaiian/Pacific Islander	362 (1.5)	69 (1.4)	7 (1.0)	9 (1.6)	12 (1.3)
Unknown	4521 (18.5)	2,415 (48.1)	349 (49.8)	122 (21.3)	164 (17.1)

^*7 individuals identified as non-binary gender, hence the percentages do not total 100.

Detecting Pulmonary Hypertension

The primary objective of the study was to determine whether an automated deep learning approach to ECG interpretation could be used to detect PH. Our trained model achieved an AUC of 0.89, and sensitivity and specificity of 0.79 and 0.84, respectively in our test dataset which had a PH prevalence of 20% (Table 2). To simulate the estimated prevalence of PH in the general population,²⁶ the trained model was also applied to a test dataset subset with 1% PH prevalence (Table 2, Figure S1) and the ROC curves are shown in Figure 2. Positive predictive values for detection of PH (Table 2, Figure S2) were 0.56 in the overall test dataset (20% PH prevalence) and 0.05 in the dataset with 1% PH prevalence. The corresponding NPVs were 0.94 and 1.00; patients who are identified as PH-negative by the algorithm are likely to not have PH. The predictions given by the CNN compared with the 'ground truth' (by RHC or echocardiogram) are shown in two-by-two tables (Figure S2). In a sensitivity analysis, all CNN performance metrics (AUC, sensitivity, specificity, F1, NPV, PPV) were materially identical with overlapping confidence intervals in PH cohorts stratified by RHC vs. echo PH diagnosis criteria (Table 3).

Table 2.

CNN performance in detecting PH in each of the test datasets

	AUC	Sensitivity	Specificity	PPV, %	NPV, %	PH+ in test set, n	Controls in test set, n	Disease prevalence in dataset
PH at a prevalence of 20%	0.89 (0.88-0.90)	0.79 (0.76-0.81)	0.84 (0.83-0.85)	0.56 (0.53-0.58)	0.94 (0.93-0.95)	982	3903	20
PH at a prevalence of 1%	0.88 (0.83-0.93)	0.79 (0.68-0.90)	0.84 (0.83-0.85)	0.05 (0.03-0.06)	1.00 (1.00-1.00)	39	3903	1
Pre-capillary PH	0.91 (0.89-0.94)	0.83 (0.78-0.88)	0.84 (0.83-0.88)	0.17 (0.14-0.19)	0.99 (0.99-0.99)	147	87	63
Group 1 PH – PAH	0.94 (0.92-0.96)	0.88 (0.83-0.93)	0.84 (0.83-0.85)	0.15 (0.12-0.17)	1.0 (0.99-1.0)	119	87	56
Group 3 PH – PH due to lung disease and/or hypoxia	0.9 (0.89-0.91)	0.81 (0.77-0.84)	0.84 (0.83-0.85)	0.31 (0.29-0.34)	0.98 (0.98-0.98)	169	80	68

AUC=area under the receiver operating characteristic curve; PPV=positive predictive value; NPV=negative predictive value; PH=pulmonary hypertension; value (95% confidence interval)

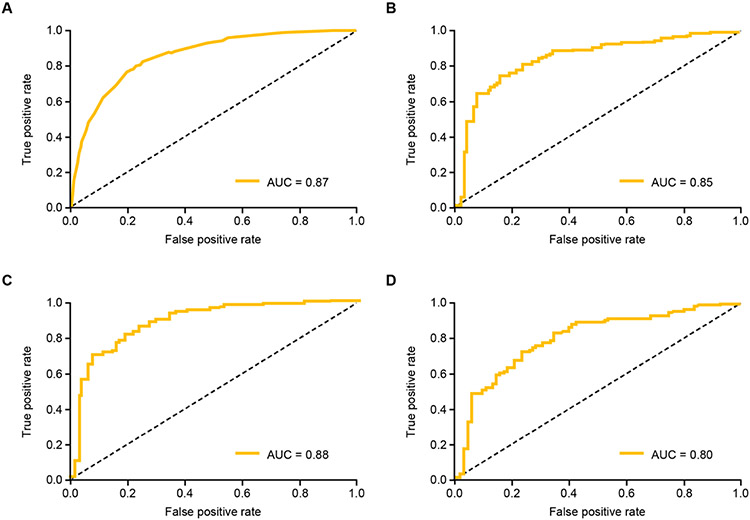

Figure 2.

ROC curves for primary model's performance in the test dataset for A: PH patients; B: pre-capillary PH; C: Group 1 PH (PAH) patients; D: Group 3 PH patients. AUC, area under the receiver operating characteristic curve; PAH, pulmonary arterial hypertension; PH, pulmonary hypertension; ROC, receiver operating characteristic.

Table 3.

Performance of CNN to detect PH stratified by PH diagnosis criteria

PH Diagnosis Method	AUC	Sensitivity	Specificity	F1 score	PPV	NPV
RHC	0.89 (0.87-0.9)	0.78 (0.75-0.81)	0.84 (0.83-0.85)	0.51 (0.49-0.54)	0.38 (0.36-0.41)	0.97 (0.96-0.97)
Echo	0.90 (0.89-0.91)	0.79 (0.76-0.82)	0.84 (0.83-0.85)	0.52 (0.49-0.55)	0.39 (0.36-0.41)	0.97 (0.96-0.97)

AUC=area under the receiver operating characteristic curve; RHC=right heart catheterization; PPV=positive predictive value; NPV=negative predictive value.

Example ECGs from PH patient and non-PH patients show different characteristic ECG changes (Figure 3, A-B). We applied the LIME technique to the trained PH CNN which identifies ECG segments of greatest importance to the CNN to predict PH for example ECGs from a PH and non-PH patient (Figure 3, C-D)²⁴. ECG segments well-recognized to be associated with PH, such as the large R-wave in lead V1, findings consistent with right ventricular hypertrophy, right axis deviation, and RV strain pattern (ST depression and T wave inversions in precordial and inferior leads, particularly in lead III), were all weighed heavily in the CNN PH prediction.

We then examined how the CNN would perform to predict PH prior to the date of clinical PH diagnosis. For PH patients in the test dataset, we identified additional ECGs prior to the date of their PH diagnosis, grouped into intervals of 3–6 months from the date of diagnosis. The trained PH model was then applied on these ECGs obtained up to 2 years prior to diagnosis to examine the model’s performance to predict PH prior to the date of actual PH diagnosis (Figure 4). AUC was highest using ECGs from the time of diagnosis, and AUC remained above 0.80 up to 1 year prior to diagnosis, and at a minimum of 0.79 up to 2 years prior to diagnosis. Figure 5 shows examples of ECGs from PH patients around the time of PH diagnosis and 2 years prior to diagnosis, neither of which show characteristic changes associated with longstanding PH.

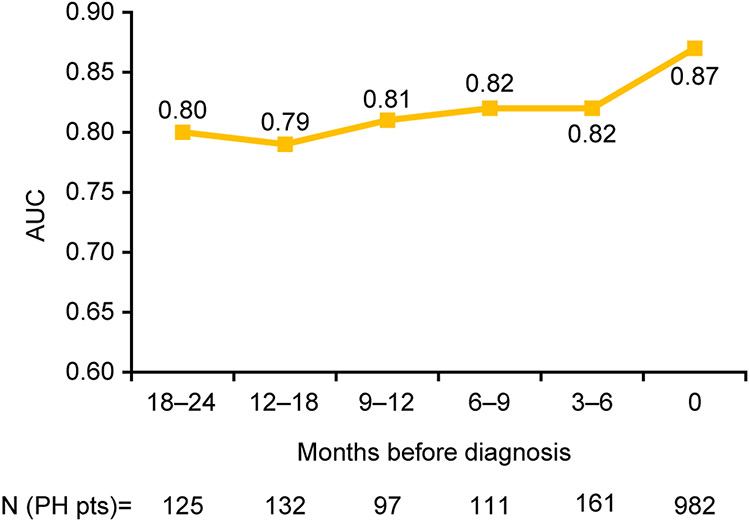

Figure 4.

Model performance to detect PH using ECGs obtained prior to date of clinical PH diagnosis. AUC, area under the receiver operating characteristic curve; PH, pulmonary hypertension.

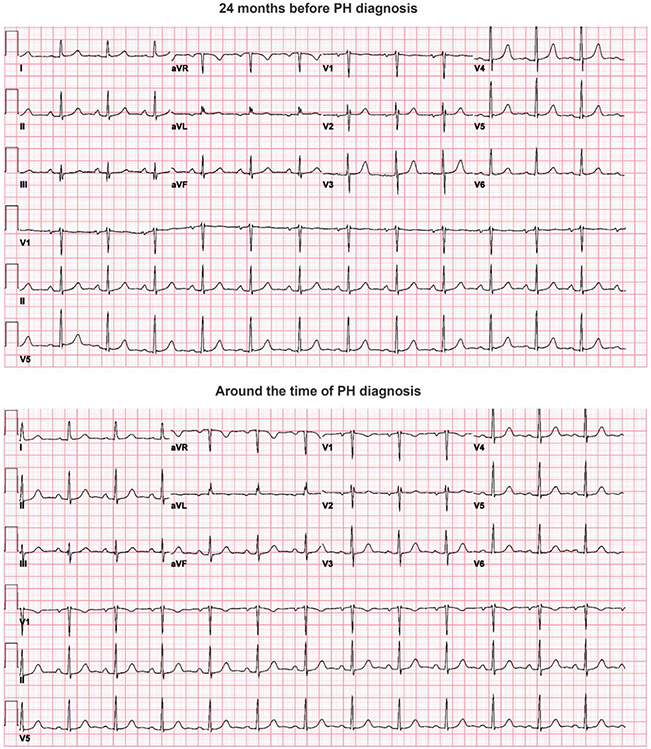

Figure 5.

Example ECGs from the same patient 24 months prior to diagnosis (top) and at the time of diagnosis (bottom). Note that no major ECG changes suggestive of PH are visible globally in either example. ECG, electrocardiogram; PH, pulmonary hypertension.

Detecting Pulmonary Hypertension Sub-types

We applied the trained CNN, which was trained to detect broad PH, to test its ability to detect clinically-relevant PH subtypes. The model achieved an AUC, sensitivity, and specificity of 0.91, 0.93, and 0.84, respectively, for pre-capillary PH patients defined by RHC criteria (Table 2). Adding medication criteria to RHC hemodynamic parameters, we identified patients with Group 1 PH. The model achieved an AUC, sensitivity, and specificity of 0.88, 0.81, and 0.81, respectively for Group 1 PH patients. Finally, ICD code data was added to RHC hemodynamic parameters to identify patients with Group 3 PH. The model achieved an AUC, sensitivity, and specificity of 0.80, 0.73, and 0.76, respectively for Group 3 PH patients (Figures 1-2, Table 2).

Remote ECG monitoring devices frequently capture fewer than 12 ECG leads, therefore we also examined CNN performance to detect overall PH using 1 or 2 ECG leads. Discrimination for PH remained high using fewer leads, with only mildly lower AUCs compared to CNNs using 12 ECG leads (Table 4).

Table 4.

Performance of CNN to detect PH with fewer than 12 ECG leads.

	AUC	Sensitivity	Specificity	PPV	NPV
Detecting PH using 2 ECG leads (leads I and V2)	0.84 (0.83-0.86)	0.78 (0.75-0.81)	0.76 (0.74-0.77)	0.45 (0.42-0.48)	0.93 (0.92-0.94)
Detecting PH using ECG lead V2	0.83 (0.82-0.85)	0.72 (0.68-0.75)	0.8 (0.78-0.81)	0.47 (0.44-0.5)	0.92 (0.91-0.93)
Detecting PH using ECG lead I	0.81 (0.79-0.83)	0.77 (0.73-0.8)	0.7 (0.68-0.71)	0.39 (0.37-0.42)	0.92 (0.91-0.93)

AUC=area under the receiver operating characteristic curve; PH=pulmonary hypertension; PPV=positive predictive value; NPV=negative predictive value.

DISCUSSION

Deep learning-based analysis of standard 12-lead ECGs can detect PH with high overall performance (AUC 0.87). Importantly, when our algorithm was applied to ECGs up to 2 years prior to clinical PH diagnosis, it performed well with an AUC of ≥0.79, demonstrating the broad potential to detect PH with ECGs much earlier than occurs through the current clinical standard of care. In addition, the model was able to identify PH in patients with pre-capillary PH, WHO Group 1 PH and WHO Group 3 PH. Accuracy to detect PH was only slightly decreased when data were limited to 1 or 2 ECG leads, such as is often obtained from remote ECG monitoring devices, further expanding clinical settings in which ECG-based PH detection can be deployed. This approach has the potential to reduce diagnostic delay in PH by adding a readily accessible, inexpensive, and relatively precise test to the currently available tools for screening.

We anticipate our ECG algorithm may be best suited for patients in specific high-risk clinical settings such as cardiology or pulmonology clinics, or in patients with unexplained dyspnea (i.e. from primary care or specialty settings). Positive predictive values for any algorithm are directly proportional to disease prevalence,²⁷ therefore our algorithm may be better applied in higher-risk settings than the general population. We demonstrated the comparative PPVs observed when PH prevalence was 20% (PPV: 0.56) vs. 1% (PPV: 0.05). In any scenario, the algorithm’s prediction would be considered by the treating physician alongside all other clinical signs and clinical data before a decision was made on next steps, to avoid unnecessary testing. Importantly, NPVs were 0.94 (20% prevalence) and 1.00 (1% prevalence), indicating the algorithm could correctly exclude patients from further unnecessary tests in most cases. Our algorithm could be applied in databases from large healthcare systems or specialty clinics to identify patients with PH from existing ECG data, as well as being applied prospectively, in “real-time”, as ECGs are being collected in multiple settings. Further, the ability to detect PH using fewer than 12-ECG leads greatly expands the potential impact of this CNN-based approach beyond standard clinical encounters where 12-lead ECGs are obtained, to include remote and ambulatory ECG monitoring settings that are used with increasing frequency.

Importantly, we also demonstrated that our algorithm can detect PH from ECGs obtained up to at least 2 years prior to the date of clinical diagnosis. This raises the possibility to achieve improved detection of existing but undiagnosed PH, earlier than the present standard of care. Currently, PH patients often present very symptomatic (WHO functional class III/IV) at the time of diagnosis,^{28, 29} representing an unmet need for improved screening. With the accessibility of ECG in most clinical settings, it is plausible that this algorithm could be used in primary care or resource-constrained settings and could potentially lead to more timely echocardiographic assessment, diagnosis, and specialist referrals. The unmet need and impact of improving the PH diagnostic workflow is evident from registry data, which show that a long delay in diagnosis is associated with a higher mortality risk in PAH.⁴

Kwon and colleagues also reported a deep learning model that used both demographic information and 12- or single-lead ECG data from two Korean hospitals (N=14,039). Their PH definitions relied solely on echocardiogram criteria which is less rigorous and did not examine PH subtypes; they reported AUC, sensitivity and specificity of 0.90, 0.80, and 0.84, respectively, for the detection of PH.³⁰ In comparison, our study provides corroboration of their primary finding with echocardiogram data alone while using more stringent definitions of PH, including PH patients confirmed by RHC. We further demonstrated that our model was able to detect subtypes of PH, including pre-capillary PH, in Group 1 PH and Group 3 PH, for which there are commercially available treatments.

A systematic review and meta-analysis of 27 studies involving a total of 4386 patients with suspected PH who underwent RHC and echocardiogram found that echocardiographic estimation of systolic pulmonary artery pressure could predict PH with a pooled AUC, sensitivity and specificity of 0.88, 0.85, and 0.74, respectively.³¹ Four studies using tricuspid regurgitation pressure gradient obtained a pooled AUC, sensitivity and specificity of 0.85, 0.75, and 0.81, respectively.³¹ This demonstrates that the predictive accuracy of echocardiographic assessment of PH is generally acceptable, although sensitivity and specificity can vary depending on the measurements used. However, echocardiography requires specialist expertise, is associated with high inter-operator variability,¹² and does not reliably lead to timely referrals.^{32, 33} For example, a study assessed a random sample of 500 echocardiographic reports of patients with estimated right ventricular systolic pressure >40 mm Hg between 2006 and 2014 (21% of which were >60 mm Hg) and found that only 31% mentioned PH in their report summaries and only 4.6% of patients were referred to the PH clinic.³² Furthermore, a study of patients who had an echocardiogram within 2 days of RHC found that 214 (47%) of the 459 RHC-confirmed PH patients did not have a measurable TRV on their echocardiogram.³⁴ Moreover, access to echocardiography varies between and within countries^35-37 due to socioeconomic differences and/or differences in local practice guidelines or policies. The use of echocardiograms has increased in recent years but a US study showed that echocardiograms remain underused during critical cardiovascular hospitalizations.³⁶

Several groups have employed deep learning models to enable or enhance detection of cardiovascular conditions by ECG.³⁸ We previously demonstrated that such deep learning analysis of 12-lead ECG can not only identify numerous diagnoses commonly associated with ECGs,³⁹ but also diseases and conditions not typically diagnosed by ECG including hypertrophic cardiomyopathy (HCM), amyloidosis or even diastolic dysfunction with AUCs of 0.91, 0.86 and 0.84, respectively.¹⁸ Though ECGs do not currently play a central role in their clinical diagnosis, models could discriminate each disease fairly well and may help lead patients to more confirmatory testing. Others have subsequently corroborated these results for HCM in other populations⁴⁰ and for other conditions like LV systolic dysfunction.⁴¹ This present study contributes to this body of literature to further establish that ECGs contain much more information than is presently appreciated by physician interpretation. Literature describing deployment of AI algorithms for screening and diagnosis in clinical practice so far is limited, but holds promise.³⁸ The EAGLE trial demonstrated than an ECG model to detect low left ventricular ejection fraction increased diagnosis compared with usual care (2.1% vs. 1.6%, OR [95% CI]: 1.32 [1.01; 1.61], P=0.007) in a routine primary care setting in the US.⁴² Furthermore, the US Food and Drug Administration issued an Emergency Use Authorization for this model in patients with COVID-19.⁴³

This study has some limitations. While we used gold-standard RHC-based PH cohort definitions when possible, to maximize sample size for algorithm training we also used echocardiographic PH criteria of TRV. Patients who had an intermediate probability of having PH based on their TRV measurement were excluded (unless they also had an mPAP measurement available) as they could not be robustly classified as PH-positive or PH-negative. In addition, WHO group 1 PH patients were identified from RHC-confirmed PH patients that also had physician-prescribed orders of PAH-specific medications. While prescription of these PAH-specific medications is standardized at UCSF, it is possible that they could have been prescribed off-label for patients with other PH etiologies.³ Group 3 PH patients were identified based on qualifying ICD codes, though there are no Group 3 PH-specific ICD codes.⁴⁴ In all three cases above, patients could have been misclassified, though this misclassification would be expected to bias results towards the null. Second, deep learning models should be tested in different ethnicities and races.⁴⁵ While it is a strength that our study population consisted of 50% female and at least 27.6% non-White race, it will be important for future work to include validation in diverse populations. Third, positive predictive values, which are directly proportional to disease prevalence, were 54.7% (at 20% prevalence of PH) and 3.7% (at 1% prevalence of PH), indicating that application of this algorithm to a general patient population would potentially result in a relatively high number of false positives and unnecessary tests. However, this algorithm is intended for patients who are at risk of having PH (e.g. those with chronic unexplained dyspnea) and the algorithm’s prediction would be considered alongside all the other clinical signs and data available to the treating physician before a decision was made on next steps. Future ECG workflows could integrate algorithms such as ours into standard automated interpretation. The key strengths of this study are the application of a deep learning approach to a test that is readily accessible to primary care physicians, using data from a large population (N=24,470) and future research will investigate how this could potentially be incorporated into the clinical workflow.

INTERPRETATION

This deep learning ECG algorithm can detect PH and performs well to identify rare and treatable PH subtypes. It can also detect PH using ECGs up to 2 years before RHC or echocardiogram diagnosis, demonstrating that it has the potential to substantially reduce the diagnostic delay in PH and help ensure timely treatment of this life-threatening condition.

Supplementary Material

1

Figure S1. Visual summary of study design and findings. AUC, area under the curve; mPAP, mean pulmonary artery pressure; RHC, right heart catheterization; TRV, tricuspid regurgitation velocity; Group 1 PH, pulmonary arterial hypertension; Group 3 PH, PH due to lung disease and/or hypoxia

Figure S2. Confusion matrices (two by two tables) showing the predictions by the primary model for the presence of PH compared with the 'ground truth' PH diagnosis by RHC and/or echocardiogram in (A) PH patients (prevalence of 20%), (B), pre-capillary patients, (C) Group 1 PH (PAH) patients, and (D) Group 3 PH patients. Panel (E) outlines how the performance metrics are calculated from these tables. NPV, negative predictive value; PAH, pulmonary arterial hypertension; PH, pulmonary hypertension; PPV, positive predictive value; RHC, right heart catheterization

• This work describes the development and evaluation of a deep neural network “artificial intelligence” algorithm that shows high accuracy to detect pulmonary hypertension and several subtypes from 12-lead ECG alone.

• It shows that pulmonary hypertension can even be detected with this approach up to 2 years before the clinical diagnosis was made in the standard clinical workflow.

• This provides a new approach to detect pulmonary hypertension patients that can benefit from directed treatments in a widely-accessible non-invasive way in higher risk populations.

Nonstandard Abbreviations and Acronyms

CNN

convolutional neural network

ECG

electrocardiogram

HCM

hypertrophic cardiomyopathy

mPAP

mean pulmonary arterial pressure

NPV

negative predictive value

PAH

pulmonary arterial hypertension

PH

pulmonary hypertension

PPV

positive predictive value

RHC

right heart catheterization

TRV

tricuspid regurgitation velocity
