Precious-Metal-Free CO₂ Photoreduction Boosted by Dynamic Coordinative Interaction between Pyridine-Tethered Cu(I) Sensitizers and a Co(II) Catalyst

Abstract

Improving the photocatalytic efficiency of a fully noble-metal-free system for CO₂ reduction remains a fundamental challenge, which can be accomplished by facilitating electron delivery as a consequence of exploiting intermolecular interactions. Herein, we have designed two Cu(I) photosensitizers with different pyridyl pendants at the phenanthroline moiety to enable dynamic coordinative interactions between the sensitizers and a cobalt macrocyclic catalyst. Compared to the parent Cu(I) photosensitizer, one of the pyridine-tethered derivatives boosts the apparent quantum yield up to 76 ± 6% at 425 nm for selective (near 99%) CO₂-to-CO conversion. This value is nearly twice that of the parent system with no pyridyl pendants (40 ± 5%) and substantially surpasses the record (57%) of the noble-metal-free systems reported so far. This system also realizes a maximum turnover number of 11 800 ± 1400. In contrast, another Cu(I) photosensitizer, in which the pyridine substituents are directly linked to the phenanthroline moiety, is inactive. The above behavior and photocatalytic mechanism are systematically elucidated by transient fluorescence, transient absorption, transient X-ray absorption spectroscopies, and quantum chemical calculations. This work highlights the advantage of constructing coordinative interactions to fine-tune the electron transfer processes within noble-metal-free systems for CO₂ photoreduction.

Introduction

Sunlight-driven reduction of CO₂ continues to attract attention as a sustainable, carbon-neutral route to produce renewable fuels.¹⁻⁴ Due to the sluggish multielectron reaction kinetics and competition with H₂ evolution,^5,6 considerable efforts have been made to develop efficient and selective systems for photocatalytic CO₂ reduction. Up to now, various researchers have studied transition metal complexes as molecular photosensitizers (PSs) and catalysts, since they are highly optimizable via synthetic methods and amenable to the detailed mechanistic investigations.^7,8 In the last several decades, noble-metal-based PSs, like Ru, Ir, and Re PSs, have been extensively adopted to photochemically drive CO₂ reduction.⁹⁻¹¹ However, earth-abundant molecular systems, enabling large-scale applications, have also attracted considerable attention in recent years.¹²⁻¹⁵ Among them, Cu(I)-based PSs have received great attention owing to their versatile redox characteristics as well as the highly variable ligand scaffolds, permitting the fine-tuning of their redox and excited-state properties.¹⁶⁻²⁴ For example, Ishitani and co-workers have designed a diphosphine-tethered phenanthroline ligand to stabilize a dimeric Cu(I) PS which exhibits a notable stability during the photocatalytic CO₂ reduction along with Fe^25,26 or Mn²⁷ catalysts. The tetradentate nature of the ligand effectively prevents the dissociation of diphosphine donors bound to the Cu(I) centers, leading to a maximum quantum yield (Φ) of 57% in the coproduction of CO and HCOOH. Beller and co-workers in situ deployed Cu(I) PSs by mixing Cu(I) precursors and the individual ligands to drive the photochemical CO₂ reduction catalyzed by either Fe cyclopentadienone¹² or Mn diimine complexes²⁸ as catalysts. Furthermore, a water-soluble Cu(I) PS, having a tetrasulfonated form of [Cu^I(xantphos)(bcp)]⁺ (CuBCP in Figure 1; xantphos = 9,9-dimethyl-4,5-bis(diphenylphosphino)xanthene, bcp = bathocuproine), was also developed for efficient and selective CO₂-to-CO conversion with several water-soluble Co porphyrins as catalysts, demonstrating the good selectivity (near 90%) and high turnover numbers (TONs, up to 4000) even operated in fully aqueous media where H₂ evolution is often facilitated.²⁹⁻³¹

Figure 1.

Cu(I) PSs. (a) Chemical structures, (b) UV–vis absorption, (c) emission, and (d) excited-state decay traces of the Cu(I) PSs. Deaerated 50 μM CH₃CN solutions were used for the above spectra. Trace color: CuBCP, blue; CuPBCP, red; CuPPBCP, gold.

The above reports succeeded in revealing some promising performances of Cu(I) PSs in light-driven CO₂ reduction. However, there still remains a possibility of improving the photocatalytic performance, since the noble-metal-containing systems could demonstrate TON > 10⁷ and Φ > 80%.^32,33 One can therefore expect further improvement by the rational optimization of the fundamental properties of both catalysts and PSs as well as by more delicately controlling the electron transfer (ET) efficiency among the PS, catalyst, and reductive equivalents. Up to now, various strategies have been explored to improve the ET efficiency in CO₂ photoreduction. These include the covalent bonding,³⁴⁻³⁶ H-bonding,³⁷ coordinate bonding,³⁸ and π–π stacking^24,39−41 interactions between the PS and catalyst. However, most of them relied on the use of noble-metal-based PSs and/or catalysts. In other words, studies attempting to improve the ET efficiency among the noble-metal-free PS and catalyst have seldom been reported to date.²⁴

In this context, we have fabricated noble-metal-free PSs having pyridyl tethers to permit their dynamic interactions with catalysts via coordinate bonding (Figure 1), where the “dynamic interactions” are intended to express that the bond formation and dissociation are dynamically taking place during the photocatalysis. Among the available interaction modes between PS and the catalyst, coordinate bonds can be highly advantageous because of the following reasons. The metal–ligand bonds can avoid the irreversible loss of association between the PS and catalyst due to their ability to retrieve the linkage depending upon the metal oxidation state, which cannot be expected for the covalent linkages made of C–C, C–O, C–N, etc. Moreover, the metal–ligand bond dissociation may play a role in suppressing undesirable back electron transfer (BET). For example, the low-spin d⁷ Co(II) ion possesses either an axially elongated square pyramidal or octahedral geometry and thereby serves as a dynamically exchanging coordination site in giving a linkage between the PS and catalyst.³⁸ The fast exchange is expected due to the fundamental lability of the Co(II)-ligand bonds as well as the relatively long axial bond distances caused by the so-called Jahn–Teller effect. Furthermore, upon driving the ET from the reductively quenched PS to the covalently associated catalyst, the Co(II) center may turn into the d⁸ Co(I) ion which favors a square-planar geometry,⁴² resulting in the dissociation of the catalyst from the PS to suppress the undesirable BET.

To this end, we demonstrate that the pyridyl tethers introduced to CuBCP indeed bring about substantial catalytic enhancement in photocatalytic CO₂ reduction, presenting our proof of concept on the dynamic coordinative interaction into precious-metal-free systems. Cobalt phthalocyanine tetracarboxylic acid (CoTCPc) is employed as a promising molecular catalyst, where its electron-withdrawing⁴³ carboxyl groups may enable a high catalytic performance. The carboxyl groups are located at two random β-positions due to the different regioisomers arising from the synthesis. To evaluate the effect of pyridyl tethers on CuBCP as the prototype, we designed and synthesized two new types of heteroleptic Cu(I) PSs depicted in Figure 1: [Cu^I(xantphos)(pbcp)]PF₆ (CuPBCP; pbcp = 2,9-dimethyl-4,7-di(pyridin-4-yl)-1,10-phenanthroline) and [Cu^I(xantphos)(ppbcp)]PF₆ (CuPPBCP; ppbcp = 2,9-dimethyl-4,7-bis(4-(pyridin-4-yl)phenyl)-1,10-phenanthroline). The former possesses two pyridyl groups directly bonded to the 2,9-dimethyl-1,10-phenanthroline backbone instead of the phenyl groups in parent bcp. The latter has two pyridyl groups bonded to the 4-positions of the phenyl groups of bcp in the prototype. Our study reveals that the CuPPBCP-driven CO₂ reduction catalyzed by CoTCPc (i.e., the CuPPBCP/CoTCPc system) achieves an excellent quantum yield (Φ = 76 ± 6% at 425 nm) with a near quantitative selectivity in CO formation. This efficiency is almost twice higher than that of the prototypical CuBCP/CoTCPc system (Φ = 40 ± 5% at 425 nm). Moreover, the CuPPBCP/CoTCPc system could achieve a maximum TON of 11800 ± 1400. These performances also considerably surpass the previous molecular system with dynamic interactions^24,37−41 (Φ < 50%, TON < 1500). On the other hand, the CuPBCP/CoTCPc system is found to exhibit rather poor photocatalytic activity, which is even lower than that of the prototype system. However, this result in turn demonstrates the importance of delicate control in achieving highly efficient photocatalytic systems with desirable ET efficiency. Notably, transient X-ray absorption spectroscopic techniques have been utilized to elucidate the photophysics of photosensitizers and study the electron transfer kinetics.

Results

Syntheses and Photophysics of Cu(I) PSs

Three heteroleptic Cu(I) complexes of the type [Cu(P^∧P)(N^∧N)]⁺ were prepared as PSs (Figure 1a and experimental details in the Supporting Information (SI)), with three kinds of N^∧N ligands, bcp, pbcp, and ppbcp. Two pyridyl pendants were employed to replace the two phenyl groups at the 4,7-position of the bcp prototype in CuPBCP, and two 4-phenylpyridyl groups were employed in the case of CuPPBCP, respectively, with the aim to generate coordinative interactions with the macrocyclic Co(II) catalyst. The purities and structures of these ligands and complexes were clarified by elemental analysis and ¹H NMR spectroscopy (Table S1). The above compounds were further characterized by ¹H–¹H NMR correlation spectroscopy (COSY; Figures S1–S4), ¹³C and ¹⁹P NMR (for Cu complexes, Figures S5–S8), mass spectroscopy (Figures S9–S12), and single-crystal X-ray diffraction (Figure S13 for CuPBCP only; Tables S2 and S6) methods, respectively.

We then adopted various methods to determine the redox and photophysical properties of the three Cu(I) PSs, as summarized in Table 1. Cyclic voltammetry was first applied to investigate their redox properties, where reversible one-electron reduction waves and irreversible oxidation waves were all observed for the three Cu(I) complexes in degassed CH₃CN (Figure S14). Notably, the electron-withdrawing effects from the pyridyl pendants lead to more positive reduction potentials (E_red; −1.88/–1.97 vs −2.04 V vs Fc^+/0) of CuPBCP/CuPPBCP than the parent CuBCP, respectively, consistent with the less reducing forces of the reduced-state Cu(I) PSs. The excited-state reduction potentials (E_red,ex)⁴⁶ of the Cu(I) PSs (Table 1 and Figure S14) were then estimated using the ground-state redox parameters together with the emission energies (E_0–0, eV). It can be seen that the E_red,ex values of pyridine-tethered Cu(I) PSs (1.00 and 0.81 V vs Fc^+/0) are both more positive than that of the prototype CuBCP (0.75 V), indicative of the stronger ability to oxidize sacrificial reductant.

Table 1. Photophysical and Electrochemical Data: Summary of the Photophysical and Redox Properties of the Cu(I) PSs^a.

Cu PS	Ered (V)	λem (nm)	λab (nm)	ε405 (M–1 cm–1)	Φembc	τb (ns)	kr (103 s–1)d	knr (106 s–1)e	isosbestic point (nm)f	E0–0 (eV)f	Ered,ex (V)
CuBCP	–2.04	580	285, 388	1760	0.23% ± 0.02%	289 ± 5	8.0	3.5	445	2.79	0.75
CuPBCP	–1.88	590	281, 395	3070	0.03% ± 0.01%	33.0 ± 3.1; τ1 = 3.5, 33%; τ2 = 48.4, 67%	9.1	30.3	430	2.88	1.00
CuPPBCP	–1.97	590	289, 389	4000	0.16% ± 0.02%	206 ± 4	7.8	4.8	446	2.78	0.81

^aMeasured in in deaerated CH₃CN solution at 298 K. Experimental error within 5%. Potentials are versus Fc^+/0.

^bExcited at 405 nm. The error bars represent the standard deviations of three independent measurements.

^cDetermined via the relative method with RuBPY (= Ru(bpy)₃(PF₆)₂; bpy = 2,2′-bipyridine) as the standard, 0.095% at 298 K.⁴⁴

^dk_r = Φ_em/τ.⁴⁵

^ek_nr= (1 – Φ_em)/τ.⁴⁵

^fIsosbestic point was obtained from the intersection of normalized absorption and emission spectra and E_0–0 values = 1240/isosbestic point (eV).⁴⁵

Next, the photophysical properties of the PSs in deaerated CH₃CN were investigated using UV–vis absorption and steady-state fluorescent spectroscopies. Comparison of their UV–vis absorption spectra clarifies the similarity in their absorption features (see Figure 1b), although the molar absorptivity at ca. 400 nm decreases in the order CuPPBCP > CuPBCP > CuBCP. By contrast, their steady-state emission spectra (Figure 1c) are structureless, in which the emission maxima (λ_em) for the two pyridyl tethered PSs are by ca. 10 nm red-shifted relative to that of the parent CuBCP, reflecting the electron-withdrawing effect of the pyridyl groups. The emission quantum yields (Φ_em) reveal a descending order as follows; CuBCP (0.23%) > CuPPBCP (0.16%) > CuPBCP (0.03%). The relatively low Φ_em values are ascribed to the exciplex quenching effect posed by the CH₃CN coordination to the excited Cu dye.⁴⁷ We further determined the excited-state lifetimes by monitoring the fluorescence decays using time-correlated single photon counting (TCSPC; Figure 2d). The observed lifetimes display a trend similar to that seen in Φ_em by affording the values of CuBCP, CuPPBCP and CuPBCP as 289, 206, and 33.0 ns, respectively (Table 1). The biexponential decay traces of excited CuPBCP suggest the presence of additional decay pathways. Since the lifetimes of [Cu(P^∧P)(N^∧N)]⁺ PSs are generally around 10^–7 s in coordinative CH₃CN,^27,28 the shorter-lived (at 10^–8 s) excited state of CuPBCP with its biexponential decay traces suggest the presence of additional decay pathways. We further calculated their radiative (k_r) and nonradiative (k_nr) decay rate constants⁴⁵ of these Cu(I) chromophores, showing their similar k_r values while a much faster k_nr was estimated for CuPBCP than the other two, also indicative of more decay pathways. The LUMO-HUMO gaps were also determined for their ground- and excited-state structures (Table S3). The excited-state structures of CuBCP, CuPBCP and CuPPBCP display LUMO–HOMO energy gaps of −0.954, −0.845, and −0.881 eV, respectively, with increasing energy gaps of CuPBCP < CuPPBCP < CuBCP. The observed trends of energy gaps are in agreement with the less long-lived excited state⁴⁸ observed for CuPBCP (33.0 ns) compared with those of CuPPBCP (206 ns) and CuBCP (289 ns), respectively.

Figure 2.

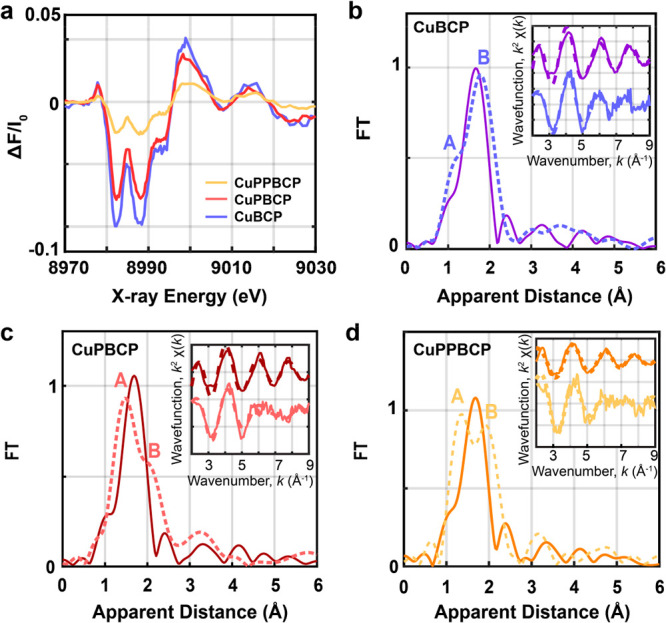

(a) Tr-XAS spectra (laser on/off) corresponding to the excited states of 0.8 mM CuBCP (blue), CuPBCP (red), and CuPPBCP (gold) via ³MLCT transitions at a delay of 100 ps between laser and X-ray pulses. Experimental Fourier transforms of k²-weighted Cu EXAFS of the laser-off (solid lines) and reconstructed (dotted lines) excited states of (b) CuBCP assuming 35% excited state, (c) CuPBCP assuming 27% excited state, and (d) CuPPBCP assuming 9.5% excited state. Insets in (b–d) show the back Fourier transformed experimental (solid lines) and fitted (dashed lines) k²[χ(k)] of the laser off and reconstructed spectra for k values of 2–9 Å^–1.

The above observations suggest that the covalent attachment of pyridyl moieties to the N^∧N ligand of the Cu(I) PS results in a decreased luminescent quantum yield and excited-state lifetime, which are especially substantial for CuPBCP. The direct attachment of the pyridyl groups in CuPBCP should serve as the sites to accelerate the nonradiative decay process. One possible explanation is that the directly attached pyridines induce the hydrogen bonding interactions with solvent molecules, as documented for the luminescence switch-on behavior of [Ru(bpy)₂(dppz)]²⁺ (dppz = dipyridophenazine) upon insertion to DNA base pairs.⁴⁹ Alternatively, they might also pose influence on the geometric flattening of the ³MLCT state species, presumably by interacting solvent molecules or counterions to form a low-energy excited state known as an “exciplex”, which subsequently decays to the ground state and thus shortens the excited-state lifetime.⁵⁰⁻⁵² Indeed, the losses in emission lifetime and quantum yield in CuPPBCP are rather small, attributable to the decreased electronic interactions between the phen and pyridyl groups by the insertion of an extra phenylene group at each tether.

To further verify the origins of the modest luminescent properties of CuPBCP, the electronic and conformational properties of the ground and excited states of the Cu(I) PSs were studied through steady-state and time-resolved X-ray absorption near-edge (XANES) and extended X-ray absorption fine structure (EXAFS) spectroscopies (Figure S15). The ground-state XANES spectra of CuBCP, CuPBCP and CuPPBCP in degassed CH₃CN (Figure S15a) display identical features in the rising edge and main edge regions from 8980 to 9020 eV, indicative of their high similarity in the coordination environments of the Cu(I) centers among the three PSs. Moreover, all the Cu(I) PSs display a main peak at 8984 eV in their XANES spectra, reflecting the nature of the 4p_z orbital in the pseudotetrahedral coordination environments^50,51,53 of the Cu(I) complexes (Figure S15a). Each EXAFS spectrum of all PSs further shows a prominent peak (Peak I) corresponding to the average Cu–N and Cu–P bond distances (Figure S15b). Analysis of these EXAFS spectra clearly reveals two similar Cu–N distances at 2.08 ± 0.01 Å (CuBCP), 2.09 ± 0.01 Å (CuPBCP), 2.05 ± 0.02 Å (CuPPBCP), and two comparable Cu–P distances at 2.30 ± 0.02 Å (CuBCP/CuPBCP) and 2.28 ± 0.02 Å (CuPPBCP) (Table S4 and S5, Figure S15). The structural parameters experimentally determined by EXAFS are in good agreement with structural parameters from their single-crystal structural analysis. These parameters also agree well with the DFT optimized coordinates (Tables S5–S8), confirming the suitability of the level of our DFT calculations adopted in this study.

Following the above steady-state XANES and EXAFS measurements, picosecond time-resolved X-ray absorption (tr-XAS) spectroscopy was employed to capture the snapshots of excited-state conformations of PSs by using a 400 nm laser as the pump source. The transient signal monitored at 100 ps features two intense bleach transitions at 8982 and 8988 eV together with a broad positive peak at ∼9000 eV (Figure 2), corresponding to the ground-state bleaching of the Cu(I) PSs and formation of the formally oxidized Cu(II) and ³MLCT excited state. As expected, the MLCT transition results in the promotion of one of the (3d)¹⁰ electrons into the low-lying π*(phen) orbital, thus leading to a d-level occupational change from 3d¹⁰ to 3d⁹. A pre-edge feature corresponding to the 1s to 3d quadrupole transition is consequently observed at low photon energies at 8979 eV (Figure 2) which gains intensity due to 4p mixing⁵⁴ into the Cu 3d shell.

The decay of the ³MLCT excited state was additionally monitored by fixing the X-ray photon energy at 9000 eV and varying the time delay between the laser and X-ray pulses (Figures S16 and S17). The ³MLCT states of CuBCP, CuPBCP and CuPPBCP are formed promptly within the ∼100 ps pulse duration of the X-ray and decay within 287 ± 63, 37 ± 9 and 191 ± 40 ns, respectively, in agreement with the previous time-resolved fluorescent experiments (Table 1 and Figure 1d). The excited state fractions of CuBCP, CuPBCP and CuPPBCP were determined by comparing their laser-off and laser-on XANES spectra (Figure S18) with those previously reported for the heteroleptic Cu(I) complexes possessing similar coordination environments.⁵⁵ A relative chemical shift in energy of 2 eV is typically observed between Cu(I) and Cu(II) reference complexes, such that the proportions of the excited state of 35%, 27% and 9.5% are estimated in the laser-on spectra of CuBCP, CuPBCP and CuPPBCP, respectively. These spectral features were then used to plot the actual or reconstructed XANES (Figure S18) and EXAFS (Figures 2 and S19) spectra of the excited states.

The reconstructed ³MLCT states of all Cu(I) PSs exhibit a pre-edge transition at 8979 eV and two 1s to 4p rising edge transitions at 8984 and 8992 eV (Figure S19), in good agreement for 4-fold coordinated Cu(II) ions.⁵⁵ This analysis thus confirms the correct percentages of excited state fractions used in the estimation of the laser on spectra of the Cu-based photosensitizers described here. The derived excited states of the Cu(I) PSs reveal 2 prominent peaks (peaks A and B) corresponding to the distinct contributions of the shortened Cu–N and elongated Cu–P bonds (Figure 2, Tables S4 and S5), as previously observed in Cu(I)-based heteroleptic PSs.⁵⁵ Analysis of the excited-state EXAFS of the Cu(I) PSs reveals two shortened Cu–N distances at 2.01 ± 0.02 Å (CuBCP), 1.99 ± 0.02 Å (CuPBCP), 1.92 ± 0.02 Å (CuPPBCP) and two elongated Cu–P distances at 2.39 ± 0.01 Å (CuBCP), 2.43 ± 0.01 Å (CuPBCP), and 2.38 ± 0.02 Å (CuPPBCP). These changes are consistent with the formation of a flattened geometry within the ³MLCT state induced by interactions with solvents, the aforementioned “exciplex” effect.⁵⁰⁻⁵² From this perspective, we further noticed that the DFT optimizations on the excited-state vs the ground-state conformation of CuPBCP display a larger change in the torsion of the pendant pyridine/benzene rings of −0.7° and −0.2°, in comparison to CuBCP which displays decreased torsions of −0.1° and −0.2° and CuPPBCP with torsions close to 0° (Table S8). We note that the geometric definitions of the torsion angle changes of the pendant pyridyl or benzyl groups are graphically shown in Table S8. The DFT calculations further show that the excited-state CuPBCP displays a more flattened configuration with torsional angle (the dihedral angle between the planes of the diimine and diphosphine ligands) of 78.5° vs the excited-state structures of CuBCP and CuPPBCP which show torsional angles of 79.6° and 78.6°, respectively (Table S4). More substantially, analysis of the EXAFS within the first coordination sphere of CuPBCP also displays more elongated Cu–P distances of 2.43 ± 0.02 Å compared to CuBCP and CuPPBCP (2.38 ± 0.02–2.39 ± 0.01 Å; Figure 2b–d, Tables S4 and S5). Consequently, the larger torsions in the pyridine rings of CuPBCP with its more flattened state geometry are presumed to lead to the decreased steric hindrance and enhanced solvent accessibility in its excited-state conformation, namely, a stronger exciplex effect, markedly decreasing the excited-state lifetime of CuPBCP.

Photocatalytic CO₂ Reduction

The photochemical CO₂ reduction driven by the three PSs was examined in a CH₃CN/TEA solution containing each PS, CoTCPc as the catalyst, BIH (1,3-dimethyl-2-phenyl-2,3-dihydro-1H-benzo[d]imidazole) as the sacrificial electron donor and phenol (5.0 vol %) as the proton source^38,43 to accelerate the catalytic CO₂ reduction. Here TEA functions as a proton acceptor to deprotonate the oxidized BIH.³⁹ A commonly observed drawback for the heteroleptic [Cu(P^∧P)(N^∧N)]⁺ complexes has been the dissociation of the diphosphine ligand during the photocatalysis due to the formation of Cu(II) species.^56,57 Therefore, a general protocol for photocatalysis in the presence of the free diphosphine xantphos ligand (2.0 eq. of PS; 1.0 mM in our experiments) was deployed to promote the repair of the PS during the photocatalysis¹² which indeed enhanced the stability of photocatalytic performance (Figure S20 and Table S9). With 50 μM CoTCPc, CuBCP and CuPPBCP both enabled the selective formation of CO with only a trace amount of H₂ and no products in the solution phase, resulting in CO selectivity over 97%. All components were confirmed to be necessary to evolve CO with a similarly high efficiency (Table S9). The reaction with ¹³CO₂ atmosphere exhibited the formation of ¹³CO (m/z = 29; Figure S21) as a major product, evidencing that the source of CO is the gaseous CO₂ rather than those that might be given by the decomposition of organic moieties in the mixture. Impressively, the CuPPBCP/CoTCPc system displayed a substantially high Φ of 76 ± 6% at 425 nm (see the SI for determination details). This Φ is comparable to the state-of-the-art molecular systems for photocatalytic CO₂ reduction and even better than some noble-metal-based pioneers (Table S10), like fac-[Re(4,4′-(MeO)₂bpy)(CO)₃{P(OEt)₃}]/fac-[Re(bpy)(CO)₃(CH₃CN)]⁺ (Φ_CO = 59% at 365 nm),⁵⁸ and a Ru–Re dyad (Φ_CO = 45% at 480 nm),⁵⁹ as well as the previous works on the dynamic interactions between noble-metal PSs and respective catalysts (Φ_CO = 14.3% ∼ 46.6%).^24,37−41 It is only slightly lower than the record-high system composed of fac-[Re(bpy)(CO)₃(CH₃CN)]⁺ catalyst and a trinuclear Re PS (Φ_CO = 82% at 436 nm).³³ Most importantly, this Φ value is highest among the noble-metal-free systems (Table S11), including Cu purpurin/FeTDHPP (Φ_CO = 6% at 450 nm; FeTDHPP = chloroiron(III) 5,10,15,20-tetrakis(2′,6′-dihydroxyphenyl)-porphyrin),¹⁹ and [Cu₂(P₂bph)₂]²⁺/fac-Mn(4,4′-(OMe)₂bpy)(CO)₃Br (Φ_HCOOH+CO = 57% at 436 nm; P₂bph = 4,7-diphenyl-2,9-bis(diphenylphosphinotetramethylene)-1,10-phenanthroline).²⁷

Several comparisons were made to highlight the excellent performance of our CuPPBCP/CoTCPc system. Foremost, a lower Φ of 40 ± 5% at 425 nm was achieved with the parent CuBCP under identical conditions, reflecting that the enhanced catalytic performance relies on the dynamic interactions based on the peripheral pyridyl coordination to the catalytically active center. In addition, the CO production rate for the CuPPBCP/CoTCPc gradually decreased after 3 h of reaction, presumably due to the decomposition of Cu(I) PS^56,57 or the consumption of BIH. Nevertheless, the CuBCP/CoTCPc system showed even an earlier cease in CO formation after ca. 2 h. Therefore, the dynamic coordinative interactions in the CuPPBCP/CoTCPc system may also be responsible for its increased Φ and longevity achieved in the photocatalysis. Decreasing the catalyst concentrations down to 5.0 and 0.5 μM (Figures S22 and S23; Table 2) further increased the TON up to 11800 ± 1400 based on the catalyst amount, which is superior to most of the noble-metal-free molecular systems (Table S11), albeit with a moderate TON based on the PS amount (Table 2). These excellent performances were also compared with a benchmark noble-metal-based PS, IrBPY (= [Ir(bpy)(ppy)₂]PF₆, ppy = 2-phenylpyridine; Figure S24), where the initial Φ at 425 nm for our CuPPBCP (76 ± 6% vs 30 ± 4%) is ca. 2.5 times higher than that of IrBPY (Figure 3 and Table 2). This clearly highlights the outstanding photocatalytic performance of the CuPPBCP/CoTCPc system. In sharp contrast, the CuPBCP/CoTCPc system is nearly inactive, showing a 1/140 of TON of CuPPBCP/CoTCPc (5.0 vs 700). The inferior performance of CuPBCP in photochemically driving the catalysis is attributable to its substantially shorter-lived character in the excited state compared with the remainders, as described later in detail.

Table 2. Photoreduction of CO₂: Results of Photocatalytic CO₂ Reduction Experiments^a.

entry	PS	[CoTCPc] (μM)	n(CO) (μmol)	n(H2) (μmol)	TON(CO)b	TON’(CO)c	CO%	Φ5 min
1	CuBCP	50.0	85.5 ± 5.3	1.33 ± 0.39	428 ± 26	42.8 ± 2.6	98.5	40 ± 5%
2	CuPBCP	50.0	1.10 ± 0.15	0.38 ± 0.13	5.50 ± 0.75	0.55 ± 0.08	74.3	0.5 ± 0.2%
3	CuPPBCP	50.0	140 ± 7	1.95 ± 0.31	700 ± 33	70.0 ± 3.3	98.6	76 ± 6%
4	IrBPY	50.0	78.4 ± 5.7	1.13 ± 0.20	392 ± 28	39.2 ± 2.8	98.6	30 ± 4%
5	CuPPBCP	5.00	38.1 ± 5.0	2.48 ± 0.44	1910 ± 250	19.1 ± 2.5	93.9	45 ± 4%
6	CuPPBCP	0.500	23.6 ± 2.8	1.70 ± 0.24	11 800 ± 1400	11.8 ± 1.4	93.2	9.7 ± 2.2%

^aStandard condition: PS (0.5 mM), xantphos ligand (1.0 mM), phenol (5.0 v%), and BIH (50 mM) in 4 mL CH₃CN/TEA (v:v = 5:1) within 3 h of 425 nm irradiation (20 mW cm^–2) under 1 atm CO₂. The errors represent the standard deviations of three independent measurements.

^bCalculated for the TON values based on the catalyst amount (0.4 μmol).

^cCalculated for the TON values based on the PS amount (4.0 μmol).

Figure 3.

Photoreduction of CO₂. Time profiles of photocatalytic CO (star) and H₂ (circle) formation using 0.5 mM PS and 50 μM CoTCPc (red) under 425 nm of irradiation (20 mW cm^–2). Trace colors: CuBCP, blue; CuPBCP, red; CuPPBCP, gold; IrBPY, green. The error bars represent the standard deviations of three independent measurements.

Dynamic Coordinative Interaction

As a type of covalent bonds, the labile coordinate bond not only endows the dynamic stability in the coordinatively interacted system, but also additionally facilitates the ET processes by utilizing the inner-sphere ET (ISET) via the coordinative interaction.⁶⁰ To examine the coordinative interaction between the catalyst and sensitizer in solution, we conducted the ¹H NMR titration experiments, where d₇-DMF was adopted as the most suitable solvent instead of CD₃CN to prepare highly concentrated CoTCPc solutions.³⁸ The proton peak assignments for CuPBCP and CuPPBCP in d₇-DMF were thus made prior to the titration experiments (Table S2, Figures S25 and S26). Then, the addition of CoTCPc into the d₇-DMF solution of CuPBCP induced notable shifts together with the broadening/relaxation in the proton signals responsible for the pbcp ligand, indicating the interaction between CoTCPc and CuPBCP via the pbcp ligand, most probably by the coordinative interaction discussed above (Figure S27). The binding constant^38,61 can be calculated using the variations in the chemical shifts, giving a 1:1 binding constant (K₁₁) of 943 ± 13 M^–1 in non-cooperative 1:2 model (see detailed analysis in Experimental Section and Table S12). The K₁₁ value is approaching to the order of 10³ M^–1, corresponding to the value determined for the coordinative interaction between a pyridine-tethered Ir(III) PS and Co(II) phthalocyanine catalysts.³⁸ The results clearly evidence the presence of a coordinative interaction between CuPBCP and CoTCPc. The observed peak patterns also reveal that the ligand exchange rate is much faster than the NMR time scale, reflecting the dynamic exchange processes occurring in solution. The parallel ¹H NMR titration of the CuPPBCP/CoTCPc system revealed a K₁₁ of 3628 ± 236 M^–1 in non-cooperative 2:1 model (Figure S28 and Table S13). The higher binding constant of CuPPBCP suggests more facile binding to CoTCPc with its more distant pyridine units. In contrast, the titration of CoTCPc into a solution of CuBCP yielded a negligible shift in all proton signals (Figure S29), ascertaining the requirement of pyridyl tethers to promote the associations between the catalyst and PS.

We further examined whether the components, TEA and phenol, added in the photocatalysis solution interfere with the interaction between CuPBCP and CoTCPc. In Figure S30, in contrast to the CH₃CN solution containing 50 μM CoTCPc, we first observed negligible spectral differences in the presence of either phenol or sodium phenolate by UV–vis absorption spectroscopy, excluding their interferences via interactions with CoTCPc. In contrast, the Q-band of CoTCPc at 673 nm became narrower and more intense in the presence of 17 vol % TEA (CH₃CN:TEA (v:v) = 5:1), which can be attributed to either the axial coordination of TEA^38,62 or the deprotonation of CoTCPc. However, the latter is less possible, since the complete deprotonation of CoTCPc by NaOH decreased the intensity of the Q-band at 673 nm instead. Further addition of phenol induced no changes, suggesting the TEA-interaction is still dominant. The ¹H NMR titration was therefore carried out in the presence of excess TEA. During the ¹H NMR titration in the CuPBCP/CoTCPc/TEA system as the example, the shifts were still visible (Figure S31), and the K₁₁ was calculated as 901 ± 44 M^–1 in non-cooperative 1:2 model (Table S14). This value is quite consistent with that determined in the TEA-free system (see above, 943 ± 13 M^–1), clearly indicating that the binding constant with TEA is negligibly smaller than that by the pyridyl tethers in CuPBCP. Therefore, the above results demonstrate that substantial coordinative interaction has been achieved between each pyridine-appended Cu(I) PS and CoTCPc, which can be a key reason for the efficiency improvement from CuBCP to CuPPBCP.

ET Kinetics

To clarify the photocatalytic mechanism, the photoinduced ET processes (eqs 1–5) were investigated by observing the excited states of Cu(I) PSs. Due to the overlapped absorbance between CoTCPc and Cu(I) PSs, the quenching of the excited state of the Cu(I) PSs was examined by the time-resolved luminescence spectroscopy (Figures S32–S34 and Table 3). As expected, all Cu(I) PSs can be effectively quenched by BIH, which suggests a reductive quenching pathway (eqs 1–3). The dynamic²⁸ reductive quenching constants for BIH (k_q(BIH)), as determined by Stern–Volmer (eq 4) plots,³⁸ follows a decreasing order to be CuPBCP, CuPPBCP, and CuBCP (20.7, 10.3, and 9.35 × 10⁹ M^–1 s^–1; Table 3), in good agreement with the tendency of their E_red,ex values (1.00, 0.81, and 0.77 V; Table 1). On the other hand, negligible quenching was observed by the addition of CoTCPc, indicating the lack of oxidative quenching by the catalyst (eqs 1, 5 and 6). We also calculated the quenching fractions (η_q)⁶³ to calculate the formation efficiency of the reduced-state PSs (eq 7; Table 3), in which all the three systems are all approaching to 100%, showing insignificant negative effects from the poor emission ability of CuPBCP.

1

2

3

4

5

6

7

8

Table 3. ET Kinetic Data: Related Data and Calculated Reaction Constants from Time-Resolved Spectroscopies in Degassed CH₃CN Solutions^a.

	fluorescence quenching			TAS			Tr-XAS
PS	τ0 (ns)	kq(BIH) (× 109 M–1 s–1)	ηq	τ0′ (ns)	τ1 (μs)	kET (× 108 M–1 s–1)	τ0″ (ns)	τ2 (μs)
CuBCP	289 ± 5	9.35 ± 0.55	99.3 ± 0.2%	302 ± 13	75.8 ± 5.2	3.72 ± 0.51	287 ± 63	27.6 ± 2.6
CuPBCP	33.0 ± 3.1	20.7 ± 1.1	97.2 ± 1.1%	47.0 ± 6.2	234 ± 26	4.77 ± 0.92	37.0 ± 9.0	6.01 ± 2.83
CuPPBCP	206 ± 4	10.3 ± 0.6	99.1 ± 0.4%	214 ± 10	280 ± 36	5.47 ± 0.85	191 ± 40	4.40 ± 1.86

^aErrors are provided as the standard deviation from three parallel experimental data. τ₀: excited-state lifetime measured by time-resolved luminescence spectroscopy. k_q(BIH).: reductive quenching rate constant with BIH from fluorescence quenching. η_q: quenching fractions with BIH ([BIH] = 0.05 M) from fluorescence quenching. τ₀′: excited-state lifetime measured by TAS. τ₁: reduced-state lifetime measured by TAS. k_ET.: reaction rate constant between reduced PS and CoTCPc determined by TAS. τ₀″: excited-state lifetime measured by tr-XAS. τ₂: formation time scales for the Co(I) species measured by tr-XAS.

We then moved to transient absorption spectroscopy (TAS; Figure 4 and Table 3 with experimental details in the SI) for analyzing the different states of the Cu(I) PSs and the kinetics of the second ET step. For CuBCP, the excitation at 420 nm leads to significant positive absorption peaks at 330 and 530 nm, where the latter is assignable to the absorption by the ³MLCT state of the PS (Figure 4a). The transient species has a lifetime (τ₀′) of 301.6 ns, which is close to the result of the time-resolved emission lifetime (τ₀ = 289.0 ns). The addition of an excess of BIH affords a long-lived species (τ₁ = 75.8 μs; Figure 4b) with a growth of major absorption at 350 nm, indicative of the formation of a reductively quenched product, CuBCP^- according to eq 2. The subsequent process is regarded as the ET from CuBCP^- to CoTCPc (eq 3), which is evidenced by the decreased longevity of CuBCP^– with an increase in the concentration of CoTCPc (Figure 4c). By using eq 8, the second-order rate constant for this step can be calculated as k_ET = 3.72 × 10⁸ M^–1 s^–1 (Figure 4d).³⁸

Figure 4.

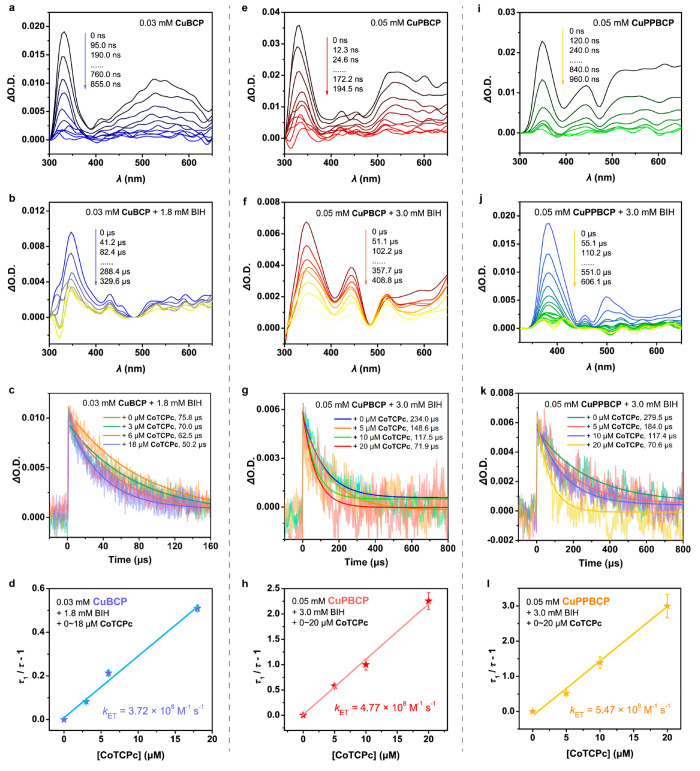

Nanosecond TAS. Nanosecond TAS results of (a–d) CuBCP, (e–h) CuPBCP, and (i–l) CuPPBCP. TAS evolution of Cu(I) PSs (a,e,i) without or (b,f,j) with excess BIH. (c,g,k) Kinetic traces of Cu(I) PSs with BIH and CoTCPc. (d,h,i) Plot of (τ₁/τ – 1) versus [CoTCPc] with linear fitting and error bars from the deviations of decay traces. The data were collected by following the spectra at 360 nm in Ar-saturated CH₃CN upon excitation at 425 nm.

Under the same conditions, the TAS behavior of CuPBCP or CuPPBCP upon excitation (Figure 4e and i) together with the response to the addition of BIH (Figure 4f and j) is similar to CuBCP. It can be noticed that the lifetimes of CuPBCP^– and CuPPBCP^– are much longer than those of CuBCP^– (Table 3). Importantly, the reaction of CuPBCP^– with CoTCPc at increasing concentrations gives rise to a higher k_ET = 4.77 × 10⁸ M^–1 s^–1 than that observed by CuBCP^–. Moreover, the increase in k_ET for CuPPBCP^– (5.47 × 10⁸ M^–1 s^–1) is even higher. The significantly faster ET rates by these pyridyl tethered systems rather contradict with the trend expected from the driving forces of ET, since the reduction potentials of CuPBCP and CuPPBCP (E_red = −1.88 and –1.97 V) are anodically shifted with regard to that of CuBCP (−2.04 V; Table 1). This contradiction in turn supports the major role of the coordinative interaction between the pyridyl substituents and CoTCPc in substantially accelerating the ET by overcoming the disfavored driving force of the reaction.

Tr-XAS was again employed to directly monitor the electronic configurations and ET kinetics of the photogenerated Co(I) state⁶⁴ under photocatalytic conditions in a multimolecular assembly consisting of the Cu(I) PSs, CoTCPc catalyst and BIH (Figures 5, S35, and S36). Figure 5a shows the Co tr-XAS spectra of all three multimolecular assemblies at an average time delay of 12.3 μs between the laser and X-ray pulses. A prominent peak with a shoulder feature at 7714/7718 eV (I,II) together with a broad dip (III) at 7724 eV is obtained which corresponds to the formation of the reduced Co(I) species⁶⁵ and the ground-state bleaching of the Co(II) compound, respectively. These energy transitions in turn show that the K-edge of the Co center shifts to lower energy, indicating the reduction of Co(II) and confirming the formation of Co(I) through ET from the Cu-based PSs. The kinetics for the Co(I) formation were further investigated by fixing the photon energy to 7714 eV to monitor the formation of Co(I), with varying time delays between the laser and X-ray pulses (Figures 5 and S36). The formation time scales (τ₂) for the Co(I) species with CuPBCP and CuPPBCP are 6.01 ± 2.83 and 4.40 ± 1.86 μs, respectively. In sharp contrast, the Co(I) intermediate is formed with CuBCP at a significantly slower pace within 27.6 ± 2.6 μs, strongly confirming the facilitated electron transfer from the pyridine-decorated Cu(I) PSs to CoTCPc benefited from dynamic coordinative interactions. It is important here to remark that the time scales of formation of Co(I) in the tr-XAS experiments vary differently from those decay kinetics of the reduced-state Cu PSs from TAS. This is due to the higher concentrations of CoTCPc and Cu(I) PSs employed in the tr-XAS measurements for a sufficient transient signal response together with the diffusion-governed nature of these interactions.⁶⁶

Figure 5.

Tr-XAS for ET kinetics. (a) Experimental differential spectrum (laser on-laser off) corresponding to the Co(I) transient signal at a time delay of ∼12.3 μs between laser and X-ray pulses (red) in the Cu/Co multimolecular assemblies. (b) Pump–probe time delay scans recorded at 7714 eV reflecting the formation of the Co(I) photoinduced species in the multimolecular Co/Cu assemblies consisting of 0.75 mM Cu complex, 1.5 mM CoTCPc with 5 mM BIH in 47% CH₃CN/47% DMF/6% H₂O, from left to right for CuBCP (blue), CuPBCP (red), and CuPPBCP (gold). Kinetic fits for the Co(I) formation time scales (τ₂) are shown.

Overall, the above multiple spectroscopic results clearly demonstrate that the catalytic systems of the Cu(I) PSs follow the reductive quenching pathway and that the ET processes from the two pyridine-tethered Cu(I) PSs to CoTCPc can be facilitated via dynamic coordinative interaction. Via the dynamic coordinative interaction with binding constants at 10³ M^–1 order of magnitude, the ground-state PS-catalyst complex should not be the main species for catalysis.³⁸ Thus, the reaction between the PS and catalyst should proceed mainly in a bimolecular manner rather than a unimolecular way. Beside the conventional outer-sphere electron transfer (OSET) by the random collision between the PS and catalyst, the intermolecular electron transfer can be additionally facilitated in a manner of ISET via the coordinative interaction as either a stable adduct or a transition state.⁶⁰ Such facilitations have been demonstrated by the TAS and tr-XAS measurements. Importantly, among the three reaction steps (eqs 1–3) related to the Cu(I) PSs, the rapid reaction rates of 2 and 3 involving CuPBCP manifest that its inactivity in photocatalytic CO₂ reduction should mainly originate from its short-lived excited state character (eq 1).

Proposed Mechanism

With verifications on the overall ET kinetics, further mechanistic studies were operated on CoTCPc to elucidate the overall mechanism. First, the redox properties of CoTCPc can be revealed by its CVs in the presence of TEA (Figure S37). Under N₂, three reduction events appeared in the CV of CoTCPc. The first reversible one should be attributed to the Co^II/I reduction (E_red,1 = −0.88 V), while the two subsequent reduction waves may be induced by the reduction on the phthalocyanine ring.^67,68 The introduction of CO₂ induces a current enhancement at the second reduction wave (E_red,2 = −1.40 V), indicating that the two-electron reduced species can initiate the catalytic reduction of CO₂ Further, an additional catalytic wave appeared at the Co^II/I reduction wave in the CV upon the addition of phenol under CO₂, showing the decreased overpotential required for effective catalysis by enabling the proton-dependent transfer.^69,70 The quite positive catalytic potential for CO₂ reduction should contribute to the high catalytic activity of CoTCPc in photocatalysis.

DFT calculation at M06⁷¹ level further shed light on the catalytic mechanism of CoTCPc proposed in Figure 6. The calculated reduction potentials for the two successive reduction events of CoTCPc are in good agreement with the measured ones (dashed box in Figure 6), displaying that the calculation methods are suitable for this system and that the initial species in the presence of TEA is less likely to be the deprotonated form of CoTCPc. In the presence of highly reducing CuPPBCP^- (E_red = −1.97 V), the Co(II) catalyst can be doubly reduced according to the above CV results discussed above. With BIH as a two-electron reductant, the involvement of highly reducing BI· radical (E_red = −2.06 V) from the TEA-deprotonated BIH⁺ can also serve as another driving force.⁵⁹ After double reduction, a low-spin Co(I)-ligand radical species was calculated as the intermediate for subsequent CO₂ binding. The formation of this species is favored with a negligible energy change of 0.05 kcal mol^–1, followed by protonation to yield a low-spin Co-COOH species⁴³ with a slight uphill energy of 8.24 kcal mol^–1. The coordinated CO₂ is partially activated due to its slightly bent configuration (Figure S38). Followed by the cleavage of the C–OH bond, a low-spin Co-CO intermediate can be generated with a favorable energy change of −19.72 kcal mol^–1. The final release of CO with the regeneration of the catalyst is thermodynamically favorable with a decreasing energy of −2.12 kcal mol^–1. Negligible distortion of the phthalocyanine ring can be noticed for all calculated intermediates. With the above insights, an overall catalytic cycle for CuPPBCP/CoTCPc can be proposed (Figure 6). The ET kinetic data are also presented.

Figure 6.

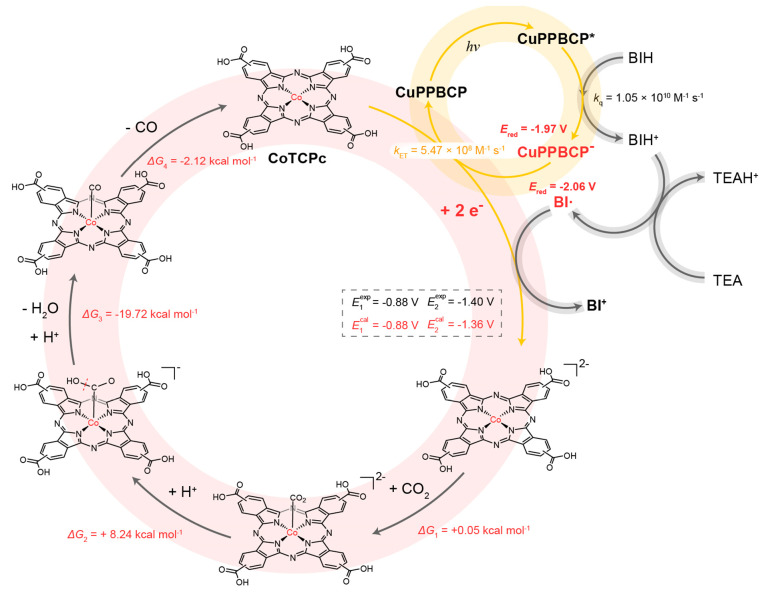

Proposed photocatalytic mechanism. Suggested photocatalytic mechanism for the reduction of CO₂ using the CuPPBCP/CoTCPc system was a representative example.

Discussion

In summary, the construction of dynamic coordinative interactions affords a high-performance system for photocatalytic reduction of CO₂ to CO by using earth-abundant elements only. An outstanding apparent quantum yield of 76 ± 6% at 425 nm has been achieved with a near-unity selectivity and a maximum turnover number of 11 800 ± 1400. The remarkable performances are attributed the accelerated intramolecular electron transfer pathway based on the dynamic coordinative interactions between the photosensitizer and the catalyst. In particular, the sharply different activity of the two pyridine-tethered photosensitizers reveals the importance of delicate design of linkers to preserve long emission lifetime. We also highlight the promising and versatile use of time-resolved X-ray absorption spectroscopy, which not only verifies the structure–activity relationship among the Cu(I) photosensitizers, but also unveils the electron transfer kinetics required to understand the photocatalysis. We believe that our work herein opens avenues toward the development of highly cost-efficient molecular systems for photocatalytic CO₂ reduction.

Experimental Section

Materials

CuBCP⁷² was prepared following the previously reported methods. RuBPY (97%, Sigma), IrBPY (98%, BLD China), sodium phenolate (98%, Sigma), and other chemicals were commercially available and used without further purification.

Instruments

NMR data were obtained on Bruker advance III instruments (400/500 MHz). Electrochemical measurements were carried out using an electrochemical workstation (CHI 660D). Gas chromatographic analysis was conducted on an Agilent 7820A gas chromatography. The isotopic labeling experiment was conducted under ¹³CO₂ atmosphere and the gas in the headspace was analyzed by a quantitative mass spectrometer attached Agilent 7890A gas chromatography. The liquid phase of the reaction system was analyzed by an ion chromatograph (Metrohm) to detect the presence of formate. UV–vis spectra were collected on a Shimadzu UV-3600 spectrophotometer. The emission experiments were conducted on a modular fluorescent life and steady-state fluorescence spectrometer (FLSP1000, Edinburgh Instruments Ltd.). The TAS was carried out on a laser flash photolysis instrument (LP980, Edinburgh Instruments Ltd.). All experiments were operated at room temperature (24–25 °C) unless otherwise stated.

Synthesis of pbcp and ppbcp Ligands

The pyridine-tethered ligands was prepared via Suzuki coupling according to the reported procedure for the pbcp ligand⁷³ with modifications. One mmol of 4,7-dibromo-2,9-dimethyl-1,10-phenanthroline, 2.5 mmol of (4-(pyridin-4-yl)phenyl)boronic acid (for ppbcp) or 4-phenylboronic acid (for pbcp), 15 mol % P(PPh₃)₄, and 3 mmol of K₂CO₃ were dissolved in 50 mL of dioxane/H₂O (v:v = 5:1) mixed solvent and degassed with argon. After heating at 100 °C for 1 day, the reaction mixture was cooled to room temperature and subjected to extraction with DCM, followed by washing with brine twice and then drying over MgSO₄. The column chromatography with DCM/CH₃OH (2%) afforded a pale yellow powder with moderate yields (ppbcp: 32%; pbcp: 35%).

For pbcp: Q-TOF ESI-MS(+): [pbcp+H]⁺ (measured: 363.1603; simulated: 363.1604). ¹H NMR (CD₂Cl₂, 400 MHz, 25 °C): δ (ppm) = 8.82–8.77 (m, 4H), 7.73 (s, 2H), 7.51 (s, 2H), 7.51–7.48 (m, 4H), 2.99 (s, 6H). Elemental analysis: Calculated (C₂₄H₁₈N₄), C, 79.54; H, 5.01; N, 15.46; Measured, C, 79.44; H, 5.08; N, 15.48.

For ppbcp: Q-TOF ESI-MS(+): [ppbcp+H]⁺ (measured: 515.2230; simulated: 515.2230); ¹H NMR (CD₂Cl₂, 400 MHz, 25 °C): δ [ppm] = 8.77–8.69 (m, 4H), 7.92–7.85 (m, 4H), 7.85 (s, 2H), 7.76–7.69 (m, 4H), 7.68–7.62 (m, 4H), 7.56 (s, 2H), 2.99 (s, 6H). Elemental analysis: Calculated (C₃₆H₂₆N₄), C, 84.02; H, 5.09; N, 10.89; Measured, C, 83.98; H, 5.13; N, 10.89.

Synthesis of CuPBCP and CuPPBCP

The synthesis follows a similar procedure for preparing heteroleptic Cu(I) PSs.⁷² In a 50 mL Schlenk tube, [Cu(CH₃CN)₄]PF₆ (186 mg, 0.5 mmol) and xantphos (289 mg, 0.5 mmol) are dissolved in 10 mL of dry DCM at room temperature under N₂ and darkness. The resulting solution is stirred at 40 °C for 2 h. The reaction mixture is then added with the pbcp ligand (180 mg, 0.5 mmol) or ppbcp ligand (257 mg, 0.5 mmol) under N₂ flow. The resulting mixture is then heated at 45 °C for 2 h. The reaction mixture was then allowed to cool to room temperature, and the solvent was evaporated under reduced pressure. Then a minimal volume of dry DCM (ca. 5 mL) was added to dissolve most the orange residue, which was filtrated via a 0.45 μm PTFE membrane, followed by the addition of excess xantphos (ca. 70 mg) into the filtrate to prevent the formation of [Cu(N^∧N)₂]⁺. Finally, excess dry hexane (50 mL) was added to precipitate CuPBCP/CuPPBCP as a yellow crystalline powder (76%/65% yield). It should be noted that the presence of trace water will make the product oily, leading to the high difficulties in cultivating single crystals.

For CuPBCP: Q-TOF ESI-MS(+): [Cu(xantphos)(pbcp)]⁺ (measured: 1003.2767; simulated: 1003.2750). ¹H NMR (CD₃CN, 400 MHz, 25 °C): δ (ppm) = 8.82 (dd, 4H, J = 4.4, 1.6), 7.80 (dd, 2H, J = 7.9, 1.3), 7.69 (s, 2H), 7.58 (s, 2H), 7.51 (dd, 4H, J = 4.4, 1.6), 7.35–7.27 (m, 6H), 7.20–7.06 (m, 18H), 2.37 (s, 6H), 1.76 (s, 6H). ¹³C NMR (126 MHz, CD₃CN) δ 158.51, 154.85, 150.27, 146.99, 144.34, 143.27, 143.26, 133.93, 133.02, 132.96, 132.90, 131.56, 131.43, 131.30, 130.25, 130.05, 128.66, 128.63, 128.59, 128.03, 125.63, 125.42, 124.99, 124.16, 123.17, 121.46, 35.96, 27.93, 26.90. ³¹P NMR (202 MHz, CD₃CN) δ −9.77. Elemental analysis: Calculated (CuC₆₃H₅₀N₄OF₆P₃), C, 65.82; H, 4.38; N, 4.87; Measured, C, 66.01; H, 4.42; N, 4.96.

For CuPPBCP: Q-TOF ESI-MS(+): [Cu(xantphos)(ppbcp)]⁺ (measured: 1155.3384; simulated: 1155.3376). ¹H NMR (CD₃CN, 400 MHz, 25 °C) δ (ppm) = 8.74–8.68 (m, 4H), 8.01–7.93 (m, 4H), 7.83–7.77 (m, 4H), 7.75–7.66 (m, 8H), 7.60 (s, 2H), 7.34–7.27 (m, 6H), 7.23–7.03 (m, 18H), 2.36 (s, 6H), 1.76 (s, 6H). ¹³C NMR (126 MHz, CD₃CN) δ: 158.21, 154.90, 150.47, 148.95, 146.85, 143.50, 138.64, 137.48, 133.94, 133.05, 132.99, 132.93, 131.67, 131.55, 131.42, 130.45, 130.25, 130.02, 128.66, 128.62, 128.58, 127.97, 127.47, 125.67, 125.45, 125.41, 123.26, 121.52, 35.97, 27.91, 26.91. ³¹P NMR (202 MHz, CD₃CN) δ −9.91. Elemental analysis: Calculated (CuC₇₅H₅₈N₄OF₆P₃), C, 69.20; H, 4.49; N, 4.30; Measured, C, 69.64; H, 4.44; N, 4.41.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/jacsau.3c00218.

• Experimental details, computational details, supporting figures, and supporting tables (PDF)

• Crystallographic data for CuBCP (CIF)

• Crystallographic data for CuPBCP (CIF)
