Enhancement of oxygen sensing performance of metalloporphyrin film modified with nano Al₂O₃ powder

Abstract

In this work, the metalloporphyrin film of PtOEP/Poly (St-co-TFEMA) modified by nano Al₂O₃ powder was prepared, and the enhancement performance of oxygen sensing was studied in detail. It was verified that the modified film extended the residence time of oxygen through the characterization of SEM. The phosphorescence intensity changes with the content of Al₂O₃ and PtOEP were studied. The Stern-Volmer equations before and after modification of Al₂O₃ powder was compared. It was found that the linearity of the calibration curve was still high, but the oxygen sensitivity value of K_SV was significantly improved due to the increase of quenching probability between indicator and oxygen. Finally, the stability test shows that the Al₂O₃@PtOEP/Poly (St-co-TFEMA) oxygen sensing film presents a strong anti-photo-bleaching ability, and the response time is shortened.

1. Introduction

Oxygen is not only an important component of respiration, but also provides energy for cell metabolism, supports combustion [1,2]. Hyperbaric oxygen is an effective substance for the treatment of periodontal disease [[3], [4], [5]]. The content of dissolved oxygen in water is an important indicator to evaluate the deterioration of water quality [[6], [7], [8]]^. In meteorological measurement, the pressure distribution of each measuring point at the same height can be calculated by measuring the oxygen partial pressure [9,10], which provides a basis for weather forecast. With the progress of science and technology, the standard of oxygen detection has also been improved. Therefore, the realization of accurate detection of oxygen content is of great significance to many fields of our production and life.

The optical oxygen measurement method based on room temperature phosphorescence (RTP) oxygen quenching principle [11,12] has the advantages of long luminescence lifetime, large Stokes shift [[13], [14], [15]], reversibility and anti-electromagnetic interference [16,17]. In recent years, it has gradually replaced the traditional iodometric titration [18] and Clark electrode method [19], and has been widely used in the fields of clinical medicine, food safety, environmental detection and aquaculture. The existing oxygen sensing materials can meet some application requirements, but the low detection sensitivity limits the further development of the materials. It is expected to be an effective method to enhance the sensitivity by modifying the oxygen sensing materials to improve the oxygen quenching sites. Nano alumina Al₂O₃ has the advantages of high chemical stability, strong adsorption capacity, large surface area, concentrated pore distribution and many surface active centers [20,21]. It has shown good affinity with various substrates, which can improve the compactness, corrosion resistance, smoothness and storage stability of materials, and gradually become an indispensable functional and structural material to promote social development. In addition, Nano Al₂O₃ can absorb ultraviolet light and emit the wavelength equivalent to the particle size under specific excitation, which can greatly improve the luminescence intensity [22].

In view of the merits of nano Al₂O₃, scientists have carried out extensive research. Yousefi et al. [23] studied the effect of nano alumina filler on the mechanical properties of polymer-derived SiC coating firstly, found that 20% of nano alumina can activate the nucleation of SiC fiber and effectively improve the mechanical properties of the coating. Pitawala et al. [20] explored the influence of nano porous Al₂O₃ on the thermoelectric transport performance of polymer electrolyte. The structural modification of polymer caused by Al₂O₃ enhances the ionic conductivity, thus significantly improving the conductivity (6.05 × 10⁻⁵ S cm⁻¹). Zhou et al. [24] designed a Zn–Al LDH film based on nano porous anodic aluminum oxide. The photoluminescence (PL) intensity and surface enhanced fluorescence (SEF) factor of the films were increased by 2 and 6 times, respectively. It was revealed that the enhancement mechanism was attributed to the oxygen vacancy, and the larger surface area of 3D sheet structure could capture more fluorescent molecules. Zheng et al. [22] investigated the effect of thickness on the oxygen sensing properties of TiO₂ thin films on Al₂O₃ substrates. The optimal thickness is 2.3 μm by comparing the oxygen sensitivity and the response time varies with temperature.

In this study, the highly oxygen-sensitive PtOEP was chosen as the luminescence indicator. Meanwhile, PtOEP has the advantages of large Stokes shift, strong phosphorescent emission and well stability compared with other metalloporphyrins, which can effectively eliminate the interference of external environment on the test process. We aim to modify the fluoropolymer of Poly (St-co-TFEMA) with nano Al₂O₃ powder to enhance the interaction probability between indicator and oxygen molecule, and then improve the oxygen sensitivity. The oxygen sensitivity enhancement mechanism of nano Al₂O₃ was revealed by comparing the luminescence intensity Stern-Volmer calibration equations before and after modification, combined with the morphological characteristics. Furthermore, the effect of Al₂O₃ on photostability and repeatability were investigated.

2. Experimental section

2.1. Materials

Platinum octaethylporphine (PtOEP), Styrene (St) and trifluoroethyl methacrylate (TFEMA) were obtained from J&K Chemical Co., Ltd. Solvent of Xylene was from Xilong Chemical Reagent Co., Ltd. Nano α-Al₂O₃ powder was purchased from Beijing Deke Daojin Science And Technology Co., Ltd, and 2, 2-Azobisisobutyronitrile (AIBN) was from Aladdin Chemical Co., Ltd. High-purity (99.99%) nitrogen and oxygen were from Harbin Liming Co., Ltd.

2.2. Preparation of Al₂O₃@PtOEP/Poly (St-co-TFEMA) oxygen sensing film

The reaction monomers of St and TFEMA were extracted and washed repeatedly with 1 wt% NaOH solution and ultrapure water to remove the polymerization inhibitor of hydroquinone, then stored at low temperature after dried with anhydrous MgSO₄. In addition, the initiator AIBN needs to be recrystallized to achieve purification. The co-polymer of Poly (St-co-TFEMA) was prepared by solvothermal method. Firstly, 0.0090 g/mL AIBN/xylene was uniformly disperse in 15 mL mixed solution of St/xylene and TFEMA/xylene (concentration ratio of 1:1) to realize premixing. The mixture were added into the three-necked flask with a reflux condenser and nitrogen inlet. The copolymerization reaction was takes place for 7 h under the condition of 72 °C and stirring speed was 300 rpm. Co-polymers were reprecipitated with methanol to remove unreacted monomers. Then the film preparation process was shown in Fig. 1. The co-polymer solution were uniformly mixed with the PtOEP/xylene (1 mM) and Al₂O₃/xylene solution (2 mM). The thickness was controlled by a film applicator with controllable thickness of 30 μm. Then the Al₂O₃@PtOEP/Poly (St-co-TFEMA) oxygen sensing film were obtained by coating the mixed solution onto quartz glass (size specification: 45 × 12 × 1 mm) after dried for 8 h and stored in the dark place.

Fig. 1.

Schematic diagram of preparation of Al₂O₃ powder modified metalloporphyrin oxygen sensing film.

2.3. Instruments and characterization

During the test process, the surface and sectional morphology of Al₂O₃@PtOEP/Poly (St-co-TFEMA) sensing film was characterized by scanning electron microscope (SEM, SUPRA 55 SAPPHIRE). The properties of the copolymer were characterized by infrared spectrum (IR, Nicolet is5003190721) and mass spectrometry (MS, STA449F3-QMS403D-Is 50). The oxygen sensing performance test device were shown in Fig. 2, which are composed of the following parts: a laser lamp with central wavelength at 405 nm was chosen as excitation light source (continuous wave with excitation light power of 0.2 mW/cm²), the miniaturized optical spectrometer (USB2000) was used as the signal detector to record luminescence spectrum. Simultaneous acquisition of phosphorescent excitation and detection signals by coupled fiber. A nitrogen/oxygen mixing equipment (pure nitrogen, pure oxygen, nitrogen/oxygen mixing chamber) were used to adjust oxygen partial pressure under the total gas mixture pressure of 100 kPa and the ambient temperature of 25 °C.

Fig. 2.

The device for testing the luminescence spectrum of Al₂O₃@PtOEP/Poly (St-co-TFEMA) sensing film.

3. Results and discussion

3.1. SEM characterization of PtOEP/Poly (St-co-TFEMA) film without and with Al₂O₃ powder

Fig. S2 shows the properties of the Poly (St-co-TFEMA) obtained from the IR and MS characterization, which results verified the successful synthesized of copolymer with the molecular weight of 168000. In the preparation process of PtOEP/Poly (St-co-TFEMA) oxygen sensing film, although a film coating device was chosen to control the thickness. However, a large amount of toluene solvent evaporates during the film drying process, so the actual film thickness needs to be given in conjunction with SEM results. The surface and sectional morphology of PtOEP/Poly (St-co-TFEMA) sensing film without and with Al₂O₃ powder were shown in Fig. 3a、Fig. 3c and b、Fig. 3d, respectively. The surface morphology of PtOEP/Poly (St-co-TFEMA) film presents a heterogeneous porous structure with the pore size of the film are 10.5 ± 0.4 μm and 8.8 ± 0.3 μm. In comparison, the Al₂O₃@PtOEP/Poly (St-co-TFEMA) sensing film has a smooth and uniform porous surface structure with a size of 1.0 ± 0.1 μm, and the gaussian distribution plot of measured pore size were shown in Fig. S1. The cross-sectional SEM characterization results show that the thickness of the two films were 14.4 ± 0.2 μm and 15.8 ± 0.3 μm, respectively. The SEM results indicate that the doping of Al₂O₃ powder has little effect on the thickness, but it reduces the pore size of the film and forms a denser internal structure, which will greatly enhance the stability of the film and prolong the residence time of oxygen inside the film, increase the value of oxygen sensitivity. Meanwhile, the structure with uniform pore size can effectively ensure the uniform distribution of sensitivity in the film, thus enhancing the linearity of the oxygen content calibration equation.

Fig. 3.

Comparison of surface and sectional morphology between PtOEP/Poly (St-co-TFEMA) film oxygen sensing film: (a) (c) Without Al₂O₃ Powder; (b) (d) With Al₂O₃ Powder.

3.2. Variation of phosphorescence intensity changes with Al₂O₃/xylenes concentration and PtOEP/xylenes

Since the fluoropolymer is a non-luminescent material (Fig. S3), the phosphorescence intensity of the film are only related to the amount of Al₂O₃/xylenes and PtOEP/xylenes. Fig. 4a and b explore the phosphorescence intensity of oxygen sensing film changes with Al₂O₃/xylenes and PtOEP/xylenes concentration. The results show that the intensity increases first and then decreases with the increase of Al₂O₃/xylenes concentration. It was indicate that the phosphorescence intensity can be improved with the appropriate amount of Al₂O₃ powder. However, adhesion phenomenon occurred among the Al₂O₃ powder when its amount exceeds 2 mM, which will change the propagation path of the light in the film, leading to the reduction of the intensity, and this will also directly affect the oxygen sensitivity. The relationship between the phosphorescence intensity and the PtOEP/xylenes concentration meets a similar tendency, which is due to the self-quenching phenomenon between indicators when the PtOEP concentration is excessive, resulting in the attenuation of the luminescence signal.

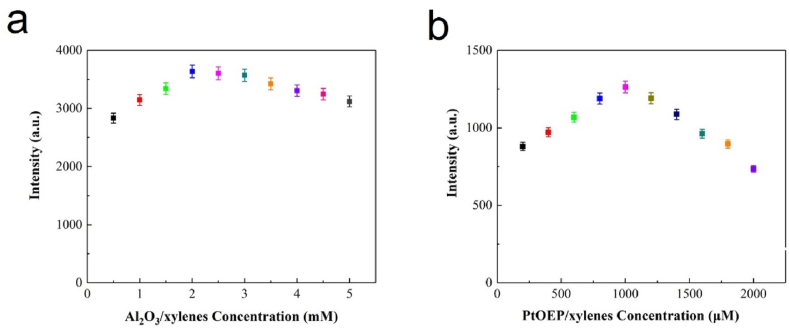

Fig. 4.

The variation of phosphorescence intensity under different condition: (a) Al₂O₃/xylenes concentration; (b) PtOEP/xylenes concentration.

3.3. The Stern-Volmer equation of Al₂O₃@PtOEP/Poly (St-co-TFEMA) film

RTP oxygen sensing materials are based on dynamic quenching mechanism [11,25]. As a typical luminescent quenching agent, oxygen in the ground state will produce singlet oxygen after interacting with triple-excited state phosphors, which leads to the reduction of phosphorescent emission. The Stern-Volmer equation [12] is used to describe the quantitative relationship between the dynamic quenching degree of RTP and oxygen content, which expression is shown in equation 1-1.

$$\frac{I_{P_0}}{I_P}=1+K_{SV}\left[O_2\right]$$ (1-1)

The slope of K_SV in the formula is the oxygen sensitivity, I_P0 and I_P represent the phosphorescence intensity in the absence and presence of oxygen and in the presence of oxygen, and I_P0/I_P is defined as the quenching ratio. Fig. 5a shows the phosphorescence intensity of Al₂O₃@PtOEP/Poly (St-co-TFEMA) oxygen sensing film under different oxygen partial pressures. It was found that the luminescence intensity of the sensing film decreased significantly with the increase of oxygen content, showing a strong phosphorescent quenching property. Furthermore, the comparison of Stern-Volmer equation of Al₂O₃@PtOEP film in contrast with unmodified PtOEP oxygen sensing film were obtained, which is shown in Fig. 5b. The results indicate that there is a high linear correlation between I_P0/I_P and the partial pressure of oxygen of [O₂]. It is calculated that K_SV value of PtOEP film before modification is 16.45 kPa⁻¹, while the K_SV value of modified Al₂O₃@PtOEP film was increased to 28.60 kPa⁻¹, which shows that the oxygen detection sensitivity has been significantly enhanced. Meanwhile, the K_SV value is significantly improved compared with pure PS film [26], and the calibration equation shows a higher linearity, as well as our previous study of PtOEP/Poly (p-SFt-co-TFEMA) oxygen sensing film [27]. In addition, the Stern-Volmer equation in gas and liquid environments were also compared in Fig. S4. The enhanced oxygen sensitivity is mainly attributed to the presence of Al₂O₃ powder prolong the diffusion path of oxygen molecules in the film, increasing the dynamic quenching sites between the indicator PtOEP and oxygen. After multiple movements of oxygen molecules, the quenching effect of oxygen on the indicator is more sufficient, thereby increasing the probability of interaction between the indicator and oxygen molecules, which directly reflecting on the improvement of oxygen sensitivity values. Moreover, the doping of Al₂O₃ powder enhances the mechanical stability of the oxygen sensing film and plays a more effective role in protecting indicator. Therefore, the interaction probability between oxygen and indicator is also improved.

Fig. 5.

The Al₂O₃@PtOEP/Poly (St-co-TFEMA) film: (a) Oxygen quenching curve; (b) Stern-Volmer equation.

3.4. The optical stability and repeatability of Al₂O₃@PtOEP/Poly (St-co-TFEMA) film

Under the condition of excitation light power of 0.6 mW/cm², Fig. 6a shows the normalized phosphorescence intensity of Al₂O₃@PtOEP/Poly (St-co-TFEMA) (solid-black-square) and PtOEP/Poly (St-co-TFEMA) (hollow-red-square) oxygen sensing film varies with time in pure N₂ saturated aqueous solution. It can be seen that the attenuation ratio of the oxygen sensing film is only 3.0% after continuous irradiation of 405 nm semiconductor laser for 2 h, which is lower than 4.5% of PtOEP/Poly (St-co-TFEMA) film. This indicate that the optical stability of the oxygen sensing film have been improved after modified by Al₂O₃ powder. Furthermore, Fig. 6b shows the normalized phosphorescence intensity attenuation of Al₂O₃@PtOEP film (solid-blue-circle) and PtOEP (hollow-pink-circle) film under 5.0 kPa O₂ saturated aqueous solution. The comparison results show that the photo-bleaching time in oxygenation environment is prolonged due to the stronger protection of Al₂O₃@PtOEP/Poly (St-co-TFEMA) film against PtOEP by doping of Al₂O₃ powder.

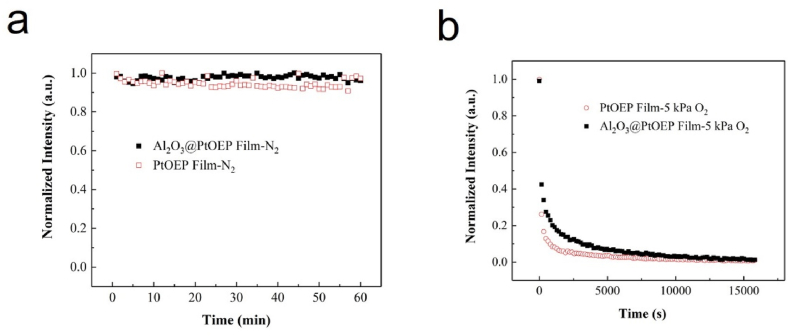

Fig. 6.

The phosphorescence intensity of oxygen sensing film changes with time: (a) Al2O3@PtOEP (solid-black-square) and PtOEP (hollow-red-square) film in pure N2 saturated aqueous solution; (b) Al2O3@PtOEP (solid-black-square) and PtOEP (hollow-red-square) film in 5.0 kPa O₂ saturated aqueous solution. (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

Fig. 7 measured the variation of normalized phosphorescence intensity of PtOEP film (red-solid) and Al₂O₃@PtOEP film (black-hollow) after alternate switching between pure nitrogen and pure oxygen saturated aqueous solution for 3 times (Fig. S5 was the comparison in gas and liquid environment). The quenching time t_Q of the two oxygen sensing films are 20 s and 10 s by calculating the time that the phosphorescence intensity decreased by 90%. The recovery time t_R are 250 s and 180 s, respectively. It was shown that the Al₂O₃ powder modified film has a faster response time, which is helpful to shorten the test time of the oxygen sensing film in practical applications. Phosphorescence signal attenuation phenomenon occurs in both Al₂O₃@PtOEP film and PtOEP film after 3 cycles of testing. Among them, the phosphorescence intensity retention rate of Al₂O₃@PtOEP film is 98.8%, which is significantly higher than 94.9% of PtOEP film, showing good repeatability.

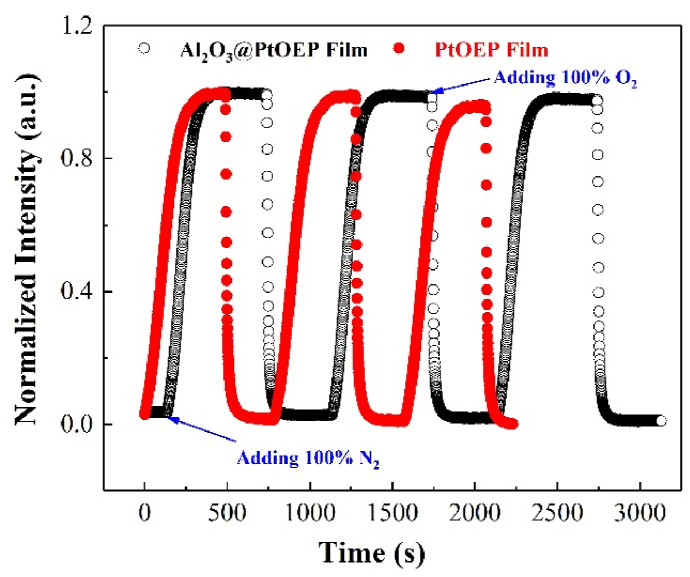

Fig. 7.

The normalized repeatability between PtOEP film (red-solid) and Al₂O₃@PtOEP film (black-hollow). (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

4. Conclusion

In summary, the enhancement of oxygen sensing performance of fluoropolymer film modified with nano Al₂O₃ powder was investigated. SEM characterization shows that the doping of Al₂O₃ increases the density of film surface morphology. The variation of phosphorescence intensity change with Al₂O₃/xylenes and PtOEP/xylenes concentration were given. The Stern-Volmer equation of PtOEP oxygen sensing film before and after Al₂O₃ modification showed high linear correlation, but the K_SV value was increased from 16.45 kPa⁻¹ to 28.60 kPa⁻¹, which owing to the doping of Al₂O₃ powder enhanced the effective quenching site and improve the collision probability between the indicator and oxygen. In addition, the Al₂O₃@PtOEP/Poly (St-co-TFEMA) oxygen sensing film shows strong photo stability with the luminescence intensity attenuation ratio was 3.0%, and the response time of Al₂O₃@PtOEP film was calculated to be 10 s and 180 s, respectively. Consequently, a method to enhance the oxygen sensitivity by Al₂O₃ powder modified metalloporphyrin film was established to achieve accurate oxygen content detection.
