In vivo versus in silico assessment of potentially pathogenic missense variants in human reproductive genes

Significance

Although infertility affects up to 15% of couples, the genetic causes have been difficult to decipher. This problem is complicated by the large number of genes that cause infertility when perturbed, coupled with numerous VUS present in the genomes of affected patients. Surprisingly, missense variants that are classified as deleterious by commonly used pathogenicity prediction algorithms often cause no phenotype when modeled in mice. We find that augmenting pathogenicity predictions with preliminary screens for biochemical defects substantially enhanced the proportion of prioritized variants that caused phenotypes in mice. The results emphasize that, in the absence of substantial improvements in in silico prediction tools or other compelling preexisting evidence, in vivo analysis is crucial for confident attribution of infertility alleles.

Abstract

Infertility is a heterogeneous condition, with genetic causes thought to underlie a substantial fraction of cases. Genome sequencing is becoming increasingly important for genetic diagnosis of diseases including idiopathic infertility; however, most rare or minor alleles identified in patients are variants of uncertain significance (VUS). Interpreting the functional impacts of VUS is challenging but profoundly important for clinical management and genetic counseling. To determine the consequences of these variants in key fertility genes, we functionally evaluated 11 missense variants in the genes ANKRD31, BRDT, DMC1, EXO1, FKBP6, MCM9, M1AP, MEI1, MSH4 and SEPT12 by generating genome-edited mouse models. Nine variants were classified as deleterious by most functional prediction algorithms, and two disrupted a protein–protein interaction (PPI) in the yeast two hybrid (Y2H) assay. Though these genes are essential for normal meiosis or spermiogenesis in mice, only one variant, observed in the MCM9 gene of a male infertility patient, compromised fertility or gametogenesis in the mouse models. To explore the disconnect between predictions and outcomes, we compared pathogenicity calls of missense variants made by ten widely used algorithms to 1) those annotated in ClinVar and 2) those evaluated in mice. All the algorithms performed poorly in terms of predicting the effects of human missense variants modeled in mice. These studies emphasize caution in the genetic diagnoses of infertile patients based primarily on pathogenicity prediction algorithms and emphasize the need for alternative and efficient in vitro or in vivo functional validation models for more effective and accurate VUS description to either pathogenic or benign categories.

A major challenge in human medical genetics is to elucidate VUS residing within disease-associated genes. In the absence of strong genetic or experimental data that validate functional consequences of such variants, namely single-nucleotide variants/polymorphisms (SNVs/SNPs), functional prediction algorithms are commonly used. However, the accuracy of these predictors is not sufficiently reliable for basing clinical decisions without corroborating information (1). Compounding our relatively weak knowledge of human infertility genetics is the large number of genes that are required for normal fertility (2). Thus, even for infertile individuals who have undergone whole genome or exome sequencing (WGS and WES, respectively), an actual causal SNV or private mutation will exist within a background of multiple VUS in candidate genes, making it difficult to conclusively implicate any single variant as being responsible for infertility.

CRISPR/Cas9-mediated genome editing provides a means for evaluating potential human disease variants in an appropriate in vivo system. We previously adopted an integrated computational and experimental approach to functionally assess potentially deleterious missense variants in essential reproductive genes by modeling them in mice (3). This approach involved selection of candidate infertility missense variants based on the following criteria: a) They reside in genes that are essential for fertility in mice; b) they alter an amino acid conserved at least between mice and humans; and c) the amino acid change is predicted to be deleterious by various bioinformatic tools. However, a substantial fraction of variants tested in this manner had no clear impact on meiosis or fertility (3–6). To potentially increase the success rate in selecting actual deleterious missense variants for mouse modeling, we added two in vitro prescreens to our selection pipeline (7–9). The first was to prioritize VUS that disrupt a known PPI since it has been shown that such human disease-causing Mendelian alleles are overrepresented (10), and the second was to identify those that destabilize the protein in cultured cells (9). These additional screens improved the yield of identifying variants that caused phenotypes (8).

Recommendations by the American College of Medical Genetics and Genomics and the Association for Molecular Pathology (ACMG/AMP) have been widely adopted by clinical laboratories around the world to guide interpretation of sequence variants (11). These guidelines provided criteria for classifying variants as pathogenic (P), likely pathogenic (LP), VUS, likely benign (LB), or benign (B). The classifications are based on distinct evidence types, each of which is assigned a level of strength. The Clinical Genome Resource (ClinGen) approves self-organized Variant Curation Expert Panels (VCEPs) in specific disease areas to make gene-centric specifications to the ACMG/AMP guidelines and to classify variants within their scope. As a ClinGen partner, the ClinVar database archives genetic variants and assigns predicted or known impacts to diseases and other conditions (12). The collaboration of these two entities provides complementary resources to support genomic interpretation. Unfortunately, ClinGen does not have a reproductive- or infertility-related VCEP that would evaluate variants/mutations causing infertility. Consequently, compelling functional evidence from the literature becomes crucial in drawing clinical conclusions. Given the lack of appropriate or ex vivo systems to evaluate VUS in genes involved in certain aspects of reproduction such as spermatogenesis, and in the absence of well-characterized families segregating a suspect variant, in vivo evidence from knock-in/humanized animal models is currently one of the most rigorous ways to test the roles of VUS in fertility.

Here, we report experiments to test 11 missense variants in 10 genes crucial for various processes in meiosis or spermiogenesis. Nine of these are known to play essential roles in various steps of meiotic recombination or meiotic chromosome organization in mice (Ankrd31, Brdt, Dmc1, Exo1, Fkbp6, M1ap, Mcm9, Mei1, and Msh4), and one (Sept12) is important for sperm morphogenesis and motility. We performed functional interpretation of variants in these genes by constructing and analyzing mouse models containing the orthologous amino acid substitutions. Despite in silico predictions (all cases) or Y2H screening (1 case) indicating that these variants are harmful, we found that mice homozygous for all but one of these variants—found in a male with nonobstructive azoospermia (NOA)—were fertile. Our assessment of these and other functionally interpreted alleles in mouse models, as well as infertility missense variants in the ClinVar database, reveals that informative in vivo assays are crucial even when computational predictions and in vitro assays appear compelling.

Results

Selection of Reproduction Genes and Variants.

The process of spermatogenesis comprises multiple tightly regulated steps of differentiation (SI Appendix, Fig. S1). It begins with several mitotic divisions of cohorts of spermatogonial stem cells that ultimately enter meiotic prophase I. During the leptotene substage of prophase I, hundreds of programmed double-strand breaks (DSBs) are introduced throughout the genome. They are recognized by DNA damage response proteins that ultimately repair the DSBs via homologous recombination, and this process drives pairing and synapsis of homologous chromosomes (13). Prophase I is followed by two cell divisions without intervening DNA replication, leading to haploid round spermatids that subsequently differentiate into flagellated spermatozoa during a process called spermiogenesis.

We evaluated the consequences of putatively deleterious missense variants in three groups of genes (groups 1 to 3) that are known to be essential for fertility in mice. These genes function in various stages of spermatogenesis as depicted in SI Appendix, Fig. S1, and their biological roles are summarized in the following subsection. The first group of population variants (in the genes ANKRD31, BRDT, EXO1, FKBP6, DMC1, and MSH4) was selected predominantly on the bases of in silico prediction of pathogenicity (classified as being deleterious by the SIFT and PolyPhen2 pathogenicity prediction algorithms) and minor allele frequency (MAF) (Fig. 1). Regarding the latter, we prioritized missense variants segregating in human populations at a MAF of 0.01 to 1% according to the GnomAD database. Lower allele frequencies (AFs) were avoided in our original selections because far fewer people had been sequenced at the onset of this project compared to the present day, raising a concern that certain “variants” were actually technical errors. Nineteen missense variants were identified under these criteria (SI Appendix, Fig. S2A).

Fig. 1.

Scheme for functionally interpreting missense variants in reproduction genes. Variants were divided into three groups according to distinct variant prioritization pipelines.

Group 2, consisting of alleles of SEPT12, was selected using biochemical criteria. Mutations that disrupt PPIs are enriched as a molecular cause of human genetic diseases (10). To explore whether PPI disruption might be an effective molecular screen for potential pathogenic infertility variants, Y2H assays were performed on SEPT12 variants to determine whether the altered amino acids disrupted known interactions with other Septins, SEPT1 and SEPT5 (14–16). We screened five variants, four of which disrupted a PPI (Fig. 1 and SI Appendix, Fig. S2B). One variant, p.Gly169Glu encoded by rs138628476, was reported by our groups to cause male subfertility in a mouse model (7). The other three PPI-disrupting variants were added to our candidate list.

Group 3 consisted of genes (MCM9, M1AP, and MEI1) harboring potentially pathogenic variants identified by WES of men clinically diagnosed with spermatogenic impairment (Fig. 1). Like group 1, all three alleles are polymorphisms (not private mutations) that were classified as being pathogenic by SIFT and PolyPhen2 (as well as other predictors as addressed later). The variants selected in this group have been implicated as causes of infertility in only a single case or family.

Phenotypic Analysis of Mouse Models.

Based on our variant prioritization, Y2H screening, and resource capacity, we chose nine missense variants from groups 1 and 2 for functional testing by mouse modeling (Table 1). This includes one variant in DMC1 that met the criteria described above, except for having a lower AF than 0.01% cutoff. Additionally, the three variants found in infertile men were modeled in mice. Using CRISPR/Cas9-mediated genome editing in zygotes, we successfully generated 11 mouse lines modeling their corresponding human amino acid variants (SI Appendix, Fig. S3). To identify any potential reproduction defects, the animals were bred to homozygosity and tested for several fertility parameters as described previously (3–7, 9), including testis weight, gonad histology, and sperm counts for males. For the group 1 genes with known roles in meiosis, we also analyzed spermatocyte surface spread preparations of prophase I chromosomes via immunolabeling for key proteins. Fertility trials were performed for the relevant sex (those indicated from knockout mice) in all cases. A brief description of the genes studied, and the phenotypes of mouse models, are presented below.

Table 1.

Variants tested in this study

Gene	SNP (rsID)	Hs AAS	Mm AAS	AF (%)	SIFT	PolyPhen2
ANKRD31	rs150791065	T557A	T544A	0.163	Deleterious (0.01)	Prob._damag (1)
BRDT	rs141699970	D550H	D546H	0.0149	Deleterious (0.02)	Prob._damag (0.97)
DMC1	rs189722264	G50C	G50C	0.0007	Deleterious (0)	Prob._damag (0.99)
EXO1	rs4149964	S456Y	S454Y	0.347	Deleterious (0)	Prob._damag (0.99)
FKBP6	rs3750075	F72L	F72L	0.113	Deleterious (0)	Prob._damag (0.99)
MEI1	rs75338000	D1258Y	D1252Y	0.075	Deleterious (0)	Prob._damag (0.97)
M1AP	rs140179344	G317R	G317R	0.007	Deleterious (0)	Prob._damag (1)
MCM9	rs1460351219	R581H	R581H	0.0022	Deleterious (0)	Prob._damag (0.99)
MSH4	rs141042002	T410M	T432M	0.117	Deleterious (0.01)	Prob._damag (0.98)
SEPT12	rs144420035	V162M	V160M	0.049	Deleterious (0)	Poss._damag (0.88)
SEPT12	rs142721632	V222I	V220I	0.189	Tolerated (0.31)	Benign (0.29)
SEPT12	rs145805283a	T111K	T109K	0.042	Deleterious (0)	Prob._damag (0.96)

AAS, amino acid substitution. AF (Allele Frequency) based on gnomAD. ^aNo mouse model was made for this allele. Variants in SEPT12 were evaluated by Y2H only.

DMC1 (DNA Meiotic Recombinase 1) is a meiosis-specific homolog of Escherichia coli RecA and is expressed in leptotene-to-zygotene spermatocytes, stages corresponding to initiation of homologous chromosome pairing. Following generation and exonucleolytic processing of meiotic DSBs to expose 3′ overhangs bound by single-stranded DNA-binding protein RPA, DMC1 and a related recombinase RAD51 catalyze strand exchange, promoting homolog recognition and pairing. Male and female mouse mutants null for Dmc1 are sterile due to failed DSB repair and interhomolog synapsis, both of which trigger prophase I arrest and checkpoint-mediated elimination of meiocytes (17, 18). We generated mice modeling the missense variant rs189722264 (NG_017203.1:g.8500G>T; p.Gly50Cys) (SI Appendix, Figs. S3A and S4), which was predicted to be highly deleterious by both SIFT and PolyPhen2 (Table 1). In contrast to mice bearing a frameshift (presumably null) allele generated in the same editing experiment, which were azoospermic as expected, Dmc1^G50C/G50C female and male mice had normal fecundity (SI Appendix, Fig. S5A). Mutant males had testis sizes and sperm counts similar to WT sibs (SI Appendix, Fig. S5 B and C), and histology revealed normal spermatogenesis, unlike the maturation arrest observed in Dmc1^−/− mice (SI Appendix, Fig. S5D).

FKBP6 (FK506 binding protein 6) encodes a cis-trans-peptidyl-prolyl isomerase, in which resides the amino acid altered by rs3750075 (NG_023242.2:g.6245C>A; p.Phe72Leu) (SI Appendix, Figs. S3B and S4). This gene functions in immunoregulation and basic cellular processes involving protein folding and trafficking. Expressed in several tissues (19), FKBP6 localizes to meiotic chromosome cores and regions of homologous chromosome synapsis (20). Despite its expression in both testis and ovary, its deficiency only causes male-specific infertility (20, 21). FKBP6 variants have been associated with NOA and idiopathic infertility (22, 23). Fertility tests of Fkbp6^F72L homozygotes revealed normal fecundity (SI Appendix, Fig. S5A), testis weights, sperm counts, and testis histology (SI Appendix, Fig. S5 B–D).

EXO1 (Exonuclease 1) is involved in repair of DNA mismatches and DSBs. Loss of Exo1 causes cancer predisposition and infertility in mice (24), the latter related to premature meiotic homolog separation before alignment at the metaphase plate (25). The SNP rs4149964 changes an amino acid residue (NG_029100.2: g.28941C>A; p.Ser456Tyr) in the MLH1 interaction domain (SI Appendix, Figs. S3C and S4). Exo1^S456Y/S456Y males and females showed normal fecundity (SI Appendix, Fig. S5A), and all male parameters were normal (SI Appendix, Fig. S5 B–D).

MSH4 (MutS protein homolog 4) is a mismatch repair protein essential for meiotic recombination. Male and female mice lacking Msh4 are infertile due to meiotic failure (26). We modeled rs141042002 (NG_029861.1:g.56405C>T; p.Thr410Met), which is located in the DNA-binding domain (SI Appendix, Figs. S3D and S4). The Msh4^T410M/T410M mutants did not reveal any reproductive phenotypes in males or females (SI Appendix, Fig. S5 A–D).

BRDT (Bromodomain testis associated) belongs to the bromodomain-extra terminal family of proteins. It is expressed in pachytene spermatocytes (meiocytes in which chromosomes are fully synapsed) and round spermatids. It contains two conserved bromodomains (BD1 and 2) involved in the recognition of acetylated histones and an extra terminal (ET) motif region involved in PPIs (27–29). Mice bearing a deletion of BD1 have oligoasthenoteratozoospermia (30). A null allele is more severe, causing complete meiotic arrest (31). As an epigenetic regulator, BRDT is required for proper meiotic chromatin organization, meiotic sex chromosome inactivation, and normal cross-over formation (32).

We modeled the human BRDT p.Asp550His allele, encoded by SNP rs141699970, which resides in the ET domain (SI Appendix, Figs. S3E and S4). A mouse line with a 62-nt deletion was also recovered and expanded to serve as a knockout allele (Brdt^−/−) for comparison (SI Appendix, Fig. S6). As previously reported (31), Brdt^−/− males were infertile; however, Brdt^D550H/D550H males sired litters of sizes comparable to those of heterozygous littermates when mated to WT females (Fig. 2A) and also had normal testis weights, sperm numbers, and testis histology, in contrast to the null (Fig. 2 B–D). Both Brdt^−/− and Brdt^D550H/D550H females were fertile (Fig. 2A), which was expected since Brdt is expressed exclusively in the testis (33). TUNEL staining revealed more apoptotic cells in the seminiferous tubules of Brdt^D550H/D550H mice than controls but much less than in Brdt^−/− mice (Fig. 2 E and F). Depletion of Brdt results in a weaker H3K9me3 signal on the sex chromosomes in diplonema (32). We confirmed this in Brdt^−/− spermatocytes but did not observe a difference between Brdt^D550H/D550H and control spermatocytes (Fig. 2G). However, Brdt^D550H/− mice exhibited slightly reduced testis weights, presence of metaphase I–arrested spermatocytes, and elevated apoptotic spermatogenic cells despite having comparable sperm counts and normal H3K9me3 modification on sex body (Fig. 2 B–G). Therefore, we classify BRDT^D550H as benign for fertility, although it may be a weak hypomorph.

Fig. 2.

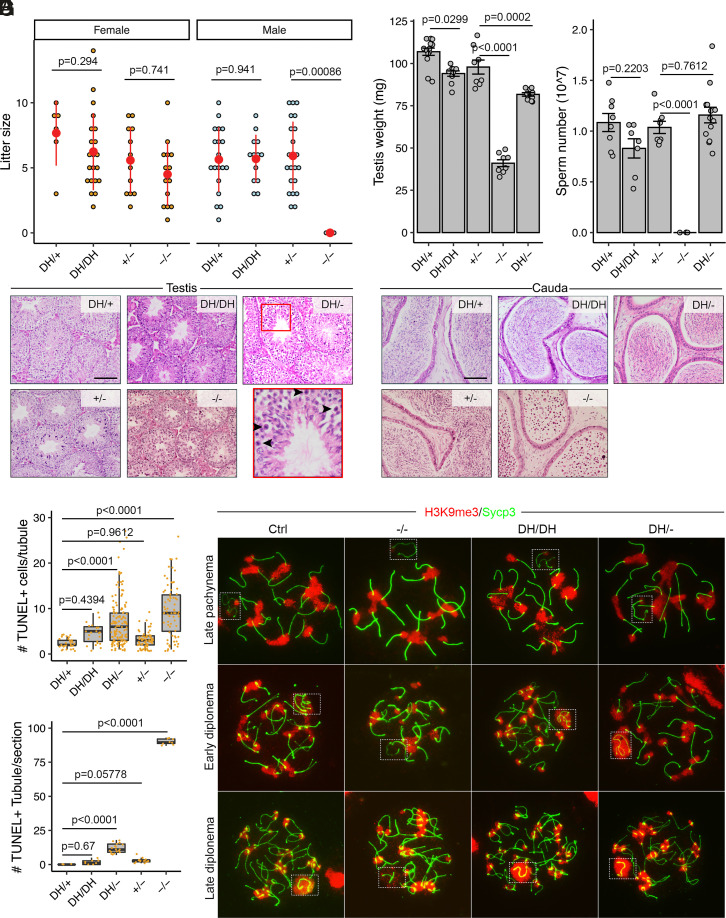

Phenotypic analysis of Brdt^D550H mice. (A) Litter sizes from mating of Brdt^D550H/D550H (DH/DH), Brdt^D550H/+ (DH/+), Brdt^+/− (+/−), and Brdt^−/− (−/−) animals to WT partners. N = 2 for DH/DH male and female mice, N = 3 for −/− male and female mice. (B) Testis weights of 2-mo-old males. (C) Epididymal sperm counts. (D) Histological sections of 2-mo-old testes and cauda epididymides. Round germ cells were present in −/− epididymides. (Scale bars, 100 μm.) Black arrowheads in the inset indicate meiotic metaphase I–arrested cells. (E) Quantification of TUNEL+ cells in each tubule. (F) Number of tubules containing > 4 TUNEL+ cells. No control (DH/+) tubules section had >4. N = 3 mice. (G) Immunolocalization of H3K9me3 and Sycp3 on meiotic prophase I chromosomes in indicated spermatocytes stages. Dashed boxes highlight XY bodies. Data in A–C are represented as the mean ± SEM. Data in A–C, E, and F were analyzed using one-way ANOVA with Tukey’s post hoc test.

ANKRD31 (Ankyrin repeat domain 31) contains two separated triplets of Ankyrin repeats and three conserved domains: a predicted coiled-coil domain and two regions without functional predictions (34). Male mice lacking Ankrd31 are sterile due to delayed recombination initiation, altered DSB distribution, and failed recombination in the pseudoautosomal region of sex chromosomes, where it is needed for DSB formation (34–36). Ankrd31 null female mice are fertile but exhibit primary/premature ovarian insufficiency (POI) (34, 35). We modeled human rs150791065 (NG_053151.1:g.72881A>G; p.Thr557Ala; SI Appendix, Fig. S3F), which is located within ANK1 domain (SI Appendix, Fig. S4). The fertility test demonstrated that Ankrd31^T557A/T557A mice of both sexes had normal fecundity (SI Appendix, Fig. S7A), and homozygous males also had normal testes and sperm counts (SI Appendix, Fig. S7 B–D). Nevertheless, since Ankrd31 is essential for recombination between sex chromosomes (34), we next examined metaphase chromosomes for this possible defect in the mutants. Chiasmata were present between each pair of homologs and between sex chromosomes in the Ankrd31^T557A/T557A spermatocytes (SI Appendix, Fig. S7E). Finally, because null females are fertile despite having a reduced primordial follicle pool (34, 35), we quantified follicle numbers in 3- and 12-wk-old mutant ovaries but found no difference compared to controls (SI Appendix, Fig. S7 F and G).

SEPT12 belongs to the Septin GTP-binding protein family and is exclusively expressed in the testis. It localizes around the manchette and the neck region of elongated spermatids as well as the annulus of mature sperm. Missense mutations in SEPT12 have been implicated as causing sperm defects and infertility in men (37). The phenotype of mice lacking Sept12 is not clear. The first reported attempt to create mouse mutants did not obtain germline transmission, but most chimeras bearing a null allele were infertile, showing a variety of testicular phenotypes (38). It is uncertain whether these phenotypes were related to haploinsufficiency for Sept12 or unrelated defects in the embryonic stem cells in which the targeting was performed. However, mice bearing a phosphomimetic allele caused subfertility associated with decreased sperm count and sperm motility (38).

The humanized alleles described thus far were selected through algorithmic predictions classifying them as likely pathogenic with respect to protein function. Additionally, all the alleles were selected from available population data of persons unassociated with any phenotype. We attempted to increase the likelihood that selected alleles would be consequential using two approaches. One was to select variants that were pretested for a functional defect, namely disruption of a known PPI. Accordingly, four alleles of SEPT12 were selected with AF < 1% and that also disrupted at least one PPI. We previously performed mouse modeling of one such allele (SEPT12^G169E/G169E) that indeed caused subfertility and poor motility (7). We failed to generate a mouse model for another (Table 1) but did generate and characterize two alleles, Sept12^V162M and Sept12^V222I, corresponding to human rs144420035 (NG_030315.1:g.9563G>A) and rs142721632 (NG_030315.1:g.9998G>A), respectively (SI Appendix, Fig. S3G). Both mutations are located within a GTPase domain (SI Appendix, Fig. S4). Males homozygous for both alleles were fertile with normal fecundity (Fig. 3A), testis weights, sperm counts, and testis histology (Fig. 3 B–D). Thus, only one of three with a PPI disruption proved to be pathogenic.

Fig. 3.

Phenotypic analysis of Sept12 ^V162M and Sept12^V222I mice. (A) Litter sizes from mating of WT (+/+), Sept12^V162M/V162M (VM/VM), and Sept12^V222I/V222I (VI/VI) males to WT partners. N = 2 for VM/VM and VI/VI mice. (B) Testis weight of 2-mo-old mice. (C) Sperm counts. (D) Histological analyses of 2-mo-old testes. (Scale bars, 100 μm.) Data in A–C are represented as the mean ± SEM and were analyzed using one-way ANOVA with Tukey’s post hoc test.

The other approach was to select variants (group 3) that were identified in NOA patients, and which also were predicted to be pathogenic. As described in Materials and Methods, these three variants were identified in research studies designed to identify novel causes of NOA in humans. In these studies, we performed WES of unrelated cases of idiopathic NOA and then applied computational and statistical filters to the resulting data to generate a short list of variants that are strong candidates to be causes of NOA. The variants that pass these filters share a core set of features: They are rare in the population (<1% AF) according to GnomAD v2.1.1, they are predicted to be damaging by one or more pathogenicity prediction algorithm, and they reside in genes with gene expression that is specific to or enriched in the testis.

MEI1 (Meiotic double-stranded break formation protein 1) is required for meiotic DSB formation (39–41), a process essential for meiotic recombination and normal meiosis (42, 43). Both male and female null mouse mutants are sterile, exhibiting complete meiotic arrest from failure to synapse homologous chromosomes (39). Biallelic mutations of MEI1 have also been implicated as being causal for recurrent hydatidiform moles and NOA in a family (44). Variant rs75338000 (NG_068430.1:g.162G>T) which results in the substitution of conserved amino acid Asp1258Tyr was observed in a patient with NOA due to late meiotic arrest. This variant was observed in conjunction with a 3-bp c.868_870del in-frame deletion. This allele was modeled in mice (SI Appendix, Figs. S3H and S4), and both male and female MEI1 p.Asp1258Tyr homozygotes were fertile. Male sperm counts, testis weights, and histology were unremarkable (SI Appendix, Fig. S8).

M1AP (Meiosis 1–associated protein) is a conserved protein of unknown biochemical function but when knocked out in mice causes male (but not female) infertility associated primarily with meiotic metaphase I arrest (45). Biallelic mutations have also been associated with NOA and infertility in men (46, 47). We identified a missense variant (rs140179344; p.Gly317Arg) in a man with idiopathic NOA and histological phenotype of maturation arrest. Most in silico tools (7/10) classified this allele as being pathogenic, though ClinVar classified it as LB (Table 1; see below). We modeled this allele in mice (SI Appendix, Figs. S3I and S4). Both male and female homozygotes were fertile. Testis weights were slightly lower in mutants, but sperm counts were not significantly altered, and testis histology appeared normal (SI Appendix, Fig. S8). Thus, this allele does not appear to cause NOA.

MCM9 (Minichromosome maintenance 9) is a paralog of the subunits of the heterohexameric MCM2-7 replicative helicase (48, 49). Mcm9 hypomorphic mutant mice exhibited reduced germ cells at birth traceable to slowed proliferation of primordial germ cells (PGCs) (50, 51). Knockout females (Mcm9^−/−) were sterile, and males had greatly reduced (~95%) sperm and exhibited meiotic recombination defects (52). MCM9 variants in humans have been linked to POI in women (53–55). We modeled the variant rs1460351219 in mice encoding a predicted pathogenic variant p.Arg581His located within the conserved AAA⁺ ATPase domain of the protein (SI Appendix, Figs. S3J and S4). This variant was found in a man with NOA who also had the predicted benign variant p.Gln658His, although the allele phasing was not identified. Homozygous (but not heterozygous) male and female mice were infertile. Males had reduced sperm counts, and testis histology revealed seminiferous tubule sections with variable degrees of spermatogenesis, possibly reflecting a reduction in PGCs (SI Appendix, Fig. S1) compounded with meiotic arrest and apoptosis (Fig. 4 A–C). Females display POI as almost no follicles were observed in 2-mo-old ovaries (Fig. 4D). These phenotypes resemble those reported for a null allele (52).

Fig. 4.

Phenotypic analysis of Mcm9 ^R581H mice. (A) Testis weights of 2-mo-old mice. (B) Sperm counts. (C) Histological analyses of 2-mo-old testes. (Scale bars, 100 μm.) (D) Representative ovary sections from 2-mo-old mice. The boxed regions are magnifications of follicles. (Scale bars, 250 μm.) Data in A and B are represented as the mean ± SEM and were analyzed using a two-tailed unpaired t test.

Performance of Pathogenicity Prediction Algorithms in Identifying Disease-Causing Variants.

To explore why such a high fraction of predicted deleterious variants failed to cause the reproductive phenotypes in mice, we evaluated the effectiveness of 10 different pathogenicity prediction algorithms in classifying 29 human alleles (including those presented here) that our group has modeled in mice, corresponding to 18 essential fertility genes (3–7, 9). We use the terms ‘deleterious’ and ‘benign’ to refer to variants that are or are not associated with disease-related phenotypes, respectively.

Unsurprisingly, the predictors performed differently, as they use different underlying criteria. Twenty-seven of the 29 alleles were classified as deleterious by both SIFT and PolyPhen, but only 13 caused a detectable phenotype in mice. The REVEL (Rare Exome Variant Ensemble Learner) (57) and CADD (Combined Annotation Dependent Depletion; a cutoff score of >25 was used) (58) algorithms performed best by virtue of being more conservative in deleterious calls (Fig. 5A). In contrast to the low accuracy of computational predictions alone in predicting phenotypes, in vitro assays of variants that revealed protein defects (instability, altered function, or PPI disruptions) correctly predicted mouse phenotypes in 10/14 cases. Of the 15 alleles classified as deleterious by both PolyPhen and SIFT and for which no in vitro data was available, only three caused a mouse phenotype (Fig. 5A and SI Appendix, Fig. S9).

Fig. 5.

Comparison of predicted and actual deleterious variants analyzed with various pathogenicity predictors. (A) In silico prediction outcomes of 10 commonly used algorithms for 29 functionally interpreted variants in mouse models. The in vitro experiments of DMC1_M200V variants were performed by ref. 56. The variants below the dotted line all were tested by at least one in vitro prescreen experiment. The bond font represents that the variants were identified from infertility patients. N.A., not available. (B) Overview of how the Mouse_all and Mouse_infertility datasets were derived. For missense variants modeled in mice, only those with SNP rsIDs were considered. (C) Prediction accuracy (ACC), (D) positive predictive value (PPV), and (E) Matthews correlation coefficient (MCC) of predictors using ClinVar_infertility (n = 851; only pathogenic and benign variants were used), Mouse_all (n = 235) and Mouse_infertility (n = 42) datasets. (F) ROC (receiver operating characteristic) curves of 10 predictors in three datasets and the AUC (area under the curve) values were labeled in brackets.

The disparity between the predicted and observed effects of these missense variants led us to further explore the better-performing algorithms. We built a dataset (“Mouse_all”) comprising 235 human missense variants that have been modeled in mice and which reside in genes involved in reproduction or other processes (Materials and Methods; Fig. 5B; and SI Appendix, Table S1). This group was subdivided into two datasets (Mouse_all_D and Mouse_all_B, where D = deleterious and B = benign) based on whether the mouse models did or did not show a pathogenic phenotype, respectively (SI Appendix, Fig. S10A). For a “control” dataset, we retrieved infertility-related missense variants from the ClinVar database that had been assigned into five categories: ClinVar_B (benign), ClinVar_LB (likely benign), ClinVar_VUS, ClinVar_LP (likely pathogenic), and ClinVar_P (pathogenic) (SI Appendix, Fig. S10A). For each of these datasets, we generated prediction scores from 10 algorithms computed by dbNSFP (database for nonsynonymous SNP functional predictions) (59). The prediction score distribution patterns of SIFT, DANN, GERP++ RS, and MutationTaster were similar for all categories (SI Appendix, Fig. S10B), indicating that these tools failed to discriminate the variants functionally. Next, we focused on the ClinVar_B and ClinVar_P datasets (n = 851 combined, collectively referred to as “ClinVar_infertility”; SI Appendix, Fig. S10A), representing the extremes of ClinVar classifications. Whereas the predictions of all the tools corresponded well with the pathogenic (ClinVar_P) dataset, only REVEL and CADD had relatively low false positive (FP, type I error) rates (8.43% and 8.98%, respectively) for the benign (ClinVar_B) variants. MutationTaster performed the worst (FP rate of 93.17%; SI Appendix, Fig. S10C). Surprisingly, all of the prediction tools had higher FP rates (44.19 to 93.33%) for the Mouse_all_B group than those in ClinVar_B (infertility) group (SI Appendix, Fig. S10C), consistent with a previous study showing that prediction tools have high FP values (60).

We next compared the performance of pathogenicity predictors for the ClinVar_infertility and Mouse_all datasets in terms of prediction accuracy (ACC), positive predictive value (PPV), Matthews correlation coefficient (MCC), and area under the curve (AUC) of receiver operating characteristic (ROC). Consistent with previous comparisons using ClinVar variants (61), REVEL was superior to other predictors for the ClinVar_infertility dataset (ACC = 0.84, PPV = 0.95, MCC = 0.69, and AUC = 0.939; Fig. 5 C–F). However, all the predictors performed worse for the Mouse_all vs. the ClinVar_infertility dataset (Fig. 5 C–F). The MCC scores for the Mouse_all dataset approached 0, indicating that the mouse phenotype and in silico interpretations are uncorrelated (Fig. 5E). We next focused on a “Mouse_infertility” data subset containing 42 functionally tested variants from the Mouse_all dataset (Fig. 5B). All the predictors performed similarly between Mouse_all and Mouse_infertility datasets (Fig. 5 C–F).

As AF was a criterion for prioritizing missense variants in this study, we compared overall AF and Popmax Filtering AF of variants for predictive value in these three datasets. The latter method works under the assumption that there is a maximal credible population AF above which such an allele would not be compatible with disease-specific pathogenicity (62). Whereas Popmax Filtering and total AF values clearly distinguished between benign vs pathogenic variants in the ClinVar_infertility dataset (Fig. 6A and SI Appendix, Fig. S11), this was not the case for the Mouse_all and Mouse_infertility datasets (Fig. 6A and SI Appendix, Fig. S11).

Fig. 6.

Comparison of allele frequency and variant interpretation. (A) Distribution of missense variants from three datasets comparing total AF vs. Popmax Filtering AF (95% confidence). (B) Classification of functionally interpreted missense variants in ClinVar. Variants modeled in mice (n = 172 interpreted in the ClinVar database) were classified as either benign or deleterious according to the reported phenotype description. These variants were correlated with ClinVar classifications (benign/likely benign, conflicting interpretations, VUS, and pathogenic/likely pathogenic).

To study why the predictor performances differed between the ClinVar_infertility and Mouse_all datasets (in vivo–tested variants), we analyzed correlations between variant classifications. We retrieved ClinVar annotations of the Mouse_all dataset and found that 172 of the 235 variants (73.2%) had been interpreted in ClinVar, and 55.2% (95/172) were classified concordantly (Fig. 6B). This included 16 of 45 Mouse_all benign variants being classified as “Pathogenic/Likely Pathogenic” in ClinVar, and 20 deleterious variants being classified as “Benign/Likely Benign” (Fig. 6B). With the caveat that variants may have different effects in human vs mouse and that some of the ClinVar annotations based on patients presenting phenotypes other than infertility (for example, MLH1/3 variants and cancer), these results raise serious questions about clinical usage of ClinVar- or in silico–based classifications alone and argues that in vivo–interpreted variants, or variants with orthogonal functional evidence, are important for accurate classifications of the phenotypic consequences of genetic variants.

Discussion

WGS and WES are quickly becoming mainstream clinical diagnostic tools for identifying genomic causes of rare diseases and cancers (63, 64). Nevertheless, wider adoption of sequencing as a diagnostic tool for other [potentially genetic] diseases is being limited by our ability to accurately classify and interpret the consequences of genetic variants. Many in silico prediction tools were developed to filter and prioritize variants as being potentially causative for disease, but actual phenotype correlations are difficult to predict. Complicating factors include heterogeneity of molecular mechanisms underlying diseases, lack of a deep mechanistic understanding of most genes and proteins, and complexity of physiological systems. Here, we found that in silico prediction tools had high FP rates when used to predict whether a human missense variant causes a phenotypic outcome in mouse models. This shortcoming underscores the need to combine computational predictions with functional evidence from appropriate cellular or animal models in order to be useful for genetic diagnosis of disease.

In clinical settings, variant classification is a complex process involving the evaluation and interpretation of multiple pieces of evidence. In silico predictions represent one of many evidentiary factors considered under ACMG/AMP standards. Exclusive dependence upon in silico tools can cause erroneous interpretation of variants. For example, SPATA16 p.Arg283Gln (65) and MEIOB p.Asn64Ile (66) were suggested as causative variants of human globozoospermia and azoospermia, respectively, but were shown not to cause reproductive phenotypes in mice, even though the latter variant caused some meiotic defects (67, 68). Besides in silico predictors, biochemical and in vitro approaches are commonly used to evaluate the impact of variants on protein function. While these approaches help to prioritize or classify variants with greater confidence when used in conjunction with in silico predictions, the impact of such functional variants on reproductive organs or phenotype is lacking and unacceptable for use in the clinical setting as a sole diagnostic. The DMC1 homozygous variant p.Met200Val was reported to cause POI in an African woman (69), and a subsequent study reported that this allele impaired biochemical function (56). However, we found that the orthologous allele of this highly conserved gene did not impair mouse fertility (5). In another example of nonconcordance with in vitro data, we found that two alleles of SEPT12 did not markedly affect mouse reproduction despite disrupting interaction with other Septins in the Y2H assay. The frequency of variants in general population is another useful criterion to assess the potential pathogenicity. Popmax Filtering AF can inform variant clinical interpretations by using a threshold—maximum credible population MAF—that is calculated based on disease-specific prevalence, heterogeneity, and penetrance and is assumed to negatively impact viability and thus frequency in the population (62). The default metric is unlikely to be as informative for infertility alleles comprising the Mouse_all dataset since viability of people is typically not impacted. To test this, we applied AUC analysis to compare the total AF and Popmax Filtering AF in ClinVar_infertility dataset and variants interpreted by mouse models. Popmax Filtering AF did not outperform total AF in three datasets, and both AFs performed worse for variants interpreted by mouse models than classifications in the ClinVar_infertility dataset. Collectively, our data emphasize the importance of currently used animal models in the functional validation of genetic variants involved in human infertility and highlight well-recognized challenges behind determining the physiological effects of VUS.

Our study included three variants that were identified by WES of infertile men. Modeling of the MCM9^R581H allele caused clear-cut infertility and reproductive defects in both sexes of mice, resembling knockout reproductive phenotypes. Since the mutation was not homozygous, we conjecture that the proband’s NOA was likely caused by one of the following: 1) an undetected mutation in the second allele, perhaps outside of coding regions captured by WES; 2) epigenetic silencing of the second allele; or 3) mutations/variants in other genes that cause a synthetic phenotype in the context of the MCM9 variant. However, it is also possible that the infertility in this patient is entirely unrelated to MCM9^R581H, especially if the second allele was functioning normally.

We concluded that the Brdt^D550H variant is nonpathogenic since mouse homozygotes had normal testis weight, sperm number, and fertility despite the presence of increased apoptotic cells in the seminiferous tubules. Interestingly, we found that whereas mice bearing this allele in trans to a null (Brdt^D550H/−) had sperm counts comparable to controls, they exhibited a subtle increase in apoptotic and meiotic metaphase I–arrested spermatocytes. The mice we used were not entirely inbred, so it is possible that heterosis suppressed the phenotype. Nevertheless, there was no inconsistency among replicates in terms of fertility. These results suggest that functional prediction algorithms may correctly identify missense alleles that impact the protein in some subtle way that does not result in a pathogenic phenotype. However, it should be considered that the phenotype might be substantially enhanced by other background variation in a given individual.

As part of a larger effort to identify true infertility variants segregating in people, we have used pathogenicity prediction algorithms as a screen for prioritizing missense variants. However, the work summarized here reveals the shortcomings of current predictors despite being claimed to have an accuracy ranging from ~65 to 90% (70). Given that a variety of in silico algorithms/pipelines are employed by clinical labs for prioritizing potential disease-causing variants (71), it is important to identify high-confidence classifiers to minimize both false-positive and false-negative prediction rates. Here, we attempted to address this issue by evaluating the performance of predictors in classifying infertility-related missense variants deposited in ClinVar. The tools varied with respect to agreement with ClinVar annotations, presumably reflecting differences in feature sets and scoring methods employed by these tools. Usually, ensemble prediction tools or metapredictors (e.g., CADD and REVEL), which generate their predictions based on the output (scores) of other tools, are purported to have higher classification accuracies than individual tools (e.g., SIFT and PolyPhen2).

To estimate the performance of a predictor, commonly used parameters include ACC, MCC, sensitivity, specificity, negative predictive value, PPV, and AUC. Given that all have flaws, we took an alternative approach of considering multiple success rate descriptors simultaneously. Here, we compared variant classification performance using four metrics, MCC, ACC, PPV, and AUC. Consistent with a previous study (61), the consensus results from each parameter demonstrated that REVEL outperformed other classifiers in analysis of the ClinVar_infertility dataset. However, it is important to recognize that ClinVar variants are sometimes used to train algorithms either directly (such as MutationTaster) or indirectly [e.g., REVEL, which was trained using HGMD calls and shares greater than half of ClinVar variants/mutants (72)], and conversely, contributions of pathogenicity classifications to ClinVar often utilize results of various prediction algorithms (11). Such circularities in testing and training data (use of predictor calls in ClinVar classifications and training predictors on ClinVar) may compromise accuracy of calls (73). Hence, in vivo–tested missense variants that are classified according to whether the functional assay (i.e., animal modeling) has a disease-causing phenotype or not, most likely constitute a more accurate and relevant (albeit small) testing set than in silico predictions.

Apart from these issues, there are other potential explanations for the poor performance of predictors in classifying alleles in the Mouse_all dataset compared to those in the ClinVar_infertility dataset. One is that a significant proportion of ClinVar classifications, which are often used for algorithm training, are inaccurate. Based on data from chemical mutagenesis studies in mice, Miosge et al. demonstrated that for de novo or rare missense mutants that were algorithmically predicted to be deleterious, nearly half were, in fact, neutral or nearly neutral by both phenotypic and in vitro assays (60). Similarly, we found that all the predictors yielded high FP values (type I error). A study of human variants in the ClinVar database provided evidence for extensive misclassifications, suggesting that substantial numbers of misclassifications could be corrected by considering AF and that input from orthogonal functional and genetic studies are crucial for improving variant classification accuracy (74). A second potential explanation is that there is a substantial disconnect between biochemical and pathogenic effects of variants. That is, living systems have robustness or redundancies that largely mask minor biochemical or structural defects of proteins, although subtle molecular defects can ultimately lead to AF decline from purifying selection (60). A third possible explanation is that the power of predictors was not sufficiently evaluated by the modest sample size of the Mouse_all dataset. This possibility should become resolved as CRISPR-based mouse modeling of human variants is increasing. We anticipate that larger datasets will contribute to improving prediction tools. Finally, despite the evolutionary conservation of all the amino acids that were investigated here, it is possible that the mouse reproductive system is more robust than humans in terms of biochemical compensation for alterations or that the consequences only manifest themselves over longer human lifespans.

The shortcomings of in silico predictors have been reported by others studying missense or splice variants in nonreproductive genes (75–79). However, these studies focused on multiple variants in one or two genes, and utilized various cell-based assays to assess functional impacts. While this is preferable to purely in silico prediction of VUS impacts, the absence of in vivo phenotypic evaluation coupled with restriction of studies to a small number of variants or genes might result in bias when judging the efficacy of predictor algorithms. For example, MutationTaster was found to have the best performance with an MCC score of 0.6 when assessing 126 CLCN1 (chloride voltage-gated channel 1) variants potentially causative for myotonia congenita, using Xenopus oocyte cDNA transfection assays (79). However, MutationTaster’s MCC score in the Mouse_all dataset was only 0.08. As we described, our analysis of in silico predictor performance using the Mouse_all dataset (consisting of 235 mouse-interpreted variants in 204 genes representing diverse diseases) revealed no correlation between the mouse phenotype and the in silico prediction outcomes, as the MCC scores of all the predictors approached 0.

Given the potential issues that can confound the accuracy of variant classification in databases, it is important to consider the levels of manual curation. ClinVar uses a three-star rating system to represent the “Review Status” of each submission. These are “single submitter—criteria provided” (one star), “expert panel” (three stars), and “practice guidelines” (four stars). Several ClinVar derivative platforms have been developed to facilitate exploration of, and evidence for, variant interpretations. We used ClinVar Miner to identify variants of interest for evaluating the performance of pathogenicity predictors and selected one-star rating variants because there are no infertility-related variants with three- or four-star ratings (no VCEPs exist for infertility, precluding any variants from having these ratings). The formation of an infertility VCEP for ClinGen (https://www.clinicalgenome.org) is sorely needed to critically address the accuracy of pathogenicity calls currently present in ClinVar.

In summary, we provide in vivo evidence for 10 of 11 human variants in essential reproduction genes to be nonpathogenic, despite being predicted to have negative impacts upon protein function by in silico pathogenicity prediction algorithms and, in one case, the Y2H assay. With the caveats that mice may be more tolerant to the protein alterations than humans, or that these alleles may contribute to phenotypic defects when combined with variations in other genes in individuals, we conclude that all except the MCM9 variant are likely to be clinically benign. The results underscore the utility of functional assessments of genetic variants in genetic analysis of idiopathic diseases such as infertility.

Materials and Methods

Y2H Screening.

Y2H screening for SEPT12 variants was performed as previously described (7). Disrupted PPIs were identified by the following criteria: a) The mutated protein reduced growth by at least 50% relative to WT as benchmarked by twofold serial dilution experiments; b) neither WT nor mutant DB-ORFs were autoactivators; and c) the reduced growth phenotype was reproduced across three replicates. A mutation was scored as disruptive if one or more corresponding PPIs were affected.

Selection of Genetic Variants Identified in Male Infertility Patients.

Likely causative gene candidates were selected from WES results for a study conducted at the Magee-Womens Research Institute of the University of Pittsburgh (80) and 924 unrelated adult male participants in the Genetics of Male Infertility Initiative Consortium (81). For the latter, genotypes were generated by a computational pipeline intended to identify rare monogenic causes of NOA (81). Patients were diagnosed with idiopathic, nonobstructive spermatogenic failure by a qualified physician on the basis of semen parameters, hormone levels, and testes histology, when available, in accordance with American Urology Association, American Society for Reproductive Medicine, and World Health Organization guidelines (82, 83). Individuals with obstructive or known causes of male infertility (e.g., CBAVD or 47, XXY karyotype) were excluded from the study.

The mutation in M1AP (ENST00000536235.1: c.G949A:p.Gly317Arg) was found as a heterozygote in a single sporadic case with maturation arrest testis histology and no family history of consanguinity. This case contained one other pathogenic mutation in M1AP (ENST00000536235.1:c.676dupT, p.W226fs), a heterozygous frameshift insertion leading to predicted loss-of-function due to nonsense-mediated decay. Thus, the presumed genetic model was biallelic loss-of-function due to compound heterozygosity, but the phase of the variants was not determined. No other potentially causative mutations were identified in this case. Another variant, MEI1 p. Asp1258Tyr (rs75338000, NG_068430.1:g.162G>T), was observed in a patient with NOA due to late meiotic arrest. This variant was observed in conjunction with a 3-bp c.868_870del in-frame deletion. The third variant, MCM9 p.Arg581His, encoded by rs1460351219, was in a man with NOA who was also heterozygous for a predicted benign allele (rs78791427, p.Gln658His).

Generation of Mouse Models by CRISPR/Cas9.

All animal usage was approved by Cornell University’s Institutional Animal Care and Use Committee, under protocol 2004-0038 to J.C.S.

Mouse models were generated by CRISPR/Cas9 genome editing technology, as described previously (3). sgRNAs and ssODNs are listed in SI Appendix, Table S2. Founders carrying at least one copy of the desired alteration were backcrossed into C57BL/6J (or FvB/NJ in the case of Sept12 mutants) for at least three generations. Primers used for genotyping the mutant mice are listed in SI Appendix, Table S2.

Reproductive Phenotyping.

Fertility of mice was assessed by housing ~2-mo-old mice with opposite-sex WT animals for at least 3 mo. Cauda epididymis (one per male) sperm counts and gonadal histology were performed using standard methods (3). Ovarian follicle quantification was performed as described (84). Every fifth section was examined for the presence of the following classes of oocytes/follicles: primordial, primary, secondary, preantral, and antral. For quantitative analyses, they were grouped into primordial and growing follicles (from primary to antral). Meiotic prophase I surface spreads were prepared and immunostained essentially as described (85), as were diakinesis/ metaphase I chromosome preparations (86). See SI Appendix for details.

Data Preprocessing.

The infertility-related variants were downloaded using the ClinVar Miner web-based tool (version: 2022-2-28) (87). Variants/mutants under terms “female infertility”, “genetic infertility”, “infertility disorder,” and “male infertility” with a “one-star criteria provided” designation were selected. The variants were organized into five categories (pathogenic, likely pathogenic, VUS, likely benign, and benign) and limited to missense variants with a SNP rsID. Sets of deleterious and benign missense variants that have been modeled in mice were collected from searching the literature using PubMed, Google Scholar, bioRxiv, and medRxiv in June 2022 (“Mouse_all” dataset, n = 235 in total, SI Appendix, Table S1) and http://www.infertilitygenetics.org/. A subset of these formed the “Mouse_infertility” dataset (n = 42). Only the “pathogenic” and “benign” variants in ClinVar with no conflicting interpretations were grouped into the “ClinVar_infertility” dataset (n = 851). Cutoff scores for predictors are listed in SI Appendix, Table S3. Total AF and Popmax Filtering AF (95% confidence) were retrieved from the GnomAD database. When transforming to the logarithmic scale, 10⁻⁶ was added to each value because some numbers were 0.

Evaluation of Pathogenicity Predictor Performances.

We applied statistical metrics derived from a confusion matrix. We identified a correctly classified variant as a true positive if, and only if, the variant corresponded to the positive class (deleterious) and as a true negative if, and only if, the variant corresponded to the negative class (benign). Accordingly, a FP is a negative variant (benign) that is classified as positive (deleterious), and a false negative is a positive variant (deleterious) classified as a negative one (benign). The formulas used for calculating and interpreting MCC, PPV, ROC, AUC, and ACC are detailed in SI Appendix.

Supplementary Material

Appendix 01 (PDF)

Data, Materials, and Software Availability

All study data are included in the article and/or SI Appendix.
