. 2023 Jul 20;9(8):e18457. doi: 10.1016/j.heliyon.2023.e18457

A bibliometrics visualization analysis of active packaging system for food packaging

Andi Dirpan a,b,∗, Andi Fadiah Ainani c, Muspirah Djalal a
PMCID: PMC10374920  PMID: 37520944

Abstract

This bibliometric study includes publications on the use of active packaging in food packaging from 2000 to 2021. The number of research related to this study tends to increase annually with an annual growth rate of 23.76%, totaling 857 articles. In this study it was found that the most influential countries in the field of Active Packaging are Spain, China, and Brazil. Moreover, the International Journal of Biological Macromolecules and Nerín are the most prolific journal and author in scientific publications, respectively. Active packaging, food packaging, and antimicrobial are often used based on the total link strength out of the 1,775 keywords. The keyword analysis based on time found new terms that are being studied by many researchers, namely, bioplastics as environmentally friendly packaging, based on polysaccharides and nanoparticles, which have the potential to be developed or collaborated for breakthroughs. Therefore, the use of active packaging shows a promising trend for the packaging industry in the future.

Keywords: Active packaging, Food packaging, Shelf life, Antimicrobial, Bioplastic

1. Introduction

Packaging is one of the important components of the food-processing sector because it protects food and affects the consumer's first impression of a food product. It serves three main purposes: protection, conveying information, and transportation [1]. Thus, packaging greatly affects consumers' decisions to buy or not buy a product. Recently, the consumer demand for easy to make food with long shelf life has increased [2,3]. This resulted in several scientific publications and studies to describe new technologies in food packaging, particularly active packaging. Active packaging not only protects but also extends the shelf life of a product by maintaining or improving the sensory, safety, and quality of perishable food products such as meat, bakery, dairy, fruits and vegetables, and others [[4], [5], [6]]. This active packaging has the concept of adding certain components that can release or absorb substances from or into the packaged product.

Generally, active packaging is divided into non-migrating and active-release packaging. Non-migrating packaging is designed to remove unwanted components from the environment without direct contact with the product. Meanwhile, active-release packaging uses emitters that allow controlled migration of the desired substance to directly affect the product [7]. Non-migrating active components tend to function as ethylene absorbers, oxygen generators, and moisture scavengers [[8], [9], [10]], whereas active-release components function as carbon dioxide generators, antimicrobials, and antioxidants [[11], [12], [13], [14]].

A report by Grand View Research Company (San Francisco, USA) [15] estimated that by 2024, the active packaging market will generate $6 billion in the USA. Undeniably, active packaging applications have increased in various countries. Therefore, assessing the study scope that tends to offer data about current projects, trends, scientific collaborations, and their effects is important. This study uses bibliometric techniques to assess developments and trends in the field of active food packaging. This technique can be used to map trends related to authors, institutions, and countries and identify gaps in specific areas, for which bibliometric analysis is highly preferred [16,17].

To the best of our knowledge, many previous bibliometric studies have focused on food packaging, such as the use bionanocomposite materials as packing materials [18], production of cellulose-containing food packaging [19], gelatin packaging/coating to enhance food shelf life [20], intelligent system to monitor and predict packaged food contamination [21], and novel development of materials for food packaging [22]; however, they do not specifically discuss active packaging. Active packaging can be an important part of the food-processing industry to protect and preserve products and meet customer expectations. Thus, knowledge of the developments and trends in the packaging industry, especially in active packaging, given the high consumer demand for safe and quality food, is important.

To better understand the use of active packaging in food packaging, we have collected data from various publications between 2000 and 2021, where in these years various researchers have made massive development in active packaging. This study offers a dense pool of knowledge where researchers can access important data on trends and open questions for further research that can expand the use of active packaging in food packaging to maintain product quality, safety, and shelf life. Based on this, we tried to analyze and explore some sections that we consider interesting for researchers and manufacturers in the field of food packaging: (1) exploring the global trends of active packaging; (2) analyzing the contributions and collaborations of different countries, institutions, and journals to this field, highlighting the most influential papers; (3) analyzing the most productive authors in the field; (4) revealing the research focus through keyword analysis; and (5) identifying the future for active packaging.

2. Methodology

2.1. Data collection

This study used data extracted from Scopus, a bibliographic resource owned by Elsevier, which provides various functions to support a robust bibliometric analysis [23,24]. Scopus is a popular tool among academics seeking access to high-quality analytical insights [24,25]. This electronic database, which is notably larger than the Web of Science or PubMed and more accurate than Google Scholar, offers extensive coverage of peer-reviewed scientific literature and has an outstanding citation record [26,27]. Scopus was selected as the data source for this review based on its reputation as a comprehensive and reliable repository of scholarly works.

Fig. 1 shows the outline of the search strategy for this bibliometric review. The search method used a topic search including title, abstract, and keywords to seek all related publications. These keywords include TITLE-ABS-KEY (“active packaging”), OR (“active package”), and AND (“food packaging”).

Fig. 1.

Fig. 1

Open in a new tab

Outline of the search strategy for the bibliometric analysis.

To prevent bias and inconsistencies caused by database changes, data collection was conducted on October 28, 2022, which yielded 1,519 articles. This study focused on publications between 2000 and 2021. The search was limited to English-language publications, articles, publication stage final papers, and source-type journals. Finally, 857 articles were eligible for analysis. Bibliometric data from the selected publications were converted to comma-separated value files. Data were sorted and organized using Microsoft Excel, as follows: (1) authors, (2) title, (3) year of publication, (4) source/journal where the article was published, (5) research institutions, (6) author keywords, and (7) country/region. Before analysis, data were first screened, and corrupted data and duplicates were removed. Some indicators were sorted from the highest rank using the standardized competitive ranking. In particular, for the top 10 journals indicator, the impact factor (IF) was attached. The IF of a journal indicates the average number of annual citations received from recent articles published in that journal [28].

2.2. Data Analysis

The OpenRefine application (v. 3.6.1) was employed to manually combine words that have the same meaning. For instance, active package and active packaging were combined. Poly-lactic acid and poly (lactic acid) were also manually combined into PLA. Furthermore, polyvinyl alcohol, poly (vinyl alcohol), and polyvinyl (alcohol) were combined into PVA because the acronym facilitated visualization. Singular and plural forms of the same noun such as packaging materials and packaging material were also combined manually. In addition, VOSviewer (v. 1.6.15.0) was used to create bibliometric graphical mapping and network visualization using the most frequent terms, countries, affiliations, and journals that contribute the most and are interrelated in studies on active packaging, such as those conducted by Refs. [19,29,30]. Meanwhile, RStudio (v. 4.2.1) was used to visualize the analyzed data and plot a global map showing the geographic distribution of articles.

3. Results and analysis

3.1. Main information about data (2000–2021)

In this study, only those articles published between 2000 and 2021 were included. A total of 857 articles were generated from Scopus, involving 189 journals and 2,941 authors (Table 1). The average number of citations was 45.49, with an annual growth rate of 23.76%, and a total of 39,677 articles were a reference to 857. After 2015, the number of annual publications grew almost exponentially, with the highest recorded in 2021 reaching 176.

Table 1.

Major information on active packaging for food packaging research from 2000 to 2021.

Description Results
Main information about the data
Timespan 2000:2021
Sources (Journals) 189
Documents 857
Annual Growth Rate % 23.76
Document Average Age 5.12
Average citations per doc 45.49
References 39,677
Document contents
Keywords Plus (ID) 4,556
Author's Keywords (DE) 1,775
AUTHORS
Authors 2,941
Authors of single-authored docs 11
Authors collaboration
Single-authored docs 14
Co-Authors per Doc 4.98
International co-authorships % 23.69
Document types
article 857
Open in a new tab

3.2. Trend in the number of publications

Fig. 2 shows the annual development of publications concerning active packaging. Publications between 2018 and 2021 showed a significant increase of approximately 54.9% from 857 total articles. The highest number of publications was observed in 2021 with approximately 176 articles, accounting for 20.5%. An annual growth rate of 23.76% indicated research trends in the use of active food packaging over time. The increase in publications was attributed to the awareness of using a particular packaging that can extend shelf life and maintain product quality. Active packaging provides additional functions to improve food quality and safety [31].

Fig. 2.

Fig. 2

Open in a new tab

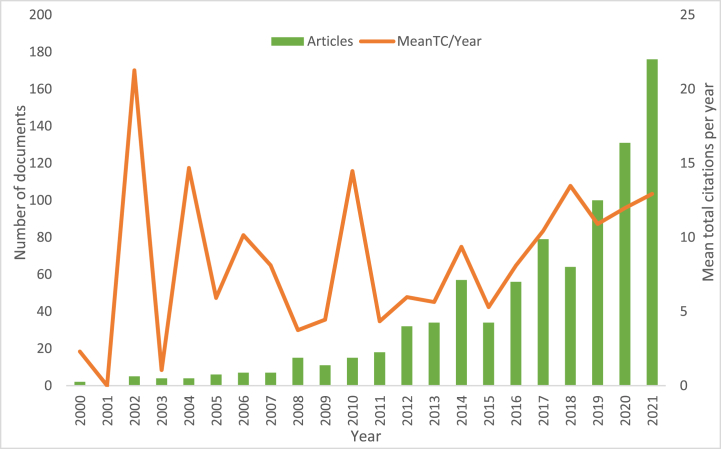

Annual production and average citation per year research on active packaging for food packaging from 2000 to 2021.

3.3. Analysis of the contribution of different countries

Countries with the most publications related to active food packaging are shown in Fig. 3a: the darker the blue color, the higher the number of articles published. A total of 58 countries contribute to active packaging studies. Of the top five countries, Italy was the first to publish in 2002 (n = 2), followed by Spain in 2003 (n = 4), Brazil in 2008 (n = 1), China (n = 3), and Iran (n = 4) in 2010. Fig. 3b shows the annual article publication of the top five countries.

Fig. 3.

Fig. 3

Open in a new tab

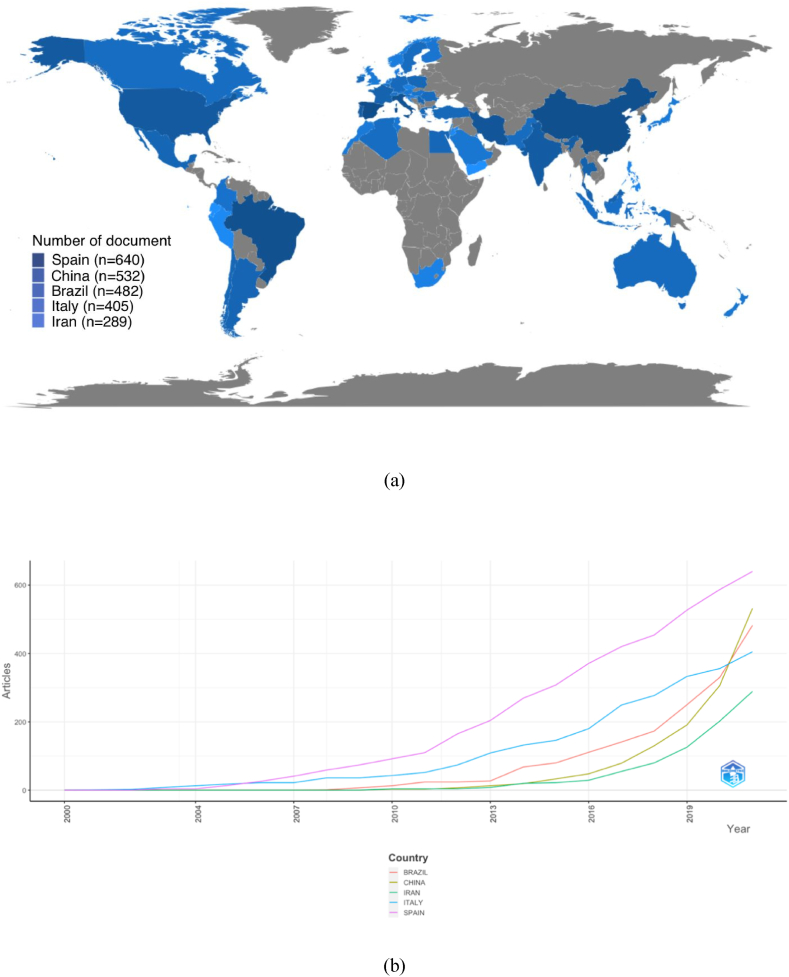

Country scientific production on active food packaging from 2000 to 2021 (a) and the most five country production over time (b).

In 2021, Spain published approximately 640, which was the highest number of articles related to active packaging, followed by China, Brazil, Italy, and Iran with a total of 532, 482, 405, and 289, respectively. Spain cumulatively contributed to this study out of the top five countries. Spain is a leading country in the study of active food packaging because of its high level of expertise in the food industry and a strong focus on research and development. The food industry in Spain is one of the most important in Europe and is known for its innovation and quality [[32], [33], [34]]. As such, the study of active packaging has been extensively pursued in Spain, given its capacity to enhance food product shelf life and maintain quality, which is of paramount importance for perishable food items, including fresh fruits and vegetables, meat, and dairy products. Furthermore, Spain's rich tradition in food preservation has played a pivotal role in the advancement of active packaging, which is a logical progression of its extensive expertise in this field [35,36].

3.4. Analysis of articles in accordance with the journal

Table 2 shows the top publications on “active food packaging.” A total of 189 journals that published 857 articles were analyzed. However, the top 10 publications showed approximately 22% of the total articles produced. The International Journal of Biological Macromolecules had the most published articles (n = 84, IF = 8.025), followed by Food Packaging and Shelf Life (n = 47, IF = 8.749), and Journal of Food Science (n = 44, IF = 3.693). Moreover, the Journal of Macromolecule Biology had the highest number of citations with 3,584, followed by Food Hydrocolloids and Food Chemistry with 3,143 and 2,292, respectively. Of the 10 journals with the most publications, Packaging Technology and Science published its first article in 2000, whereas the International Journal of Biological Macromolecules and Food Packaging and Shelf Life published their first articles in 2014.

Table 2.

Top-ten journals that published the highest number of articles on the subject.

SCR Journal Documents Total citations Avg. Cit/doc Best Rank IF PY_start
1st International journal of biological macromolecules 84 3,584 11.6 Q1 8.025 2014
2nd Food packaging and shelf life 47 1,673 10.8 Q1 8.749 2014
3rd Journal of food science 44 1,243 5.1 Q1 3.693 2003
4th Food chemistry 39 2,292 13.1 Q1 9.231 2007
5th Journal of agricultural and food chemistry 34 1,923 8.6 Q1 5.895 2005
6th Food hydrocolloids 32 3,143 15.3 Q1 11.504 2009
7th Carbohydrate Polymers 29 2,166 16.0 Q1 10.723 2013
8th International journal of food microbiology 24 1,574 9.4 Q1 5.911 2006
9th Lwt 21 902 7.3 Q1 6.056 2012
10th Packaging technology and science 20 631 4.2 Q2 10.723 2000
Open in a new tab

SCR = rank, IF = impact factor, PY_start = publication year.

3.5. Analysis of articles in accordance with the authors

The data analyzed were 857 articles written by 2,941 authors, and the top 10 authors sorted by the most publications related to active food packaging are shown in Table 3. RStudio was used to analyze the productivity and effect of author citations in relation to the h-index. The h-index is an indicator that can measure the contributions and achievements of researchers; however, it cannot be used to evaluate various disciplines [37]. In addition, citations can be used to measure an author's influence on a subject. As presented in Table 3, Nerín had the most publications (n = 26), but only ranked third in the number of citations (1,315 total citations). The first and second places in the number of citations were occupied by Rhim (1,547 total citations) and Gavara (1,358 total citations). The year of publication is one of the criteria that affect how often an article is cited. Rhim and Gavara with the same year of publication (2007) received more citations than Nerín who published in 2005 (2 years earlier).

Table 3.

Top ten authors who participated the most in studies on “Active Packaging for Food Packaging”.

SCR Authors h-index TC Documents Institutions Country PY_start
1st Nerín C 21 1,315 26 Universidad de Zaragoza Spain 2005
2nd Gavara R 20 1,358 24 Consejo Superior de Investigaciones Científicas Spain 2007
3rd Liu J 18 1,030 19 Yangzhou University China 2009
4th Lagaron JM 16 1,087 17 Instituto de Agroquimica y Tecnologia de los Alimentos (IATA) Spain 2007
5th Rhim J-W 14 1,547 17 Kyung Hee University South Korea 2007
6th Goddard JM 11 293 17 Cornell University United States 2011
7th Hernández-Muñoz P 12 845 16 Instituto de Agroquimica y Tecnologia de los Alimentos (IATA) Spain 2008
8th Liu, Y 13 704 15 Yangzhou University China 2017
9th Decker EA 10 236 11 University of Massachusetts Amherst United States 2012
10th Almasi H 9 428 9 Urmia University Iran 2017
Open in a new tab

As presented in Table 3, Nerín, who was from Universidad de Zaragoza, Spain, contributed the most to research on active packaging, with 26 articles and 1,315 total citations. In her research, Nerín focused on the use of active ingredients as a source of antioxidants such as cinnamon essential oil, ethyl lauroyl alginate, carob (Ceratonia siliqua L.), olive leaf extract, flaxseed oil, ginger essential oil, grape seed essential oil, and rose oil, which can function as antimicrobial substances in active packaging [[38], [39], [40], [41], [42]].

The second-ranked author with an impact on this study was Gavara from Consejo Superior de Investigaciones, Spain, who had 24 articles and 1,358 total citations. In general, Gavara R discussed the effectiveness of antimicrobial activity in the application of essential oils and thymus plants as active packaging. The tested oils include garlic oil, Zataria multiflora Boiss., Origanum vulgare, Cinnamomum zeylanicum, carvacrol, and cinnamaldehyde [[43], [44], [45], [46]].

Liu from Yangzhou University, China, ranked third with 19 articles and 1,030 total citations. Much of his research focused on the properties and characteristics of antioxidant and antimicrobial packaging films based on chitosan, polysaccharides, and nanoparticles applied to various food products [[47], [48], [49]]. Liu with D. Yun et al. [50,51] has also extensively researched the utilization of natural pigments derived from food wastes as active components in active packaging.

3.6. Most cited article on “active food packaging”

Table 4 shows the 10 articles with the highest number of citations published between 2000 and 2021 related to active food packaging. The overall number of citations of the 10 articles ranged from 320 to 1,239, each published in seven different journals. The most cited article was written by Appendini et al. (1,239 total citations), entitled “Review of antimicrobial food packaging” published in 2002 in Innovative Food Science and Emerging Technologies with 59.00 average citations/year. The article was widely cited as it was a review and broadly discussed the types of antimicrobial polymers developed for food contact such as the addition of antimicrobial volatiles to sachets/pads, incorporation of antimicrobial compounds into polymers, through coating methods, and immobilization of antimicrobials in polymers through cross-linking. The article also examined the commercial application of antimicrobial packaging in food and effectiveness of antimicrobial compounds and the future outlook of antimicrobial packaging [52].

Table 4.

The top-ten article cited in “Active Packaging for Food Packaging”.

SCR Authors Title Year Journal Cited by TC per year
1st Appendini, P. et al. Review of antimicrobial food packaging 2002 Innovative Food Science and Emerging Technologies 1,239 59.00
2nd Jamshidian, Majid et al. Poly-Lactic Acid: Production, applications, nanocomposites, and release studies 2010 Comprehensive Reviews in Food Science and Food Safety 951 73.15
3rd Quintavalla, S. et al. Antimicrobial food packaging in the meat industry 2002 Meat Science 689 32.81
4th Ojagh, Seyed Mahdi et al. Development and evaluation of a novel biodegradable film made from chitosan and cinnamon essential oil with a low affinity toward water 2010 Food Chemistry 569 43.77
5th Rhim, Jong-whan et al. Natural biopolymer-based nanocomposite films for packaging applications 2007 Critical Reviews in Food Science and Nutrition 558 34.88
6th Cha, D.S. et al. Biopolymer-based antimicrobial packaging: A review 2004 Critical Reviews in Food Science and Nutrition 522 27.47
7th Seydim, A.C. et al. Antimicrobial activity of whey protein-based edible films incorporated with oregano, rosemary, and garlic essential oils 2006 Food Research International 491 28.88
8th Ozdemir, Murat et al. Active food packaging technologies 2004 Critical Reviews in Food Science and Nutrition 373 19.63
9th Azeredo, Henriette M.C. et al. Nanocellulose in bio-based food packaging applications 2017 Industrial Crops and Products 329 54.83
10th Mihindukulasuriya, S.D.F. et al. Nanotechnology development in food packaging: A review 2014 Trends in Food Science and Technology 320 35.56
Open in a new tab

The second most cited article was written by Jamshidian et al. (951 total citations) titled “Poly-Lactic Acid: Production, Applications, Nanocomposites, and Release Studies” published in 2010 in Comprehensive Reviews in Food Science and Food Safety with 73.15 average citations/year. The article was a review that specifically discussed PLA derived from renewable and biodegradable sources. The article extensively reviewed the steps in the production process, general properties, applications, processing technologies, modifications and degradability, biodegradability, and recyclability of PLA polymers [53].

Quintavalla et al. [54] (689 total citations), Cha and Chinnan [55] (522 total citations), and Seydim and Sarikus [56] (491 total citations) discussed the characteristics of antimicrobial active packaging systems. Azeredo et al. [57] (329 total citations) and Mihindukulasuriya et al. [58] (320 total citations) specifically studied the development of nanotechnology, such as nanocellulose as a component material in the manufacture and application of food packaging.

3.7. Bibliographic coupling analysis

In this study, the full computation approach in VOSviewer was used to perform bibliographic coupling of journals, authors, and institutions. For the bibliographic coupling analysis, we selected a minimum of five articles and 38 of 189 journals that met the criteria. The strength of each journal's bibliographic coupling links to other sources is visualized in Fig. 4a. The 38 journals were divided into three clusters. The largest relationship of the first cluster (red) was with the International Journal of Biological Macromolecules, which had the highest total link strength of 9,525 with 84 articles and 3,584 total citations. Based on the total link strength, the International Journal of Biological Macromolecules showed the largest relationship with other journals, which was also in line with the largest total citations. The second cluster (green) was the Journal of Food Science, which had the highest total link strength of 6,000, 44 articles, and 1,243 citations. The third cluster (blue) belonged to the Journal of Food Science and Technology with the highest total link strength of 602, 7 articles, and 210 total citations.

Fig. 4.

Fig. 4

Fig. 4

Open in a new tab

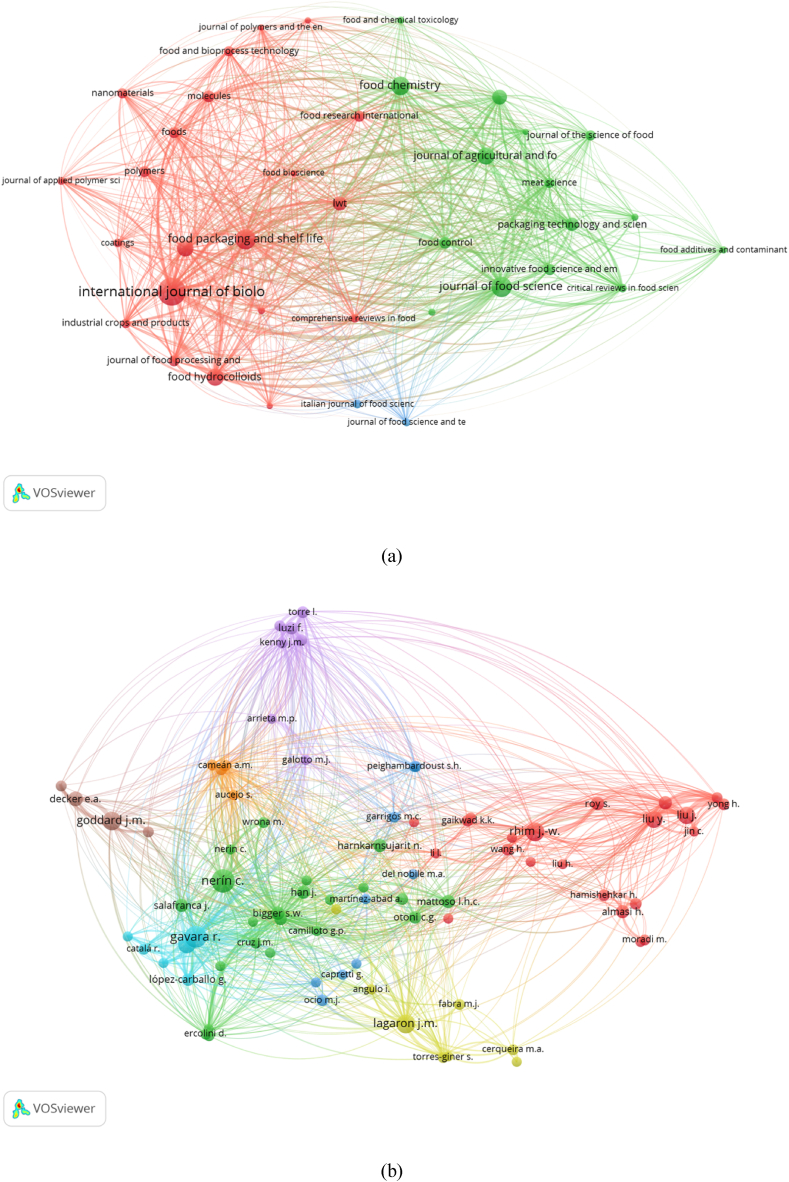

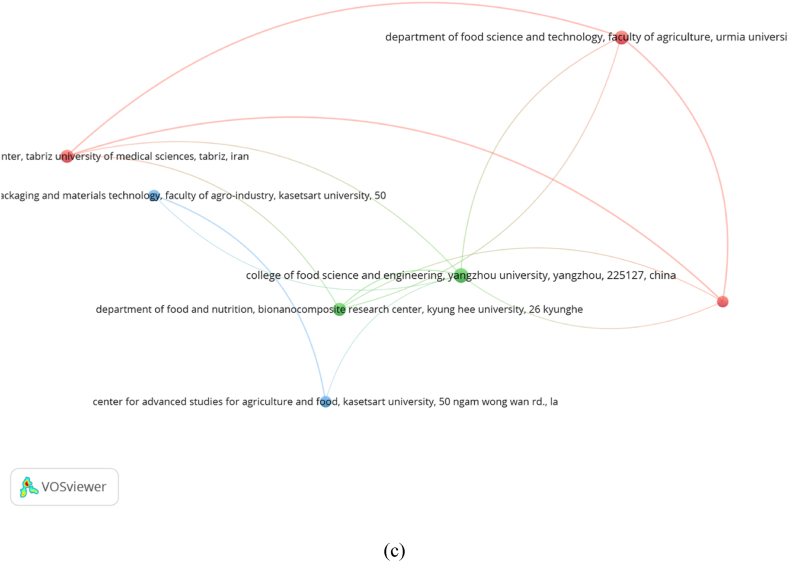

Bibliographic coupling analysis of (a) journals, (b) authors, and (c) institutions.

Similarly, Fig. 4b shows the collaboration between the main authors of the published works. From the analysis results with the minimum number of authors set at 5, 82 of 2,940 total authors met the criteria. The 82 authors are classified into eight clusters marked with different colors. Gavara had the largest international collaboration network, with the highest total link strength of 5,696 with 24 articles, followed by Hernández-Muñoz with 4,566 total link strengths with 16 articles. The top two authors, although coming from different institutions, are still from the same country, Spain. The third author with a large collaboration network was Liu from Yangzhou University, China, with 4,463 total link strength and 14 articles.

Furthermore, for the analysis of bibliographic institutions, 7 of 1,880 institutions met the threshold (Fig. 4c). The seven institutions were classified into three clusters. Tabriz University of Medical Sciences had the highest total link strength of 610 with seven articles and was followed by Urmia University and Islamic Azad University with similar total link strength of 604 consisting of nine and five articles respectively.

3.8. Collaboration network analysis

In this study, a full-count approach in VOSviewer was used to analyze co-authors, institutions, and countries. The maximum number of authors per article was set at 20, and approximately 2,940 of them met the criteria. The minimum number of documents per author is set for 5 times out of 2,940 total authors, and only 82 authors met the analysis. Fig. 5a shows the relationship between authors.

Fig. 5.

Fig. 5

Fig. 5

Open in a new tab

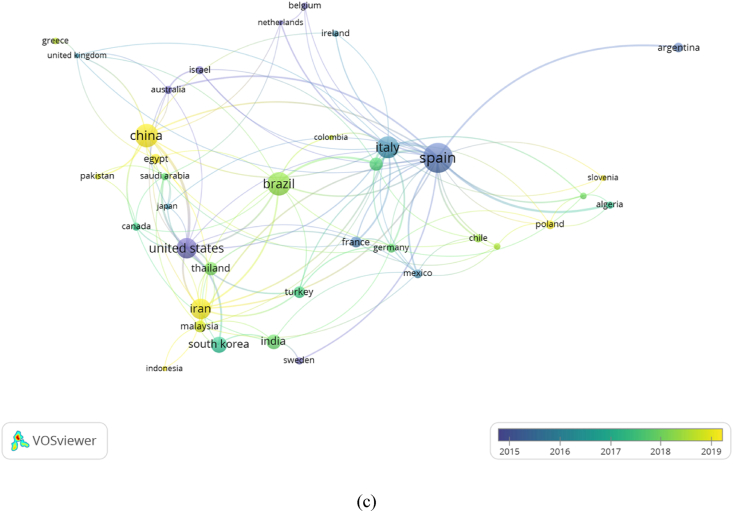

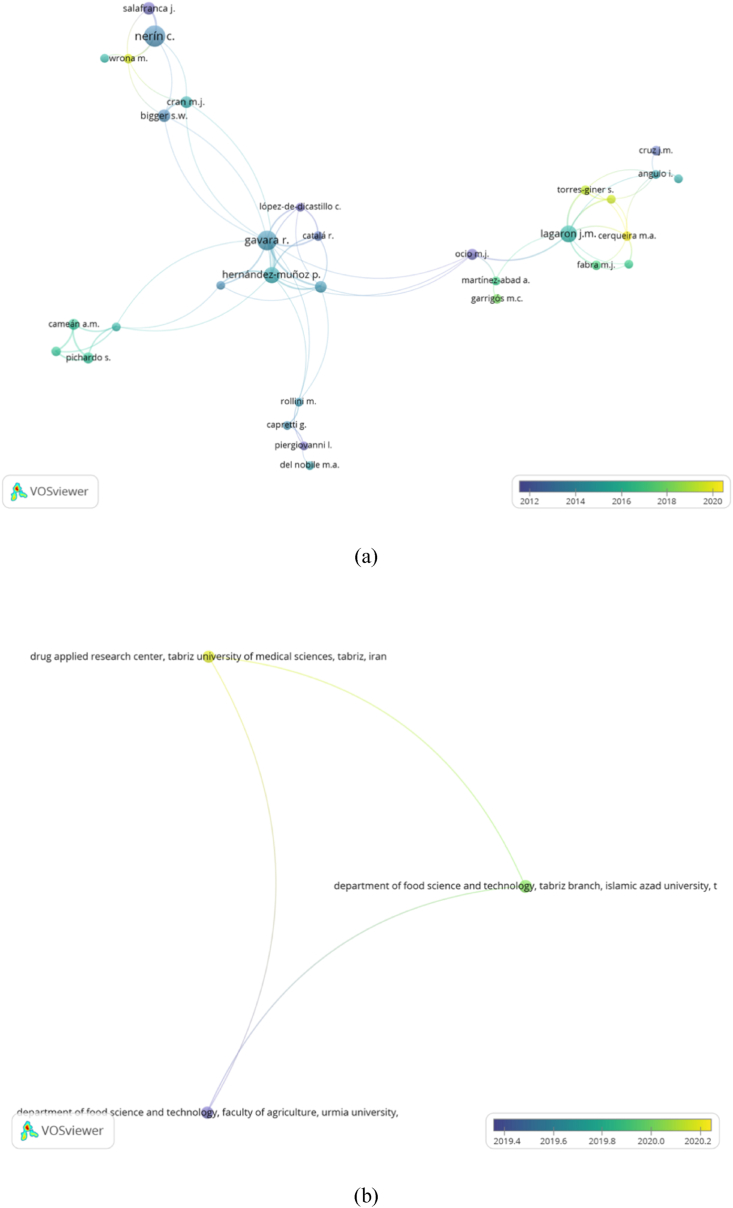

Collaborative network analysis of (a) authors, (b) institutions, and (c) countries.

Moreover, the maximum number of institutions was set at 25 per article. The minimum number of articles and citations obtained by 7 of 1,880 universities that met the criteria was set at 5 and 0, respectively. Furthermore, only 3 of 7 institutions were connected. They included Urmia University, Islamic Azad University, and Tabriz University of Medical Sciences. Fig. 5b shows the relationship between these institutions.

Furthermore, the maximum number of countries was set at 25 per article. The minimum number of articles and citations obtained by 37 of 69 states that met the criteria were set at 5 and 0, respectively. However, these 37 countries were grouped into 10 clusters based on the level of joint co-occurrence. States that have the same color (in one cluster) were interconnected. The size of a country's circle increases with the number of research articles produced and the scale of collaboration with the thickness of the connecting line (literature). This connecting line, called link strength, was used to measure the degree of cooperation between the two terms. Iran, Malaysia, and Indonesia tended to take part in joint publications. Based on Fig. 5c, the top three institutions with the highest total link strength are Spain, Italy, and USA having 81, 46, and 44 with 160, 88, and 77 articles, respectively. Furthermore, Australia, Israel, Netherlands, Belgium, Sweden, USA, Spain, France, and Italy published articles related to active food packaging that used to be very fast between 2015 and 2016. This topic started to gain massive discussion in 2021 in China, Iran, Egypt, Poland, and Slovenia.

3.9. Co-occurrence analysis

Co-occurrence analysis is used to pinpoint gaps and current trends to track developments in scientific research [[59], [60], [61]]. Fig. 6 shows the co-occurrence of author keywords checked using VOSviewer. The circle size indicated the publications that appear, whereas the distance provided an estimate of the relationship between frequent terminologies. This co-occurrence analysis used the full-count method. The minimum keyword occurrence is set for 5 times out of 1,775 total keywords, and only 120 keywords that met the analysis criteria were divided into nine clusters. Table 5 lists the top 15 keywords ranked by the total occurrences and link strength. Fig. 6a shows the grouping of terms frequently used by authors in works related to the bibliometric search for the past 21 years. Generally, the frequent keywords were active packaging, food packaging, antimicrobials, antioxidants, and chitosan having 445, 85, 73, 71, and 74 occurrences and 835, 199, 198, 181, and 167 total link strengths, respectively.

Fig. 6.

Fig. 6

Open in a new tab

Cluster of keywords (a), development of keywords based on studies on active food packaging between 2000 and 2021 (b).

Table 5.

The most used keywords (rank based on total link strength).

SCR Keywords Occurrences Total link strength
1 Active packaging 445 835
2 Food packaging 85 199
3 Antimicrobial 73 198
4 Antioxidant 71 181
5 Chitosan 74 167
6 Antimicrobial activity 49 111
7 Essential oil 49 101
8 Antioxidant activity 42 93
9 Nanocomposite 35 92
10 PLA 33 76
11 Shelf life 36 75
12 Biopolymer 26 67
13 Edible file 21 65
14 migration 27 61
15 Active food packaging 29 58
Open in a new tab

Fig. 6b shows the development of keywords based on the studies of active food packaging between 2000 and 2021. From 2005 to 2015, bioactive compounds in rosemary were actively investigated. The study examined publications between 2008 and 2020 that focused on food safety and the development of packaging that has the main function as an antimicrobial for food safety between 2010 and 2020. Meanwhile, active packaging was hotly discussed in 2014. Bioplastics, zeolites, and polysaccharides are still frequently discussed presently. This is in line with the replacement of polymers made from petroleum with those that have a more positive environmental effect. Therefore, natural biopolymers are a choice for food packaging materials because of their biodegradable qualities that address current environmental challenges [[62], [63], [64]]. Polysaccharides, which were derived from abundant renewable resources, such as starch, chitosan, alginate, and/or cellulose, have been studied extensively [[65], [66], [67], [68]]. This is in line with the results of Marzano-Barreda et al. [69] who said that food packaging made from cassava starch and biodegradable containing synthetic zeolite can increase the shelf life of fresh broccoli.

3.10. Application of active food packaging

Consumer preference for fresh and safe food products has led to the exploration of advanced techniques to maintain product quality and shelf life [70,71]. However, the highly perishable properties of the product due to microbial damage and high moisture content often limit its storage potential. To mitigate these issues, effective packaging approaches such as the utilization of active packaging have been developed to create barriers against gases, moisture, and microbes, increasing their shelf life [[72], [73], [74]]. Classifications of active packaging that can be applied to food products are illustrated in Fig. 7. The utilization of antioxidants and antimicrobials has emerged as a promising strategy in the food industry, commonly employed as active ingredients for the production of coatings and films [[75], [76], [77]].

Fig. 7.

Fig. 7

Open in a new tab

Active packaging classification and their main properties.

Numerous studies have indicated the potential of incorporating antioxidant and antimicrobial agents into food packaging to enhance the quality and safety of food products such as fruits, vegetables, meat, and other consumables. In this context, Table 6 summarizes the applications of active packaging in the form of films/coatings on various food types. For example, PVA-based films combined with grape seed flour as active substances were evaluated for raisin storage [78]. Another example is the application of alginate-based active packaging with the addition of aloe vera/garlic oil on fresh tomatoes [79]. Additionally, the effect of combining a chitosan/pectin/gelatin composite with metal nanoparticles/lemongrass essential oil as an active component on the quality of raspberries was also examined [80].

Table 6.

Application and function of bioactive components in active packaging and their effect on food products.

Biopolymers Active substances Plasticizer/additives Film/coating Application Effects Ref
Chitosan White turmeric 1% glycerol Film NA

  • White turmeric incorporated chitosan exhibited extensive antimicrobial and antioxidant properties; and excellent mechanical properties

 [76]
Gum arabic/cellulose nanocrystals Pomegranate peel extract/grape skin extract/red pitaya peel extract 3% (w/v) glycerol Film Raspberry

  • Incorporation pomegranate peel extract improved the flexibility and light resistance of films and effectively enhanced the antioxidant activities

 [81]
Carrageenan/agar Tea tree oil/zinc sulfide nanoparticles 1.2 g glycerol Film NA

  • The mechanical, thermal, and water vapor barrier properties of the binary composite films exhibited minimal changes and also showed moderate antimicrobial and antioxidant activity

 [82]
Nanochitosan Cuminum cyminum essential oil Glycerol Coating Sardine fillet fish

  • Coatings reduced lipid oxidation, microbial growth, and improved sensory attributes and had better effects on quality attributes of Sardine fillet fish.

 [77]
Polyvinyl alcohol (PVA) Grape seed flour 2% (w/v) citric acid Film Raisin

  • film contain higher levels of phenolic content and antioxidant activity values and film can act in the preservation of raisin

 [78]
gelatin/carrageenan Enoki mushroom-derived carbon dots NA Film NA

  • Improved physical and functional properties, and exhibited strong antioxidant activity of the film

 [83]
poly (butylene succinate) (PBS) Curcumin/carvacrol NA Film NA

  • Carvacrol showed higher influence on antimicrobial activity (E. coli.), whereas curcumin showed higher influence on the antioxidant properties of the films.

 [84]
Agarose/agaropectin Bacteriocin (cell-free extract) glycerol Film Curd Cheese

  • Incorporation of bacteriocin in film improved food barrier characteristics and contributed to the reduction of contamination of a food

 [85]
Polypropylene Layered double yydroxides (an-timicrobial sorbate anion) NA Coating Bread

  • Prolonged shelf life of bread with higher sensorial attributes up to 12 days of storage at ambient temperature.

 [86]
Chitosan Pomegranate peel extract 30% w/w glycerol Film NA

  • Improved the antioxidant and antimicrobial properties of the chitosan film

  • Film showed excellent ultraviolet–visible light barrier capacity

 [87]
Alginate Aloe vera/garlic oil 40% wt glycerol Coating Tomatoes

  • Improved barrier, UV-shielding, and antimicrobial properties of films

  • Extend shelf life of tomatoes

 [79]
poly (lactic acid) (PLA)/poly (butylene adipate terephthalate) (PBAT) Carvacrol essential oil 0%,2% and 5% carvacrol Film Bread/butter cake

  • Films with incorporation carvacrol showed delayed growth and sporulation of Penicillium sp. and Rhizopus sp

  • Carvacrol plasticized reducing relaxation temperature

 [88]
Carboxymethyl cellulose Satureja hortensis essential oil 50% v/w glycerol Coating NA

  • Incorporation essential oil of films displayed better water vapor barrier and lower solubility film presented good inhibition against the tested bacteria

 [89]
Chitosan/pectin/gelatin Metal nanoparticles/Lemongrass essential oil Glycerol Coating Raspberries

  • Prolonged the shelf life of raspberries from 4 to 8 days

  • The combination and synergistic effect of metal nanoparticles and lemongrass essential oil led to the best antimicrobial properties

 [80]
PBAT/PLA Carvacrol, citral and α-terpineol essential oils carvacrol, citral and α-terpineol essential oils Film Shrimp

  • Films containing EOs showed delayed microbial growth, reduced lipid oxidation and drip loss

 [75]
Starch Sunflower oils NA Coating NA

  • The thermal release of oil shows strong sensitivity of the release profiles towards the composition of encapsulated oil

 [90]
Open in a new tab

Edible films and coatings may improve the quality and extend the shelf life of various food products. This is due to their ability to inhibit lipid oxidation, prevent moisture loss, prevent discoloration, and inhibit contamination caused by bacteria, molds, and yeasts [71,91]. In addition, these coatings can trap volatile flavor compounds, thereby maintaining the sensory properties of the ingredients. Kang et al. [81] successfully maintained the quality and shelf life of raspberries by incorporating pomegranate peel extract/grape skin extract/red pitaya peel extract into gum Arabic-cellulose nanocrystal film-forming matrix, and the film with pomegranate peel extract showed the best effect on the preservation of raspberries. Sardine fillets coated with Cumino cyminum L. essential oil with nano chitosan base enabled the control of microbial agents on the surface of the samples and showed a significant reduction in the number of microbes compared with the uncoated ones, thus extending the shelf life by 16 days at 4 °C [77]. The incorporation of carvacrol essential oils into PLA films showed a delay in mold growth and sporulation of Penicillium sp. and Rhizopus sp. [88].

3.11. Challenges, future perspective, and limitation

Accumulating scientific evidence shows that active packaging is a very promising research topic that must be further explored. For several reasons, further research on active food packaging can contribute to the development of the food industry because active packaging can protect the product and maintain its freshness, providing a relatively long shelf life. Active packaging can be a trend for food science and technology, with its diverse applications in the future. To improve and develop this research trend, knowledge about the characteristics, properties, toxicity, and ability of active packaging is important to protect the packaged material that is more productive and efficient for future applications.

Given that food products are mostly perishable, packaging parameters are highly dependent on the specific product. Therefore, to achieve the optimum performance or capacity of the desired active packaging system, a product-tailored strategy should be applied. All contributing factors such as the physicochemical and physiological properties of the food, packaging size, storage conditions, and effect on the environment must be considered. Recent research trends, as indicated by keyword analysis, demonstrate a growing interest in investigating the application of natural polymers like polysaccharides and their derivatives in active packaging because they are easily degraded compared to conventional plastics, which has a positive impact on the environment. Thus, environmentally friendly active packaging (bioplastics) can contribute to 17 sustainable development goals for 2030. The implementation of active packaging systems on an industrial scale must also consider the cost of implementing the technology in line with the benefits derived from the product, and regulatory and legislative issues must be addressed while ensuring widespread consumer acceptance. Successful collaboration between research institutions and industry is required to overcome these challenges. Nonetheless, recent trends over the past 21 years as discussed in this review can provide scientists, the public, and packaging industry institutions with a better understanding of the potential and benefits of active packaging technologies, facilitating their large-scale commercialization.

Notwithstanding the contribution of this study, it has some limitations. When interpreting the results of the bibliometric analyses, the methodological limitations must be acknowledged. These limitations are inherent and cannot be completely avoided because of the absence of a perfect and all-encompassing search strategy. In addition, the search methodology employed is also subject to limitations. Specifically, only literature indexed in the Scopus database was used, which means that articles published in non-Scopus-indexed journals were not evaluated. Although Scopus is a widely trusted and comprehensive database for bibliometric analyses [24,25], these limitations should be taken into consideration. Potential future investigations could incorporate additional databases to verify the generalizability of our findings. Nonetheless, the majority of the records cataloged in prominent bibliographic databases such as Scopus and WoS exhibit dual-indexing within both databases [92]. Despite these limitations, the findings of this study can contribute to a valid discussion of the scientific literature on the topic of “application of active food packaging.”

4. Conclusion

Throughout the bibliometric study, the number of research articles on active food packaging has increased since 2000, which makes it a research area with outstanding scientific production. Based on the scientific mapping of global research on active packaging from 2000 to 2021, a total of 857 articles were found in the Scopus database, written by 2,941 authors from 58 countries. In terms of publication distribution by country, Spain had the highest number of published articles, with a large network of collaborations. In addition, the International Journal of Biological Macromolecules was the most relevant journal related to the subject with a total of 84 articles. A high collaboration network was also found between authors, with the strongest collaboration network between Spain, Italy, and the USA.

From a systematic analysis of research published over the past 21 years, several insights and future study directions on the application of active packaging in food packaging were identified. Based on recent term (keyword) trends in time, the concepts of antimicrobial packaging and biodegradability are currently frequently reviewed and discussed among researchers, for example, the use of environmentally friendly packaging (bioplastic) based on polysaccharides and nanoparticles (zeolite). These new terms may be developed or collaborated with other keywords to create breakthroughs in the future. However, further studies related to the manufacturing process and toxicity studies are still needed to ensure that the resulting packaging is considered safe for packaged food products. Based on this, the application of active food packaging shows a promising trend for researchers and the packaging industry in the future.

Author contribution statement

All authors listed have significantly contributed to the development and the writing of this article.

Data availability statement

Data will be made available on request.

Declaration of competing interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgment

I would like to express my gratitude and appreciation for Research Group for Post-Harvest Technology and Biotechnology (Respobio) member and GDLN Team whose support and encouragement have been invaluable throughout this study.

References

  • 1.Young E., Mirosa M., Bremer P. A systematic review of consumer perceptions of smart packaging technologies for food. Front. Sustain. Food Syst. 2020;4 https://www.frontiersin.org/articles/10.3389/fsufs.2020.00063 [Google Scholar]
  • 2.Bhowmik S., Agyei D., Ali A. Bioactive chitosan and essential oils in sustainable active food packaging: recent trends, mechanisms, and applications. Food Packag. Shelf Life. 2022;34 doi: 10.1016/j.fpsl.2022.100962. [DOI] [Google Scholar]
  • 3.Wang J., Euring M., Ostendorf K., Zhang K. Biobased materials for food packaging. J. Bioresour. Bioprod. 2022;7:1–13. doi: 10.1016/j.jobab.2021.11.004. [DOI] [Google Scholar]
  • 4.Qian M., Liu D., Zhang X., Yin Z., Ismail B.B., Ye X., Guo M. A review of active packaging in bakery products: applications and future trends. Trends Food Sci. Technol. 2021;114:459–471. doi: 10.1016/j.tifs.2021.06.009. [DOI] [Google Scholar]
  • 5.Dirpan A., Djalal M., Ainani A.F. A simple combination of active and intelligent packaging based on garlic extract and indicator solution in extending and monitoring the meat quality stored at cold temperature. Foods. 2022:11. doi: 10.3390/foods11101495. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 6.Mahmud J., Sarmast E., Shankar S., Lacroix M. Advantages of nanotechnology developments in active food packaging. Food Res. Int. 2022;154 doi: 10.1016/j.foodres.2022.111023. [DOI] [PubMed] [Google Scholar]
  • 7.Wyrwa J., Barska A. Innovations in the food packaging market: active packaging. Eur. Food Res. Technol. 2017;243:1681–1692. doi: 10.1007/s00217-017-2878-2. [DOI] [Google Scholar]
  • 8.Dey A., Neogi S. Oxygen scavengers for food packaging applications: a review. Trends Food Sci. Technol. 2019;90:26–34. doi: 10.1016/j.tifs.2019.05.013. [DOI] [Google Scholar]
  • 9.Murmu S.B., Mishra H.N. Selection of the best active modified atmosphere packaging with ethylene and moisture scavengers to maintain quality of guava during low-temperature storage. Food Chem. 2018;253:55–62. doi: 10.1016/j.foodchem.2018.01.134. [DOI] [PubMed] [Google Scholar]
  • 10.Sharma S., Barkauskaite S., Jaiswal A.K., Jaiswal S. Essential oils as additives in active food packaging. Food Chem. 2021;343 doi: 10.1016/j.foodchem.2020.128403. [DOI] [PubMed] [Google Scholar]
  • 11.Istiqomah A., Prasetyo W.E., Firdaus M., Kusumaningsih T. Valorisation of lemongrass essential oils onto chitosan-starch film for sustainable active packaging: greatly enhanced antibacterial and antioxidant activity. Int. J. Biol. Macromol. 2022;210:669–681. doi: 10.1016/j.ijbiomac.2022.04.223. [DOI] [PubMed] [Google Scholar]
  • 12.Kuai L., Liu F., Chiou B.-S., Avena-Bustillos R.J., McHugh T.H., Zhong F. Controlled release of antioxidants from active food packaging: a review. Food Hydrocolloids. 2021;120 doi: 10.1016/j.foodhyd.2021.106992. [DOI] [Google Scholar]
  • 13.Pandey S., Sharma K., Gundabala V. Antimicrobial bio-inspired active packaging materials for shelf life and safety development: a review. Food Biosci. 2022;48 doi: 10.1016/j.fbio.2022.101730. [DOI] [Google Scholar]
  • 14.Sisilia Yolanda D., Dirpan A., Nur Faidah Rahman A., Djalal M., Hatul Hidayat S. The potential combination of smart and active packaging in one packaging system in improving and maintaining the quality of fish. Canrea J. Food Technol. Nutr. Culin. J. 2020;3:74–86. doi: 10.20956/canrea.v3i2.357. [DOI] [Google Scholar]
  • 15.Soltani Firouz M., Mohi-Alden K., Omid M. A critical review on intelligent and active packaging in the food industry: research and development. Food Res. Int. 2021;141 doi: 10.1016/j.foodres.2021.110113. [DOI] [PubMed] [Google Scholar]
  • 16.de Melo A.M., Almeida F.L.C., Cavalcante A.M. de M., Ikeda M., Barbi R.C.T., Costa B.P., Ribani R.H. Garcinia brasiliensis fruits and its by-products: antioxidant activity, health effects and future food industry trends – a bibliometric review. Trends Food Sci. Technol. 2021;112:325–335. doi: 10.1016/j.tifs.2021.04.005. [DOI] [Google Scholar]
  • 17.Kamdem J.P., Duarte A.E., Lima K.R.R., Rocha J.B.T., Hassan W., Barros L.M., Roeder T., Tsopmo A. Research trends in food chemistry: a bibliometric review of its 40 years anniversary (1976–2016) Food Chem. 2019;294:448–457. doi: 10.1016/j.foodchem.2019.05.021. [DOI] [PubMed] [Google Scholar]
  • 18.Palechor-Trochez J.J., Ramírez-Gonzales G., Villada-Castillo H.S., Solanilla-Duque J.F. A review of trends in the development of bionanocomposites from lignocellulosic and polyacids biomolecules as packing material making alternative: a bibliometric analysis. Int. J. Biol. Macromol. 2021;192:832–868. doi: 10.1016/j.ijbiomac.2021.10.003. [DOI] [PubMed] [Google Scholar]
  • 19.Garrido-Romero M., Aguado R., Moral A., Brindley C., Ballesteros M. From traditional paper to nanocomposite films: analysis of global research into cellulose for food packaging. Food Packag. Shelf Life. 2022;31 doi: 10.1016/j.fpsl.2021.100788. [DOI] [Google Scholar]
  • 20.Vinicius Toniciolli Rigueto C., Rosseto M., Alessandretti I., de Oliveira R., Alexia Raber Wohlmuth D., Ferreira Menezes J., Aparecida Loss R., Dettmer A., Regina Pizzutti I. Gelatin films from wastes: a review of production, characterization, and application trends in food preservation and agriculture. Food Res. Int. 2022 doi: 10.1016/j.foodres.2022.112114. [DOI] [PubMed] [Google Scholar]
  • 21.Lebelo K., Masinde M., Malebo N., Mochane M.J. The surveillance and prediction of food contamination using intelligent systems: a bibliometric analysis. Br. Food J. 2022;124:1149–1169. doi: 10.1108/BFJ-04-2021-0366. [DOI] [Google Scholar]
  • 22.Rodríguez-Rojas A., Arango Ospina A., Rodríguez-Vélez P., Arana-Florez R. What is the new about food packaging material? A bibliometric review during 1996–2016. Trends Food Sci. Technol. 2019;85:252–261. doi: 10.1016/j.tifs.2019.01.016. [DOI] [Google Scholar]
  • 23.Assis T.I., Gonçalves R.F. Valorization of food waste by anaerobic digestion: a bibliometric and systematic review focusing on optimization. J. Environ. Manag. 2022;320 doi: 10.1016/j.jenvman.2022.115763. [DOI] [PubMed] [Google Scholar]
  • 24.Boukid F. Smart food packaging: an umbrella review of scientific publications. Coatings. 2022;12 doi: 10.3390/coatings12121949. [DOI] [Google Scholar]
  • 25.Sinha A., Priyadarshi P., Bhushan M., Debbarma D. Worldwide trends in the scientific production of literature on traceability in food safety: a bibliometric analysis. Artif. Intell. Agric. 2021;5:252–261. doi: 10.1016/j.aiia.2021.11.002. [DOI] [Google Scholar]
  • 26.Mongeon P., Paul-Hus A. The journal coverage of Web of Science and Scopus: a comparative analysis. Scientometrics. 2016;106:213–228. doi: 10.1007/s11192-015-1765-5. [DOI] [Google Scholar]
  • 27.Falagas M.E., Pitsouni E.I., Malietzis G.A., Pappas G. Comparison of PubMed, Scopus, Web of science, and Google scholar: strengths and weaknesses. Faseb. J. 2008;22:338–342. doi: 10.1096/fj.07-9492LSF. [DOI] [PubMed] [Google Scholar]
  • 28.Agnusdei G.P., Coluccia B. Sustainable agrifood supply chains: bibliometric, network and content analyses. Sci. Total Environ. 2022;824 doi: 10.1016/j.scitotenv.2022.153704. [DOI] [PubMed] [Google Scholar]
  • 29.Zhong M., Lin M. Bibliometric analysis for economy in COVID-19 pandemic. Heliyon. 2022;8 doi: 10.1016/j.heliyon.2022.e10757. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Djalal M., Wangdi J.T., Dirpan A., Bastian F., Latief R., Ainani A.F., Yolanda D.S. Traditional Indonesian food: a bibliometric review from 2013-2022. Canrea J. Food Technol. Nutr. Culin. J. 2022;5:172–182. doi: 10.20956/canrea.v5i2.736. [DOI] [Google Scholar]
  • 31.Ahmed M.W., Haque M.A., Mohibbullah M., Khan M.S.I., Islam M.A., Mondal M.H.T., Ahmmed R. A review on active packaging for quality and safety of foods: current trends, applications, prospects and challenges. Food Packag. Shelf Life. 2022;33 doi: 10.1016/j.fpsl.2022.100913. [DOI] [Google Scholar]
  • 32.Colom-Gorgues A. The challenges of organic production and marketing in Europe and Spain: innovative marketing for the future with quality and safe food products. J. Int. Food Agribus. Mark. 2009;21:166–190. doi: 10.1080/08974430802589675. [DOI] [Google Scholar]
  • 33.Arias-Aranda D., Romerosa-Martínez M.M. Innovation in the functional foods industry in a peripheral region of the European Union: andalusia (Spain) Food Pol. 2010;35:240–246. doi: 10.1016/j.foodpol.2009.12.008. [DOI] [Google Scholar]
  • 34.Pieniak Z., Verbeke W., Vanhonacker F., Guerrero L., Hersleth M. Association between traditional food consumption and motives for food choice in six European countries. Appetite. 2009;53:101–108. doi: 10.1016/j.appet.2009.05.019. [DOI] [PubMed] [Google Scholar]
  • 35.Jordana J. Traditional foods: challenges facing the European food industry. Food Res. Int. 2000;33:147–152. doi: 10.1016/S0963-9969(00)00028-4. [DOI] [Google Scholar]
  • 36.Marín I., Sayas-Barberá E., Viuda-Martos M., Navarro C., Sendra E. Chemical composition, antioxidant and antimicrobial activity of essential oils from organic fennel, parsley, and lavender from Spain. Foods. 2016;5 doi: 10.3390/foods5010018. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 37.Okaiyeto K., Ekundayo T.C., Okoh A.I. Global research trends on bioflocculant potentials in wastewater remediation from 1990 to 2019 using a bibliometric approach. Lett. Appl. Microbiol. 2020;71:567–579. doi: 10.1111/lam.13361. [DOI] [PubMed] [Google Scholar]
  • 38.Manso S., Cacho-Nerin F., Becerril R., Nerín C. Combined analytical and microbiological tools to study the effect on Aspergillus flavus of cinnamon essential oil contained in food packaging. Food Control. 2013;30:370–378. doi: 10.1016/j.foodcont.2012.07.018. [DOI] [Google Scholar]
  • 39.Moudache M., Nerín C., Colon M., Zaidi F. Antioxidant effect of an innovative active plastic film containing olive leaves extract on fresh pork meat and its evaluation by Raman spectroscopy. Food Chem. 2017;229:98–103. doi: 10.1016/j.foodchem.2017.02.023. [DOI] [PubMed] [Google Scholar]
  • 40.Ouahioune L.A., Wrona M., Nerín C., Djenane D. Novel active biopackaging incorporated with macerate of carob (Ceratonia siliqua L.) to extend shelf-life of stored Atlantic salmon fillets (Salmo salar L.) LWT. 2022;156 doi: 10.1016/j.lwt.2021.113015. [DOI] [Google Scholar]
  • 41.Manso S., Wrona M., Salafranca J., Nerín C., Alfonso M.J., Caballero M.Á. Evaluation of new antimicrobial materials incorporating ethyl lauroyl arginate or silver into different matrices, and their safety in use as potential packaging. Polymers. 2021;13:1–12. doi: 10.3390/polym13030355. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 42.Wrona M., Silva F., Salafranca J., Nerín C., Alfonso M.J., Caballero M.Á. Design of new natural antioxidant active packaging: screening flowsheet from pure essential oils and vegetable oils to ex vivo testing in meat samples. Food Control. 2021;120 doi: 10.1016/j.foodcont.2020.107536. [DOI] [Google Scholar]
  • 43.Heras-Mozos R., Muriel-Galet V., López-Carballo G., Catalá R., Hernández-Muñoz P., Gavara R. Development and optimization of antifungal packaging for sliced pan loaf based on garlic as active agent and bread aroma as aroma corrector. Int. J. Food Microbiol. 2019;290:42–48. doi: 10.1016/j.ijfoodmicro.2018.09.024. [DOI] [PubMed] [Google Scholar]
  • 44.Heras-Mozos R., Muriel-Galet V., López-Carballo G., Catalá R., Hernández-Muñoz P., Gavara R. Active EVOH/PE bag for sliced pan loaf based on garlic as antifungal agent and bread aroma as aroma corrector. Food Packag. Shelf Life. 2018;18:125–130. doi: 10.1016/j.fpsl.2018.10.007. [DOI] [PubMed] [Google Scholar]
  • 45.Kashiri M., Cerisuelo J.P., Domínguez I., López-Carballo G., Muriel-Gallet V., Gavara R., Hernández-Muñoz P. Zein films and coatings as carriers and release systems of Zataria multiflora Boiss. essential oil for antimicrobial food packaging. Food Hydrocolloids. 2017;70:260–268. doi: 10.1016/j.foodhyd.2017.02.021. [DOI] [Google Scholar]
  • 46.Mateo E.M., V Gómez J., Domínguez I., Gimeno-Adelantado J.V., Mateo-Castro R., Gavara R., Jiménez M. Impact of bioactive packaging systems based on EVOH films and essential oils in the control of aflatoxigenic fungi and aflatoxin production in maize. Int. J. Food Microbiol. 2017;254:36–46. doi: 10.1016/j.ijfoodmicro.2017.05.007. [DOI] [PubMed] [Google Scholar]
  • 47.Qin Y., Liu Y., Yuan L., Yong H., Liu J. Preparation and characterization of antioxidant, antimicrobial and pH-sensitive films based on chitosan, silver nanoparticles and purple corn extract. Food Hydrocolloids. 2019;96:102–111. doi: 10.1016/j.foodhyd.2019.05.017. [DOI] [Google Scholar]
  • 48.Zhang X., Liu Y., Yong H., Qin Y., Liu J., Liu J. Development of multifunctional food packaging films based on chitosan, TiO2 nanoparticles and anthocyanin-rich black plum peel extract. Food Hydrocolloids. 2019;94:80–92. doi: 10.1016/j.foodhyd.2019.03.009. [DOI] [Google Scholar]
  • 49.Qin Y., Liu Y., Yong H., Liu J., Zhang X., Liu J. Preparation and characterization of active and intelligent packaging films based on cassava starch and anthocyanins from Lycium ruthenicum Murr. Int. J. Biol. Macromol. 2019;134:80–90. doi: 10.1016/j.ijbiomac.2019.05.029. [DOI] [PubMed] [Google Scholar]
  • 50.Yun D., Wang Z., Li C., Chen D., Liu J. Antioxidant and antimicrobial packaging films developed based on the peel powder of different citrus fruits: a comparative study. Food Biosci. 2023;51 doi: 10.1016/j.fbio.2022.102319. [DOI] [Google Scholar]
  • 51.Yun D., Qin Y., Zhang J., Zhang M., Qian C., Liu J. Development of chitosan films incorporated with rambutan (Nephelium lappaceum L.) peel extract and their application in pork preservation. Int. J. Biol. Macromol. 2021;189:900–909. doi: 10.1016/j.ijbiomac.2021.08.171. [DOI] [PubMed] [Google Scholar]
  • 52.Appendini P., Hotchkiss J.H. Review of antimicrobial food packaging. Innovative Food Sci. Emerging Technol. 2002;3:113–126. doi: 10.1016/S1466-8564(02)00012-7. [DOI] [Google Scholar]
  • 53.Jamshidian M., Tehrany E.A., Imran M., Jacquot M., Desobry S. Poly-lactic acid: production, applications, nanocomposites, and release studies. Compr. Rev. Food Sci. Food Saf. 2010;9:552–571. doi: 10.1111/j.1541-4337.2010.00126.x. [DOI] [PubMed] [Google Scholar]
  • 54.Quintavalla S., Vicini L. Antimicrobial food packaging in meat industry. Meat Sci. 2002;62:373–380. doi: 10.1016/S0309-1740(02)00121-3. [DOI] [PubMed] [Google Scholar]
  • 55.Cha D.S.U., Chinnan M.S. Biopolymer-based antimicrobial packaging: a review. Crit. Rev. Food Sci. Nutr. 2004;44:223–237. doi: 10.1080/10408690490464276. [DOI] [PubMed] [Google Scholar]
  • 56.Seydim A.C., Sarikus G. Antimicrobial activity of whey protein based edible films incorporated with oregano, rosemary and garlic essential oils. Food Res. Int. 2006;39:639–644. doi: 10.1016/j.foodres.2006.01.013. [DOI] [Google Scholar]
  • 57.Azeredo H.M.C., Rosa M.F., Mattoso L.H.C. Nanocellulose in bio-based food packaging applications. Ind. Crops Prod. 2017;97:664–671. doi: 10.1016/j.indcrop.2016.03.013. [DOI] [Google Scholar]
  • 58.Mihindukulasuriya S.D.F., Lim L.-T. Nanotechnology development in food packaging: a review. Trends Food Sci. Technol. 2014;40:149–167. doi: 10.1016/j.tifs.2014.09.009. [DOI] [Google Scholar]
  • 59.Wang R.-L., Hsu T.-F., Hu C.-Z. A bibliometric study of research topics and sustainability of packaging in the greater China region. Sustainability. 2021;13 doi: 10.3390/su13105384. [DOI] [Google Scholar]
  • 60.Zhong Q., Wang L., Cui S. Urban food systems: a bibliometric review from 1991 to 2020. Foods. 2021;10 doi: 10.3390/foods10030662. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 61.Monteiro S.S., de Oliveira V.M., Pasquali M.A. Probiotics in citrus fruits products: health benefits and future trends for the production of functional foods - a bibliometric review. Foods. 2022;11 doi: 10.3390/foods11091299. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 62.Kabir E., Kaur R., Lee J., Kim K.-H., Kwon E.E. Prospects of biopolymer technology as an alternative option for non-degradable plastics and sustainable management of plastic wastes. J. Clean. Prod. 2020;258 doi: 10.1016/j.jclepro.2020.120536. [DOI] [Google Scholar]
  • 63.Shlush E., Davidovich-Pinhas M. Bioplastics for food packaging. Trends Food Sci. Technol. 2022;125:66–80. doi: 10.1016/j.tifs.2022.04.026. [DOI] [Google Scholar]
  • 64.Zhang L., Wang Z., Jiao Y., Wang Z., Tang X., Du Z., Zhang Z., Lu S., Qiao C., Cui J. Biodegradable packaging films with ε-polylysine/ZIF-L composites. LWT. 2022;166 doi: 10.1016/j.lwt.2022.113776. [DOI] [Google Scholar]
  • 65.Patanè C., Malvuccio A., Saita A., Rizzarelli P., Siracusa L., Rizzo V., Muratore G. Nutritional changes during storage in fresh-cut long storage tomato as affected by biocompostable polylactide and cellulose based packaging. LWT. 2019;101:618–624. doi: 10.1016/j.lwt.2018.11.069. [DOI] [Google Scholar]
  • 66.Dharini V., Periyar Selvam S., Jayaramudu J., Sadiku Emmanuel R. Functional properties of clay nanofillers used in the biopolymer-based composite films for active food packaging applications - review. Appl. Clay Sci. 2022;226 doi: 10.1016/j.clay.2022.106555. [DOI] [Google Scholar]
  • 67.Zhu W., Zhang D., Liu X., Ma T., He J., Dong Q., Din Z., Zhou J., Chen L., Hu Z., Cai J. Improving the hydrophobicity and mechanical properties of starch nanofibrous films by electrospinning and cross-linking for food packaging applications. LWT. 2022;169 doi: 10.1016/j.lwt.2022.114005. [DOI] [Google Scholar]
  • 68.Shahbazi Y., Shavisi N., Karami N., Lorestani R., Dabirian F. Electrospun carboxymethyl cellulose-gelatin nanofibrous films encapsulated with Mentha longifolia L. essential oil for active packaging of peeled giant freshwater prawn. LWT. 2021;152 doi: 10.1016/j.lwt.2021.112322. [DOI] [Google Scholar]
  • 69.Marzano-Barreda L.A., Yamashita F., Bilck A.P. Effect of biodegradable active packaging with zeolites on fresh broccoli florets. J. Food Sci. Technol. 2021;58:197–204. doi: 10.1007/s13197-020-04529-9. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 70.Flores-López M.L., Cerqueira M.A., de Rodríguez D.J., Vicente A.A. Perspectives on utilization of edible coatings and nano-laminate coatings for extension of postharvest storage of fruits and vegetables. Food Eng. Rev. 2016;8:292–305. doi: 10.1007/s12393-015-9135-x. [DOI] [Google Scholar]
  • 71.Yildirim S., Röcker B., Pettersen M.K., Nilsen-Nygaard J., Ayhan Z., Rutkaite R., Radusin T., Suminska P., Marcos B., Coma V. Active packaging applications for food. Compr. Rev. Food Sci. Food Saf. 2018;17:165–199. doi: 10.1111/1541-4337.12322. [DOI] [PubMed] [Google Scholar]
  • 72.Umaraw P., Munekata P.E.S., Verma A.K., Barba F.J., Singh V.P., Kumar P., Lorenzo J.M. Edible films/coating with tailored properties for active packaging of meat, fish and derived products. Trends Food Sci. Technol. 2020;98:10–24. doi: 10.1016/j.tifs.2020.01.032. [DOI] [Google Scholar]
  • 73.Atarés L., Chiralt A. Essential oils as additives in biodegradable films and coatings for active food packaging. Trends Food Sci. Technol. 2016;48:51–62. doi: 10.1016/j.tifs.2015.12.001. [DOI] [Google Scholar]
  • 74.Alizadeh-Sani M., Mohammadian E., McClements D.J. Eco-friendly active packaging consisting of nanostructured biopolymer matrix reinforced with TiO2 and essential oil: application for preservation of refrigerated meat. Food Chem. 2020;322 doi: 10.1016/j.foodchem.2020.126782. [DOI] [PubMed] [Google Scholar]
  • 75.Laorenza Y., Harnkarnsujarit N. Carvacrol, citral and α-terpineol essential oil incorporated biodegradable films for functional active packaging of Pacific white shrimp. Food Chem. 2021;363 doi: 10.1016/j.foodchem.2021.130252. [DOI] [PubMed] [Google Scholar]
  • 76.Hiremani V.D., Khanapure S., Gasti T., Goudar N., Vootla S.K., Masti S.P., Malabadi R.B., Mudigoudra B.S., Chougale R.B. Preparation and physicochemical assessment of bioactive films based on chitosan and starchy powder of white turmeric rhizomes (Curcuma Zedoaria) for green packaging applications. Int. J. Biol. Macromol. 2021;193:2192–2201. doi: 10.1016/j.ijbiomac.2021.11.050. [DOI] [PubMed] [Google Scholar]
  • 77.Homayonpour P., Jalali H., Shariatifar N., Amanlou M. Effects of nano-chitosan coatings incorporating with free/nano-encapsulated cumin (Cuminum cyminum L.) essential oil on quality characteristics of sardine fillet. Int. J. Food Microbiol. 2021;341 doi: 10.1016/j.ijfoodmicro.2021.109047. [DOI] [PubMed] [Google Scholar]
  • 78.Miglioranza B.M.G., Spinelli F.R., Stoffel F., Piemolini-Barreto L.T. Biodegradable film for raisins packaging application: evaluation of physico-chemical characteristics and antioxidant potential. Food Chem. 2021;365 doi: 10.1016/j.foodchem.2021.130538. [DOI] [PubMed] [Google Scholar]
  • 79.Abdel Aziz M.S., Salama H.E. Developing multifunctional edible coatings based on alginate for active food packaging. Int. J. Biol. Macromol. 2021;190:837–844. doi: 10.1016/j.ijbiomac.2021.09.031. [DOI] [PubMed] [Google Scholar]
  • 80.Jovanović J., Ćirković J., Radojković A., Mutavdžić D., Tanasijević G., Joksimović K., Bakić G., Branković G., Branković Z. Chitosan and pectin-based films and coatings with active components for application in antimicrobial food packaging. Prog. Org. Coating. 2021;158 doi: 10.1016/j.porgcoat.2021.106349. [DOI] [Google Scholar]
  • 81.Kang S., Xiao Y., Wang K., Cui M., Chen D., Guan D., Luan G., Xu H. Development and evaluation of gum Arabic-based antioxidant nanocomposite films incorporated with cellulose nanocrystals and fruit peel extracts. Food Packag. Shelf Life. 2021;30 doi: 10.1016/j.fpsl.2021.100768. [DOI] [Google Scholar]
  • 82.Roy S., Rhim J.-W. Carrageenan/agar-based functional film integrated with zinc sulfide nanoparticles and Pickering emulsion of tea tree essential oil for active packaging applications. Int. J. Biol. Macromol. 2021;193:2038–2046. doi: 10.1016/j.ijbiomac.2021.11.035. [DOI] [PubMed] [Google Scholar]
  • 83.Roy S., Ezati P., Rhim J.-W. Gelatin/carrageenan-based functional films with carbon dots from enoki mushroom for active food packaging applications. ACS Appl. Polym. Mater. 2021;3:6437–6445. [Google Scholar]
  • 84.Łopusiewicz Ł., Macieja S., Bartkowiak A., El Fray M. Antimicrobial, antibiofilm, and antioxidant activity of functional poly(butylene succinate) films modified with curcumin and carvacrol. Materials. 2021;14 doi: 10.3390/ma14247882. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 85.Contessa C.R., de Souza N.B., Gonçalo G.B., de Moura C.M., da Rosa G.S., Moraes C.C. Development of active packaging based on agar-agar incorporated with Bacteriocin of lactobacillus sakei. Biomolecules. 2021;11 doi: 10.3390/biom11121869. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 86.Viscusi G., Bugatti V., Vittoria V., Gorrasi G. Antimicrobial sorbate anchored to layered double hydroxide (LDH) nano-carrier employed as active coating on Polypropylene (PP) packaging: application to bread stored at ambient temperature. Fut. Foods. 2021;4 doi: 10.1016/j.fufo.2021.100063. [DOI] [Google Scholar]
  • 87.Zeng J., Ren X., Zhu S., Gao Y. Fabrication and characterization of an economical active packaging film based on chitosan incorporated with pomegranate peel. Int. J. Biol. Macromol. 2021;192:1160–1168. doi: 10.1016/j.ijbiomac.2021.10.064. [DOI] [PubMed] [Google Scholar]
  • 88.Klinmalai P., Srisa A., Laorenza Y., Katekhong W., Harnkarnsujarit N. Antifungal and plasticization effects of carvacrol in biodegradable poly(lactic acid) and poly(butylene adipate terephthalate) blend films for bakery packaging. LWT. 2021;152 doi: 10.1016/j.lwt.2021.112356. [DOI] [Google Scholar]
  • 89.Honarvar Z., Farhoodi M., Khani M.R., Mohammadi A., Shokri B., Jannatiha N., Shojaee-Aliabadi S. Antimicrobial and physicochemical properties of plasma treated bio-coating polypropylene films containing satureja hortensis essential oil, Iran. J. Chem. Chem. Eng. 2021;40:1216–1228. doi: 10.30492/ijcce.2020.43324. [DOI] [Google Scholar]
  • 90.Samyn P. Active barrier coating for packaging paper with controlled release of sunflower oils. Molecules. 2021;26 doi: 10.3390/molecules26123561. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 91.Dirpan A., Djalal M., Kamaruddin I. Application of an intelligent sensor and active packaging system based on the bacterial cellulose of acetobacter xylinum to meat products. Sensors. 2022;22 doi: 10.3390/s22020544. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 92.Mostafa M.M. Trends in Food Science & Technology A knowledge domain visualization review of thirty years of halal food research : themes , trends and knowledge structure. Trends Food Sci. Technol. 2020;99:660–677. doi: 10.1016/j.tifs.2020.03.022. [DOI] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Data Availability Statement

Data will be made available on request.

Articles from Heliyon are provided here courtesy of Elsevier

RESOURCES
