Different conformational dynamics of SNARE protein Ykt6 among yeast and mammals

Abstract

Ykt6 is one of the most conserved SNARE (N-ethylmaleimide-sensitive factor attachment protein receptor) proteins involved in multiple intracellular membrane trafficking processes. The membrane-anchoring function of Ykt6 has been elucidated to result from its conformational transition from a closed state to an open state. Two ways of regulating the conformational transition were proposed: the C-terminal lipidation and the phosphorylation at the SNARE core. Despite many aspects of common properties, Ykt6 displays differential cellular localizations and functional behaviors in different species, such as yeast, mammals, and worms. The structure–function relationship underlying these differences remains elusive. Here, we combined biochemical characterization, single-molecule FRET measurement, and molecular dynamics simulation to compare the conformational dynamics of yeast and rat Ykt6. Compared to rat Ykt6 (rYkt6), yeast Ykt6 (yYkt6) has more open conformations and could not bind dodecylphosphocholine that inhibits rYkt6 in the closed state. A point mutation T46L/Q57A was shown to be able to convert yYkt6 to a more closed and dodecylphosphocholine-bound state, where Leu46 contributes key hydrophobic interactions for the closed state. We also demonstrated that the phospho-mutation S174D could shift the conformation of rYkt6 to a more open state, but the corresponding mutation S176D in yYkt6 leads to a slightly more closed conformation. These observations shed light on the regulatory mechanism underlying the variations of Ykt6 functions across species.

The N-ethylmaleimide-sensitive factor attachment protein receptor (SNARE) proteins are involved in the fusion of vesicles with their target membranes (1, 2). It plays an important role in the normal growth of cells and intracellular signal transduction such as the synthesis and transport of biological molecules within the cell (3). During the docking process of the vesicle and the target membrane, one SNARE protein located on the vesicle membrane will assemble with three homologous complementary SNARE proteins on the target membrane to form a zipper-like SNARE complex, which mediates the fusion of the membrane (4). The central layer (the "0" layer) of the four-helix bundle of the SNARE complex consists of three polar amino acids (glutamine Q) and one positively charged amino acid (arginine R), so SNAREs are classified as R-SNAREs and Q-SNAREs (5). Generally, R-SNAREs act in conjunction with the vesicle, and therefore are also referred to as v-SNAREs, which are incorporated into the membranes of transport vesicles during the initiation of membrane fusion. Q-SNAREs are generally associated with the target membrane, so they are also called t-SNAREs (6).

Ykt6 is one of the most conserved R-SNAREs in eukaryotes (7). It is composed of three domains: an N-terminal longin domain, a conserved central 60 to 70 amino acid ‘‘SNARE core’’ that mediates the self-assembly of the four-helix-bundle SNARE core complex, and a C-terminal “CCXIM” motif (8). It is generally believed that mammalian Ykt6 protein function is regulated by two lipid modifications, that is, the palmitoylation/geranylgeranylation at the first cysteine and the farnesylation at the second cysteine of the “CCAIM” motif (9). Farnesylation of Cys195 in mammalian Ykt6 is irreversible, while the palmitoylation is reversible and responsible for the conformational transition from the closed (inactive) to the open (active) state (10, 11). Previous studies claimed that the soluble inactive self-inhibited conformation of mammalian Ykt6 is stabilized by the farnesyl group sandwiched between the SNARE and the longin domains (12). Dodecylphosphocholine (DPC) is found to be a good surrogate for the farnesyl group of rYkt6 in vitro (13). After binding with DPC, the core of rYkt6 SNARE forms four helices wrapping around the longin domain, and the whole protein is in a closed conformation (13, 14). The structure of rYkt6/DPC complex (Protein Data Bank-ID: 3KYQ) is considered to mimic the farnesylated closed form of Ykt6 (13). Besides the lipidation, it was recently found that the conformation of Ykt6 could also be regulated by phosphorylation (15, 16, 17). Phosphorylation at the evolutionarily conserved site S174 in human Ykt6 (hYkt6) drives the conversion from a closed cytosolic to an open membrane-bound state (17). In yeast, Ykt6 is directly phosphorylated by Atg1 kinase at the T158, S182, and S183 sites, leaving yYkt6 in an inactive state preventing the formation of the SNARE complex and premature autophagosome-vesicle fusion (16).

Although Ykt6 is highly conserved in sequence (Fig. 1A), functional differences have been reported among different species. In yeast, a majority of yYkt6 are membrane-localized through the lipid groups on the “CCIIM” motif (18, 19), while the mammalian Ykt6 is almost uniformly distributed throughout the cytoplasm and often extends into larger neurites (17, 20). Recent study of the regulatory role of phosphorylation on Ykt6 showed that the phospho-mutations yielded different effects in yeast versus dopaminergic neurons in Caenorhabditis elegans (17). To explore the molecular mechanism of the functional differences of Ykt6 across yeast to mammals, we investigated the conformational dynamics of yYkt6 and compared it with rYkt6.

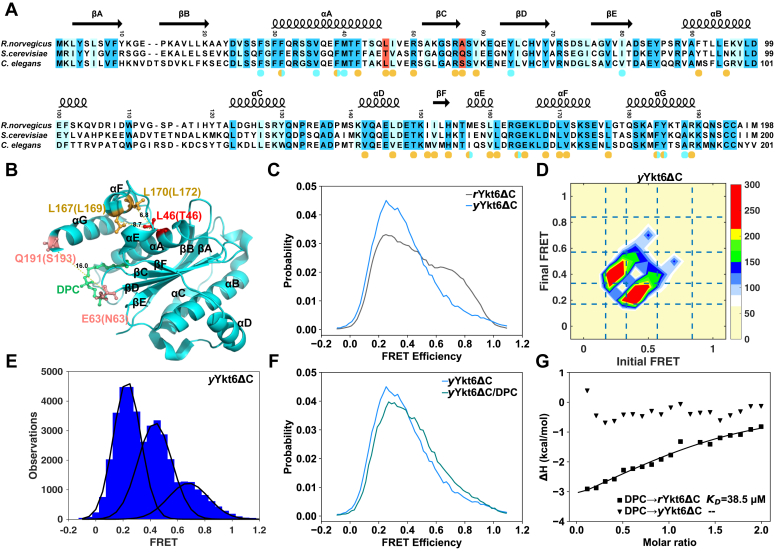

Figure 1.

yYkt6ΔC adopts more open conformation than rYkt6ΔC.A, sequence alignment of yYkt6, rYkt6, and Caenorhabditis elegans Ykt6 with secondary structure elements based on the crystal structure of rYkt6 (3KYQ). Residues 46 and 57 (48 and 59 in C. elegans) are highlighted in red. The completely conserved residues are highlighted in blue, and the highly conserved residues in light blue. Residues involved in the longin/SNARE core interactions are indicated with orange circles. Residues involved in DPC/farnesyl group binding are indicated with cyan circles. B, structure diagram of rYkt6 showing the positions of labeled fluorescence dyes (dark pink). DPC is highlighted in green. The key hydrophobic amino acids are highlighted in dark yellow or red. The numbers in parentheses denote the corresponding residues in yYkt6. The yellow dashed line represents the inter-residue distances (d_63-191, d_46-167, and d_46-170). C, FRET efficiency distribution profiles of rYkt6ΔC (gray) and yYkt6ΔC (blue). D, TDP compiles all the transitions from the initial to the final FRET efficiency of yYkt6ΔC system indicating three major conformational states. E, FRET efficiency histogram of yYkt6ΔC based on HMM analysis. F, FRET efficiency distribution profiles of Ykt6ΔC (blue), yYkt6ΔC/DPC (teal). G, ITC measurements of the interaction between DPC and yYkt6ΔC/rYkt6ΔC. DPC, dodecylphosphocholine; HMM, hidden Markov model; ITC, isothermal titration calorimetry; TDP, transition density map.

We previously reported the conformational dynamics of rYkt6 in detail, revealing that DPC binding shifts the structure to a more closed state (14). In this work, we examined the conformational dynamics of yYkt6 through single-molecule Förster resonance energy transfer (smFRET) measurements and compared the conformational difference between yYkt6 and rYkt6, finding that yYkt6 adopts more open conformations than rYkt6 does and could not bind to DPC. The conformation equilibrium of yYkt6 could be shifted to the closed state by point mutation T46L/Q57A, which also enables DPC binding. The effects of phospho-mutations at the conserved sites S174/S176 of rYkt6/yYkt6 on their conformations were also explored.

Results

Yeast Ykt6 adopts a more open conformation than rat Ykt6

We employed smFRET to explore the conformational dynamics of yYkt6ΔC (yYkt6 without the “CCIIM” motif, residues 1–195). A pair of cysteine residues was introduced at Asn63 and Ser193 by mutations, while the native Cys76 was mutated to serine (Fig. 1B). Purified yYkt6ΔC-N63C/C76S/S193C showed a similar elution profile on size-exclusion chromatography (SEC) to that of the WT yYkt6ΔC (Fig. S1). Then, we performed smFRET measurements of dye-labeled yYkt6ΔC on a laboratory-built setup (see Experimental procedures for more details). The typical lifetime of the dye attached to yYkt6ΔC is about 20 s and the longest trajectory is about 50 s (Fig. S2A). The FRET efficiency distribution is broad and could not be fitted with one single Gaussian (Fig. 1C). In comparison with rYkt6ΔC (14), yYkt6ΔC exhibits a relatively open conformational distribution with a high proportion of low FRET efficiency (Fig. 1C). The trajectories exhibited multiple distinct levels of FRET efficiency, suggesting conformational transitions in yYkt6ΔC (Fig. S2A). To determine the number of conformational states, we performed a hidden Markov model (HMM) analysis of the smFRET trajectories using the vbFRET method (21). The optimal number of states was determined to be three (Fig. S2B). The three conformational states from open to closed state were named as E1, E2, and E3. The transition density map (the initial and final HMM FRET efficiency of each transition) shows that the transition probability between E1 and E2 is remarkably higher than that of the E2 ↔ E3 transition, while direct transition between E1 and E3 was hardly observed (Fig. 1D). The threshold algorithm based on HMM analysis revealed that the most probable FRET efficiencies and the state populations of E1, E2, and E3 of yYkt6ΔC are 0.20, 0.42, 0.68 and 50.7%, 39.7%, 10.2%, respectively (Table S1). The E1 state with FRET efficiency of 0.20 accounts for the majority of the population, and there is no state with the most probable FRET efficiency higher than 0.7 (Fig. 1E). In comparison, rYkt6ΔC adopts five conformational states (E1, E2, E3, E4, and E5) with FRET efficiencies of 0.20, 0.35, 0.48, 0.64, 0.79 and populations of 31.4%, 19.8%, 19.3%, 16.2%, and 13.3%, respectively (Table S1) (14). Obviously, the conformation of yYkt6ΔC was more open than rYkt6ΔC.

Although yYkt6ΔC generally adopts more open conformations than rYkt6ΔC does, the C-terminal lipidation may regulate the conformational distribution. To examine the effect of lipid groups, we employed DPC as farnesyl group mimics (13). Comparison of the FRET efficiency distributions of yYkt6ΔC in the presence and absence of DPC demonstrates that the distribution is only slightly affected by addition of 2 mM DPC (Fig. 1F). This is in contrast to the case of rYkt6ΔC, where DPC significantly shifted the FRET efficiency distribution toward the higher values (14). We then examined the interaction between yYkt6ΔC and DPC by isothermal titration calorimetry (ITC) measurements. It turns out that DPC could not bind to yYkt6ΔC (Fig. 1G). In comparison, DPC binds rYkt6ΔC with a K_D of 38.5 μM (Fig. 1G). Therefore, yYkt6ΔC has a more open conformation than rYkt6ΔC, and the C-terminal lipid group might not be able to regulate its conformation effectively.

Mutations at the longin-SNARE interface lead to more closed conformation of yYkt6ΔC

According to the crystal structure of rYkt6ΔC/DPC complex (13), the DPC-binding pocket is located at the interface of the longin domain and the SNARE core (Fig. 1B). Therefore, we speculated that some key residues at this interface may determine the conformational distribution of Ykt6, as well as the DPC binding affinity. We generated several mutations at the interface and found that a double mutation T46L/Q57A of yYkt6ΔC could greatly enhance the binding of DPC to yYkt6ΔC with a K_D of 33.3 μM, similar to that between DPC and rYkt6ΔC (Figs. 2A and 1G).

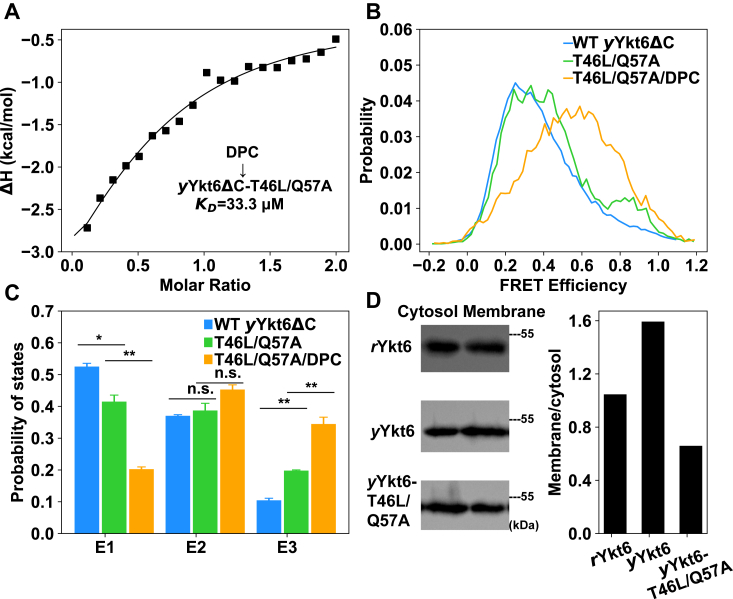

Figure 2.

Point mutations lead to more closed conformation and DPC binding ability of yYkt6.A, ITC measurements of the interaction between DPC and yYkt6ΔC-T46L/Q57A mutant. B, FRET efficiency distribution profiles of WT yYkt6ΔC (blue), T46L/Q57A mutant (green), and T46L/Q57A/DPC (orange) systems. C, comparison of the populations of conformational states of WT yYkt6ΔC (blue), T46L/Q57A mutant (green), and T46L/Q57A/DPC systems (orange). Significance was determined by the two-tailed t test. ∗p < 0.05, ∗∗p < 0.01. D, fractionations of subcellular localizations of WT rYkt6, WT yYkt6, and yYkt6-T46L/Q57A mutant. The membrane/cytosolic ratios of WT Ykt6 and mutant were quantified. DPC, dodecylphosphocholine; ITC, isothermal titration calorimetry.

The smFRET measurements showed that the FRET efficiency distribution of yYkt6ΔC-T46L/Q57A mutant was shifted to higher values with respect to WT yYkt6ΔC, suggesting that the mutant adopts more closed conformations (Fig. 2B). The HMM analysis revealed that the population of the most closed state E3 in T46L/Q57A mutant increased and the population of the E1 state decreased (Fig. 2C). Moreover, the T46L/Q57A mutant showed a larger elution volume than WT on SEC, suggesting a more compact conformation of the mutant (Fig. S3). Then, we examined the effect of DPC binding on the conformational distribution of the T46L/Q57A mutant. As expected, addition of DPC shifted the FRET efficiency distribution of yYkt6ΔC-T46L/Q57A to higher values (Figs. 2, B and C and S4, Table S2), indicating that DPC could further shift the conformation of yYkt6ΔC-T46L/Q57A to more closed states. Altogether, these results demonstrated that enhancing the interaction between the longin domain and the SNARE core of yYkt6 could shift its conformation to a more closed state and empower it to bind DPC.

Different cellular localizations of yYkt6, yYkt6-T46L/Q57A, and rYkt6

In order to examine the relevance of protein conformations and cellular localizations, we expressed GFP-tagged full-length yYkt6, yYkt6-T46L/Q57A, and rYkt6 in 293T cells or HeLa cells. It turns out that WT yYkt6 is mainly localized at the perinuclear regions, which have been suggested to be the Golgi apparatus and punctuate organelle membranes (19) (Fig. S5). This localization is consistent with the above in vitro experiments, which indicated a relatively open conformation of yYkt6 and the inability of lipids to restrain the conformation in a closed state. On the other hand, both rYkt6 and yYkt6-T46L/Q57A mutant showed a diffused pattern of localization throughout the cytosol and nucleus (Figs. 2D and S5), indicating a more compact and closed autoinhibitory conformation. Overall, these results suggest that the distinct conformational distributions of yYkt6, yYkt6-T46L/Q57A, and rYkt6 revealed by the in vitro experiments are directly related to their cellular localizations, suggesting that there might be functional differences of Ykt6 in rats and yeast.

Molecular dynamics simulations revealed details that determine the conformational states

In order to explore the molecular details that determine the conformational states of Ykt6, we performed constant-velocity steered molecular dynamics (SMD) simulations to monitor the closed-to-open conformational transitions of rYkt6, yYkt6, and yYkt6-T46L/Q57A systems (see Experimental procedures for details). The whole SNARE core was pulled away with the constant-velocity mode SMD implemented in the simulation package NAMD (https://www.ks.uiuc.edu/Research/namd/), in which we fixed atoms of the longin domain (rYkt6 residue 1–131, yYkt6 residue 1–133), and pulled atoms of SNARE (rYkt6 residue 132–198, yYkt6 residue 134–200) along the vector from the centroid of the longin domain toward the centroid of the SNARE core at a constant velocity (22). In all the three systems, the steer forces increased almost linearly from the beginning of the simulations and dropped abruptly to near zero between 10 and 15 ns (Figs. 3A and S6). Around this critical turning point of steer force, the SNARE core domain dissociated from the longin domain and the initially compact conformation of Ykt6 turned into a relatively open state (Fig. 3A). On average, the turning points of the steer forces in rYkt6 and yYkt6-T46L/Q57A systems appeared later than that in yYkt6 (Fig. 3B), suggesting that the interactions between the longin and the SNARE core are stronger in rYkt6 and yYkt6-T46L/Q57A systems. This observation is consistent with the above experimental results.

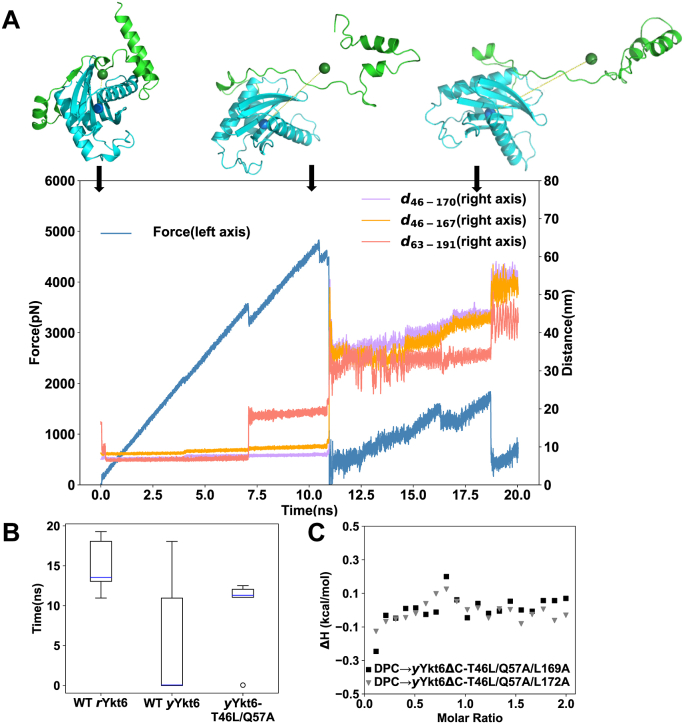

Figure 3.

The hydrophobic contacts between αF and L46 are crucial for the closed conformation and DPC binding.A, time variations of SMD force and the inter-residue distances d_46-170, d_46-167, and d_63-191 in WT rYkt6 system. Three structures representing the beginning point, turning point, and end point along the SMD trajectory are shown (green for the SNARE core, blue for the longin domain). The fixed (blue) and pulling (green) centers are shown as spheres, and connected with a yellow dashed line. B, statistics of the times of the critical turning points in WT rYkt6, WT yYkt6, and yYkt6-T46L/Q57A mutant systems. C, ITC measurements of binding between DPC and yYkt6ΔC-T46L/Q57A/L169A or yYkt6ΔC-T46L/Q57A/L172A. DPC, dodecylphosphocholine; ITC, isothermal titration calorimetry; SMD, steered molecular dynamics.

According to the crystal structure of rYkt6/DPC complex (13), the compact conformation of rYkt6 is maintained by the interactions among fragments including αA (residue 30–50), αF (residue 169–175), αG (residue 181–192), βC (residue 54–60), and βF (residue 153–158) (Fig. 1B). In order to identify the key interactions that determine the compact conformation, we examined various inter-residue distances among these fragments along the SMD trajectories, and identified two inter-residue distances, d_46-170 (d_46-172 in yYkt6) and d_46-167 (d_46-169 in yYkt6) that exhibit synchronous abrupt changes at the critical turning point of the steer force (Figs. 3A and 1B). This is in line with the mutagenesis results showing that L46 is of crucial importance.

We also examined the distance between the two fluorophore-labeled residues, that is, d_63-191 (d_63-193 in yYkt6) and found that it generally synchronized with the variations of the steer force (Figs. 3A and 1B). Before the critical turning point, the steer force exhibited a small drop around 7 ns in most of the trajectories (Figs. 3A and S6). This corresponds to the first surge of d_63-191 (d_63-193 in yYkt6), indicating the dissociation of the αG helix from the longin domain (Fig. 3A). In the second stage, the steer force dropped to zero and d_46-170 and d_46-167 (d_46-172, d_46-169 in yYkt6) surged abruptly, indicating the dissociation of the αF helix from the longin domain (Fig. 3A). This feature of the steer force profile suggests that the dissociation of the αF helix is the rate-limiting step of the conformation opening process. The hydrophobic residues, such as L167 and L170 on αF, might also be important for the binding between the SNARE core and the longin domain. In the third stage, SMD force still accumulated gradually, which could be attributed to the stable interactions between βC and βF strands.

To verify the role of L167/L170 (L169/L172 in yeast) observed in the SMD simulations, we mutated these two residues to Ala or Glu in rYkt6 and yYkt6ΔC-T46L/Q57A mutant. ITC measurements showed that these mutations disrupt the binding with DPC (Figs. 3C and S7), indicating the importance of these hydrophobic residues on αF.

Comparison of the role of phosphorylation in the conformational dynamics of rYkt6ΔC and yYkt6ΔC

It was recently reported that an evolutionarily conserved residue in the SNARE core of Ykt6 (S174 in rYkt6 and S176 in yYkt6) could be phosphorylated, and the phosphorylation triggers the conformation to a more open state (17). As we have found the different conformational distributions between rYkt6ΔC and yYkt6ΔC, the next question is how phosphorylation of S174/S176 affects the conformational states of rYkt6ΔC and yYkt6ΔC, respectively. We first performed smFRET measurements to examine the conformational changes upon phospho-mutations. Comparison of the measurements of WT rYkt6ΔC and rYkt6ΔC-S174D showed that the S174D mutation slightly shifts the FRET efficiency distribution toward the lower values (Fig. 4, A and B). The population of the E5 state (the most closed one) decreased with respect to WT rYkt6ΔC (Fig. 4B). Moreover, addition of DPC hardly disturbed the FRET efficiency distribution of rYkt6ΔC-S174D (Fig. S8). In line with this, ITC experiments showed that DPC could not bind to rYkt6ΔC-S174D mutant, while it binds to WT rYkt6ΔC with a K_D of 38.5 μM (Figs. 4C and 1F). Therefore, the phospho-mutation S174D slightly shifts the conformations of rYkt6ΔC to a more open state and disrupts the binding of DPC.

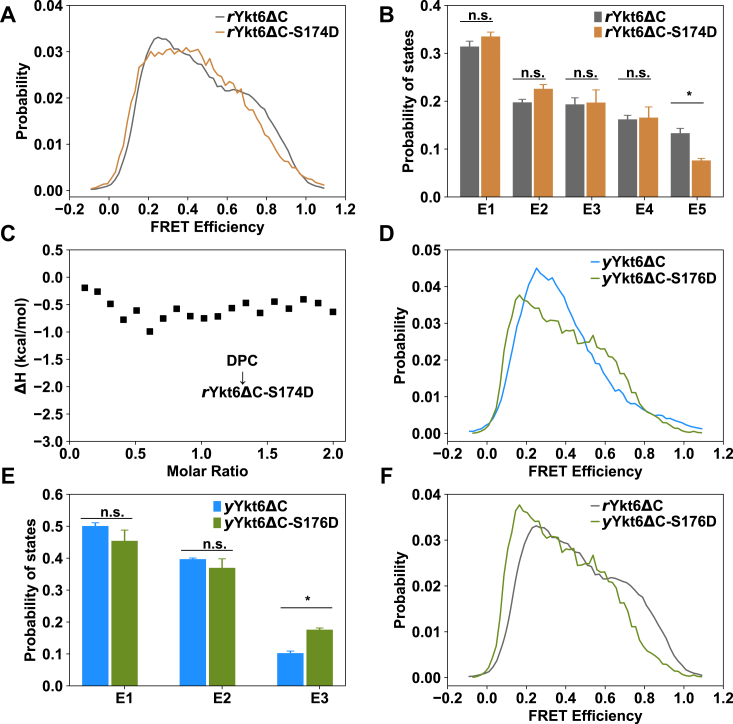

Figure 4.

The effect of phospho-mutations on the conformations of Ykt6ΔC.A, FRET efficiency distribution profiles of rYkt6ΔC (gray) and rYkt6ΔC-S174D (brown) systems. B, comparison of the distribution ratios of conformational states of rYkt6ΔC (gray) and rYkt6ΔC-S174D (brown). C, ITC measurement of the interaction between DPC and rYkt6ΔC-S174D. D, FRET efficiency distribution profiles of yYkt6ΔC (blue) and yYkt6ΔC-S176D (olive drab). E, comparison of the population ratios of the conformational states of yYkt6ΔC (blue) and yYkt6ΔC-S176D (olive drab). F, FRET efficiency distribution profiles of WT rYkt6ΔC (dim gray) and yYkt6ΔC-S176D (olive drab). Significance was determined by the two-tailed t test. ∗p < 0.05, ∗∗p < 0.01. DPC, dodecylphosphocholine; ITC, isothermal titration calorimetry.

We also compared the smFRET measurements of WT yYkt6ΔC and yYkt6ΔC-S176D. It is surprising that S176D slightly shifts the FRET distribution to higher values and the proportion of the closed conformation E3 increased (Fig. 4, D and E). As mentioned above, WT yYkt6ΔC could not bind DPC, and here ITC measurements showed that the phospho-mutant yYkt6ΔC-S176D could not bind DPC either (Fig. S9). By comparing the smFRET results of yYkt6ΔC-S176D and rYkt6ΔC, we could find that the conformation of yYkt6ΔC-S176D is still much more open than that of rYkt6ΔC (Fig. 4F). This is in line with the ITC experiment that DPC could not bind yYkt6ΔC-S176D either (Fig. S9). WT yYkt6ΔC itself is in a relatively open conformation. Although phosphorylation at S176 shifts it toward a slightly more closed one, the overall conformation is more open than rYkt6ΔC, and DPC has no interaction with the protein.

Discussion

The conformational state of the longin SNARE Ykt6 is tightly related to its cellular localization and function. It has been revealed that the conformational state could be regulated by the lipid modification (11, 22) and phosphorylation (15, 16, 17). However, it is intriguing that the function and conformational regulation of Ykt6 exhibit differences among various species (17, 18, 19, 20, 23). Although it is widely recognized that the C-terminal lipidation at the second cysteine residue of the “CCXIM” motif results in a self-inhibition conformation, our experiments demonstrated that yeast Ykt6 might be an exception. yYkt6ΔC adopts a more open conformation than rYkt6ΔC and could not bind DPC. Accordingly, yYkt6 showed major membrane localization in cells (Fig. 2). The more open conformation of yYkt6 with respect to rYkt6 could be traced to their sequence difference. Despite the high sequence conservation between yYkt6 and rYkt6, a few key residues at the hydrophobic core of the longin-SNARE interface could make a difference. As we have shown, the T46L/Q57A double mutation converted the open conformation of WT yYkt6 to a more closed one and empowers it to bind DPC. Thr/Leu46 on αA helix of Ykt6 is not a conserved site, but the hydrophobic nature of residue in rYkt6 is crucial for the binding of αF to the longin domain through interaction with Leu170 and Leu167, thereby maintaining the closed conformation. Although Leu46 does not make contact with DPC directly in the closed structure, it apparently facilitates lipid binding. This suggests that the packing of the αF helix with the longin domain is important for forming the lipid-binding pocket. Therefore, it is most likely that lipid modification in yYkt6 lacks the ability of regulating the conformational state.

The phosphorylation at the evolutionarily conserved site Ser174 was previously shown to trigger the conformational opening of human Ykt6 (17). Here, the same role of phosphorylation at Ser174 in rYkt6 was also validated through the smFRET experiments, and the conformation of phospho-mutant S174D could not be regulated by DPC (Fig. S8). However, the phosphorylation of the conserved site Ser176 in yYkt6 does not play the same role as that in mammalian Ykt6. The S176D mutant exhibits slightly more closed conformation than the WT yYkt6, but DPC could not bind to it either, most likely due to the intrinsically more open conformation of S176D than that of rYkt6. Taken these lines of evidence together, we could speculate that phosphorylation triggers the conformational opening and facilitates membrane insertion of mammalian Ykt6 in addition to providing a negatively charged group at Ser174, but phosphorylation at the same site of yYkt6 does not affect its membrane localization. The main role of phosphorylation in yYkt6 is introducing a phosphor group, which affects the partner binding of yYkt6. Given this perspective, the different functional consequences of phosphorylation of Ser176/Ser177 in yeast and worm (17) may result from the inherent differences of yYkt6 and worm Ykt6. In the sequence of the worm Ykt6, the position 48 is a Leu as that in mammalian Ykt6 (Fig. 1A), thereby its conformation is most likely as closed as rYkt6. Consequently, the open conformation dephosphorylation mutant S177A behaves differently from the WT in C elegans, while in yeast the S177A mutant behaves more like the WT (17). In other words, phosphorylation of Ser174/Ser177 regulates both conformational state of Ykt6 and its protein binding property in mammals and C. elegans, but phosphorylation only affects the protein binding capacity of Ykt6 in yeast. Besides Ser174, several other phosphorylation sites on Ykt6 have been identified (15, 16), we anticipate that more regulatory mechanisms and delicate differences across species are yet to be discovered.

Although Ykt6 is a highly conserved SNARE from plants to animals, the functional regulation mechanisms are finely tuned by small sequence variations. Inspired by the studies of WASP family proteins (24, 25), we conducted sequence alignments of Ykt6 orthologs spanning various eukaryotic organisms and subsequently constructed a phylogenetic tree (Fig. S10). Notably, the Ykt6 orthologs manifest three major branches (Fig. S10A). The branch containing Ykt6 from protist organisms distinctly separates them from their counterparts in more advanced organisms. Similarly, the branch encompassing Eumycetes and Plantae organisms clearly distinguishes them from Animalia (Fig. S10A). Interestingly, residue 46 (or its equivalents) remains absolutely conserved within each branch (Fig. S10B). Specifically, Protista exhibits Glu at position 46, Eumycetes and Plantae demonstrate Thr, while Animalia possesses Leu (Fig. S10B). This progressive alteration of residue 46 reveals an evolutionary pattern transitioning from a negatively charged amino acid to a polar amino acid and ultimately to a hydrophobic amino acid. These findings suggest that Ykt6 adopts a more compact conformation in advanced organisms, allowing for conformational regulation.

Experimental procedures

Protein preparation

Genes of yYkt6ΔC (1–195) and rYkt6ΔC (1–193) were individually cloned into a pET-M3C vector containing a His6 tag. All the mutations were generated using the standard PCR-based method and confirmed by DNA sequencing. Proteins were expressed in Escherichia coli BL21 (DE3) host cells at 16 °C overnight and purified by using a Ni²⁺–NTA agarose affinity chromatography followed by SEC in a normal buffer (50 mM Tris pH 8.0, 100 mM NaCl, and 1 mM EDTA).

Fluorescent labeling of protein

The 25 μM double cysteine mutants of yYkt6 or rYkt6 proteins were incubated with 100 μM donor (Alexa Fluor 555 Maleimide, Thermo Fisher Scientific Inc), and 200 μM acceptor (Alexa Fluor 647 Maleimide, Thermo Fisher Scientific Inc) in the presence of 1 mM Tris (2-carboxyethyl) phosphine hydrochloride at 4 °C overnight. Afterward, the unreacted dyes were removed from the protein solution by SEC using a normal buffer containing 1 mM β-mercaptoethanol.

smFRET experiments and data analysis

The coverslip and slide were cleaned and then coated with 0.1 mg/ml poly-lysine-PEG-NTA (PLL(20)-g[3.5]-PEG(2)-NTA, SuSoS AG Inc) to prevent nonspecific adsorption of proteins to the surface (26). The his-tagged protein was immobilized on the surface by Ni²⁺-NTA affinity. Single-molecule fluorescence images were taken by using a home-built wide field fluorescence imaging system (27). A 532 nm laser was used to excite the donor and generate FRET. A dual viewer (OptoSplit II, Andor Technology Plc) was used to separate the fluorescence of different colors emitted by donor and acceptor respectively, and then the fluorescence image was taken by an EMCCD camera (iXon 897, Andor Technology Plc) with an exposure time of 100 ms.

The temporal traces of the fluorescence intensity of individual molecules of the donor and acceptor were extracted from the recorded series of images by using the ISMS software (http://isms.au.dk) (MATLAB encoded) (28). We determined the minimum number of conformational states by performing the analysis of Bayesian inference of smFRET trace using vbFRET and comparing the calculated mean log evidence (21). Afterward, the HMM analysis was performed by using the vbFRET software to recognize the change point of transitions in smFRET trajectories and meanwhile generated the ideal trajectories (HMM FRET). To count the probabilities of different conformational states, we performed a threshold analysis on the ideal trajectories (29, 30, 31), where the thresholds for each state were read from the transition density plot (initial versus final HMM FRET efficiency of every transition) that compiled all transitions. Histograms of raw FRET were obtained by combining all time points of each raw FRET trajectories and histograms of different states were obtained by combining all time points of each state FRET trajectories obtained by threshold analysis.

Isothermal titration calorimetry

ITC measurements were performed on a MicroCal PEAQ-ITC at 25 °C. All protein samples were dissolved in a buffer condition containing 50 mM Tris (pH 8.0), 100 mM NaCl, 1 mM EDTA, and 1 mM β-mercaptoethanol. The titrations were carried out by injecting 40 μl aliquots of DPC (0.5 mM) into 280 μl aliquots of Ykt6 proteins (0.05 mM) at time intervals of 2 min to ensure that the titration peak returned to the baseline. The titration data were analyzed using the Malvern MicroCal PEAQ-ITC analysis program.

Cell culture, imaging, and Western blot

HeLa cells and 293T cells were cultured in Dulbecco's modified Eagle's medium supplemented with 10% fetal bovine serum. The N-terminal GFP-tagged WT or mutant Ykt6 cloned into the pEGFP-C1 vector were individually introduced into cells by the lipofectamine transfection method. After 36 h transfection, the cells were imaged with a Leica dmi8 inverted fluorescence microscope. After 36 h transfection, 293T cells expressed with the GFP-tagged WT Ykt6 or its mutants were washed with PBS buffer, and then lysed with radioimmunoprecipitation assay lysis buffer (50 mM Tris pH 7.4, 150 mM NaCl, 1% Triton X-100, 1% sodium deoxycholate, 0.1% SDS, and 1 mM PMSF) on ice for 30 min. The resulting cell mixture was then centrifuged at 13,000 rpm for 30 min to separate the cytosol and membrane fractions. Equal amount of protein loading was shown by the total GFP-tagged Ykt6 or its mutants detected by Western blot using the anti-GFP antibody.

SMD simulation

SMD simulation was performed using the NAMD 2.14 software package (32). We chose the constant-velocity stretching method to simulate the conformational opening process. The constant-velocity mode of SMD requires specification of SMD atom, which is linked by a spring to a virtual atom that moves at a constant velocity. The external steering potential energy and the steer force of SMD are defined as follows:

$$U=\frac{1}{2}k{\left[vt-\left(\overrightarrow{r}-\overrightarrow{r_0}\right)·\overrightarrow{n}\right]}^2$$ (1)

$$\overrightarrow{F}=-\nabla U$$ (2)

where U is the steering potential energy, k is the spring constant, v is the pulling rate, t is time, $\overrightarrow{r}$ is the instantaneous position of the SMD atom (or the centroid of the SMD atoms), $\overrightarrow{r_0}$ is the initial position of the SMD atom (or centroid of the SMD atoms), and $\overrightarrow{n}$ is the unit vector of the pulling direction.

SMD simulations were performed for three systems: WT rYkt6ΔC, WT yYkt6ΔC, and yYkt6ΔC-T46LQ57A mutant. The initial structure of WT rYkt6 was adapted from the crystal structure of rYkt6ΔC/DPC (Protein Data Bank-ID: 3KYQ), and the initial conformation of WT yYkt6 was obtained from the UniProt database (Name: P36015 Ykt6_YEAST, Structure method: AlphaFold) (23). The initial structure of yYkt6-T46L/Q57A mutant system was mutated based on WT yYkt6 by using the PyMOL molecular graphics program (http://www.pymol.org/).

A typical system was established with visual molecular dynamics (33) containing ∼90,000 atoms in the cubic simulation box measured ∼100 × 100 × 100 Å³. The protein and lipid were modeled using the CHARMM27 force field (34), while the water molecules were represented using the TIP3P model (35). The protein was solvated in a water box and subsequently neutralized by the addition of Na⁺ and Cl⁻ ions, resulting in a salt concentration of 100 mM. The 1 to 4 parameters specified that all 1 to 3 pairs will be excluded along with all pairs connected by a set of two bonds of bonded atoms from nonbonded interactions, and we set a nonbonded pair list within 13.5 Å. The electrostatic interactions for such pairs are modified by this constant factor. van der Waals interactions were smoothed beyond 10 Å and truncated at 12 Å. Nonbonded and electrostatic interactions were calculated at every time step. Berendsen pressure bath coupling method (36) is used to realize coupling to 1.01325 bar. The Langevin thermostat was employed to maintain the system at 298 K and the damping constant was set as 5/ps. The ionized system was energy-minimized by 20,000 steps, following a 1 ns equilibration run with constant temperature and a 2 ns equilibration run with constant pressure.

In the FixLsmdS mode for steered dynamics simulation implemented in the simulation package NAMD, we selected the backbone atoms and C_β atoms of longin domain (rYkt6 residue 1–131, yYkt6 residue 1–133) as fixed atoms, and the external force was applied to the backbone atoms and CB atoms of SNARE (rYkt6 residue 132–198, yYkt6 residue 134–200), which pulled SNARE along the vector from centroid of the longin domain toward the centroid of SNARE core (22).

The force constant was set to 5 (kcal/mol)/Ų and the velocity of the movement of SMD reference position was set to 1.5 Å/ns. Each SMD simulation lasted for 20 ns in NVT ensemble. Coordinates were saved every 2 fs.

Sequence analysis

To identify Ykt6 orthologs, a comprehensive search was initiated by employing BLASTP algorithm (National Center for Biotechnology Information; http://blast.ncbi.nlm.nih.gov) (37). The search focused on identifying Ykt6 orthologs from closely related organisms, utilizing prominent databases such as UniProtKB/Swiss-Prot (swissprot) and Model Organisms (landmark). To classify the prototypical Ykt6 family proteins, a sequence alignment was performed using the MEGA11 software (https://megasoftware.net), employing default parameters (38). The ensuing phylogenetic trees were computed in MEGA11 utilizing the Neighborhood Joining algorithm, and bootstrapping with 1000 iterations was applied when deemed necessary. The resulting phylogenetic trees were visually depicted using iToL: Interactive Tree of Life (https://itol.embl.de) for enhanced clarity and interpretation (39).

Data availability

All experimental data are contained within the article and the Supporting Information. The full sequence alignment data will be made available upon request.

Supporting information

This article contains supporting information.

Conflict of interest

The authors declare that they have no conflicts of interest with the contents of this article

Reviewed by members of the JBC Editorial Board. Edited by Karen Fleming
