. 2023 Jul 12;107(17):5545–5554. doi: 10.1007/s00253-023-12677-z

Analyzing microbial communities and their biodegradation of multiple pharmaceuticals in membrane bioreactors

Marcel Suleiman 1,✉, Francesca Demaria 1, Cristina Zimmardi 1, Boris Alexander Kolvenbach 1, Philippe François-Xavier Corvini 1
PMCID: PMC10390369  PMID: 37436483

Abstract

Abstract

Pharmaceuticals are of concern to our planet and health as they can accumulate in the environment. The impact of these biologically active compounds on ecosystems is hard to predict, and information on their biodegradation is necessary to establish sound risk assessment. Microbial communities are promising candidates for the biodegradation of pharmaceuticals such as ibuprofen, but little is known yet about their degradation capacity of multiple micropollutants at higher concentrations (100 mg/L). In this work, microbial communities were cultivated in lab-scale membrane bioreactors (MBRs) exposed to increasing concentrations of a mixture of six micropollutants (ibuprofen, diclofenac, enalapril, caffeine, atenolol, paracetamol). Key players of biodegradation were identified using a combinatorial approach of 16S rRNA sequencing and analytics. Microbial community structure changed with increasing pharmaceutical intake (from 1 to 100 mg/L) and reached a steady-state during incubation for 7 weeks on 100 mg/L. HPLC analysis revealed a fluctuating but significant degradation (30–100%) of five pollutants (caffeine, paracetamol, ibuprofen, atenolol, enalapril) by an established and stable microbial community mainly composed of Achromobacter, Cupriavidus, Pseudomonas and Leucobacter. By using the microbial community from MBR1 as inoculum for further batch culture experiments on single micropollutants (400 mg/L substrate, respectively), different active microbial consortia were obtained for each single micropollutant. Microbial genera potentially responsible for degradation of the respective micropollutant were identified, i.e. Pseudomonas sp. and Sphingobacterium sp. for ibuprofen, caffeine and paracetamol, Sphingomonas sp. for atenolol and Klebsiella sp. for enalapril. Our study demonstrates the feasibility of cultivating stable microbial communities capable of degrading simultaneously a mixture of highly concentrated pharmaceuticals in lab-scale MBRs and the identification of microbial genera potentially responsible for the degradation of specific pollutants.

Key points

• Multiple pharmaceuticals were removed by stable microbial communities.

• Microbial key players of five main pharmaceuticals were identified.

Keywords: Membrane bioreactor, Pharmaceuticals, Bioremediation, 16S rRNA amplicon sequencing

Introduction

During the last decades, the production and consumption of pharmaceuticals increased significantly (Kristensen et al. 2016). Since many pharmaceuticals are not (totally) metabolized or assimilated in human and animal bodies, these biologically active compounds are partially eliminated in urine and feces before entering wastewater treatment plants (WWTP) in significant concentrations. Main sources of pharmaceutical micropollutants are hospitals, pharmaceutical industries, and animal farms (dos S. Grignet et al. 2022). A large portion of pharmaceutical residues in WWTP are, beside antibiotics, pain killers like ibuprofen (Buser et al. 1999), diclofenac (Vieno and Sillanpää 2014), caffeine (Rigueto et al. 2020) and paracetamol (Wu et al. 2012), ß-blockers like atenolol (Salgado et al. 2013) and Angiotensin-converting-enzyme inhibitors (ACE inhibitors) like enalapril (Chiarello et al. 2016). They are detected in ng/L to high µg/L range of concentration, depending on the location (Winker et al. 2008). Furthermore, the human consumption of pharmaceuticals is constantly increasing every year, resulting in high exposures and concentrations of these compounds in WWTP and the environment (dos S. Grignet et al. 2022).

Originally, WWTP were designed for the degradation of natural N-, P- and C-containing substrates, and increasing pharmaceutical intake poses a challenge for biodegradation of organic substances (BOD) (Khasawneh and Palaniandy 2021). In some cases, the WWTP performance is not sufficient in terms of pollutants’ degradation and pharmaceutical contaminants can enter various environmental compartments (Dalahmeh et al. 2020). Consequently, pharmaceuticals are detected in rivers (Hughes et al. 2013), groundwater (Sui et al. 2015) and soils (Thiele-Bruhn 2003). Little is known about the long-term impact of these biologically active contaminants on ecosystems and human health. Performing wastewater treatment plants are therefore crucial for the elimination of these micropollutants. Membrane bioreactors (MBRs) have a large potential for wastewater treatment, combining biodegradation with membrane filtration systems enabling biomass retention (Al-Asheh et al. 2021). In MBRs operated with infinite retention time no excess sludge is taken and evolutionary processes may even improve the microbial functionality concerning biodegradation (Zhuang et al. 2016; Zheng et al. 2019). Microbial communities are key players of the MBR concept, and their structure and performance are crucial for the efficient removal of pharmaceutical pollutants and the release of non-toxic effluents. Therefore, there is a strong need to identify promising bacterial communities for further development of microbial formulations to be used for bioaugmentation purpose. In this study, MBRs were operated with increasing concentration (1–100 mg/L) of a mixture consisting of six pharmaceutical pollutants (atenolol, caffeine, diclofenac, enalapril, ibuprofen, paracetamol). The choice of applying a mixture of pharmaceuticals was motivated by previous studies showing that multiple drivers can affect microbial communities differently (Orr et al. 2022; Suleiman et al. 2022). In order to analyze key players for the degradation of each pharmaceutical, MBR communities were transferred to batch cultures incubated with one single micropollutant. The potential of microbial communities to remove highly concentrated pharmaceutical was analyzed, and microbial genera involved in degradation were identified for each pharmaceutical.

Material and methods

Membrane bioreactors

Three laboratory-scale membrane bioreactors (MBRs) were set up in this study. The reactors had a volume of 1 L and were filled with 400 mL medium (Fig. 1). A modified OECD degradation medium was used (https://www.oecd.org/chemicalsafety/testing/43735667.pdf). It contained 0.08 g/L peptone, 0.05 g/L meat extract, 0.015 g/L urea, 0.0035 g/L NaCl, 0.002 g/L CaCl2 × 2 H2O, 0.0001 g/L MgSO4 × 7 H2O and 0.0014 g/L K2HPO4. The pH of the medium was set to 7.5. The MBRs were constantly aerated using compressed air (pressure 0.5 bar, net O2 concentration 20%), and a 2-cm stirrer was used for homogenization (600 rpm). A membrane holder made of steel with two ultrafiltration membranes (pore size of 0.08 µm) with a total membrane area of 30 cm2 (Fig. 1a, b) was used. The flow rate of influent and effluent was set at 10.5 mL/h, and MBRs were running continuously for 10 weeks. A backwash was performed weekly for 10 min to remove membranes’ cake layer to avoid membrane fouling. The hydraulic retention time of medium in the system was 38 h. The sludge retention time in the used MBR was infinite because no biomass was removed as excess sludge, except for sampling times.

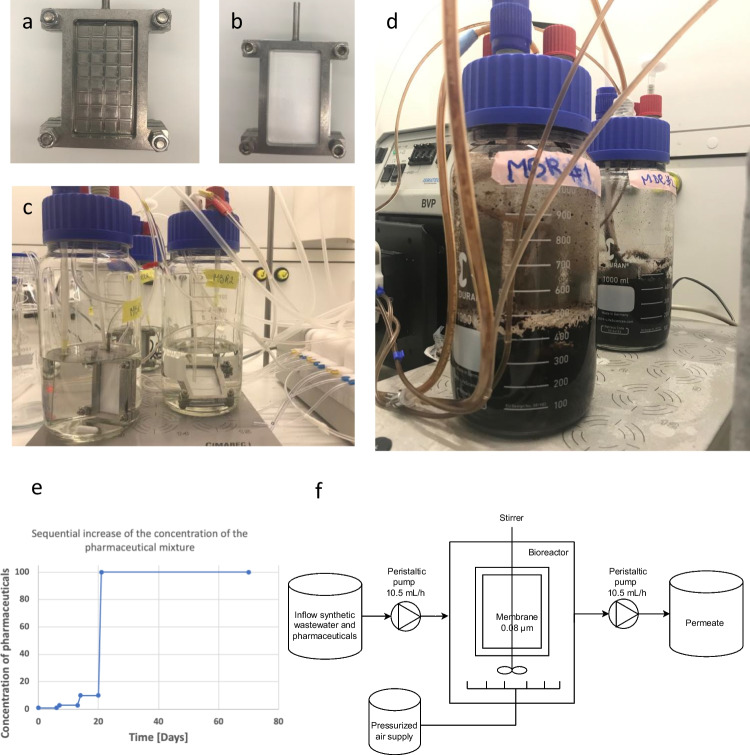

Fig. 1.

Fig. 1

Open in a new tab

Technical setup of the MBRs. (a) Membrane holder (steel) for placing two membranes (front side shown without membrane). The permeate hose was connected to the membrane holder on the top. (b) Ultrafilter membrane (0.08 µm) placed in in the membrane holder. (c) Overview of MBRs setup before inoculation: membrane holder, air spargers, magnetic stirrer for homogenization. (d) MBR 1 and 2 on day 21 of incubation with pharmaceuticals. (e) Pharmaceutical concentration gradient applied to the influent of MBR1 and MBR2. (f) Schematic overview of MBR settings. The hydraulic retention time of the system was 38 h

Each MBR was inoculated with an activated sludge sample (1% v/v) of a WWTP. While one MBR was just operated with OECD degradation medium as a control (MBR control), two MBRs were fed with the mixture of pharmaceuticals (MBR1 and MBR2). The pharmaceuticals used in this study were ibuprofen, diclofenac, enalapril, caffeine, atenolol and paracetamol and were all dissolved in the influent of MBR1 and MBR2. The starting concentration of pollutants was 1 mg/L for 1 week; afterwards, the concentration of pollutants was weekly increased to 3 mg/L and 10 mg/L. Finally, after running of the MBRs for 3 weeks, the final concentration of pollutants was set at 100 mg/L and kept constant for another 7 weeks. The Chemical Oxygen Demand (COD) of the artificial wastewater complemented with different concentrations of pollutants was measured using a test of HACH LANGE (LCK 514 100–2000 mg/L O2) and measured using a HACH DR6000 UV–VIS spectral photometer. The Chemical Oxygen demand (COD) concentrations of the different gradient steps were 171 mg/L (just synthetic wastewater), 185 mg/L (synthetic wastewater + 1 mg/L of each pollutant), 264 mg/L (synthetic wastewater + 10 mg/L of each pollutant) and 1074 mg/L (synthetic wastewater + 100 mg/L of each pollutant). The resulting organic loading rate (OLR) was 0.675 g/L/day (synthetic wastewater + 100 mg/L of each pollutant), 0.166 g/L/day (synthetic wastewater + 10 mg/L of each pollutant), 0.116 g/L/day (synthetic wastewater + 1 mg/L of each pollutant) and 1.07 g/L/day (just synthetic wastewater).

Sampling of the MBRs

Five milliliters of sample was taken from each of the three MBRs at different stages. Samples were taken directly from the bioreactor and not from the permeate. Samples were taken on the last day of incubating with 1 mg/L, 3 mg/L, 10 mg/L, respectively, and then taken weekly when pharmaceutical concentration was set at 100 mg/L. Furthermore, the original wastewater sample, which was used as inoculum, was analyzed by 16S rRNA sequencing. MBR_control (no pharmaceutical added) was sampled simultaneously to allow comparison with the MBRs exposed to the mixture of pharmaceuticals. The samples were centrifuged at 16,000 × g for 5 min. The pellet was used for DNA extraction, while the supernatant was used for HPLC analysis.

Batch cultures with single micropollutant as substrate

Five batch cultures were set up (volume 100 mL of modified OECD-medium see above) with addition of 400 mg/L of a single pharmaceutical (ibuprofen, enalapril, caffeine, atenolol, paracetamol), respectively. One milliliter sample of MBR1, which was running for 9 weeks, was used as inoculum for each pharmaceutical. After 7 days of growth, 1 mL of the batch culture was transferred again into fresh medium with the same conditions. Daily samples (1 mL) were taken for HPLC analysis to study the degradation potential of the microbial communities growing on each pharmaceutical, and 2 mL-samples were taken on day 3 for DNA extraction and sequencing.

DNA extraction and sequencing

DNA was extracted using the ZymoBIOMICS DNA Miniprep Kit (ZymoResearch) by following the manufacturer’s instructions. The V4 region of the 16S rRNA gene was amplified, and a DNA-library was made by using the Quick-16S™ Plus NGS Library Prep Kit (V4) (ZymoResearch). 4 pM DNA library (spiked in with 25% PhiX) was sequenced in-house using Illumina MiSeq by following manufacturer’s instructions. Sequencing data were processed based on primer sequences, quality, error rates and chimeras using the r-package dada2 (Callahan et al. 2016). The sequence table was aligned to the SILVA ribosomal RNA database (Quast et al. 2012), using version 138 (non-redundant dataset 99). A phyloseq object was created using the phyloseq r-package (McMurdie and Holmes 2013), consisting of amplicon sequence variant (ASV) table, taxonomy table and sample data. For further analysis, the r-packages phyloseq (McMurdie and Holmes 2013) and vegan (Oksanen et al. 2019) were used. The phyloseq object, metadata and the detailed R code for analysis are available on github (https://github.com/Marcel29071989), and raw sequencing data are available on NCBI SRA PRJNA954188.

HPLC analysis

Pharmaceuticals were separated on a Hi-Plex Na column by high-performance liquid chromatography (HPLC) (Agilent Technologies) by applying a flow rate of 0.7 mL/min with water and methanol as mobile phase. The pharmaceuticals were detected using UV/VIS DAD detector. The mobile phase ratio started at 95:5 VV of, respectively, 0.1% formic acid in Millipore water (A) and methanol (B). The B gradient was from 5 to 95% within 15 min, and it allowed the analysis of all the six micropollutants in one run. The retention times were as follows: ibuprofen eluted at 12.16 min, diclofenac at 11.81 min, enalapril at 9.7 min, caffeine at 8.18 min, atenolol at 6.21 min, paracetamol at 6.64 min. The detection wavelength was set at 230 nm for paracetamol, ibuprofen, atenolol, caffeine, diclofenac and at 205 nm for enalapril. A standard curve was generated for each pollutant (1 mg/L–1 g/L).

Results

Efficiency of microbial communities to remove multiple micropollutants within MBR1 and MBR2

Two MBRs (MBR1 and MBR2) fed constantly with synthetic wastewater contaminated by a mixture of six pharmaceuticals over a period of 10 weeks. After 3 weeks of incubation with 1 mg/L, 3 mg/L and 10 mg/L with all six pollutants, the concentration was changed to 100 mg/L and kept constant for 7 weeks. In week 7, 8, 9 and 10, the removal efficiency of each pollutant was analyzed by HPLC. Microbial communities within MBR1 and MBR2 evolved and became able to degrade most pollutants, except diclofenac, which concentration stayed stable in the MBRs (Fig. 2). However, the removal efficiency fluctuated between the different time points within MBR1 and MBR2. The microbial community within MBR1 was able to remove atenolol in a range of 55–100%, caffeine from 70 to 100%, enalapril from 34 to 100%, Ibuprofen in a range of 35–100% and paracetamol from 71 to 100%. The evolved microbial community within MBR2 was able to remove atenolol in a range of 44–100%, caffeine from 67 to 100%, enalapril from 39 to 100%, Ibuprofen in a range of 0 to 100% and paracetamol from 56 to 100%. Ibuprofen removal is of interest because the performance of MBR2 to degrade it changed strongly from week 9 to week 10.

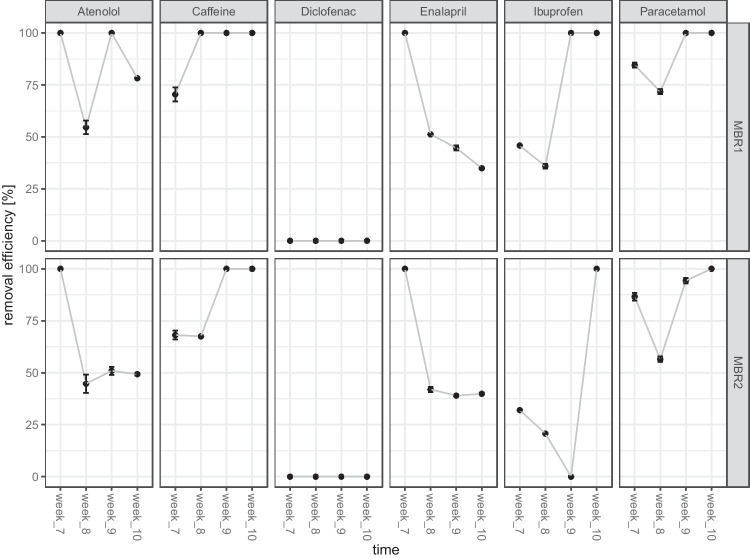

Fig. 2.

Fig. 2

Open in a new tab

Efficiency of microbial communities to remove pharmaceuticals in MBR1 and MBR2 from week 7 to week 10 of cultivation. Influent-concentration of each pharmaceutical was 100 mg/L. Samples were taken once per week directly from the bioreactor, and the concentration of pharmaceuticals in MBR1 and MBR2 was measured by means of HPLC and compared with influent concentration, to calculate the removal efficiency per reactor

Interestingly, while the potential of degrading Ibuprofen, paracetamol and caffeine increased over time, the potential to degrade enalapril and atenolol decreased. No formation of degradation compounds of the micropollutants were detected via HPLC.

Microbial community composition of MBR1, MBR2, and MBR_control

Microbial communities in pharmaceutical-treated MBR1 and MBR2 showed strong dynamic changes during application of the pharmaceutical gradient (1 mg/L–3 mg/L–10 mg/L–100 mg/L) (Fig. 3a, b). Once setting 100 mg/L of pollutant in the influent, the microbial communities of both MBRs became stable and reached a steady state (Figs. 3 and 4). Based on comparison with microbial community composition of MBR control, the microbial community of MBR1 and MBR2 was assumed to explain pharmaceutical degradation, since MBR1 and MBR2 communities differed significantly from the MBR_control. During incubations from week 7 to week 10 with 100 mg/L micropollutants, both MBR1 and MBR2 were dominated by stable microbial communities of Achromobacter (up to 39%), Cupriavidus (up to 12%), Pseudomonas (up to 17%) and Leucobacter (up to 22%), identifying these microbial genera as highly important for the degradation of highly concentrated pharmaceuticals (Fig. 3a, b). By comparing the relative abundance of these microorganisms in MBR1 and MBR2, slight differences were detected based on sampling time and reactor (Fig. 3b). While Achromobacter and Cupriavidus increased their relative abundances with increasing pharmaceutical concentration, other bacterial members showed the opposite trend: Comamonas was highly abundant (up to 24%) at low concentration (0, 1, 3 and 10 mg/L) of pharmaceuticals, but vanished at 100 mg/L. Also, Flectobacillus showed interesting patterns, reaching very high relative abundances (up to 36%) at 3 mg/L micropollutant concentration, while no longer present when the feed contained 100 mg/L of each pharmaceutical. Acinetobacter, Leucobacter and Pseudomonas were present during the whole experiment at various sample points and concentrations but differed in their relative abundances between MBR1 and MBR2: While the relative abundance of Leucobacter was higher in MBR1, Acinetobacter and Pseudomonas were more dominant in MBR2 (Fig. 3b).

Fig. 3.

Fig. 3

Open in a new tab

Microbial community composition of MBR1, MBR2 and control MBR. (a) Relative abundance on genus level for MBR1, MBR2 and control MBR. Genera with relative abundances > 5% in at least one sample were included in the plot. (b) Relative abundances of most dominant genera of the pharmaceuticals treated MBR1 and MBR2 over time and pharmaceutical concentration. The x axis shows the time and given concentration of pollutants

Fig. 4.

Fig. 4

Open in a new tab

NMDS analysis based on Bray–Curtis distance of microbial communities from MBR1, MBR2, MBR control and the single micropollutant batch cultures. Distances of the microbial communities dependent on time points, pharmaceuticals (concentration and presence) are shown. The dots represent enrichment cultures grown on a single micropollutant as substrate. The triangles and the squares are the samples taken from MBR 1 and 2, respectively, at different time points and in the presence of pharmaceutical. The crosses represent control MBR that was operated with OECD medium without pharmaceutical spike. The inoculum taken from WWTP is shown as a crossed square. Stress is 0.10

NMDS analysis showed the dynamics of a developing microbial community under the increasing concentration of pharmaceuticals in the influent during first 3 weeks along the NMDS2 axis and demonstrated the stable state of the microbial communities from week 7 to week 10, clustering at the middle of the plot (Fig. 4). Furthermore, NMDS analysis demonstrated the strong distance of microbial communities within treated (MBR1 and MBR2) with untreated MBRs (MBR control). In addition, NMDS analysis highlighted that the adapted microbial communities of MBR1 and MBR2 differ strongly from the original activated sludge that was used as inoculum. While NMDS analysis (Fig. 4) revealed a comparable microbial community in MBR1 and MBR2, slight differences in micropollutant removal efficiency of MBR1 and MBR2 were observed (Fig. 2), probably due to small differences on relative abundances of specific genera.

Micropollutant degradation by microbial communities within the single-substrate batch cultures

The evolved microbial community of MBR1 (from week 9) was used as inoculum to prepare 5 batch cultures exposed each to single pollutant (with 400 mg/L pharmaceutical). The batch cultures were grown for 4 days, and the microbial community composition and pollutant concentration was determined (Fig. 5). Results indicated that all five substrates were (partly) removed, however, with very variable efficiencies. The microbial community of the culture incubated with paracetamol was able to degrade the entire 400 mg/L of the substrate, and the microbial community consisted mainly of Sphingobacterium, Pseudomonas and Achromobacter. The microbial community exposed to caffeine was also able to remove 400 mg/L caffeine, and microorganisms detected in high relative abundance were Acinetobacter, Sphingobacterium, Pseudomonas and Chryseobacterium. A comparable composition of microorganisms was found in the batch culture incubated with ibuprofen, and this consortium was able to remove 85 mg/L of the pollutant within 4 days. The batch culture exposed to atenolol was able to remove 57 mg/L atenolol, and the community consisted mainly of Sphingomonas, Paucibacter and Burkholderia. The batch culture exposed to enalapril was able to remove 35 mg/L enalapril and consisted mainly of Klebsiella and Burkholderia. The results of the microbial communities incubated with single substrates showed different microbial community compositions. The pharmaceutical substrate influenced the microbial community composition. Moreover, the microbial community of batch cultures exposed to a single pharmaceutical differed from the microbial communities found in MBRs as shown by NMDS (Fig. 4).

Fig. 5.

Fig. 5

Open in a new tab

Microbial community composition and pharmaceutical degradation in batch cultures treated with single pharmaceuticals. (a) Relative abundance on genus level in the batch cultures grown for 4 days on single pharmaceuticals. A sample from MBR1 was used (week 9) as inoculum (1% v/v), grown for 7 days, before transferring the cultures into fresh medium again (1% v/v). Sequencing was performed at day 3 of the respective culture of the second transfer. Genera with relative abundances > 10% in at least one sample were included in the plot to identify key players of the respective culture. (b) Concentration of atenolol [mg/L] in batch culture (n = 3). (c) Concentration of caffeine [mg/L] in batch culture (n = 3). (d) Concentration of enalapril [mg/L] in batch culture (n = 3) (e) Concentration of ibuprofen [mg/L] in batch culture (n = 3). (f) Concentration of paracetamol [mg/L] in the batch culture (n = 3). Please note that the y axis is changing depending on the substrate

Discussion

The performed study gave first insights into the removal efficiency of a mixture containing six pharmaceuticals by microbial communities of laboratory-scale MBRs. The microbial communities evolved in the pharmaceuticals treated MBRs and showed constant and strong removal efficiencies of 50–100% for caffeine, atenolol and paracetamol (50–100%). Since these three pharmaceuticals are highly accumulating in WWTP with increasing concentrations in current and future scenarios, it is important to analyze their biodegradation potential. Caffeine is of particular interest, since this compound is one of the most concentrated pollutants found in WWTP, reaching already mg/L concentration (Li et al. 2020). As reported in several studies, our data confirm that the removal efficiency for caffeine by microbial communities is high (Summers et al. 2015; Li et al. 2020; Shanmugam et al. 2021). During the last years, biodegradation of atenolol, one of the most consumed beta-blockers worldwide, was in the focus of several studies, and novel microbial degradation pathways of this compound were reported (Yi et al. 2022). Our data suggest that under the given hydraulic retention time of 38 h, the removal efficiency by the microbial communities was high and comparable to previous studies focusing on the biodegradation of atenolol (Rezaei et al. 2022). The removal efficiency of 100 mg/L paracetamol was very high in both MBRs (100% in MBR1, 95% in MBR2). This confirms the microbial tendency of using paracetamol as substrate for microbial metabolism (Żur et al. 2018), especially by Pseudomonas strains (Rios-Miguel et al. 2022) that were also found in the operated MBRs of the present study.

Regarding ibuprofen, a pharmaceutical compound of high environmental concern (Chopra and Kumar 2020), the removal efficiency of MBR1 increased over time to 100%. This demonstrates the potential of adaptation and evolutionary processes to improve the removal capacity for specific pollutants in MBR-operating systems (Hoinkis et al. 2012). Interestingly, MBR2 showed strong fluctuating removal efficiencies of ibuprofen per week, ranging from 0 to 100%. Nevertheless, after 10 weeks of operation of MBR2, the microbial community was also able to remove 100% of ibuprofen. Since no significant changes of the microbial community can be observed within these time points, varying abiotic parameters like oxygen intake and pH could explain these fluctuations and will be observed in future studies.

Biodegradation of ACE inhibitors, used in form of enalapril, is still poorly understood compared to the other micropollutants of this study. The removal efficiency under the given hydraulic retention time was around 30% at the end of the experiment and interestingly showed a decreasing removal efficiency over time.

Diclofenac, a drug with high persistence in the environment (Sathishkumar et al. 2020), was the only micropollutant that was not removed by the evolved microbial communities at all, which demonstrates the need of focusing on the bioremediation of this compound. Interestingly, the microbial community found in the MBRs contained known diclofenac-degrading genera like Labrys (Moreira et al. 2018) in a relative abundance up to 7%. However, no removal of diclofenac was observed. This could be explained by the fact that the microbial communities within the MBRs are confronted to multiple substrates with easier biodegradability than diclofenac. This demonstrates the high complexity of dealing with multiple substrates (like in real scenarios) instead of just one driver (Suleiman et al. 2022).

The given concentrations of 100 mg/L of each pollutant are significantly higher compared to natural concentrations found in wastewater, but such high concentrations were necessary to allow microbes to grow on these compounds for achieving biomass. Furthermore, as the concentration of micropollutants in wastewater is constantly increasing, it is essential to assess their impact on microbial communities. In addition, pharmaceutical and industrial wastewater contains comparable CODs like used in this study (Gadipelly et al. 2014).

Our results are identifying potential key players of microbial communities, namely Achromobacter, Cupriavidus, Pseudomonas and Leucobacter, for simultaneous removal of multiple combined micropollutants. Recent studies showed that Achromobacter was associated with the bioremediation of pharmaceuticals, especially the antibiotic sulfamethoxazole (Liang and Hu 2021). Various Pseudomonas species were associated with ibuprofen and paracetamol degradation (Rutere et al. 2020; Rios-Miguel et al. 2022), and the genus Cupriavidus was reported to degrade polluting aromatic compounds (Pérez-Pantoja et al. 2008). Therefore, while these genera were already associated with degradation of pharmaceutical micropollutants, it is to our knowledge the first time that these genera were found in one stable and active microbial community dealing with multiple pharmaceutical pollution.

Our data demonstrated changing microbial communities during the gradually increasing pharmaceuticals concentrations in the synthetic influent, which demonstrates that pharmaceuticals concentrations affect the dynamics and compositions of microorganisms. One major question is if the established microbial community, which is adapted to high pharmaceutical concentrations, is still able to degrade in situ pollutants in a µg/L scale. The results of this study are indicating a change of key players in batch cultures on single micropollutants, which demonstrates that multiple pollutants exposure affects microbial communities differently compared to cultures exposed to a single pharmaceutical. Besides the key players that were already identified in the MBRs, the batch cultures were, dependent on the substrate, dominated by Acinetobacter, Sphingomonas or Sphingobacterium. Acinetobacter were dominant in cultures incubated with caffeine and ibuprofen, respectively, and members of this genus were already reported to show good efficiency in degrading crude oil (Zhang et al. 2021). Sphingomonas was dominant in culture with atenolol, which was partly degraded, and was already associated with degradation of ibuprofen in recent studies (Murdoch and Hay 2013). Sphingobacterium was dominant in cultures with caffeine, paracetamol and ibuprofen, and was already reported to degrade complex compounds such as 17α-ethynylestradiol (Haiyan et al. 2007). Interestingly, these three genera had a high relative abundance in the batch cultures with single micropollutant, but not in the MBRs fed with the mixture of all pharmaceuticals. The critical trait of wastewater is the complex mixture of a multitude of compounds present at trace and high concentrations. Therefore, more studies focusing on multiple micropollutant are needed, since our study suggests that microbial communities and their degradation potential of pharmaceuticals vary, depending on single or multiple exposure to pharmaceuticals and their concentration. Though our study indicated the finding of key players for the biodegradation of specific compounds, alternative technologies will be used in future studies to secure that the detected species are active on the respective micropollutants. This could include 16S rRNA gene sequencing on reversed transcribed RNA (cDNA) and meta-transcriptomic approaches to identify active genes of specific microbial species that are used to degrade the specific compounds. Although key players of the given microbial communities will be isolated and tested as pure cultures on the specific substrate, noting that some pollutants are probably just degradable in mixed cultures.

The issue of water remediation is needed due to the predicted increase in pharmaceutical consumption and the increasing demand for higher removal of pollutants in treated water. The six pharmaceuticals used in this study are found in high concentrations in influents and effluents of wastewater plant, with an increasing trend. The adaptive laboratory evolution in this study showed that after a prolonged time under pharmaceuticals concentration gradient pressure, the microbial community reached a stable state at 100 mg/L pharmaceuticals exposure. The communities of the two MBRs were able to degrade ibuprofen, paracetamol, caffeine, enalapril and caffeine with a fluctuating but strong efficiency. These fluctuations will be analyzed in future studies by controlling oxygen intake, pH and temperature of the operating system. The communities evolved in MBR1 and MBR2 after 10 weeks of incubation differed significantly from MBR control (and inoculation sample), proving that the microbial communities adapted successfully to the pharmaceuticals as substrate for their subsistence. Furthermore, it was possible to identify specific species as potential key players for the degradation of single highly concentrated pharmaceuticals. Promising candidates for removing pharmaceutical micropollutants in WWTP such as Achromobacter, Pseudomonas and Cupriavidus were dominating in the late stage of the adaptation. This preliminary study can be further developed for real case application to wastewater treatment plant as polishing step for the removal of pharmaceuticals that are not efficiently removed in the biological step.

Acknowledgements

The authors would like to thank Sebastian Hedwig, Jan Svojitka, Roman Schäfer and Patrik Eckert of the group of Prof. Michael Thomann (University of Applied Sciences and Arts Northwestern Switzerland, Institute of Ecopreneurship) for the support of constructing lab-scale MBRs.

Author contribution

MS and PC designed the study. MS constructed the MBRs. MS, FD and CZ maintain the MBRs. MS, FD and CZ did all wet lab experiments including cultivation and DNA extractions. MS performed amplicon sequencing and bioinformatic analysis. BK built up the HPLC platform for measuring the pharmaceuticals. MS, FD, CZ and BK performed the analytical measurement for this study.

Funding

Open access funding provided by FHNW University of Applied Sciences and Arts Northwestern Switzerland. This work was funded through the European Union’s Horizon 2020 project NMYPHE under grant ID 10106625.

Data availability

We confirm that all data (sequencing data, R code) are submitted to a public deposit (NCBI SRA PRJNA954188) and on github (Marcel29071989).

Declarations

Ethical approval

This article does not contain any studies with human participants or animals performed by any of the authors.

Conflict of interest

The authors declare no competing interests.

Footnotes

Publisher's note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

References

  1. Al-Asheh S, Bagheri M, Aidan A. Membrane bioreactor for wastewater treatment: a review. Case Stud Chem Environ Eng. 2021;4:100109. doi: 10.1016/j.cscee.2021.100109. [DOI] [Google Scholar]
  2. Buser HR, Poiger T, Muller MD. Occurrence and environmental behavior of the chiral pharmaceutical drug ibuprofen in surface waters and in wastewater. Environ Sci Technol. 1999;33:2529–2535. doi: 10.1021/es981014w. [DOI] [Google Scholar]
  3. Callahan BJ, McMurdie PJ, Rosen MJ, Han AW, Johnson AJA, Holmes SP. DADA2: high-resolution sample inference from Illumina amplicon data. Nat Methods. 2016;13:581–583. doi: 10.1038/nmeth.3869. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. Chiarello M, Minetto L, Della GSV, Beal LL, Moura S. Popular pharmaceutical residues in hospital wastewater: quantification and qualification of degradation products by mass spectroscopy after treatment with membrane bioreactor. Environ Sci Pollut Res. 2016;23:16079–16089. doi: 10.1007/s11356-016-6766-2. [DOI] [PubMed] [Google Scholar]
  5. Chopra S, Kumar D. Ibuprofen as an emerging organic contaminant in environment, distribution and remediation. Heliyon. 2020;6:e04087. doi: 10.1016/j.heliyon.2020.e04087. [DOI] [PMC free article] [PubMed] [Google Scholar]
  6. Dalahmeh S, Björnberg E, Elenström A-K, Niwagaba CB, Komakech AJ. Pharmaceutical pollution of water resources in Nakivubo wetlands and Lake Victoria, Kampala, Uganda. Sci Total Environ. 2020;710:136347. doi: 10.1016/j.scitotenv.2019.136347. [DOI] [PubMed] [Google Scholar]
  7. dos S. Grignet R, Barros MGA, Panatta AAS, Bernal SPF, Ottoni JR, Passarini MRZ, da C. S. Gonçalves C. Medicines as an emergent contaminant: the review of microbial biodegration potential. Folia Microbiol (Praha) 2022;67(157):174. doi: 10.1007/s12223-021-00941-6. [DOI] [PubMed] [Google Scholar]
  8. Gadipelly C, Pérez-González A, Yadav GD, Ortiz I, Ibáñez R, Rathod VK, Marathe KV. Pharmaceutical industry wastewater: review of the technologies for water treatment and reuse. Ind Eng Chem Res. 2014;53:11571–11592. doi: 10.1021/ie501210j. [DOI] [Google Scholar]
  9. Haiyan R, Shulan J, ud din Ahmad N, Dao W, Chengwu C. Degradation characteristics and metabolic pathway of 17α-ethynylestradiol by Sphingobacterium sp. JCR5. Chemosphere. 2007;66(340):346. doi: 10.1016/j.chemosphere.2006.04.064. [DOI] [PubMed] [Google Scholar]
  10. Hoinkis J, Deowan SA, Panten V, Figoli A, Huang RR, Drioli E. Membrane bioreactor (MBR) technology—a promising approach for industrial water reuse. Procedia Eng. 2012;33:234–241. doi: 10.1016/j.proeng.2012.01.1199. [DOI] [Google Scholar]
  11. Hughes SR, Kay P, Brown LE. Global synthesis and critical evaluation of pharmaceutical data sets collected from river systems. Environ Sci Technol. 2013;47:661–677. doi: 10.1021/es3030148. [DOI] [PMC free article] [PubMed] [Google Scholar]
  12. Khasawneh OFS, Palaniandy P. Occurrence and removal of pharmaceuticals in wastewater treatment plants. Process Saf Environ Prot. 2021;150:532–556. doi: 10.1016/j.psep.2021.04.045. [DOI] [Google Scholar]
  13. Kristensen DM, Mazaud-Guittot S, Gaudriault P, Lesné L, Serrano T, Main KM, Jégou B. Analgesic use — prevalence, biomonitoring and endocrine and reproductive effects. Nat Rev Endocrinol. 2016;12:381–393. doi: 10.1038/nrendo.2016.55. [DOI] [PubMed] [Google Scholar]
  14. Li S, Wen J, He B, Wang J, Hu X, Liu J. Occurrence of caffeine in the freshwater environment: implications for ecopharmacovigilance. Environ Pollut. 2020;263:114371. doi: 10.1016/j.envpol.2020.114371. [DOI] [PubMed] [Google Scholar]
  15. Liang DH, Hu Y. Application of a heavy metal-resistant Achromobacter sp. for the simultaneous immobilization of cadmium and degradation of sulfamethoxazole from wastewater. J Hazard Mater. 2021;402:124032. doi: 10.1016/j.jhazmat.2020.124032. [DOI] [PubMed] [Google Scholar]
  16. McMurdie PJ, Holmes S (2013) Phyloseq: An R package for reproducible interactive analysis and graphics of microbiome census data. PLoS One 8. 10.1371/journal.pone.0061217 [DOI] [PMC free article] [PubMed]
  17. Moreira IS, Bessa VS, Murgolo S, Piccirillo C, Mascolo G, Castro PML. Biodegradation of Diclofenac by the bacterial strain Labrys portucalensis F11. Ecotoxicol Environ Saf. 2018;152:104–113. doi: 10.1016/j.ecoenv.2018.01.040. [DOI] [PubMed] [Google Scholar]
  18. Murdoch RW, Hay AG. Genetic and chemical characterization of ibuprofen degradation by Sphingomonas Ibu-2. Microbiology (United Kingdom) 2013;159:621–632. doi: 10.1099/mic.0.062273-0. [DOI] [PMC free article] [PubMed] [Google Scholar]
  19. Oksanen J, Blanchet FG, Friendly M, Kindt R, Legendre P, Mcglinn D, Minchin PR, O’hara RB, Simpson GL, Solymos P, Henry M, Stevens H, Szoecs E, Maintainer HW. Package “vegan” title community ecology package. Commun Ecol Package. 2019;2(1):297. [Google Scholar]
  20. Orr JA, Rillig MC, Jackson MC. Similarity of anthropogenic stressors is multifaceted and scale dependent. Nat Sci. 2022;2:e20210076. doi: 10.1002/ntls.20210076. [DOI] [Google Scholar]
  21. Pérez-Pantoja D, De La Iglesia R, Pieper DH, González B. Metabolic reconstruction of aromatic compounds degradation from the genome of the amazing pollutant-degrading bacterium Cupriavidus necator JMP134. FEMS Microbiol Rev. 2008;32:736–794. doi: 10.1111/j.1574-6976.2008.00122.x. [DOI] [PubMed] [Google Scholar]
  22. Quast C, Pruesse E, Yilmaz P, Gerken J, Schweer T, Yarza P, Peplies J, Glöckner FO. The SILVA ribosomal RNA gene database project: improved data processing and web-based tools. Nucleic Acids Res. 2012;41:D590–D596. doi: 10.1093/nar/gks1219. [DOI] [PMC free article] [PubMed] [Google Scholar]
  23. Rezaei R, Aghapour AA, Khorsandi H. Investigating the biological degradation of the drug β-blocker atenolol from wastewater using the SBR. Biodegradation. 2022;33:267–281. doi: 10.1007/s10532-022-09979-w. [DOI] [PubMed] [Google Scholar]
  24. Rigueto CVT, Nazari MT, De Souza CF, Cadore JS, Brião VB, Piccin JS. Alternative techniques for caffeine removal from wastewater: an overview of opportunities and challenges. J Water Process Eng. 2020;35:101231. doi: 10.1016/j.jwpe.2020.101231. [DOI] [Google Scholar]
  25. Rios-Miguel AB, Smith GJ, Cremers G, van Alen T, Jetten MSM, Op den Camp HJM, Welte CU. Microbial paracetamol degradation involves a high diversity of novel amidase enzyme candidates. Water Res X. 2022;16:100152. doi: 10.1016/j.wroa.2022.100152. [DOI] [PMC free article] [PubMed] [Google Scholar]
  26. Rutere C, Knoop K, Posselt M, Ho A, Horn MA. Ibuprofen degradation and associated bacterial communities in hyporheic zone sediments. Microorganisms. 2020;8:1–25. doi: 10.3390/microorganisms8081245. [DOI] [PMC free article] [PubMed] [Google Scholar]
  27. Salgado R, Pereira VJ, Carvalho G, Soeiro R, Gaffney V, Almeida C, Cardoso VV, Ferreira E, Benoliel MJ, Ternes TA, Oehmen A, Reis MAM, Noronha JP. Photodegradation kinetics and transformation products of ketoprofen, diclofenac and atenolol in pure water and treated wastewater. J Hazard Mater. 2013;244–245:516–527. doi: 10.1016/j.jhazmat.2012.10.039. [DOI] [PubMed] [Google Scholar]
  28. Sathishkumar P, Meena RAA, Palanisami T, Ashokkumar V, Palvannan T, Gu FL. Occurrence, interactive effects and ecological risk of diclofenac in environmental compartments and biota—a review. Sci Total Environ. 2020;698:134057. doi: 10.1016/j.scitotenv.2019.134057. [DOI] [PubMed] [Google Scholar]
  29. Shanmugam MK, Rathinavelu S, Gummadi SN. Self-directing optimization for enhanced caffeine degradation in synthetic coffee wastewater using induced cells of Pseudomonas sp.: bioreactor studies. J Water Process Eng. 2021;44:102341. doi: 10.1016/j.jwpe.2021.102341. [DOI] [Google Scholar]
  30. Sui Q, Cao X, Lu S, Zhao W, Qiu Z, Yu G. Occurrence, sources and fate of pharmaceuticals and personal care products in the groundwater: a review. Emerg Contam. 2015;1:14–24. doi: 10.1016/j.emcon.2015.07.001. [DOI] [Google Scholar]
  31. Suleiman M, Daugaard U, Choffat Y, Zheng X, Petchey OL. Predicting the effects of multiple global change drivers on microbial communities remains challenging. Glob Chang Biol. 2022;28:5575–5586. doi: 10.1111/gcb.16303. [DOI] [PMC free article] [PubMed] [Google Scholar]
  32. Summers RM, Mohanty SK, Gopishetty S, Subramanian M. Genetic characterization of caffeine degradation by bacteria and its potential applications. Microb Biotechnol. 2015;8:369–378. doi: 10.1111/1751-7915.12262. [DOI] [PMC free article] [PubMed] [Google Scholar]
  33. Thiele-Bruhn S. Pharmaceutical antibiotic compounds in soils—a review. J Plant Nutr Soil Sci. 2003;166:145–167. doi: 10.1002/jpln.200390023. [DOI] [Google Scholar]
  34. Vieno N, Sillanpää M. Fate of diclofenac in municipal wastewater treatment plant — a review. Environ Int. 2014;69:28–39. doi: 10.1016/j.envint.2014.03.021. [DOI] [PubMed] [Google Scholar]
  35. Winker M, Faika D, Gulyas H, Otterpohl R. A comparison of human pharmaceutical concentrations in raw municipal wastewater and yellowwater. Sci Total Environ. 2008;399:96–104. doi: 10.1016/j.scitotenv.2008.03.027. [DOI] [PubMed] [Google Scholar]
  36. Wu S, Zhang L, Chen J. Paracetamol in the environment and its degradation by microorganisms. Appl Microbiol Biotechnol. 2012;96:875–884. doi: 10.1007/s00253-012-4414-4. [DOI] [PubMed] [Google Scholar]
  37. Yi M, Sheng Q, Lv Z, Lu H. Novel pathway and acetate-facilitated complete atenolol degradation by Hydrogenophaga sp. YM1 isolated from activated sludge. Sci Total Environ. 2022;810:152218. doi: 10.1016/j.scitotenv.2021.152218. [DOI] [PubMed] [Google Scholar]
  38. Zhang X, Kong D, Liu X, Xie H, Lou X, Zeng C. Combined microbial degradation of crude oil under alkaline conditions by Acinetobacter baumannii and Talaromyces sp. Chemosphere. 2021;273:129666. doi: 10.1016/j.chemosphere.2021.129666. [DOI] [PubMed] [Google Scholar]
  39. Zheng Y, Zhou Z, Ye X, Huang J, Jiang L, Chen G, Chen L, Wang Z. Identifying microbial community evolution in membrane bioreactors coupled with anaerobic side-stream reactor, packing carriers and ultrasonication for sludge reduction by linear discriminant analysis. Bioresour Technol. 2019;291:121920. doi: 10.1016/j.biortech.2019.121920. [DOI] [PubMed] [Google Scholar]
  40. Zhuang H, Hong X, Han H, Shan S. Effect of pure oxygen fine bubbles on the organic matter removal and bacterial community evolution treating coal gasification wastewater by membrane bioreactor. Bioresour Technol. 2016;221:262–269. doi: 10.1016/j.biortech.2016.09.029. [DOI] [PubMed] [Google Scholar]
  41. Żur J, Piński A, Marchlewicz A, Hupert-Kocurek K, Wojcieszyńska D, Guzik U. Organic micropollutants paracetamol and ibuprofen—toxicity, biodegradation, and genetic background of their utilization by bacteria. Environ Sci Pollut Res. 2018;25:21498–21524. doi: 10.1007/s11356-018-2517-x. [DOI] [PMC free article] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Data Availability Statement

We confirm that all data (sequencing data, R code) are submitted to a public deposit (NCBI SRA PRJNA954188) and on github (Marcel29071989).
