Enhancing bone formation using absorbable AZ31B magnesium alloy membranes during distraction osteogenesis: A new material study

Abstract

Purpose

To investigate whether the use of absorble AZ31B magnesium alloys over distraction gaps improves the quality and quantity of regenerated bone better than the use of Collagen membranes.

Methods

Fifteen mixed-breed dogs were randomly divided into the experimental (n = 10) and control (n = 5) groups. In the experimental group, two devices were implanted along the mandible; one side with absorble AZ31B and the other side with Collagen. The control animals did not undergo osteotomy or distraction. After a consolidation time of two months, 30 specimens were harvested, and newly created bone was identified using CBCT and micro-CT.

Results

The Collagen membranes were absorbed completely, and the AZ31B membranes became irregular and rough. Mandible length was successfully extended approximately 1 cm. More bone formation was found after using AZ31B than Collagen, and there was a significant difference in width reduction between experimental sites treated with AZ31B (0.11 ± 0.04 cm) and Collagen (0.42 ± 0.06 cm) (p < 0.05). Trabecular thickness was also significantly higher in AZ31B (0.338 ± 0.08 cm) and control (0.417 ± 0.05 cm) than Collagen (0.178 ± 0.04 cm) (p < 0.05).

Conclusion

An AZ31B membrane barrier is biocompatible and absorbable which can maintain the distraction gap and provide support to the attached osteoprogenitors by providing space for them to proliferate.

1. Introduction

Distraction osteogenesis (DO) is a powerful tool in craniomaxillofacial surgery [[1], [2], [3]] that is based on the “law of tension-stress” introduced by Ilizarov [4]. In 1992, McCarthy performed this technique on the human mandible, and ever since, DO has become a widely accepted approach for the treatment of craniofacial deformities.

The main disadvantage of DO is the time the fixator has to stay in place, which can lead to multiple complications. However, the distraction phase cannot be accelerated as this will lead to poor bone quality. Another problem associated with DO is the possibility of having less new bone regeneration than is needed in the bone segment, causing a bottleneck bone or open gap at the distraction gap [[5], [6], [7]]. This may be caused by pressure from soft tissue or the invasion of surrounding fibroblasts into the distraction gap prior to osteoblasts, both of which can lead to incomplete bone in the distraction gap, which may cause inadequacies in the implants or even fracture [8]. Currently, there are several techniques to address these problems, such as onlay bone grafts, guided bone regeneration and using bone substitutes [9]. Additionally, several materials, including collagen, fibrin, synthetic polymers (PLA) and hydroxyapatite (HA) have been used to maintain the osteogenic space and provide support to the attached osteoprogenitor cells, by providing space for them to proliferate [10], in addition to preventing fibroblasts from migrating into the distraction gap. These materials have limitations when used on their own, including brittleness and softness, which is especially an issue for PLA and collagen [[11], [12], [13]] In this study, we investigated a membrane made of magnesium alloy AZ31B, which is a new material that has many advantages compared with other metal membranes, including biocompatibility, biodegradability, and decreasing the stress shielding effect [14,15]. Previous studies have also found AZ31B can promote new bone regeneration and decrease healing times of bone fractures, while also not requiring a second surgical procedure for its removal, due to its biodegradability [16,17].

2. Materials and methods

2.1. Materials

AZ31B (Mg–3%Al–1%Zn) magnesium alloys were provided by the Institute of Metal Research, Chinese Academy of Sciences. The chemical composition of AZ31B included aluminum (2.5%–3.5%), zinc (0.6%–1.4%), manganese (0.2%–1.0%), silicon (0.1%), iron (0.005%), copper (0.005%) and nickel (0.005%, all percentages represent weights). The magnesium alloys were fabricated as 0.5 mm thick “U” shapes, 15 mm in height and 10 mm in width. These materials degrade after 2 weeks in saline and 4–20 weeks in vivo, according to our previous study [18]. To delay degradation time, we introduced a surface barrier technique. The AZ31B magnesium alloy barrier membranes were ultrasonically cleaned in alcohol for 5 min, air dried, and then coated with fluoride (patent number: 200710159202).

Collagen membranes were obtained from (B. Braun Melsungen AG, Carl-Braun-Straße 1, 34212 Melsungen, Germany).

2.2. Animals

Fifteen 8-month-old mixed-breed dogs, weighing between 20 and 22 Kg were provided by the Experimental Animal Centre of Jinzhou Medical University (license number: SYXK(Liao)2019-0007, Liaoning, China) and were randomly divided into the experimental (n = 10) and control (n = 5) groups. In the experimental group, one side of the mandible was randomly selected as the AZ31B group and the contralateral side was the Collagen group. Control animals did not undergo osteotomy and distraction. The housing, care and experimental protocol were in accordance with the guidelines established by the Ethics Committee of Jinzhou Medical University and registered as number 15/0058. The experimental procedures were performed according to the Author's Guide Consensus on Animal Ethics and Welfare enacted by the International Association of Veterinary Editors and local and national regulations.

2.3. Surgical procedures

Before surgery, the experimental dogs were injected with 0.01 mg/kg atropine 15 min prior to the intravenous administration of 3% pentobarbital (0.1 mg/kg) by a veterinarian. Then, the dogs were given 40,000 units penicillin G Benzedrine, which was also repeated for 7 days after the operation. Subcutaneous infiltration was conducted under aseptic conditions with 4 ml of 0.5% lidocaine and epinephrine at a 1:200,000 ratio. Then a longitudinal skin incision approximately 5 cm was made along the inferior border of the mandible, and the subcutaneous, platysma, and periosteum were dissected to expose the mandible. To cover the bone gap with a magnesium membrane, we “opened” the device to 10 mm at the beginning. The distraction devices (CBX0101, Xi'an Zhongbang Titanium Biological Materials Co., Ltd., Xi'an, China) with a total action length of 20 mm were temporarily “opened” to 10 mm and attached to the bone via screws. After the device was removed, the mandible osteotomy was performed with a standard surgical reciprocating saw blade under irrigation with sterile saline solution. Then, the distraction device was reattached, and the AZ31B magnesium alloy membrane was shaped along the mandible to cover the site of the osteotomy (Fig. 1). To rotate the screw smoothly, a small incision (approximately 0.4 cm) was made near the top of the distractor rod to expose it from the mouth. The surgical incisions were then closed with 3-0 sutures. The same procedures were performed on the contralateral side of the mandible except covered with Collagen membranes.

Fig. 1.

After osteotomy, the distraction device was fixed and an AZ31B magnesium alloy barrier membrane was shaped along the mandible to cover the site of the osteotomy gap.

After 7 days, the mandible distraction was carried out at the rate of 0.9 mm/day, three times per day, for 11 consecutive days. Buprenorphine was given at 0.004 mg/kg every 12 h for pain. Food and water consumption was monitored to make sure the animals were eating and drinking properly. The progress of the distraction and consolidation was assessed through clinical observations and X-ray scans. All animals were sacrificed by intravenous pentobarbital injections (10 mg/kg) 2 months after the consolidation period, in accordance with the recommendations of the Veterinary Medical Association Panel.

Following sacrifice, the entire mandibular segments with the distractor was dissected and immersed in neutral 10% formalin for 10 days. A sliding caliper (Syntek, Sy01-150mm, Zhejiang, China) was used to measure the length, thickness and altitude of the mandibles.

2.4. Cone beam computed tomography (CBCT) measurements

To measure the width of the regenerated mandibles, dissected mandibles were scanned using a Rayscan CBCT (Samsung, Seoul, South Korea) under 80 kvp, 5 mA and 0.4 mm voxel size. The exposure time for each specimen was 30 s. The CBCT scans were saved as single DICOM files and imported into ANALYZE 3D Imaging software (Samsung, Seoul, South Korea). To obtain a precise mean value for the new mandible width, five parallel lines were made. Two of the five lines were located on the distal and mesial side of the distraction gap. After calculating the distance between them, the other equally divided three lines were made to analyze the mean mandible width value.

2.5. Micro-computed tomography (Micro-CT) measurements

After CBCT, mandibles were then sectioned for further analysis. Each side of the mandible was initially sectioned into two segments, the interest region containing new bone (approximately 0.6 cm) and native bone adjacent to the regenerated bone (approximately 0.4 cm). Regenerated and native bone blocks from both sides of the mandible were initially scanned using a micro-CT (Skyscan 1076; Skyscan Co., Antwerp, Belgium). Each specimen was placed in a midsize sample holder between the x-ray source and the camera. The micro-CT parameters were 9.5 mm pixel size, 100 kV peak, 100 mA, 0.5 mm aluminum filter, angular rotation step 0.8°, 360° scanning, 450 projections and an exposure time of 1.5 s with total scan duration of 1360 s. The total area of the distraction gap and native bone were outlined on each scanned image as the region of interest. The serial scanned images of each specimen were analyzed using version 1.14.4.1 Bruker micro-CT software (Kontich, Belgium). The final obtained parameters included: 1) trabecular thickness (Tb.Th), determined as the diameter of spheres filling the bone structures and providing detailed microstructure parameters, 2) trabecular number (Tb.N), determined as the inverse of the mean distances of the skeletonized bone structure, 3) trabecular spacing (Tb.Sp), determined as the diameter of spheres filling the marrow spaces, 4) bone mineral density (BMD), defined as the total mineral content of the newly remodeled bone, which is an important indicator of bone strength and 5) bone volume fraction (BV/TV), which indicates the degree of bone tissue volume in cancellous bone (described in detail by Hildebrand & Ruegsegger) [19].

2.6. Statistical analysis

Statistical evaluations of the clinical and CBCT examinations were done with independent Student's t-tests. The Tb.Th, Tb.N, Tb.Sp, BMD and BV/TV results were analyzed with two-way analysis of variance (ANOVA) parametric tests. All calculations were carried out using SPSS version 17.0 (IBM, Armonk, NY, USA). Results were accepted as statistically significant at a value of P < 0.05.

3. Results

3.1. Clinical evaluation

The progress of distractor activation, stability, signs of infection and eating habits were followed up clinically and radiographically. One dog died due to digestive infection and was replaced. The surgical/distraction procedure went smoothly in the remaining animals, although, three animals showed a little discomfort. Mild wound swelling around the incisions were found on the AZ31B sides and lasted for 10 d; on the Collagen sides these only lasted 4 d. As expected, at the time of sacrifice the dogs in the distracted groups developed an overgrowth of their lower jaws, with average lengths of 16.02 ± 0.34, 15.97 ± 0.54 and 15.05 ± 0.39 cm in the AZ31B, Collagen and control groups, respectively. The mean mandible prolonged length in the experimental groups was 0.95 ± 0.11 cm longer than controls. After dissection, all distracter devices maintained adequate stability to mandibles. As the integrity of the magnesium alloy disappeared, the surface became irregular and rough due to biodegradation. New bone formation was found on and under the devices in the AZ31B group. The Collagen membranes were absorbed completely, and the bone surface was smooth but shaped like a bottleneck (Fig. 2). The difference in width of the new bone was statistically significant between the experimental and control groups (P < 0.05). No significant difference was found between the groups in alveolar height (Table 1).

Fig. 2.

The mandibular with the distractor was dissected after the consolidation period. Co: Group Collagen, Obvious depressions can be seen on both sides and the surface is smooth. AZ: Group AZ31B, There are no obvious depressions on both sides, and the surface is uneven.

Table 1.

Group comparison (mean ± SD) for mandible length, height, width (cm).

	length	height	width
AZ31B	16.02 ± 0.34	2.89 ± 0.13	1.47 ± 0.1
Collagen	15.97 ± 0.54	2.87 ± 0.22	1.16 ± 0.05
control	15.05 ± 0.39	2.93 ± 0.36	1.58 ± 0.12
Difference A	0.97 ± 0.06	0.04 ± 0.00	0.11 ± 0.04
Difference C	0.92 ± 0.04	0.05 ± 0.01	0.42 ± 0.06∗

Difference A, C：The difference between Group AZ31B and control; Collagen and control. ∗ The width difference between AZ31B and Collagen (P＜0.05).

3.2. CBCT evaluation

CBCT analysis showed that the width of new bone (distance between the buccal and lingual mandible) induced by distraction was 1.48 ± 0.25 cm for the AZ31B group, 1.14 ± 0.13 cm for the Collagen group and 1.62 ± 0.12 cm for controls (Fig. 3). The width was reduced by 0.14 ± 0.05 cm and 0.48 ± 0.05 cm in the AZ31B group and the Collagen group, respectively, compared to controls. The increased bone width can be explained by the higher mechanical strength provided by the AZ31B membrane barrier, which allowed more space for osteoblasts to proliferate and prevented fibroblast invasion better than low strength Collagen.

Fig. 3.

The width between the buccal and lingual of the mandible was measured by CBCT, and the results showed AZ31B: 1.48 ± 0.25 cm, Collagen: 1.14 ± 0.13 cm and control: 1.62 ± 0.12 cm. The wider bone width suggests that the higher mechanical strength of AZ31B provides more space for osteoblasts to proliferate than low strength Collagen.

3.3. Micro-CT evaluation

All experimental mandibles, including from the AZ31B and Collagen groups, showed the presence of an almost integrated cortical bone and a well-defined alveolar canal. A dense trabecular network was visible in all segments through high resolution micro-CT images in all groups. However, much thinner bone and less newly formed trabecular bone were found in the distracted callus from the Collagen group (Fig. 4) compared with the AZ31B group (Fig. 5). The structures treated with AZ31B magnesium alloy were similar to the adjacent bone, displaying a dense cortical bone-like structure peripherally and a large region of newly formed trabecular bone in between (Table 2). Tb.Th was significantly higher in the AZ31B (0.338 ± 0.08) and control groups (0.417 ± 0.05) than the Collagen (0.178 ± 0.04) group (P < 0.05). Tb.Sp was significantly lower in the Collagen group than the controls (P < 0.05). Higher Tb.N, BMD and Bv/Tv results were found in the AZ31B group than the Collagen group; however, these results were not significantly different.

Fig. 4.

Micro-CT images from the Collagen group showed a thinner mandible with a bottleneck and less newly formed bone trabecular. Smooth bone surfaces and a clearly alveolar canal were found.

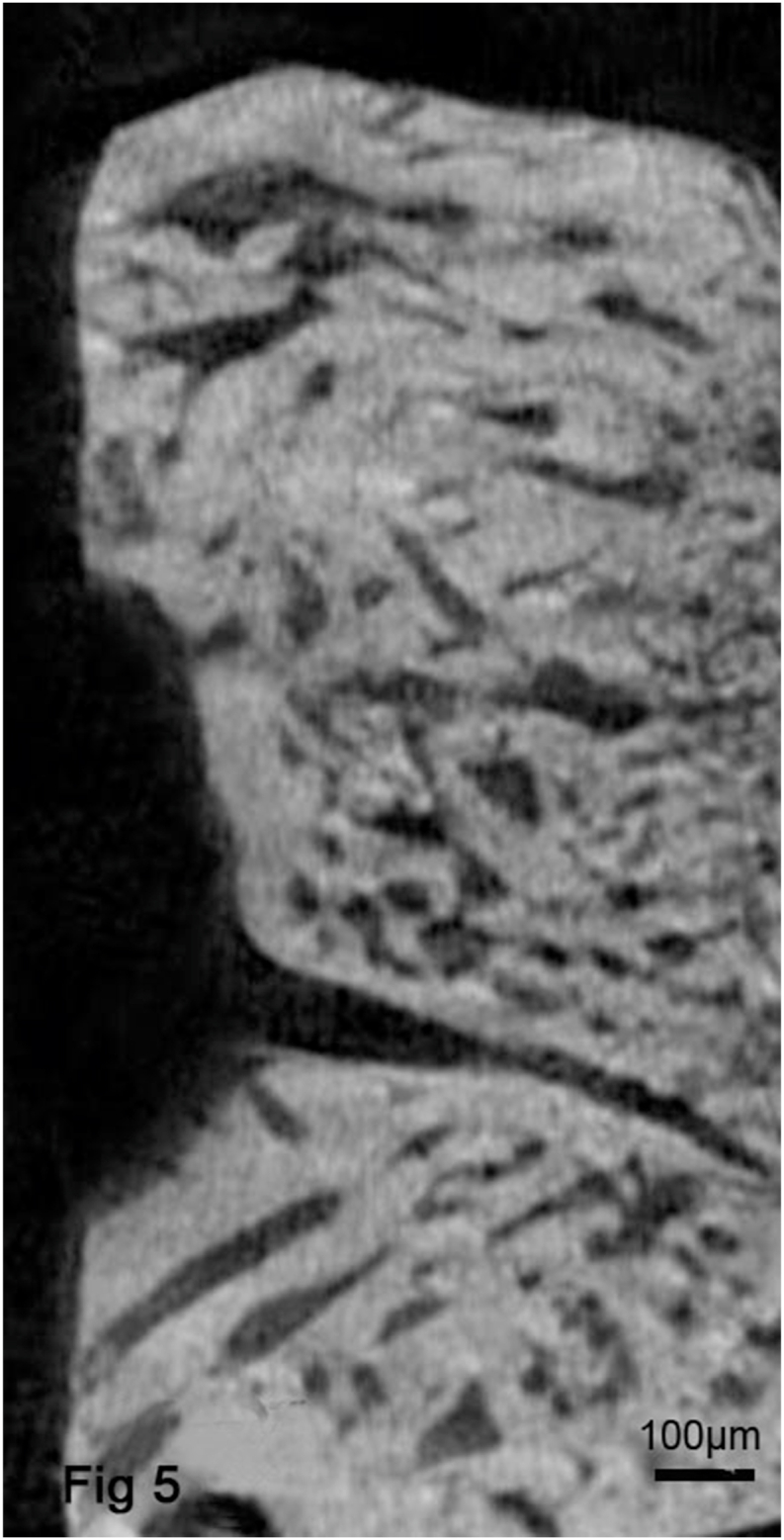

Fig. 5.

Micro-CT images from the AZ31B group showed a rough and uneven bone surface and the thick trabecular bone similar to that of adjacent bone. From the analysis of these images, significantly higher Tb.Th, and lower Tb.Sp were obtained.

Table 2.

The quantitative analysis of all groups through micro-CT examination. (mean ± SD).

	Tb.Th (цm)	Tb.N (1/цm)	Tb.Sp (цm)	BMD (mg/цm2)	Bv/Tv (%)
AZ31B	0.338 ± 0.08∗	5.066 ± 0.31	0.145 ± 0.47	6.79 ± 0.13	0.68 ± 0.02
Collagen	0.178 ± 0.04＃	4.824 ± 0.54	0.197 ± 0.37＃	5.04 ± 0.08	0.57 ± 0.05
control	0.417 ± 0.05	7.352 ± 0.29	0.094 ± 0.35	8.37 ± 0.09	0.83 ± 0,06

∗p＜0.05: AZ31B vs Collagen.

^＃p＜0.05: Collagen vs control.

4. Discussion

Distraction with membrane addition is a promising method to promote new bone formation. Theoretically, using a mechanical hindrance such as a membrane can prevent fibroblasts and other soft connective tissue cells from entering the bone defect, allowing osteogenic cells to fill the distraction gap and repopulate the bone. This not only increases the volume of new bone, but also prevents fibrotic growth in the distraction gap. Although concave bone defects are frequently seen in the clinic, only a few studies about them have been reported. Klug et al. [20] performed vertical distraction in 10 patients (13 sites) and 3 patients (4 sites) resulting in concave defects. For this reason, Klug applied titanium membranes in the distraction gap to prevent the invasion of the soft tissues into the distraction gap. At the end of treatment, the membranes and distractors were removed and alveolar height was sufficient to make dental implantation. In 2004, Elshahat et al. [21] reported that use of a collagen membrane could prevent rapidly migrating fibroblasts from entering the site of an osteotomy with a high distraction ratio in 14 rabbits. After 4 weeks of consolidation, they obtained better quantity bone in the membrane group than in the controls. Together, these studies demonstrated that barrier membranes can increase the quantity of bone during distraction osteogenesis.

Numerous barrier membranes are grouped as non-resorbable and require a second surgery for removal [22,23]. In contrast, resorbable membranes are often made of natural or synthetic polymers and undergo an unpredicted degree of resorption, which can alter the mechanical strength of the membrane or even cause it to collapse into the space, leading to a failed reconstruction. Non-resorbable membranes include polytetrafluoroethylene (PTFE) and titanium mesh. Compared with other resorbable membranes, these can maintain the space beneath the membrane for a sufficient period to treat bone defect.

In recent years, new innovative magnesium alloys have been intensively investigated as potential resorbable materials ¹³ with appropriate mechanical and corrosion properties for these procedures. Particularly, the mechanical properties of magnesium alloys are close to those of natural bone, preventing both stress shielding and the not need to remove the implant after surgery [[24], [25], [26]]. Magnesium alloys are also very active alloys that can dissolve and turn into magnesium and zinc ions [27], releasing hydrogen when immersed in a phosphate bath. Zhang et al. also tested the production of hydraxide ions, demonstrating that the pH increases only for the first few days, then reaches equilibrium after two weeks. This stable neutral pH promotes cell proliferation and maintains a safe environment for cells [28]. Furthermore, Zhang [18] showed that the regulation of magnesium occurs in the kidney, where excess is excreted in the urine, suggesting magnesium and other metal elements have no toxic effects on the liver, kidneys and blood composition. To take advantage of absorbable membranes, and at same time, avoid the drawbacks of non-absorbable membranes, a membrane made of AZ31B magnesium alloy coated with fluoride was used to maintain the osteogenic space, and to allow the attached osteoprogenitor cells to proliferate. The amount of hydrogen gas production is dependent on the corrosion rate of the magnesium alloy, although it did not become clinically visible. To depress its corrosion rate, a binary fluoride-coated magnesium alloy was created to improve degradation kinetics. The decreased electrical conductivity of the fluoride insulates the magnesium alloy membrane from the surrounding tissue fluid (patent application number 200710159202.0). Through this method, we hope to take advantage of magnesium alloys to get high calcium and magnesium ion concentrations to accelerate the deposition of biological calcium phosphate on the surface of the membrane and stimulate cell proliferation.

According to Berglund et al. [29] magnesium implants are almost completely degraded after 6 weeks, and as the alloy degrades it is consistently replaced by bone. At this time point, hydrogen gas formed during degradation process was not observed, suggesting degradation is slower and gas was systemically absorbed. To further test the influence of direct exposure to magnesium alloys, Charyeva et al. evaluated the reactions of humans to cellular debris. From these experiments, they found that the number of viable cells in the presence of Mg₂Ag was high over the entire observation period [30]. Thus, they concluded that magnesium-based materials are beneficial for orthopedic and dental applications. Like those previous studies, we also found mild wound swelling in mandibles of the AZ31B group. However, this mild swelling only lasted for 10 days, then, slowly dissipated. Additionally, hydrogen gas was not observed; thus, we hypothesize that, fluoride coating technology is effective to decrease the degradation rate of magnesium and reduce infections and swelling.

Significant differences in new bone width reduction (AZ31B: 0.14 ± 0.05 cm and Collagen: 0.48 ± 0.05 cm) (Table 1) indicate that magnesium alloy barrier membranes can maintain the distraction gap better than low strength Collagen and provide more space for attached osteoprogenitor cells to proliferate. Another possibility is that during the degradation process the AZ31B alloy was consistently replaced by bone matrix along the surface of the membrane. Thus, bone width in AZ31B (1.48 ± 0.25 cm) was close to that of controls (1.62 ± 0.12 cm).

The increase in trabecular volume and mineral content translated to an increase in strength [31]. From micro-CT evaluation, during distraction osteogenesis, increased results were found in Tb.N, BMD and Bv/Tv; however, there was no significant difference between AZ31B and Collagen. Whereas, dramatically increased Tb.Th was found in AZ31B. This finding indicates that AZ31B magnesium alloy helped to increase Tb.N, BMD and Bv/Tv, especially to recover trabecular thickness. Moreover, previous studies have demonstrated that the release of free Mg²⁺ ions during the biodegradation process can contribute to enhanced activity of osteoblasts and a consequent increase in bone quantity [25,32]. Both the reduced Tb.Sp (0.145 ± 0.47) as well as the tendency to a higher Tb.Th around the magnesium membrane indicates a more mature bone and a better mechanical support in the process of osseointegration. Another hypothesis is that magnesium, as a key component of the ribosome that translates the genetic information encoded by mRNA into polypeptide structures [33], is an indispensable osteogenic stimulus for the initiation of fracture healing.

Micro-CT is a validated method for 3D quantitative structural analysis of bone, but does not give insight into the cell population, mineral apposition rate as bone histomorphometry does. In future studies, we will further evaluate the histology and structure, including osteoblasts and osteoclast reactions after AZ31B magnesium implantation.

5. Conclusions

No inflammatory responses or side effects were found during this study, showing that AZ31B magnesium alloy is a biocompatible and absorbable material that combines the advantages of traditional metallic implants and biodegradable polymers. An AZ31B membrane barrier can maintain the distraction gap and provide support for attached osteoprogenitor cells and space for them to proliferate. Finally, the use of magnesium barrier membranes to promote bone regeneration and exclude other cells such as epithelium and connective tissue cells is feasible.

Author contribution statement

Zhao Guiran: Conceived and designed the experiments; Performed the experiments; Wrote the paper.

Wang Shu: Performed the experiments; Analyzed and interpreted the data.

Wang Guijun: Performed the experiments; Analyzed and interpreted the data; Wrote the paper.

Zhang Bin: Performed the experiments; Contributed reagents, materials, analysis tools or data; Wrote the paper.

Huang Han: Performed the experiments; Contributed reagents, materials, analysis tools or data.

Yao yusheng: Conceived and designed the experiments; Analyzed and interpreted the data; Wrote the paper.

Data availability statement

Data included in article/supp. material/referenced in article.

Funding statement

This study was supported by the Science and Technology Research of Liaoning Education Department (No. JYTJCZR2020081).

Ethics approval

Our study was approved by the Ethics Committee of Jinzhou Medical University and registered as number 15/0058.

Statement of clinical relevance

Distraction osteogenesis with guided bone regeneration is a promising treatment for deformity and bone defects in the oral and maxillofacial area. Our findings will provides a good theoretical reference for clinicians in planning therapeutic approaches for such patients.
